One-011 "ProtoType"

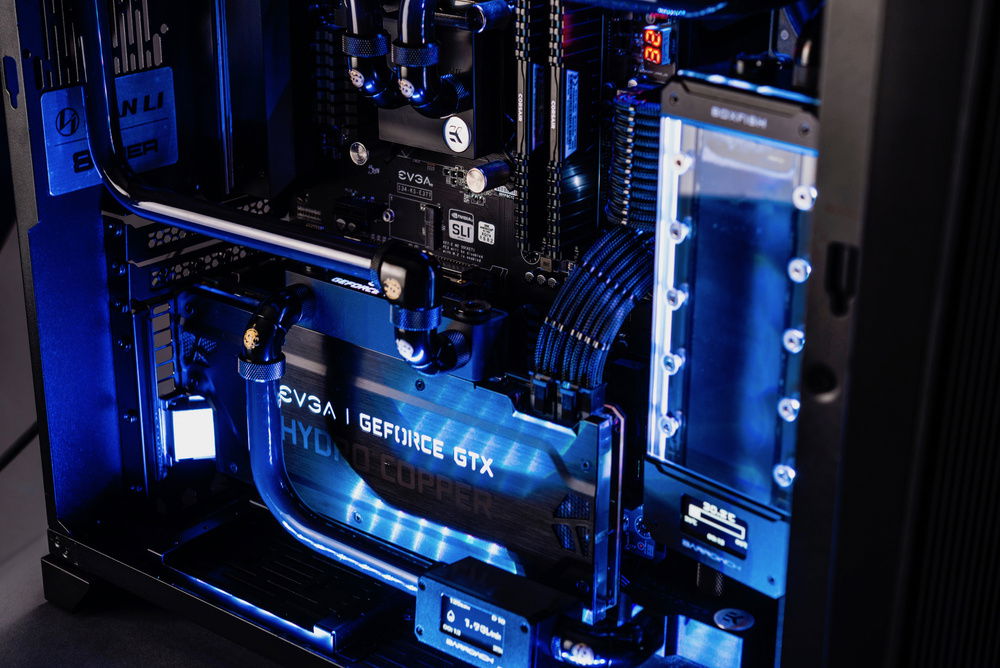

Thanks for stopping by and having a look! My goal with this(unsponsored) build was to leverage the airflow design of this case in conjunction with water cooling to get a clean, quiet and cool running build. My inspiration for this was a build done by GGF, but I changed the cooling layout, RGB, Custom wiring, etc. I realize this case is designed for air cooling, however one large advantage of this case is its ability to run 9 case fans with a 90-degree card mount. This is not possible in the 011 Dynamic due to the front glass panel and the mounting of the pump on the bottom of the case. The 90-degree card mount really showcases the beauty of the EVGA Hydro copper water block. It also does a great job of covering up ugly wiring at the bottom of the MOBO such as the USB 3.0 header and other front panel interconnects.

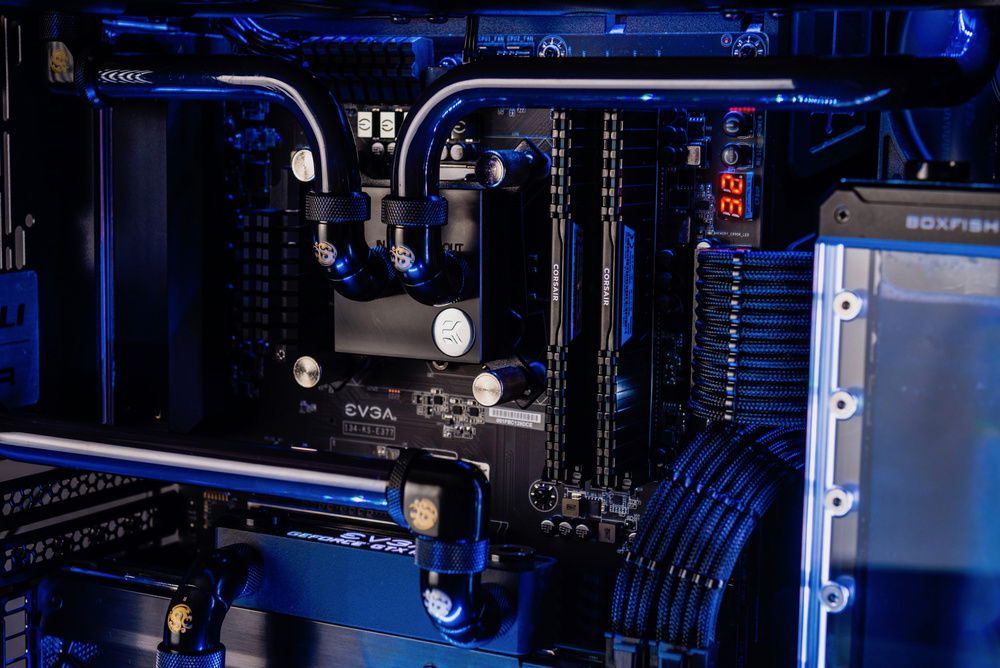

Cooling is a full custom water loop with two 360 radiators, a DDC pump, EK CPU block and an EVGA GPU block. The control system for the cooling is an Aqua Computer Quadro. This little device is truly amazing for its ability to control 9 fans, the pump and manage the temp sensors. (not to mention it can control LEDs, however I did not use that feature on this build). The Aqua suite water cooling fan curve and pump curve controller make this system run quiet and efficiently. A huge advantage of the Quadro is that once programmed it is pretty much a set it and forget it device. So, for those who are running multi operating systems it will run perfectly without having to install its software when running a different OS such as Linux.

The top radiator was relocated by drilling out the case to move the radiator back towards the IO panel. This was done for two reasons, the first being that it was necessary to move the radiator back so the top fan on the front of the case would fit, and second to give clearance to one of the hard lines from the top radiator so that it didn't get blocked by the MOBO's IO panel. Moving the radiator required me to make a new bracket and trim up the plastic of the top cover so that it would fit. Also, the top of the case was drilled for fill and drain ports to ease coolant change.

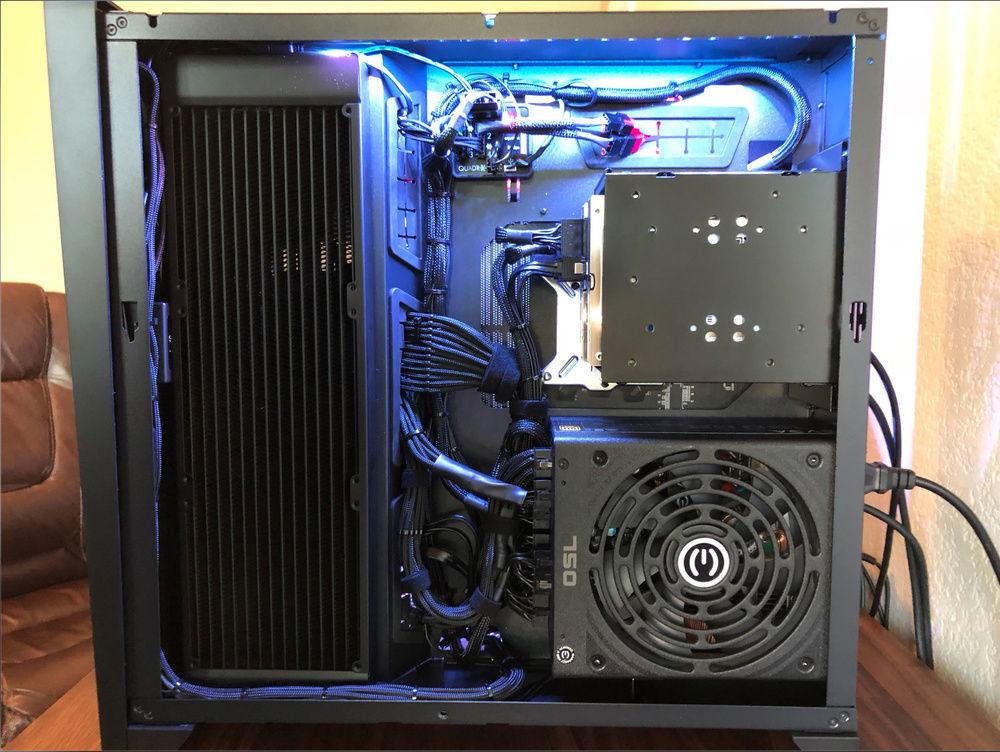

Custom wiring was done to clean up the case and to show off the clean look of black cable sleeves. For the most part all wires are simply modified to remove the bundled inline capacitors from the MOBO side and move them to the power supply side of the wire. Additionally, I rewired the pump, Quadro, and LEDs to run off the same 4 pin Molex-AMP connector stack. I leveraged the power split in the connector so that one Molex could power two items, one that ran on +5v and one that ran on +12v.

If you have any questions please let me know!

Here is the total parts list, sorry for not being able to itemize all parts in the parts list. This build is a touch over 4k in parts.

CPU: I7 8700K Coffee Lake 6 Core/12 thread (4.7 GHz Turbo) Mother board: EVGA Z370 FTW Mother Board GPU: EVGA 1080 TI SC2 Hybrid RAM: Corsair Vengeance LPX 16GB (2x8gb) DDR4 3000 Case: LIAN Li PC-011 AIR Black SECC Mid Tower Storage: Intel 760P M.2 2280 (512gb) Nvme Storage: Samsung 860 Evo (1TB) SSD Storage: WD Blue (1TB) HDD x2 Power Supply: EVGA Super Nova G2 PSU 750 watt Case: LIAN Li 90 -degree GPU bracket kit Fans: 9 EK-Furious Vardar EVO 120BB fans WaterCooling: PETG tubing 16mm Hard tubes WaterCooling: Bitspower fittings including temp sensors WaterCooling: Barrowch Flow Meter OLED WaterCooling: Barrowch Boxfish OLED 200mm Reservoir WaterCooling: EK supremacy EVO-Acetal CPU water block WaterCooling: Aqua computer QUADRO fan and pump controller WaterCooling: EK-XTOP DDC PWM Elite-Acetal Coolant Pump WaterCooling: EK-Coolstream SE 360mm Radiator 28mm thick WaterCooling: EK-Coolstream XE 360mm Radiator 60mm thick WaterCooling: EVGA Hydro Copper Water block for GTX 1080 TI SC2 RGB Lighting: DeepCool RGB360 LEDs case lights Power connectors, Wire, terminals, heat shrink, Sleeve for custom wiring and bits from Phobya, Cable mod, and EK such as y connectors and adaptors.

Color(s): Black
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 175.42
Intel - Core i7-8700K
Socket: LGA 1151
Cores: 6
Integrated Graphics: Yes
Motherboard
$ 398.86
EVGA - Z370 FTW
Chipset: Z370
CPU Socket: LGA 1151
Size: ATX
Memory
$ 24.99
Corsair - Vengeance LPX (3000MHz) (Black)
Type: DDR4
Capacity: 8 GB
Graphics
$ 999.99
EVGA - SC2 Hybrid
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
$ 137.29
Samsung - 860 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 89.99
Samsung - 970 EVO 500 GB M.2 NVMe SSD
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
Storage
$ 120.05
Western Digital - Desktop Performance WDBSLA0020HNC
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
PSU
$ 179.98
EVGA - SuperNOVA 750 G2
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 236.06
Lian Li - PC-O11AIR
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 71.99
Cooling
Barrow - Reservoir
Type: Custom Loop
Cooling
Bitspower - Fittings
Type: Custom Loop
Cooling
$ 209.06
EKWB - CoolStream PE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 50.00
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 99.99
EKWB - EK-Supremacy EVO
Type: CPU Waterblock
Cooling
EKWB - Pump
Type: Custom Loop
Cooling
EVGA - Hydro Copper
Type: GPU Waterblock
