CaseLabs TX10 Ultimate

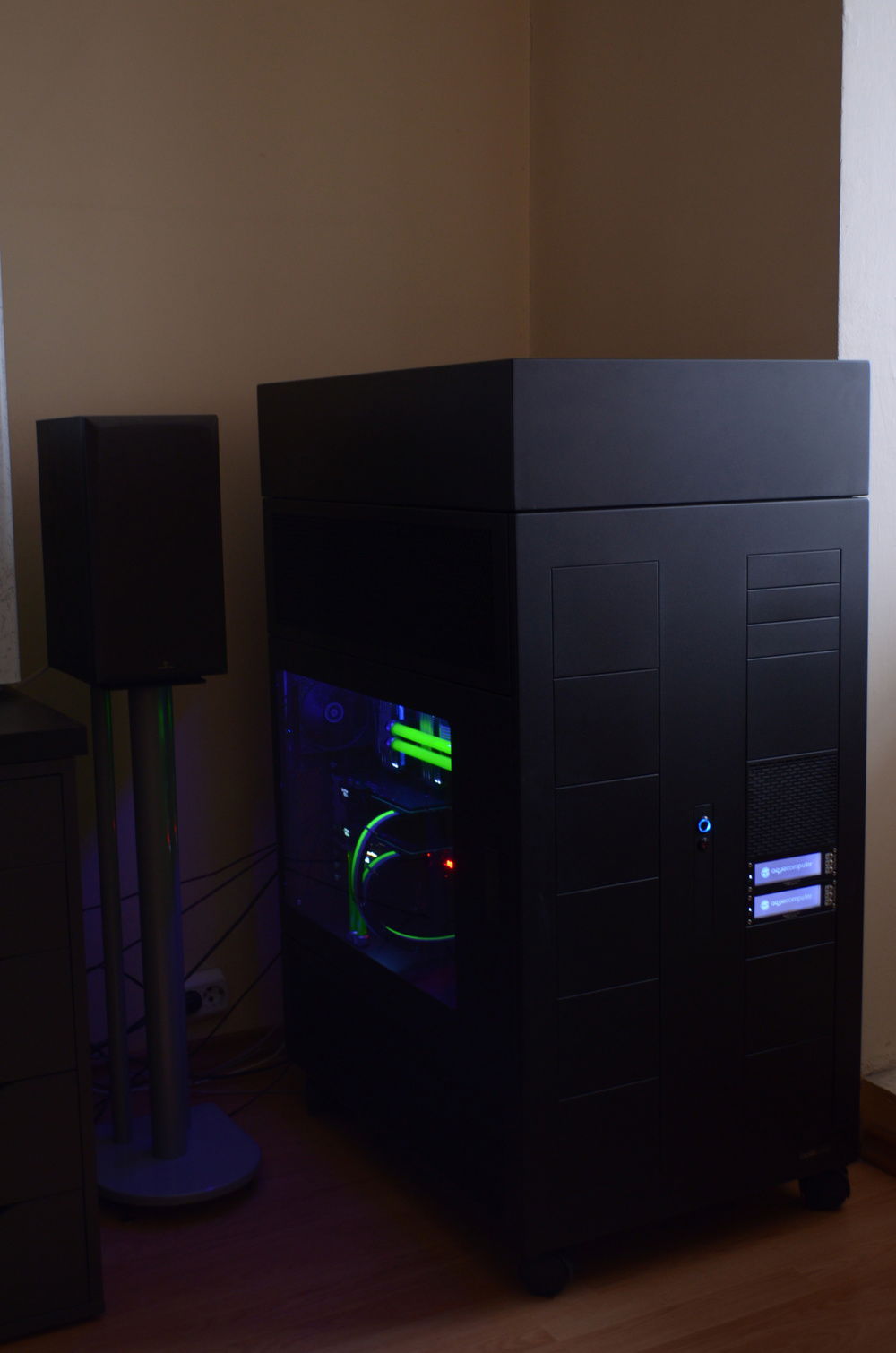

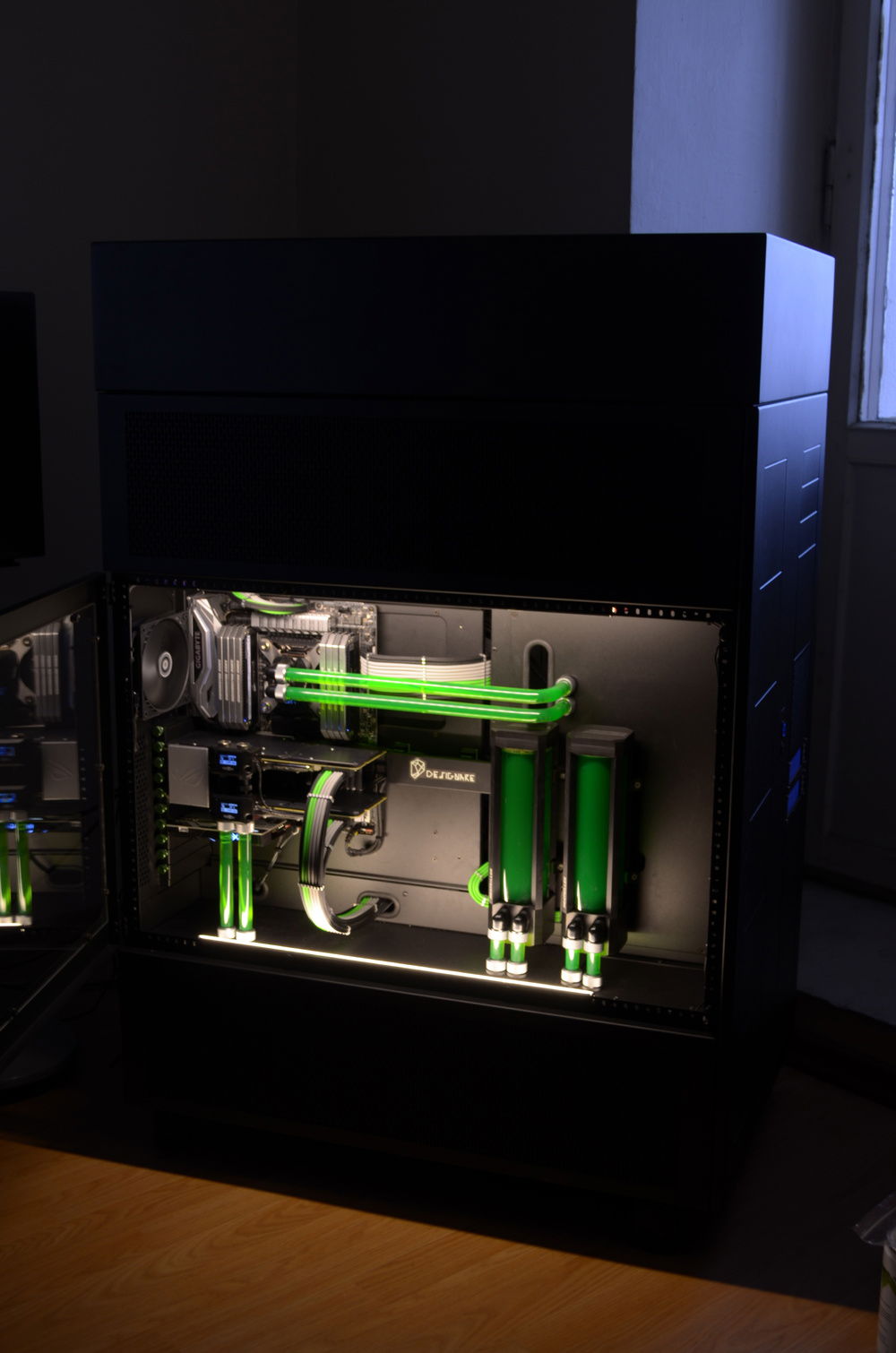

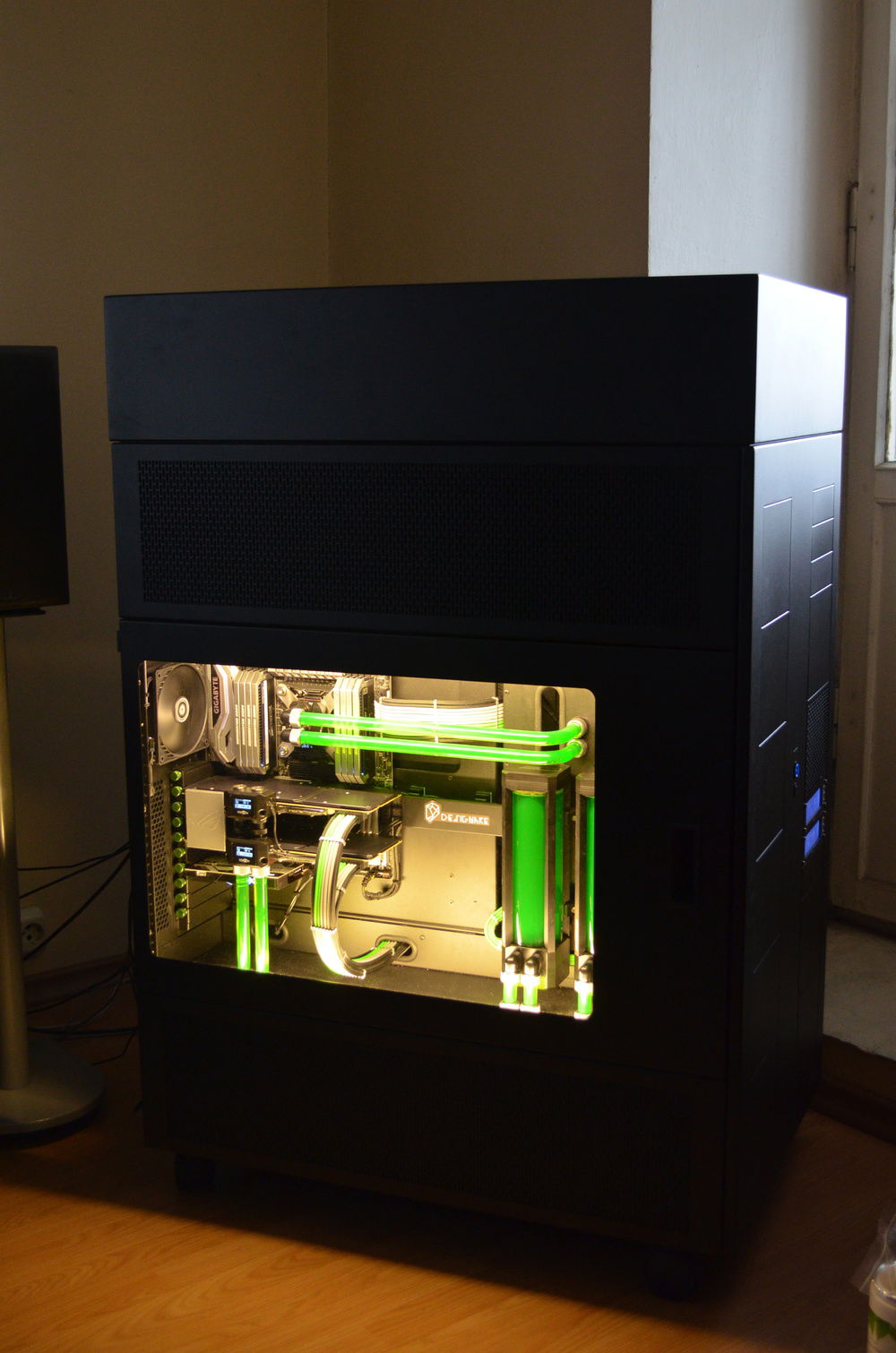

Hey everyone, I present you my latest case upgrade (and I guess it's a final case upgrade) - enormous CaseLabs TX10! I've always wanted a CaseLabs case but it was too expensive to bring it to my country, and I found this one NEW in a deadstock at one of the modding stores here for really really cheap. For such a case I tried to acquire the highest quality (thus mostly not mainstream) parts.

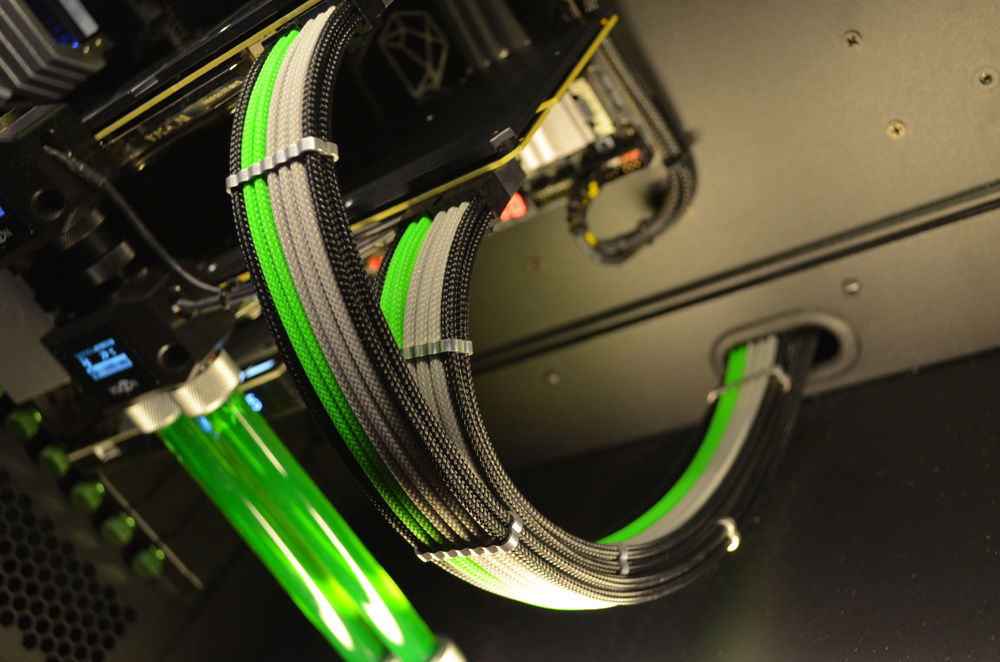

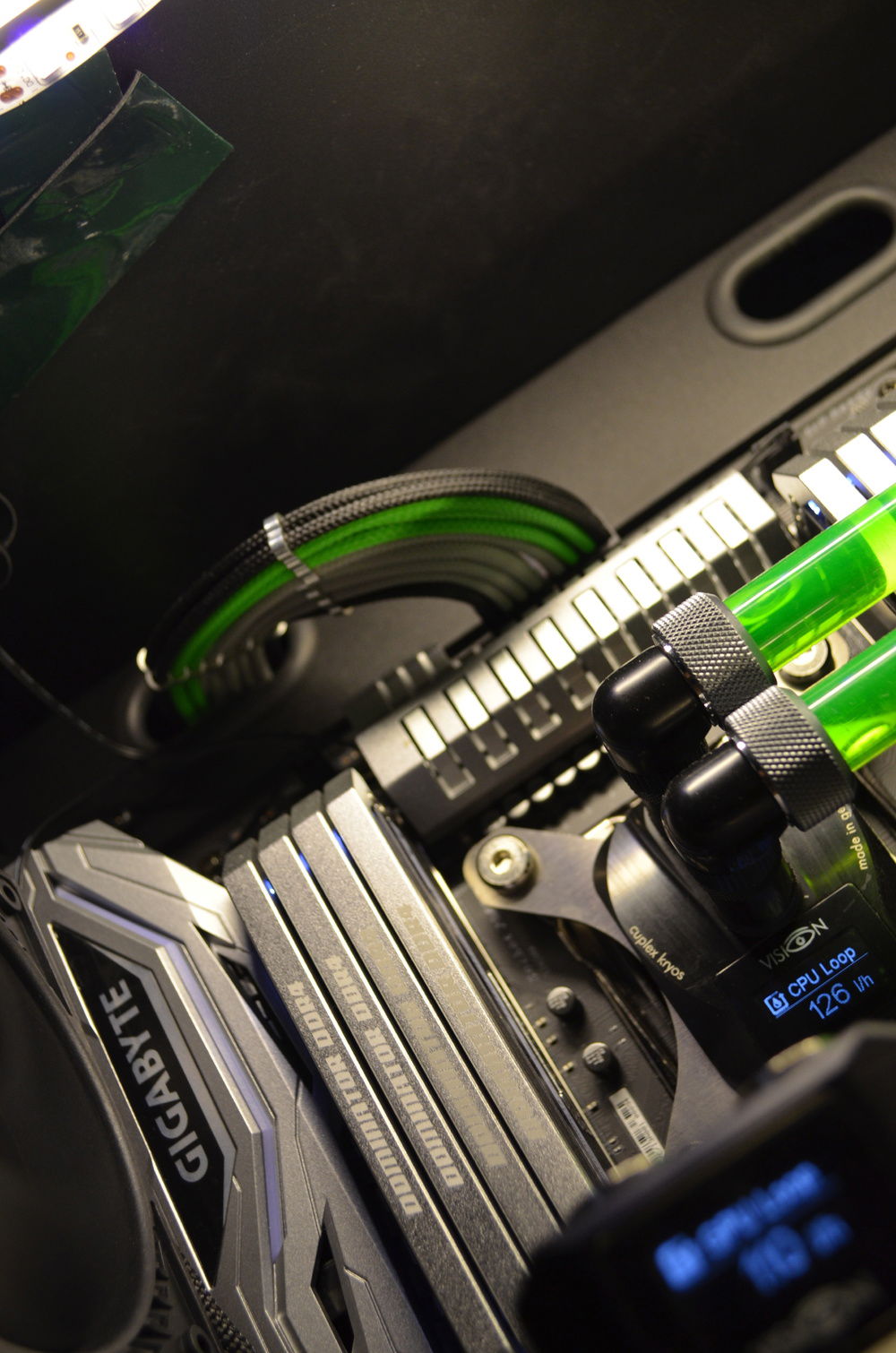

Cables are made from scratch using AWG 15 wires and MDPC-X sleeving along with aluminum cable combs.

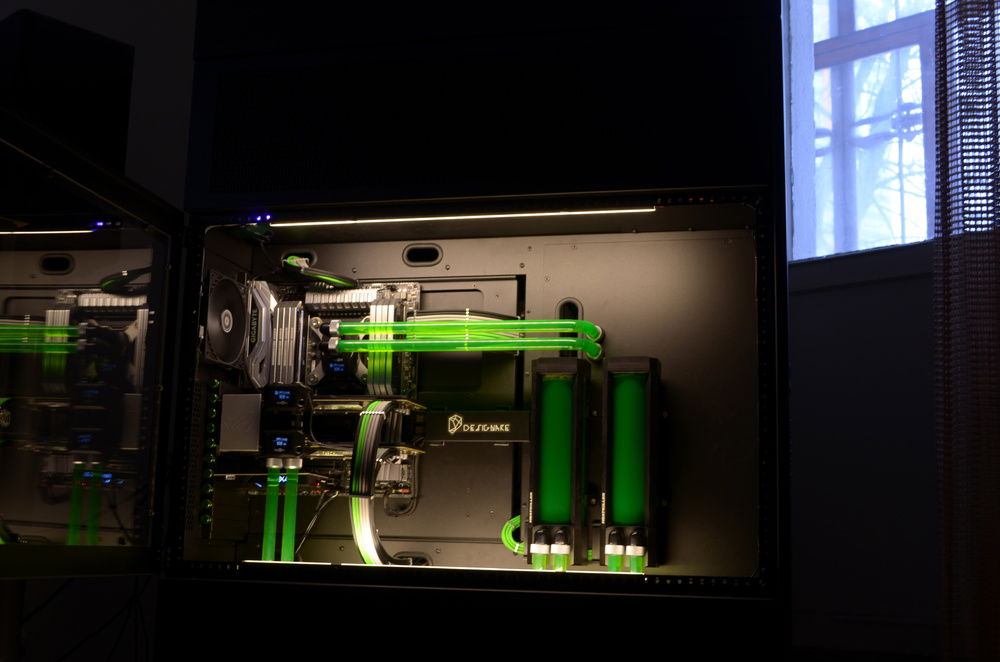

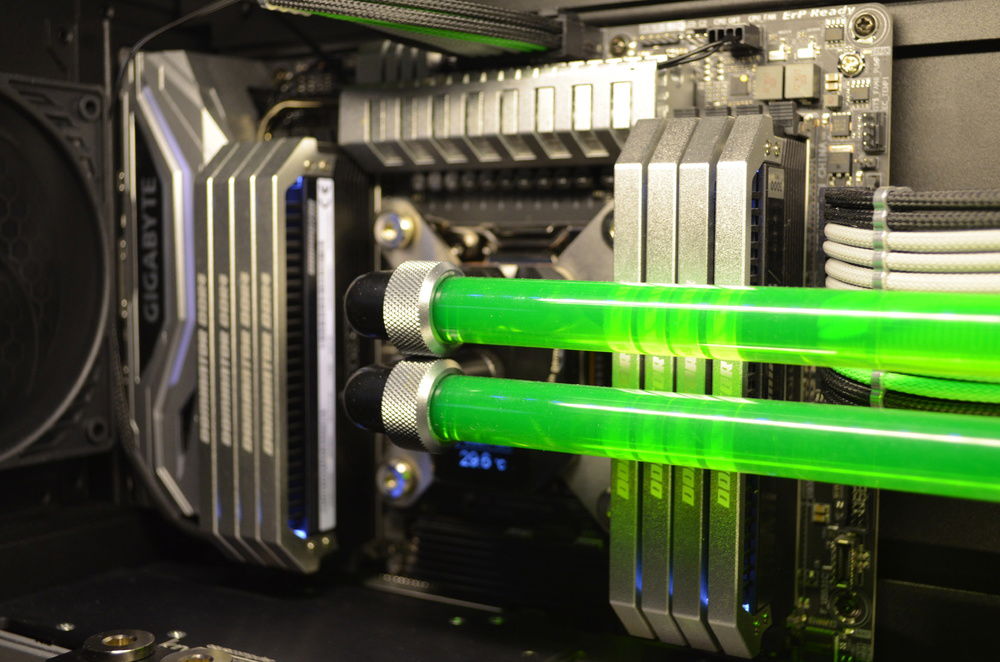

Visible tubing is Mayhems 16 mm OD borosilicate glass.
Fittings and pass-throughs by Barrow.

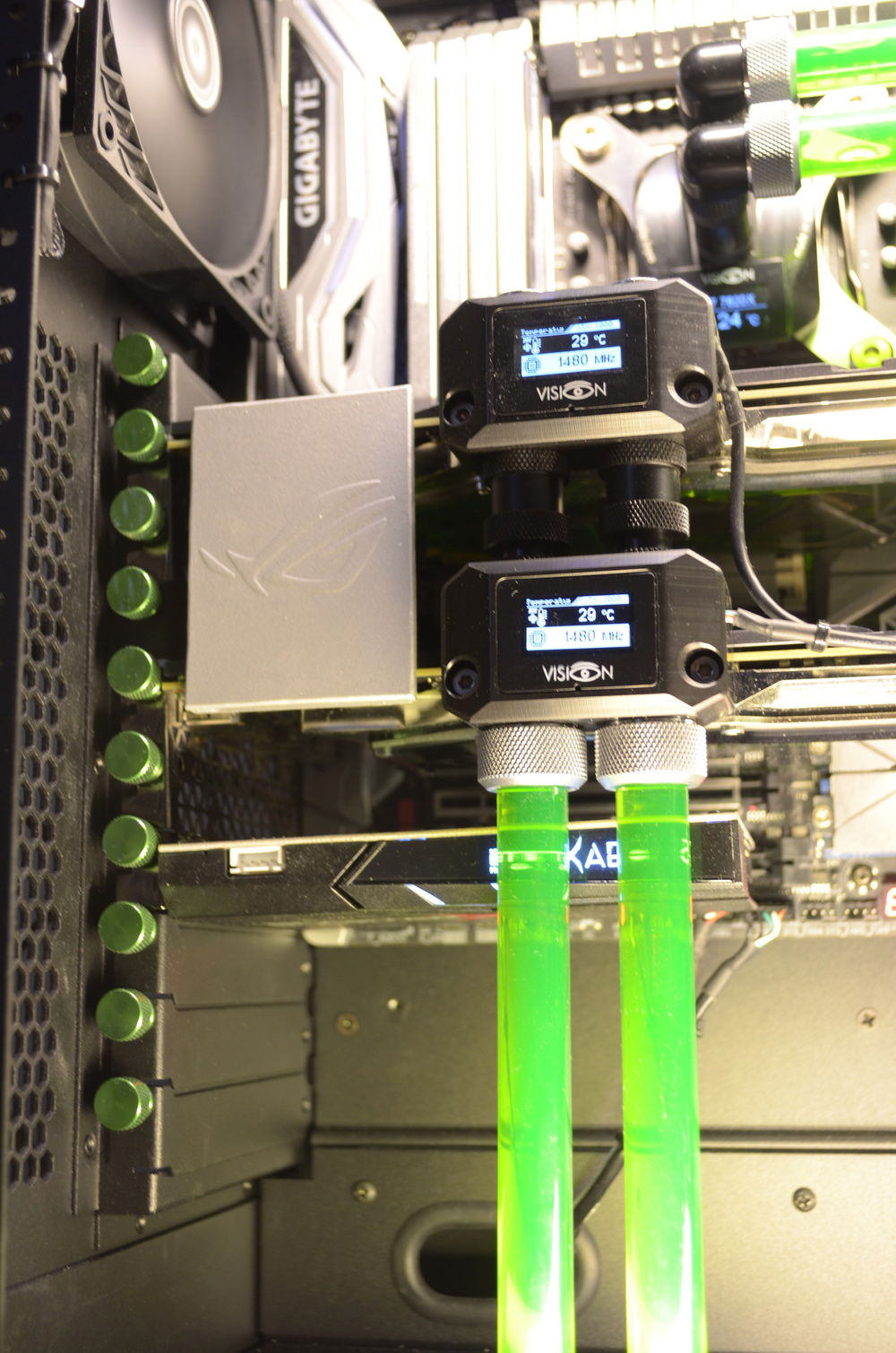

Cooling features two independent loops driven by DDC 3.2 PWM pumps.

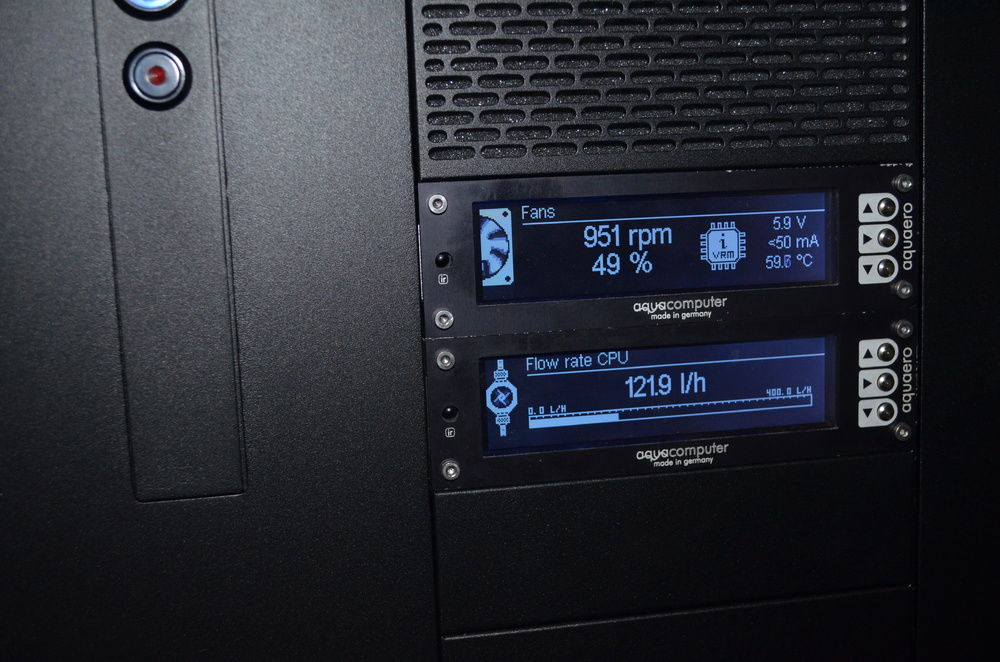

Fans are spinning only at 500 RPM that's why I went for not expensive Arctic ones. Load temperatures don't exceed 40C on GPUs and 55C on CPU. Each loop has two Hardware Labs radiators.

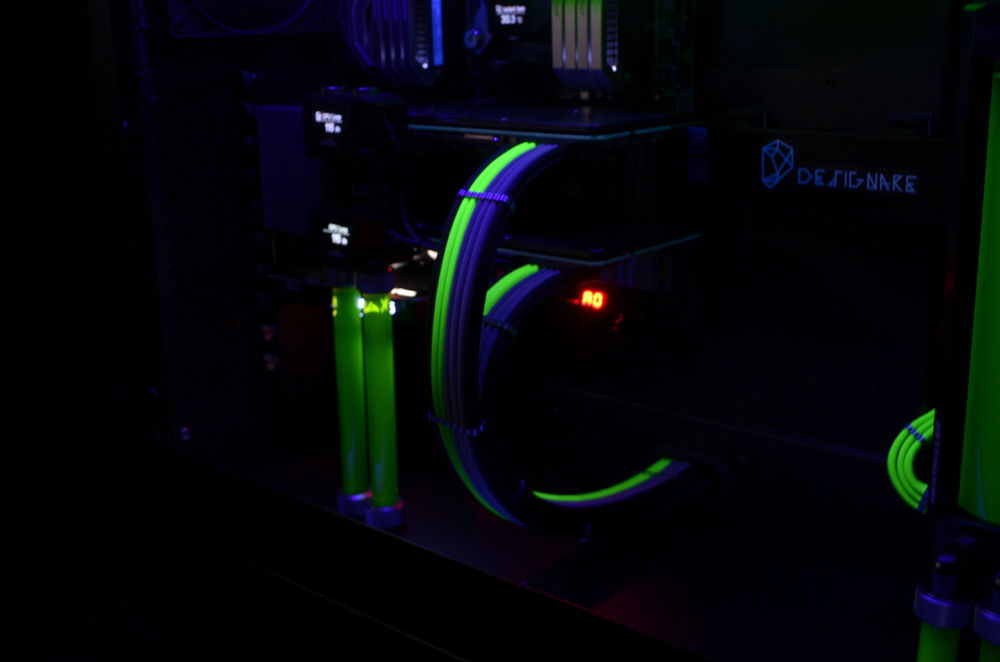

The build features UV and warm white lighting.

I hope you like it, thanks for paying attention!
Color(s): Black Gray Green
RGB Lighting? No
Cooling: Custom Liquid Cooling
Theme: none
Size: E-ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 913.92
Intel - Core i7 7820X
Socket: LGA 2066
Cores: 8
Motherboard
$ 414.98
Gigabyte - Designare Ex
Chipset: X299
CPU Socket: LGA 2066
Size: ATX
Memory
$ 339.99
Corsair - Dominator Platinum (3200MHz) (Grey)
Type: DDR4
Capacity: 16 GB
Graphics
$ 664.99
Gigabyte - Founders
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Graphics
$ 664.99
Gigabyte - Founders
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
$ 159.88
Corsair - Force MP500
Form Factor: M.2
Interface: M.2 (M)
Capacity: 120 GB
Storage
$ 59.99
Western Digital - WD Blue
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
Storage
$ 91.99
Western Digital - WD Red NAS
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 3 TB
Storage
$ 91.99
Western Digital - WD Red NAS
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 3 TB
Case
CaseLabs - Magnum TX10-V
Side Panel: Acrylic
Case Fan
$ 8.49
ARCTIC - P12 Silent
Size: 120 mm
Cooling
Aquacomputer - Cuplex Cryos
Type: CPU Waterblock
Cooling
Hardware Labs - Nemesis GTS Xflow
Type: Custom Loop
Size (WxHxD): 480 mm (4 x 120 mm)
Cooling
Hardware Labs - Nemesis GTS Xflow
Type: Custom Loop
Size (WxHxD): 480 mm (4 x 120 mm)
Cooling
Hardware Labs - Nemesis GTS Xflow
Type: Custom Loop
Size (WxHxD): 420 mm (3 x 140 mm)
Cooling
Hardware Labs - Nemesis GTS Xflow
Type: Custom Loop
Size (WxHxD): 280 mm (2 x 140 mm)
Cooling
$ 93.95

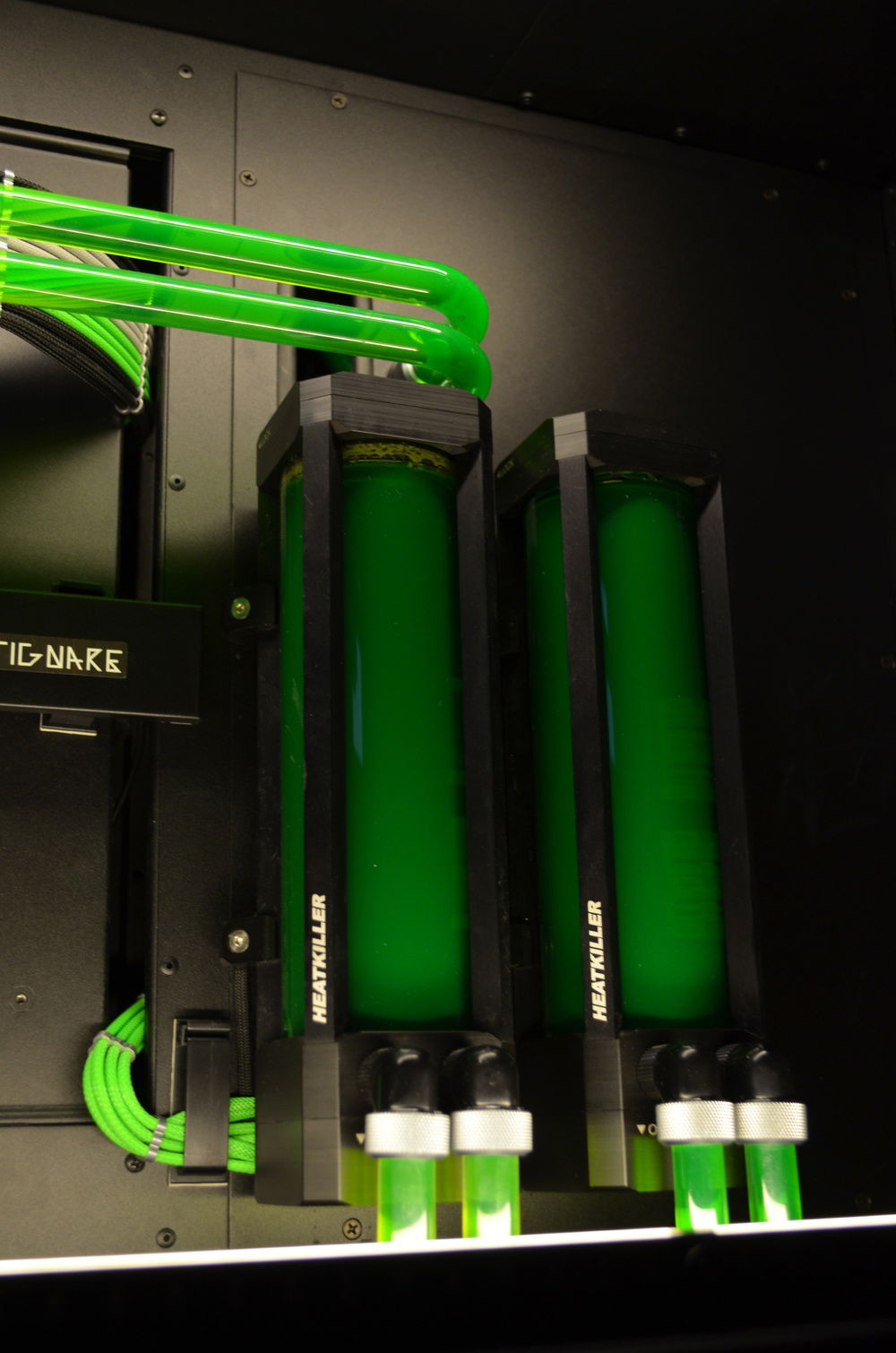

Watercool - HeatKiller Tube 200 DDC
Type: Reservoir
Size (WxHxD): 200 mm
Cooling
$ 93.95
Watercool - HeatKiller Tube 200 DDC
Type: Reservoir
Size (WxHxD): 200 mm
Accessories
$ 17.36
Unable to dertermine total build value (missing part value)
