The Battlestation

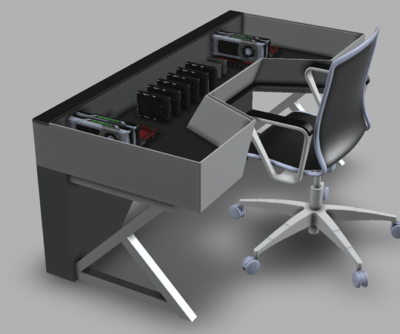

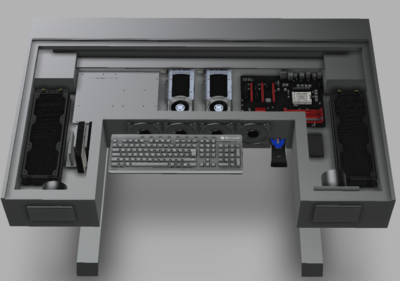

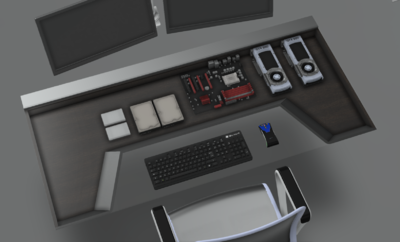

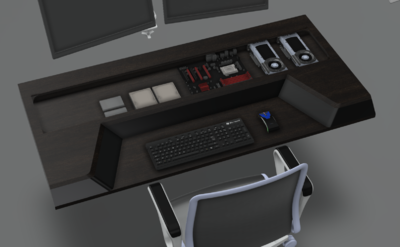

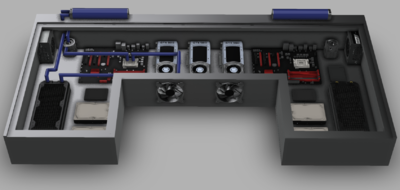

The Battlestation is a build I had been designing in CAD for years. Multiple iterations with multiple times scrapping the whole design and starting over because I found new problems I didn't have the answer for until eventually... there weren't any problems left. Spring 2020 was finally the time to turn my dream to a reality. Over about 2 months I acquired the parts and built the desk until finally it was finished. I had originally posted the build logs on twitter, but I've rewritten them here in much greater detail.

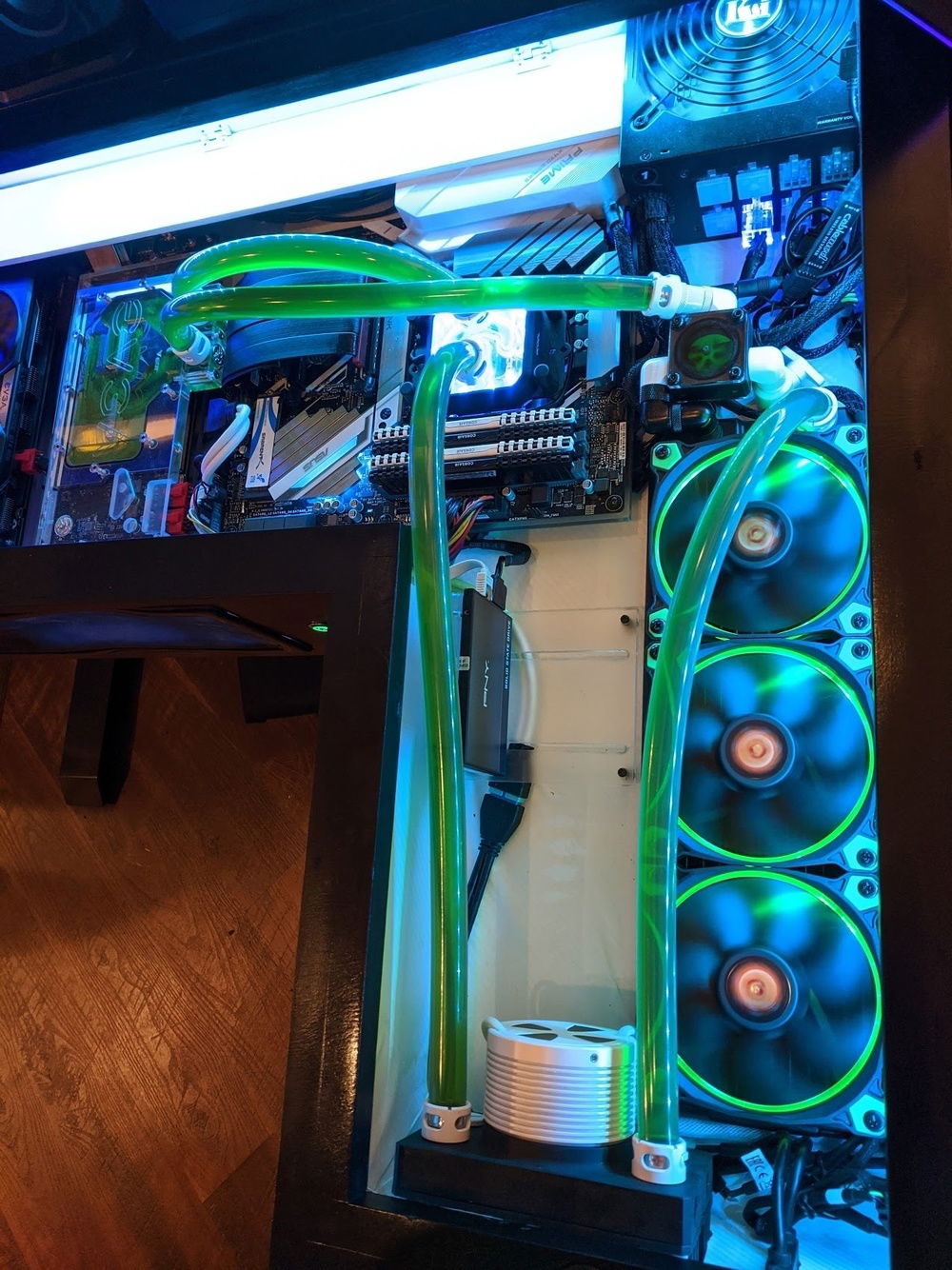

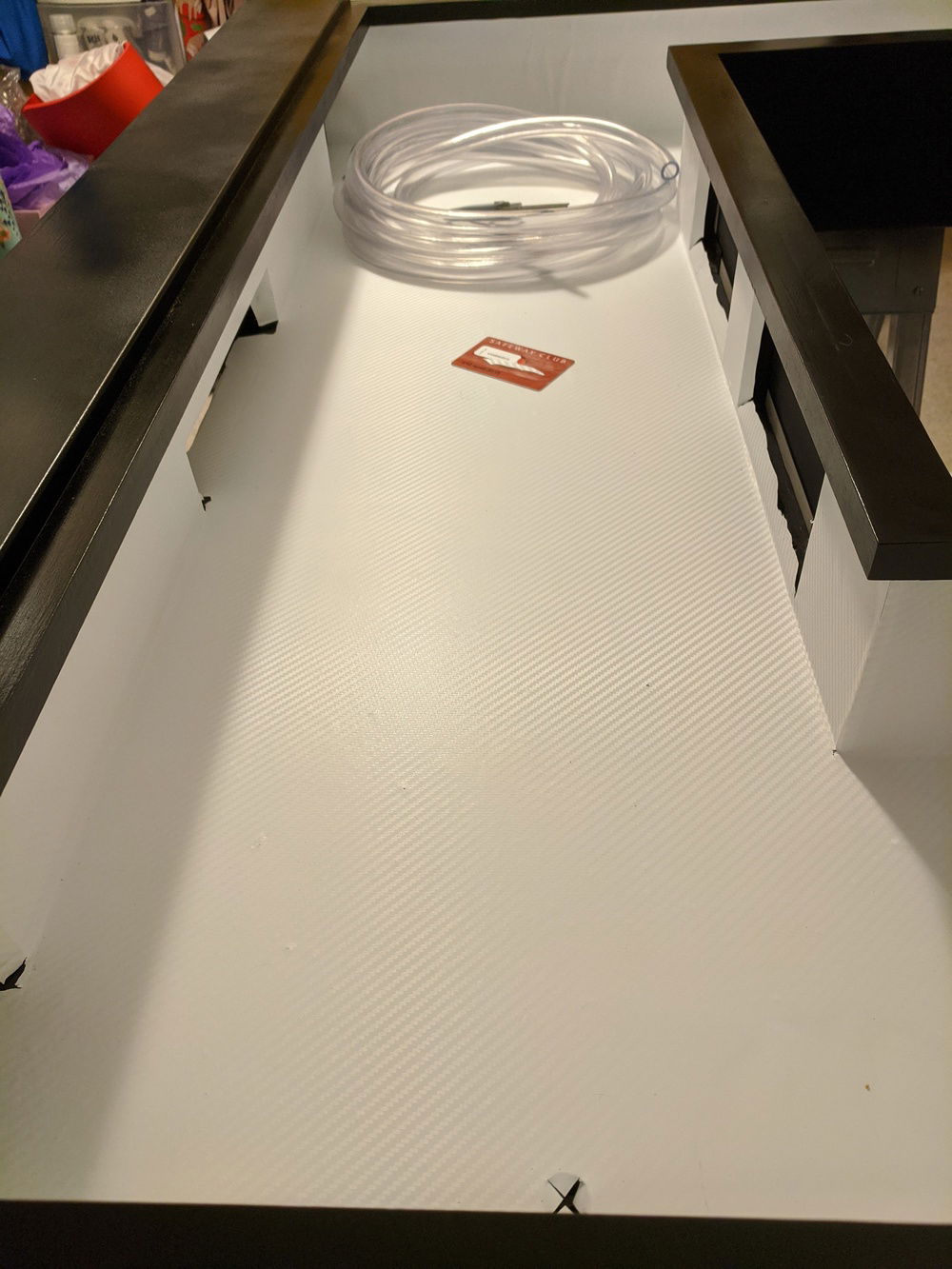

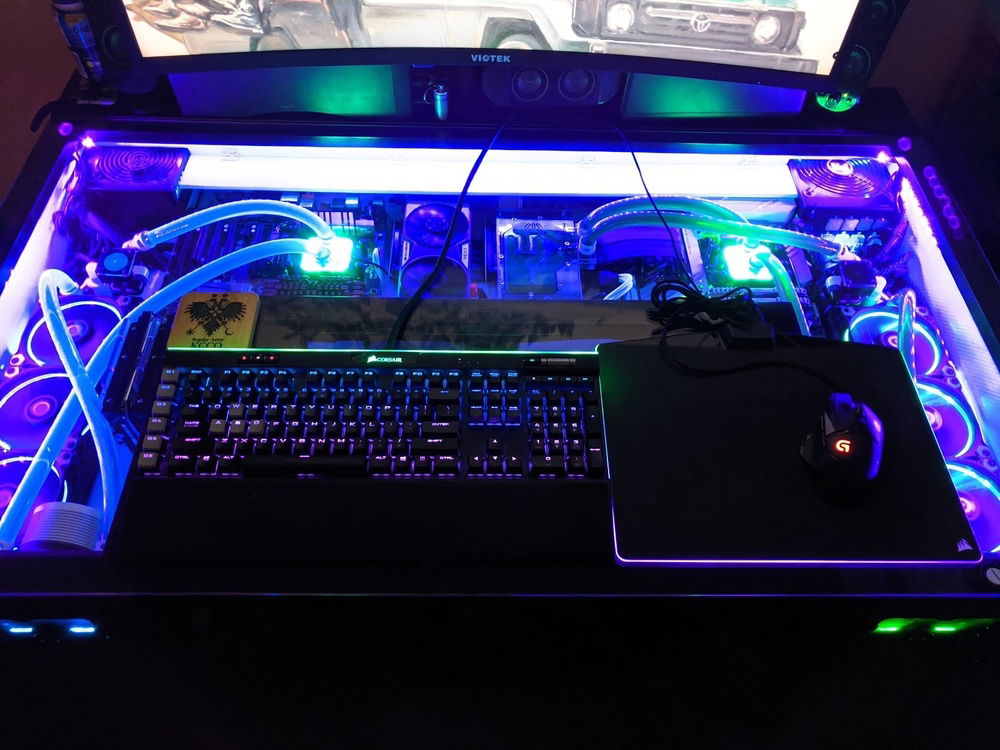

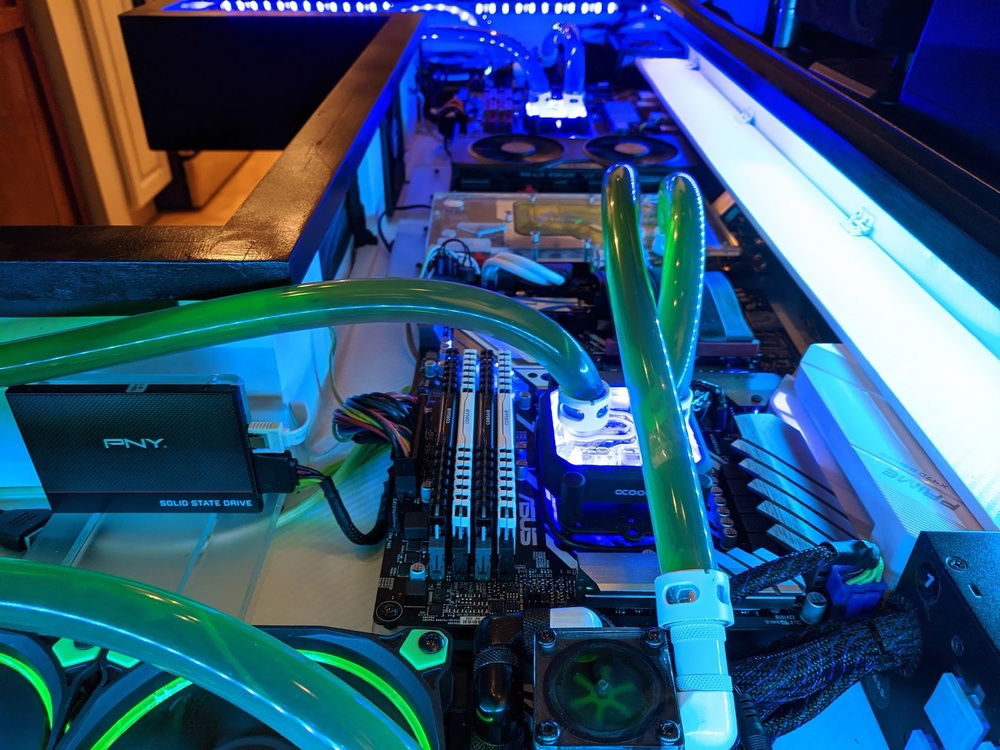

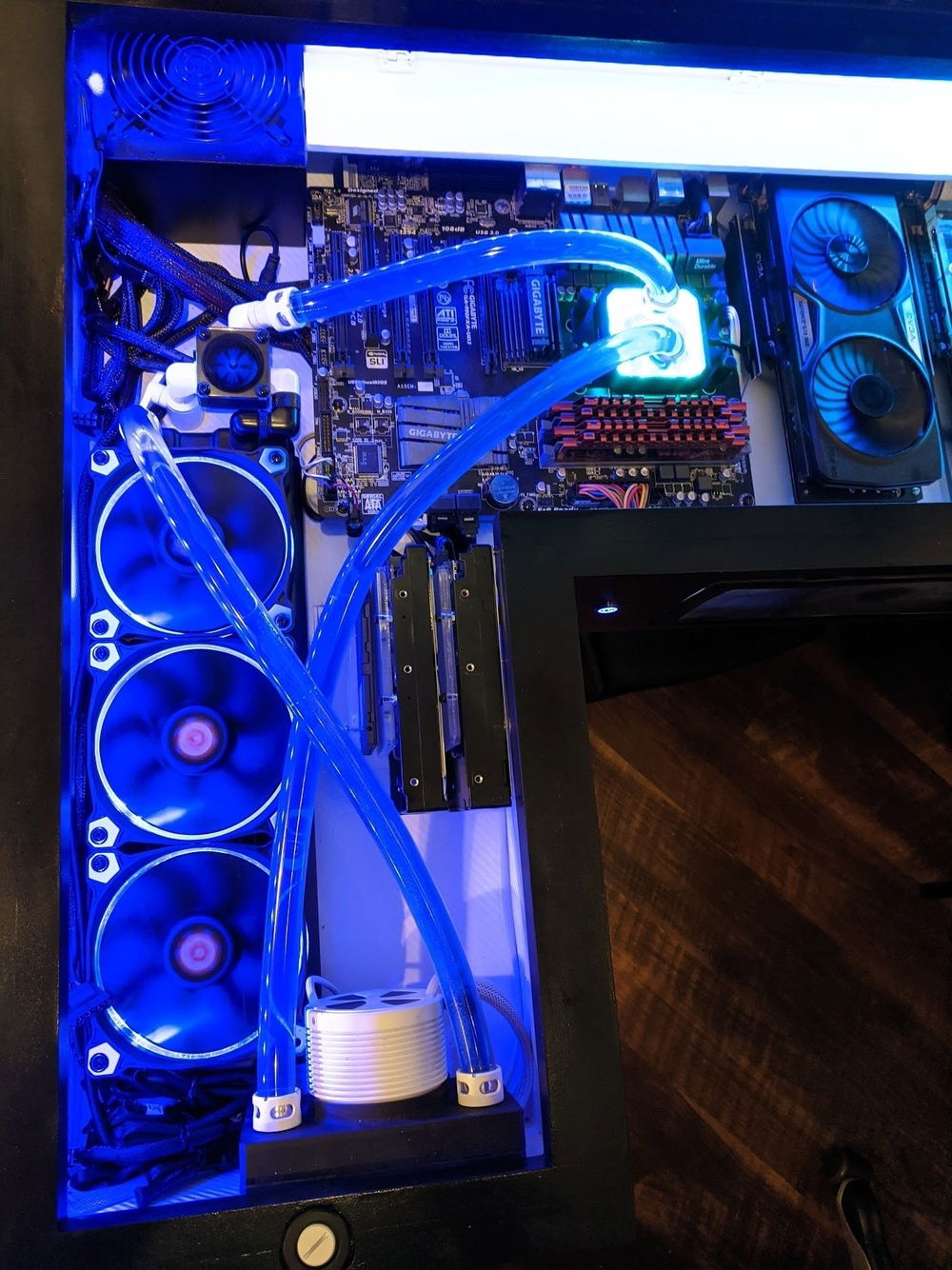

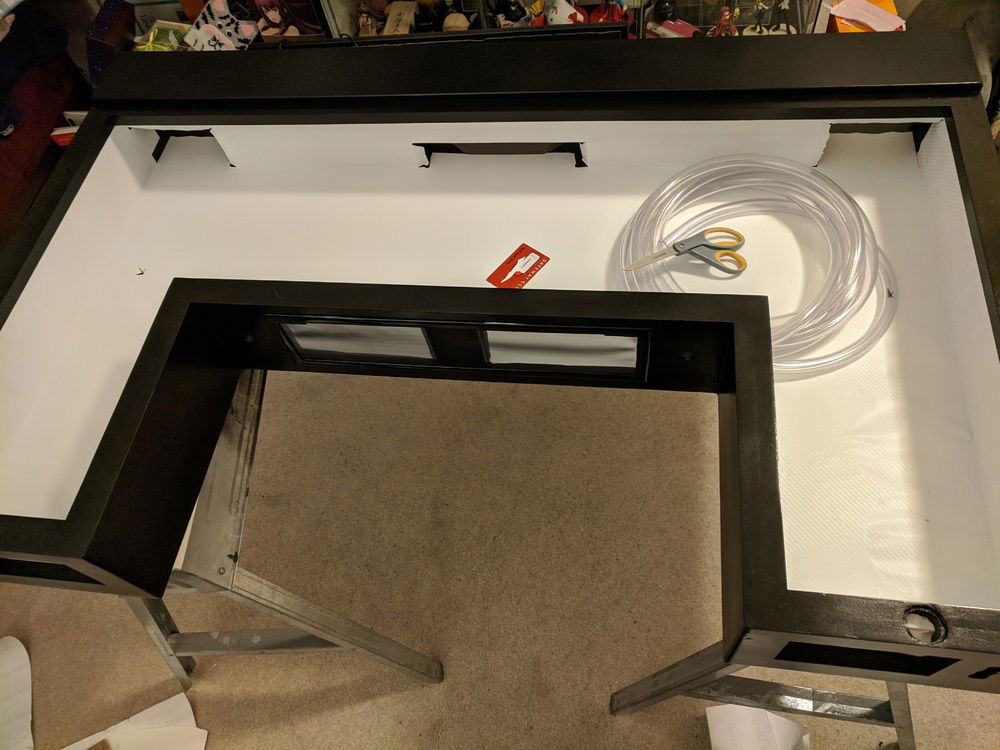

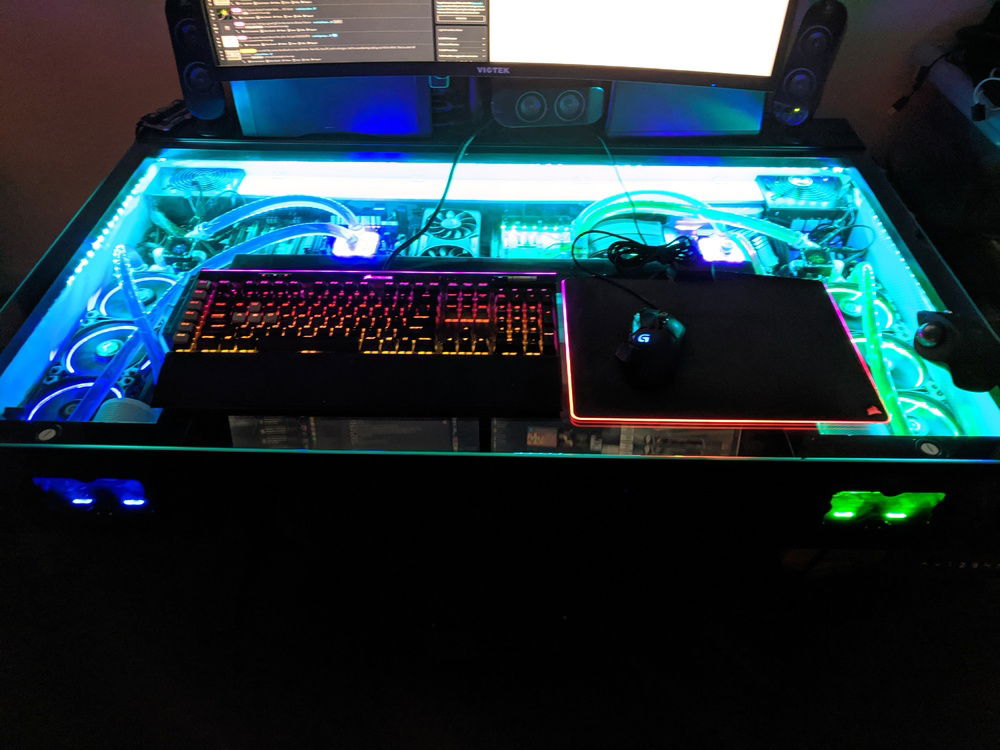

The left half of the desk is my media/game server, while the right half is my gaming rig. The goal for this design was to consolidate my server and desktop into a single clean unit with a two-tone mirrored design inside. Using white carbon fiber for the internals of the desk I was able to get an interesting backdrop that wasn't distracting and would also "become" whatever color light was shined on it. This enabled the lighting to easily spread throughout the internals while still maintaining a crisp dividing line between the blue and green sides.

There are certainly things that could have been done better, but I'm really happy with it and it just looks gorgeous. When I eventually get my hands on a new GPU I plan on replacing all the soft tubing with hard pipes (I felt like doing hard pipes and a custom desk for my first watercooling loop was maybe a bit too much :P).
Color(s): Black Blue Green White
RGB Lighting? Yes
Theme: Desk / Table
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Build Updates

Day 1

Day 2

Day 3

Day 4 (actually several days of tiny bits of work)

Day 5 (actually two weeks)

Day 6 (I should really just call these "parts" at this point)

Part 7: The Build

Part 8: Final Touches

Final Build Log

The Design Evolution

Hardware

CPU
$ 69.49
AMD - FX-8350
Socket: AM3+
Cores: 8
CPU
$ 189.00
AMD - Ryzen 7 (2700X)
Socket: AM4
Cores: 8
Motherboard
$ 582.00
ASUS - Prime (X470-Pro)
Chipset: X470
CPU Socket: AM4
Size: ATX
Motherboard
$ 155.00
Gigabyte - GA-990FXA-UD3
Chipset: 990FX
CPU Socket: AM3+
Size: ATX
Memory
$ 208.94
Corsair - Vengeance LPX (3200MHz) (Black) (2x)
Type: DDR4
Capacity: 8 GB
Memory
$ 79.98
Corsair - Vengeance LPX (3200MHz) (White) (2x)
Type: DDR4
Capacity: 8 GB
Memory
$ 63.34
G.Skill - RipJaws X (1600MHz) (Red) (2x)
Type: DDR3
Capacity: 8 GB
Graphics
$ 549.00
EVGA - FTW2
Chip Manufacturer: NVIDIA
Chip: GTX 1070 Ti
Graphics
$ 399.00
EVGA - GTX 960 SSC 2GB
Chip Manufacturer: NVIDIA
Chip: GTX 960
Interface: PCIe x16
Storage
$ 24.99
Kingston - A400
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 240 GB
Storage
$ 80.09
PNY - CS900
Form Factor: 2.5 Inch
Interface: SAS 6 Gb/s
Capacity: 960 GB
Storage
$ 115.00
Sabrent - Rocket
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
Storage
$ 61.97
Sabrent - Rocket Q
Form Factor: M.2
Interface: PCIe x4
Capacity: 1 TB
Storage
$ 81.71
Toshiba - DT01ACA300
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 3 TB
Storage
$ 119.99
Western Digital - WD Blue (WD20EZAZ)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
PSU
$ 100.00
Kingwin - Kingwin Mach 1 ABT-1000MA1S
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Bronze
PSU
$ 118.00
Thermaltake - SMART
Wattage: 530
Form Factor: ATX
Efficiency: 80+
Case
$ 1,000.00
Custom - Custom (custom)
Case Fan
$ 43.02
Thermaltake - Riing 12 LED Blue (3x)
Size: 120 mm
Case Fan
$ 38.97
Thermaltake - Riing 12 LED Green (3x)
Size: 120 mm
Cooling
$ 191.82
Alphacool - Alphacool Eisblock XPX CPU Cooler (2x)
Type: CPU Waterblock
Cooling
$ 169.92
Alphacool - VPP655 PWM Pump Core (2x)
Type: Pump
Size (WxHxD): 90 mm
Cooling
$ 20.99
Barrow - Fittings
Type: Custom Loop
Cooling
$ 52.69
Bykski - Fittings
Type: Fittings
Cooling
$ 129.99
Bykski - Waterblock (RGB)
Type: GPU Waterblock
Cooling
$ 182.18
Hardware Labs - Black Ice Nemesis GTS (Black) (2x)
Type: Radiator
Size (WxHxD): 360 mm
Cooling
$ 43.11
Mayhems - Fluid
Type: Custom Loop
Cooling
$ 13.80
Mayhems - Tubing
Type: Custom Loop
Cooling
$ 272.50
Monsoon - D5 Premium Dual Bay (2x)
Type: Reservoir
Cooling
$ 97.47
Cooling
$ 15.90
Phobya - Fittings
Type: Custom Loop
Cooling
$ 45.98
Primochill - Fittings
Type: Custom Loop
CableMod
$ 99.92
Accessories
$ 18.40
Accessories
$ 131.99
Monitor
$ 199.98
Sceptre - E248W-19203R (2x)
Size: 24 Inch
Panel: TN
Refresh Rate: 75 Hz
Monitor
$ 1,499.88
viotek - GN34C
Size: 34 Inch
Panel: IPS
Refresh Rate: 100 Hz
Keyboard
$ 139.97
Corsair - K95 Platinum (RGB)
Interface: Wired
Key Switch Type: Cherry MX Brown
Type: Full Size
Mouse
$ 66.00
Logitech - G502 Proteus Spectrum
Interface: Wired
Estimated total value of this build:
$ 5,397.89
