Limited Size, Unlimited Options - Dual 240 Rads with D5 Pump NR200P

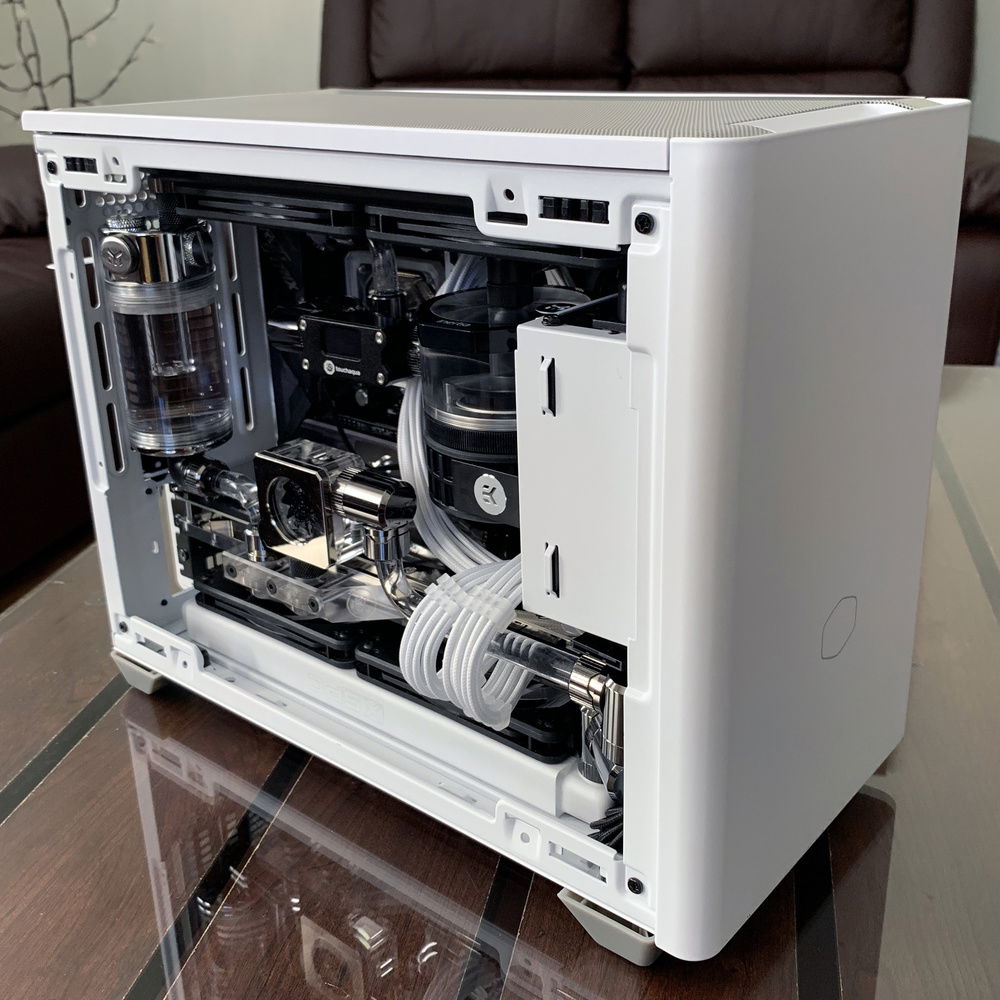

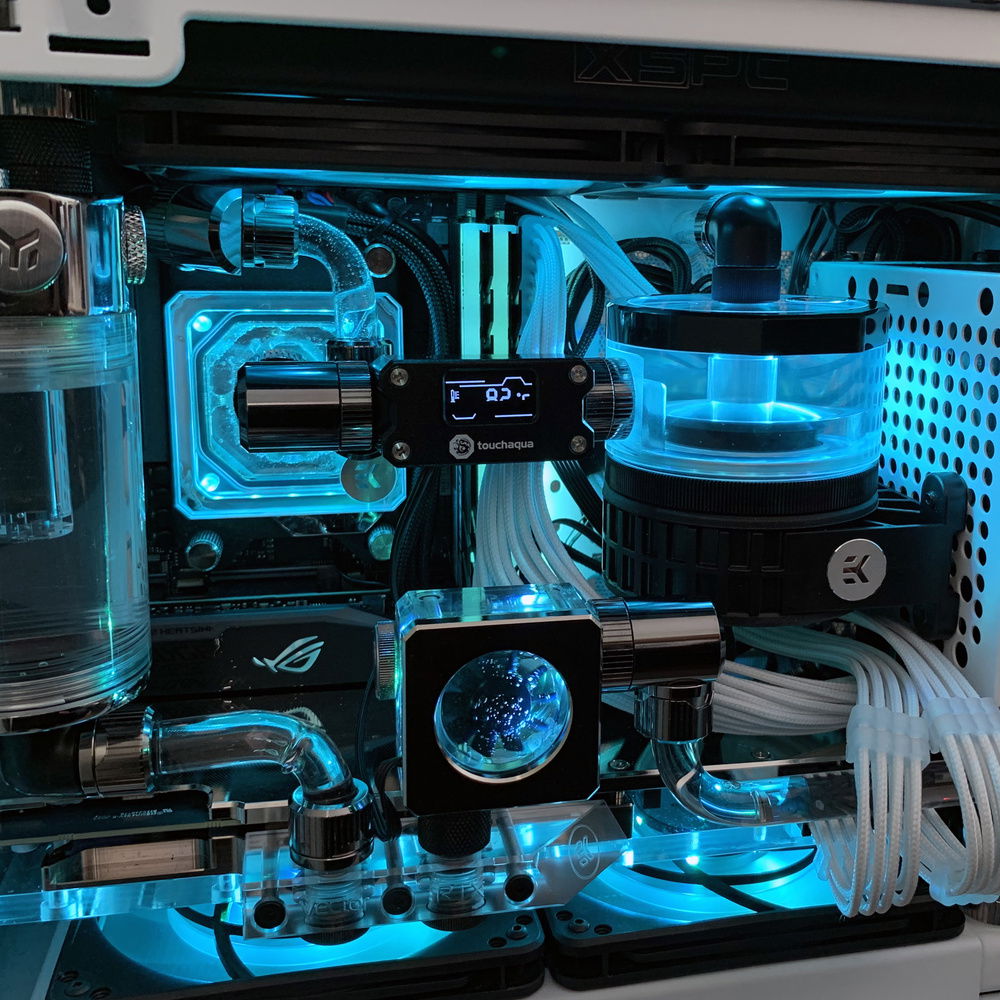

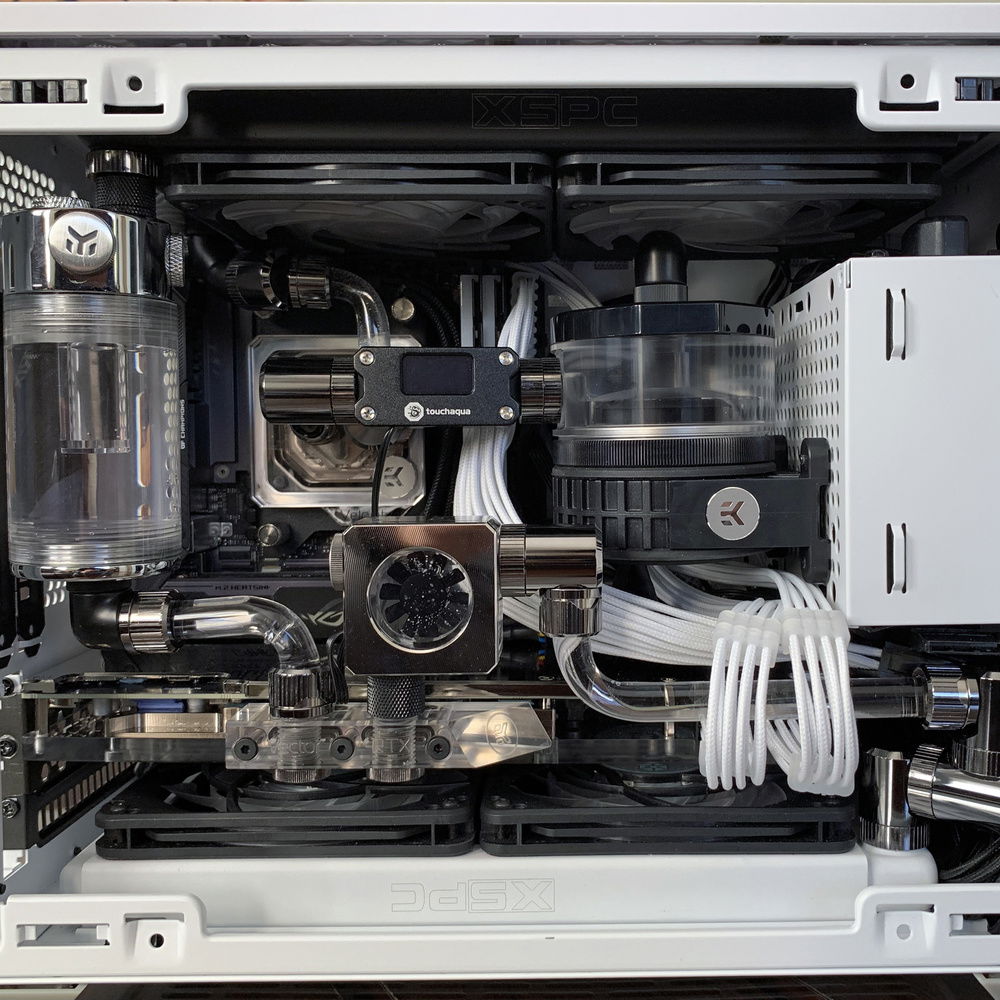

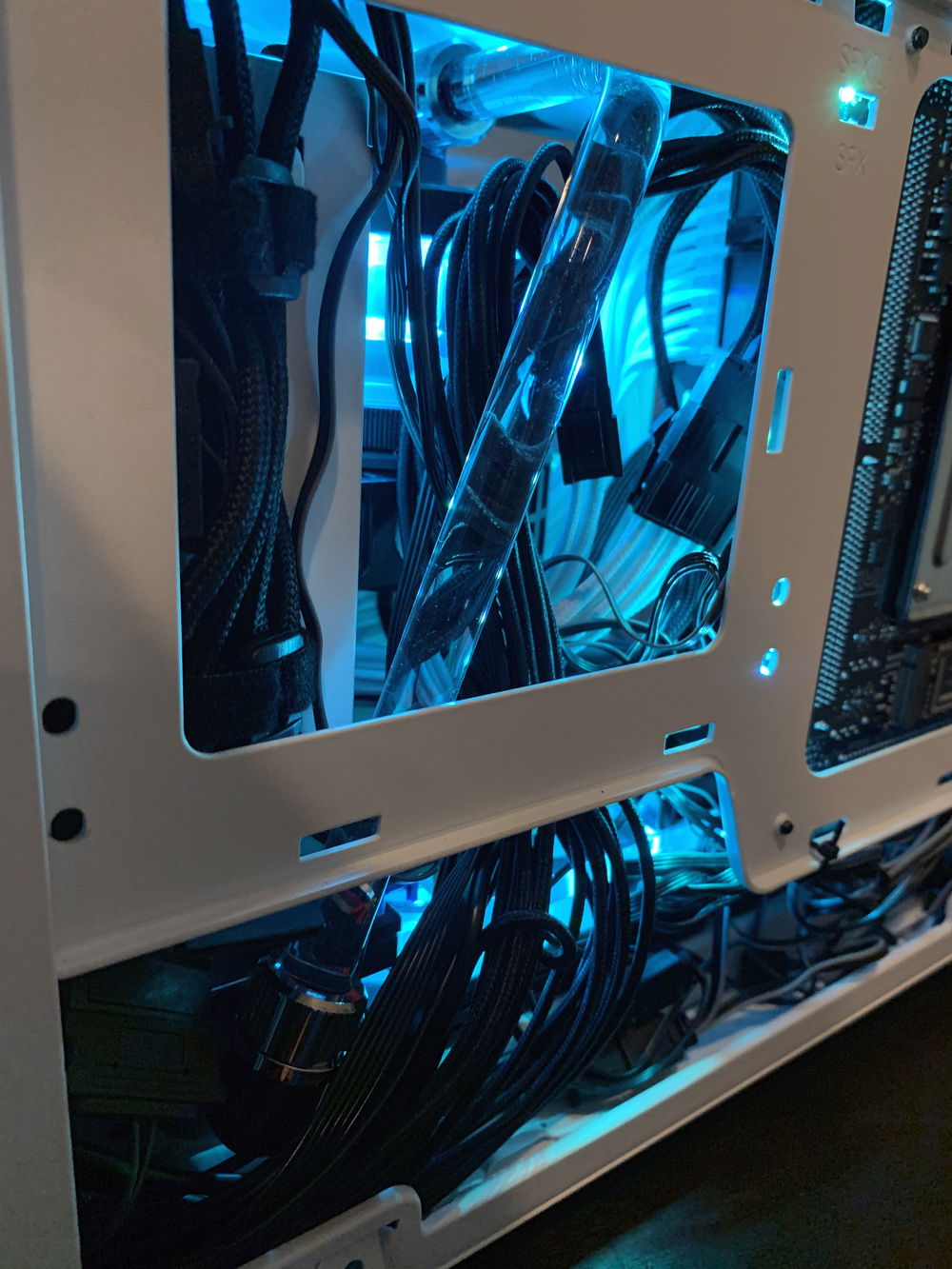

All builders can finish this build without any drilling, painting, or molding. This is a solution that would help a lot of SFFPC lovers to finish their builds & achieve awesome cooling performance outcomes. This NR200P build equips latest PC parts in a tiny size and maximizes the cooling options with optimization of performance.

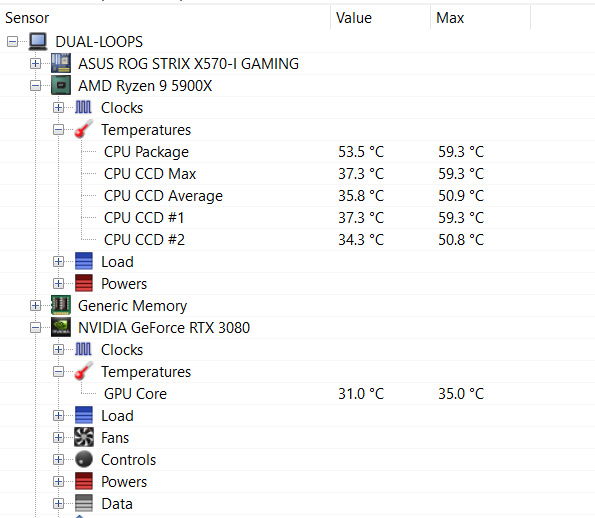

Unlike the other expensive builds, this PC uses the most "CPU / GPU Mark / $Price" parts. NR200P with dual loops & D5 Pump just handles all the heat efficiently. Rads & Fans are thin so I would not recommend to put 5950X & RTX 3090 because the cooling system may not be strong enough to deal with those high temps.

Overall, this is a builder friendly design/build, even for someone who hasn't done any custom loop before. Hope you enjoy & please feel free to let me know if you have any questions.

This is my post on Reddit:

https://www.reddit.com/r/sffpc/comments/lwcval/my_nr200_v20_a_d5_pump_fits_perfectly_this_itx_pc/


Here's the build detailed info.

Parts

CPU - 5900X

CPU Block - EK-Quantum Velocity D-RGB - AMD Nickel + Plexi

GPU - EVGA RTX 3080 XC3

GPU Block - EK-Quantum Vector XC3 RTX 3080/3090 D-RGB - Nickel + Plexi

GPU Backplate - EK-Quantum Vector XC3 RTX 3080/3090 Backplate - Nickel

MB - ROG Strix X570-I Gaming

PSU - SF750 — 750 Watt 80 PLUS® Platinum Certified High Performance SFX PSU

RAM - 32GB G.Skill Trident Z 3600MHZ

SSD1 - 1 TB Samsung 980 Pro

SSD2 - 1 TB Samsung 970 Evo

Cable - White (Forgot where I got it from)

Radiator 1 - XSPC TX240 Ultra Thin Radiator

Radiator 2 - XSPC TX240 Ultra Thin Radiator (White)

Fans - 4 x SilverStone Technology Slim 120mm Addressable RGB Fan with 15mm Thin Design FW124-ARGB

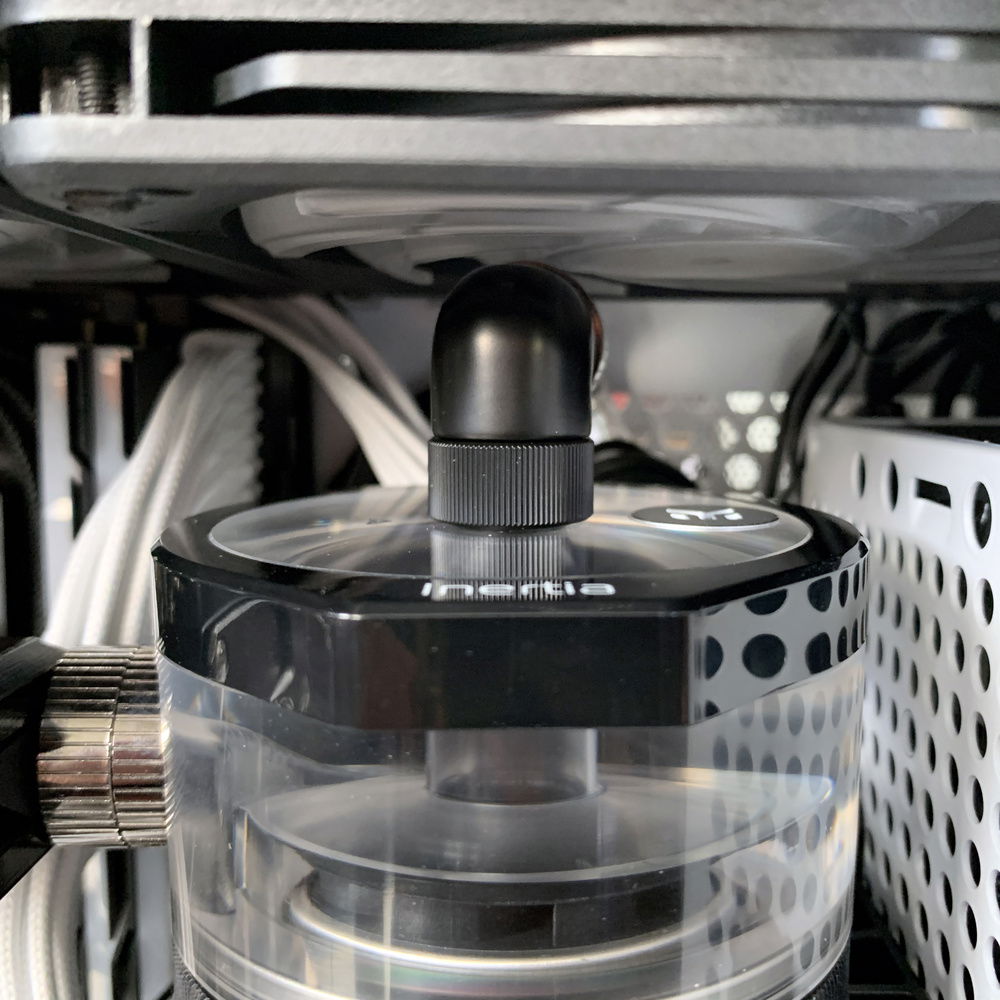

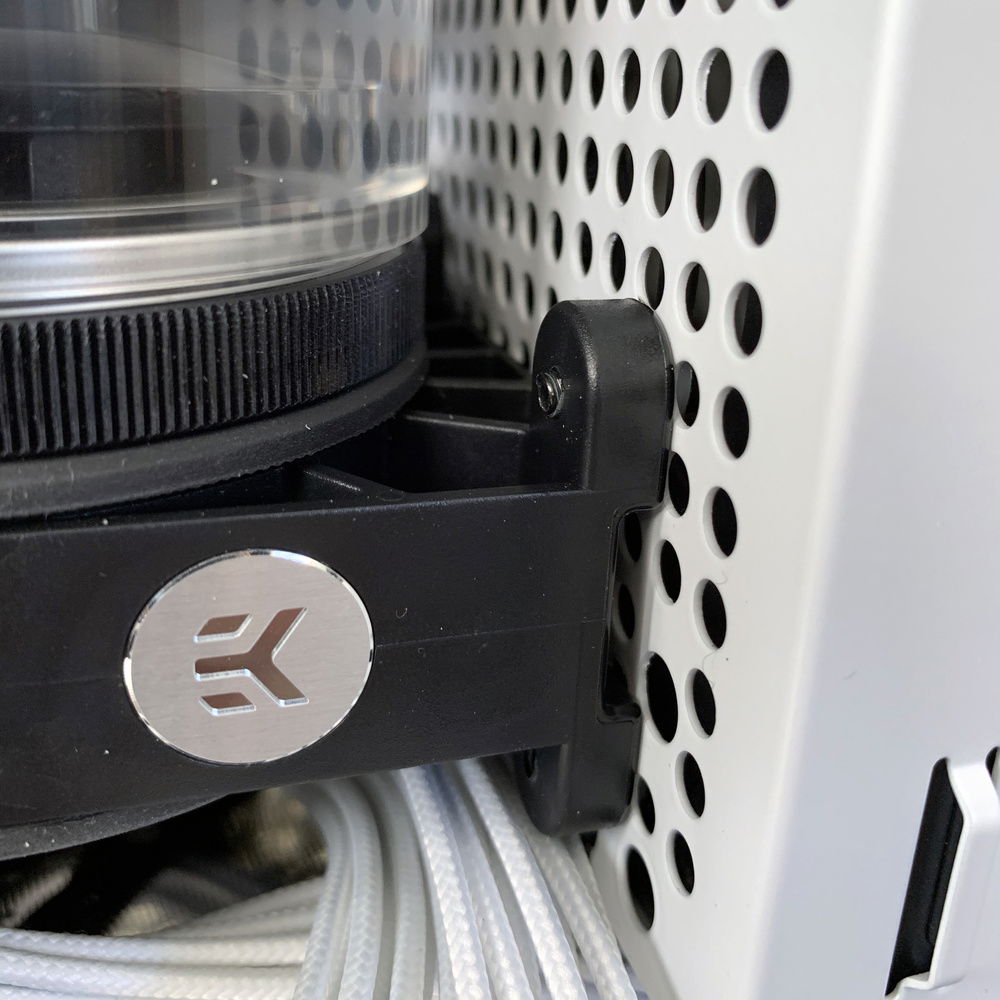

Pump - EK-Quantum Inertia D5 PWM D-RGB - Plexi

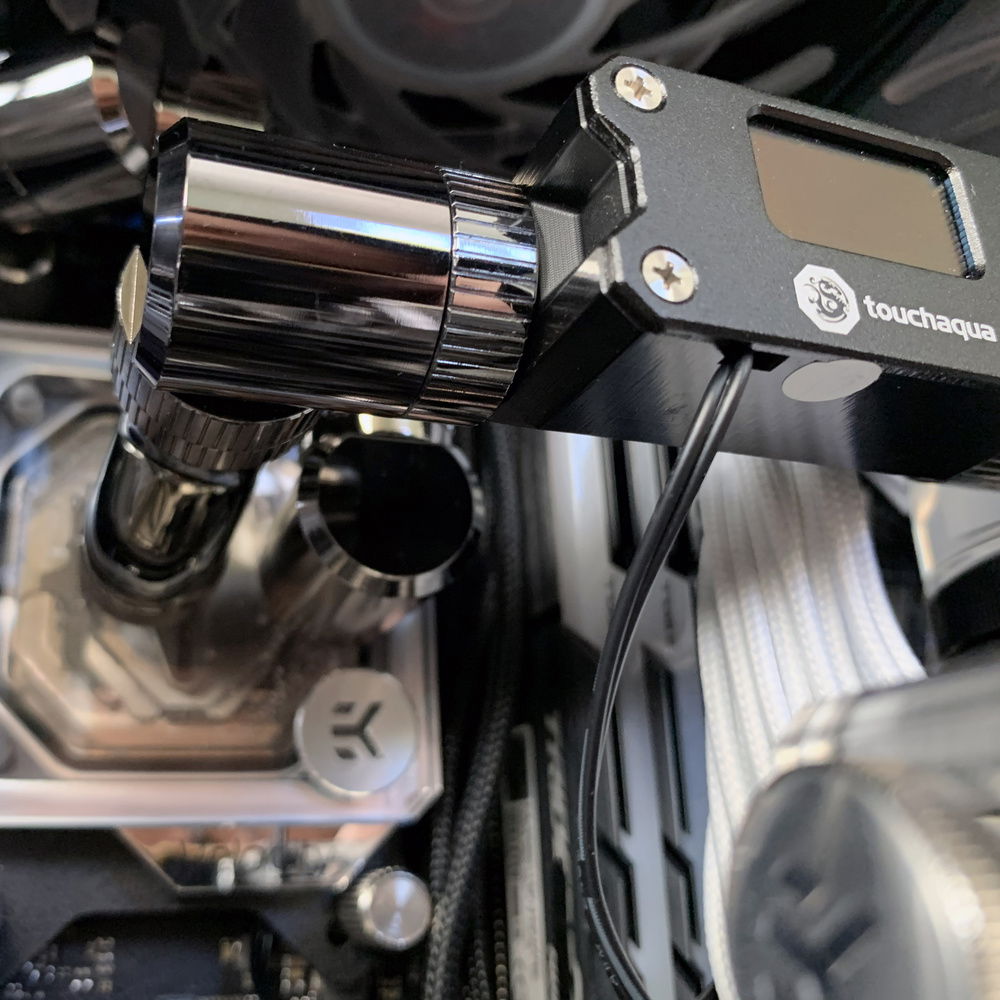

Thermal Sensor - Bitspower Touchaqua Digit Thermal Sensor (Fahrenheit Version), I prefer the Celsius version, but sold out everytwhere.

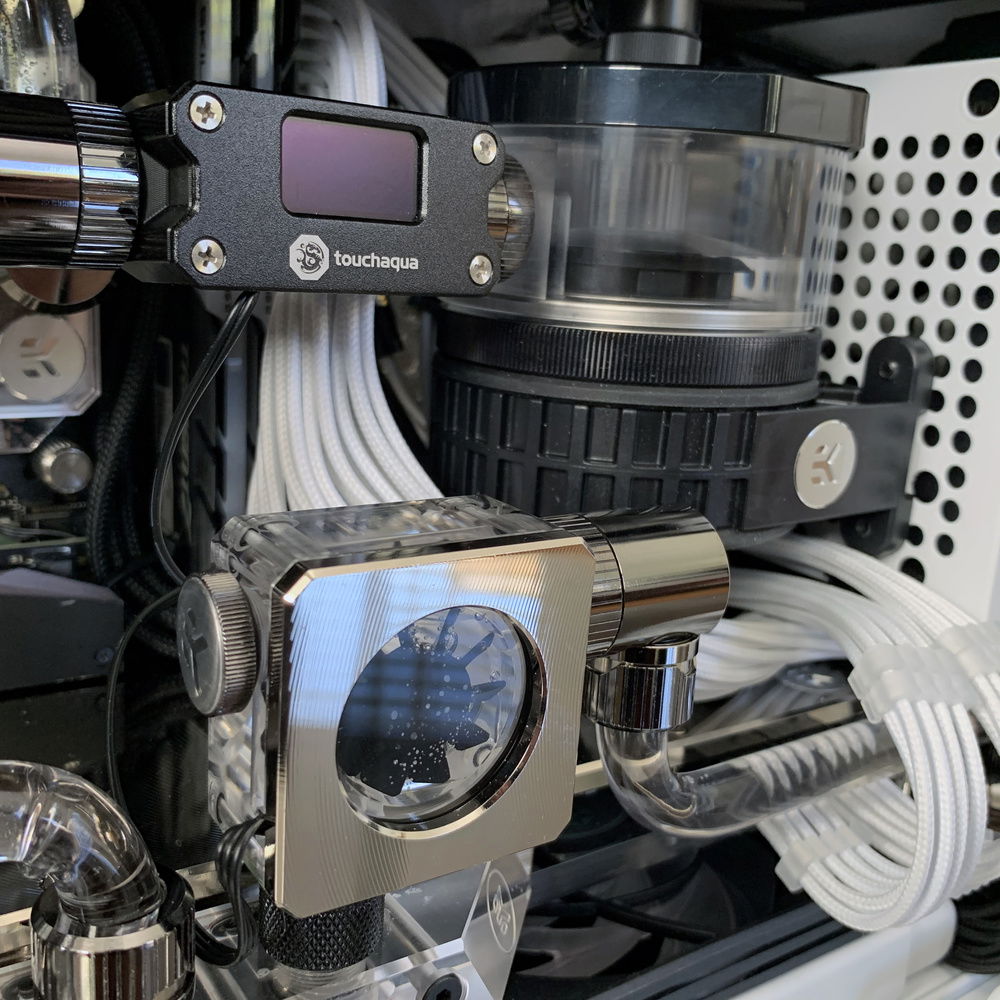

Flow Indicator - EK-Quantum Flow Indicator D-RGB – Nickel

Reservoir - Alphacool Cape Corp Coolplex HF metal 10 - chrome, PC Water Cool Reservoir Tank

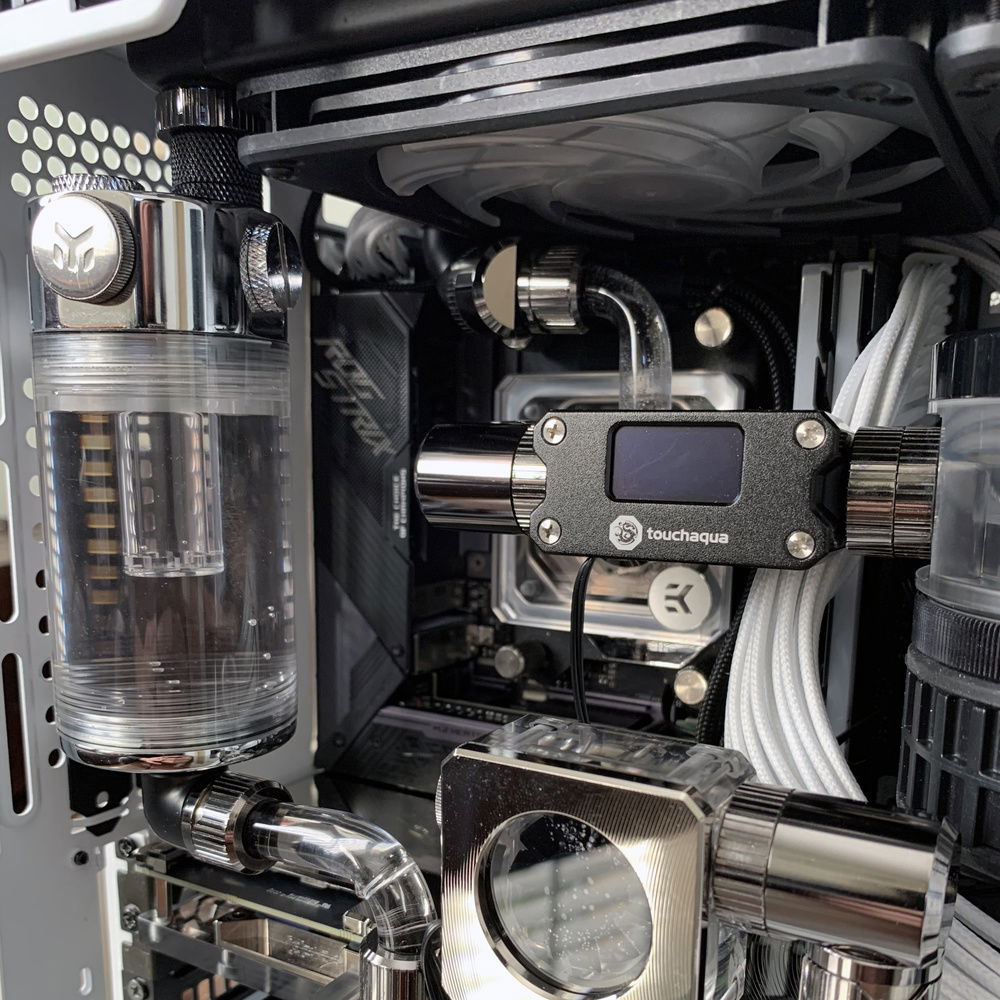

Route with Parts

Bottom RAD to D5 Pump:

2 x EK-Quantum Torque Rotary 90° -> 1 x EK-Quantum Torque HDC 12-> "L" Tube -> 1 x EK-Quantum Torque HDC 12-> 1 x EK-AF Classic Angled 90° - Black (Torque Version will not fit, it blocks the upper fan)

D5 Pump to CPU

1 x EK-Quantum Torque Extender Rotary MM 14 - > Bitspower Touchaqua Digit Thermal Sensor -> 1 x EK-Quantum Torque Rotary 90° -> 1 x EK-Quantum Torque Extender Rotary MM 14 -> 1 x EK-AF Angled 2×45° G1/4

CPU to Top RAD

1 x EK-Quantum Torque Rotary 90° -> 1 x EK-Quantum Torque HDC 12-> "L" Tube -> 1 x EK-Quantum Torque HDC 12-> 1 x EK-Quantum Torque Rotary 45° -> 1 x EK-AF Angled 2×45° G1/4

Top RAD to Reservoir

1 x EK-Quantum Torque Extender Static MF 7 -> 1 x EK-Quantum Torque Extender Rotary MM 14

Reservoir to GPU

1 x EK-Quantum Torque Rotary 90° -> x EK-Quantum Torque HDC 12-> "L" Tube -> 1 x EK-Quantum Torque HDC 12

GPU to Bottom RAD

1 x EK-Quantum Torque Extender Rotary MM 14 -> Flow Indicator -> 1 x EK-Quantum Torque Rotary 90° - EK-Quantum Torque HDC 12-> "L" Tube -> 1 x EK-Quantum Torque HDC 12 -> 3 x EK-Quantum Torque Rotary 90°
Color(s): White
RGB Lighting? Yes
Theme: Desk / Table
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build
