Most Recent Build

 Blue Budget -WIP
102
2
17
Added fans and... Lian Li RBG 24 pin power extension cable!!! \o/
Added fans and... Lian Li RBG 24 pin power extension cable!!! \o/
Sizing up the new Alphacool Eisbaer Extreme. Also the 8 pin RGB strimers did not fit. They stuck out of the top of the card and hit the glass of the case. Tried an EVGA Powerlink. That was worse. Just too thick. Ordered a cooler master Vertical GPU mount.
Sizing up the new Alphacool Eisbaer Extreme. Also the 8 pin RGB strimers did not fit. They stuck out of the top of the card and hit the glass of the case. Tried an EVGA Powerlink. That was worse. Just too thick. Ordered a cooler master Vertical GPU mount.

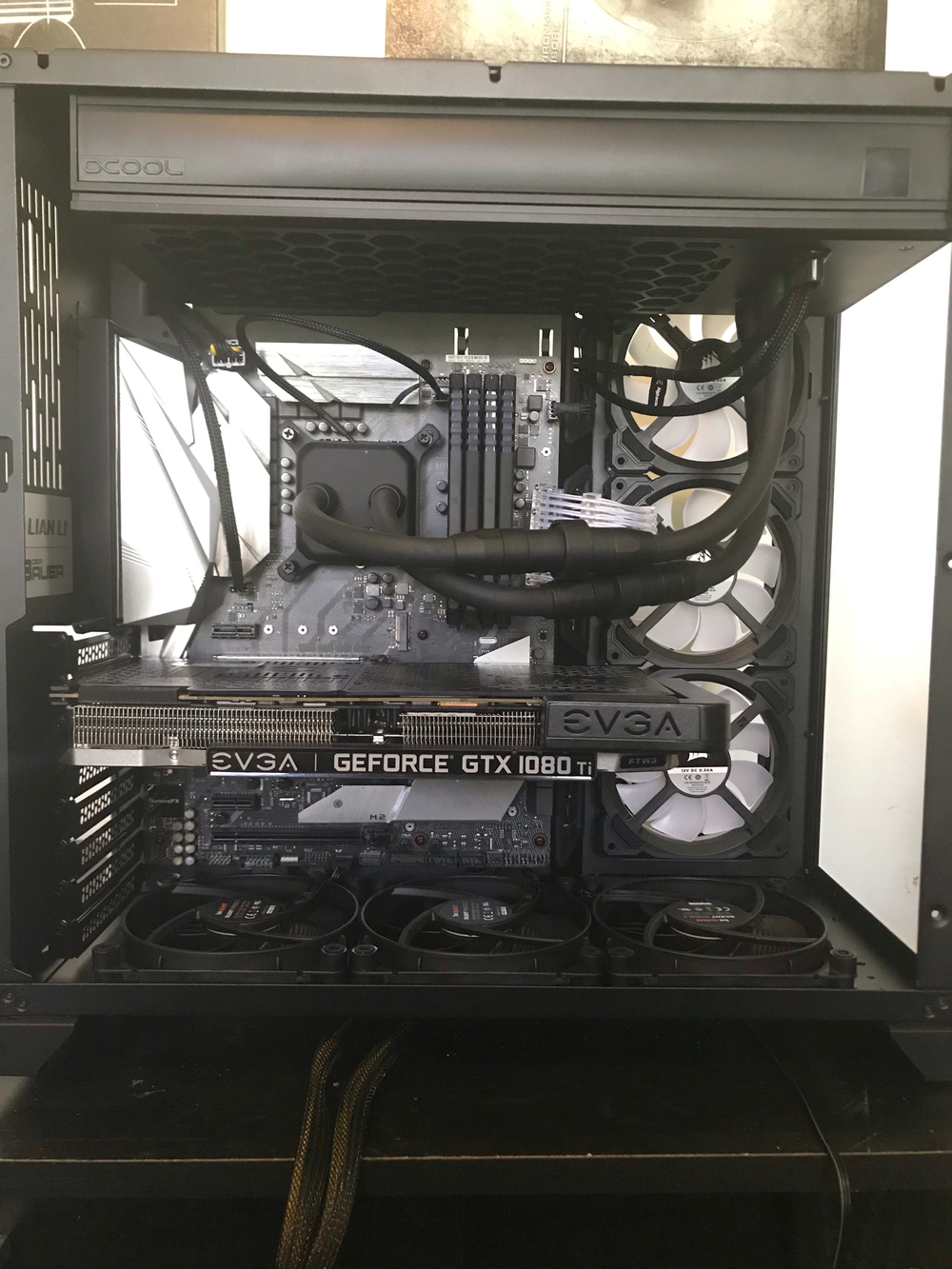

Squeezed in the Eisbaer Extreme after a adding few extra screw holes up top. Tried both directions. Other way hose is too long and kinks badly. Have reorientated the block since. It would be pefect if I was skilled enough to get some hose and fittings and run short bits from the rad/pump/res combo direct to the block and loose the long direct disconnect bits. Maybe in the future.
Squeezed in the Eisbaer Extreme after a adding few extra screw holes up top. Tried both directions. Other way hose is too long and kinks badly. Have reorientated the block since. It would be pefect if I was skilled enough to get some hose and fittings and run short bits from the rad/pump/res combo direct to the block and loose the long direct disconnect bits. Maybe in the future.
After math of “wire management”. If you can’t see the wires, they aren’t there. :)
After math of “wire management”. If you can’t see the wires, they aren’t there. :)

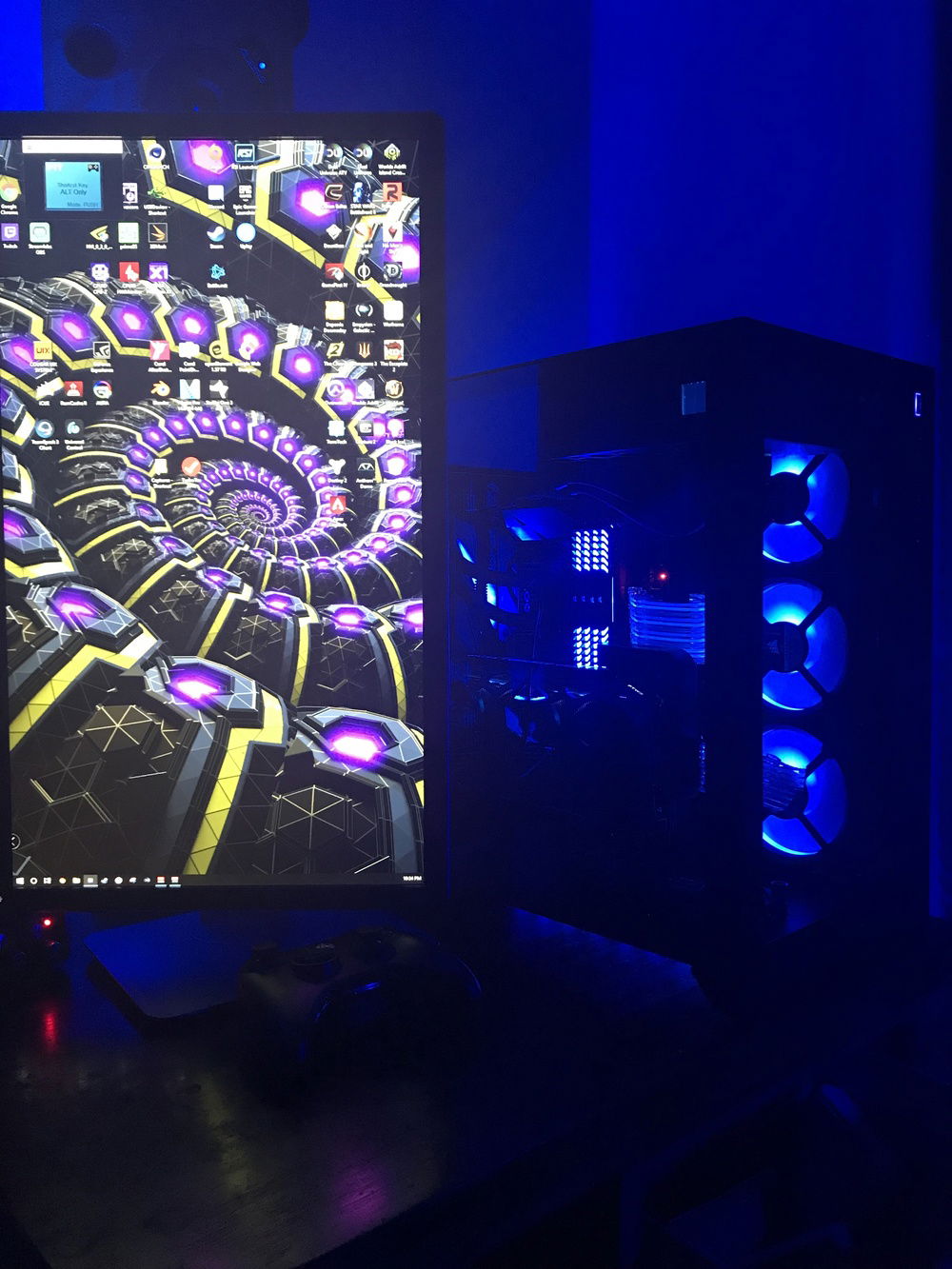

Tower in its new home.
Tower in its new home.

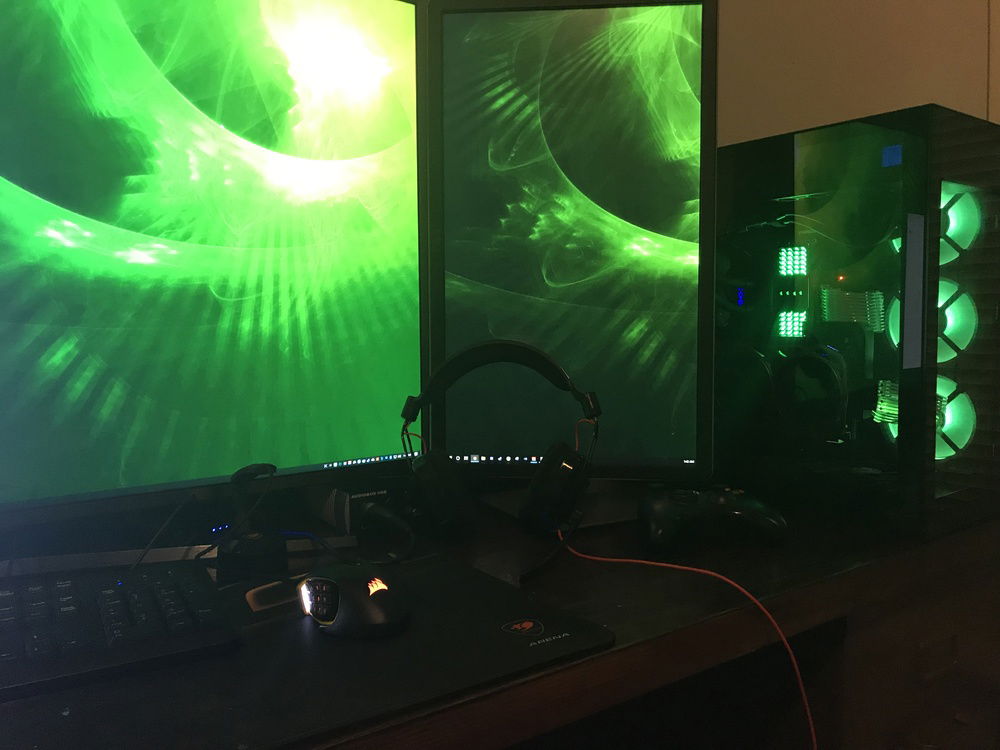

Testing out green.
Testing out green.

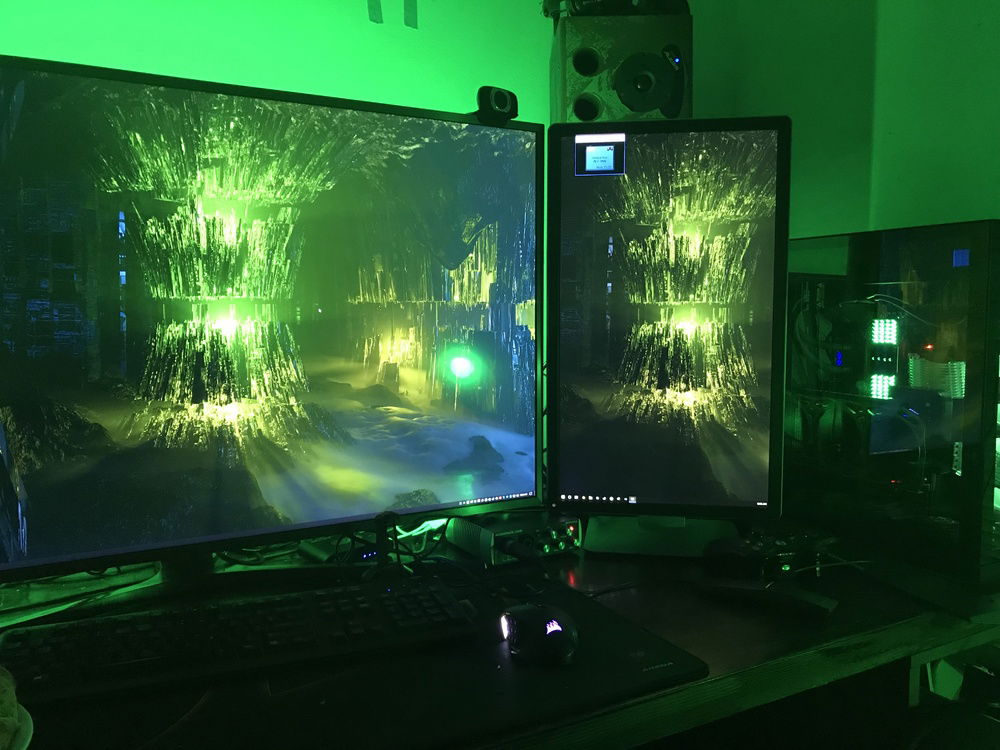

What build is complete with out a custom rendered wallpaper from a buddy! ❤️
What build is complete with out a custom rendered wallpaper from a buddy! ❤️
Monitor xlr cables run through the wall. Ran romex into the shelf for power to the monitors and future stuff fed by a reverse wall plug.
Monitor xlr cables run through the wall. Ran romex into the shelf for power to the monitors and future stuff fed by a reverse wall plug.

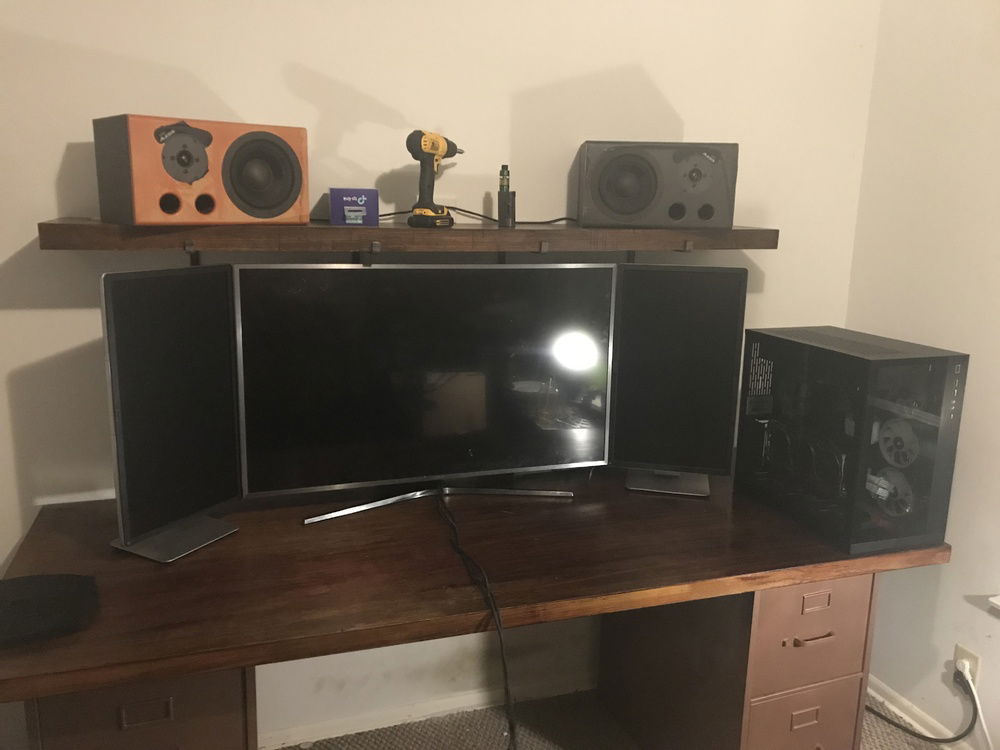

Setup as of now. Need to refinish or cover ugly monitors.
Setup as of now. Need to refinish or cover ugly monitors.

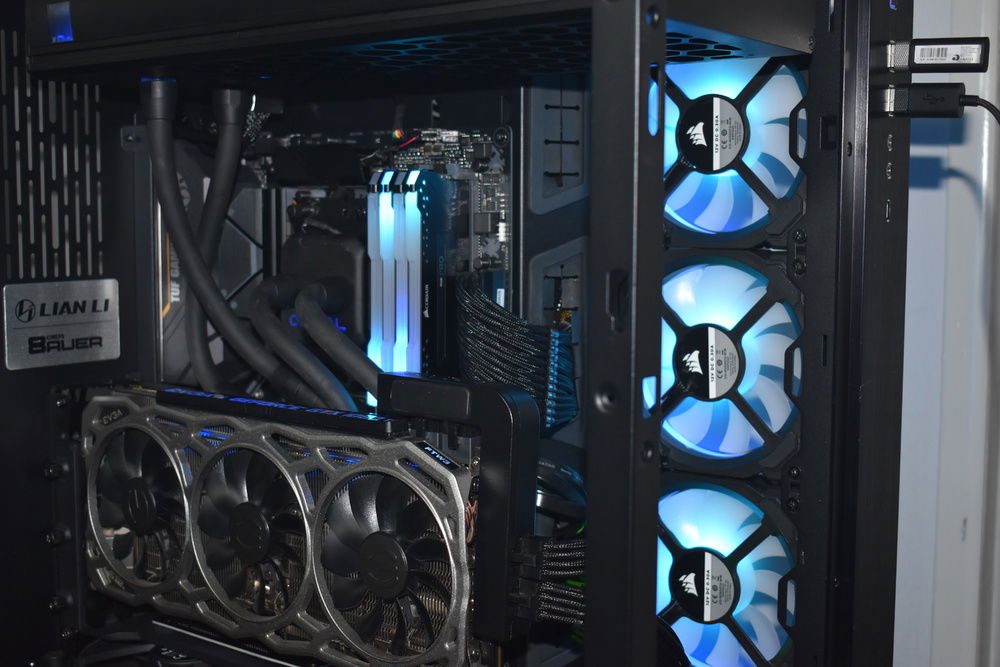

New setup. Replaced 8700k with 3900x on an Asus x570 TUF
New setup. Replaced 8700k with 3900x on an Asus x570 TUF

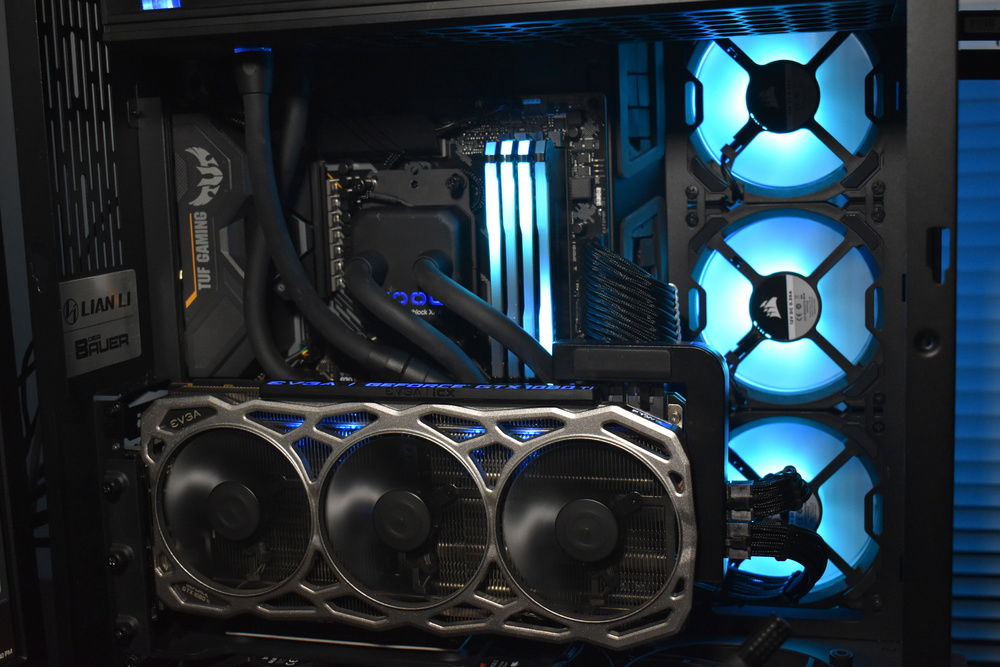

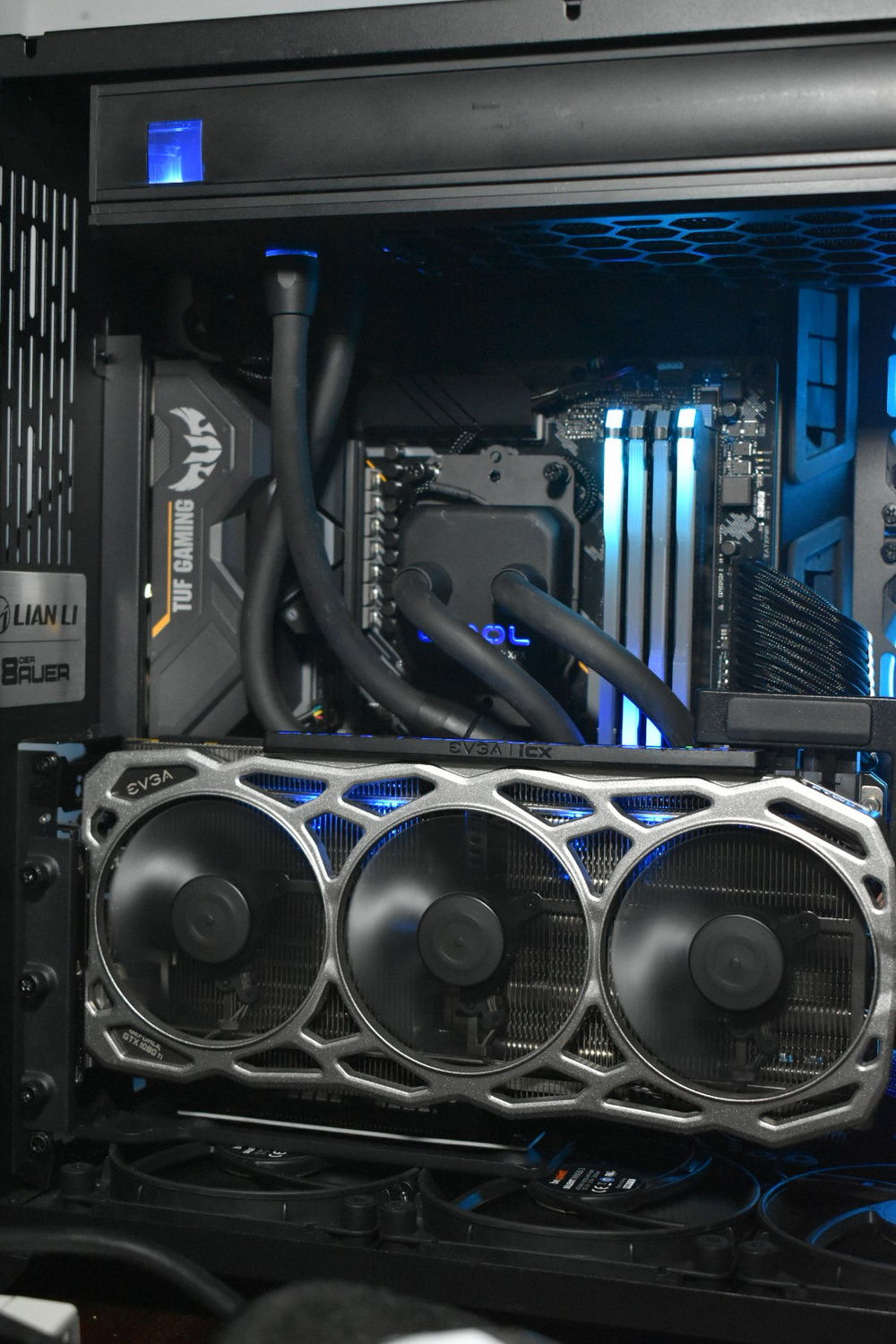

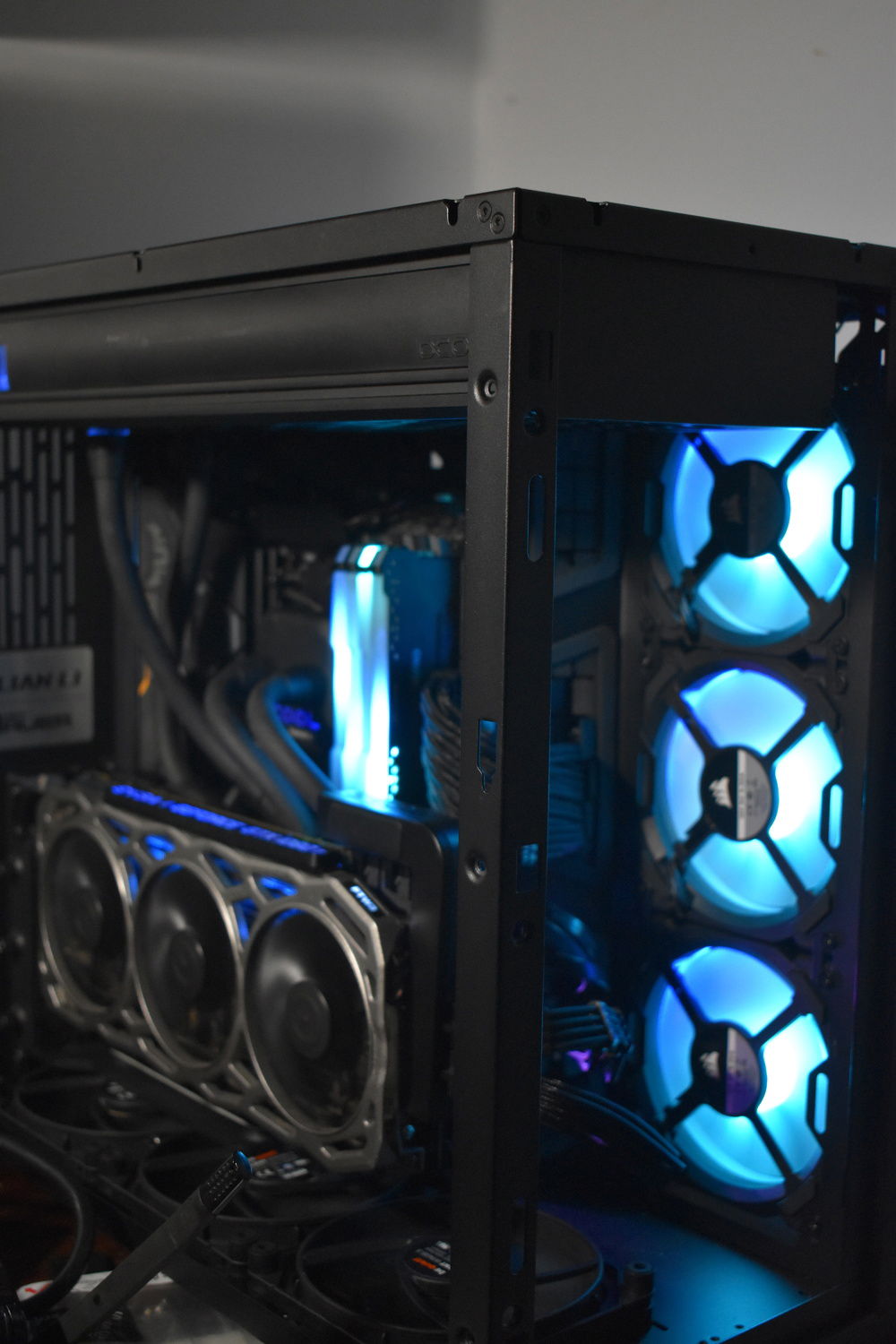

Split v2

Rebuild.
Was as 8700k with an Asus Z370-E. Some of the build pics are with this set.

Now a 3900x on an ASUS X570 TUF.

Removed some of the RGB like the Lian Li Stimmers. Set it for blue to match the EisBaer extreme.

I had a Cooler Master vertical GPU Mount in V1 but it was so close to the board it created an issue with my new memory height. So the Phanteks vertical mount worked with out putting the GPU right on the glass.

The AlphaCool EisBaer Extreme is ... well.. as jayztwocents puts it. “My AIO will beat up your AIO.” Problem is it’s massive and in this case (no pun intended) the EisBaer Extreme does not fit with out drilling some holes.

I use a headset for voice con but rely on 2x Alesis M1 Active studio monitors and a M&K V-1250 subwoofer for game play and listening to music. These run off a PreSonus usb 2x2 which also has mic in (with optional phantom power for condenser mics).

Why “Split”? Because I am indecisive and change things so much that my PC develops a different personality every time I make a change.
Color(s): Black Silver
RGB Lighting? Yes
Theme: none
Cooling: AIO Cooling
Size: ATX
Type: General Build

Contests

This build participated in 2 contests.

Build Updates

Powered on for the first time today

All fans going. Wire management is.. um there.. ish.

Almost done.

Delidded CPU!

Upgraded to 3900x

New CPU

Added vertical GPU mount! Put all the glass on.

New shelf. New fan configuration.

Replaced Cougar 700K with Corsair K70 mk2 MX Speed

Adding Mixing Board

Hardware

CPU
$ 225.00
AMD - Ryzen 9 (3900X)
Socket: AM4
Cores: 12
Motherboard
$ 192.99
ASUS - TUF Gaming Plus (WiFi)
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 176.98
Corsair - Vengeance Pro (3600MHz) (Black/RGB)
Type: DDR4
Capacity: 16 GB
Graphics
$ 400.00
EVGA - GeForce FTW3
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Interface: PCIe x16
Storage
$ 145.00
Intel - 660p
Form Factor: M.2
Interface: PCIe x4
Capacity: 1 TB
Storage
$ 104.99
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 250 GB
Storage
$ 337.23
SanDisk - Ultra II
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 960 GB
Storage
$ 124.99
Toshiba - X300
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 5 TB
Storage
$ 39.00
Western Digital - Caviar Green
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
$ 155.05
Corsair - HX850
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 159.99
Lian Li - O11DX Dynamic (Black)
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 67.00
be quiet! - SILENT WINGS 3 120mm HIGH-SPEED
Size: 120 mm
Case Fan
$ 39.61
Corsair - LL120 (RGB) (Black)
Size: 120 mm
Cooling
$ 128.10
Alphacool - Eisbaer Extreme 280 Black Edition
Type: AIO
CableMod
CableMod - Sleeved Cables
Mode: Custom
Sleeve: ModFlex
Color: Black
Accessories
$ 198.00
Alesis - M1 ACTIVE MKII
Accessories
Behringer - 6 Channel mic/line mixer
Accessories
$ 64.99
Corsair - Lighting Node Pro
Accessories
$ 29.99
Corsair - RGB Fan LED Hub
Accessories
$ 9.62
EVGA - PowerLink
Accessories
M&KSound - V-1250THX
Accessories
$ 67.99
Microsoft - Xbox Wireless Controller
Accessories
$ 96.43
Phanteks - Vertical GPU Mount
Accessories
$ 77.77
PreSonus - AudioBox USB 2x2 Audio Interface
Accessories
$ 70.00
Sennheiser - E845-S Microphone
Mouse
$ 99.99
Corsair - Scimitar Pro RGB
Interface: Wired
