URANIA_v2

[align=justify]After 10 years of almost "inactivity" I decided to build a [b]new RIG[/b], completely from 0 and with top pc components.

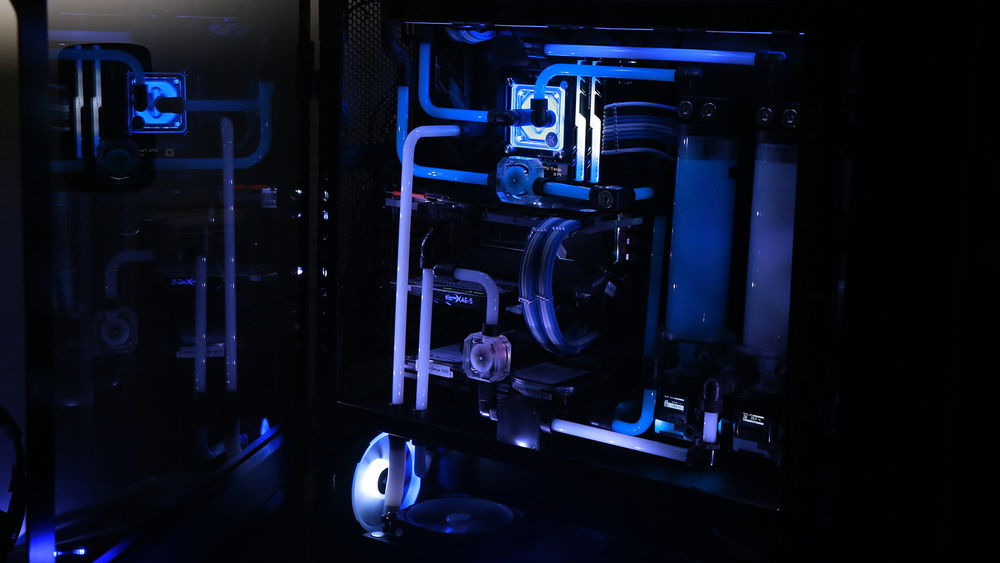

I used a [b]double [/b][b]custom loop[/b], one (blu) for [b]cpu only[/b], and one (white) for [b]mainboard/vga combo[/b], with top EK components, like Radiator Pe, Velocity D-RGB Waterblock, EK-FC1080 GTX for vga and hard tube. I used two D5 Next RGB (from aquacomputer) too. I had, of course, an eye on the RGB part :)
It was very difficult bending tube, so many stuff to use, some brain, a long time to assembly all components, but it was worth it.

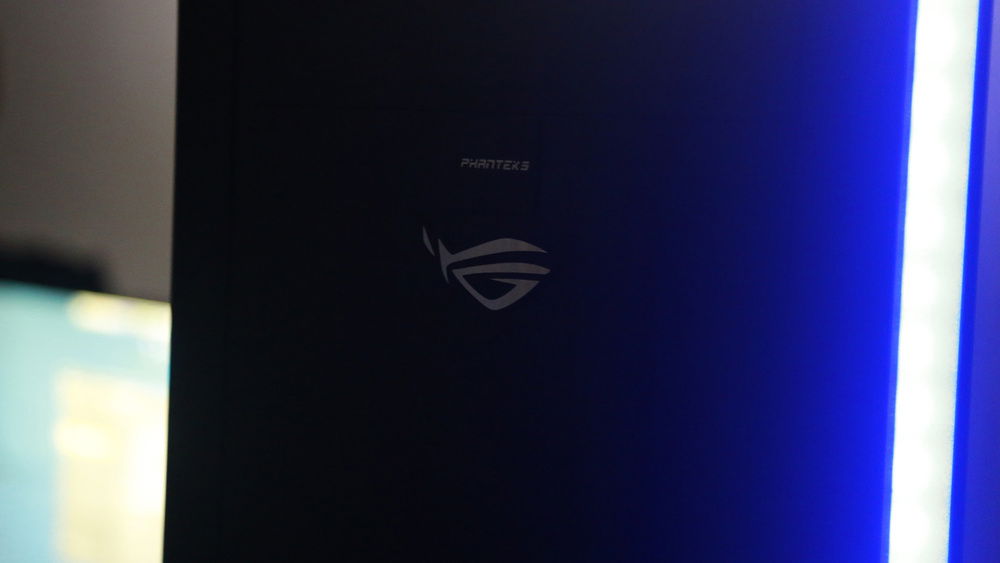

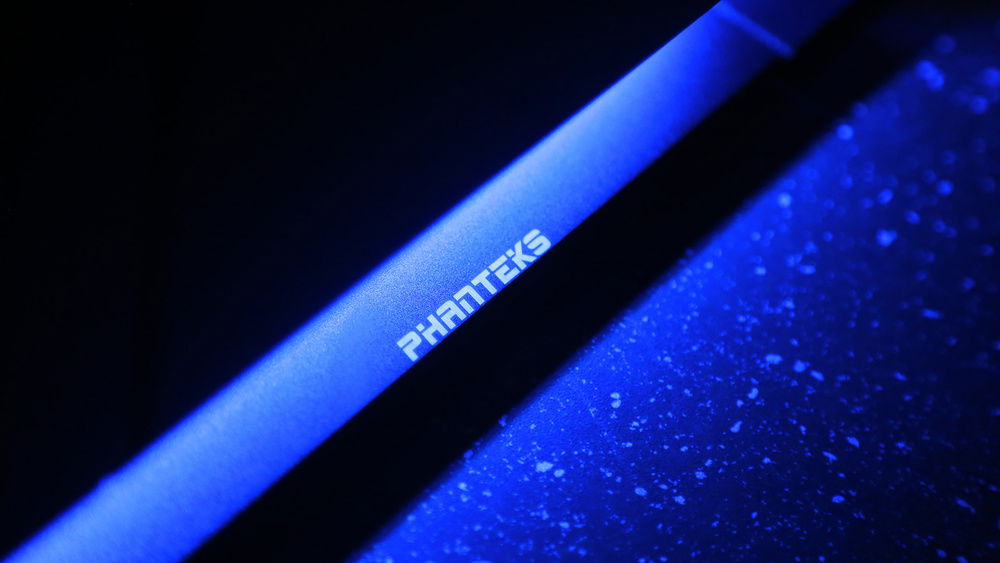

But the most "[b]Majestic[/b]" and [b]beautiful [/b]thing about this build, is for sure the [b]CASE[/b], the Elite of PC Cases, the [b]Phantecks Enthoo Elite[/b]. Wonderfull, very very big, and capable of all configurations u want.
Im very satisfied for that case and build.
I introduce to you: [u][b]URANIA_v2[/b][/u], a creation by MkKoY.[/align]

URANIA_v2 Build:
Case: Phantecks Enthoo Elite
PSU: Corsair HX1000i

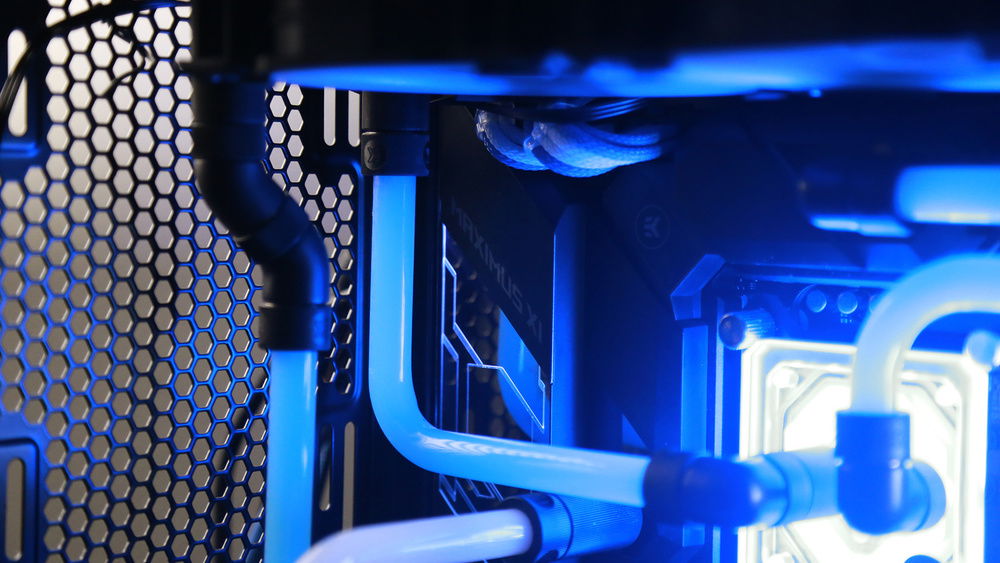

Mainboard: Asus ROG MAXIMUS XI Formula
Processor: Intel i7 9900K @5.0Ghz

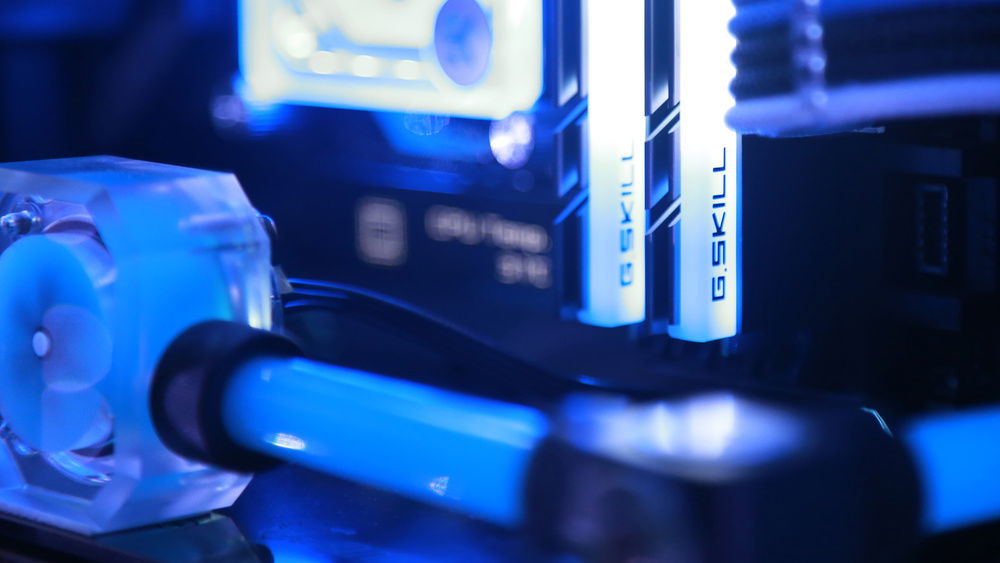

RAM: GSkill Trident Z RGB 16 GB 4000 CL17
GPU: ASUS TUF 3080

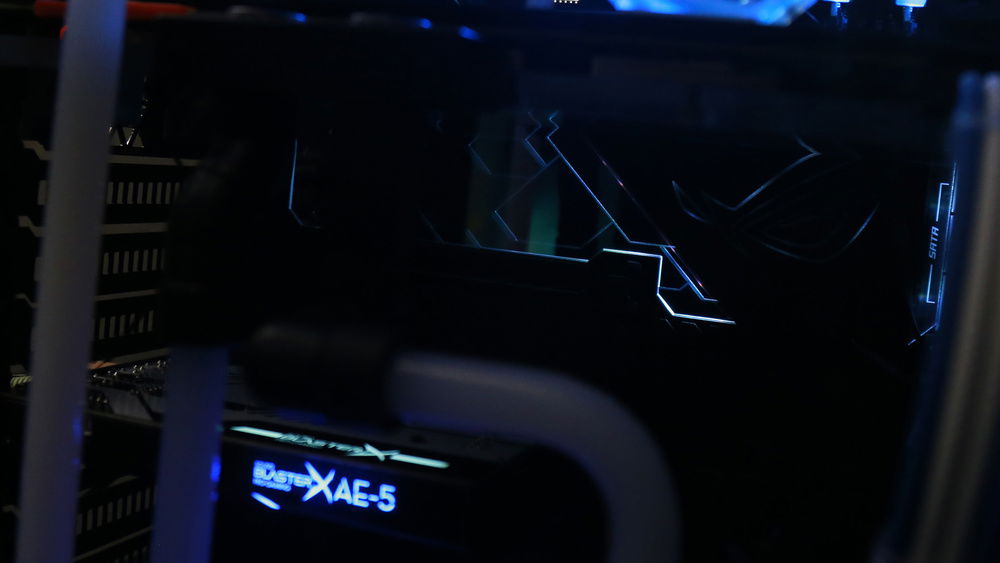

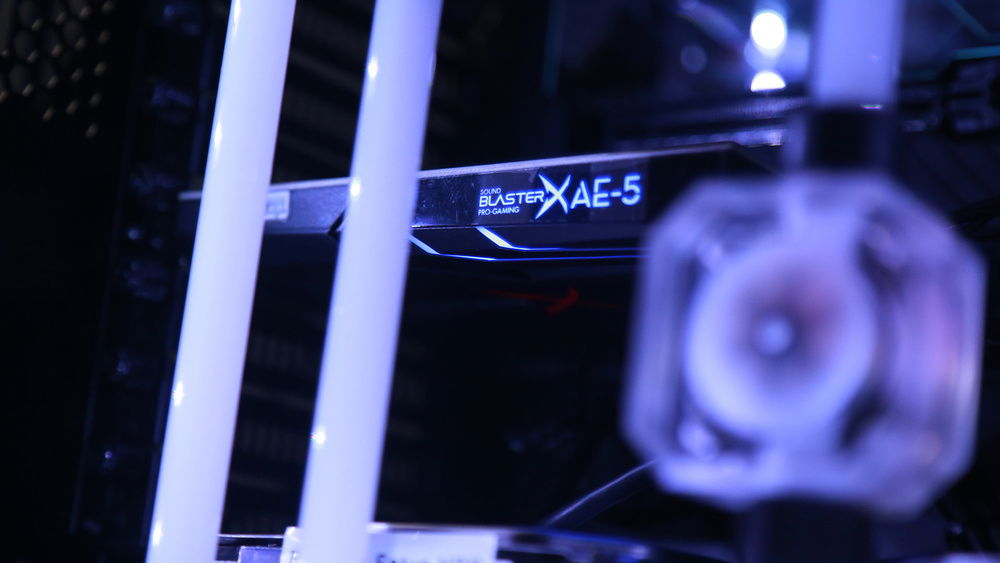

Audio: Sound Blaster AE-5
Storage[1]: Samsung 970 Evo 500GB (S.o. Disk)
Storage[2]: Samsung 850 Evo 250GB (Games Disk)
Storage[3]: 5 x Western Digital 1Tbyte (Data Disks)
RGB System: Commander Pro+LightNode+Rgb Led Strips+LL Fans 120 (all by Corsair)

Cooling:

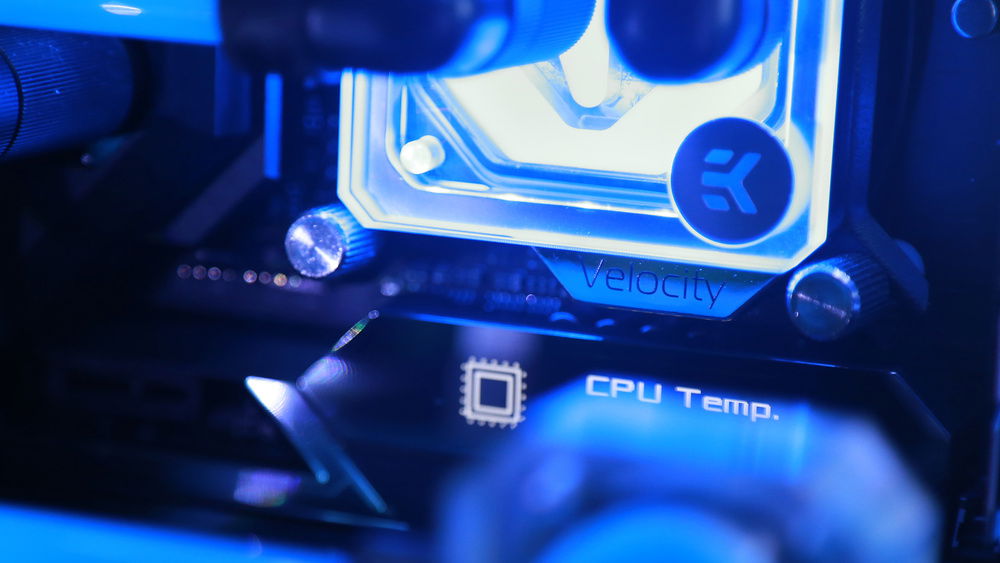

CPU Waterblock: EK D-RGB Velocity
GPU Waterblock: EK-FC1080 GTX Ti Aorus Backplate
Fittings: EK HDC 10/12mm for HardTube
Reservoir: 2x EK-RES X3 TUBE 250

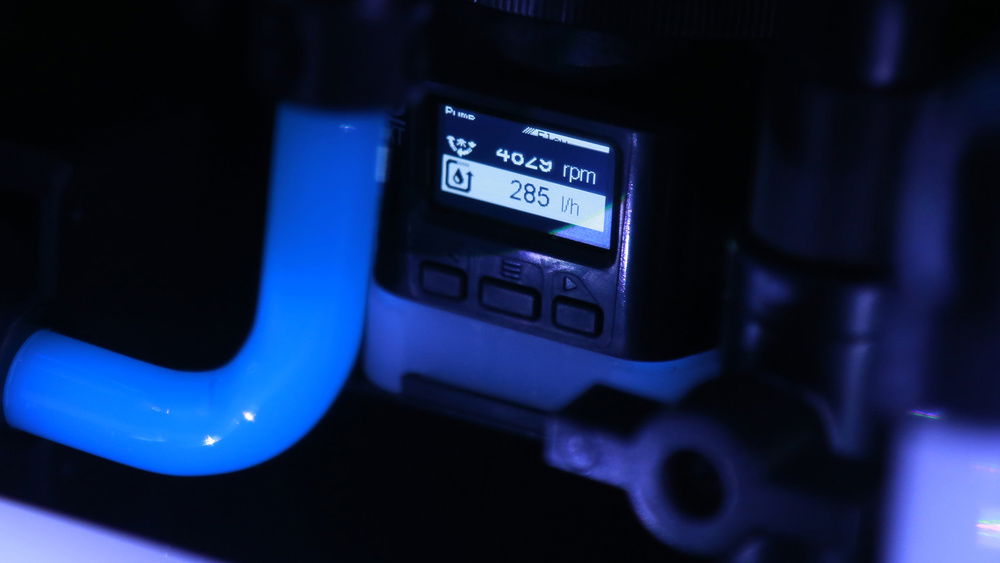

Pumps: 2x D5 NEXT RGB
Pumps Top: EK-XRES 140 Revo D5 Plexi
Radiator[1]: 1 x CoolStream PE 480
Radiator[2:] 1 x CoolStream PE 360
Fans[1]: 3 x NB-eLoop Fan B12-P (Frontall Airflow)
Fans[2]: 3 x NB-eLoop Fan B12-P (Vga/mainboard Rad fans)
Fans[3]: 4 x Corsair LL 120 RGB (CPU Rad fans)
Flowmeters: 2 x Aquacomputer Flow sensors 'high flow'

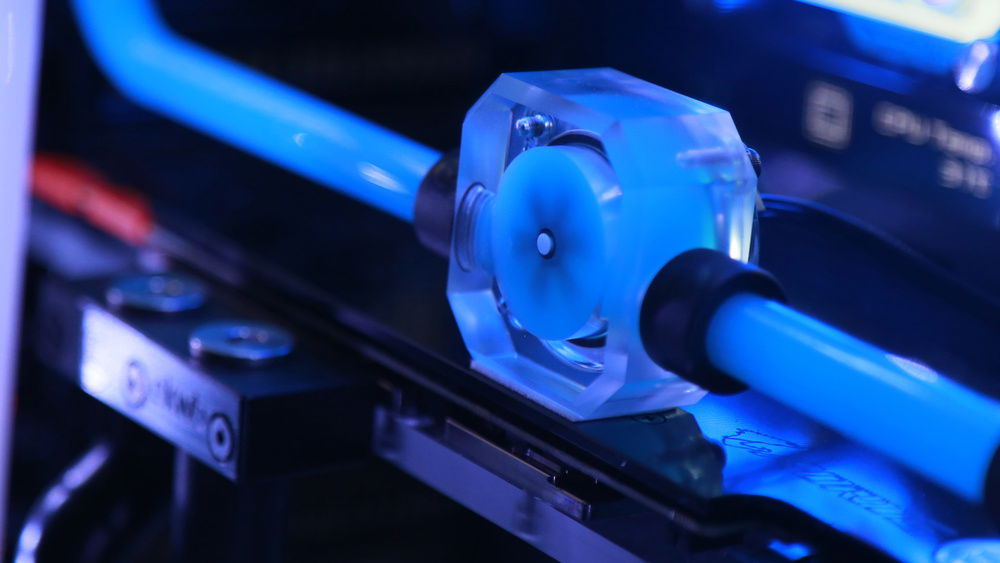

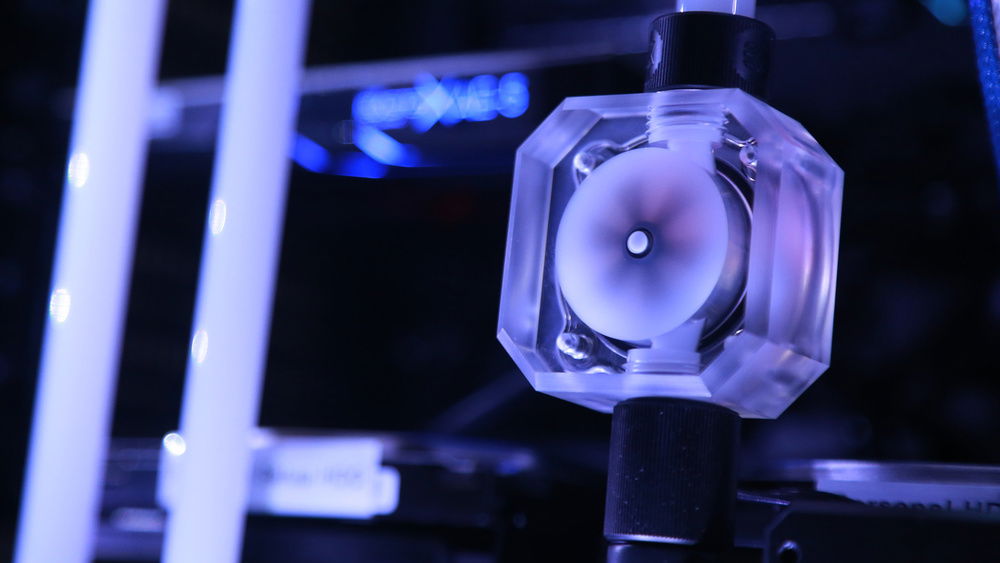

Visual Flowmeters: 2 x Barrow visual Flowmeters

Accessories:
Monitor: Samsung G7 - Gsync - 240hz

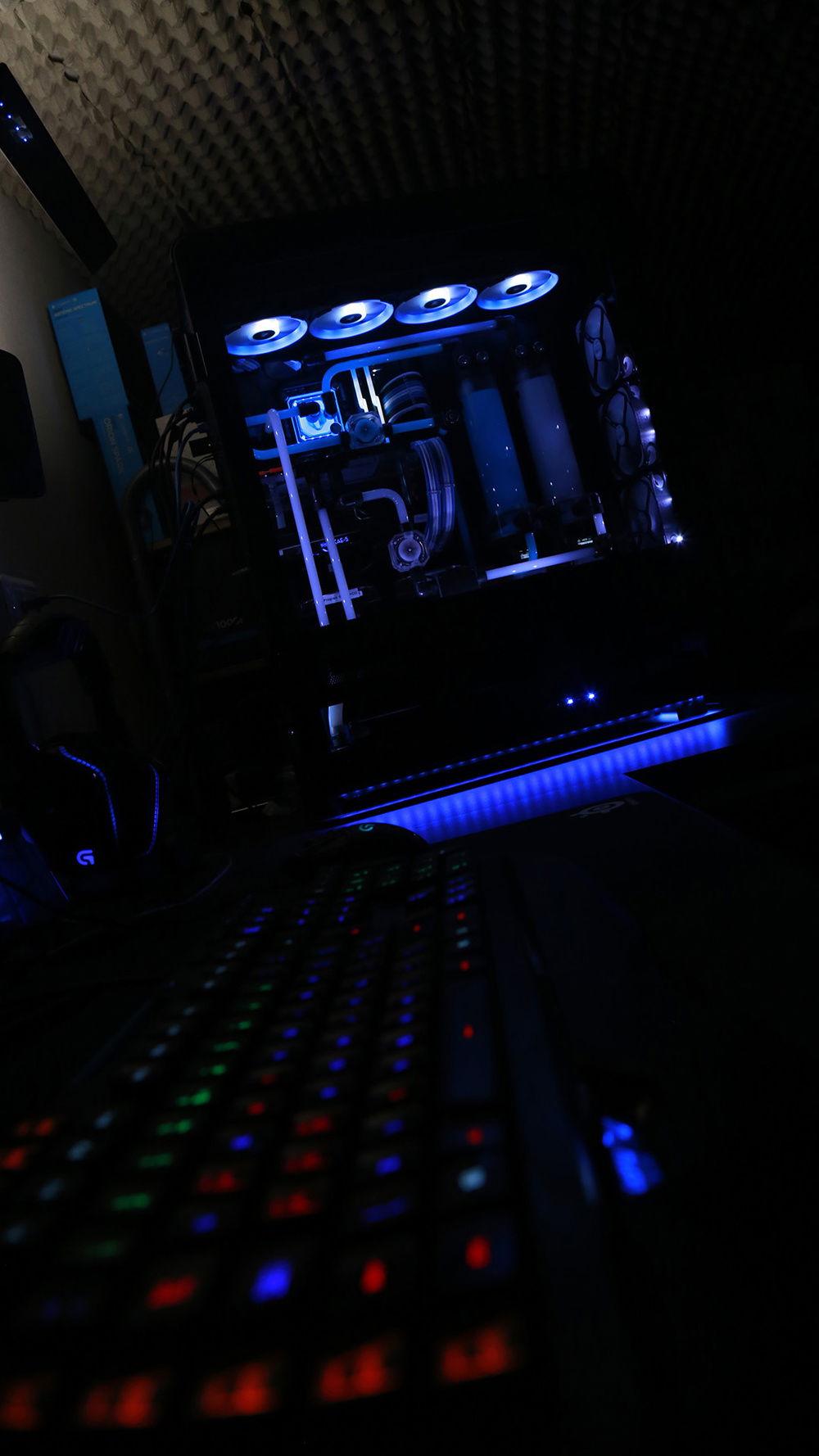

Keyboard: Logitech G910
Mouse: Logitech G502 Proteus + QCK Mousepad 900x400
Headphones: Steelseries Pro Wireless White
Usb: NZXT Internal usb Hub

TimeLapse building video, here:


Thank u guys for watching this, MkKoY.
Color(s): Black Blue White
RGB Lighting? Yes
Theme: Color
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 3 contests.

Hardware

CPU
$ 387.00
Intel - Core i9-9900K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 549.00
ASUS - ROG Maximus XI Formula
Chipset: Z390
CPU Socket: LGA 1151
Size: ATX
Memory
$ 72.99
G.Skill - Trident Z (3600MHz) (Black/RGB)
Type: DDR4
Capacity: 32 GB
Graphics
$ 1,298.86
Gigabyte - AORUS Xtreme
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
Samsung - 850 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 250 GB
Storage
$ 119.00
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
Storage
$ 43.76
Seagate - Barracuda Compute (ST1000DM010)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 43.76
Seagate - Barracuda Compute (ST1000DM010)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 29.99
Western Digital - Caviar Green
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 29.99
Western Digital - Caviar Green
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 29.99
Western Digital - Caviar Green
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
$ 401.00
Corsair - HX1000i
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 1,319.86
Phanteks - Enthoo Elite
Type: Full-Tower
Side Panel: Tempered Glass
Case Fan
$ 30.63
Case Fan
$ 30.63
Case Fan
$ 30.63
Case Fan
$ 30.63
Case Fan
$ 30.63
Case Fan
$ 30.63
Case Fan
$ 39.61
Corsair - LL120 (RGB) (Black)
Size: 120 mm
Case Fan
$ 39.61
Corsair - LL120 (RGB) (Black)
Size: 120 mm
Case Fan
$ 39.61
Corsair - LL120 (RGB) (Black)
Size: 120 mm
Case Fan
$ 39.61
Corsair - LL120 (RGB) (Black)
Size: 120 mm
Case Fan
$ 39.61
Corsair - LL120 (RGB) (Black)
Size: 120 mm
Cooling
$ 156.95
Aquacomputer - D5 NEXT
Type: Pump
Cooling
$ 156.95
Aquacomputer - D5 NEXT
Type: Pump
Cooling
$ 199.00
EKWB - CoolStream PE
Type: Custom Loop
Size (WxHxD): 480 mm (4 x 120 mm)
Cooling
$ 209.06
EKWB - CoolStream PE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
Cooling
$ 44.99
EKWB - EK-HD Tube 10/12mm
Type: Custom Loop
Cooling
EKWB - EK-HDC Fitting Black 12mm
Type: Custom Loop
Cooling
$ 105.99
EKWB - EK-RES X3 250
Type: Reservoir
Cooling
$ 70.00
EKWB - EK-Velocity RGB Intel Nickel/Plexi
Type: CPU Waterblock
Cooling
EKWB - Fittings
Type: Custom Loop
Accessories
$ 74.29
Accessories
$ 64.99
Accessories
$ 64.99
Accessories
$ 19.76
Accessories
$ 199.99
Accessories
$ 391.16
Accessories
$ 24.99
Accessories
$ 14.99
Monitor
$ 682.00
Acer - Predator XB271HU
Size: 27 Inch
Panel: IPS
Refresh Rate: 144 Hz
Monitor
LG - L226WT
Size: 22 Inch
Panel: TFT
Refresh Rate: 60 Hz
Keyboard
$ 159.98
Logitech - G910
Interface: Wired
Key Switch Type: Romer-G
Type: Full Size
Mouse
$ 46.50
Logitech - G502 Proteus Spectrum
Interface: Wired
