with light, but appears blue on camera
with light, but appears blue on camera

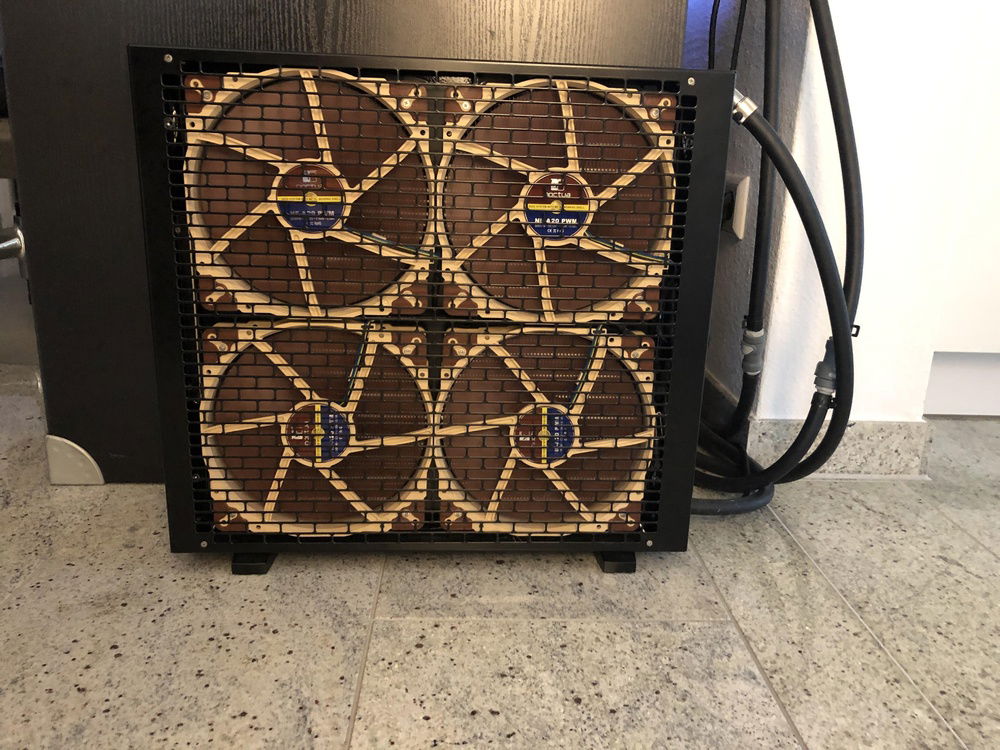

external Mo-Ra3 420 with 8x NF-A20 in push/pull
external Mo-Ra3 420 with 8x NF-A20 in push/pull

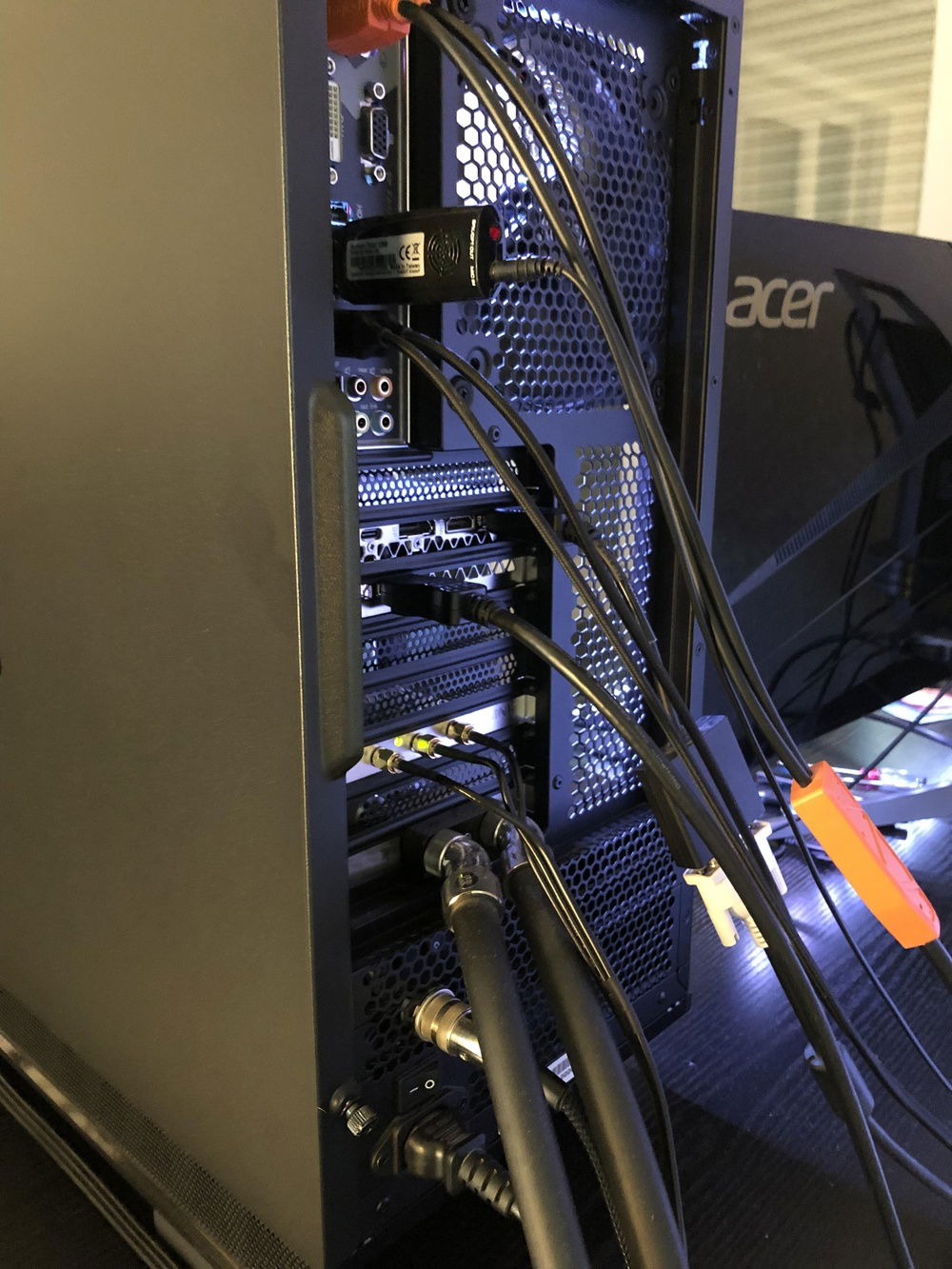

backside with the ports for the external tubing for the radiator and a self made sleeved cable to the external Mo-Ra3 to power and PWM control the fans.
backside with the ports for the external tubing for the radiator and a self made sleeved cable to the external Mo-Ra3 to power and PWM control the fans.

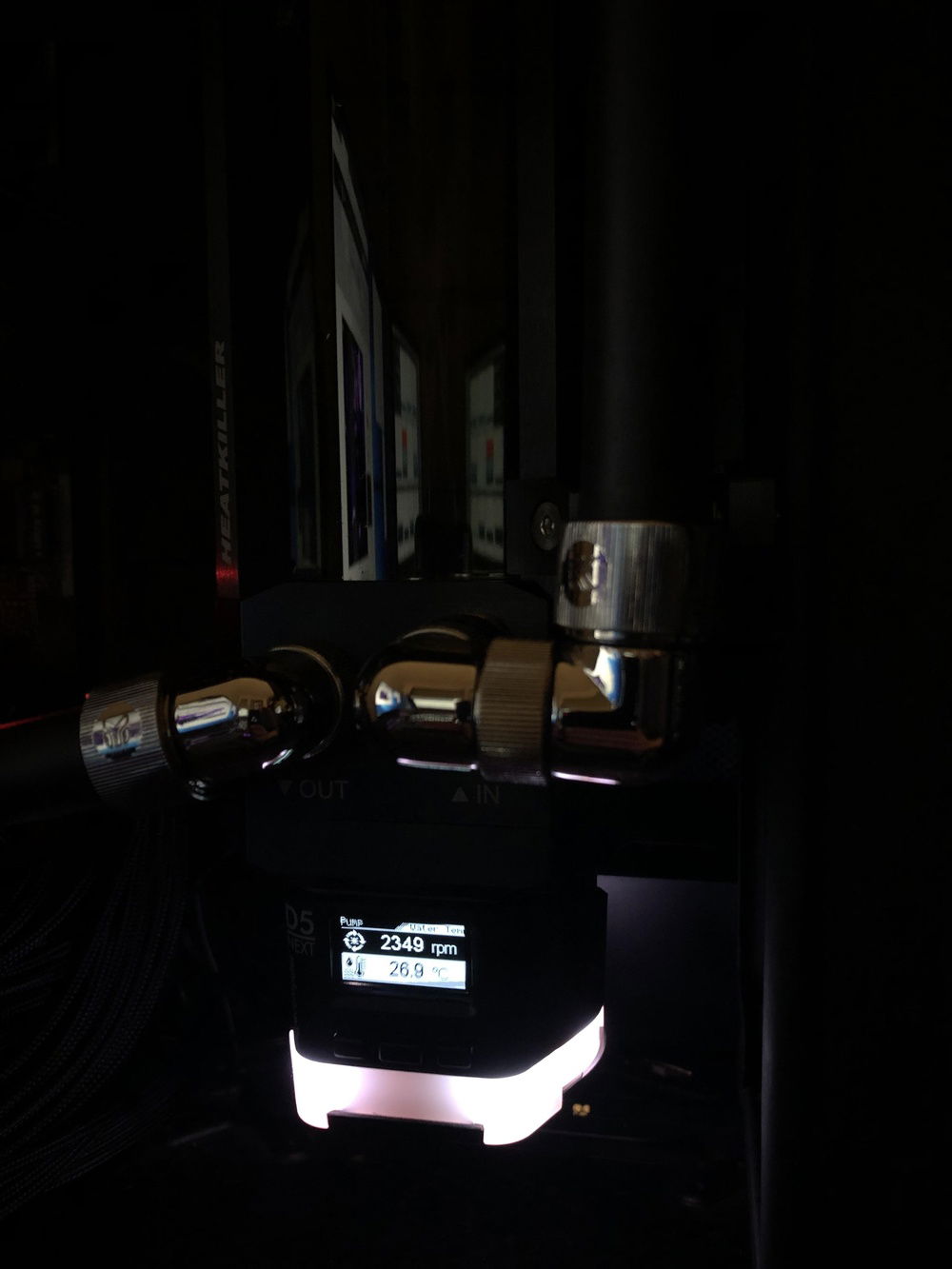

D5 NEXT pump with Heatkiller 150 tube reservoir
D5 NEXT pump with Heatkiller 150 tube reservoir

Dschijns main rig

Main goals:
- nearly inaudible
- high end cooling
- maximum performance

Detailed specs:
- 8700k @ 5GHz
- RTX 2080Ti @ 2.1GHz
- Corsair Dominator @ 3300MHz
- custom PSU cover
- external Mo-Ra3 420 radiator with 8x NF-A20
Color(s): Black Silver
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 160.00
Intel - Core i7-8700K
Socket: LGA 1151
Cores: 6
Integrated Graphics: Yes
Motherboard
$ 319.99
ASRock - Fatal1ty Gaming K6
Chipset: Z370
CPU Socket: LGA 1151
Size: ATX
Memory
$ 189.99
Corsair - Dominator Platinum (3200MHz) (Grey)
Type: DDR4
Capacity: 8 GB
Graphics
INNO3D - GeForce Gaming OC (X2)
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Storage
$ 168.68
Kingston - A1000
Form Factor: M.2
Interface: M.2 (M)
Capacity: 480 GB
Storage
$ 109.00
Samsung - 850 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 135.11
Samsung - 960 PRO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
Storage
$ 1,154.00
Toshiba OCZ - VX500
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
$ 177.99
Corsair - RMX (Black)
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
be quiet! - Dark Base Pro 900
Type: Full-Tower
Side Panel: Tempered Glass
Case Fan
$ 38.09
BLACKNOISE - NoiseBlocker - eLoop B14-PS BLACK
Size: 140 mm
Case Fan
$ 32.95
Noctua - NF-A12x25 PWM
Size: 120 mm
Case Fan
$ 32.95
Noctua - NF-A20 PWM
Size: 200 mm
Cooling
Aquacomputer - Cuplex Cryos
Type: CPU Waterblock
Cooling
$ 148.70
Aquacomputer - D5 NEXT
Type: Pump
Cooling
$ 59.99
Aquacomputer - kryoM.2 evo PCIe 3.0 x4 Adapter for M.2 PCIe SSD
Type: Custom Loop
Cooling
EKWB - Fittings
Type: Custom Loop
Cooling
EKWB - Fluid
Type: Custom Loop
Cooling
EKWB - Tubing
Type: Custom Loop
Cooling
Hardware Labs - Black Ice GTS
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
Watercool - Heatkiller IV eBC - Backplate for RTX 2080 and RTX 2080 Ti
Type: Backplate
Cooling
Watercool - HeatKiller IV RTX 2080 Ti ACETAL Ni
Type: GPU Waterblock
Cooling
Watercool - HeatKiller Tube 150 D5
Type: Custom Loop
Size (WxHxD): 150 mm
Cooling
Watercool - MO-RA3 420 LT black
Type: Custom Loop
CableMod
CableMod - Sleeved Cables
Mode: Custom
Sleeve: PRO ModMesh
Color: Black
Accessories
$ 149.65
Aquacomputer - Aquaero 6 LT USB Fan Controller
Accessories
$ 79.99
TP-Link - Archer T9E Wireless Adapter
Monitor
$ 592.95
Acer - Predator X34
Size: 34 Inch
Panel: IPS
Refresh Rate: 100 Hz
Monitor
Dell - U2412M
Size: 24 Inch
Panel: IPS
Refresh Rate: 60 Hz
Keyboard
$ 240.61
Logitech - G710+
Interface: Wired
Key Switch Type: Cherry MX Brown
Type: Full Size
Mouse
$ 84.99
Logitech - G900
Interface: Wired/Wireless
