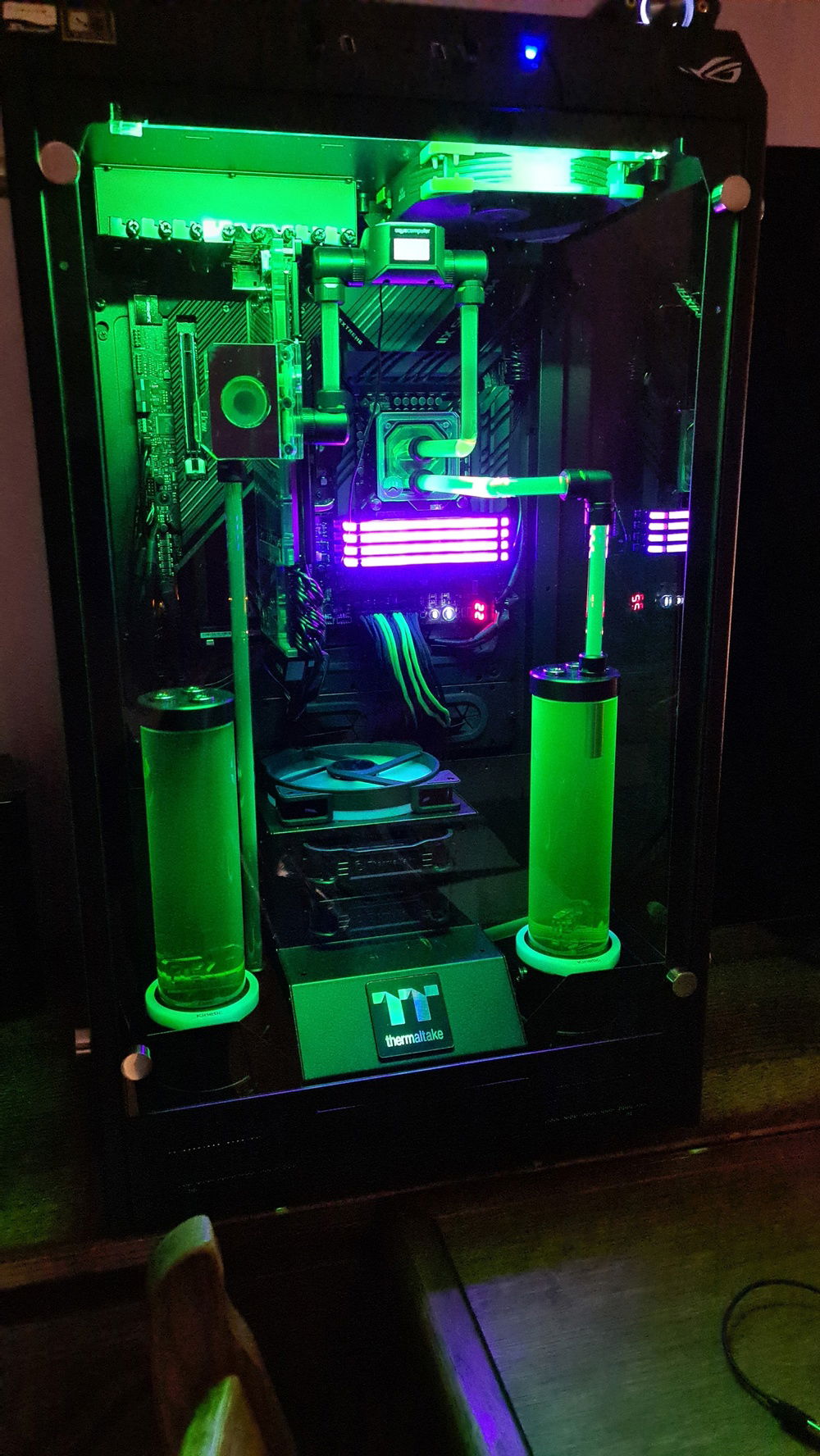

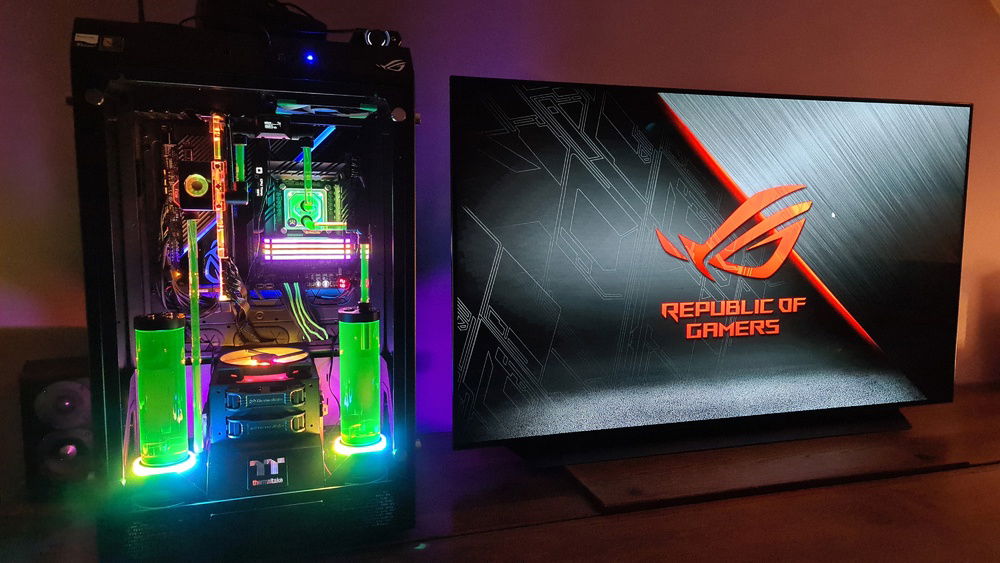

Black Goliath

Heroes of this build:

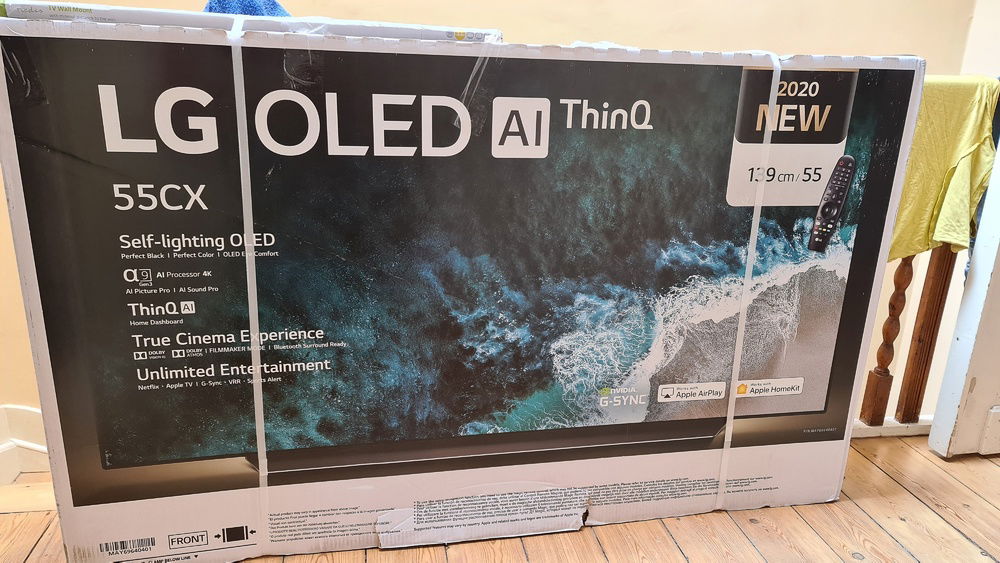

A monitor (TV in total), but still a monitor - LG OLED 55CX3LA

(I did not think about this element for long. OLED just charmed me Emoji No typical computer monitor will show everything like OLED. Unless the OLED monitor ;) )

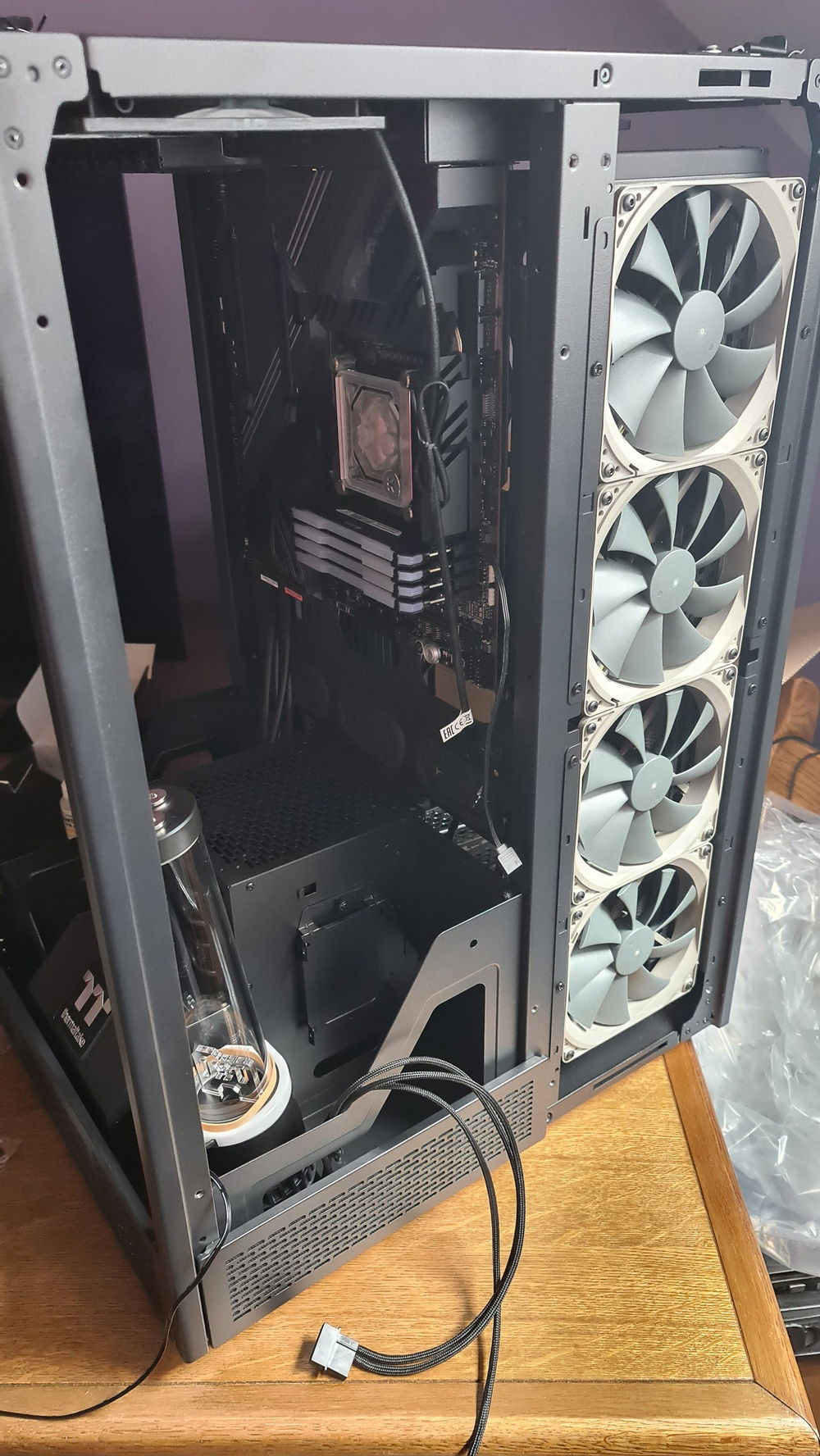

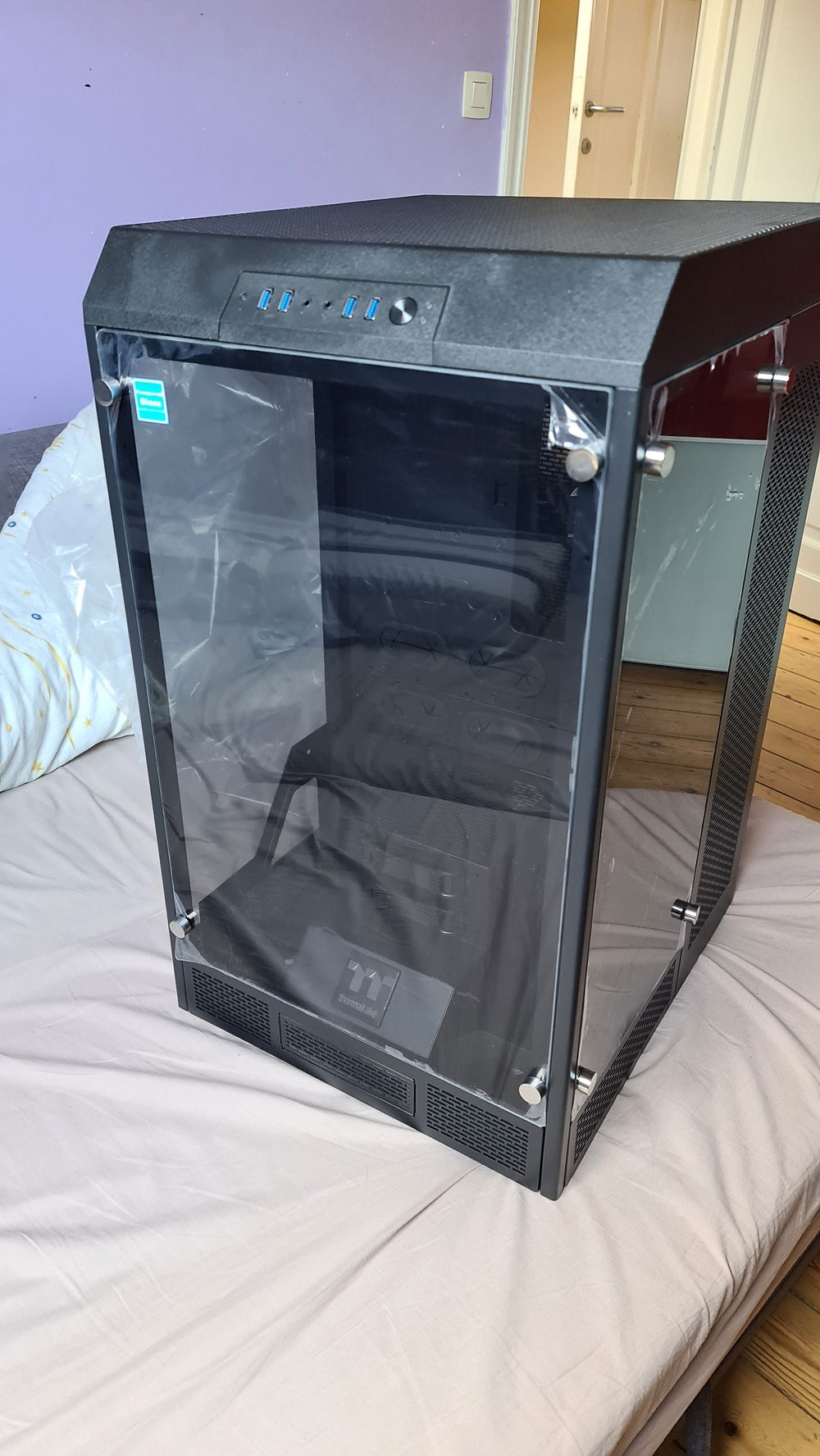

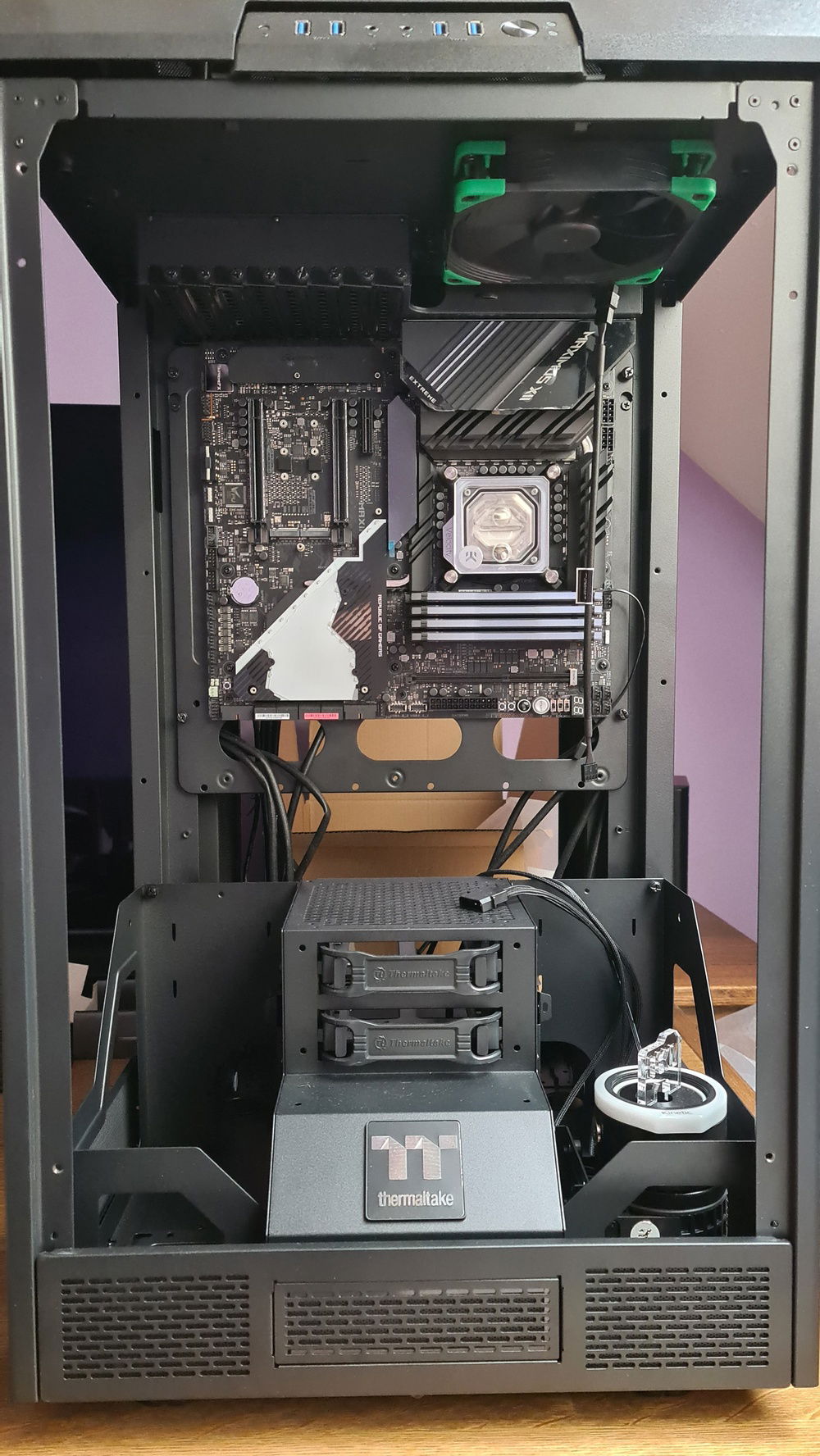

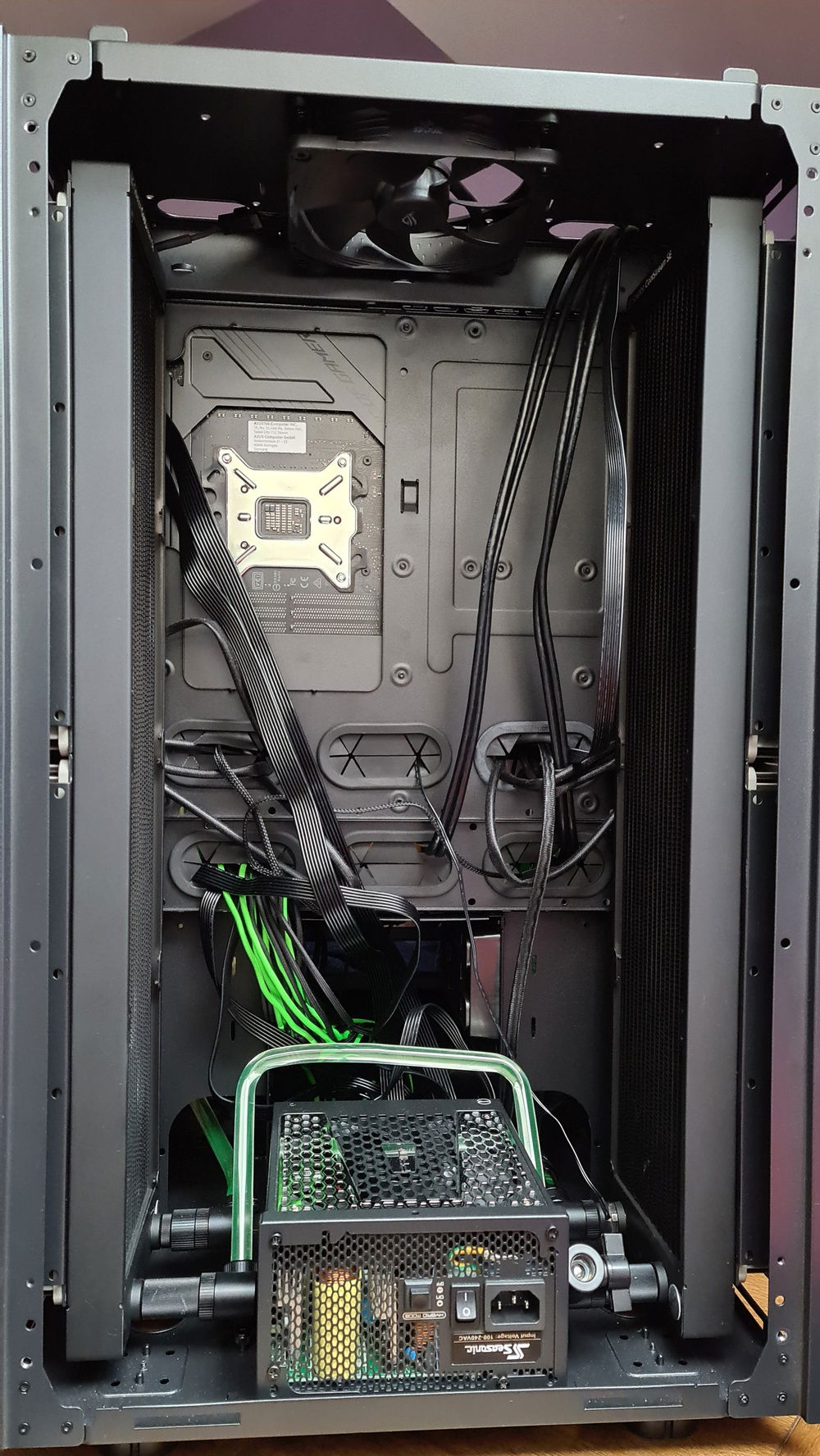

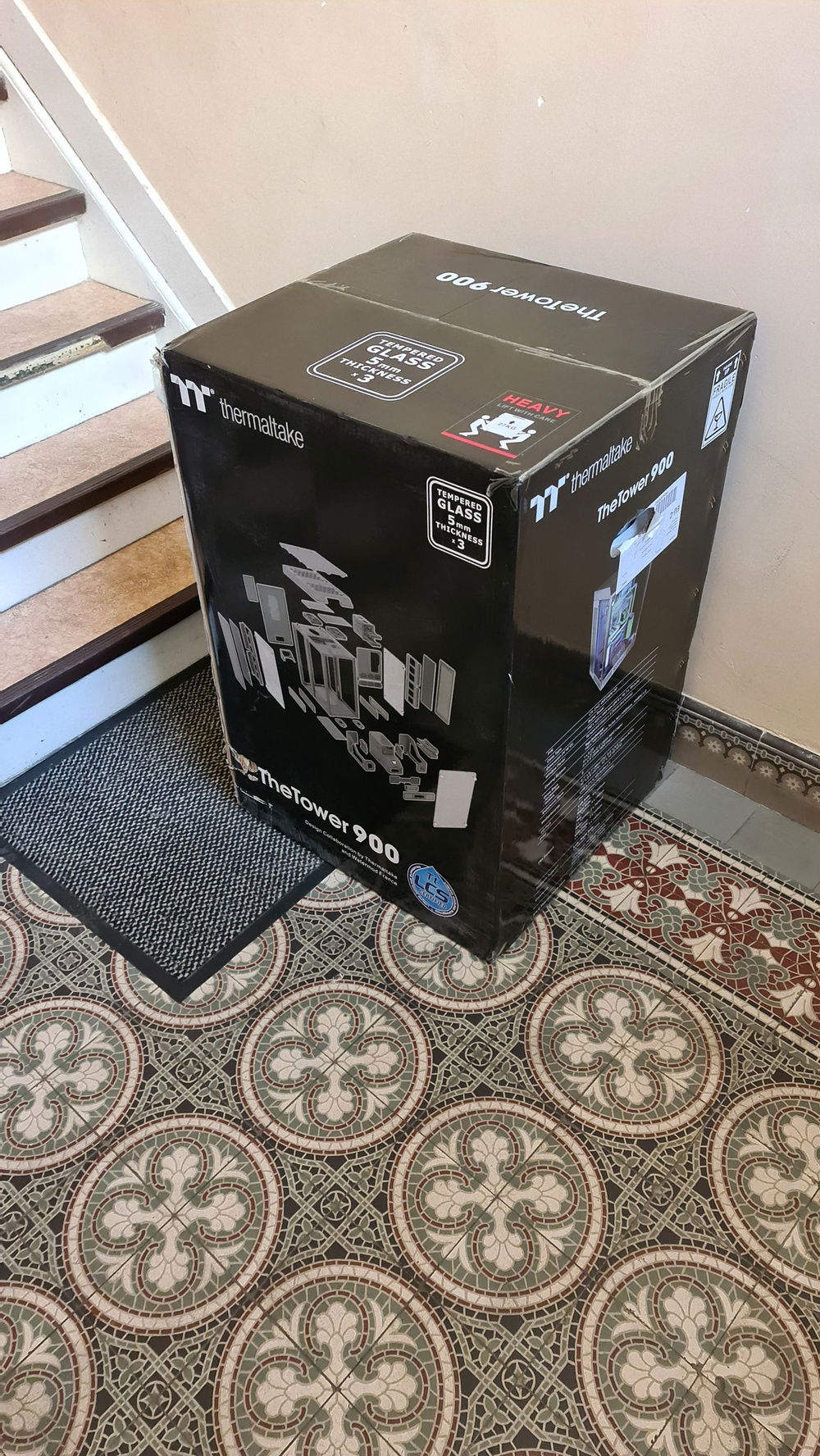

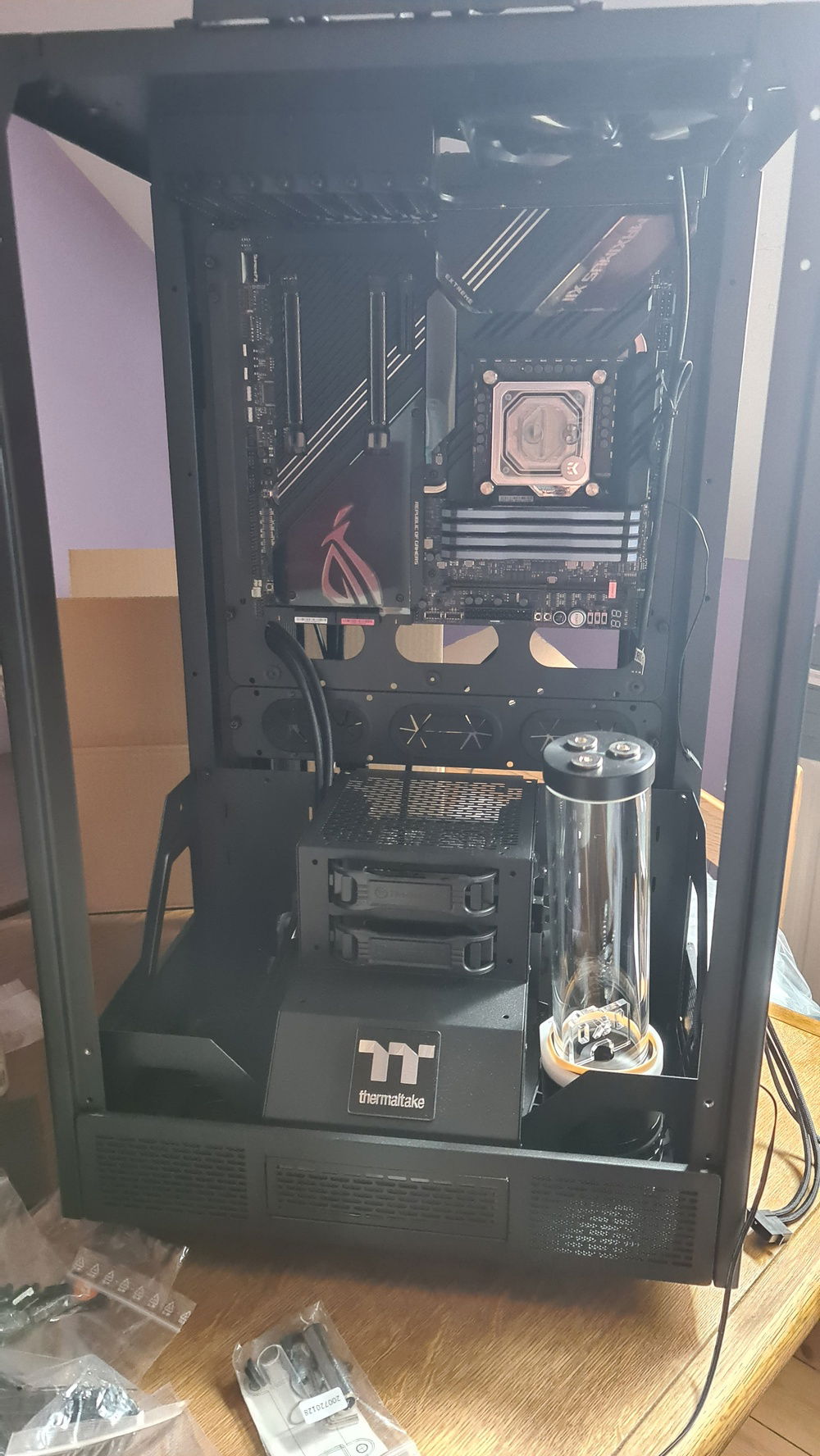

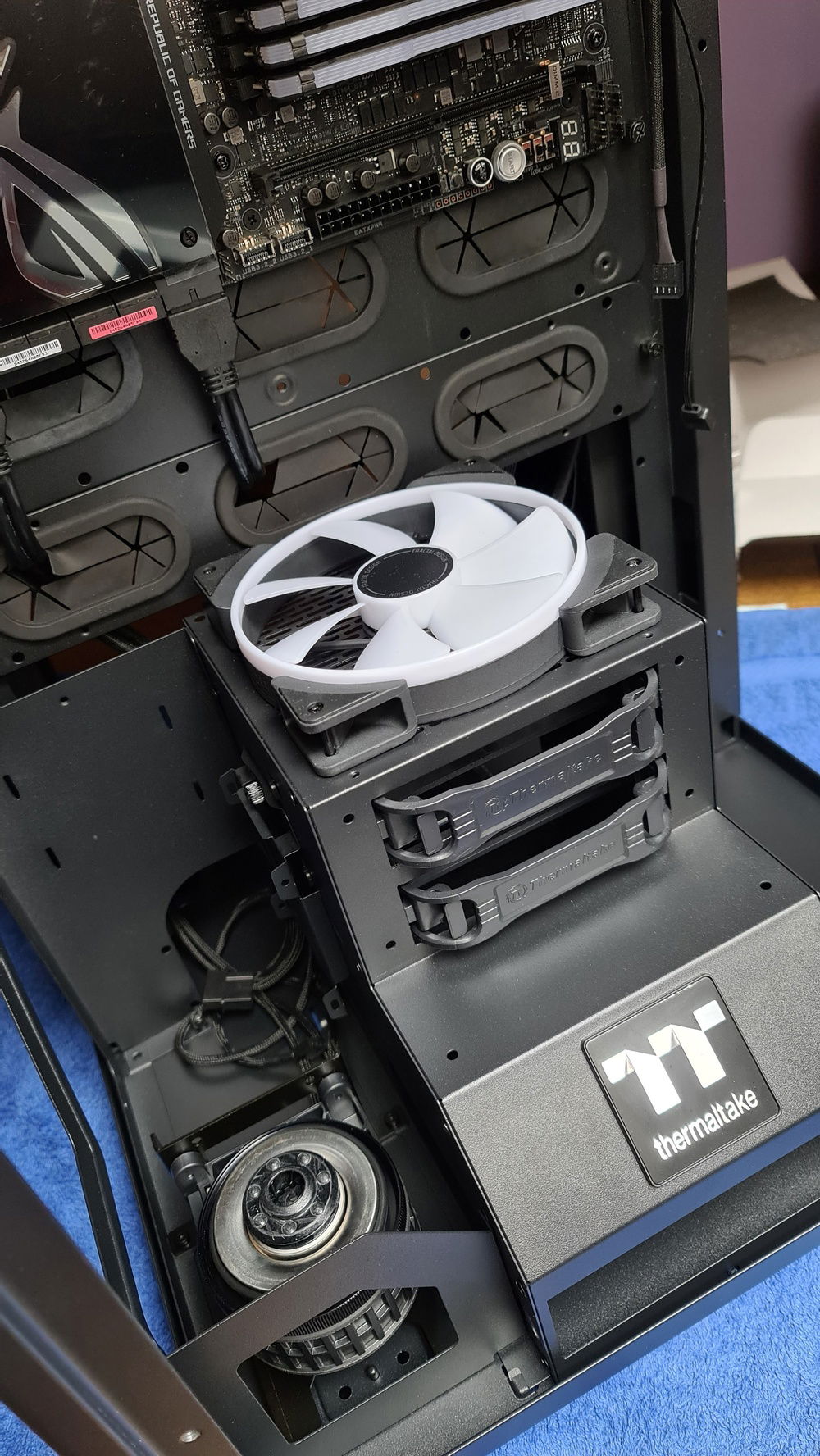

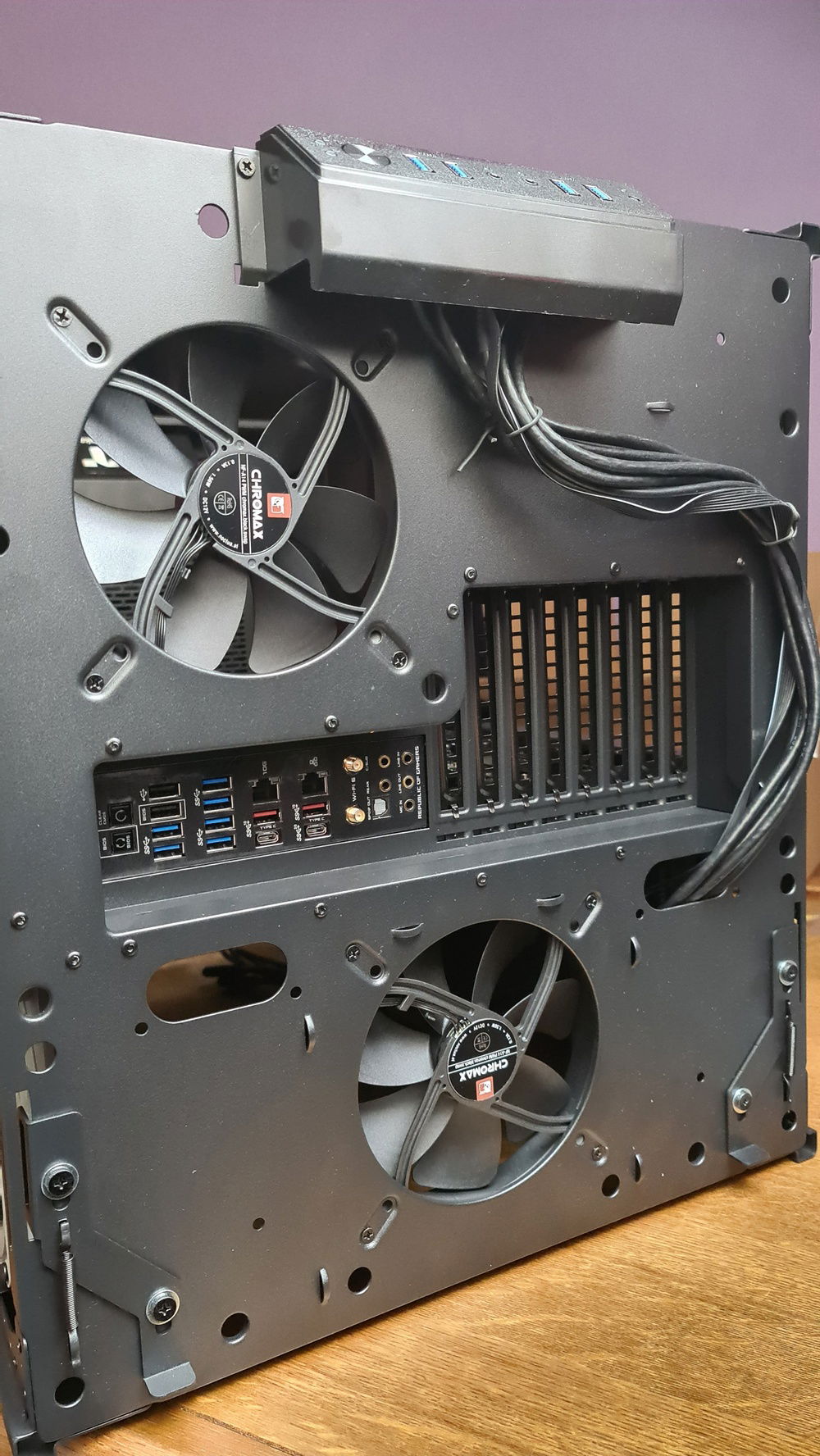

Case - Thermaltake The Tower 900 black

(initially it was supposed to be Fractal Define 7XL, but when I found TT, I said I wanted the big one Emoji)

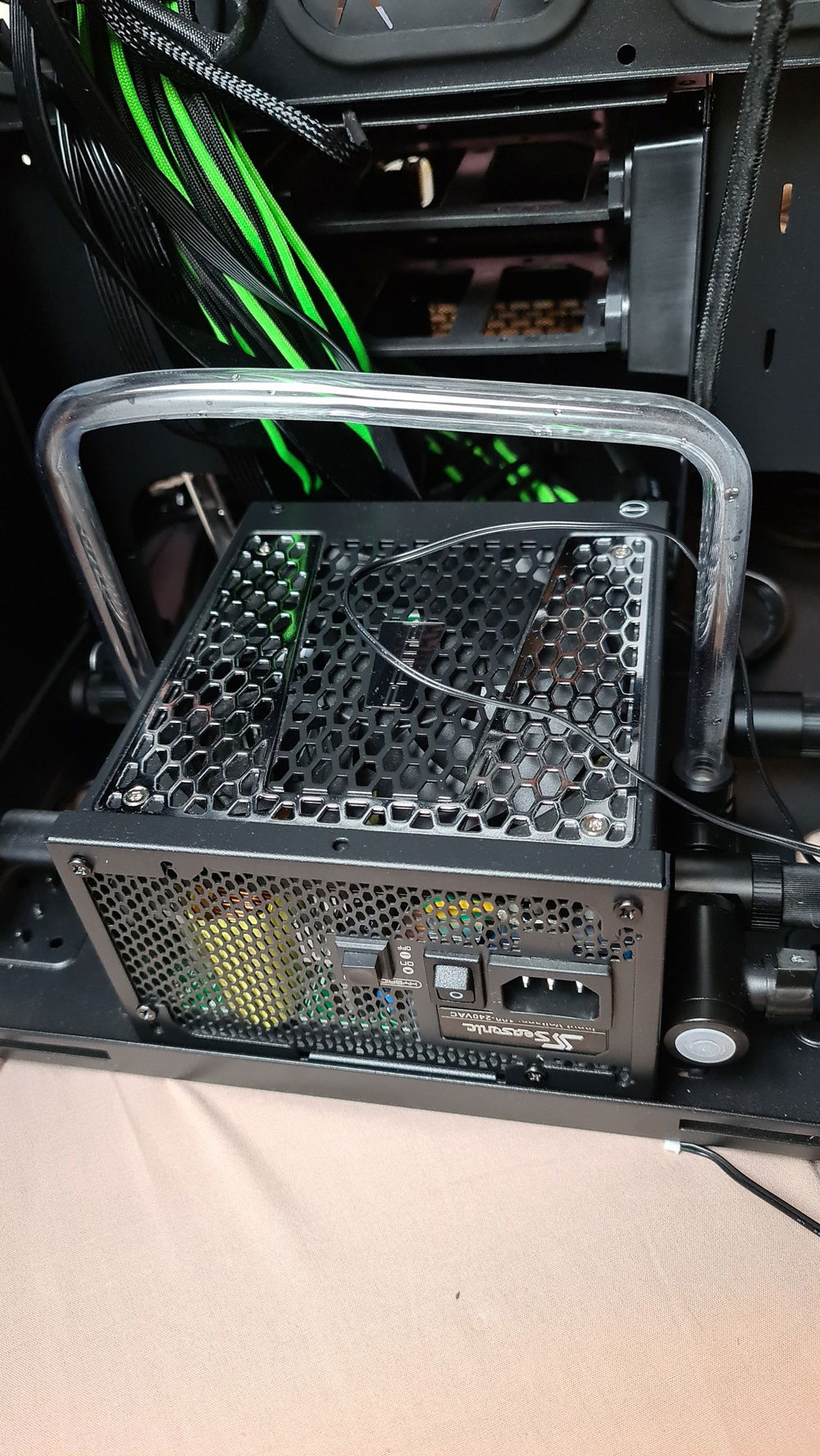

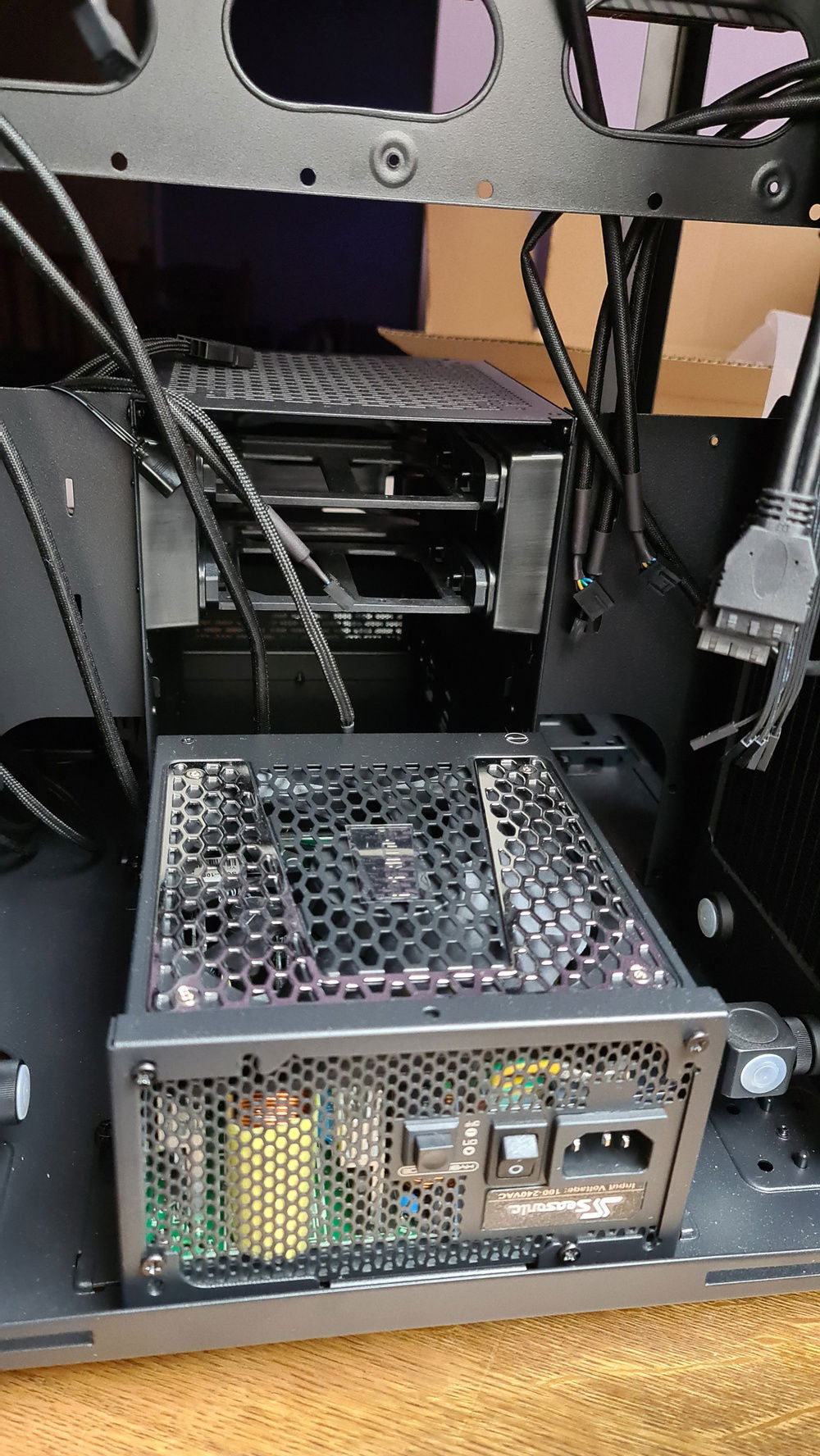

Power supply - Seasonic Prime Gold 1000W

(that's enough, in my opinion, for the whole thing including RTX 3090. Titanium wasn't just there, but I wanted to get it, so I bought Gold)

Motherboard - ROG ASUS MAXIMUS XII Extreme

(Here, too, Asus Maximus XII Formula was supposed to be here first, but on reflection, I added some € and bought this one. I still got the promotion of Asus and I will get 150 € back)

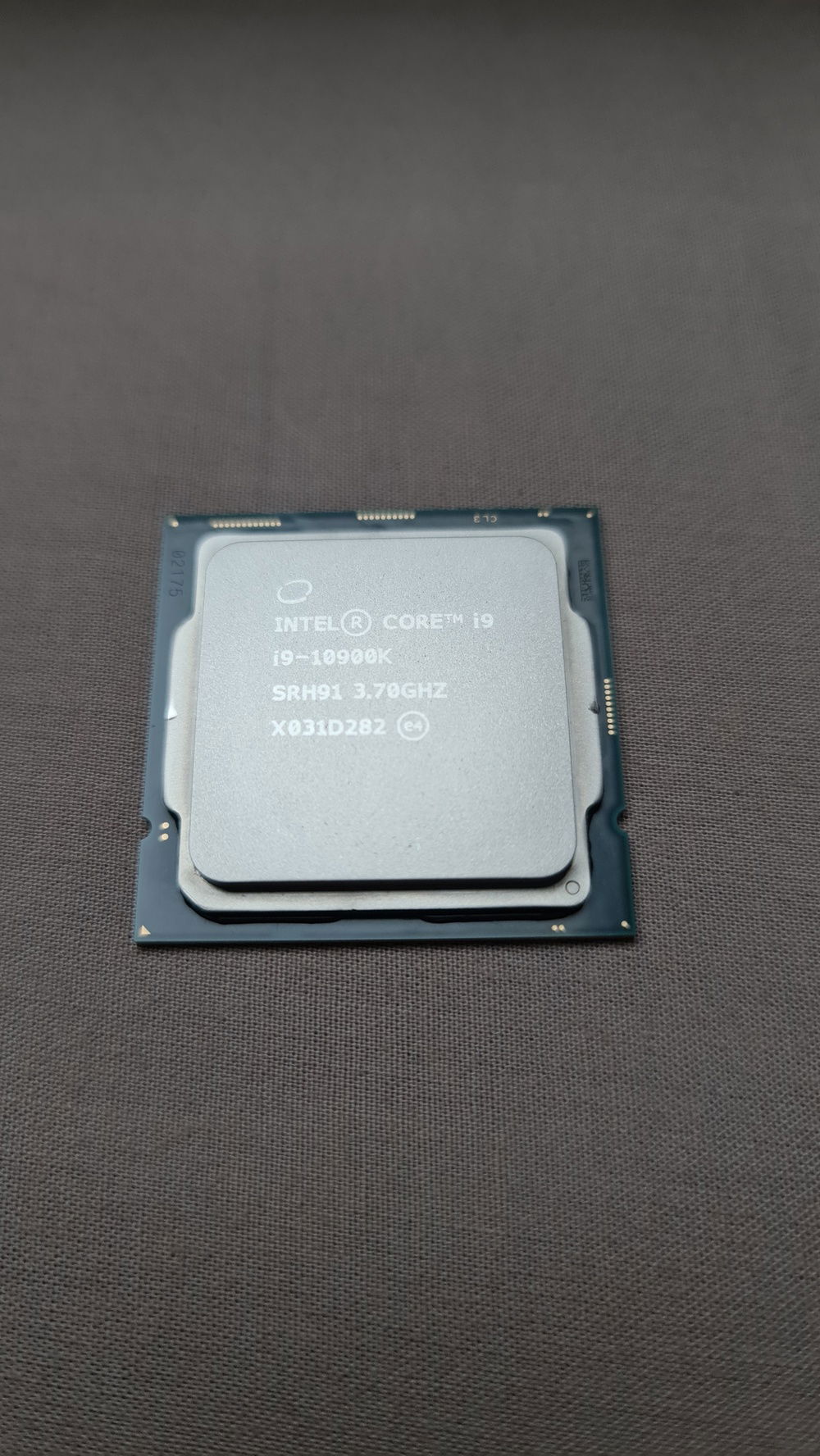

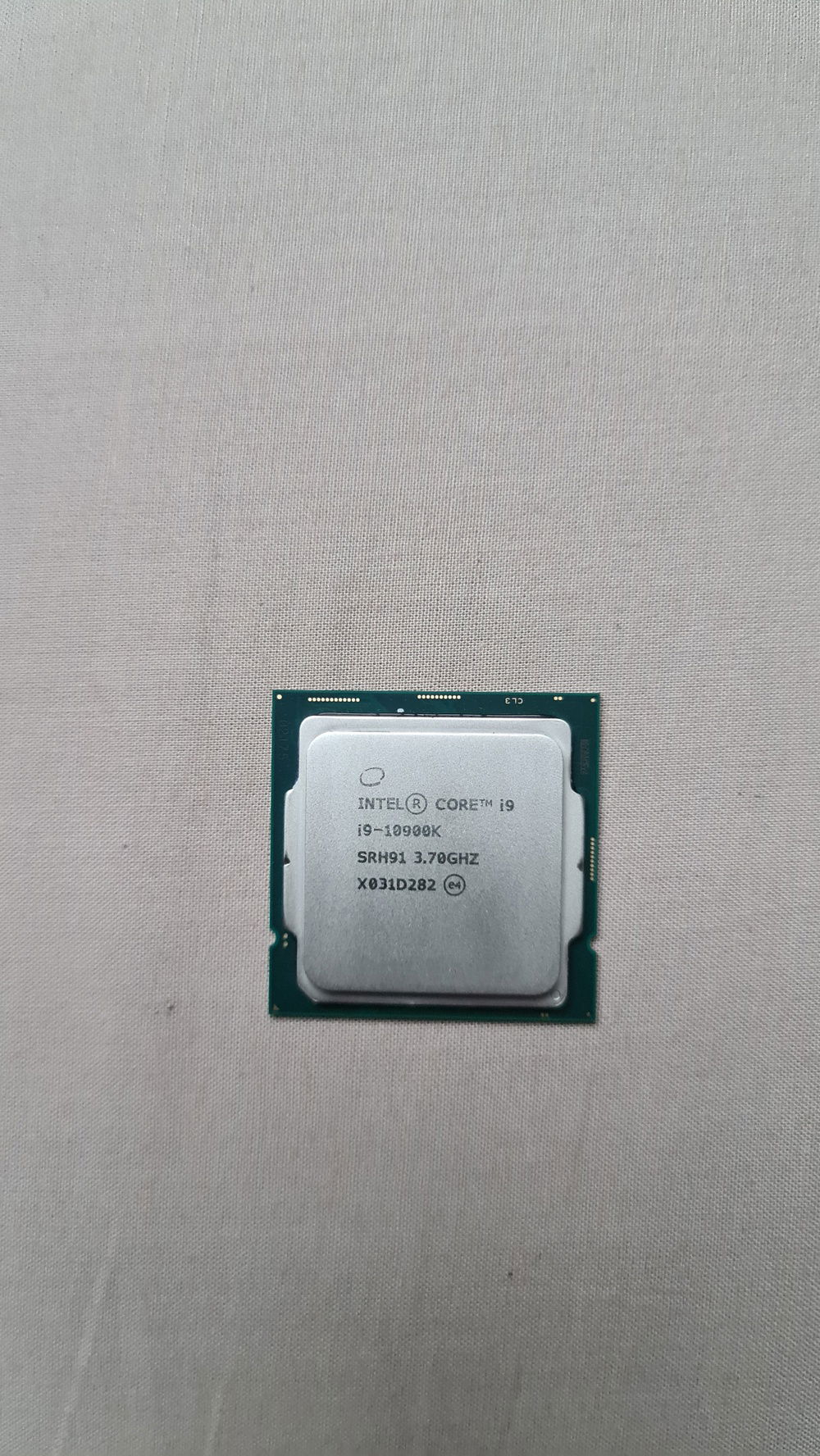

Processor - Intel i9 10900K

(There could only be one choice. I have nothing to do with AMD, even once I "sat" on Duron or Sempron, I do not remember. But here is supposed to be Intel ;) )

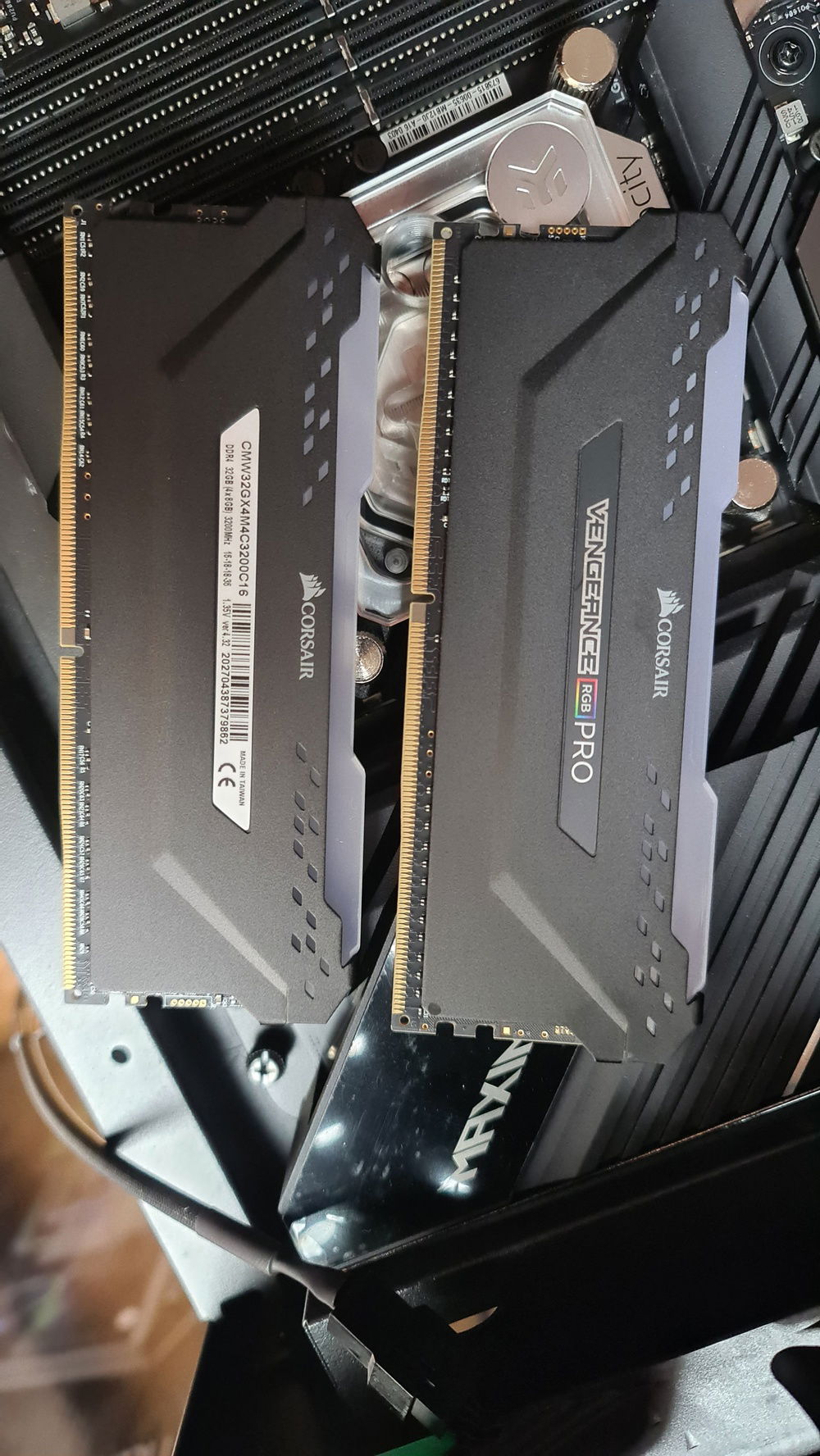

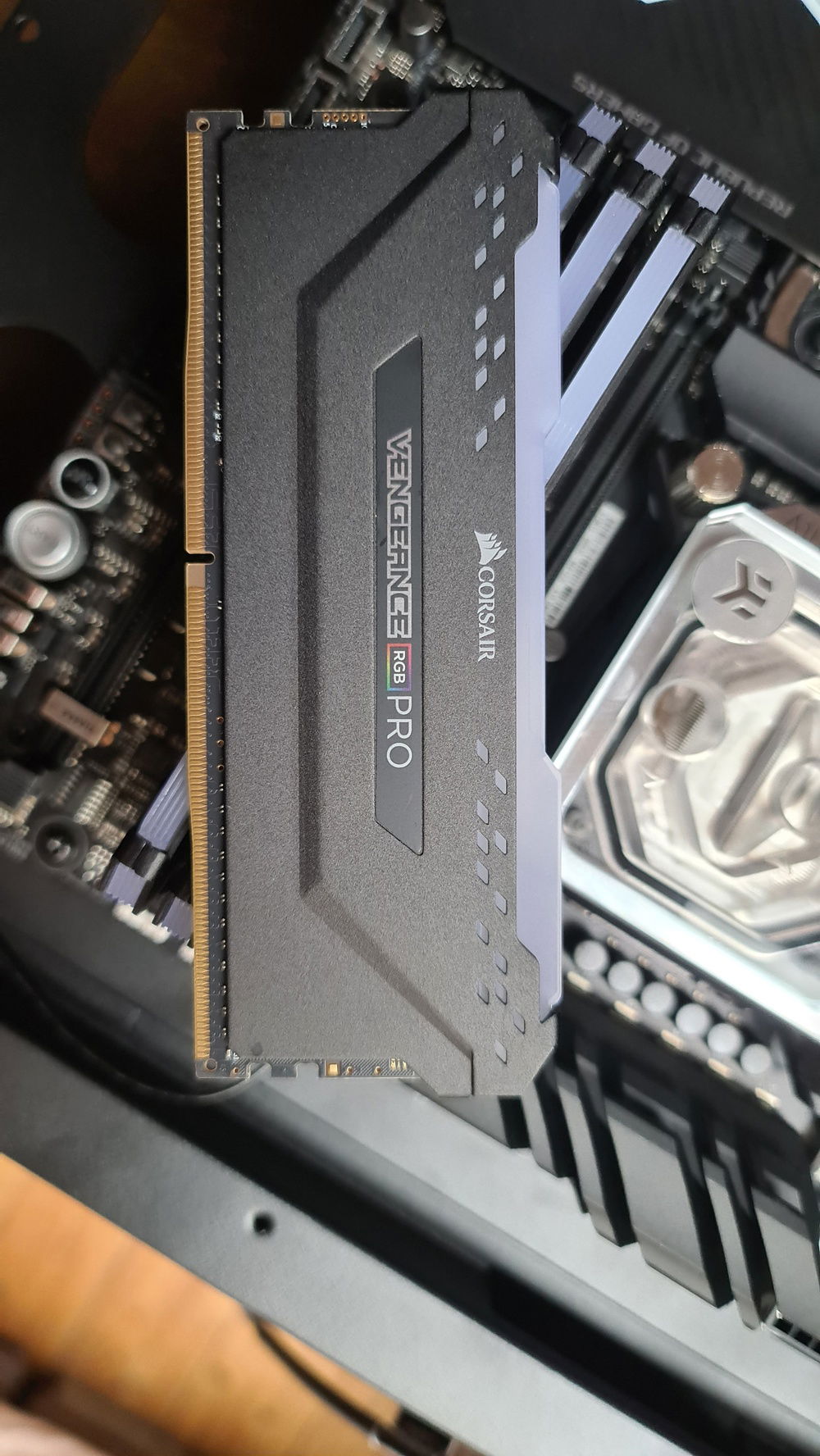

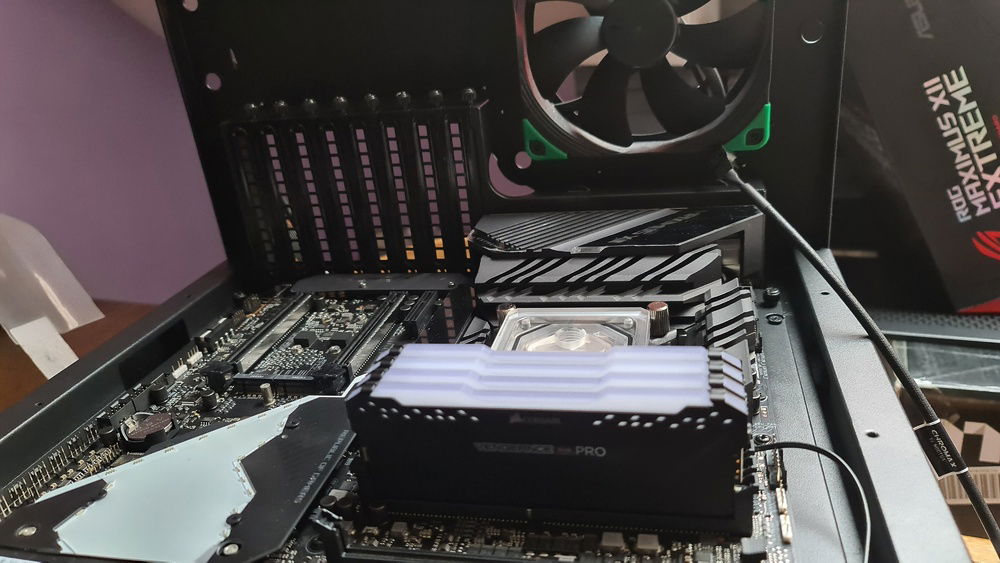

Memory - 4 x 8GB Corsair Vengeance Pro cl16

(neither is it high end, nor is it a niche product, but I think it's just right)

SSDs Samsung (mechanics not assembled) - 1 x 980 pro 500GB, 1 x 970 pro 512GB, 1 x 860 Evo 4TB, 1 x 870 Evo 4TB

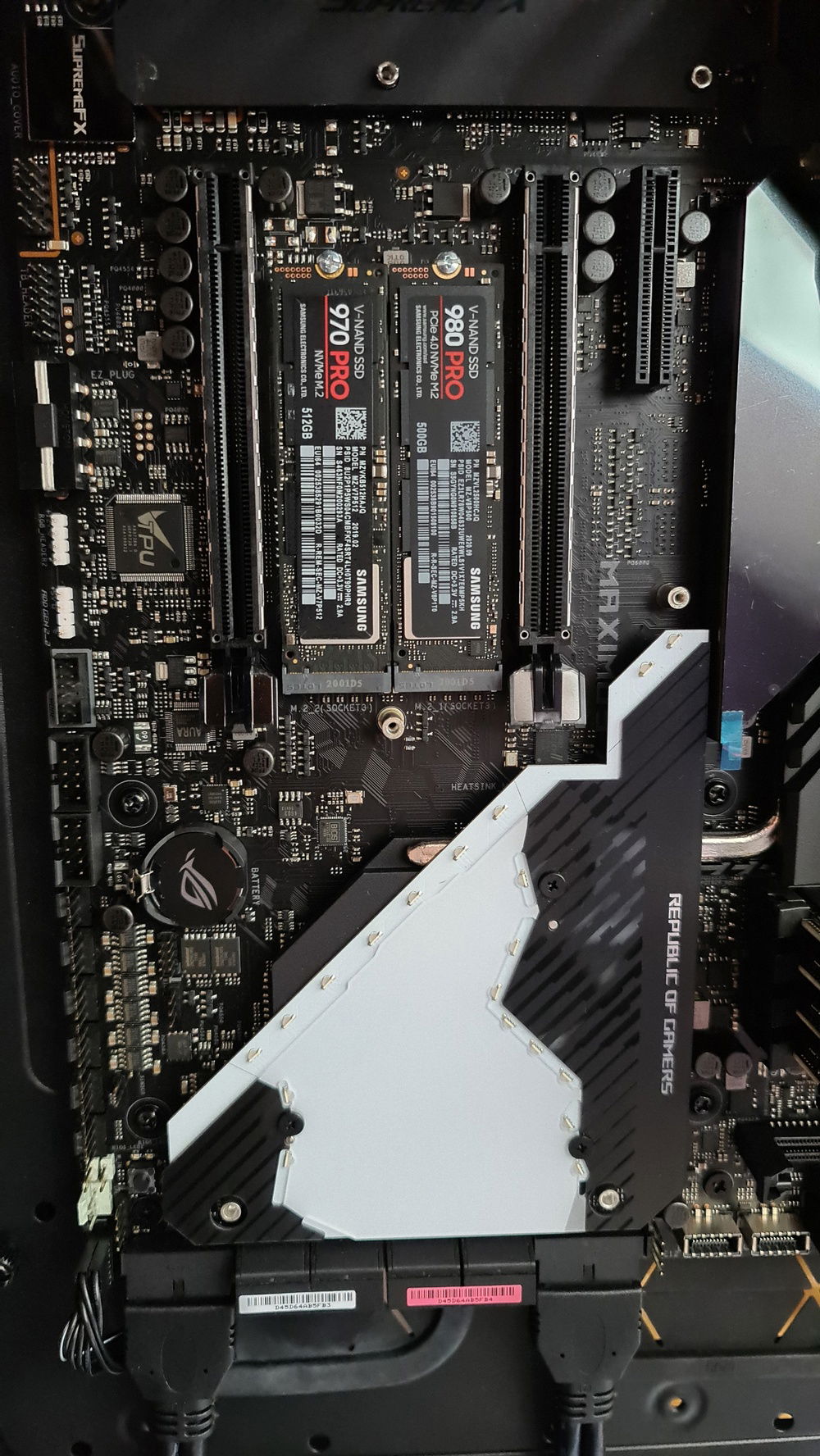

(I removed 970 pro from my laptop - there went 970 evo plus, after some thought I bought 980 pro to take two sockets under the cover of the motherboard)

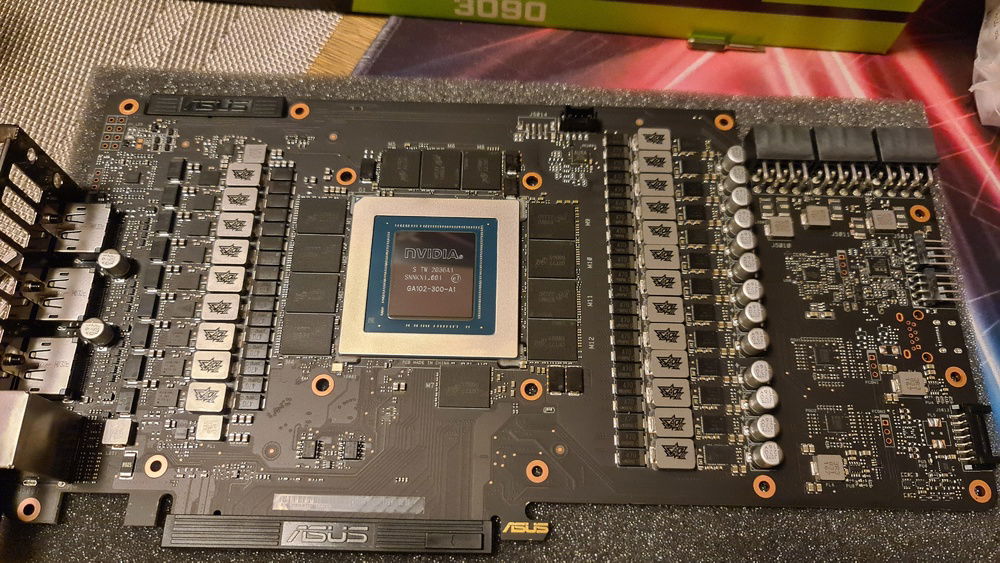

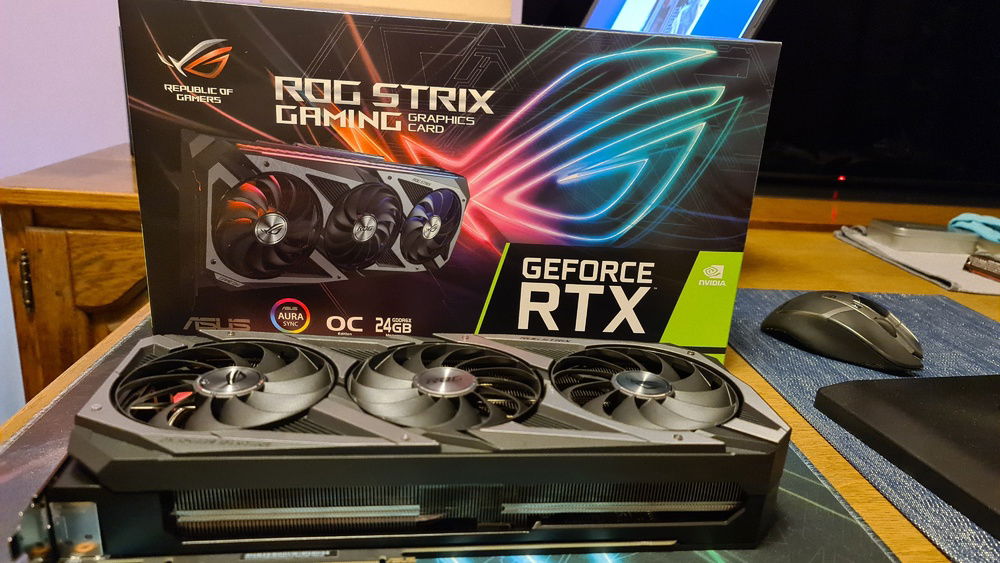

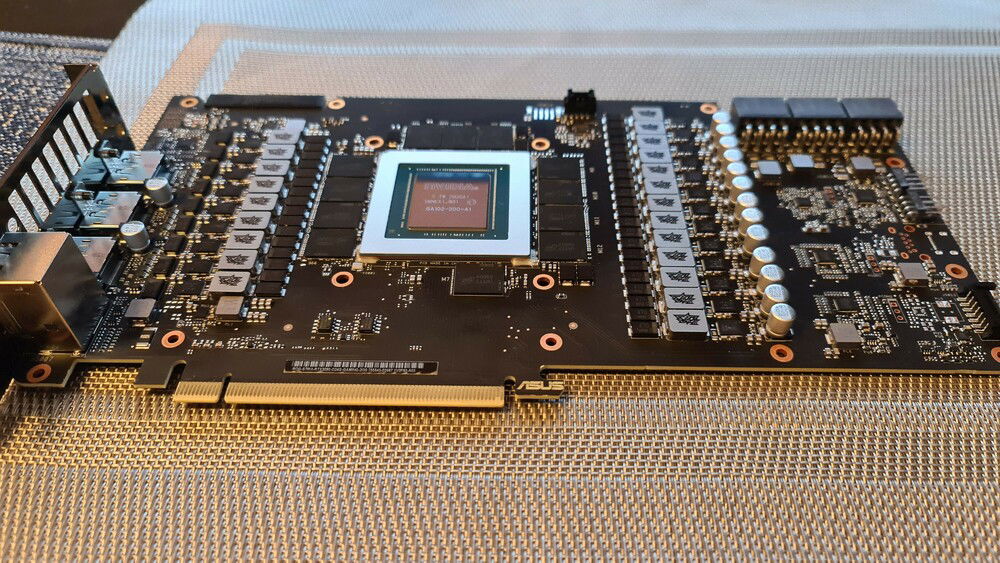

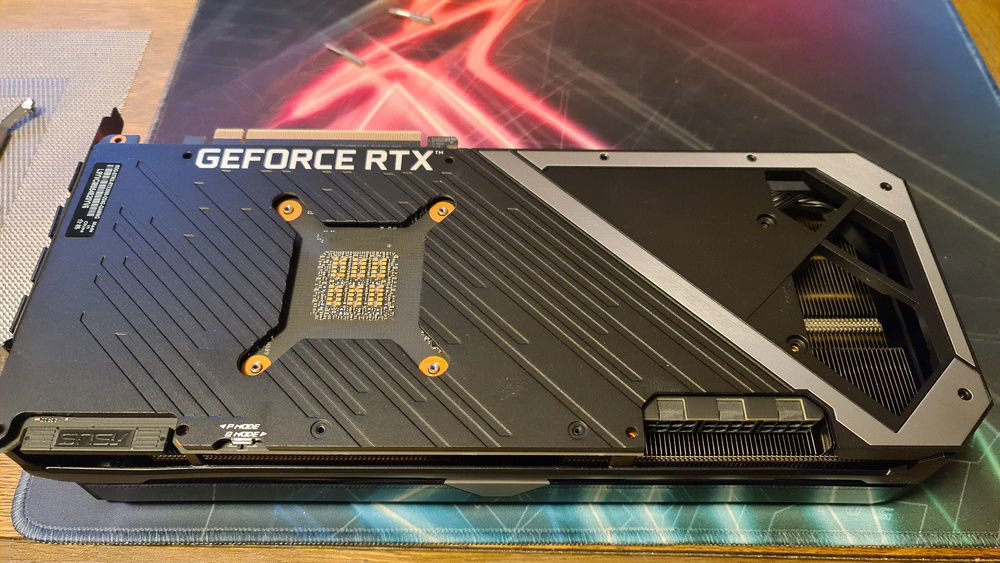

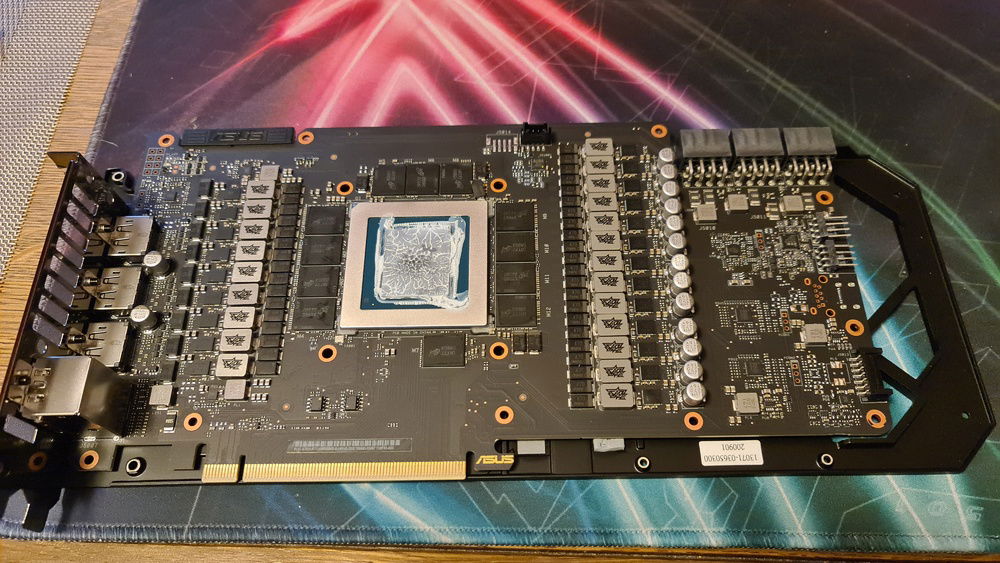

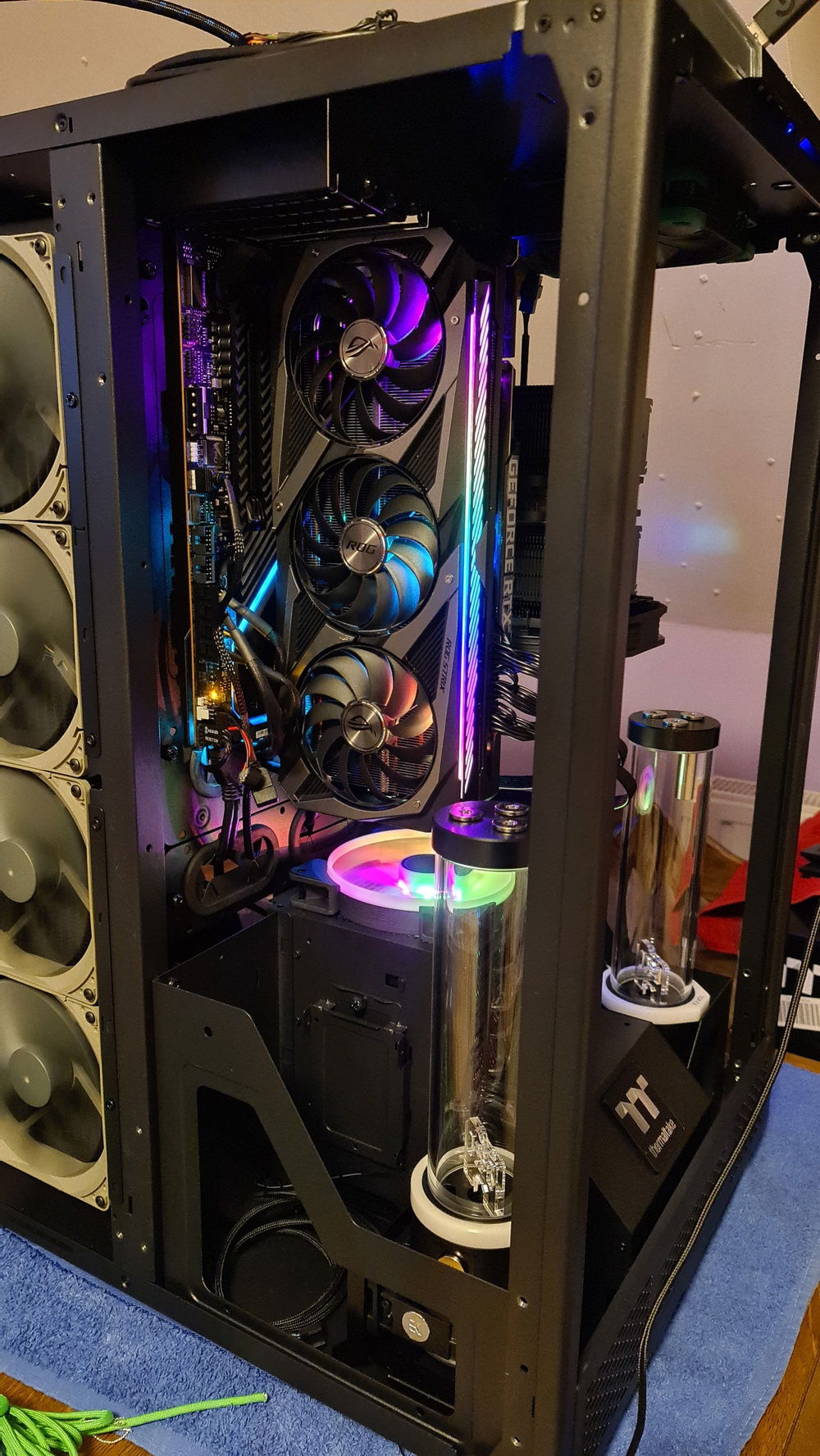

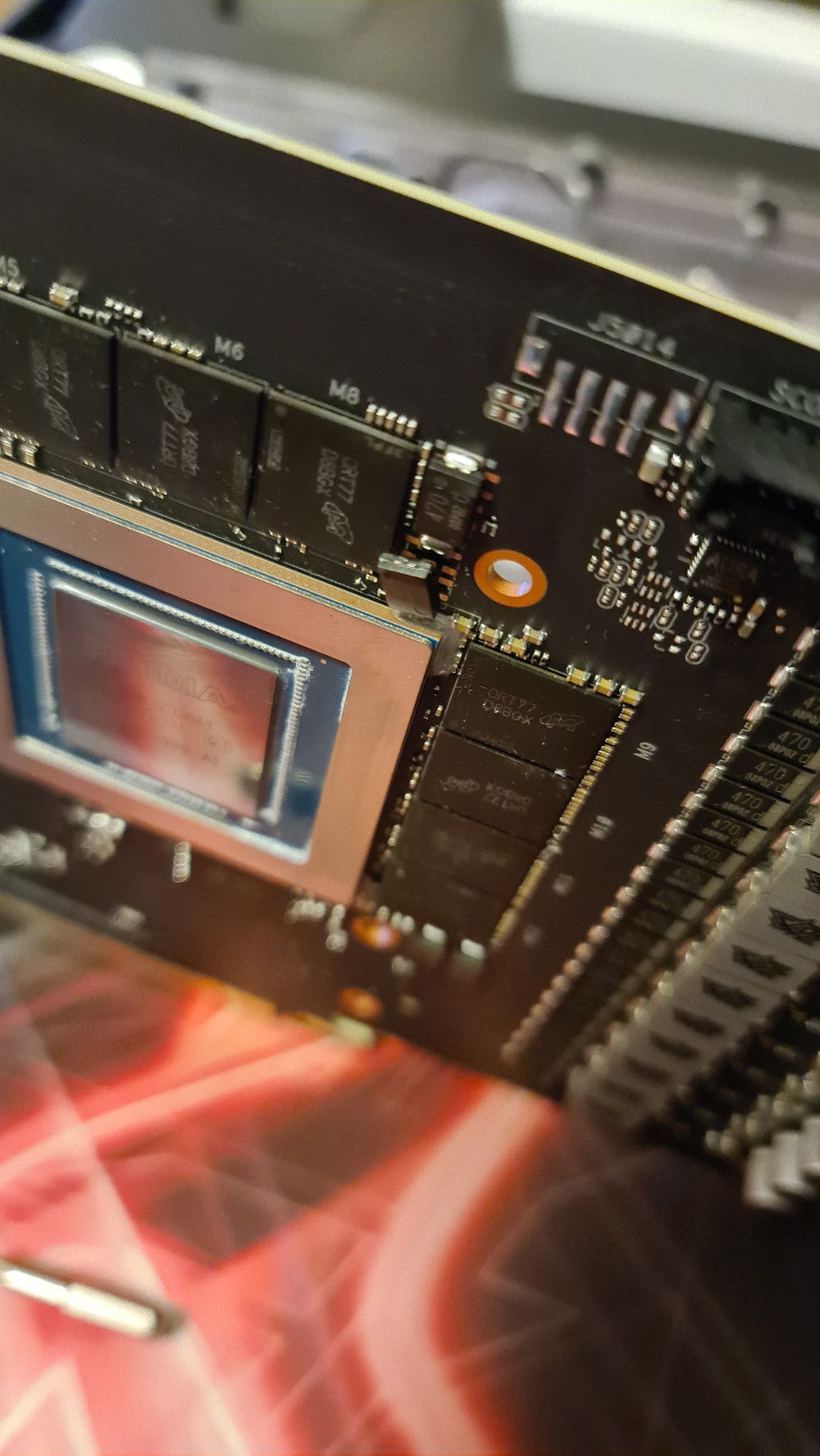

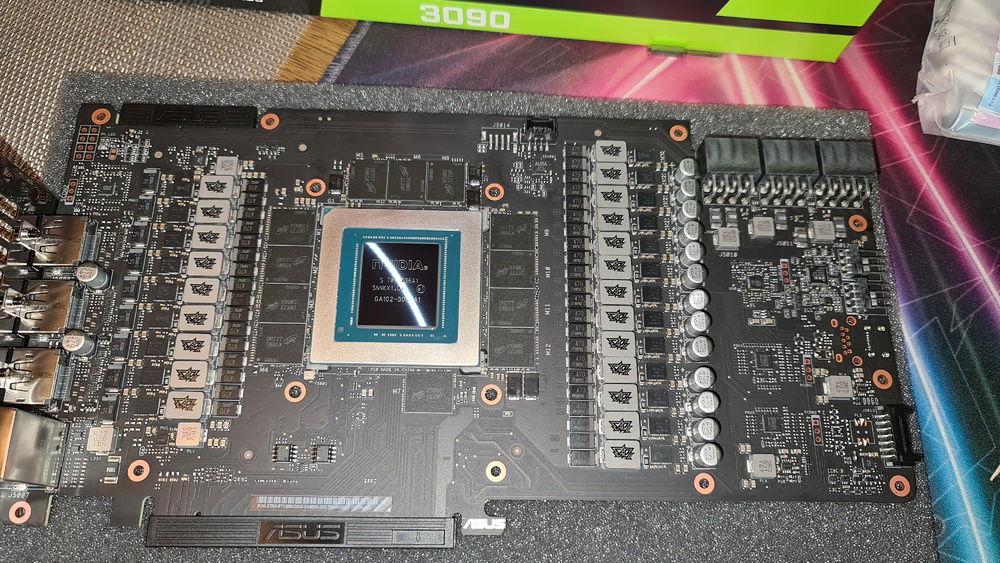

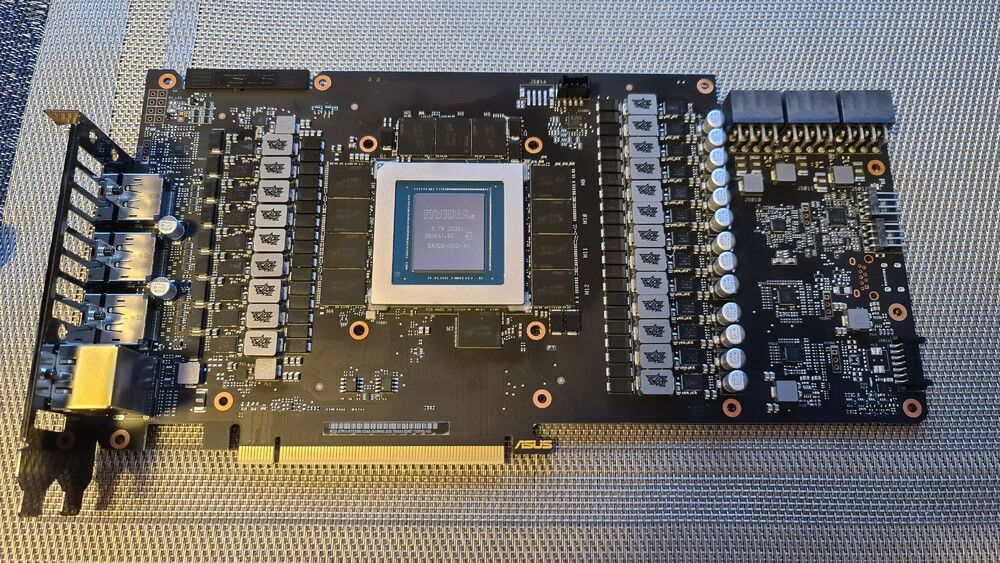

Graphic card - ROG Asus Strix OC RTX 3090 24GB VRAM

(long-awaited card - more than 1.5 months has finally arrived at my place.I have paid more than about 170 € from an earlier order at amazon.nl, but I am really happy with it. The Asus class in itself)

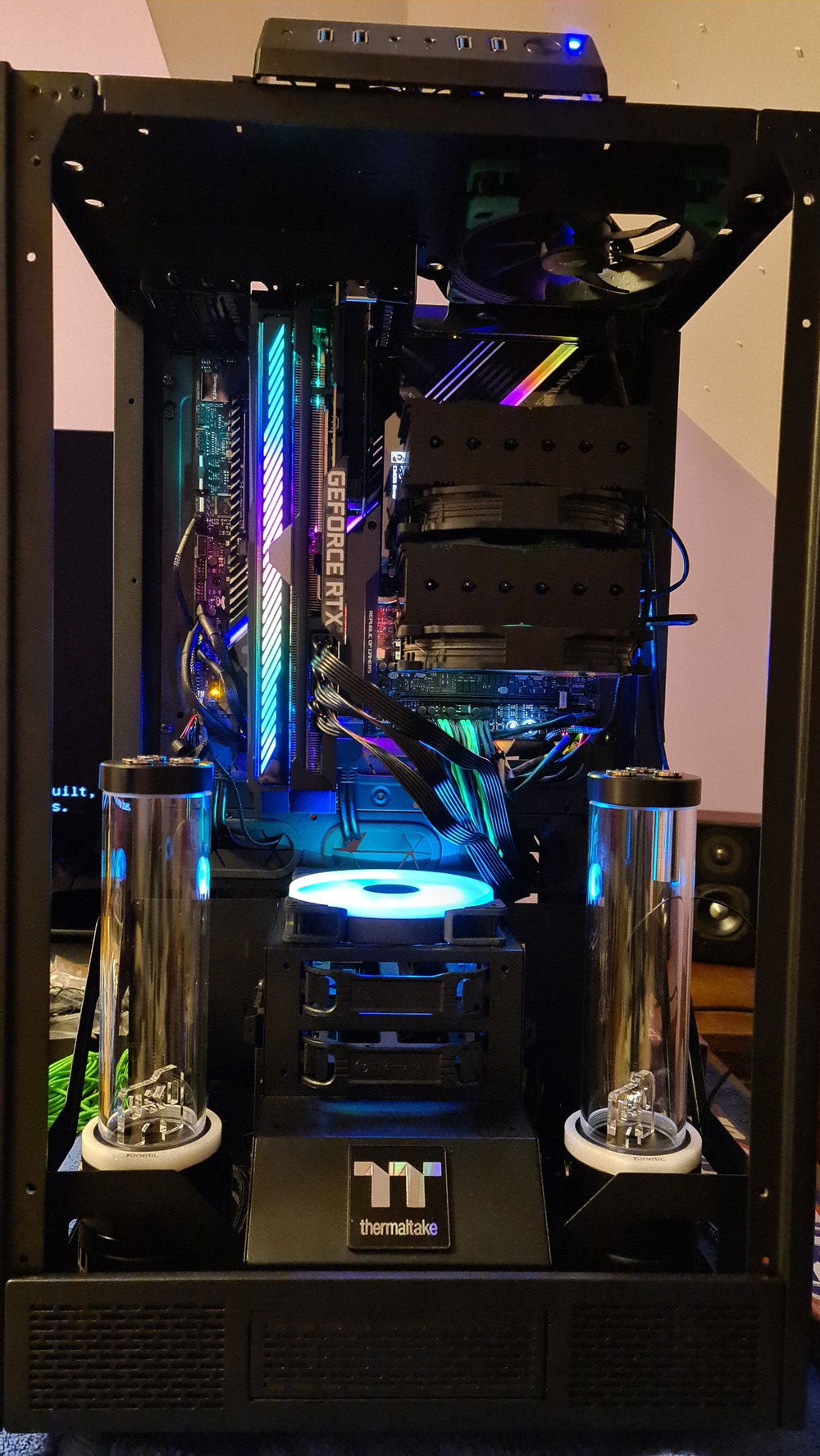

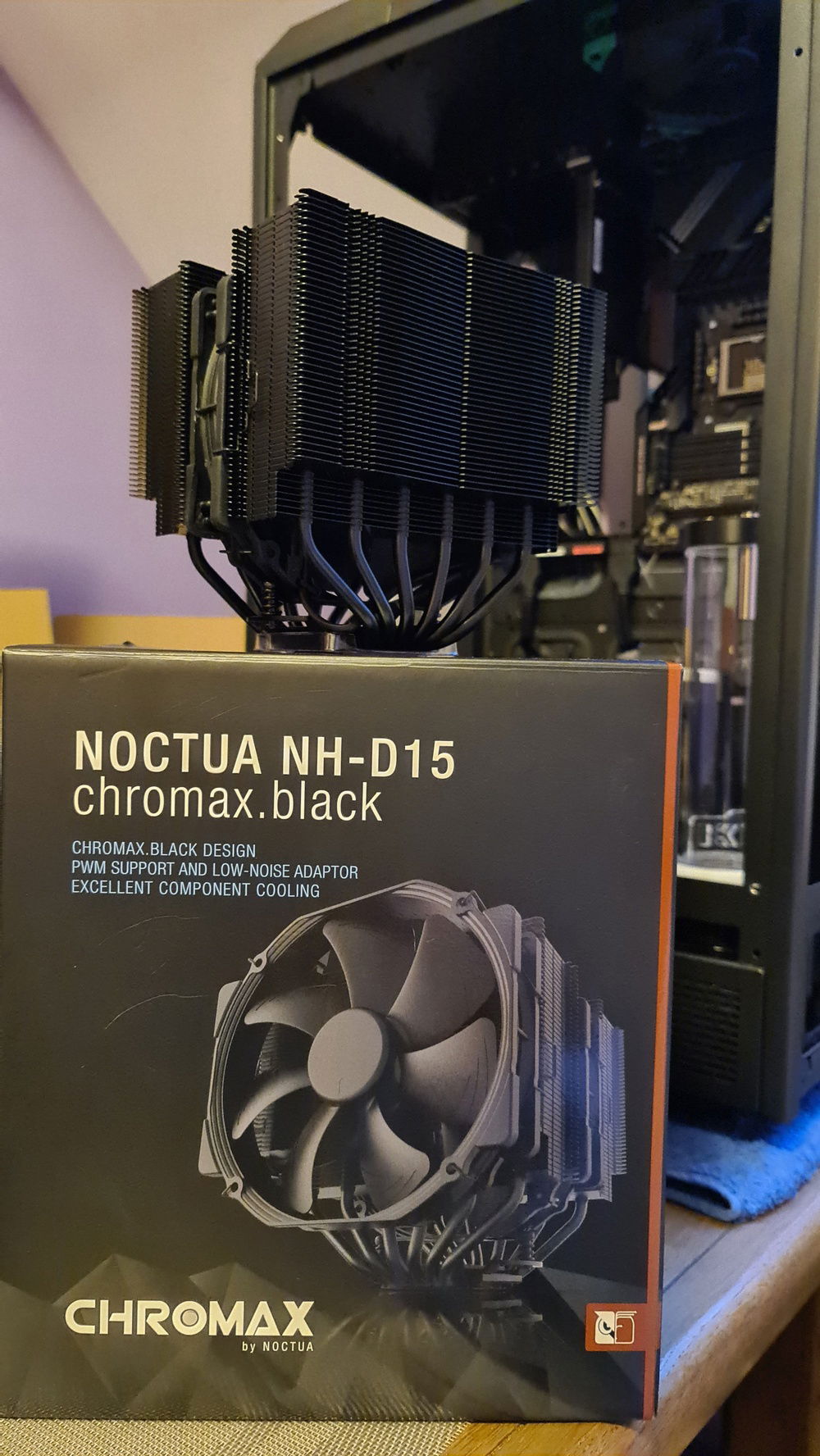

CPU cooling - Noctua NH-D15 Chromax

(temporary cooling until all the water cooling is built up, and also to test individual components before I start to disassemble the graphics)




Time for cooling.....

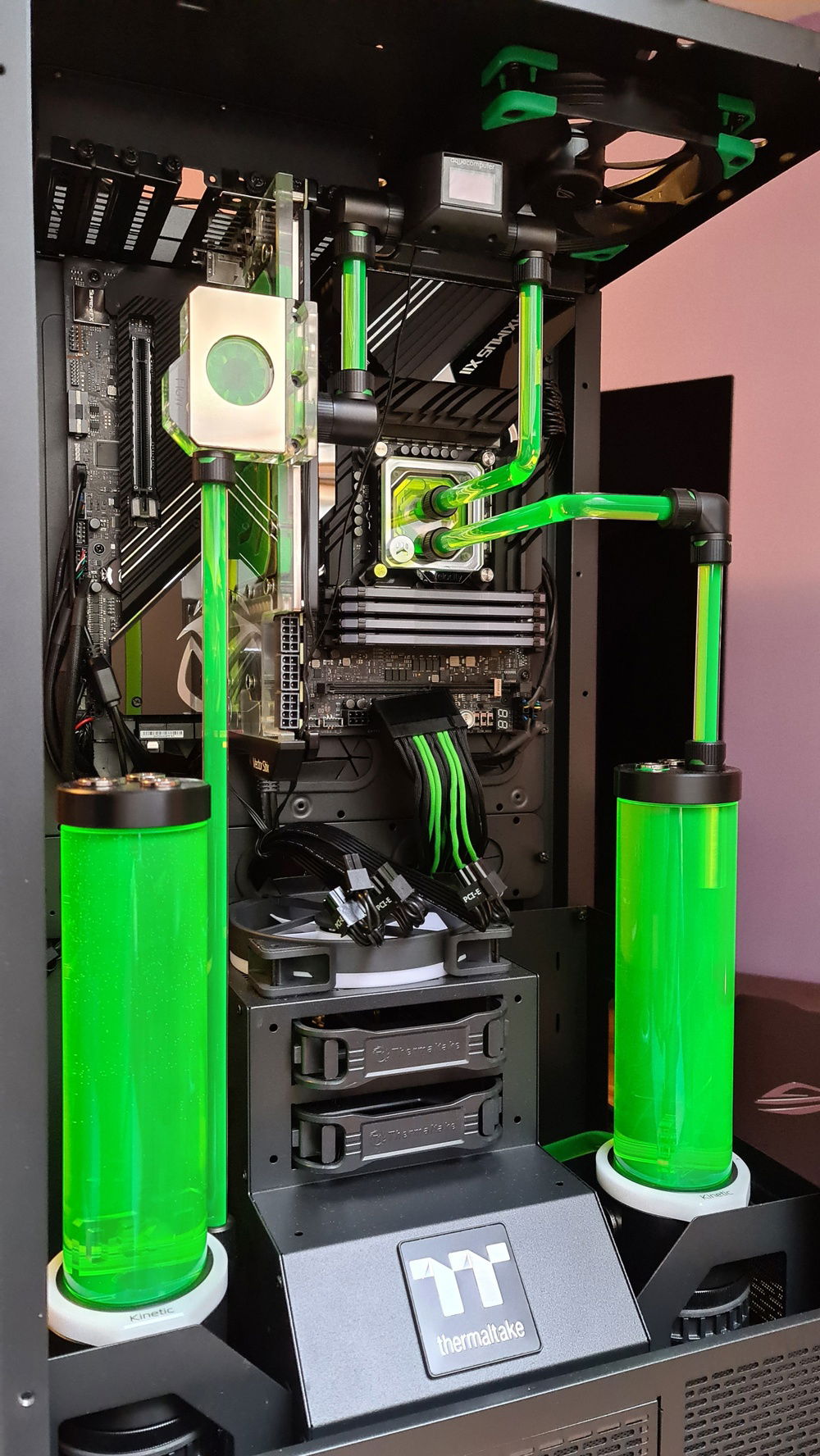

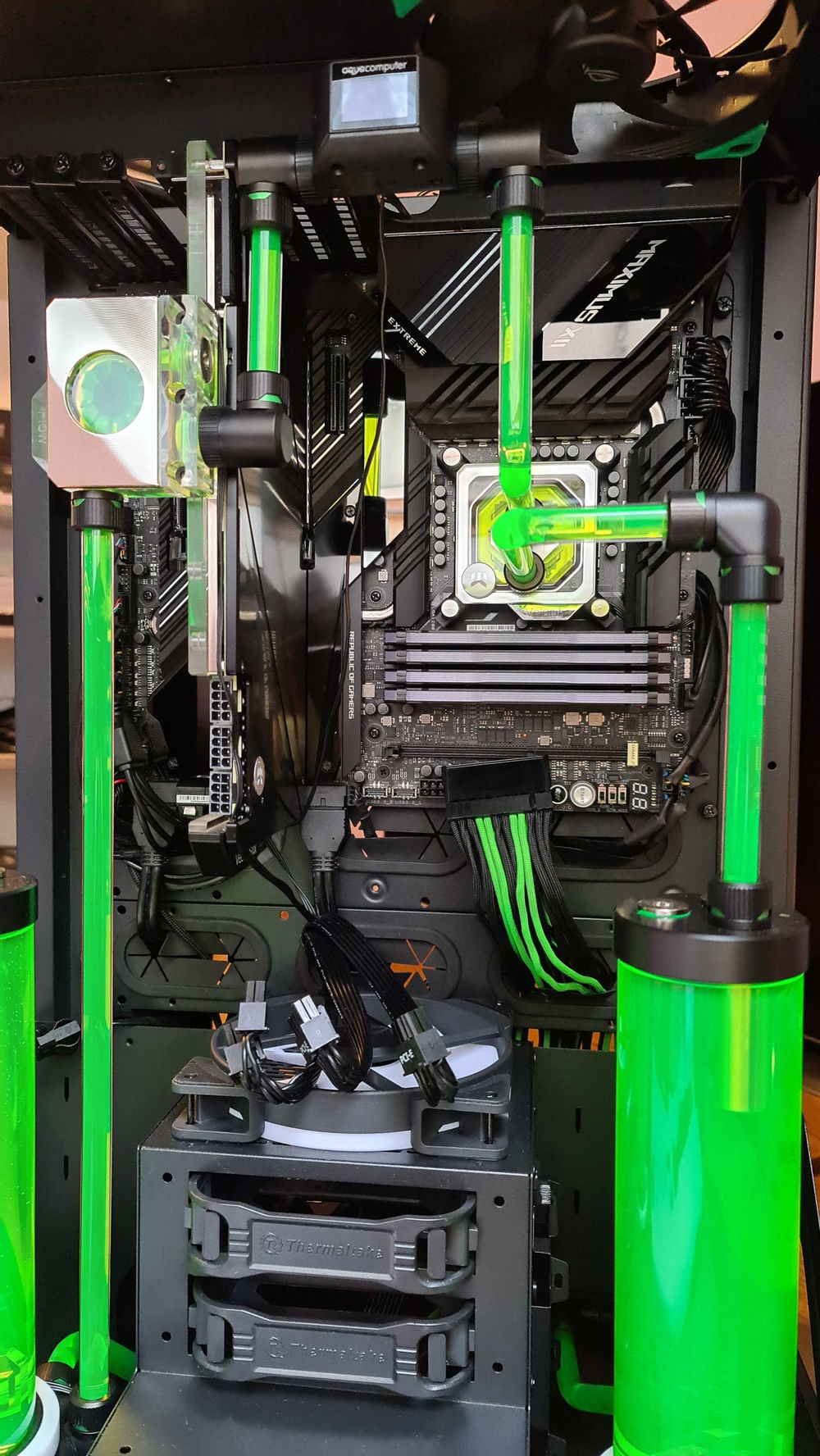

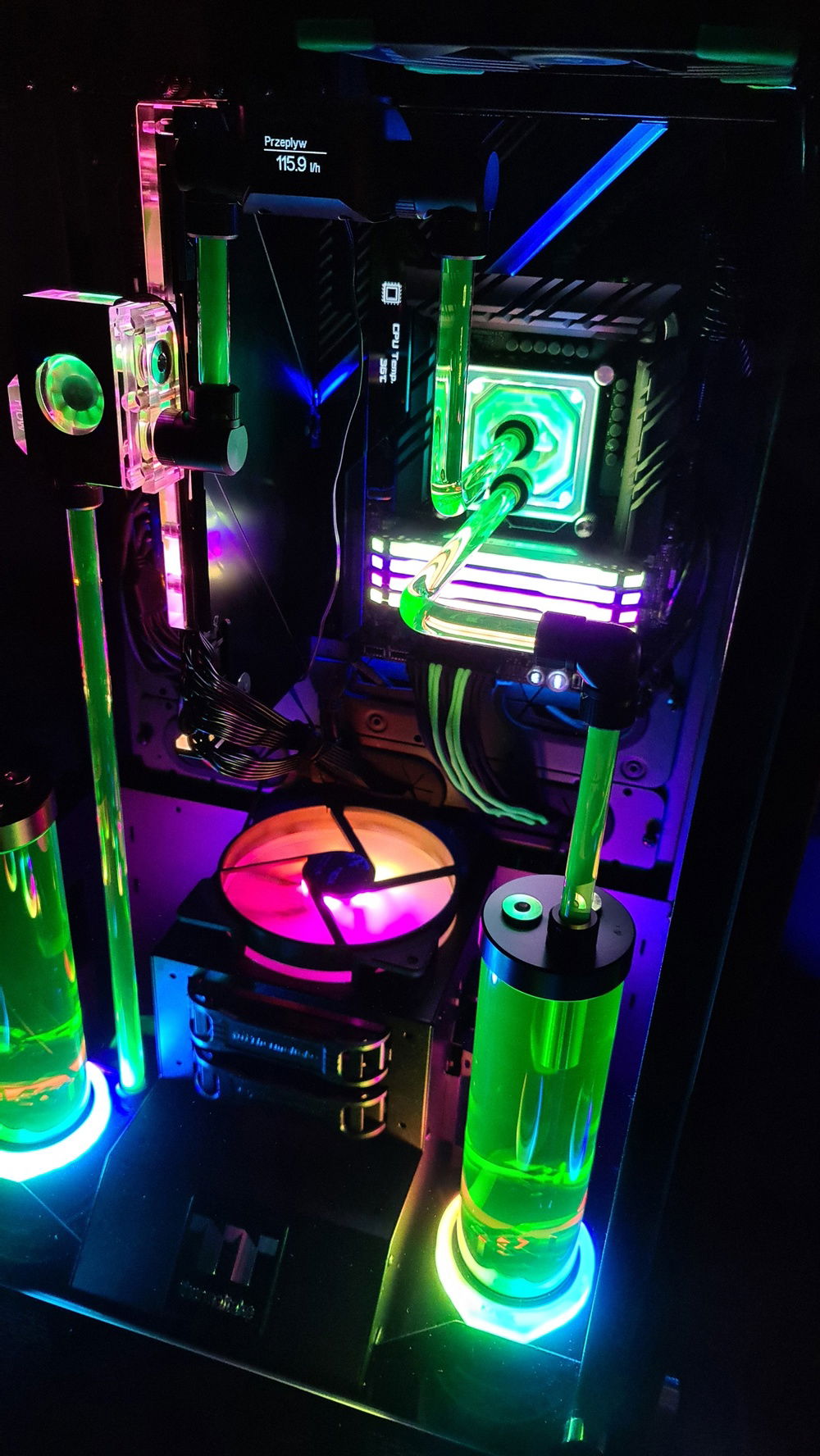

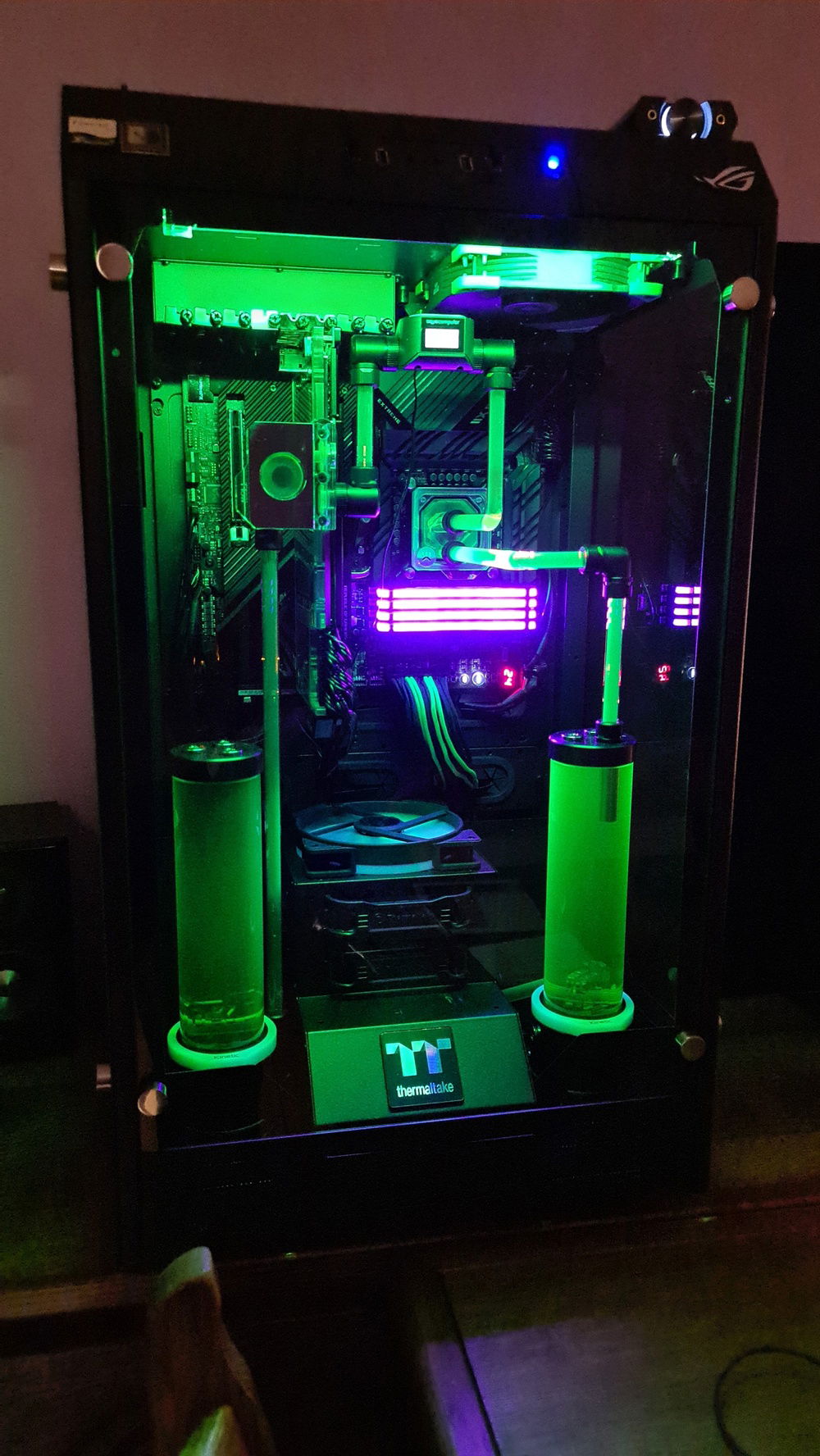

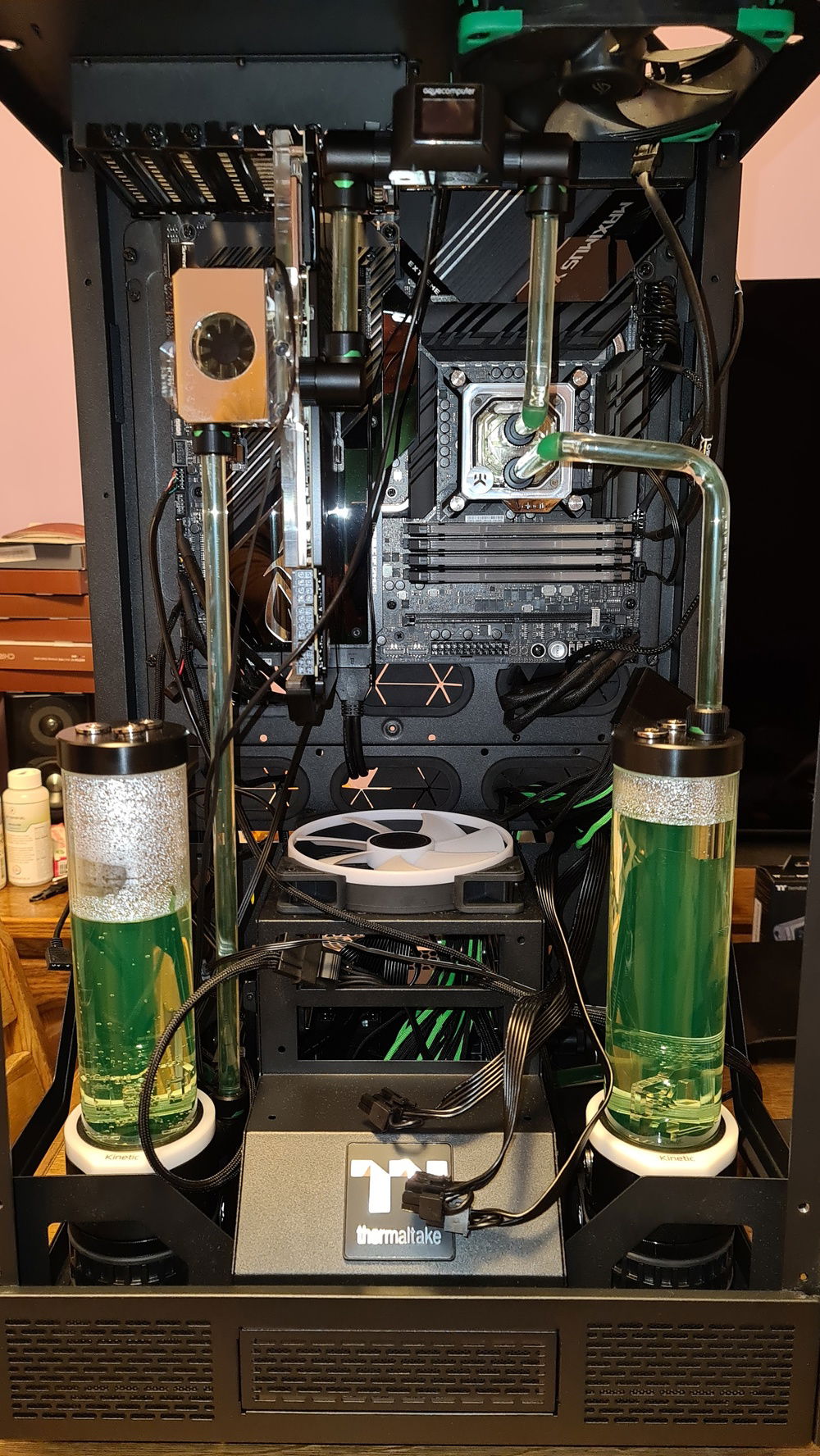

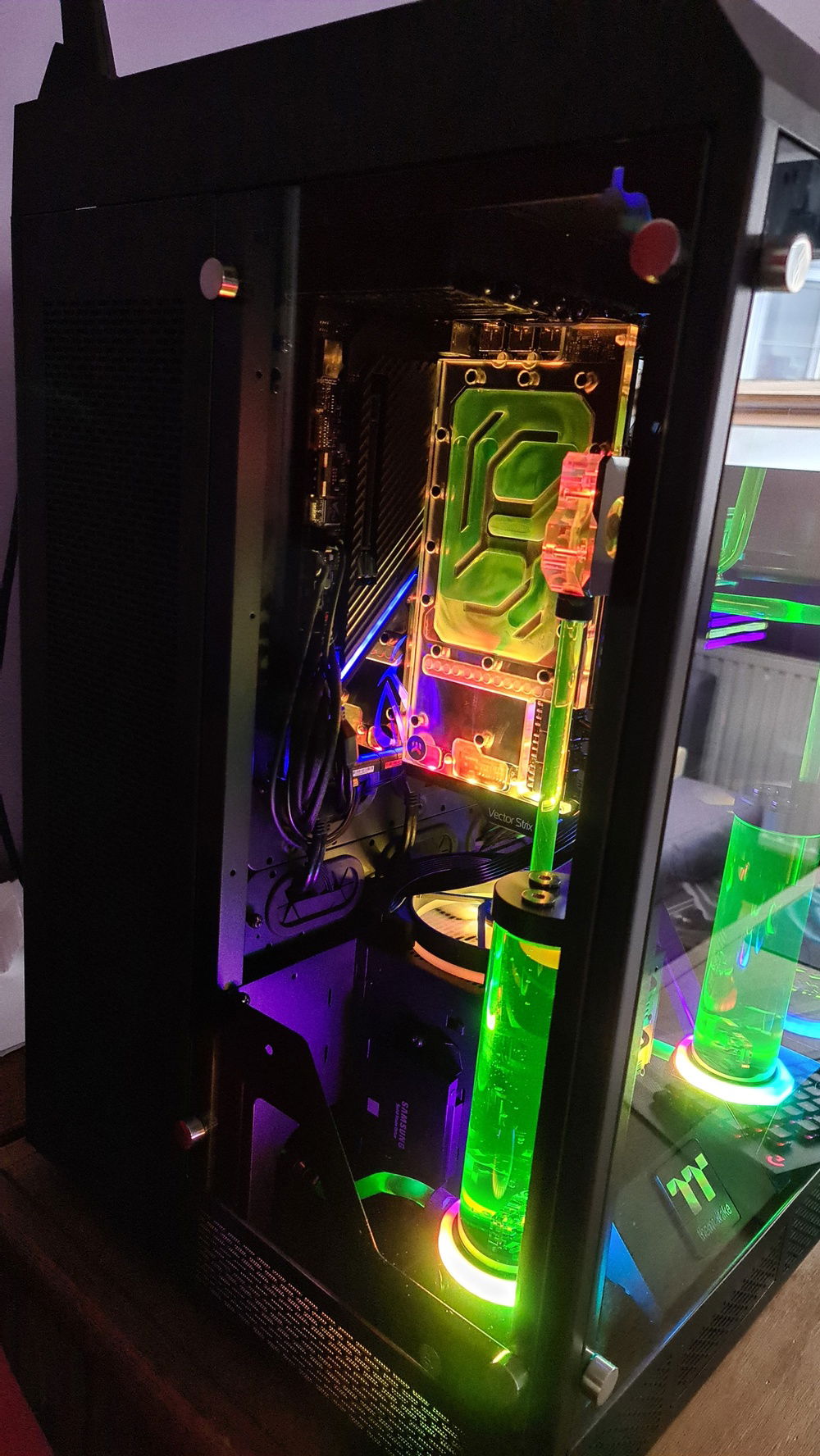

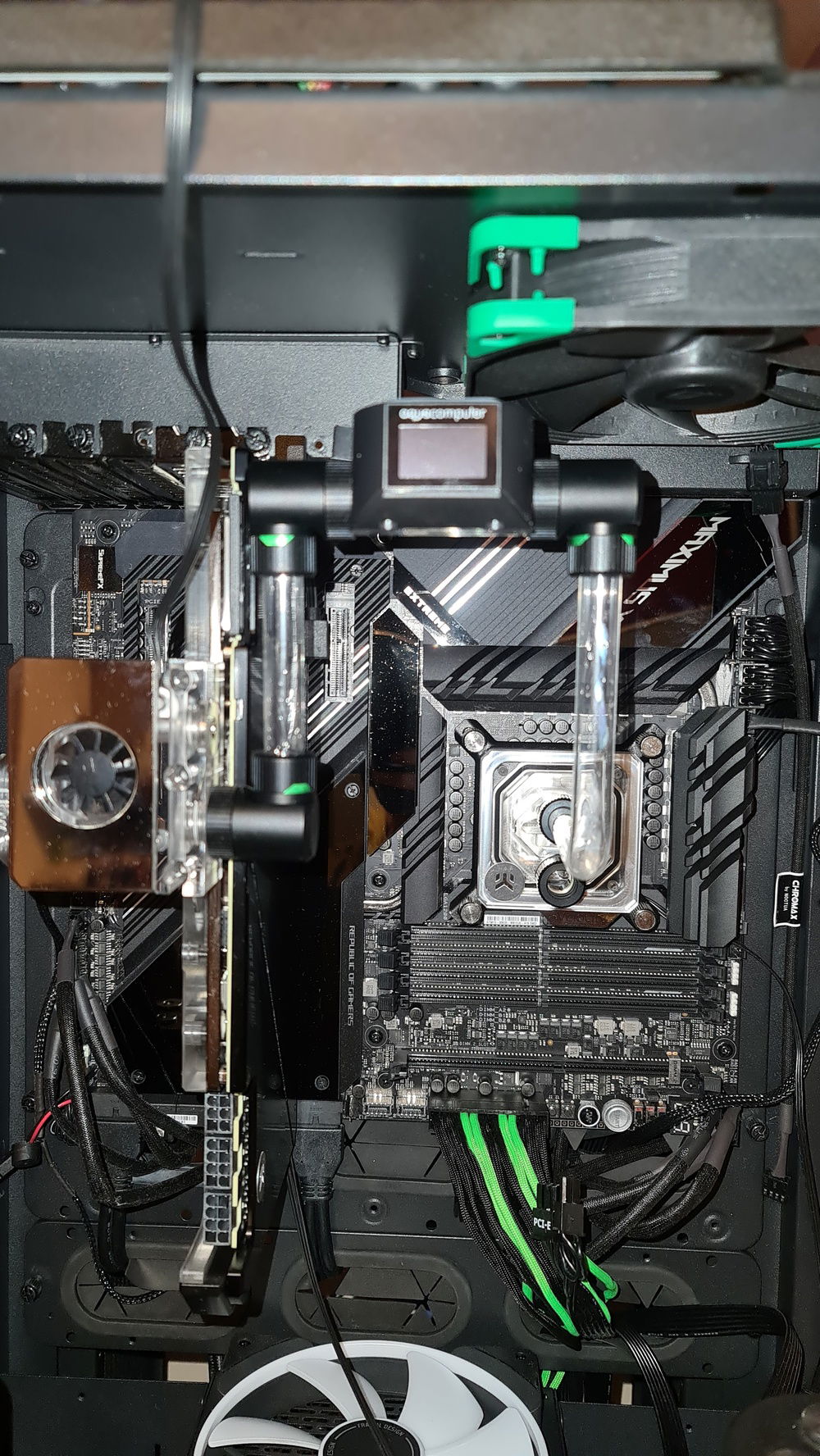

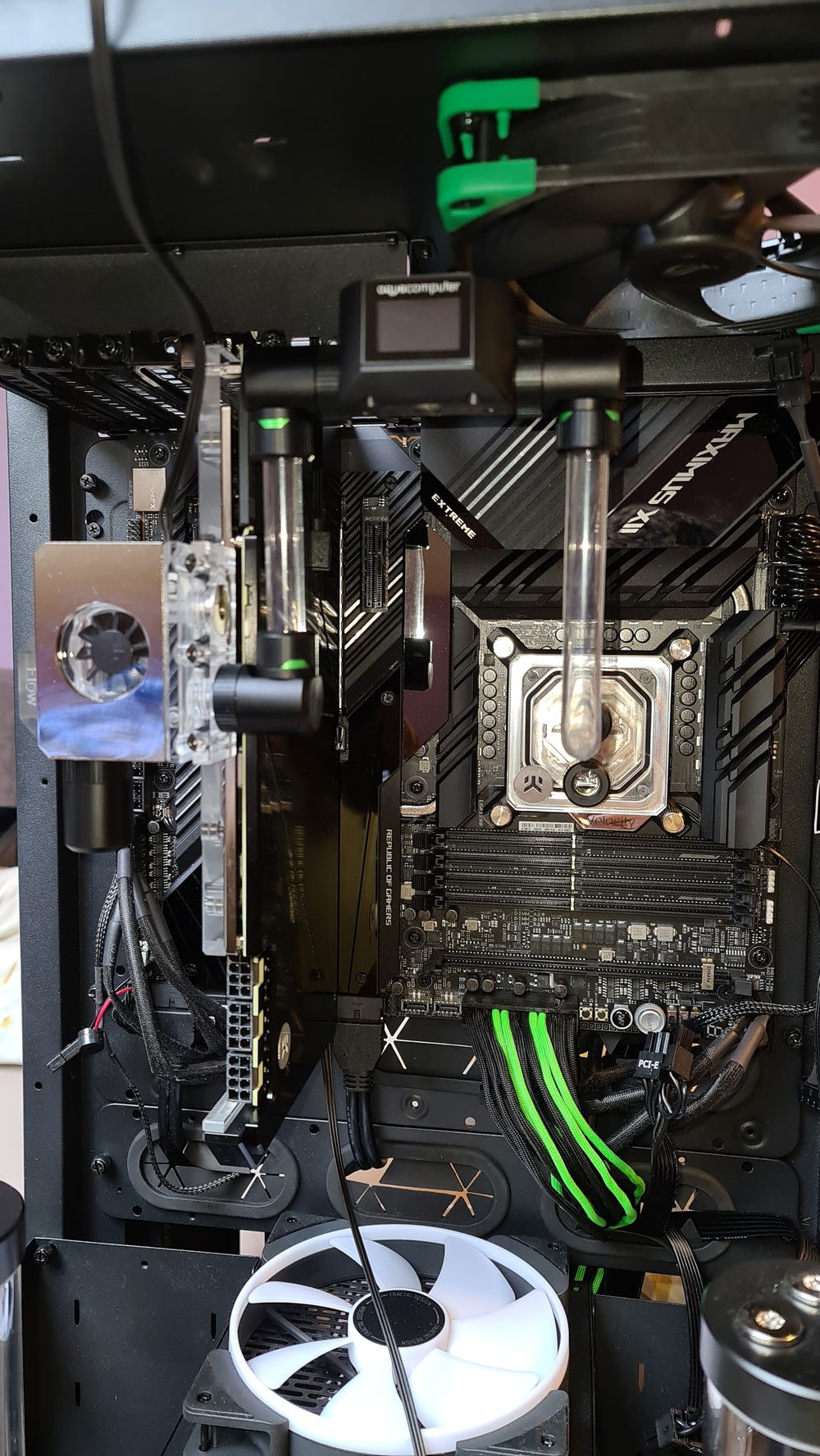

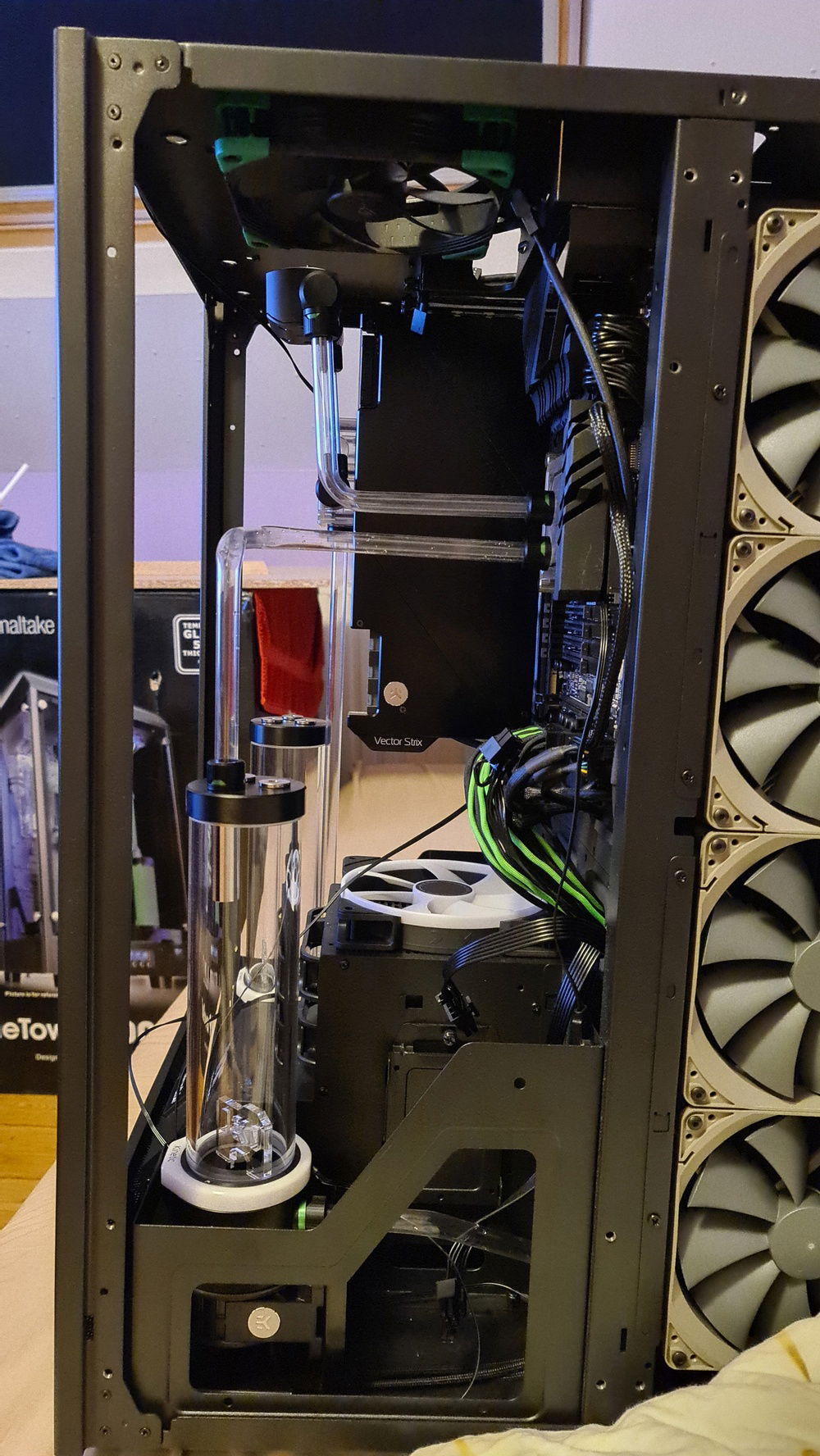

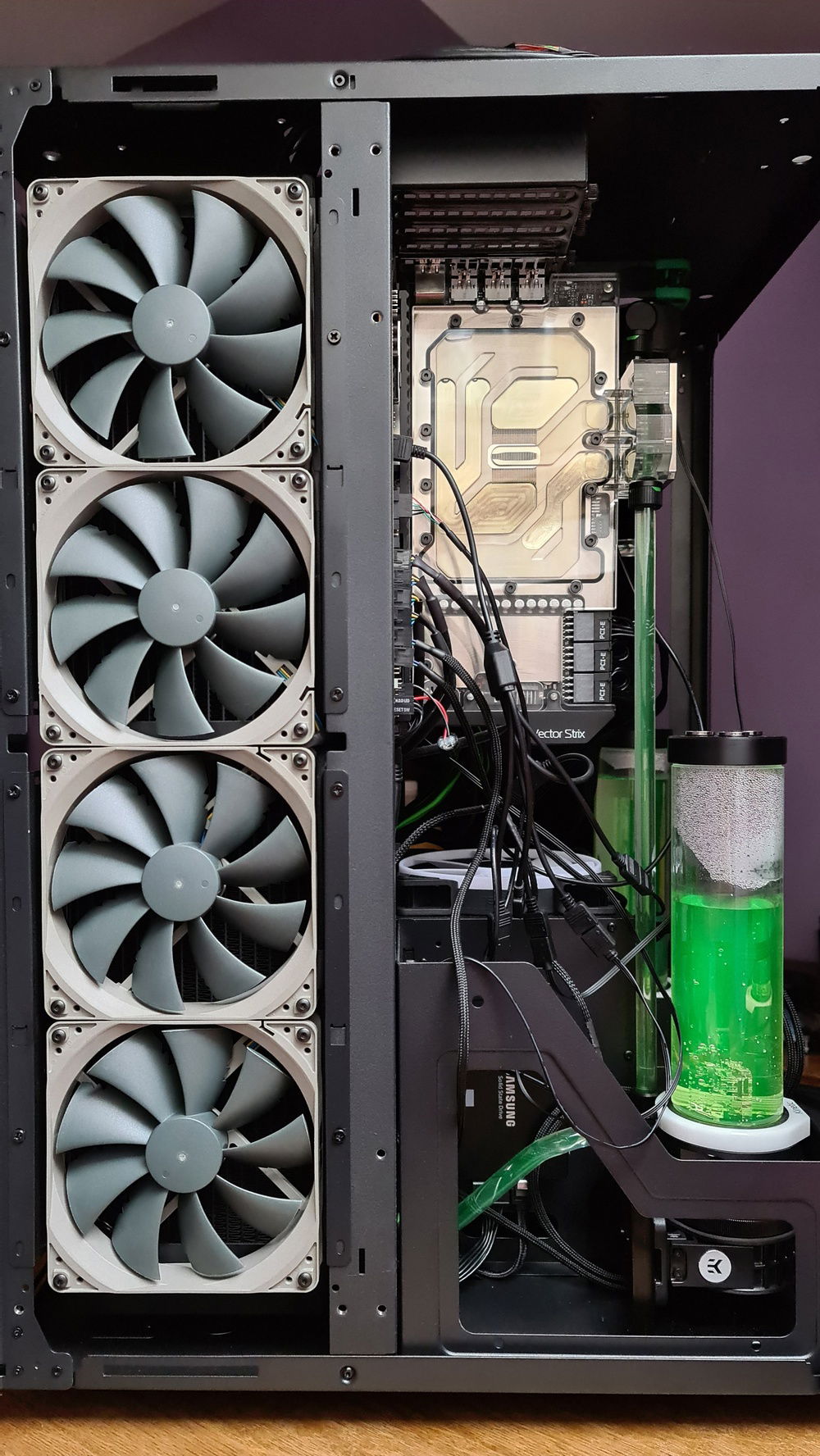

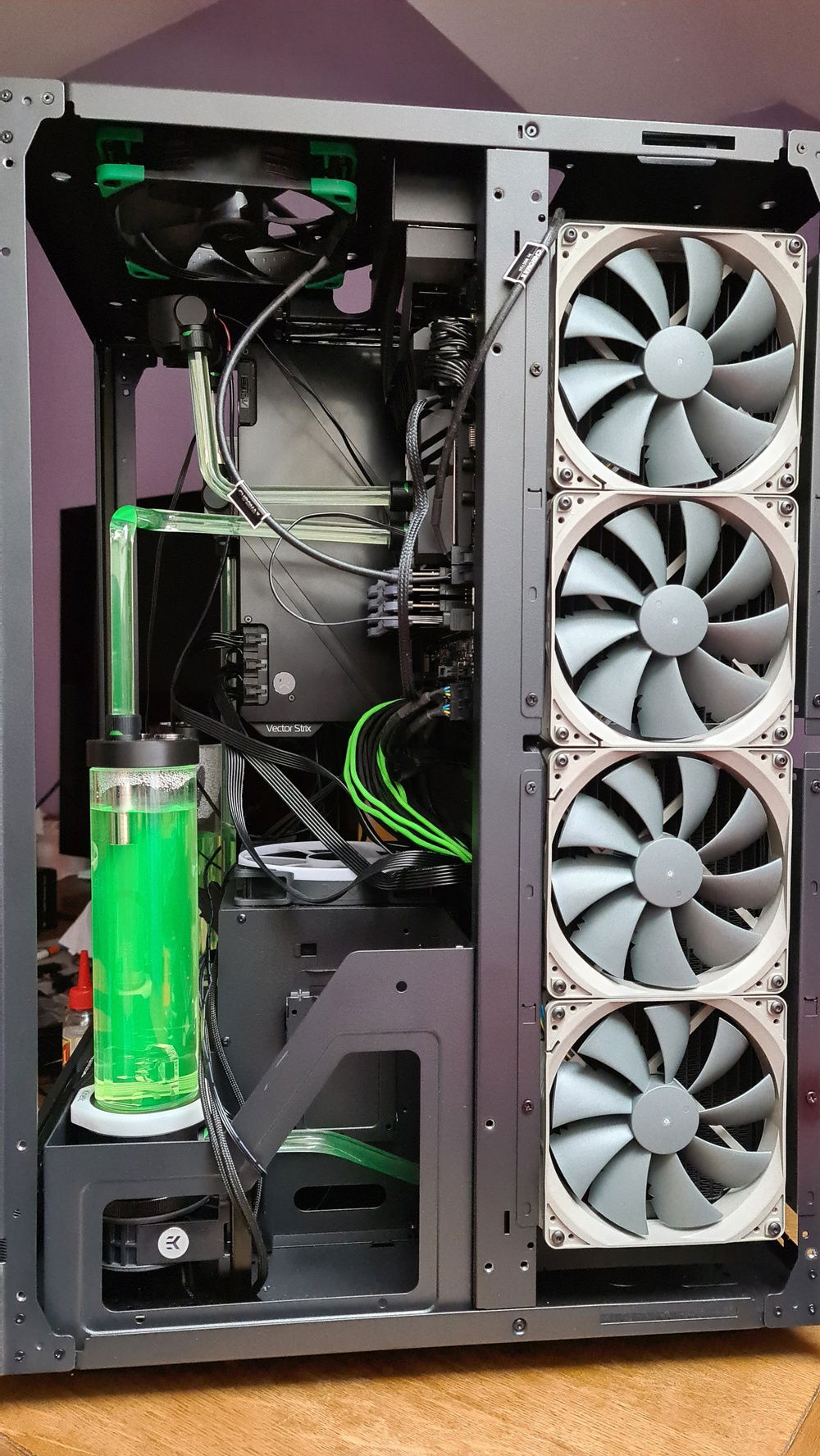

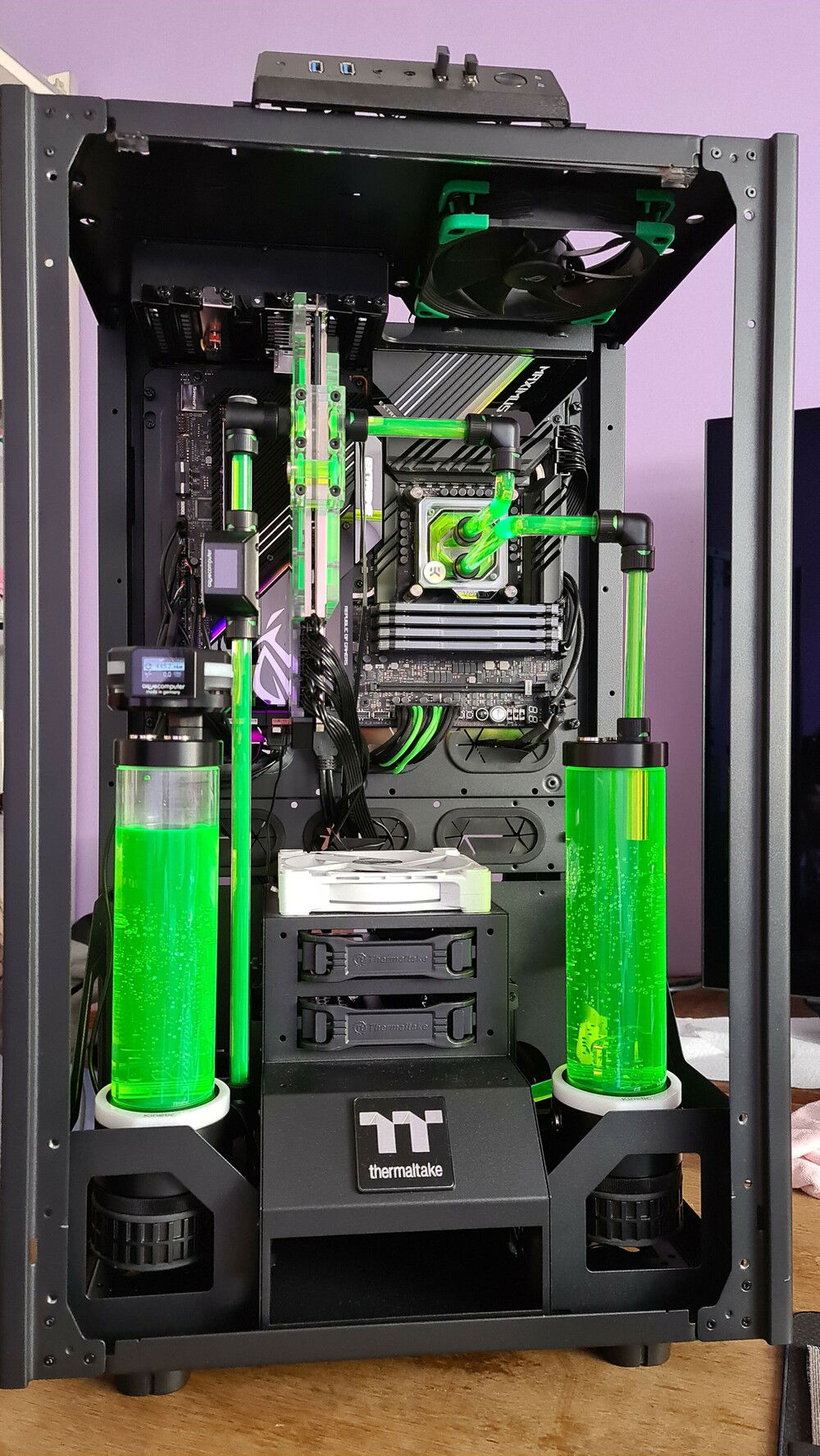

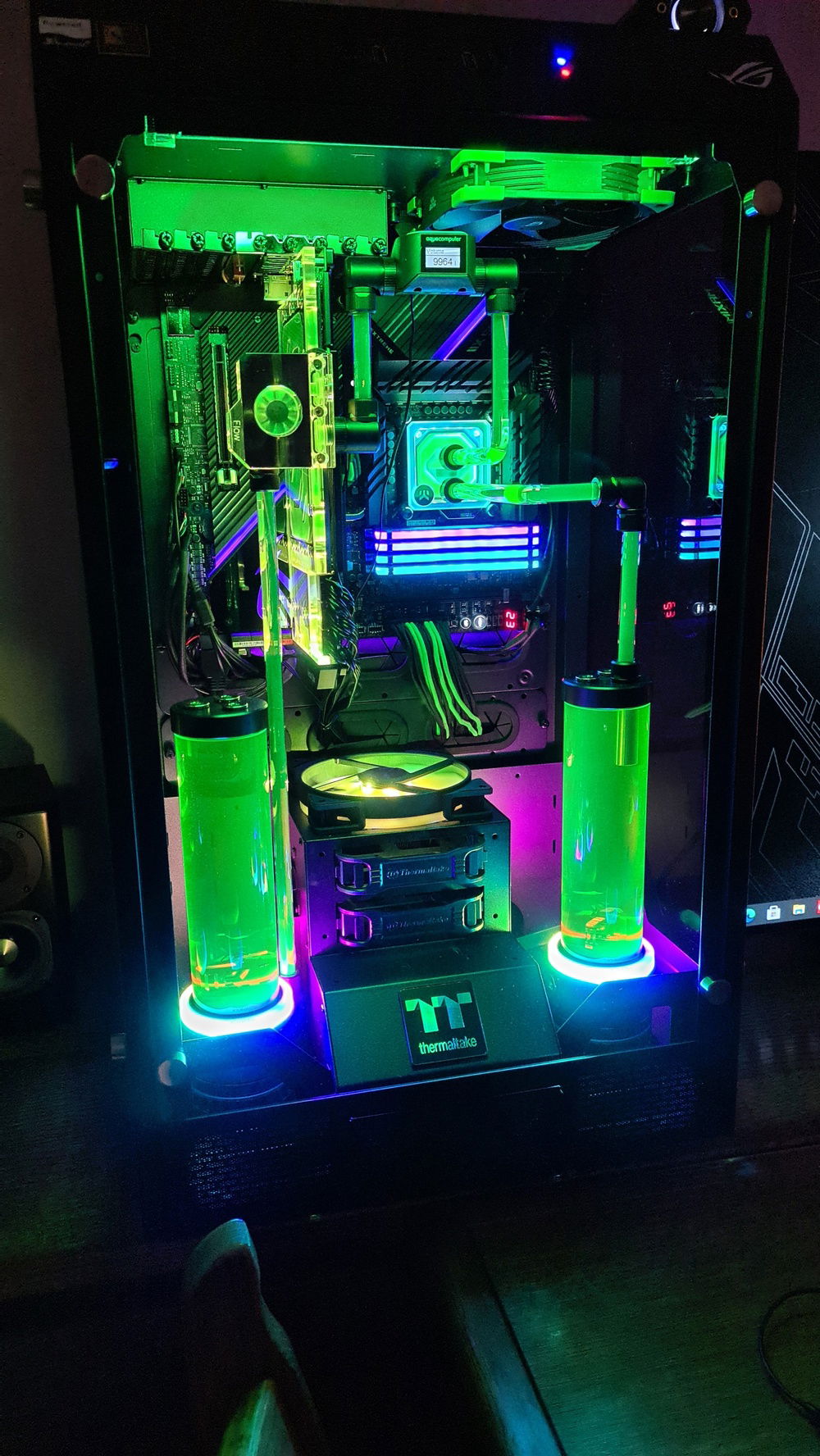

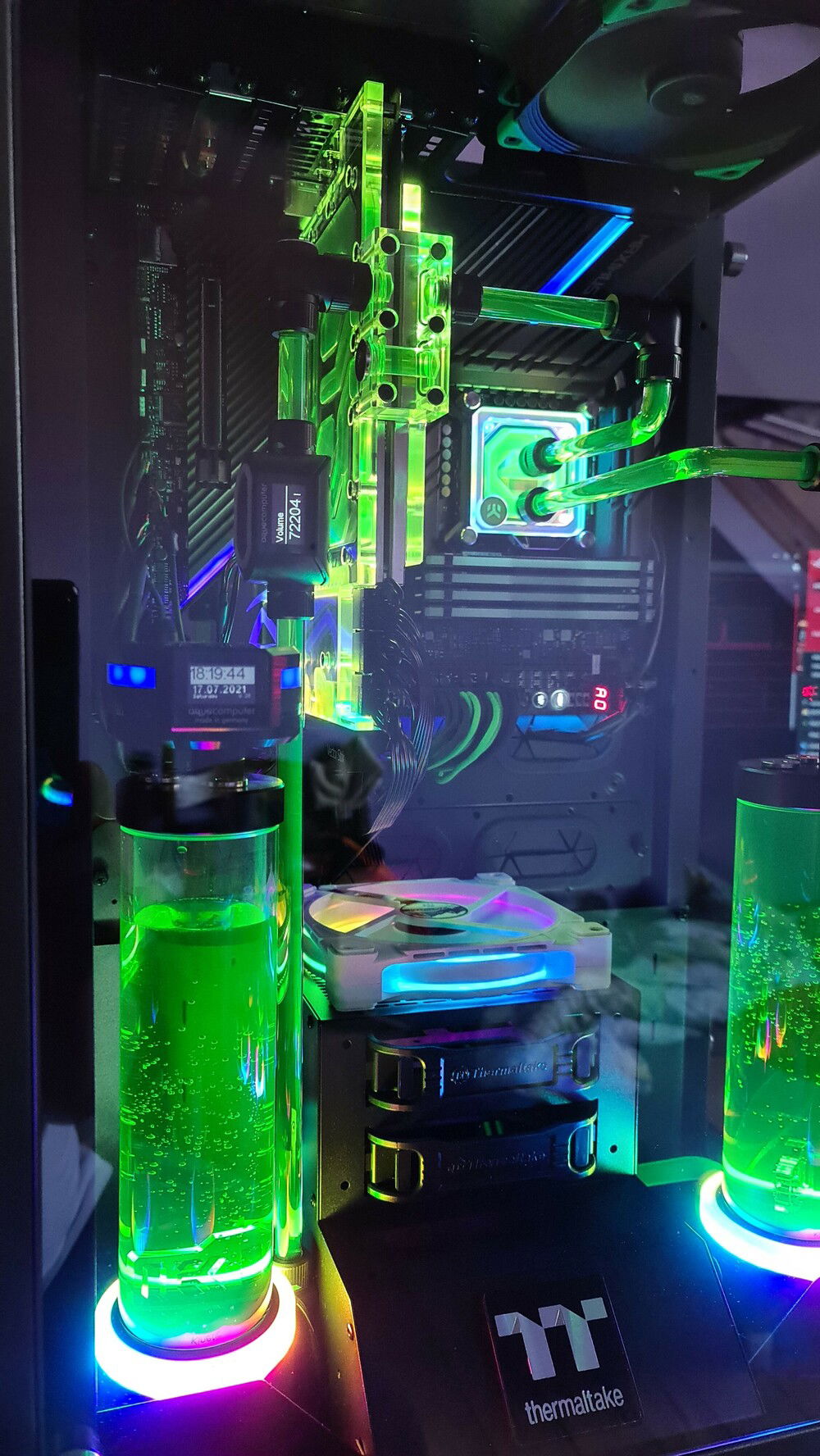

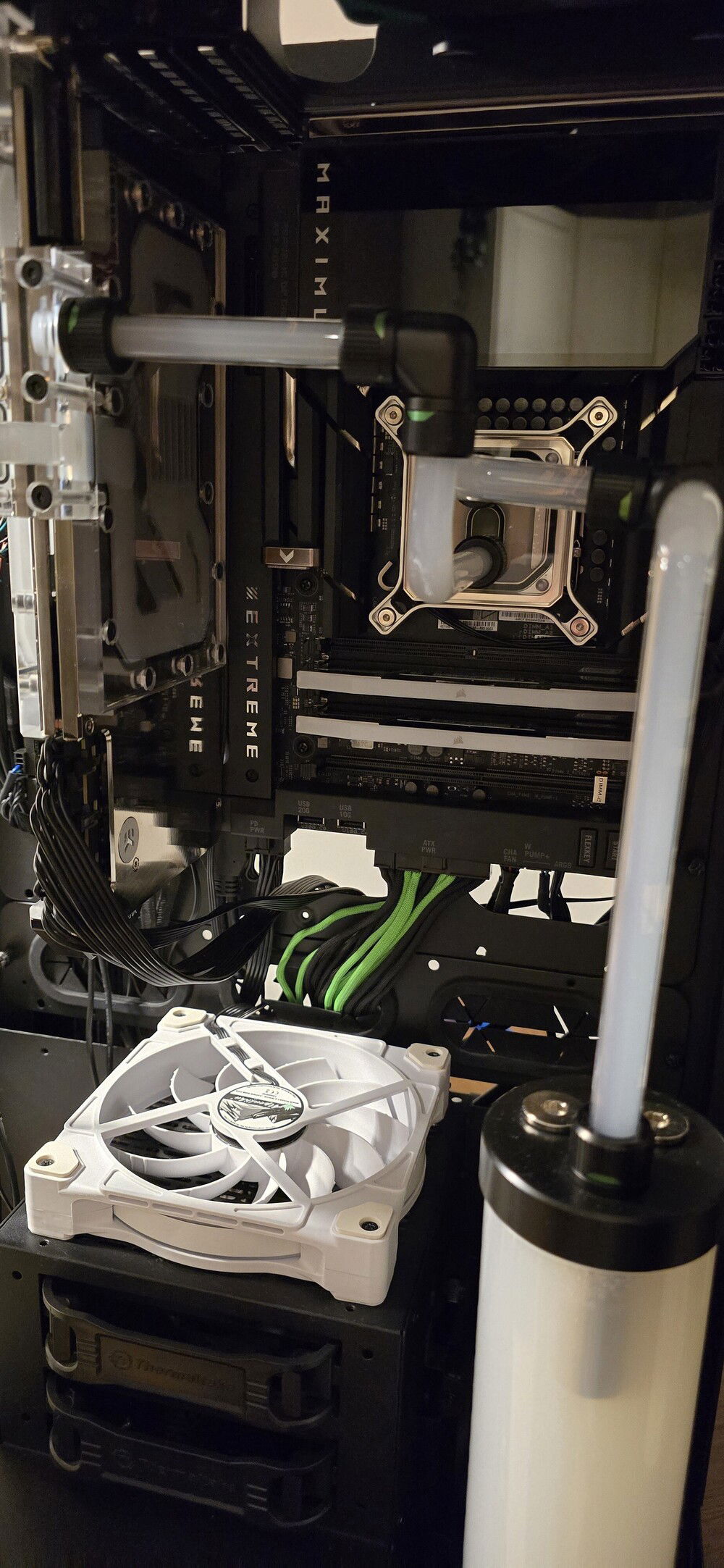

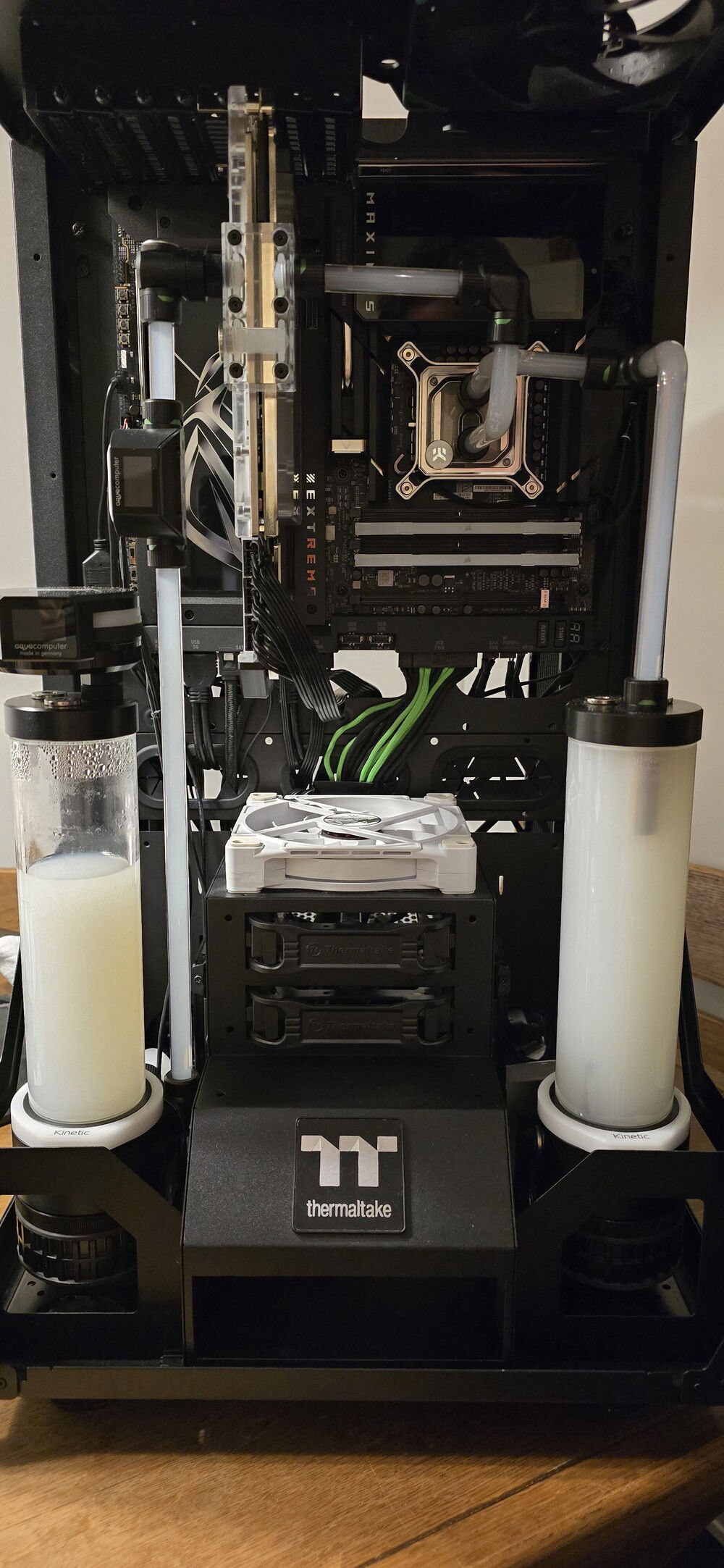

A customised cooling loop, and in it:

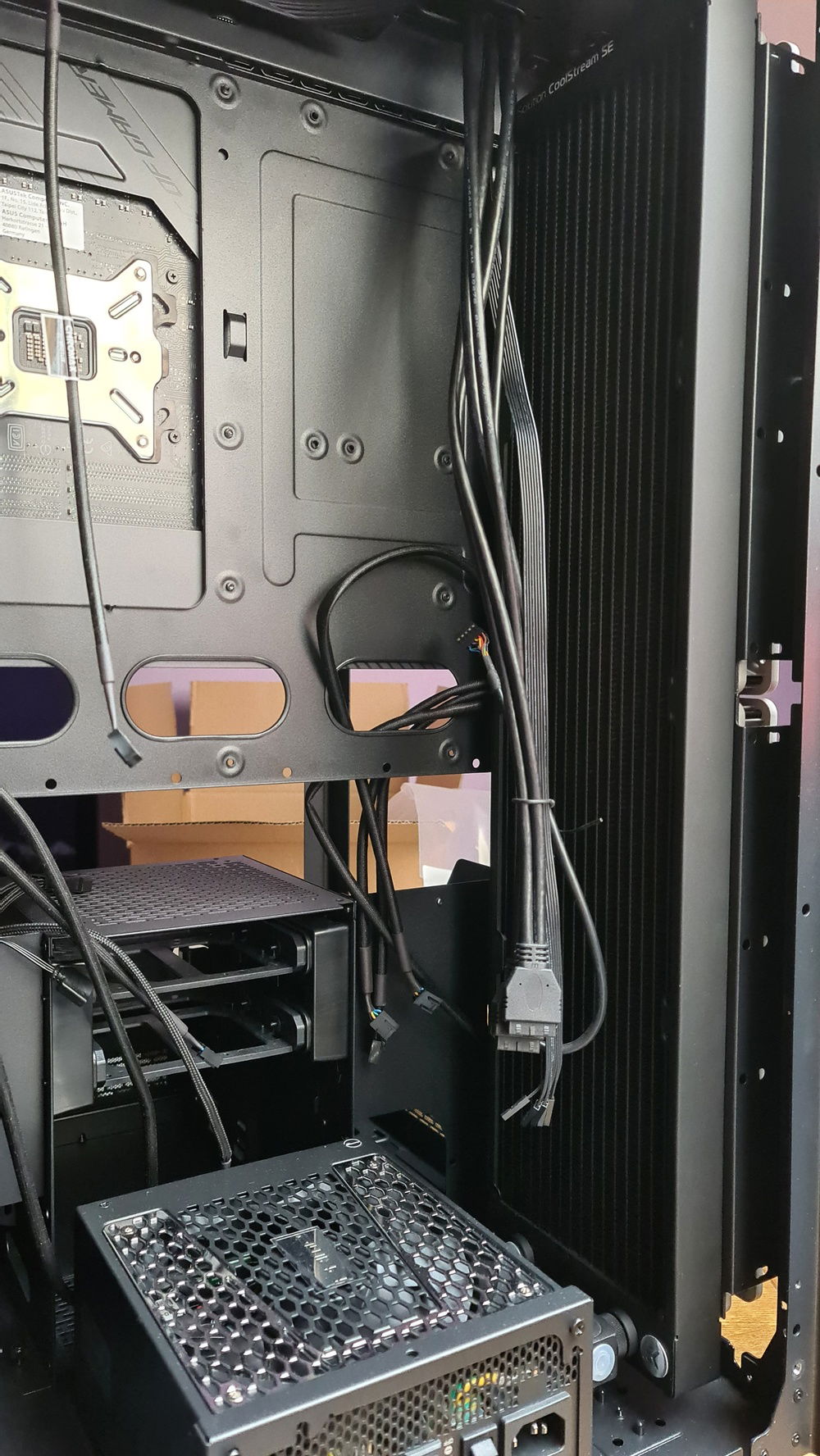

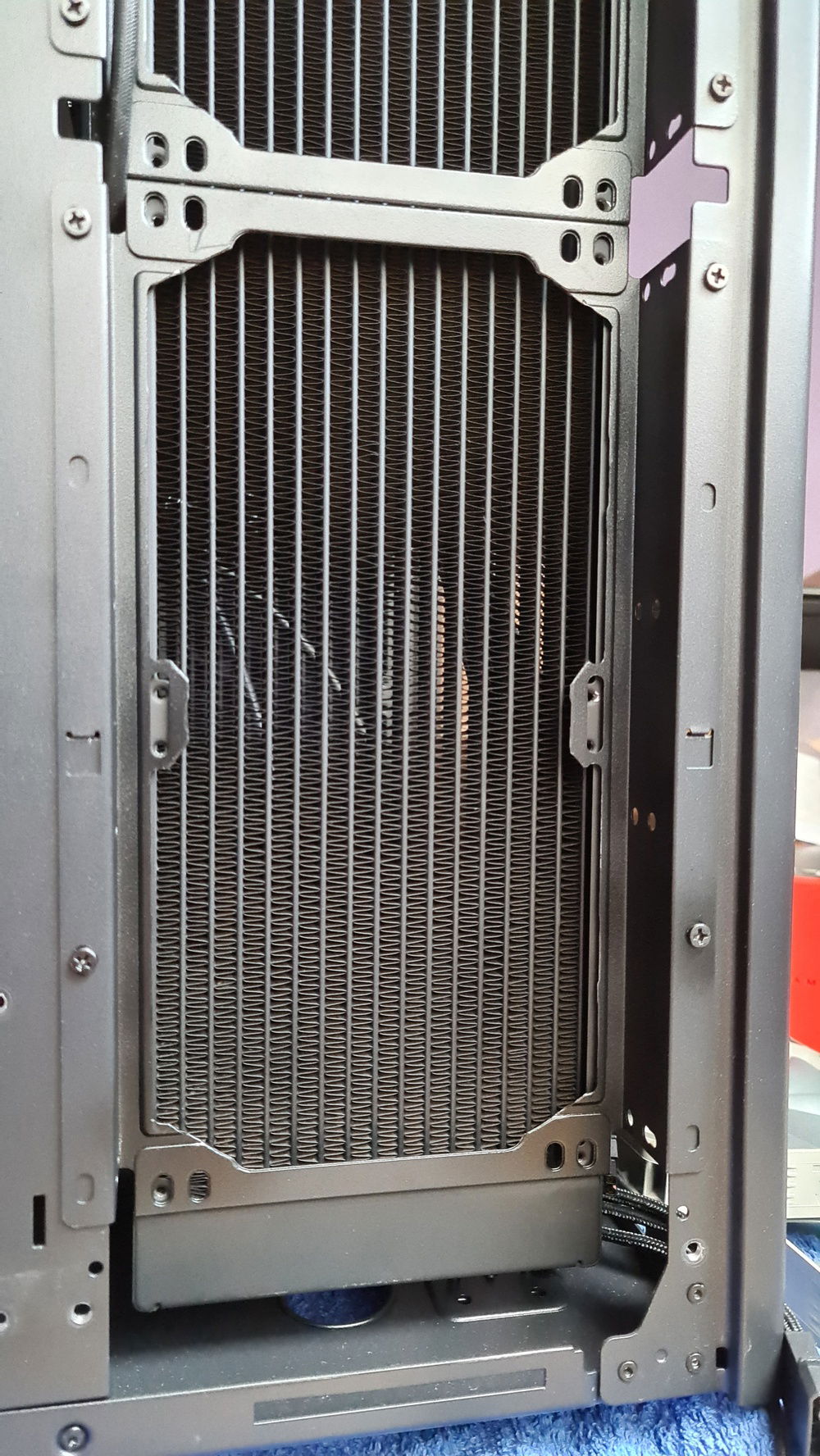

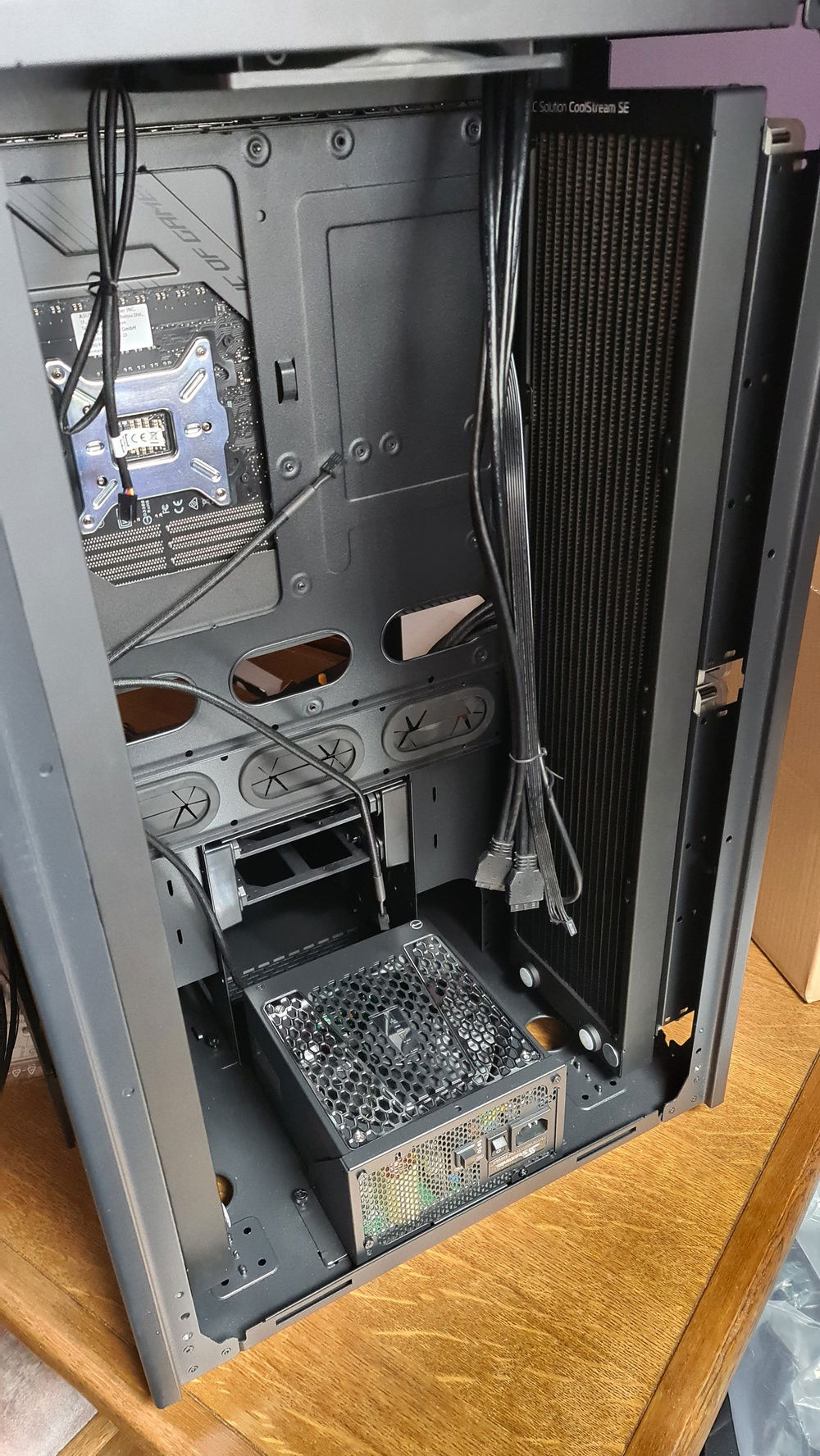

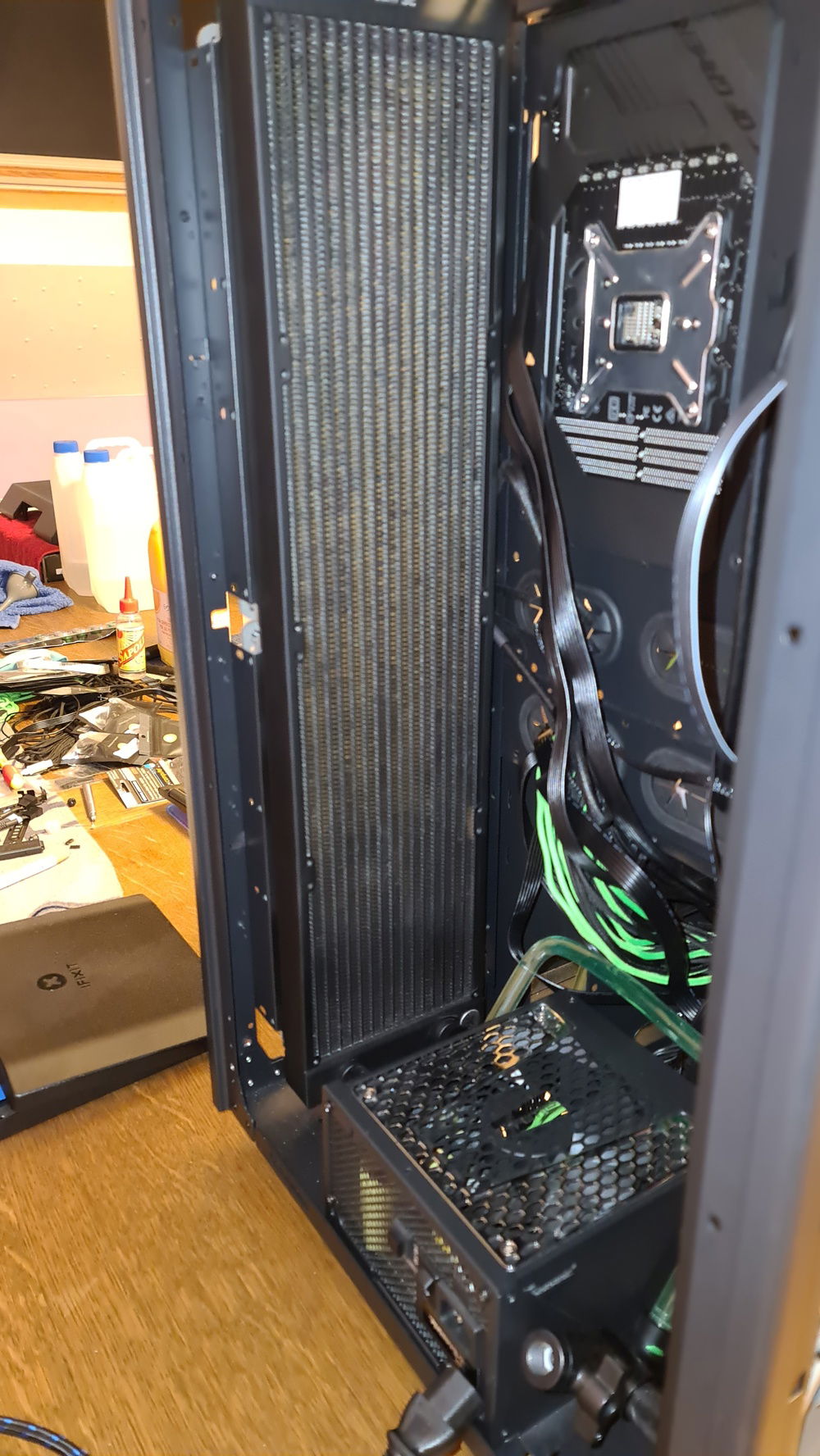

Radiators - 2 x EK-CoolStream SE 560

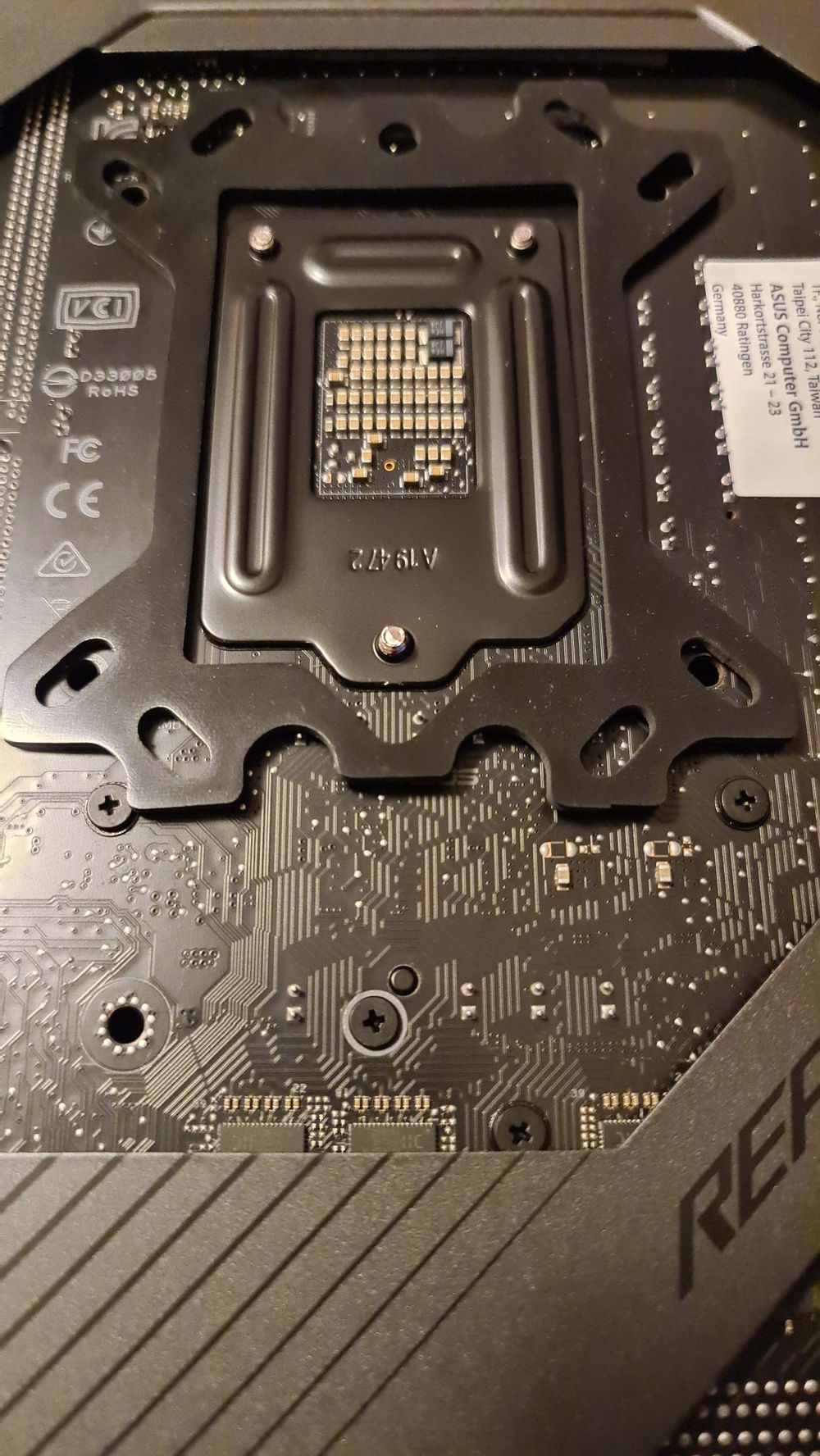

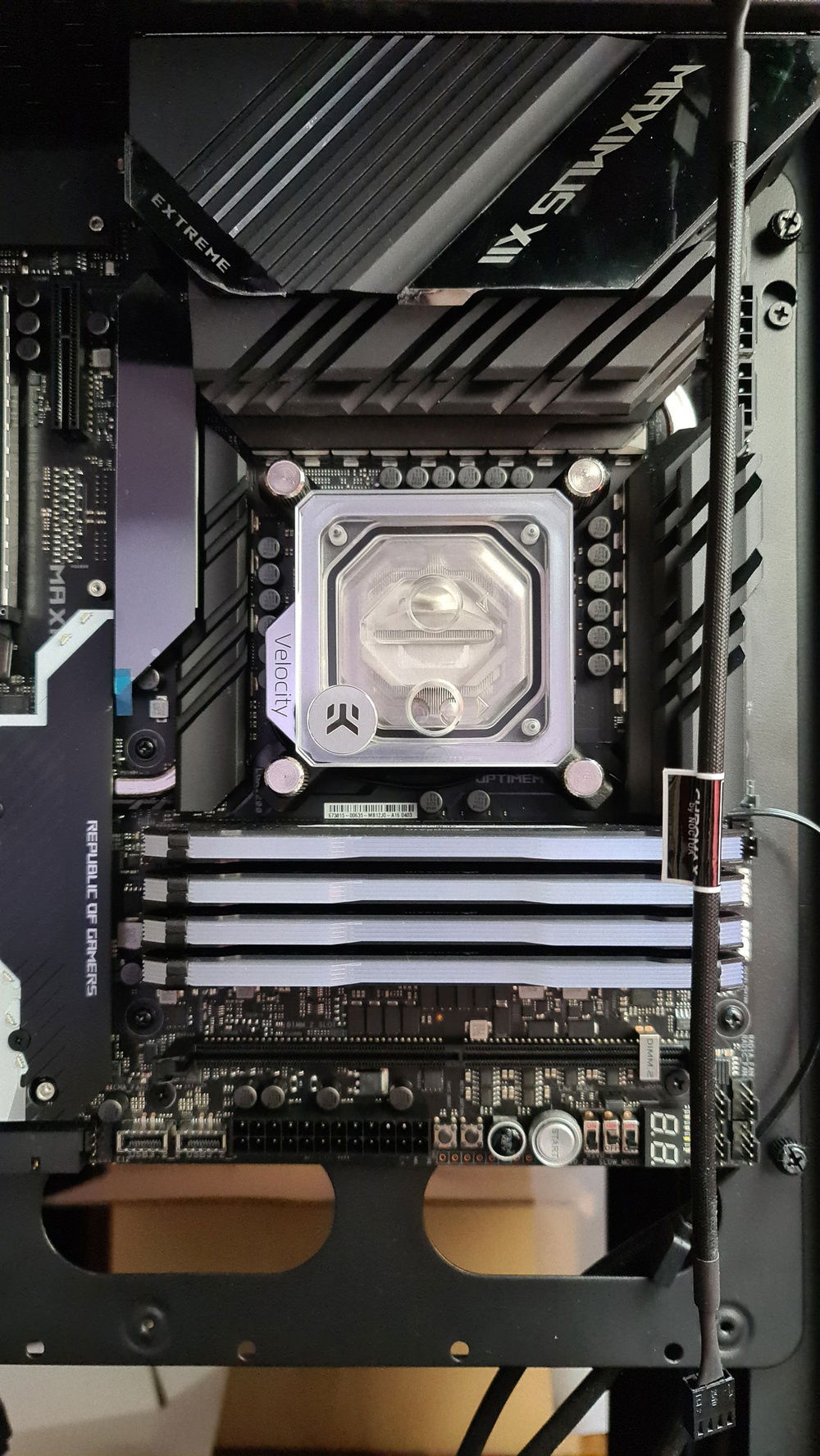

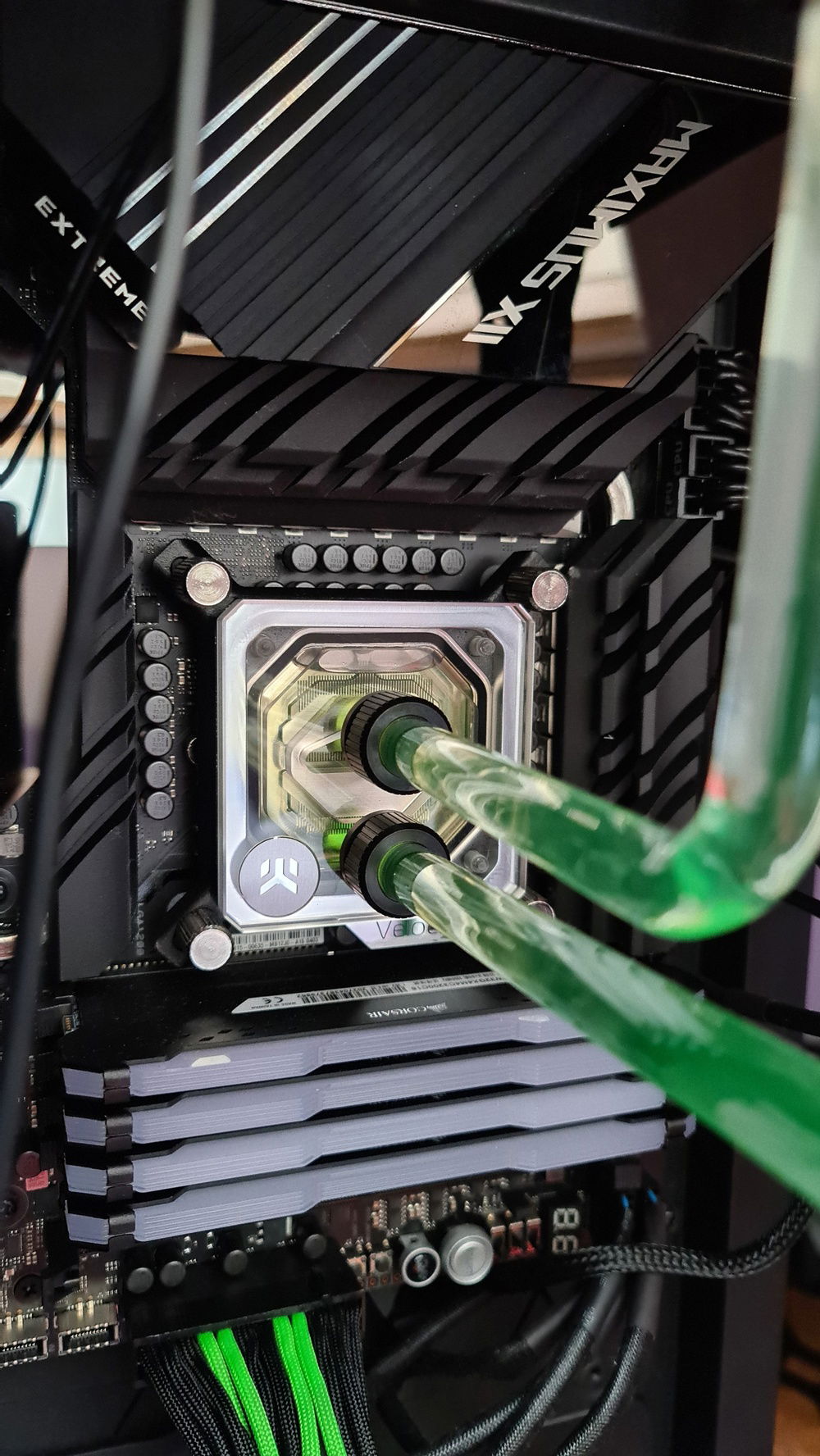

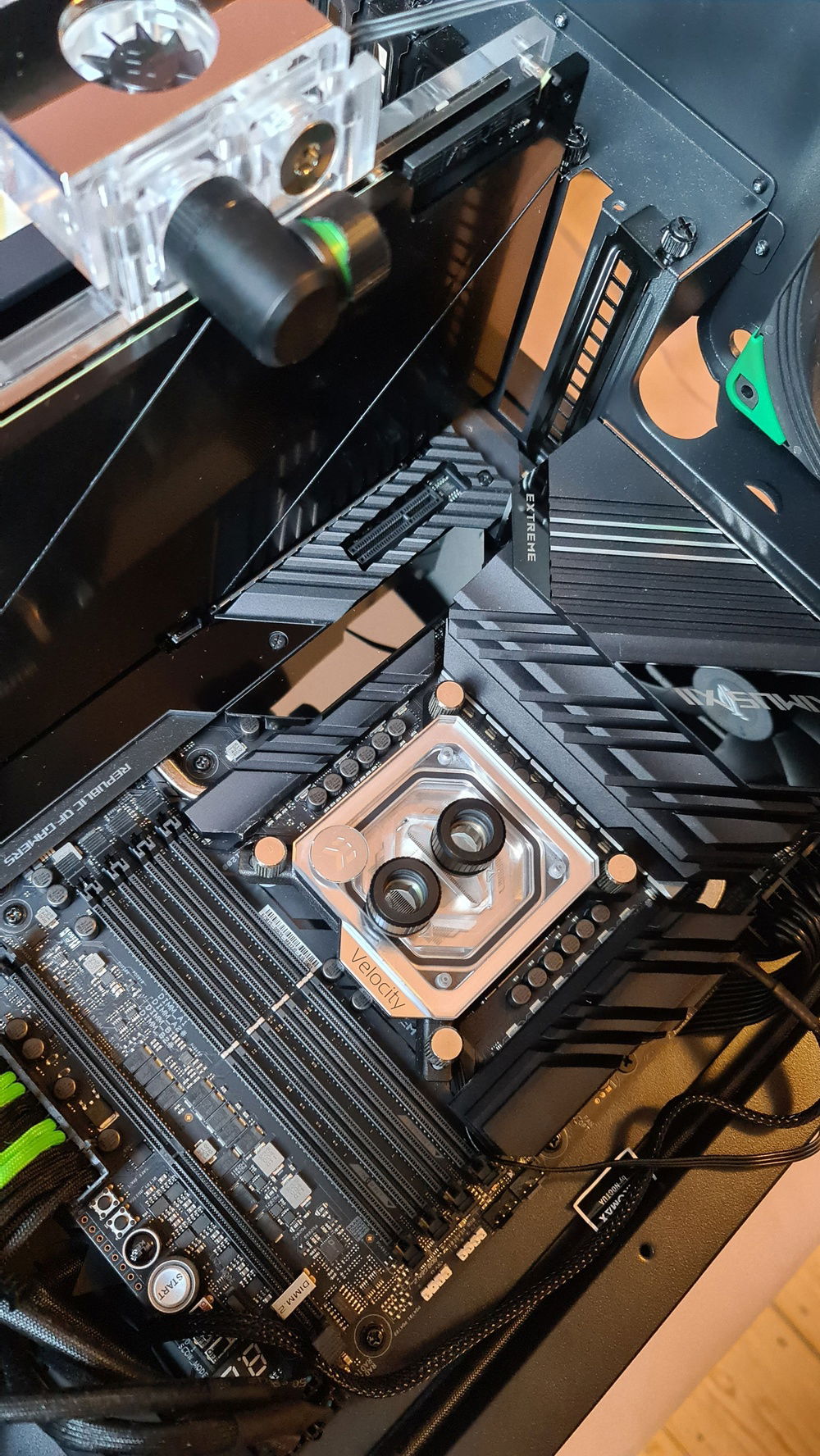

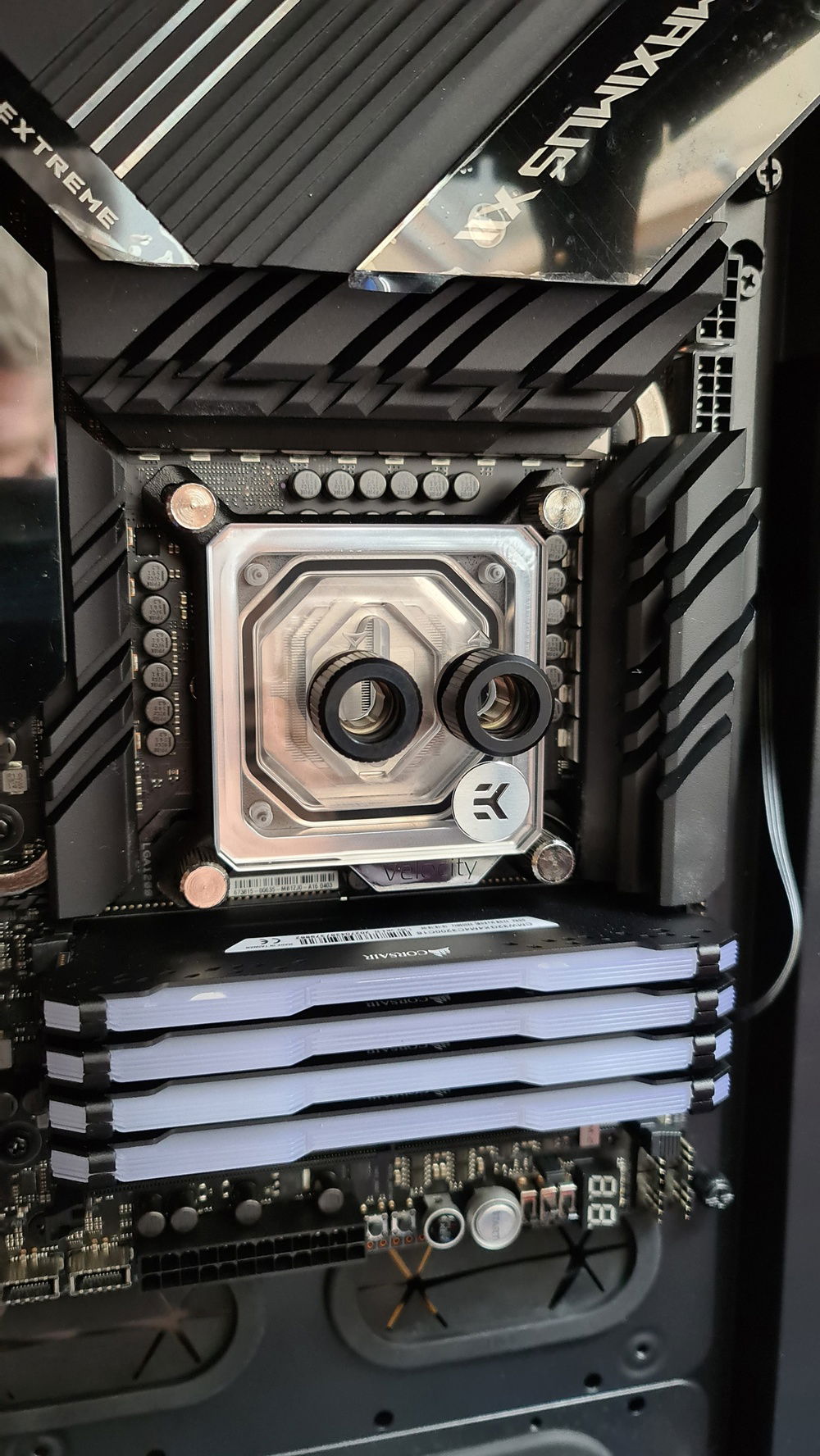

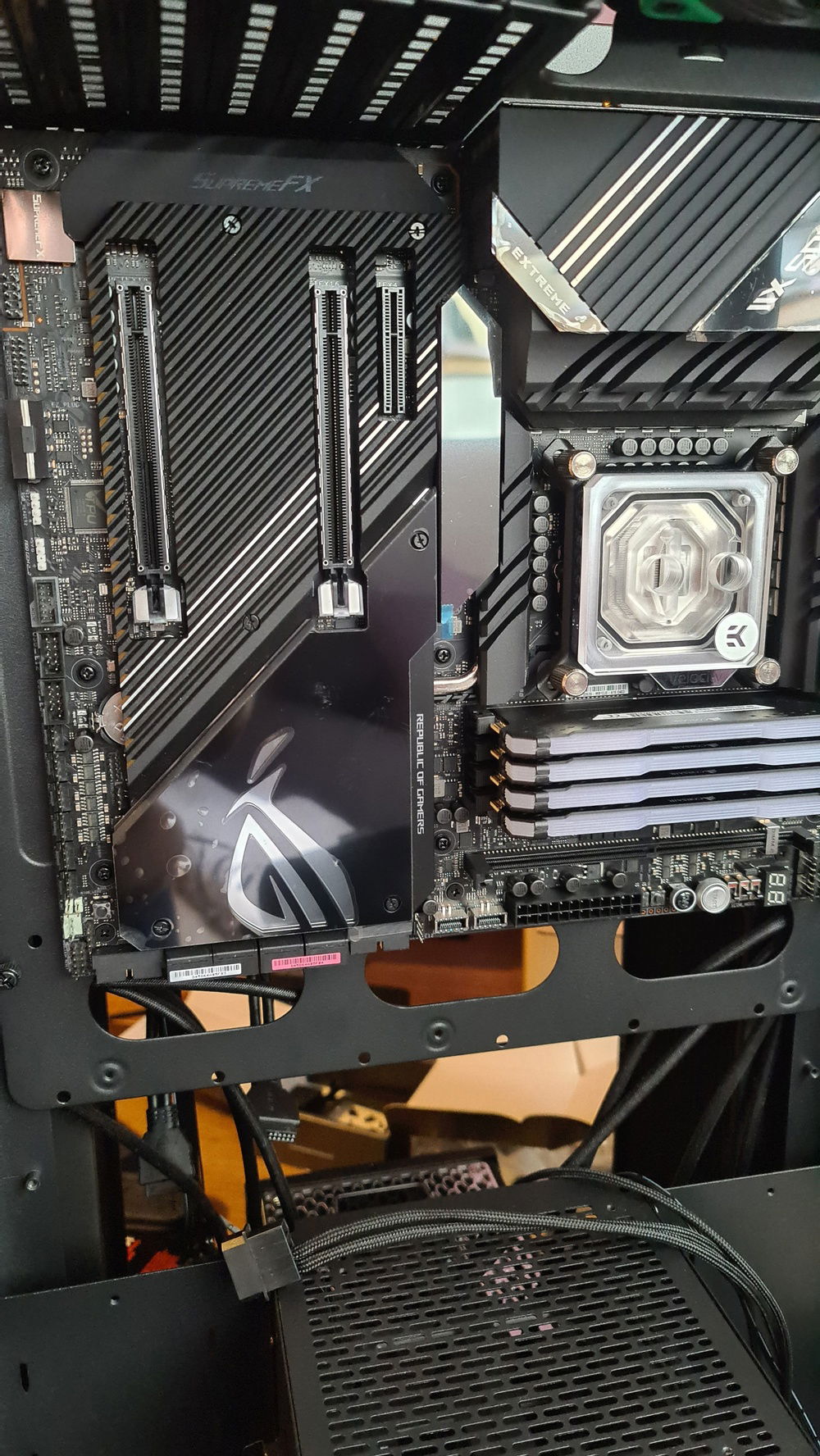

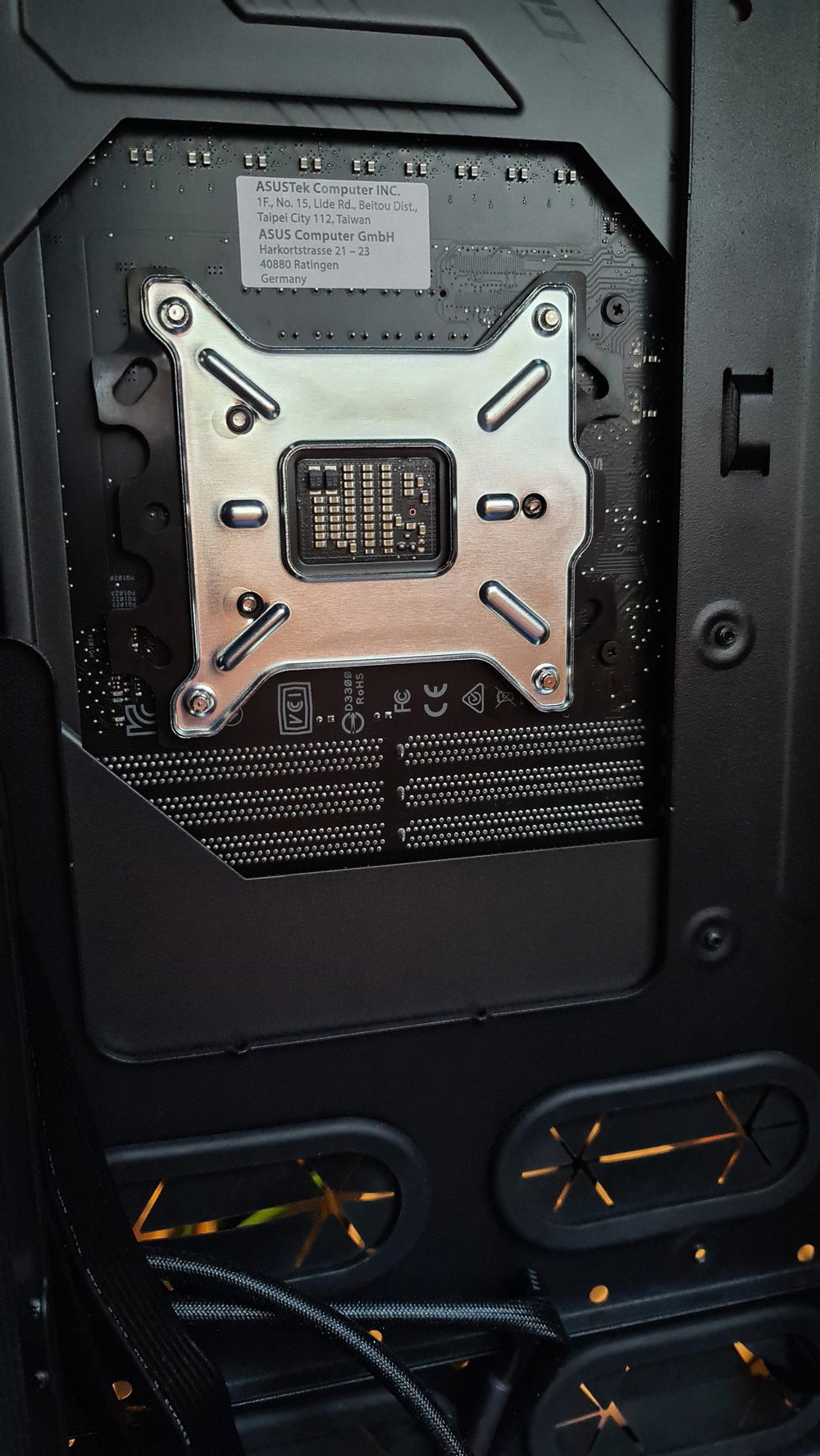

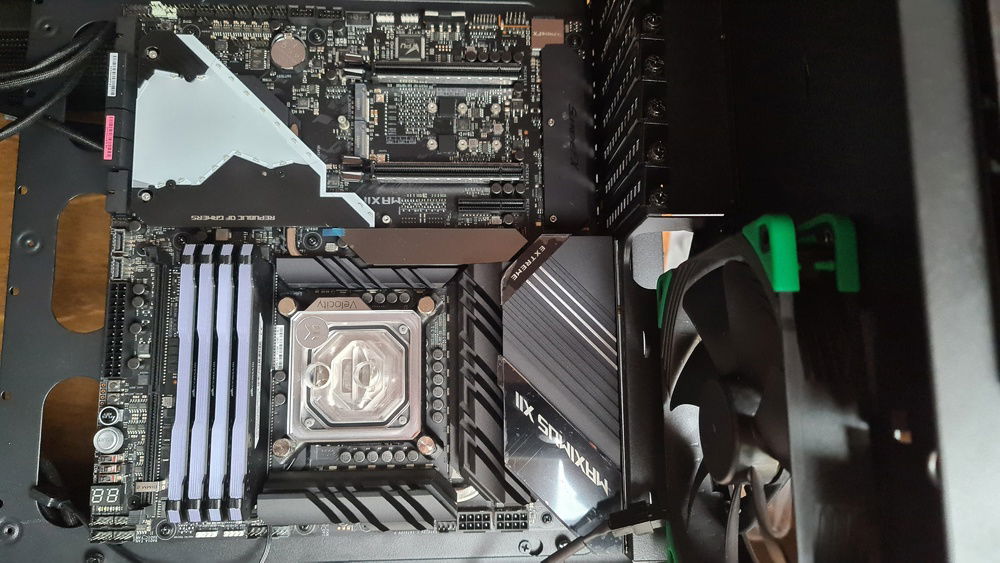

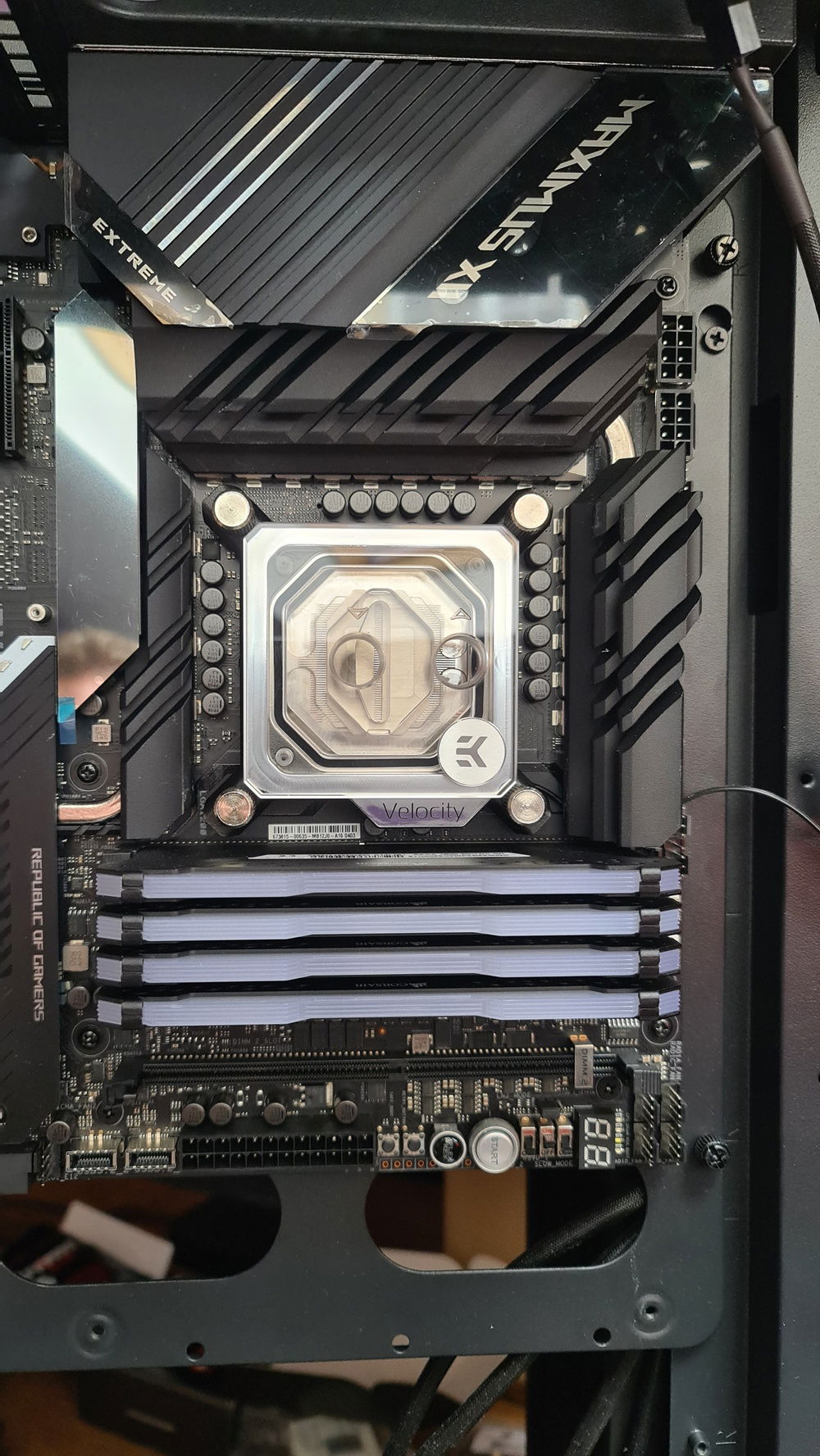

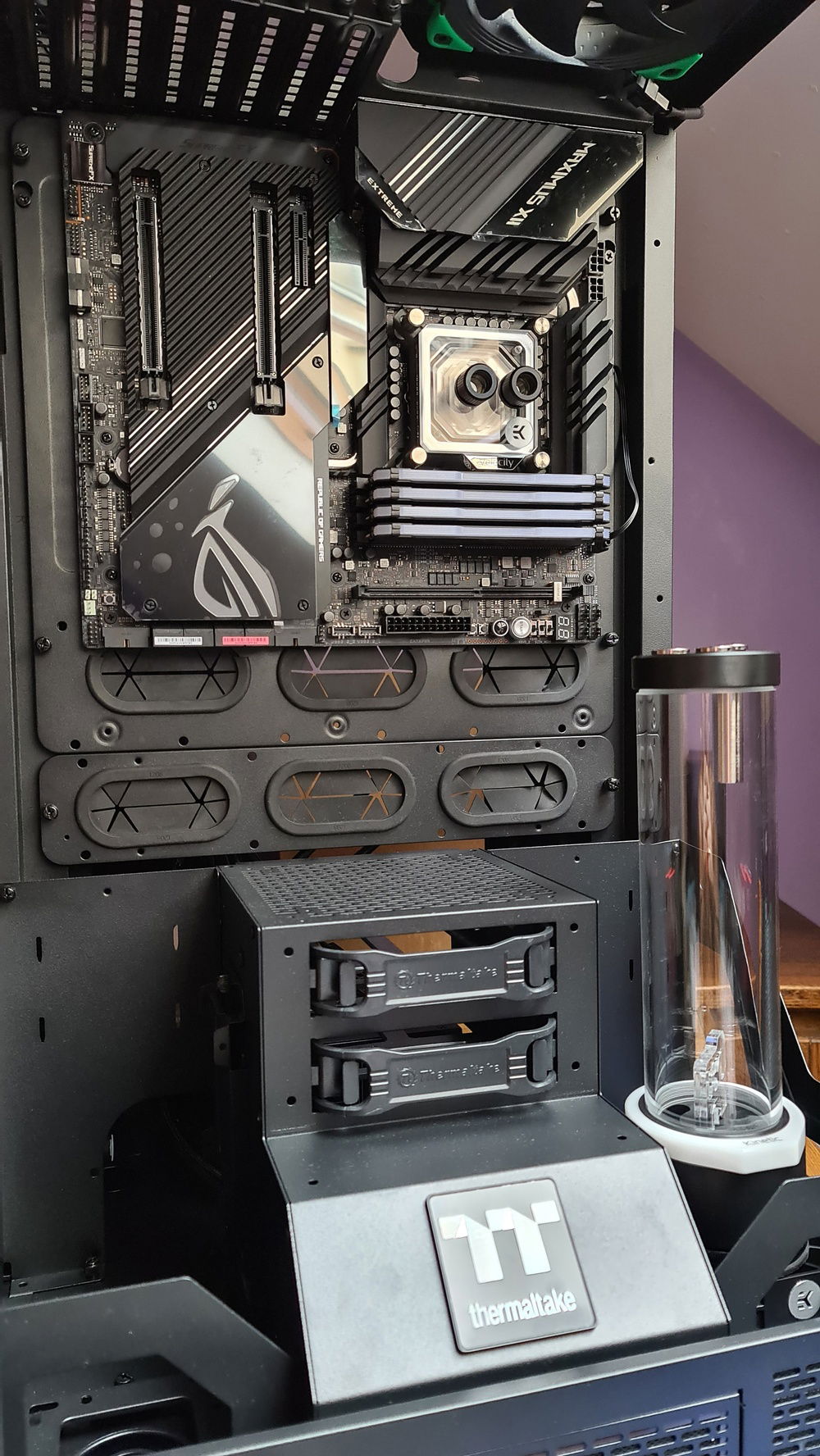

CPU block - EK-Quantum Velocity D-RGB - Nickel + Plexi

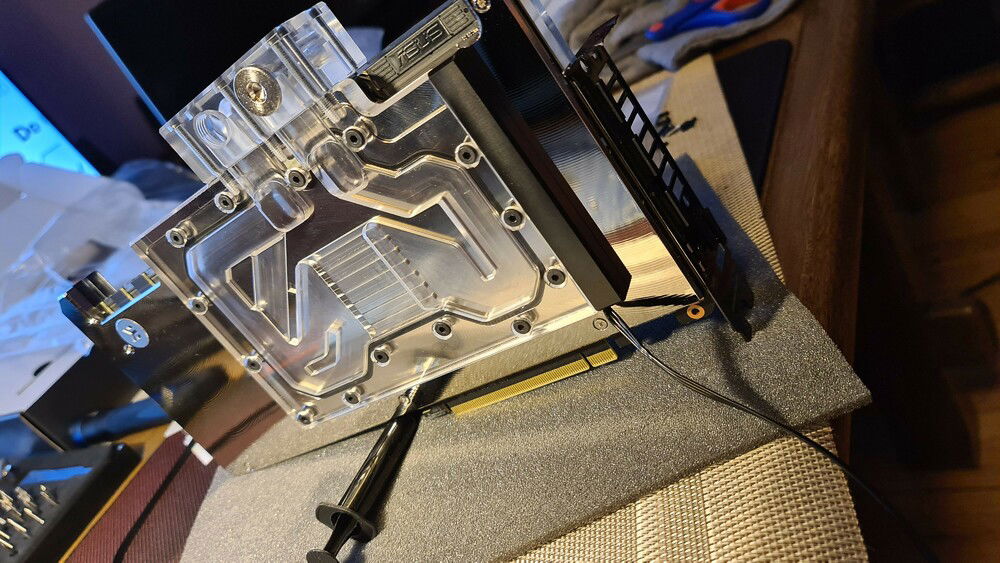

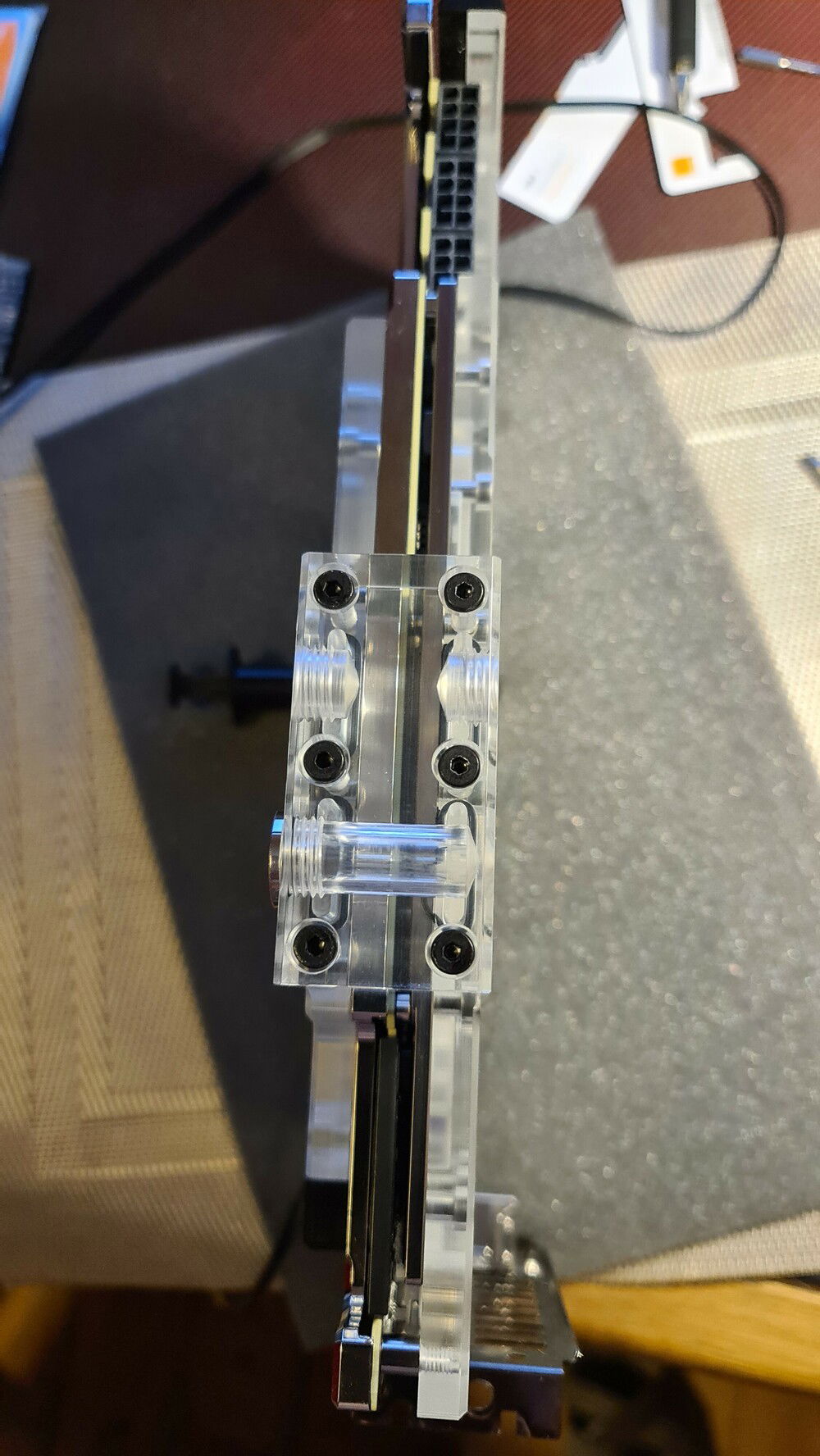

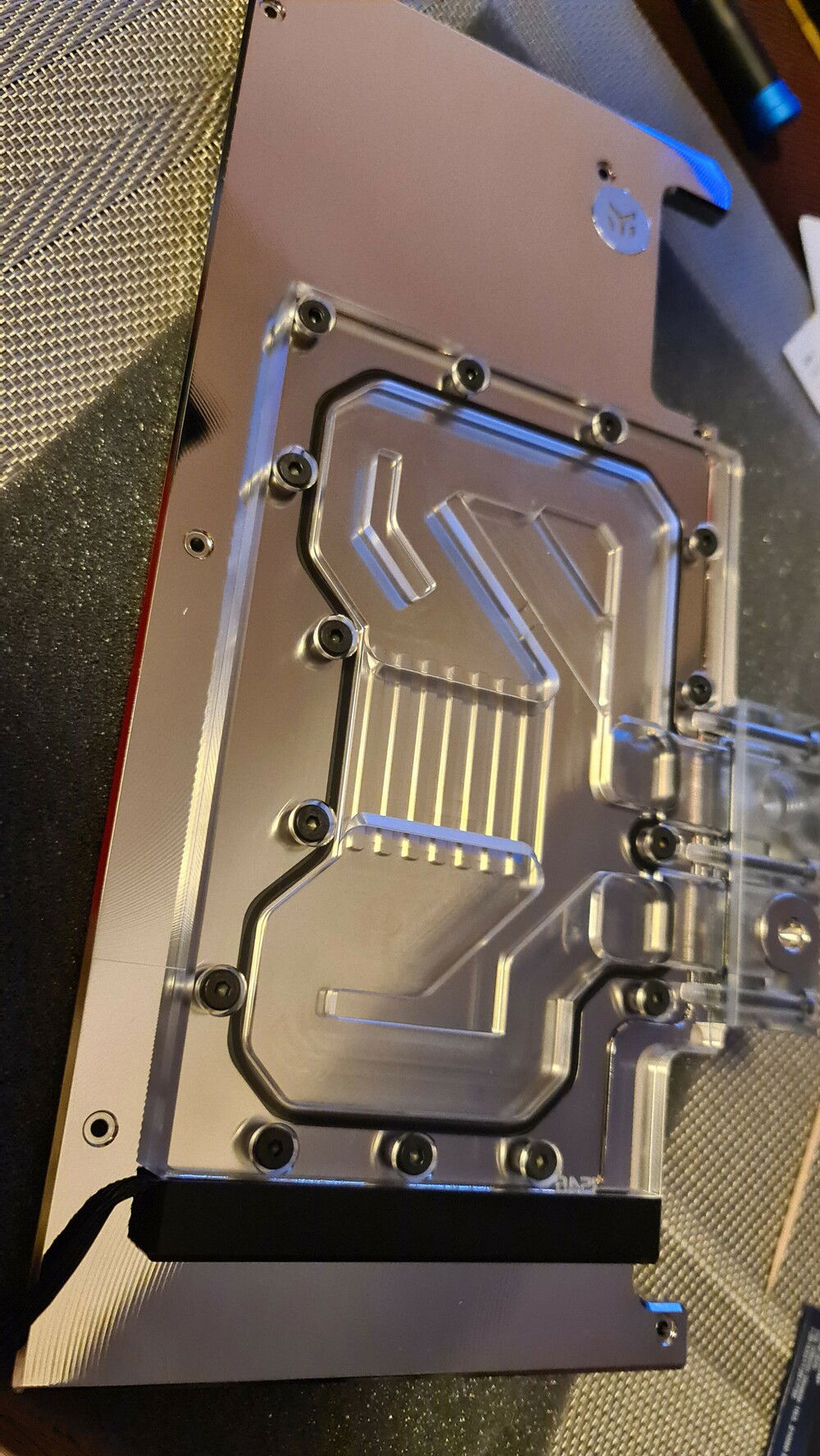

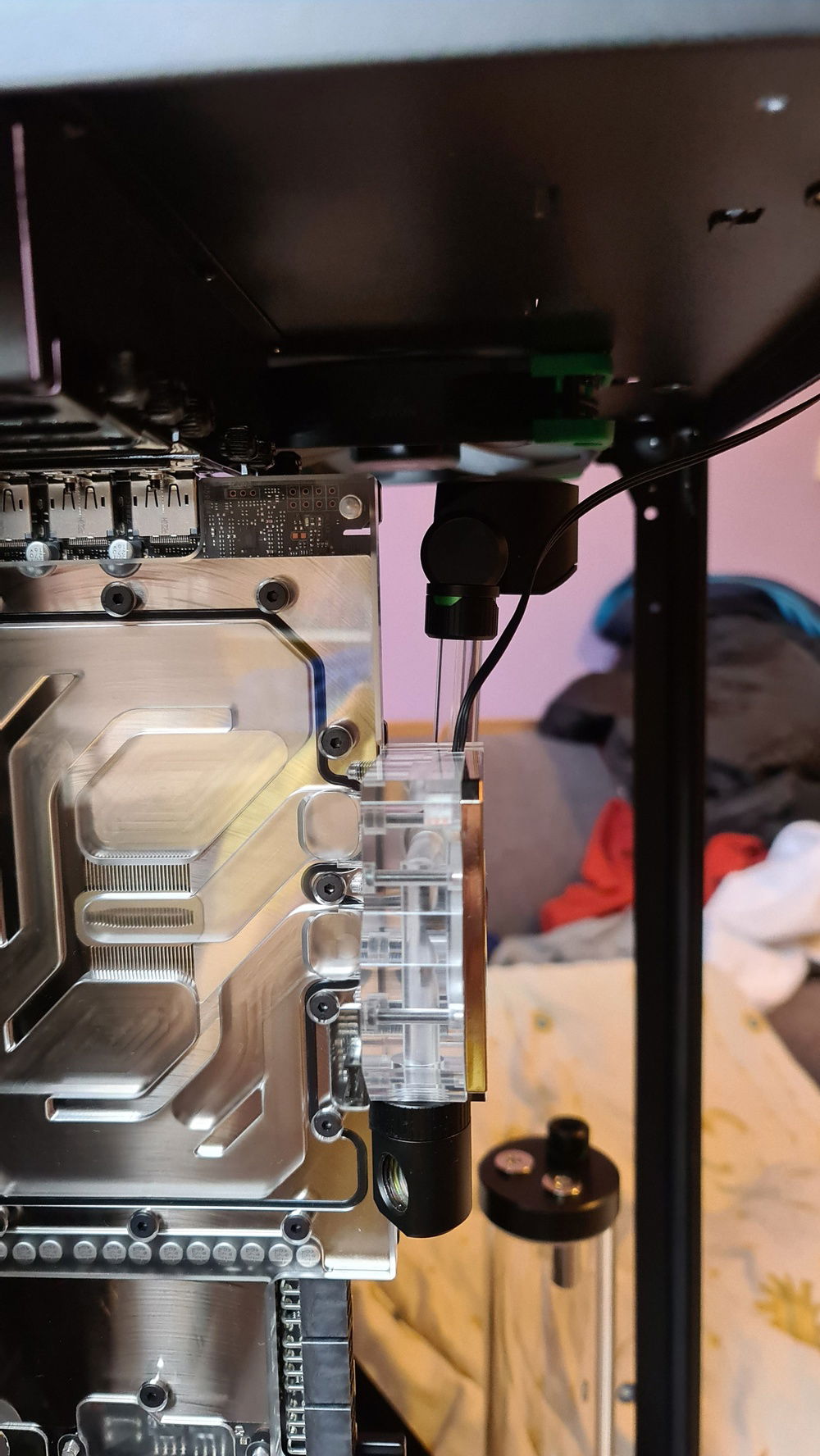

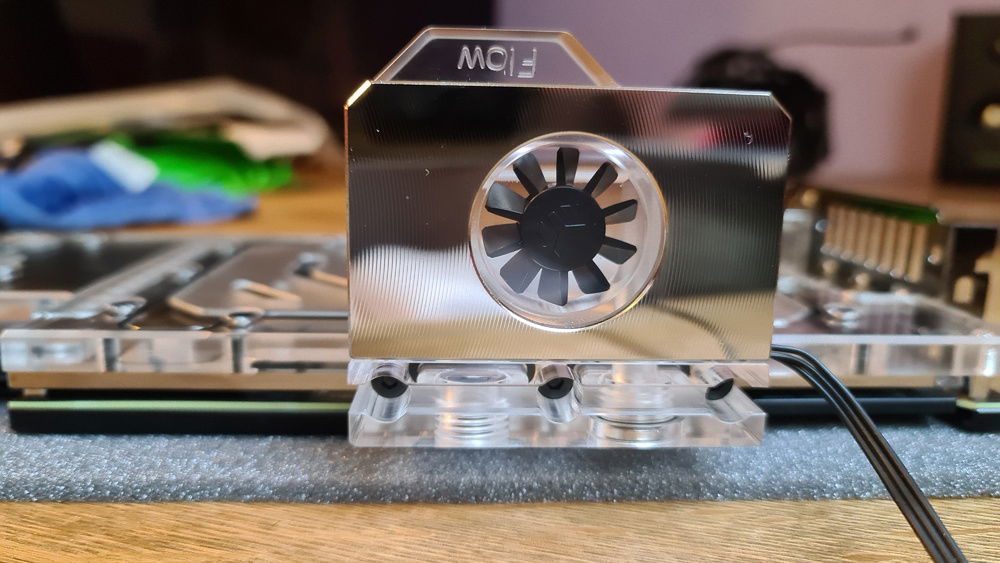

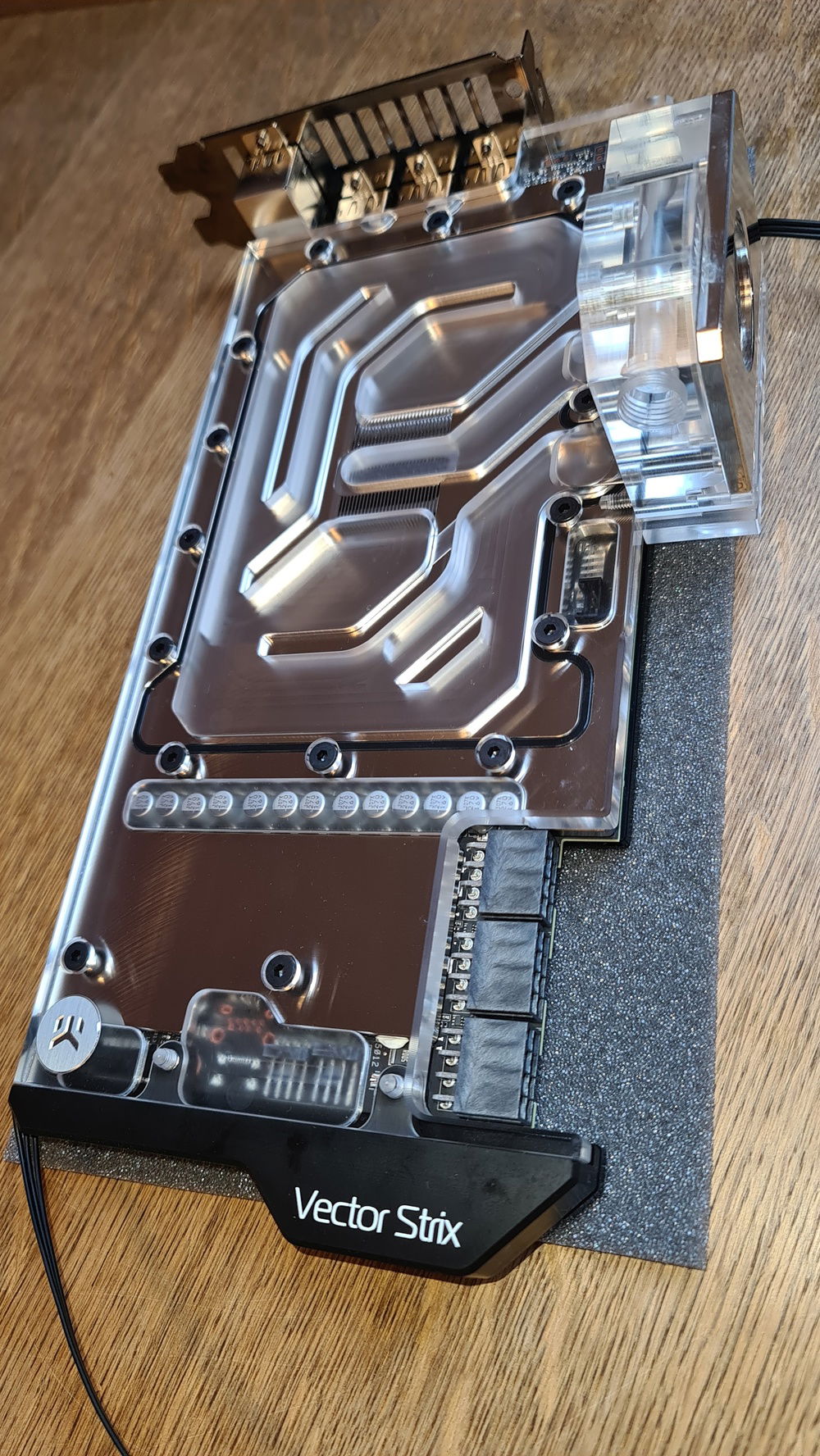

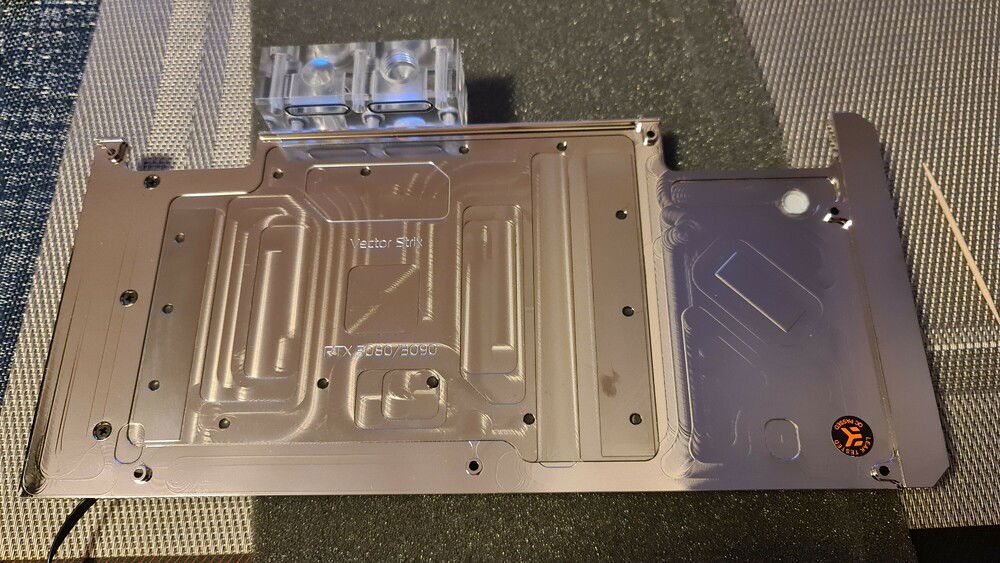

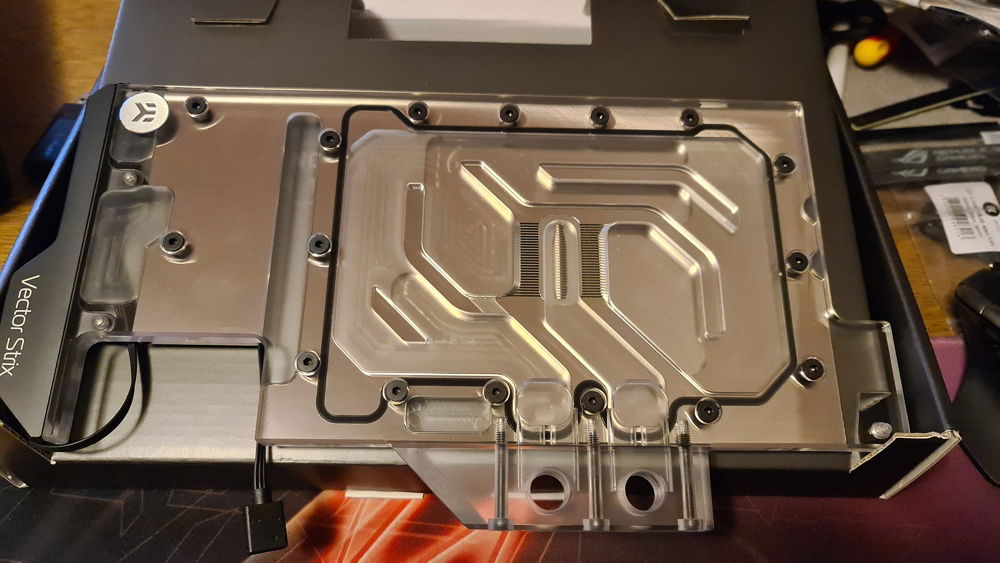

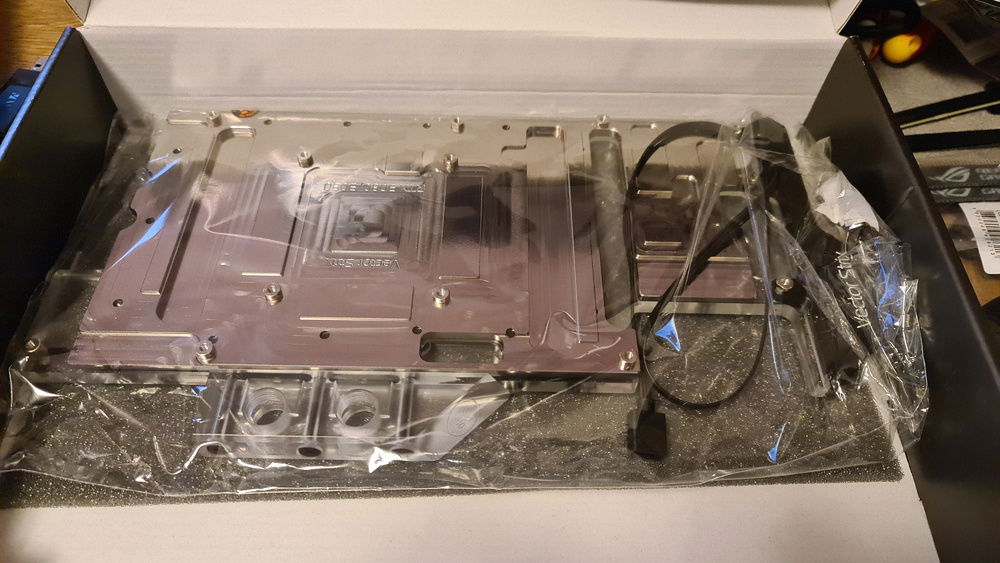

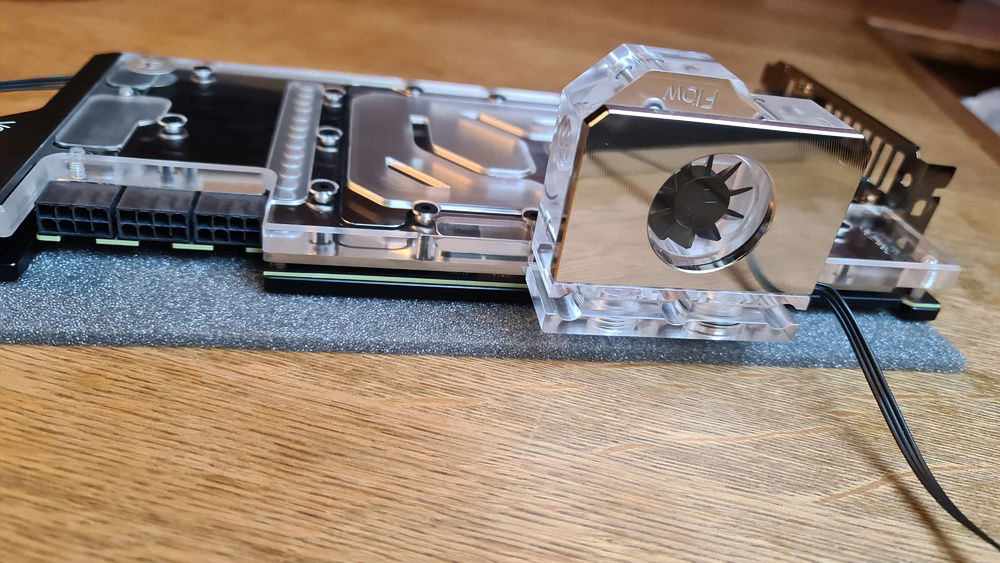

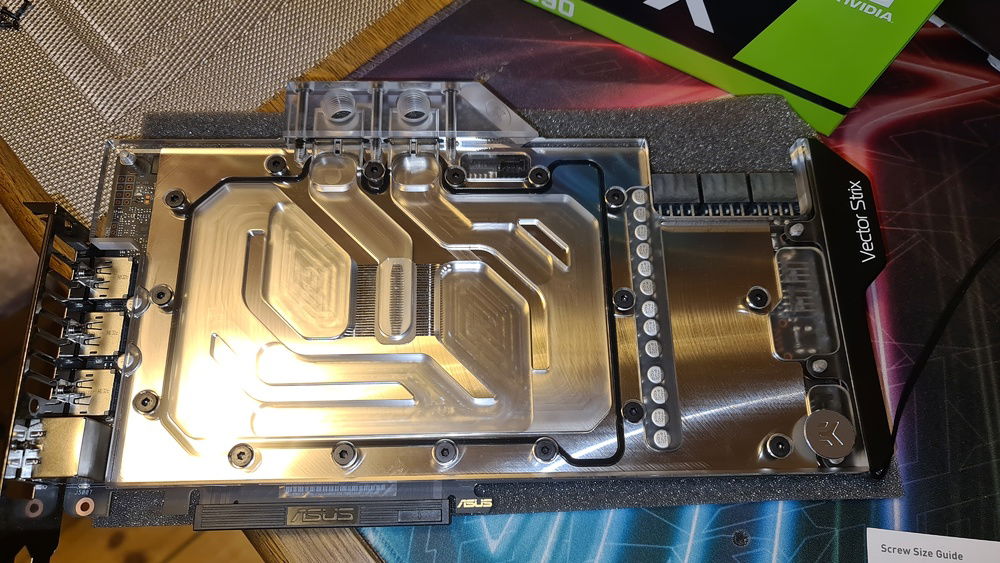

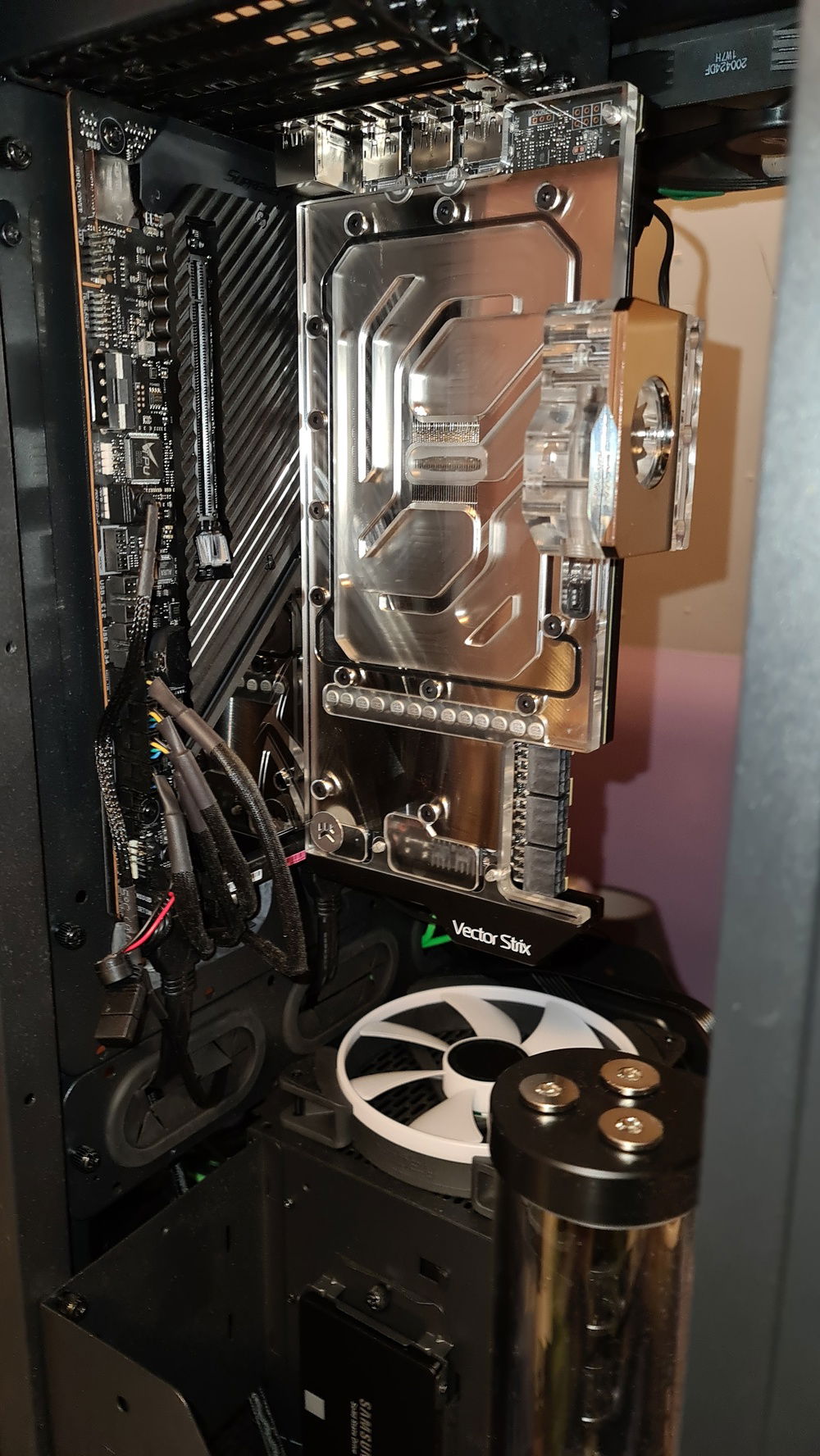

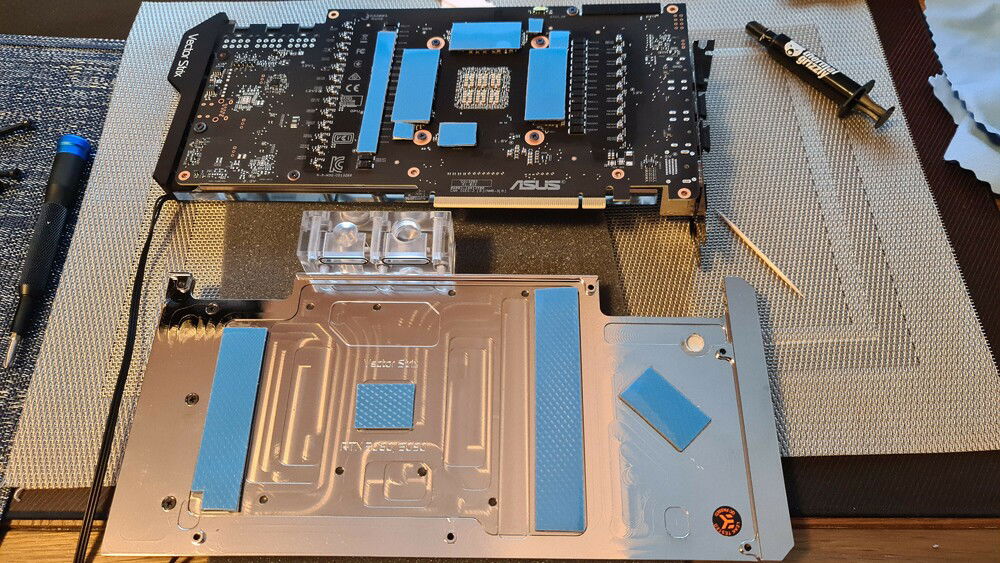

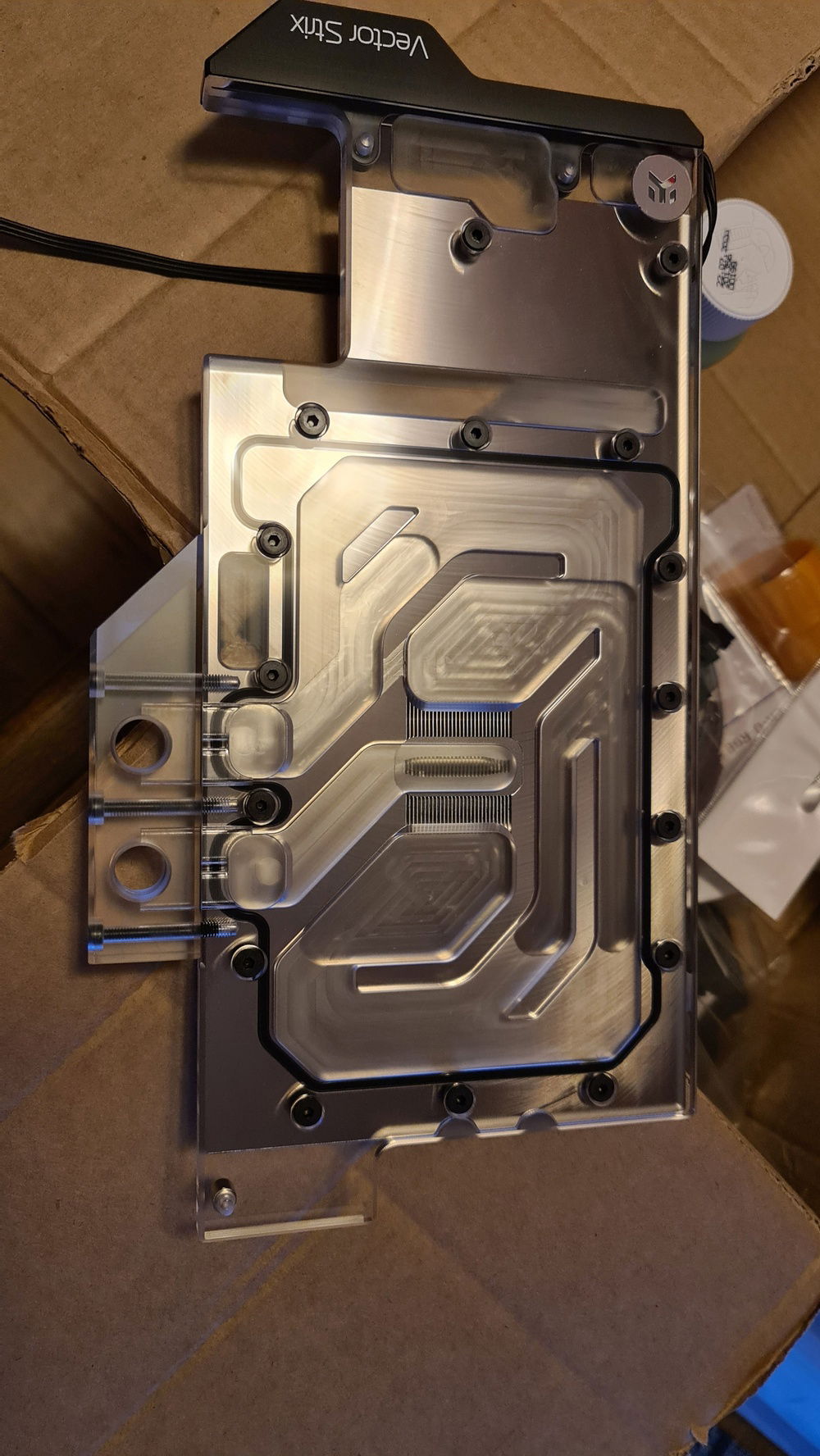

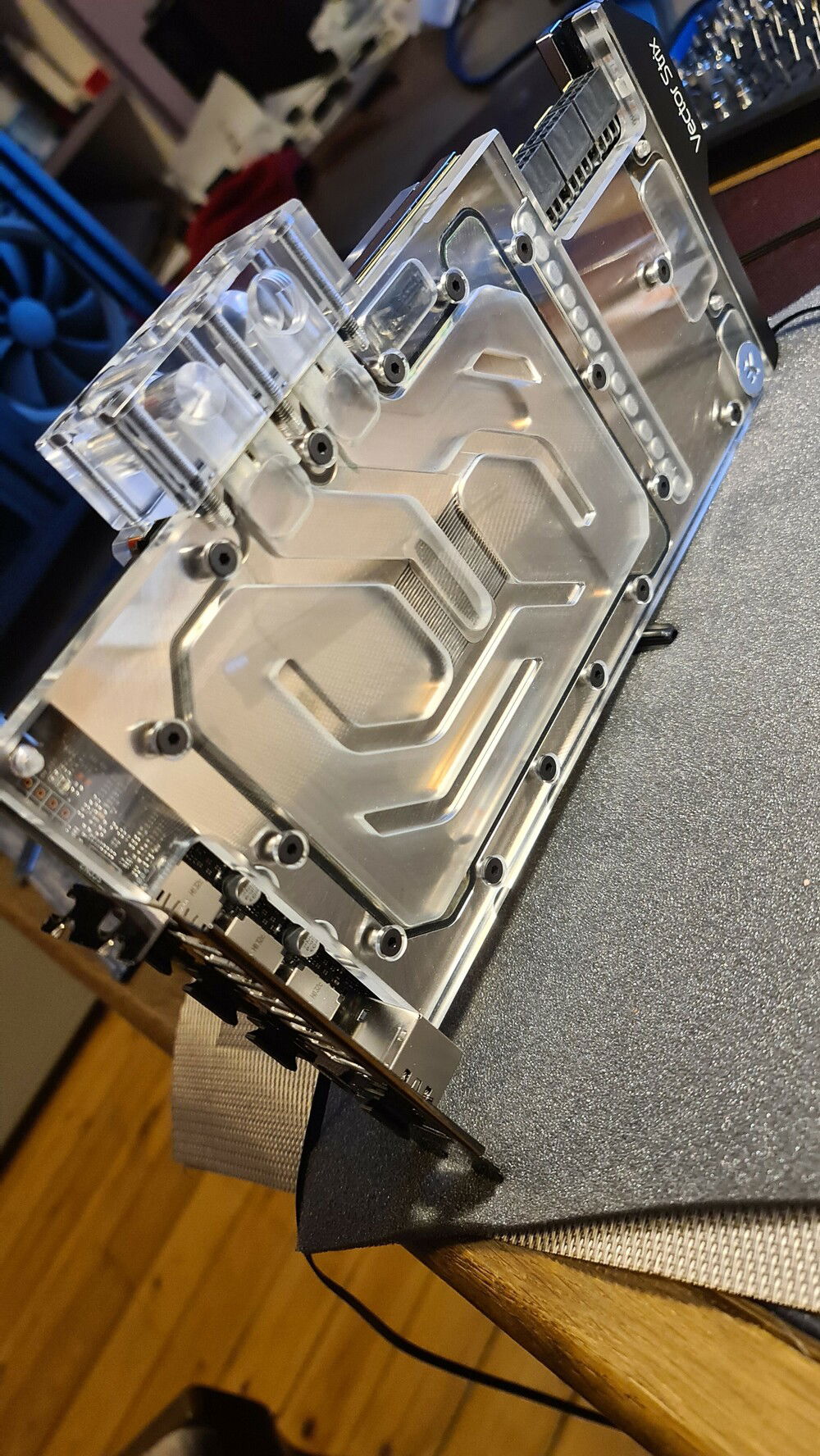

GPU block - EK-Quantum Vector Strix RTX 3080/3090 D-RGB - Nickel + Plexi

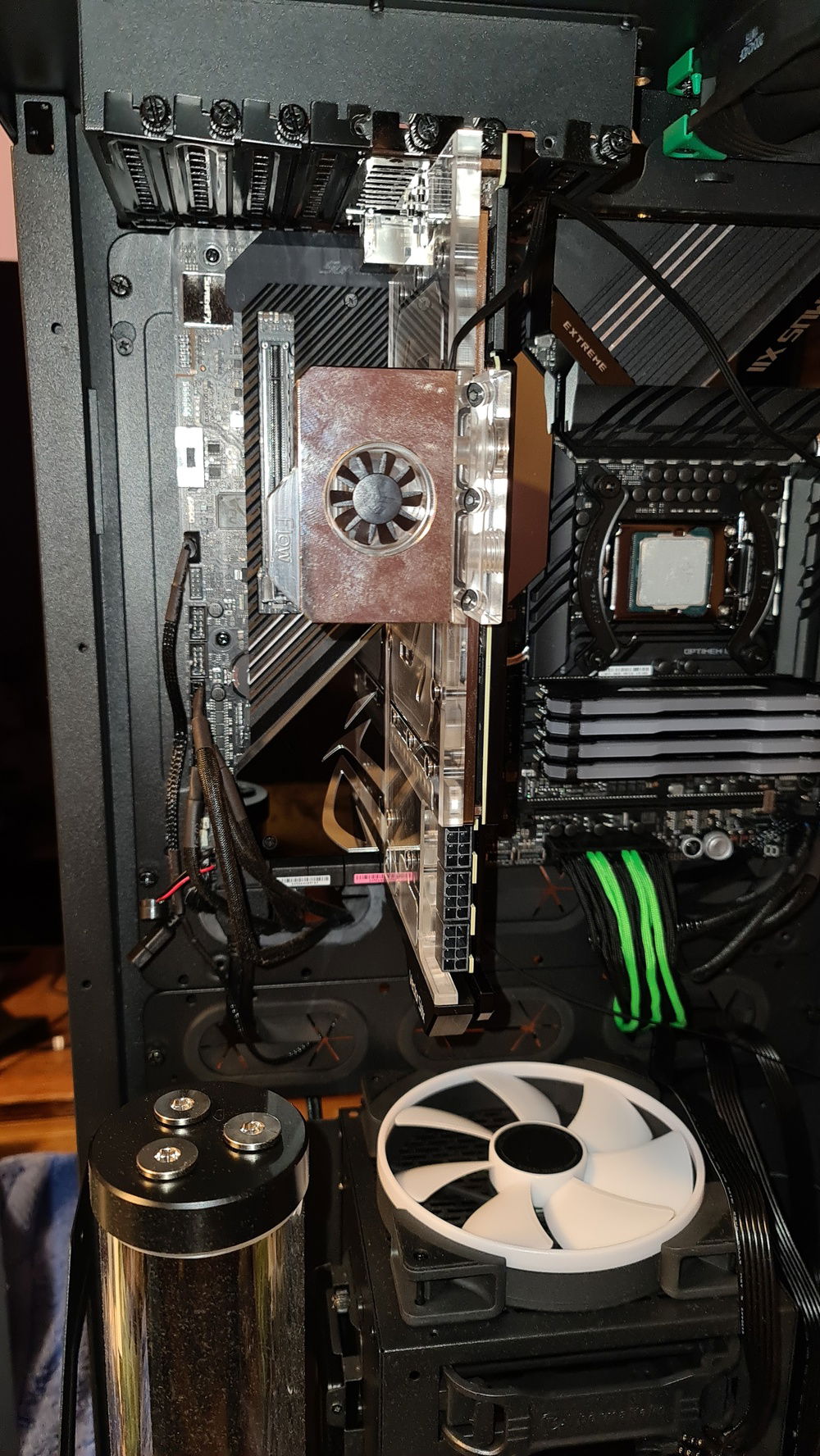

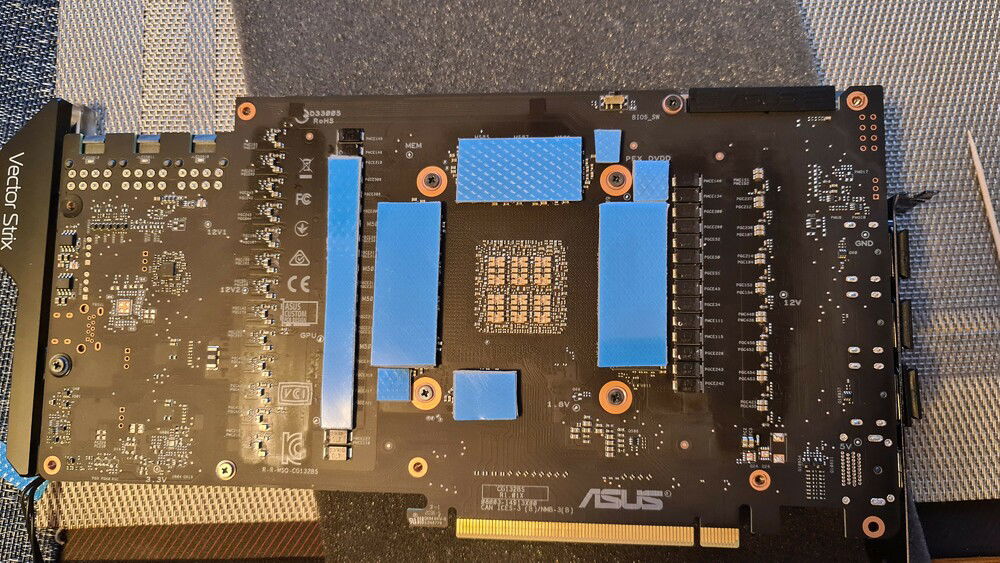

GPU Backplate - EK-Quantum Vector Strix RTX 3070/3080/3090 Backplate - Black

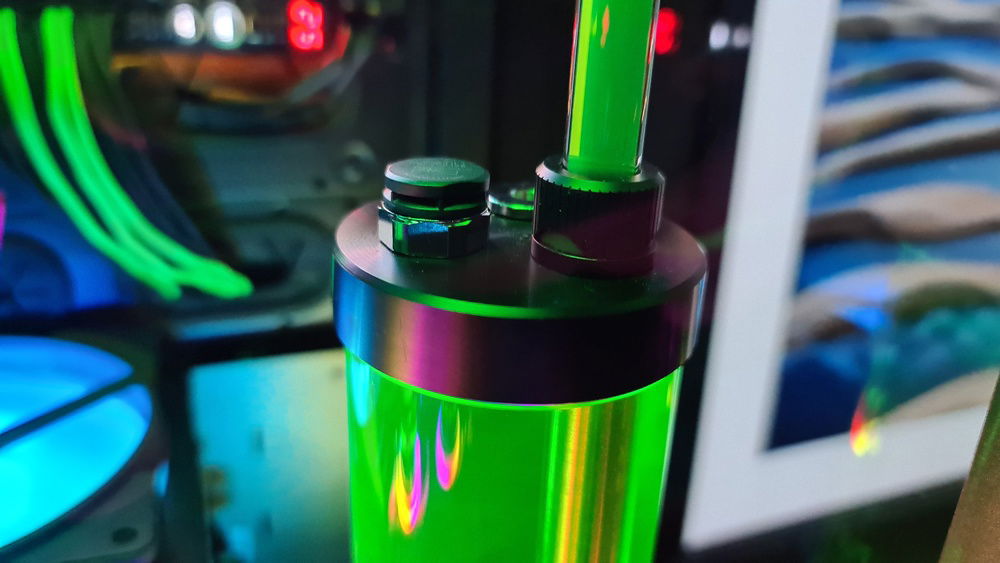

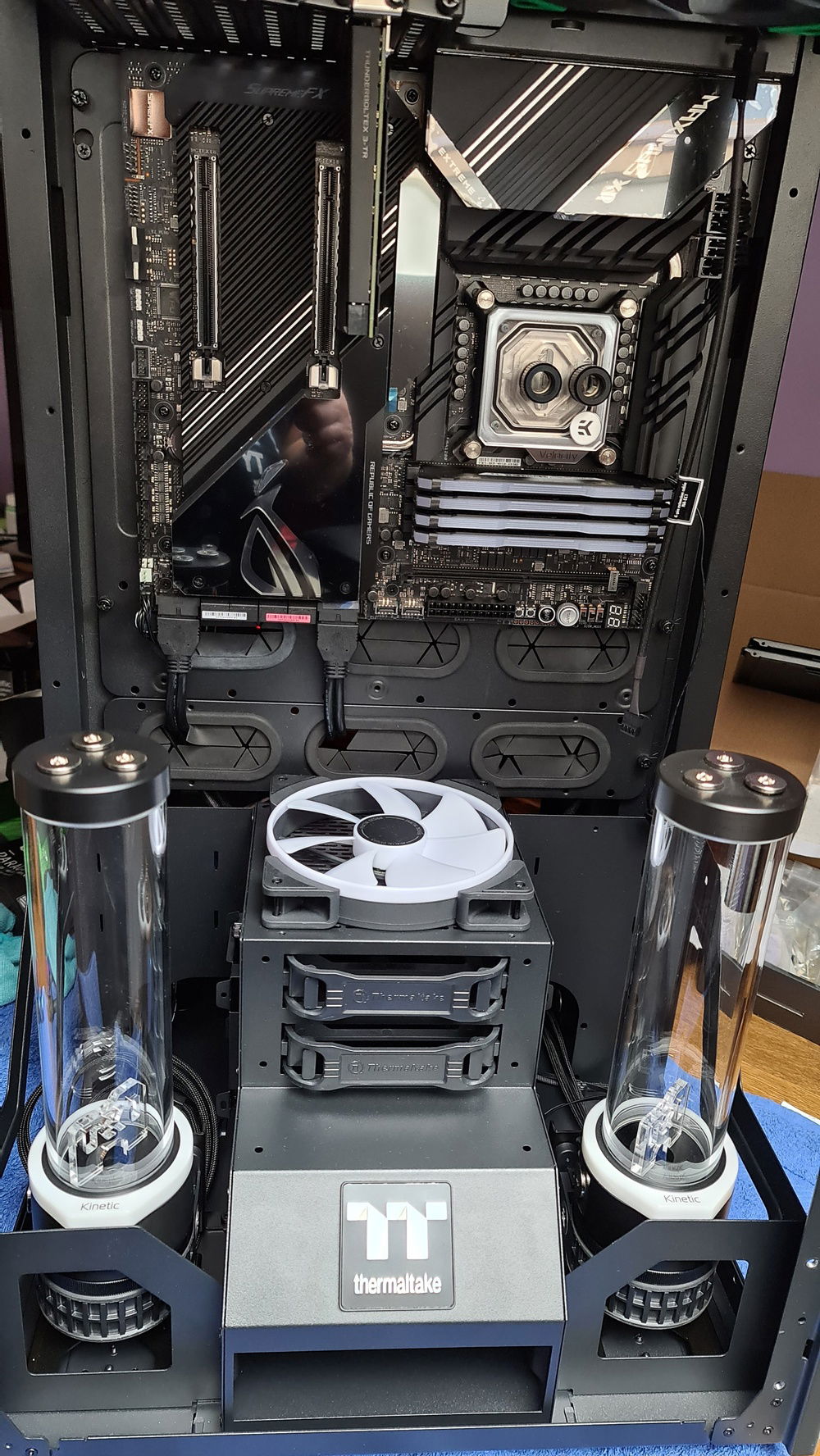

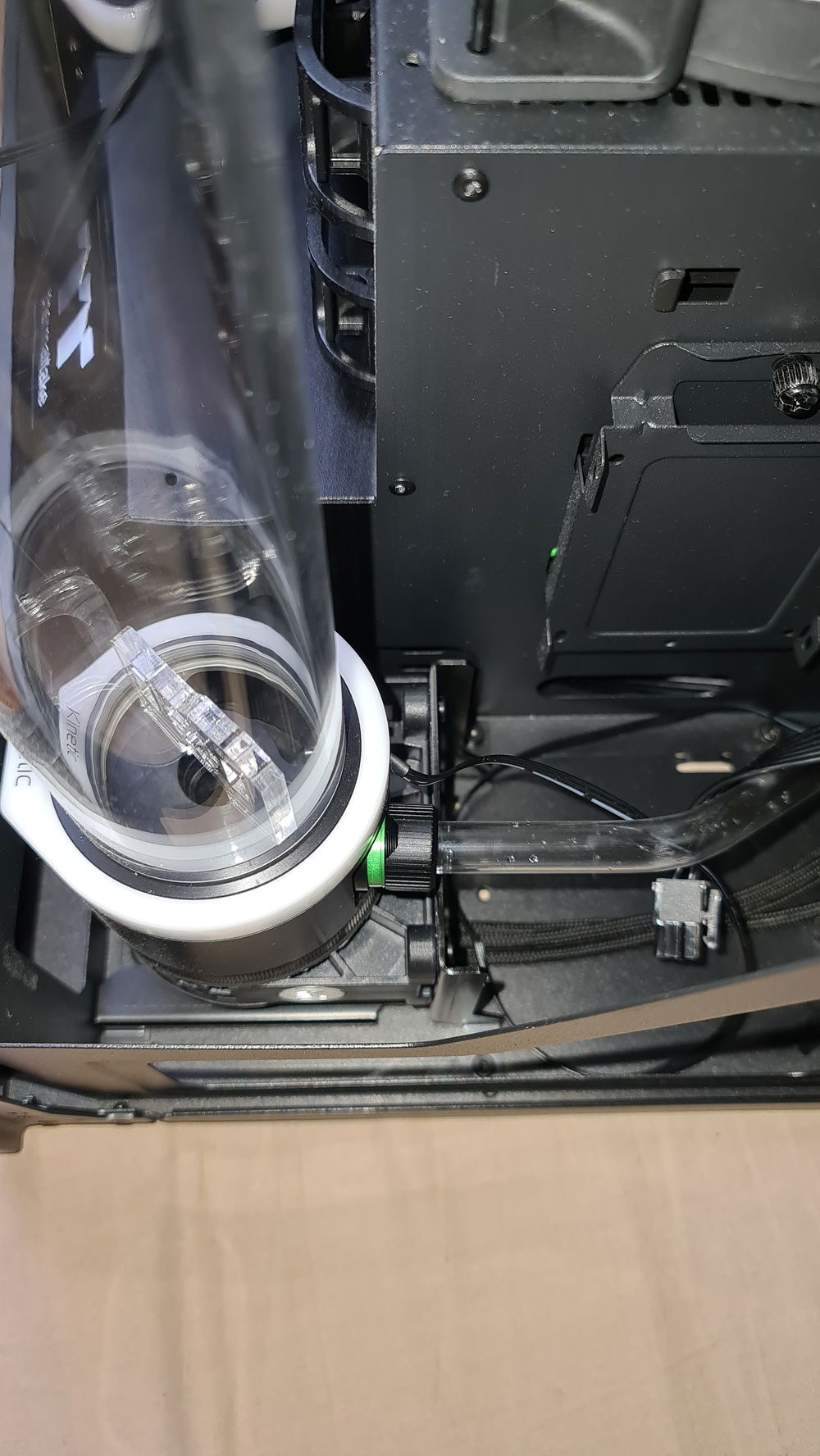

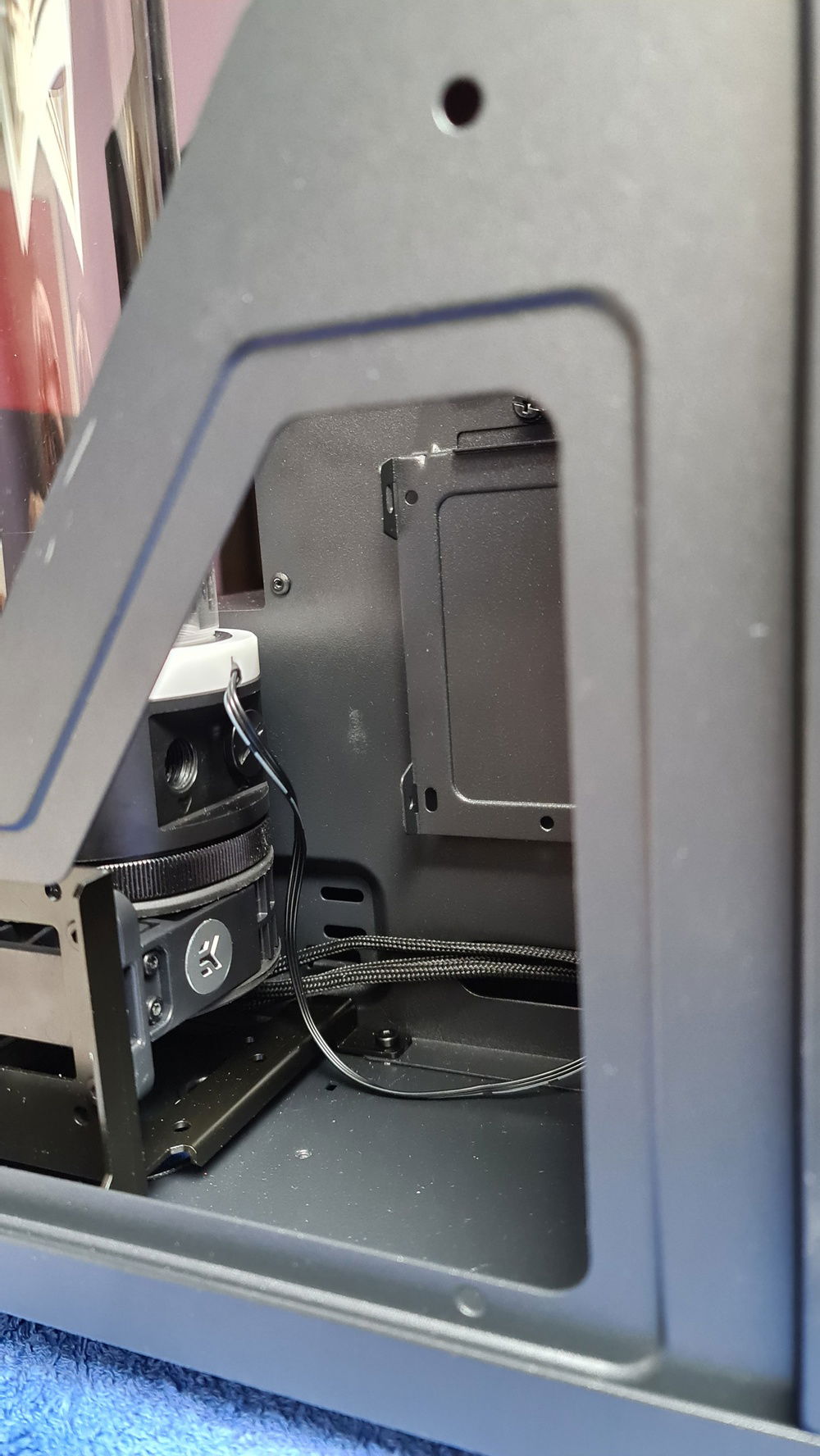

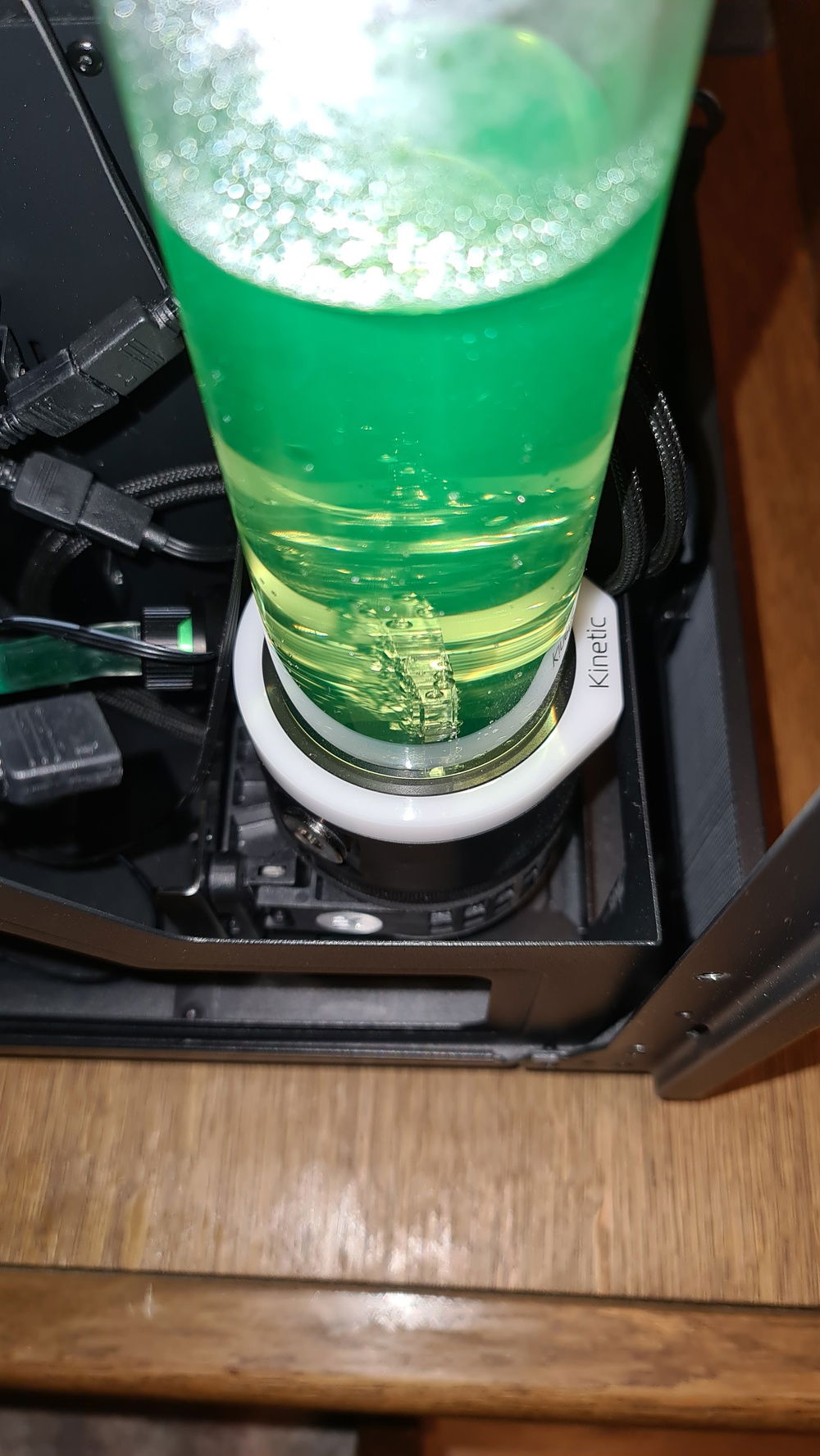

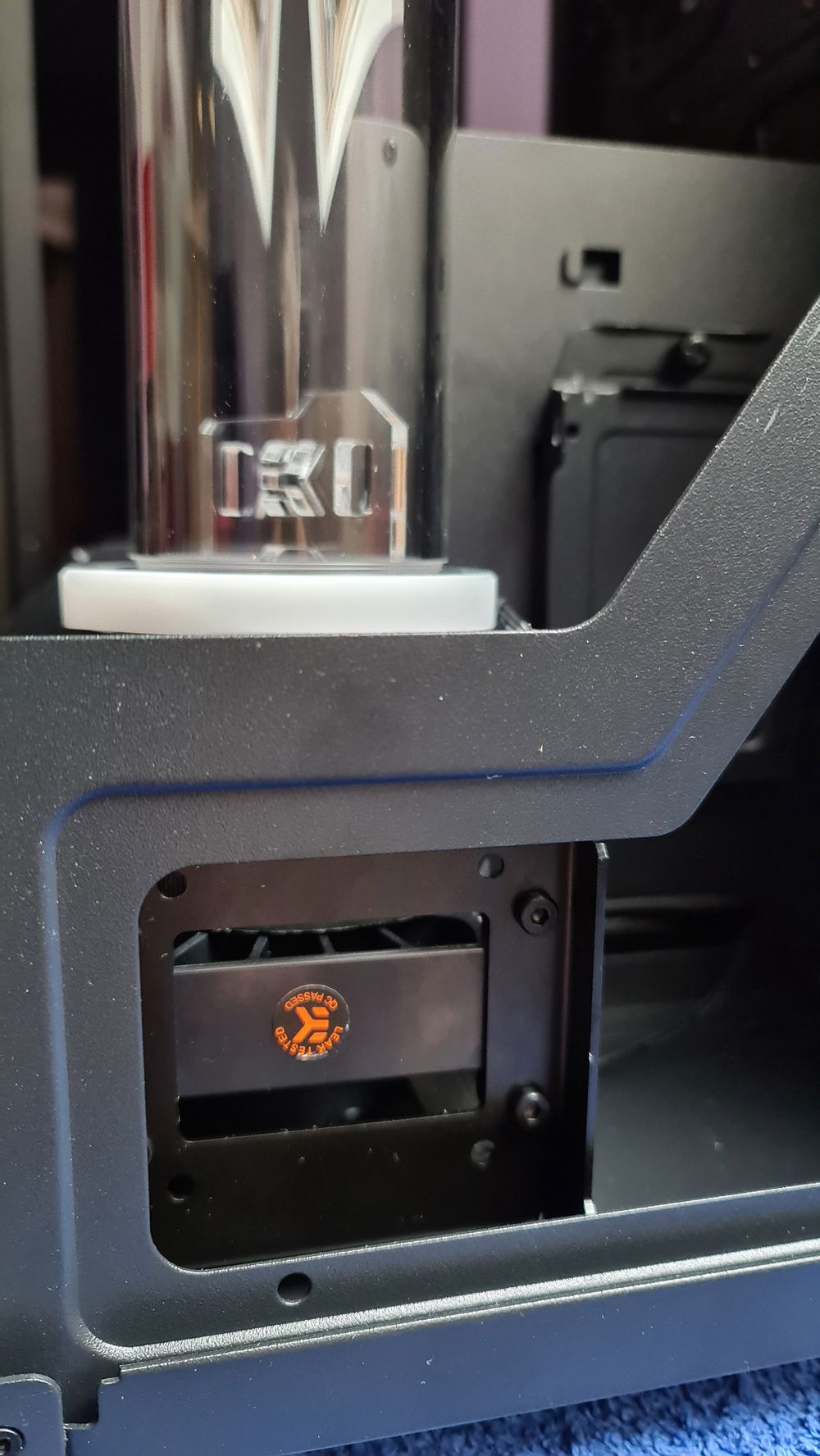

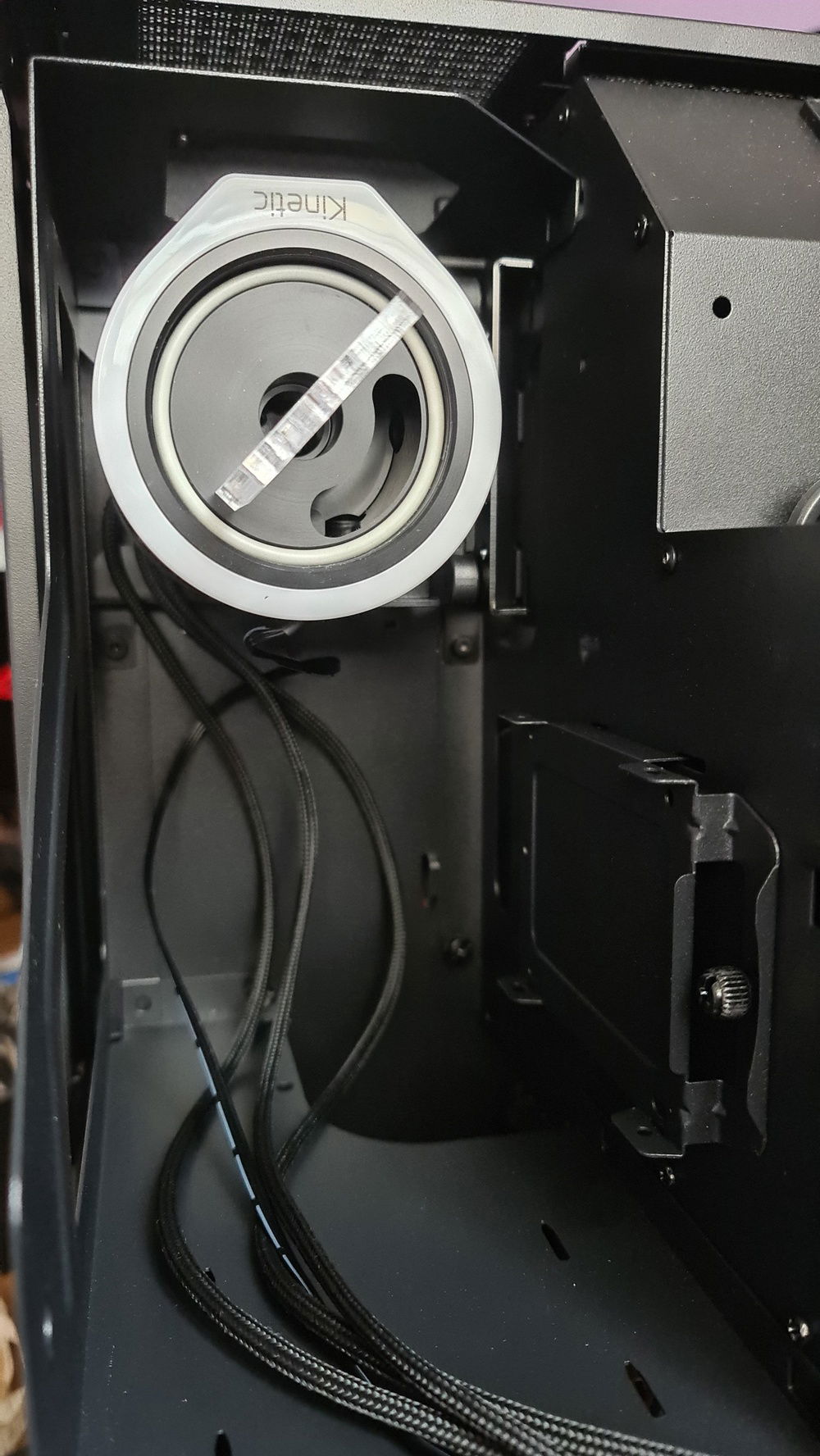

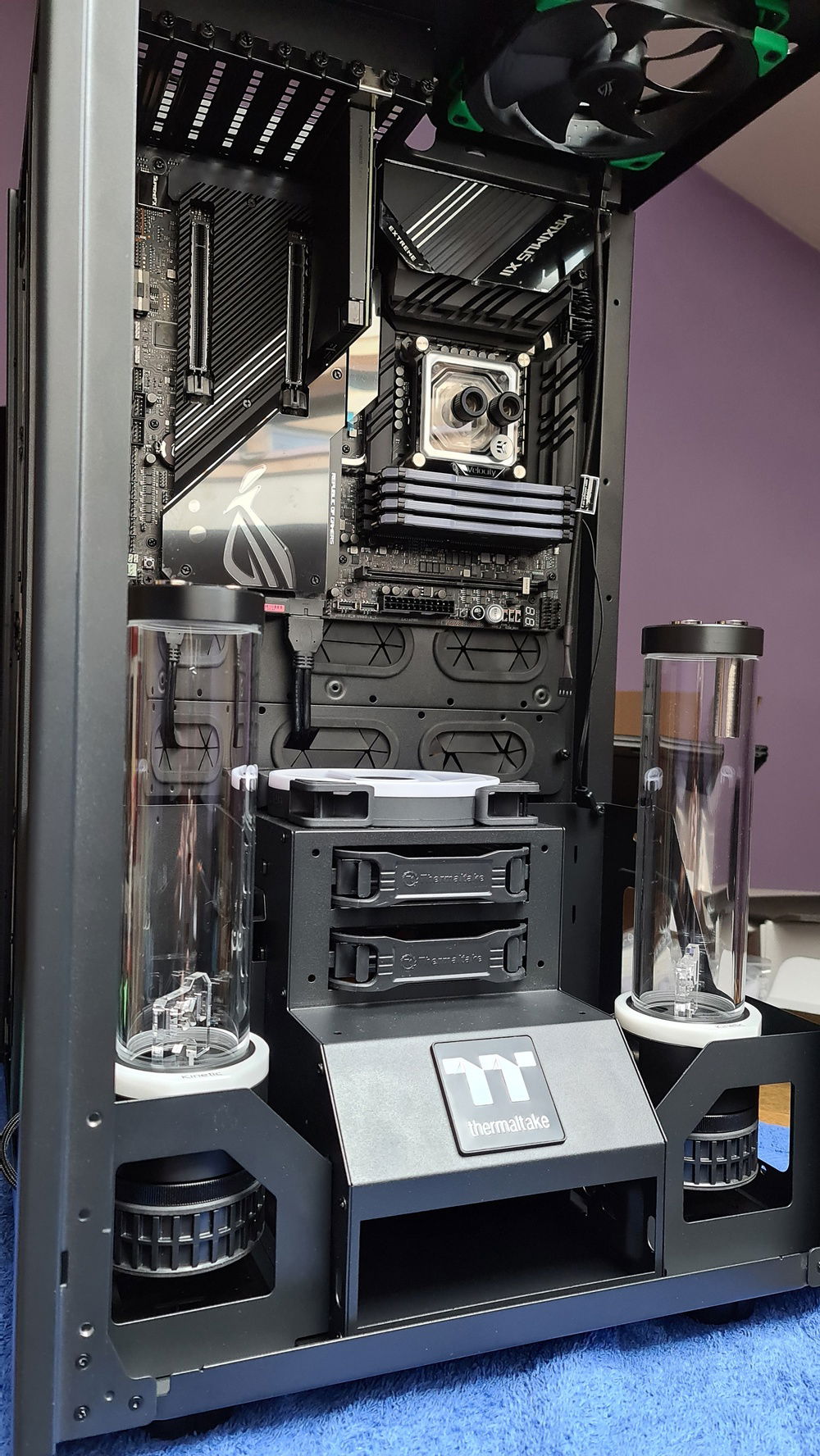

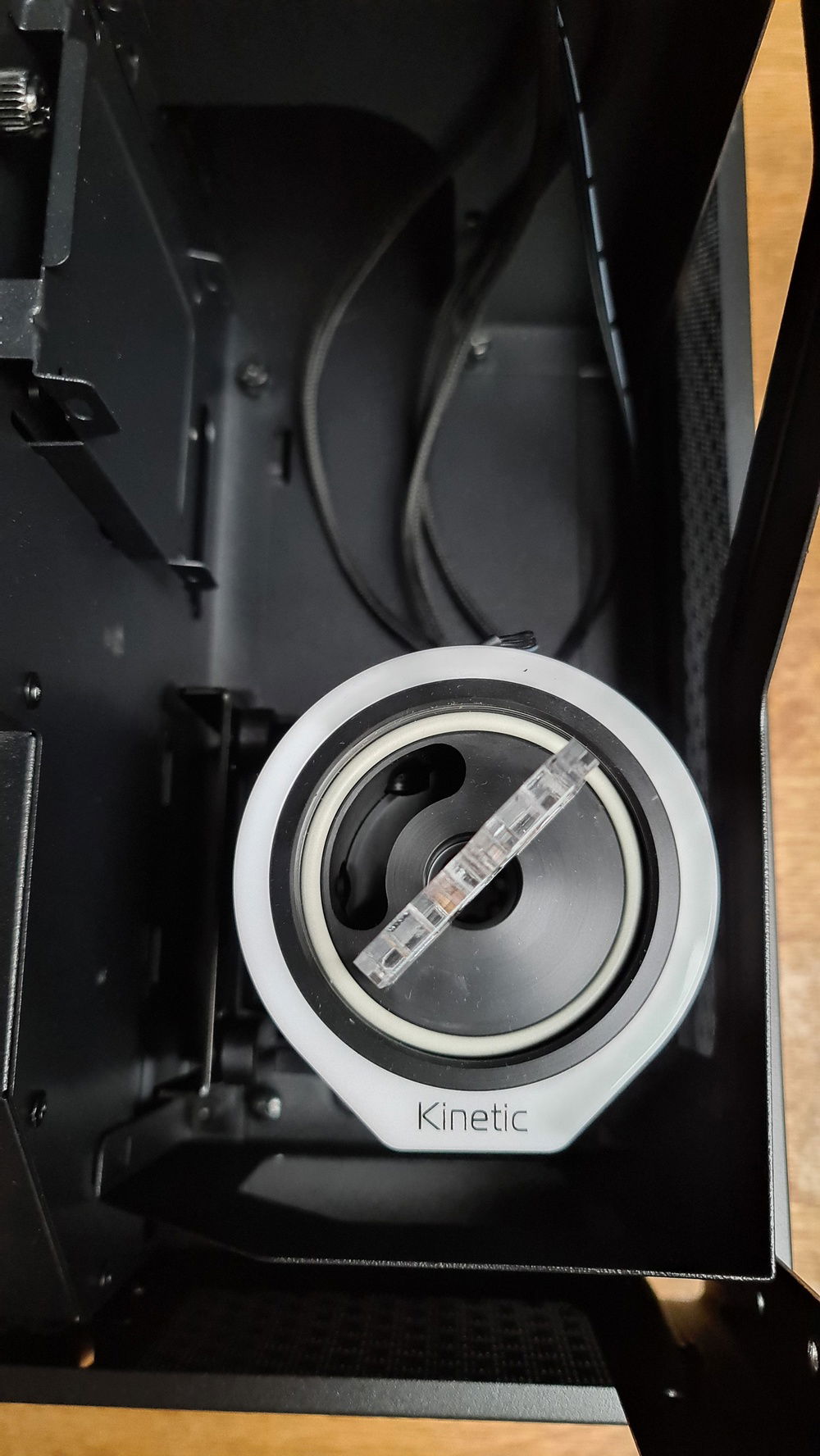

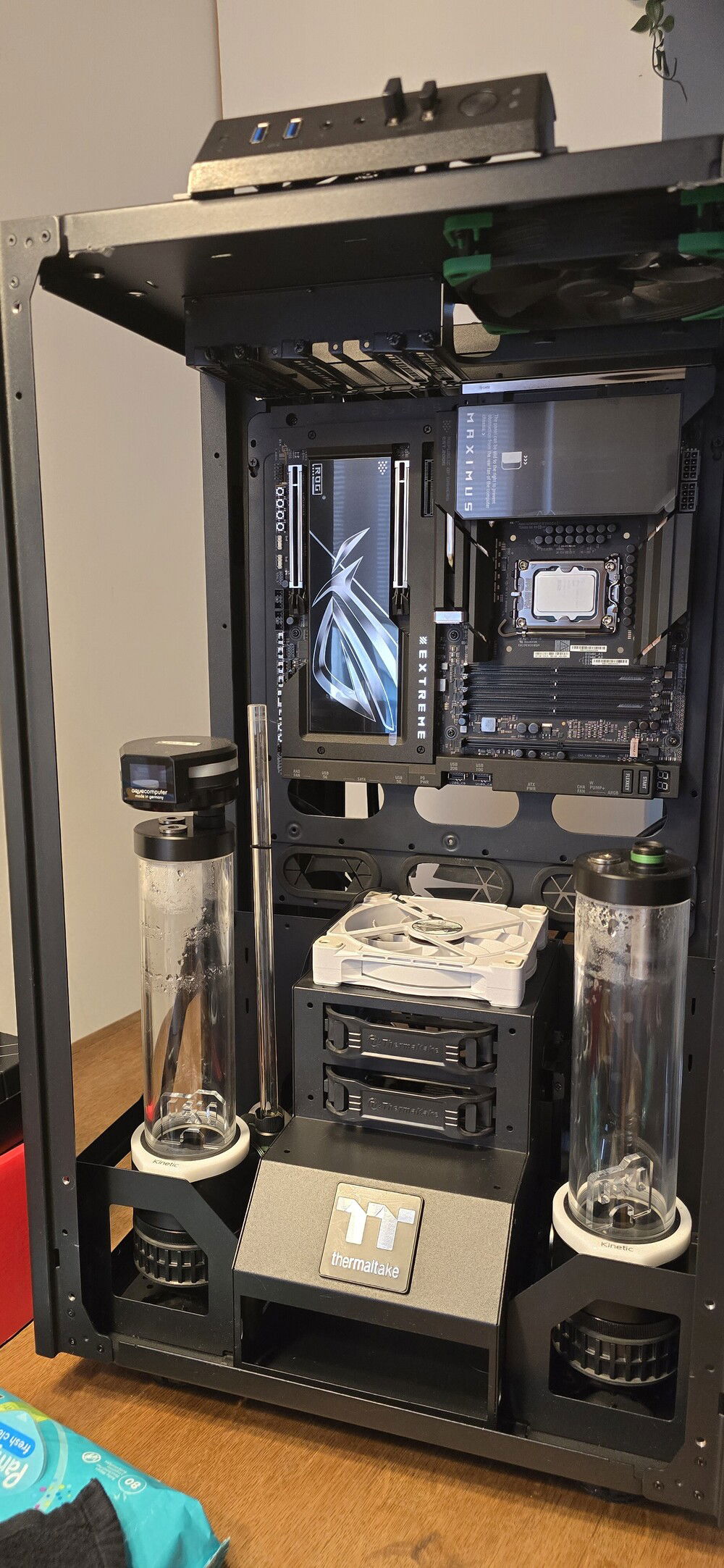

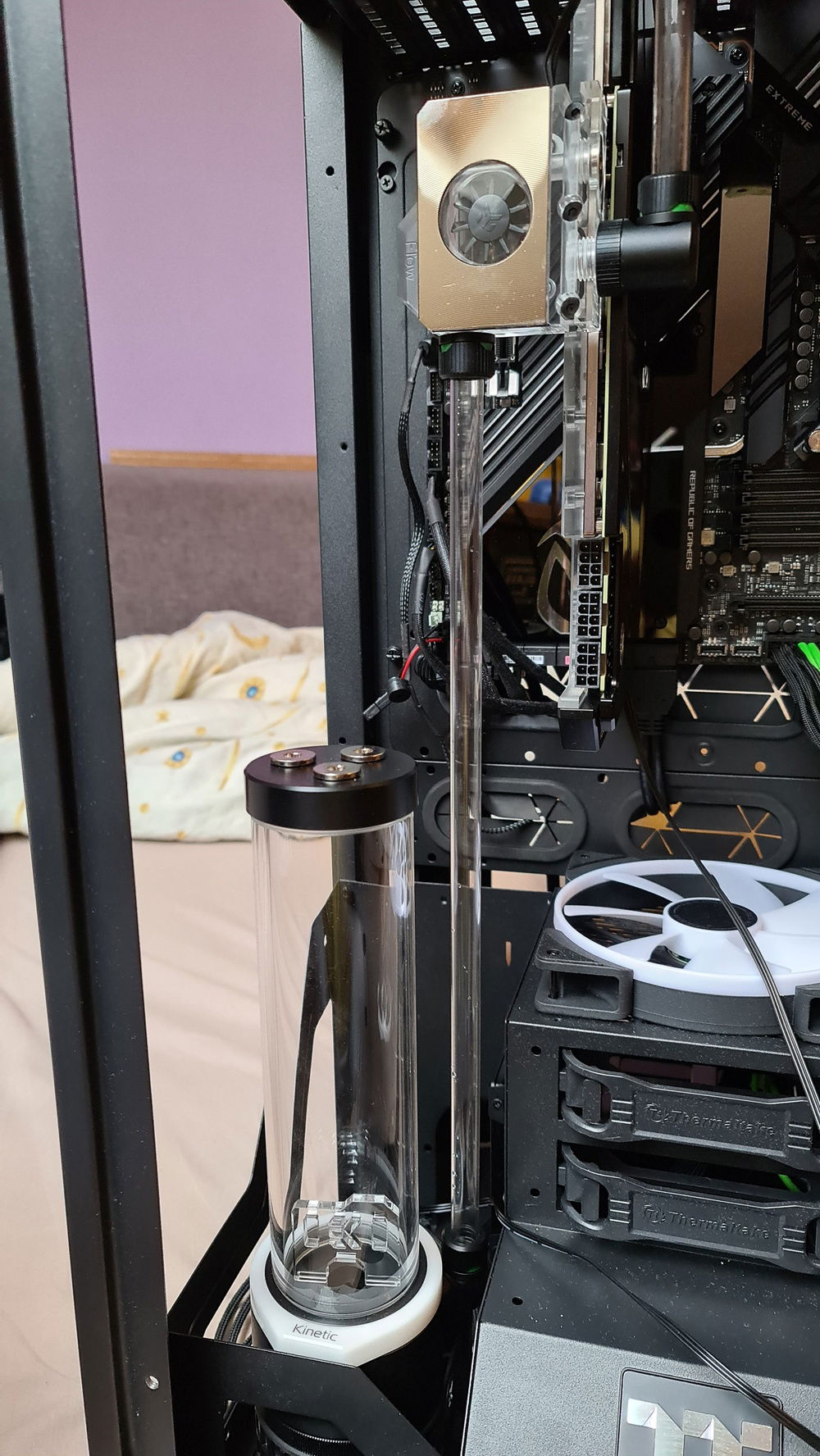

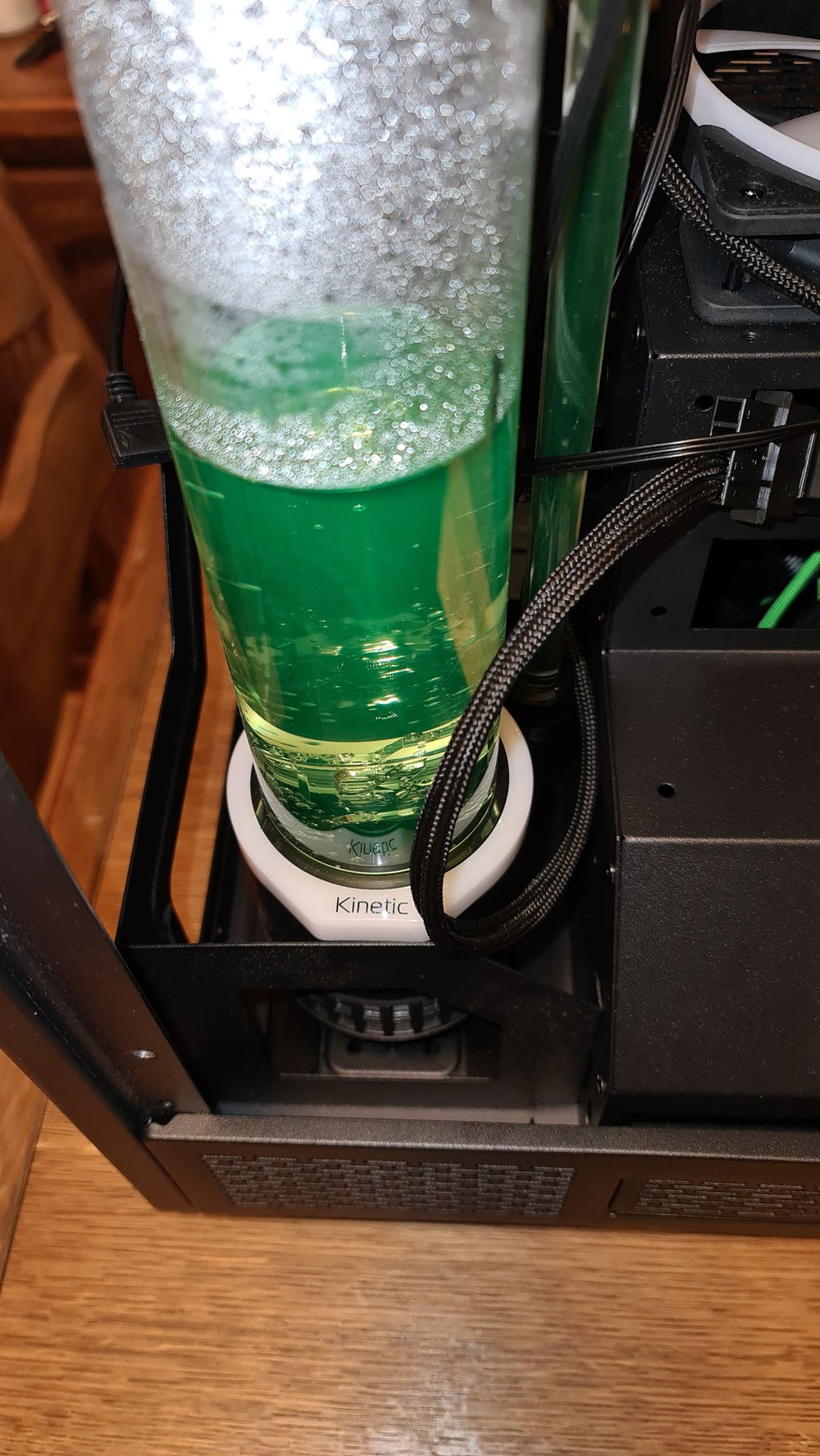

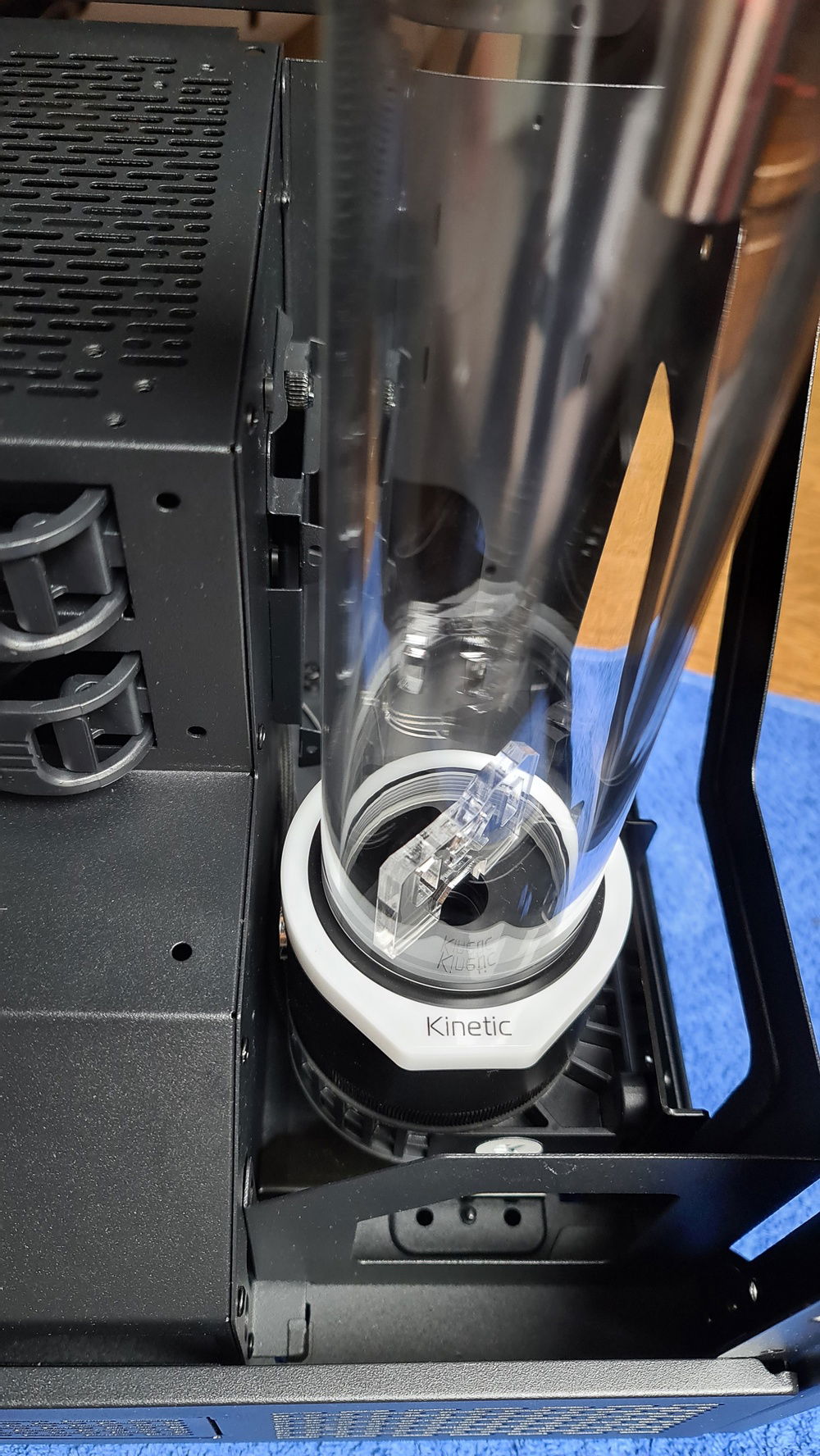

Pumps with reservoir - 2 x EK-Quantum Kinetic TBE 300 D5 PWM D-RGB - Acetal

Fastening brackets for pumps - 2 x EK-UNI Pump Bracket (120mm FAN) Vertical

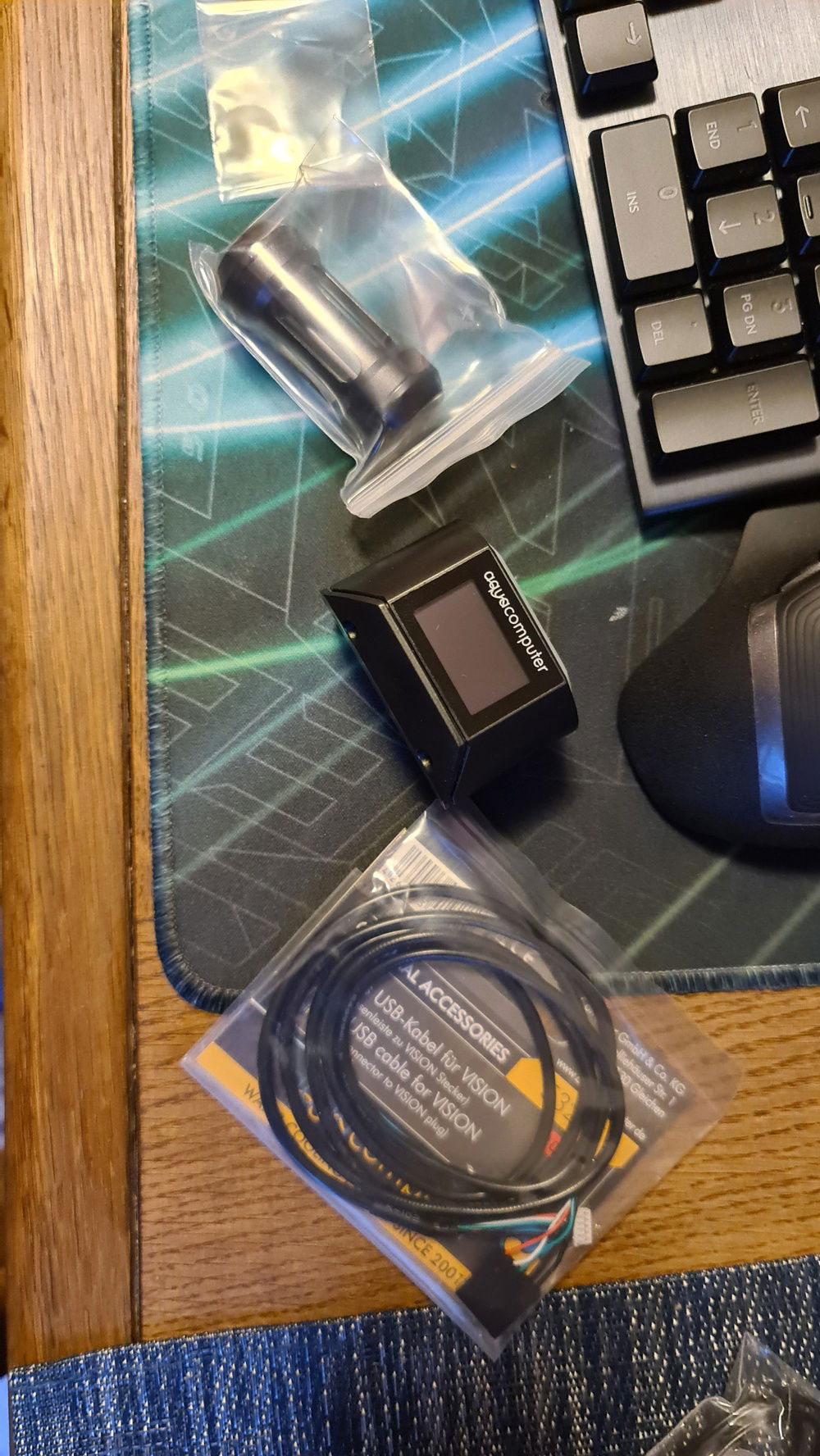

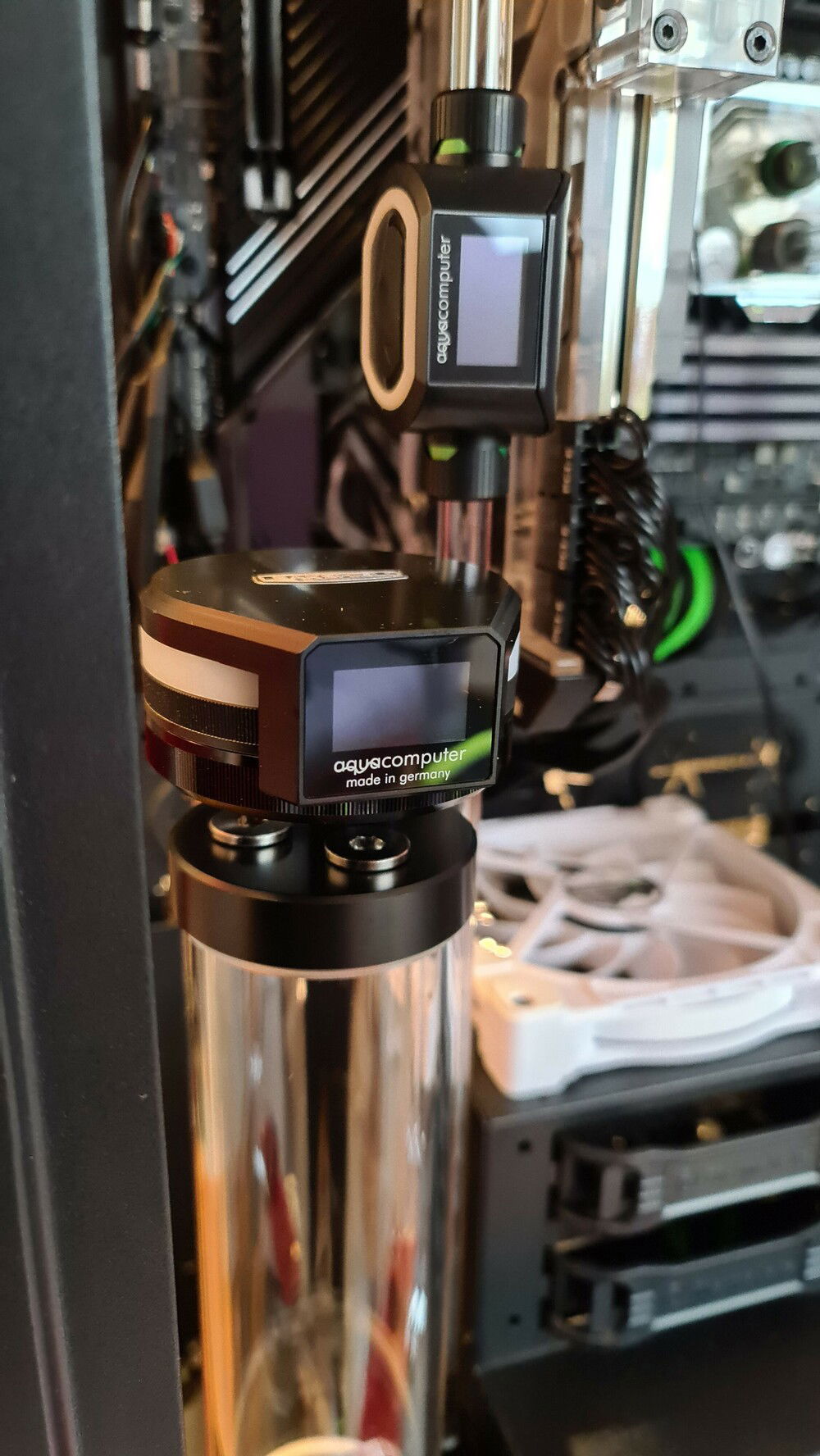

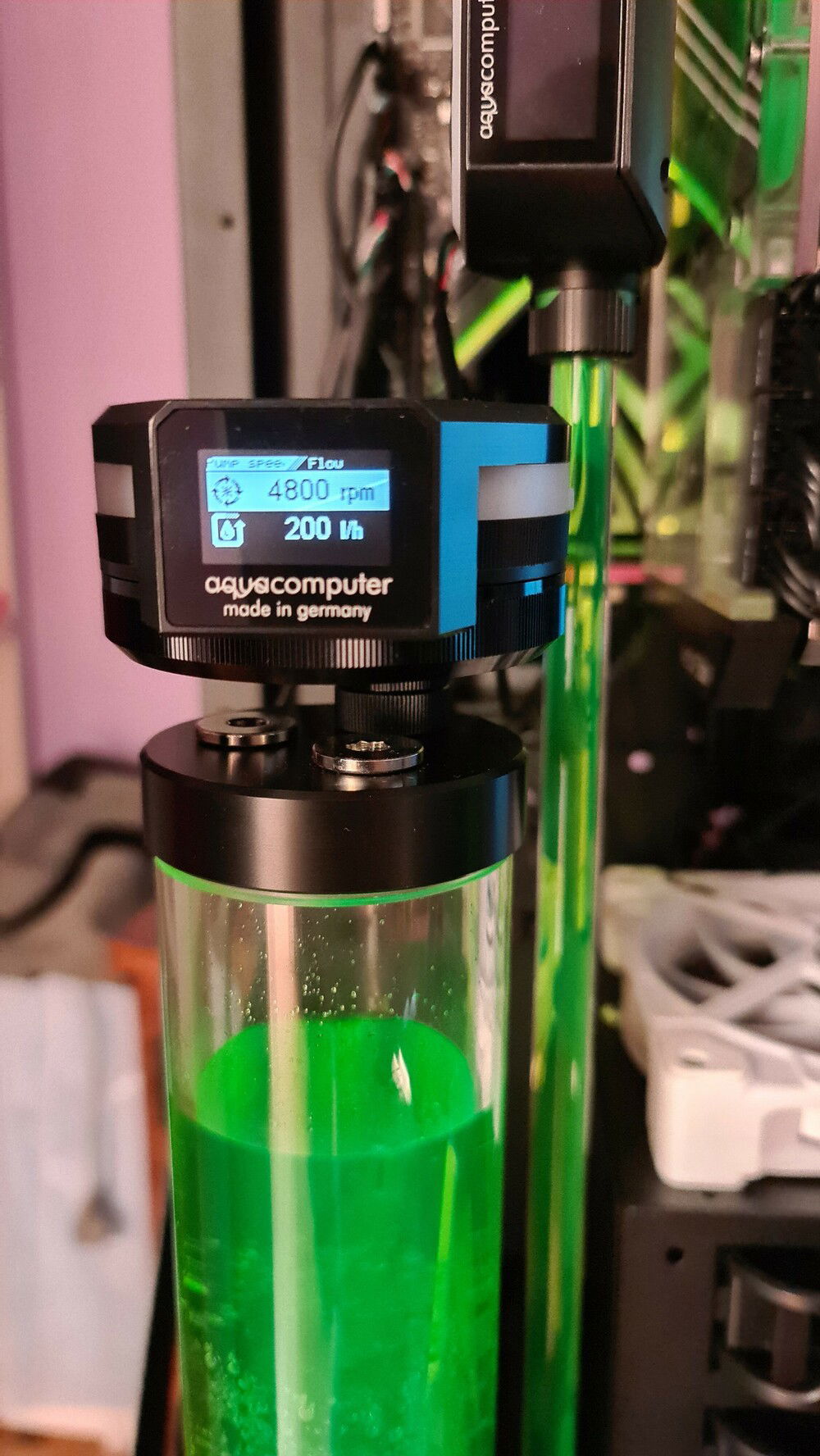

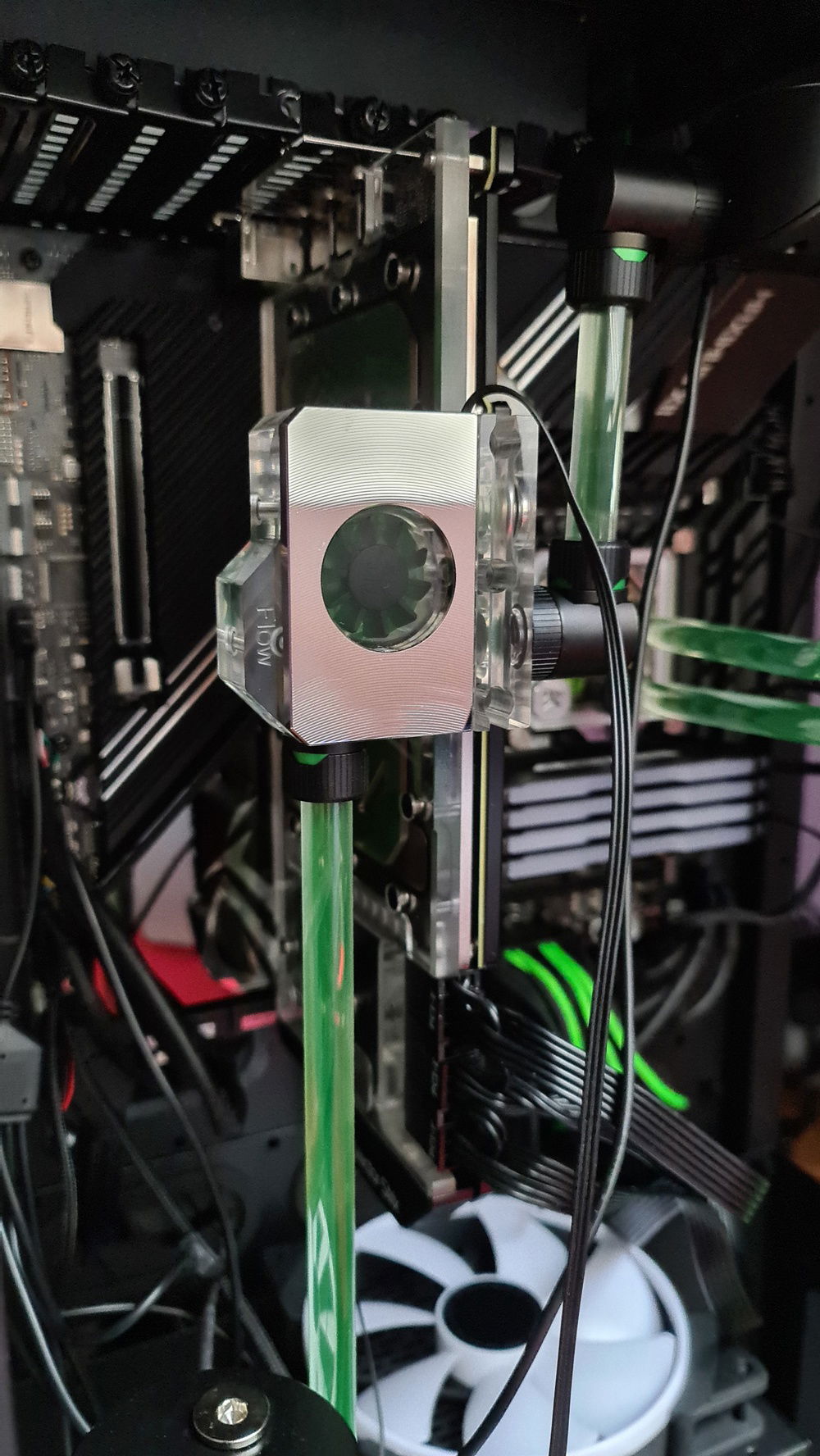

Sensor for temperature, flow, water quality and electrical conductivity. - high flow NEXT sensor from Aqua Computer

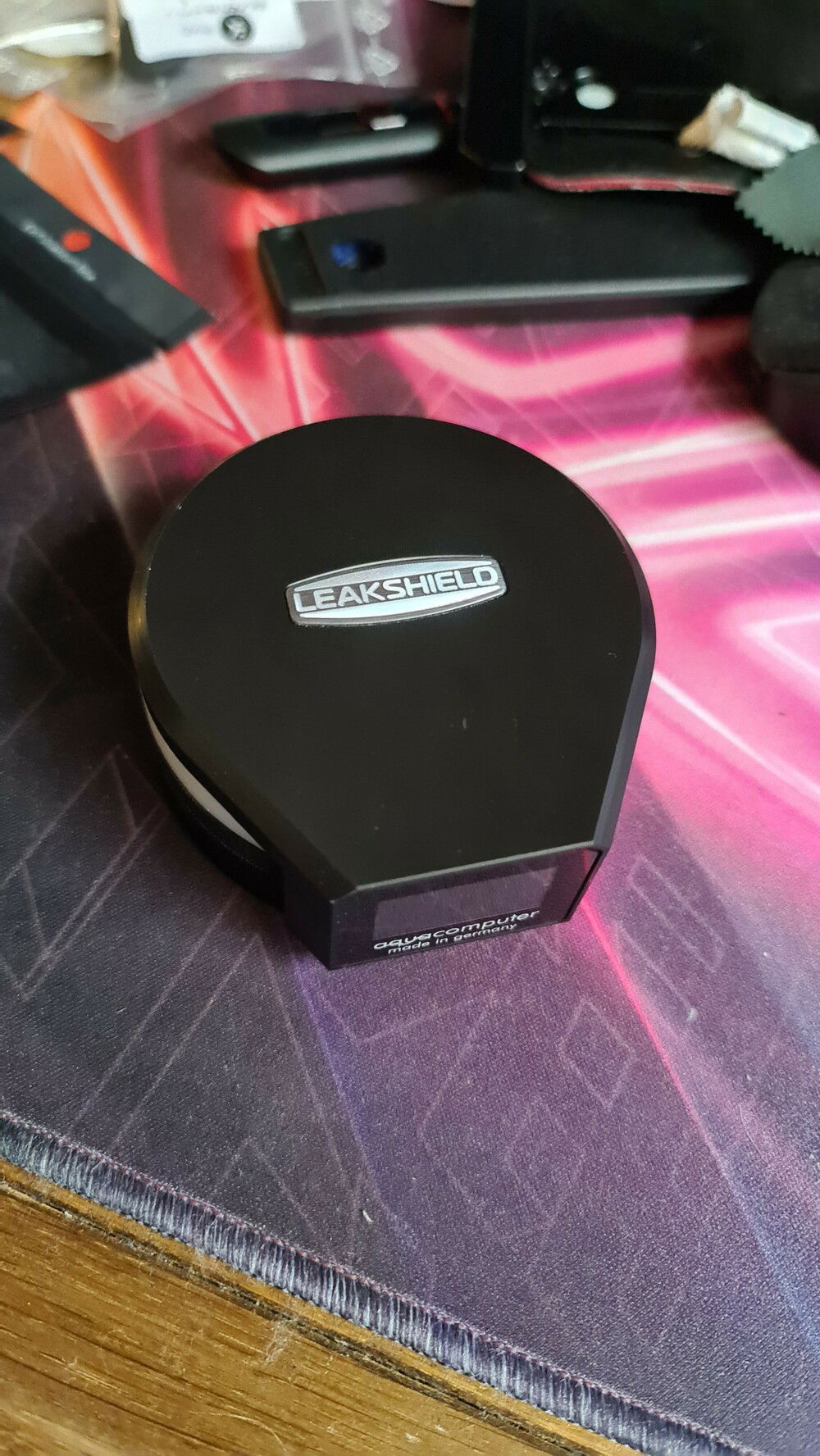

LEAKSHIELD leak prevention system standalone from Aqua Computer

Aqua Computer temperature sensor

Straight fittings - 14 x EK-Quantum Torque HDC 12 - Black

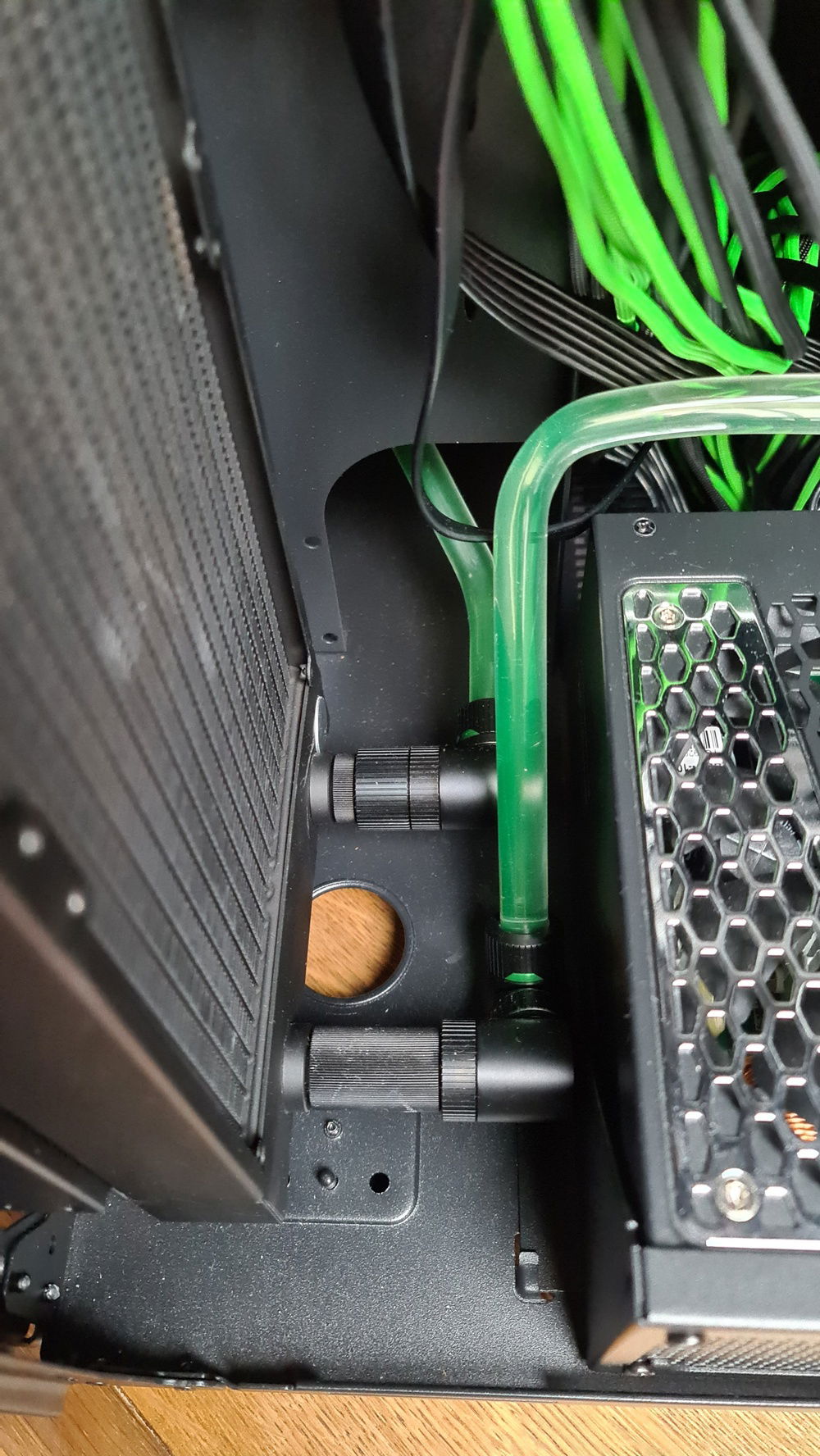

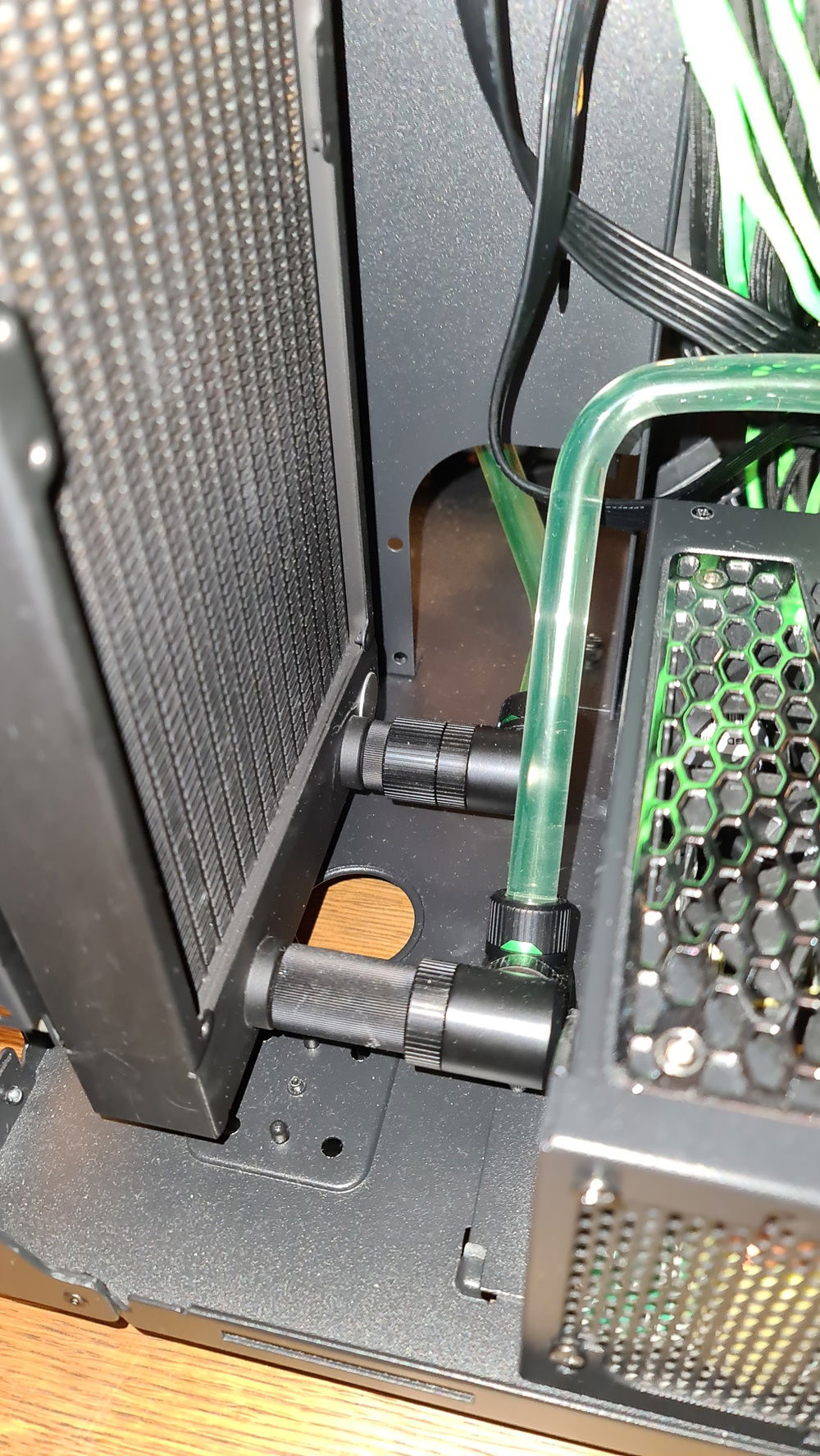

90° Rotary connectors - 6 x EK-Quantum Torque Rotary 90° - Black

45° swivel fitting - 1 x EK-Quantum Torque Rotary 45° - Black

Extension connector - 2 x EK-AF Extender 30mm M-F G1/4 - Black

Extension connector - 2 x EK-AF Extender 6mm M-M G1/4 - Black

Extension connector - 1 x EK-Quantum Torque Extender Static FF 14 - Black

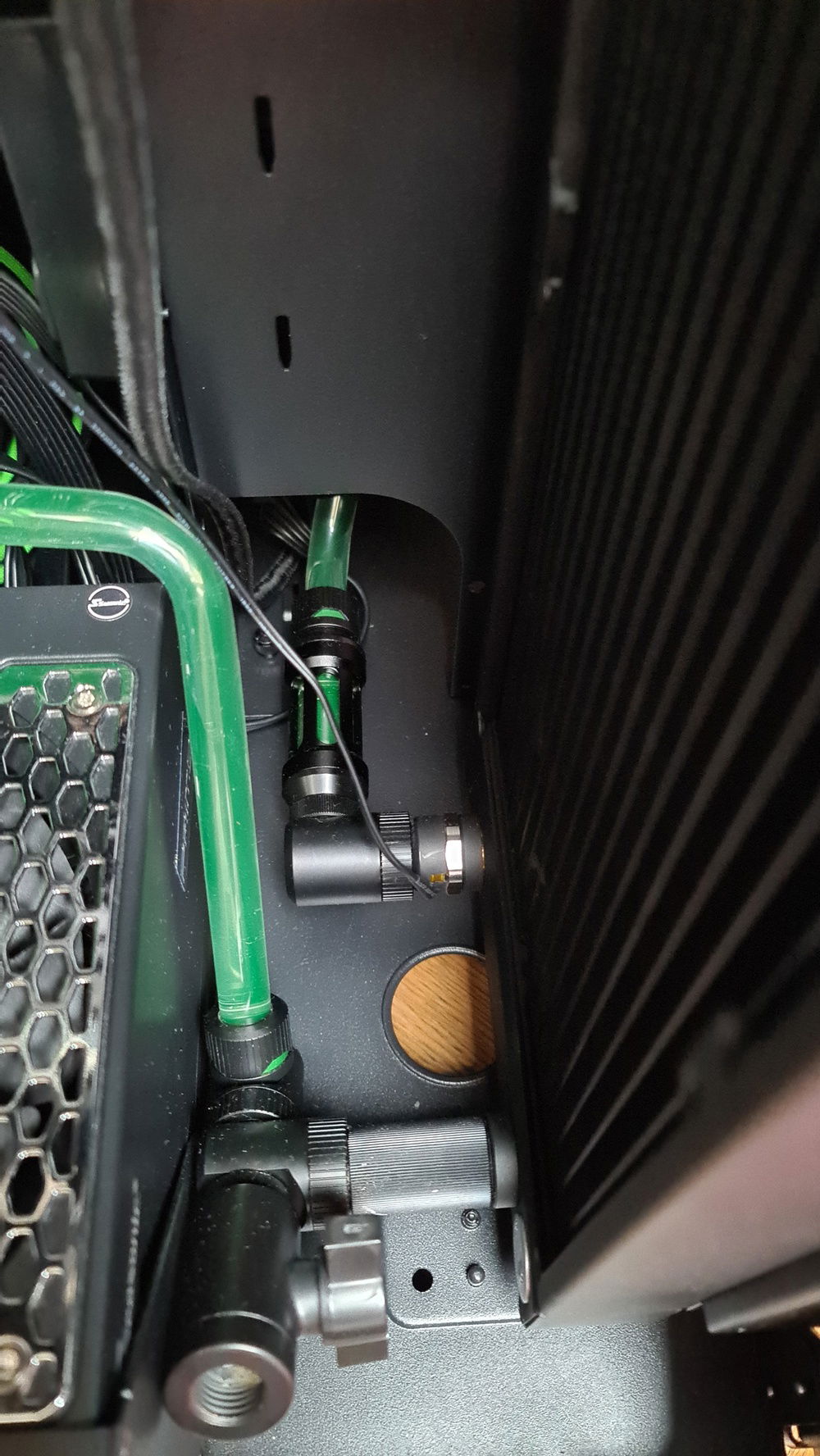

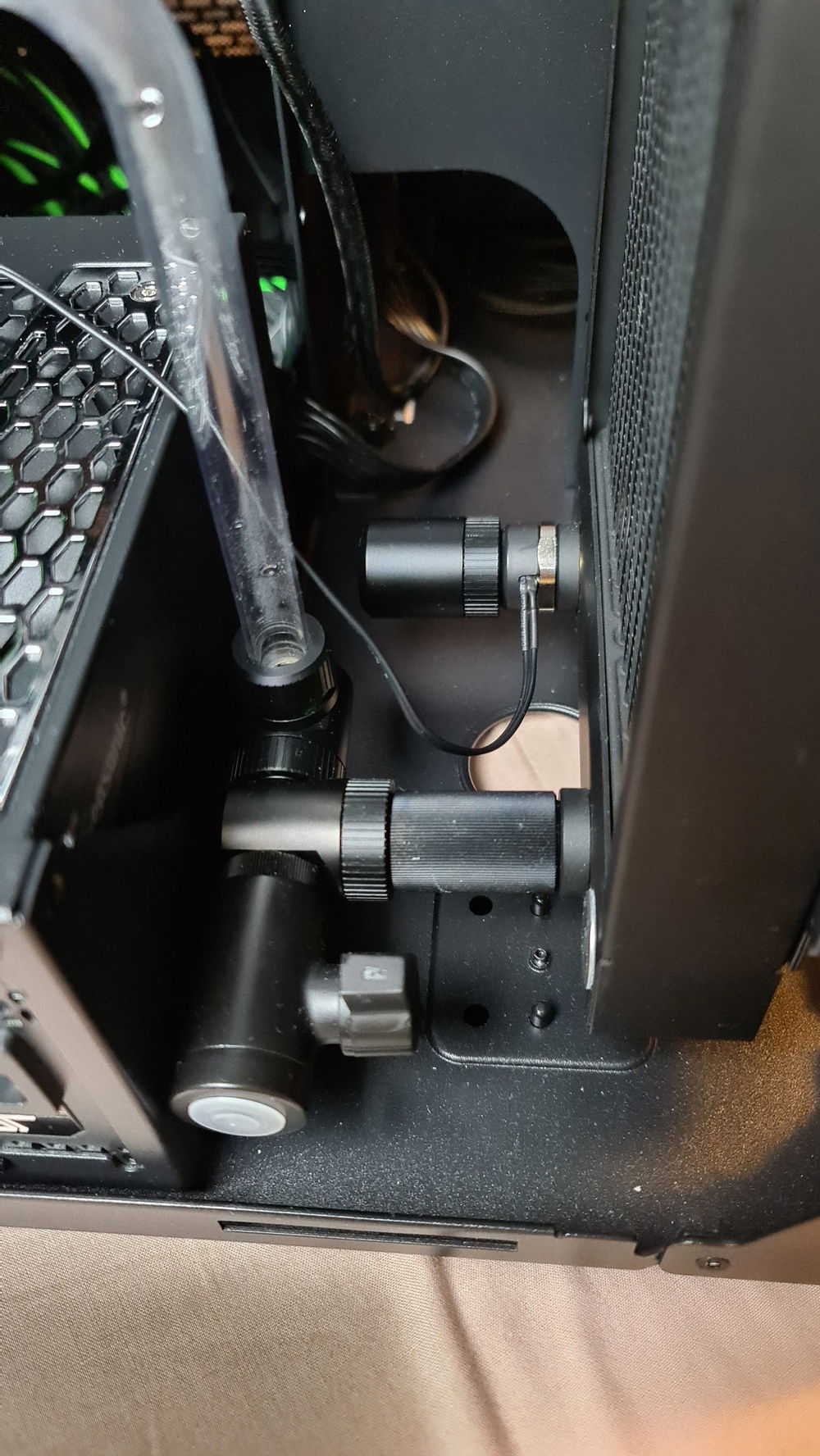

Drain valve - 1 x EK-AF Ball Valve (10mm) G1/4 - Black

Divider T - 1 x EK-Quantum Torque Rotary T - Black

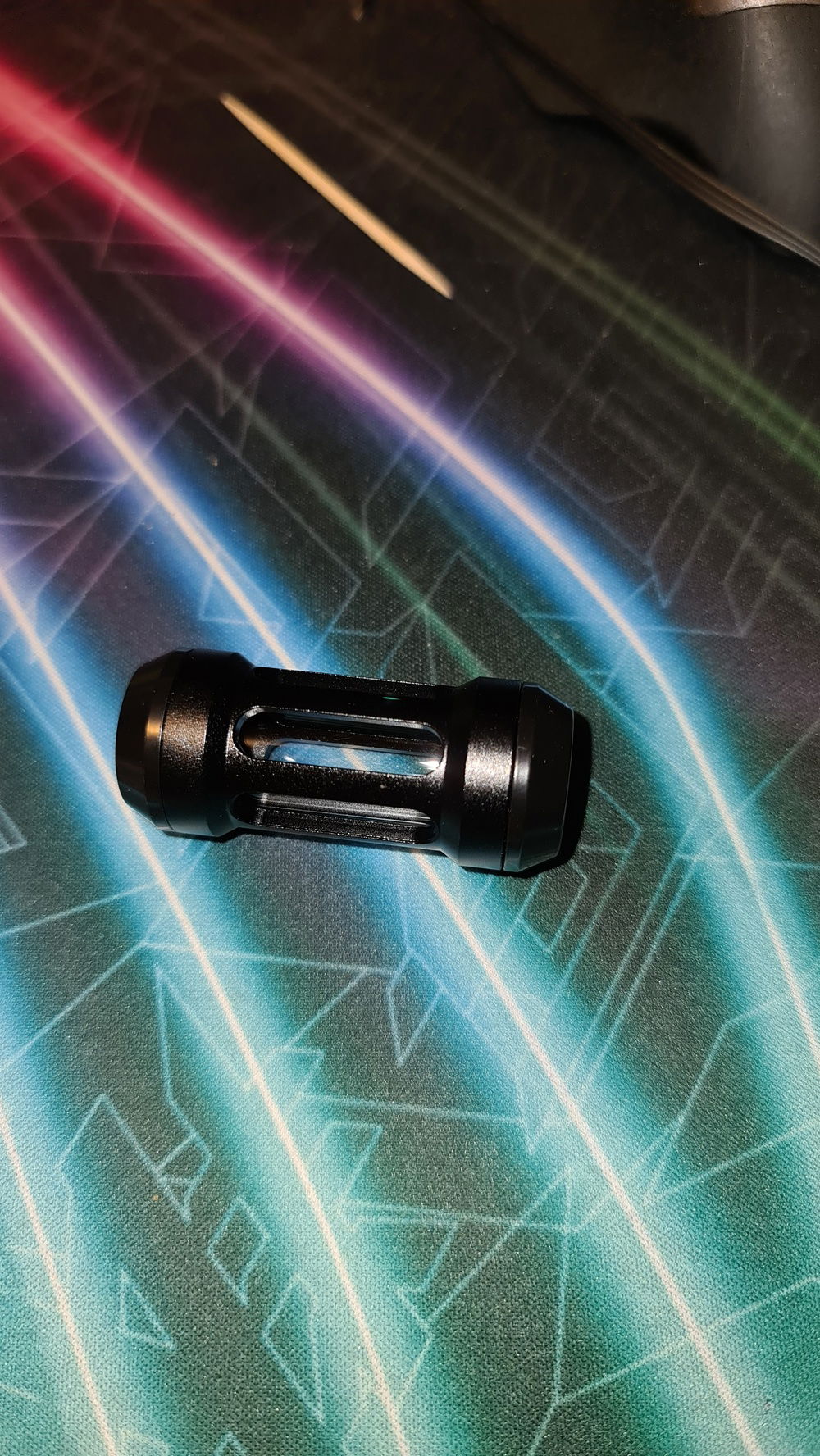

Water filter - 1 x Barrow Inline-Filter G1/4 with internal threads - Black

Green connector rings - EK-Torque HTC-12 Color Rings

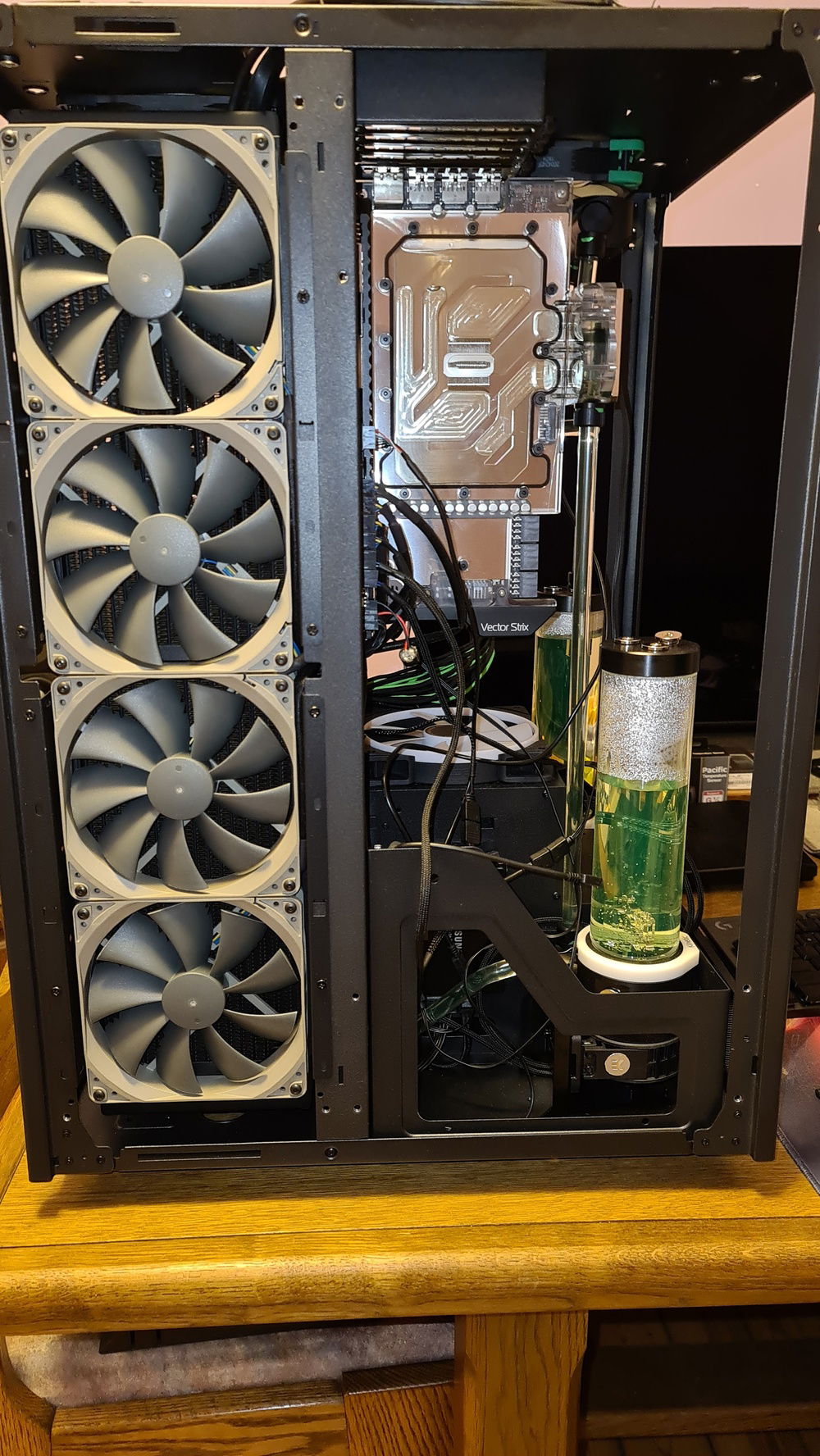

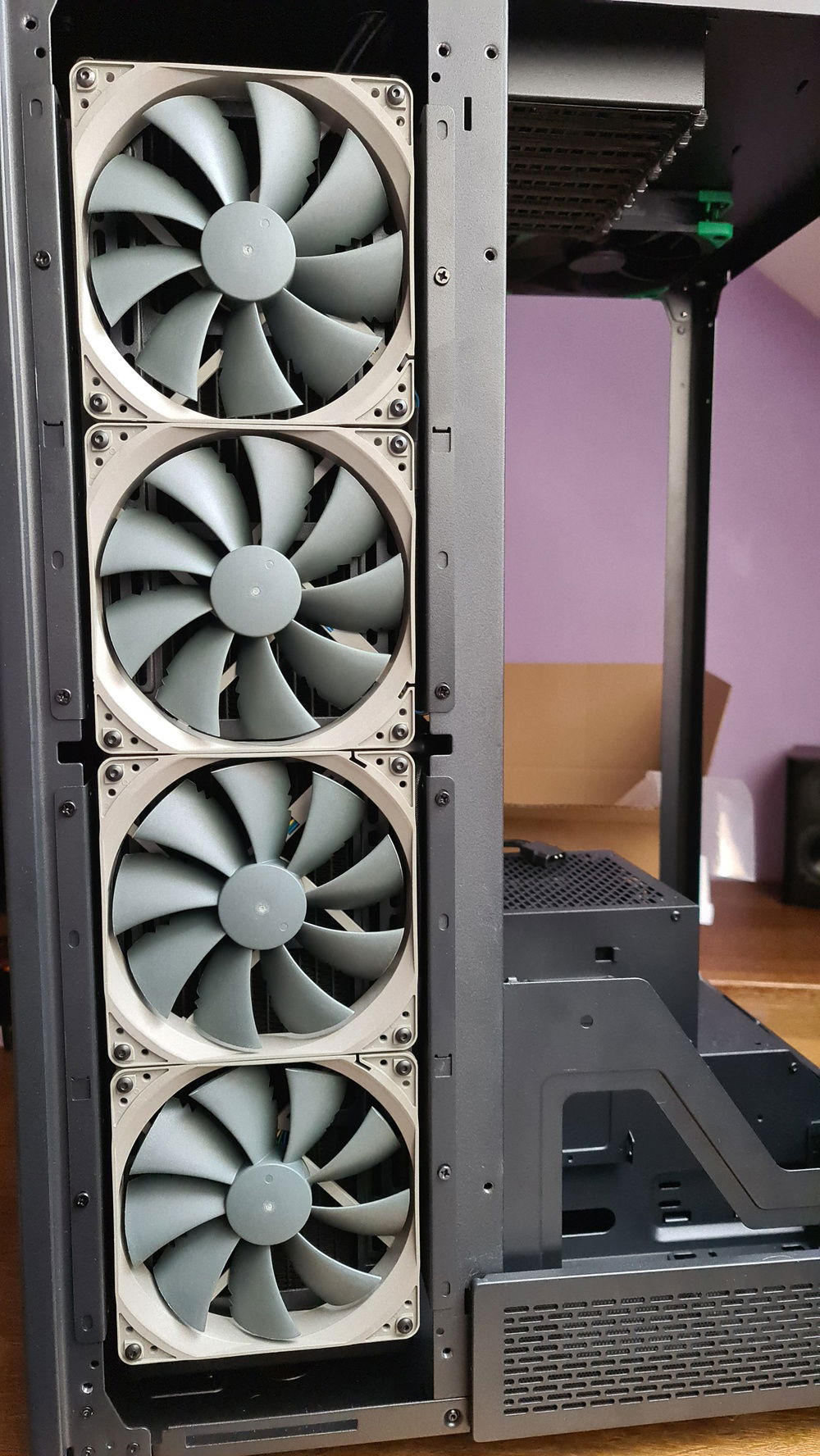

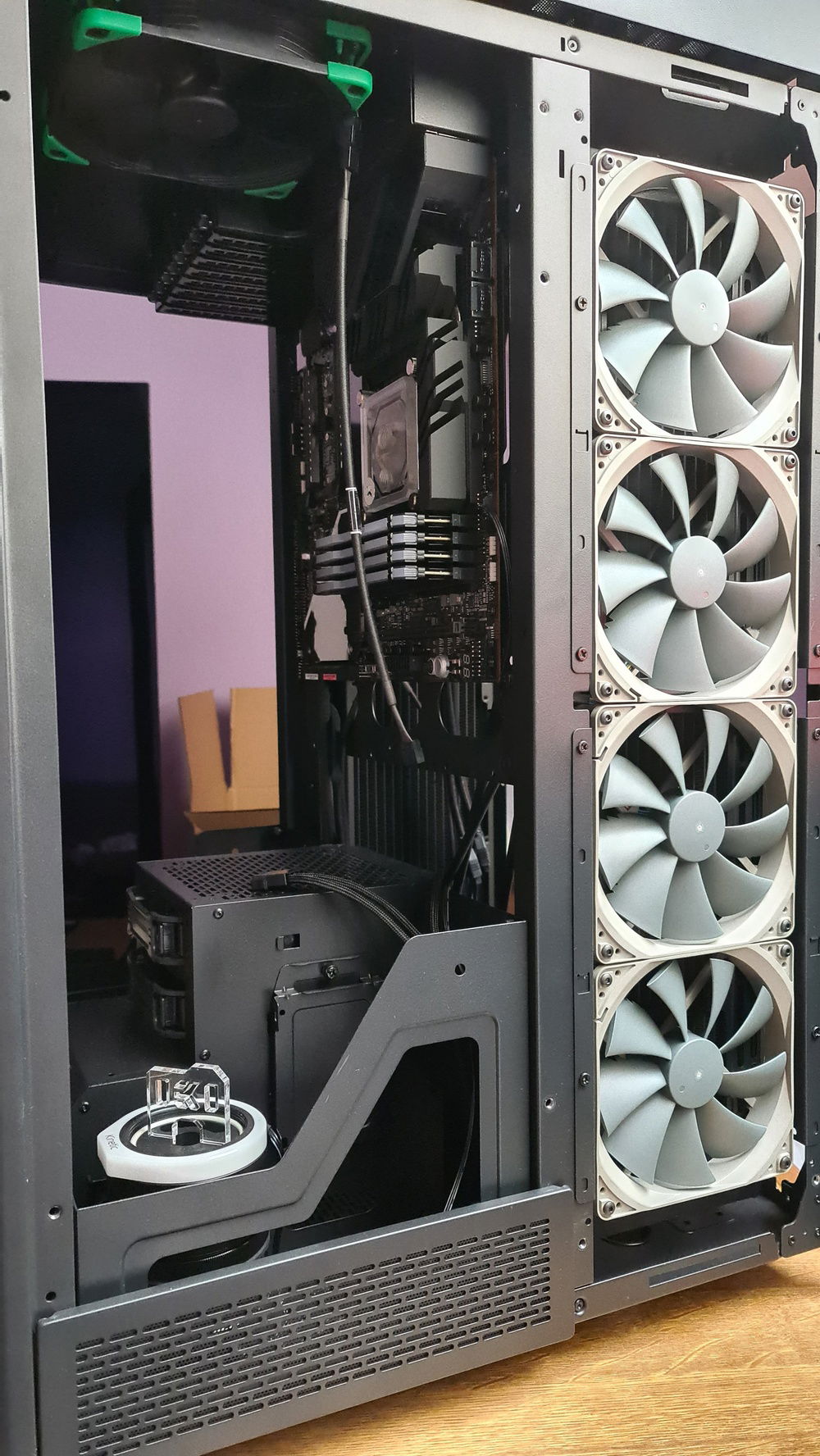

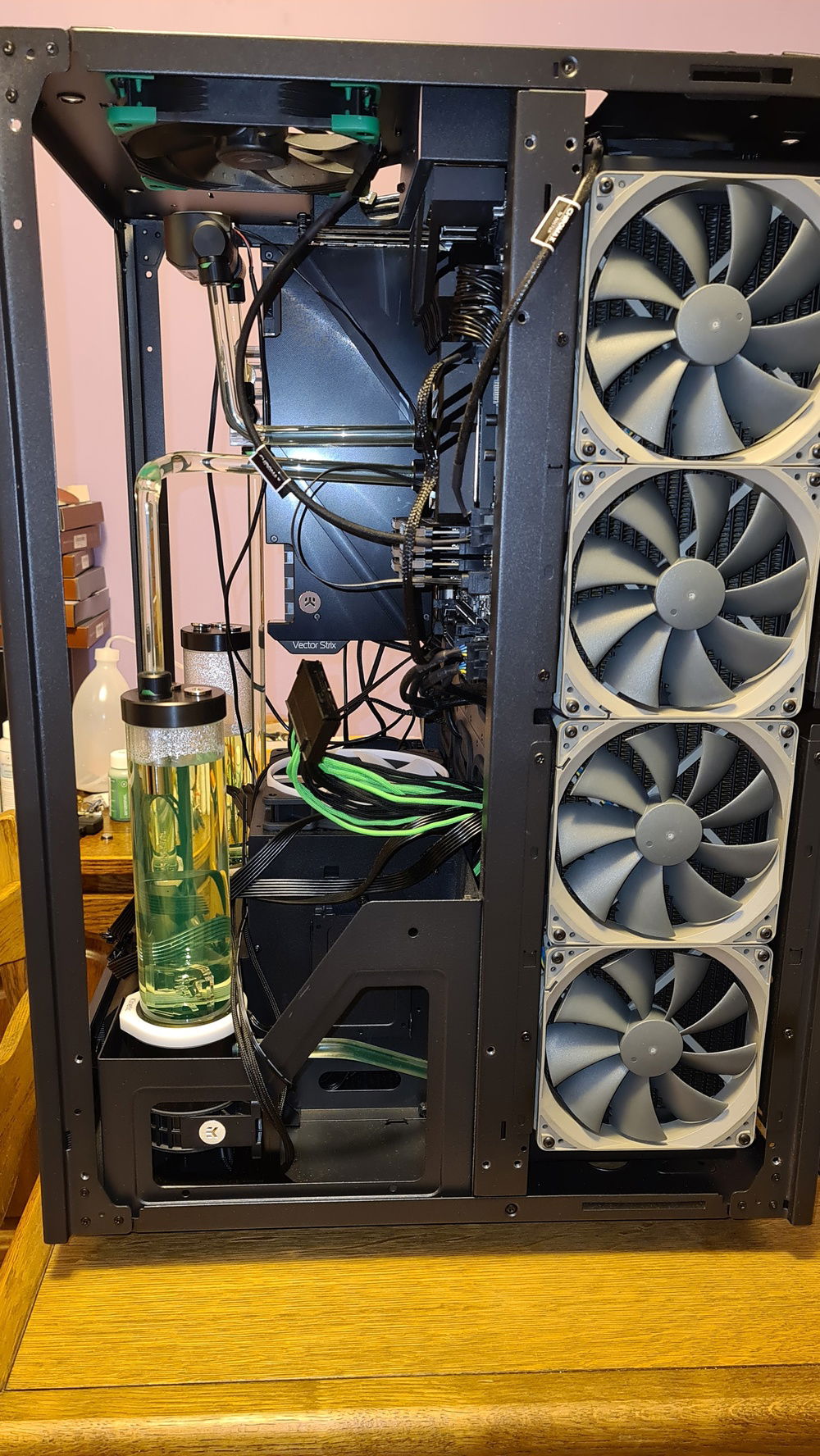

Fan - 10 x Noctua NF-P14s redux-1500 PWM case fan

Fan - 2 x Noctua NF-A14 PWM Chromax.Black.Swap case fan

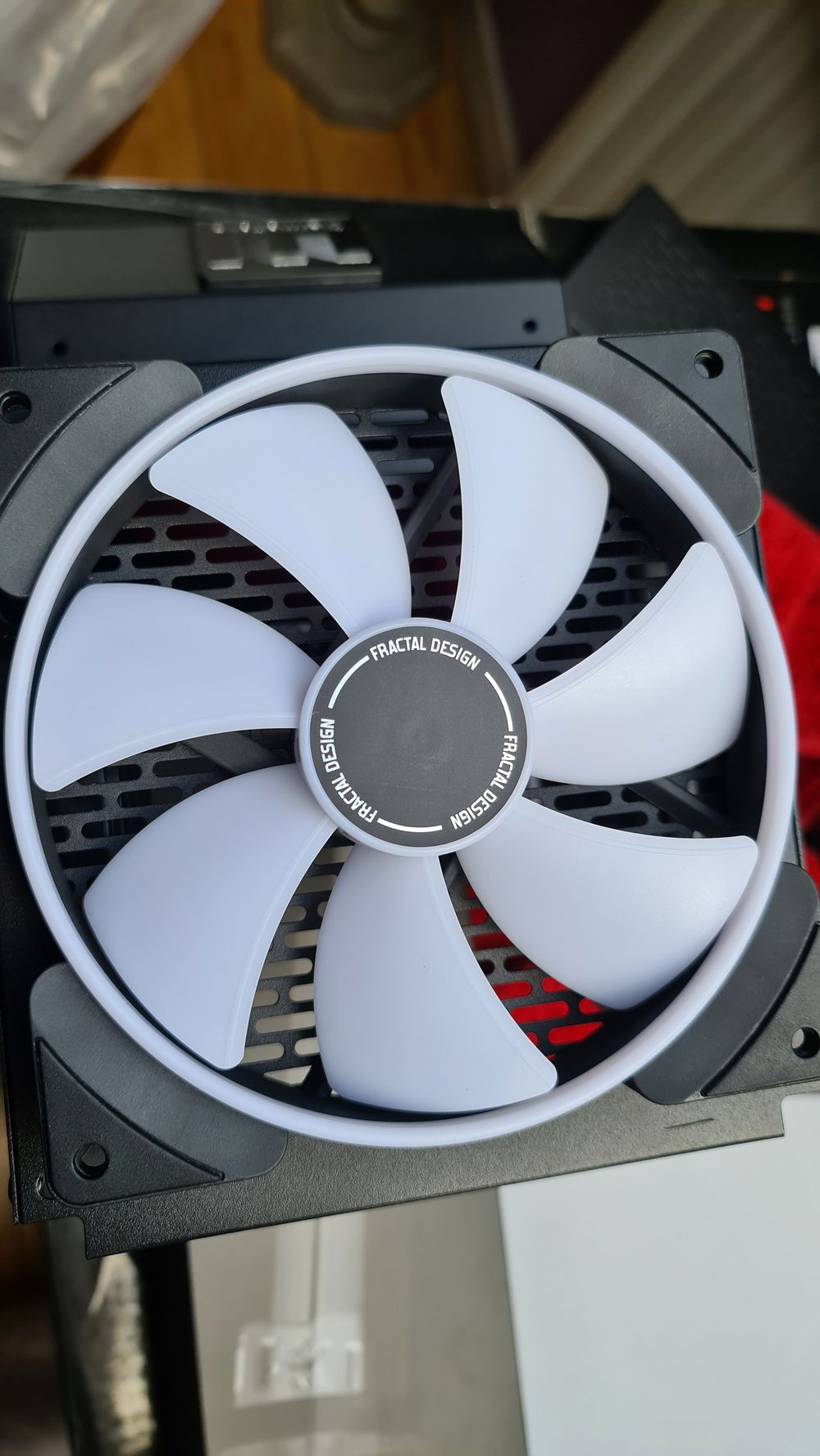

Fan - 1 x Fractal Design Prisma AL-14 ARGB PWM case fan

Hard Tubing - EK-HD Tube 10/12mm 500mm/19.5"

Glass tubing - Mayhems

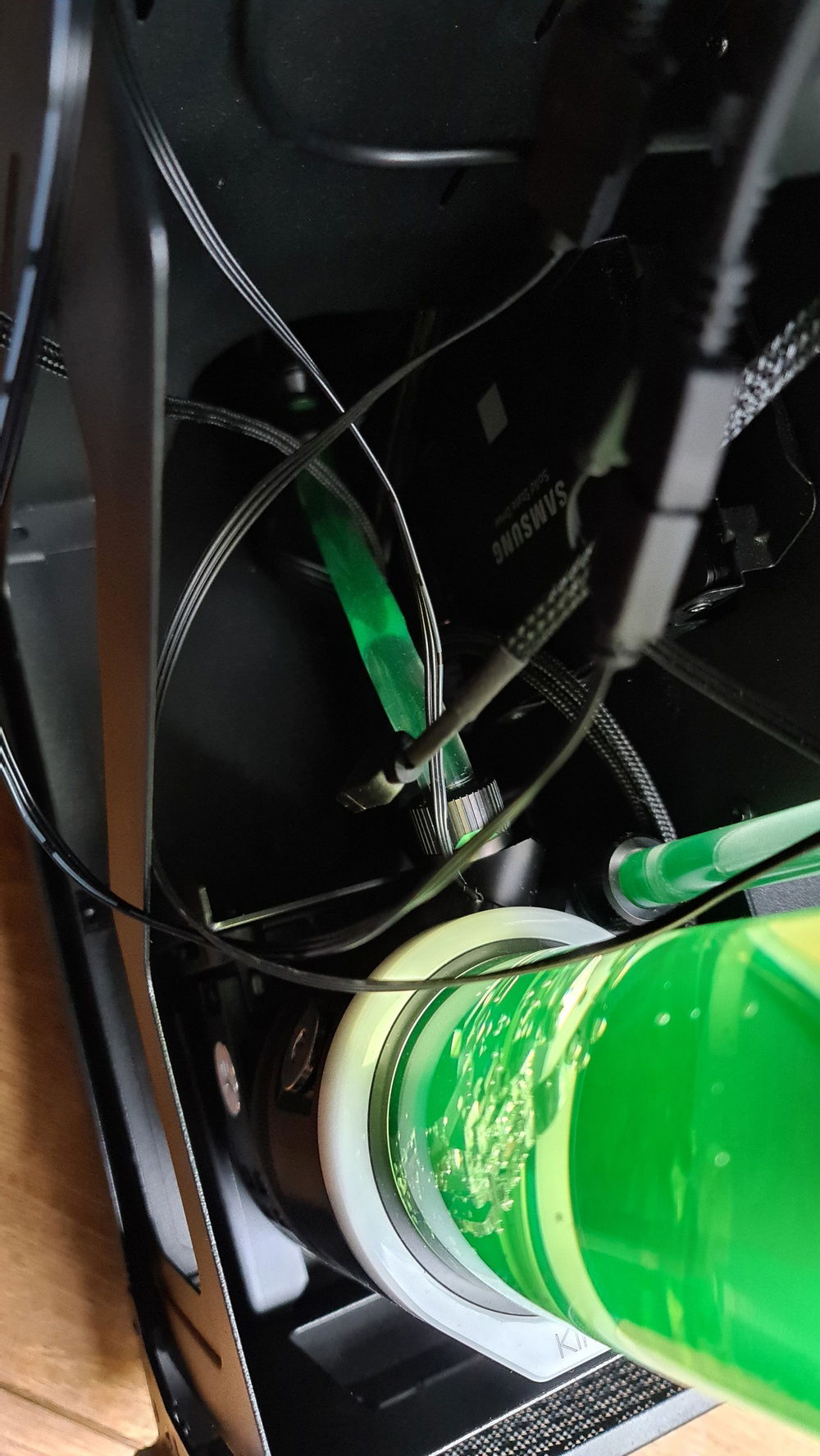

Coolant - distilled water plus colour - EK-CryoFuel Acid Green concentrate

Paste - Thermal Grizzly Kryonaut

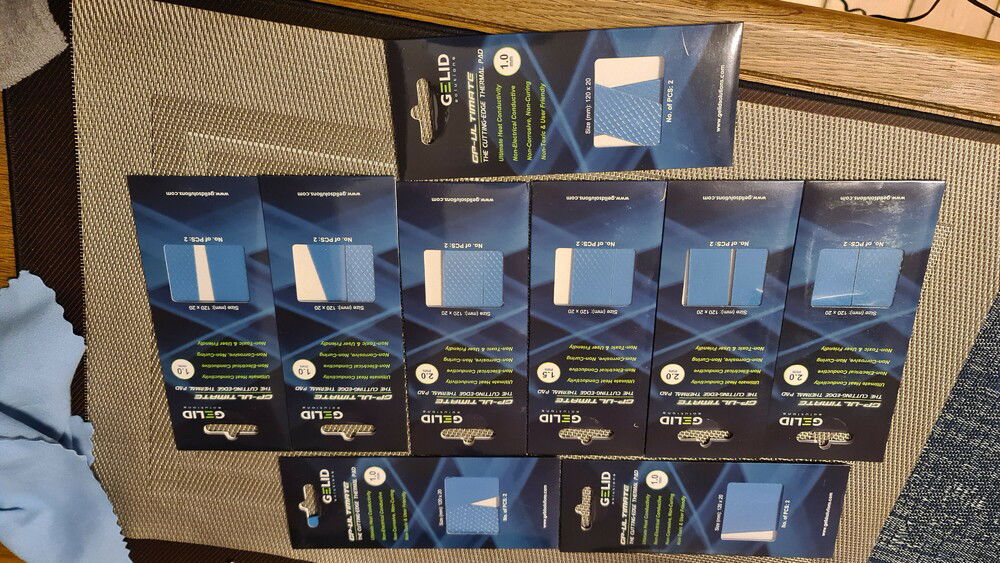

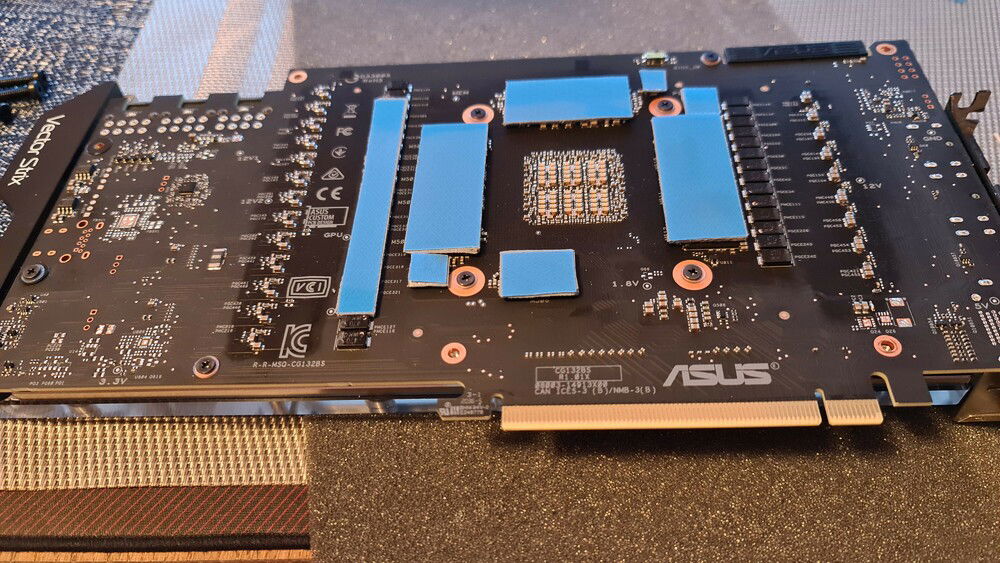

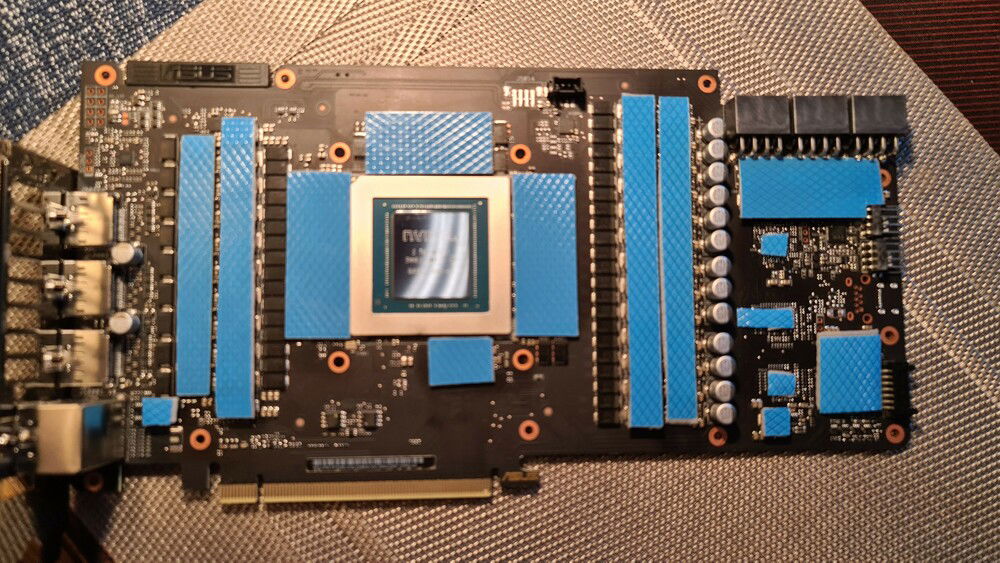

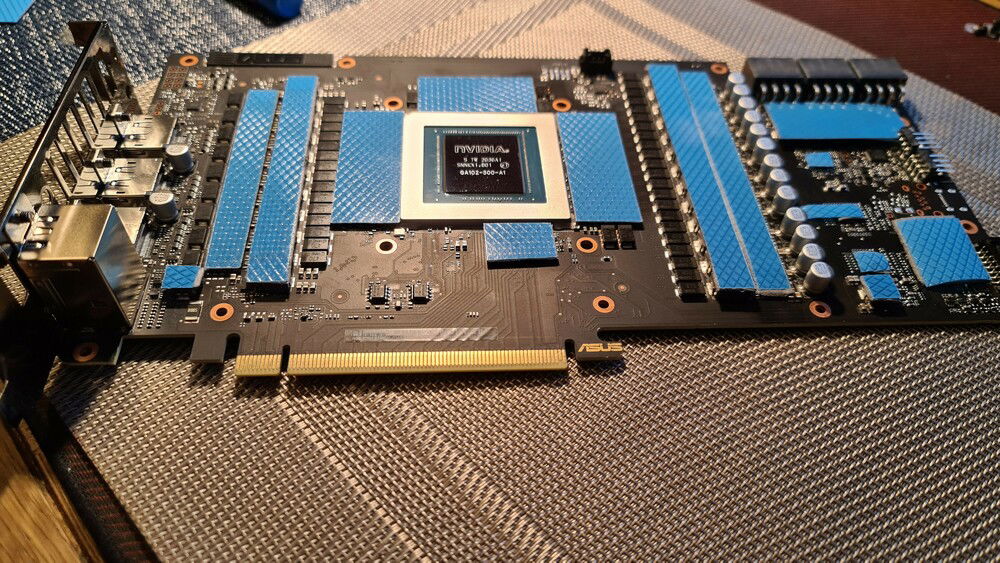

Thermopads - Gelid Ultimate

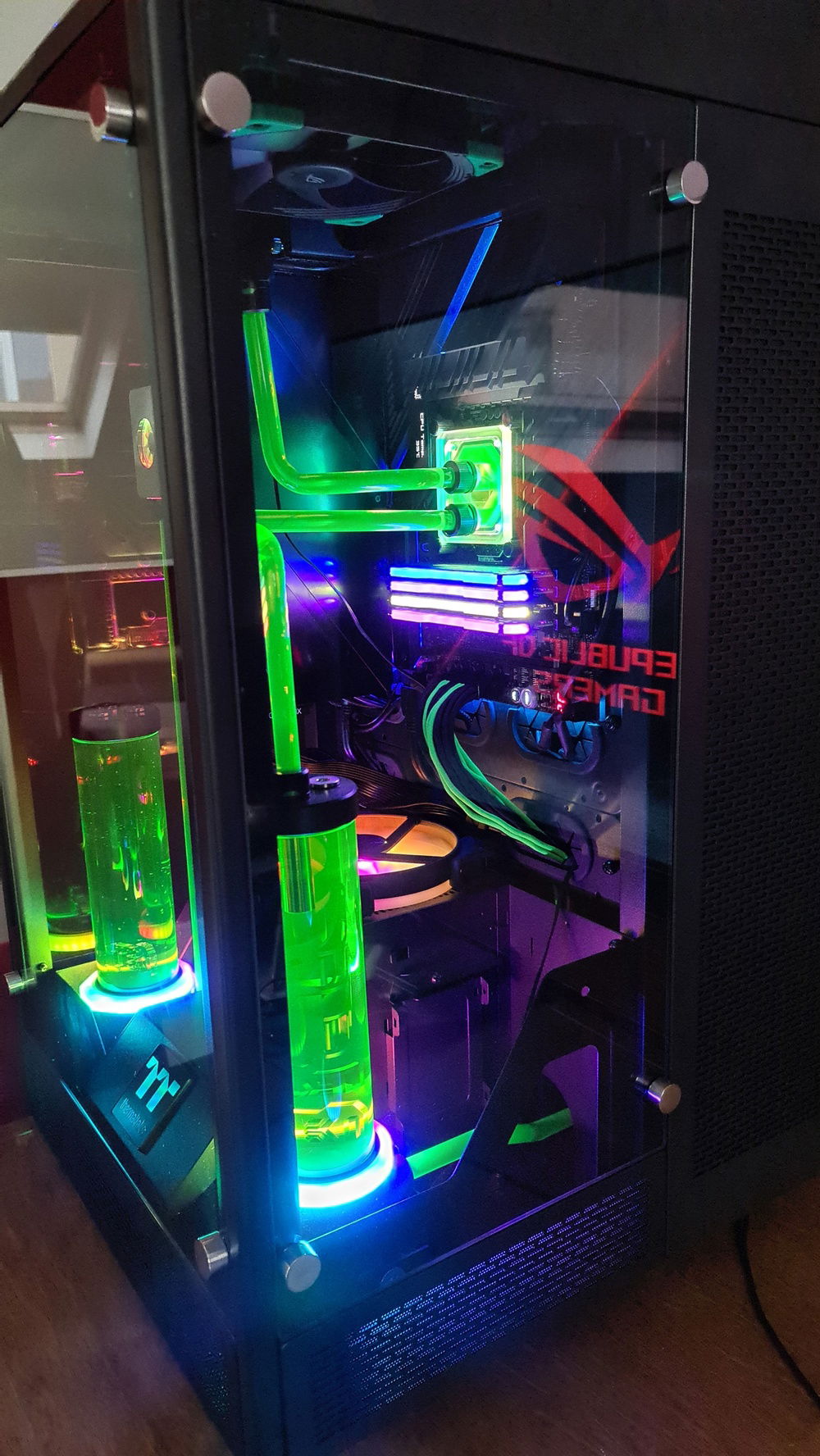

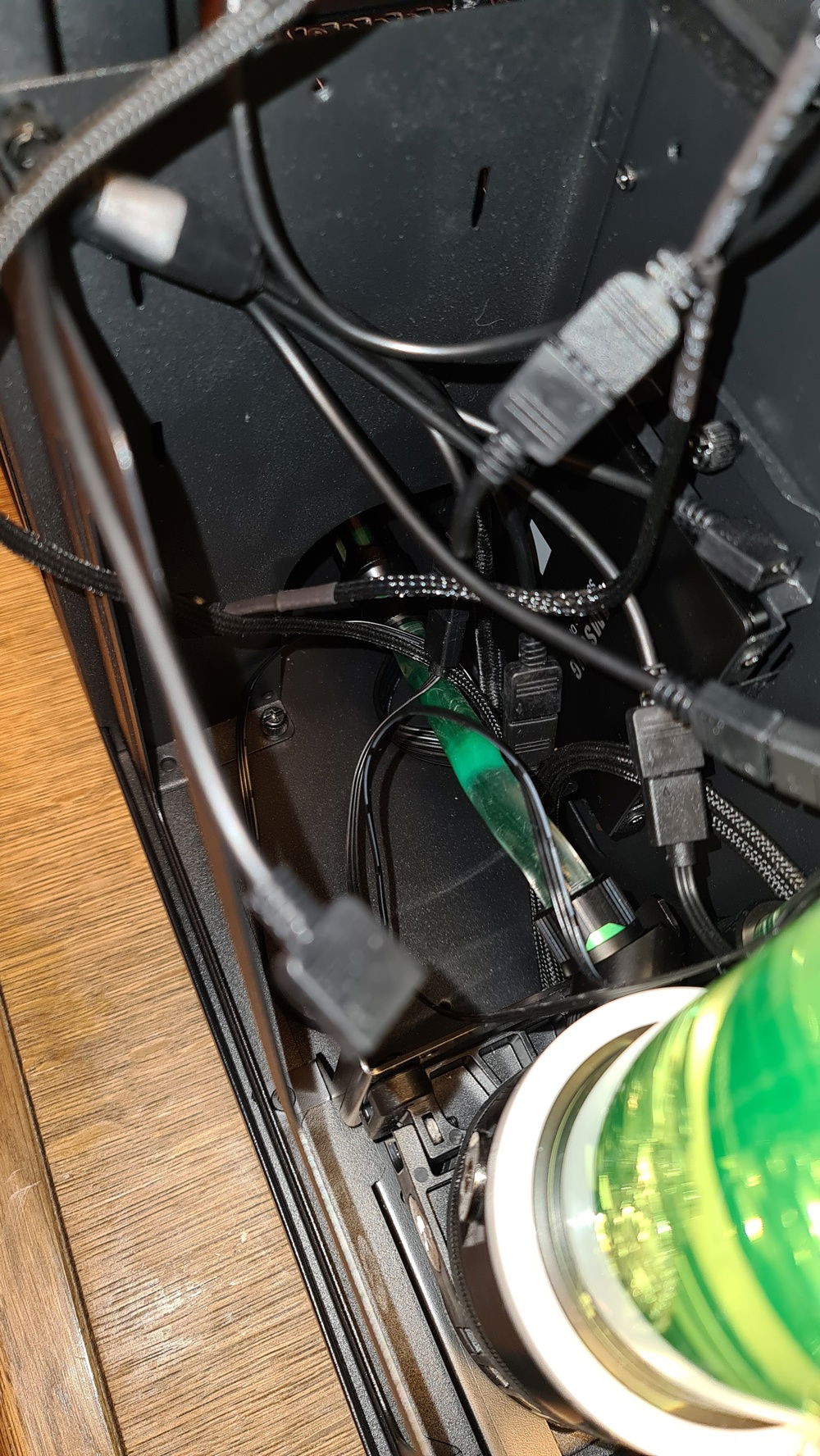

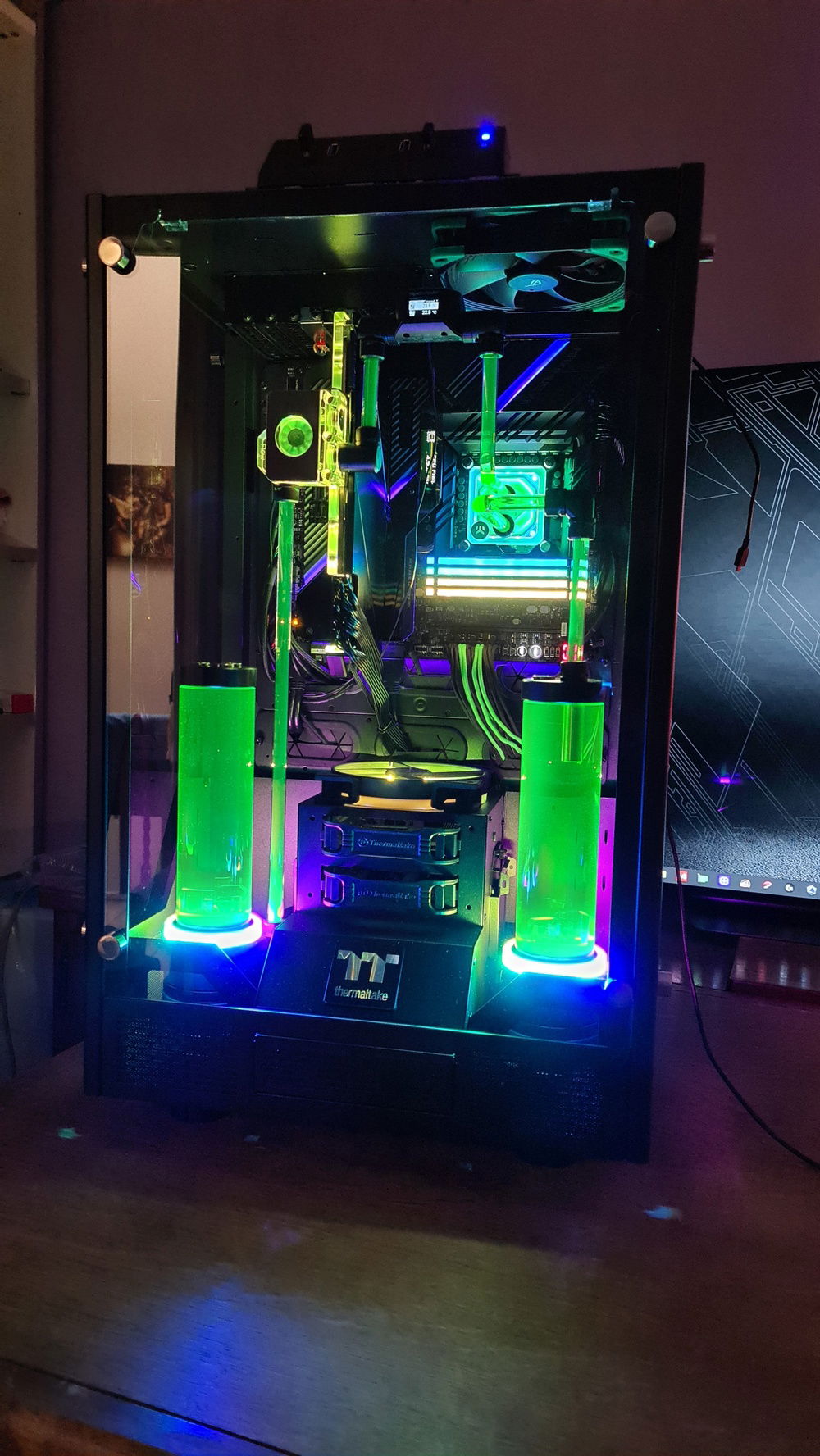

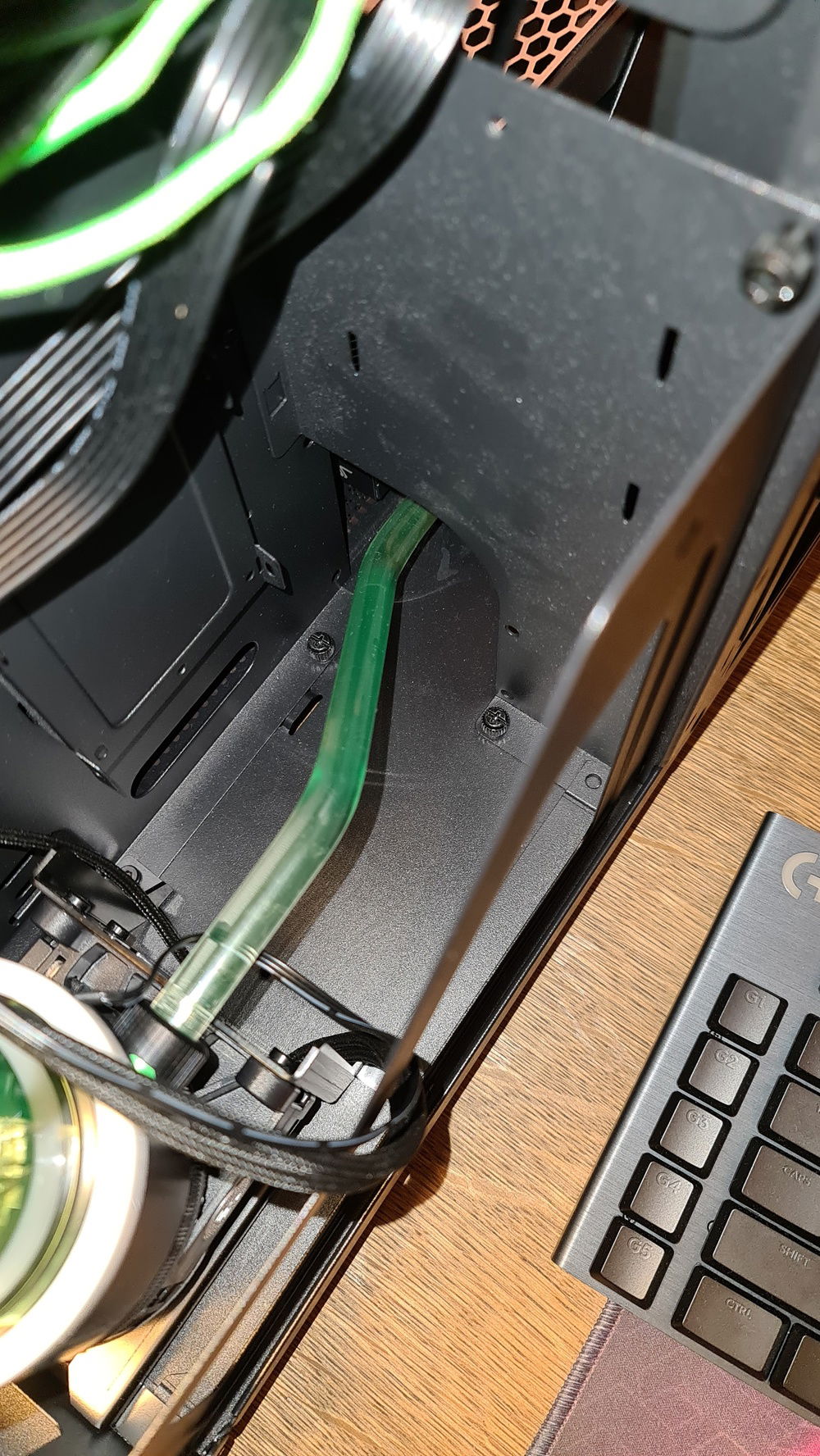

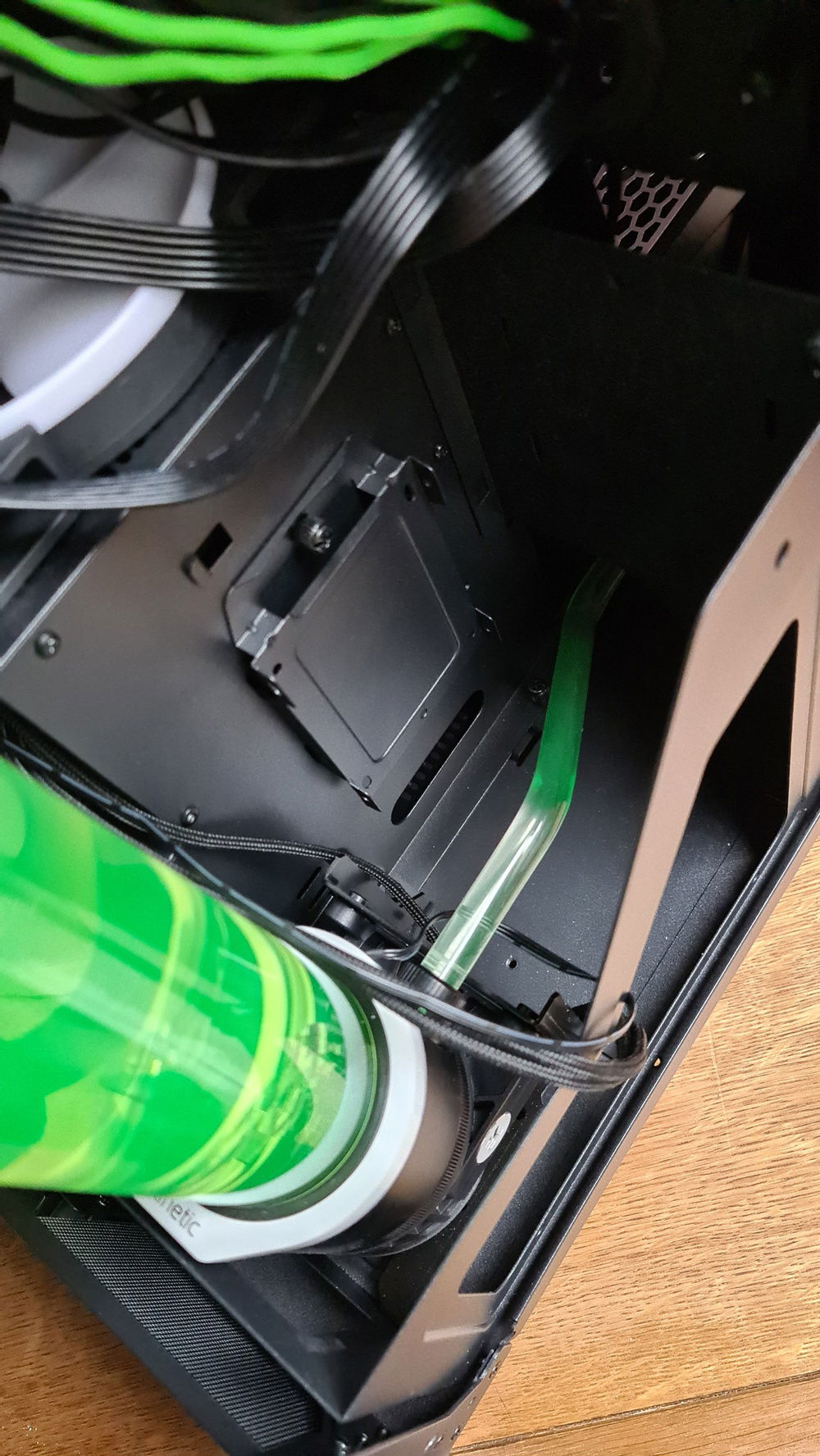

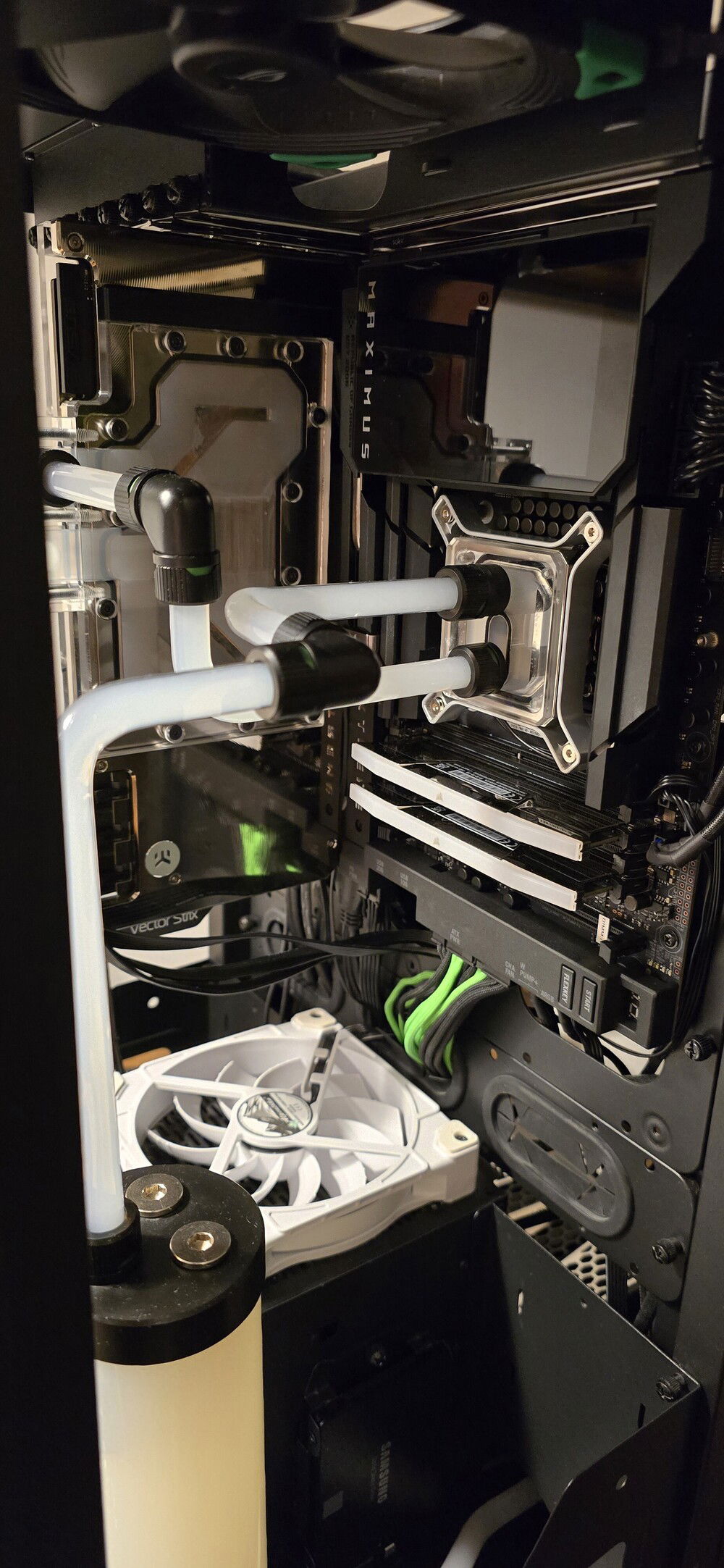

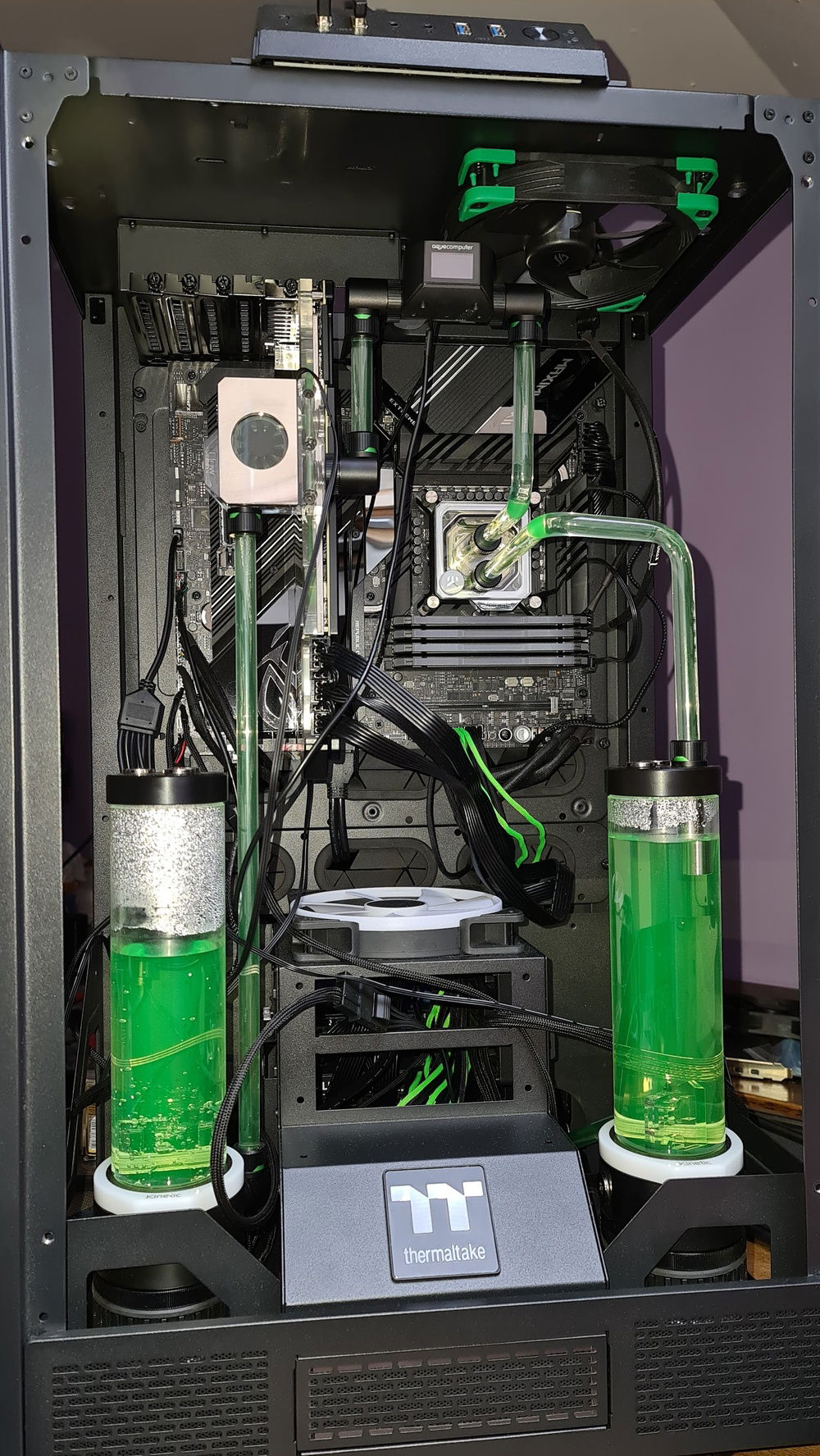

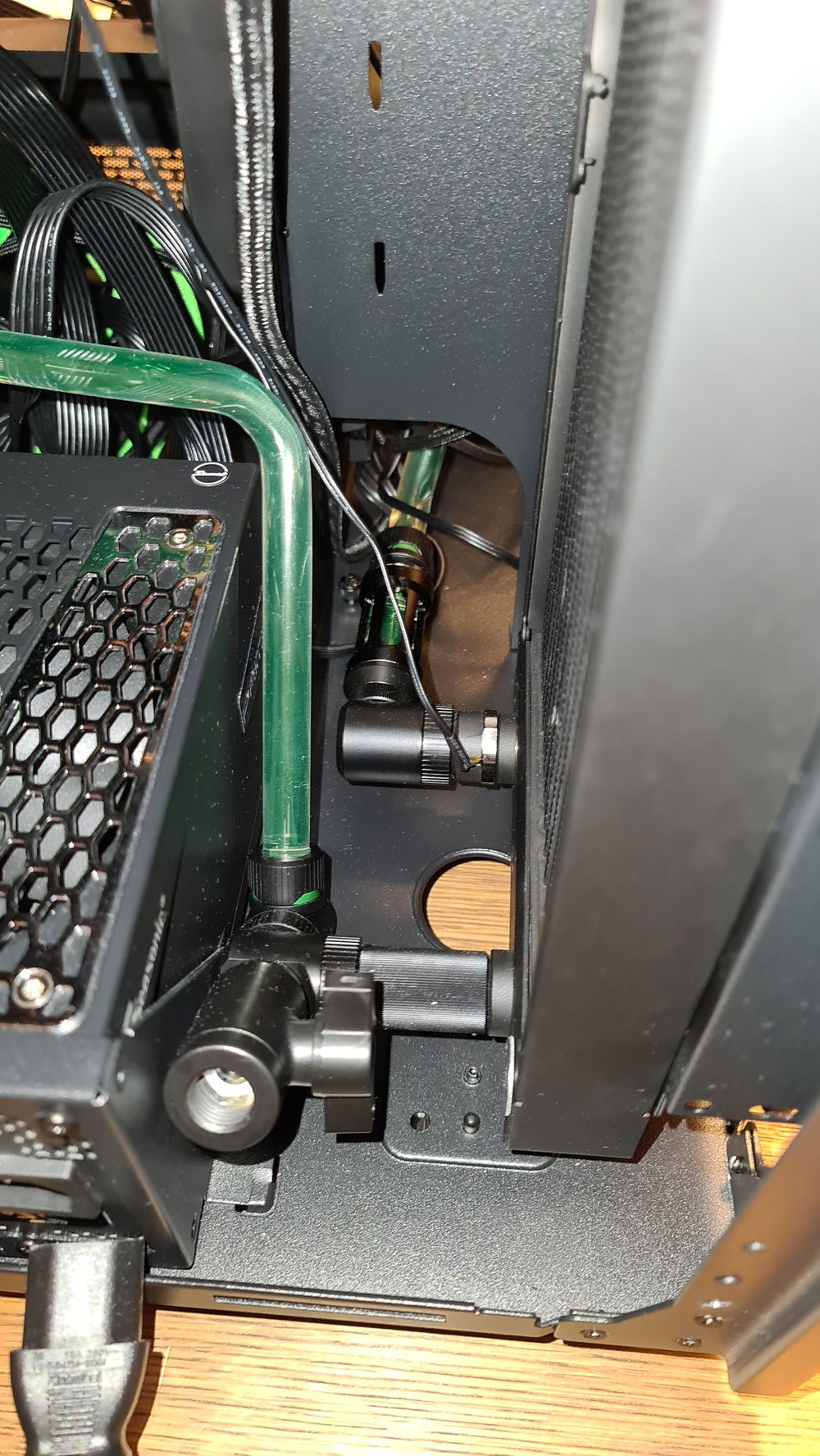

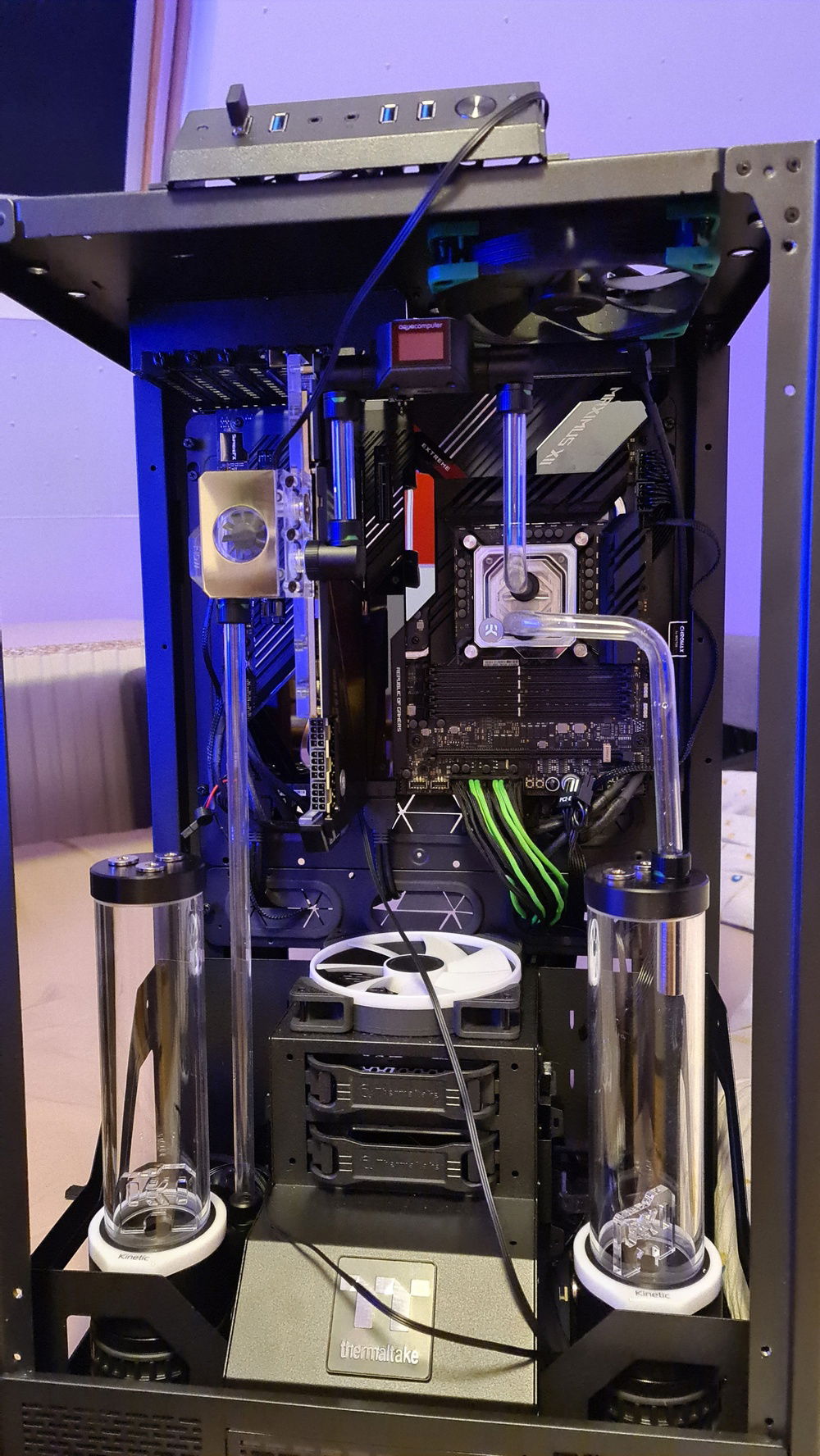

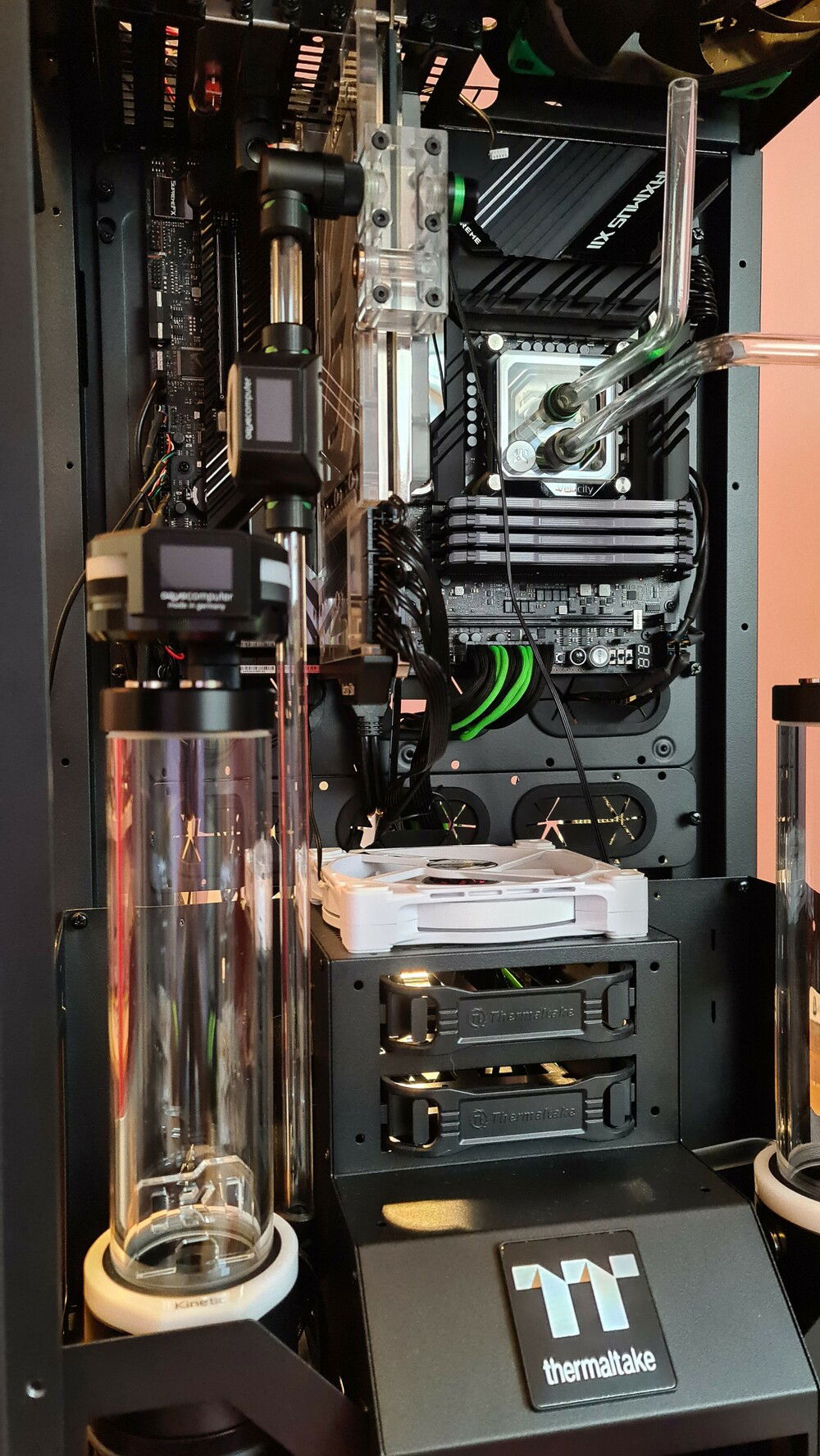

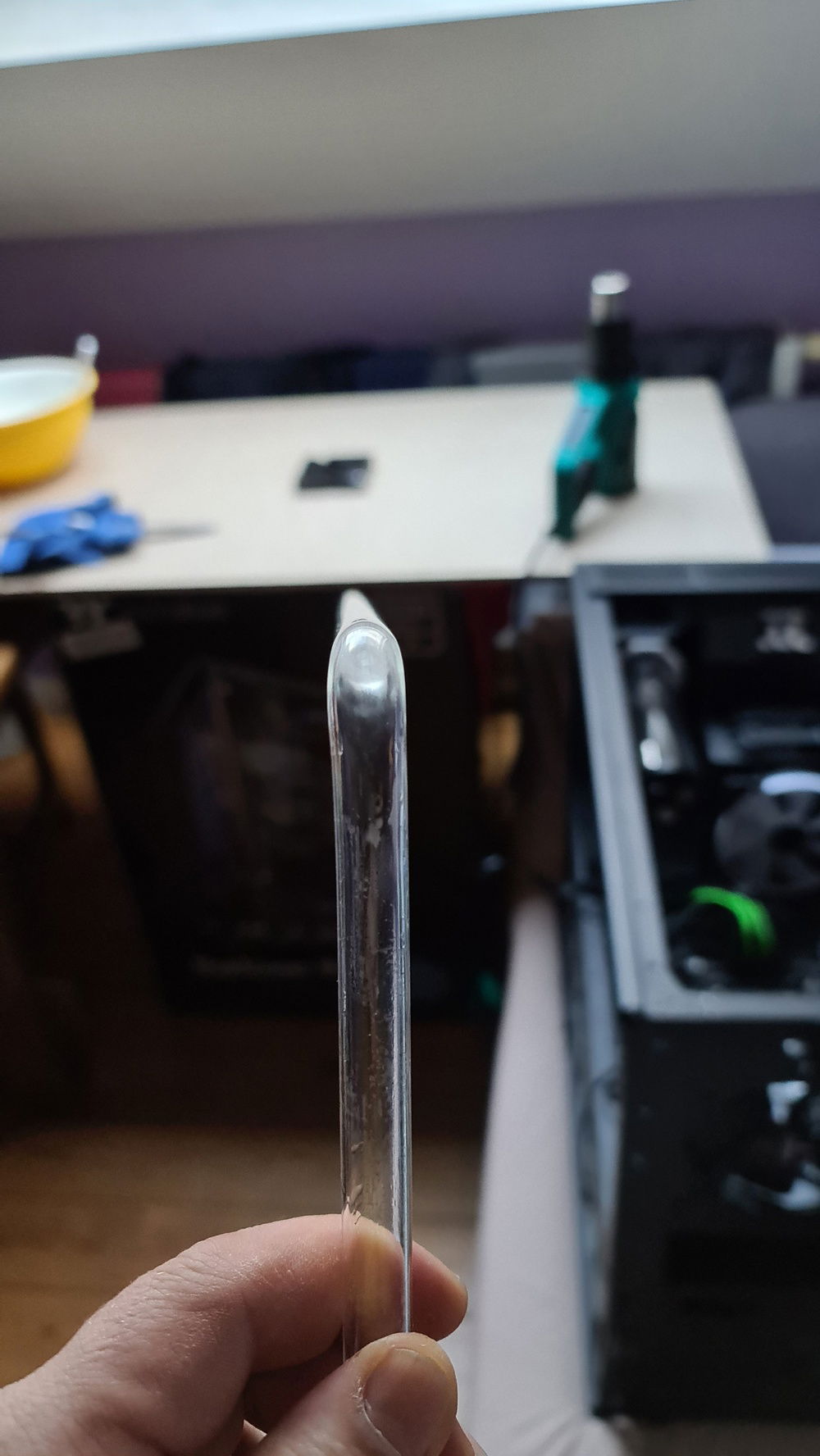

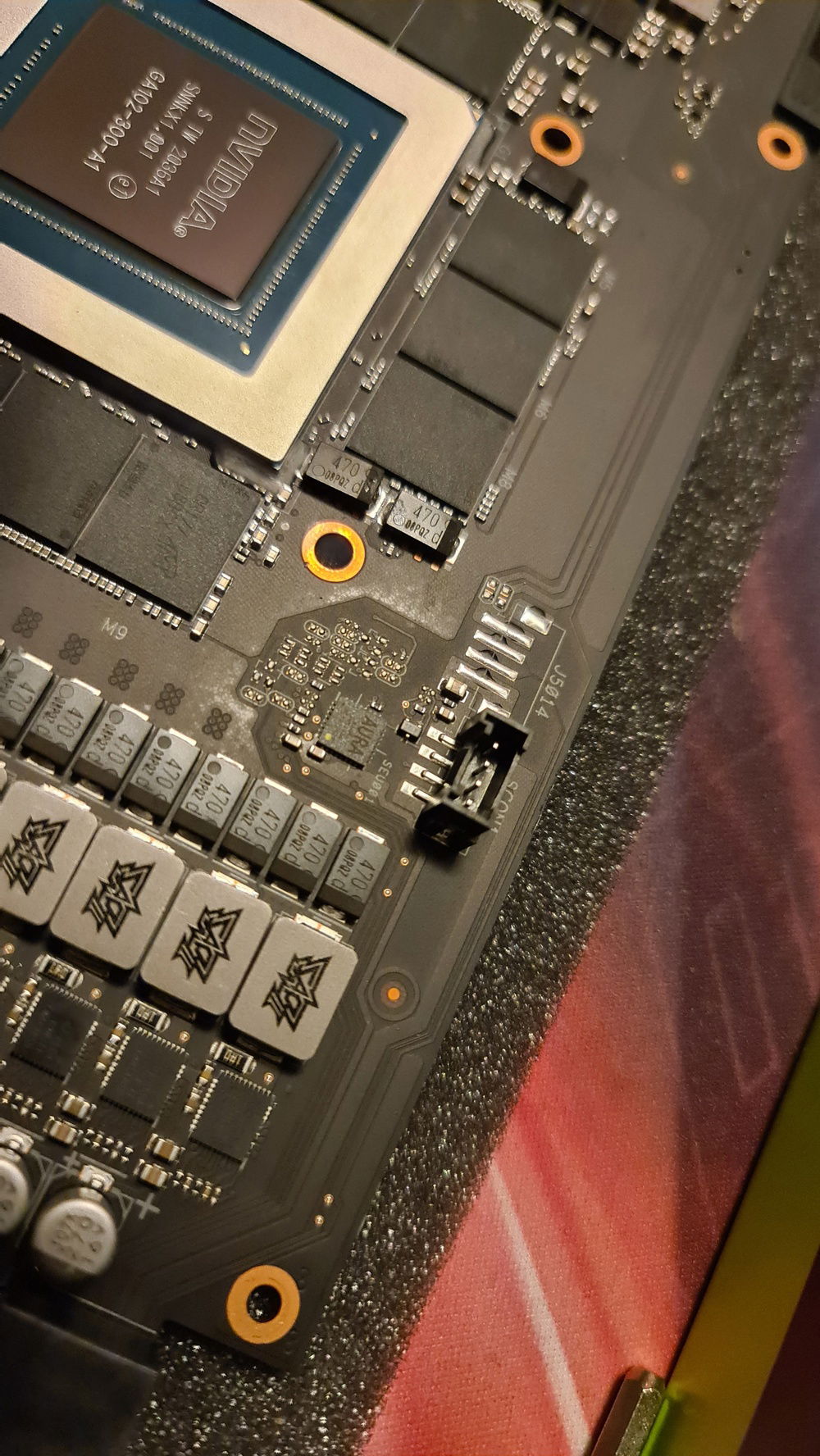

While I was quite enthusiastic about tube bending, I was not very happy with the bending itself. There are a lot of guides on the internet on how to do it, but I guess I'm impatient (because I try to be accurate). So summa summarum came out as it came out. I didn't like the end result anyway and I ordered Mayhems glass tubes. I will replace the capacitor after the correction on the graphics. I will put them in places that are in view. The pump outlets are hidden low, so there will be acrylics. Generally, for the first time in my life made water cooling, I am satisfied. The whole thing still needs small corrections (sleeve cables, cable arrangement).
All prices added manually converted from the day of purchase at the appropriate exchange rate.

PS. Please forgive any possible mistakes in English. I am from Poland and I do not know it perfectly.
Color(s): Black Green
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Contests

This build participated in 5 contests.

Build Updates

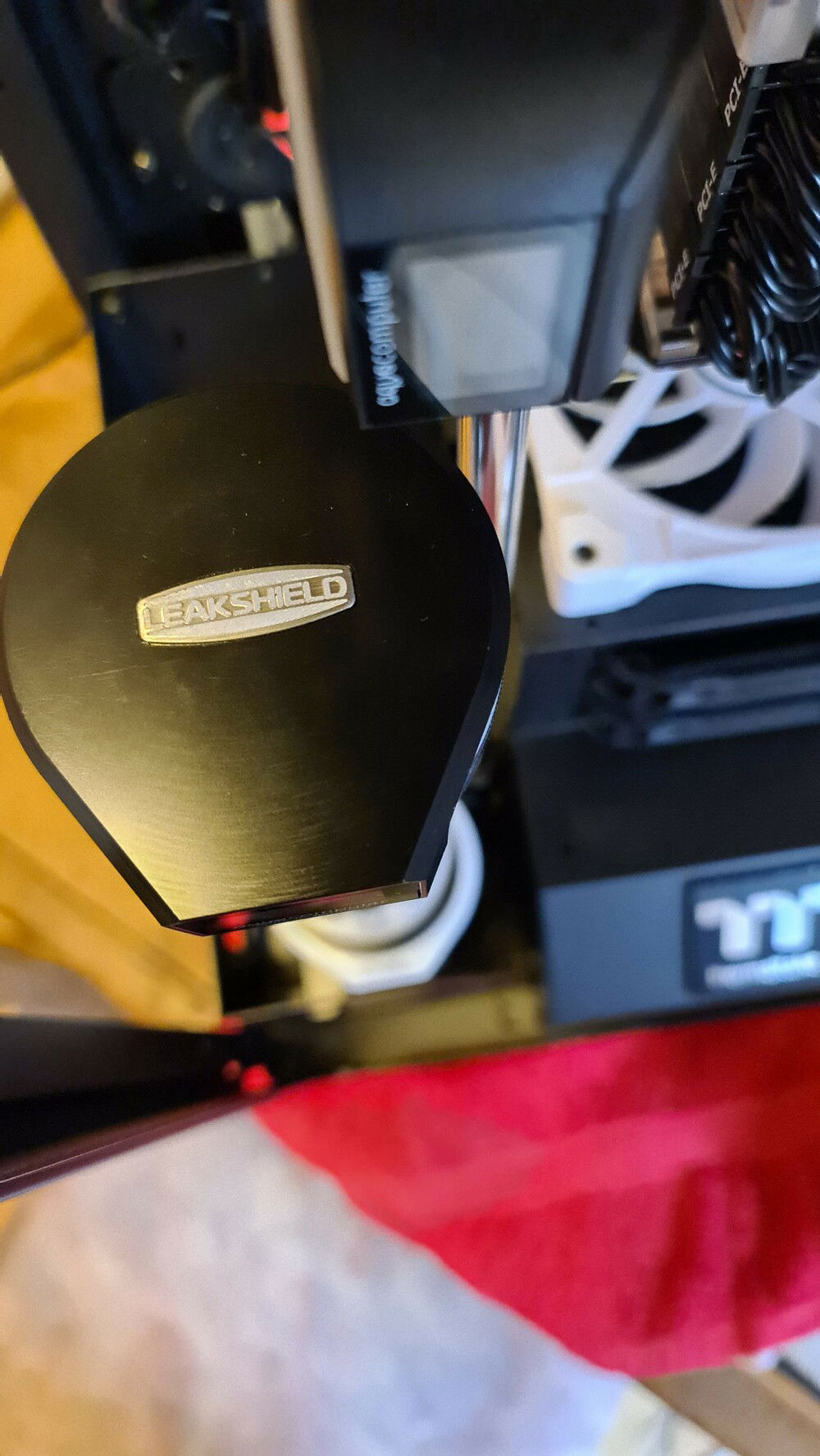

LEAKSHIELD leak prevention system standalone

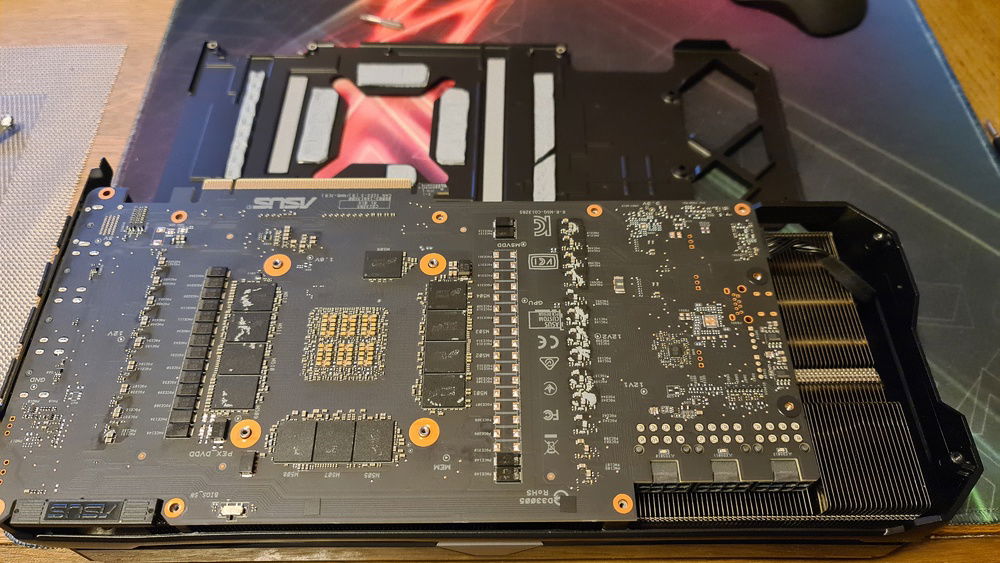

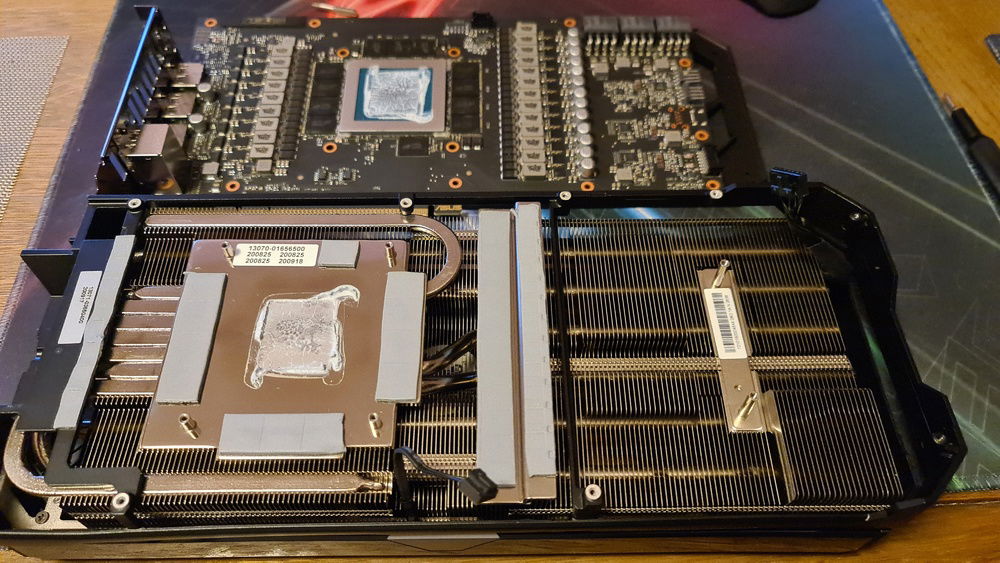

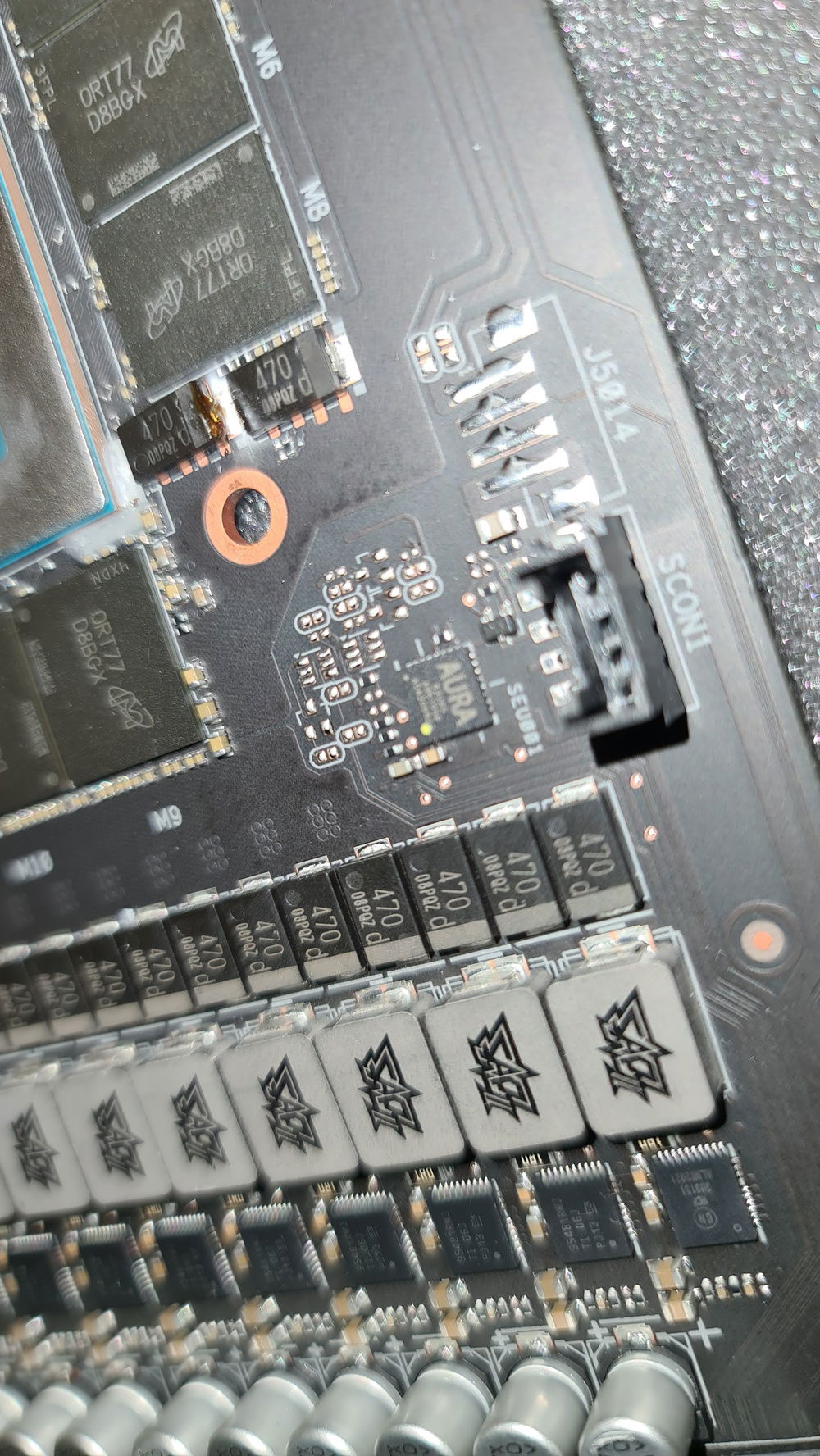

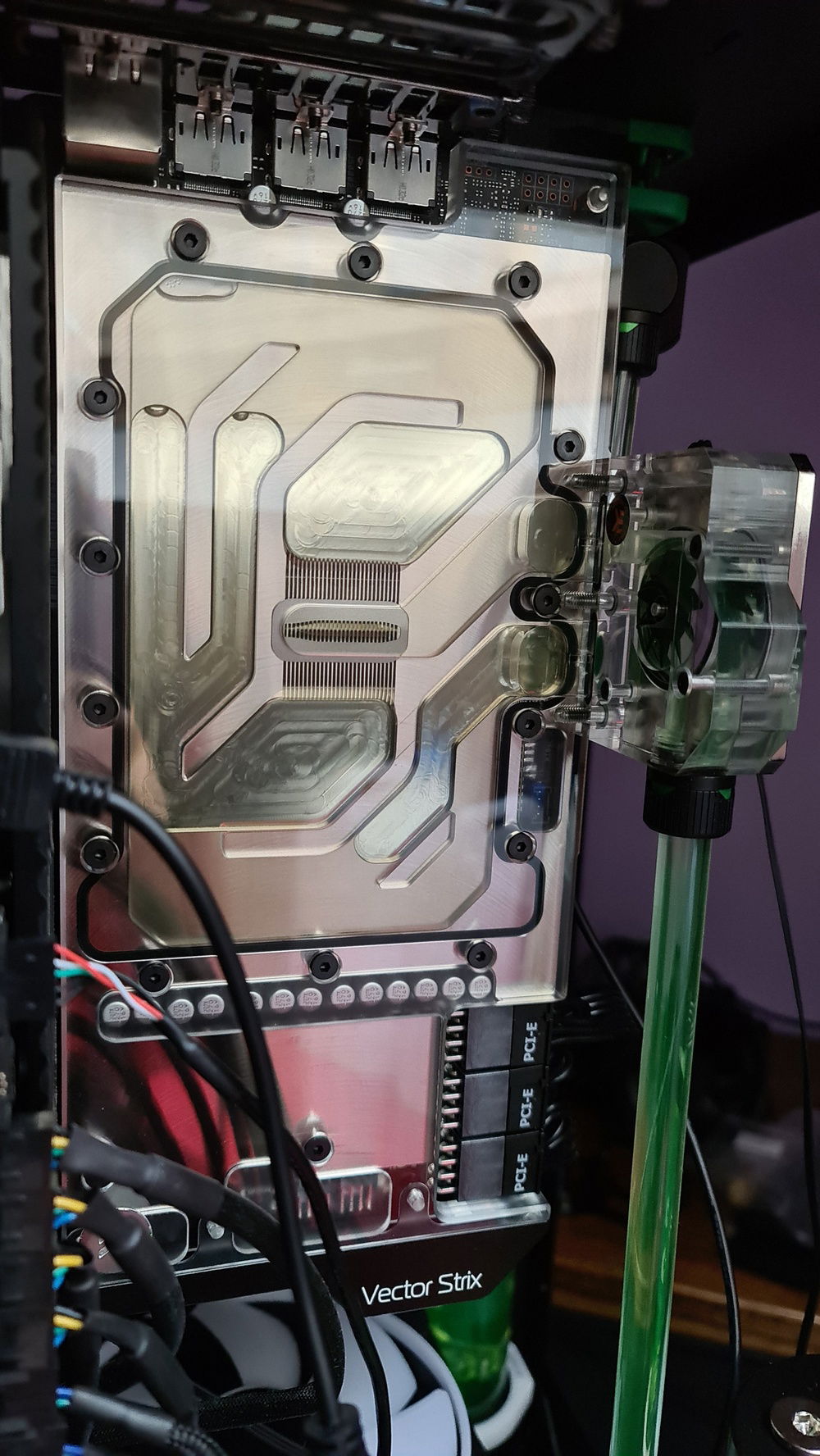

Huge EK sandwich for my Asus (RTX 3090)

Replacement of EKWB acrylic tubes with Mayhems glass tubes

Added 1 Revoltec green cold cathode

Added pressure equalisation membranes

Hardware

CPU
$ 615.00
Intel - Core i9-10900K
Socket: LGA 1200
Cores: 10
Motherboard
$ 840.00
ASUS - ROG Maximus XII Extreme
Chipset: Z490
CPU Socket: LGA 1200
Size: E-ATX
Memory
$ 251.96
Corsair - Vengeance Pro (3200MHz) (Black/RGB) (4x)
Type: DDR4
Capacity: 8 GB
Graphics
$ 2,113.00
ASUS - ROG Strix OC
Chip Manufacturer: NVIDIA
Chip: RTX 3090
Interface: PCIe x16
Storage
$ 372.76
Samsung - 860 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 4 TB
Storage
$ 320.99
Samsung - 870 Evo
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 4 TB
Storage
$ 198.00
Samsung - 970 PRO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
Storage
$ 86.80
Samsung - 980 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 264.59
Seasonic - Prime GX
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 269.99
Thermaltake - Tower 900, Black
Type: Super-Tower
Side Panel: Tempered Glass
Case Fan
$ 75.28
Case Fan
$ 53.90
Case Fan
$ 169.50
Noctua - NF-P14s redux-1500 PWM (10x)
Size: 140 mm
Cooling
$ 347.28
EKWB - CoolStream SE (2x)
Type: Custom Loop
Size (WxHxD): 560 mm (4 x 140 mm)
Cooling
$ 29.95
Cooling
$ 14.99
Cooling
$ 24.99
Cooling
$ 525.84
EKWB - EK-Quantum Kinetic TBE D5 PWM D-RGB - Acetal (2x)
Type: Pump/Reservoir Combo
Cooling
$ 71.94
Cooling
$ 667.24
EKWB - EK-Quantum Torque HDC 12 - Black (14x)
Type: Fittings
Cooling
$ 49.49
Cooling
$ 70.74
Cooling
$ 11.91
Cooling
$ 179.92
Cooling
$ 43.54
EKWB - EK-UNI Pump Bracket Vertical (2x)
Type: Pump
Size (WxHxD): 120 mm
Cooling
$ 70.00
Cooling
$ 60.40
Mayhems - Tubing (5x)
Type: Custom Loop
Cooling
$ 116.62
Noctua - NH-D15 (Chromax/Black)
Type: Air Cooler
Accessories
$ 165.16
Accessories
$ 423.50
Accessories
$ 23.49
Accessories
$ 119.99
Accessories
$ 16.23
Monitor
$ 899.95
LG - 4K Smart (OLED55CX)
Size: 55 Inch
Panel: OLED
Refresh Rate: 100 Hz
Keyboard
$ 170.00
Logitech - G915 LightSpeed
Interface: Wireless
Type: Full Size
Mouse
$ 101.04
Logitech - G Pro
Interface: Wireless
Chair
$ 1,368.00
Sharkoon - Skiller (SGS2)
Material: Fabric
Color: Black, Green
Estimated total value of this build:
$ 7,624.39
