Most Recent Build

Parts pulled before powdercoating

Painted mainboard parts

That's still all to come

Individual parts laid out before cleaning and assembly

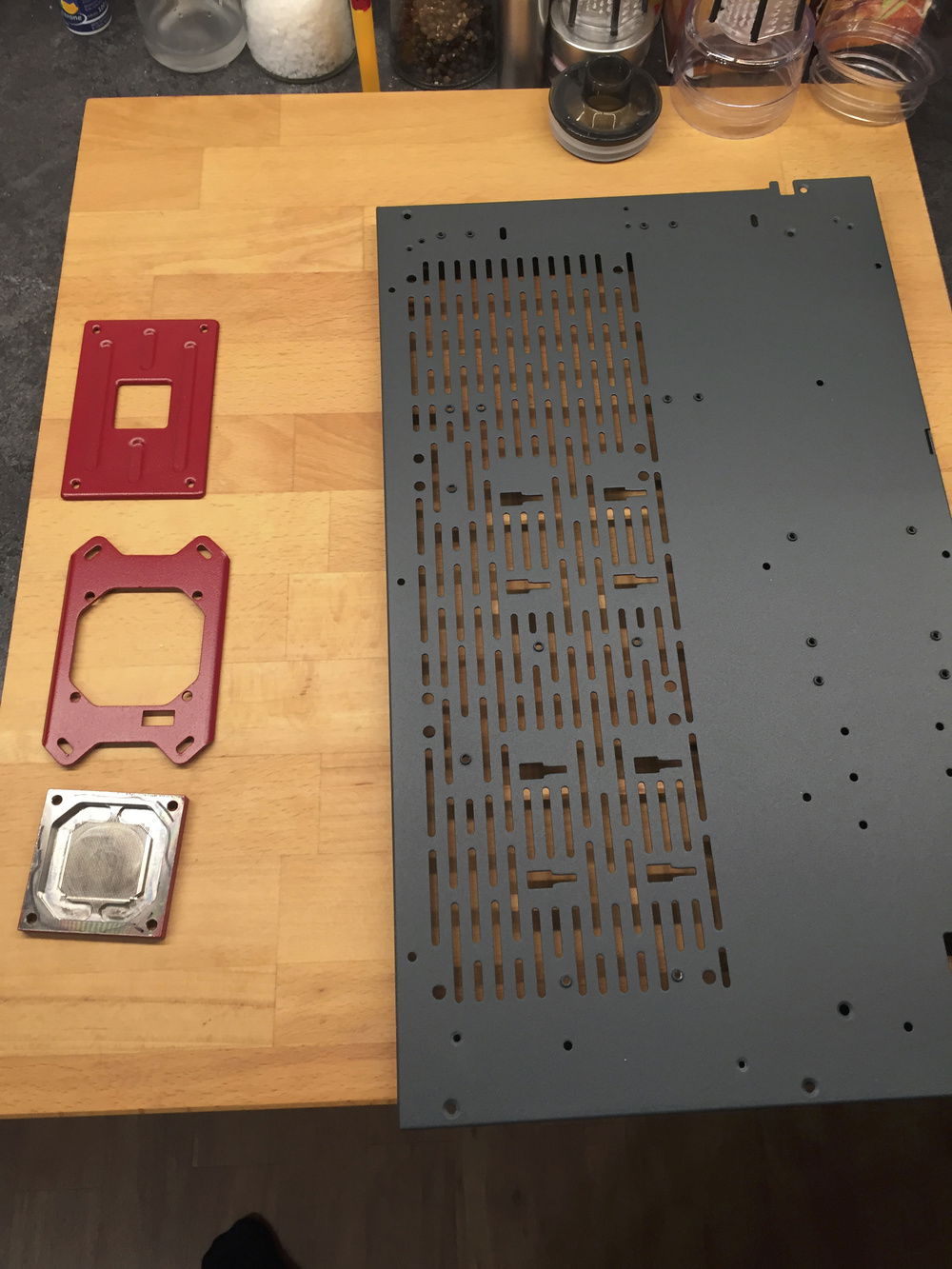

Parts part 2

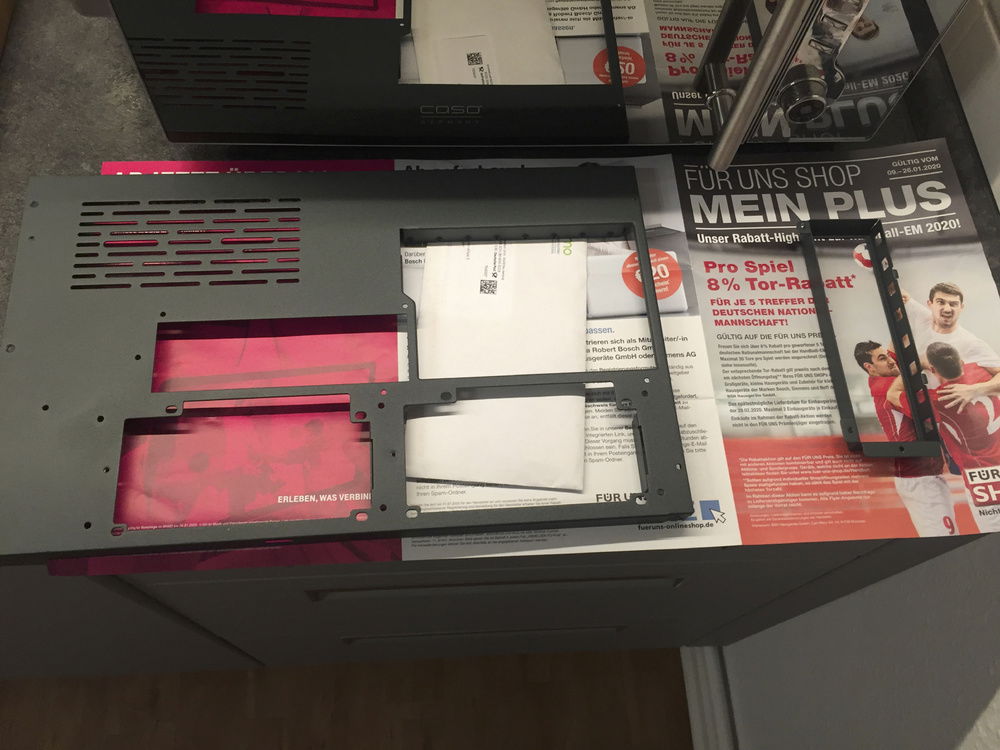

Parts part 3

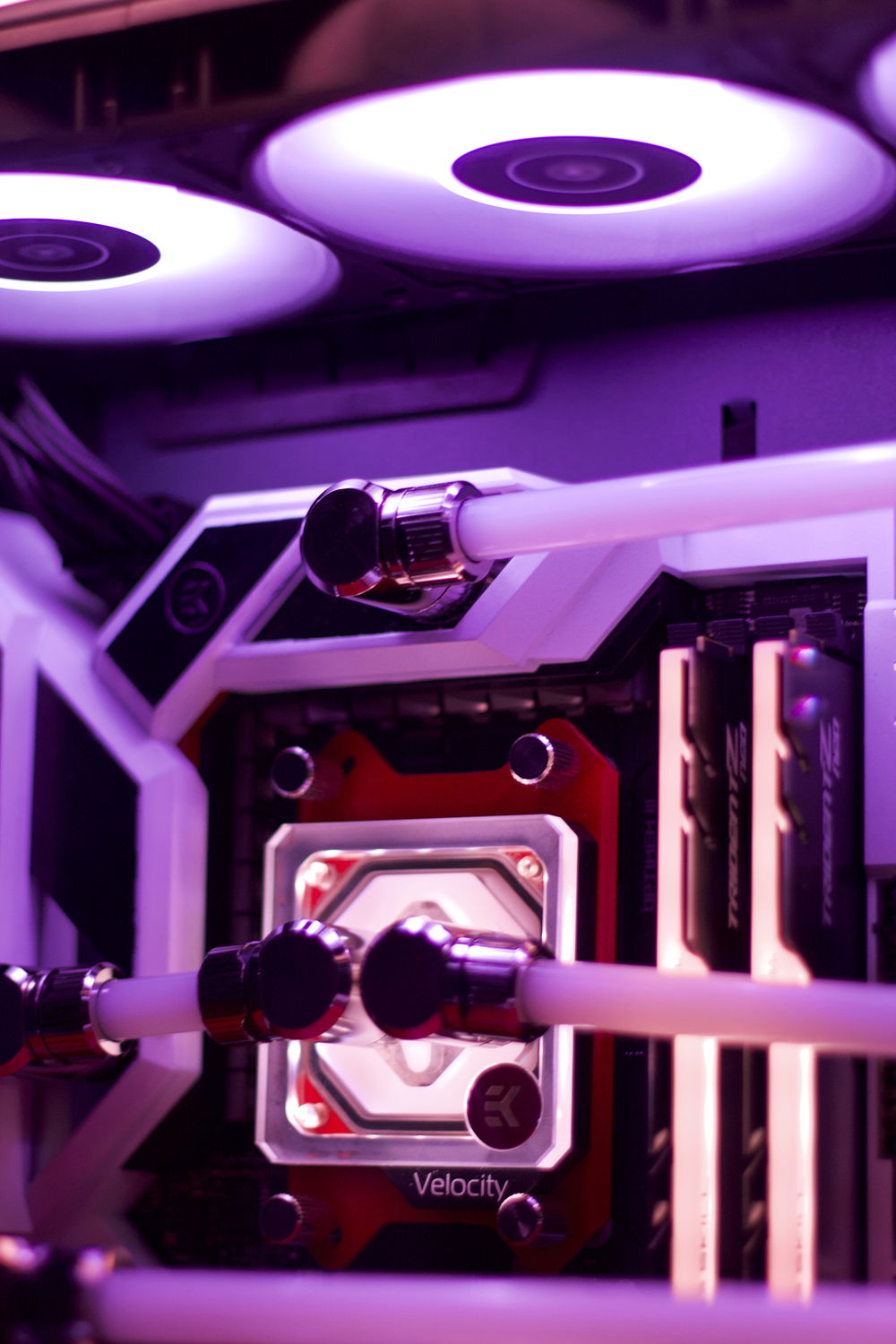

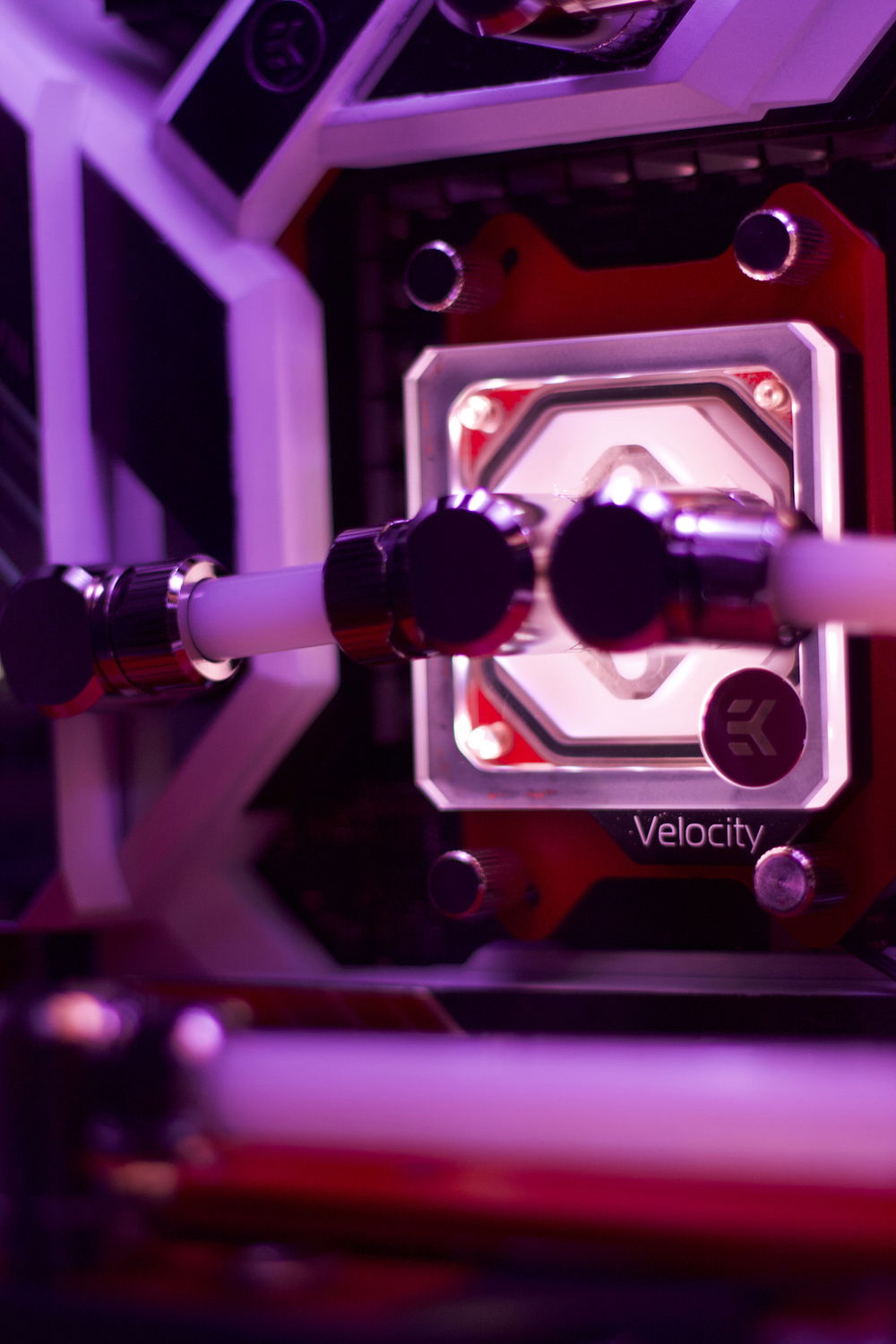

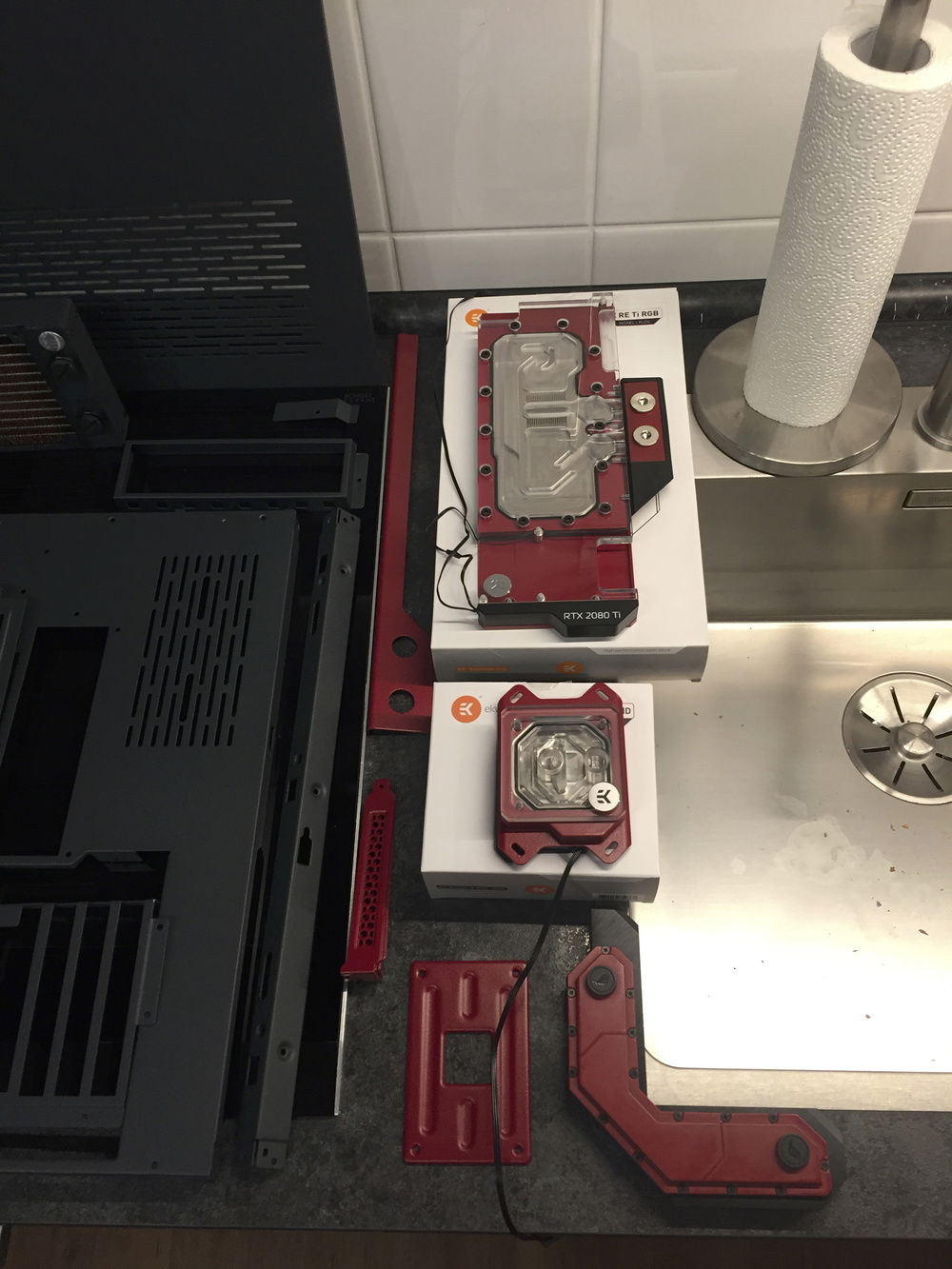

CPU block and GPU block assembled

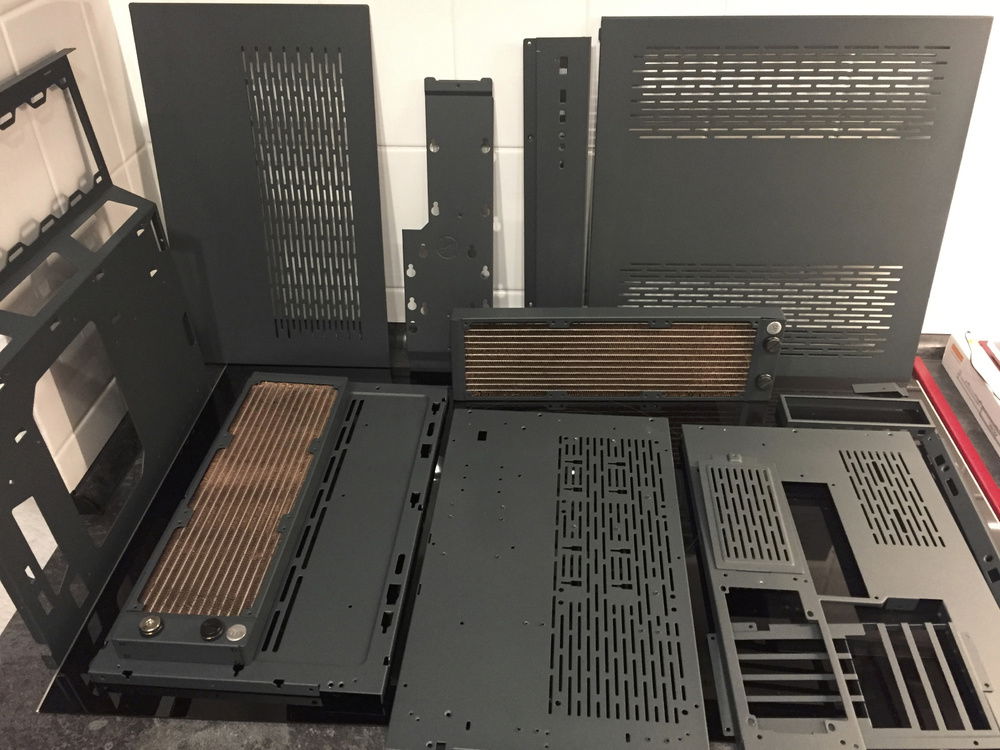

Parts assemble? (I'll see myself out...)

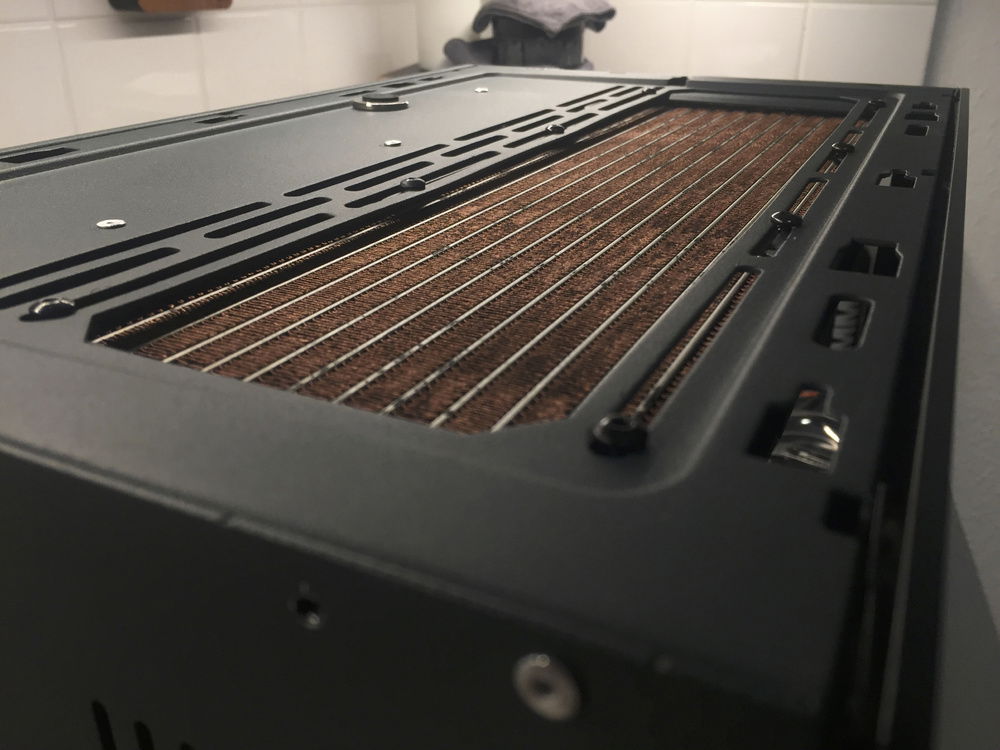

Radiator 1- I was going to paint the radiators, but I like the way the exposed copper looks.

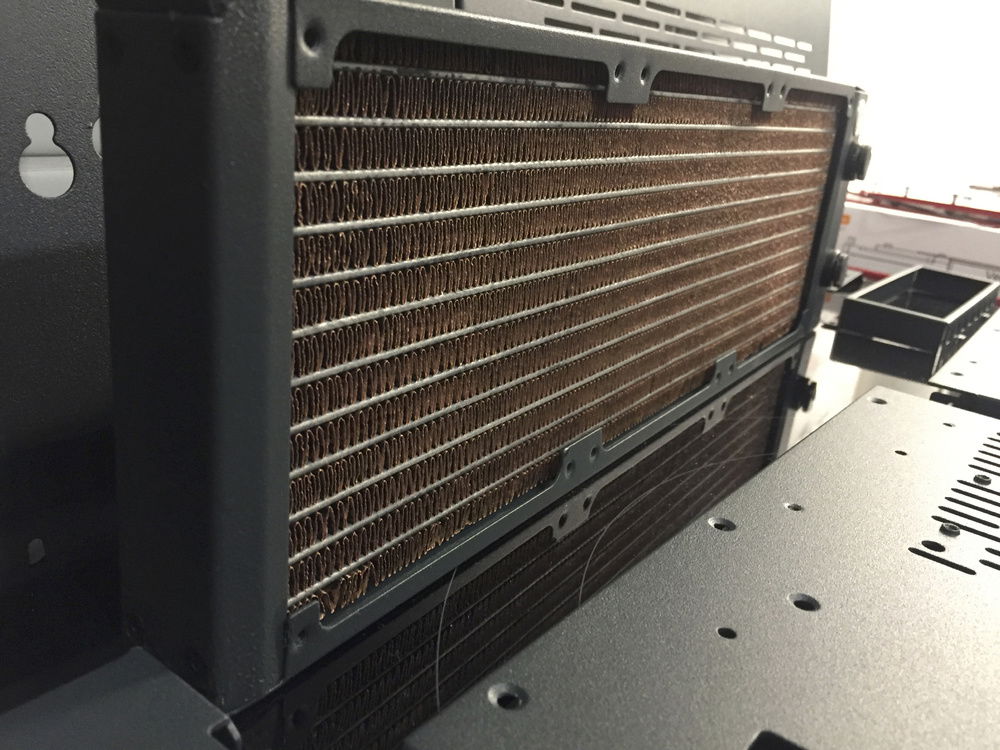

Radiator 2.

Preliminary assembled blocks

D-RGB-Test, the EK Connect 51 really came in handy here.

Added perspective

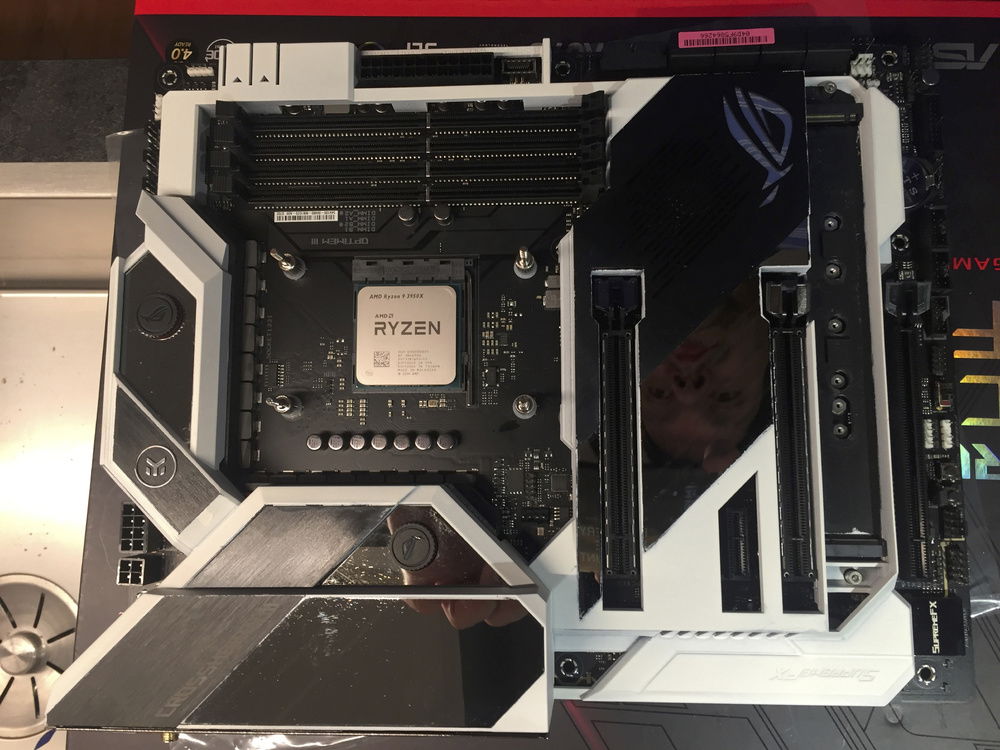

Fitting the retaining-screws and the CPU

Added the block, the RAM and the SSD

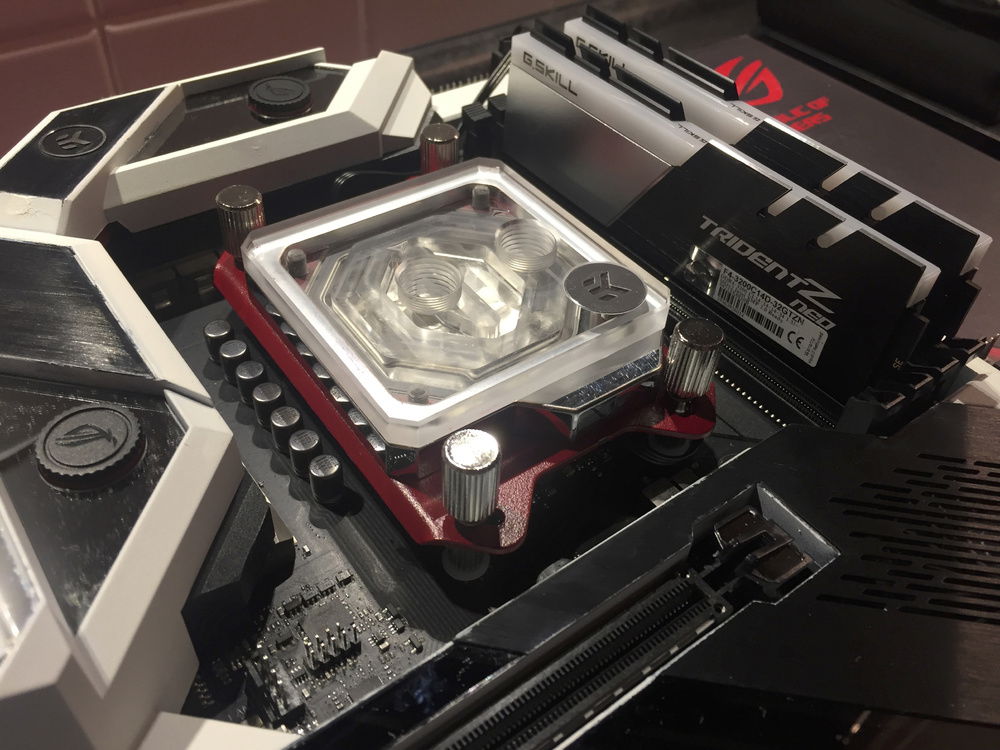

I'll probably remove the stickers on the Trident Neos when I confirmed them working, they somehow bother me.

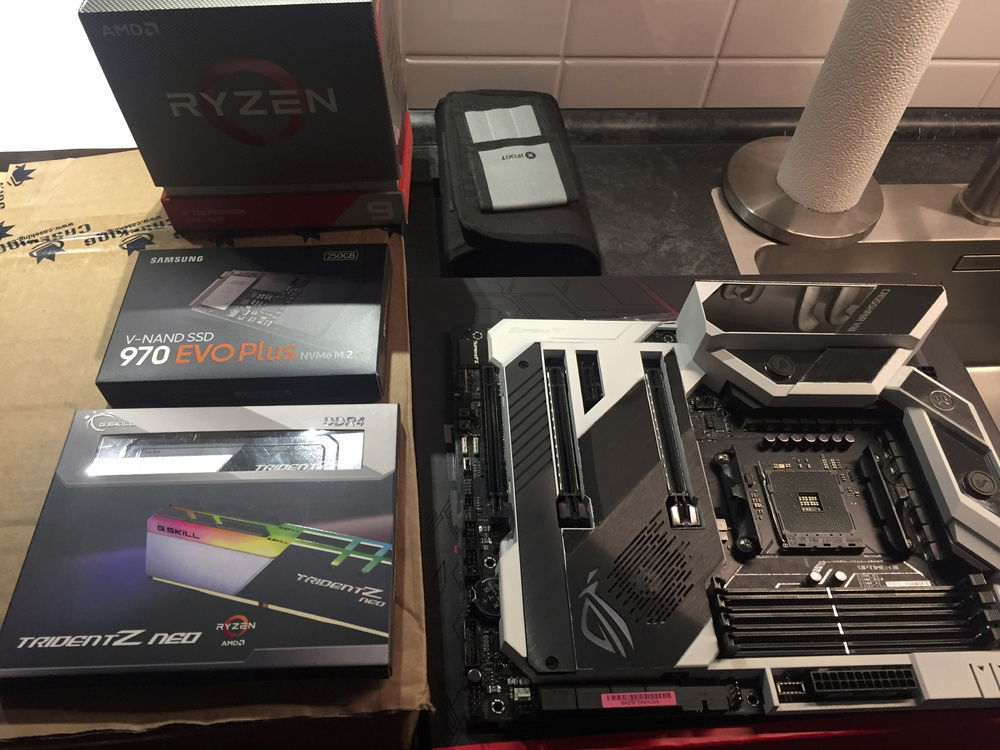

Mainboard and components

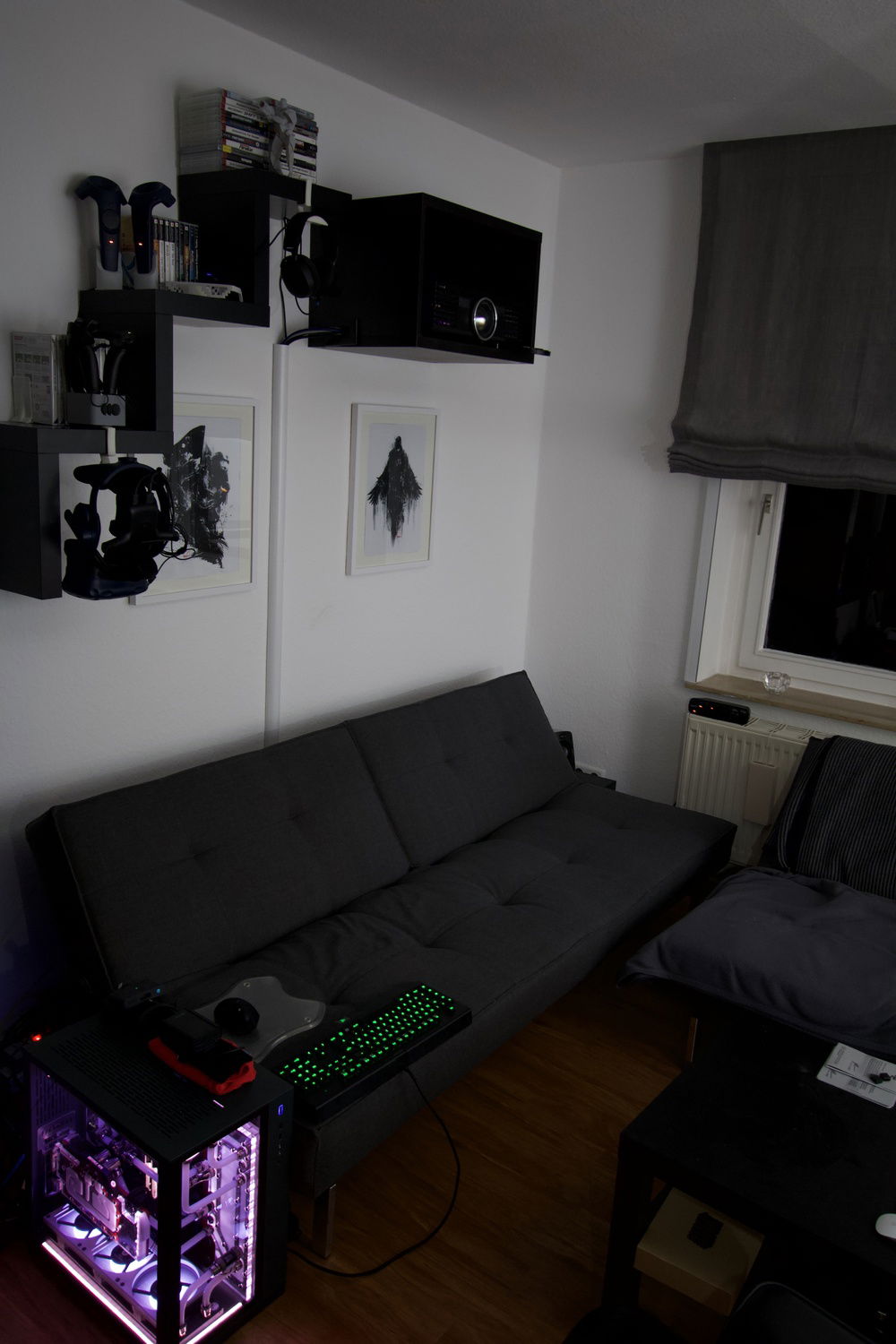

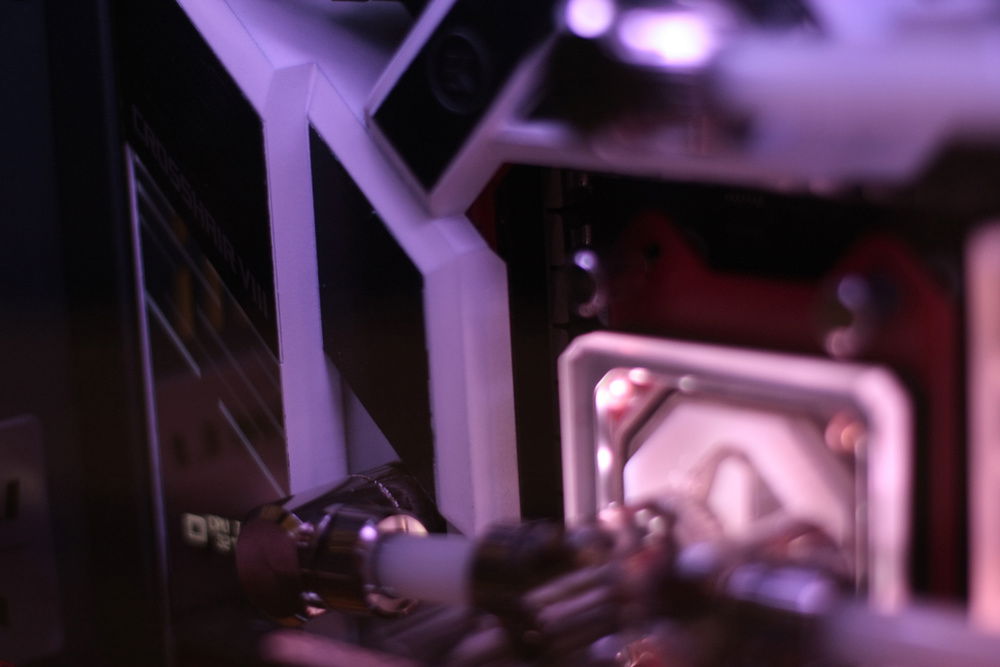

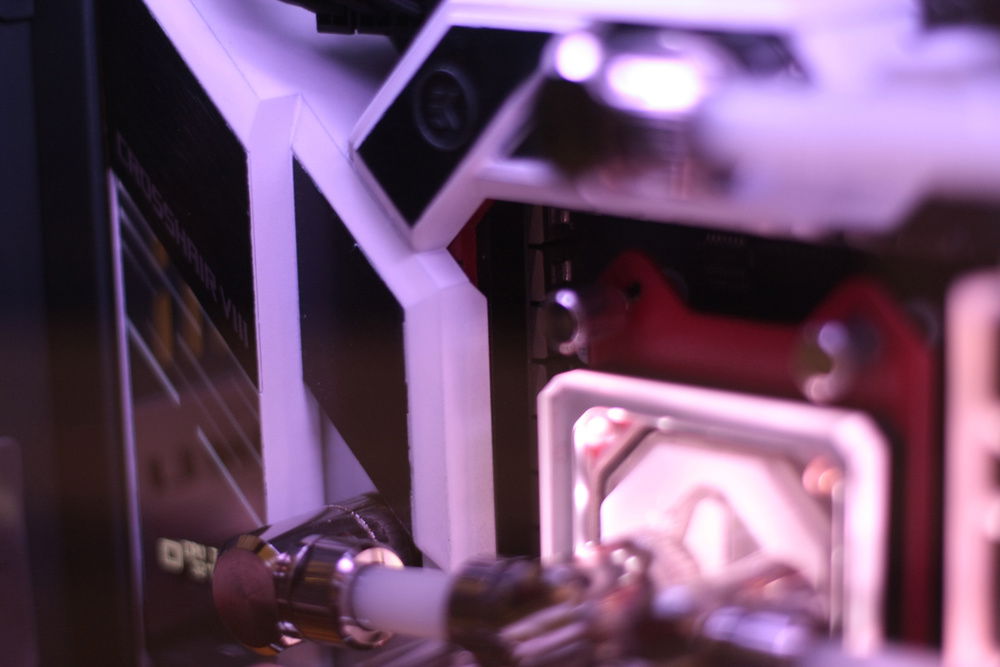

Made some 3D printed object for my setup

DGH

Build to commemorate a group of people who influenced me a great deal and pushed my understanding of PCs a great deal.

Color(s): Gray Red

RGB Lighting? Yes

Theme: Industrial

Cooling: Custom Liquid Cooling

Size: E-ATX

Type: General Build

Contests

This build participated in 7 contests.

Rank	Contest	Date
#80	Build of the Month - July 2021	ended 2021-07-27
#163	Build of the Month - April 2021	ended 2021-04-27
#184	Build of the Month - March 2021	ended 2021-03-27
#523	EK 10K Challenge	ended 2021-03-29
#74	Build of the Month - February 2021	ended 2021-02-27
#93	Build of the Month - January 2021	ended 2021-01-27
#87	Build of the Month - October 2020	ended 2020-10-27

Build Updates

Retrospective- Building 'DGH'

2020-10-14

Brace yourselves

2020-10-21

Video of the build and a short update

2020-08-24

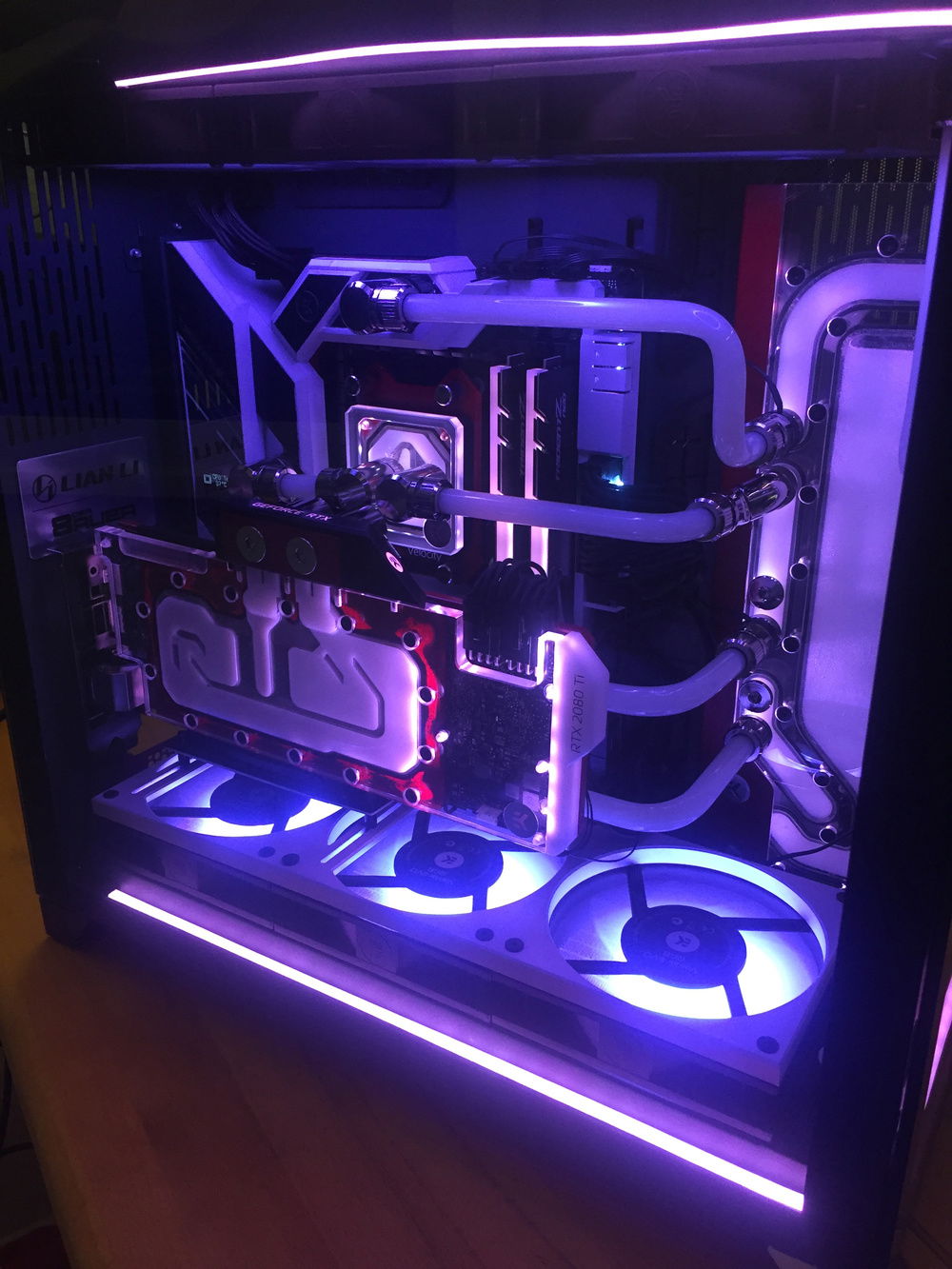

Finally done

2020-06-07

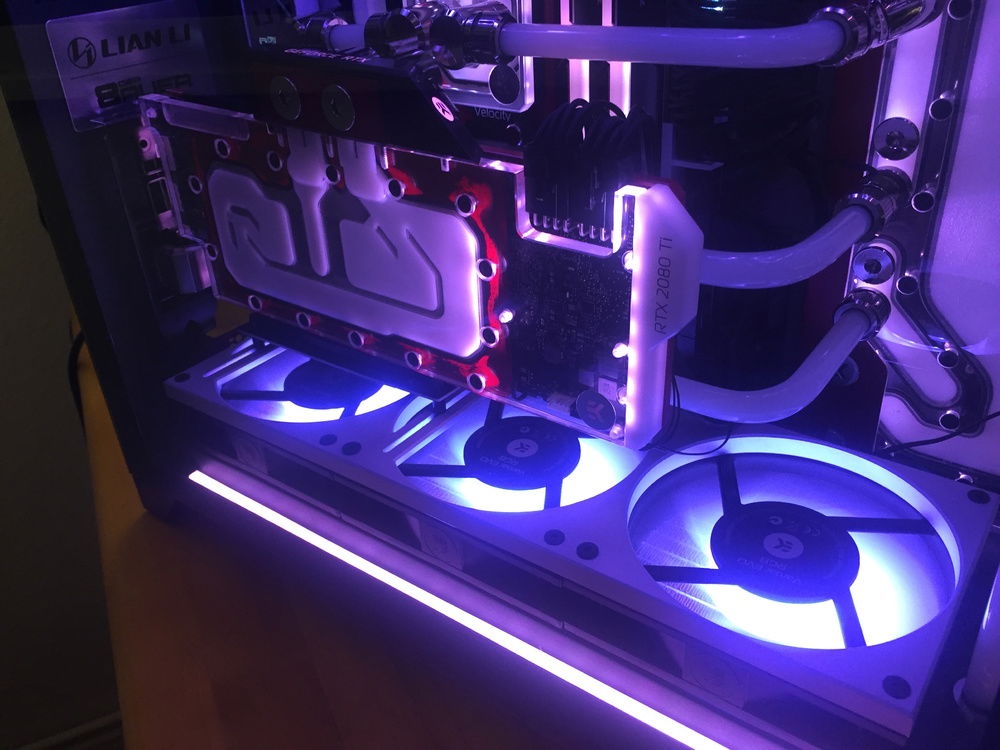

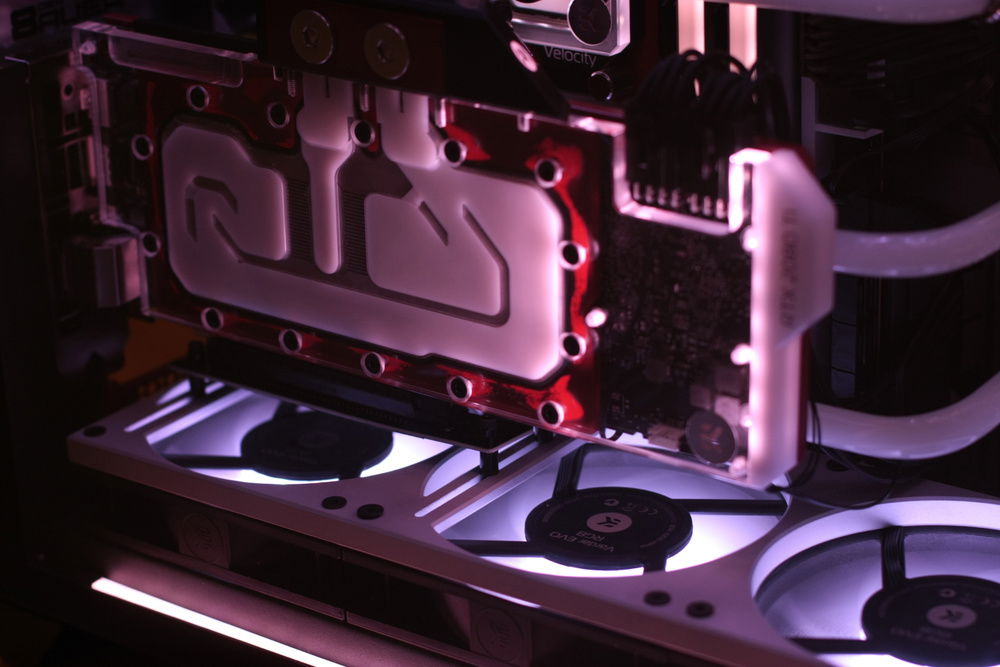

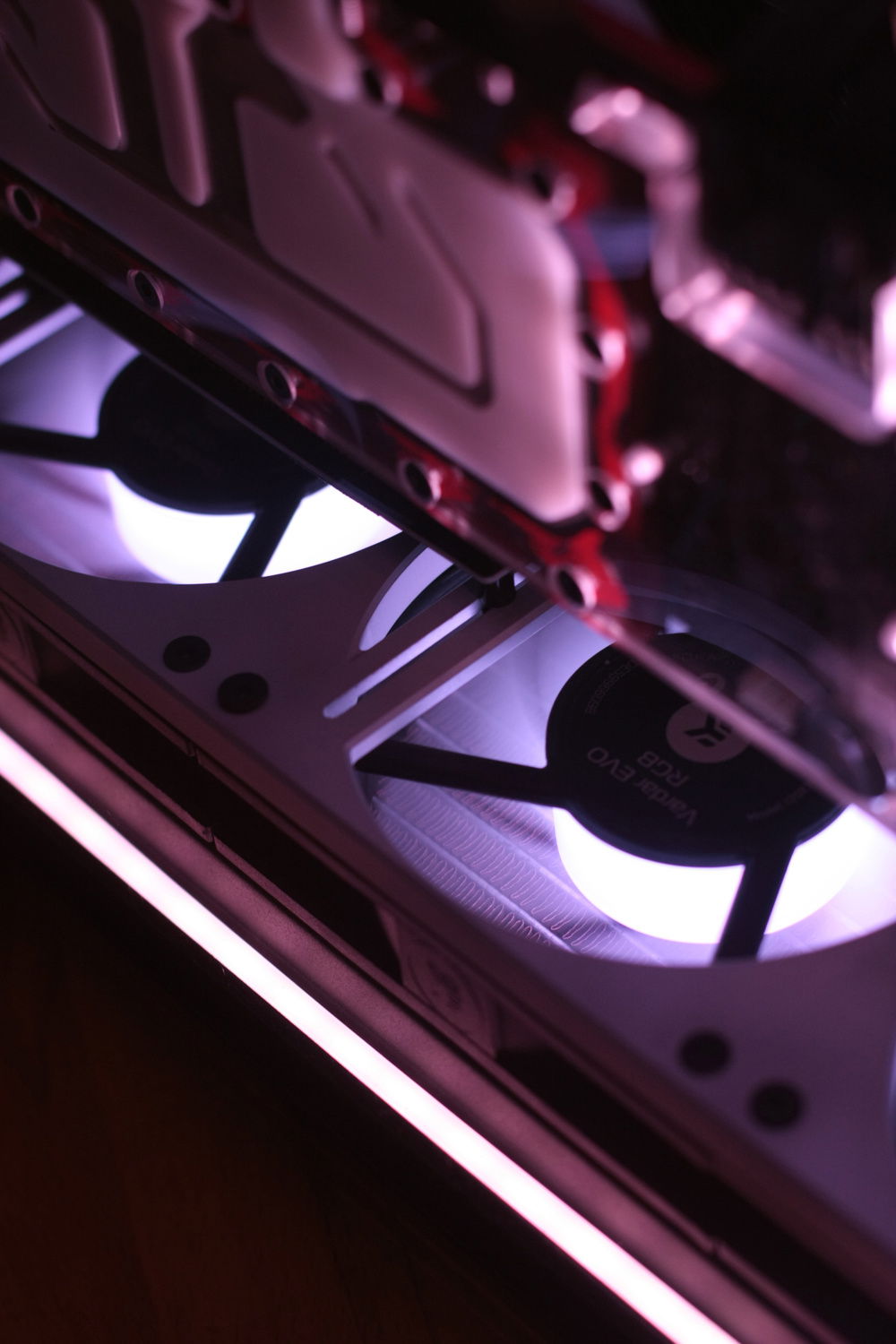

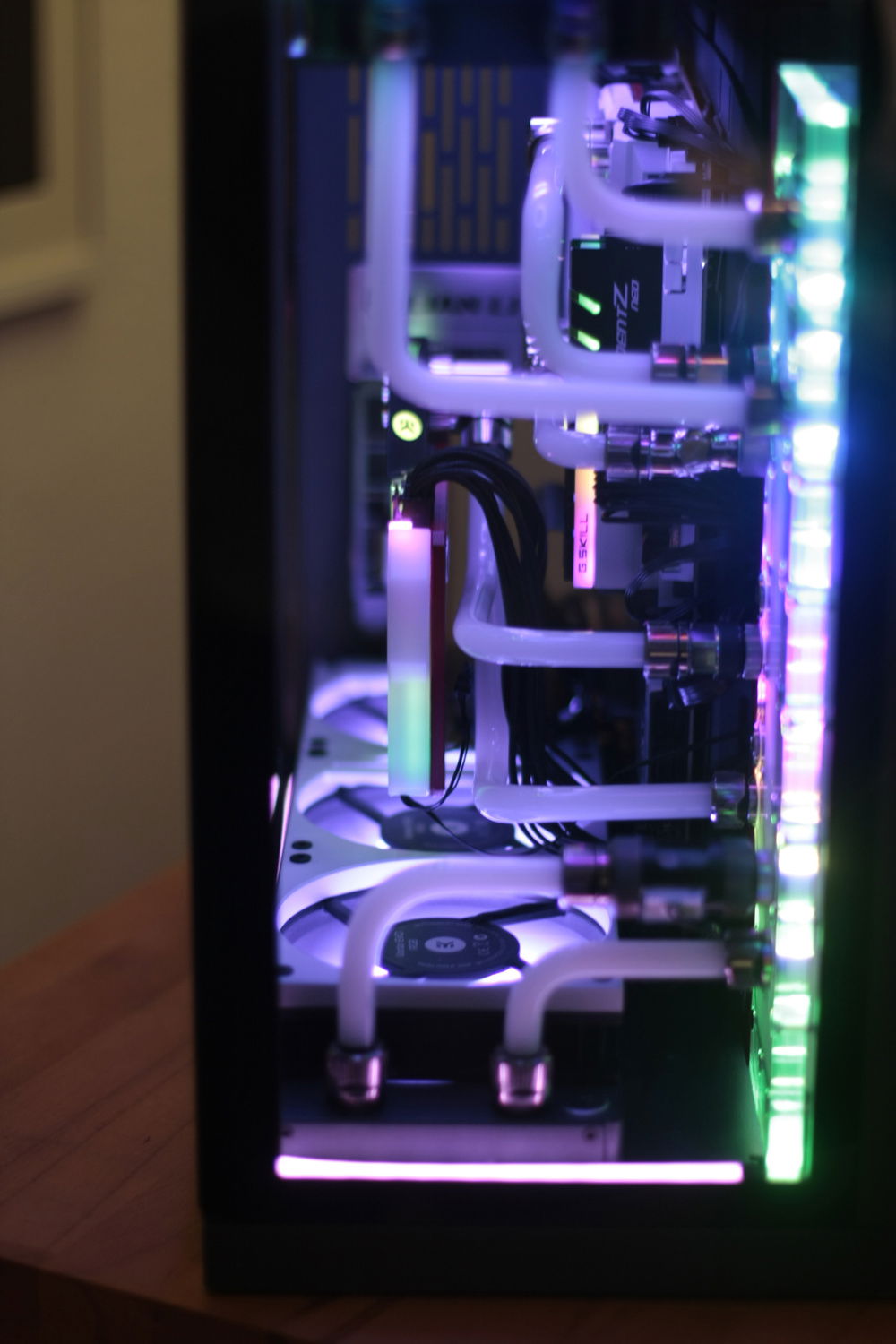

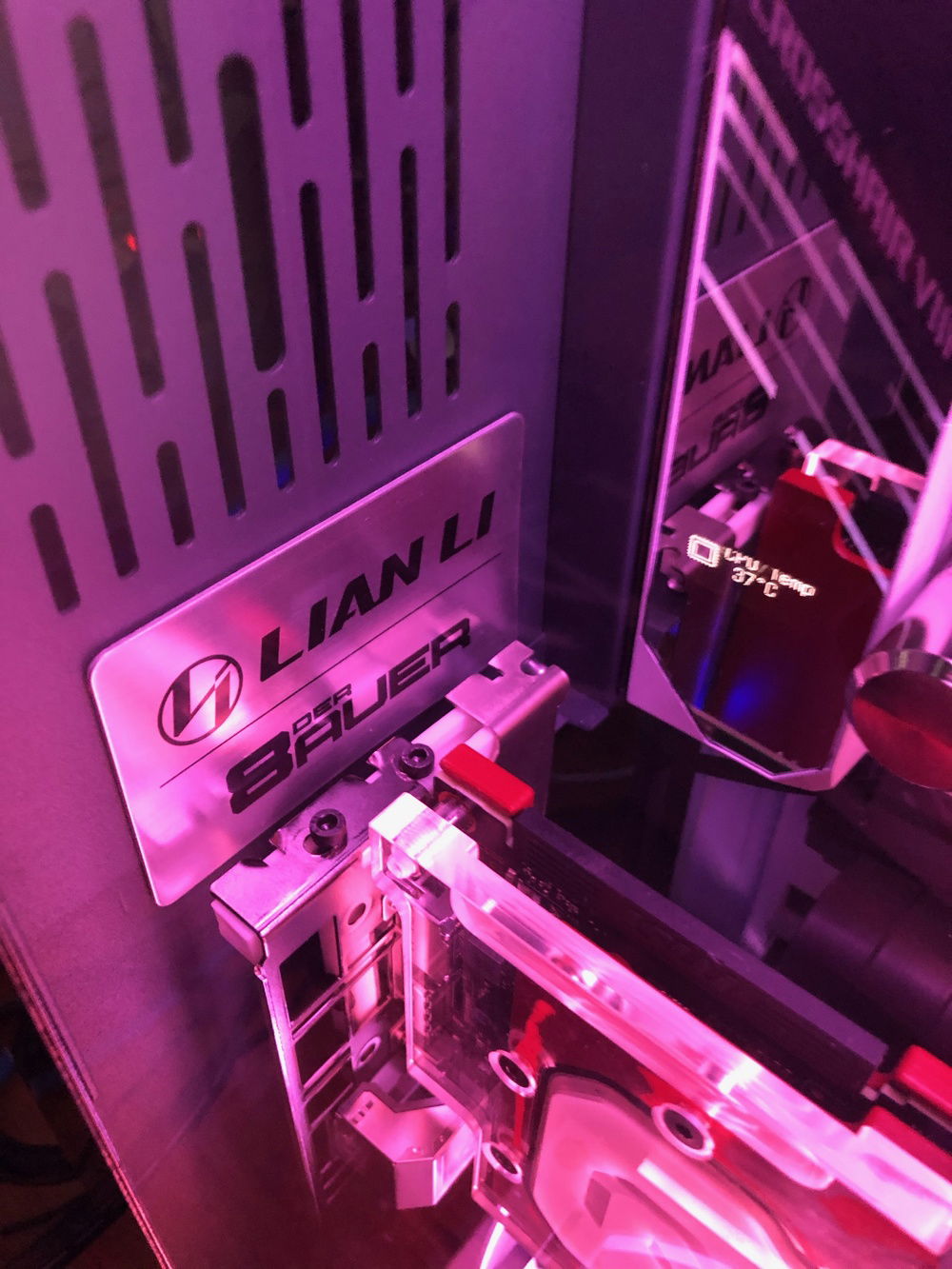

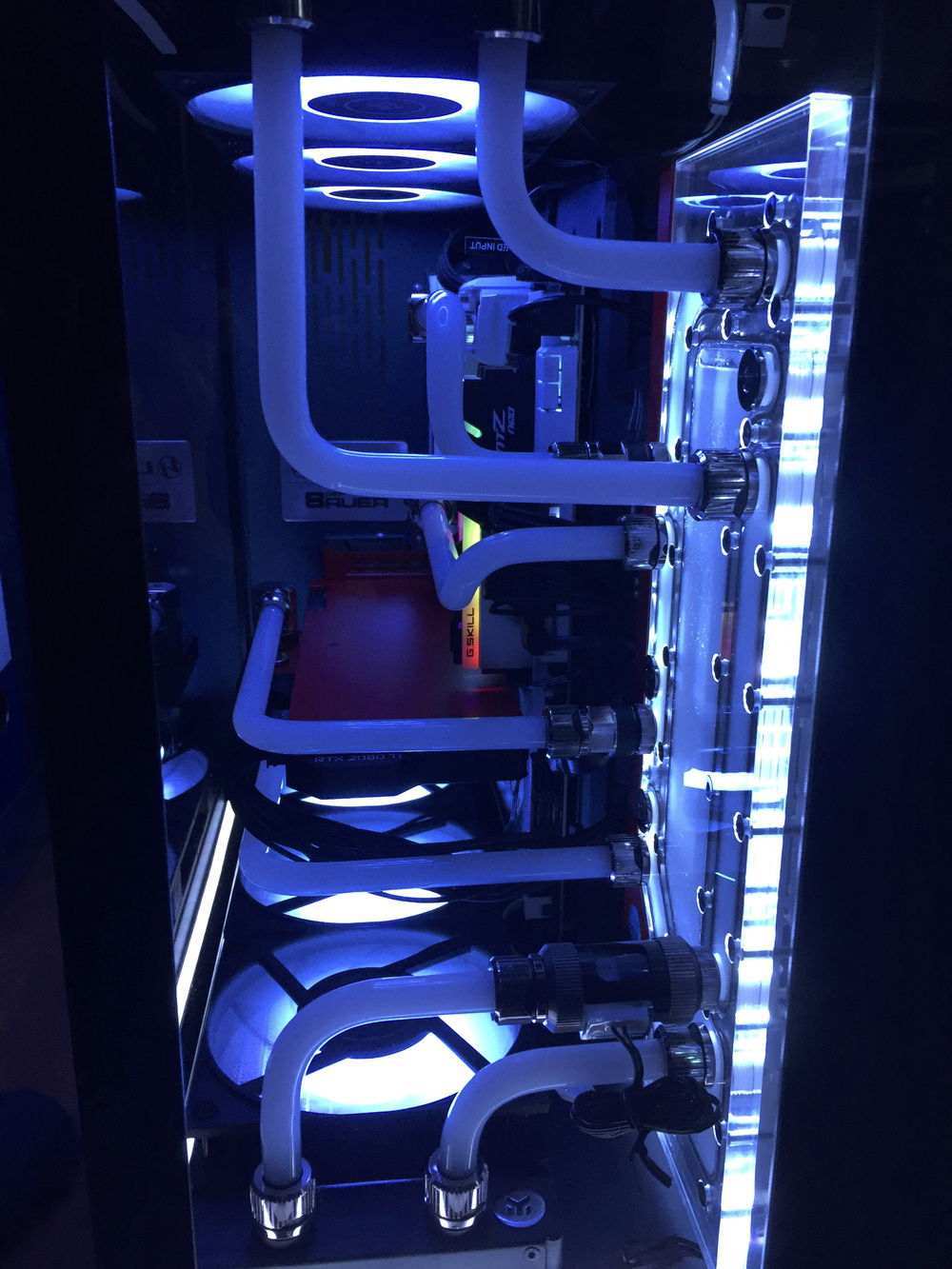

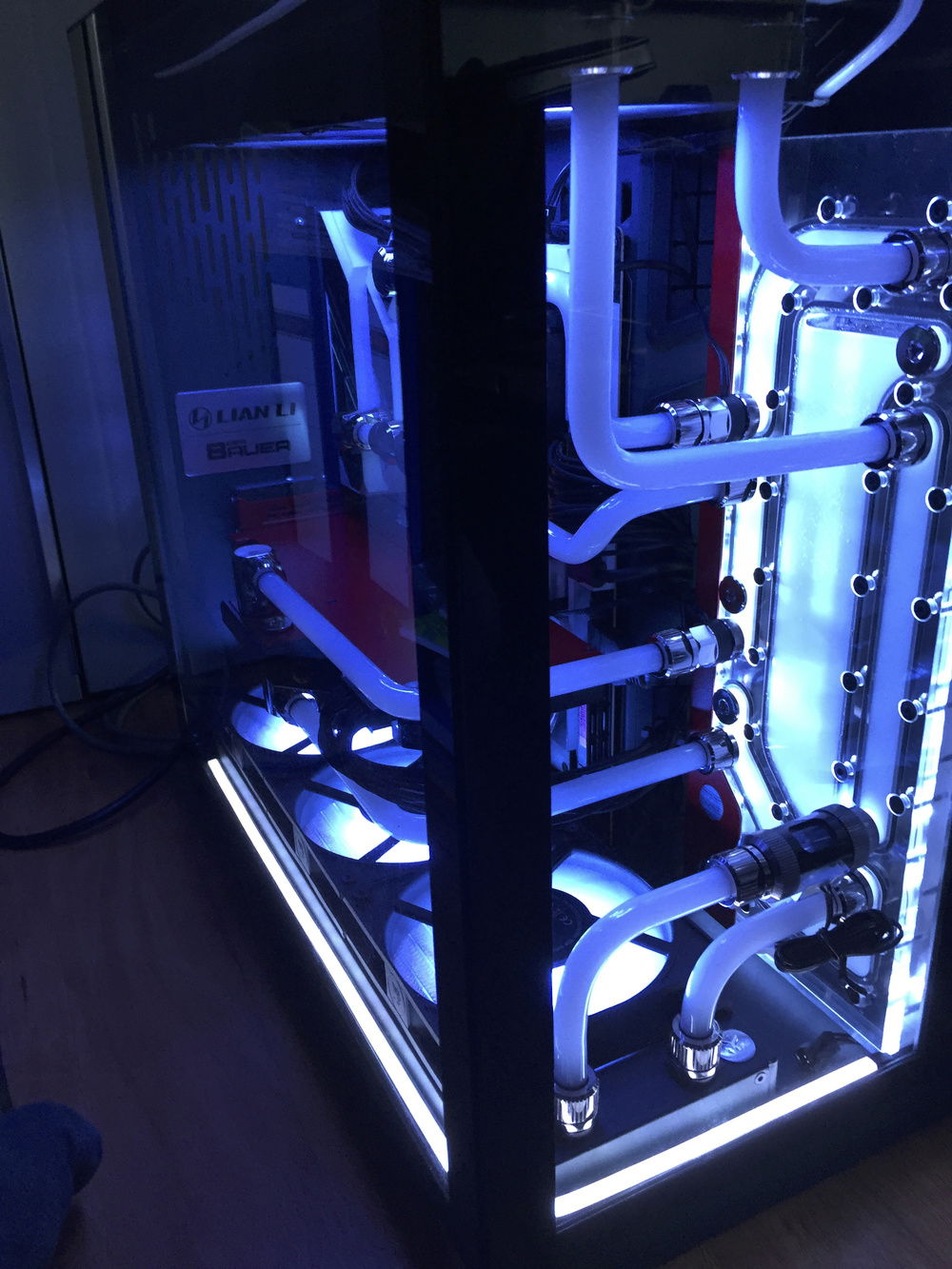

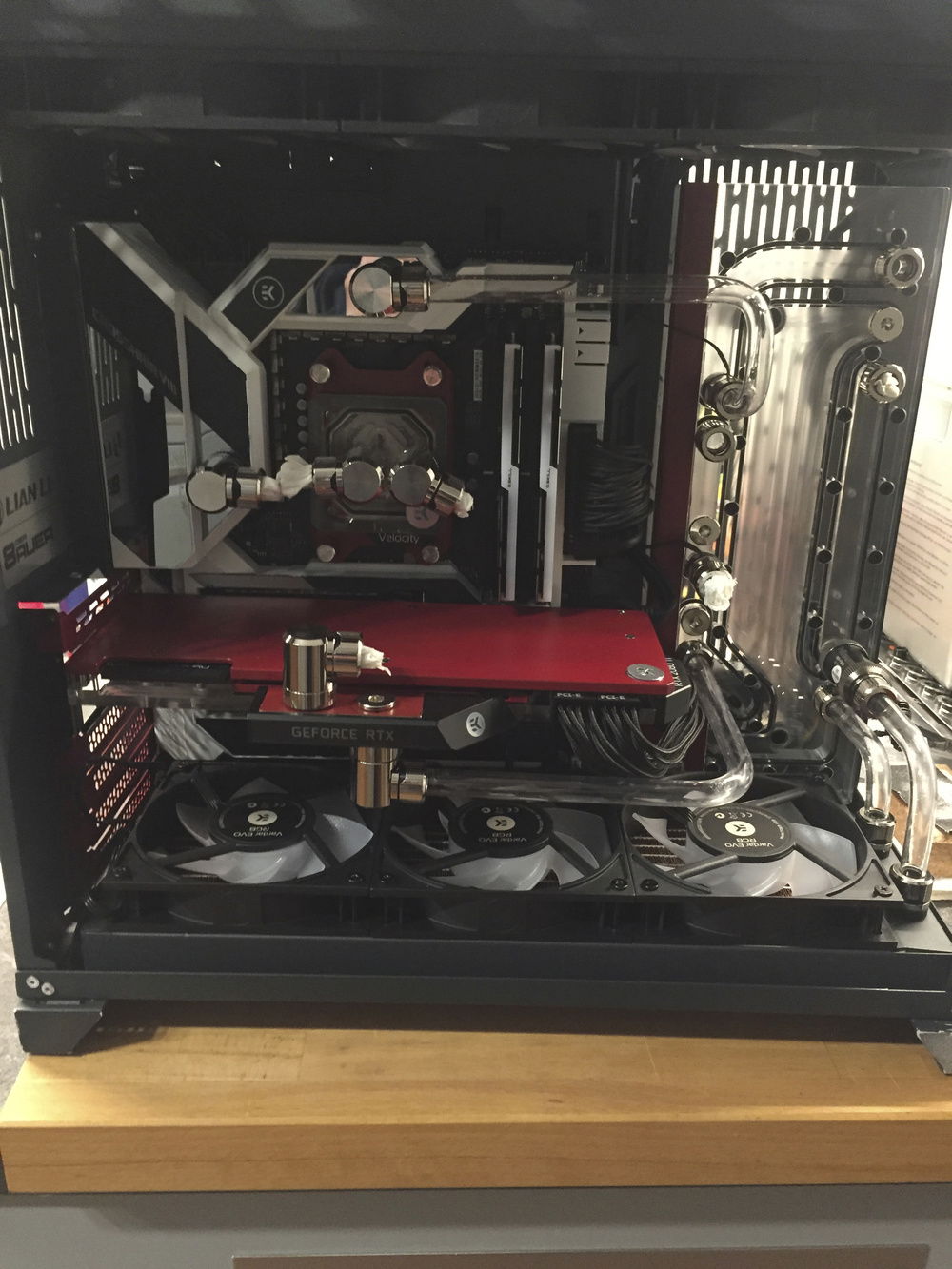

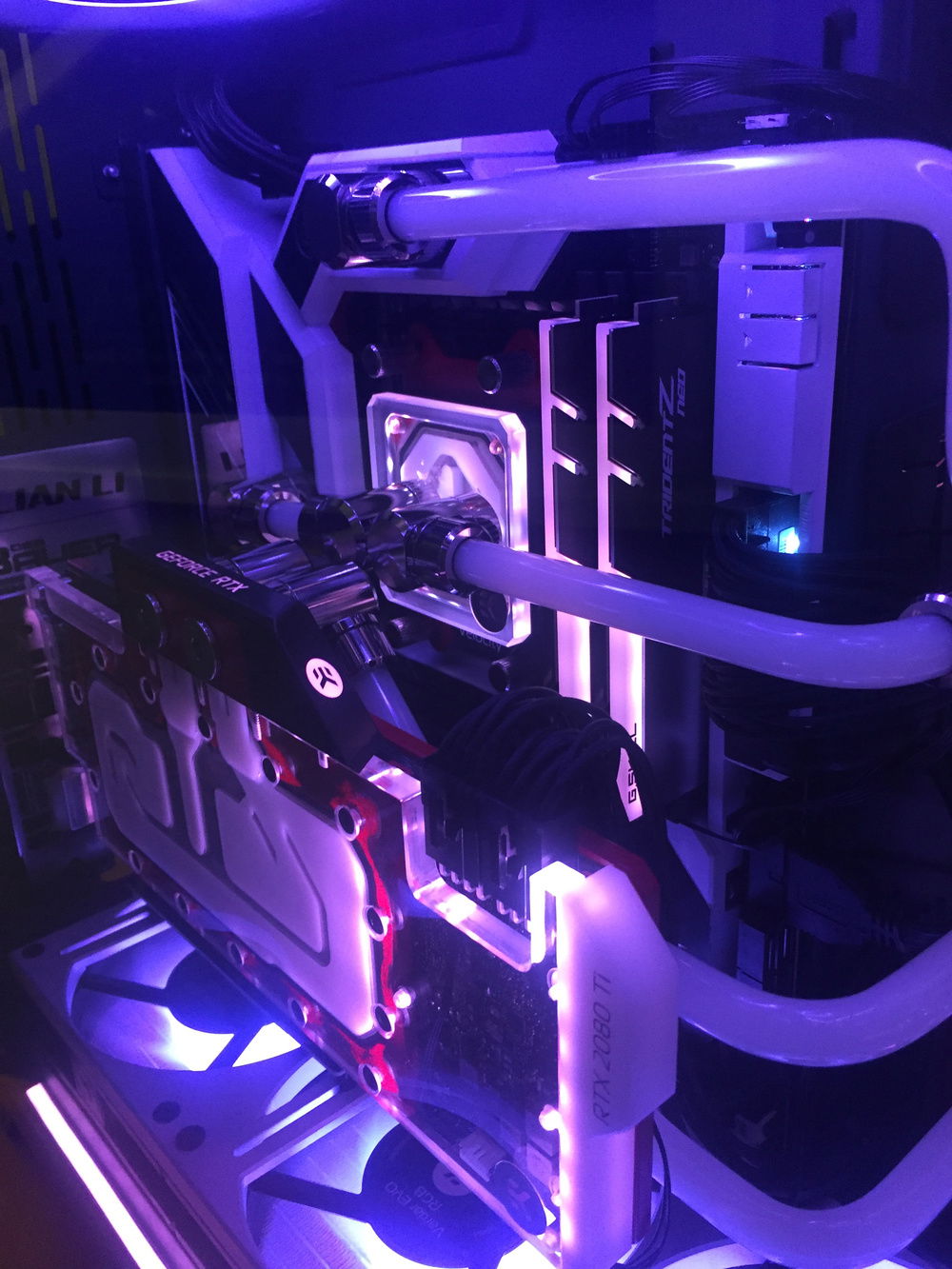

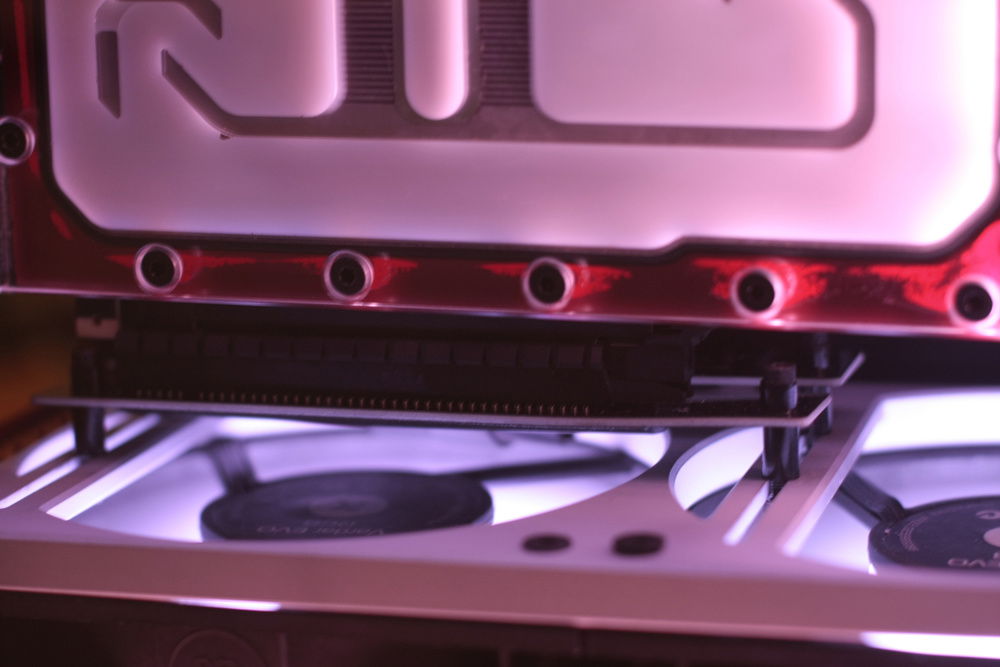

So, I finally got my custom vertical mount and found the time to build the new tubes and mount everything up.

I now have the GPU mounted vertically and have enough space behind it to install the HTC Vive Wireless-Card.

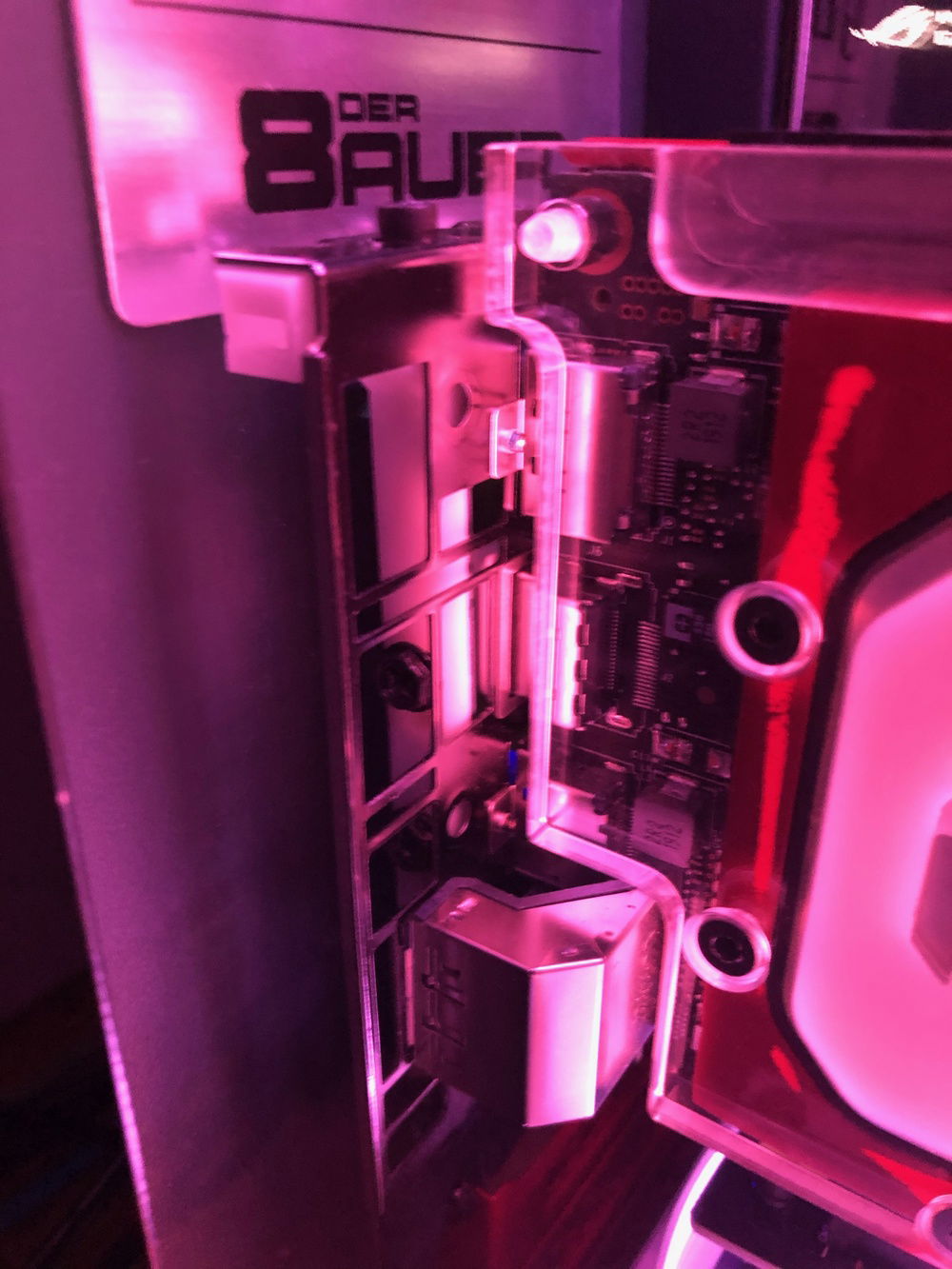

With the LEDs working you can see the 'damage' I needed to do when sanding down the powder coat to get the card to seal properly.

Part finally arrived

2020-05-15

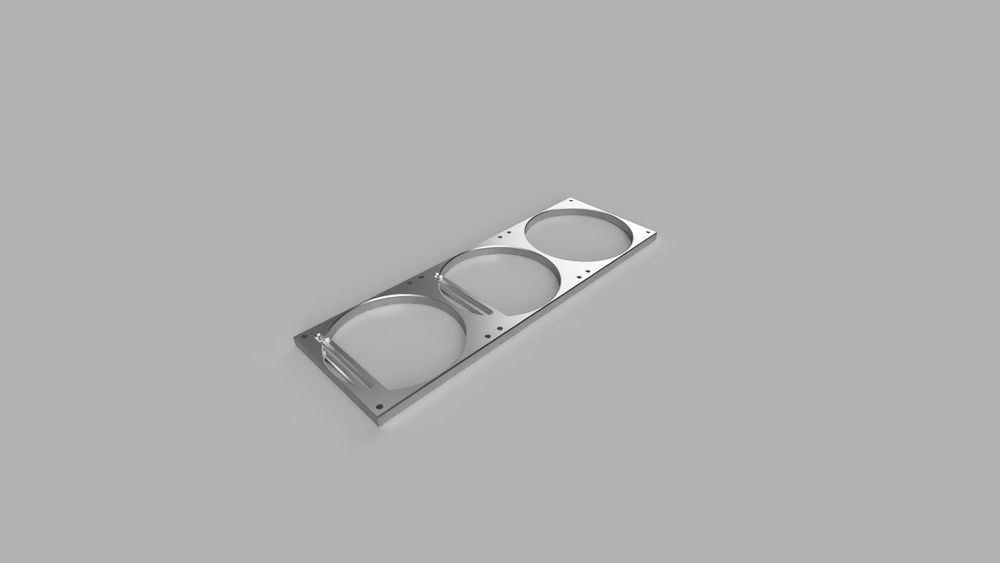

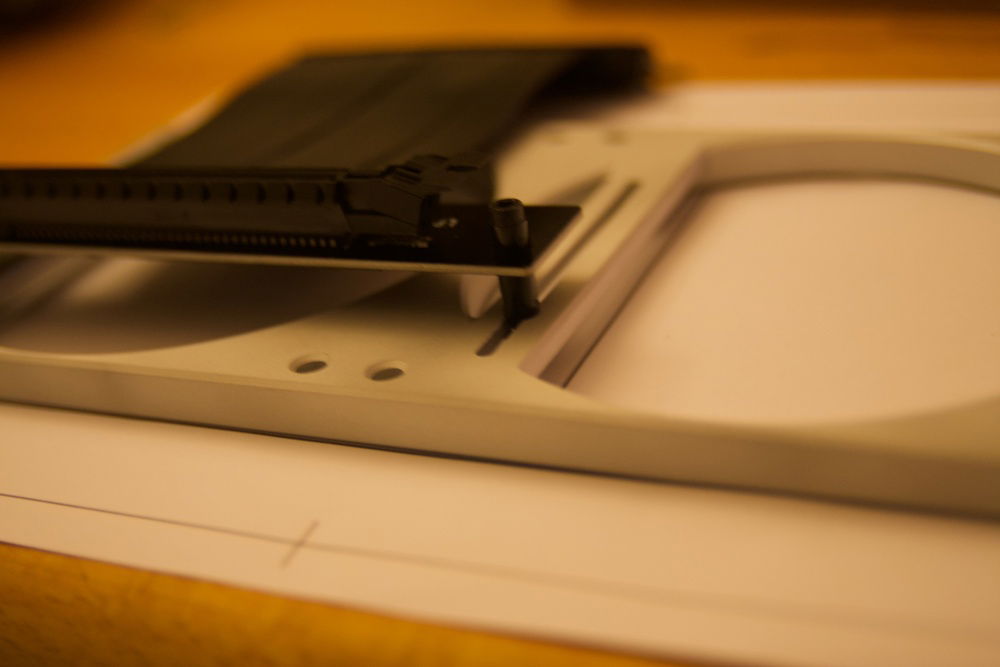

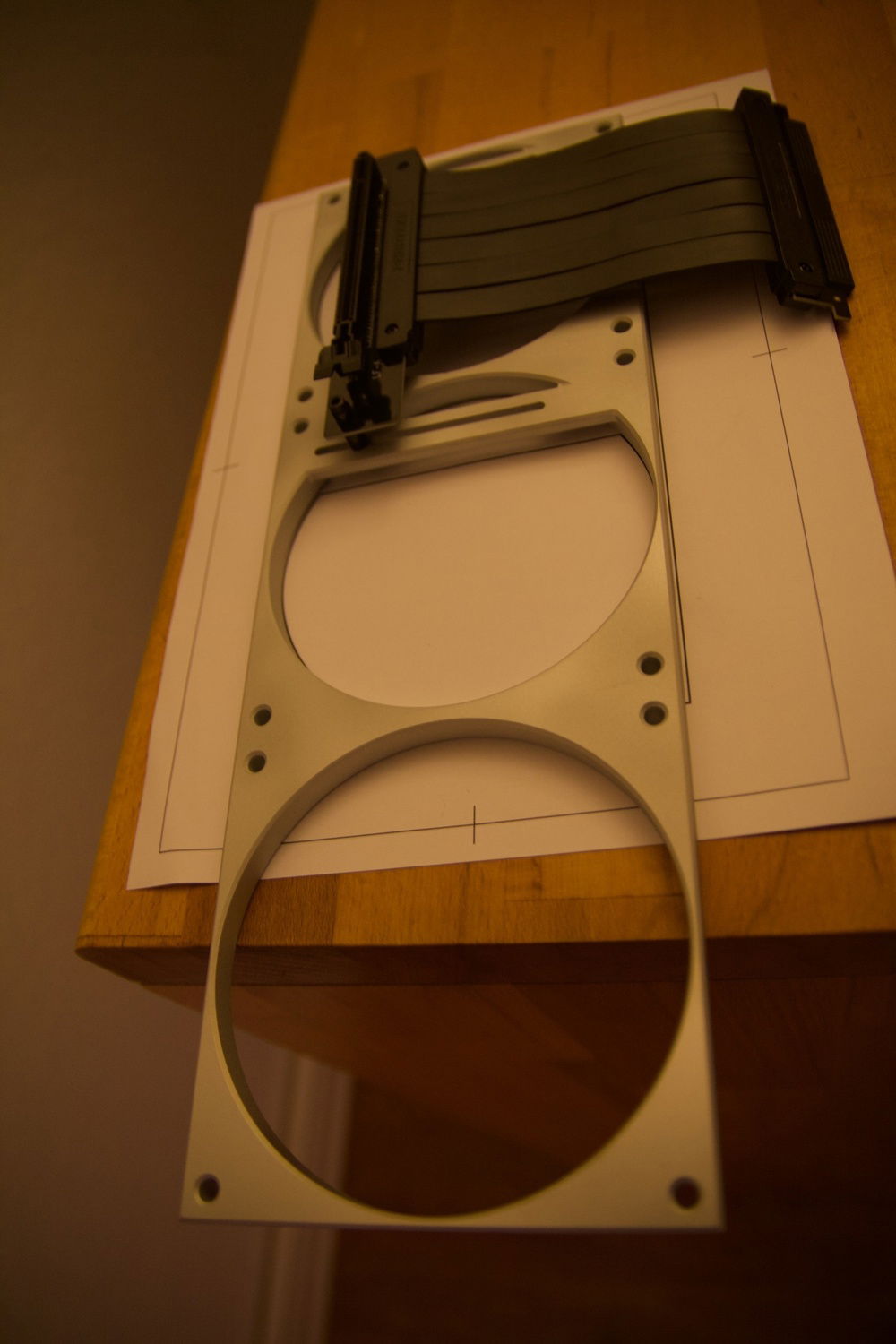

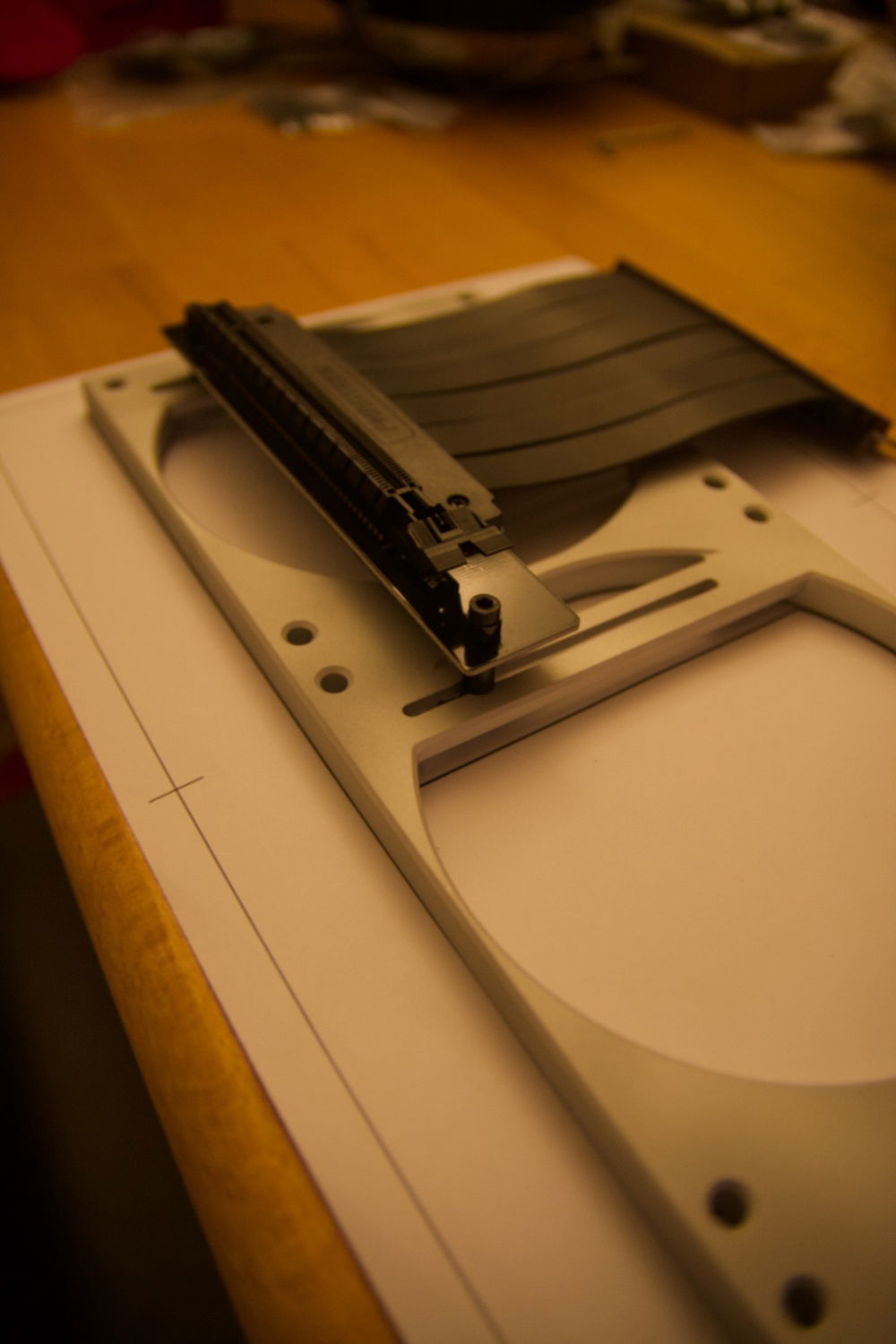

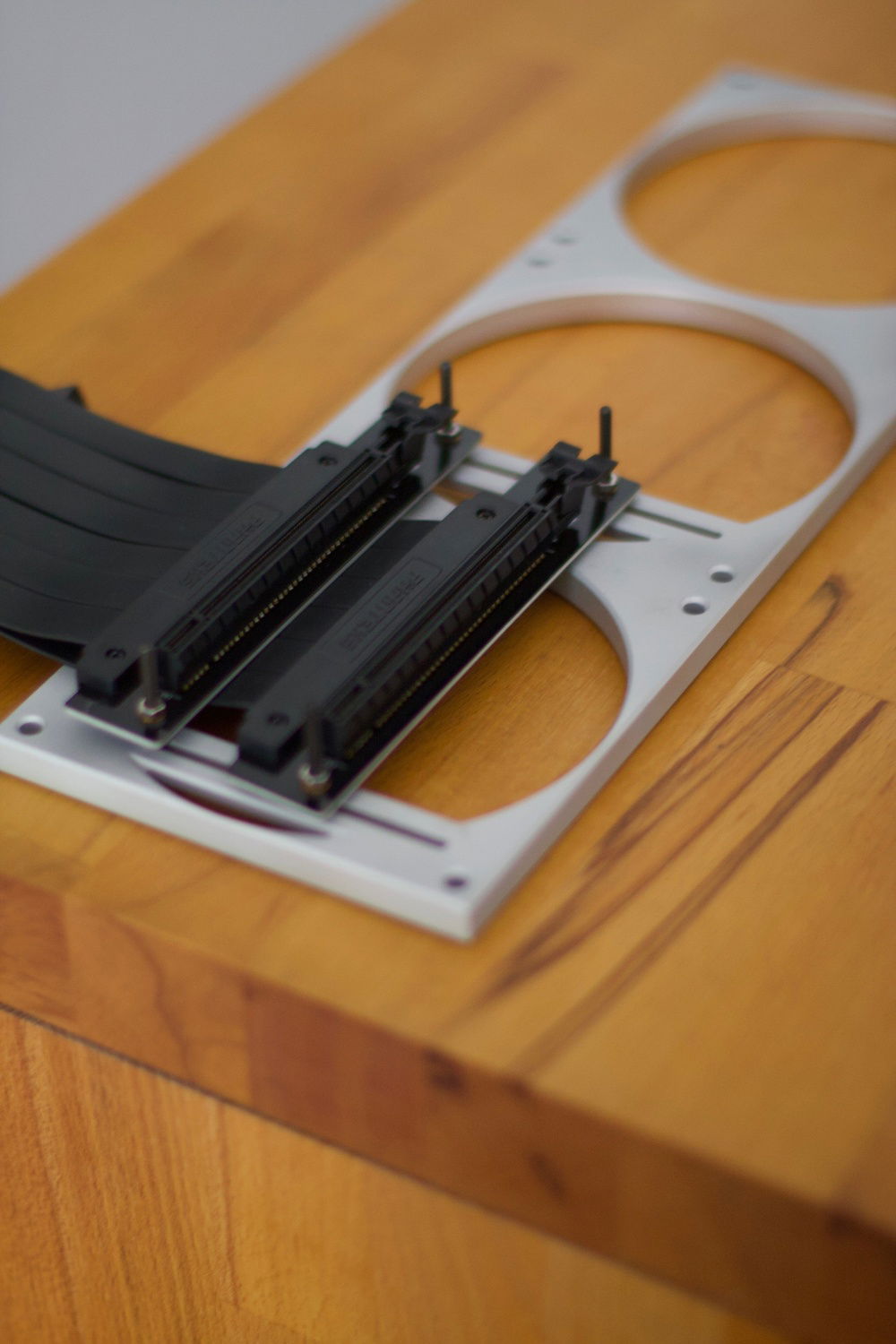

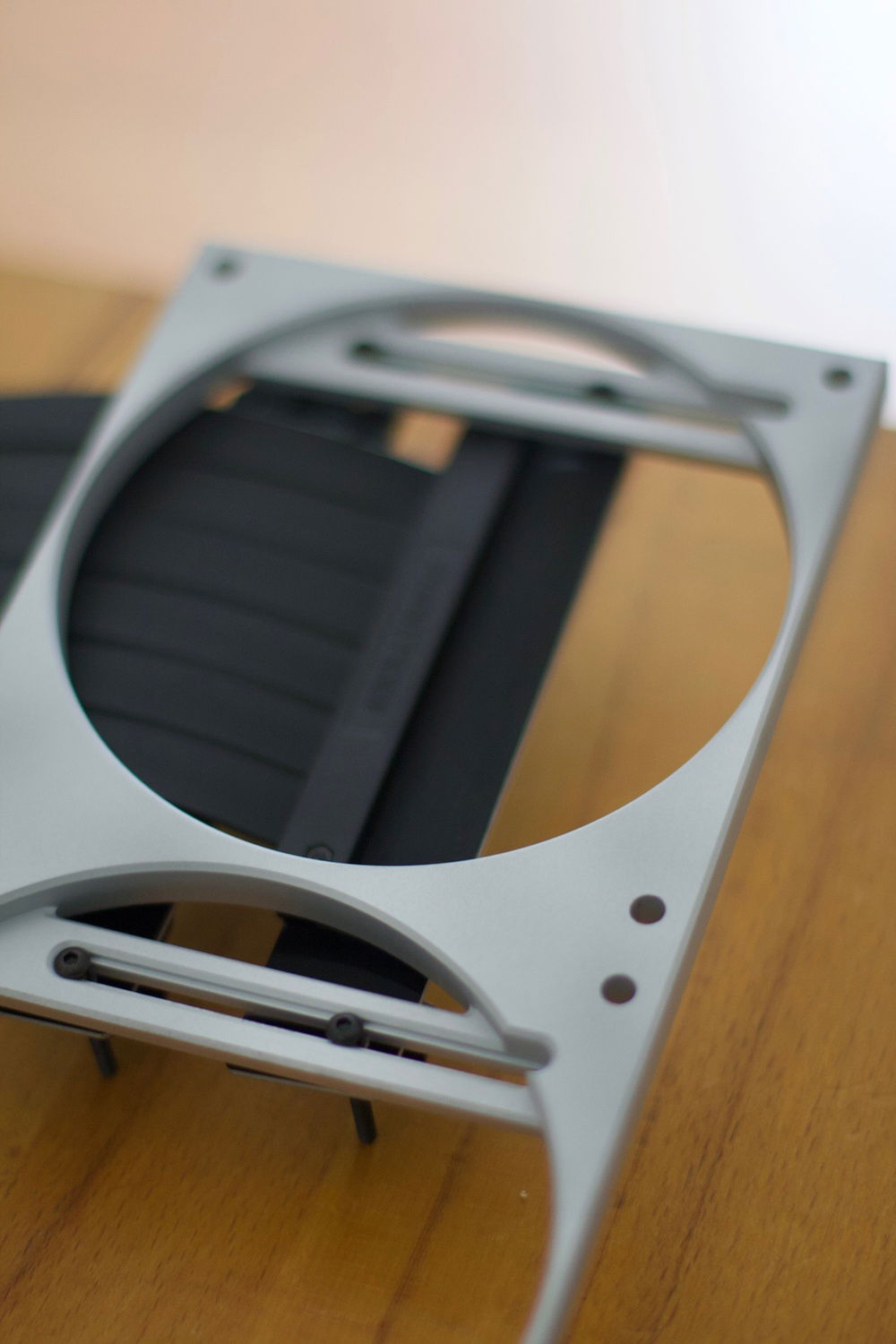

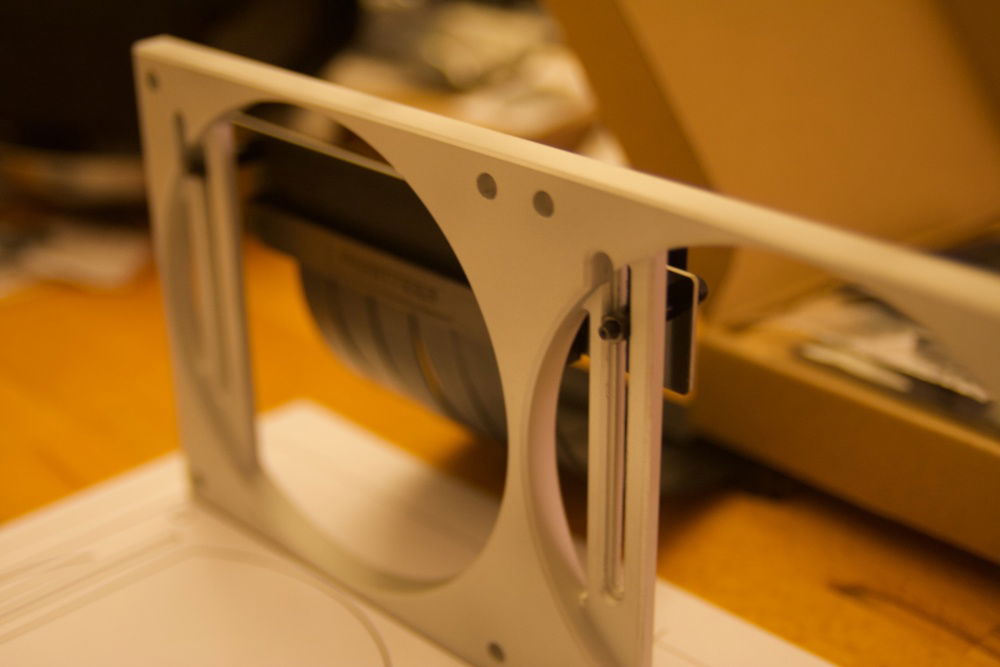

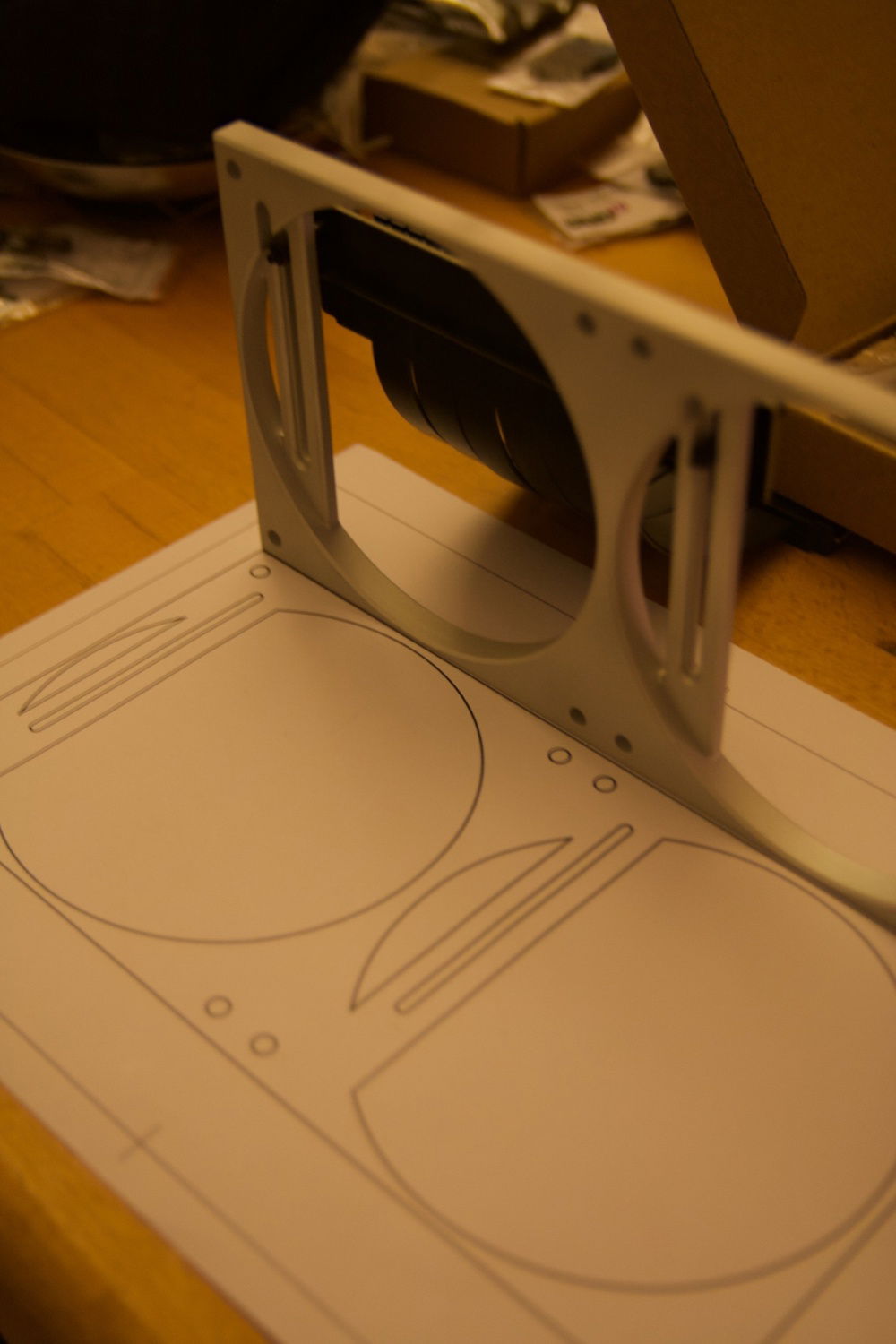

So my custom made bracket finally arrived and it is awesome!

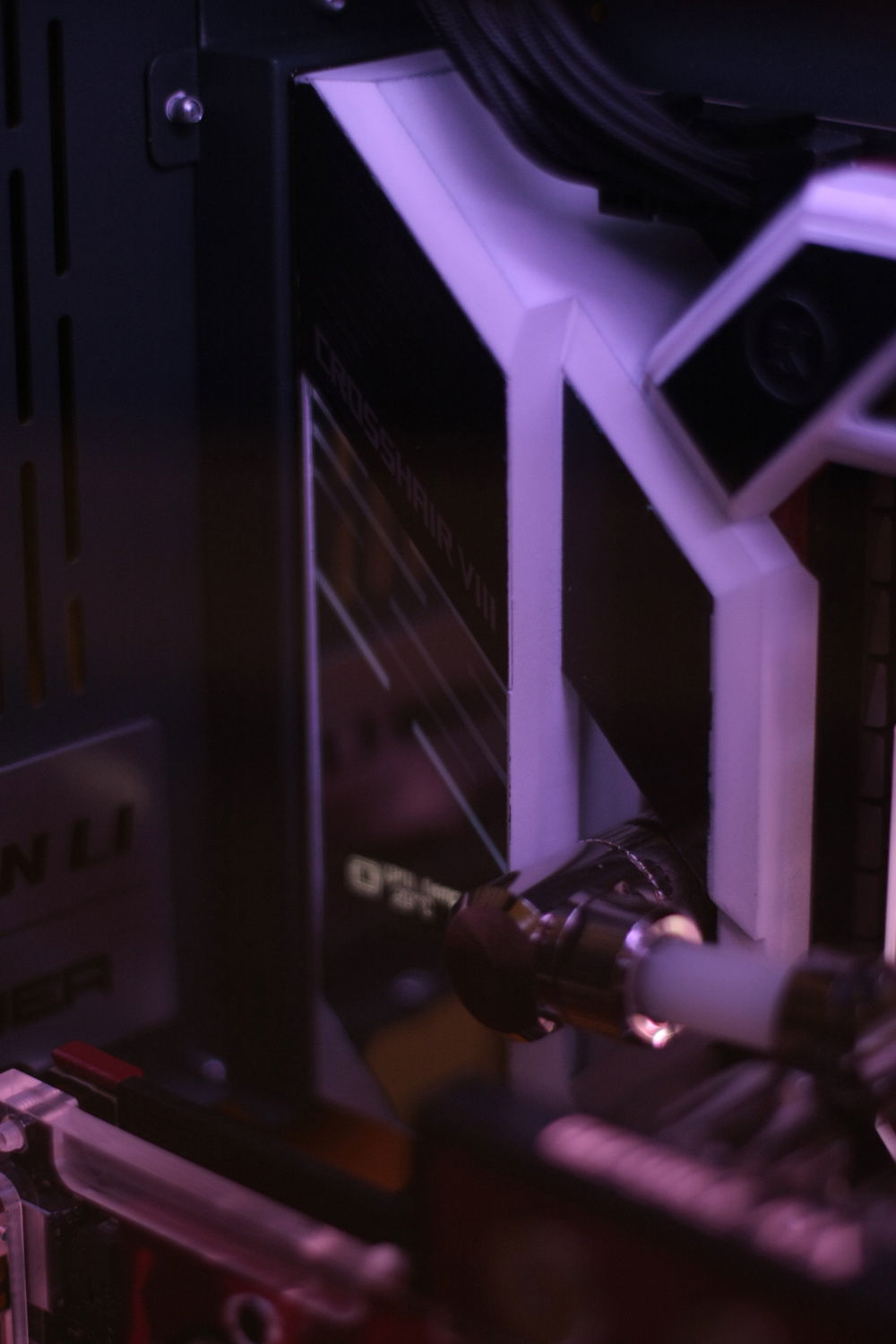

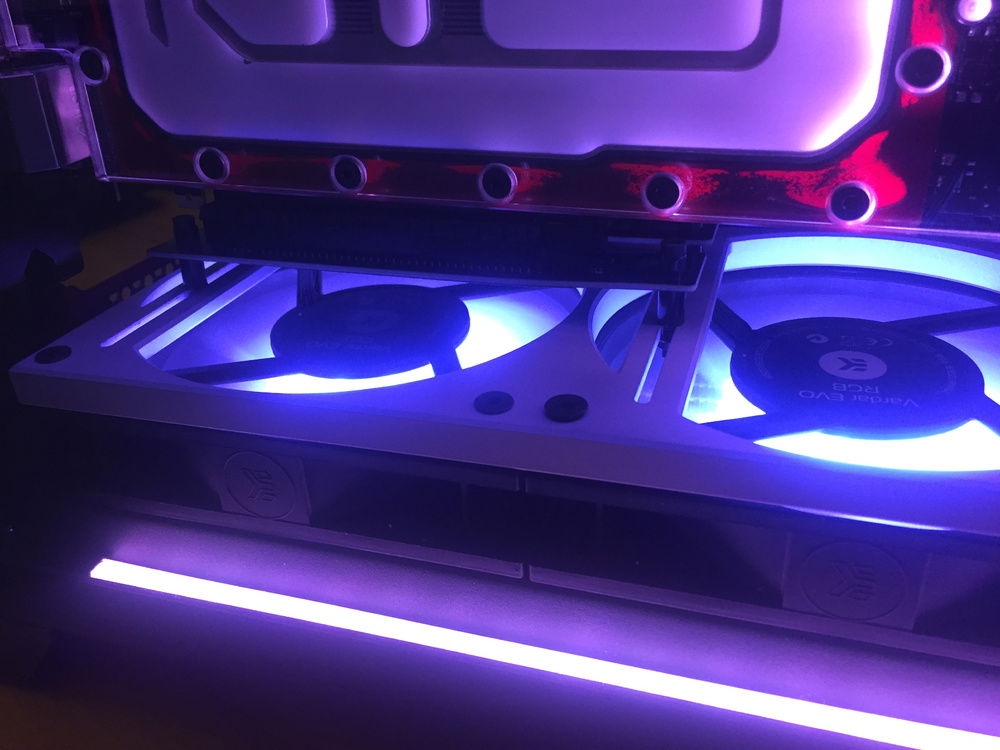

Quick recap: In the O11D I'm using, the bottom radiator/fans block me from using a normal bracket; so I came up with the idea to build a bracket that attaches to the top of the fans and serves as a base to hold up my GPU (as well as the wireless-VR-card later on).
I've had no experience with designing 3D-objects in Fusion360 so I learned quite a bit and after printing the technical drawings and comparing them with the parts I sent them off to be manufactured by 3D-Hubs. They were supposed to arrive at the start of April, but due to the current pandemic couldn't be shipped until now.

To feel a custom 3D-Design in solid Aluminium in your hands is very satisfying and the finish on the part looks phenomenal.

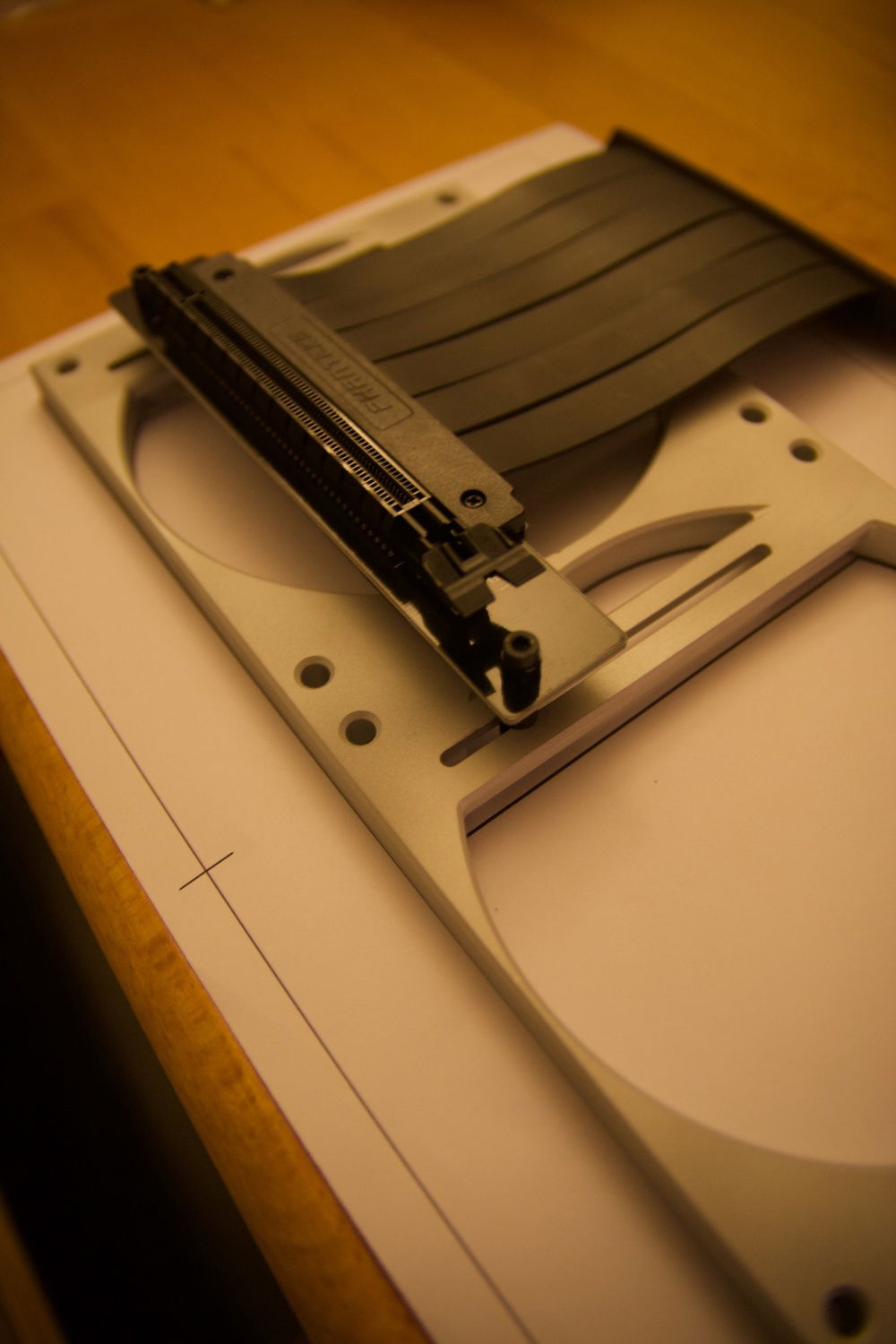

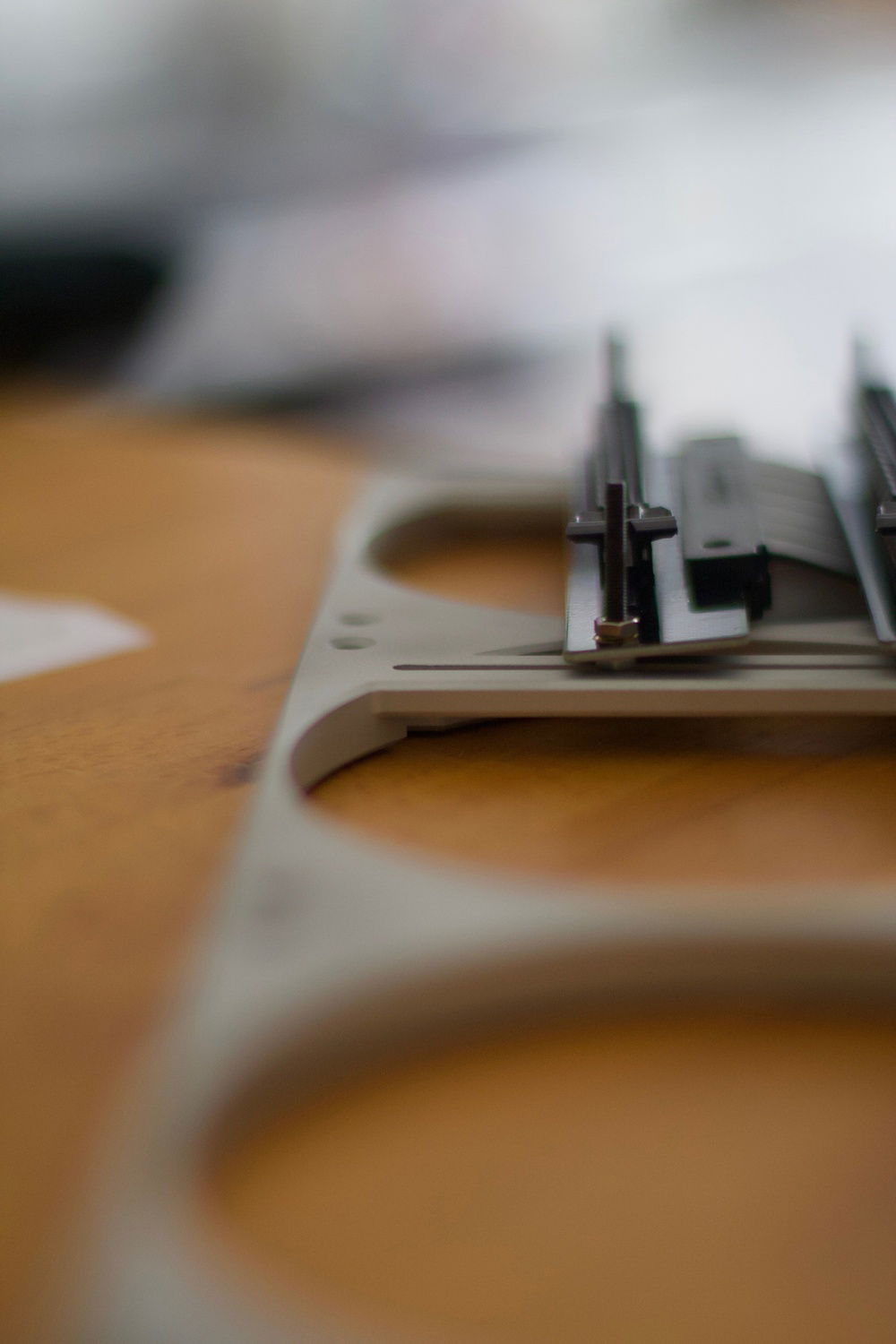

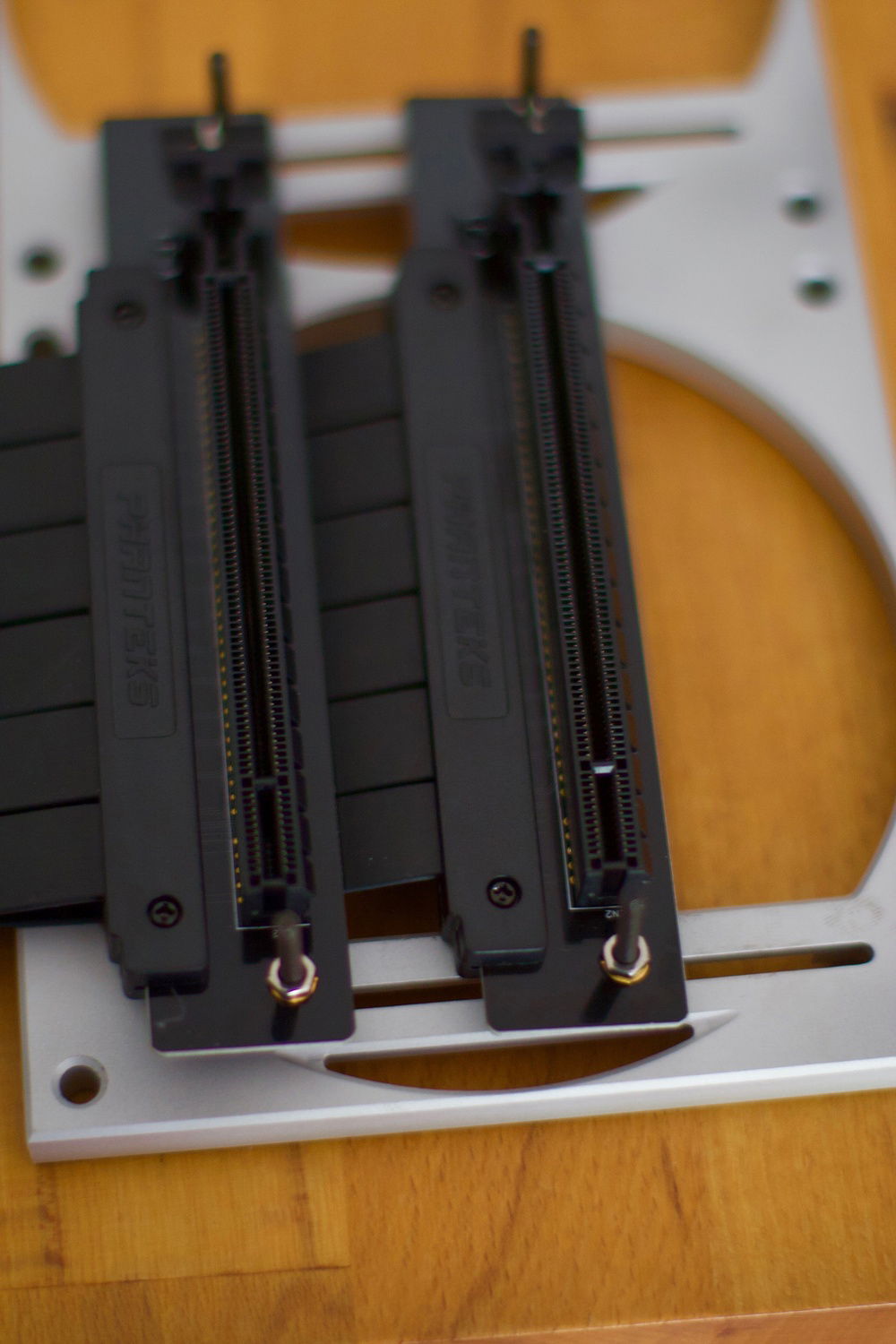

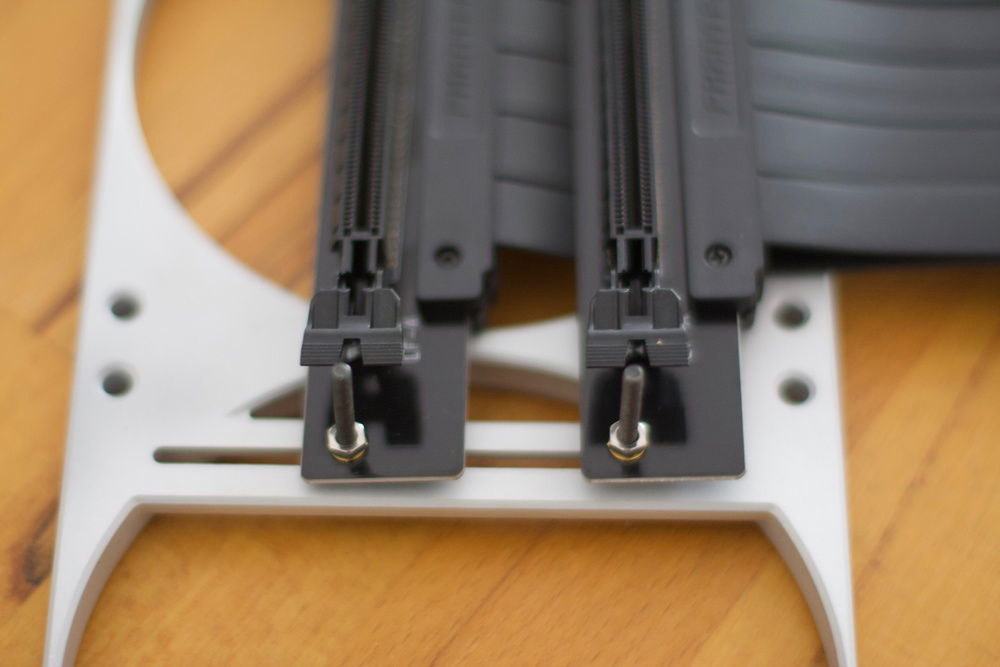

Some photos from me trying to mount the 2 riser-cables are below, better equipment for mounting is on its way, so hopefully I'll soon be able to mount it into the system.

Mounting a video card on top the radiator and fans- prelude

2020-03-16

Final touches

2020-02-03

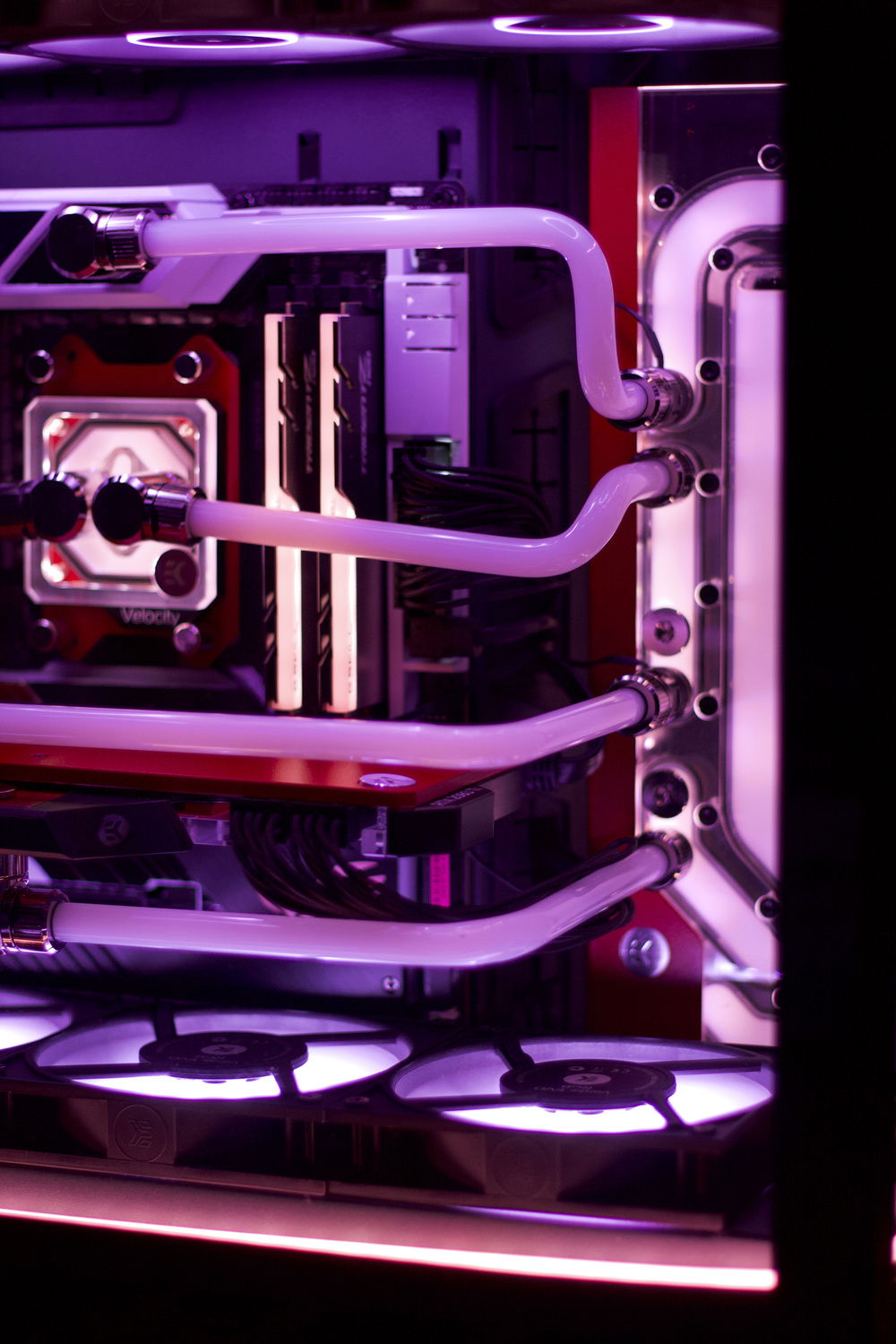

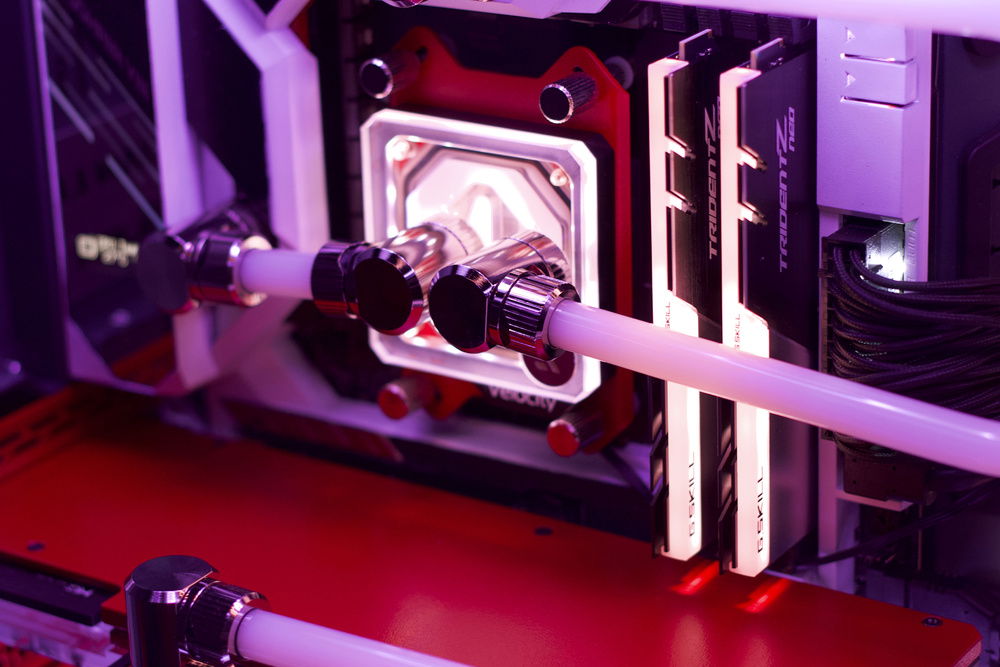

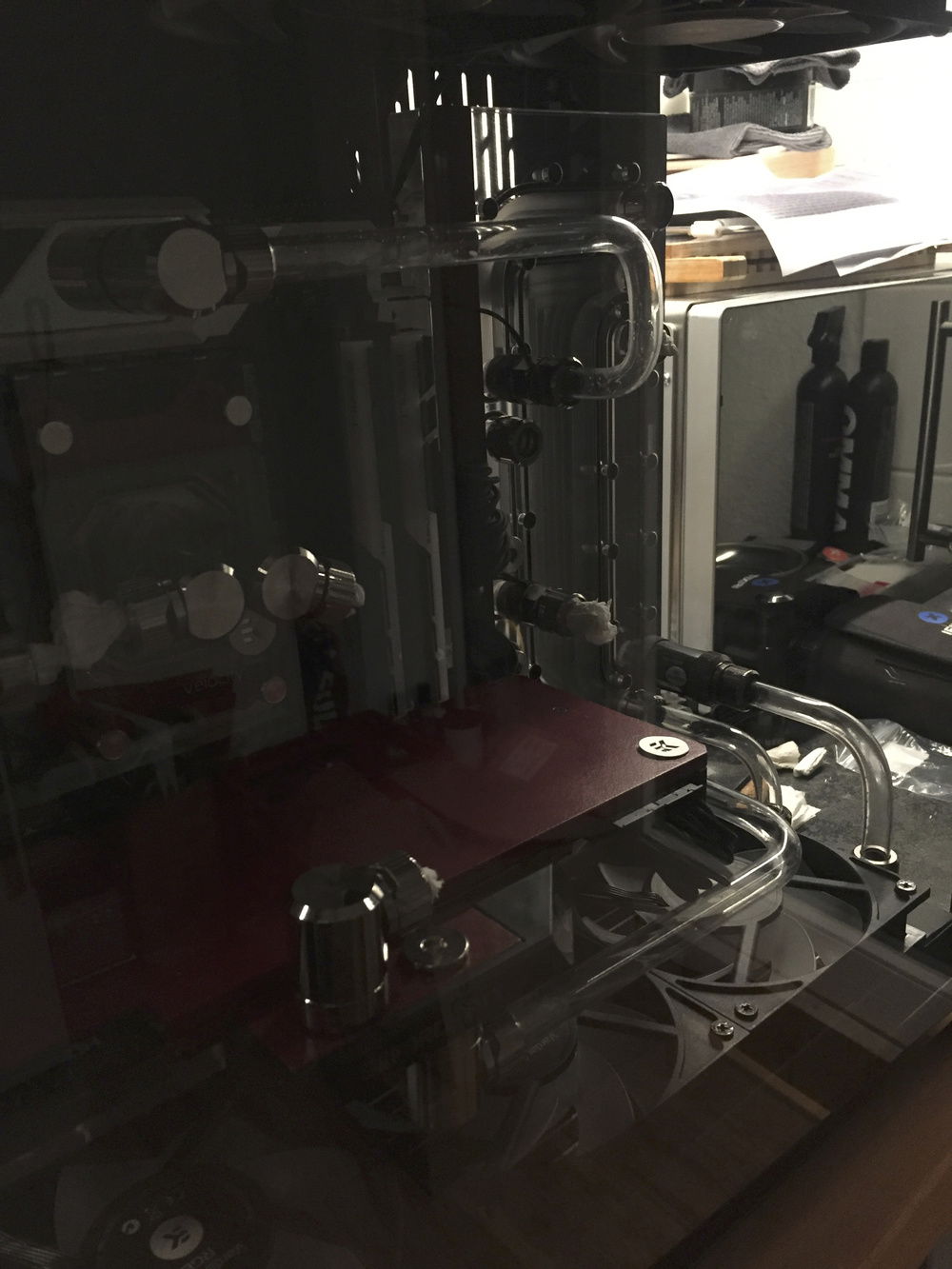

Windows installed, bending tubes and cablemanagement

2020-01-30

The build from hell

2020-01-20

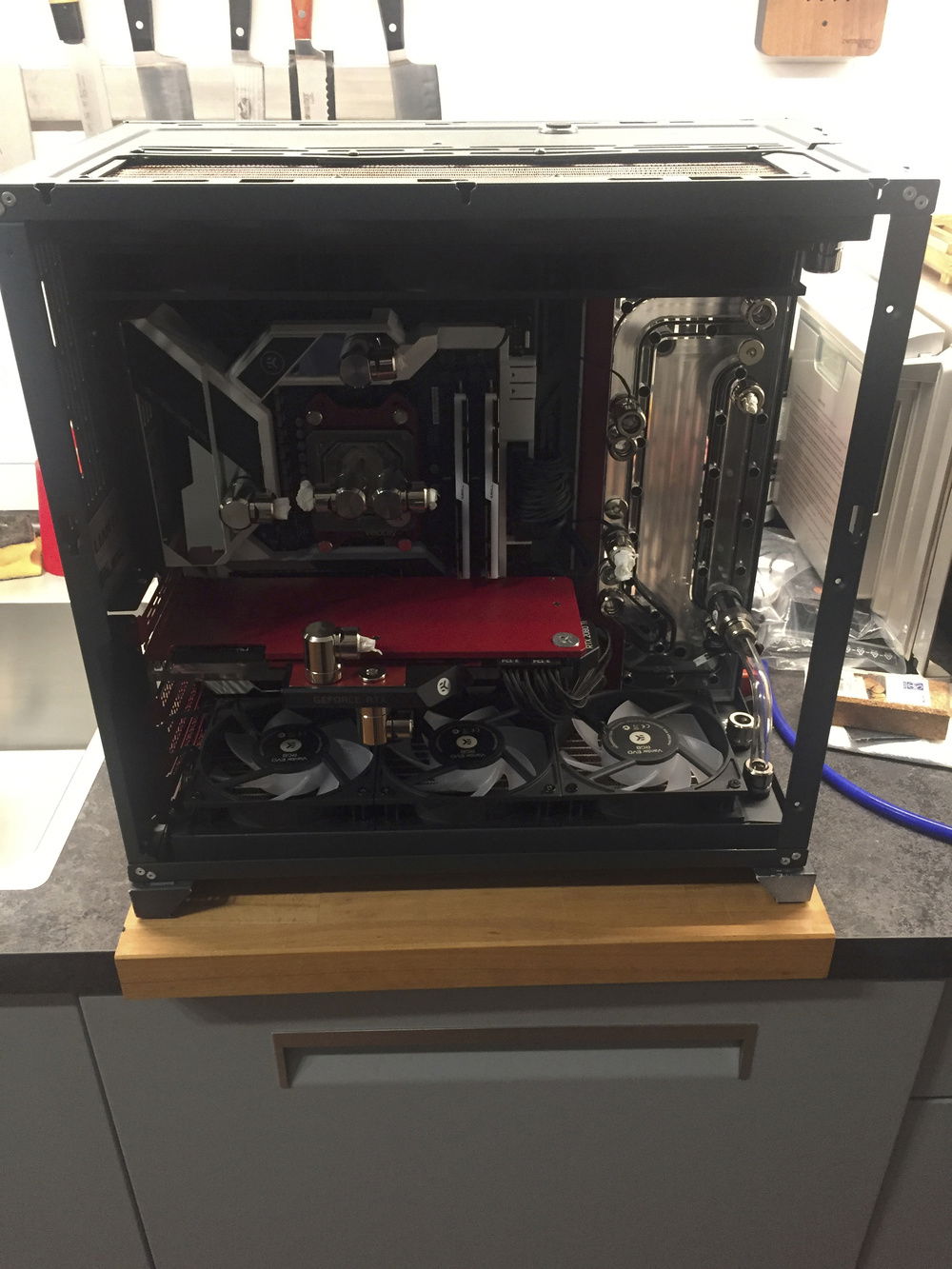

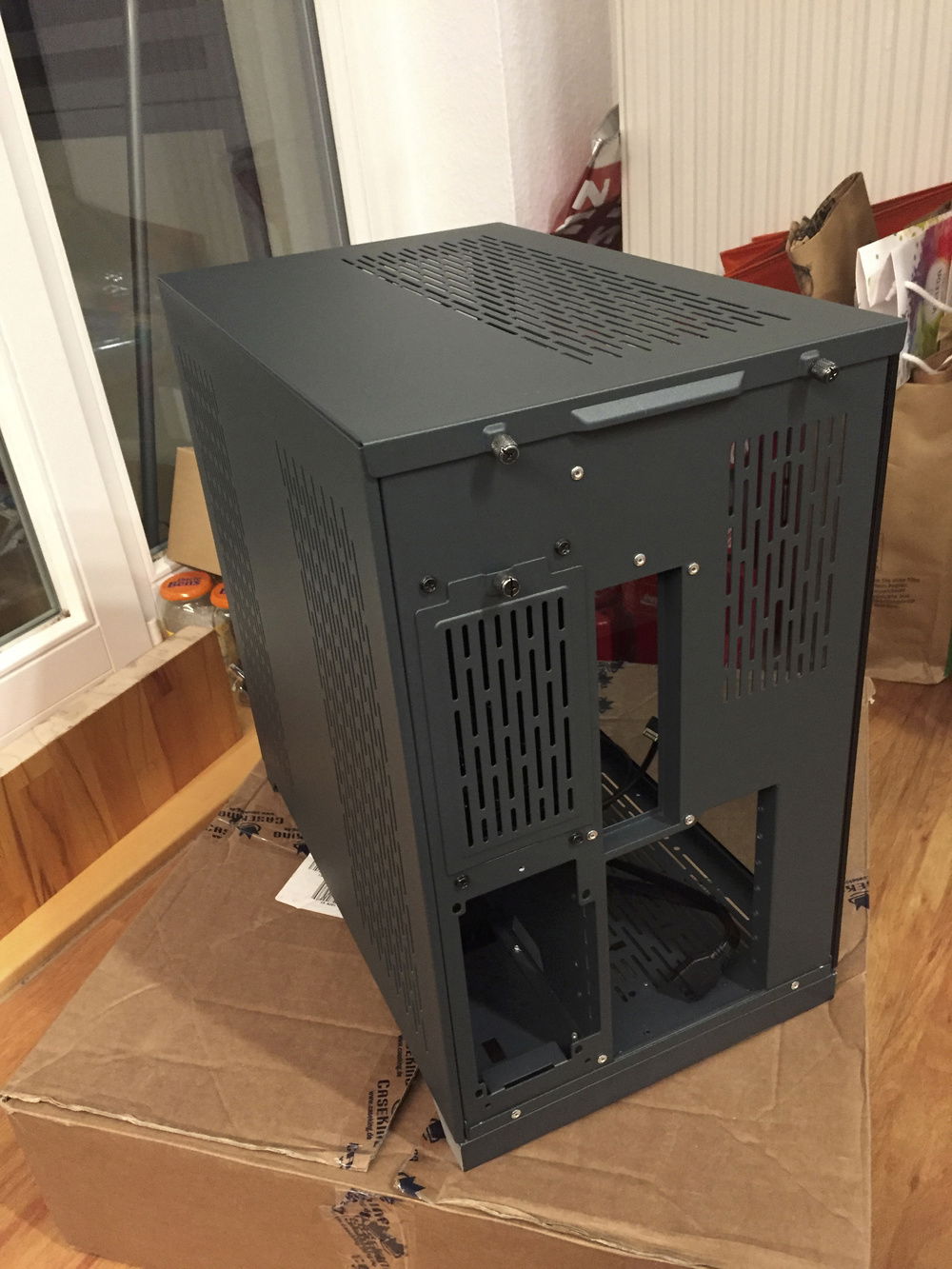

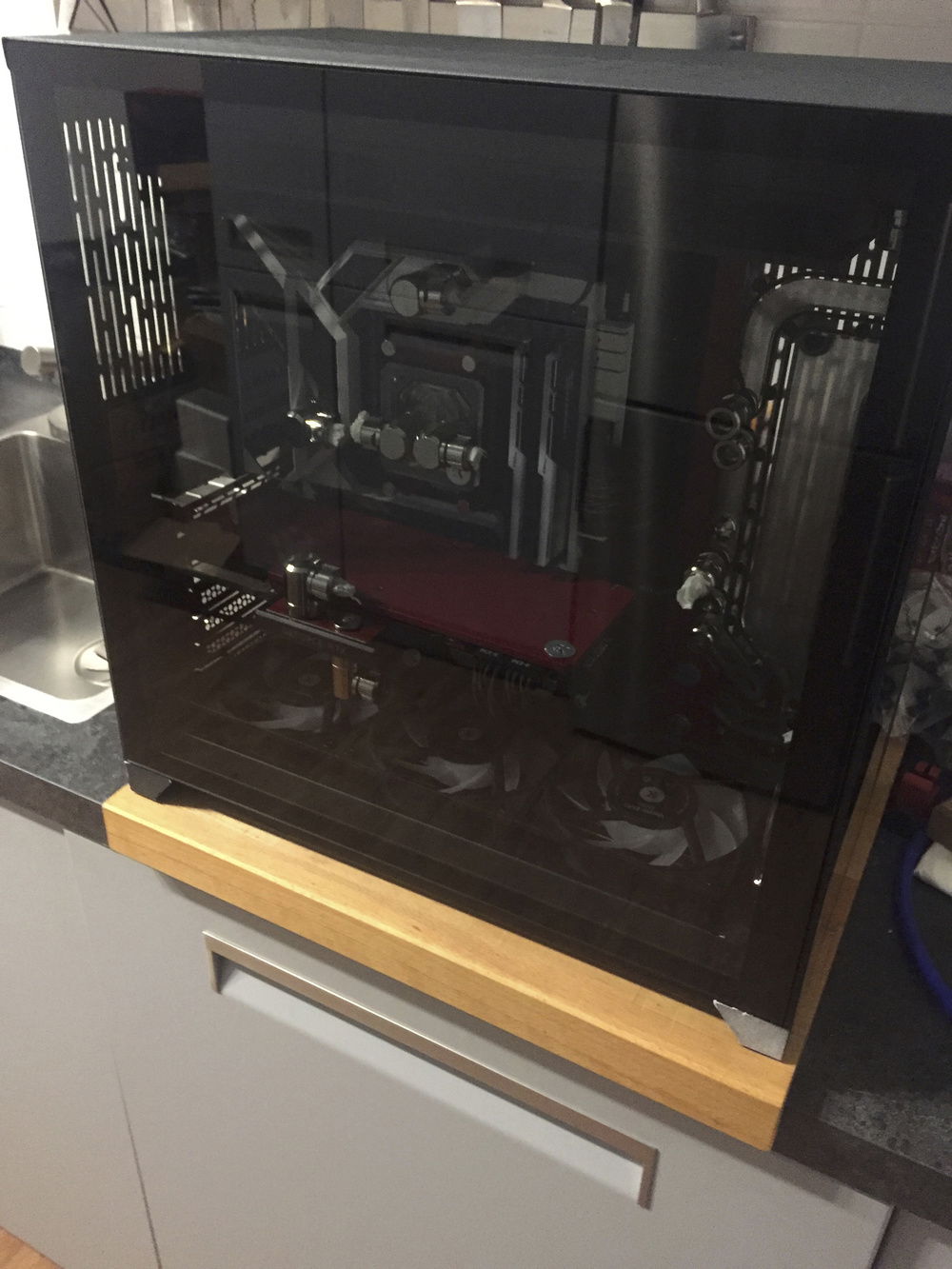

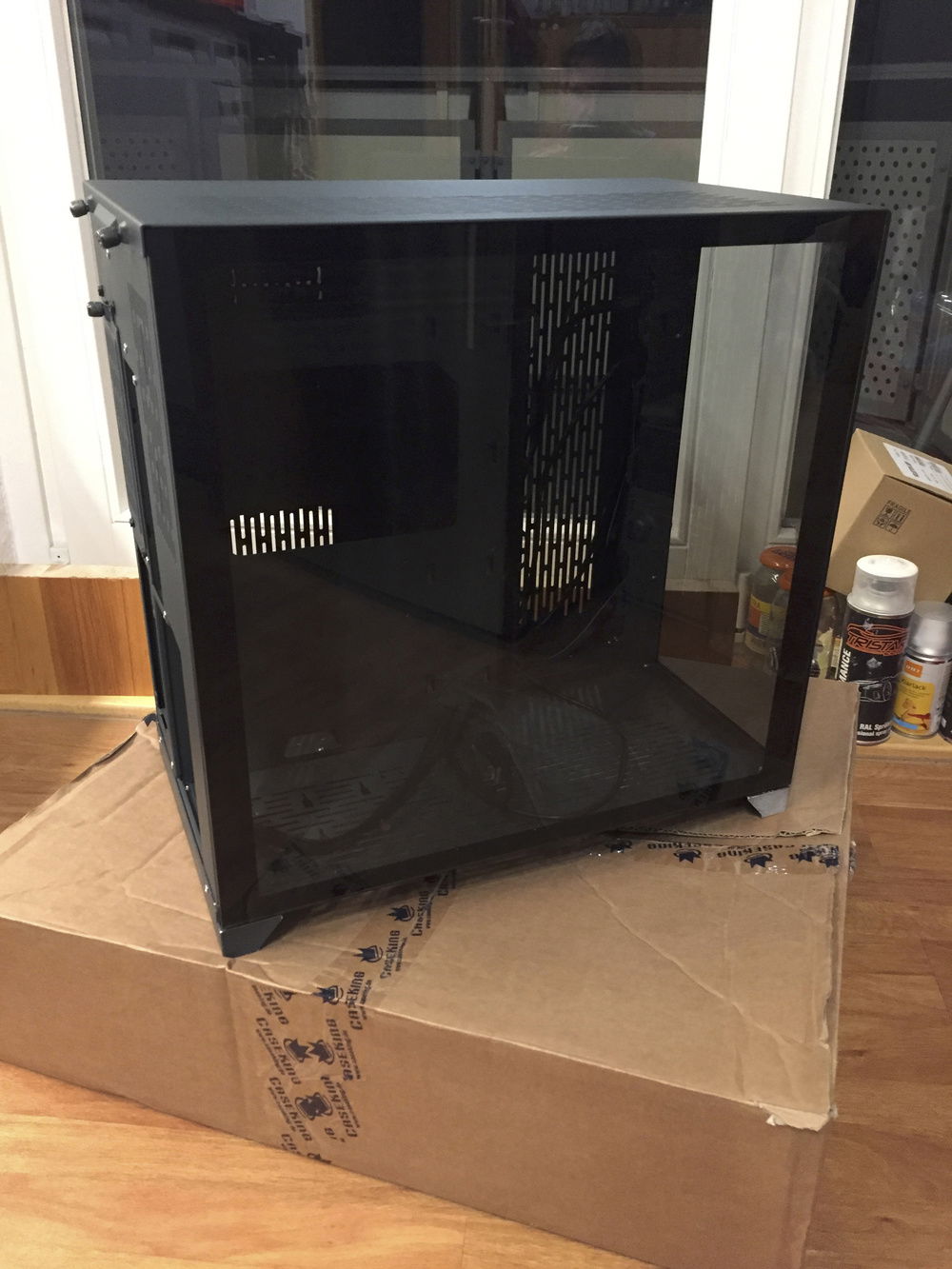

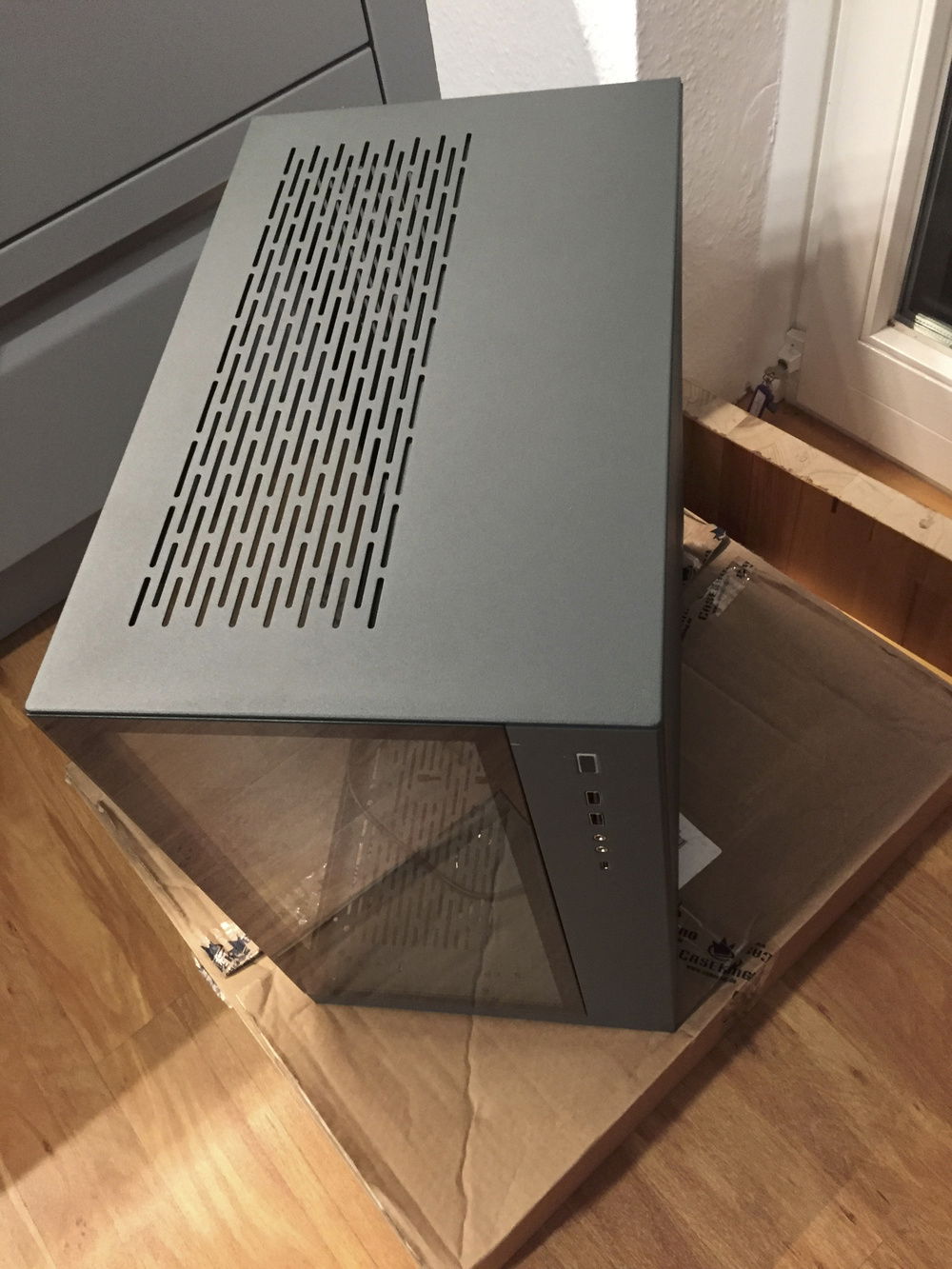

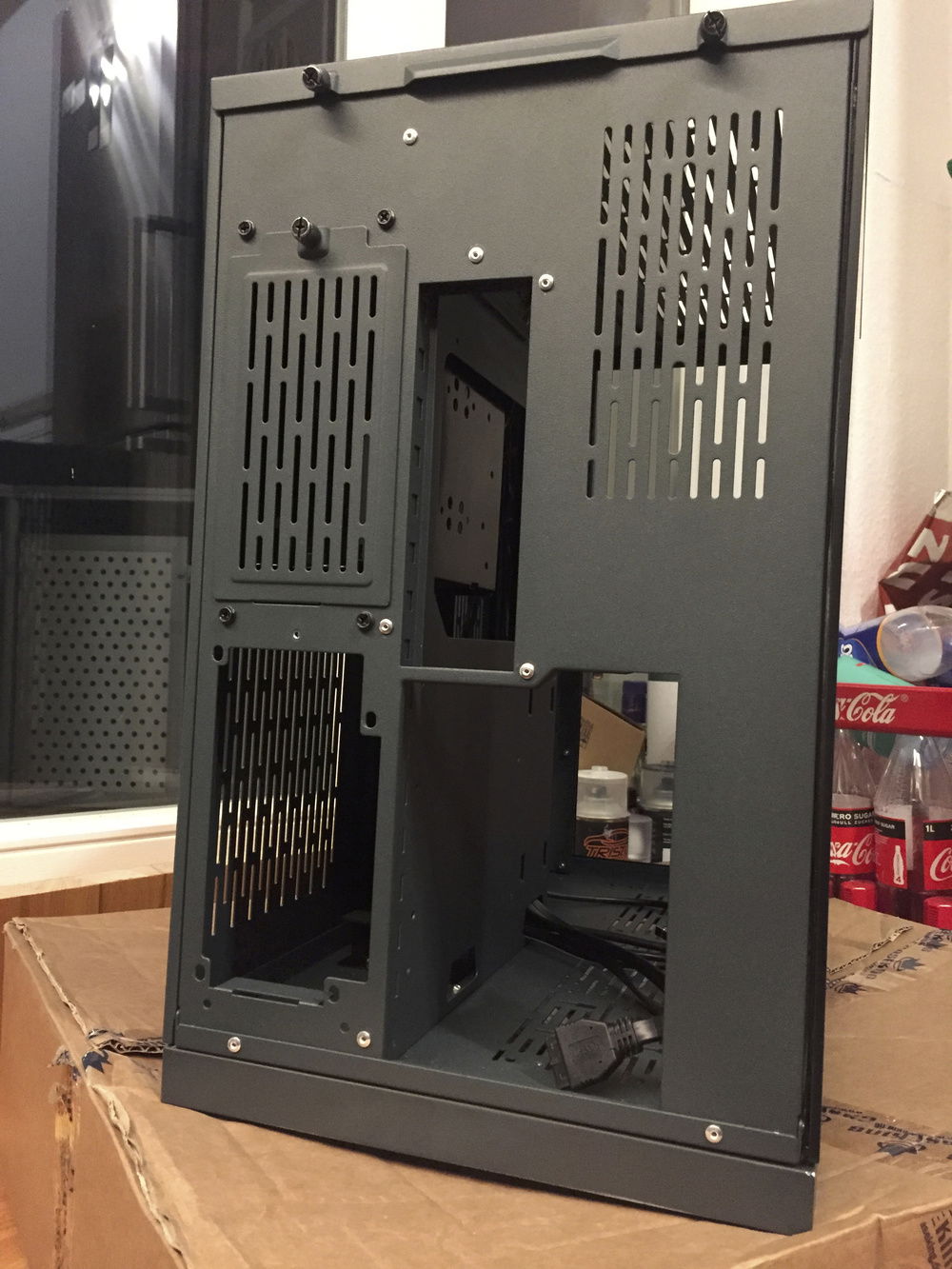

Assembling the case

2020-01-12

Testing, testing... 1.2.3...

2020-01-11

Yesterday evening I had to rebuild the CPU-Block a few times to get it to fit nicely without any leaks; then did a 'wet'-dry run; blocks just connected with soft-tubing.
Today I checked the D-RGB-Strips because some got a bit water on them yesterday, but all is well :-)

Installed the coated strip on the reservoir and started the assembly for the dry-run of the components, installed the armor on the motherboard and the retaining-clamps for the CPU-block, installed the 3950, the system SSD and the RAM.
Next up is installing the waterblock on the 2080TI.
After that I'll connect them using the softtubing for a run outside the case to check all the components work.
Hopefully the case gets riveted back this weekend as well.

D-RGB-Test, the EK Connect 51 really came in handy here.

Mainboard and components

Fitting the retaining-screws and the CPU

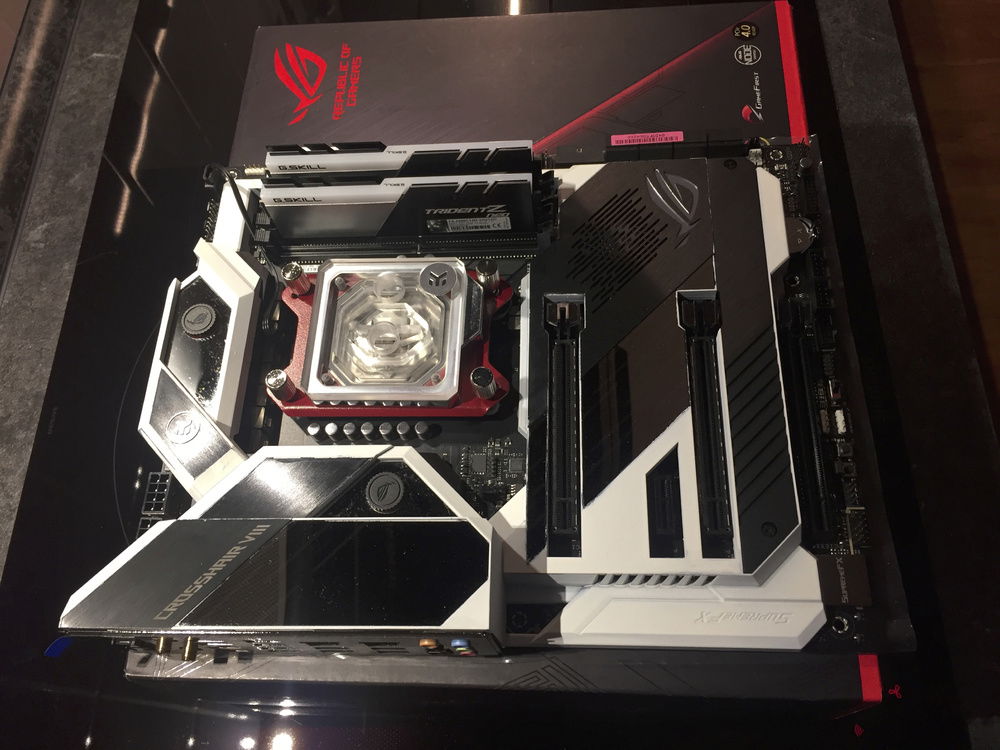

Added the block, the RAM and the SSD

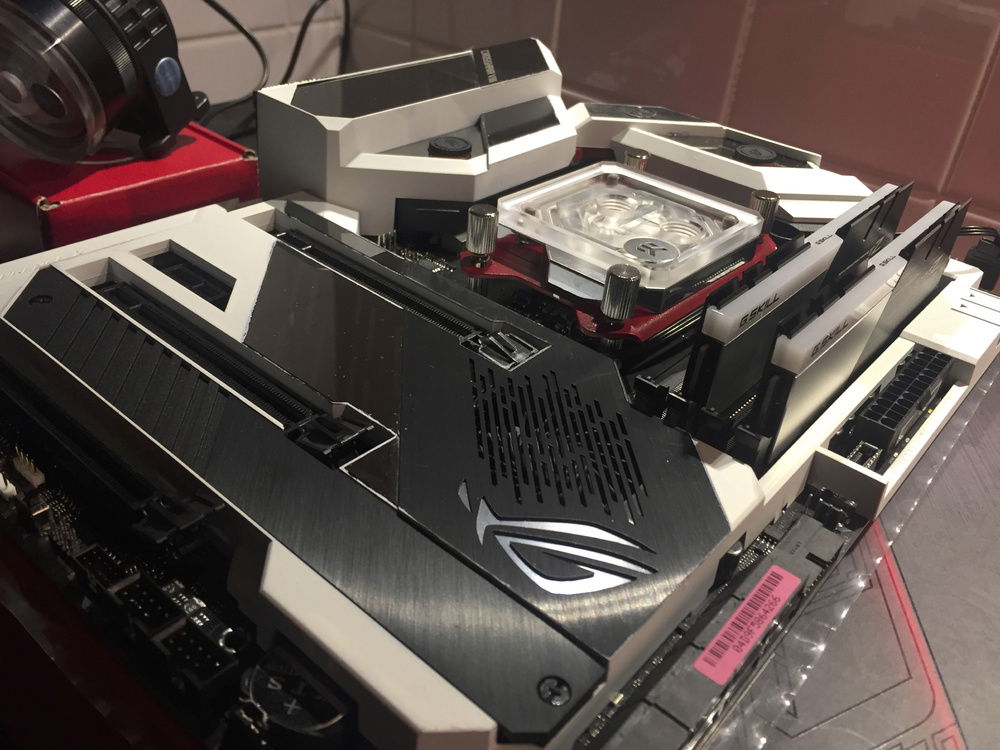

Added perspective

I'll probably remove the stickers on the Trident Neos when I confirmed them working, they somehow bother me.

Assembled the waterblocks and leaktested them

2020-01-10

Parts were powdercoated and sandblasted

2020-01-10

Painted a bunch of the plastic parts (mainboard etc.)

2020-01-10

Pulled everything apart to get it painted

2020-01-10

Hardware

Category / Value

Brand / Part

CPU

$ 840.00

AMD - Ryzen 9 (3950X)

Socket: AM4

Cores: 16

Motherboard

$ 650.00

ASUS - ROG Crosshair VIII Formula

Chipset: X570

CPU Socket: AM4

Size: ATX

Memory

$ 52.99

G.Skill - Trident Z Neo (3600MHz) (White/Black/RGB)

Type: DDR4

Capacity: 8 GB

Graphics

$ 549.00

MSI - GeForce Ventus

Chip Manufacturer: NVIDIA

Chip: RTX 2080 Ti

Storage

$ 87.95

Samsung - 960 EVO

Form Factor: M.2

Interface: M.2 (M)

Capacity: 250 GB

Storage

$ 229.99

Western Digital - WDS200T3X0C

Form Factor: M.2

Interface: M.2 (M)

Capacity: 2 TB

PSU

$ 199.99

ASUS - ROG Thor

Wattage: 850

Form Factor: ATX

Efficiency: 80+ Platinum

Case

$ 160.56

Lian Li - O11 Dynamic

Type: Mid-Tower

Side Panel: Tempered Glass

Case Fan

$ 347.94

EKWB - EK-Vardar EVO 120ER (Black/D-RGB) (500-2200 rpm) (6x)

Size: 120 mm

Cooling

$ 100.00

EKWB - CoolStream SE (2x)

Type: Custom Loop

Size (WxHxD): 360 mm (3 x 120 mm)

Cooling

$ 280.00

EKWB - EK-Classic DP Side PC-O11D G1 D-RGB + DDC 3.2 PWM

Type: Pump/Reservoir Combo

Cooling

$ 137.28

EKWB - EK-FC RTX 2080 +Ti Nickel + Plexi

Type: Waterblock

Cooling

$ 121.99

EKWB - EK-Velocity - AMD Nickel + Plexi

Type: CPU Waterblock

Accessories

$ 78.03

ASUS - ROG Aura Terminal Kit

Accessories

$ 770.51

HTC - VIVE Pro

Accessories

$ 435.08

HTC - Vive Wireless adapter

Accessories

$ 399.99

Logitech - Z906 Speakers

Accessories

$ 39.98

Phanteks - Neon Combo Set RGB LED Strip (2x)

Accessories

$ 56.00

Phanteks - PH-CBRS (2x)

Accessories

$ 189.99

SteelSeries - Arctis Pro Wireless Headset

Monitor

$ 95.98

BenQ - Eye-care (BL2711U)

Size: 27 Inch

Panel: IPS

Refresh Rate: 60 Hz

Keyboard

$ 132.00

Razer - BlackWidow Ultimate 2013

Interface: Wired

Key Switch Type: Cherry MX Blue

Type: Full Size

Mouse

$ 109.99

Razer - Basilisk Ultimate

Interface: Wireless

Estimated total value of this build:

$ 3,776.12
