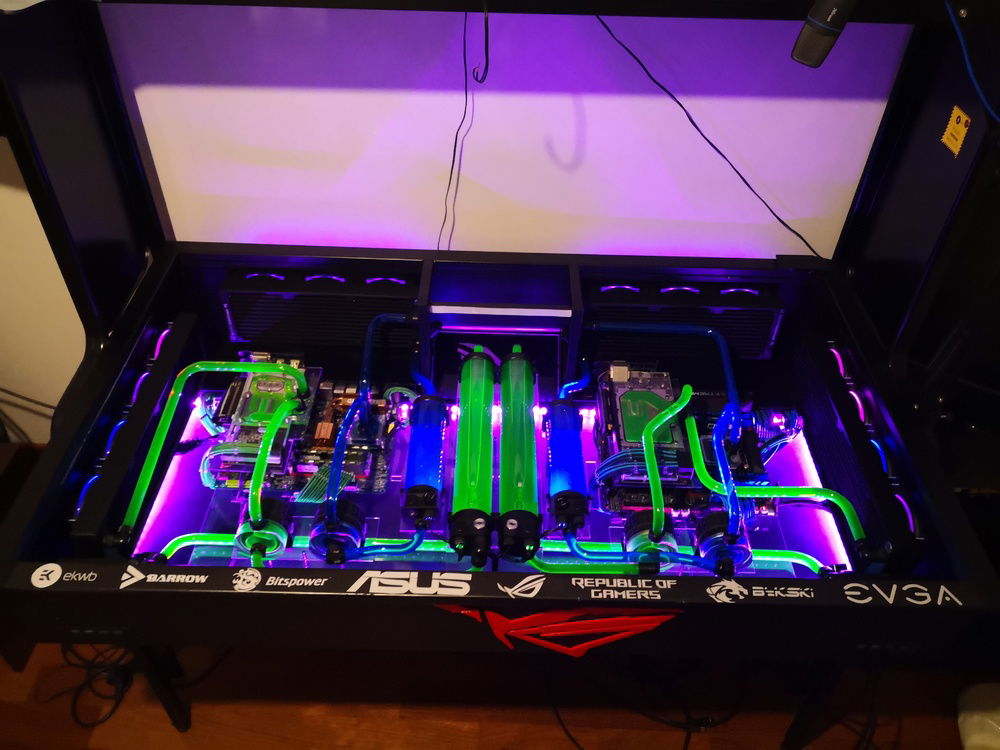

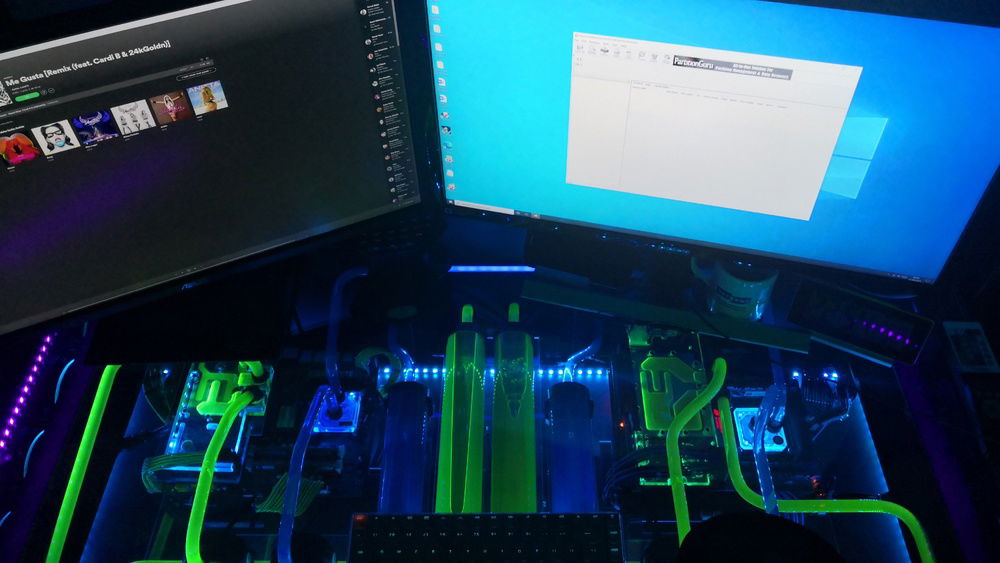

Left side old Laga 775 on Ubuntu system. Right Side X99 on Windows 10 sytem.
All done

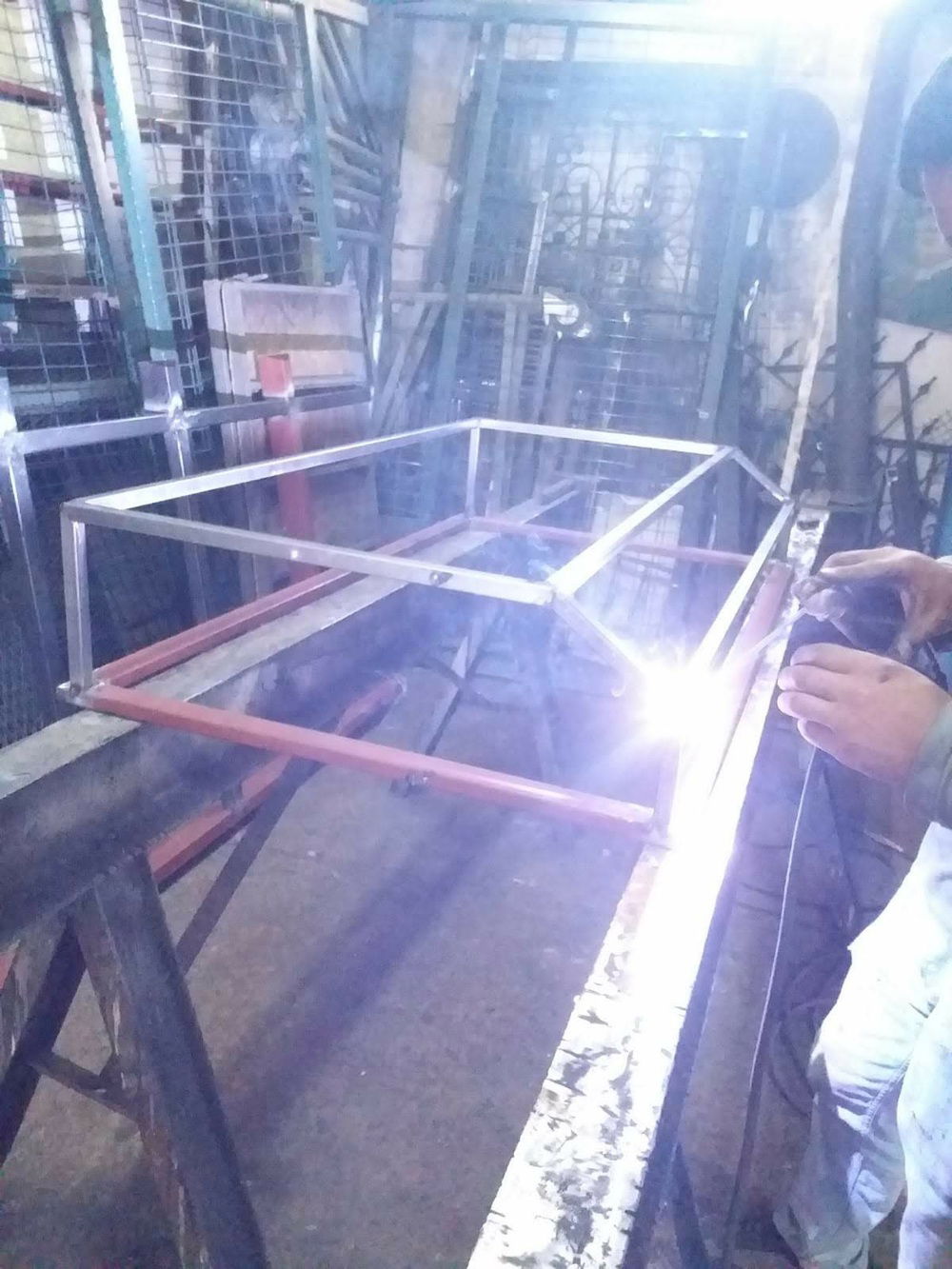

Build main skeleton 2x2 profil. 4x2 top side

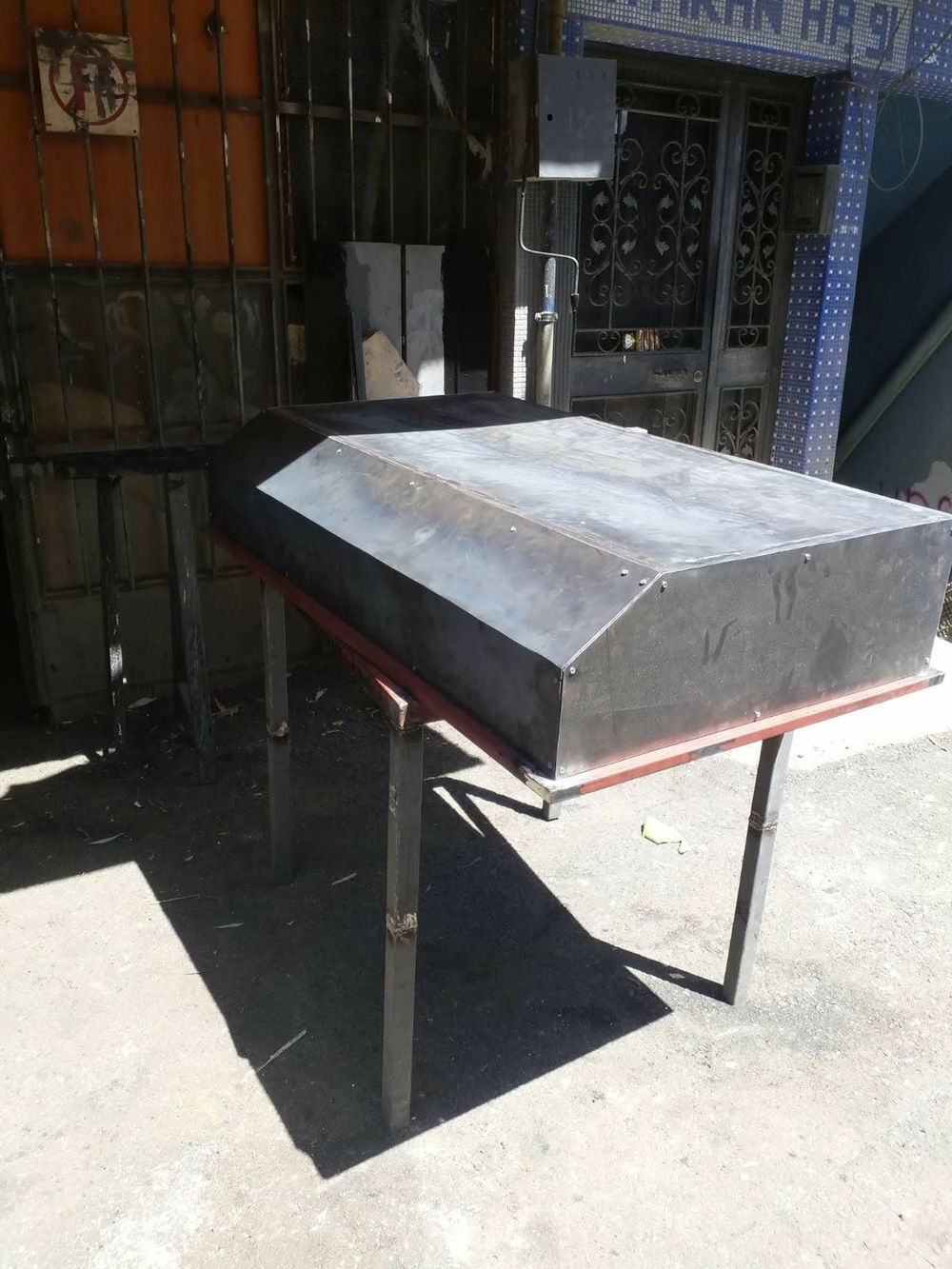

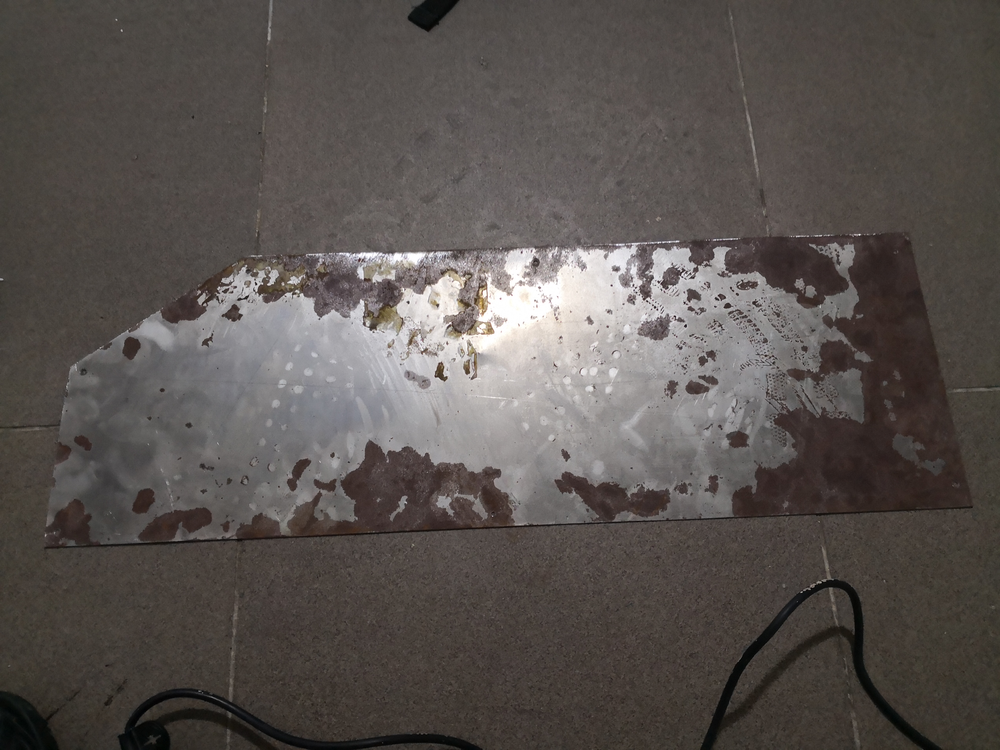

All Side 3mm Sheet cover

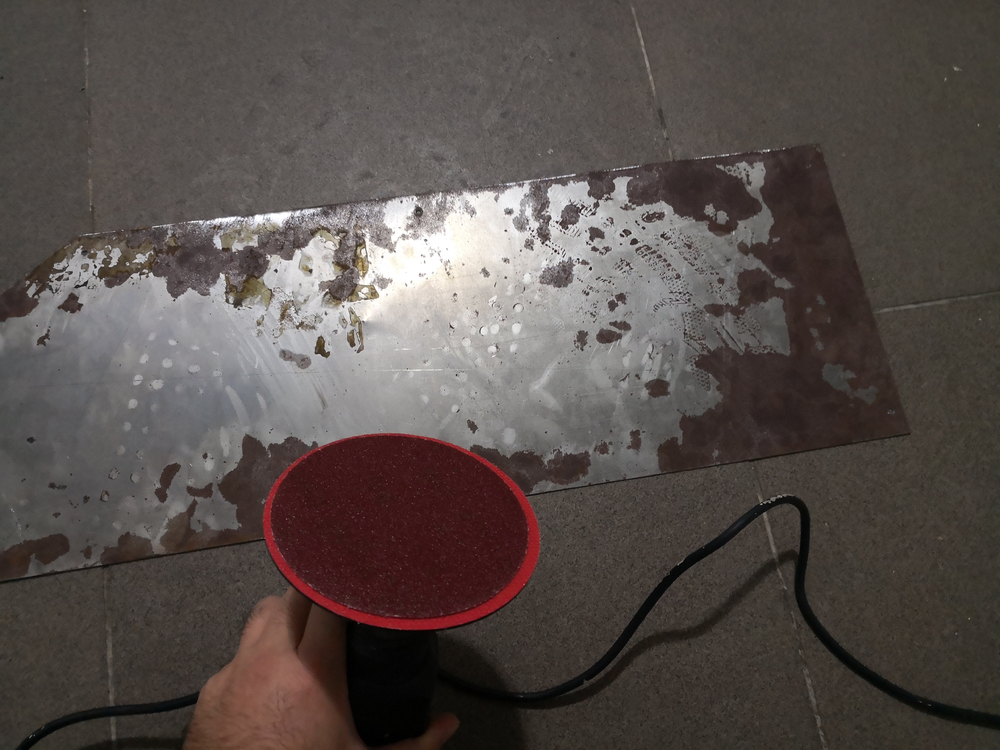

Paint to black all body and part

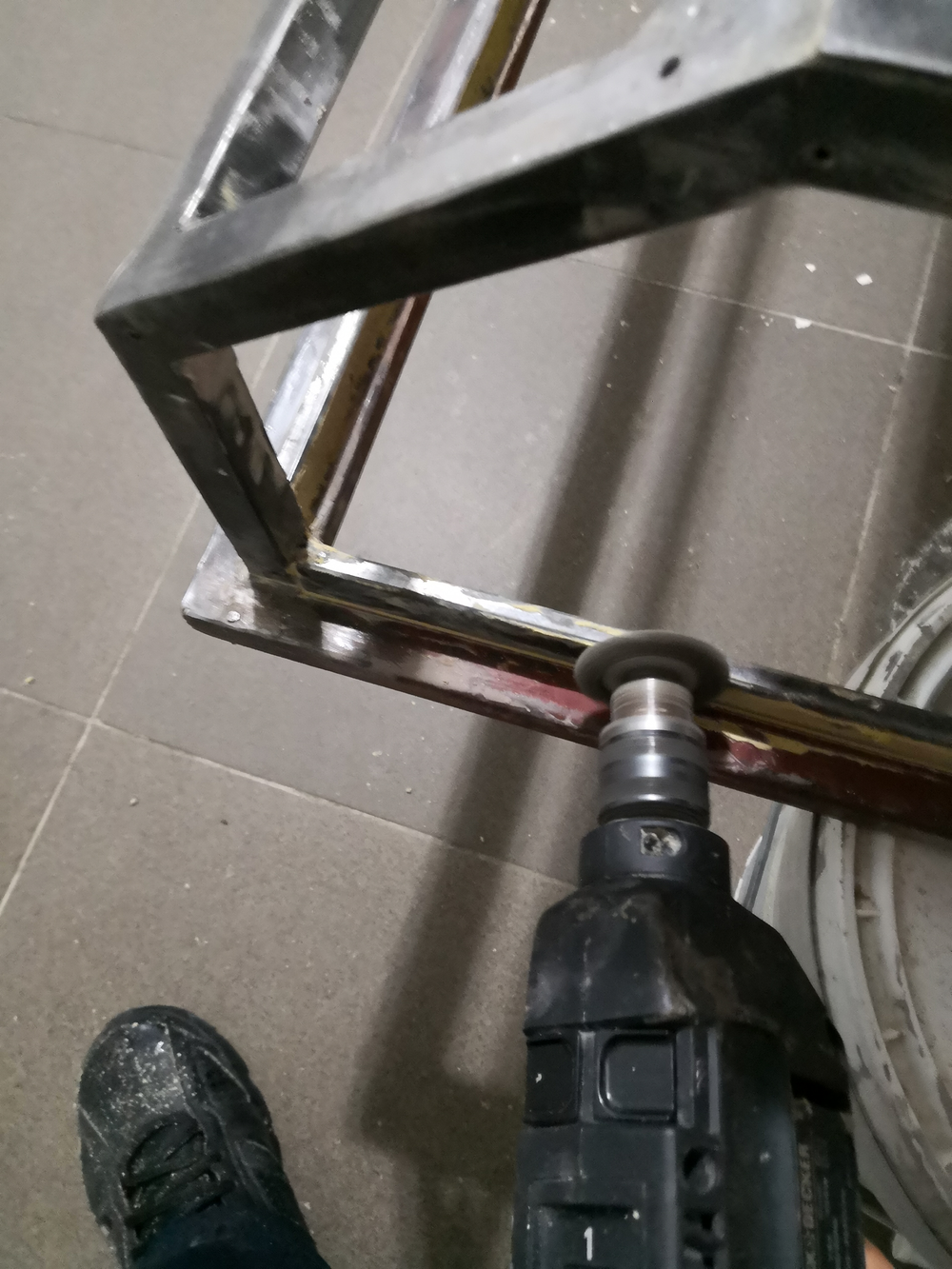

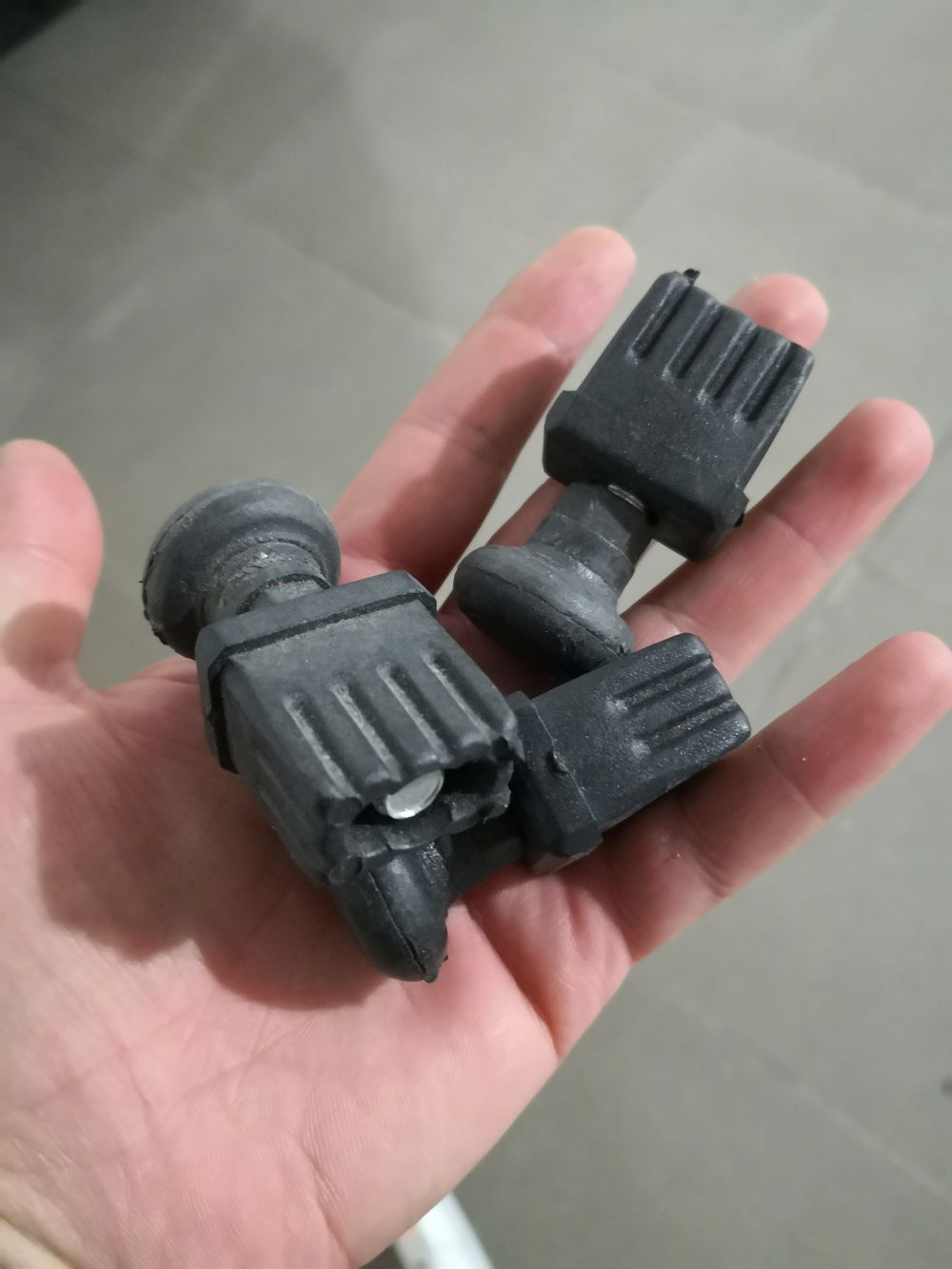

2x4 buffer

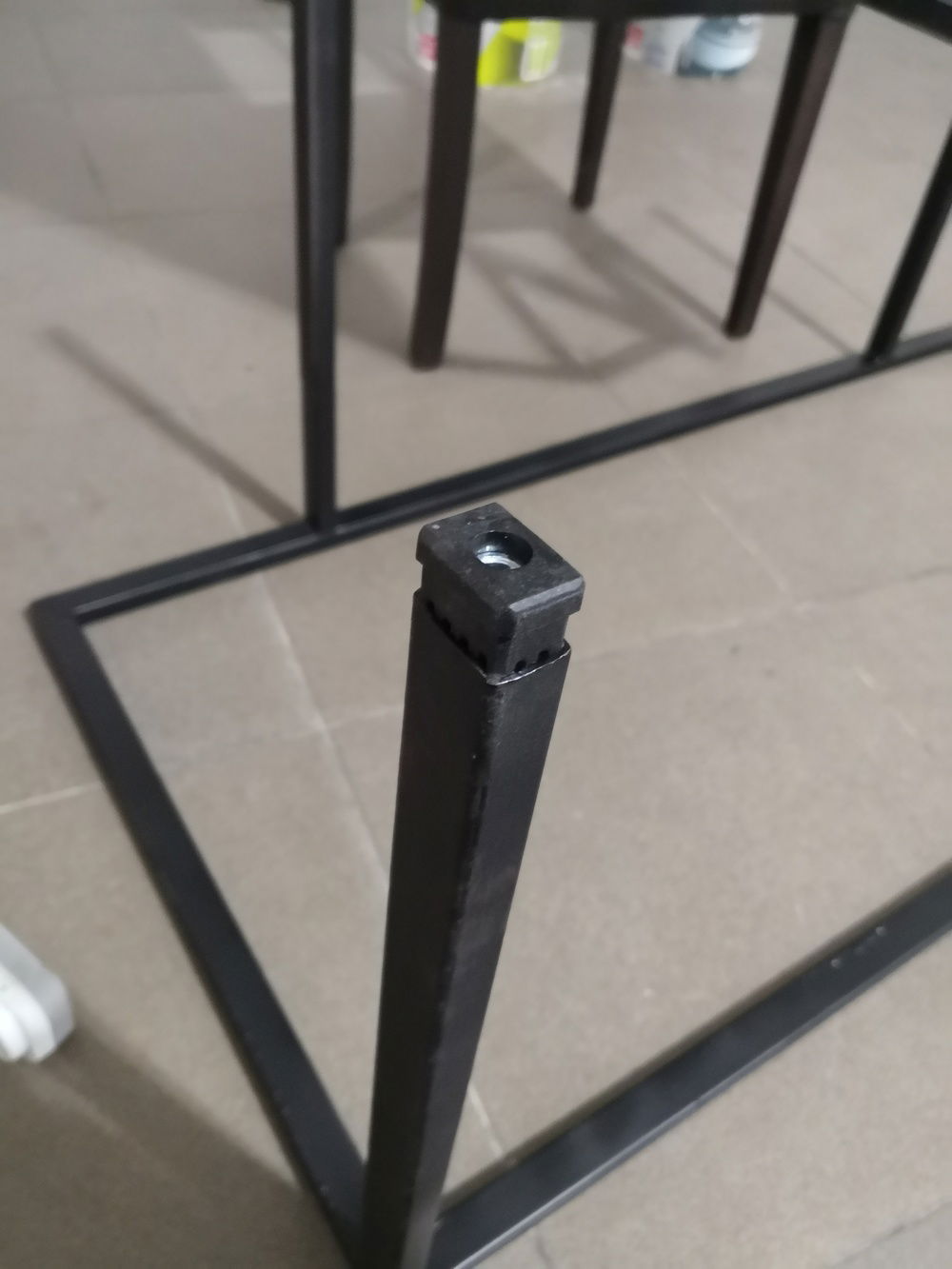

Is done buffer body
Finish buffer foot
360 mm raditor For cutting Side mold

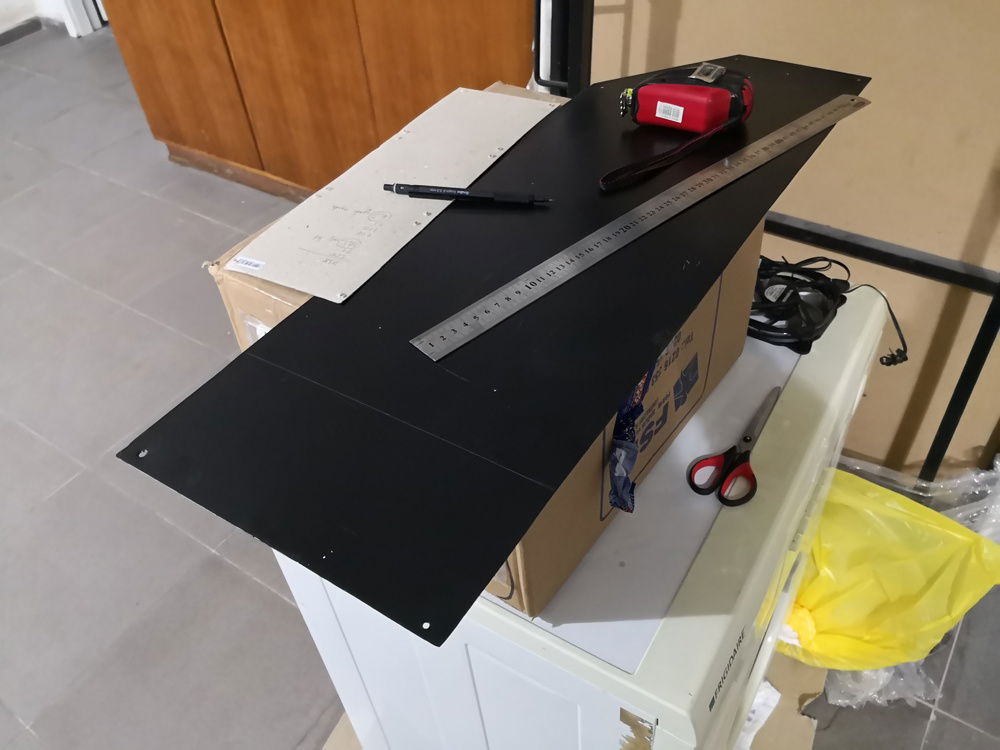

Design mounting

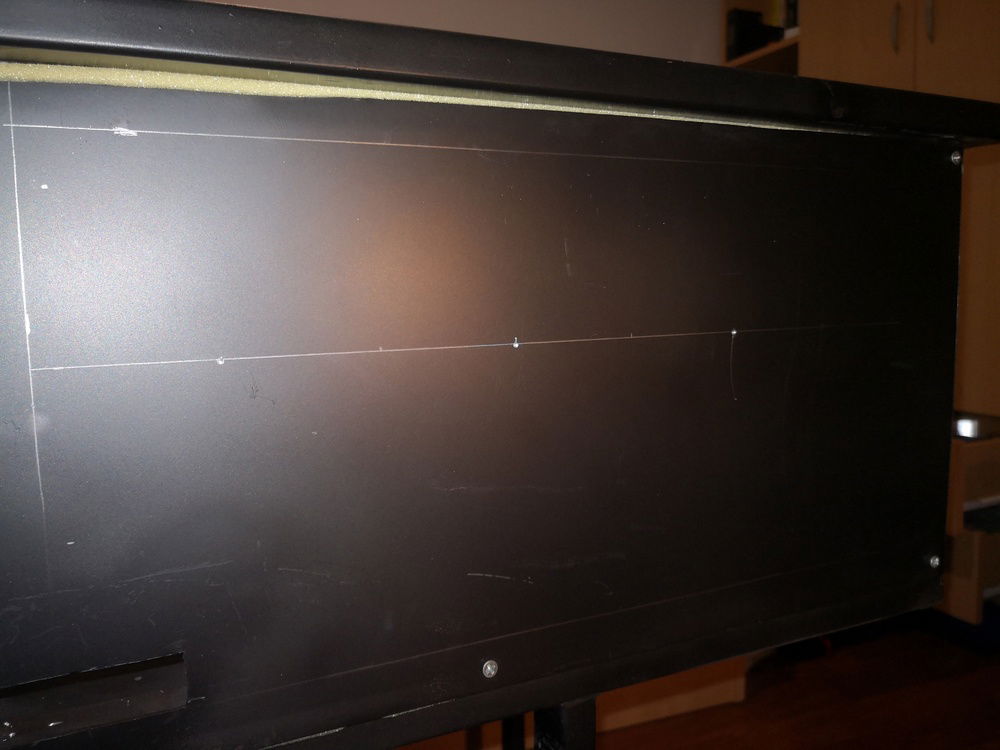

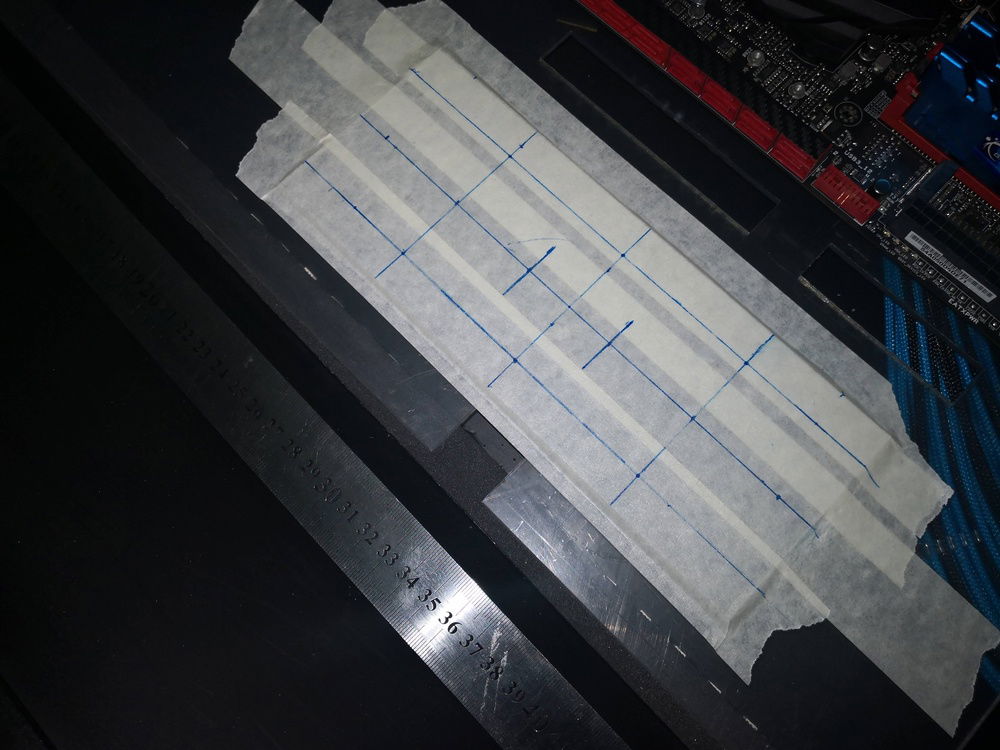

Mounting cut mark mask band
Cut start point drill

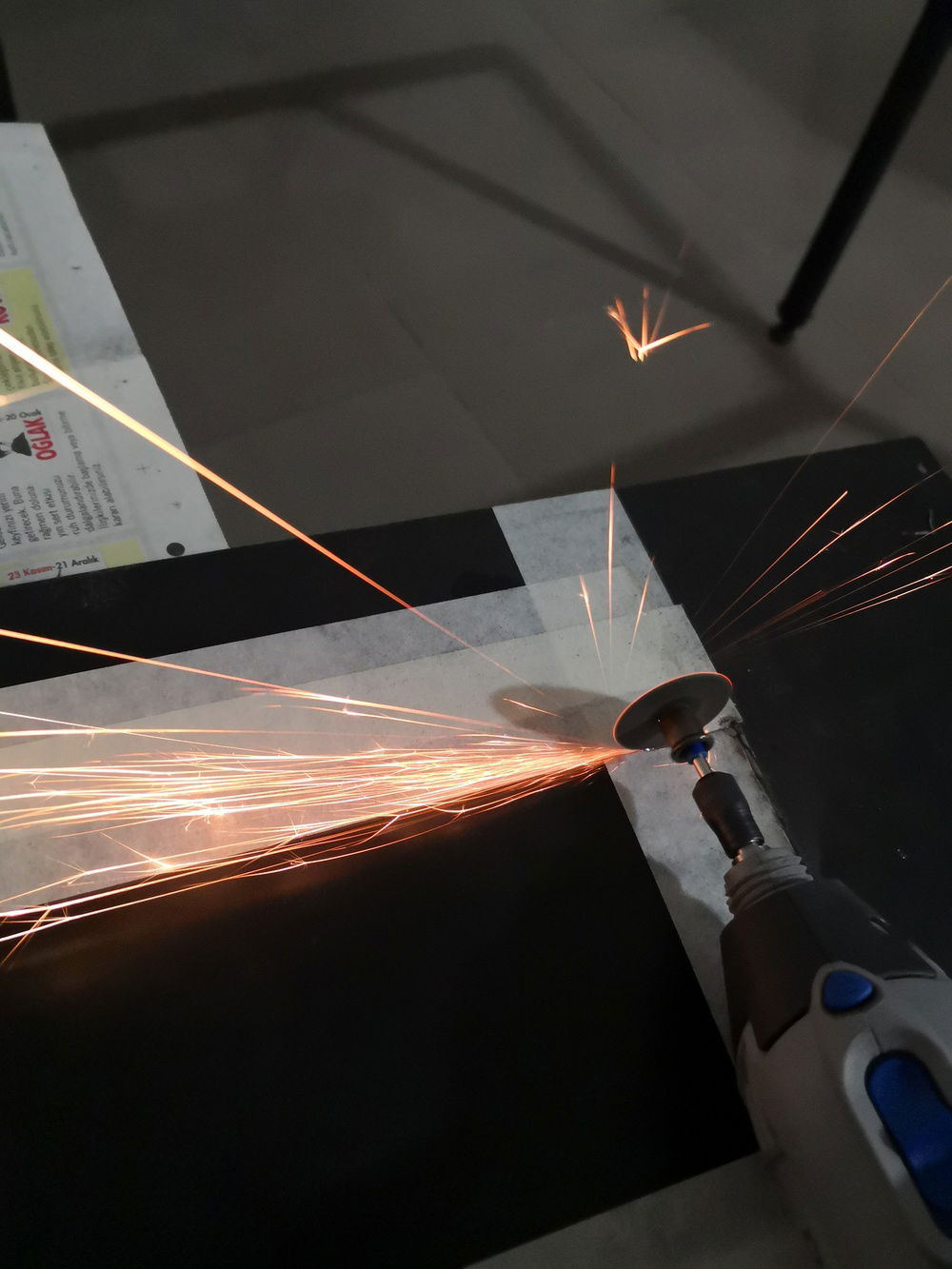

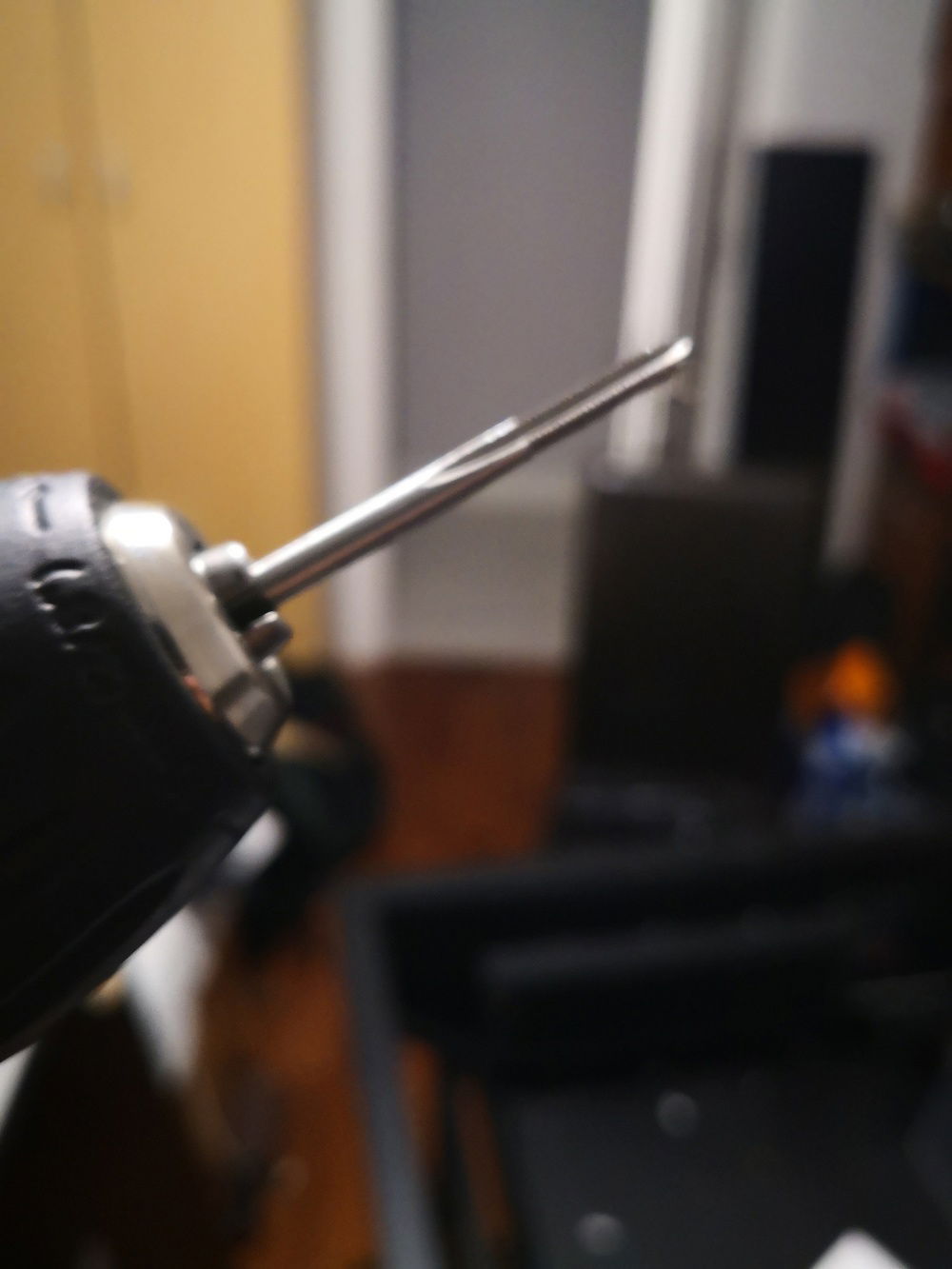

Dramel 4000 cut

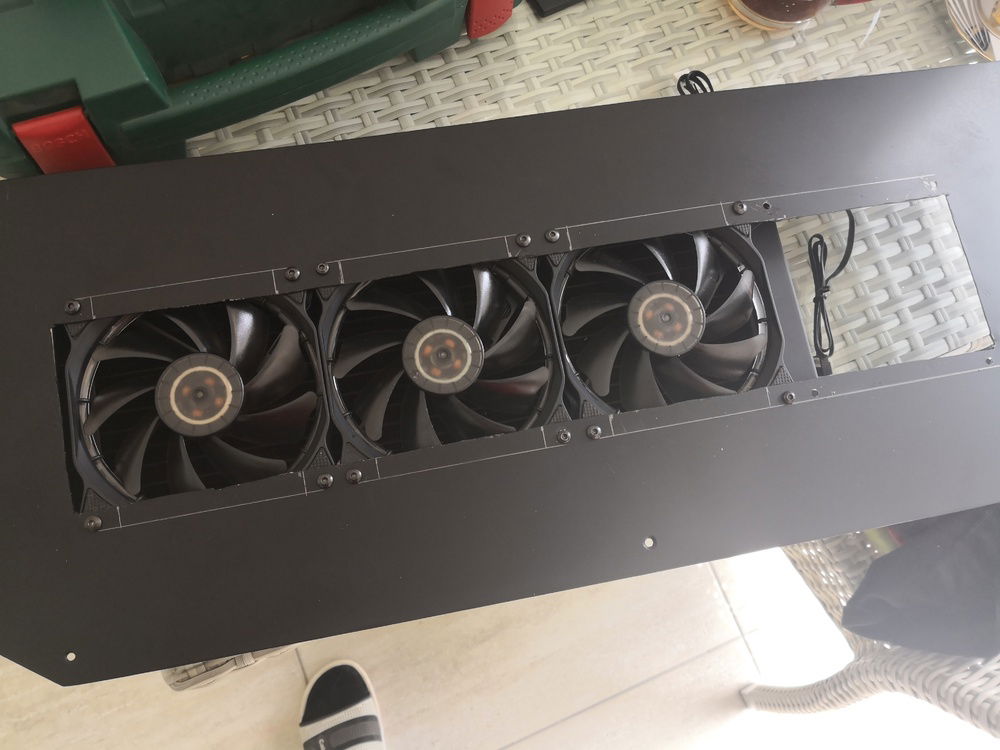

Try fan mounthing and mark cut

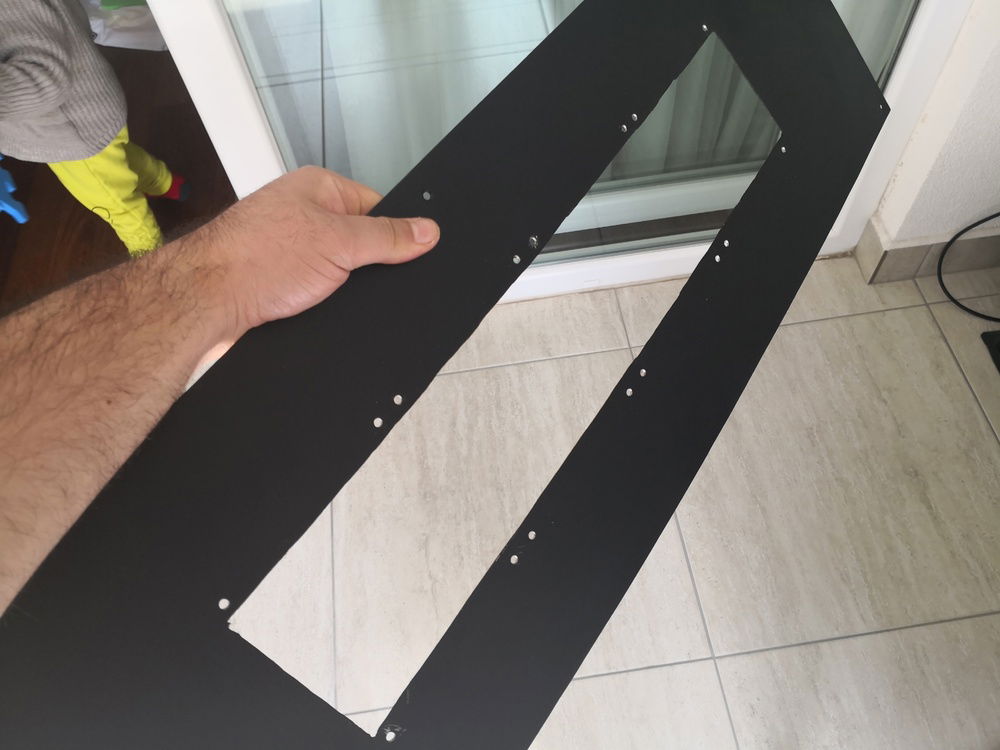

Drill fan mounting hole
Fan anti vibraton

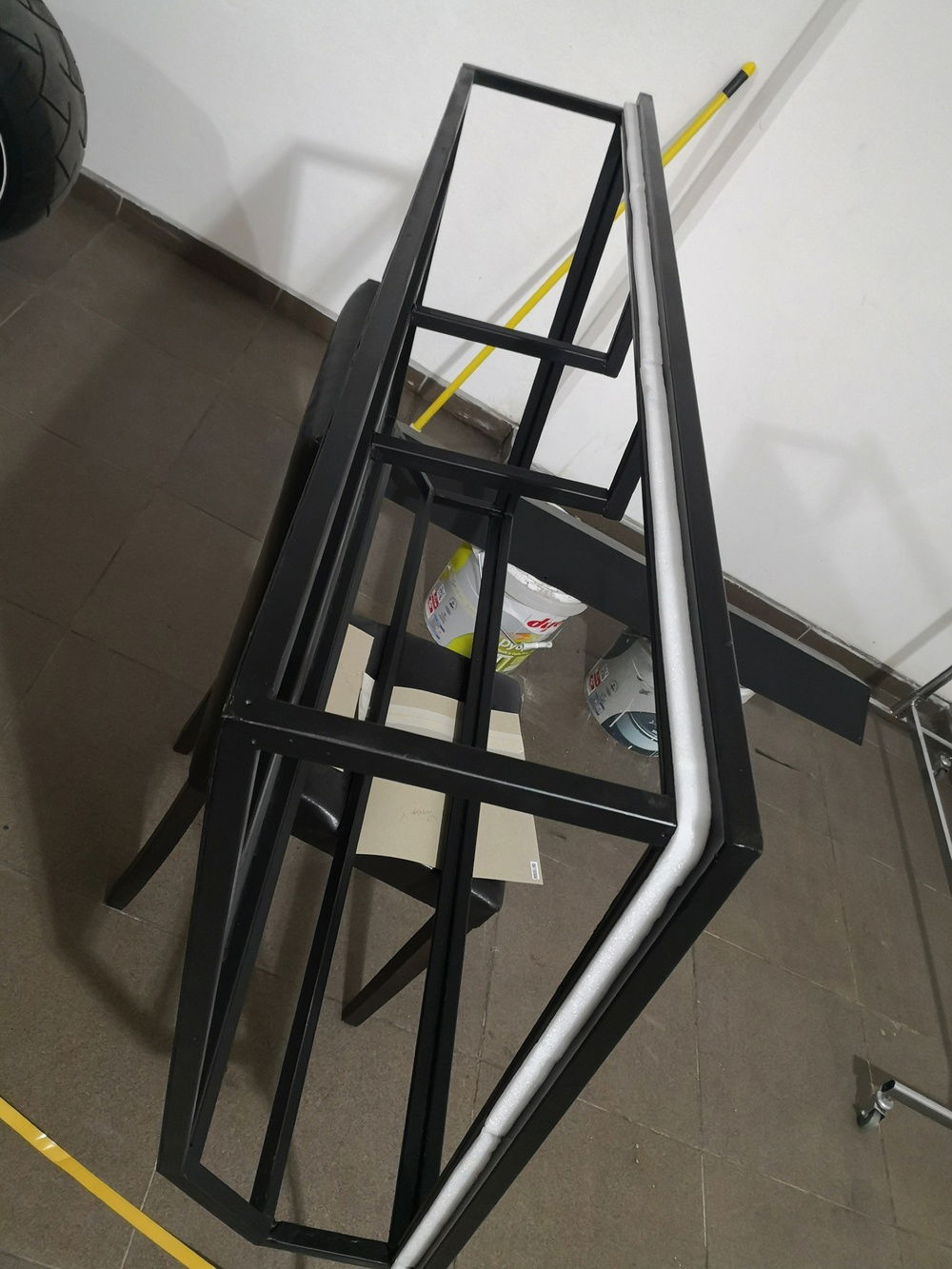

Is continue bant work

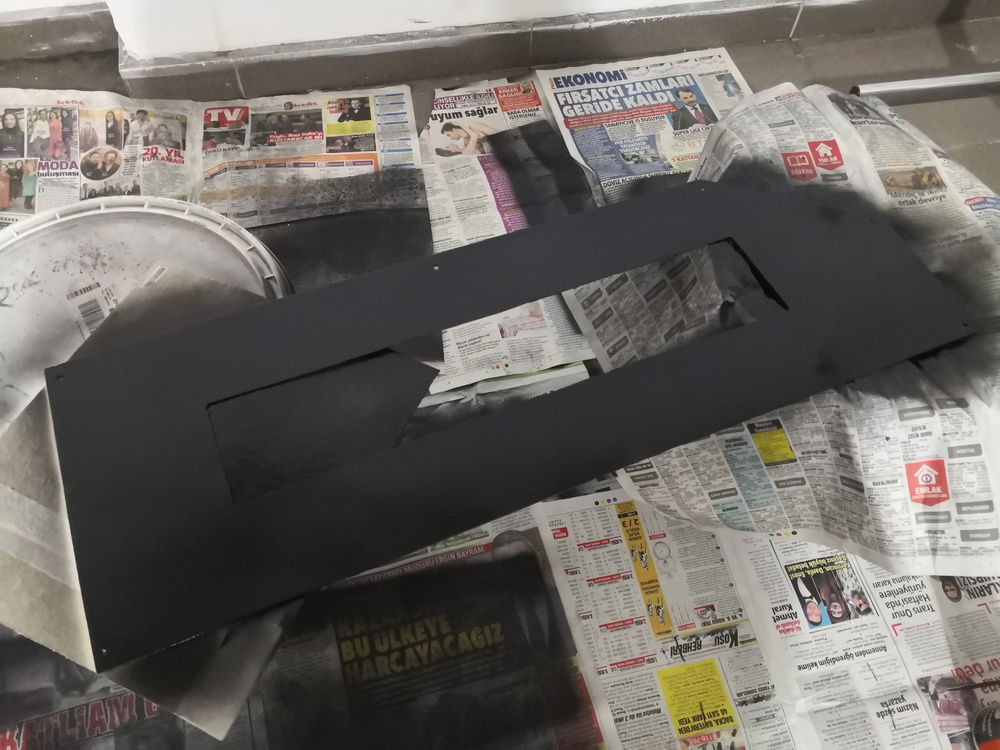

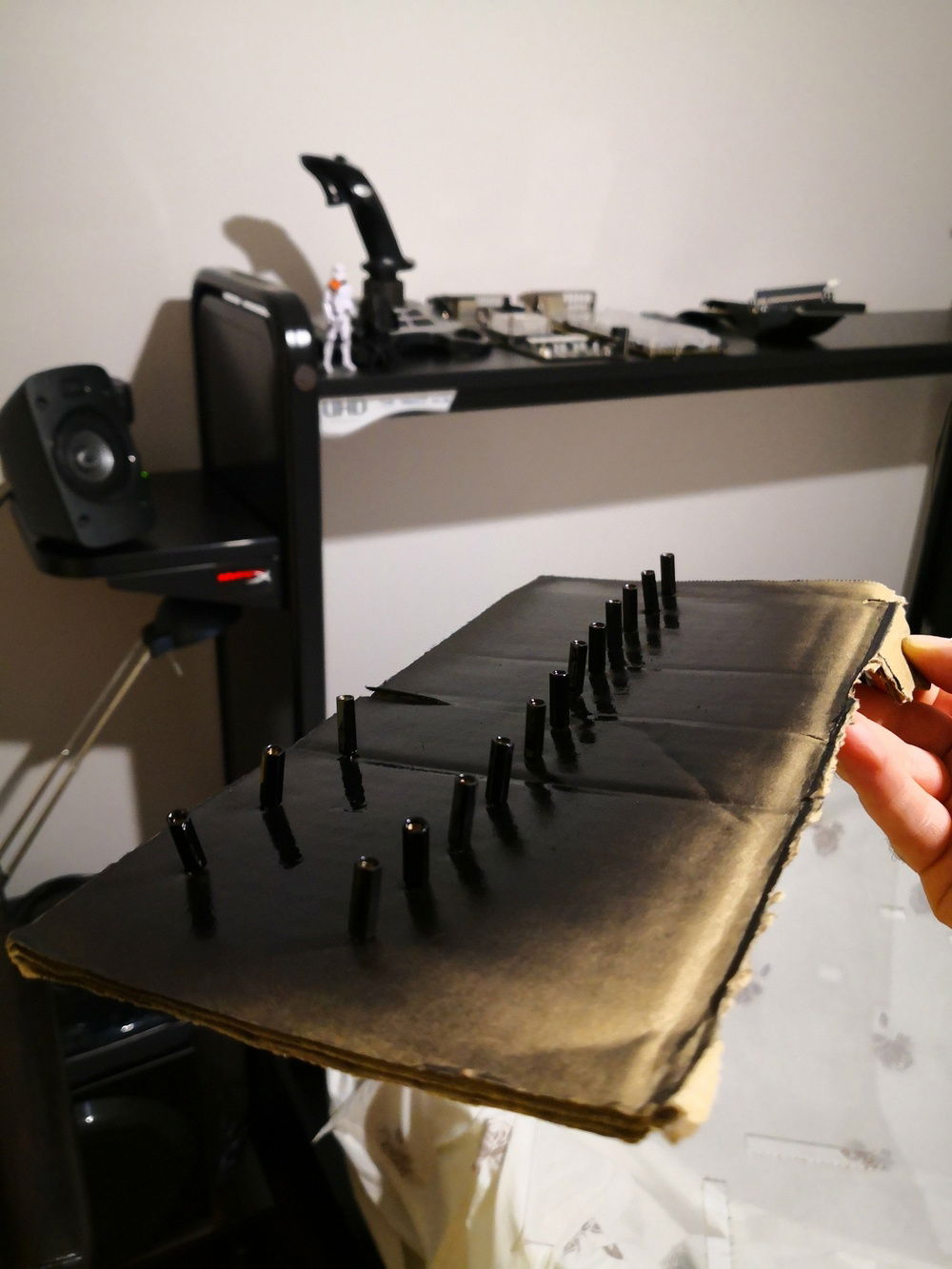

Paint after cutting

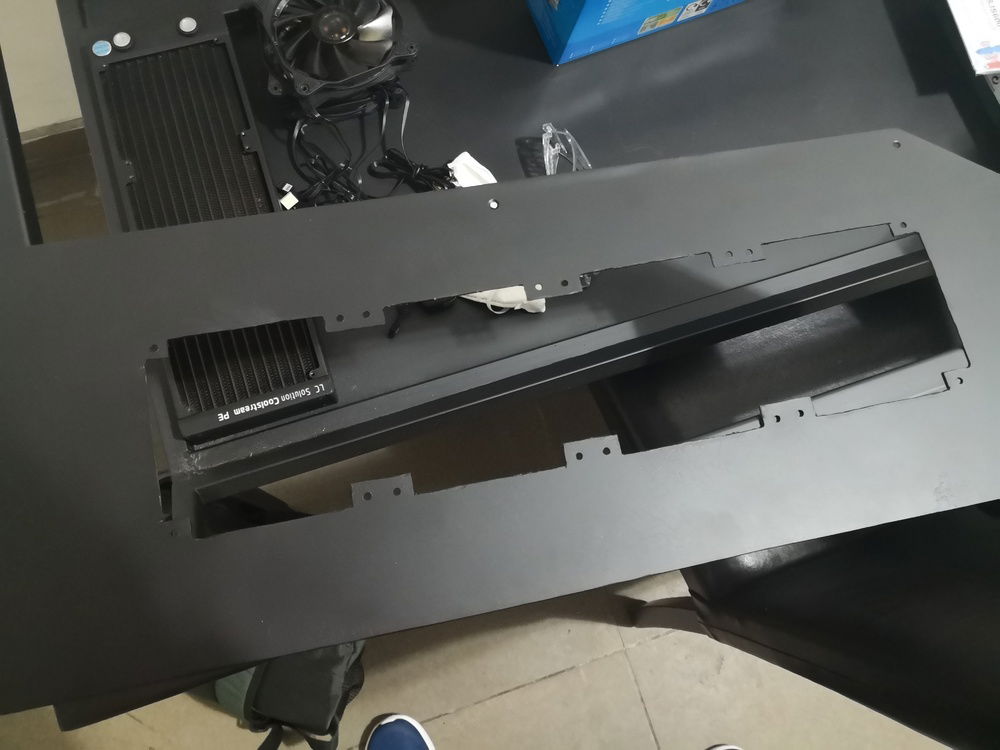

Mounting table try Side part

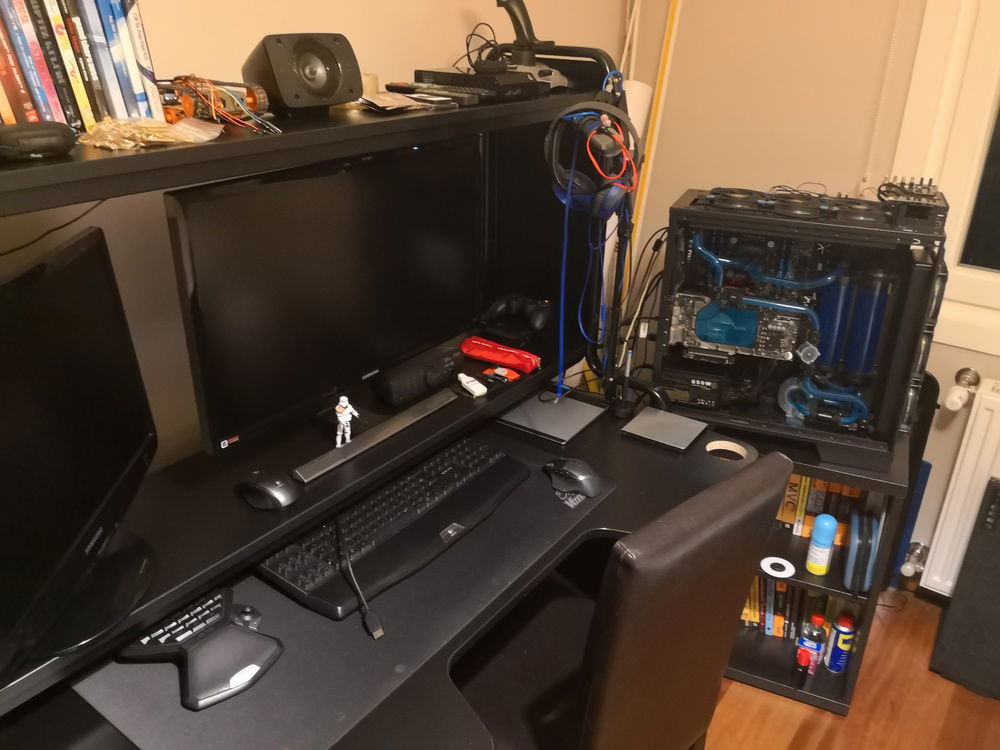

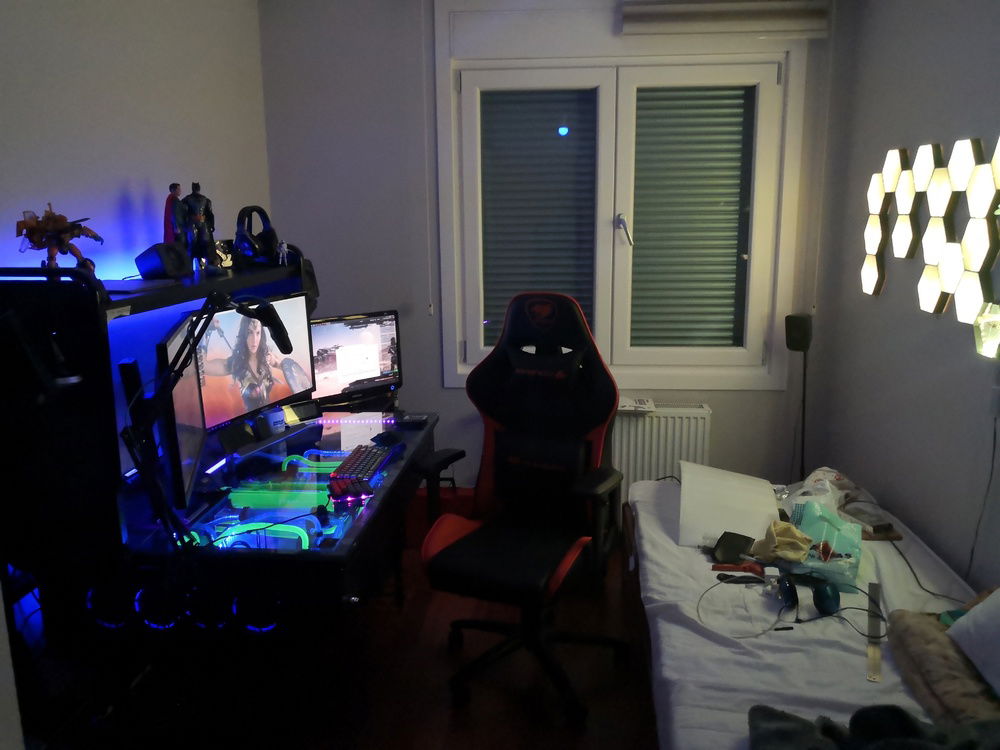

My rom and desk old design

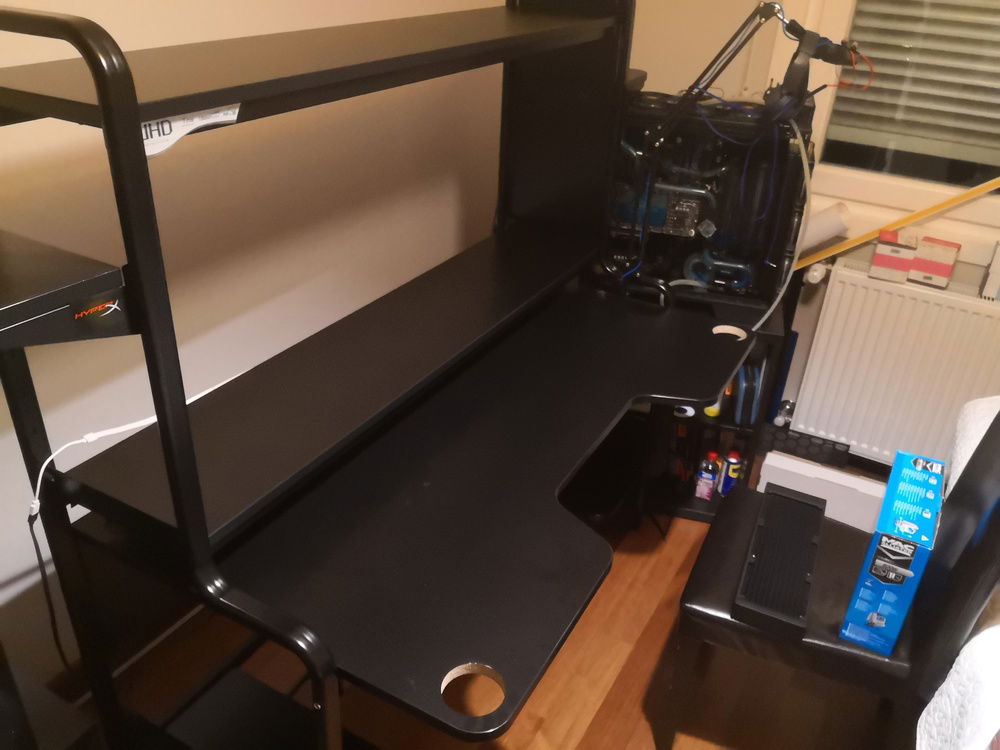

Clear everywhere

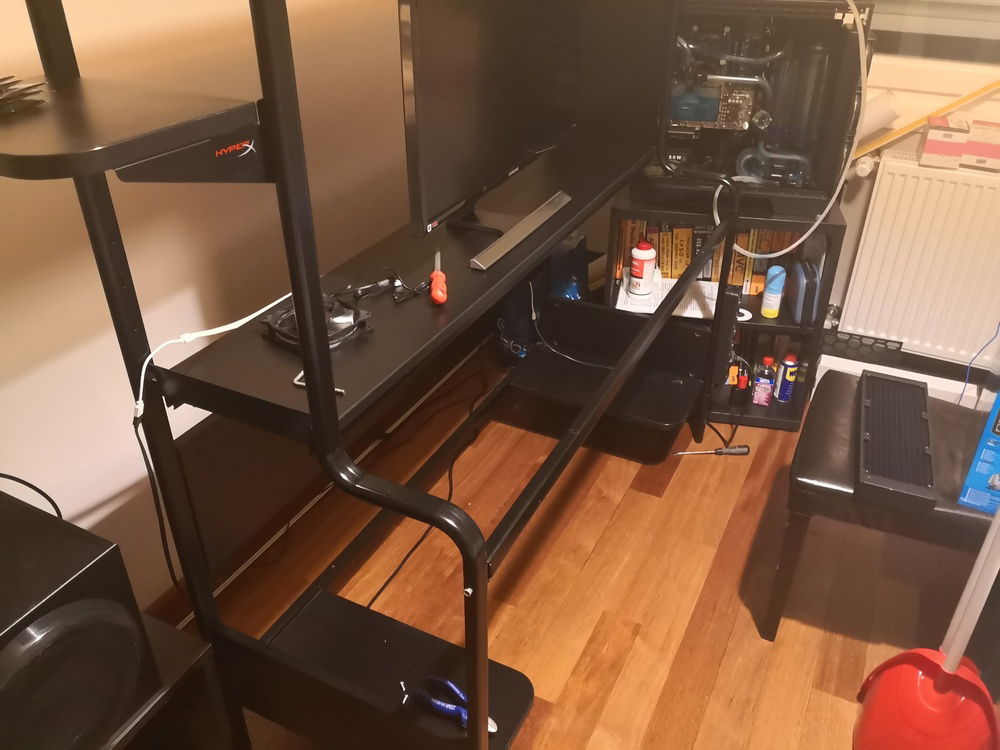

Chang old desk unmounting parts
New desk leg

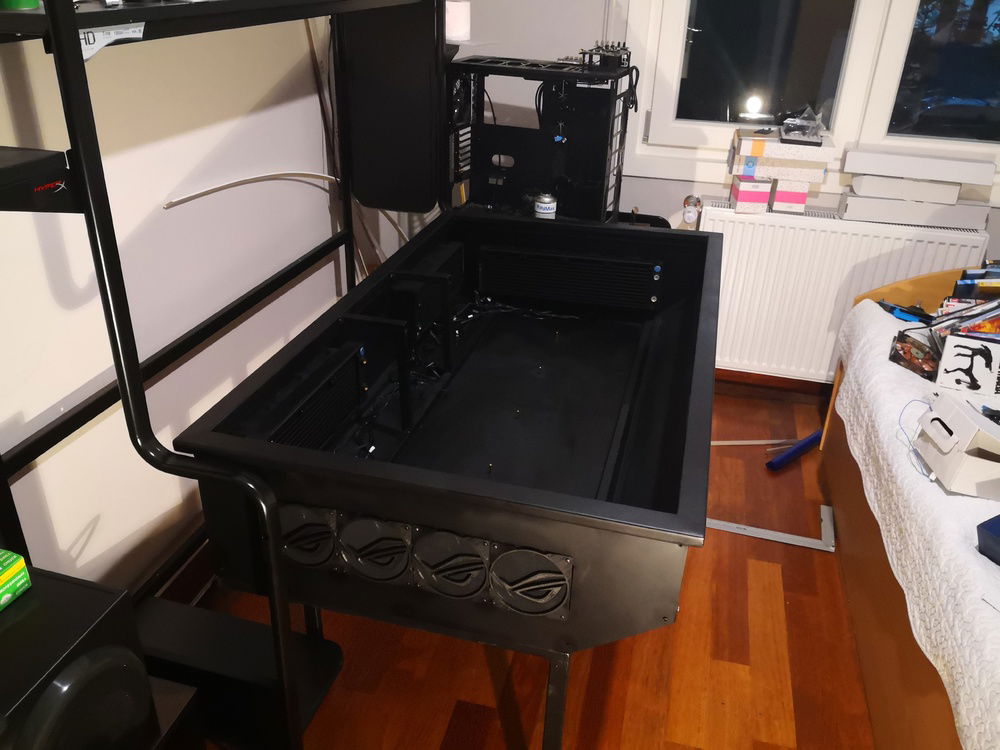

Desk leg on the new desk
3mm plexi in desk

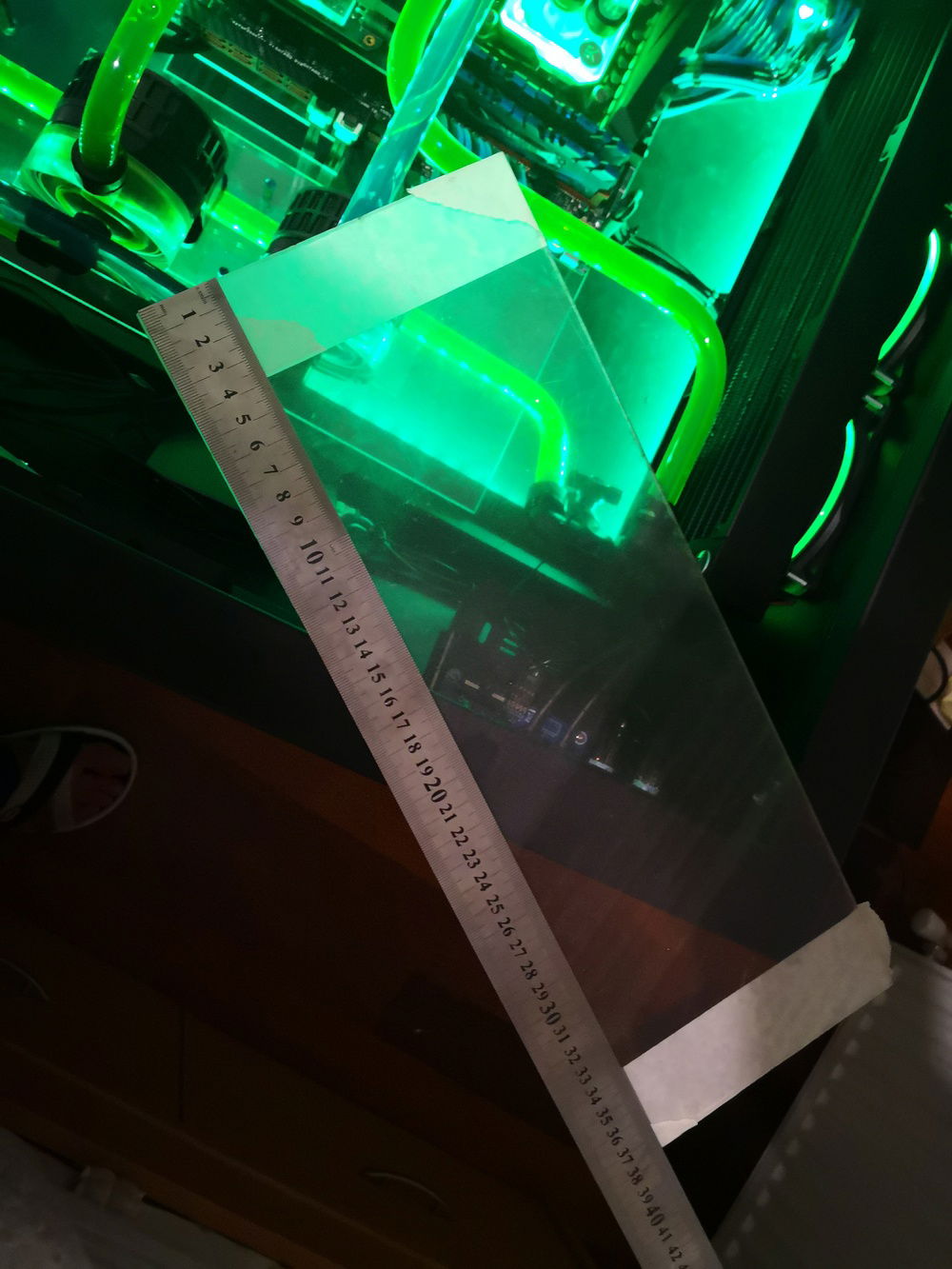

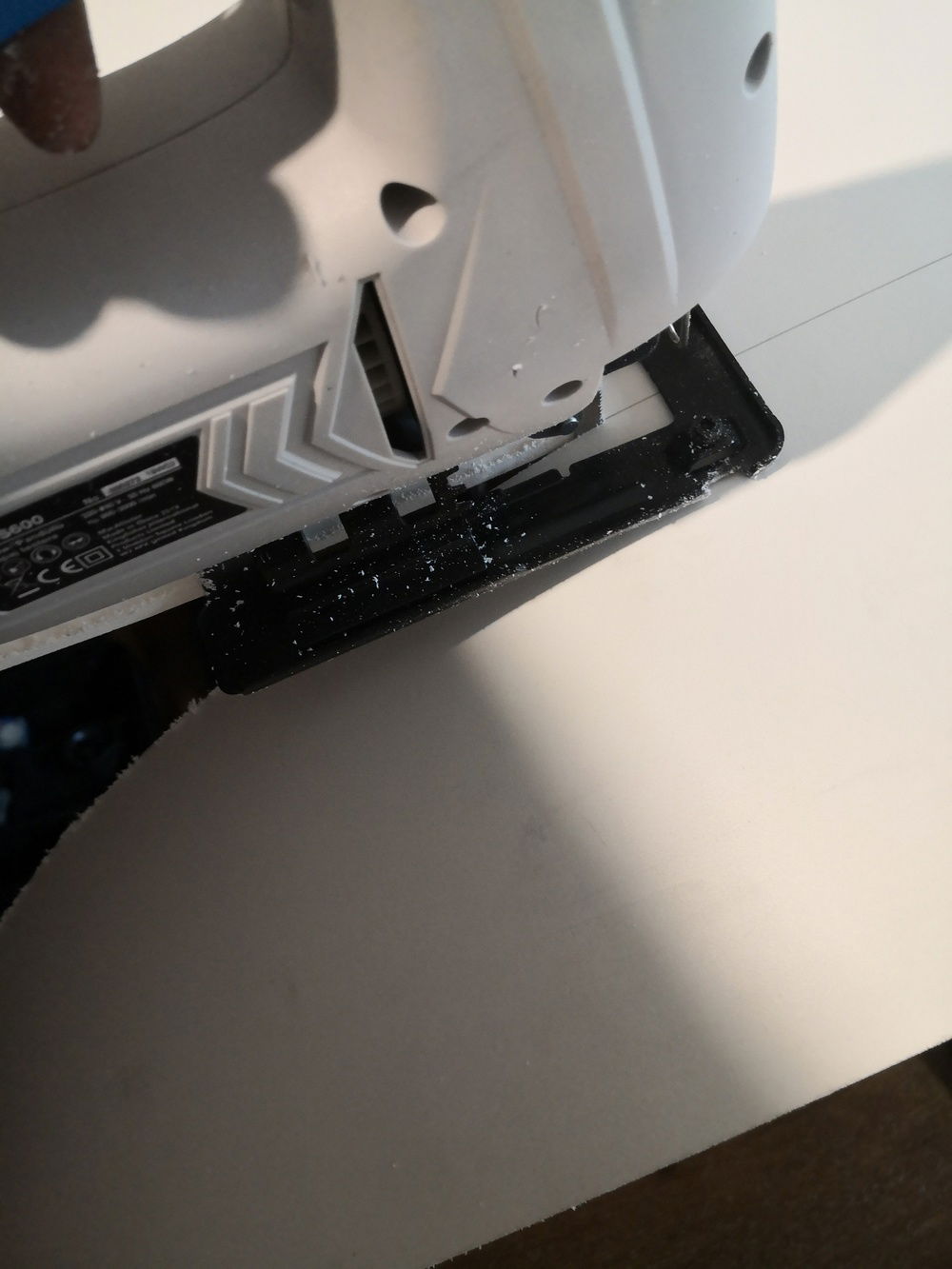

Cut top Side plexi
Vibration band
Mounting left side

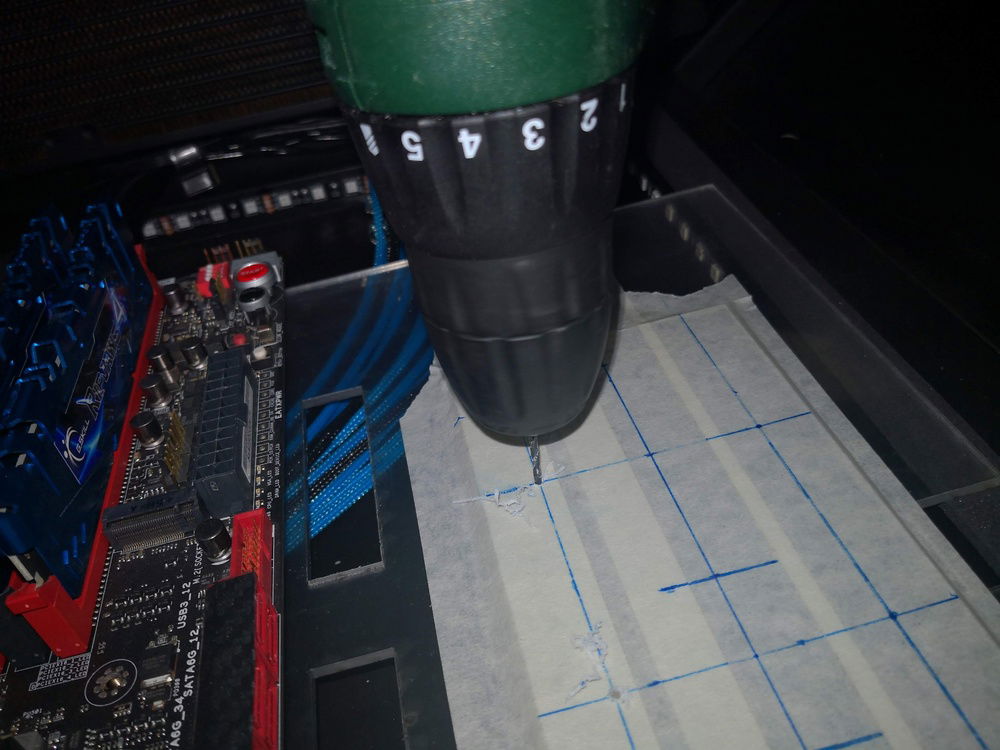

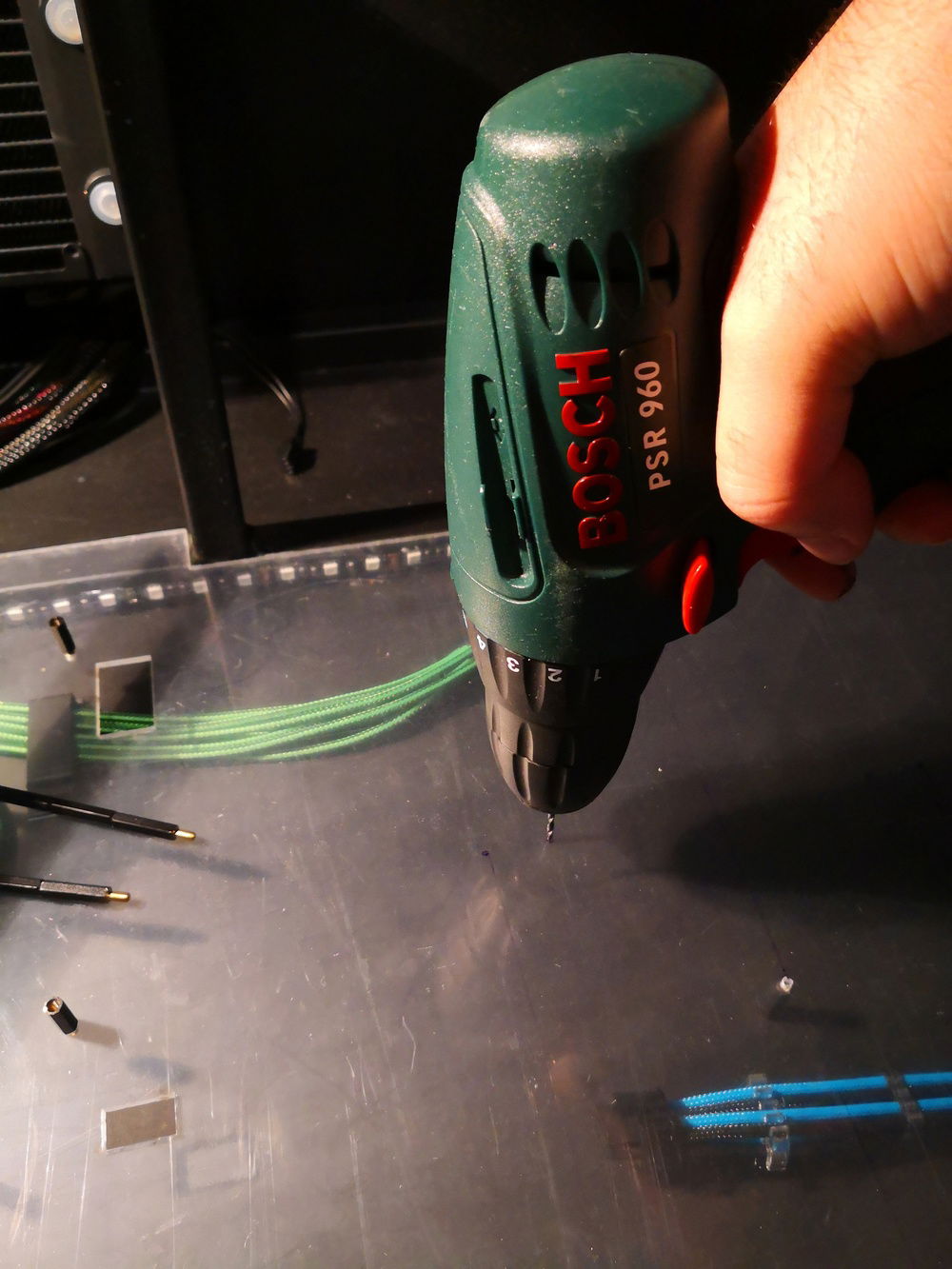

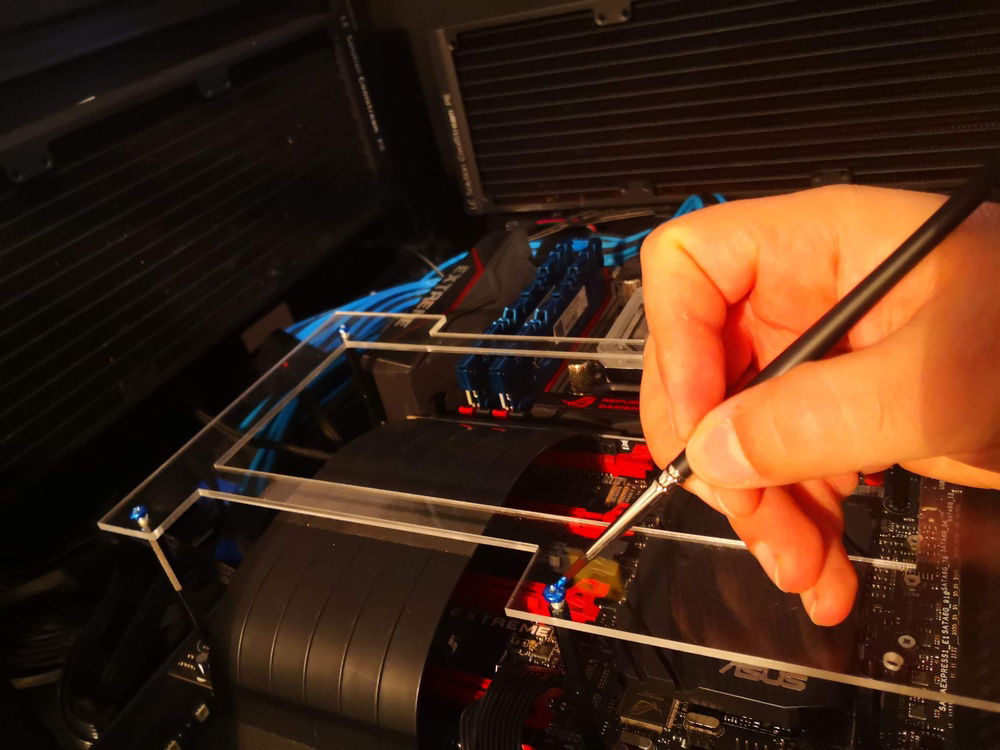

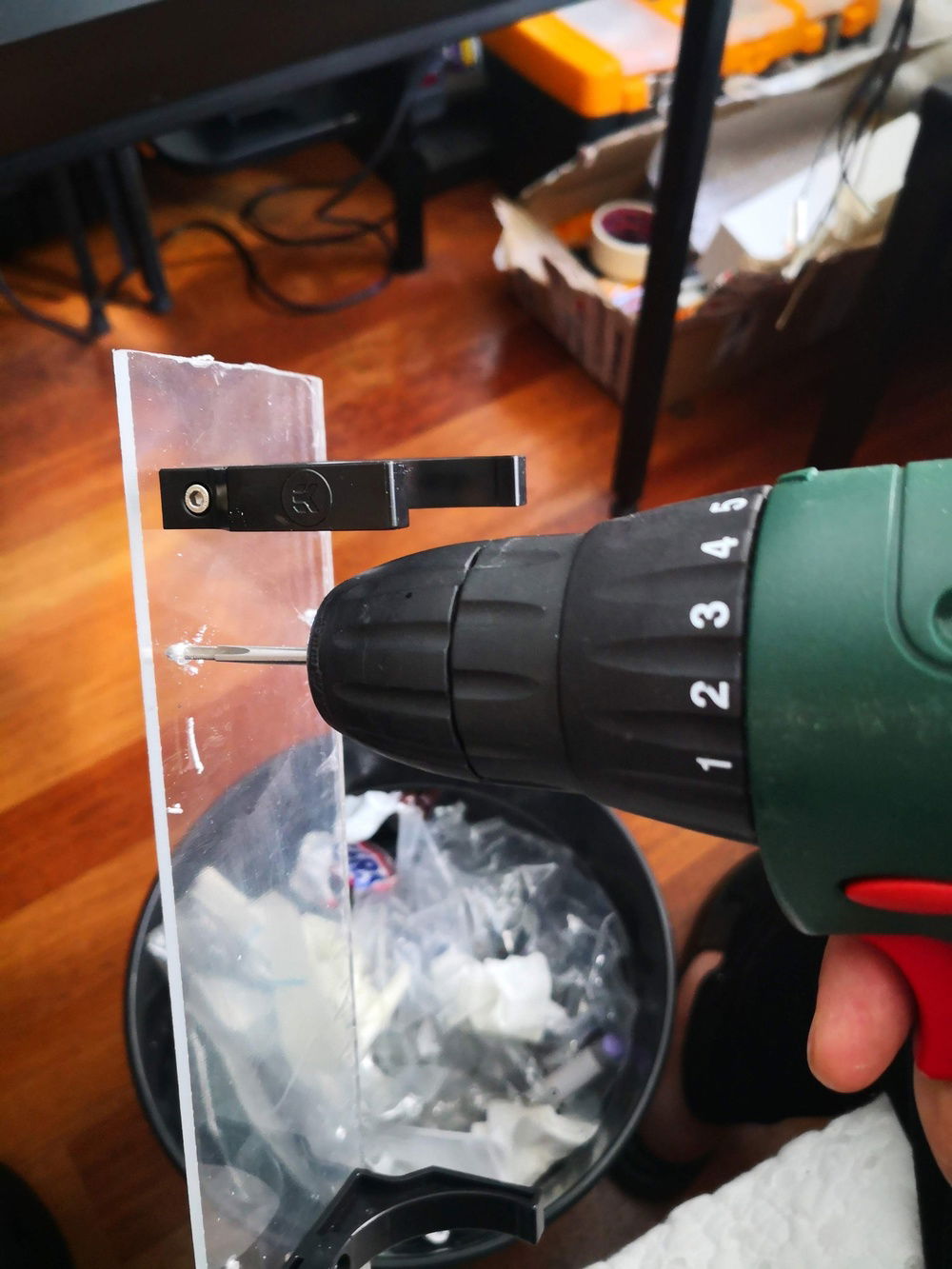

Plexi mounting drill hole
Plexi mounting drill thread
Plexi leg mounting is done

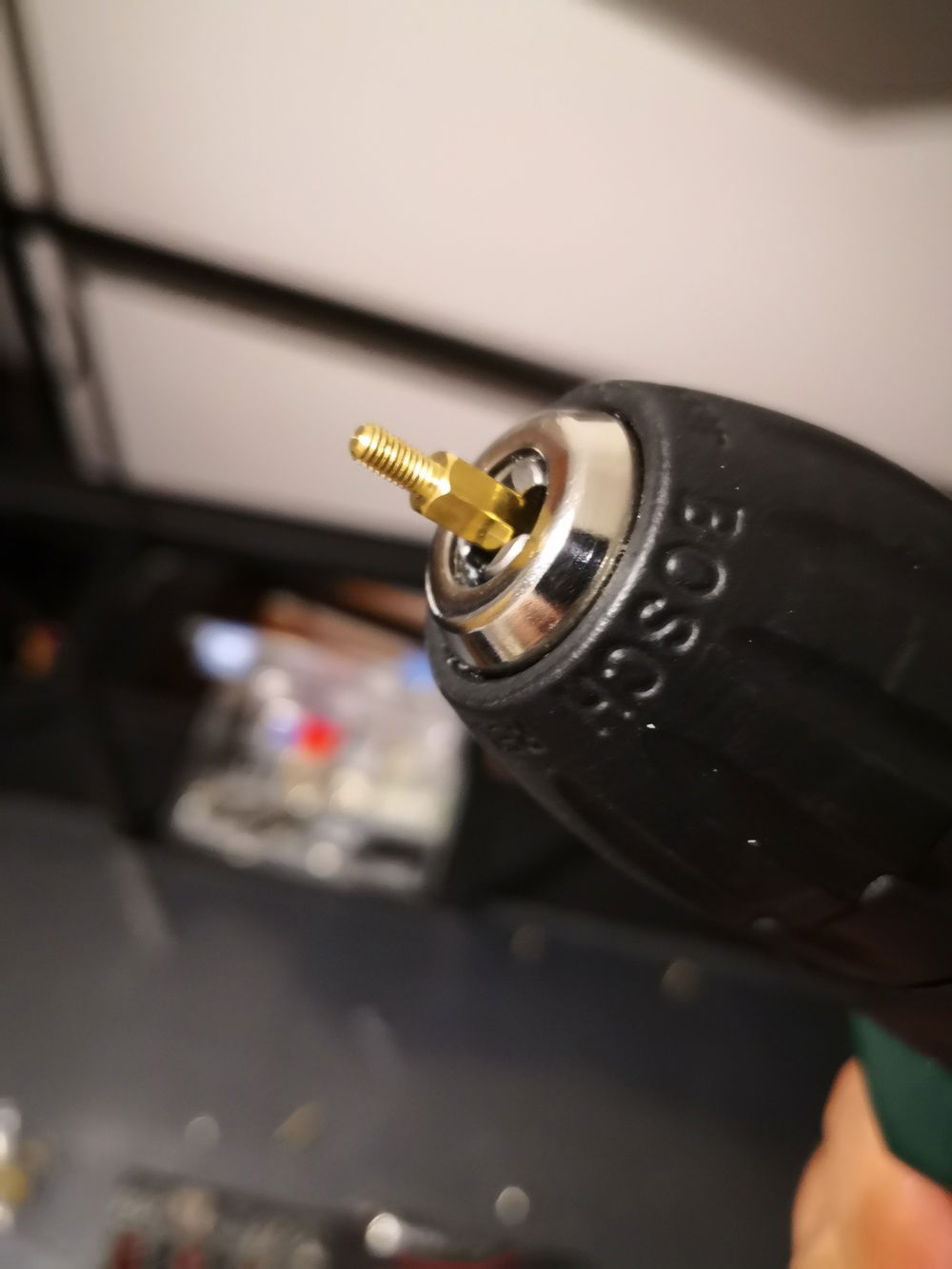

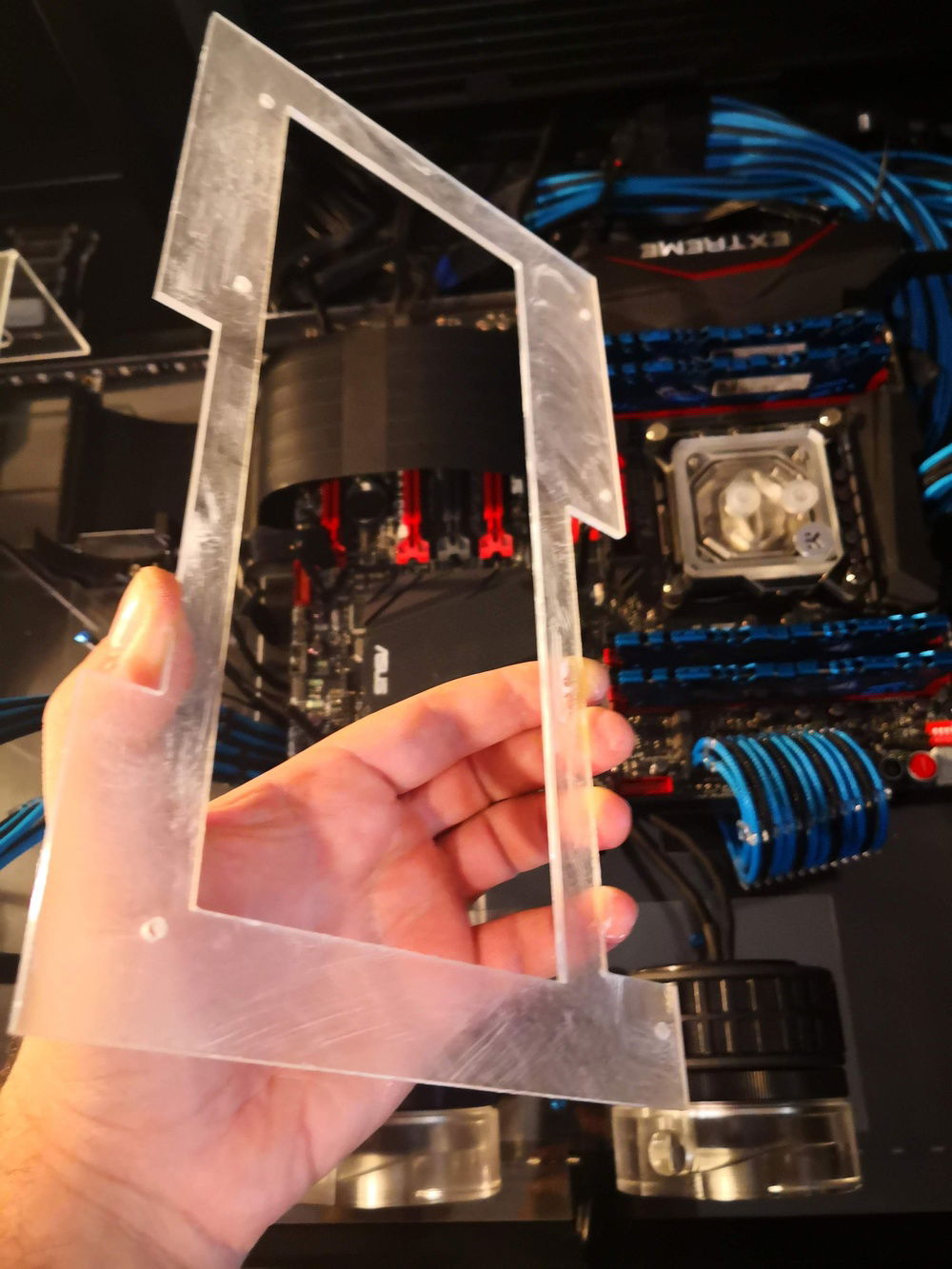

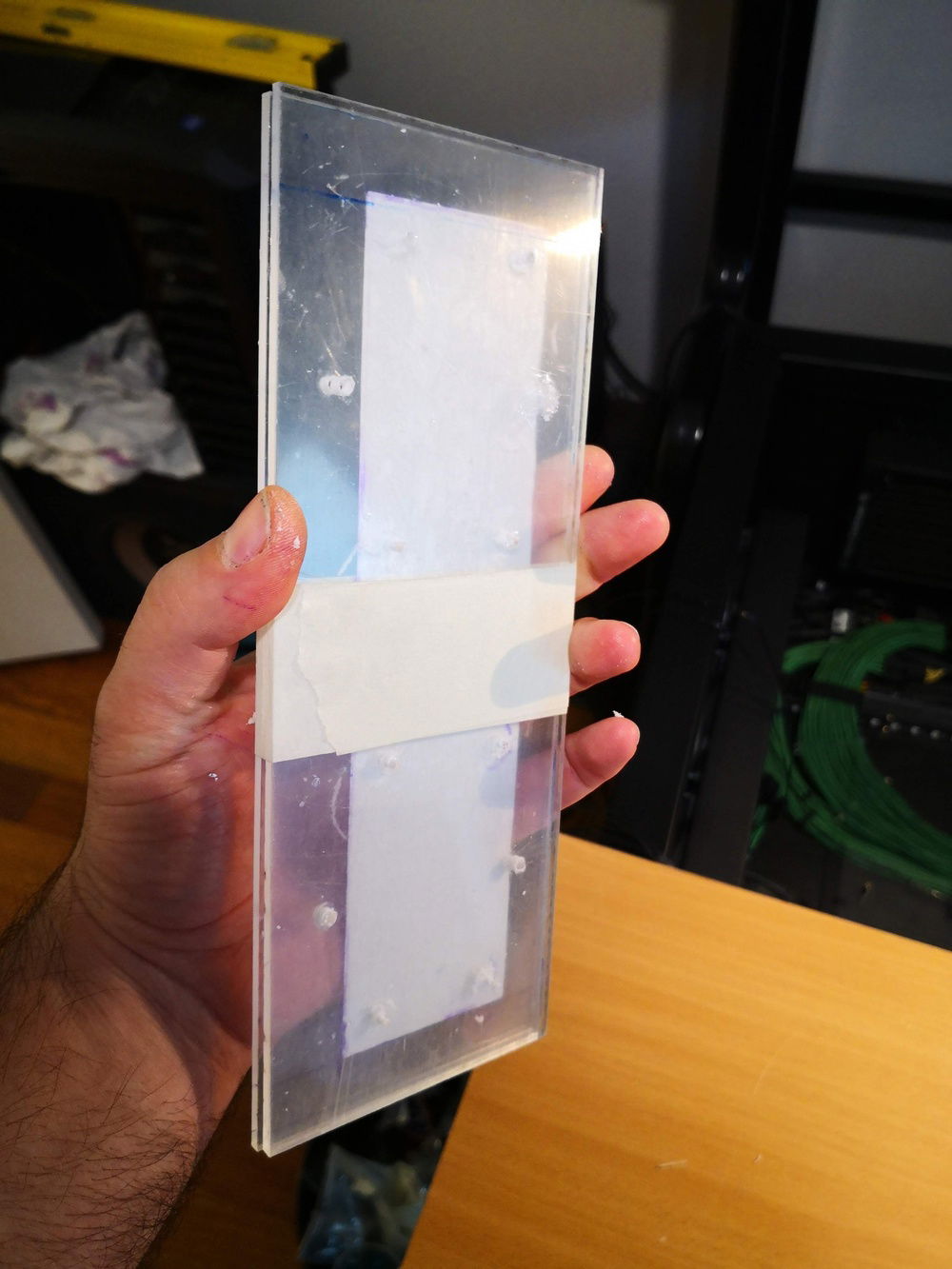

Plexi leg
Mounting plexi screw

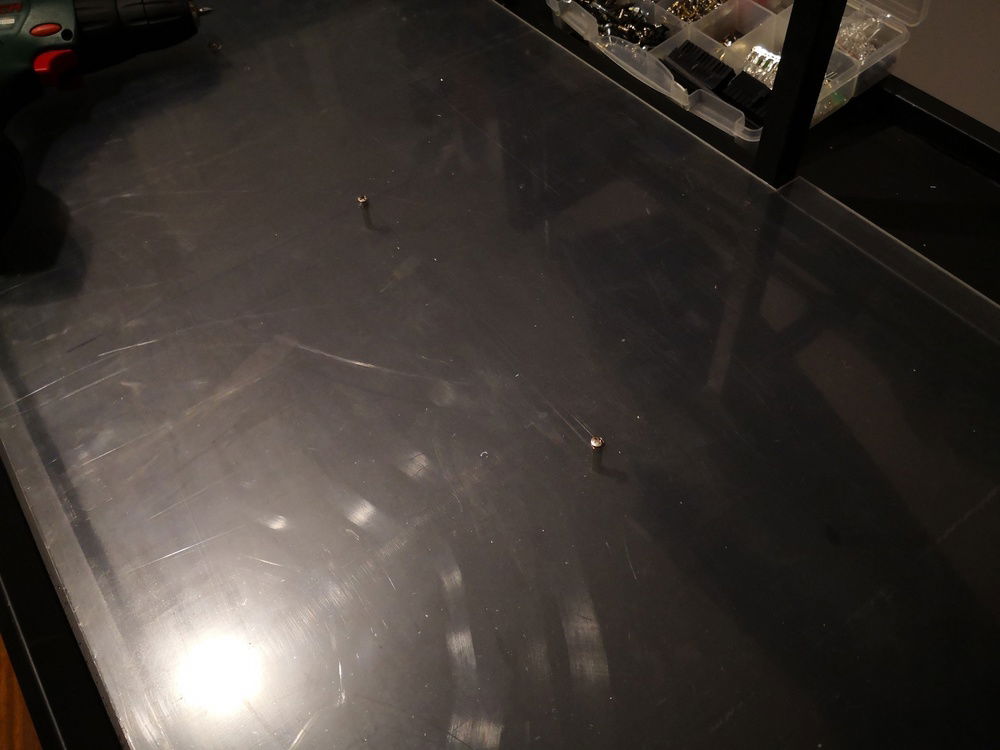

Is done mounting

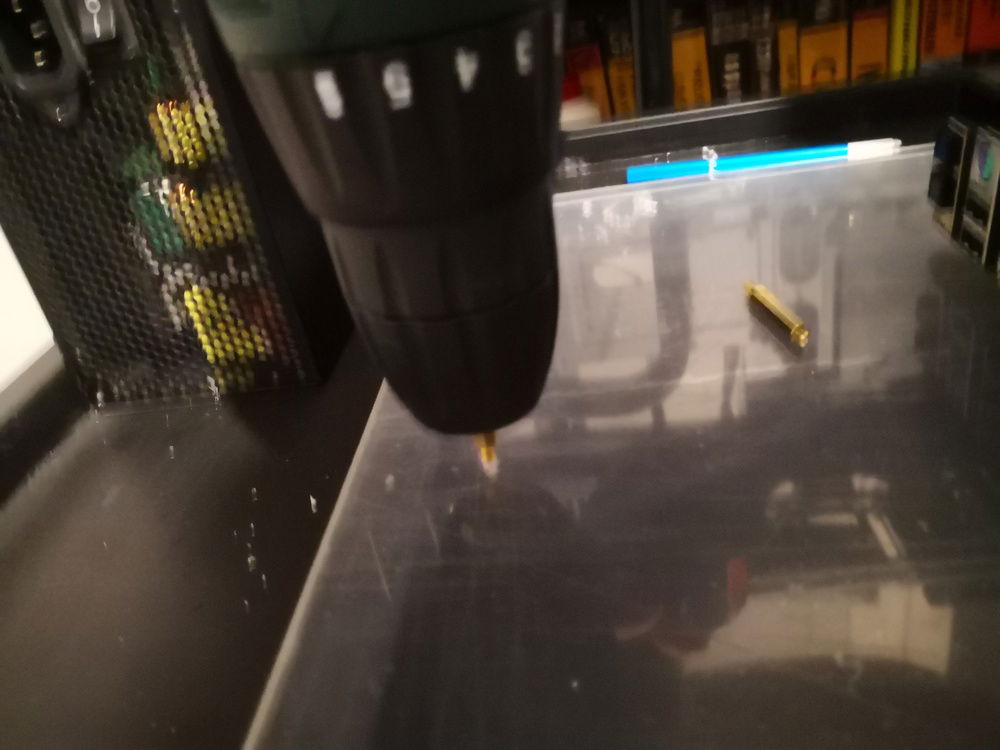

Mounting
Mounting

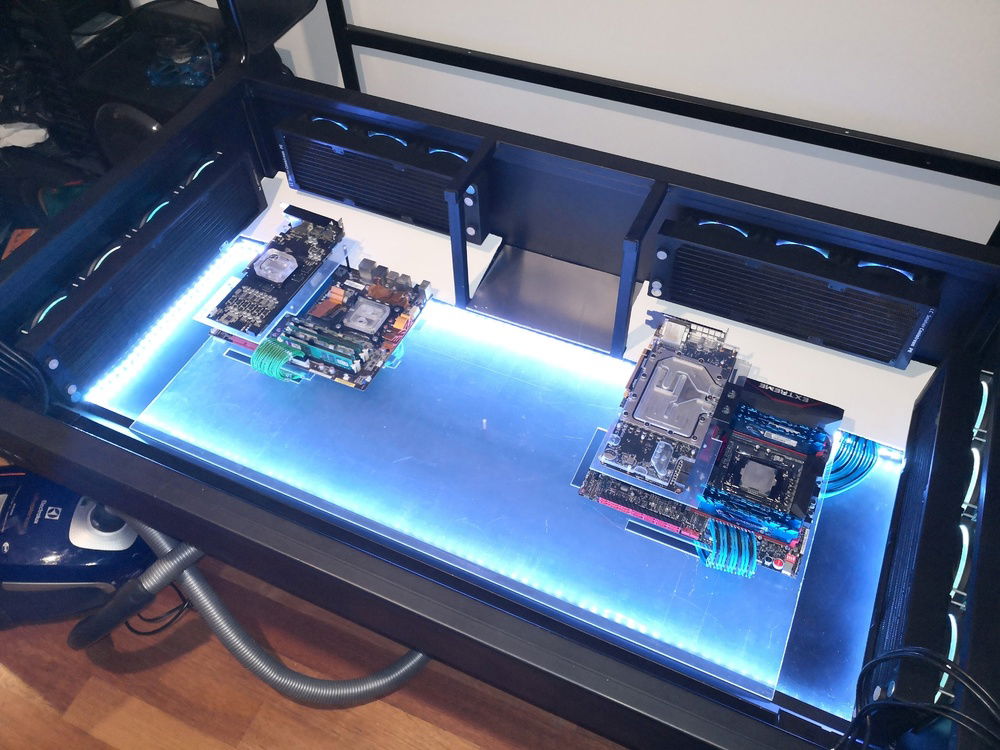

Left Side is old lga 775, right Side x99 new sytem

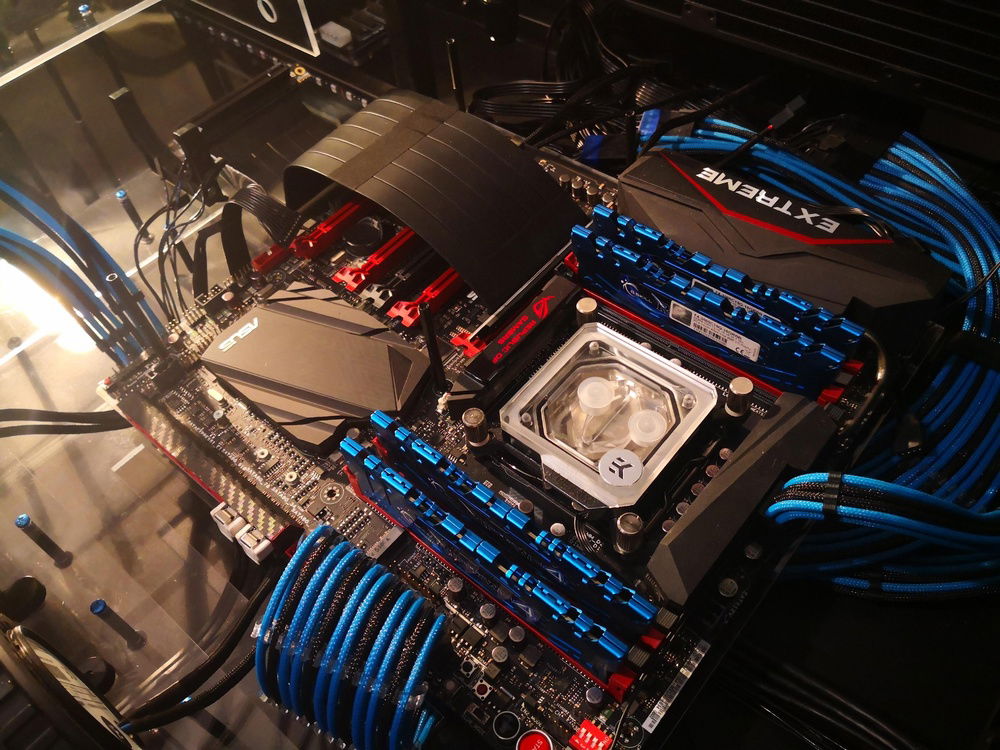

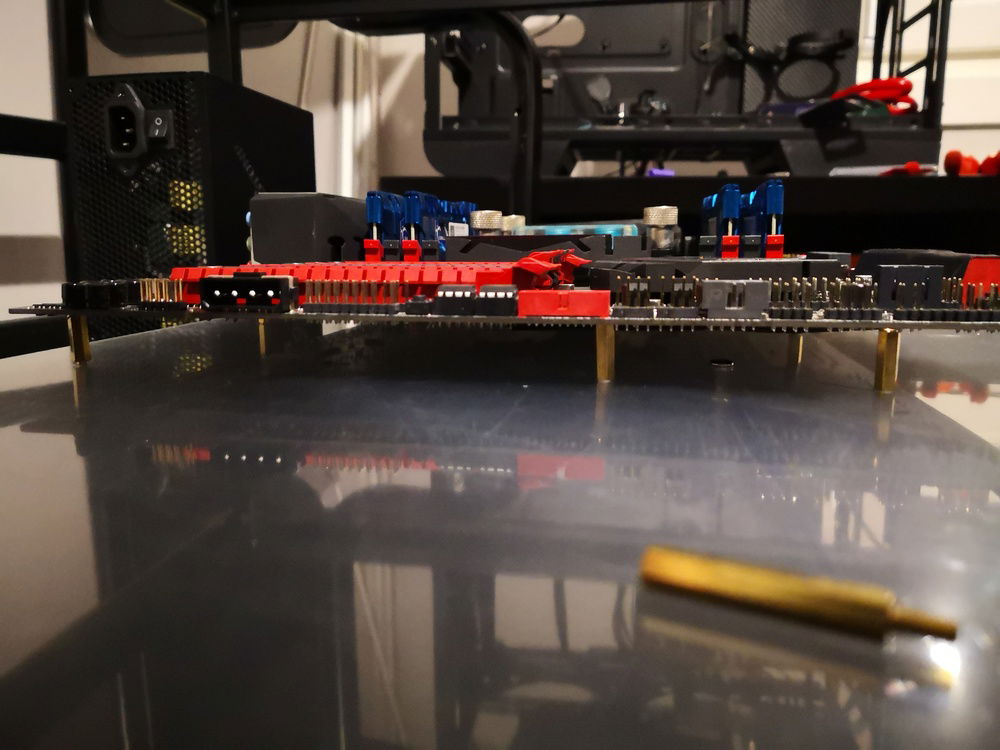

Left Side View x99 system
Mounting try For old system

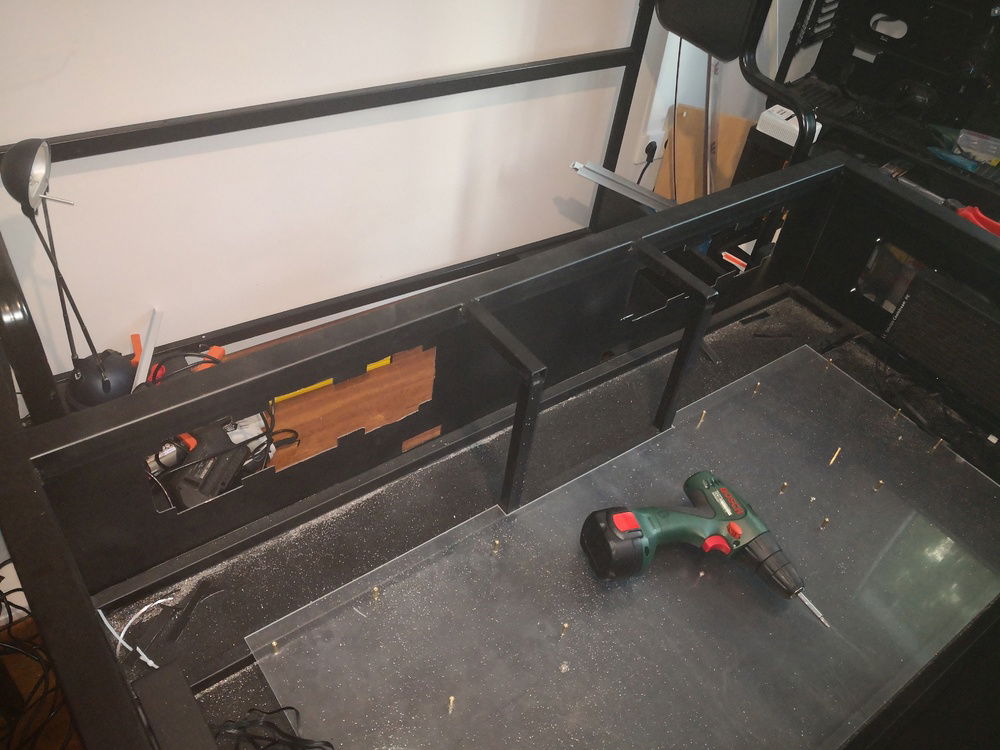

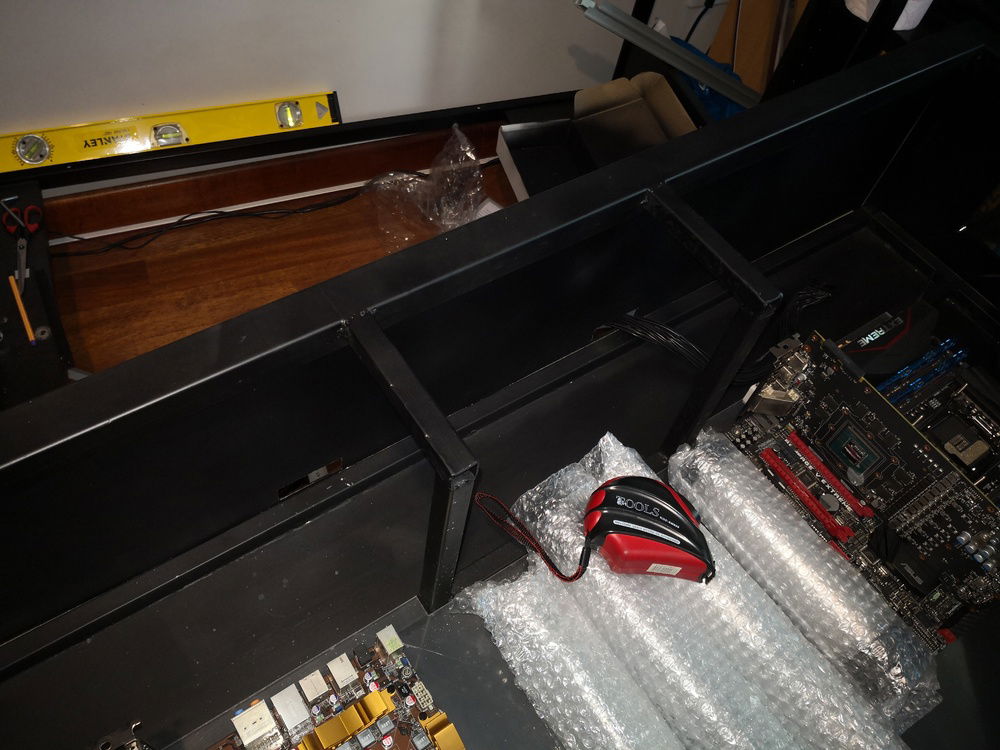

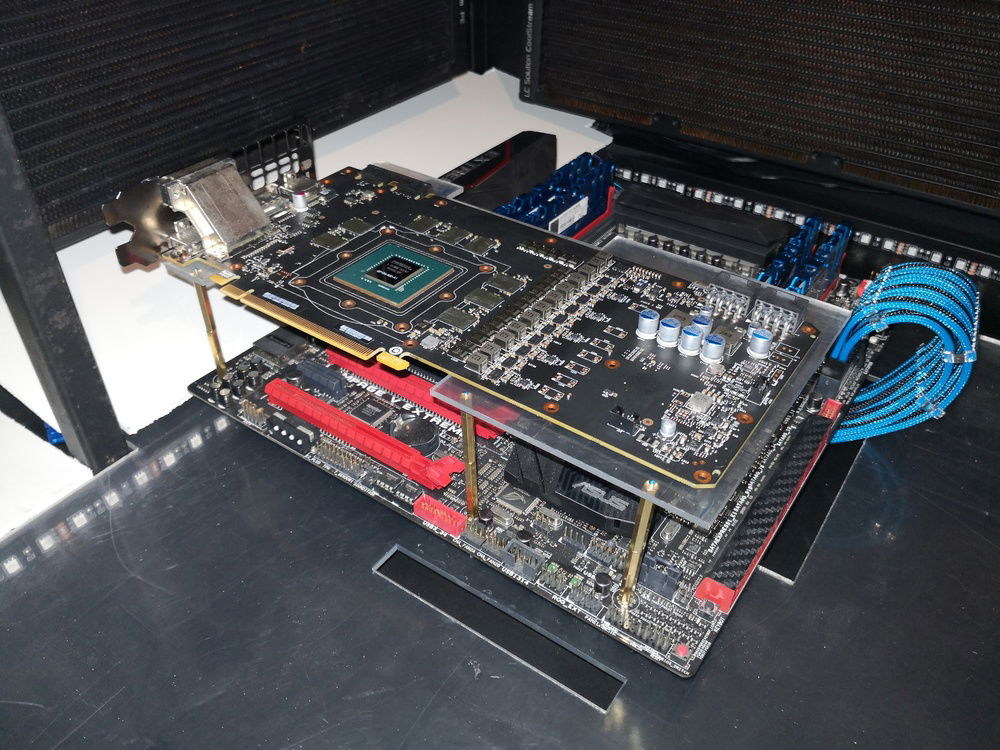

Mainborads mounting Legs is done

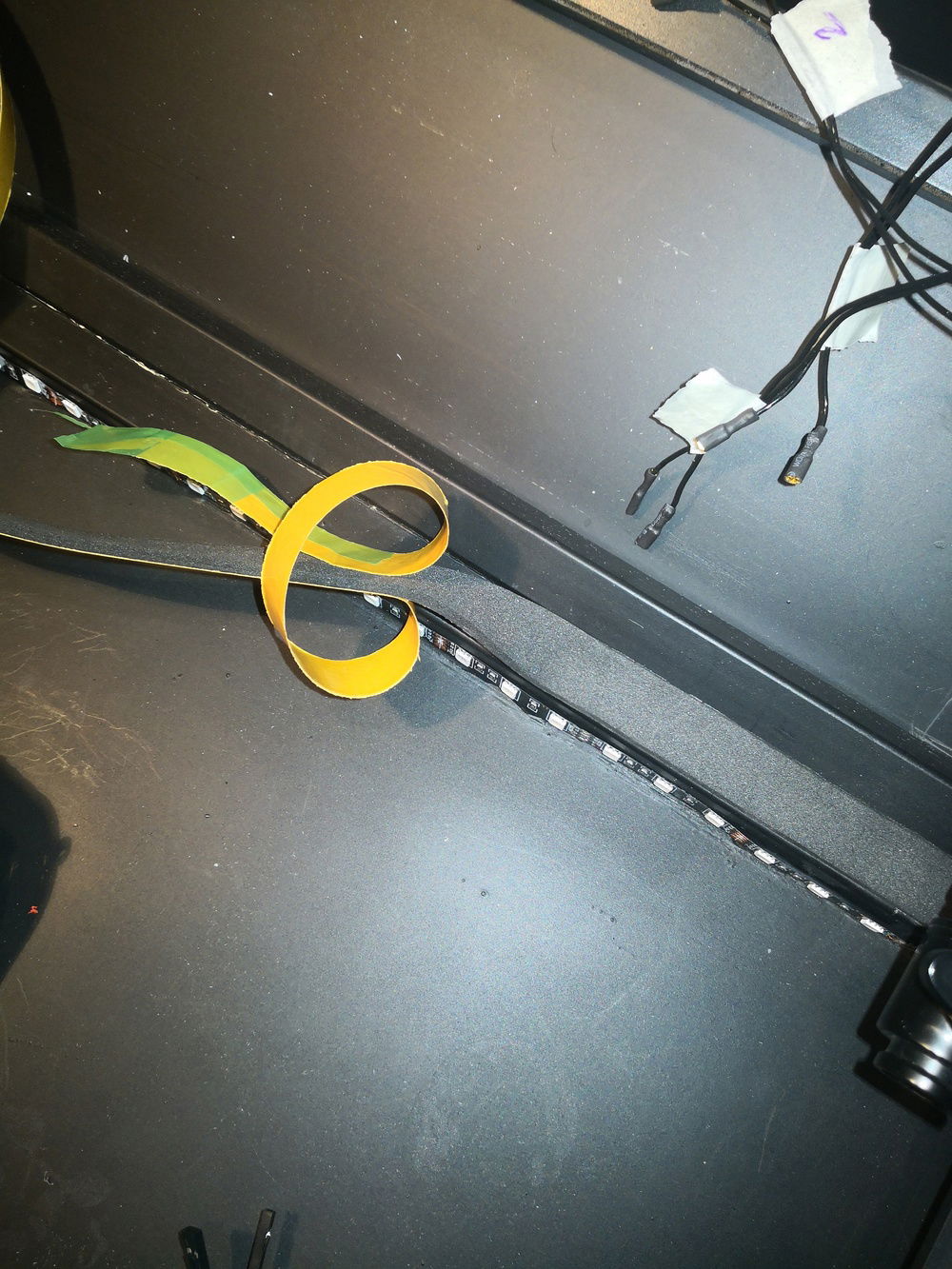

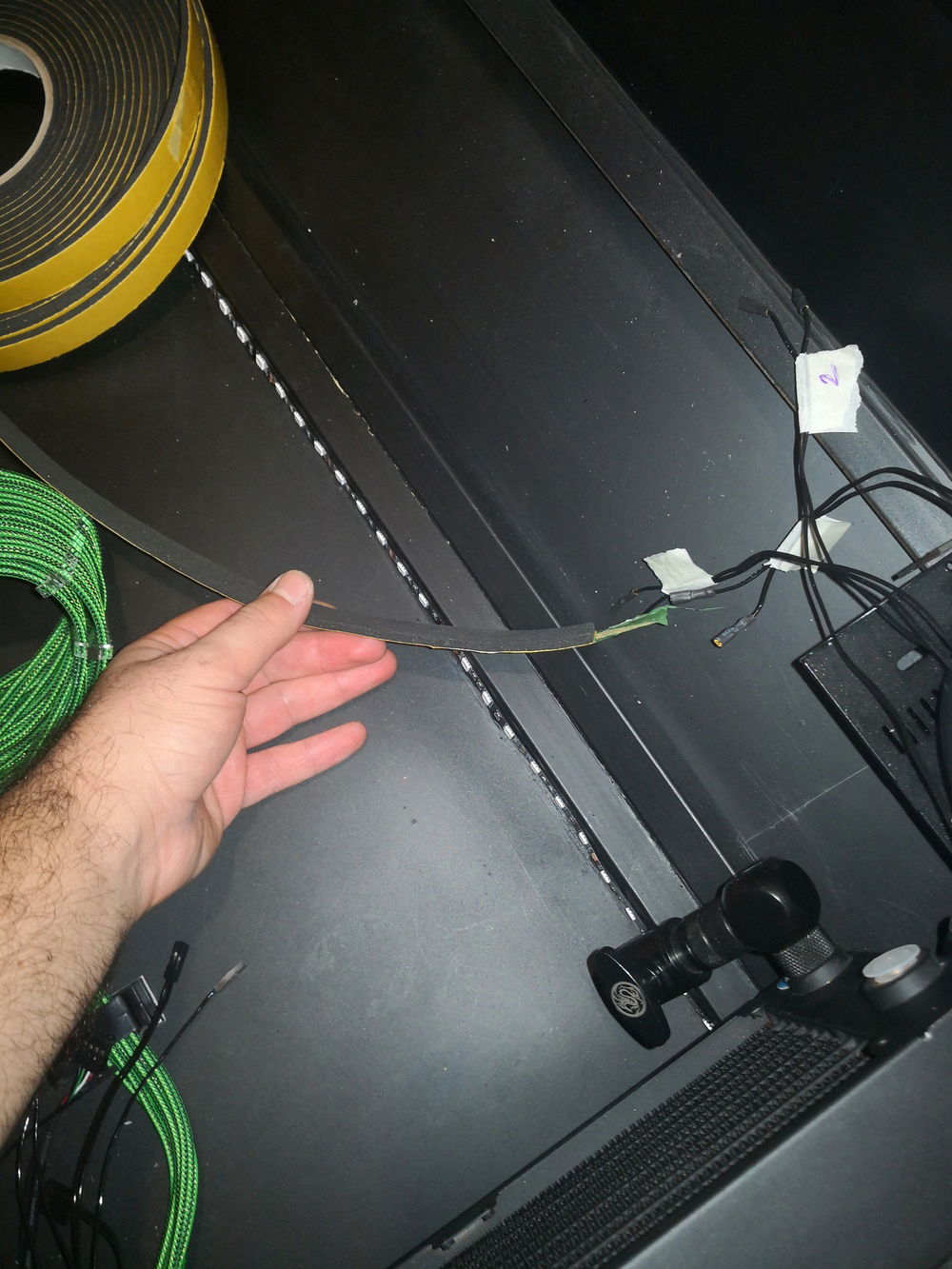

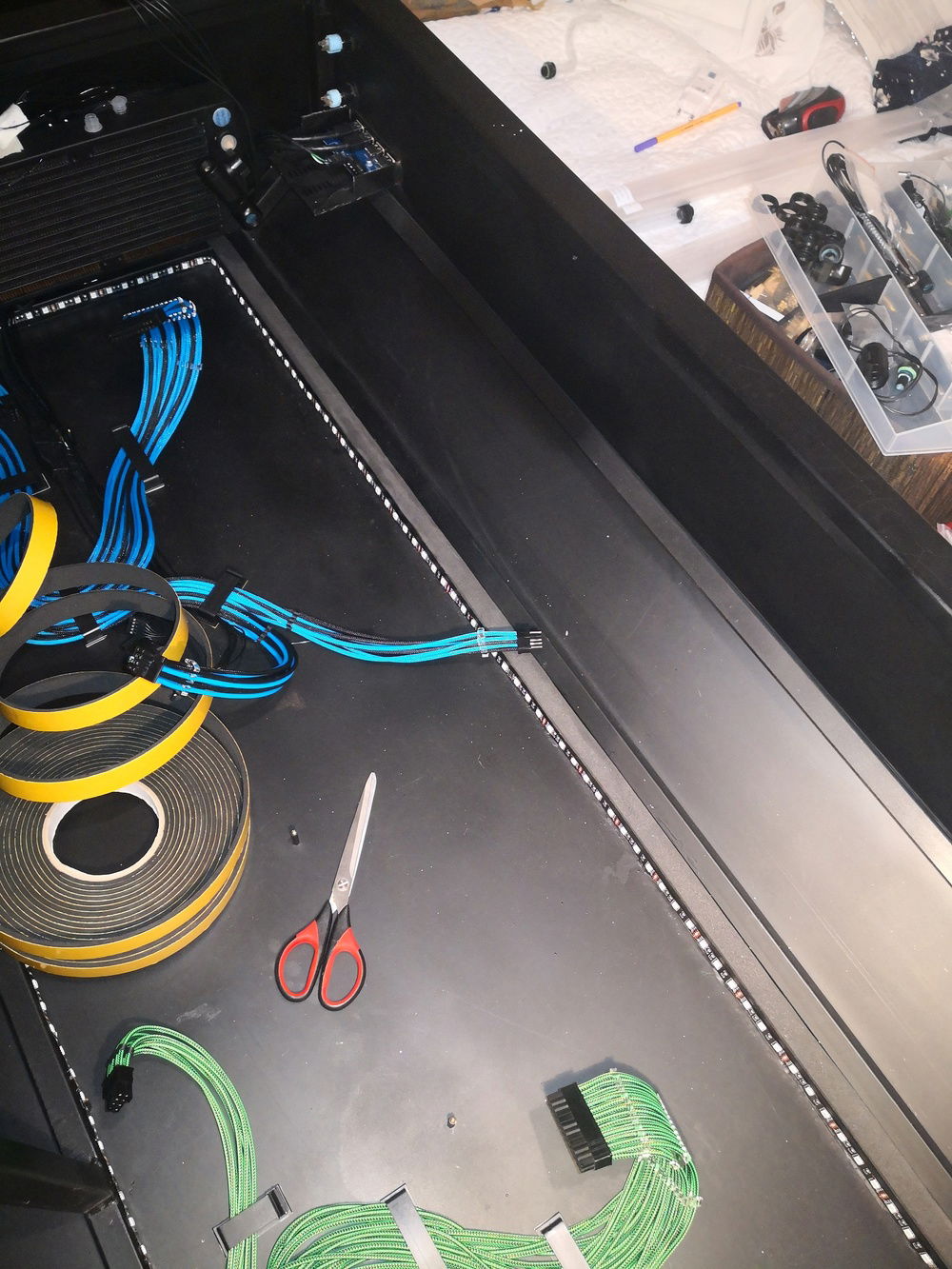

Black base RGB strip led and sponge tape For anti vibration

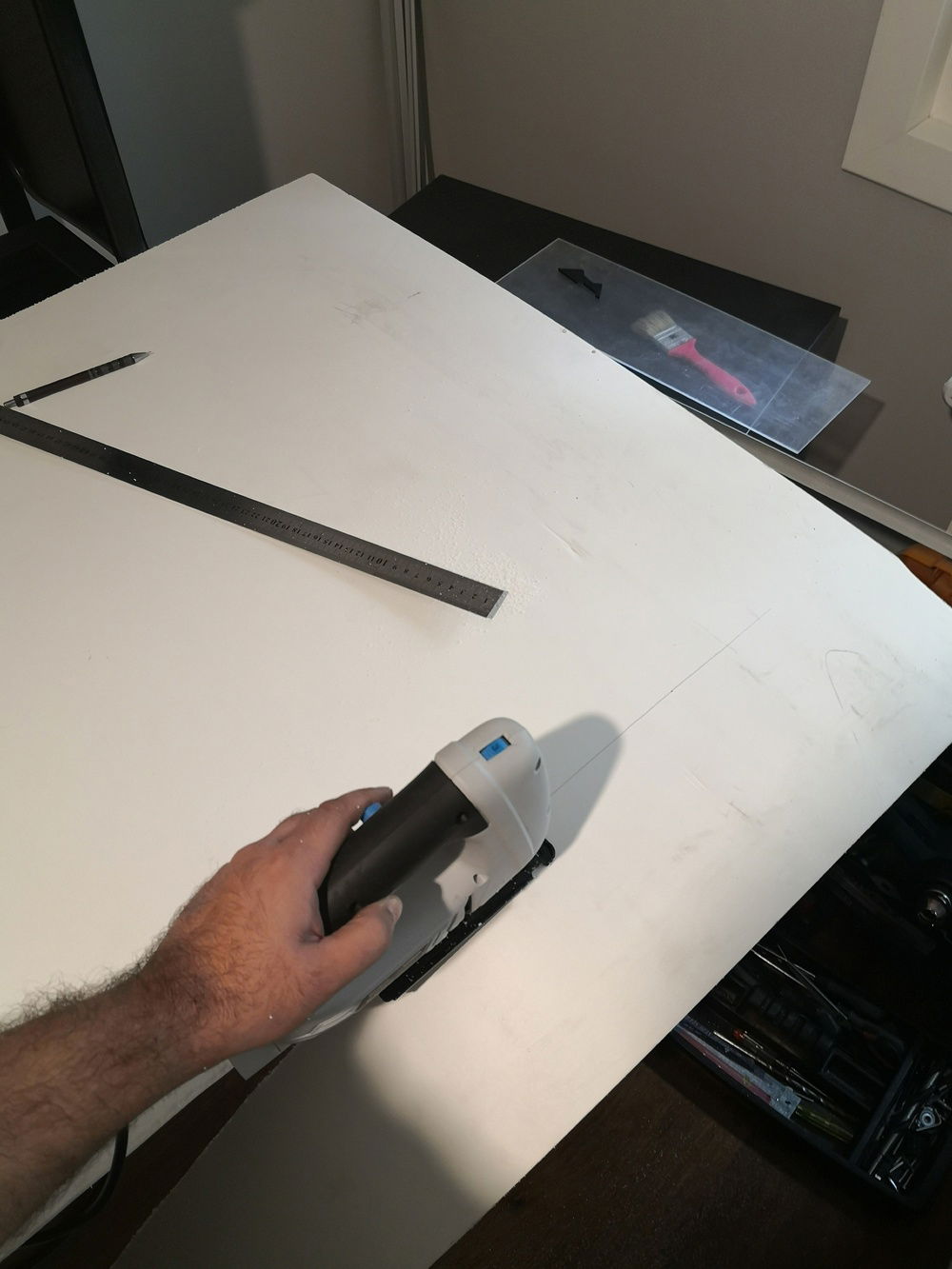

0.5mm PVC foam

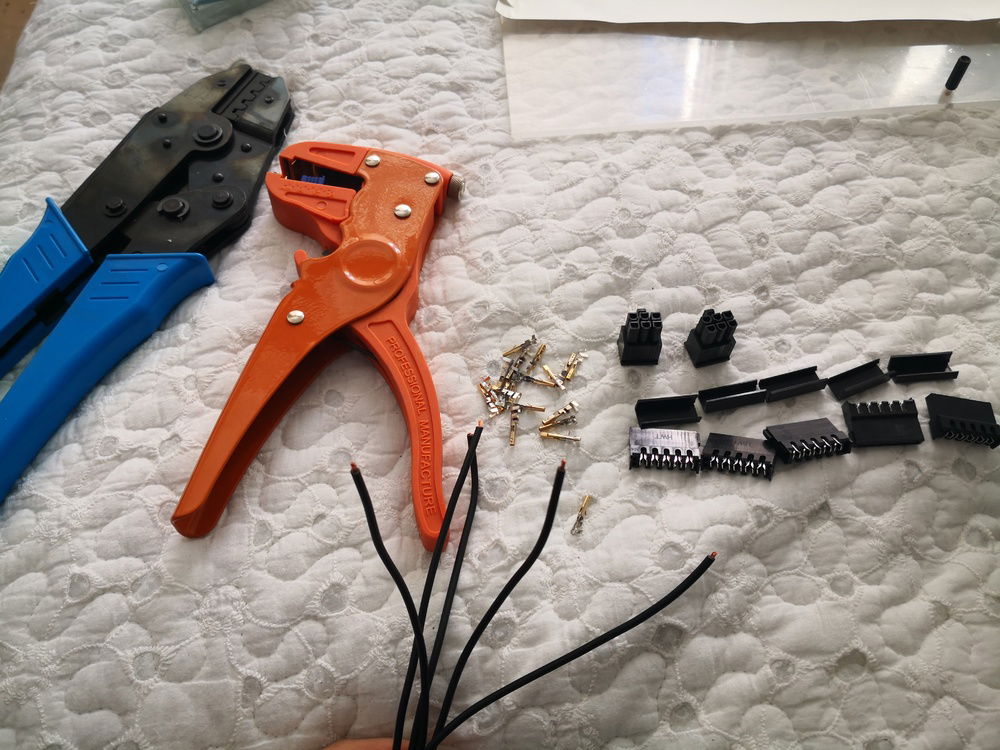

SSd and sata power connectors

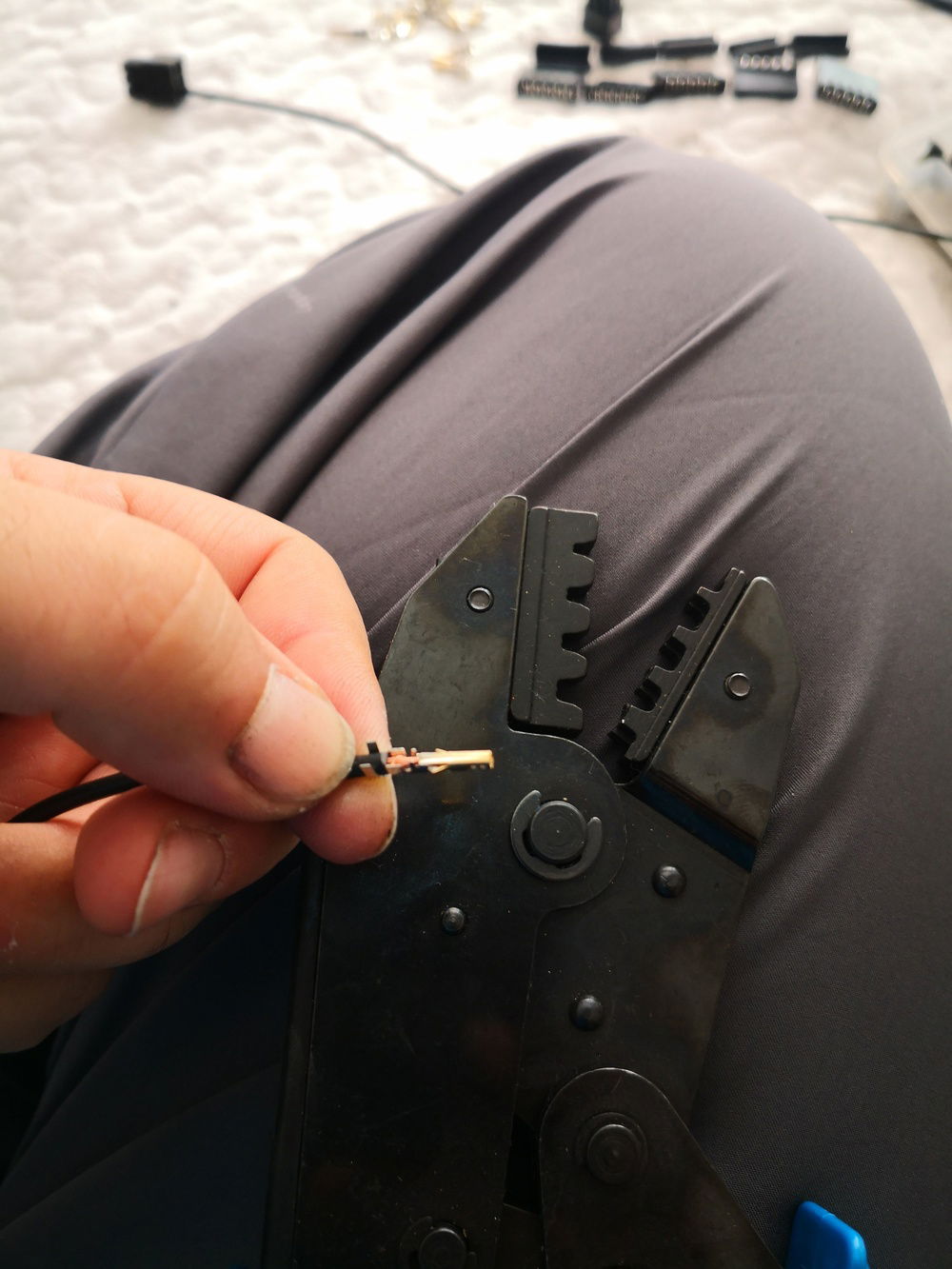

Atx cable and connectors For psu to mainboard

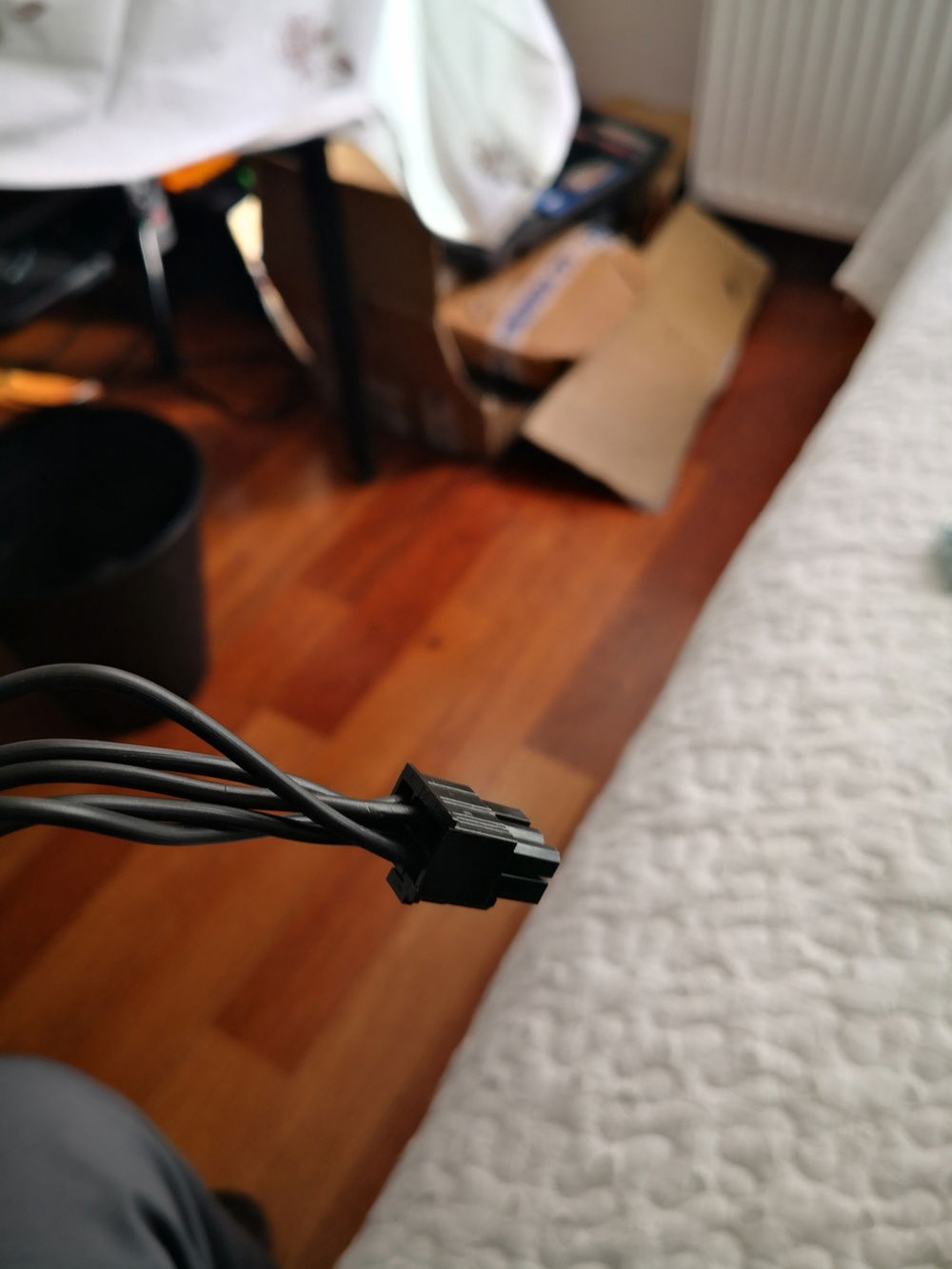

Psu cable finish

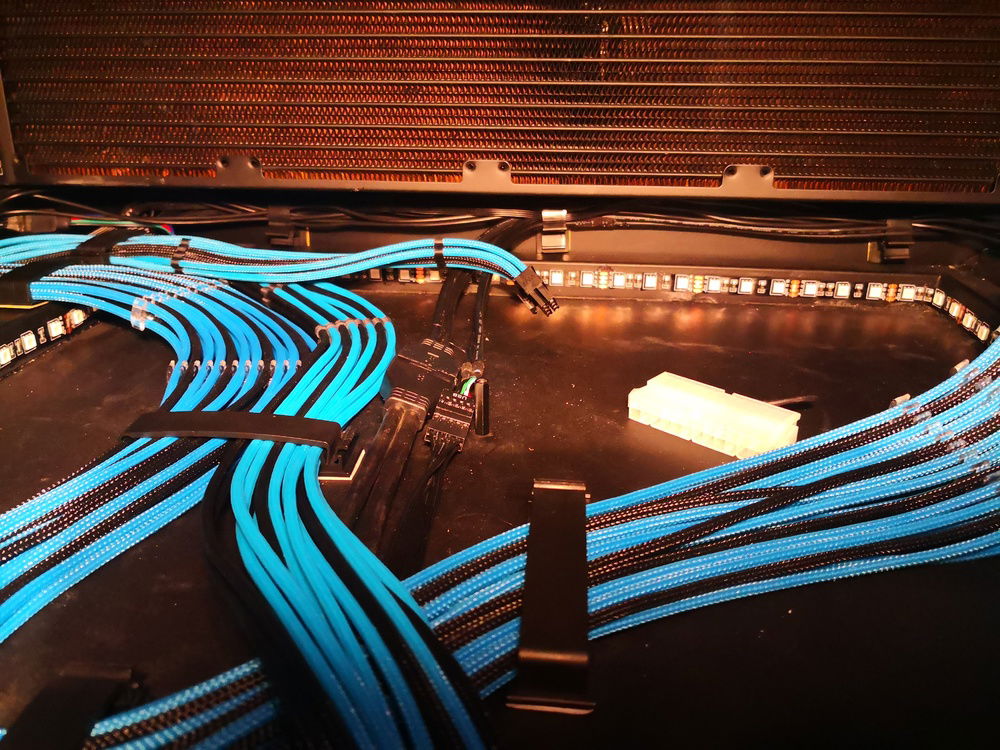

Paracord cover cables

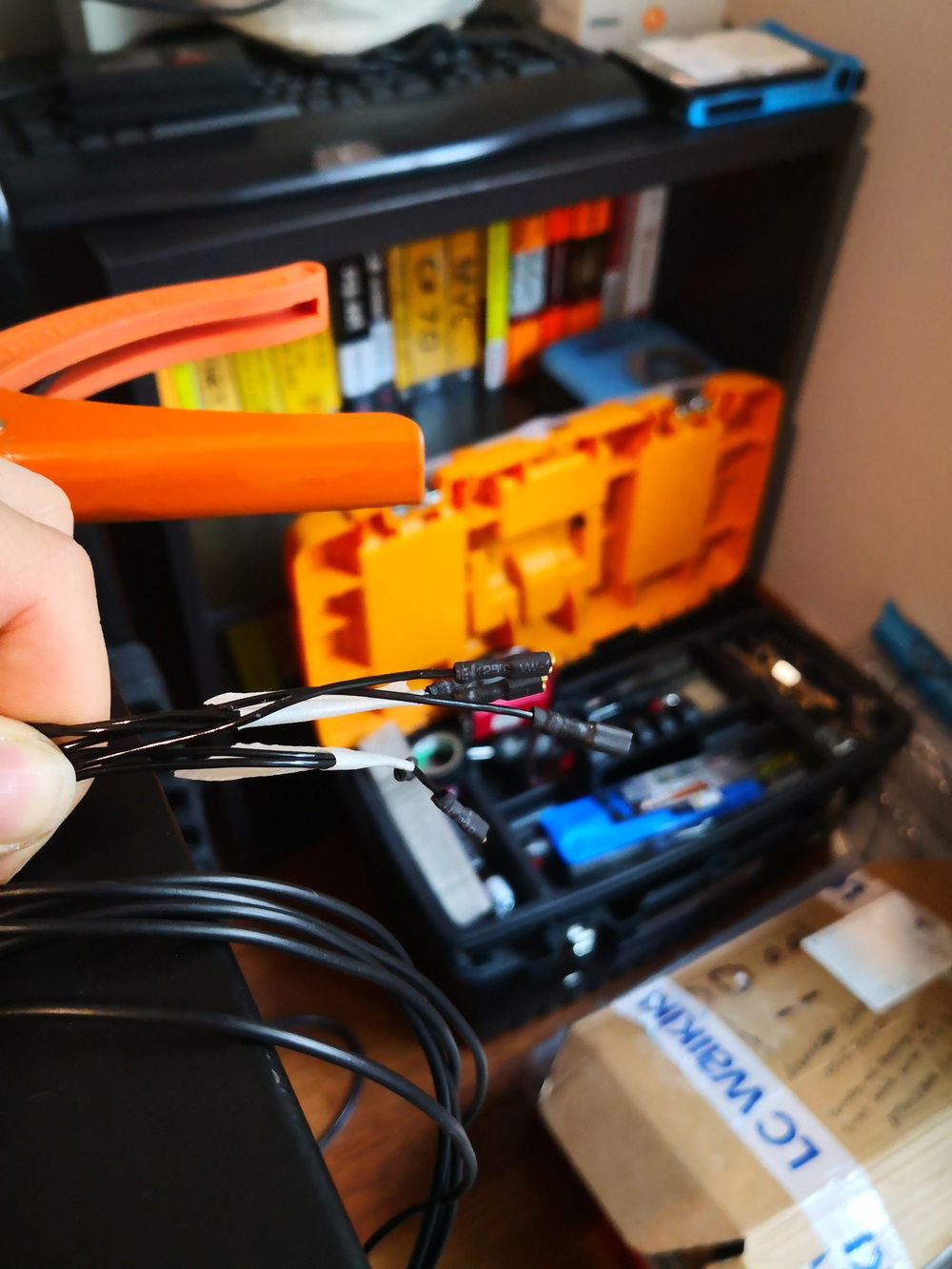

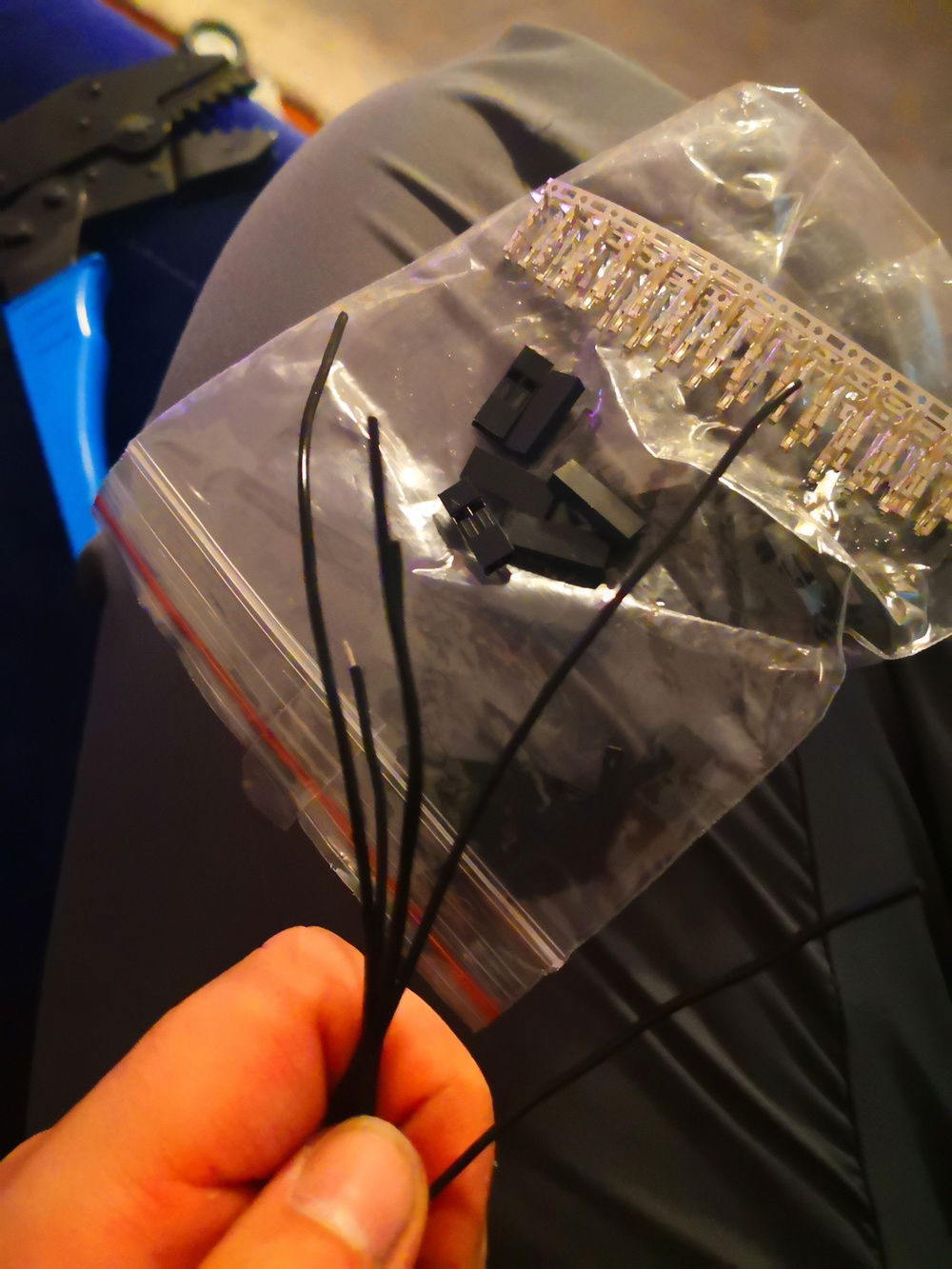

Depunt connectors and pins
Depunt For power and restart cable to mainboard side

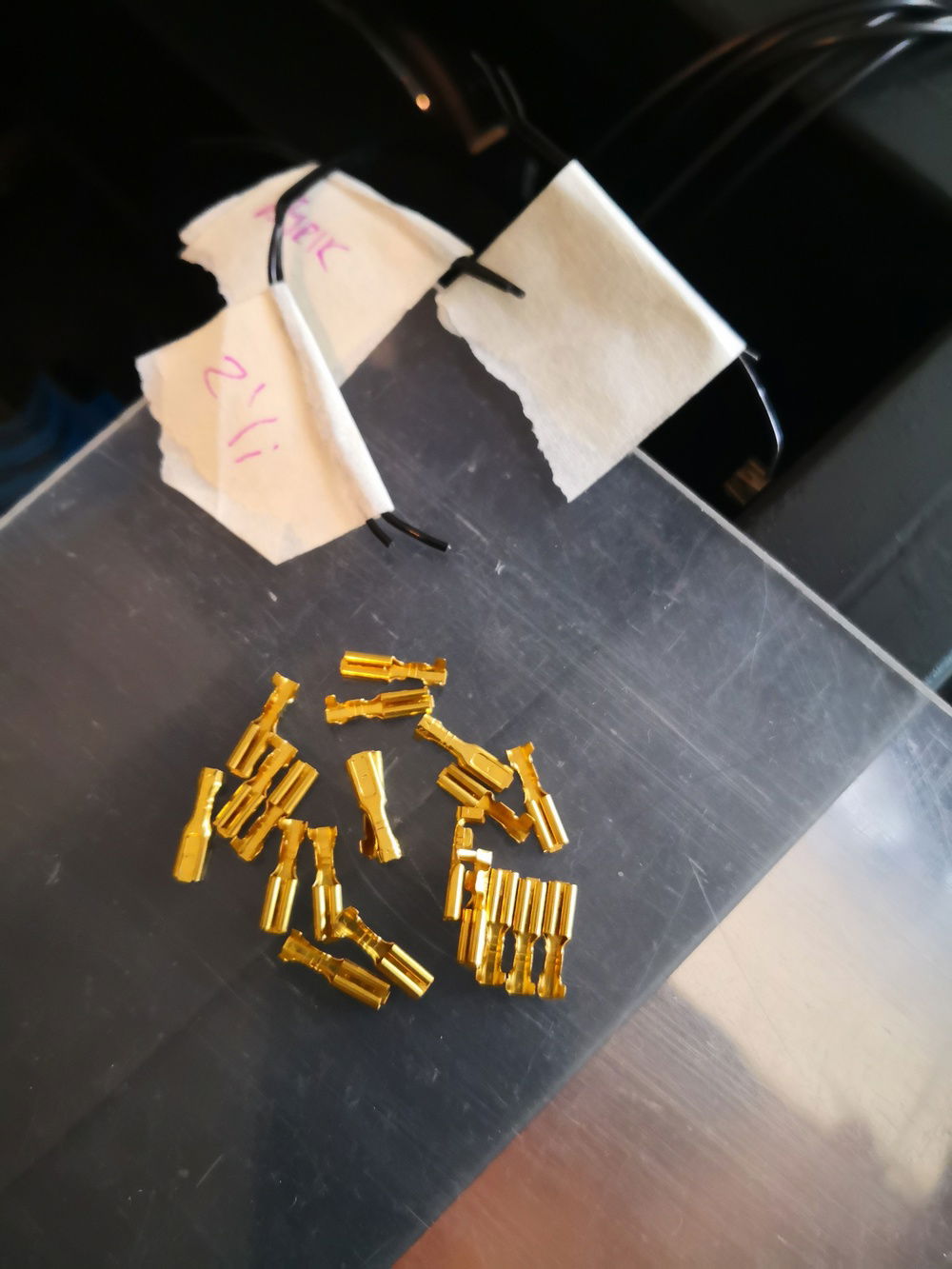

Connectors

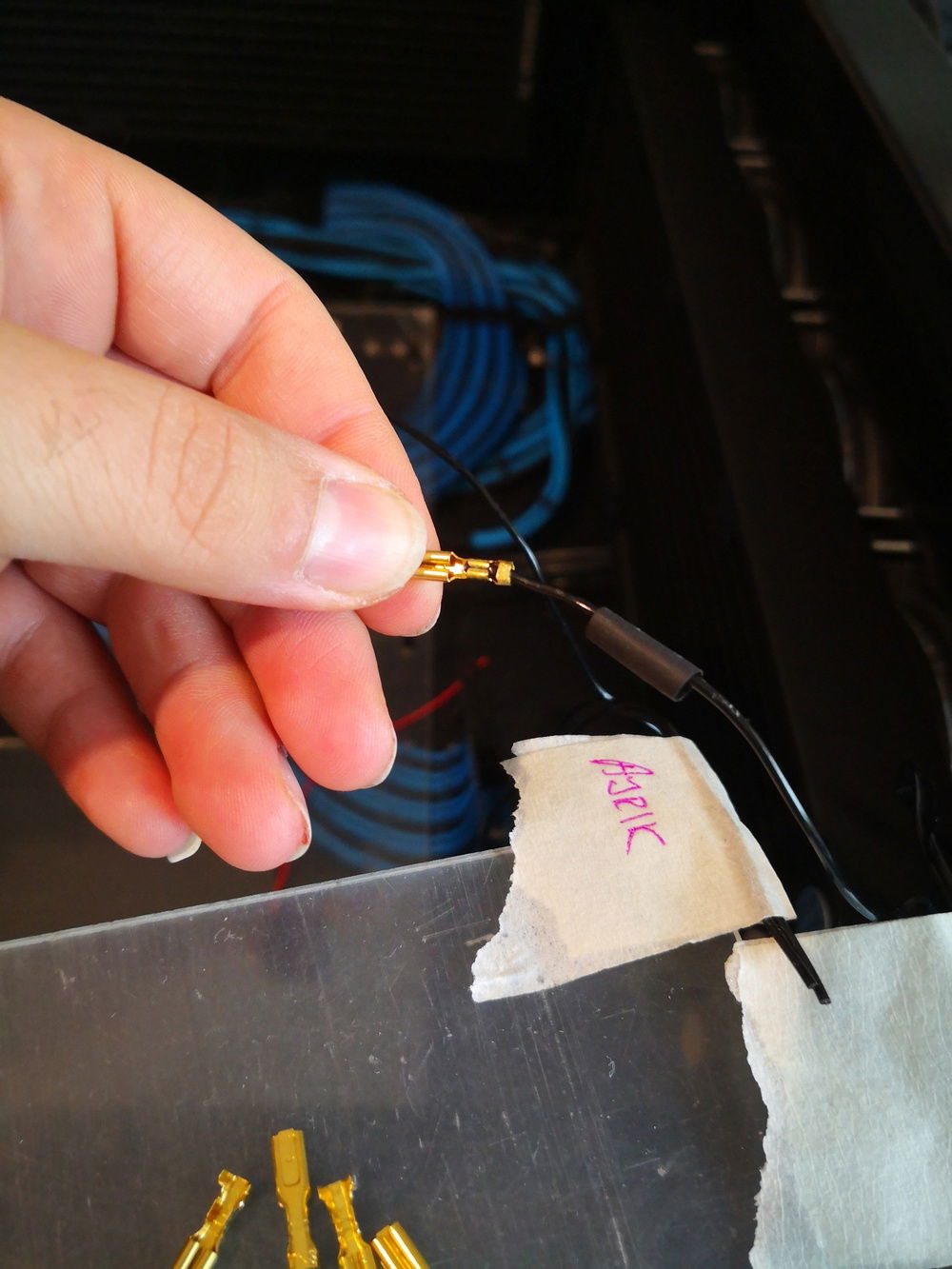

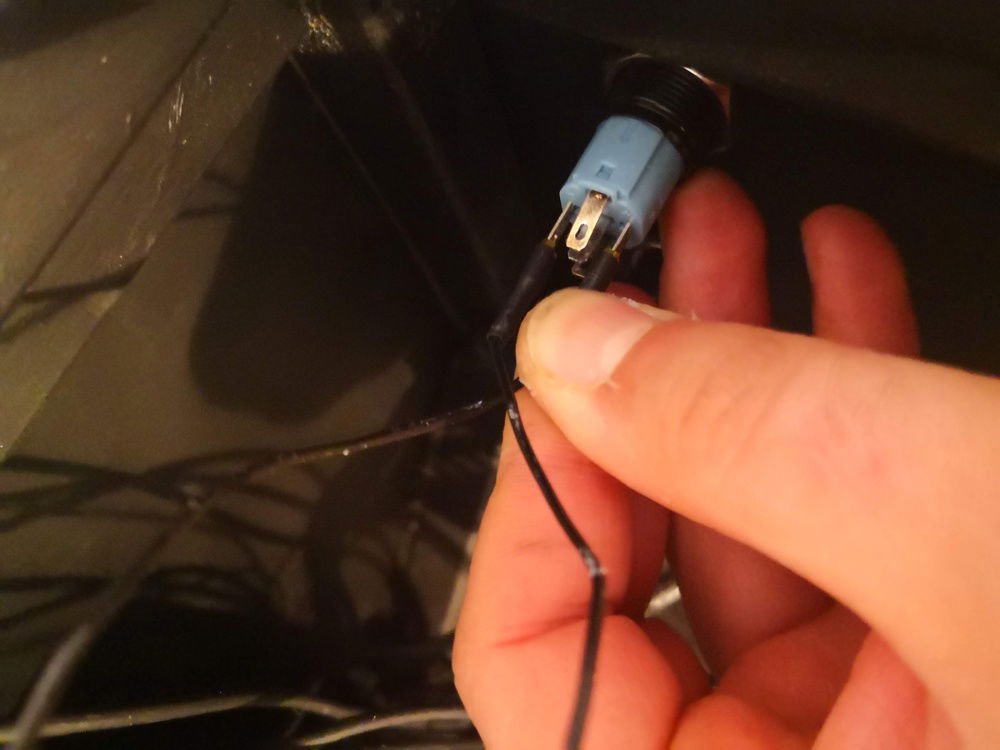

Power and restart buton cable

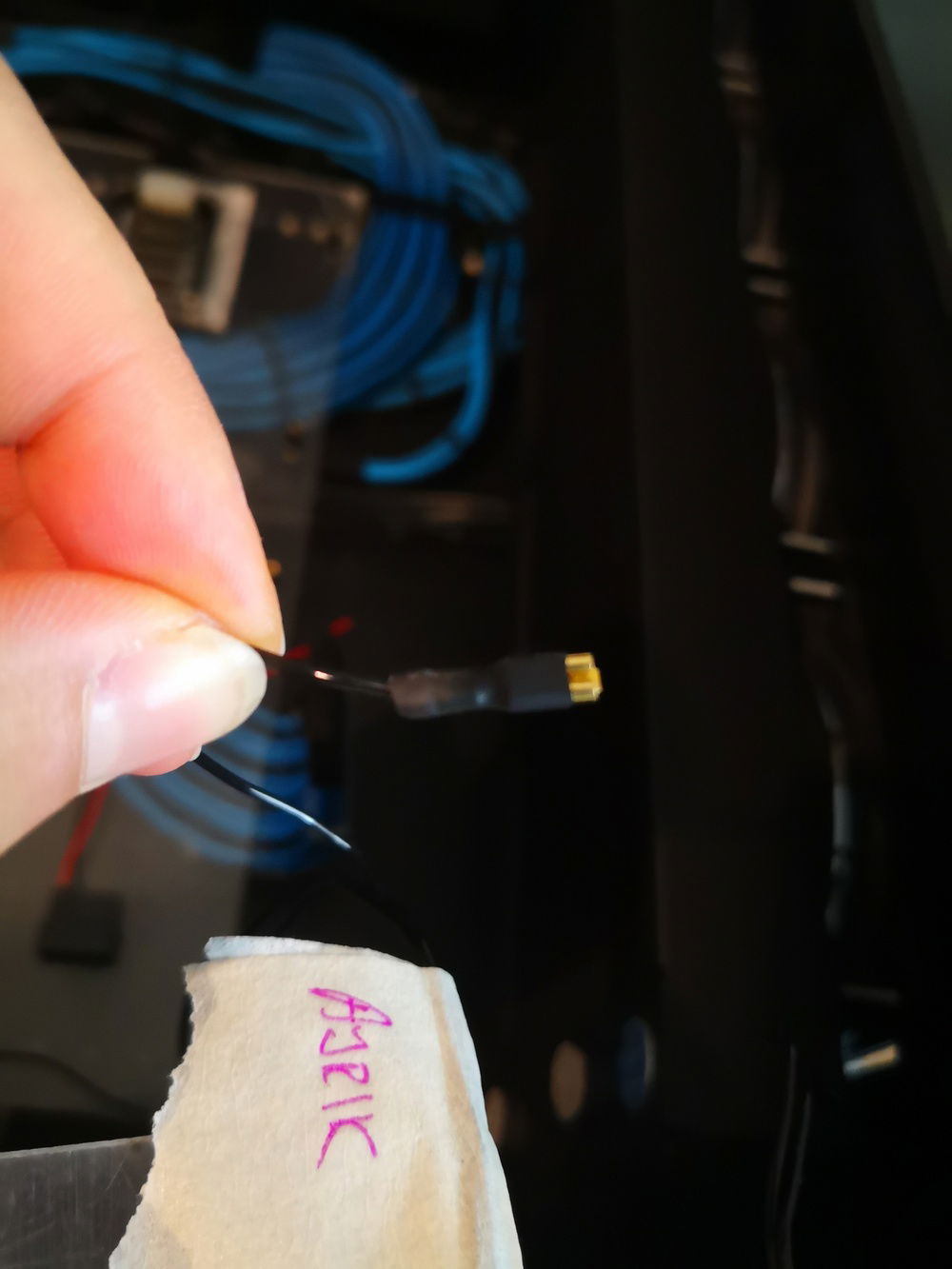

Cover macoron
Power and restart buton cable finish

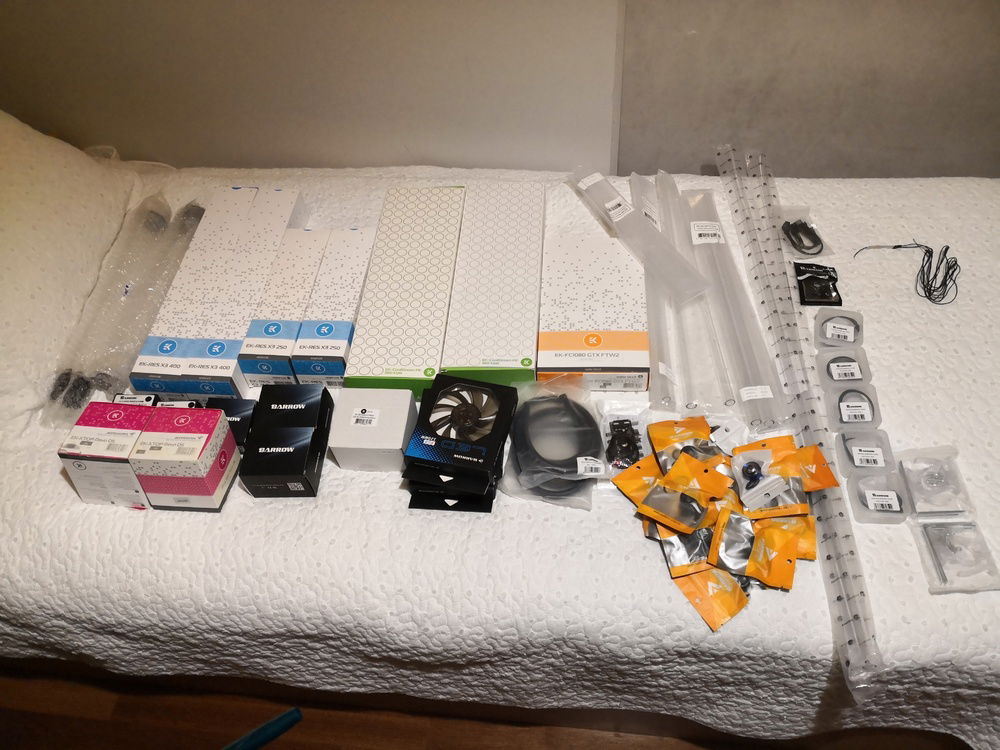

General part list. This picture does Not includes all Paris
4 x ek—D5 pwm g2 pump
4 x ek—xtop revo d5
2 x 360 pe radiotor
For old system 12x16mm ht fitting
10 x ek 90’ rotary fitting
4 x ek—af rotary m/m
4 x ek—af ball valve
3pack x ek—quantum torque 16mm
3pack x ek—torque htc 16 ring pack(green and blue)
1 x ek—af angled 45’
2 x barrow filter
2 x bitspower 16mm petg pipe
12 x ek—500mm x 2 16mm petg pipe

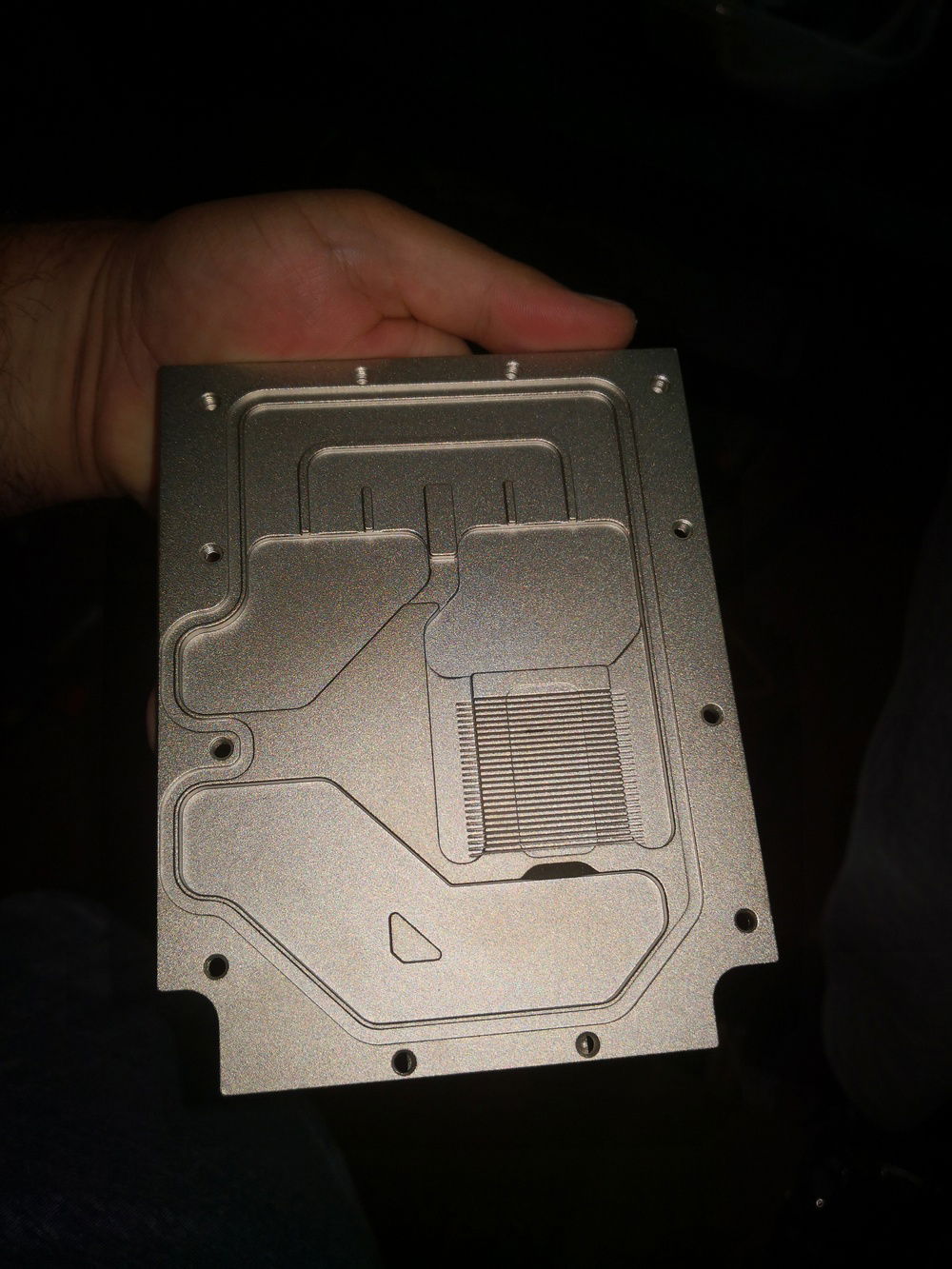

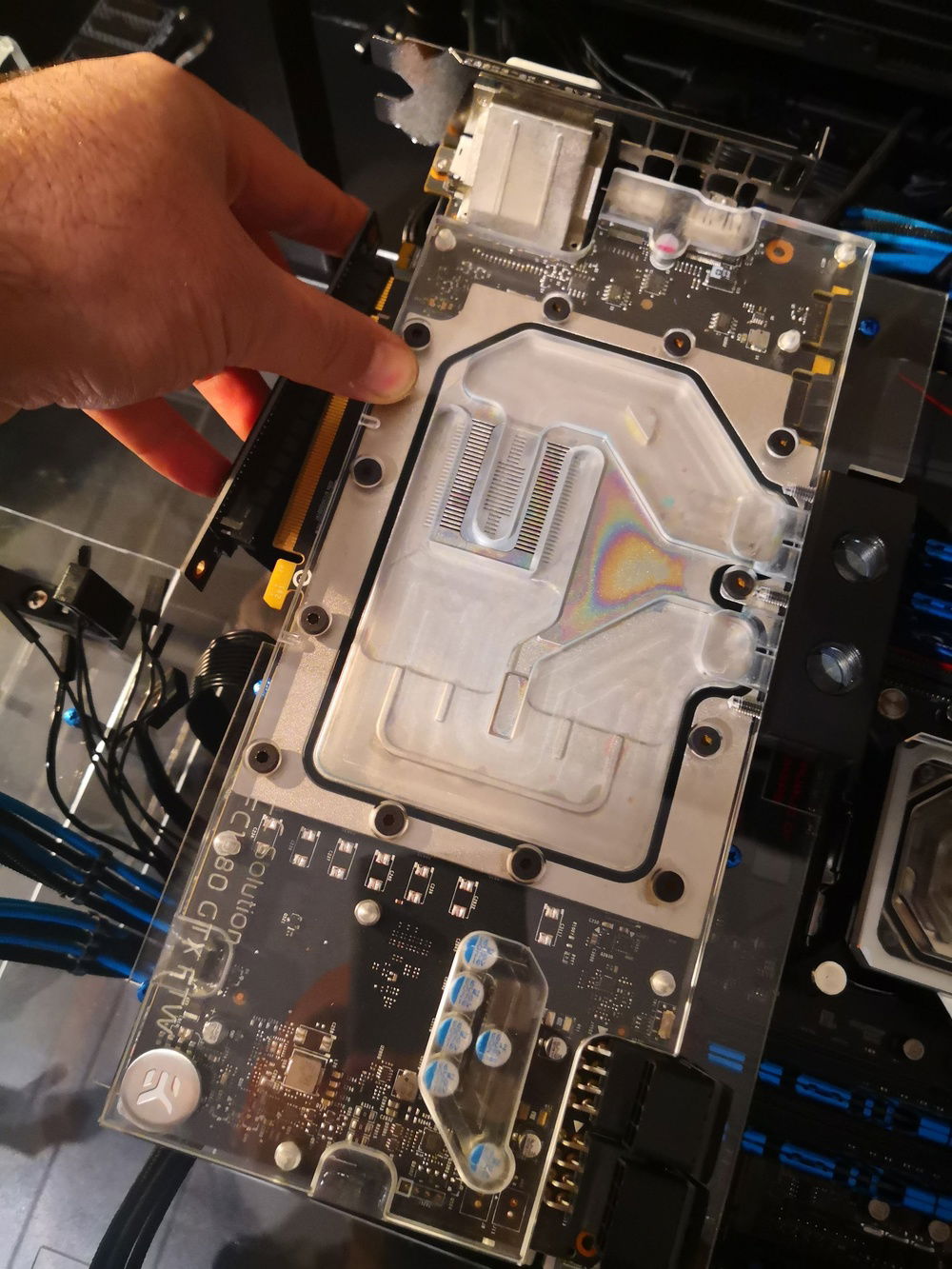

1 x ek For 1080 ftw3 gpu waterblock

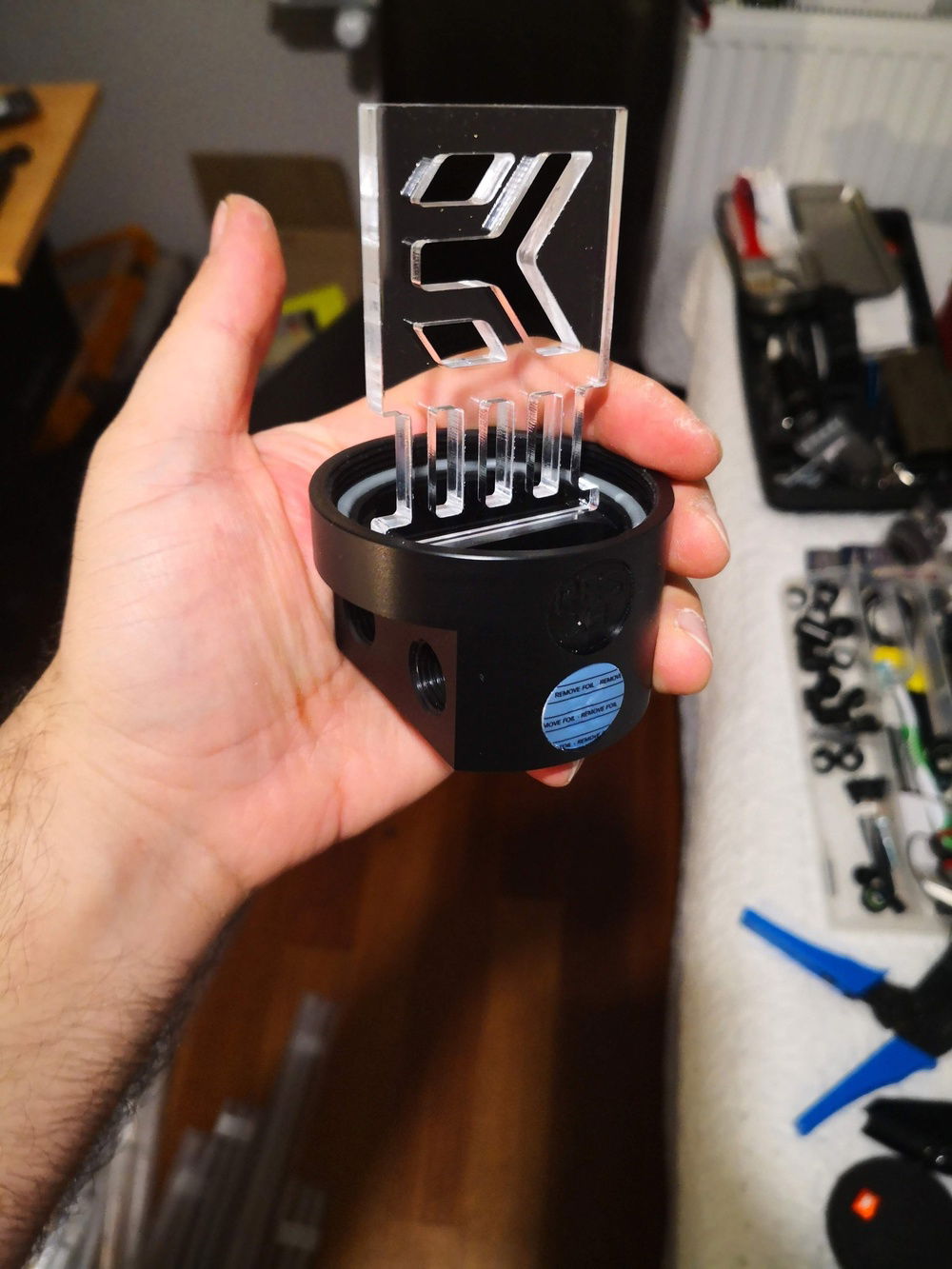

2 x ek rezervuar multiport top

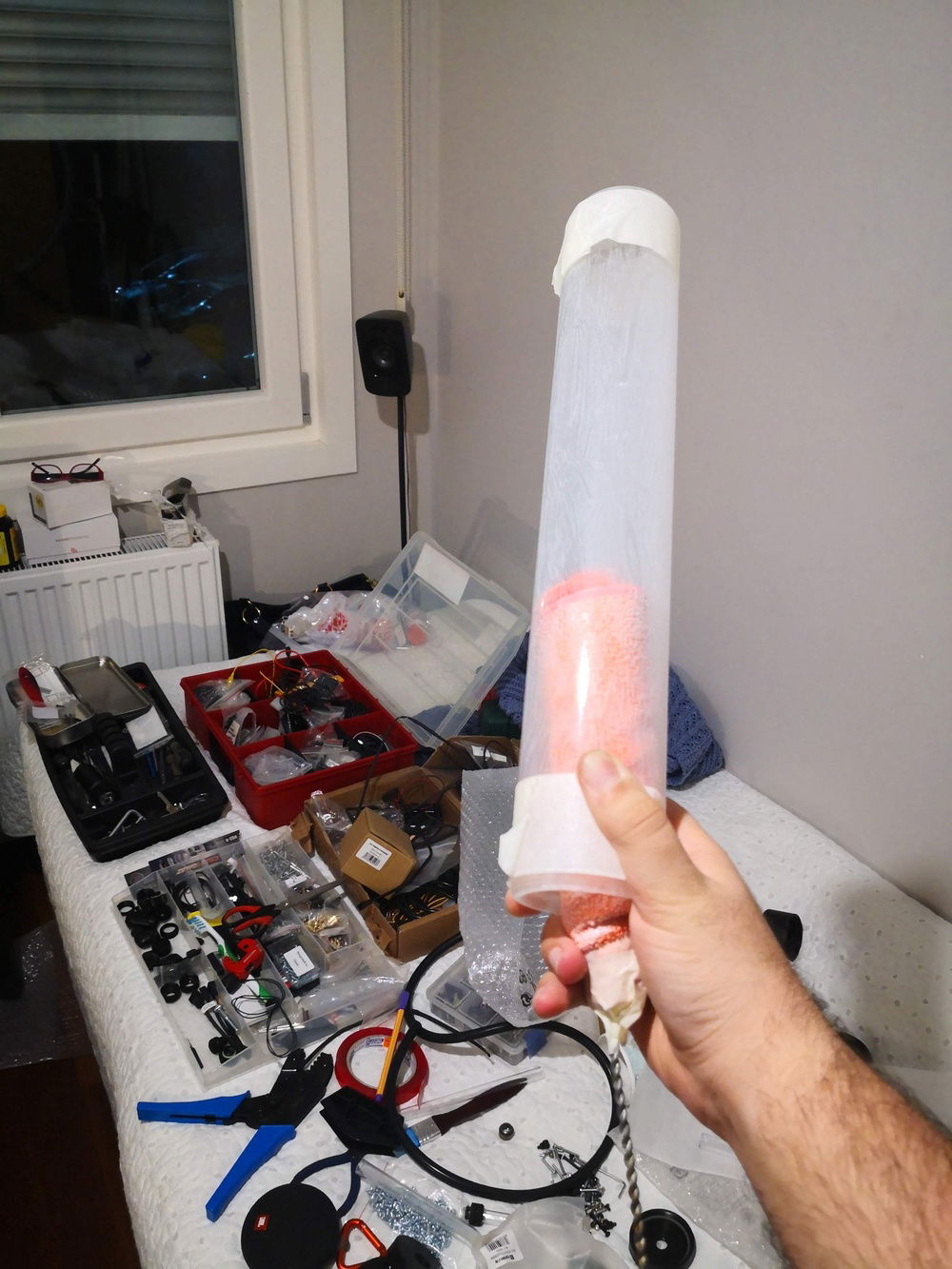

4 x ek—250mm rezervuar
For old system 1 x lga 775 barrow gpu waterblock
For old system 1 x bysky Asus 1050 gpu waterblock
2 x 480mm ek pe radiator
X99 For ek RGB velocity CPU waterblock

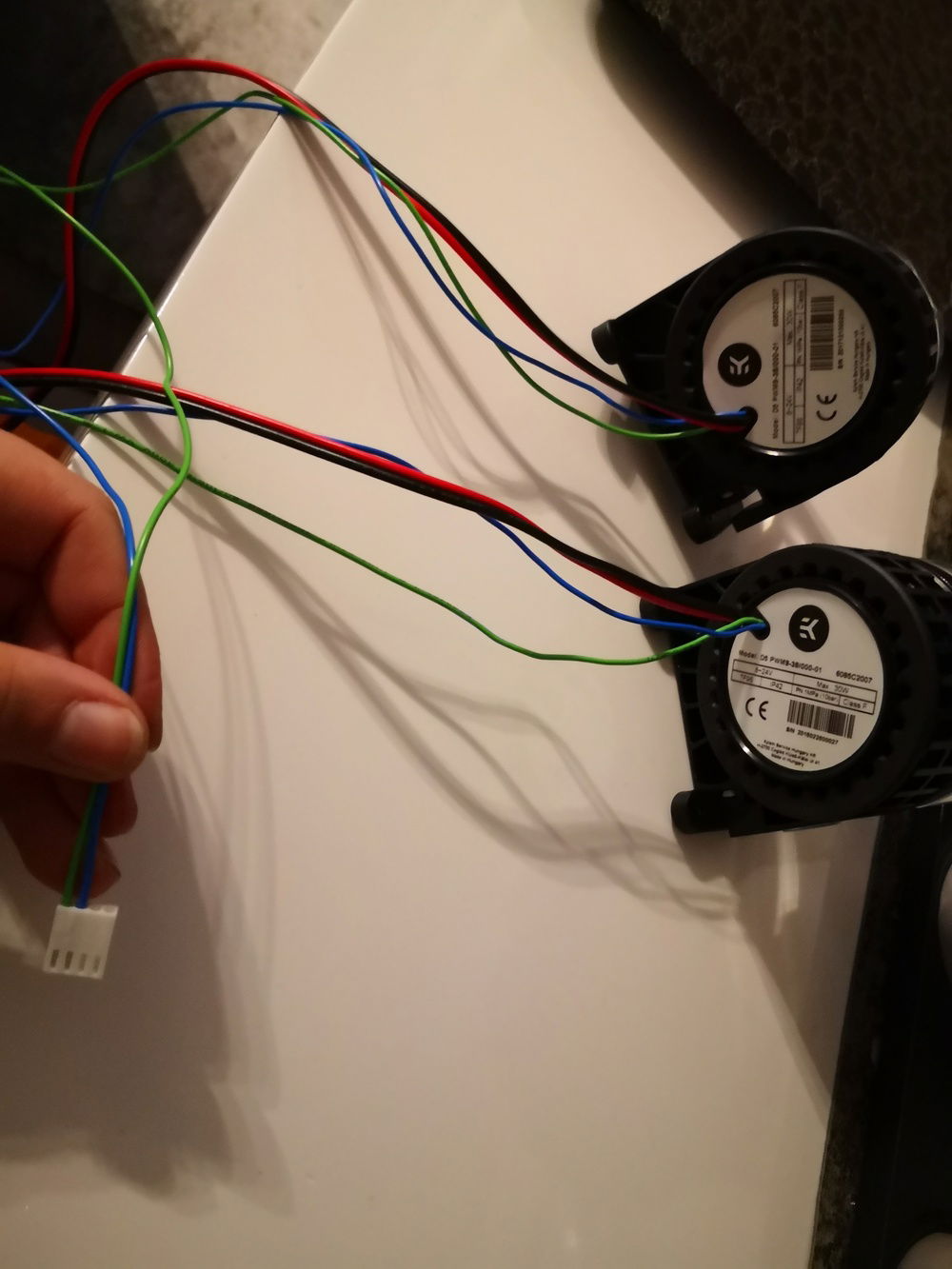

Cable pwm socket change white to black
And cover paracord

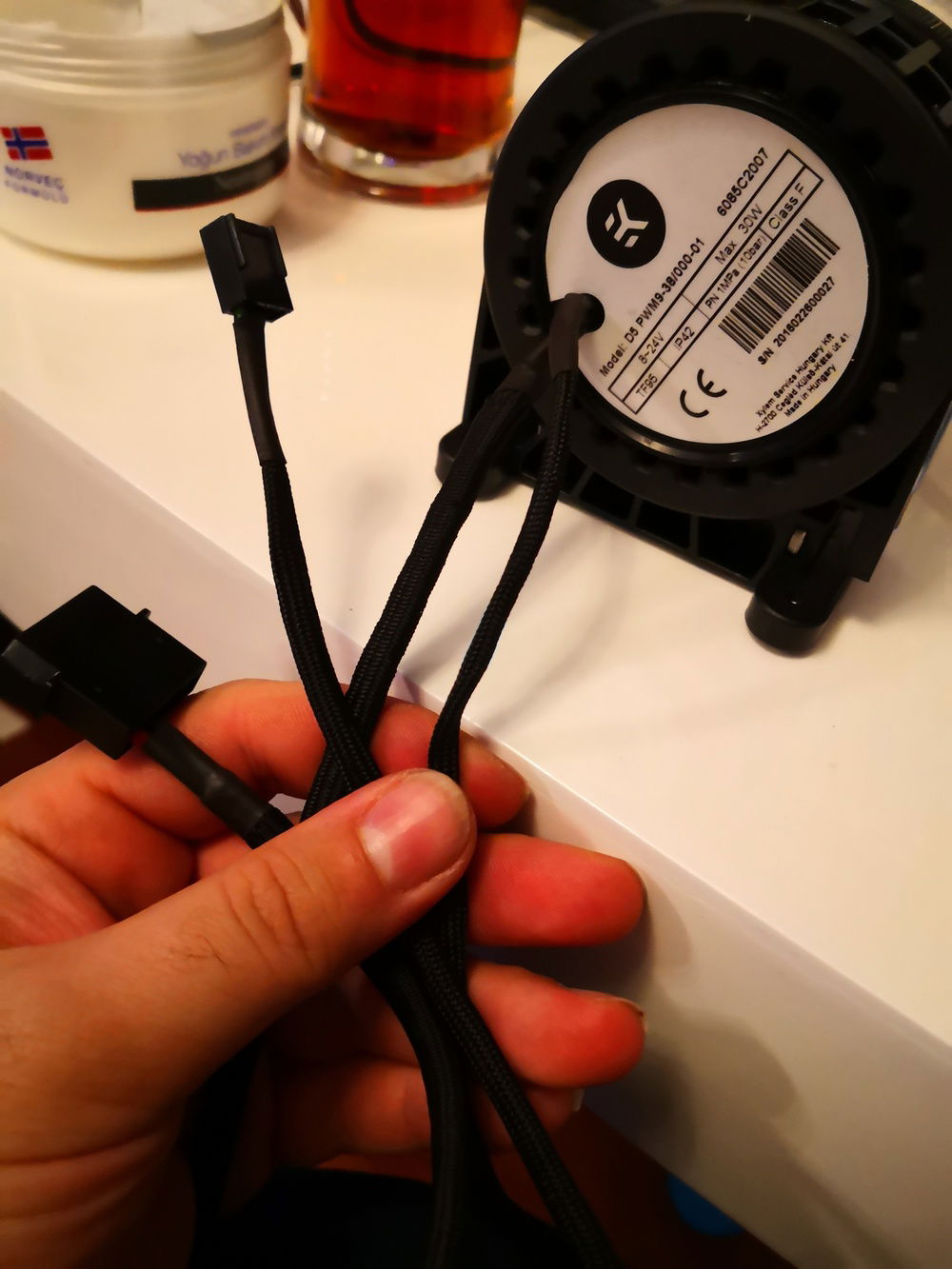

Finish slave
Tüh

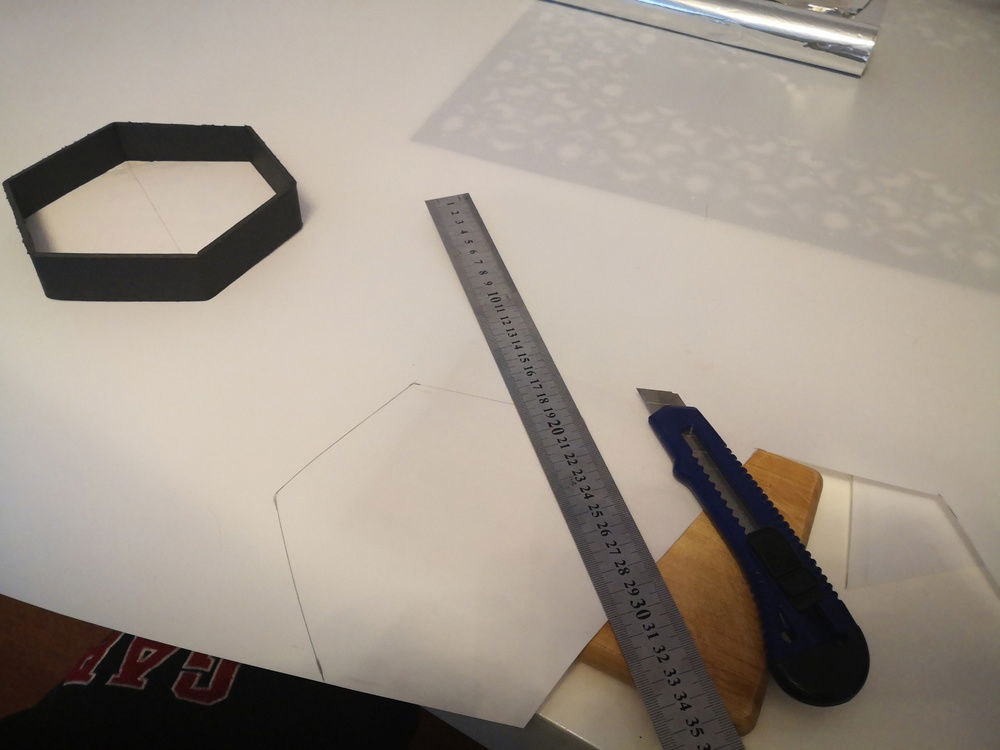

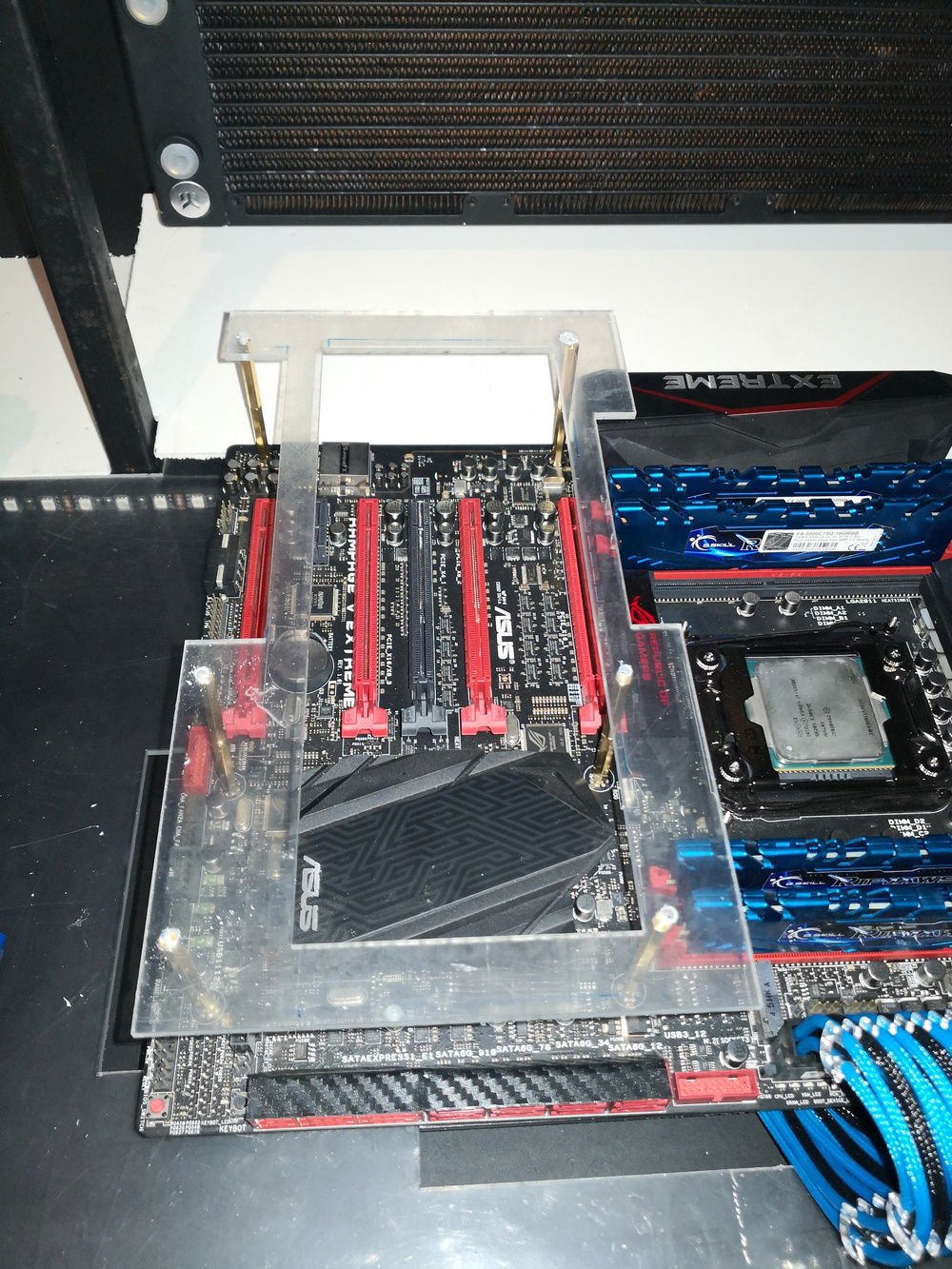

3mm plexi cutting For table in design

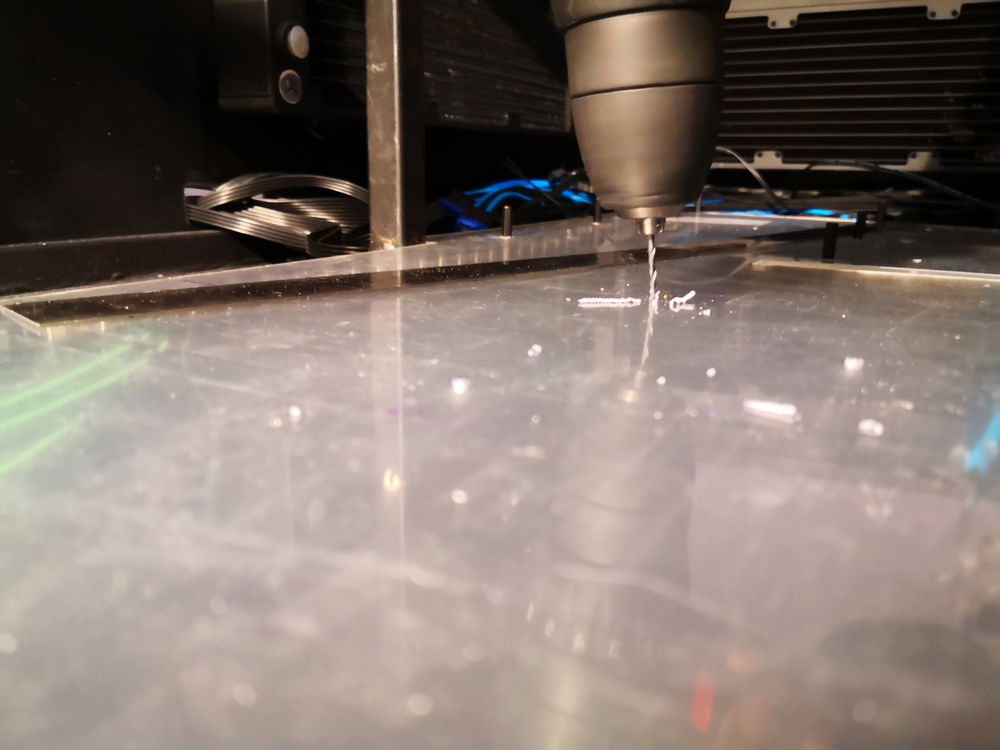

Mainboard

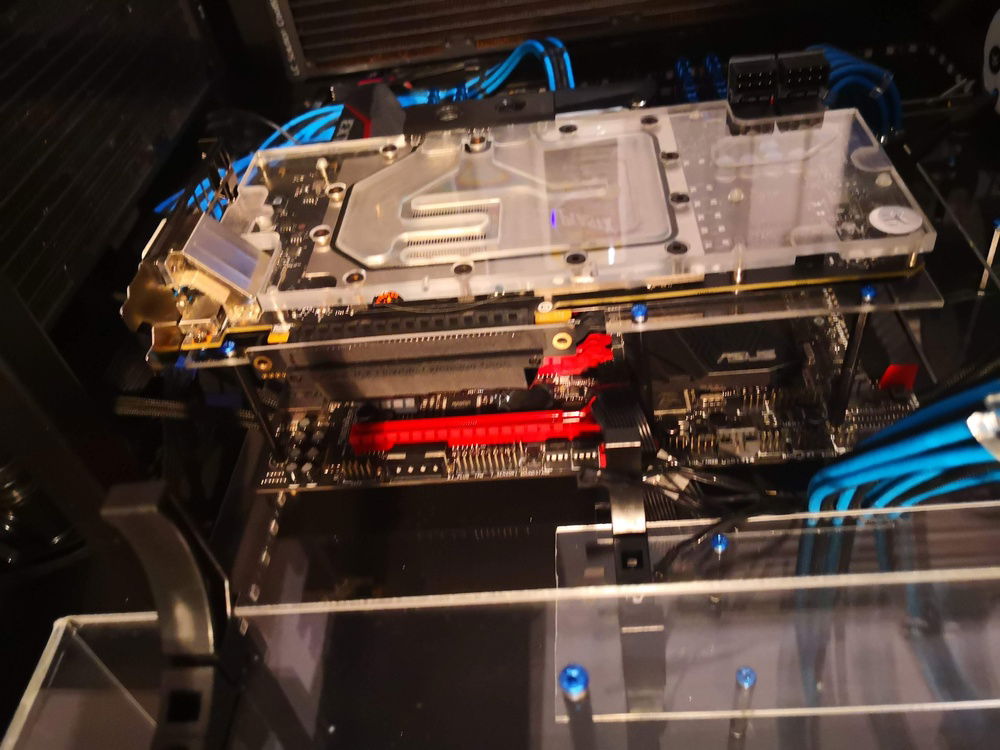

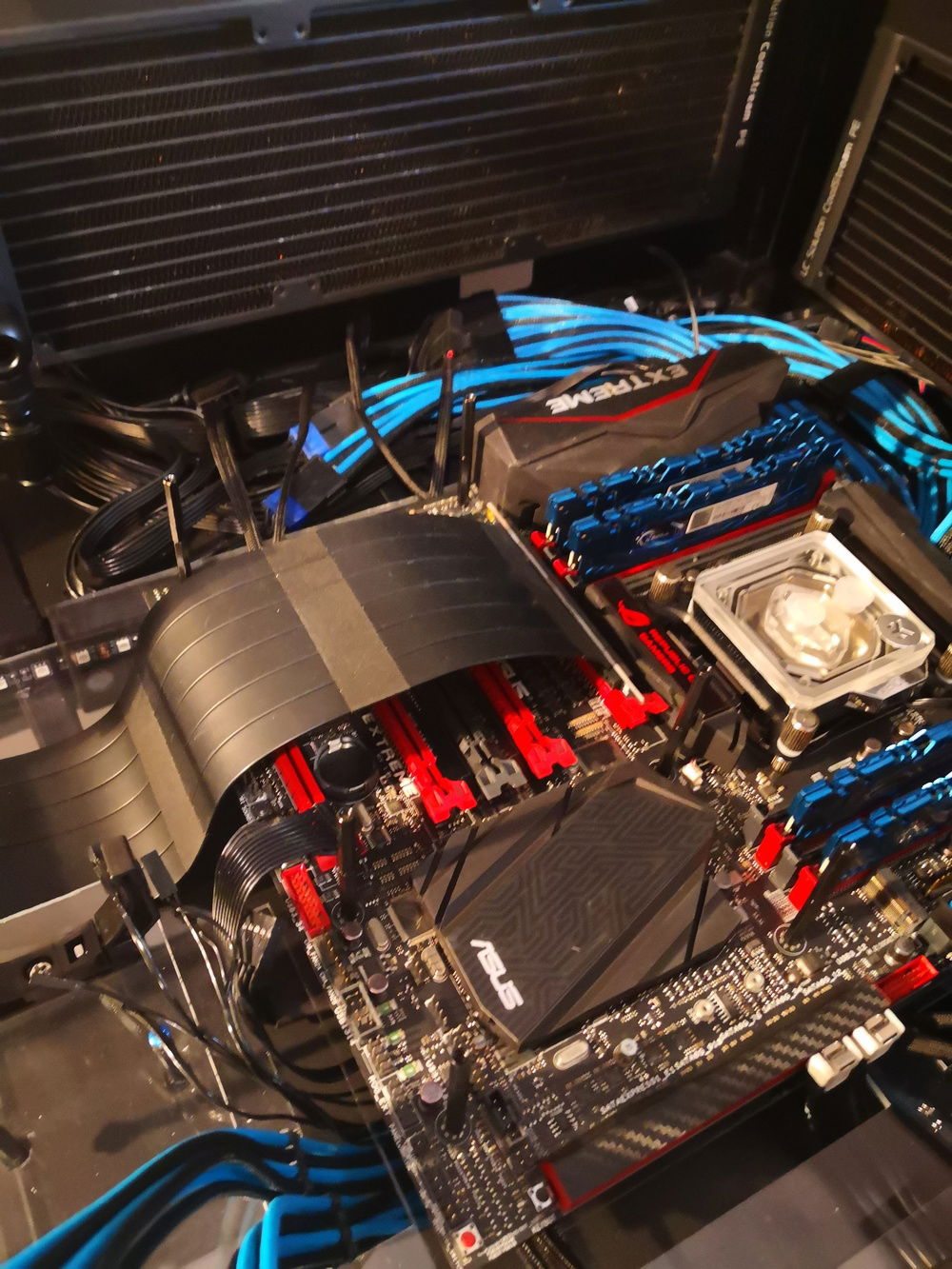

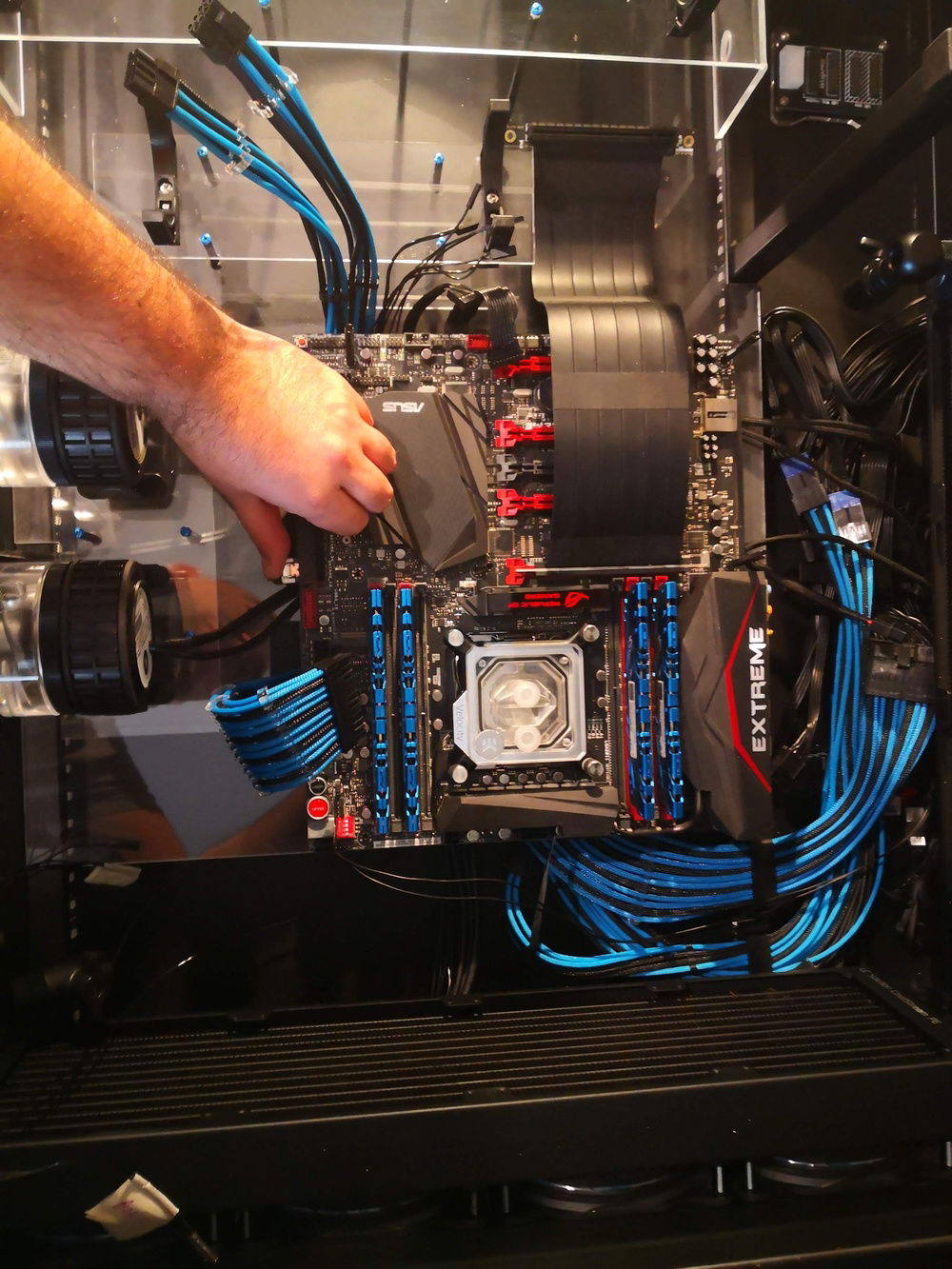

Right side X99 system
Left system mainboard slot

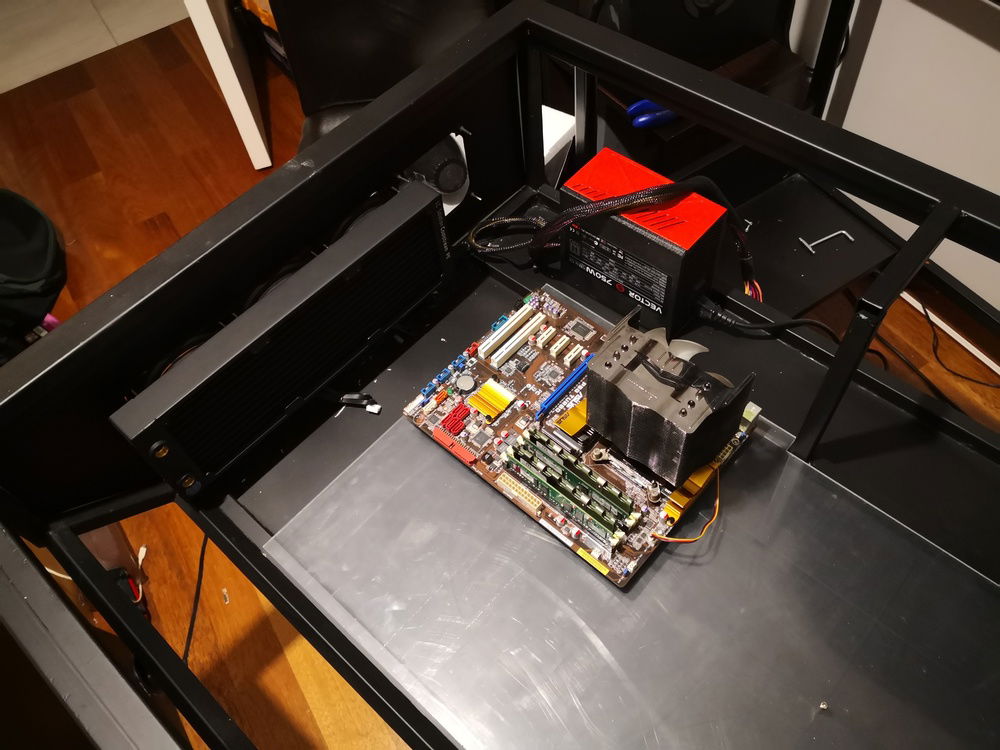

left side lga 775 system
Try mounting

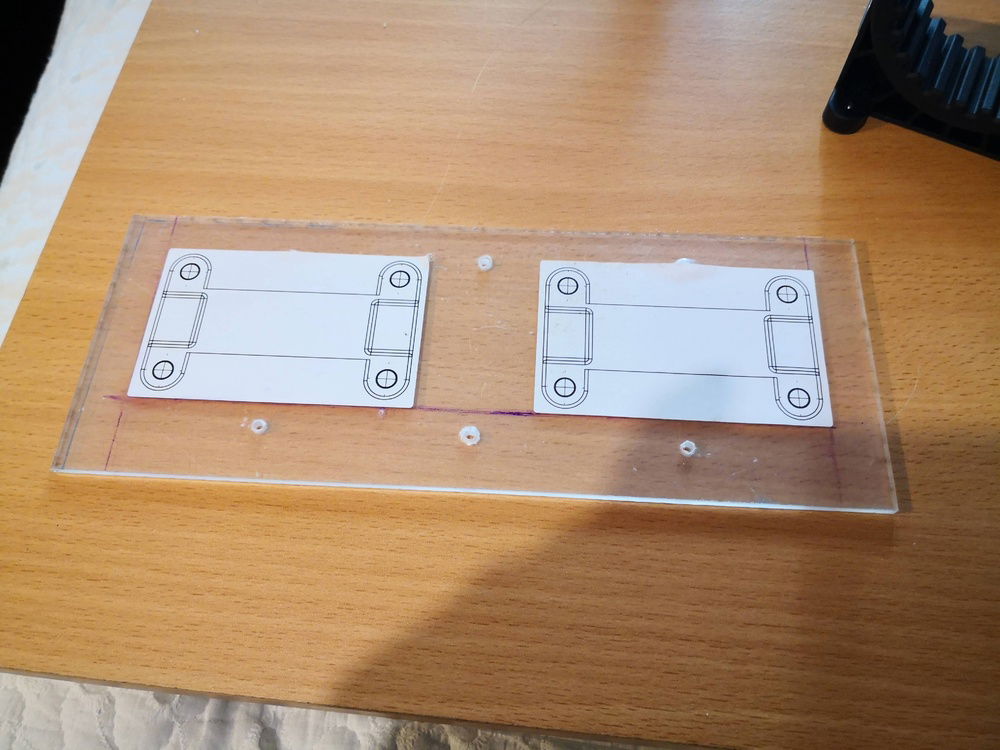

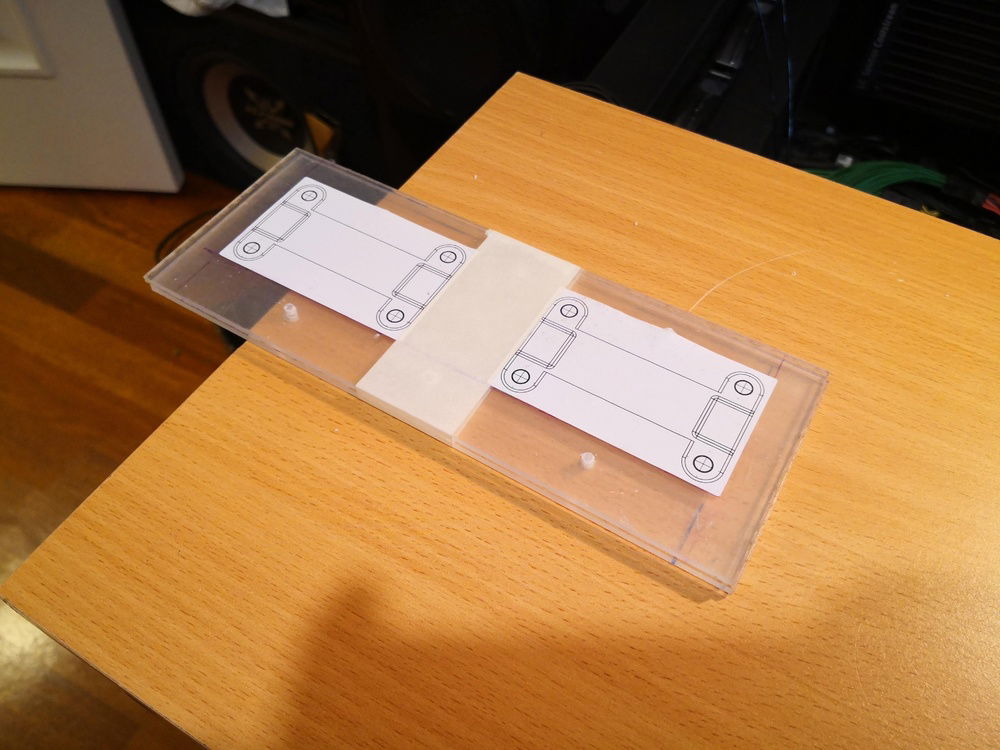

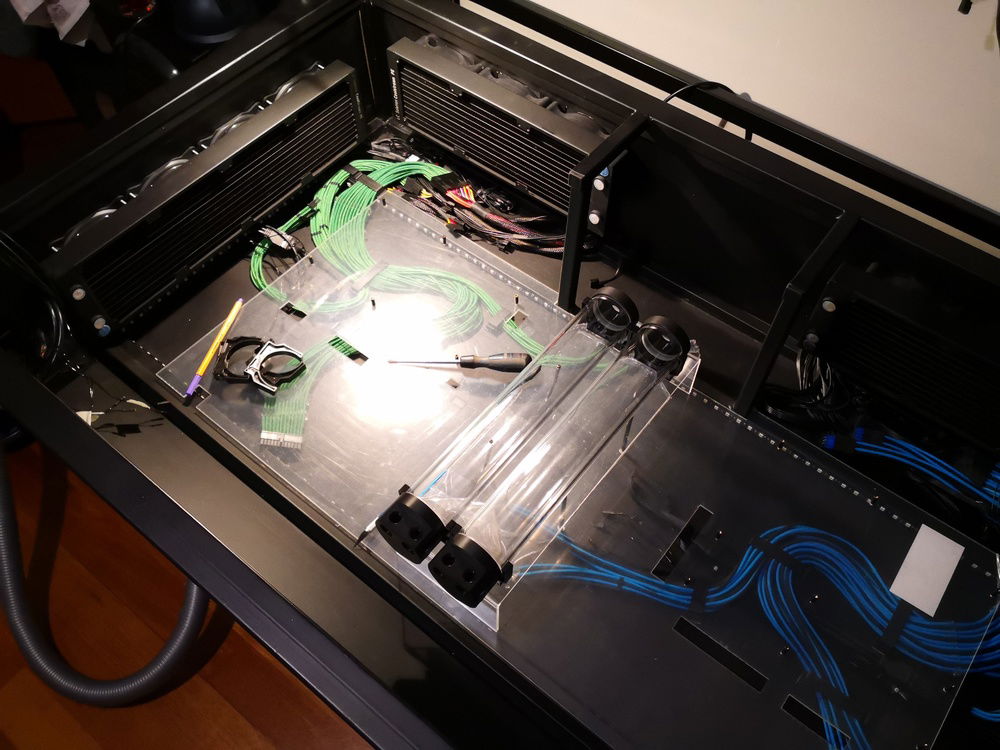

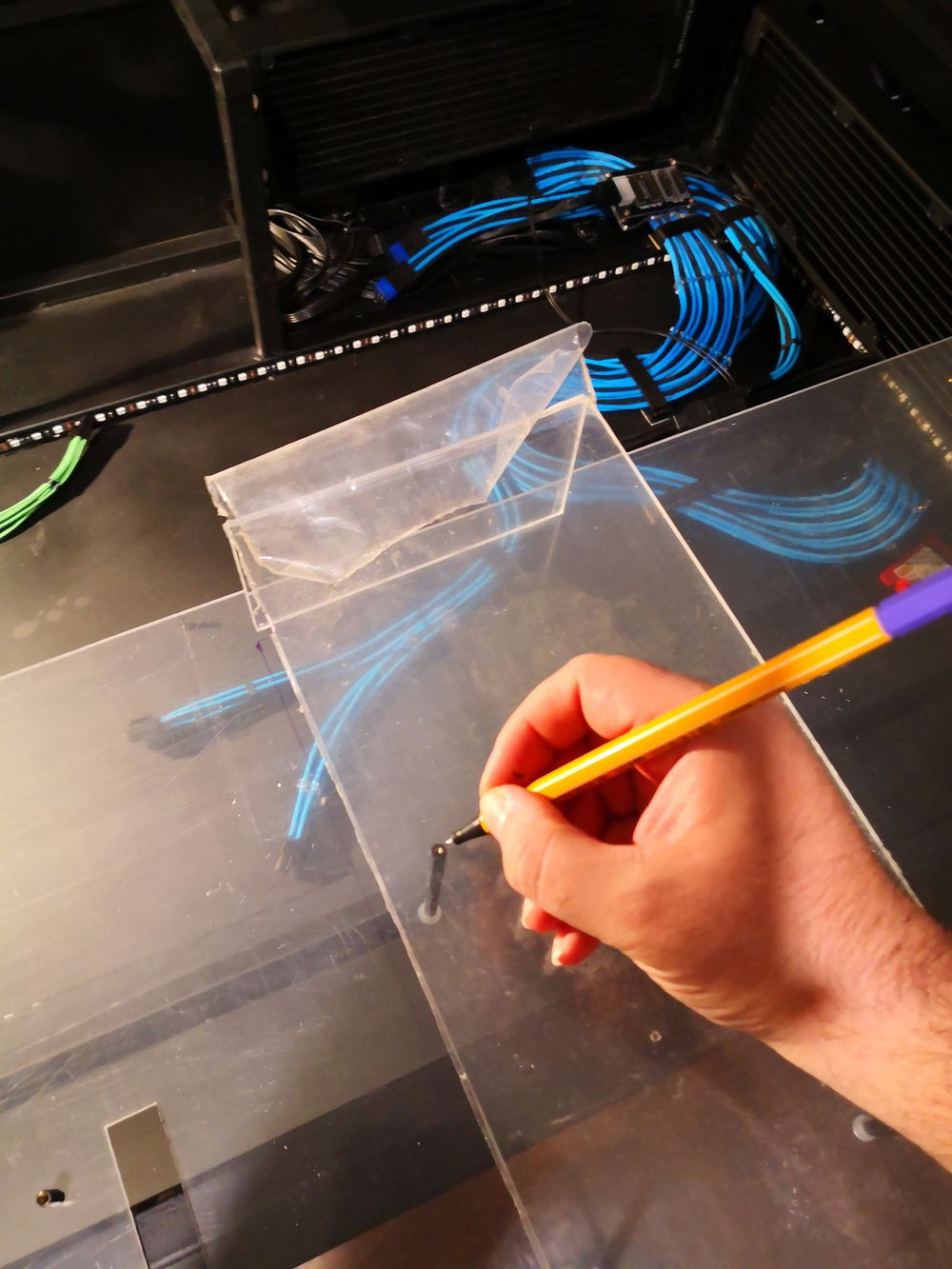

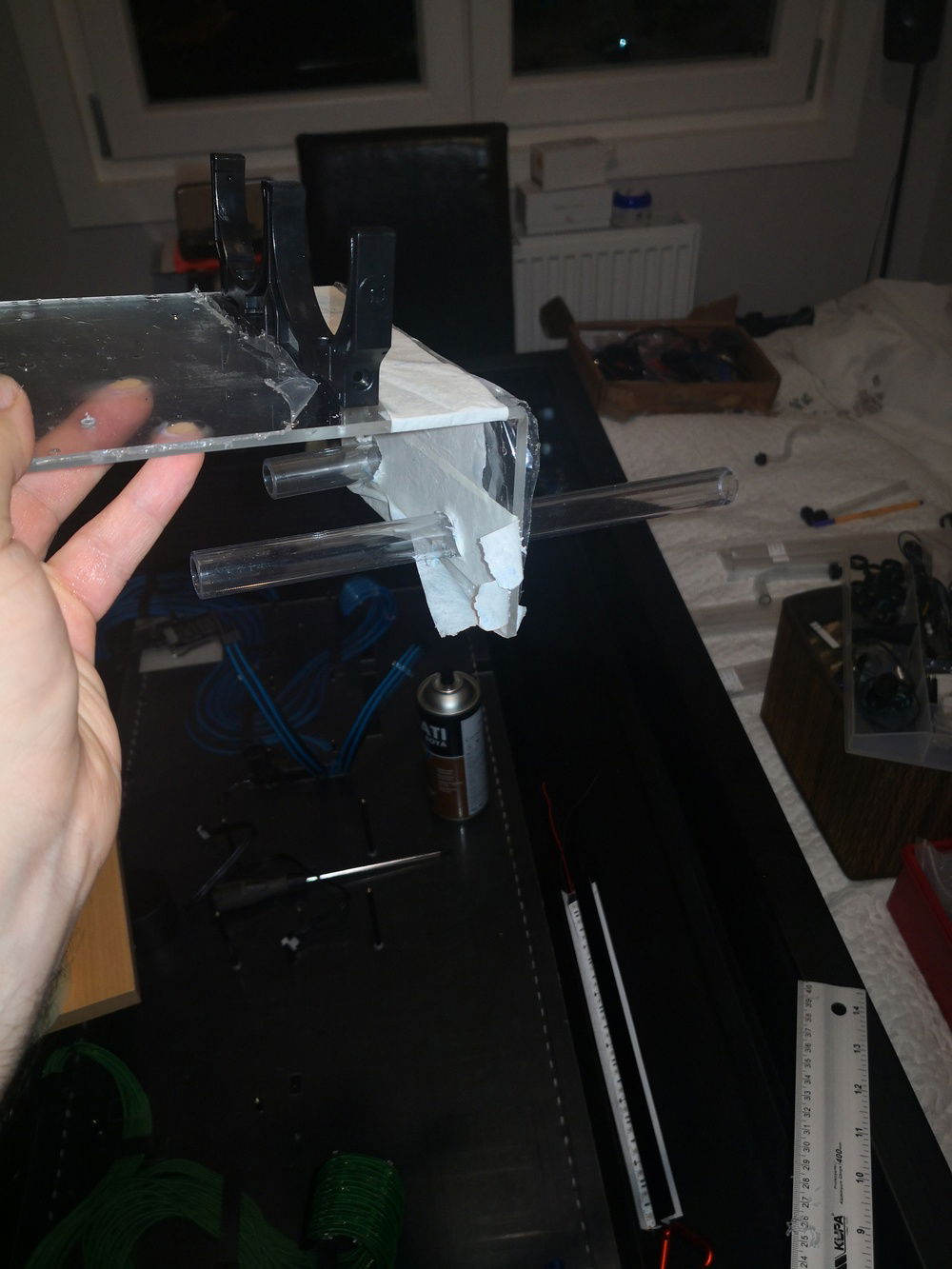

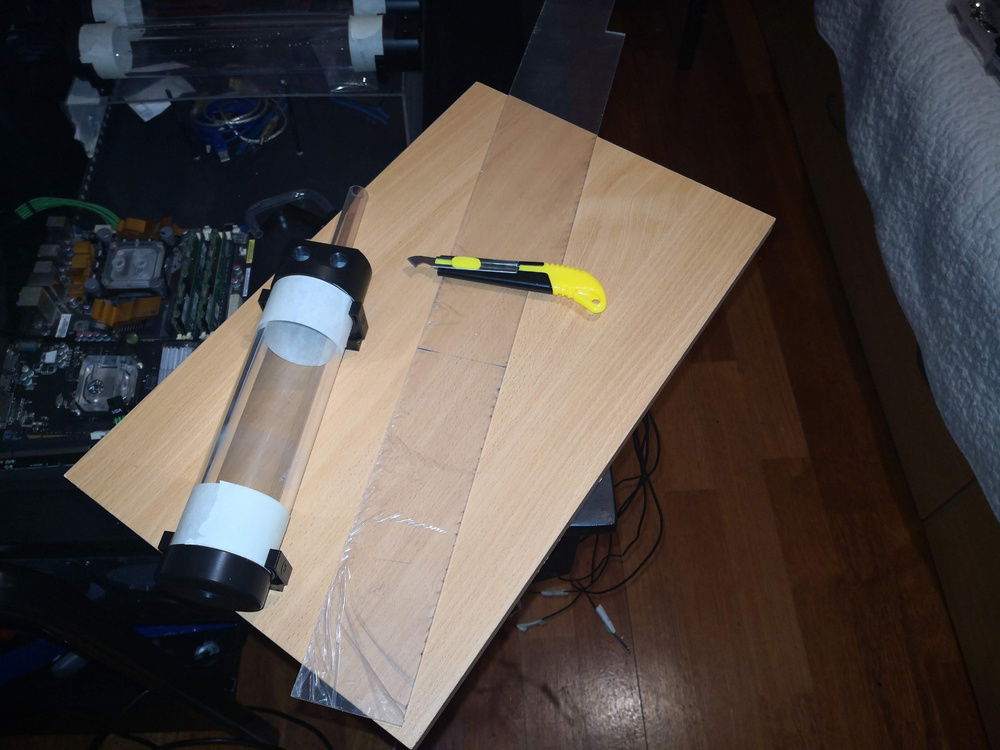

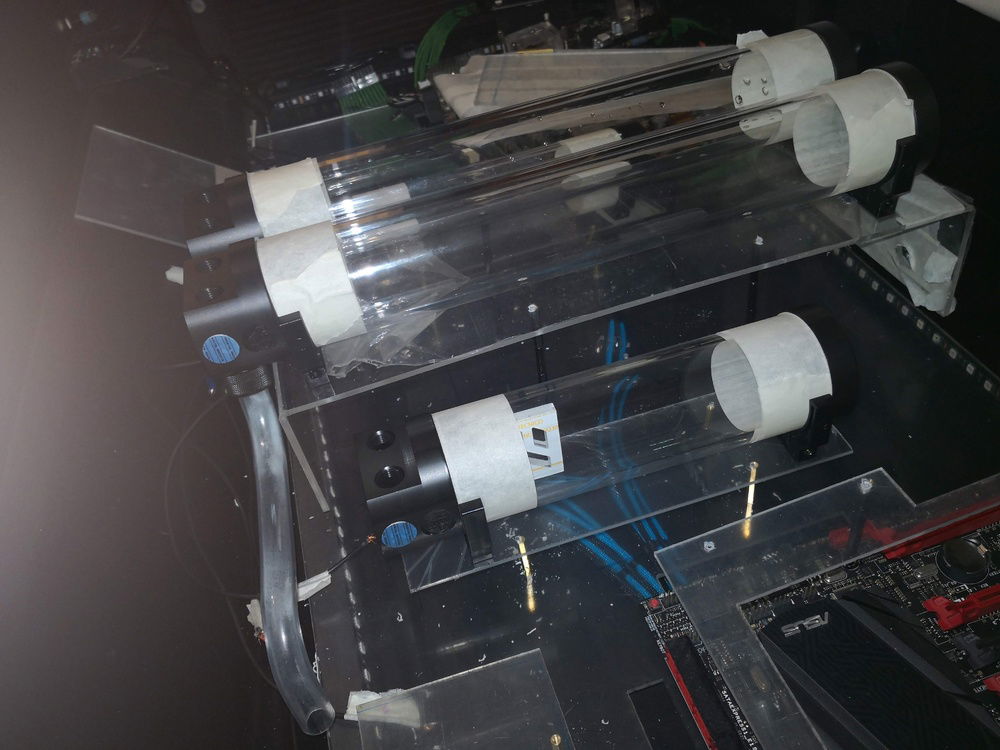

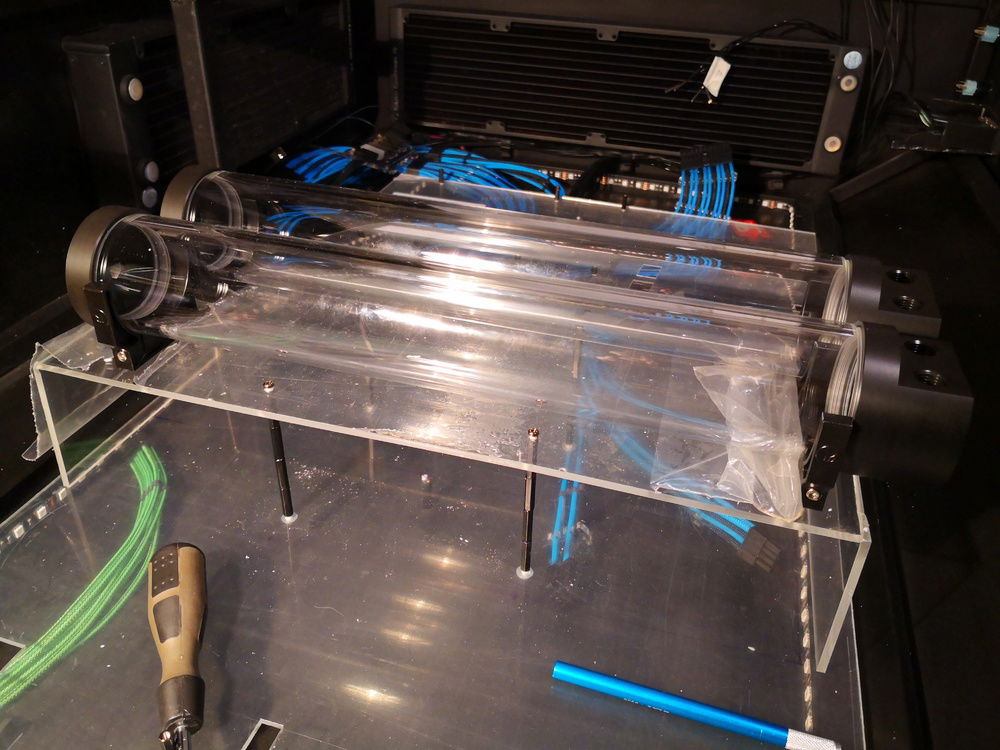

5mm plexi For 400mm rezervuar mounthing table

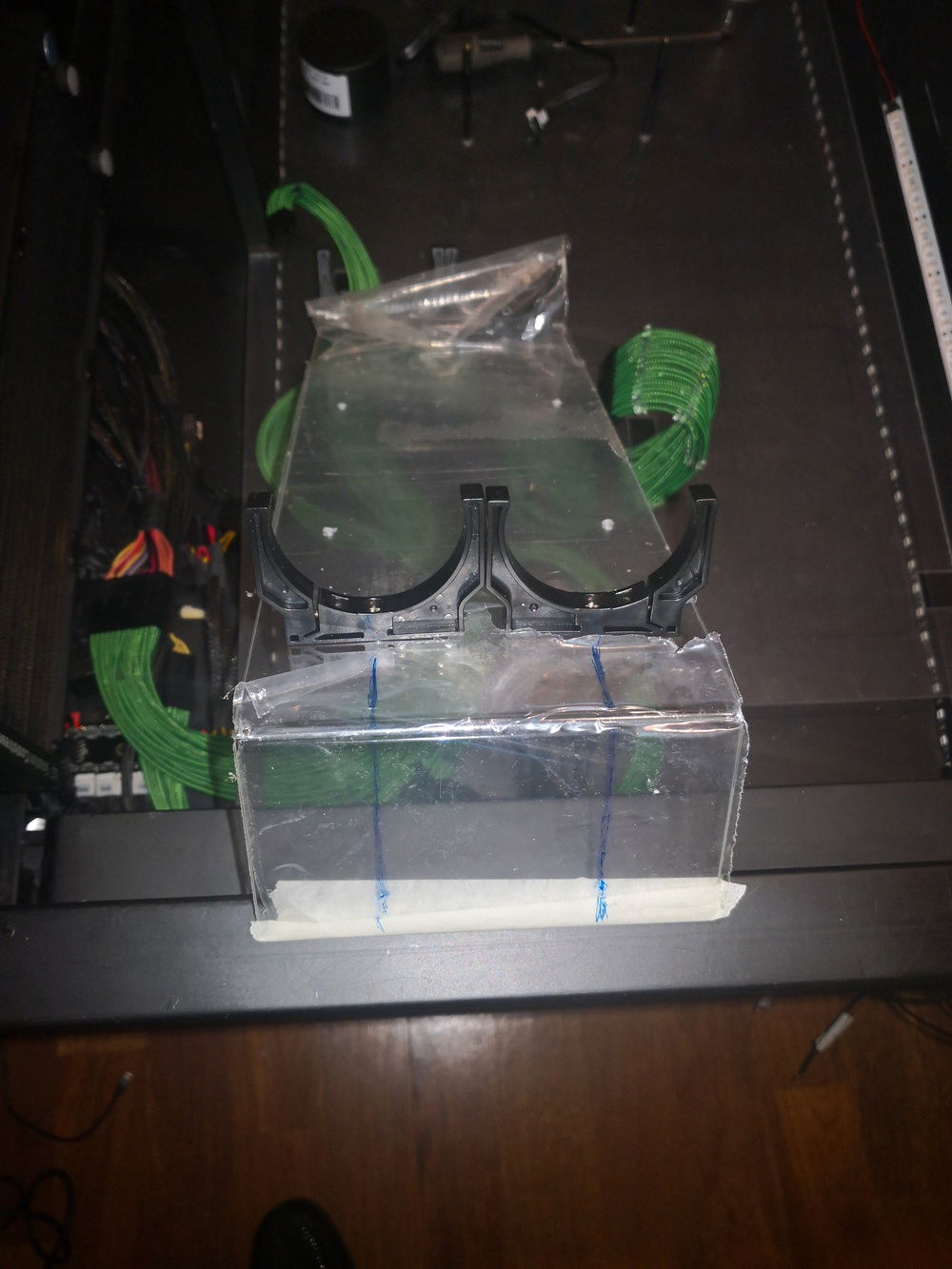

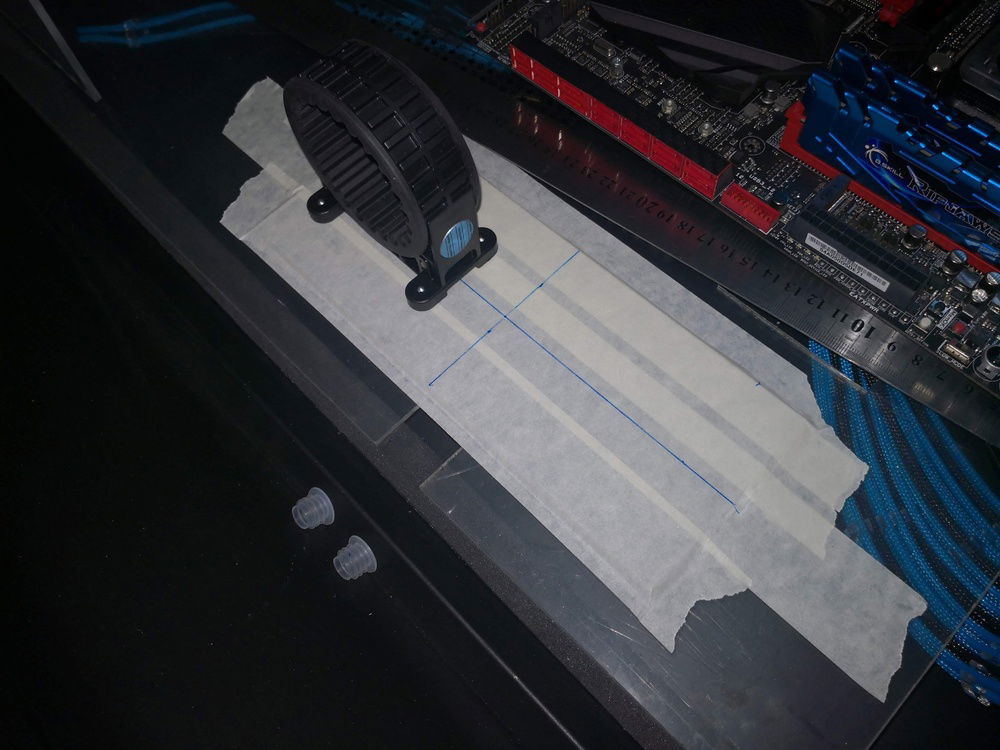

Mounting rezervuar clips

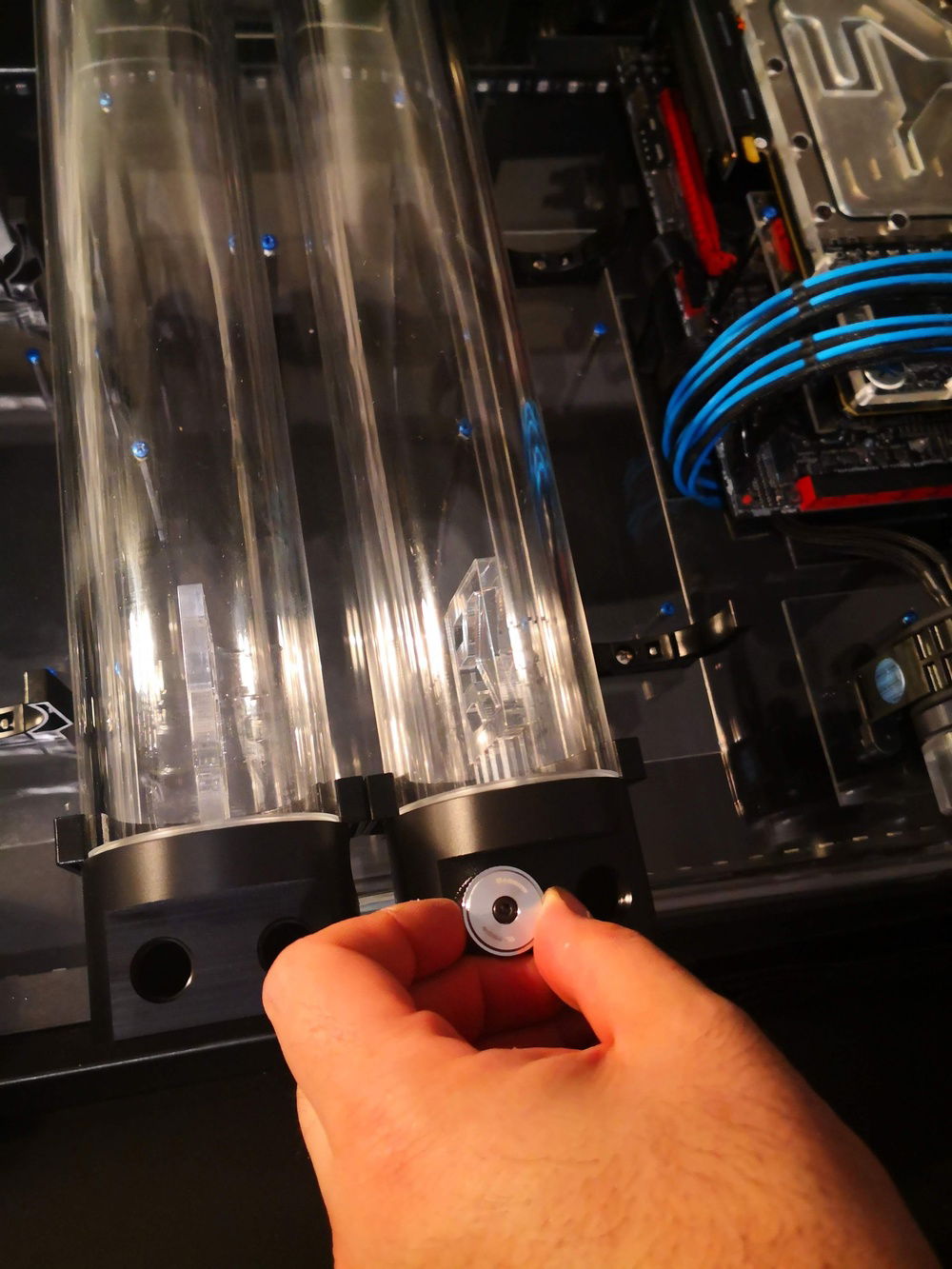

400mm rezervuar inline baackside tube moninting

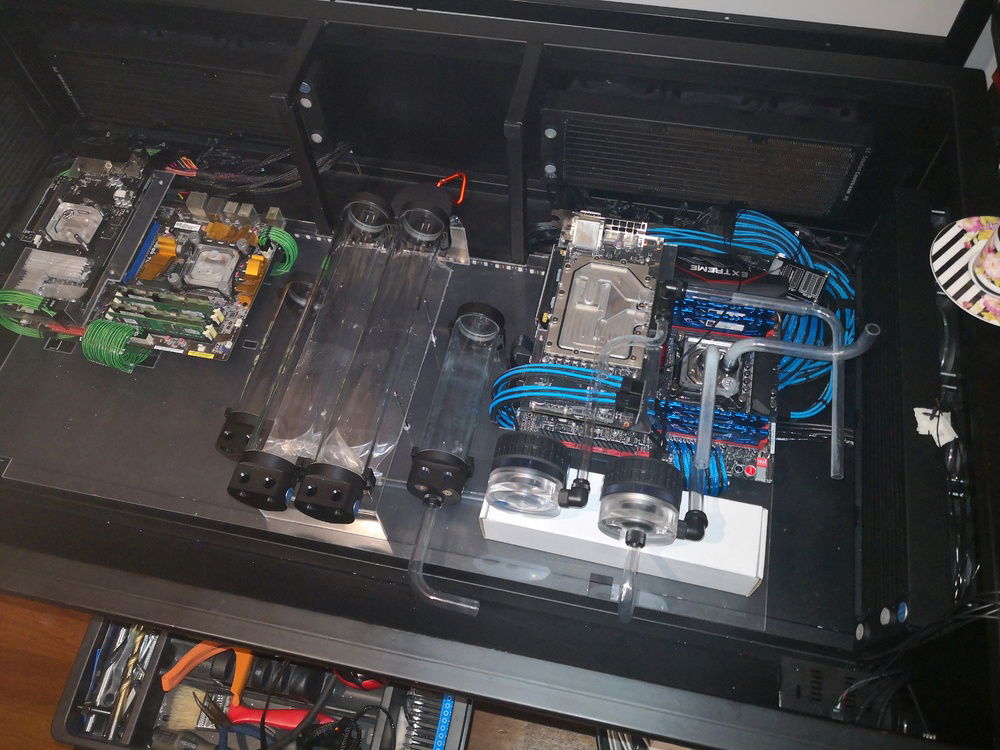

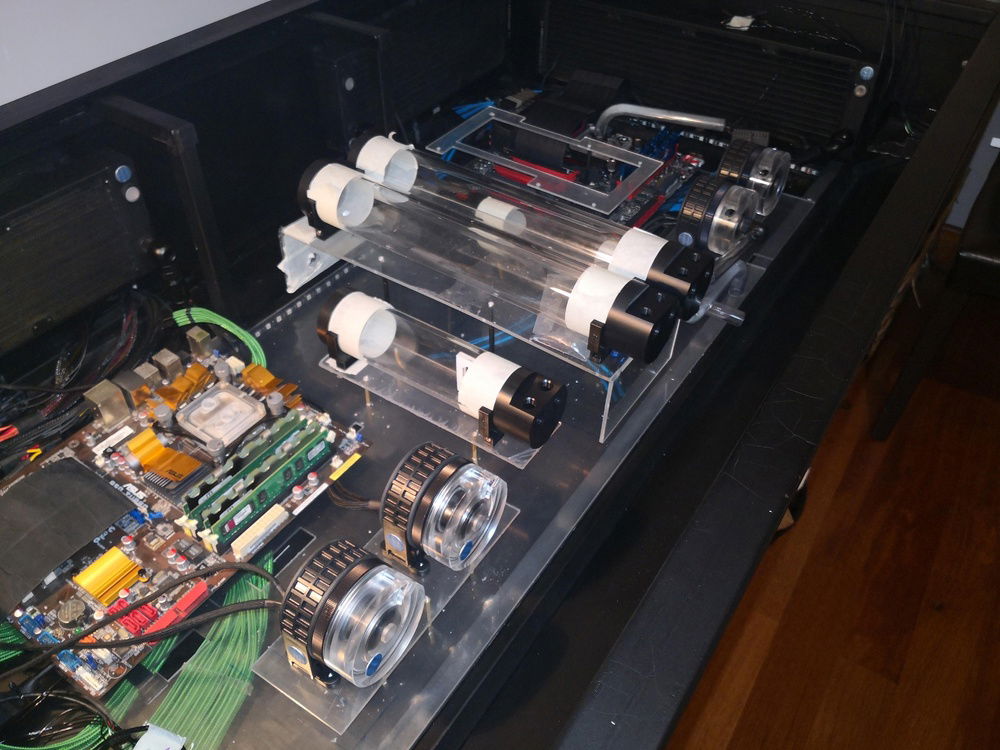

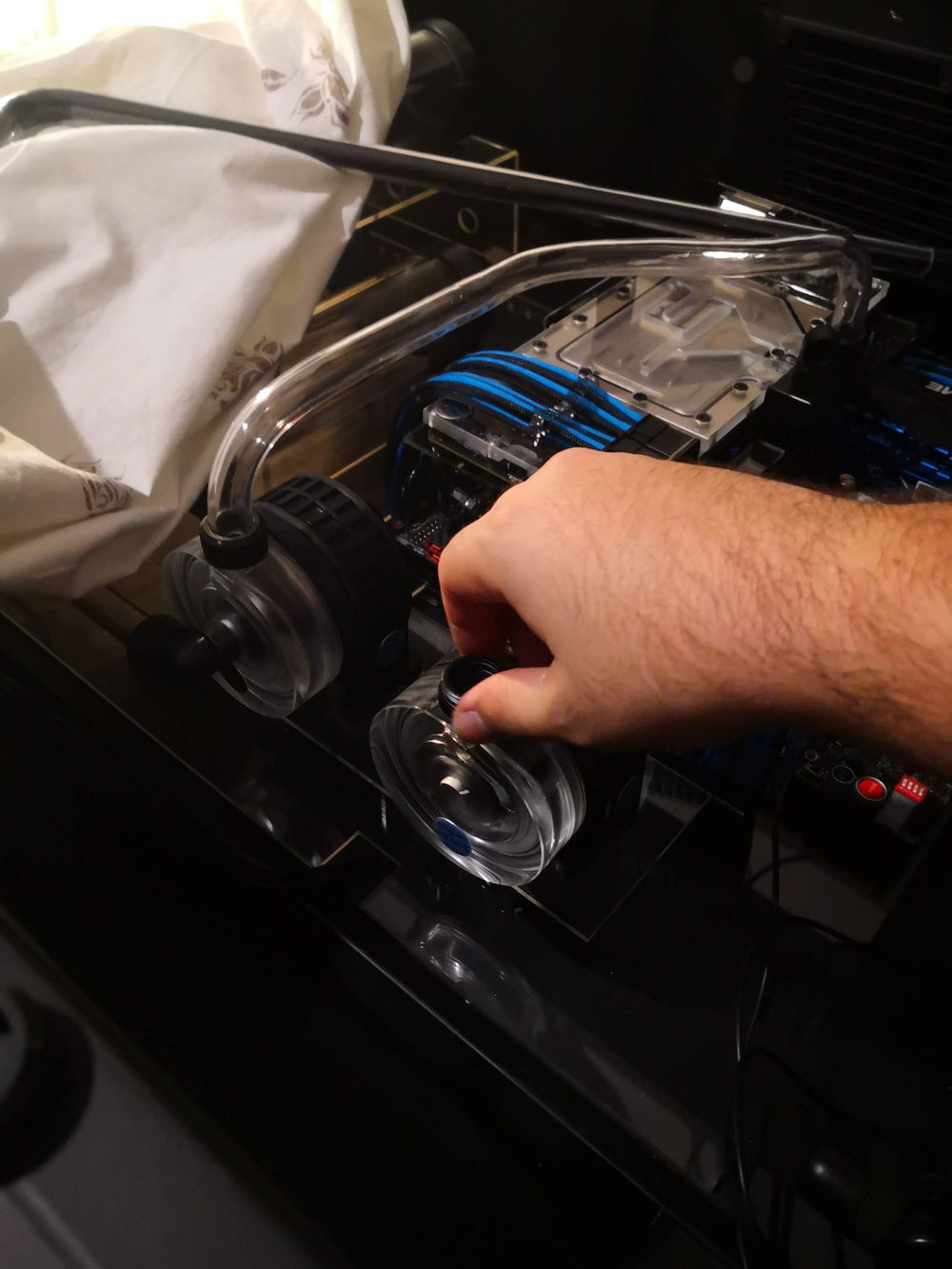

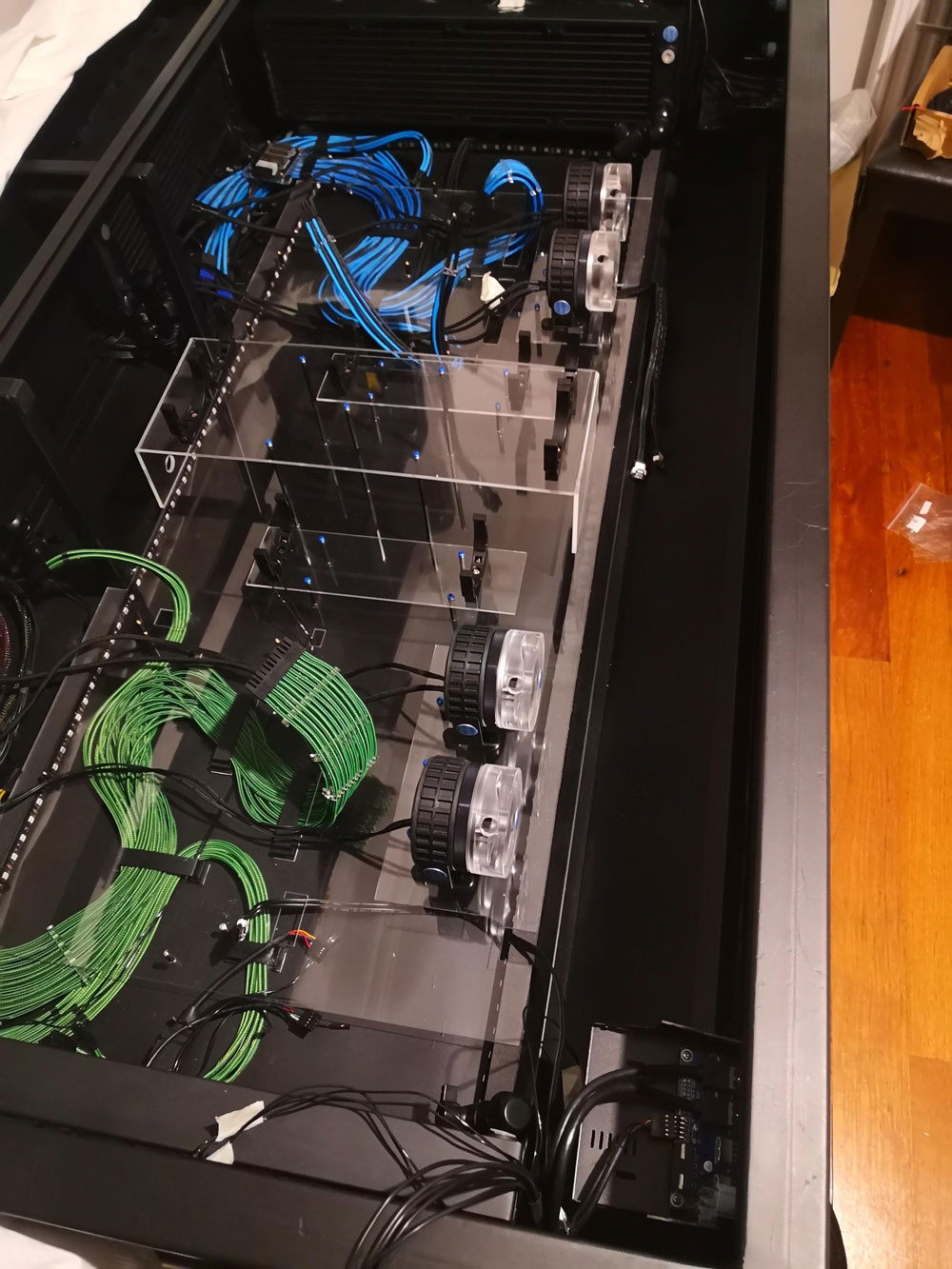

pumps try mounting

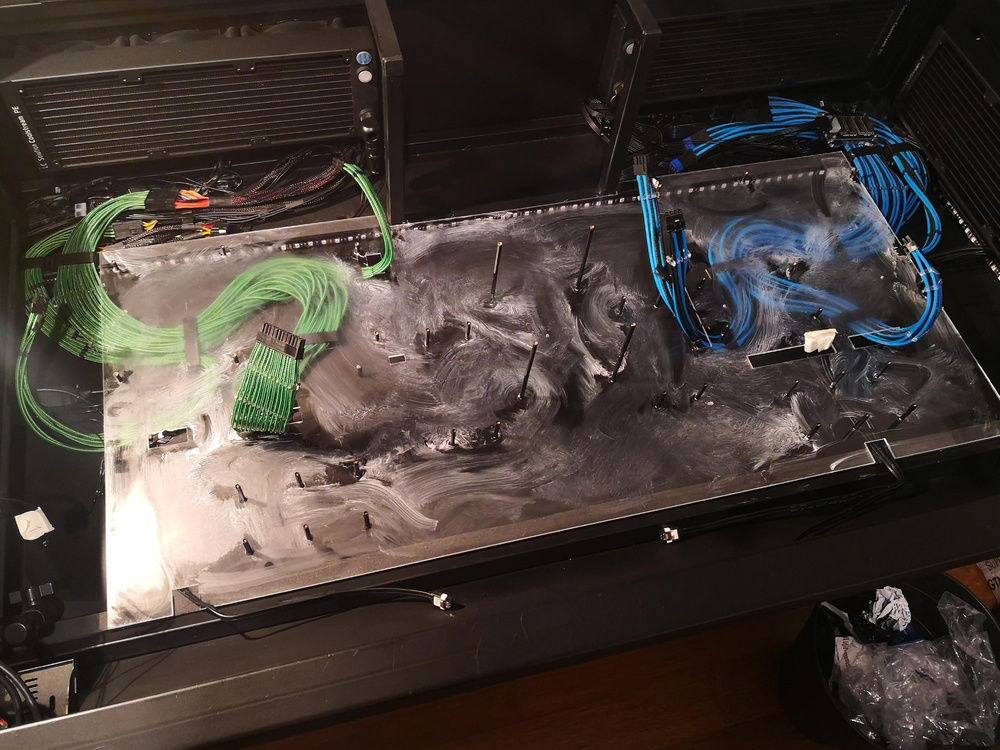

Plexi Polish
PSU cover body part
PSU cover body part
PSU cover body part cut
PSU cover body part

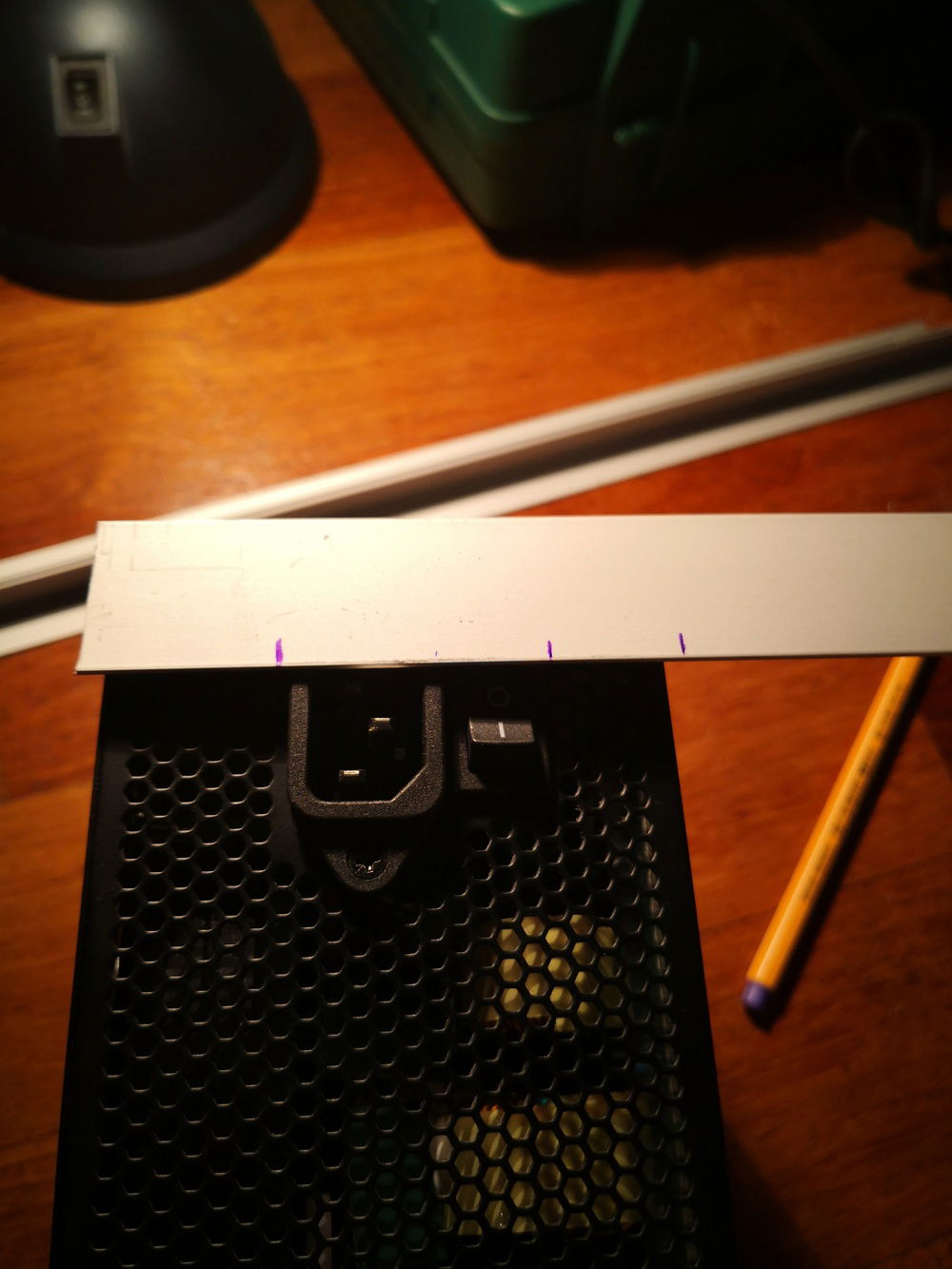

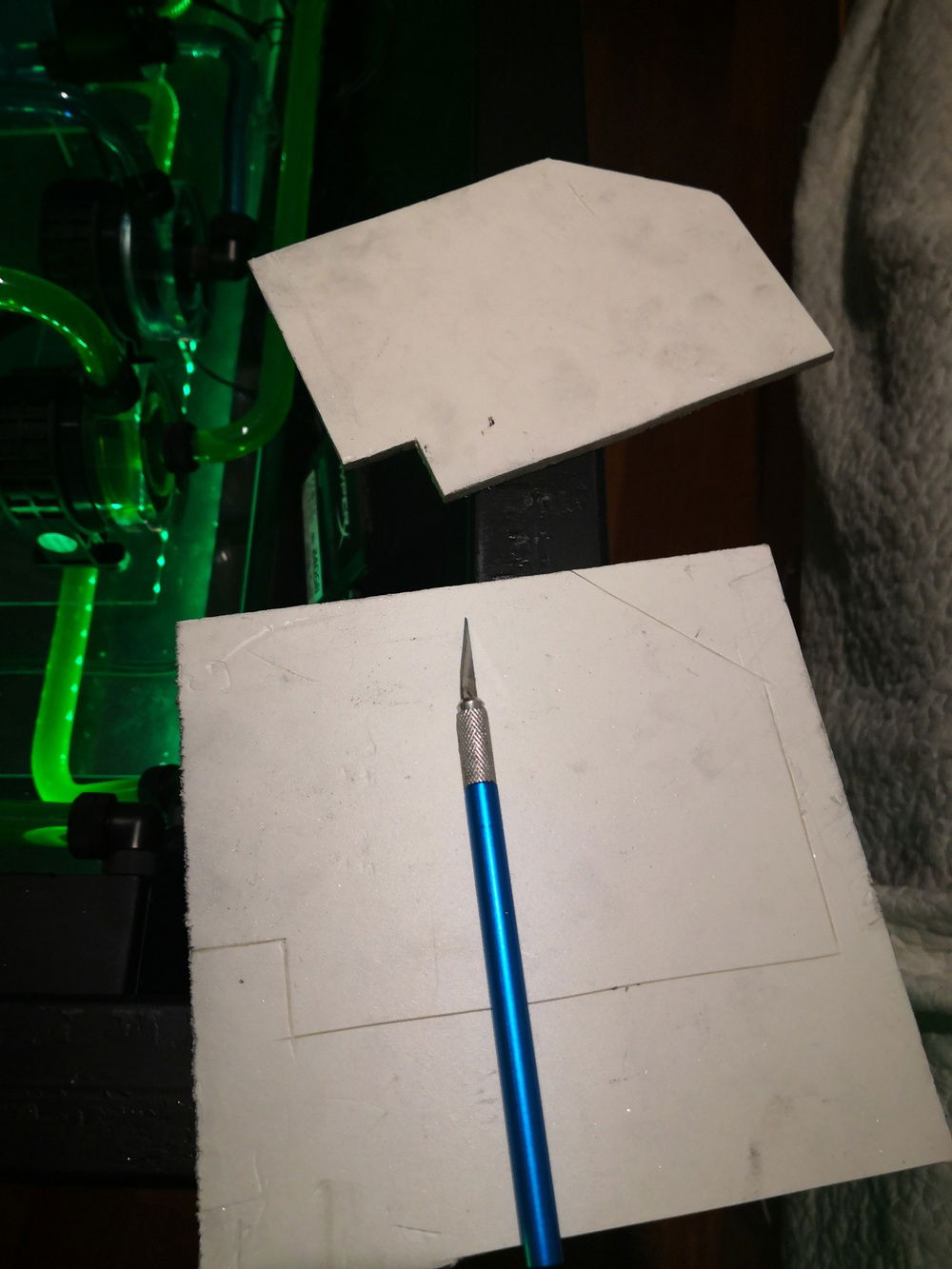

PSU cover body part mark

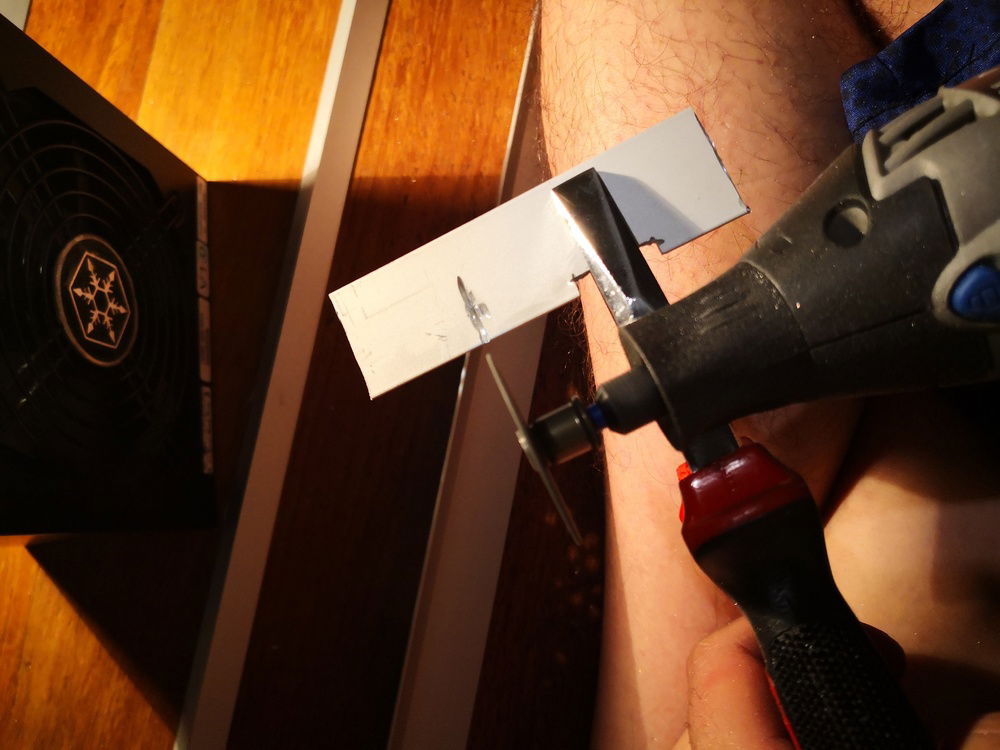

PSU cover body part cut
PSU cover body part mark
PSU cover body part cut

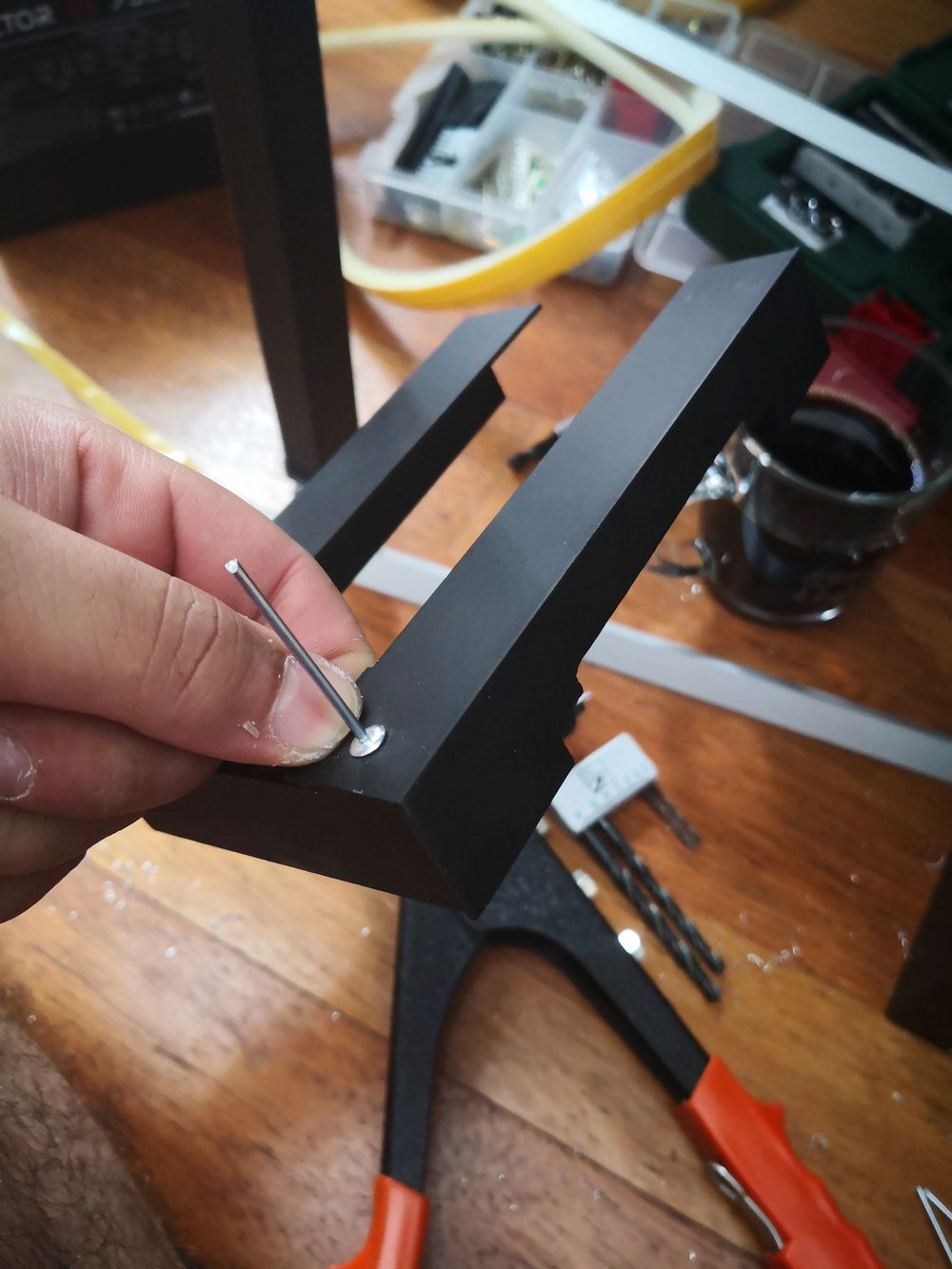

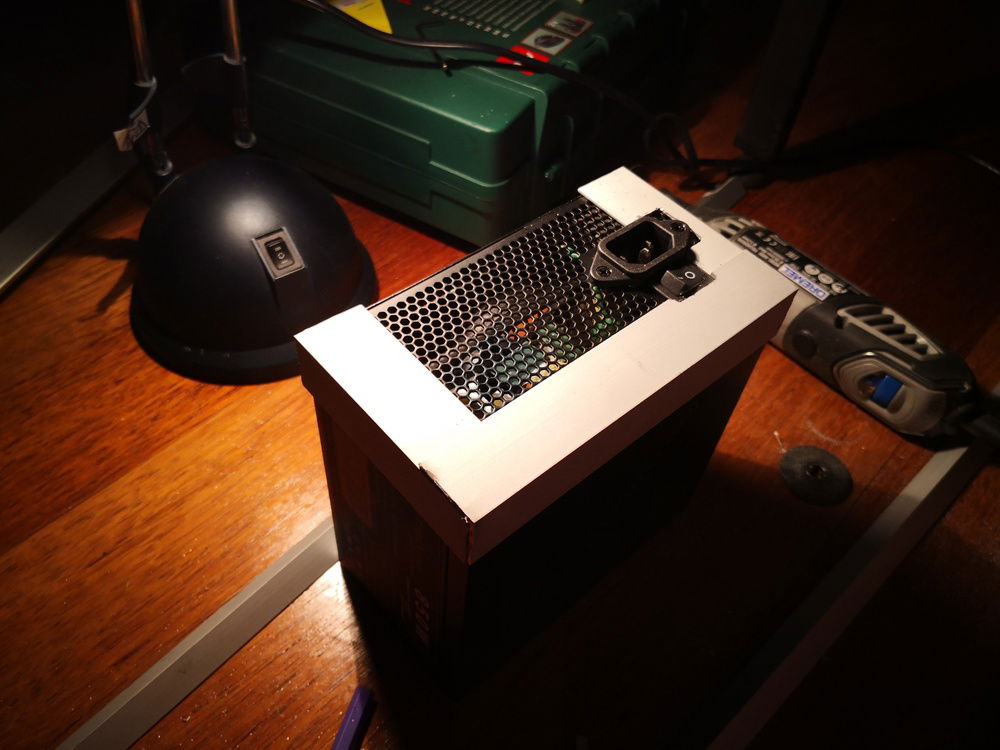

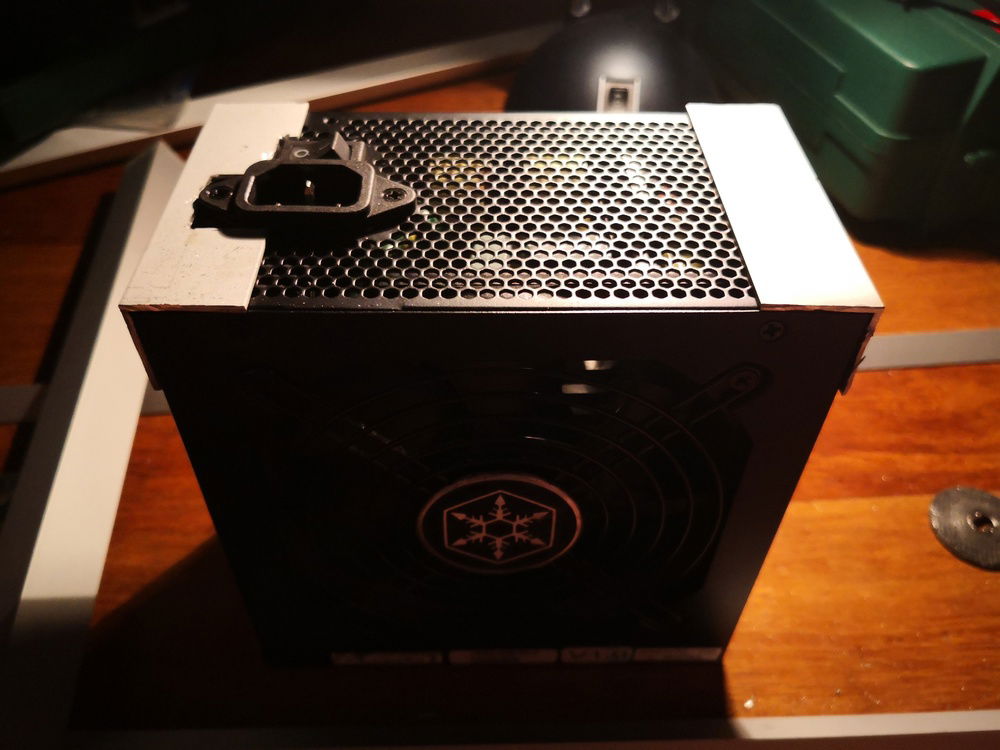

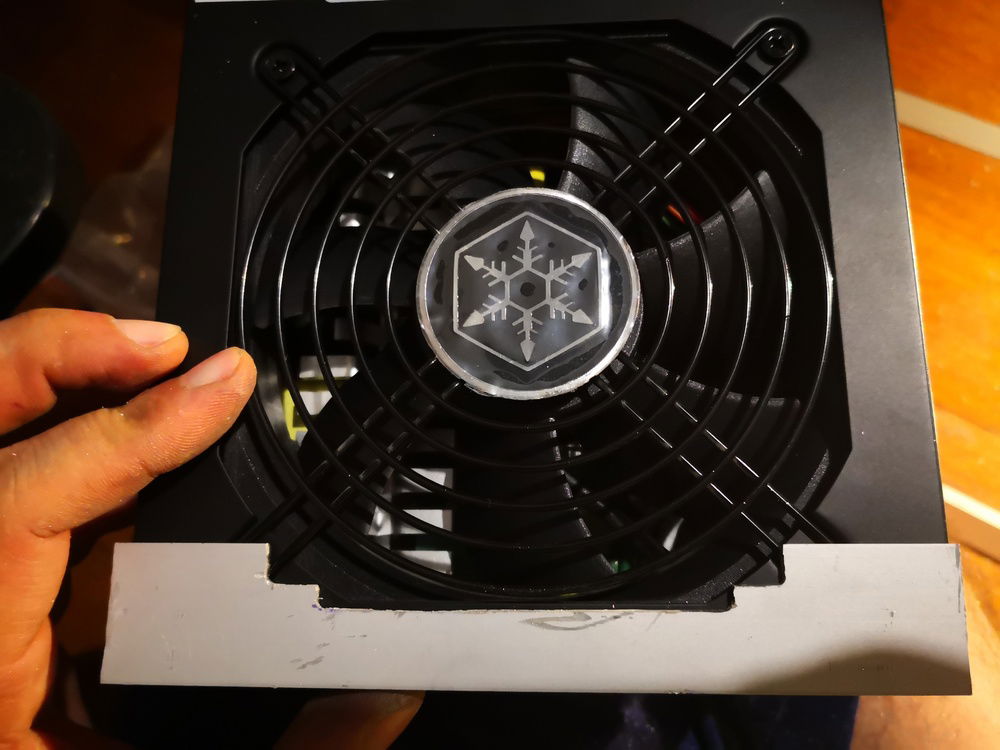

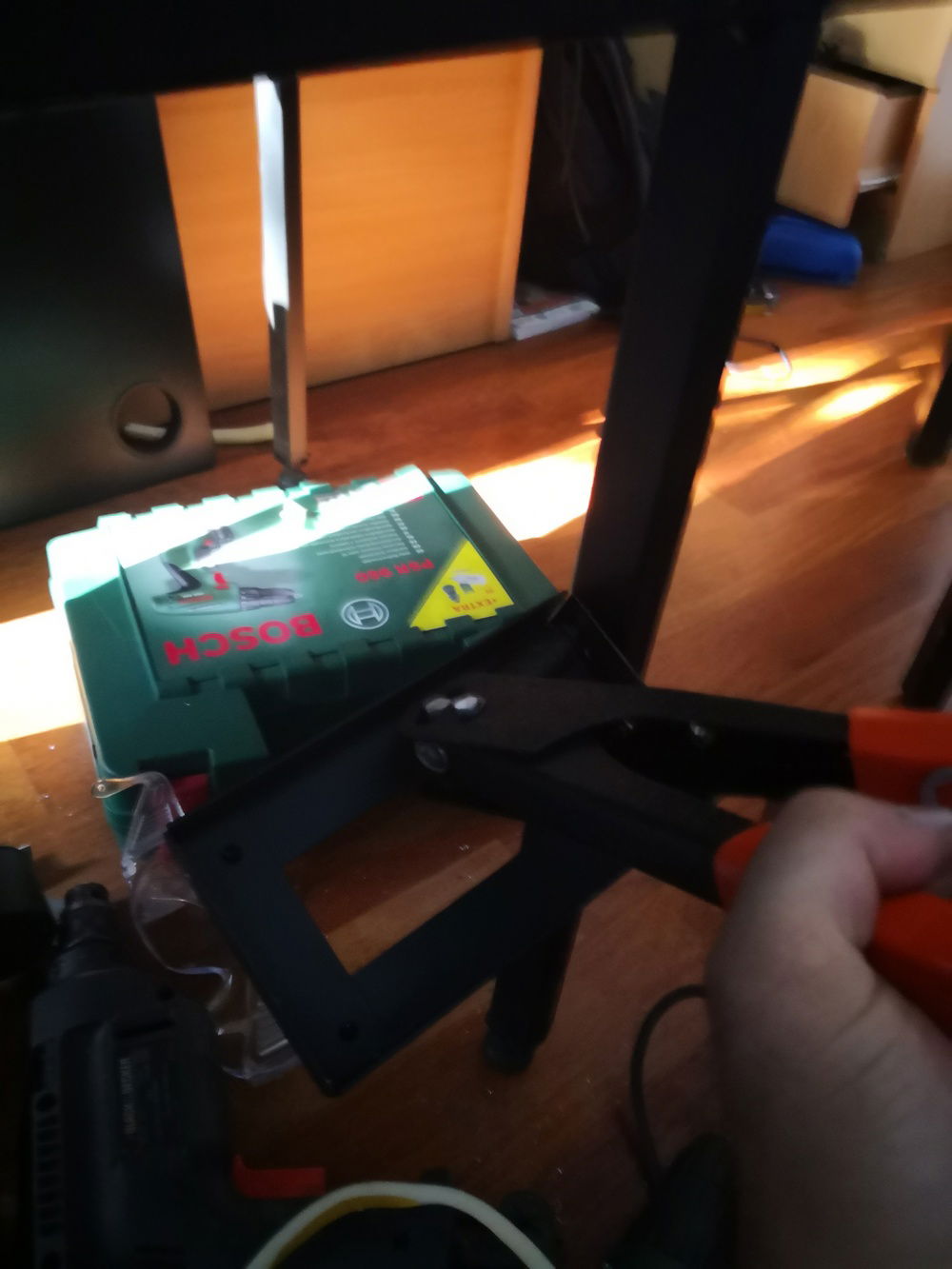

PSU cover body part mounting
PSU cover body part mounting
PSU cover body part mounting
PSU cover body part mounting
PSU cover body part paint
PSU cover body part paint
PSU cover body part mounting
PSU cover body part mounting
PSU cover body part paint

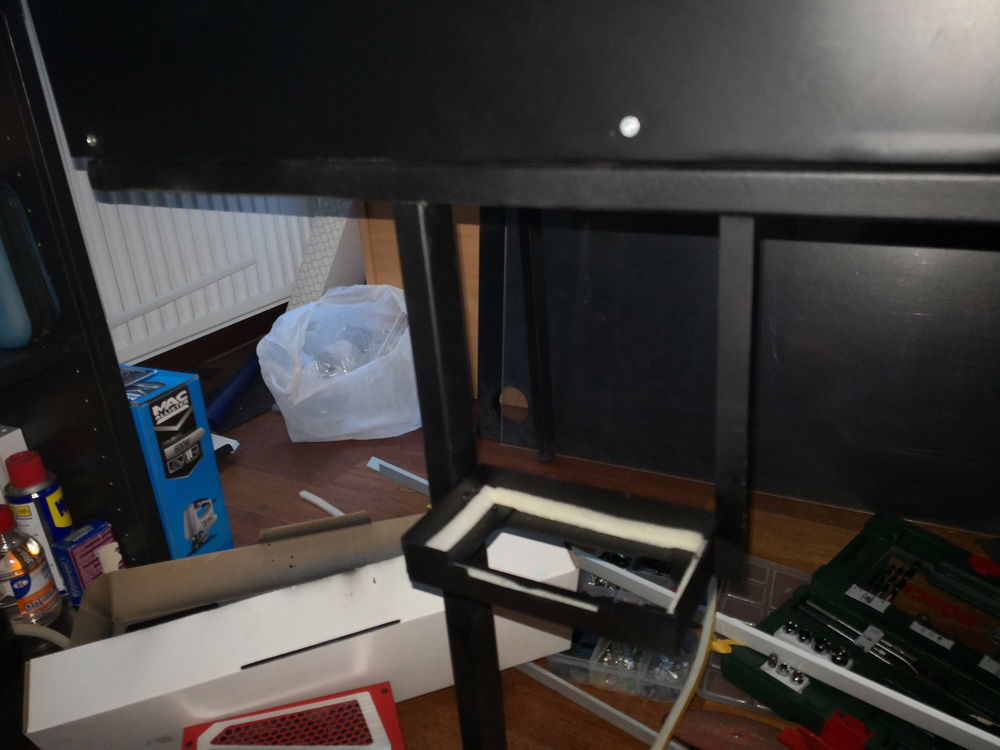

PSU cover body part mounting to desk
isolation PSU fan vibration

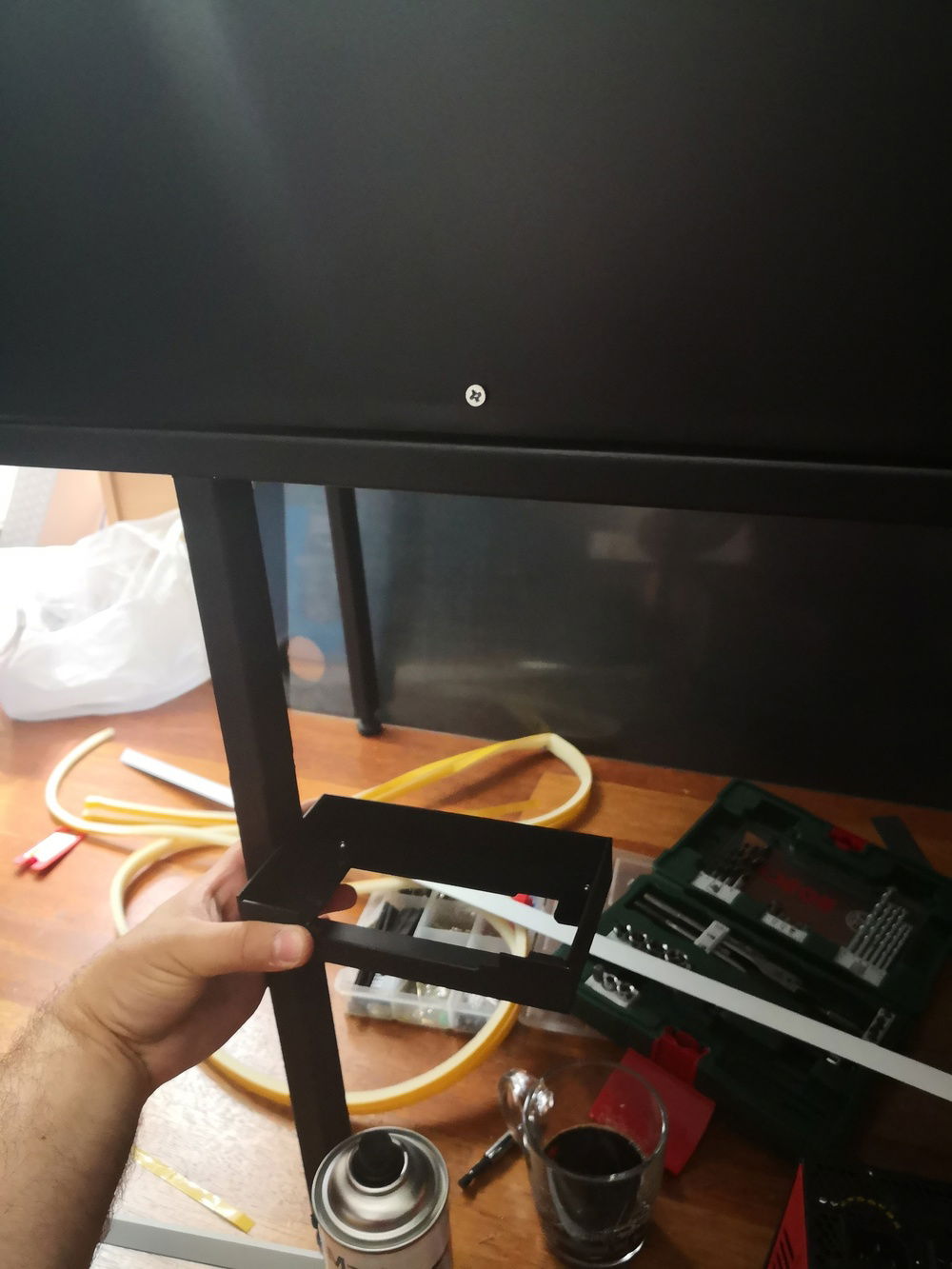

other side PSU cover body part mounting to desk

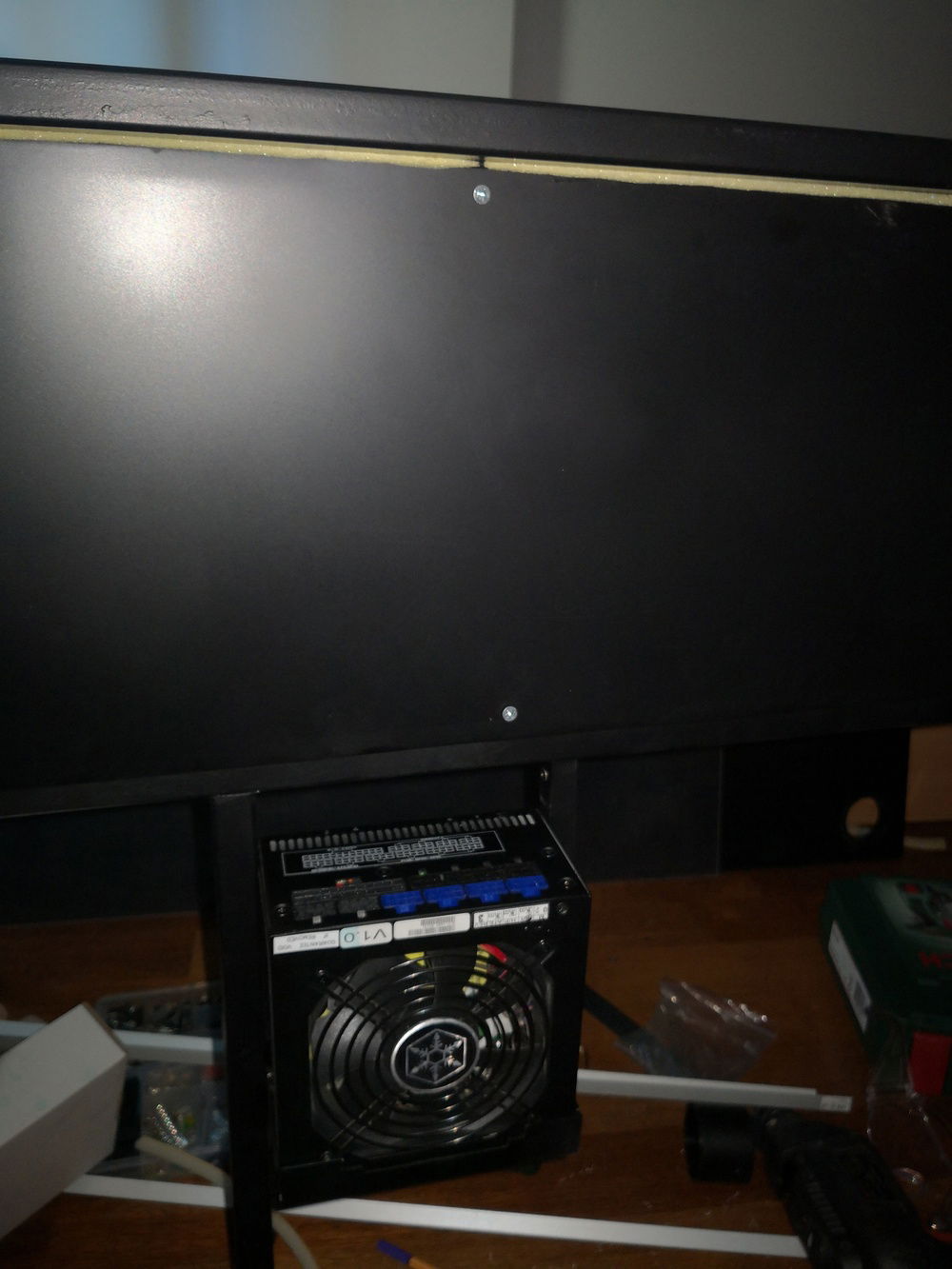

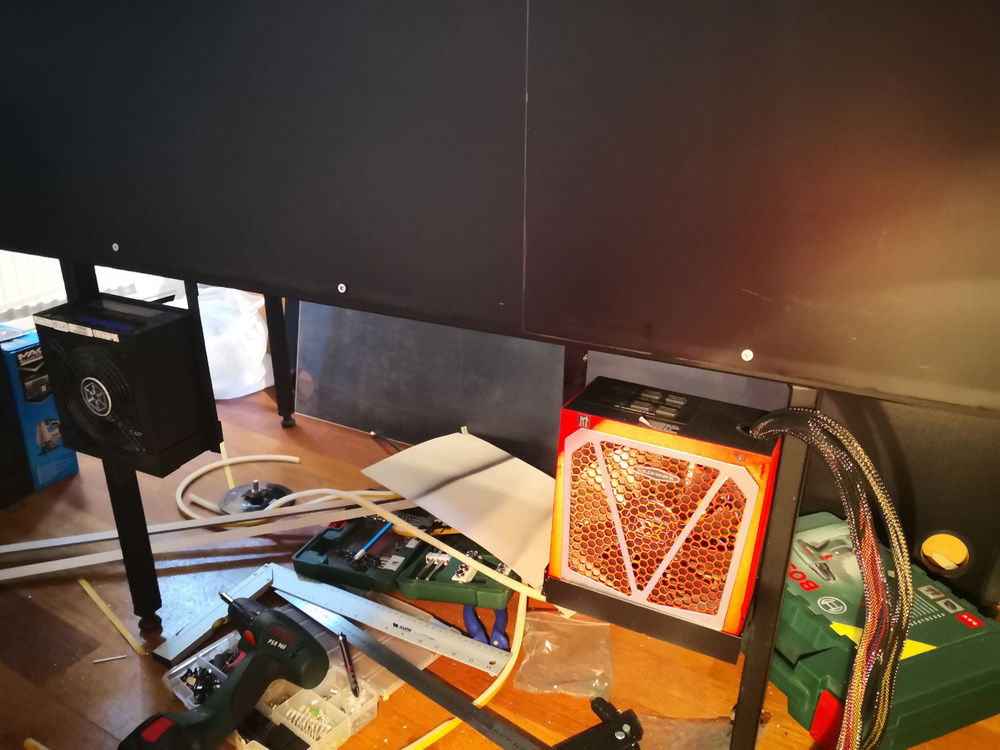

finish psu mounting

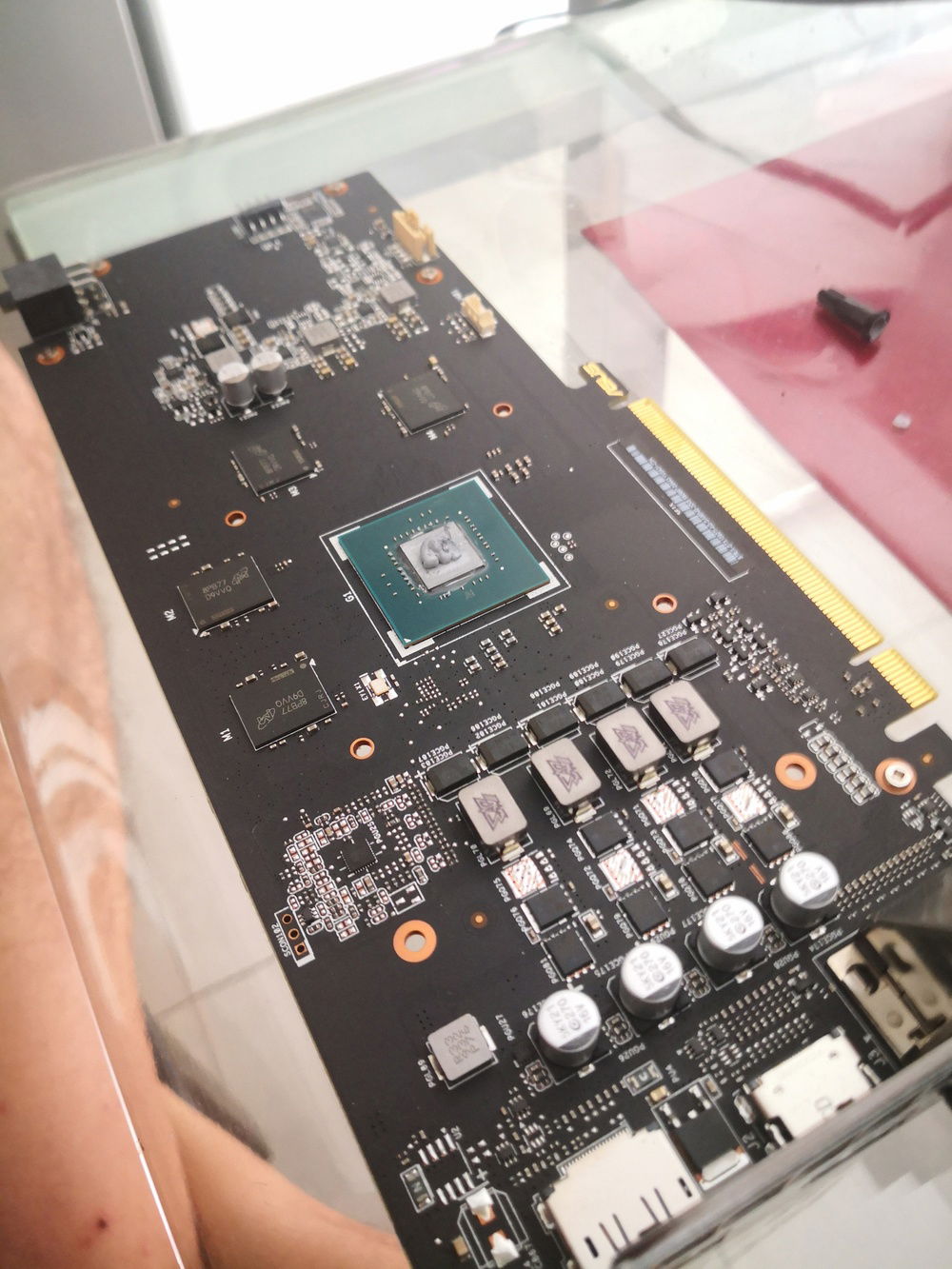

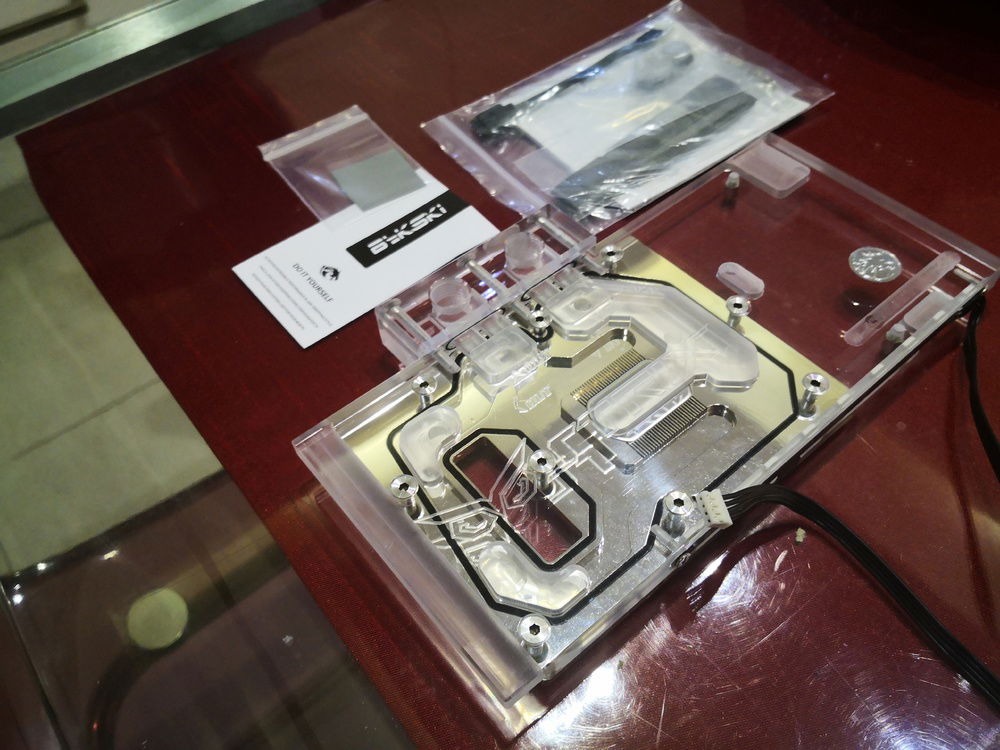

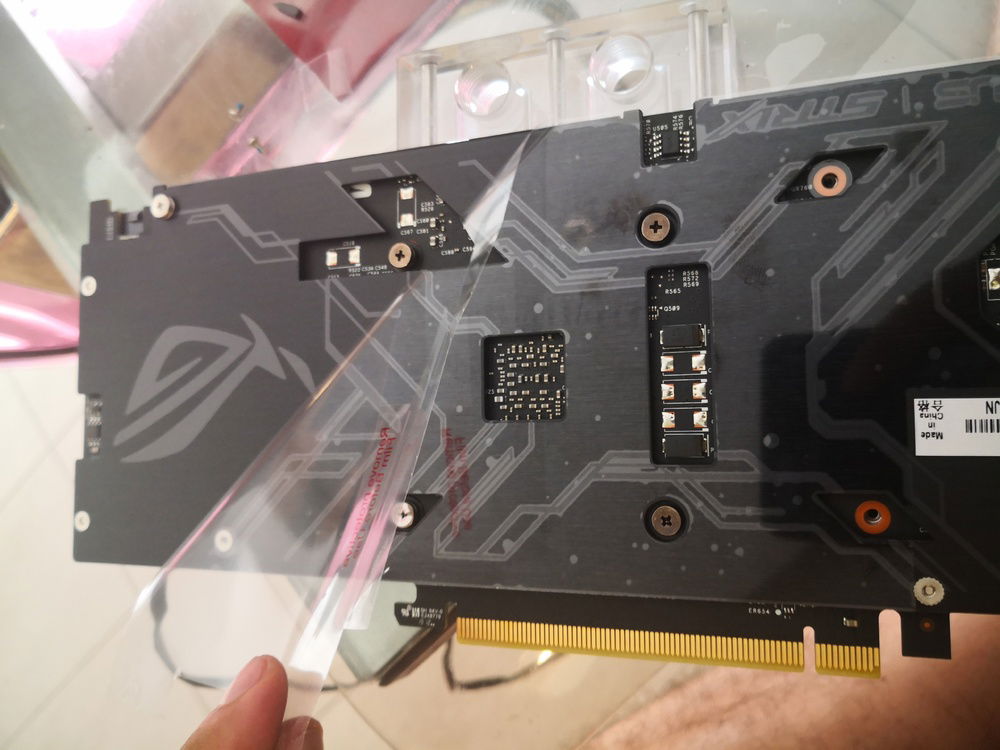

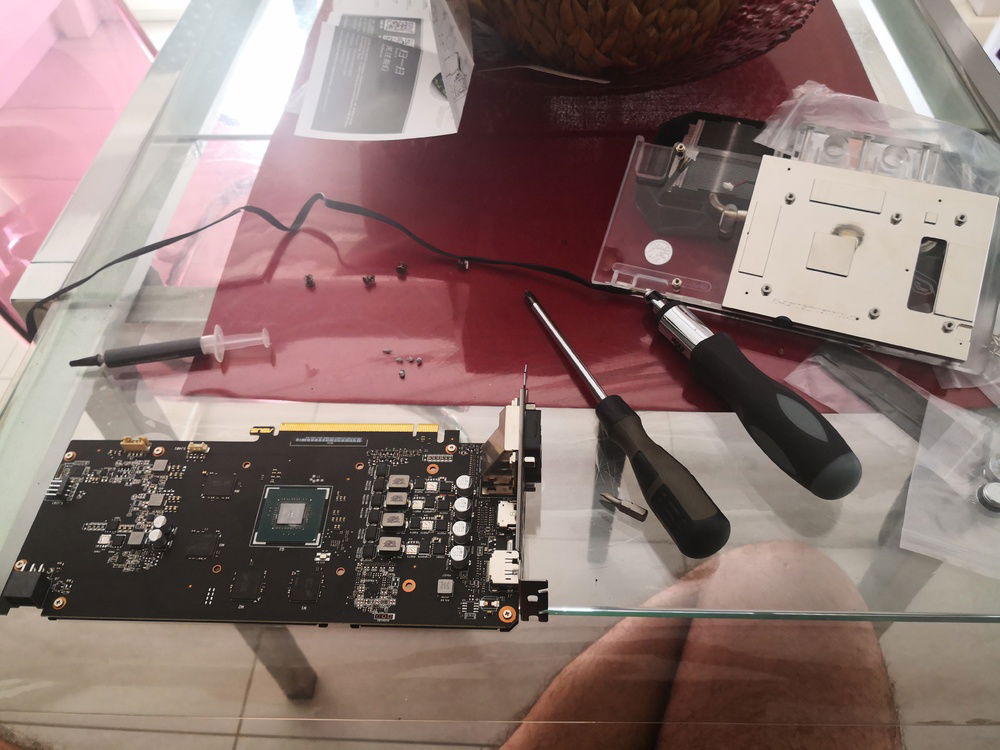

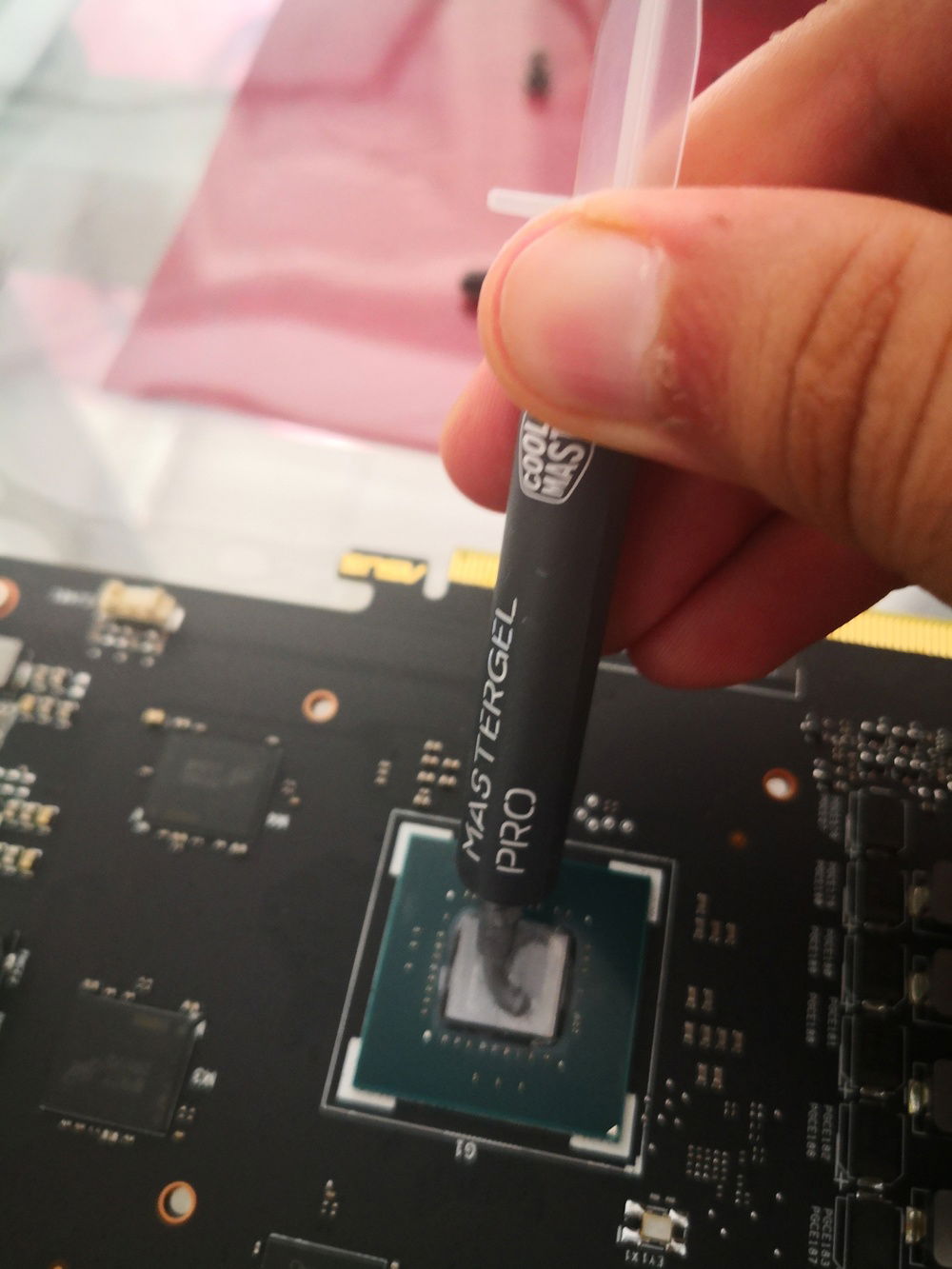

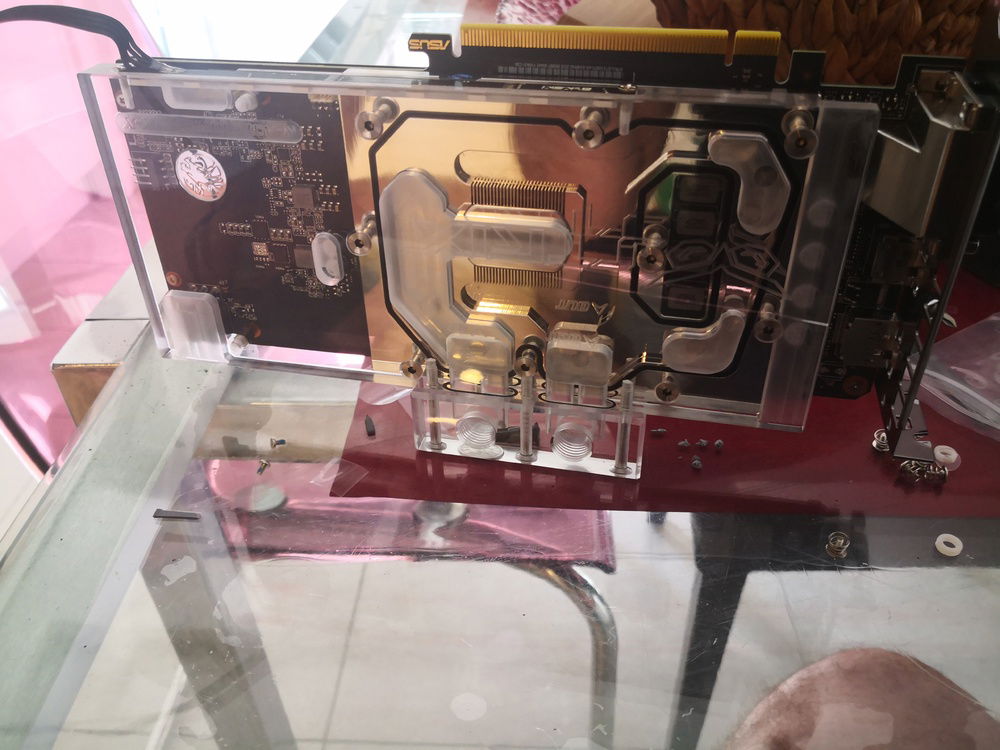

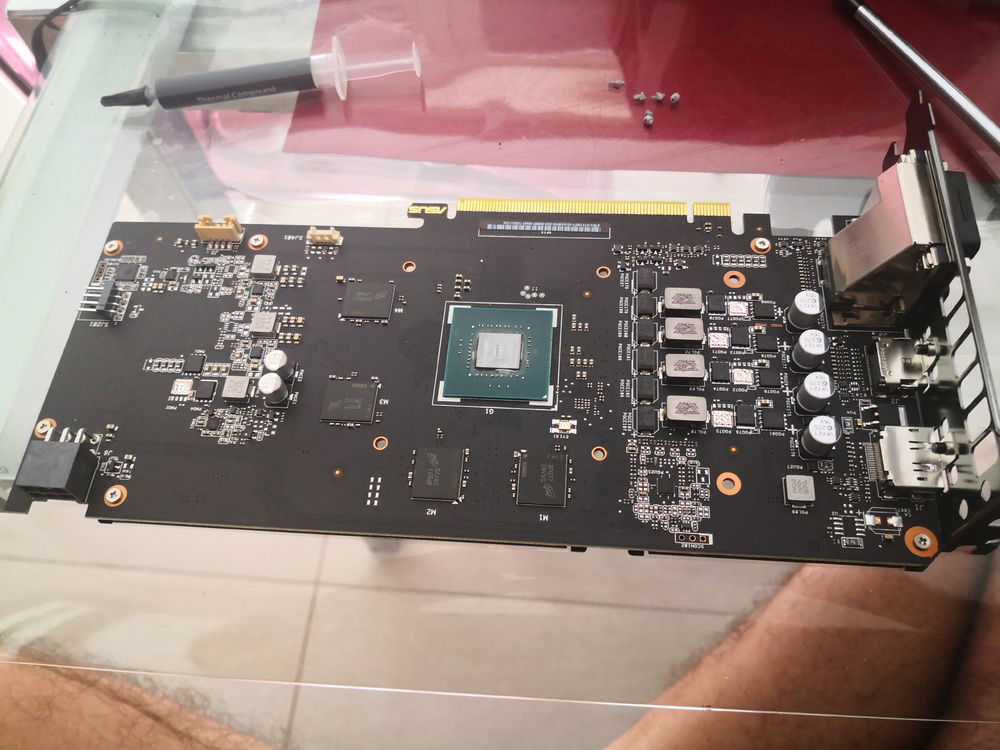

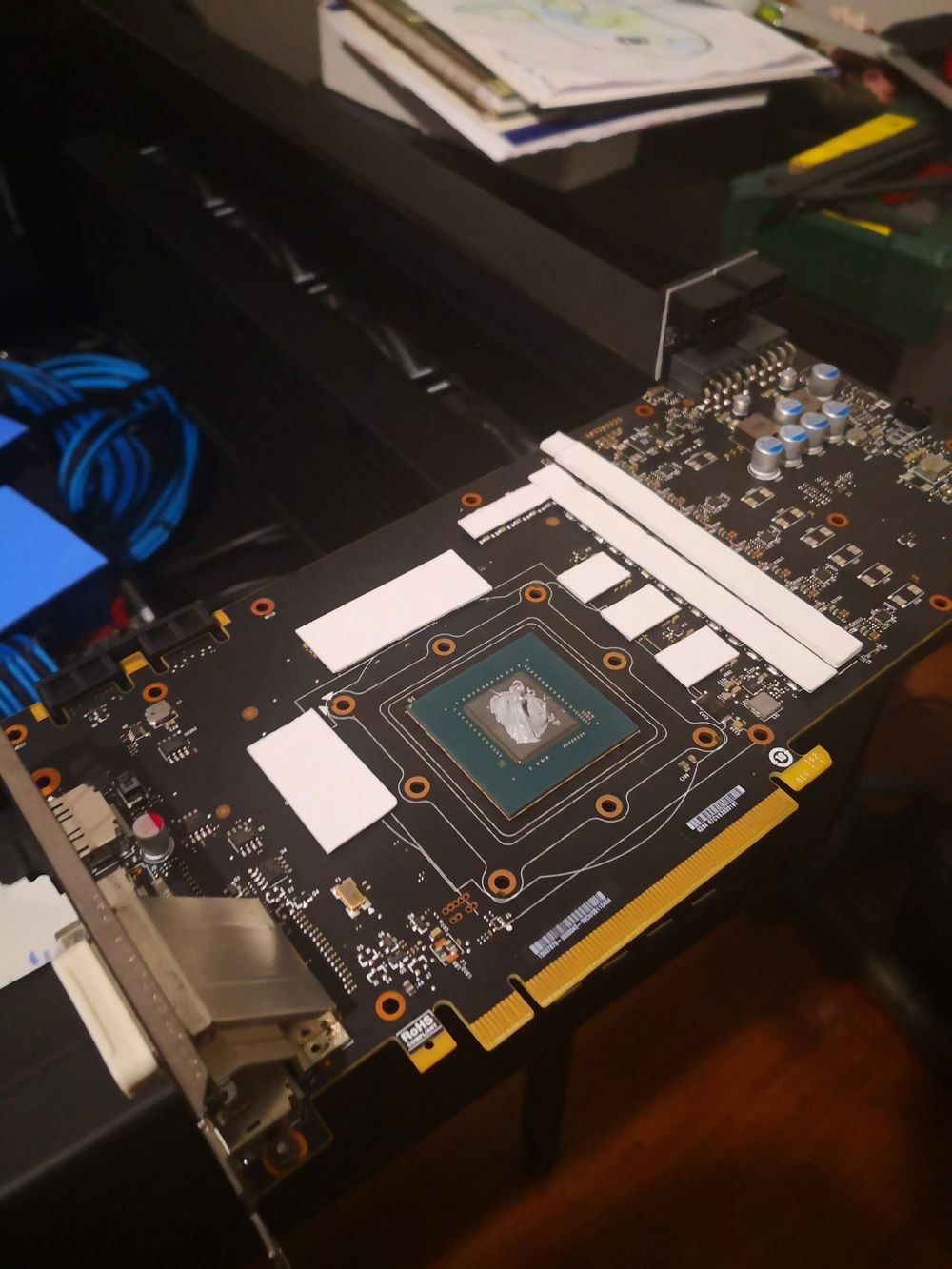

Byski gpu waterblock. Not find ek brand for 1050ti

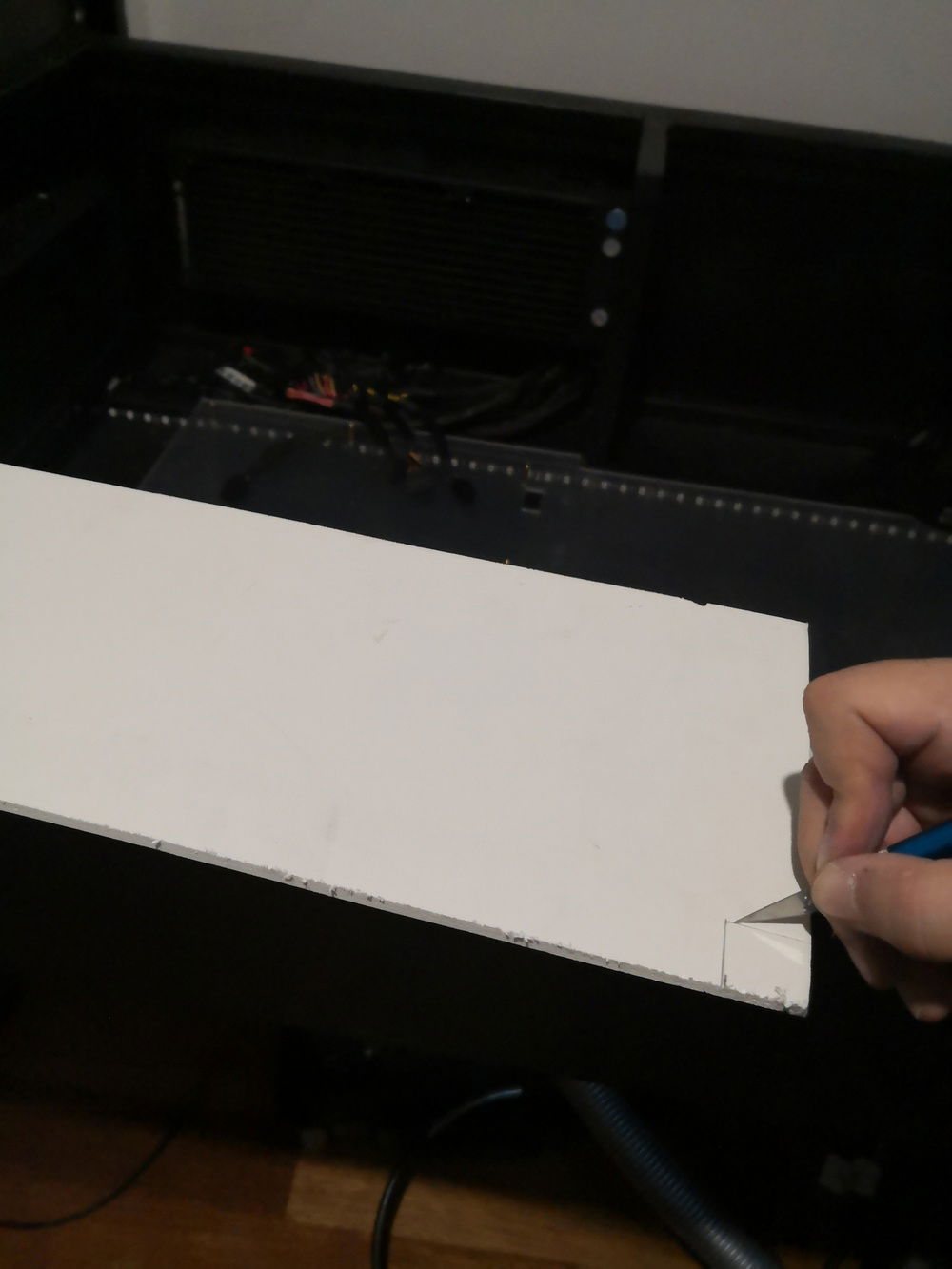

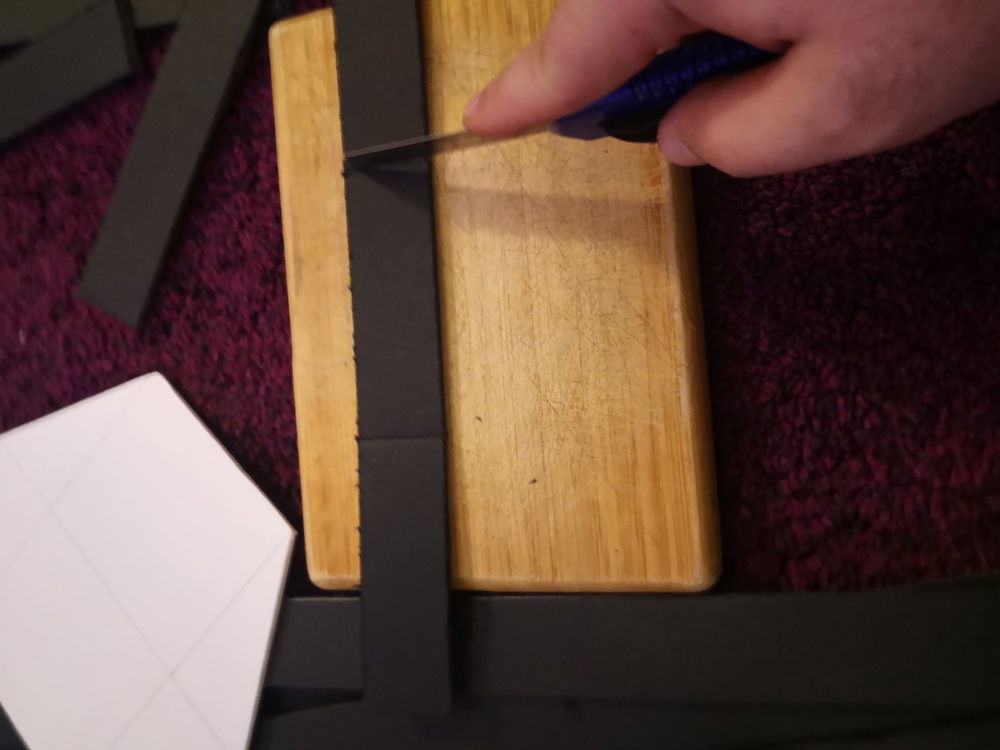

Cable cover by pvc foam
Cable cover by pvc foam
Cable cover by pvc foam

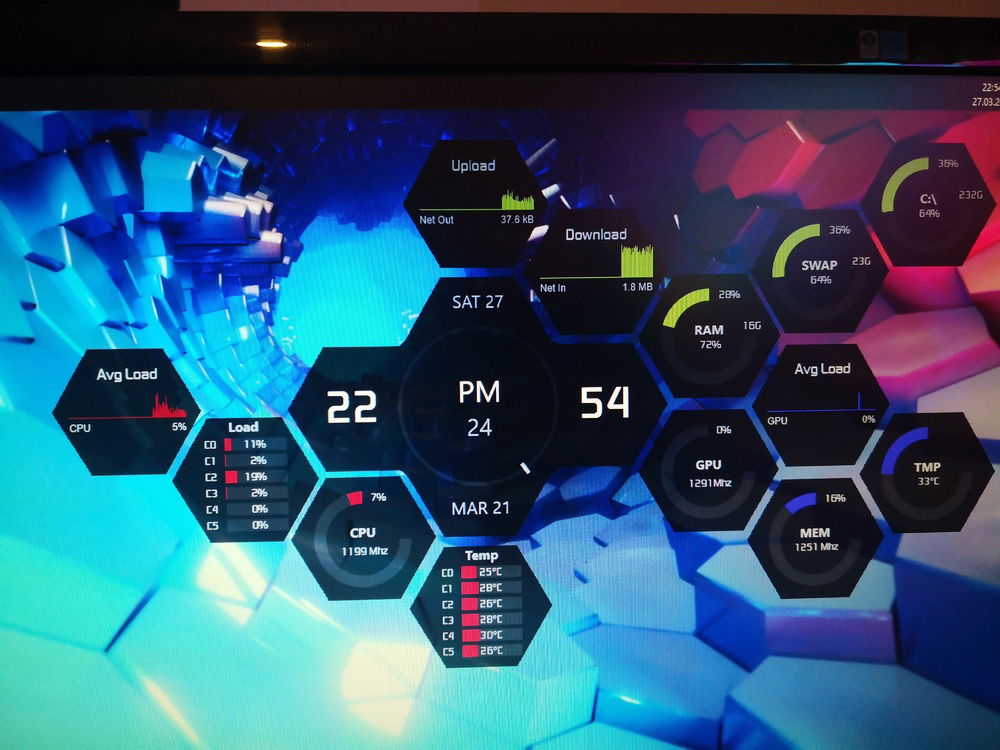

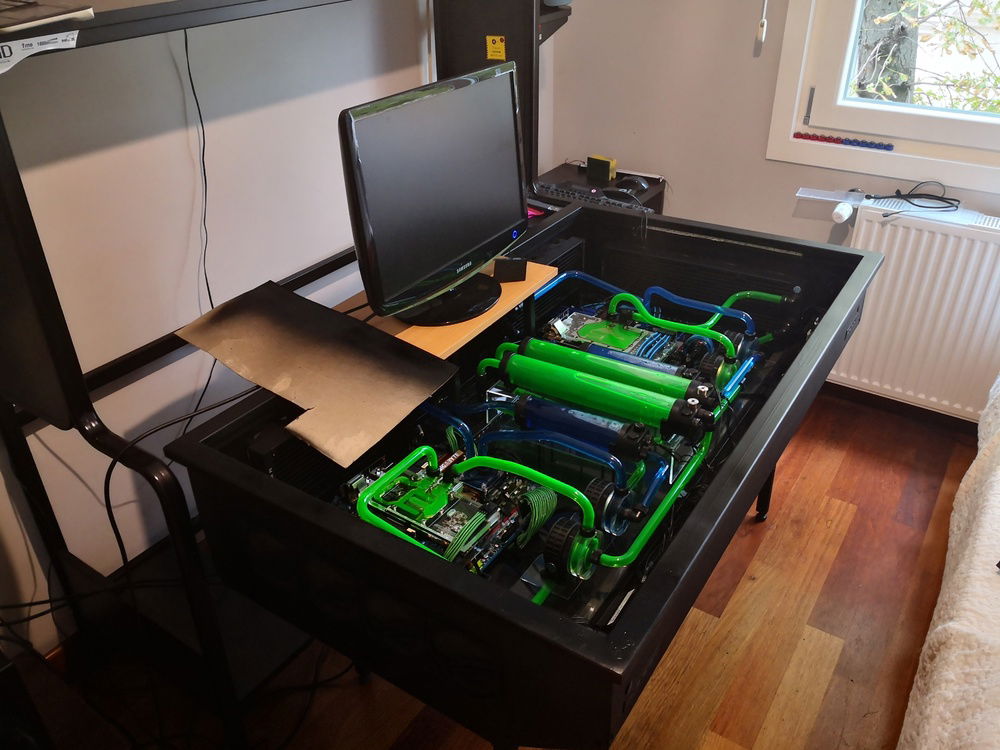

Test sytem old monitor

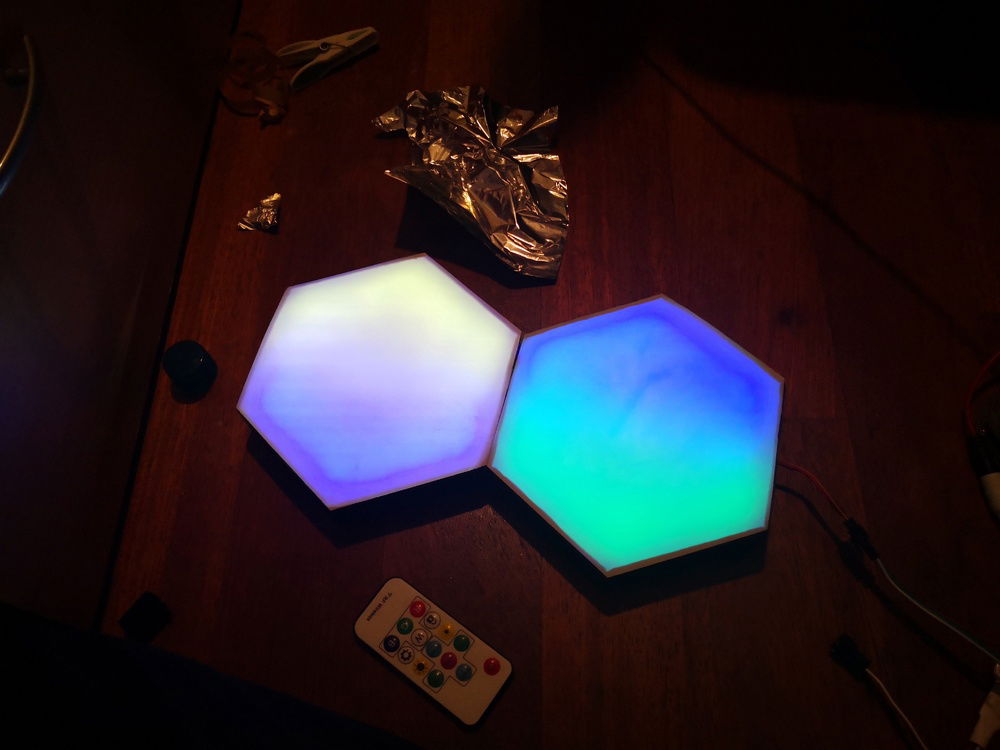

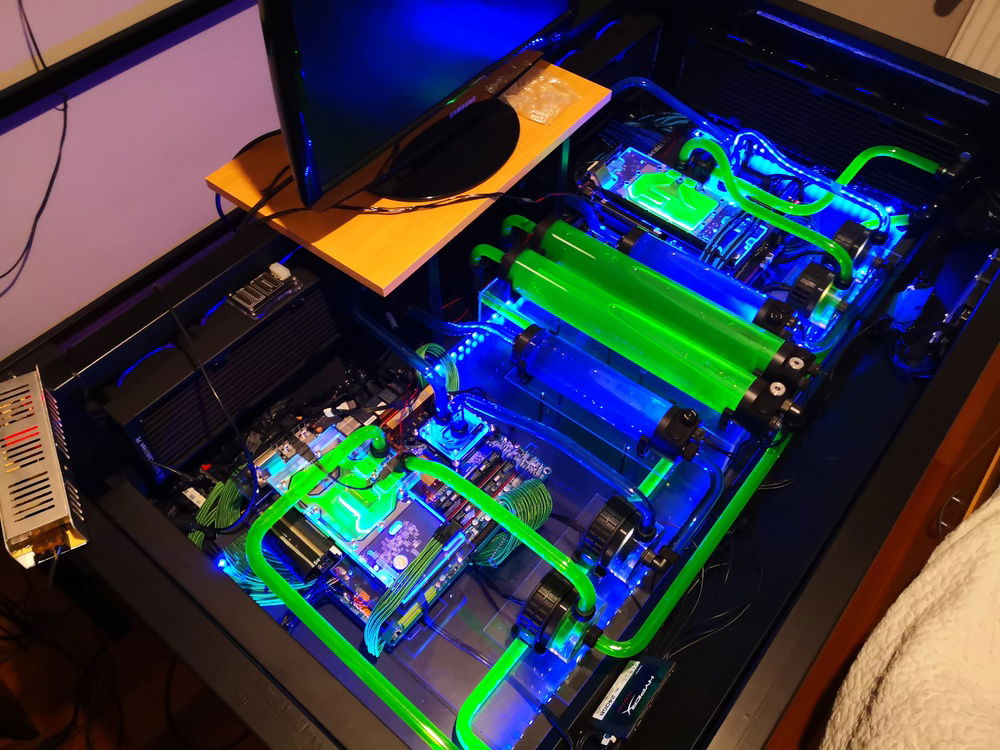

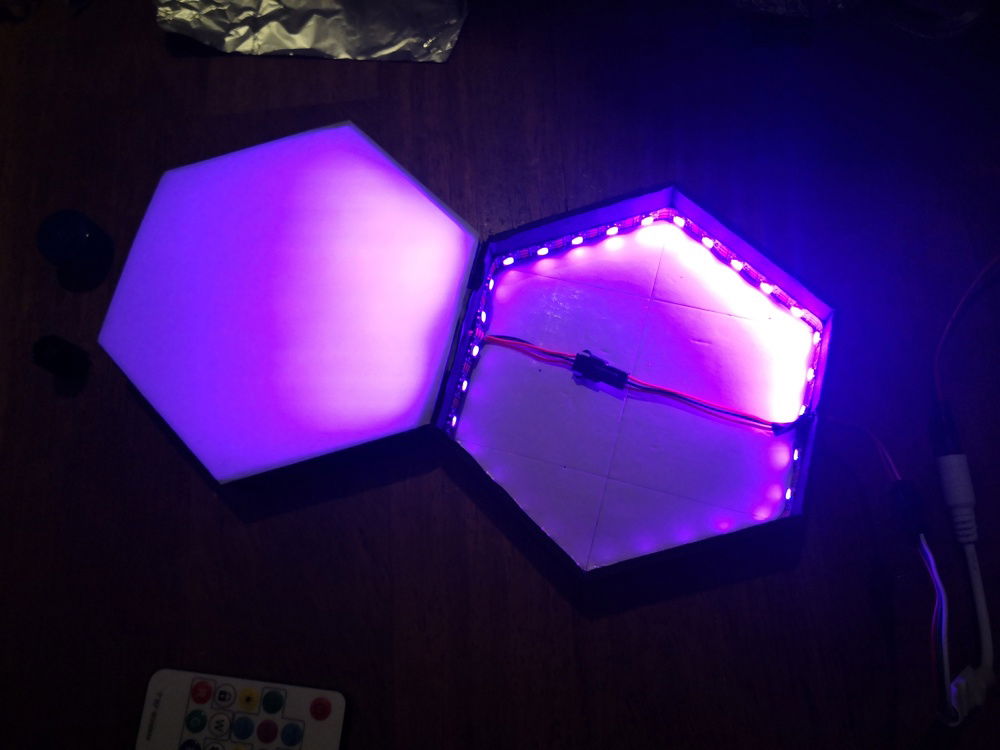

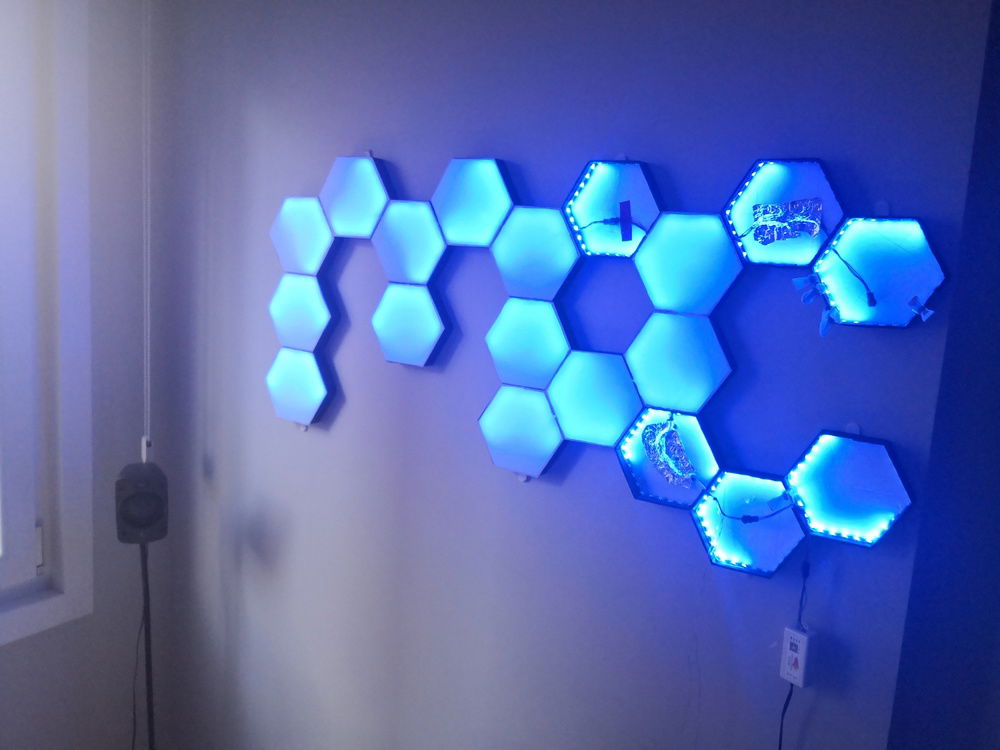

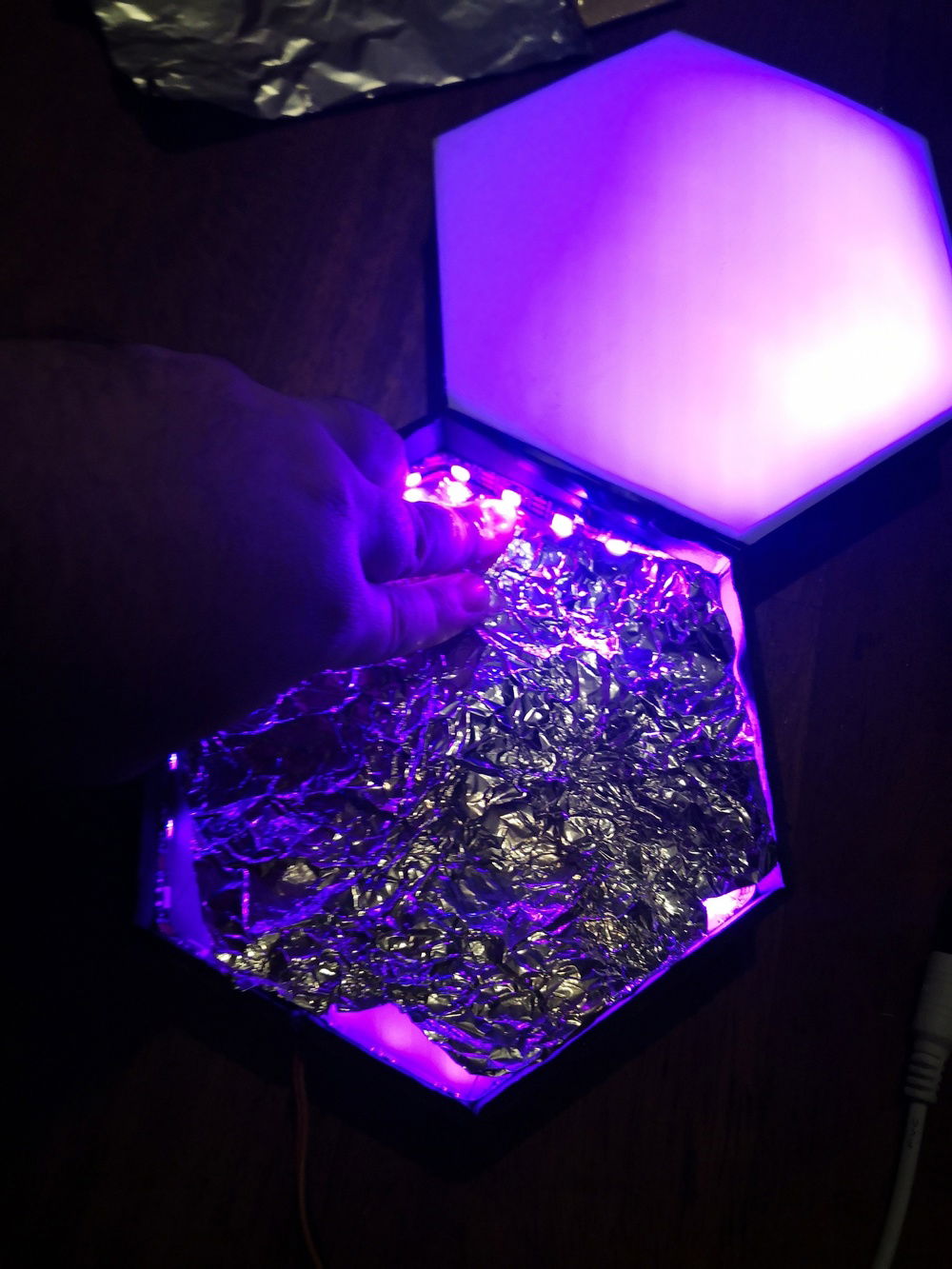

Test lighting

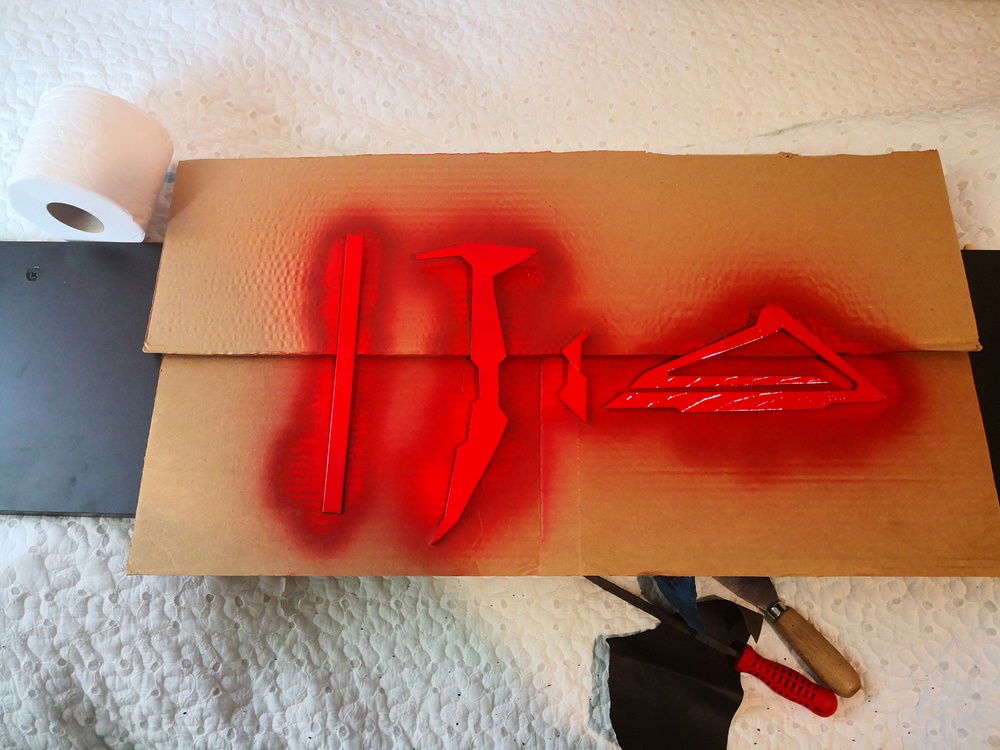

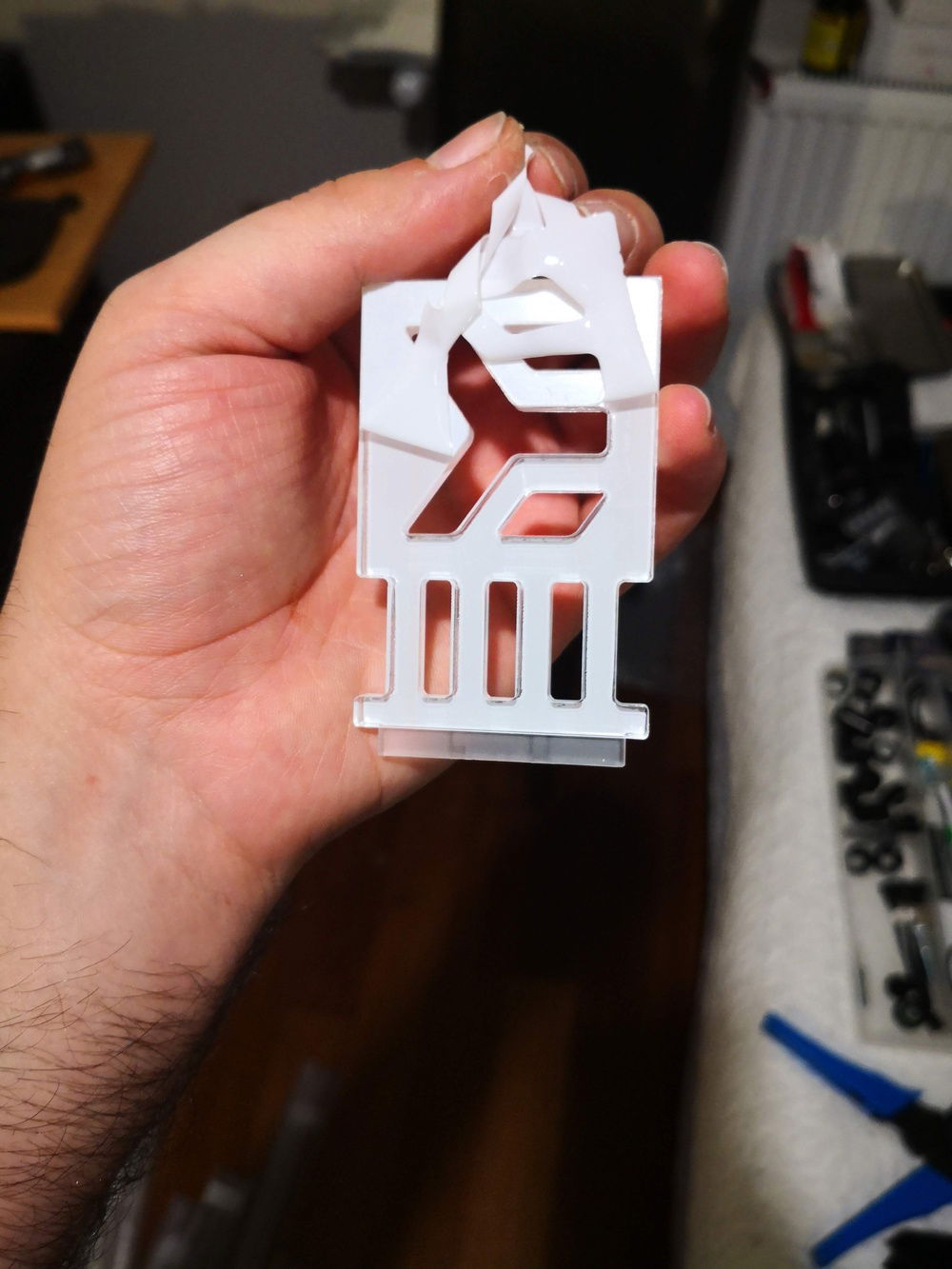

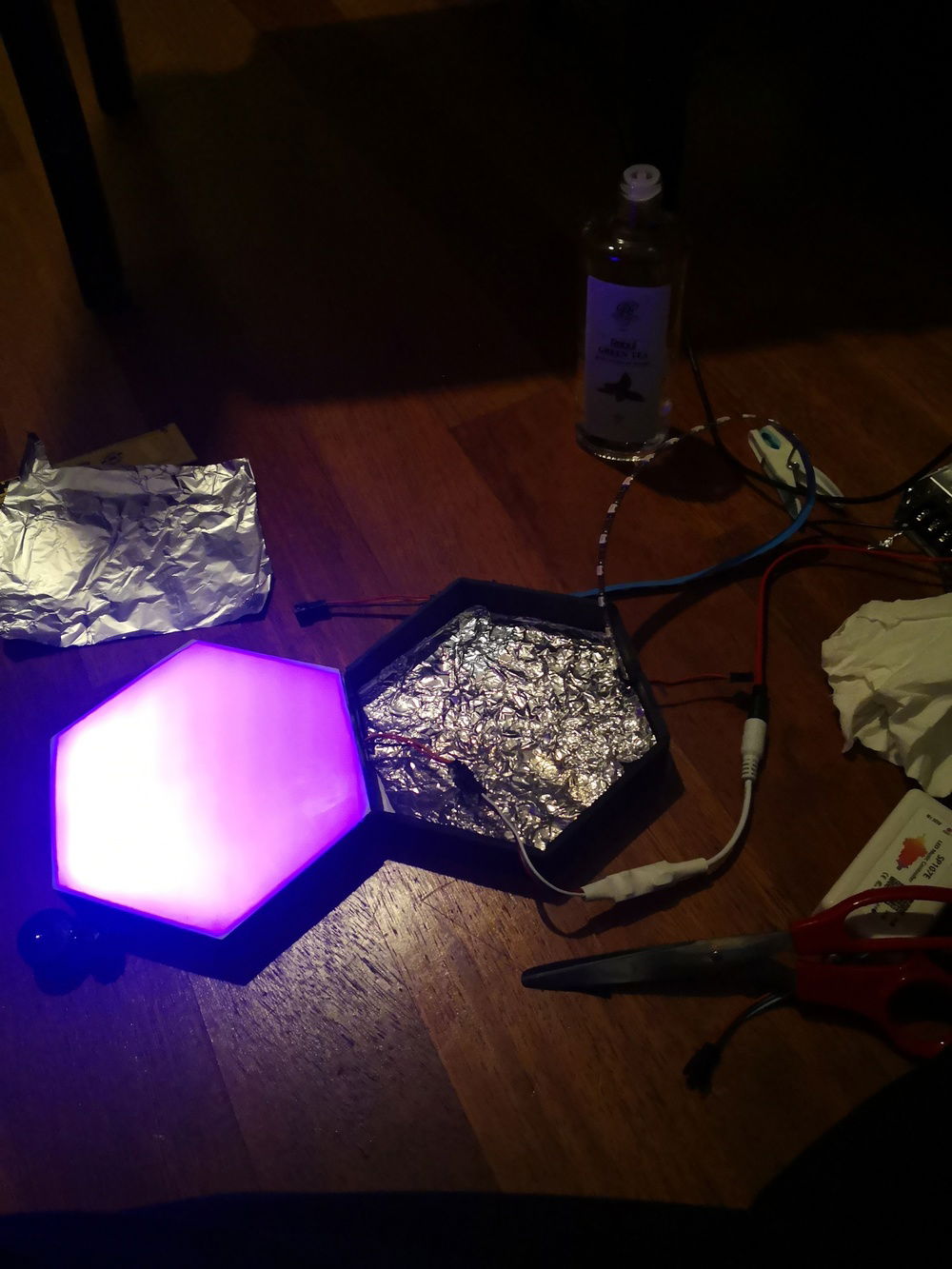

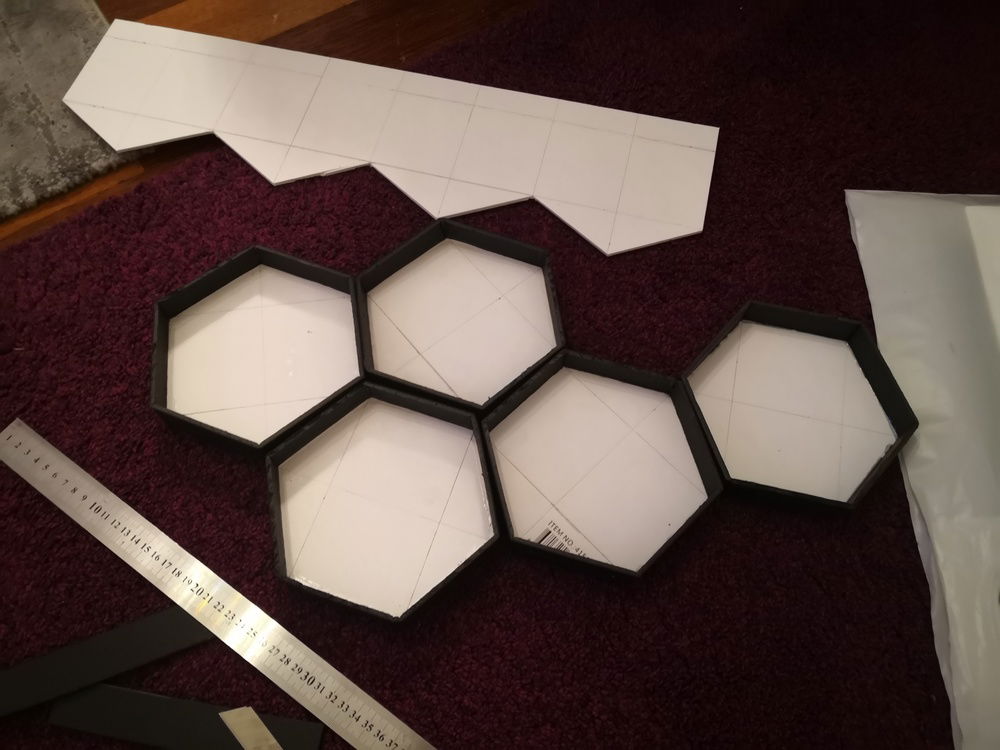

Make it on 3D printer

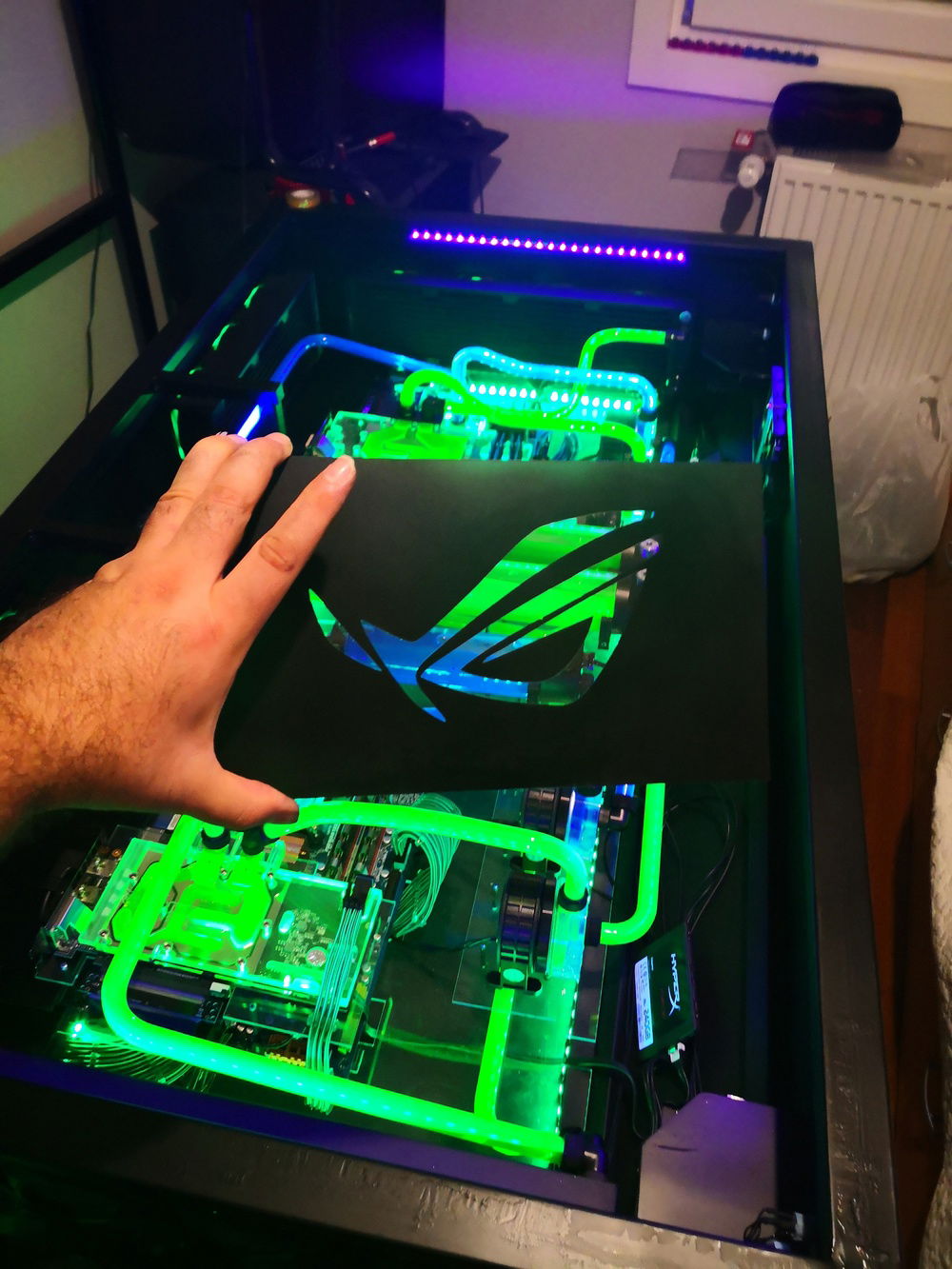

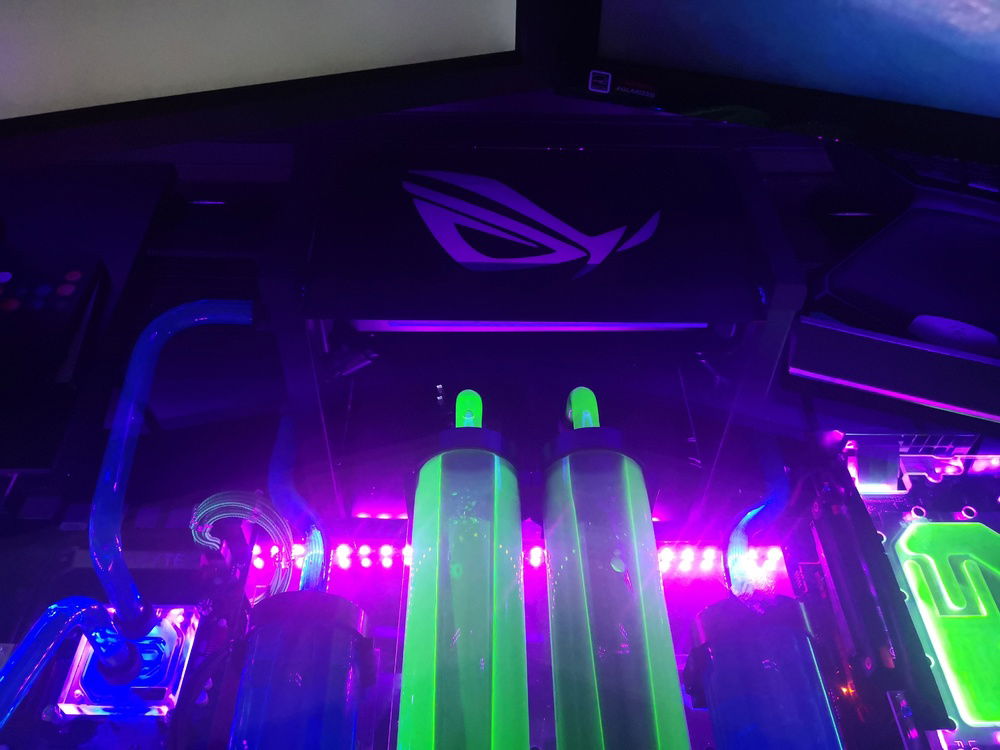

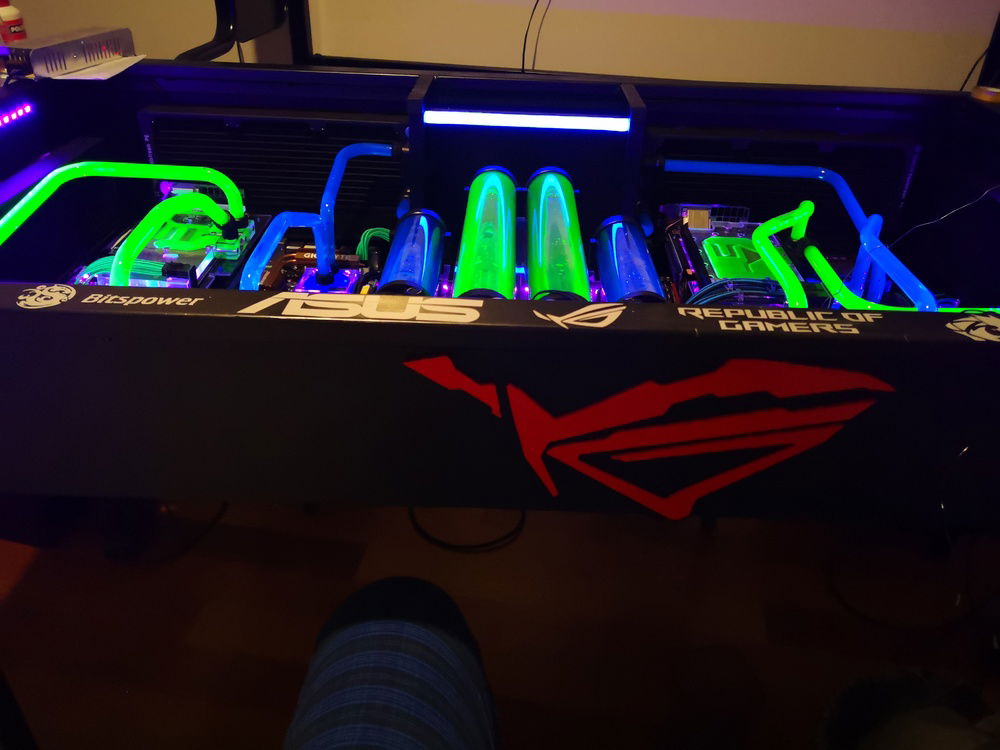

is done but after remove rog eye (i think is bad view)

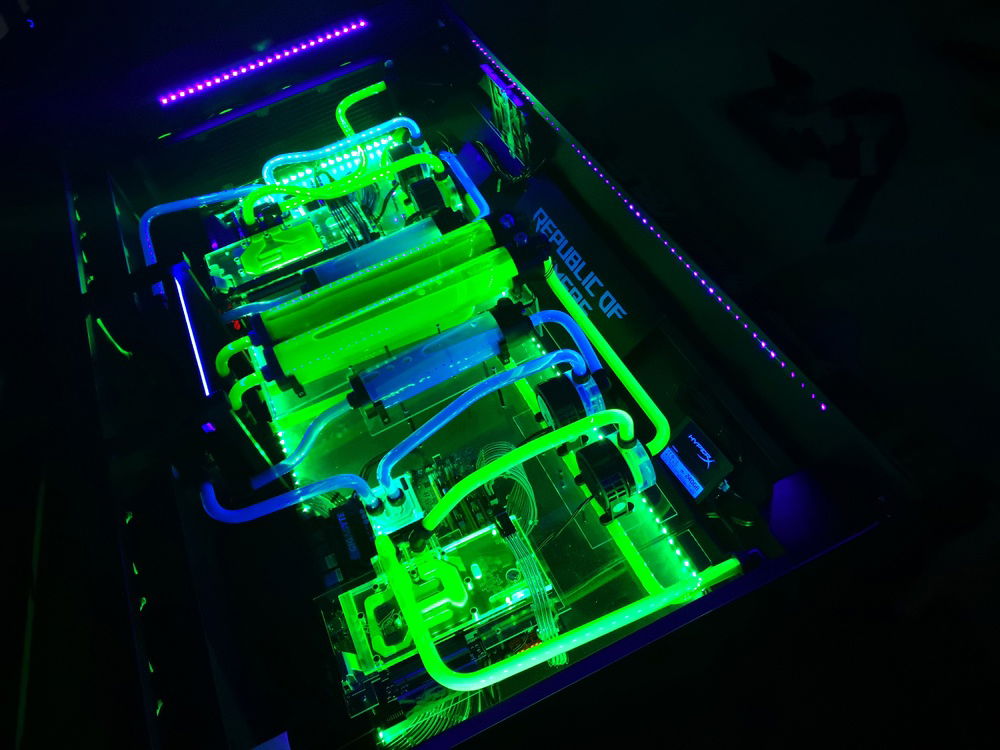

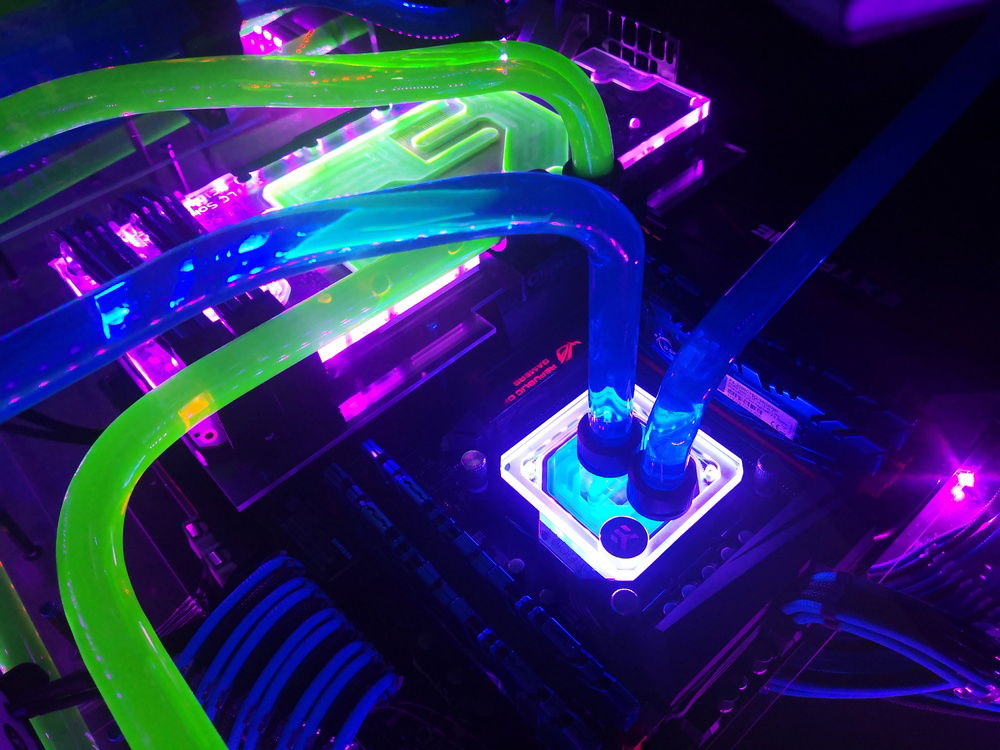

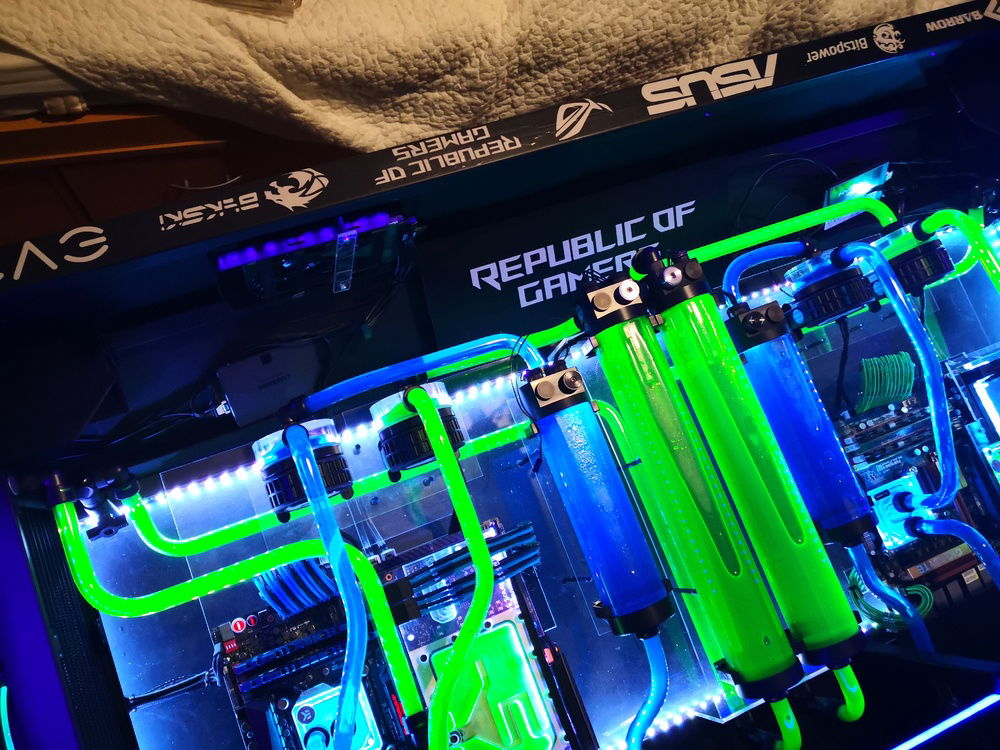

Complate inside design

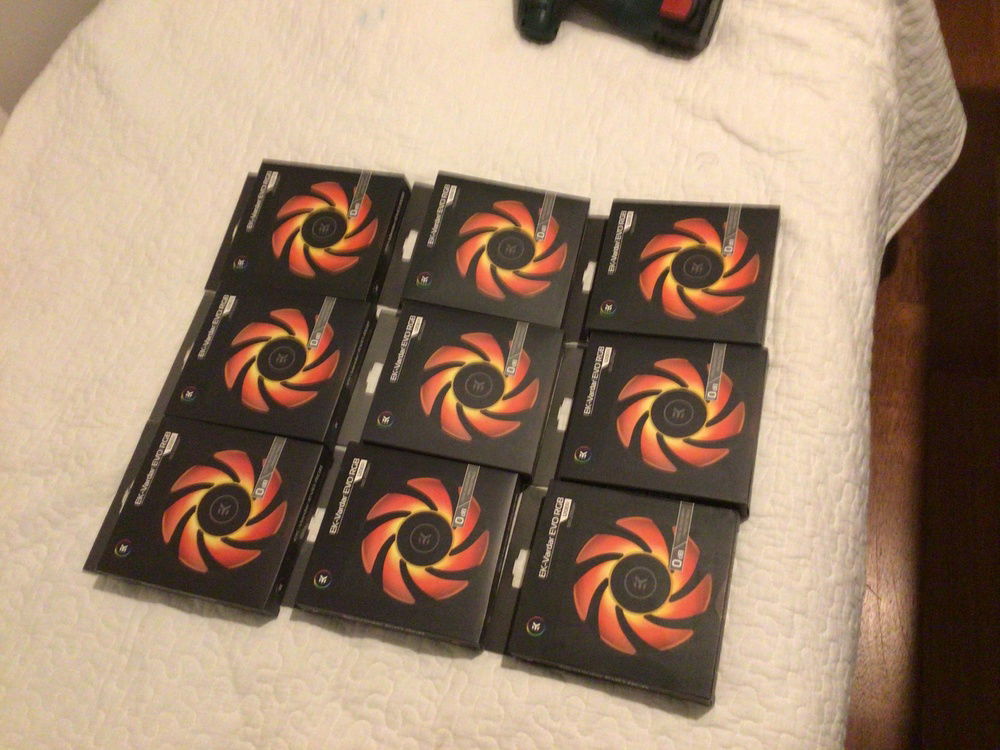

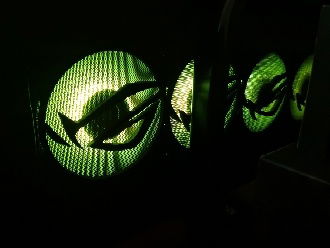

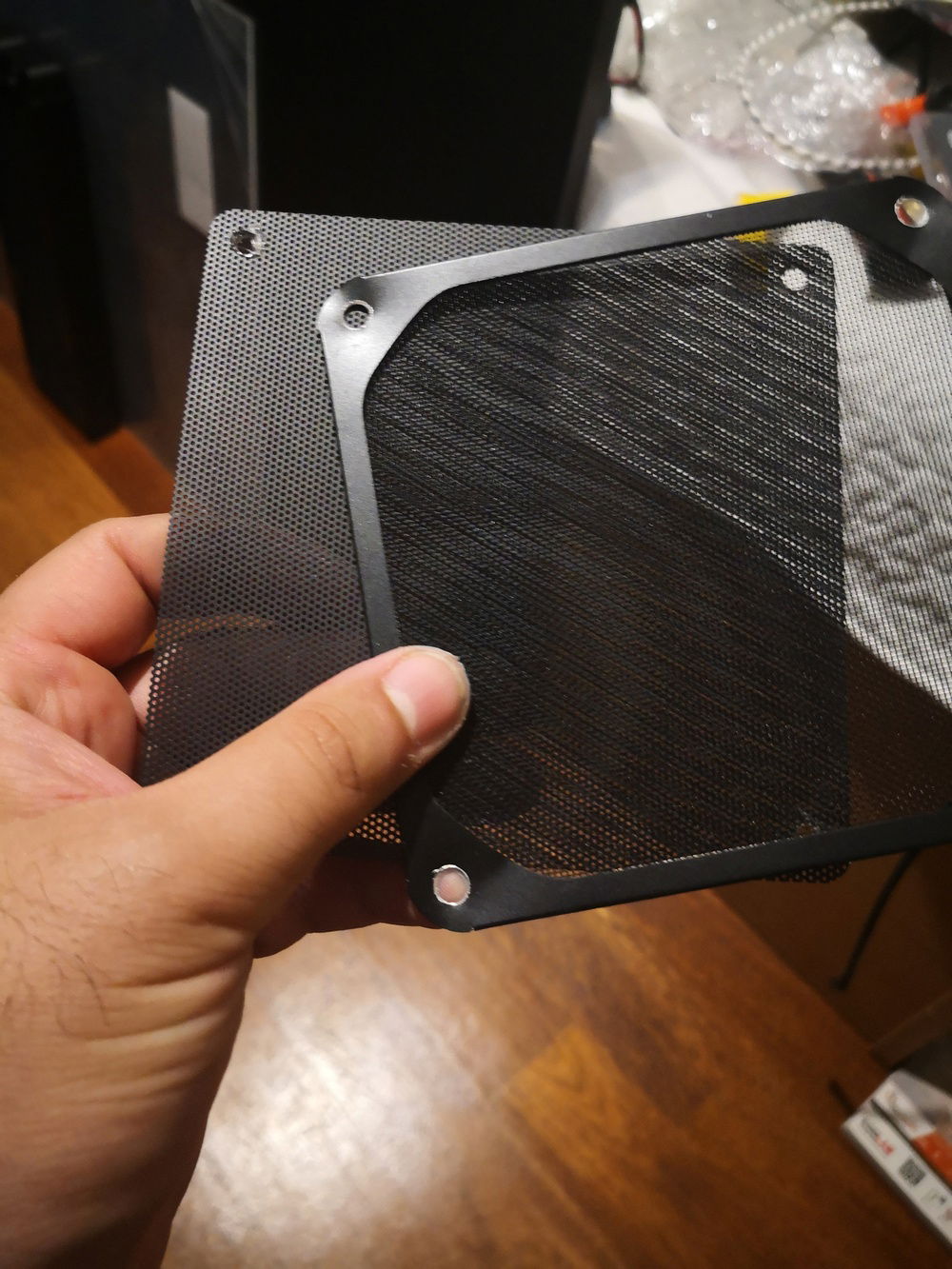

EK RGB fan view. Fan grid make it on 3D printer
EK RGB fan view
EK RGB fan view

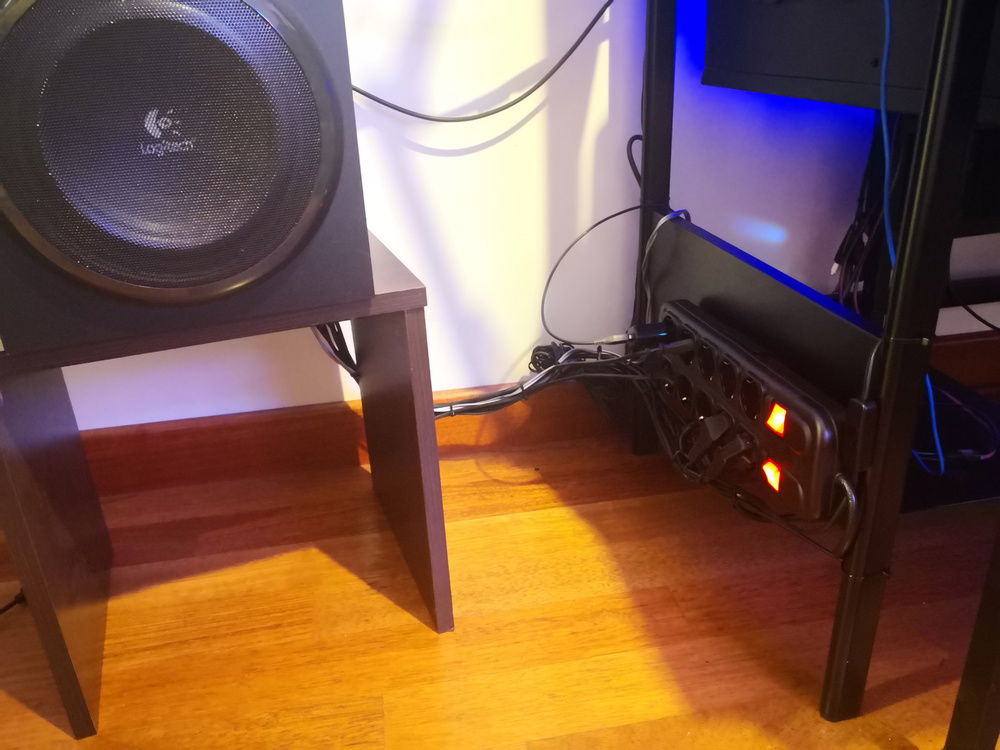

After than complate desk, managmet cable on the floor
finish cable managment

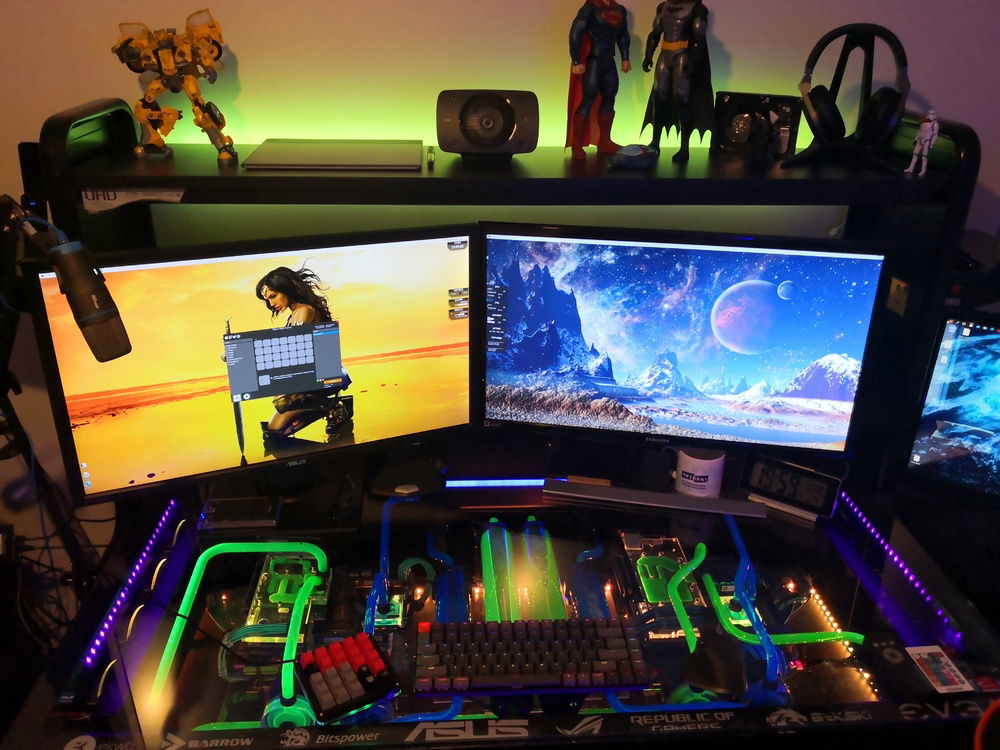

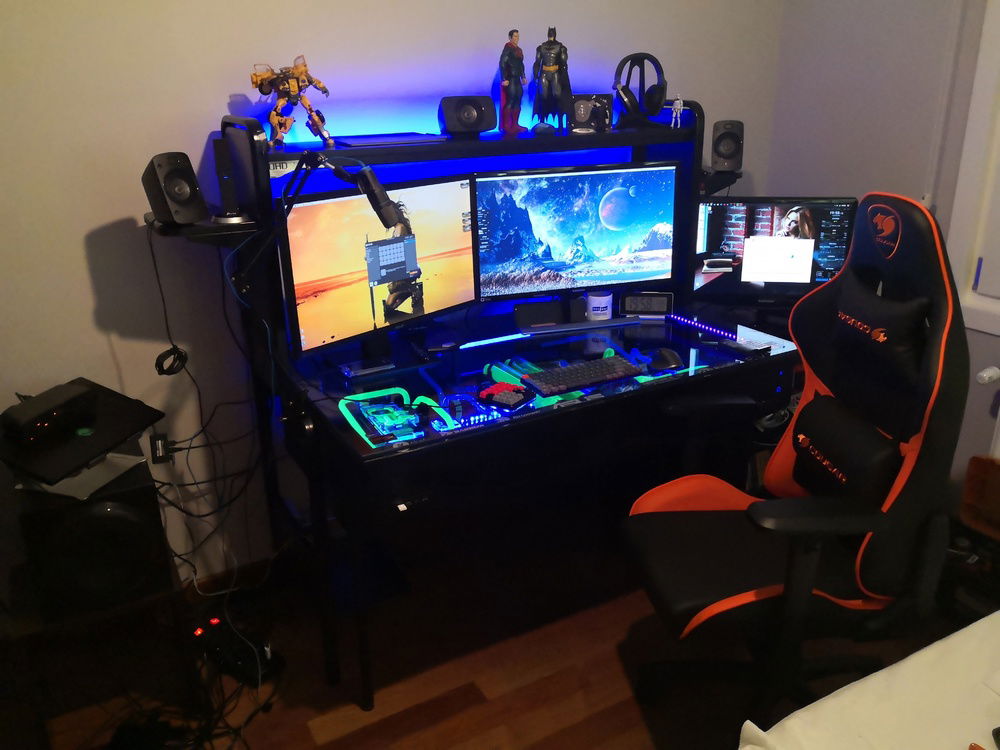

Dark Devil 2 PC Custom Watercooling Custom Desk
Everything custom design and build. My special design and prepare system. Hardware and liquid cooling sytem part without all material full customizable.
Color(s): Black
RGB Lighting? Yes
Theme: Desk / Table
Cooling: Custom Liquid Cooling
Size: XL-ATX
Type: General Build
