VC3K

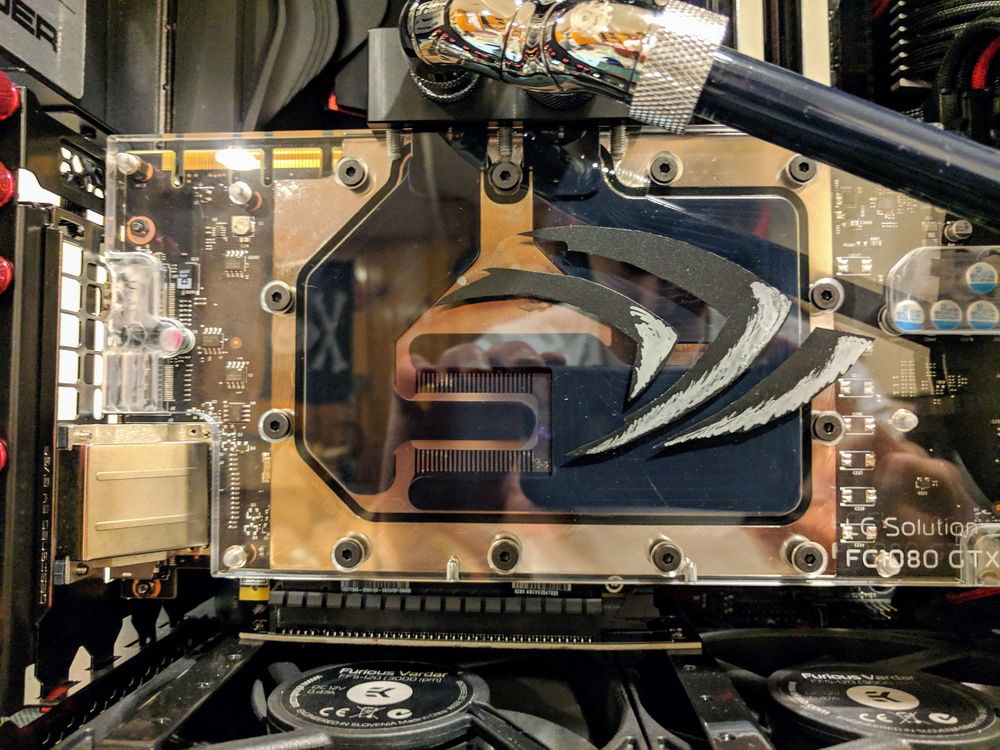

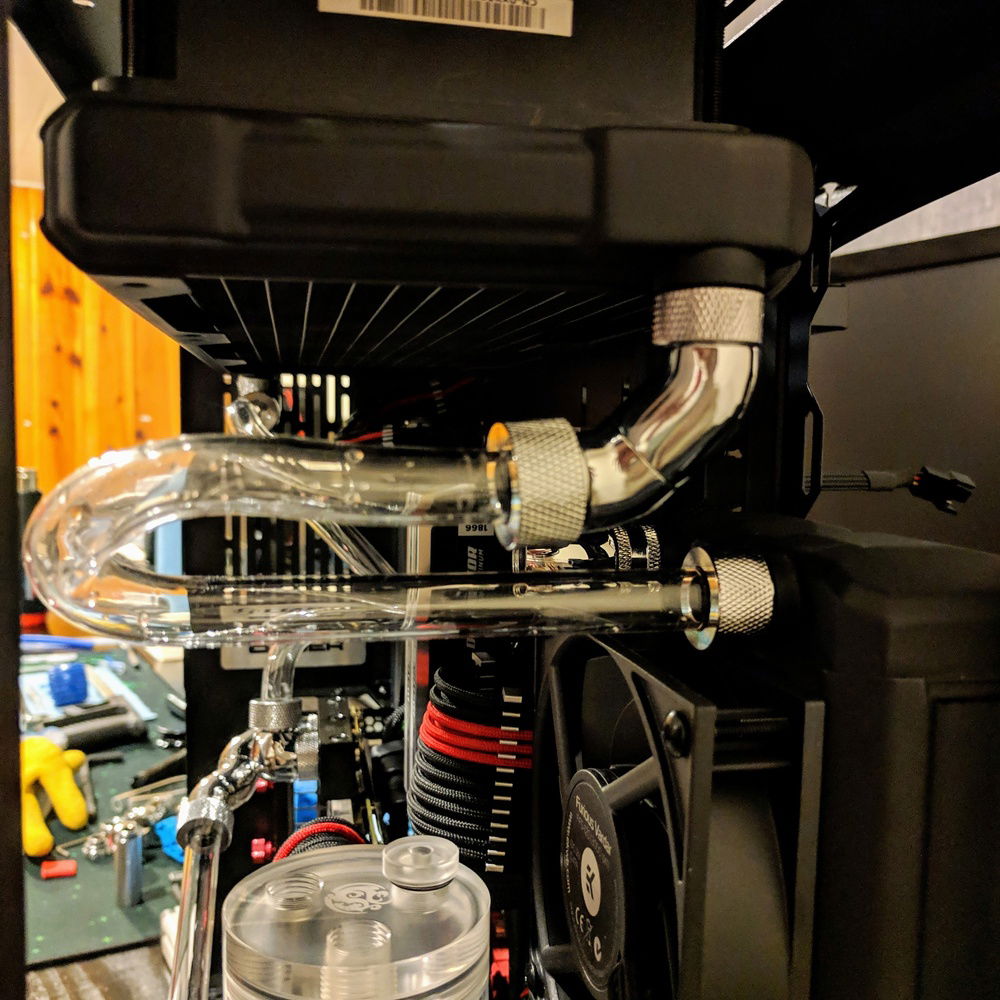

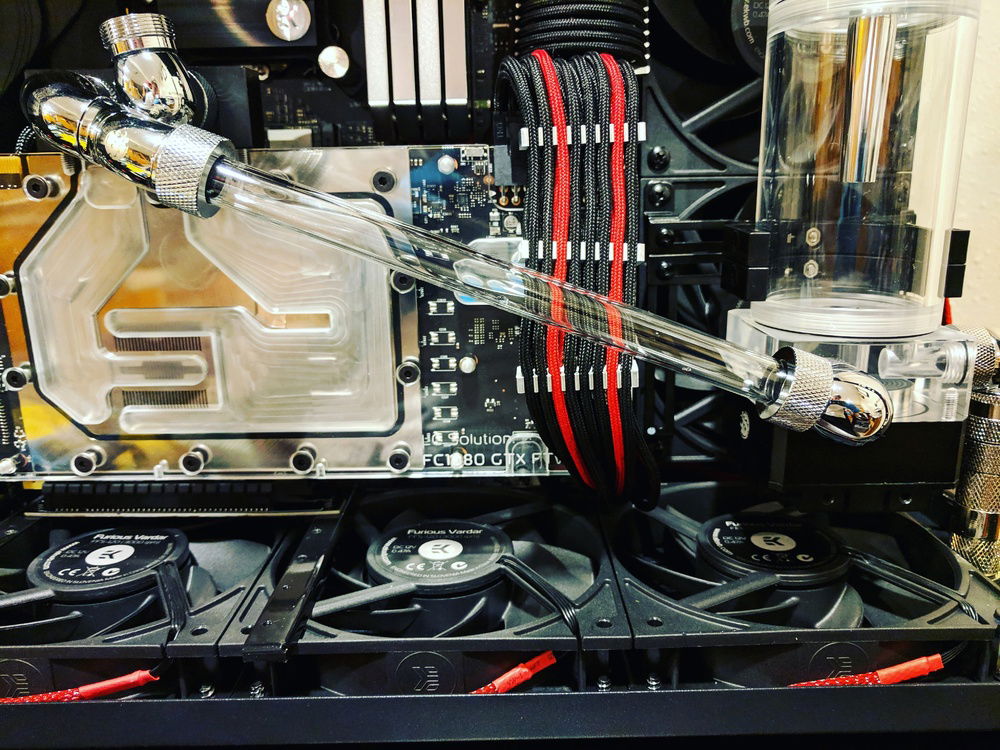

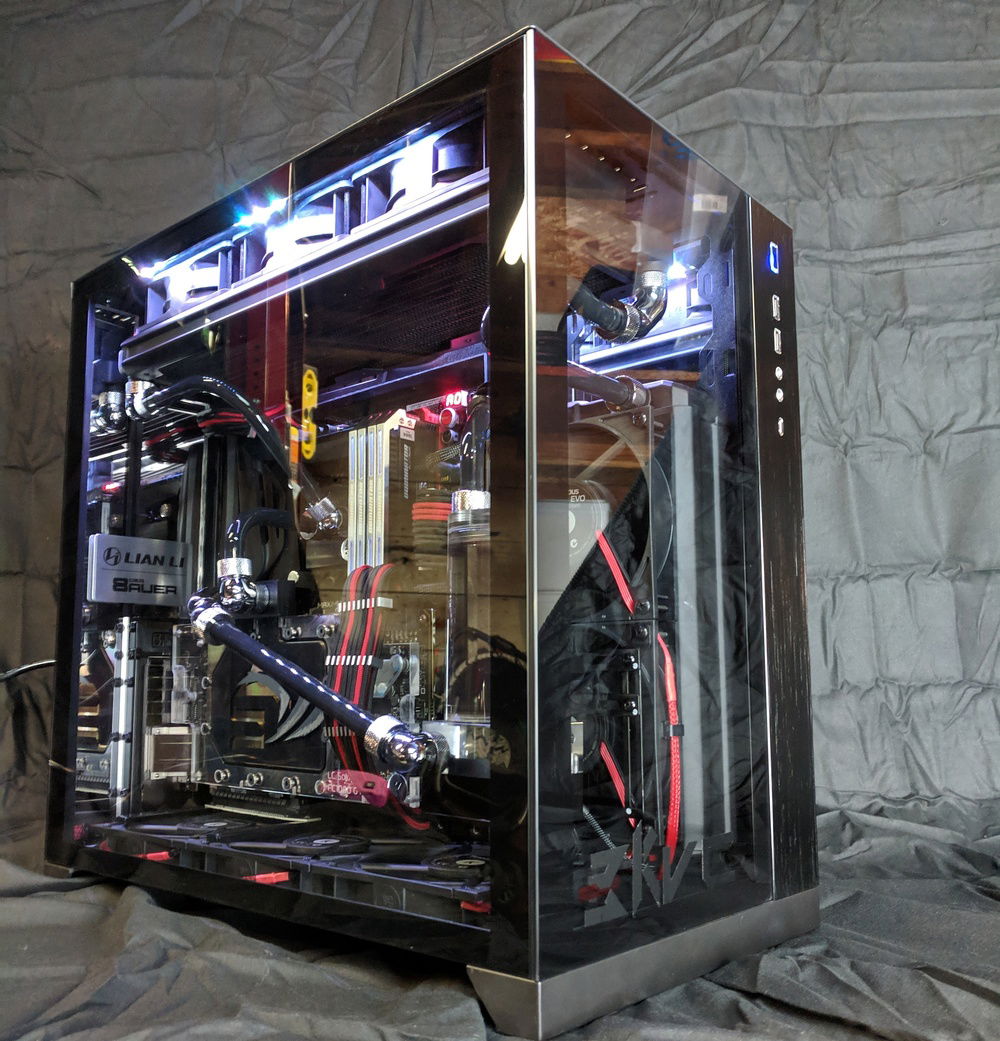

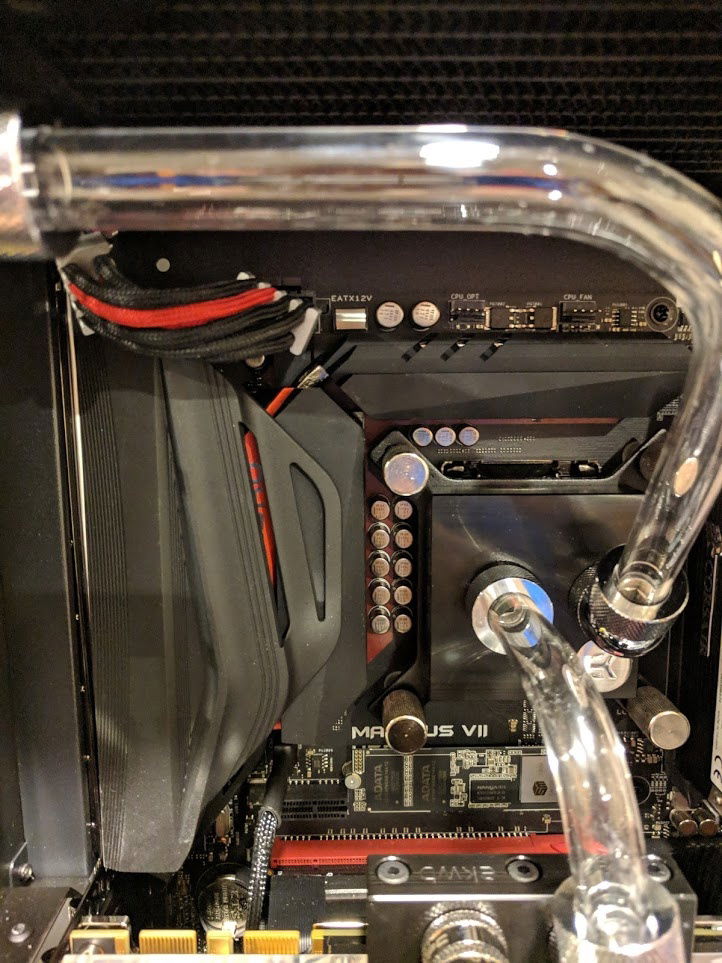

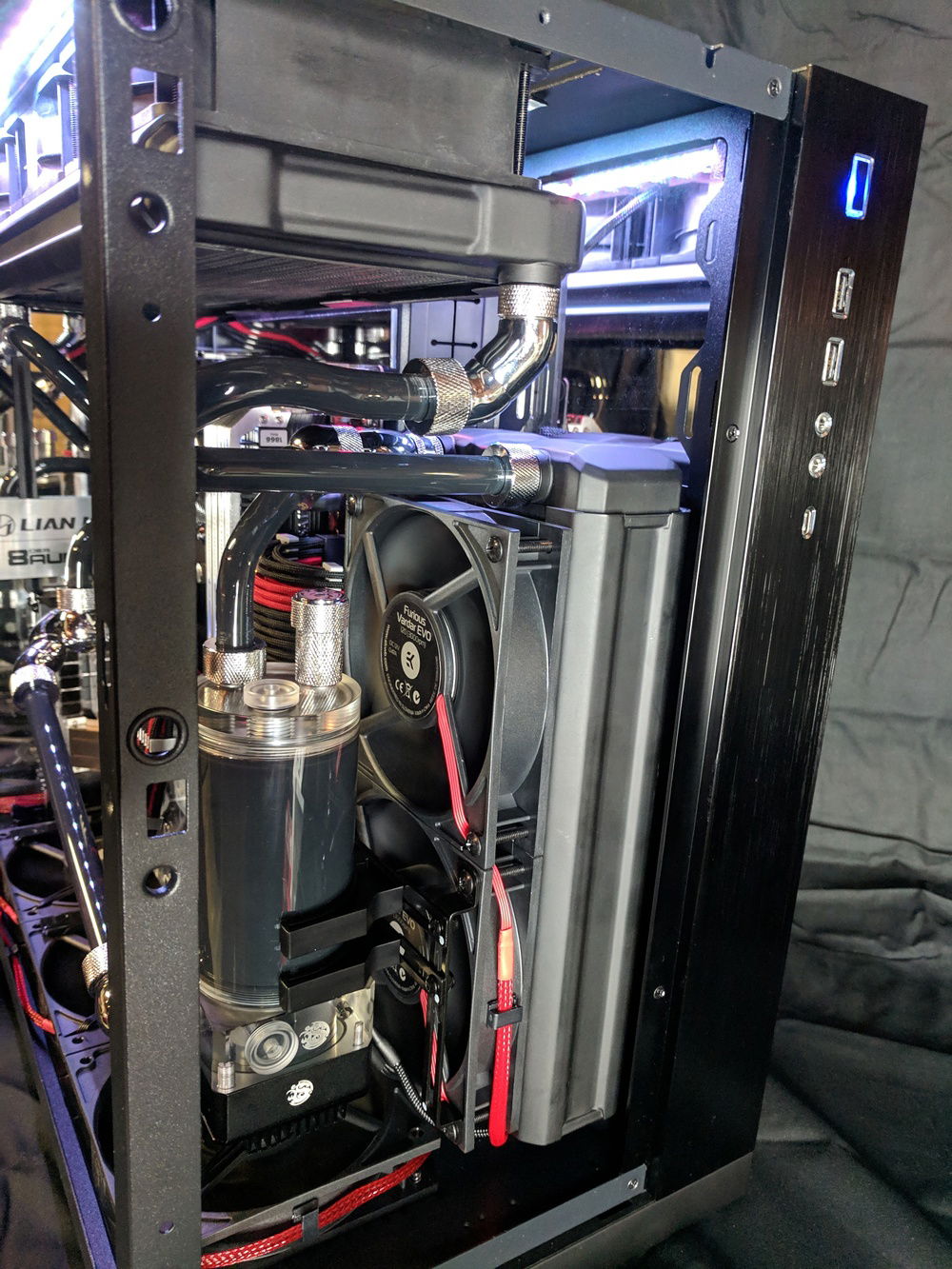

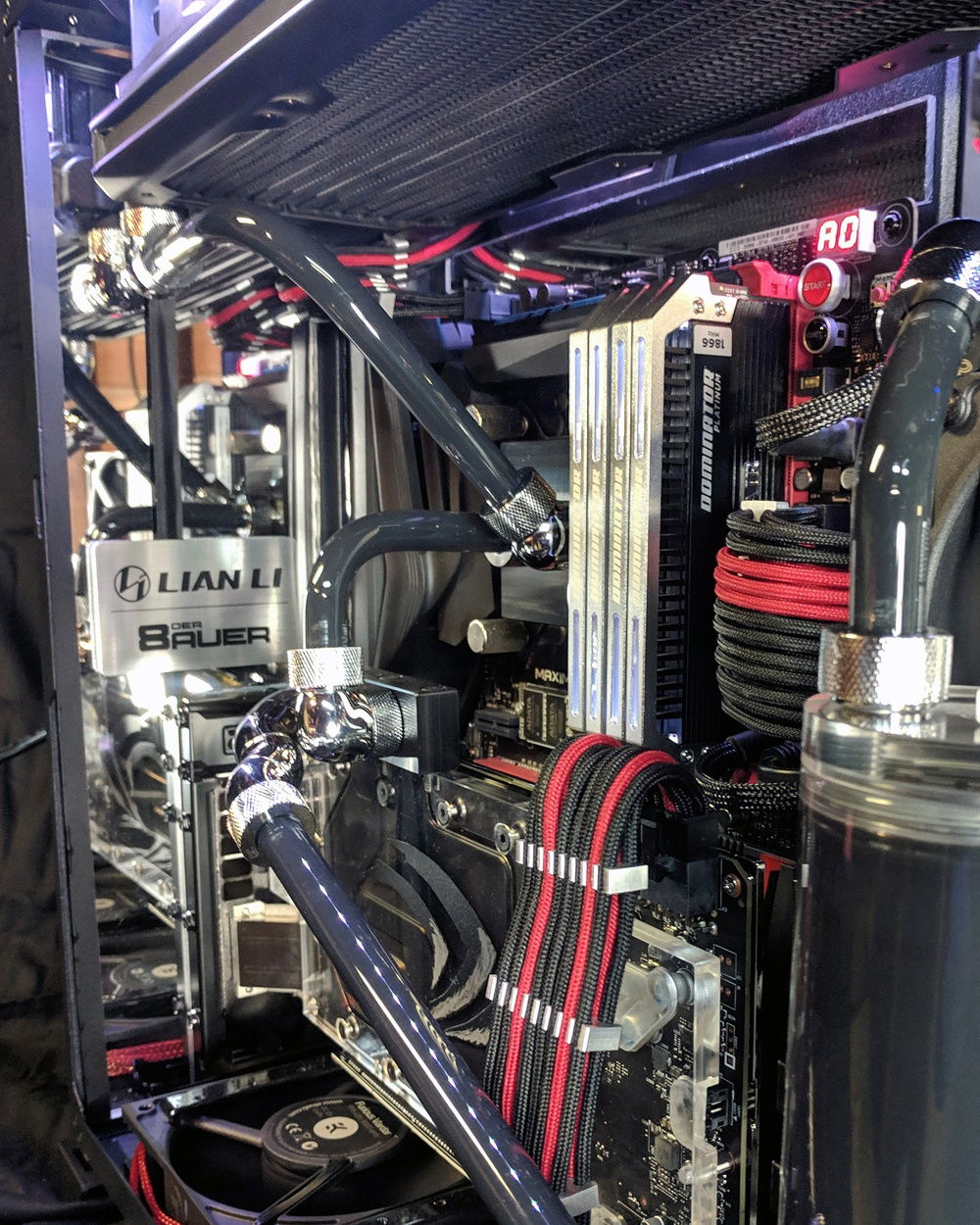

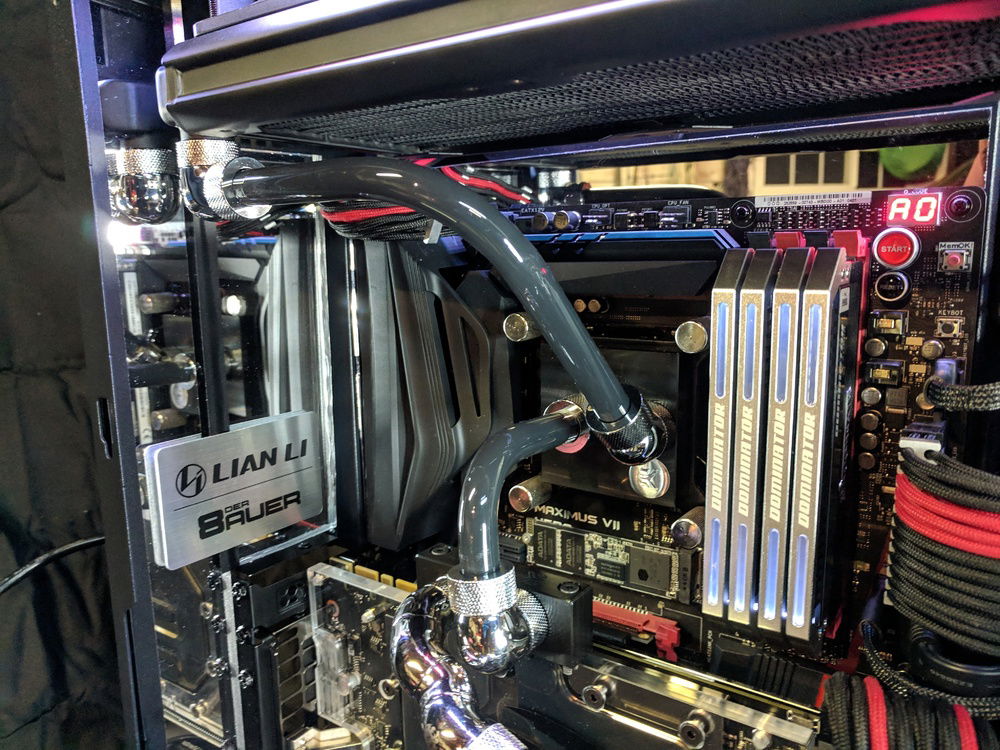

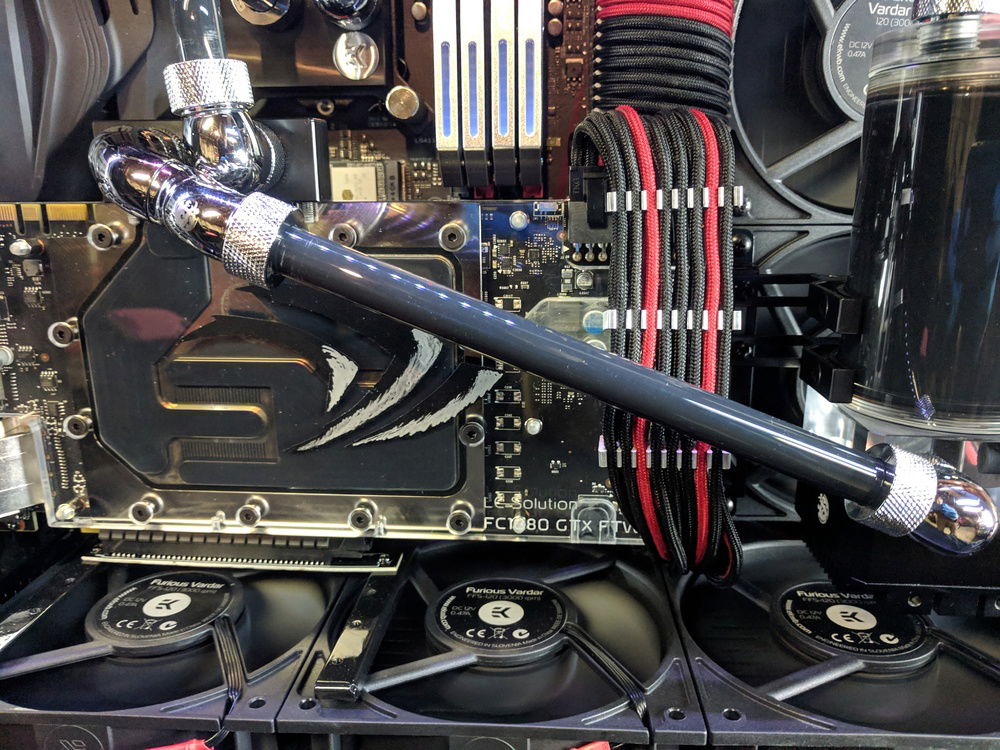

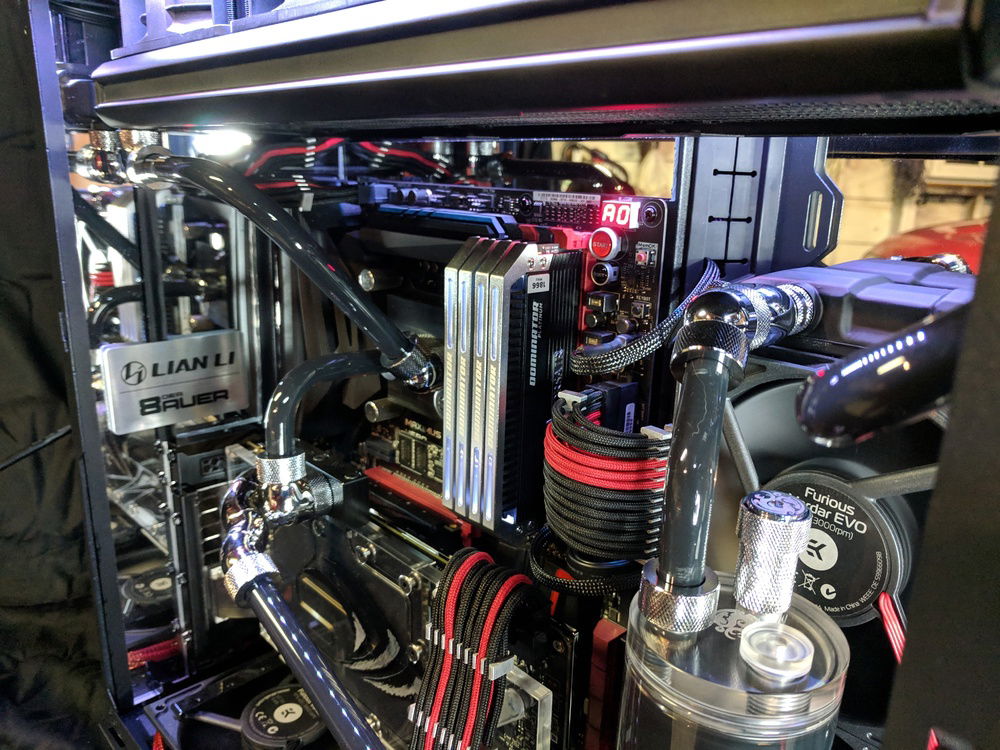

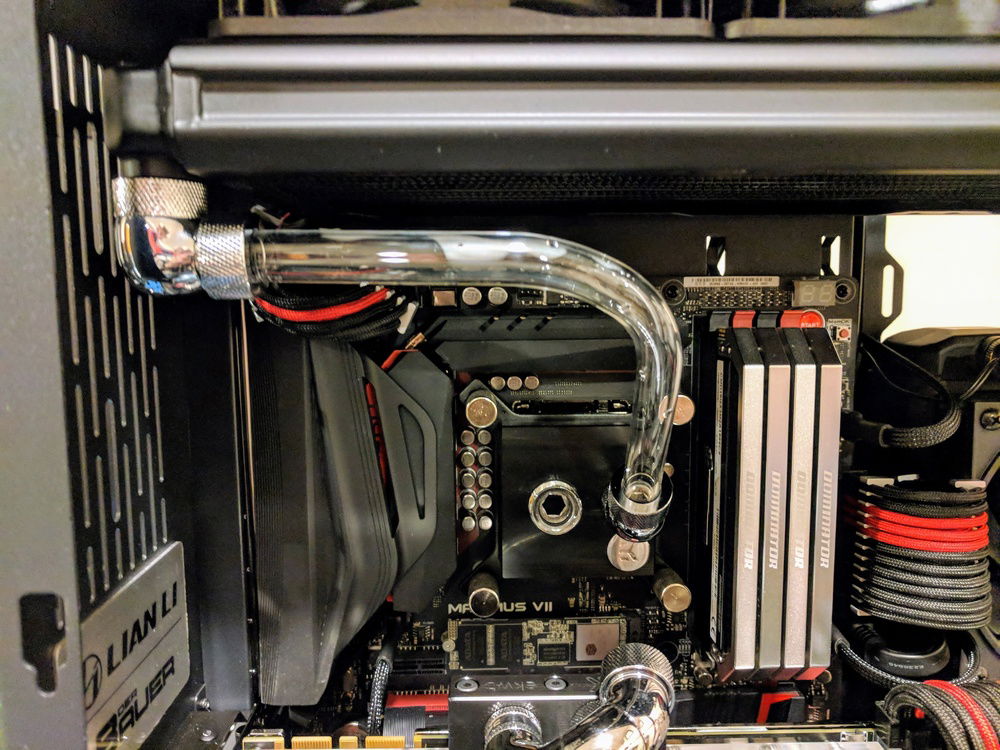

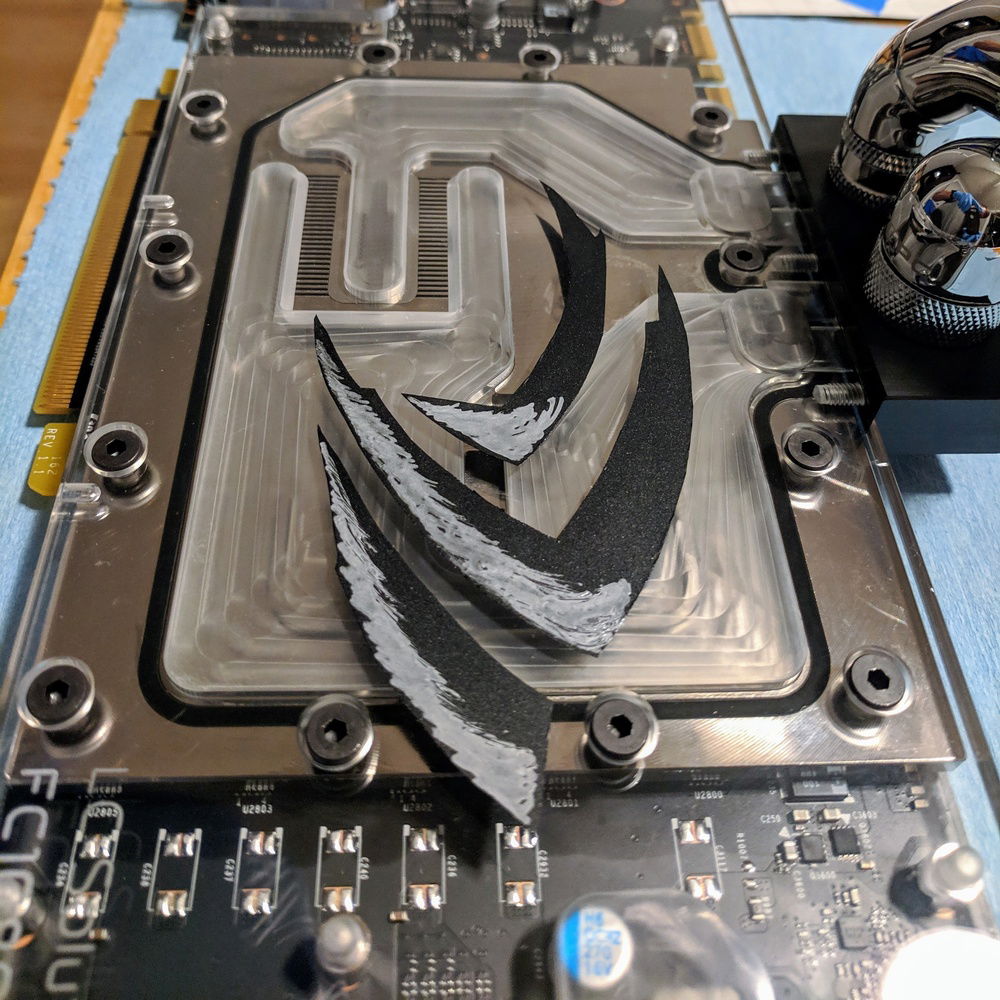

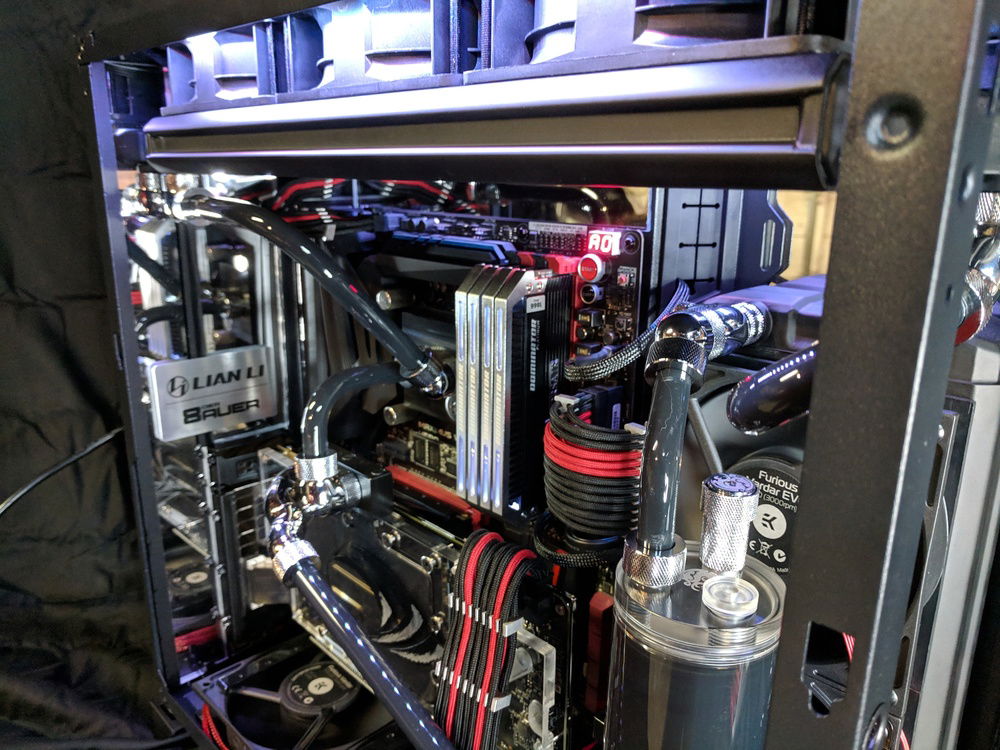

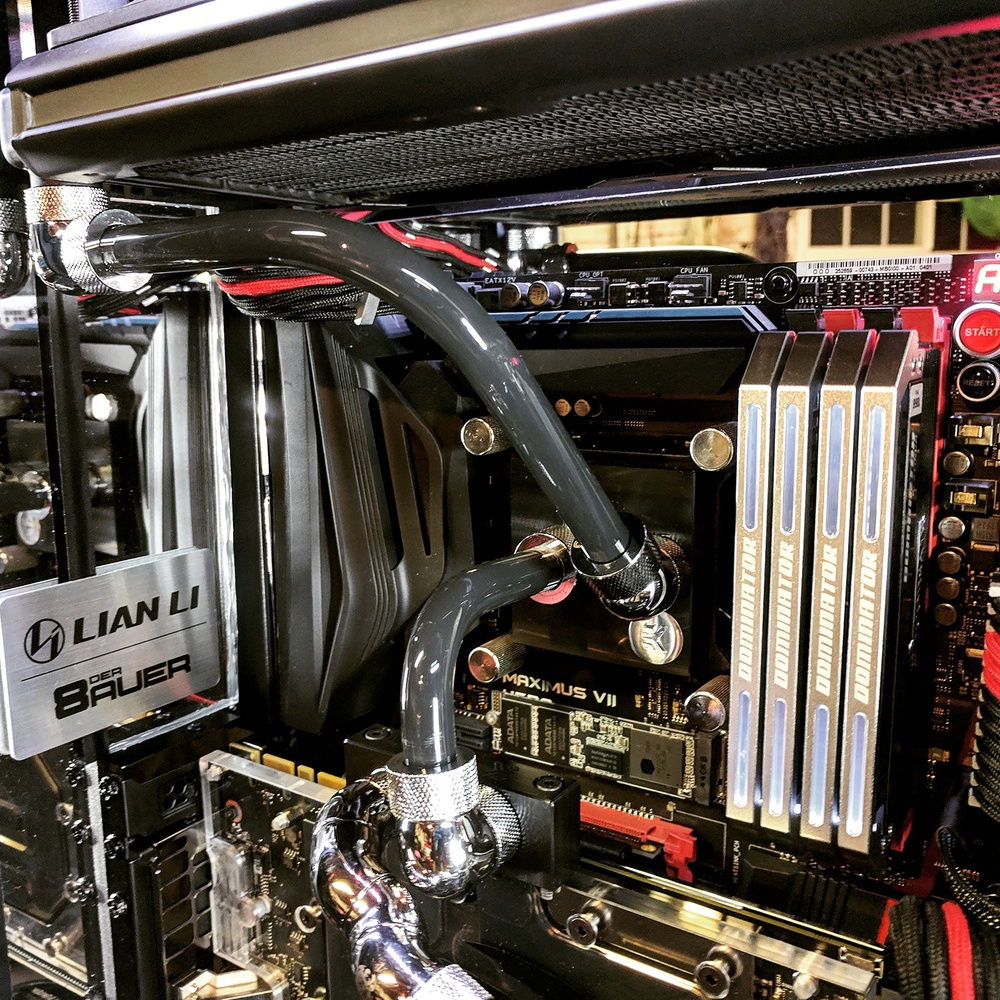

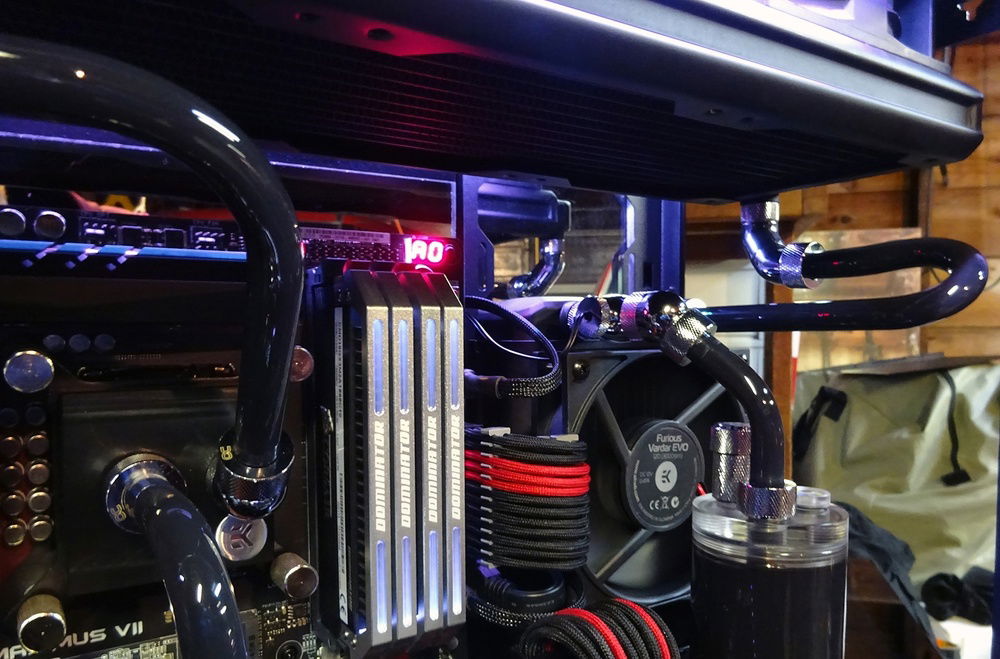

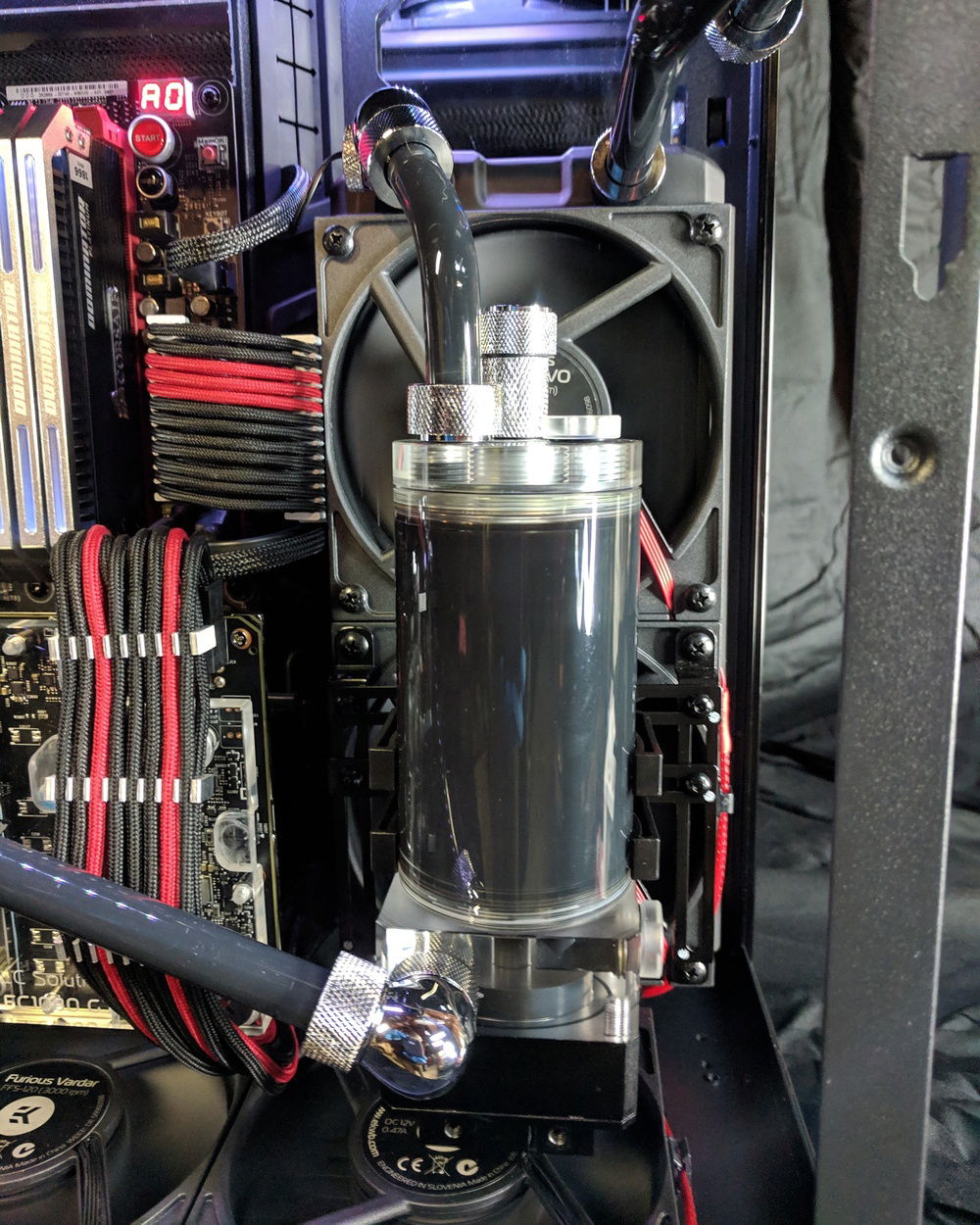

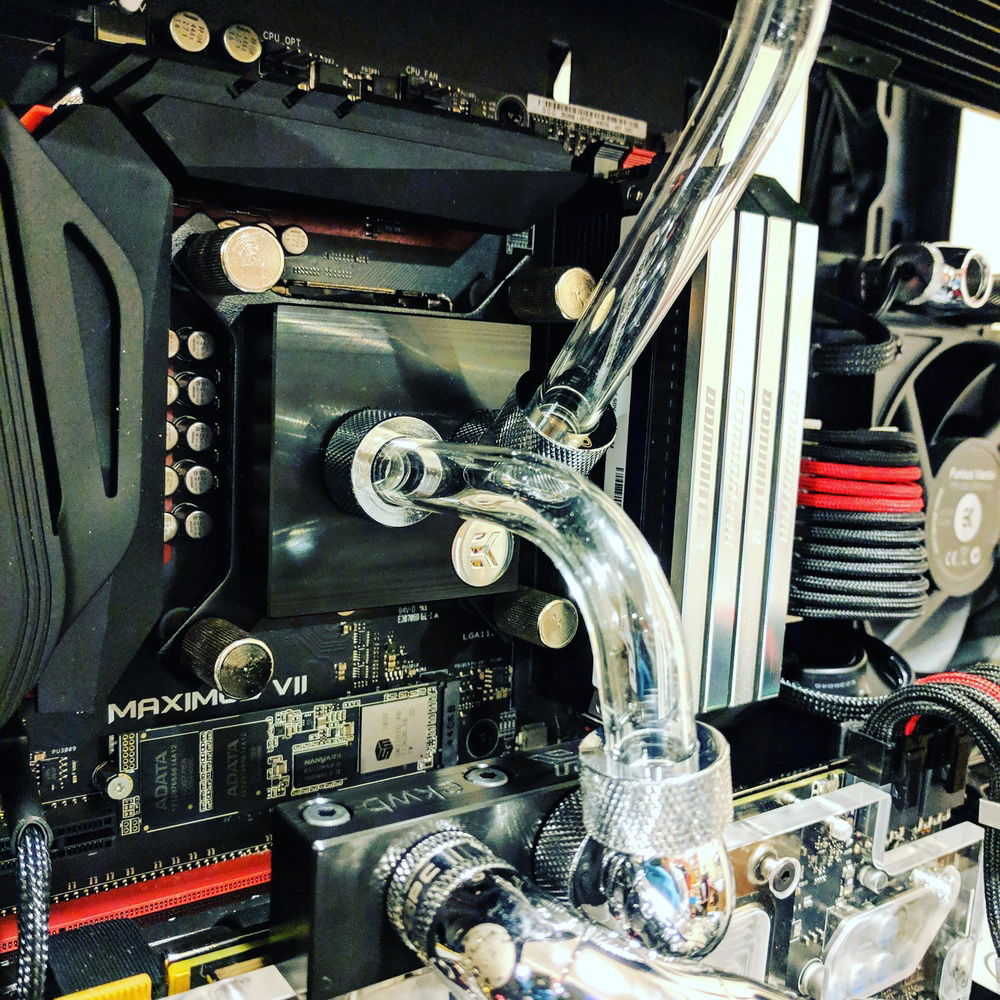

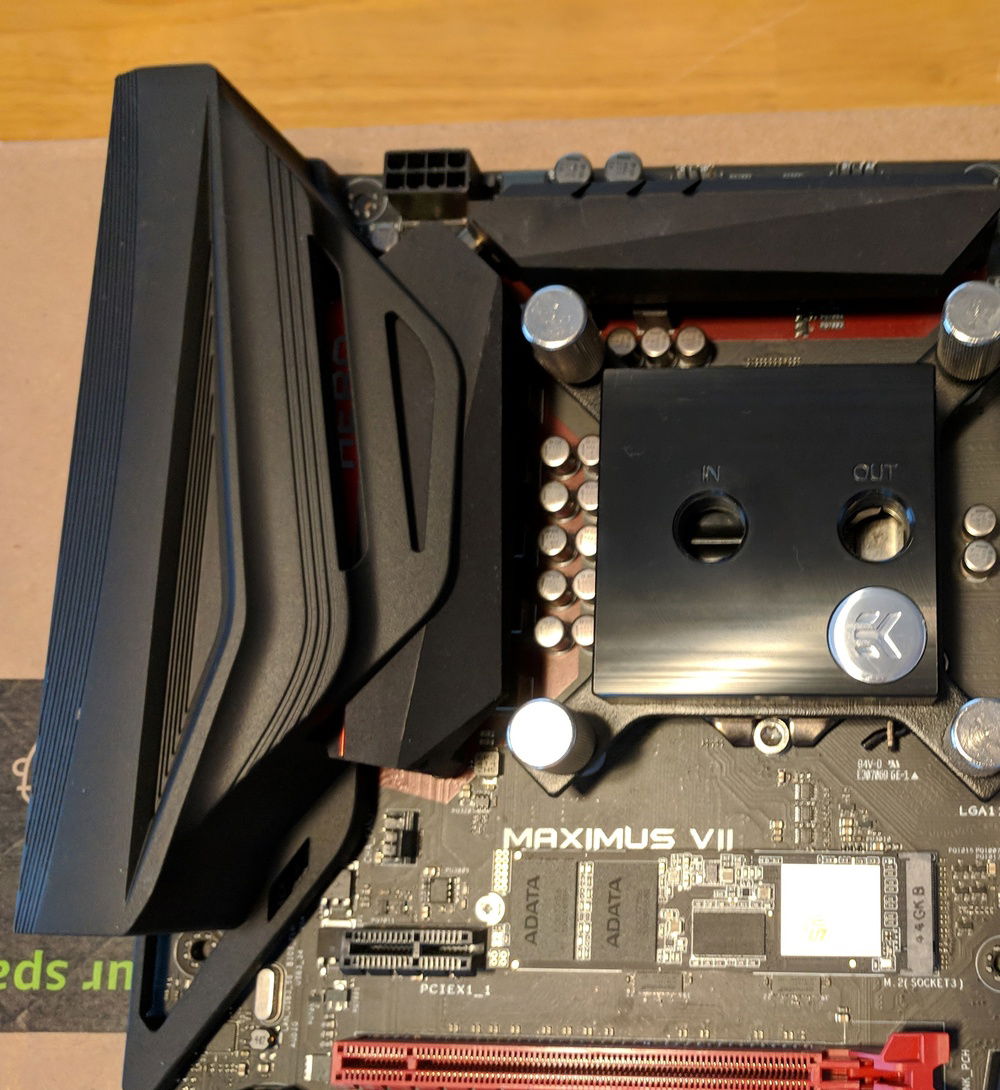

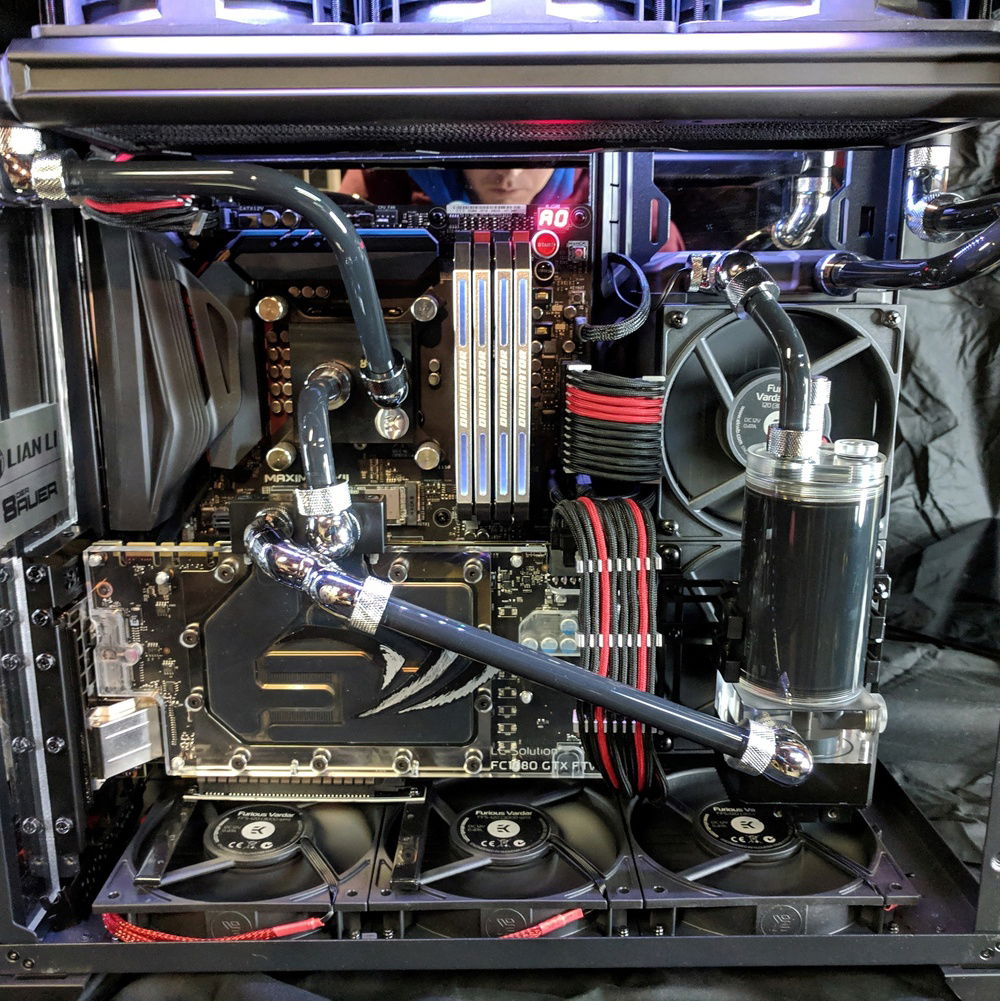

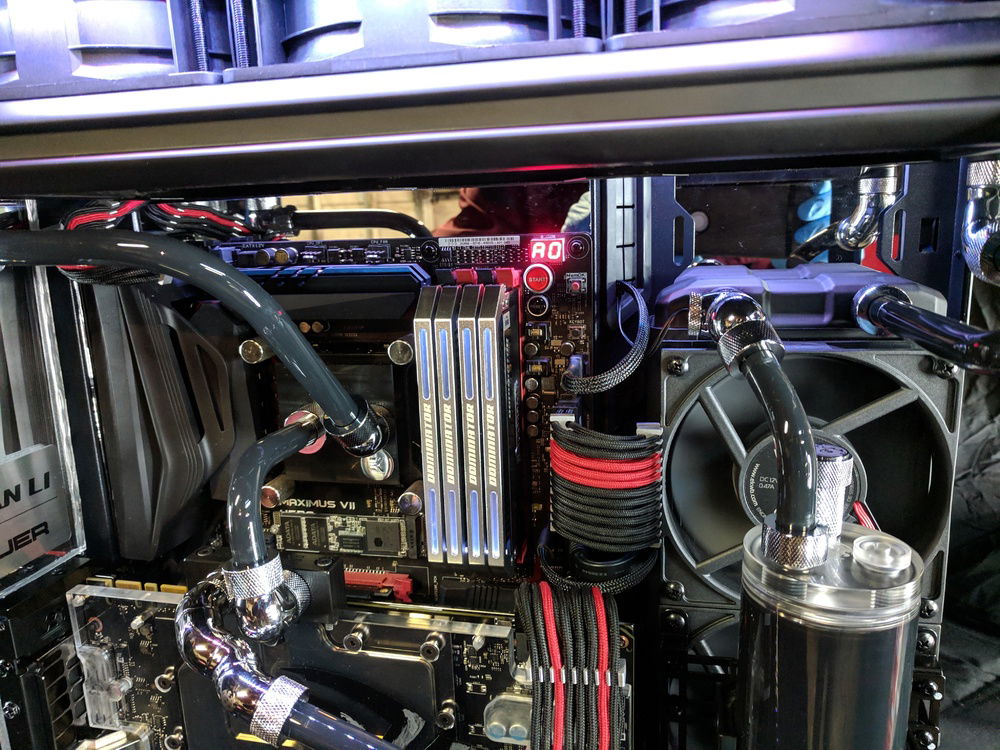

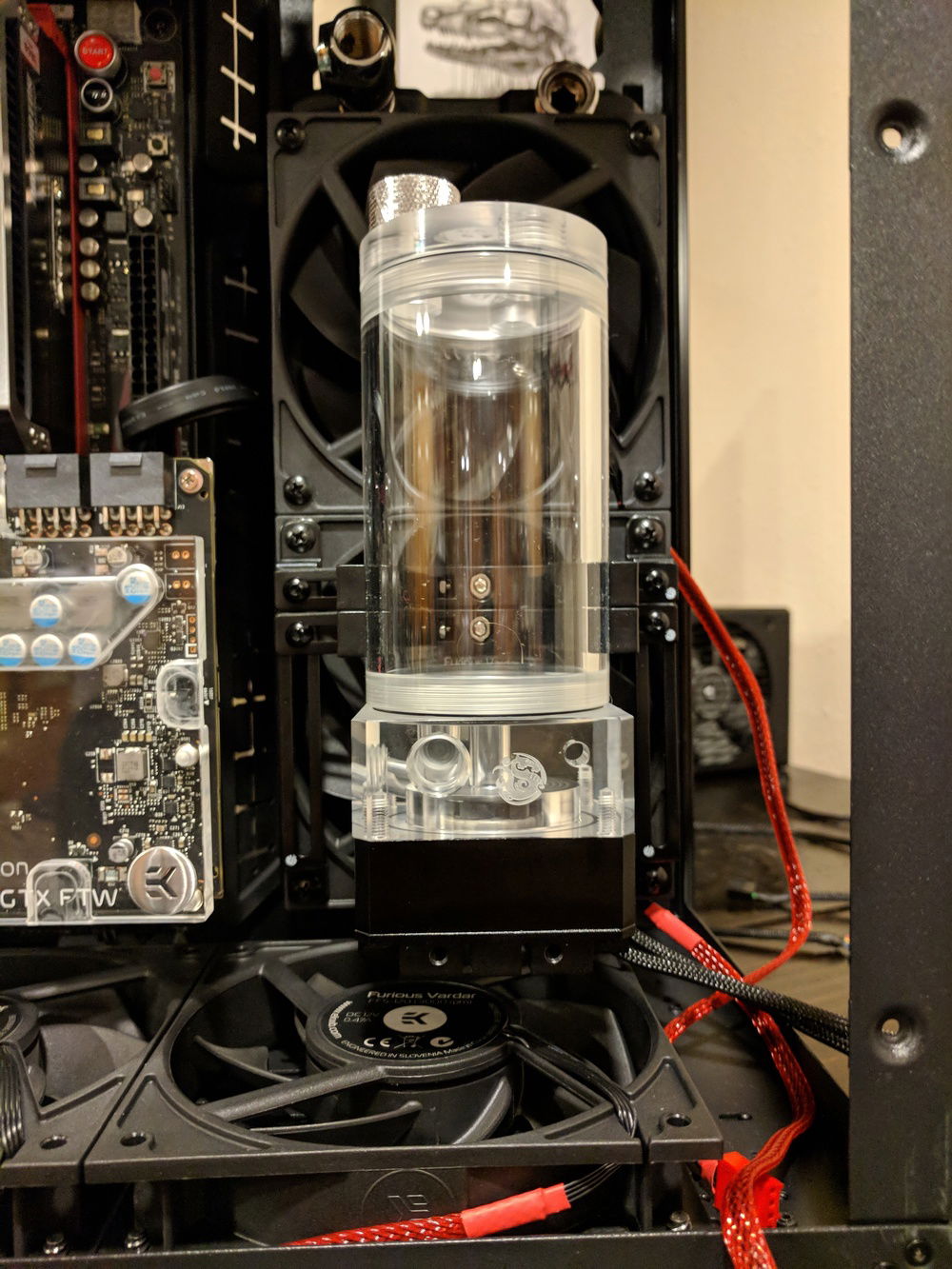

It's chaotic and has mirrored acrylic. Pastel black mayhems fluid in acrylic tubing. Ten 3,000 RPM fans that keeps the water temp at ambient. Used a Z170 I/O cover to clean up the Z97 board. The 4790K was delided with a bench vice. A little bit of hand cut vinyl.

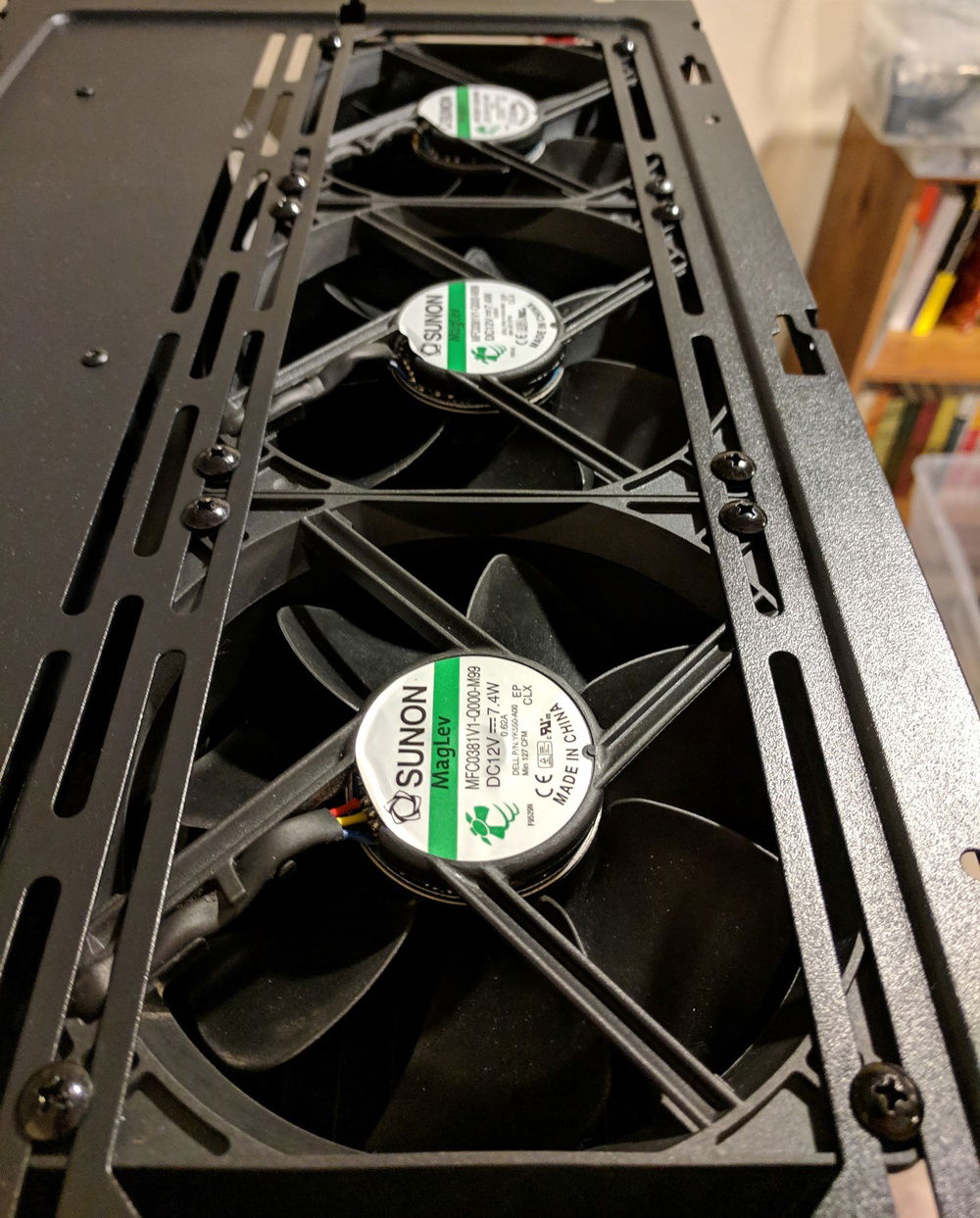

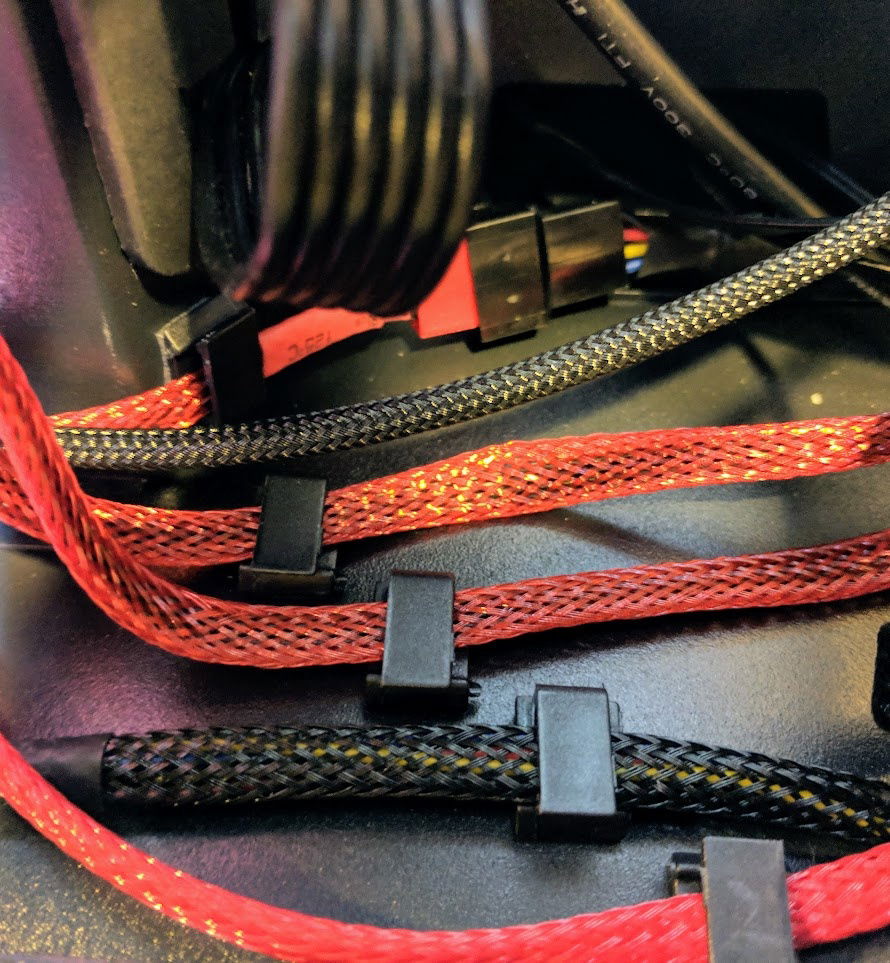

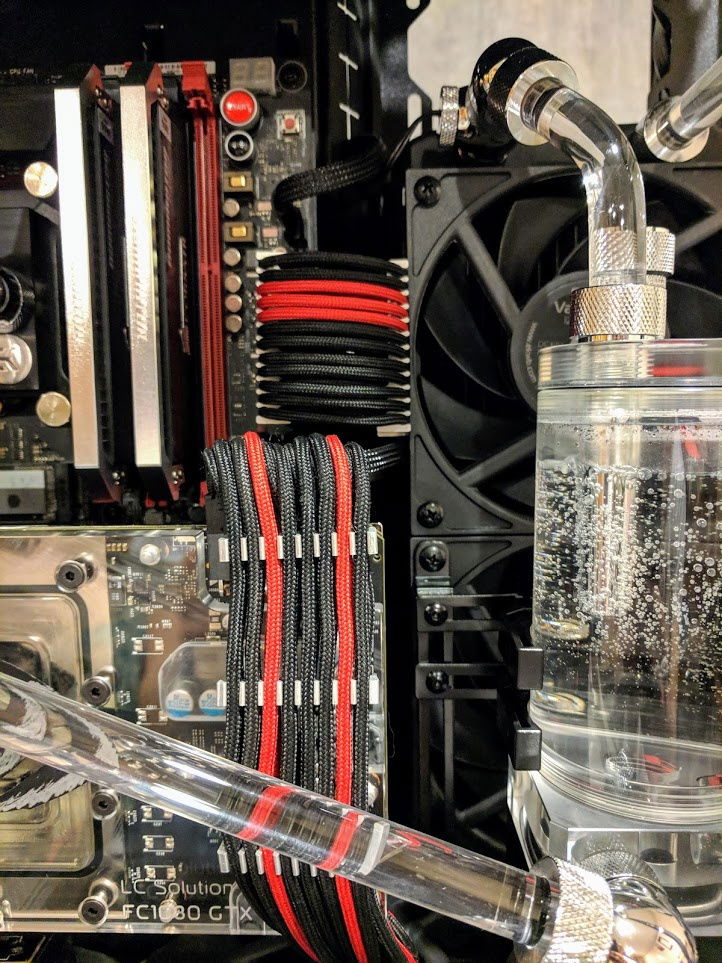

Top fans are Sunon Maglev server fans. They had proprietary Dell pins. I sleeved and pinned with the standard 4 pin PWM.

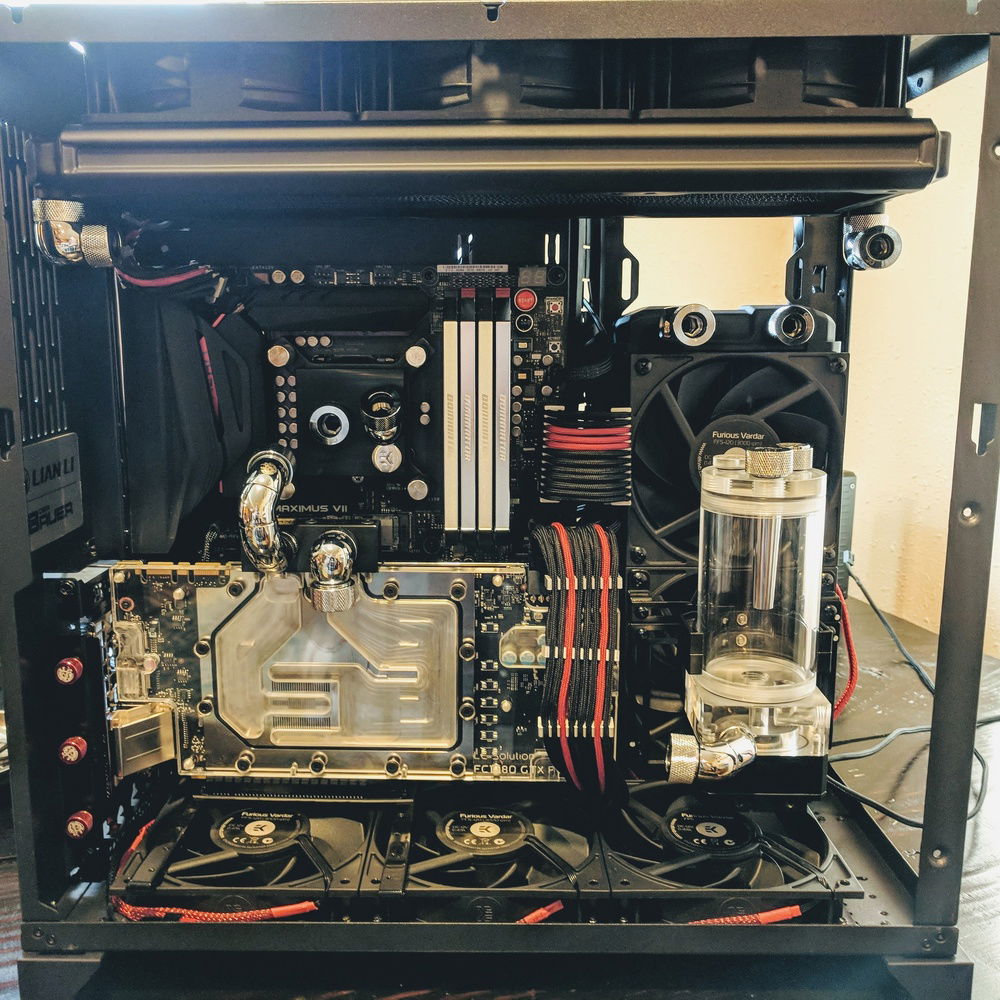

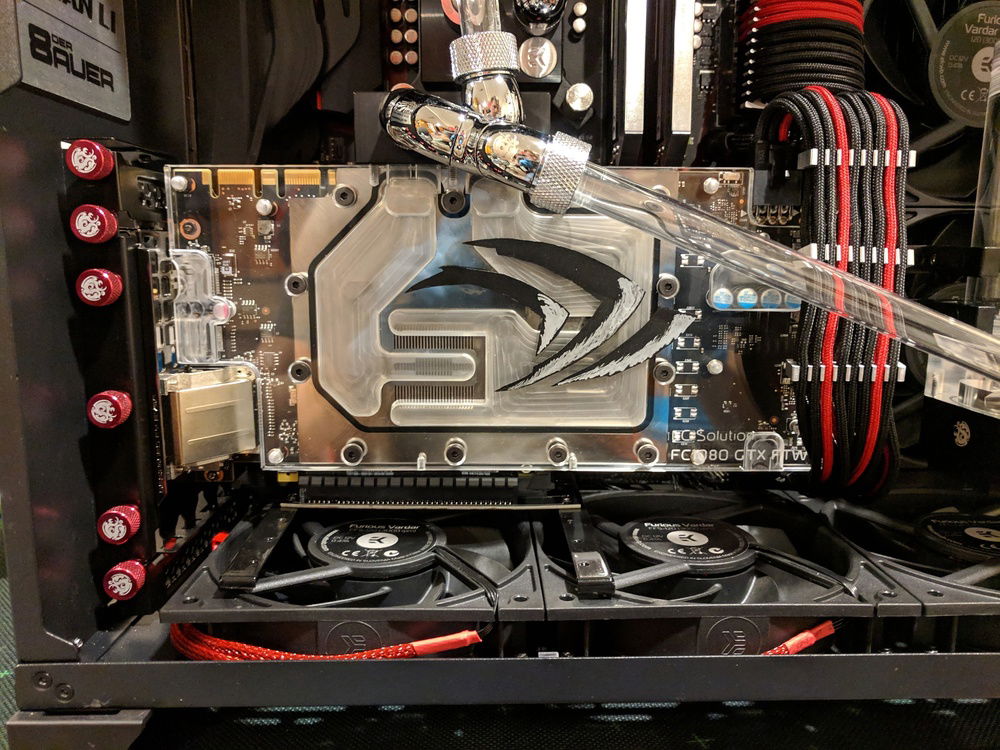

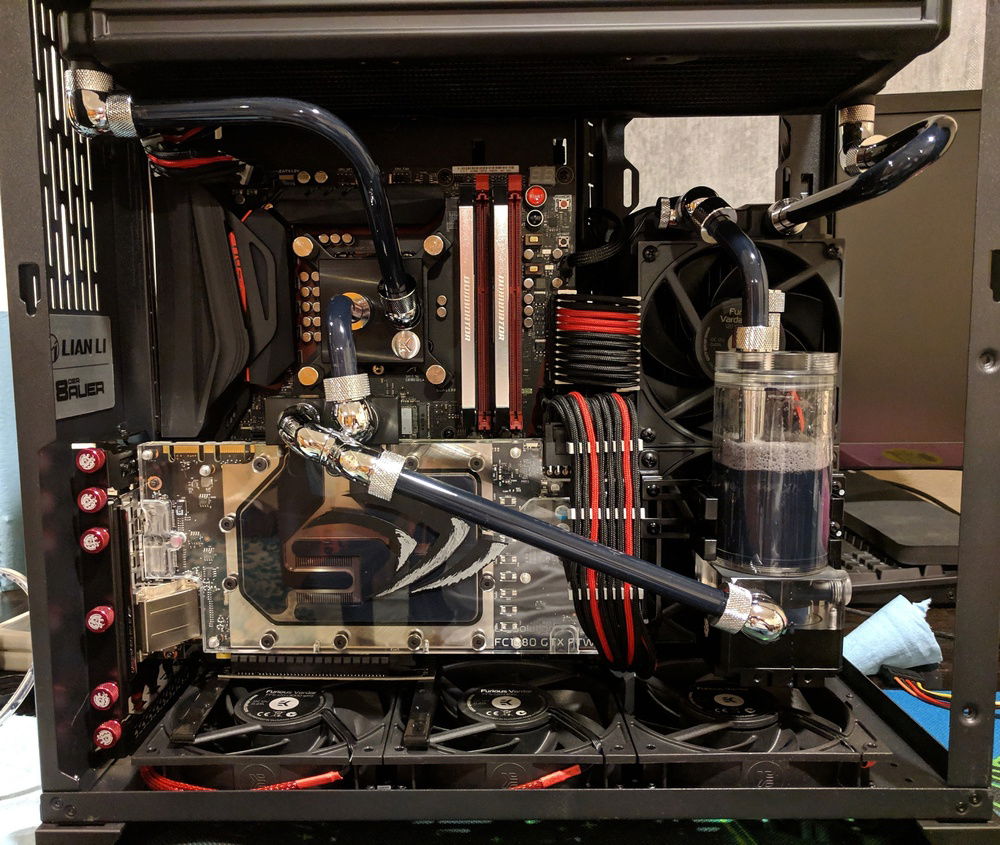

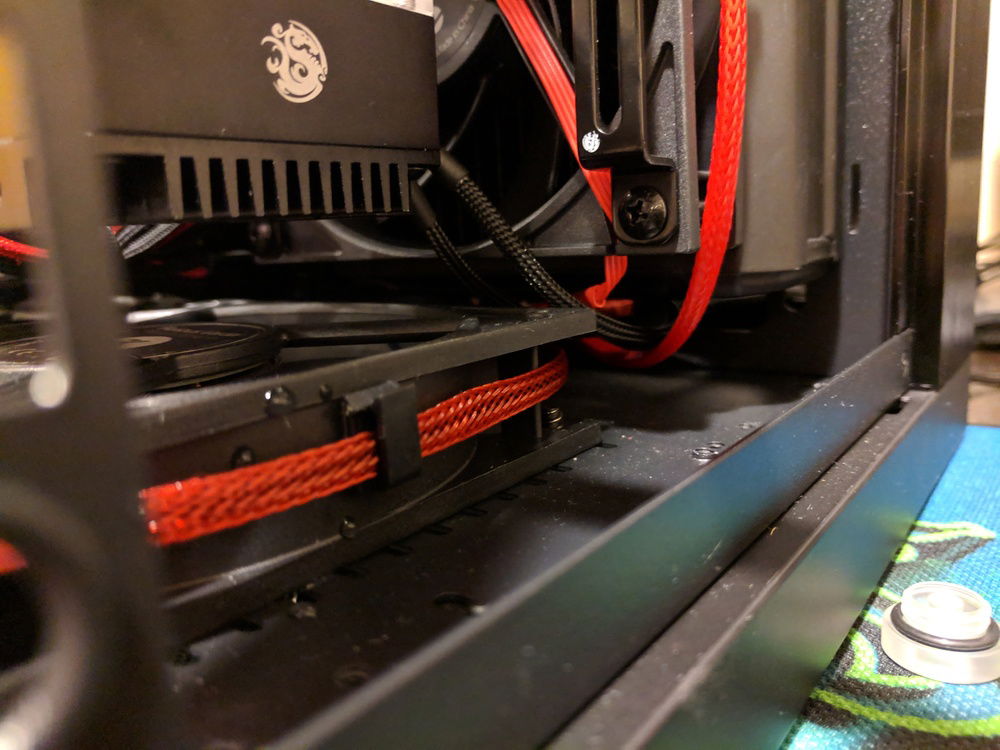

This is also using the Lian Li vertical mount but the bottom bracket was modified so it could be used with fans to keep the GPU supported.
Color(s): Black Red Silver
RGB Lighting? Yes
Theme: Technology
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
Intel - Core i7 4790K
Socket: LGA 1150
Cores: 4
Motherboard
$ 379.99
ASUS - ROG Maximus VII Hero
Chipset: Z97
CPU Socket: LGA 1150
Size: ATX
Graphics
$ 496.88
EVGA - FTW
Chip Manufacturer: NVIDIA
Chip: GTX 1080
Storage
$ 228.00
ADATA - XPG SX8200
Form Factor: M.2
Interface: M.2 (M)
Capacity: 480 GB
Storage
$ 193.00
Samsung - 840 Pro
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 512 GB
Storage
$ 93.00
SanDisk - SSD Plus
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 120 GB
PSU
$ 169.00
Corsair - RM850x
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 199.95
Lian Li - O11 Dynamic
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 71.99
Cooling
Alphacool - Fittings
Type: Custom Loop
Cooling
Bitspower - Fittings
Type: Custom Loop
Cooling
Cooling
Hardware Labs - Black Ice GTS Xflow
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 159.50
Hardware Labs - Nemesis GTR
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
XSPC - Fittings
Type: Custom Loop
