The Full PC build, all soft tube water cooling.
The Full PC build, all soft tube water cooling.

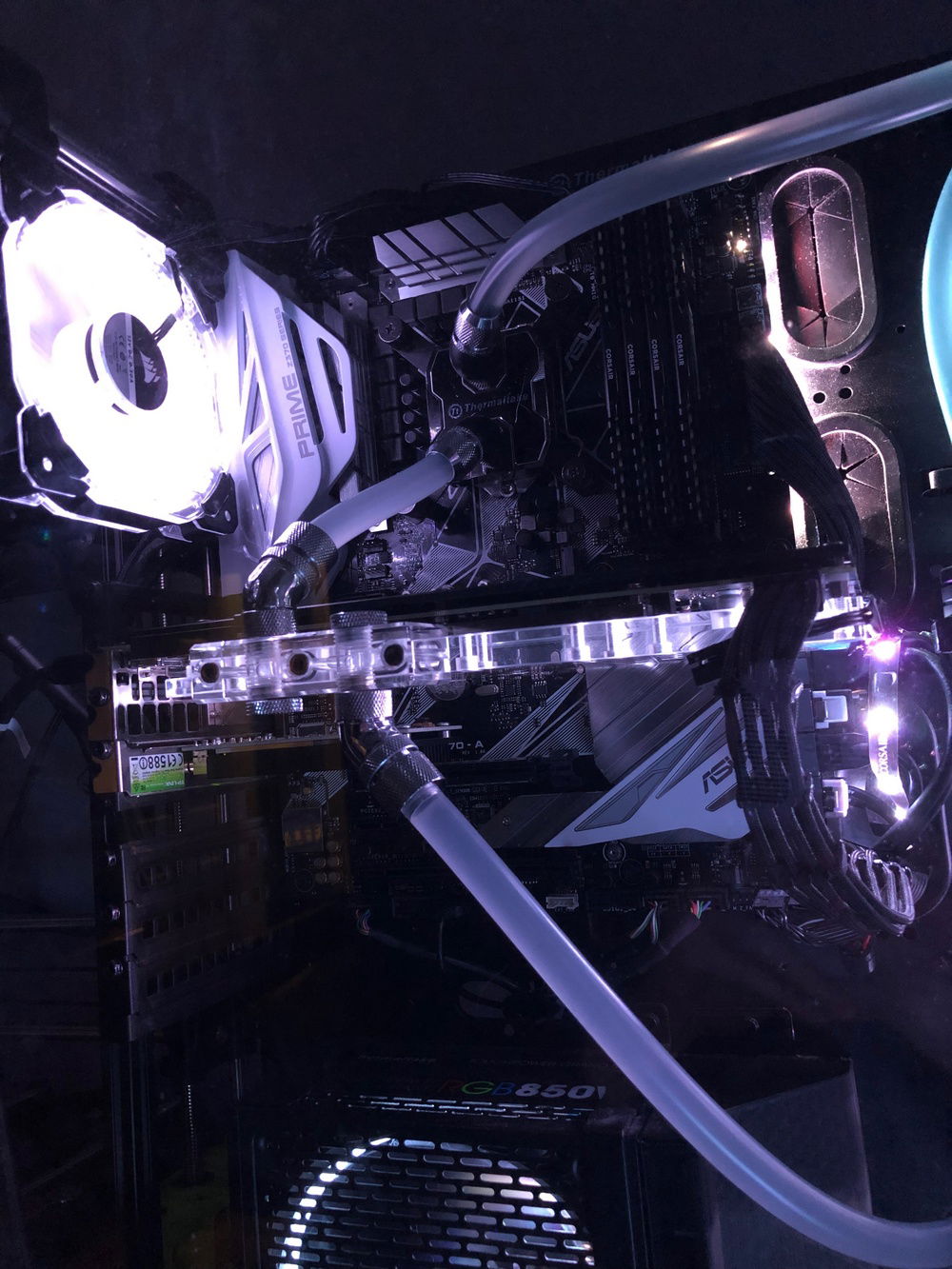

The motherboard and GPU, I 3D printed clips to mount a RGB strip on the side of my GPU. My GPU was originally a EVGA SC 1070, it used a founders edition PCB. I used the Thermaltake Pacific GPU water block and removed the air cooler the card had.
The motherboard and GPU, I 3D printed clips to mount a RGB strip on the side of my GPU. My GPU was originally a EVGA SC 1070, it used a founders edition PCB. I used the Thermaltake Pacific GPU water block and removed the air cooler the card had.

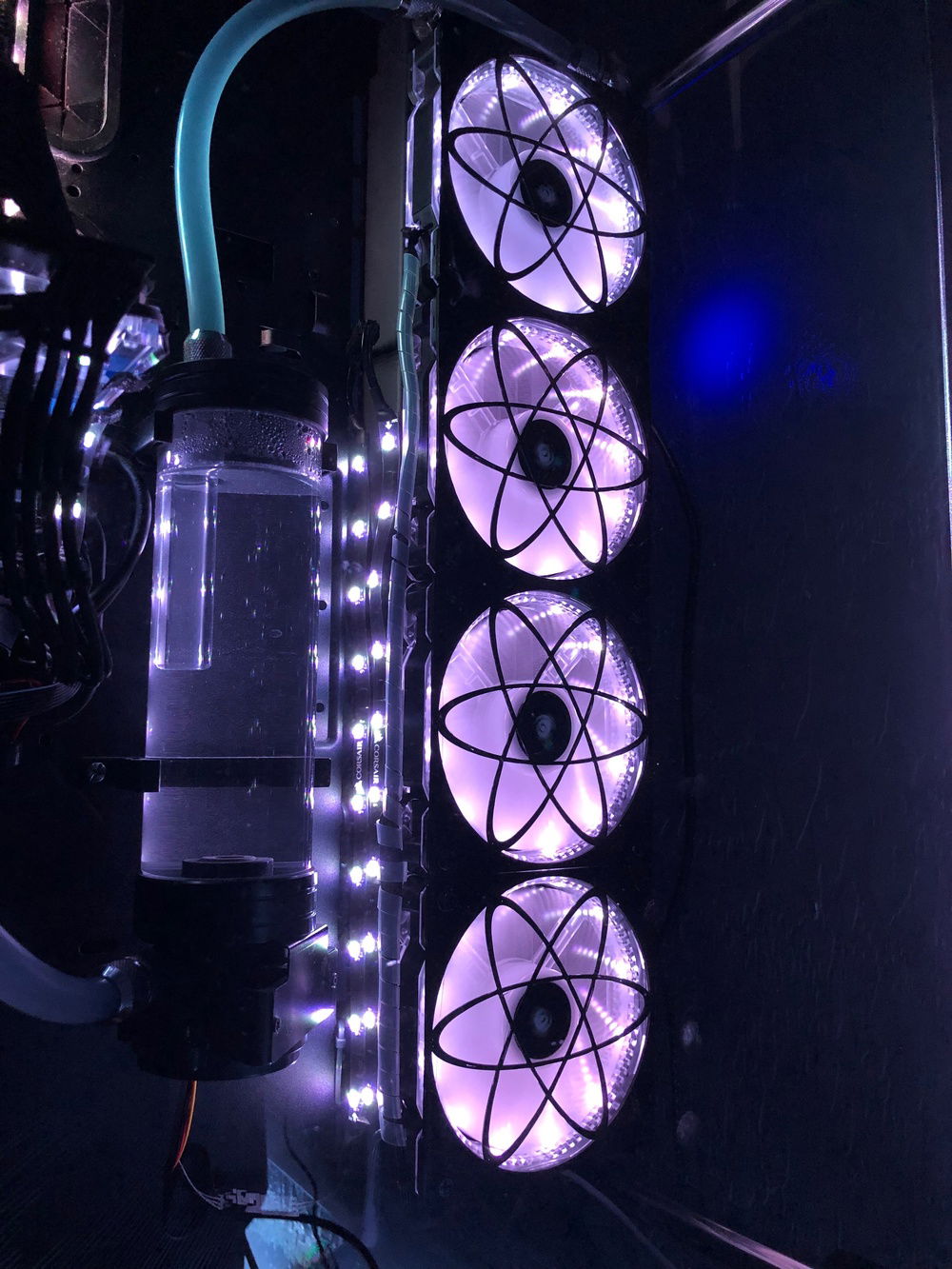

The reservoir and radiator, this is the XSPC 480 Radiator and the Thermaltake res/pump combo. Its about 26oz of water, I have been using distilled water in the loop and I have never had an issue with corrosion/ galvanization.
The reservoir and radiator, this is the XSPC 480 Radiator and the Thermaltake res/pump combo. Its about 26oz of water, I have been using distilled water in the loop and I have never had an issue with corrosion/ galvanization.

The Nucleus

CPU: 8086K @5GHz
GPU: GTX 1070
RAM: 32GB Corsiar LPX
MOBO: Asus Prime A
Storage: Samsung 250GB ssd
Storage: 8tb helium HGST HDD
PSU: 850W Thermaltake Gold Grand
Case: Thermaltake Core P5
Cooling:
Thermaltake W1 CPU waterblock
Thermaltake Pacific GPU Waterblock
Thermaltake Fittings
Thermaltake PR22 Pump and Reservoir combo
Bitspower Fittings
XSPC 480mm Radiator
AlphaCool Tubing

This is the Nucleus, named after the case (Core P5) and the fans (Bohr's Model Atom). The case is a Thermaltake Core P5 and the fans have a custom grille I 3D printed. The fans are Corsair HD 120s, I have 5 in the system now. I have custom printed a cable cover for the PSU, Fan holder and cable combs for the sleeved cables. The sleeved cables are from Silverstone, purchased on Amazon, I further printed cable combs for the GPU cable. The 24 Pin Motherboard power cable would have a cable comb, but due to the design of the case the cable gets squished. Behind the the grommet is the bracket to mount the HDDs, so to have a cable comb I would have to sacrifice 1 of 3 rear HDD slots.


Color(s): Black White
RGB Lighting? Yes
Theme: Technology
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 193.00
Intel - Core i7 8086K
Socket: LGA 1151
Cores: 6
Integrated Graphics: Yes
Motherboard
$ 179.99
ASUS - Prime (Z370-A)
Chipset: Z370
CPU Socket: LGA 1151
Size: ATX
Memory
$ 209.95
Corsair - Vengeance LPX (2666Mhz) (Black)
Type: DDR4
Capacity: 16 GB
Graphics
$ 189.99
EVGA - GTX 1070 Founders Edition
Chip Manufacturer: NVIDIA
Chip: GTX 1070
Storage
$ 199.00
HGST (Hitachi) - Ultrastar
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 8 TB
Storage
$ 83.99
Samsung - 860 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 250 GB
PSU
$ 179.97
Thermaltake - Toughpower Grand (RGB)
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 1,018.82
Thermaltake - Core P5 (Black)
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 78.00
Corsair - HD120 RGB LED High Performance 120mm PWM
Size: 120 mm
Keyboard
$ 84.94
Drevo - Calibur 71
Interface: Wired/Wireless
Key Switch Type: Outemu Brown
Type: Tenkeyless
Mouse
$ 48.50
Logitech - G502 Proteus Spectrum
Interface: Wired
Estimated total value of this build:
$ 2,332.71
