Roses are Red, Violets are Blue

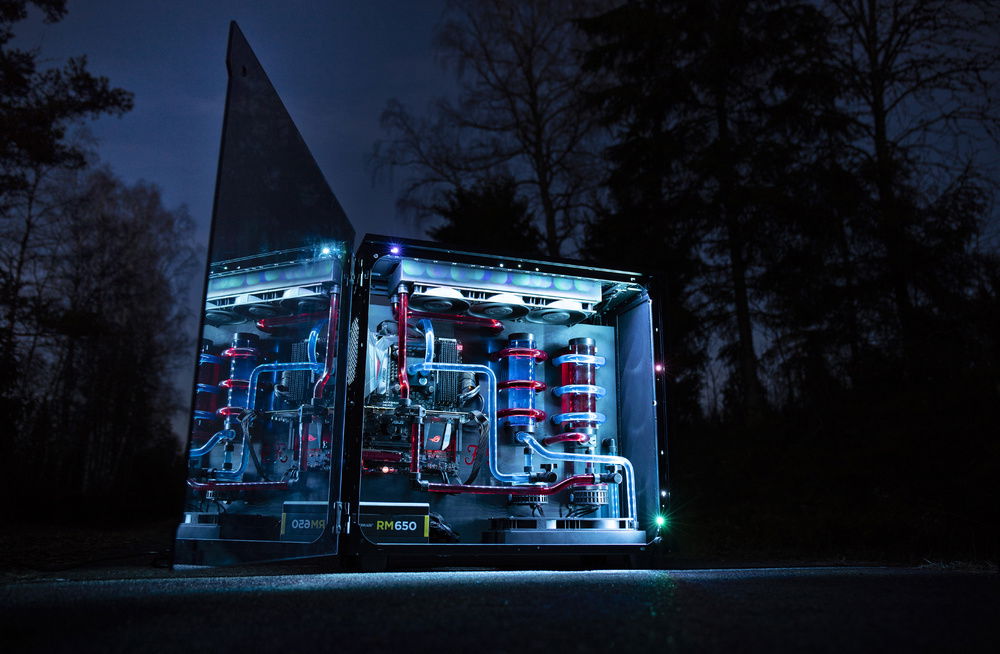

My first water cooling build.
I wanted two different colors and i also wanted them to circle each other.

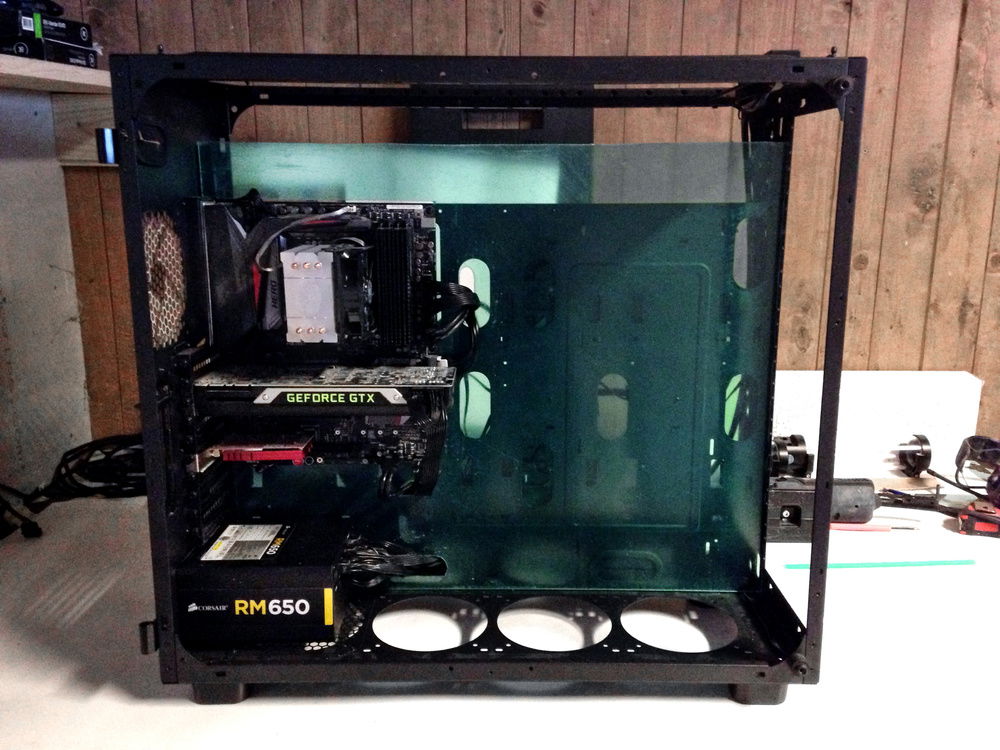

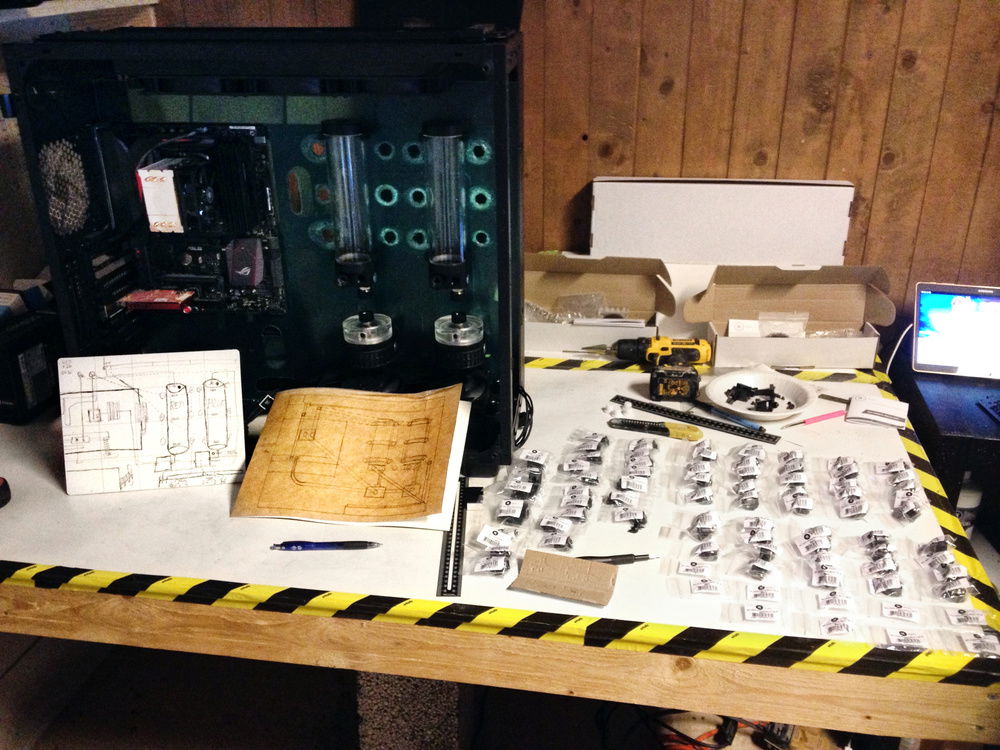

It took me weeks of planning what parts was needed for it and drawing the design for the build so the tubing all works on both side. As it is my first buid, it took me a total of 2 weeks on building the computer and putting it all together (working full time job weekdays) roughly 95 hours building it.

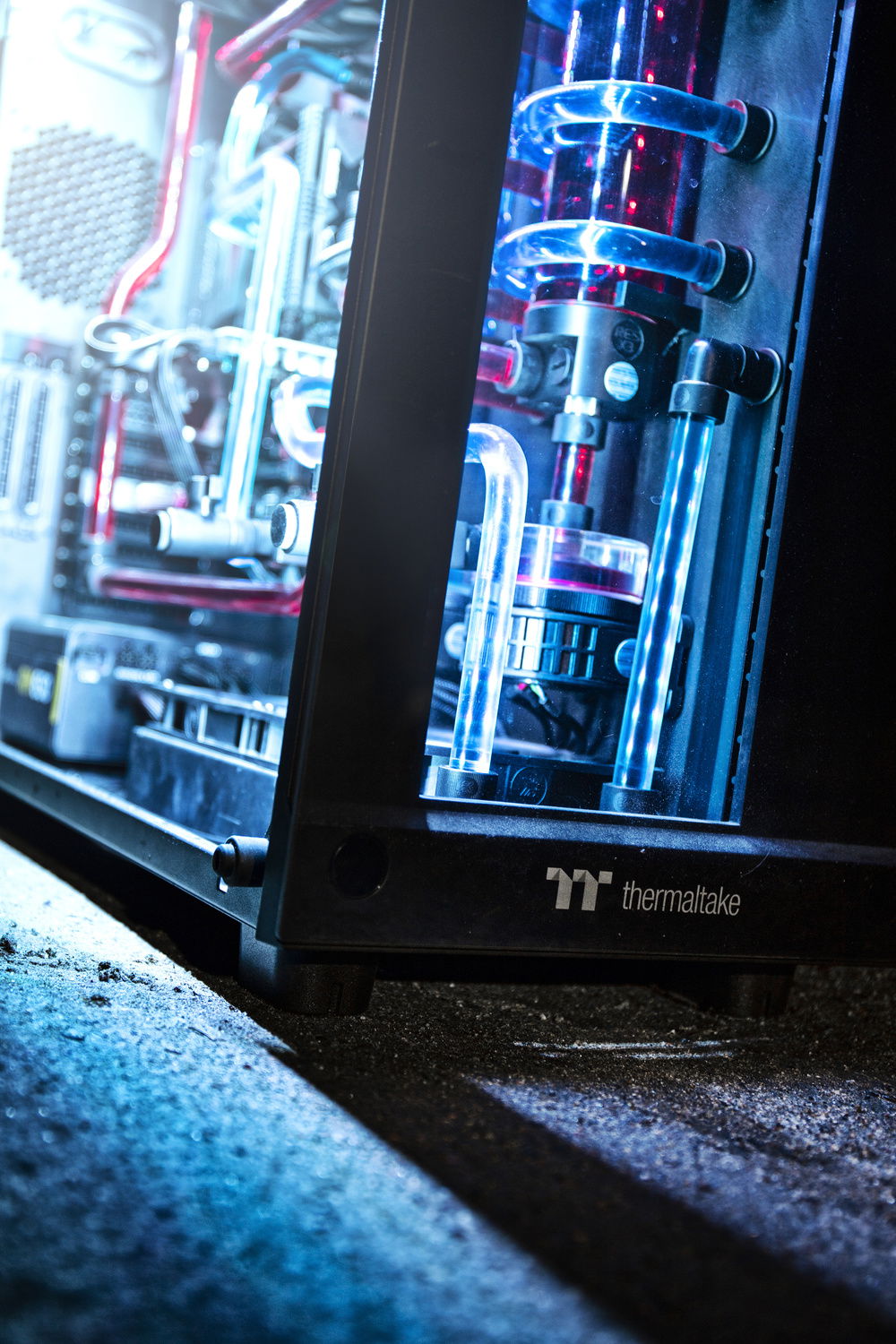

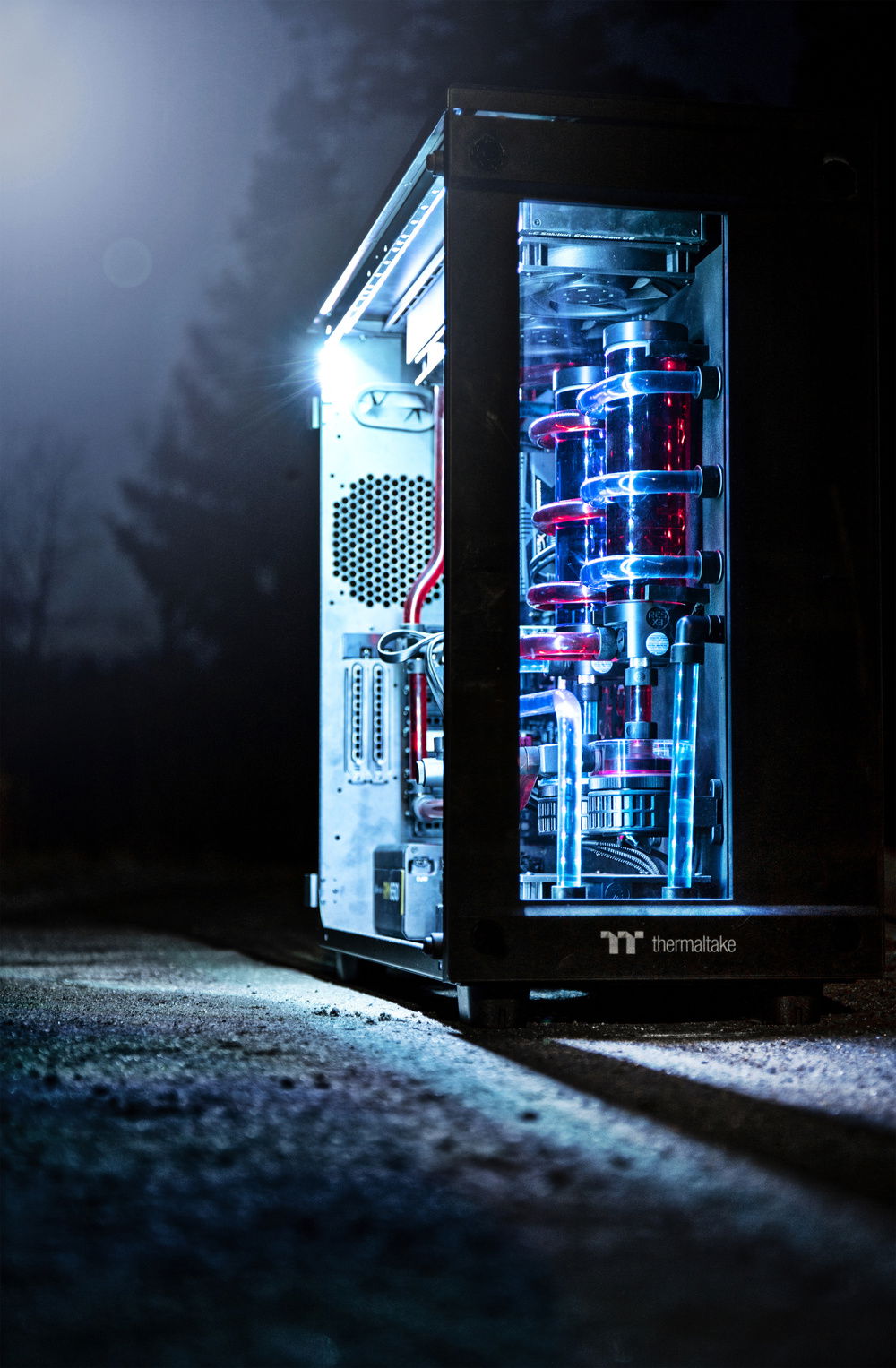

I used hard tubing on the front and backside as there was enough room for it. I chose the Thermaltake view 91 Case as it was the only case suitable for the tubing I was going for and it was perfect.
I wanted to cool down the GPU and CPU as much as possible so i even opened up the CPU, wiped off the thermal paste on the inside and outside and applied liquid metal. I then opened up the GPU and wiped off the thermal paste on the inside and applied liquid metal.
I cut a sheet of plastic to the size of the back of the case and drilled holes through the case and plastic. I then spray painted the front a matte black 3 layers and a small patch on the back red also 3 layers.

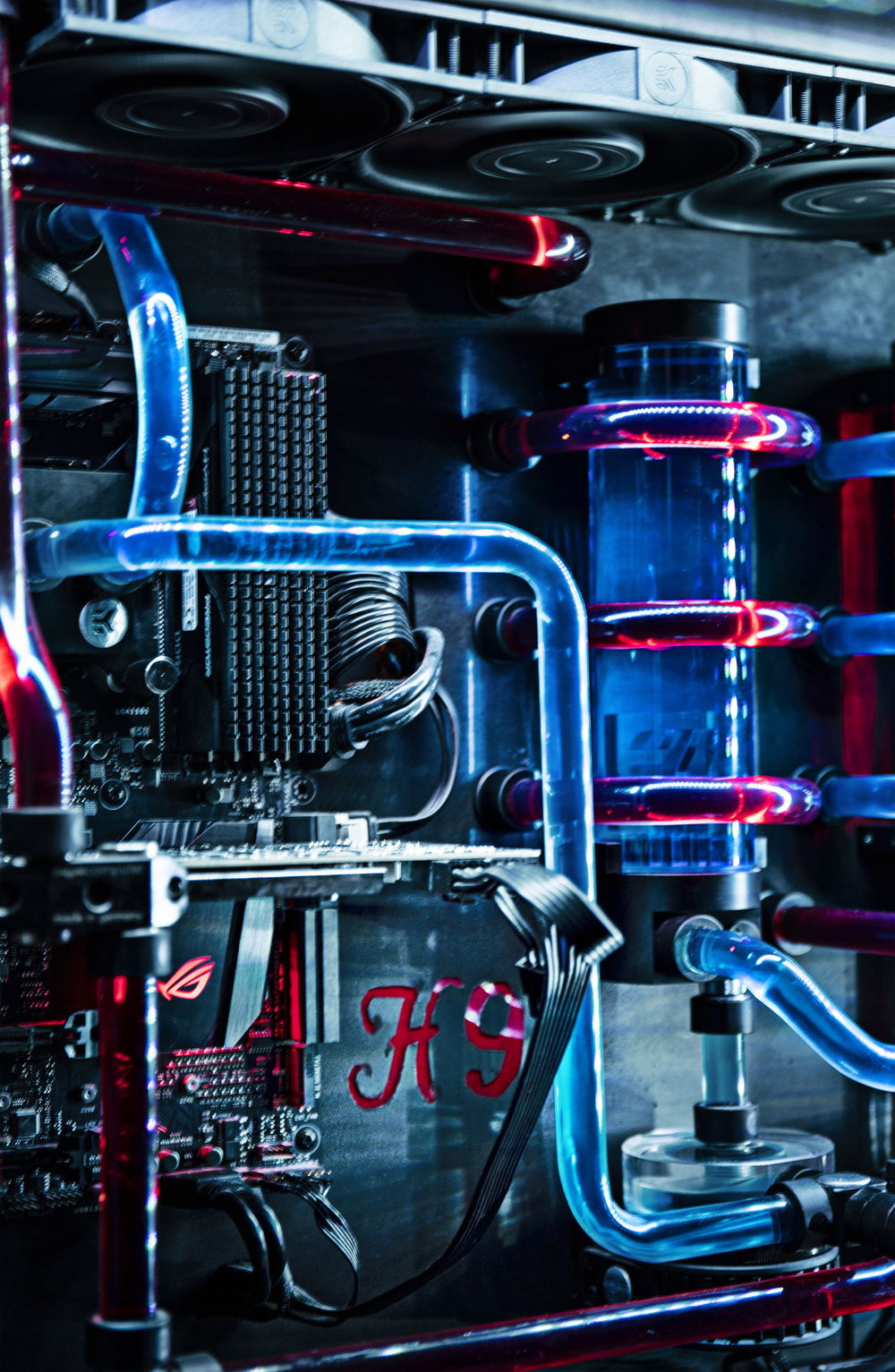

The H9 in the back of the case is my nickname and signature.

Hardware Specs:
Motherboard: ASUS ROG MAXIMUS VIII HERO, Socket-1151
GPU: MSI GeForce GTX TITAN X 12GB
CPU: Intel Core i7-6700K Skylake
Ram: HyperX Predator 3000MHz 32GB
HDD: Seagate Barracuda 2TB 3.5"
SSD: Intel® 730 SSD 480GB SATA KIT
PSU: Corsair RM650, 650W PSU
Case: Thermaltake View 91 Tempered Glass RGB Edition
Wifi Adapter: ASUS PCE-AC68 AC1900 Wireless Adapter
2 x LED: BitFenix Magnetic RGB LED Strip, 60cm

Thermal paste used for GPU and CPU i also delidded the CPU and applied it inside as well. Thermal Grizzly Conductonaut Liquid

Water cooling Parts:
CPU Block: EK-Supremacy EVO - Acetal
GPU Block: kryographics Pascal for NVIDIA TITAN X and GTX 1080 Ti acrylic glass edition, nickel plated version
Radiator: EK-CoolStream CE 420 (Triple)
Radiator: EK-CoolStream CE 280 (Dual)
Tube: EK-HD Tube 12/16mm 500mm (16 pcs) (Used almost all of it)
2 x Reservoirs: EK-RES X3 250
2 x Pumps: EK-XTOP Revo D5 PWM - Plexi
2 x Coolant: EK-CryoFuel Blood Red Premix 900 mL (Did not use all)
2 x Coolant: EK-CryoFuel Navy Blue Premix 900 mL (Did not use all)
2 x 90° Angle Fittings: EK-AF Angled 90° 2F G1/4 Black
16 x Passthrough Fittings: EK-AF Pass-Through G1/4 - Black
52 x Fittings: EK-HDC Fitting 16mm G1/4 - Black

Plus some more minor things, Ball Valve, Extender Rotary, Cable Splitter 4-Fan PWM, T-Splitter and Plugs can't forget the plugs.
Color(s): Blue Red
RGB Lighting? Yes
Theme: Color
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build
