prjct mnchrm

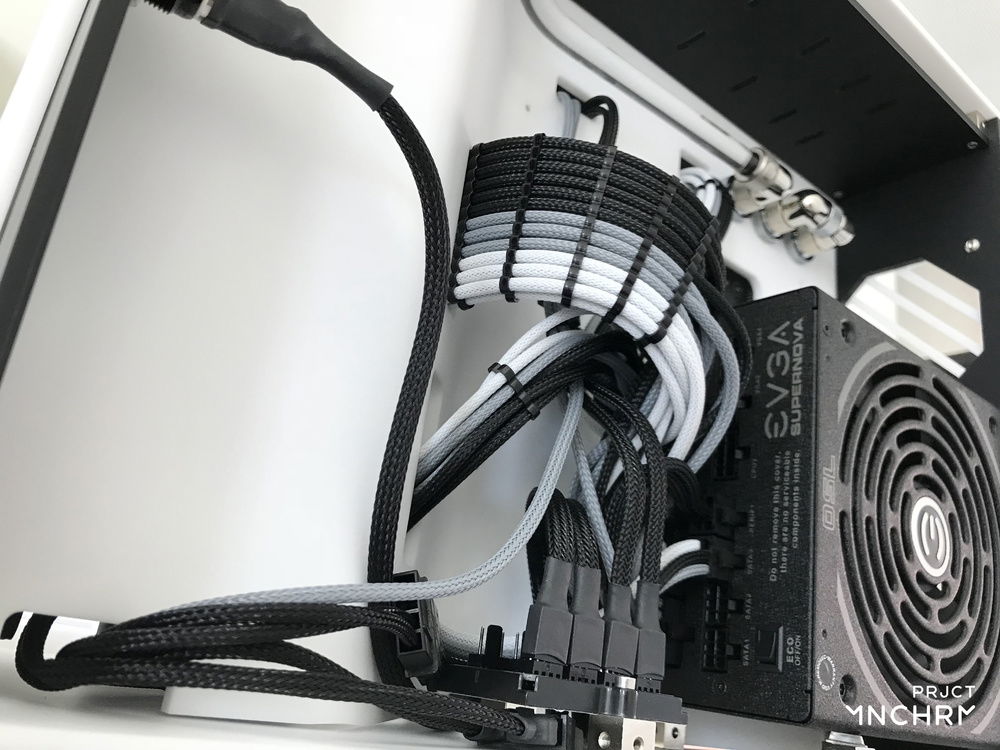

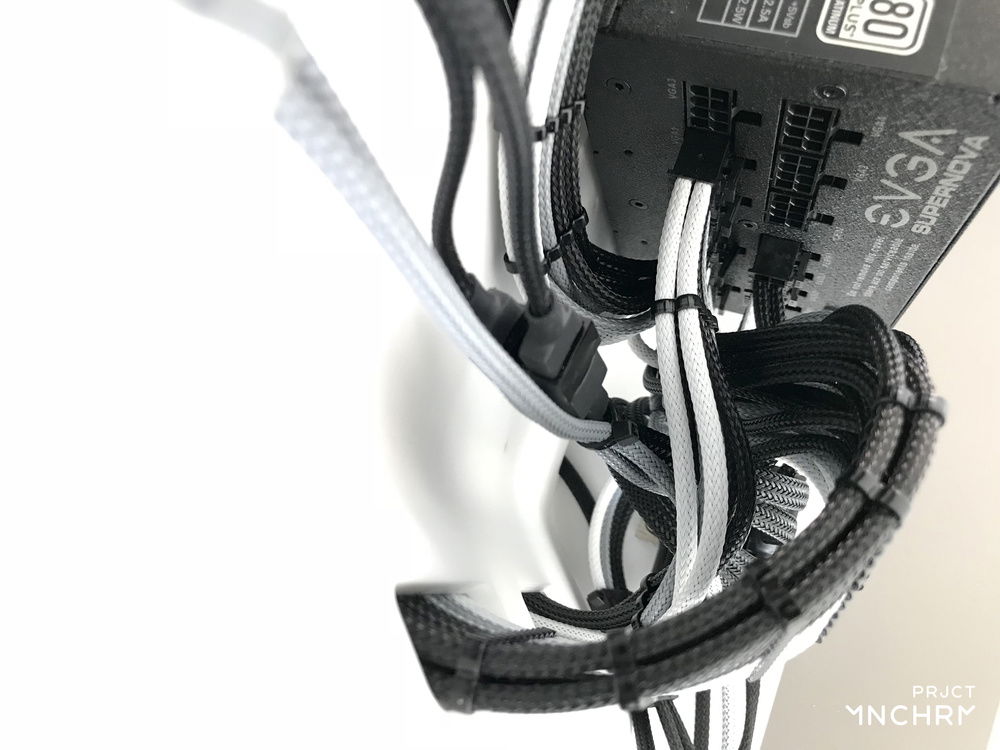

My first custom loop build for my home office (build started mid 2016 and finished early 2018 -- a small new addition to the family meant very little time to work on it). I tried to keep it very simplistic with a natural colour palette and clean lines. I made all the cabling myself with MDPC-X, measured to length (thanks to Daniel and Singularity Computers for some excellent video tutorials).

Other things to note are 1) smaller customisations to the case (extended top), holes for pass-throughs, and rearrangements of cable routing, 2) reservoir mounting brackets from Singularity Computers (modified to fit the small interior space), and 3) cable combs from Hex-Gear. It's running a clear distilled water solution with biocide concentrate; the old EK-Ekoolant EVO. The fans are also the old F2-120 (1450 RPM), which are now discontinued, but they were not an option in the builder. The tubing is 12mm acrylic.

Full detailed build log can be found here for those interested: http://www.overclock.net/forum/18083-build-logs/1640130-build-log-project-mnchrm-parvum-s2-5-a.html
Color(s): Black Silver White
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: Micro-ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 235.00
Intel - Core i7 6850K
Socket: LGA 2011
Cores: 6
Motherboard
$ 337.79
EVGA - Micro2
Chipset: X99
CPU Socket: LGA 2066
Size: Micro-ATX
Memory
$ 400.00
Corsair - Dominator Platinum (3200MHz) (Grey)
Type: DDR4
Capacity: 64 GB
Graphics
$ 351.11
EVGA - SC Gaming
Chip Manufacturer: NVIDIA
Chip: GTX 1070 Ti
Storage
$ 128.00
Samsung - 960 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 298.68
EVGA - SuperNOVA 750 P2
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Platinum
Case
Parvum Systems - S2.5
Type: Micro-ATX
Side Panel: Acrylic
Case Fan
$ 49.99
Cooling
Bitspower - Reservoir
Type: Custom Loop
Cooling
$ 114.00
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
$ 114.00
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
Cooling
$ 80.97
EKWB - EK-Supremacy EVO
Type: CPU Waterblock
Cooling
EKWB - Fittings
Type: Custom Loop
Cooling
EKWB - Pump
Type: Custom Loop
Cooling
EKWB - Tubing
Type: Custom Loop
