Nebula

Got this Barrow Rhopilema Distroplate from a local studio in Xiamen, China. The product is based on the Barrow Mobula openair test bench. It is an limited edition product with a badge on the chassis itself. Mine was the 5th one produced.

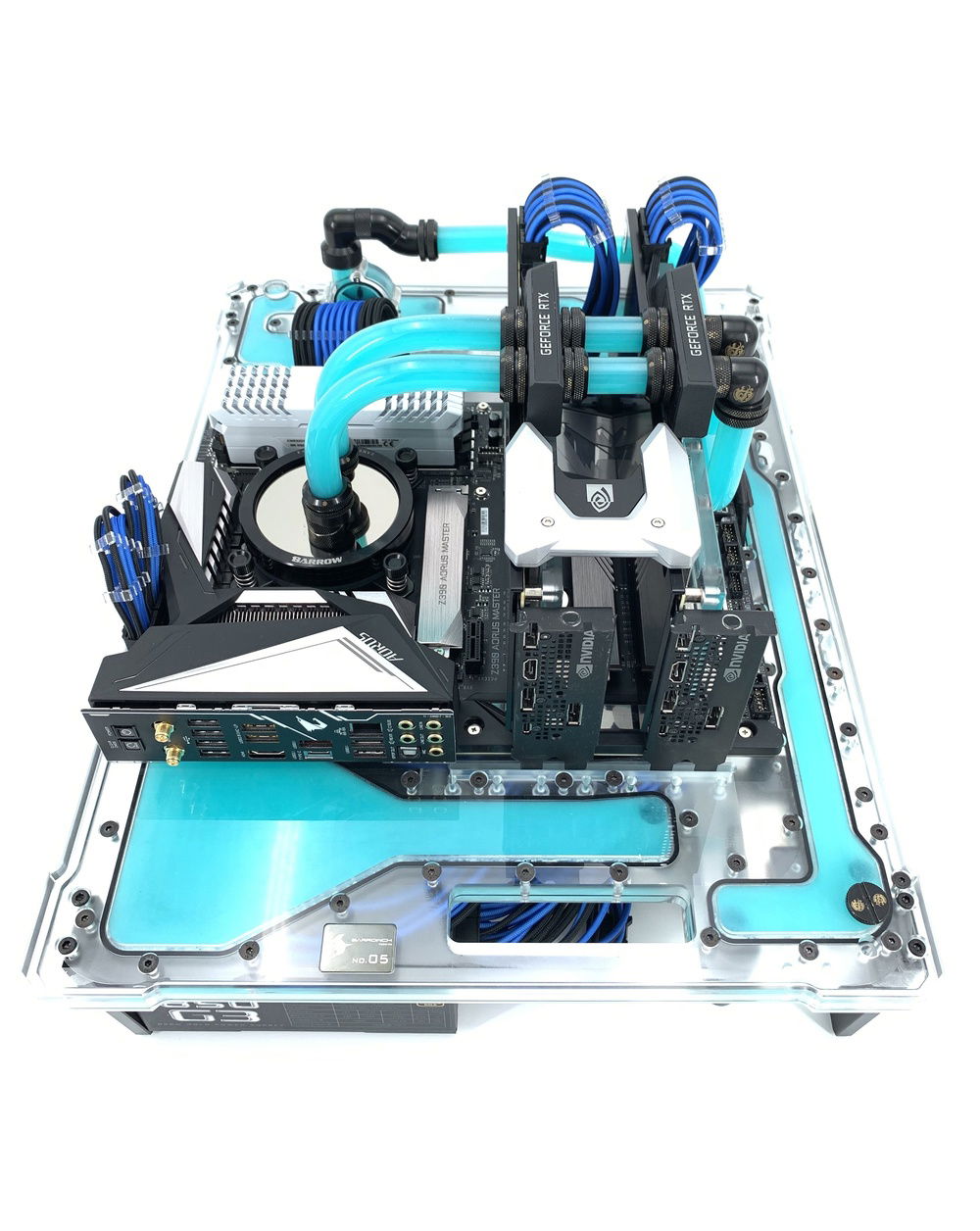

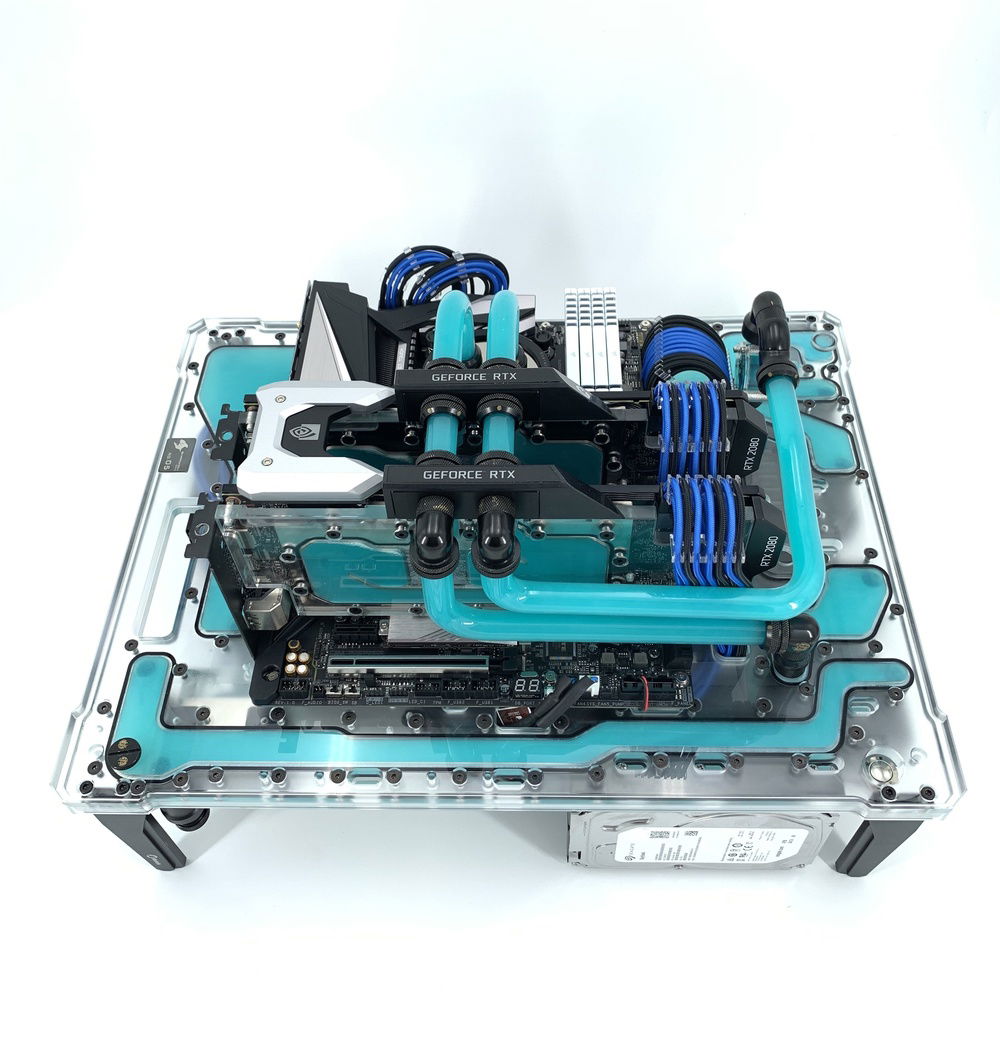

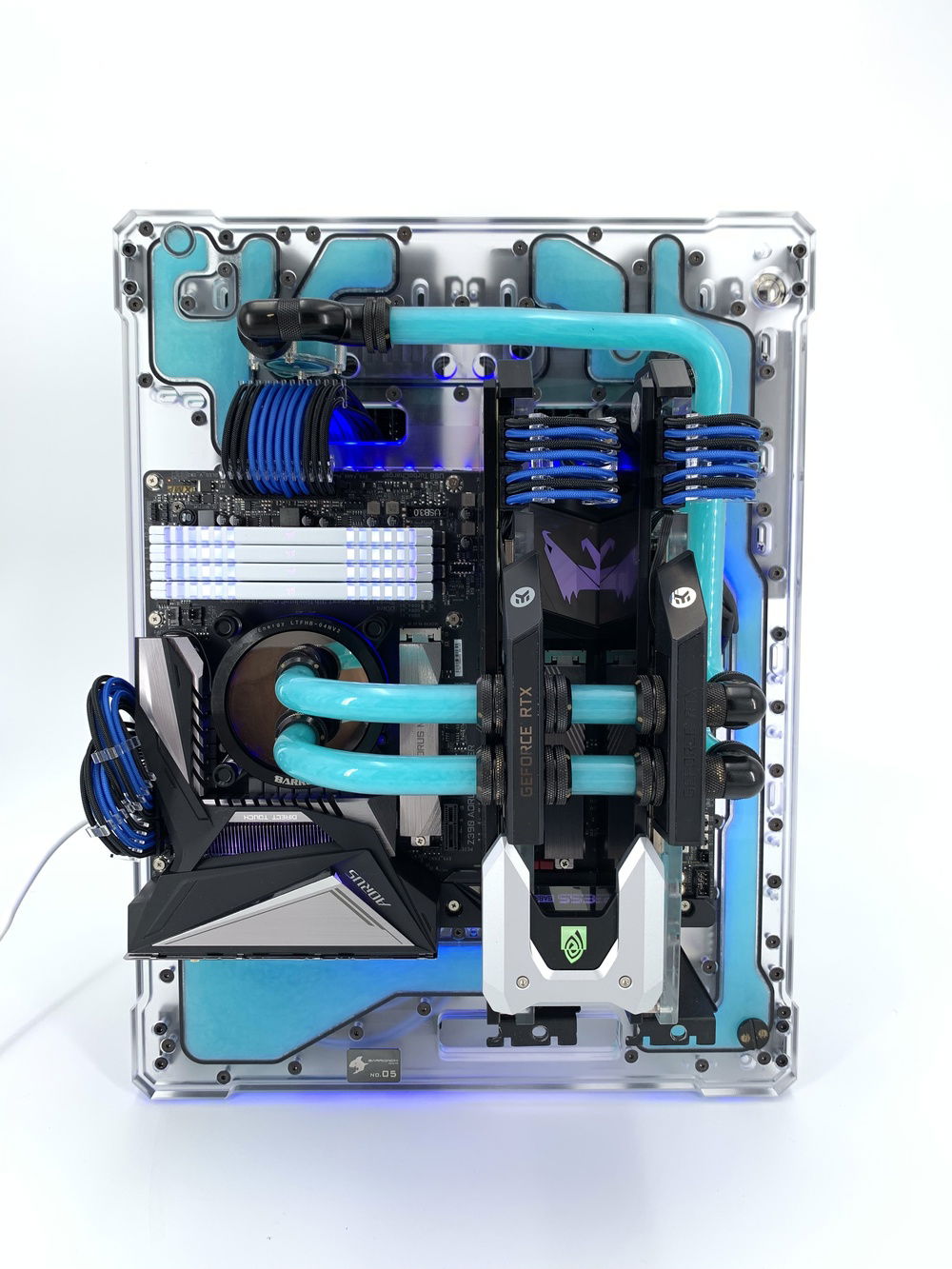

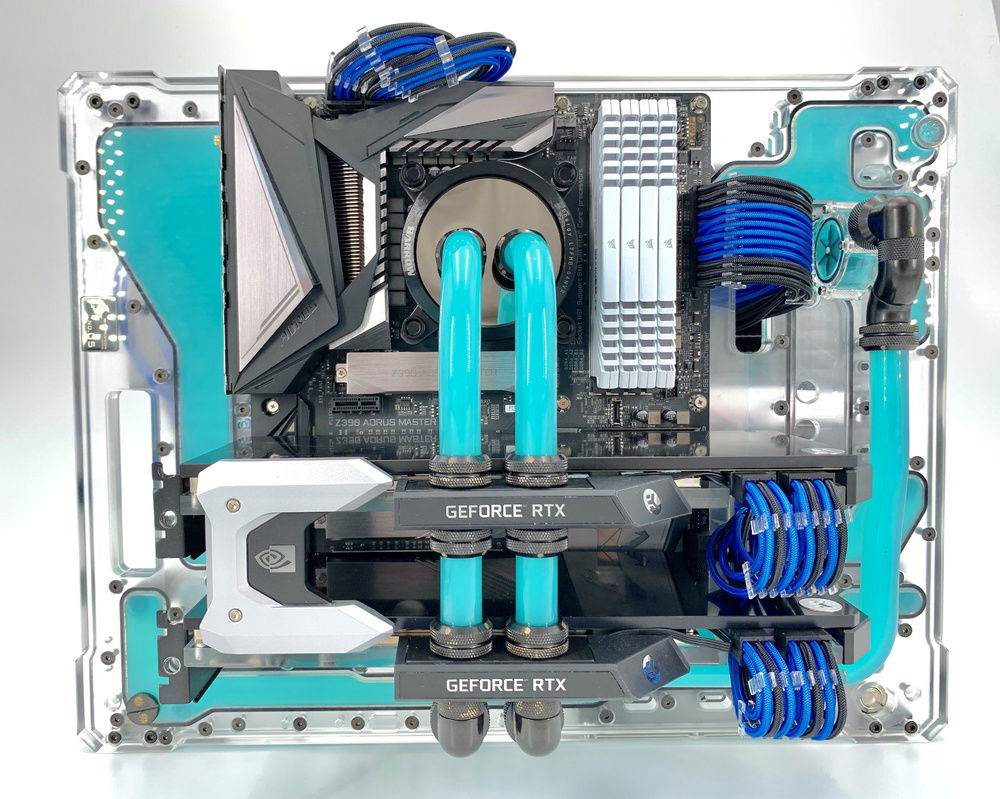

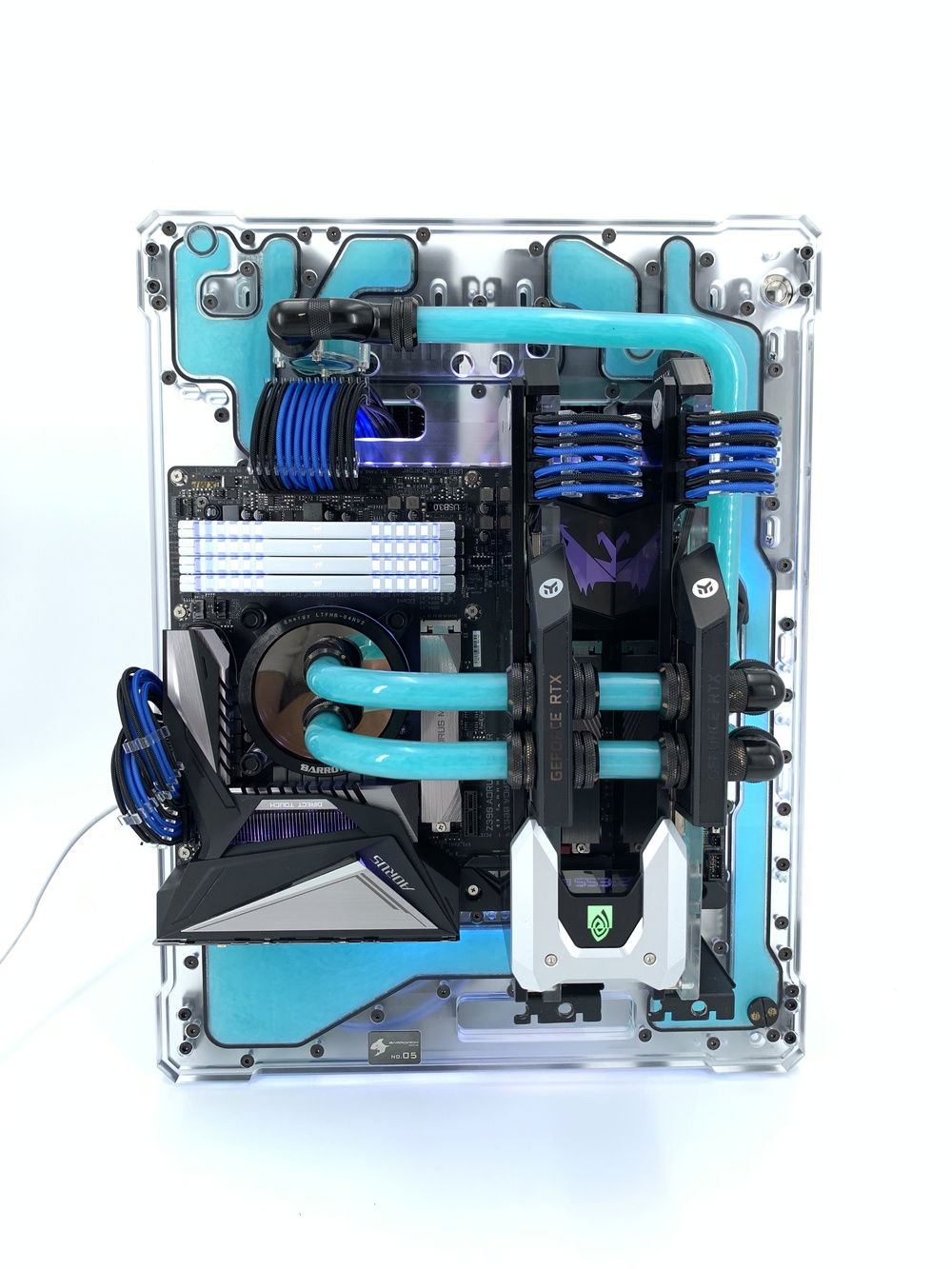

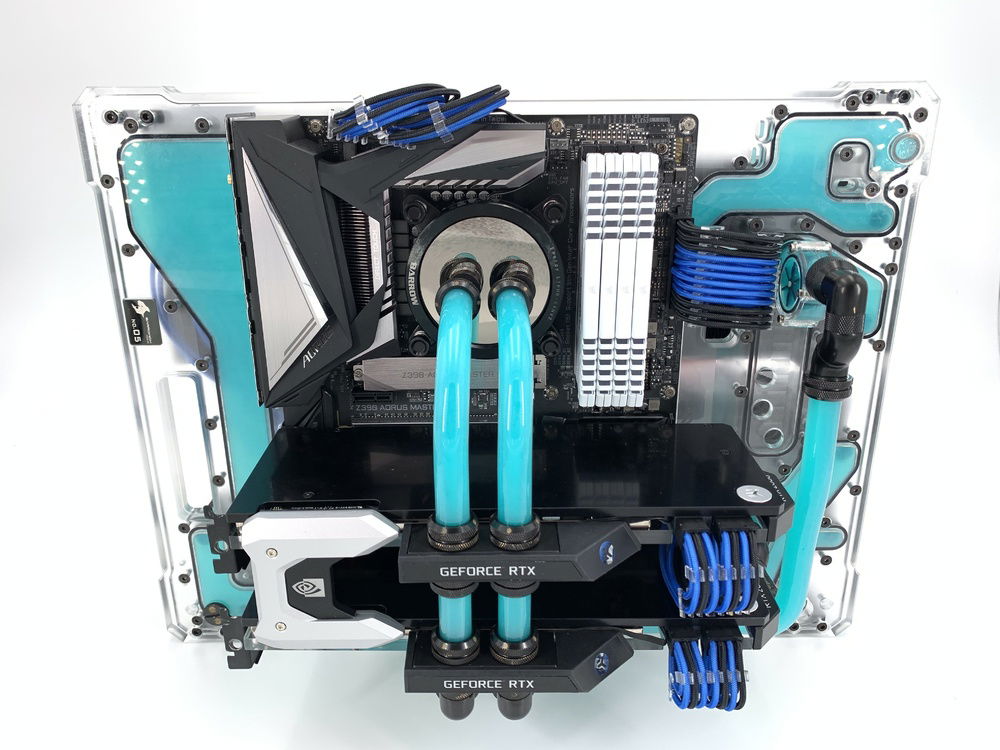

Unfortunately I do not have any pics for the build progress. Enjoy the end result though.

Some comments on this openair distroplate.
The quality of the arylic plate was NICE. Yet, the building experience was terrible to say the least.
1. An inexperienced builder would have to use ALL Barrow products in order to make this work. The G4 threads were very strategically located for their own radiators and pump. And Barrow does NOT have the reputation of producing good quality radiators and pumps...... It is a harsh fact.

2. Maybe this was my own experience, but you have to purchase the pump and radiator bracket seperately... which are ESSENTIAL for the build.

3. The screws that came with the distroplate were useless... everything except the motherboard mounts had the wrong size. I had to go out and purchase my own screws... This build took me about 3 weeks to complete because of all the missing parts that were supposed to come with the plate itself.

4. Supposely it only supports one GPU, and you have to purchase the GPU bracket seperately otherwise this just doesn't work. I ended up doing a NVLINK for the two 2080s, and holding them together with the PETG tubes. It worked out nicely. The 2080s are held together very sturdy.

With this kind of price, retail @ 3000 RMB on Taobao, you should be getting ALL THE PARTS NECESSARY for the build, instead of purchasing everything.

However, I have to give credit where its due. The end result of this build was fantastic. The included RGB strip looks awesome. The cooling capacity is great. Im running my 8086K @ 5.2Ghz, the temp never exceeded 80C, with the two 2080 FE in the same cooling loop.
Color(s): Blue
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: Color
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 691.46
Intel - Core i7 8086K
Socket: LGA 1151
Cores: 6
Integrated Graphics: 1
Motherboard
$ 284.76
Gigabyte - Z390 Aorus Master
Chipset: Z390
CPU Socket: LGA 1151
Size: ATX
Memory
Corsair - Vengeance (RGB)
Type: DDR4
Capacity: 64 GB
Graphics
$ 799.99
NVIDIA - RTX 2080 Founders Edition
Chip Manufacturer: NVIDIA
Chip: RTX 2080
Graphics
$ 799.99
NVIDIA - RTX 2080 Founders Edition
Chip Manufacturer: NVIDIA
Chip: RTX 2080
Storage
$ 278.90
Intel - 760P
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 319.75
Samsung - 970 PRO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 101.49
Seagate - SkyHawk
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 4 TB
PSU
$ 175.00
EVGA - SuperNOVA 850 G3
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
Barrow - Mobula
Type: Open Air
Case Fans
$ 72.99
Cooling
Barrow - CPU Blocks
Type: Custom Loop
Cooling
Bitspower - Fittings
Type: Custom Loop
Cooling
$ 169.98
Cooling
$ 169.98
Monitor
Samsung - C49J89
Size: 49 Inch
Panel: VA
Refresh Rate: 144 Hz
Keyboard
$ 46.96
HyperX - Alloy FPS
Interface: Wired
Key Switch Type: Cherry MX Blue
Type: Full Size
Keyboard
$ 199.88
Logitech - Craft Advanced
Interface: Wireless
Type: Full Size
Mouse
$ 49.99
Corsair - Harpoon RGB
Interface: Wireless
Unable to dertermine total build value (missing part value)
