MODZERO ASHEN V2.0

MODZERO ASHEN V2 - The sequel!

Simply put, I wanted to move ASHEN over to 100% AMD! my B450 board had developed a fault and I'd picked up a 5700XT. I got in touch with EK and they helped me out with their new Torque fittings and that very special 5700XT block! Gigabyte also did me proud and sent over their X570 ITX board. So I sold the 2700X and picked up the king of value CPUs the 3600X.

Granted, AMD drivers for the NAVI GPUs are still poor but when it sings! it's truly a powerhouse of a mid-range mini beast!

Moving the loop over to the GPU left me looking for a solution for that ZEN 2 chip so I reached out to NOCTUA and they sent me over a couple of coolers to try out. The D9L fits like a glove next to the DDC pump and the 92mm redux fan blows air across the MOSFETs and that DDC housing which has been great for temps.

SPECS

CASE: PARVUM X3.0 CUSTOM ITX
CPU: AMD Ryzen 5 3600X
RAM: HYPERX DDR4 3200MHZ 16GB
MOBO: GIGABYTE AORUS X570I PRO WIFI ITX
GPU: AMD RX 5700XT 50TH ANNIVERSARY EDITION 8GB
PSU: SILVERSTONE SX650-G SFX 650 WATT
SSD: SAMSUNG 970 EVO 512GB & 860 EVO 500GB

NOCTUA NH-D9L + NF B9 REDUX - 1600RPM PWM
NOCTUA NF-P12 REDUX 1300 PWM

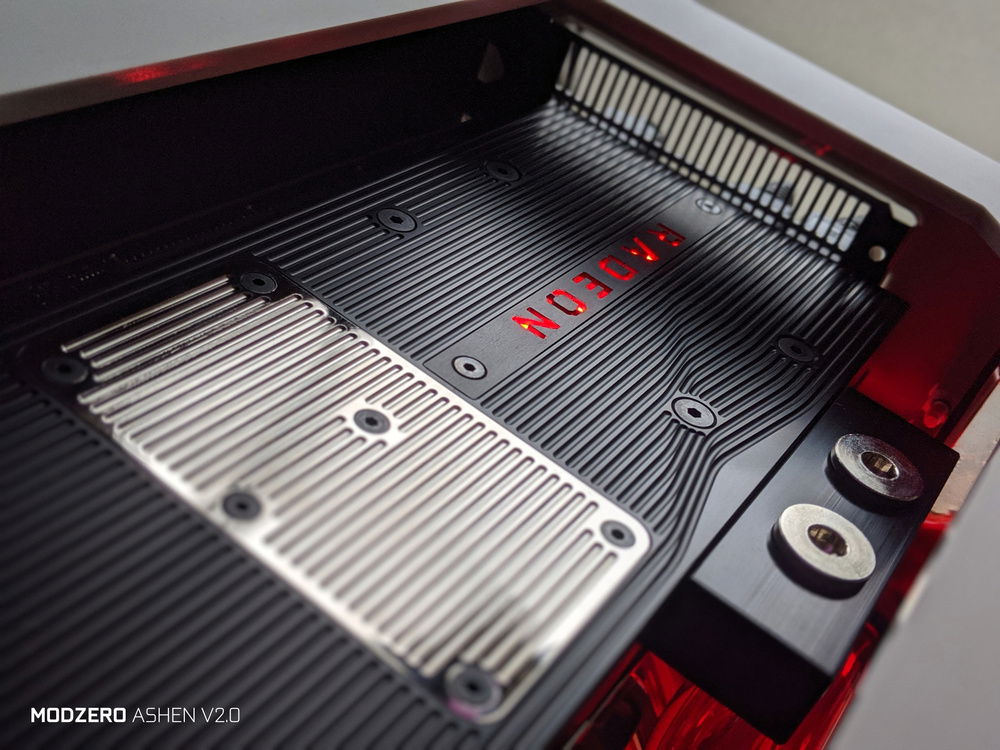

EK-Vector Radeon RX 5700 +XT D-RGB - Special Edition
EK-CoolStream SE 120 (Slim Single)

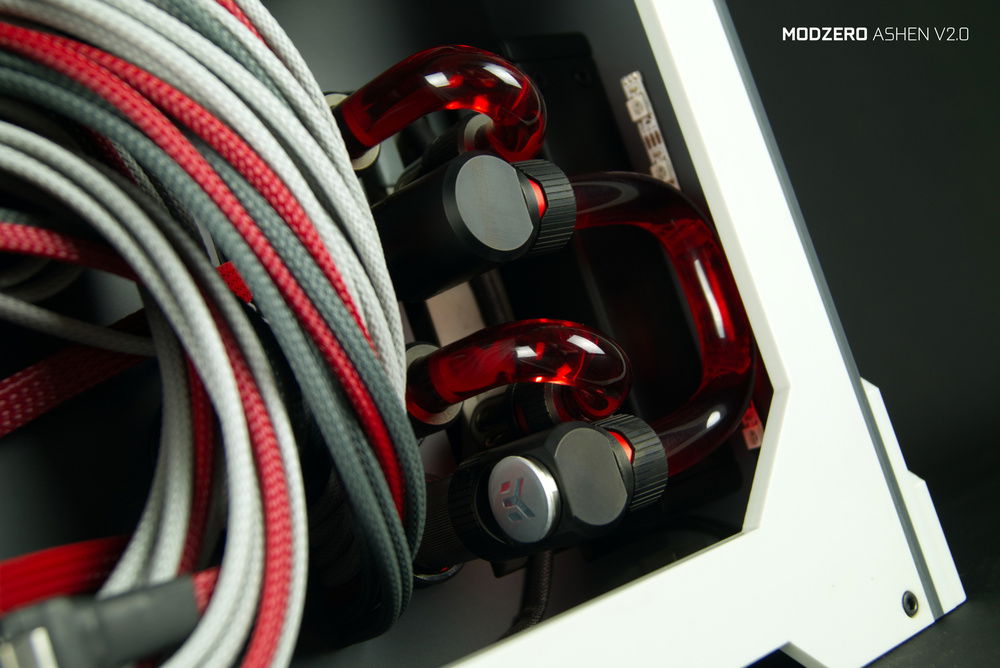

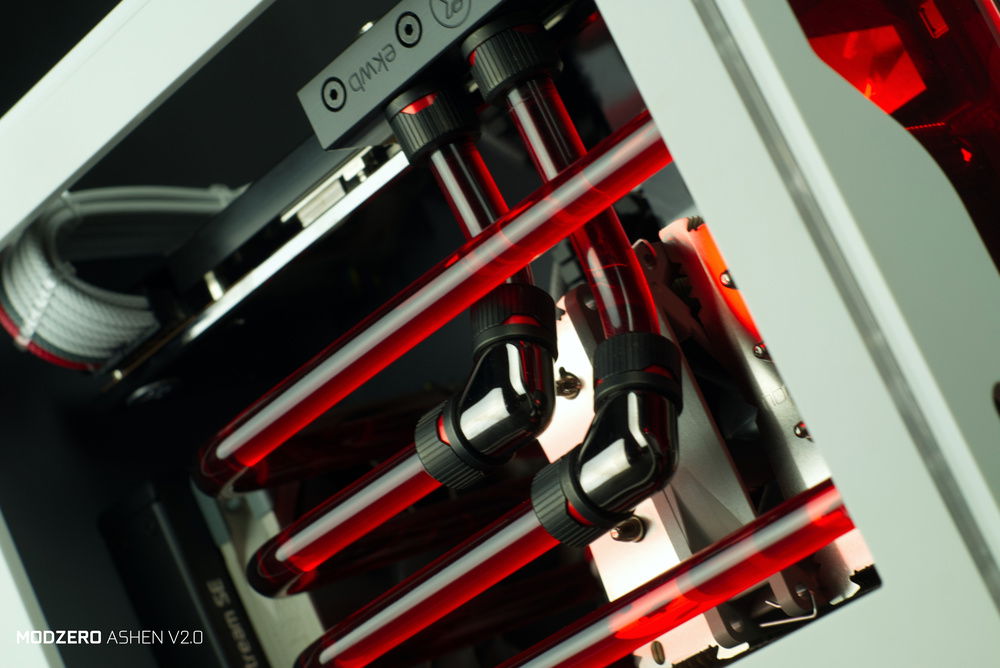

EK-Torque HTC-12 - Black
EK-Torque HTC-12 Color Rings Pack - Red
EK-DDC 3.2 PWM (12V PWM pump)
EK-DDC Heatsink Housing - Black
EK-CryoFuel Clear (Premix 1000mL)

Made possible with support from:

@parvum
@noctua_at
@ekwaterblocks
@gigabyte.uk
@amd
Color(s): Beige Gray Red
RGB Lighting? Yes
Theme: Retro
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 250.00
AMD - Ryzen 5 (3600X)
Socket: AM4
Cores: 6
Motherboard
$ 229.99
Gigabyte - AORUS I Pro (WiFi)
Chipset: X570
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 119.98
Kingston - HyperX Predator (3200MHz) (Black)
Type: DDR4
Capacity: 16 GB
Graphics
AMD - Radeon RX 50th Anniversary Edition
Chip Manufacturer: AMD
Chip: 5700 XT
Storage
$ 74.99
Samsung - 850 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 239.99
Samsung - 960 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 89.99
SilverStone Technology - 600W SFX SX600-G
Wattage: 600
Form Factor: SFX
Efficiency: 80+ Gold
Case
Parvum Systems - X2.0 - ITX
Type: Mini-Tower
Side Panel: Acrylic
Case Fan
$ 14.95
Noctua - NF-P12 redux-1300
Size: 120 mm
Cooling
$ 58.99
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 120 mm
Cooling
EKWB - EK-CryoFuel Blood Red
Type: Coolant
Cooling
$ 54.95
Noctua - NH-D9L
Type: Air Cooler
Size (WxHxD): 110 mm
