Master Build Series - The Event Horizon

THE EVENT HORIZON

DUAL SYSTEM - TRIPLE LOOP

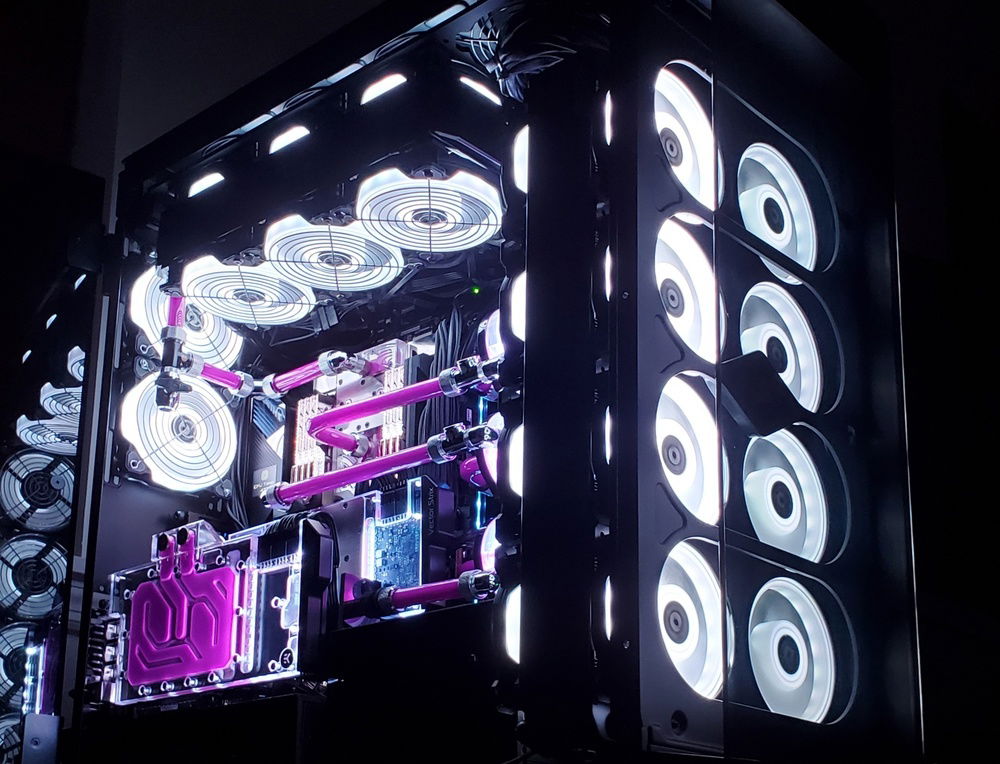

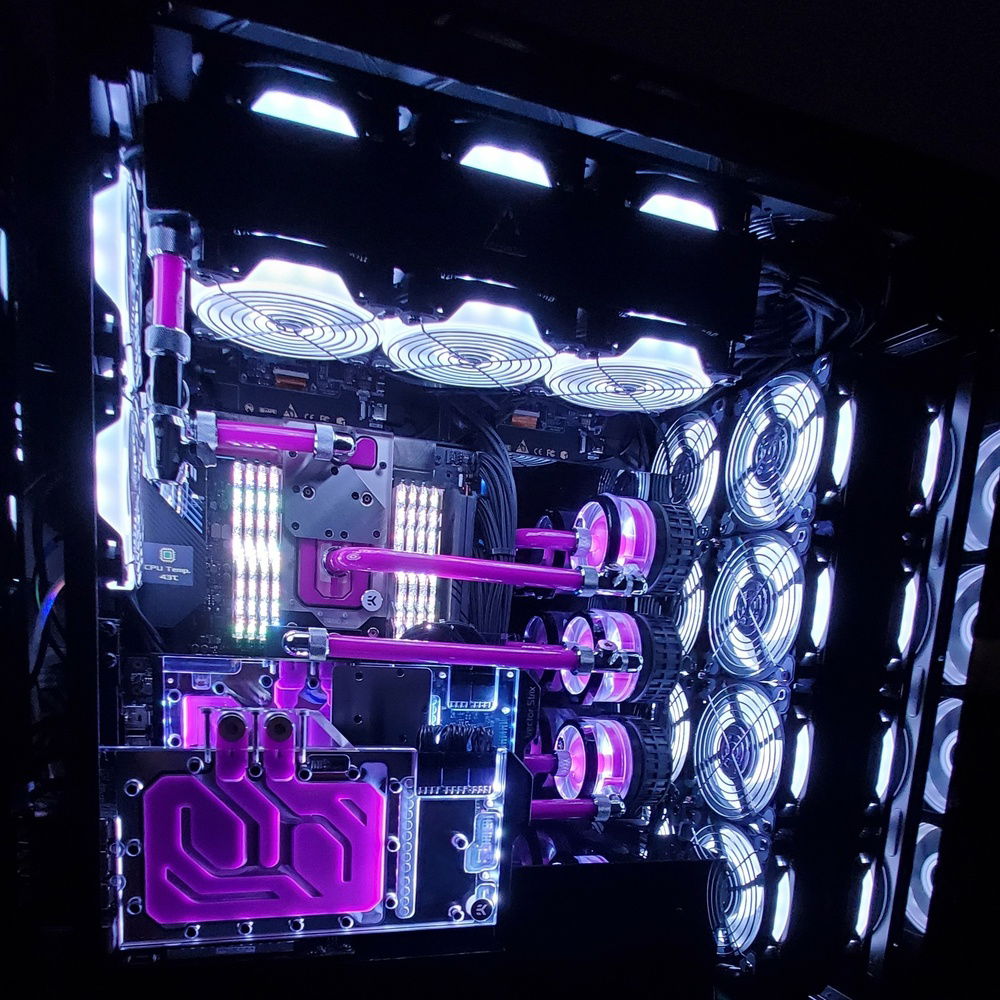

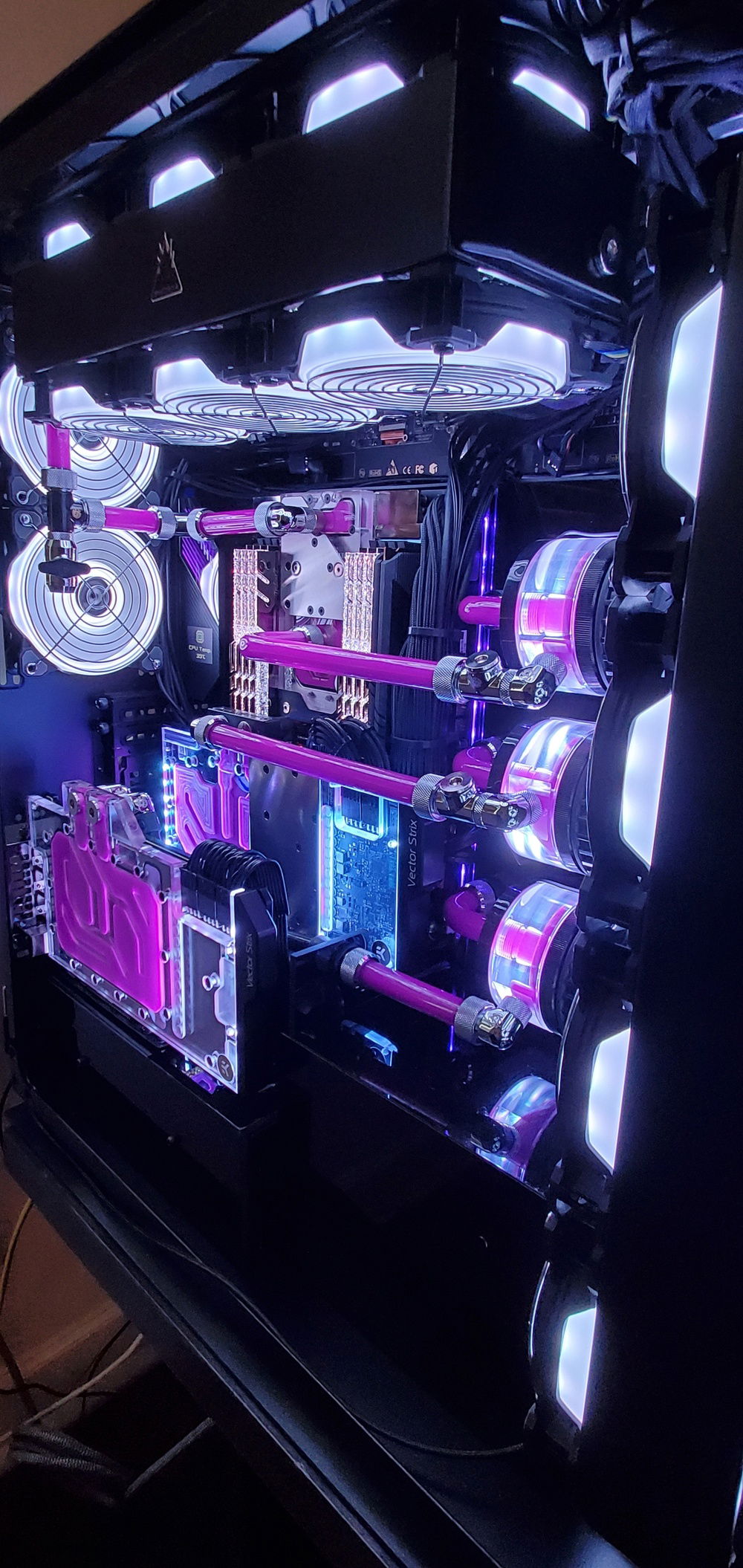

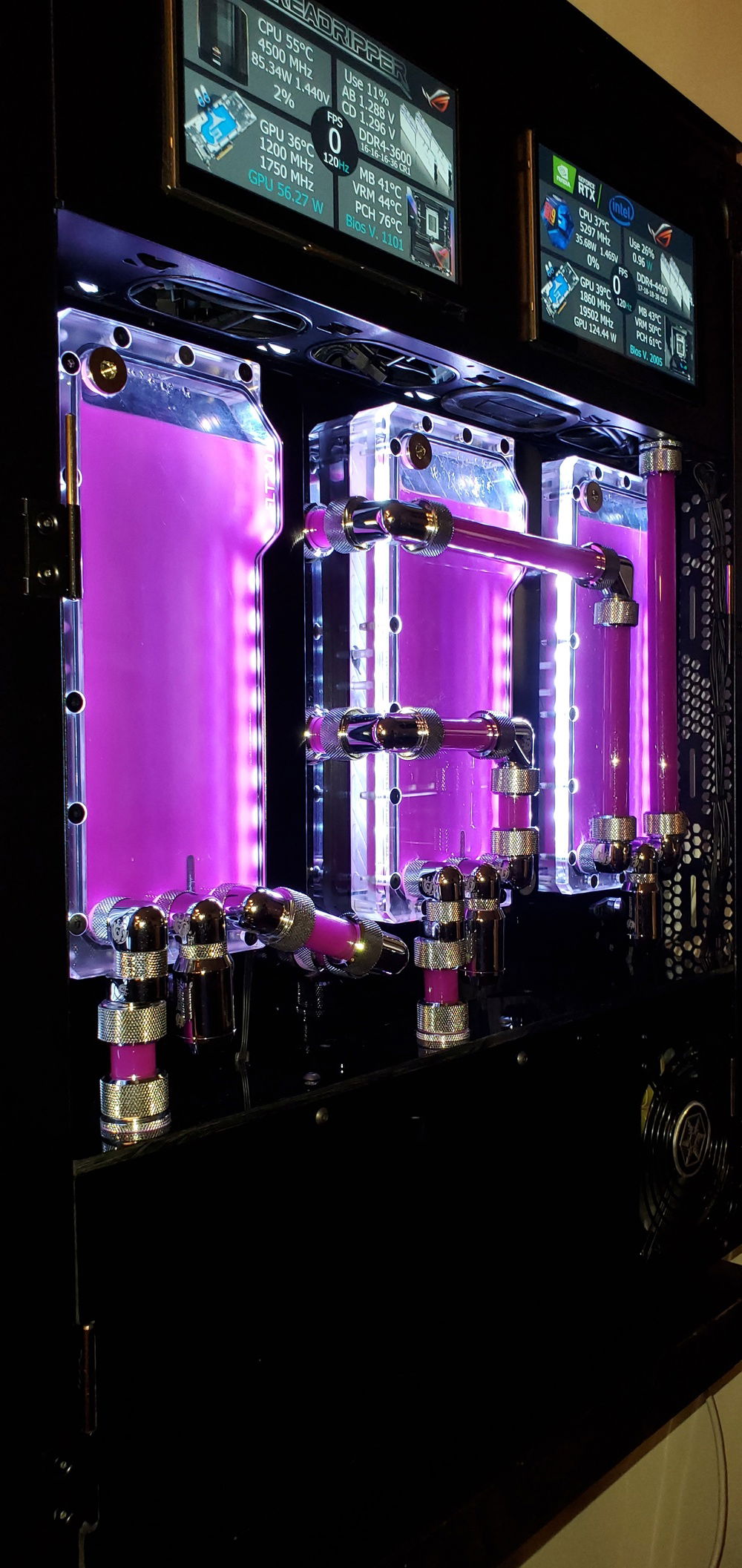

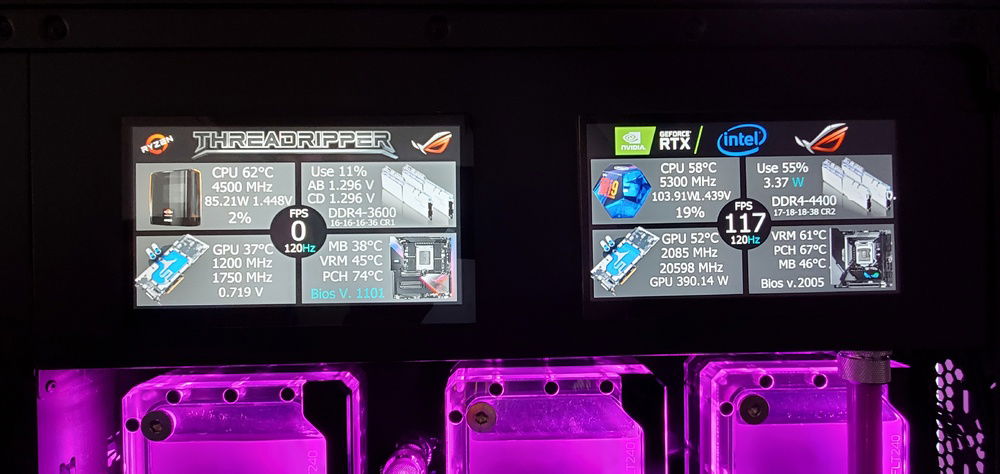

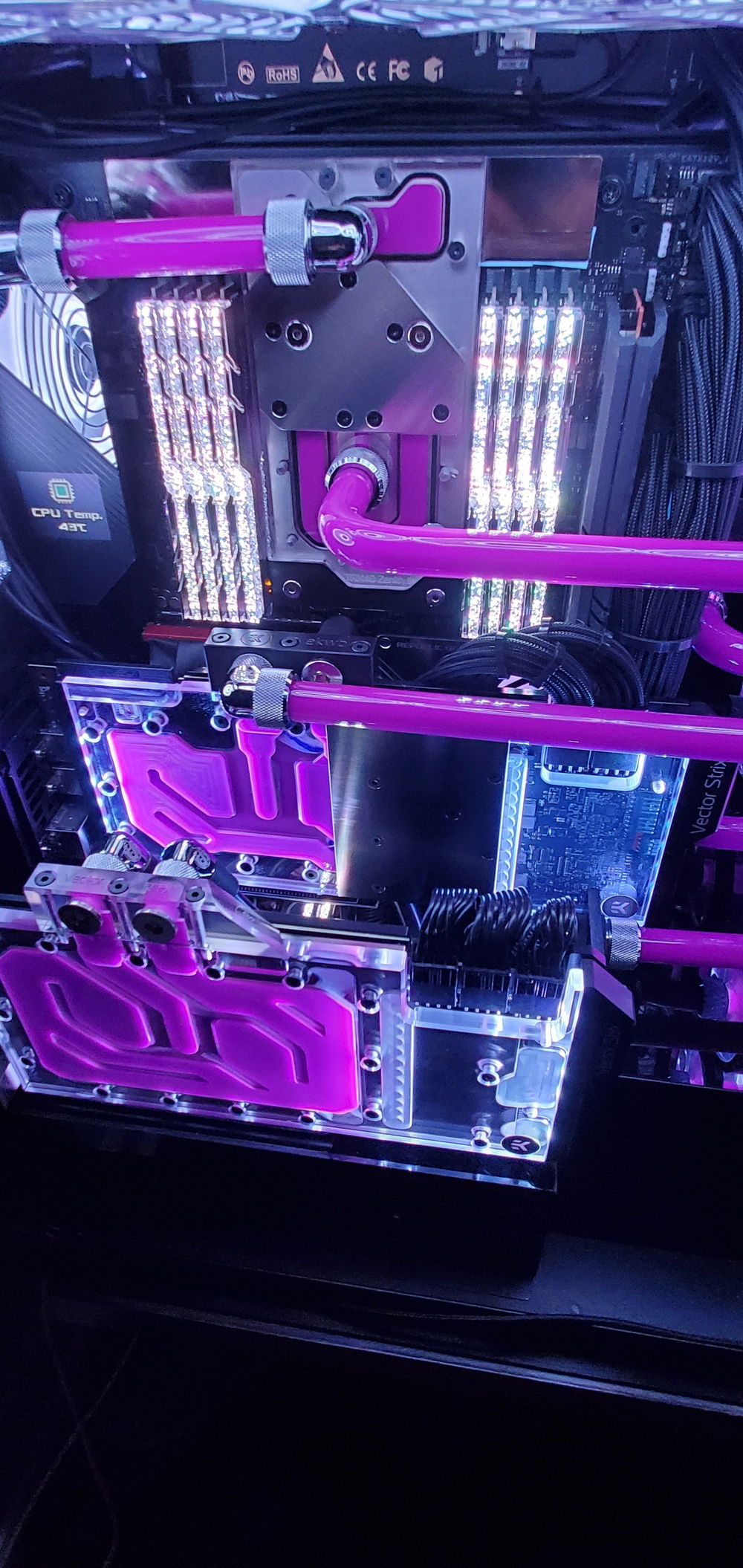

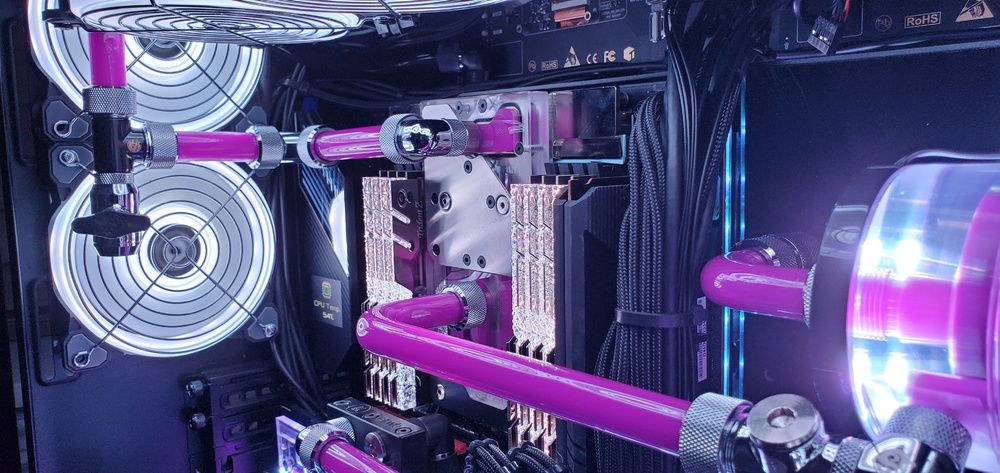

Hello all and good luck with your entries!! This is my latest build. It is a dual system, workstation and gaming rig. Building in this case took a couple of months because much of the interior was removed and replaced with 3/8" black acrylic paneling. Before anyone asks I'll leave a link below for the two 7" IPS panels that I have modded into the case as sensor panels. The displays have a simple hdmi connection and are powered via usb cable. I created the visual layout and the sensor values are read by aida64. To say there is a lot going on with this build is an understatement. Way too much going on to even list so if you have any questions please just ask!!!

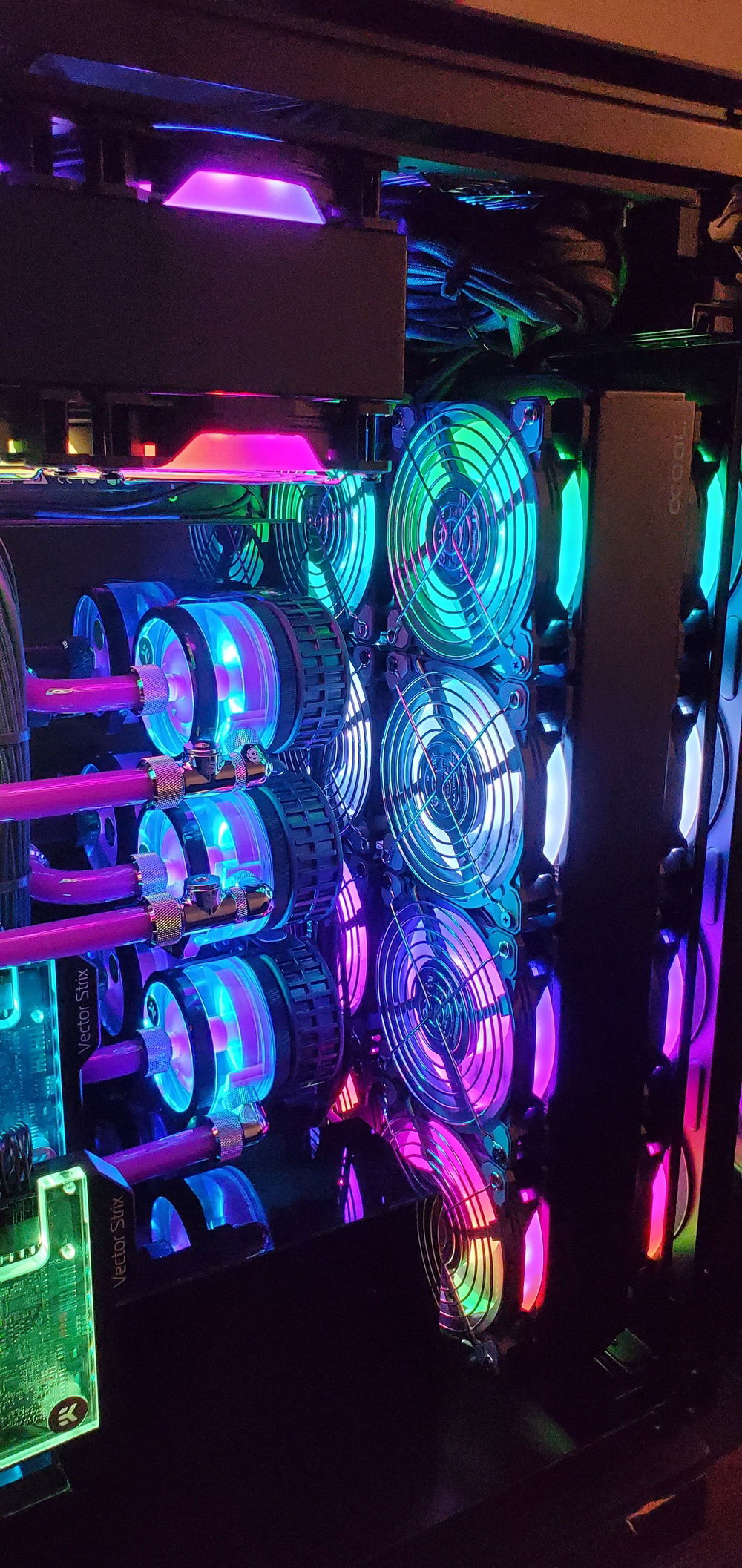

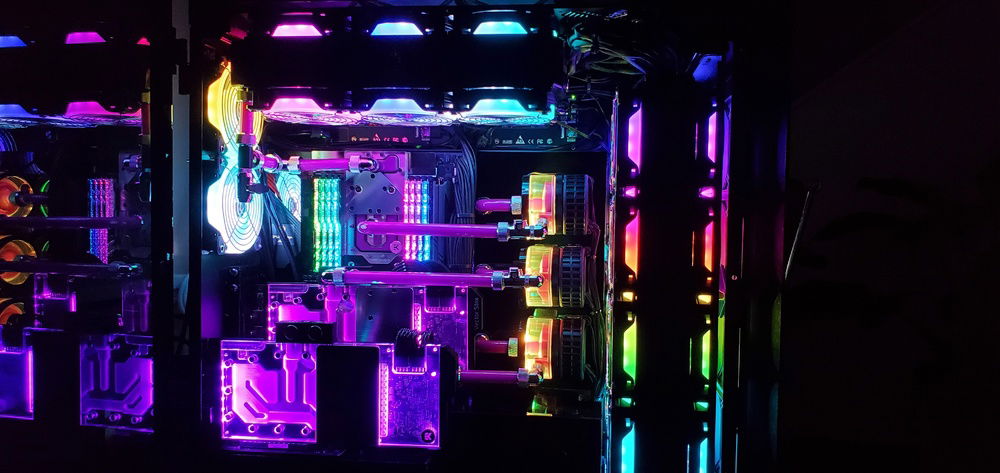

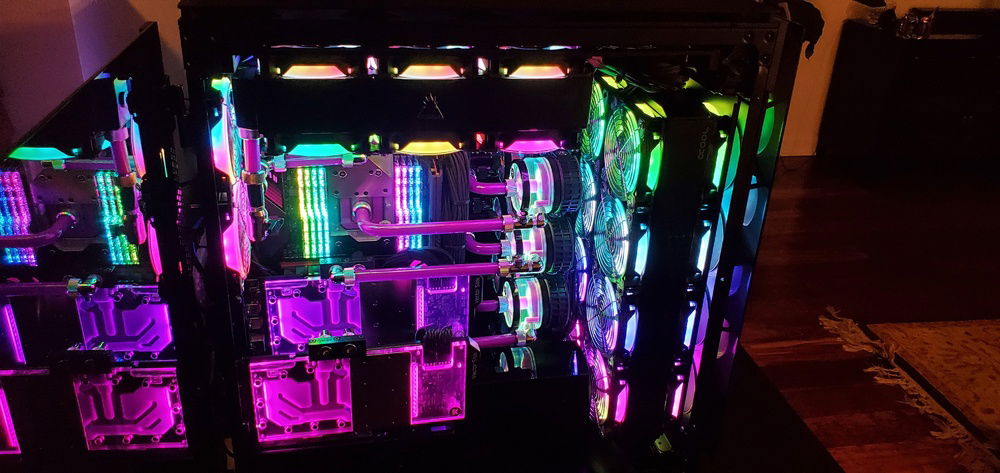

I Included some photo's in full RGB for those that would like to see it like that. Please note the photo's are from a month ago and I have switched out the 2080ti for a 3090.

System#1 Workstation
Asus Zenith II Extreme Alpha

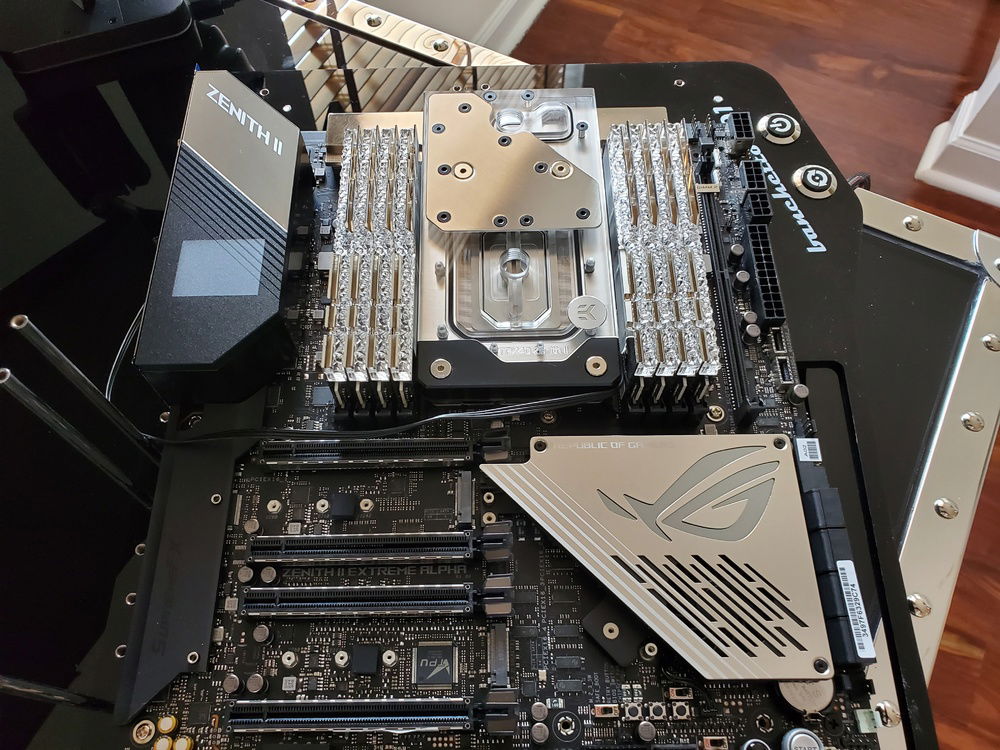

Threadripper 3960x OC @ 4.5ghz all core
8x8 G.Skill Trident Z Royal @ 3600 (15-15-15-36)
4x Samsung 980pro in a Raid 0 array
Asus RTX 2080 ti OC edition(waiting on my 2nd strix 3090 as replacement)
EVGA 1600watt Supernova

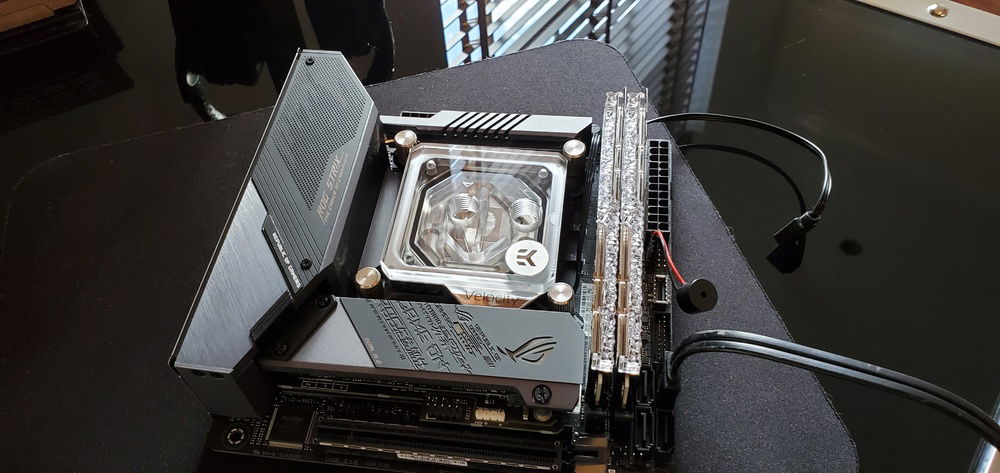

System #2 Gaming - Mini ITX Build
Asus Z-490-I
intel 10900k OC @ 5.3ghz all core (1.45V avx offset 1)
2x8 G.Skill Trident Z Royal @ 4400 (17-18-18-38)
Asus Strix RTX 3090 OC edition
silverstone sfx 1000watt psu
Color(s): Black Purple White
RGB Lighting? Yes
Theme: Case Mod

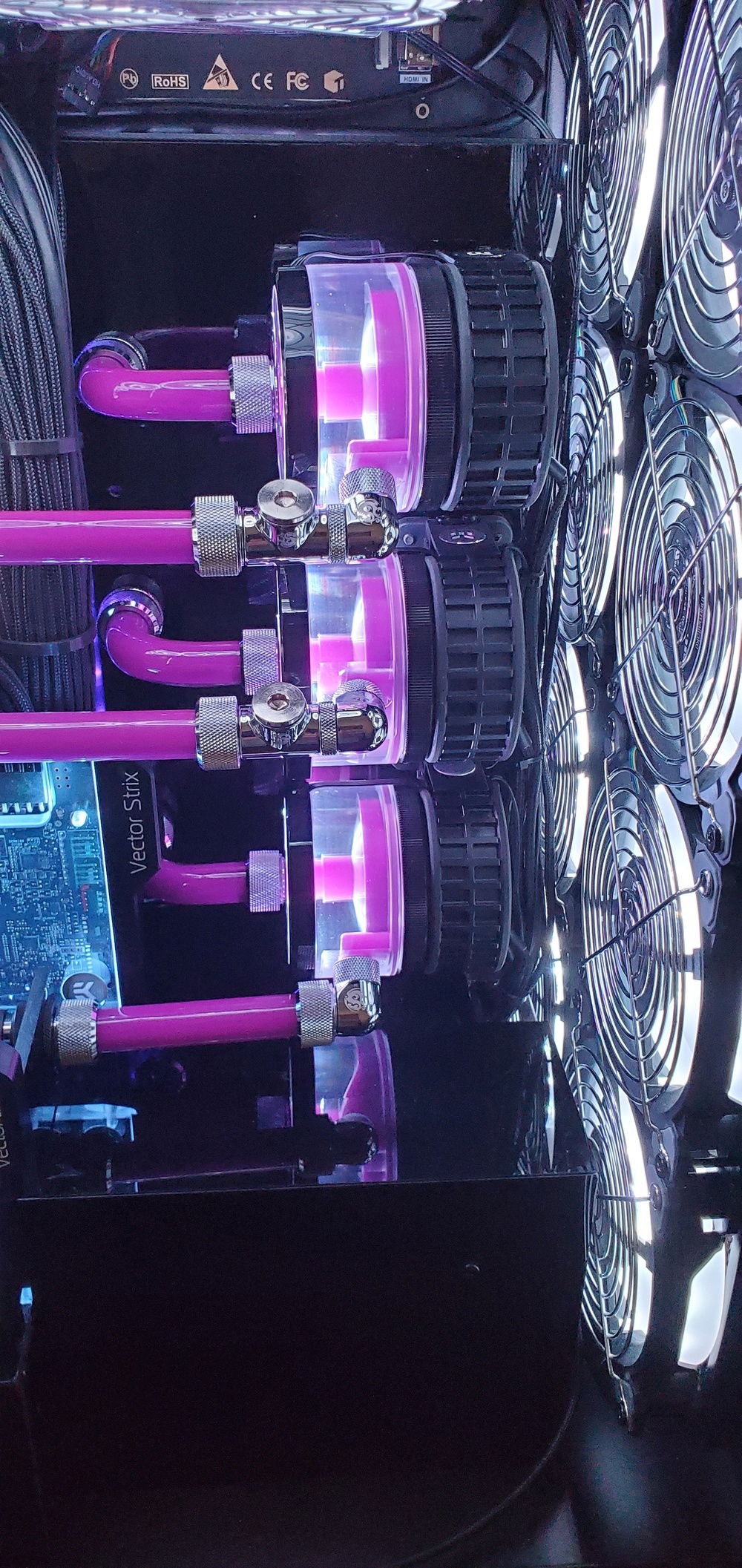

Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Contests

This build participated in 2 contests.

Hardware

CPU
$ 1,443.04
AMD - Threadripper 3960X
Socket: TRX40
Cores: 24
CPU
$ 465.00
Intel - Core i9-10900K
Socket: LGA 1200
Cores: 10
Motherboard
$ 260.00
ASUS - ROG Strix Gaming (Z490-I) (WiFi 6)
Chipset: Z490
CPU Socket: LGA 1200
Size: Mini-ITX
Motherboard
$ 998.99
ASUS - ROG Zenith II Extreme Alpha
Chipset: TRX40
CPU Socket: TRX4
Size: E-ATX
Memory
$ 744.99
G.Skill - Trident Z Royal (3600MHz) (Silver/RGB)
Type: DDR4
Capacity: 64 GB
Memory
$ 189.00
G.Skill - Trident Z Royal (4400MHz) (Silver)
Type: DDR4
Capacity: 16 GB
Graphics
$ 721.15
ASUS - GeForce ROG Strix OC (Black)
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Interface: PCIe x16
Graphics
$ 2,699.99
ASUS - ROG Strix OC
Chip Manufacturer: NVIDIA
Chip: RTX 3090
Interface: PCIe x16
Storage
$ 270.00
Samsung - 860 EVO (2x)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 269.84
Samsung - 970 PRO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 592.00
Samsung - 980 Pro (4x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 409.98
Western Digital - WD Gold Enterprise (2x)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 12 TB
PSU
$ 688.00
EVGA - SuperNOVA T2
Wattage: 1600
Form Factor: ATX
Efficiency: 80+ Titanium
PSU
$ 292.55
SilverStone Technology - SX1000
Wattage: 1000
Form Factor: SFX
Efficiency: 80+ Platinum
Case
$ 524.99
Corsair - Obsidian 1000D
Type: Super-Tower
Side Panel: Tempered Glass
Case Fan
$ 959.92
Thermaltake - Riing Quad 12 (RGB) (8x)
Size: 120 mm
Cooling
$ 347.98
Alphacool - NexXxoS UT60 Full Copper (2x)
Type: Custom Loop
Size (WxHxD): 480 mm (4 x 120 mm)
Cooling
$ 1,000.00
Bitspower - Fittings
Type: Custom Loop
Cooling
$ 449.97
Cooling
$ 250.66
Cooling
$ 386.70
EKWB - EK-Quantum Volume FLT 240 D-RGB - Plexi (3x)
Type: Reservoir
Size (WxHxD): 240 mm
Cooling
$ 39.99
Cooling
$ 135.23
Cooling
$ 100.95
Phobya - G-Changer 360 V2
Type: Radiator
Size (WxHxD): 360 mm (3 x 120 mm)
Monitor
$ 1,099.98
Samsung - Odyssey G7 (2x)
Size: 27 Inch
Panel: VA
Refresh Rate: 240 Hz
Monitor
$ 1,399.99
Samsung - Odyssey G9
Size: 49 Inch
Panel: VA
Refresh Rate: 240 Hz
Keyboard
$ 216.99
Corsair - K100 (Black/RGB)
Interface: Wired
Key Switch Type: Cherry MX Speed
Type: Full Size
Keyboard
$ 379.99
Razer - Orbweaver Chroma
Interface: Wired
Key Switch Type: Razer Green
Type: Compact
Mouse
$ 96.89
Logitech - G502 Lightspeed Wireless
Interface: Wireless
Estimated total value of this build:
$ 14,670.20
