Legion 2.0

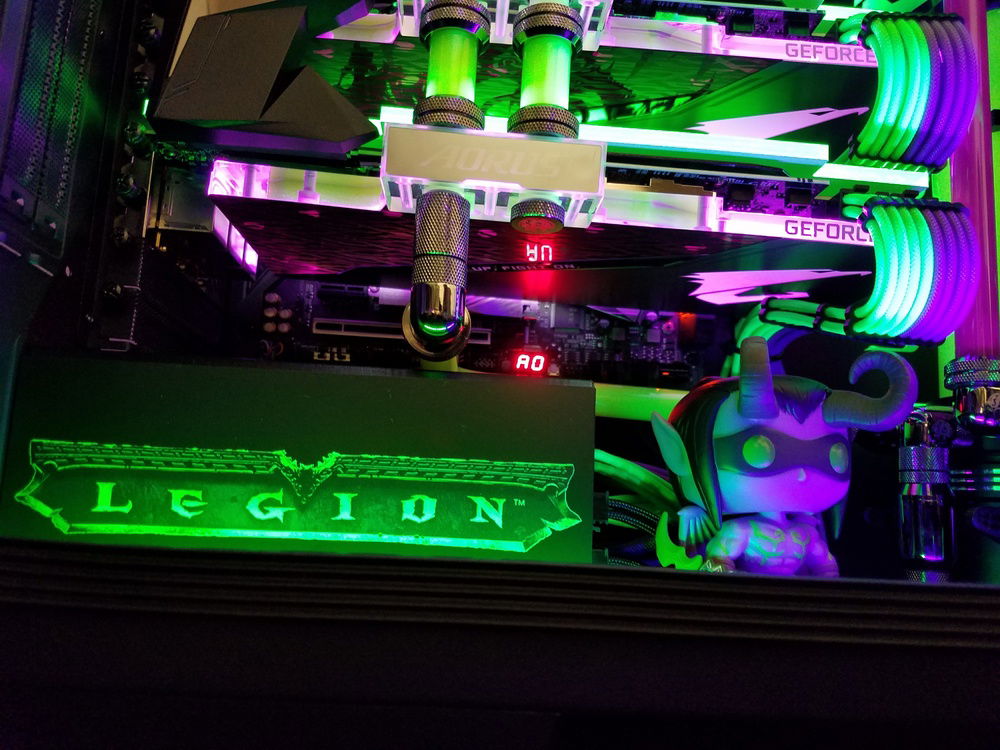

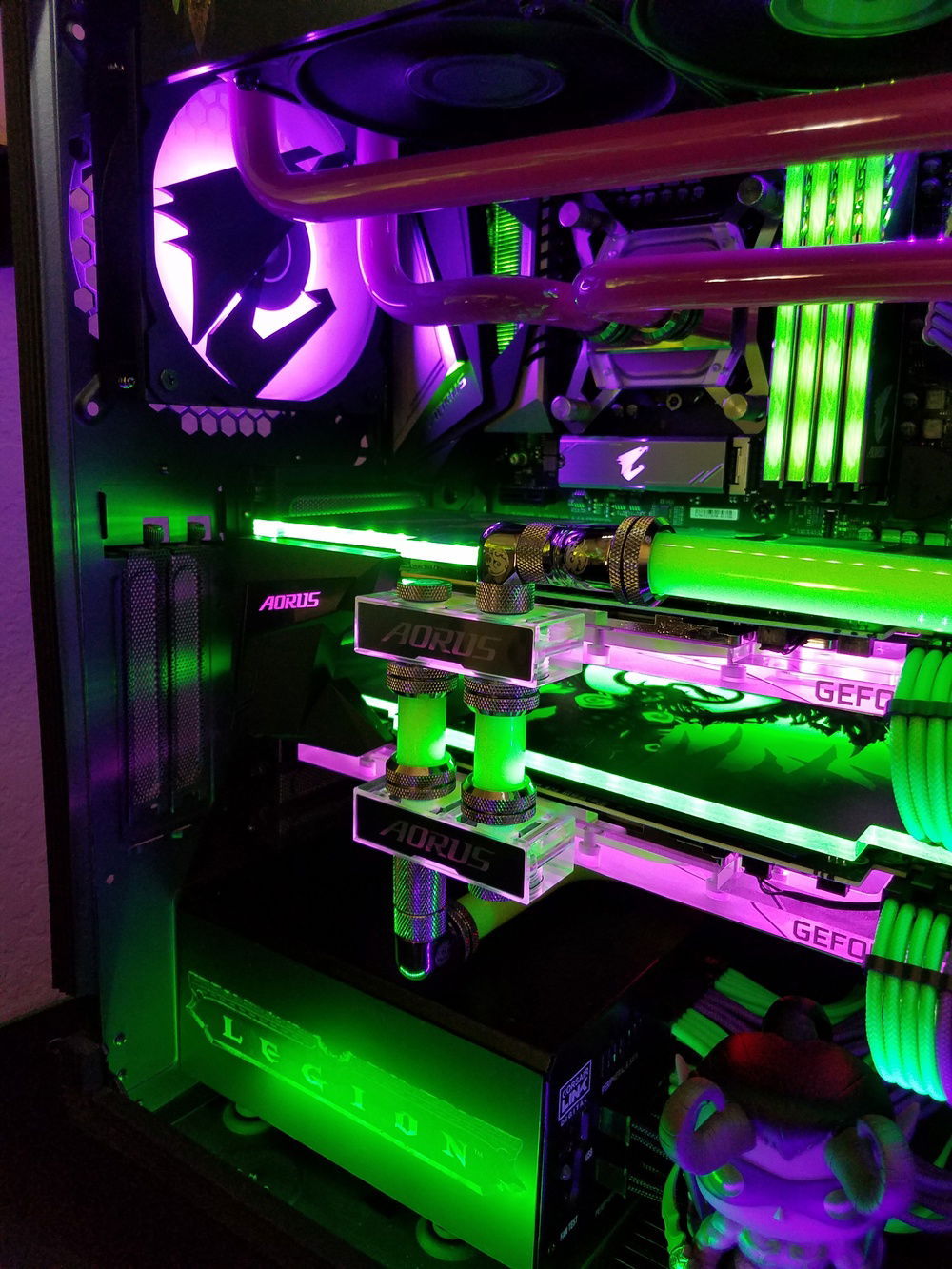

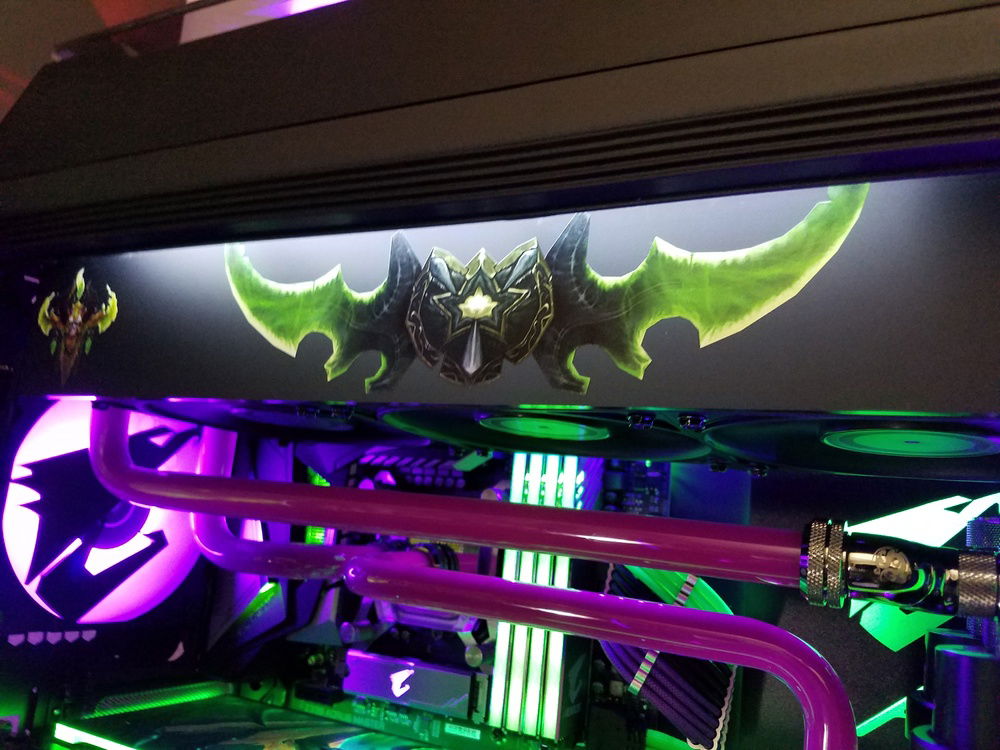

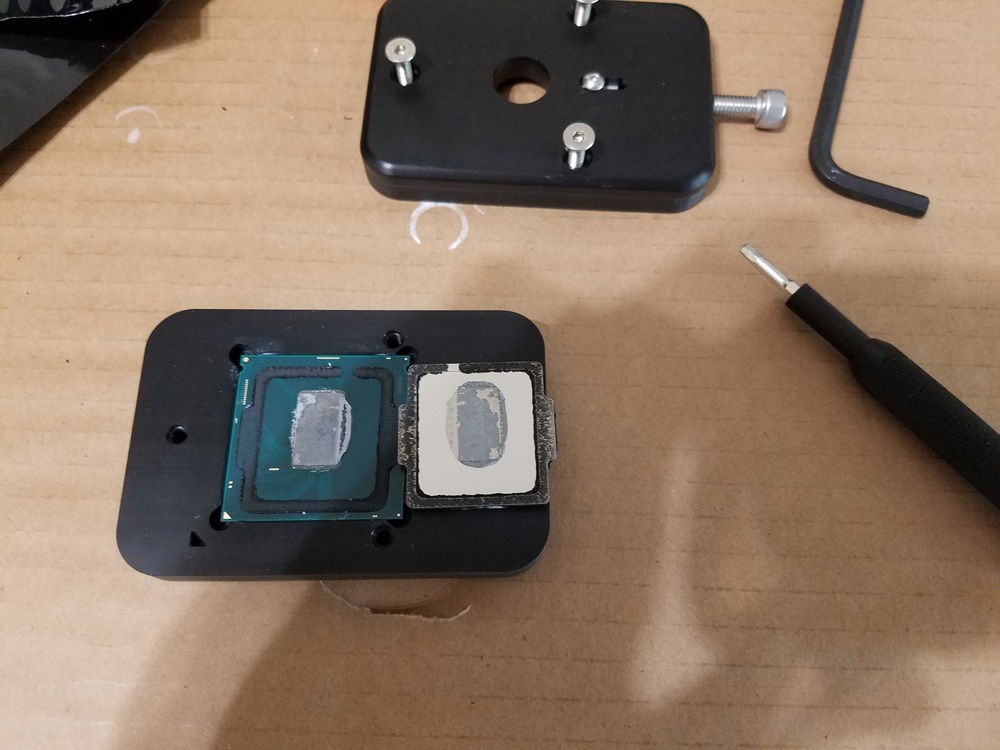

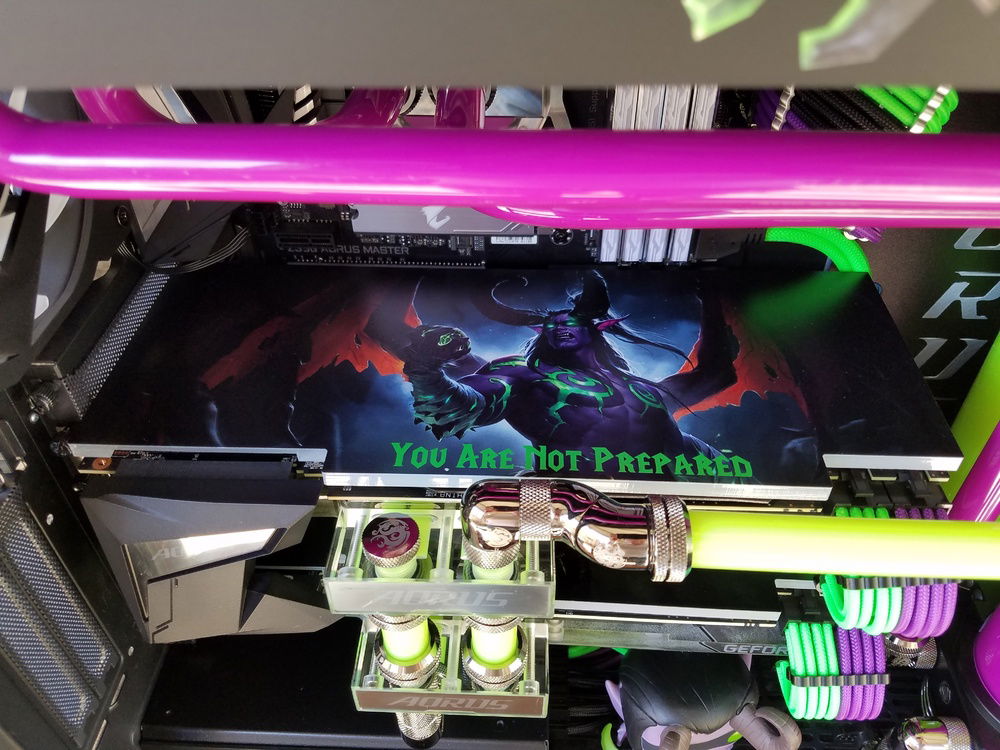

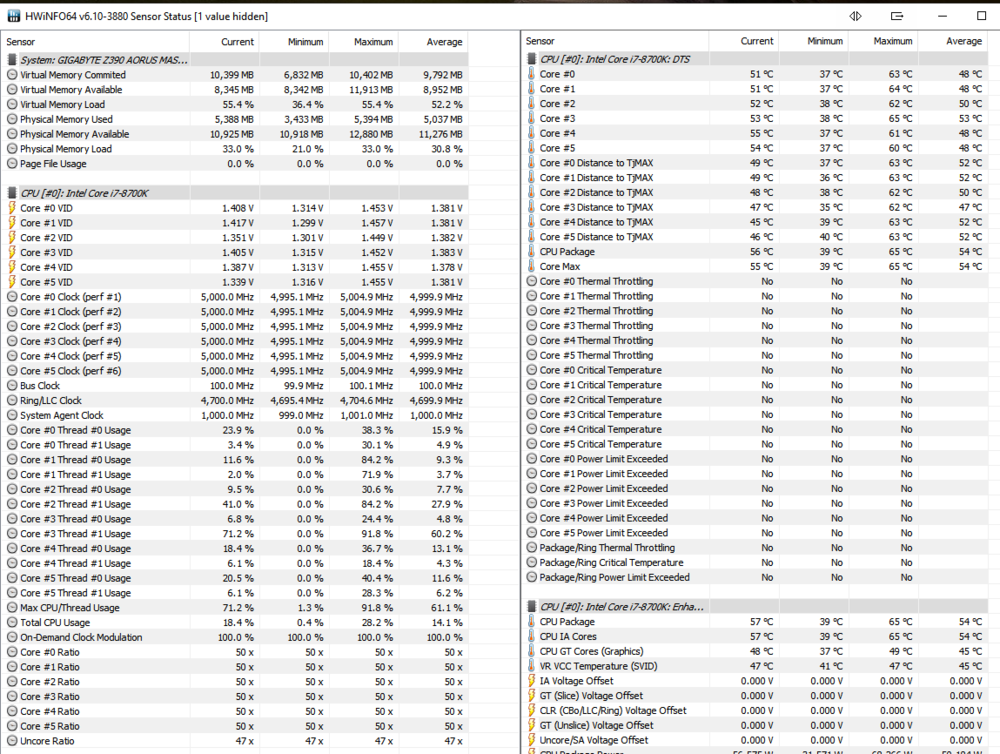

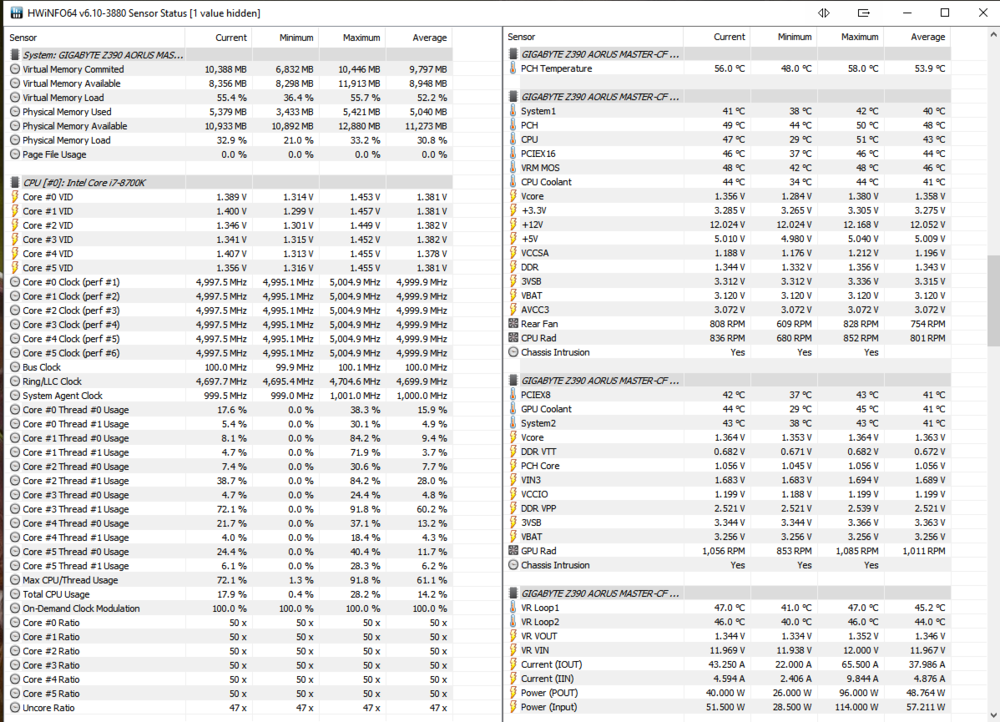

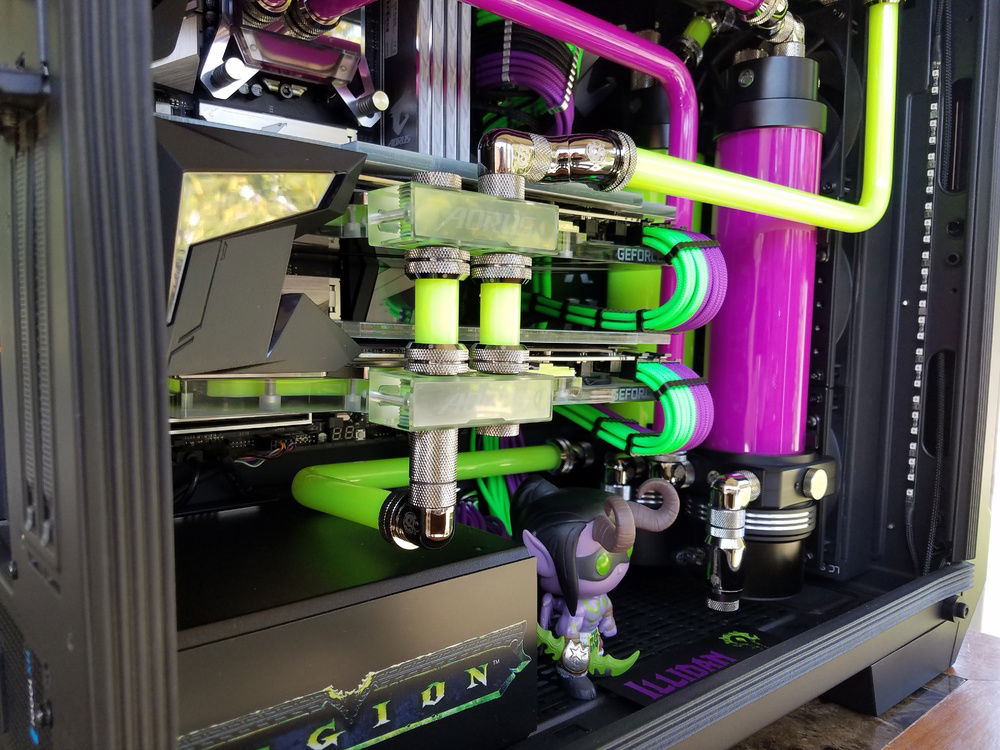

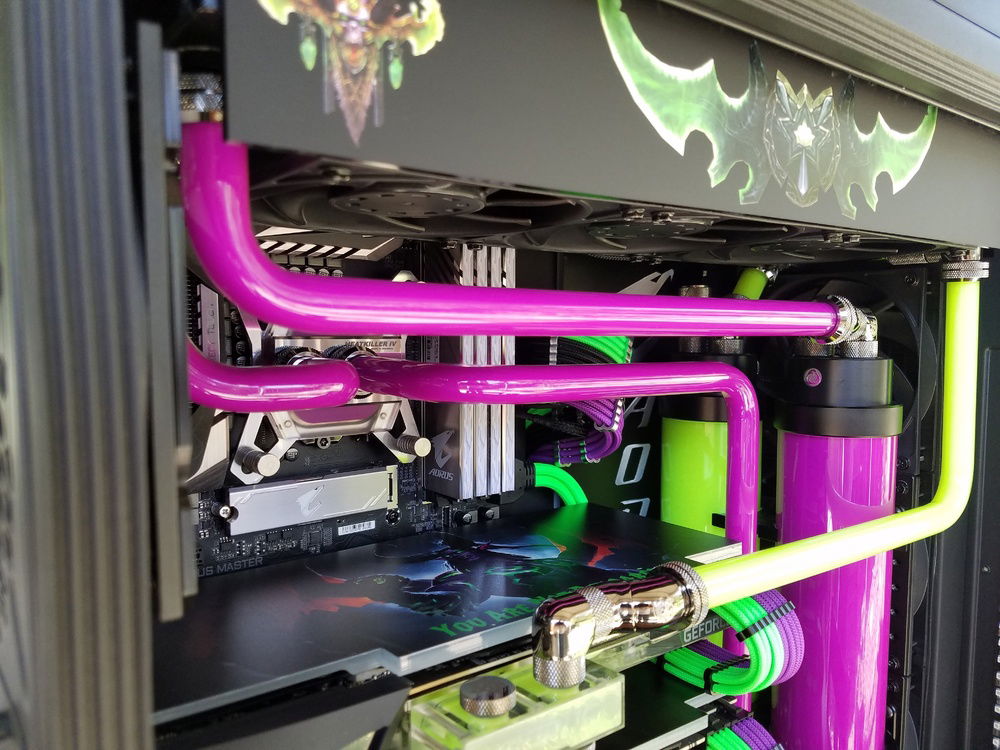

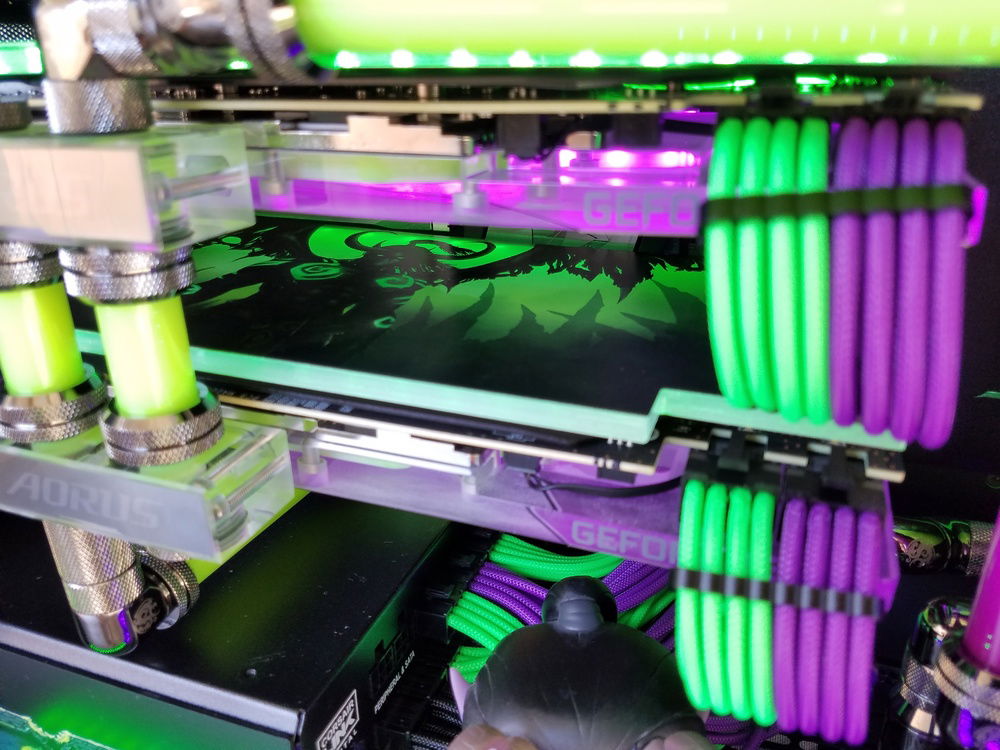

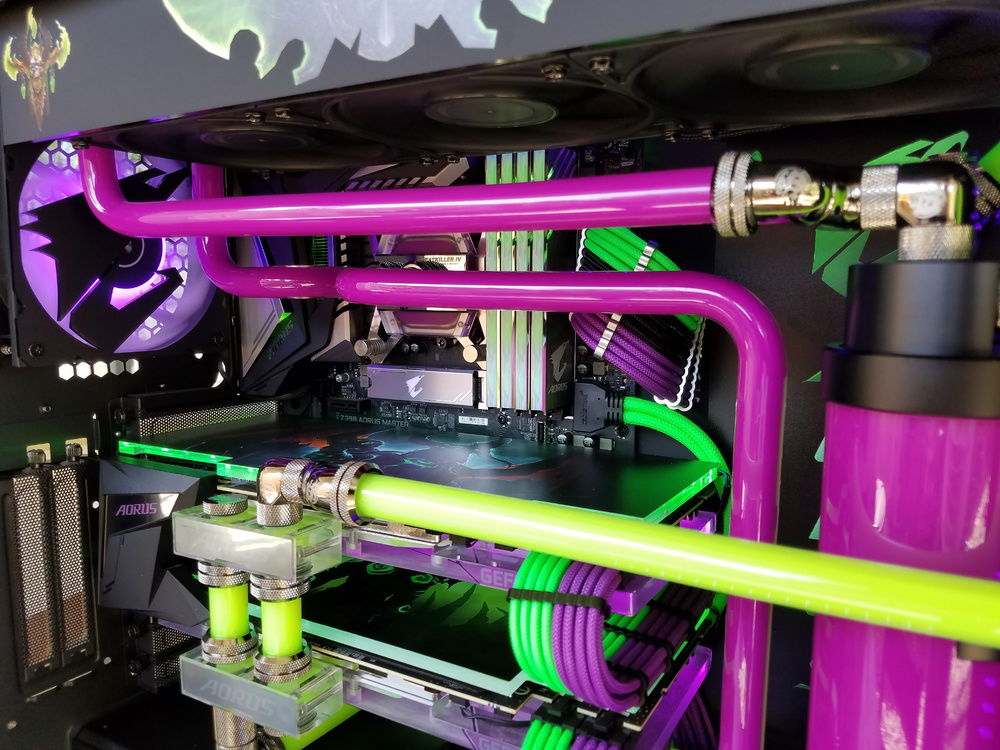

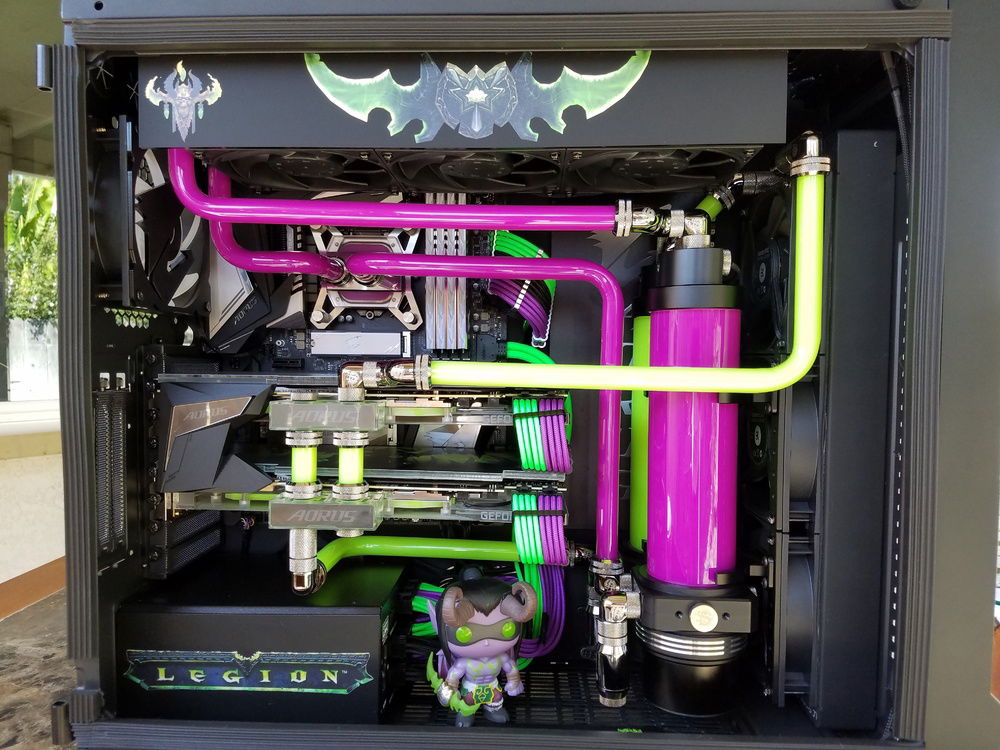

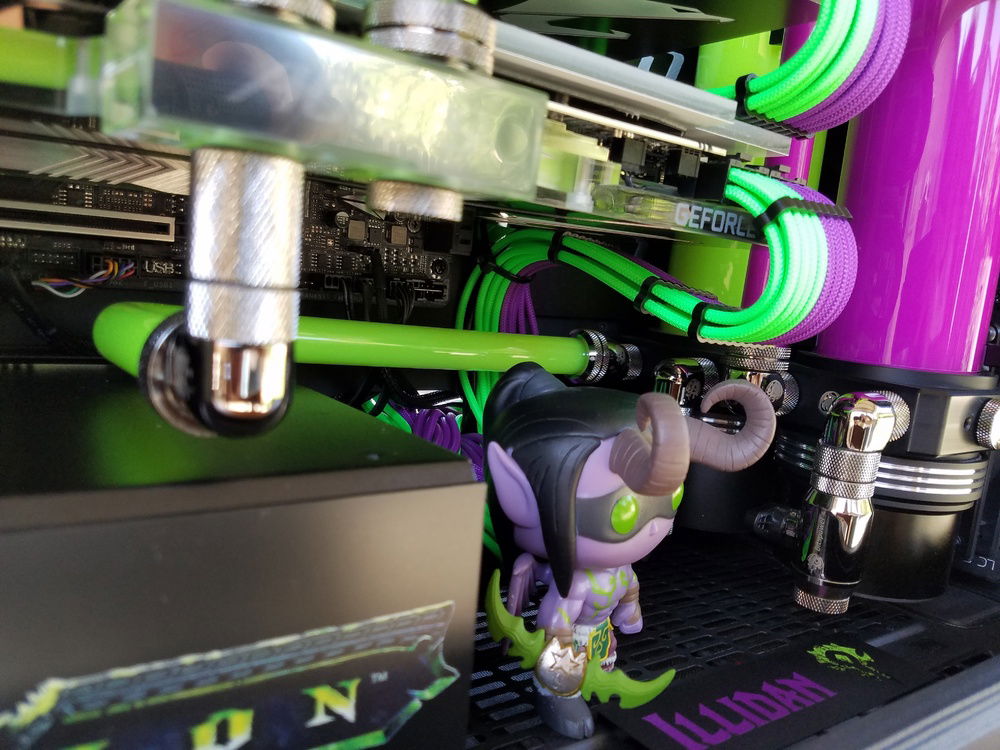

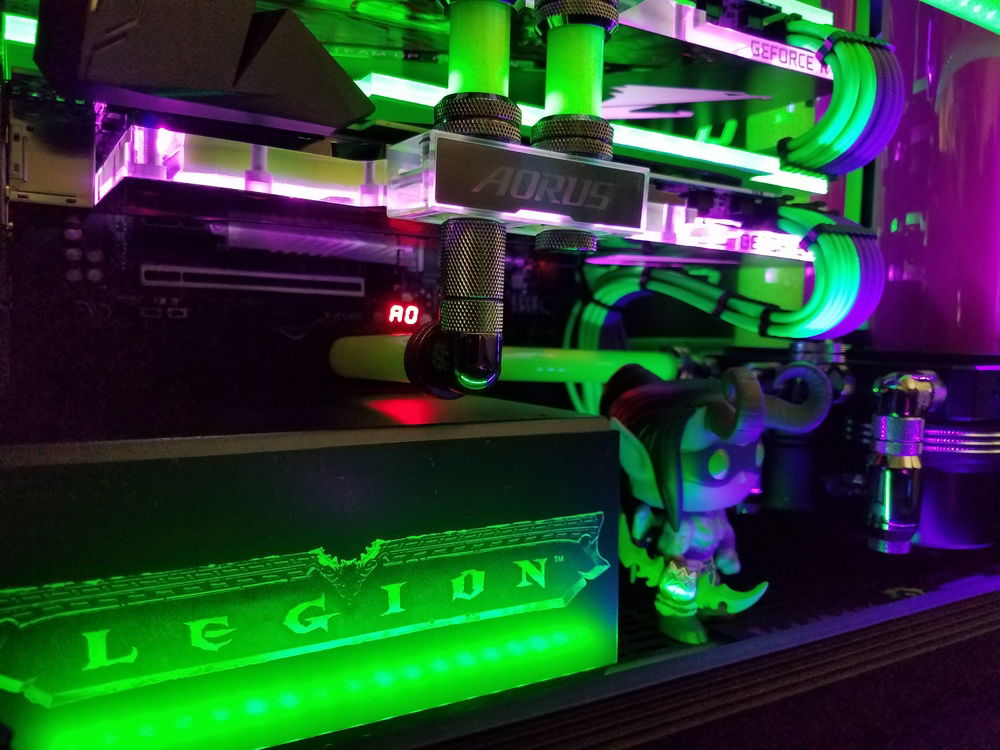

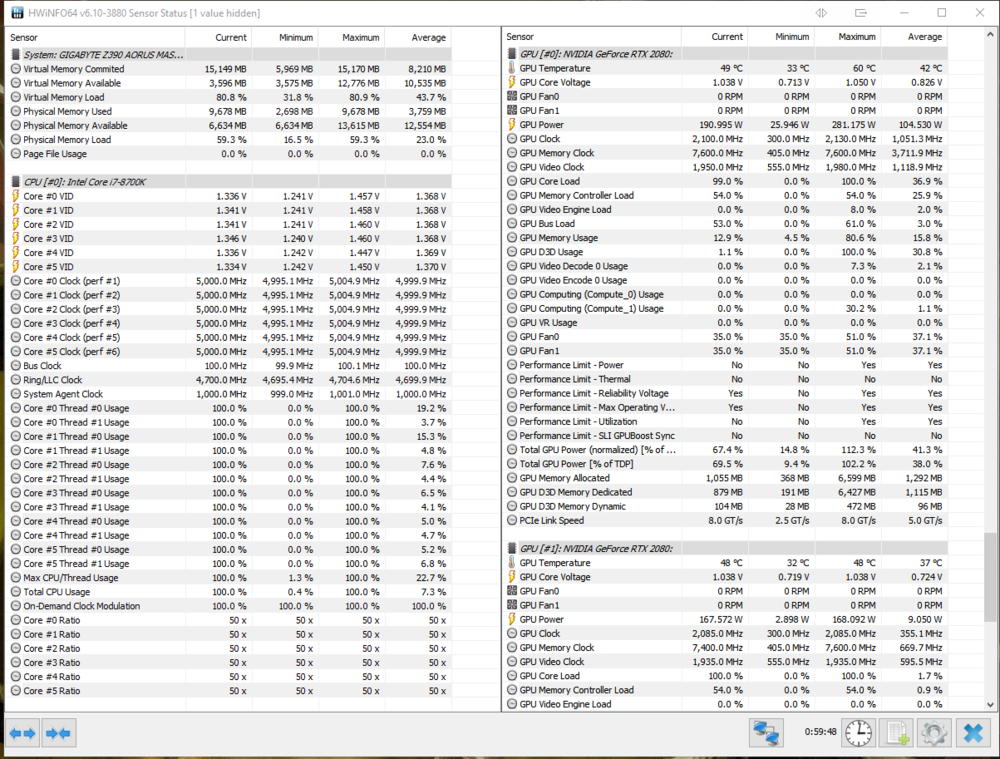

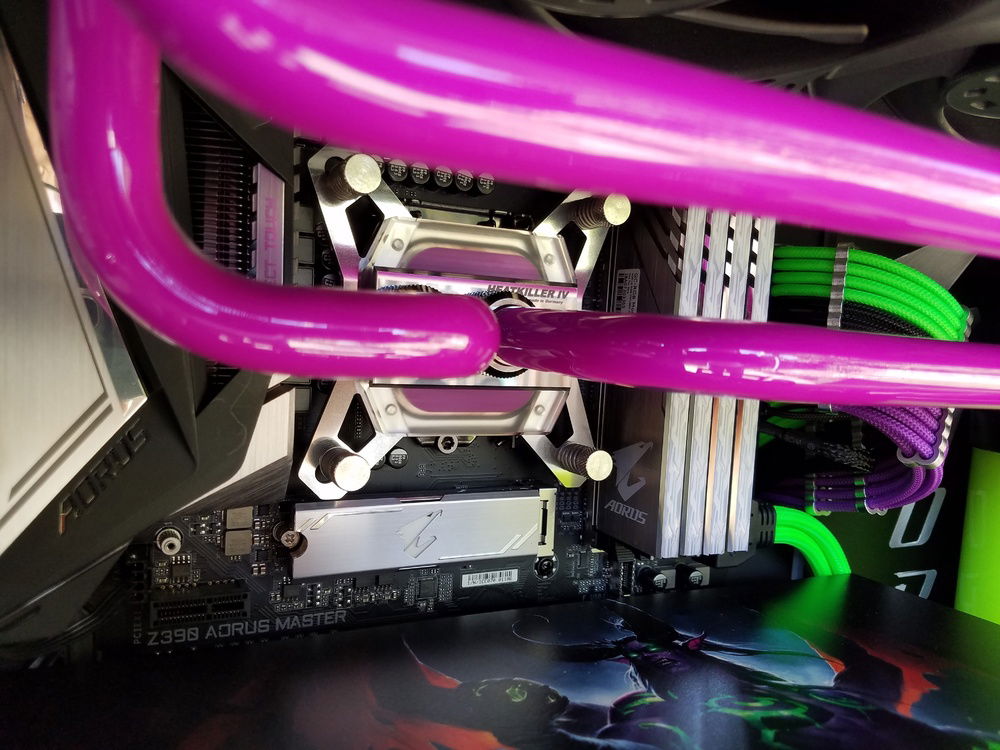

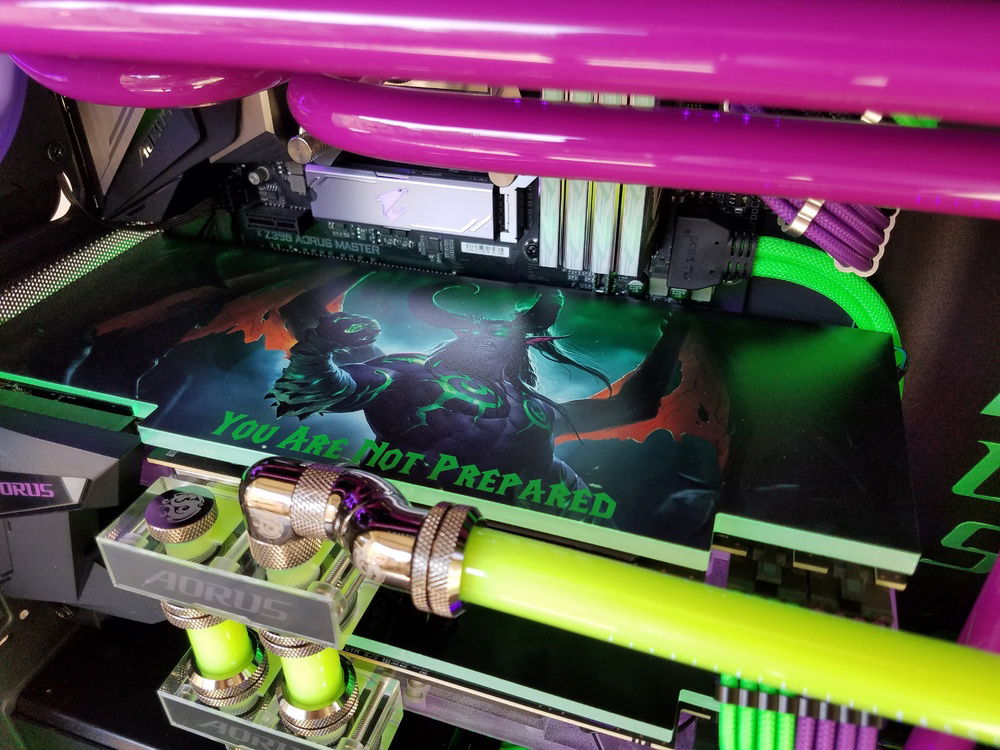

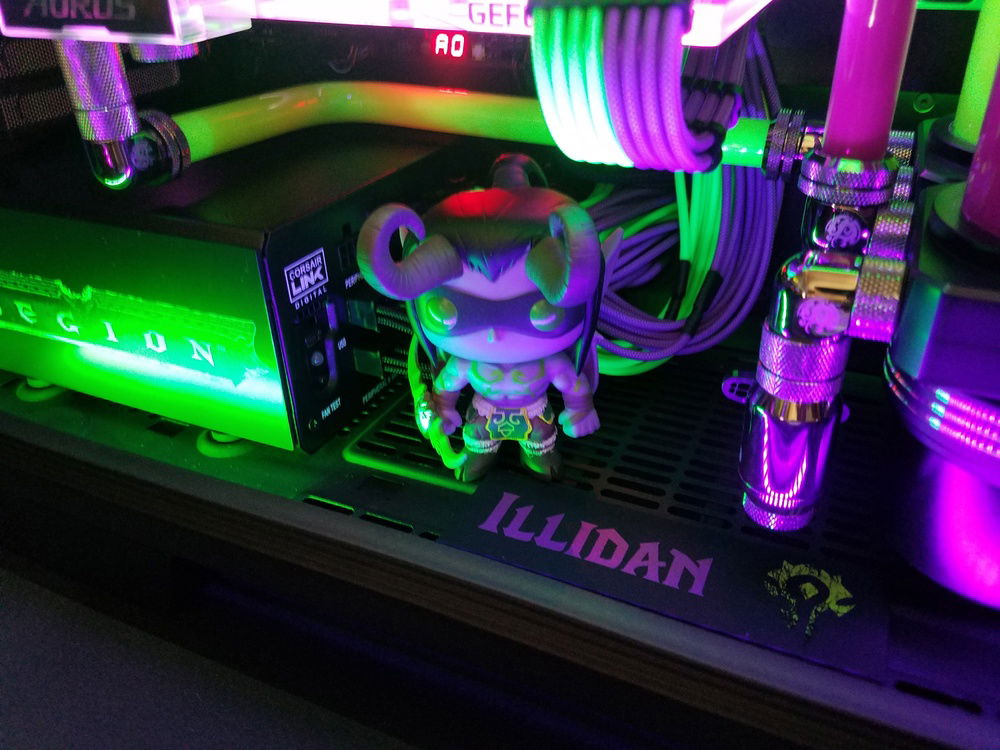

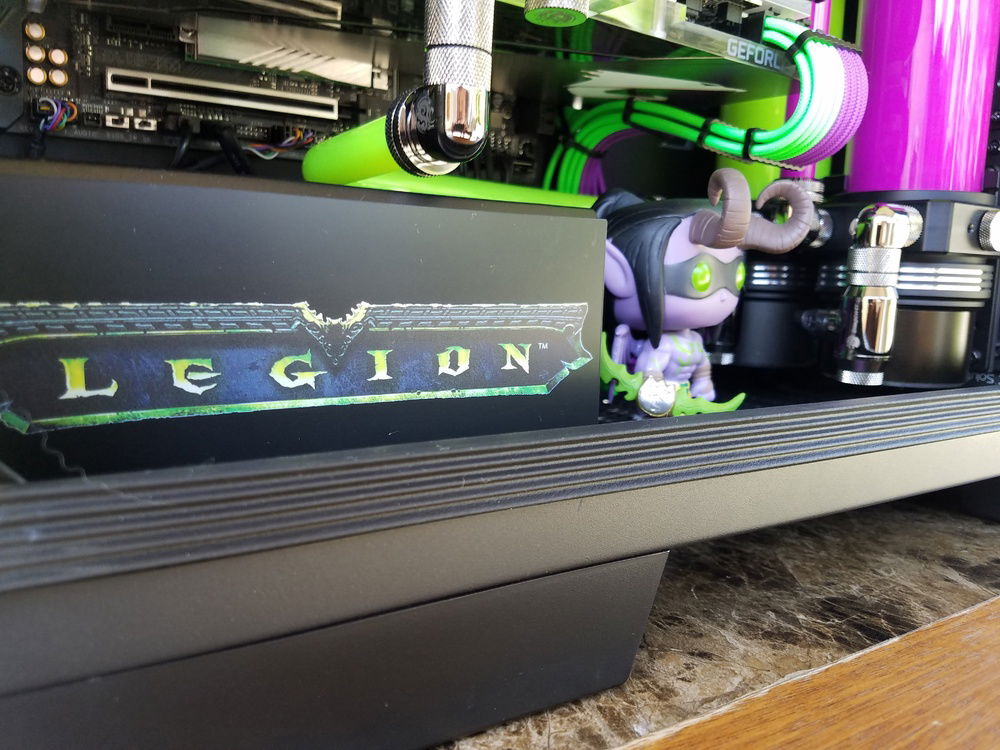

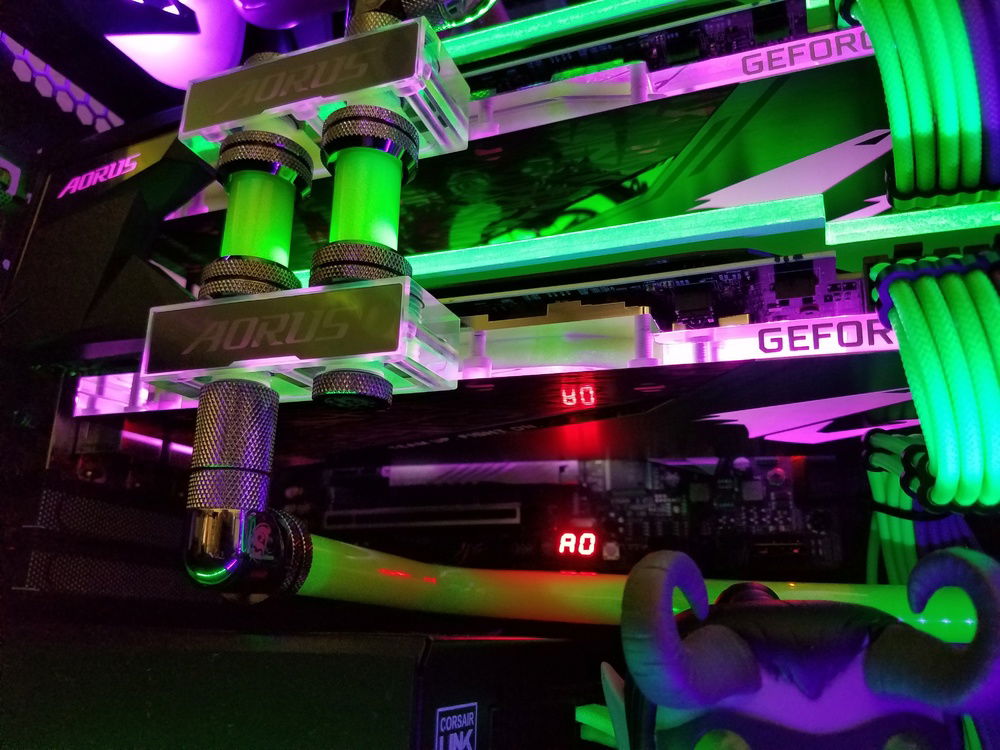

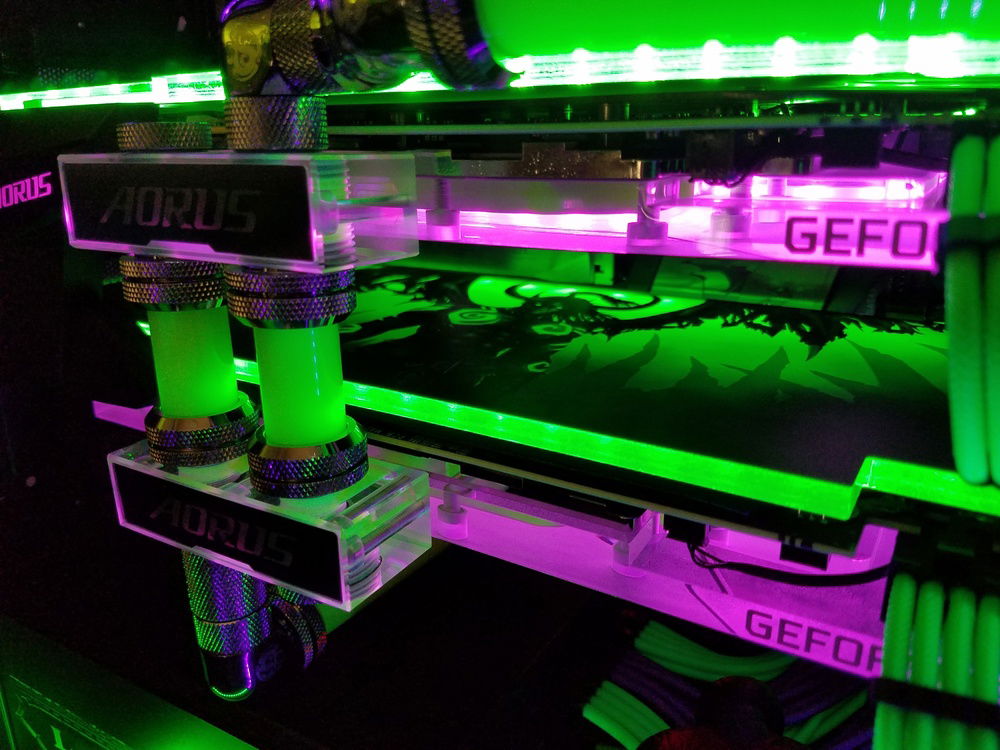

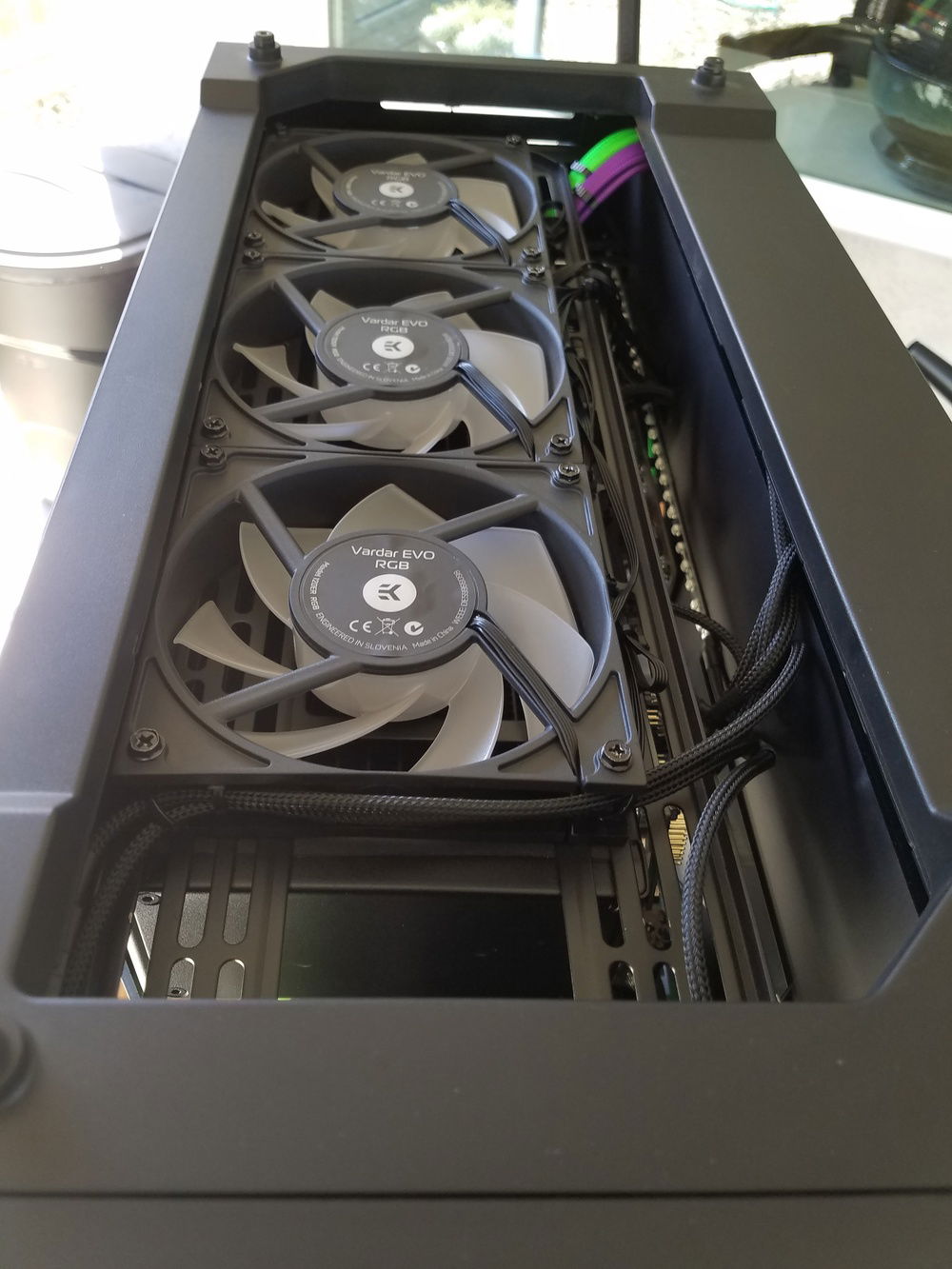

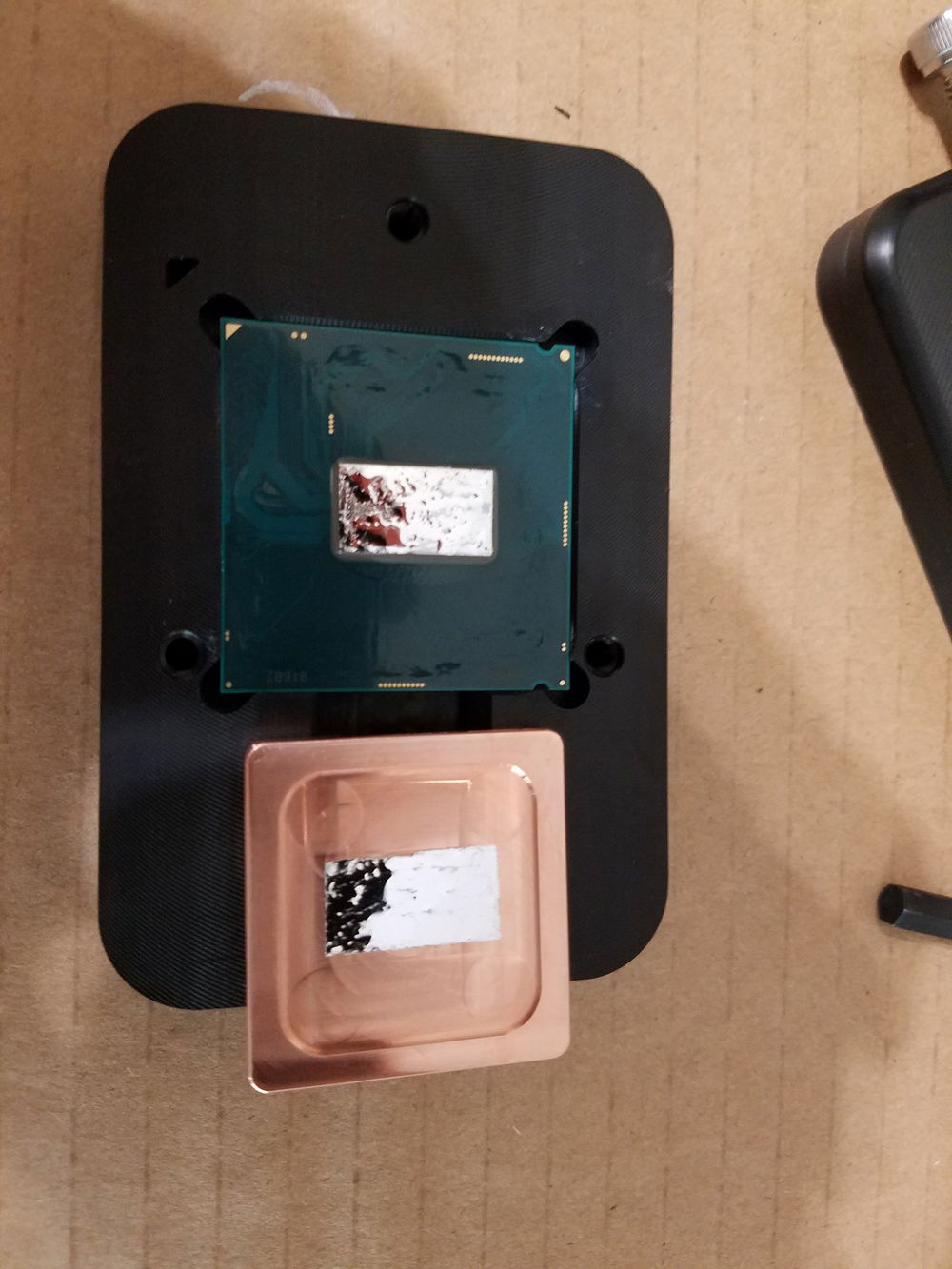

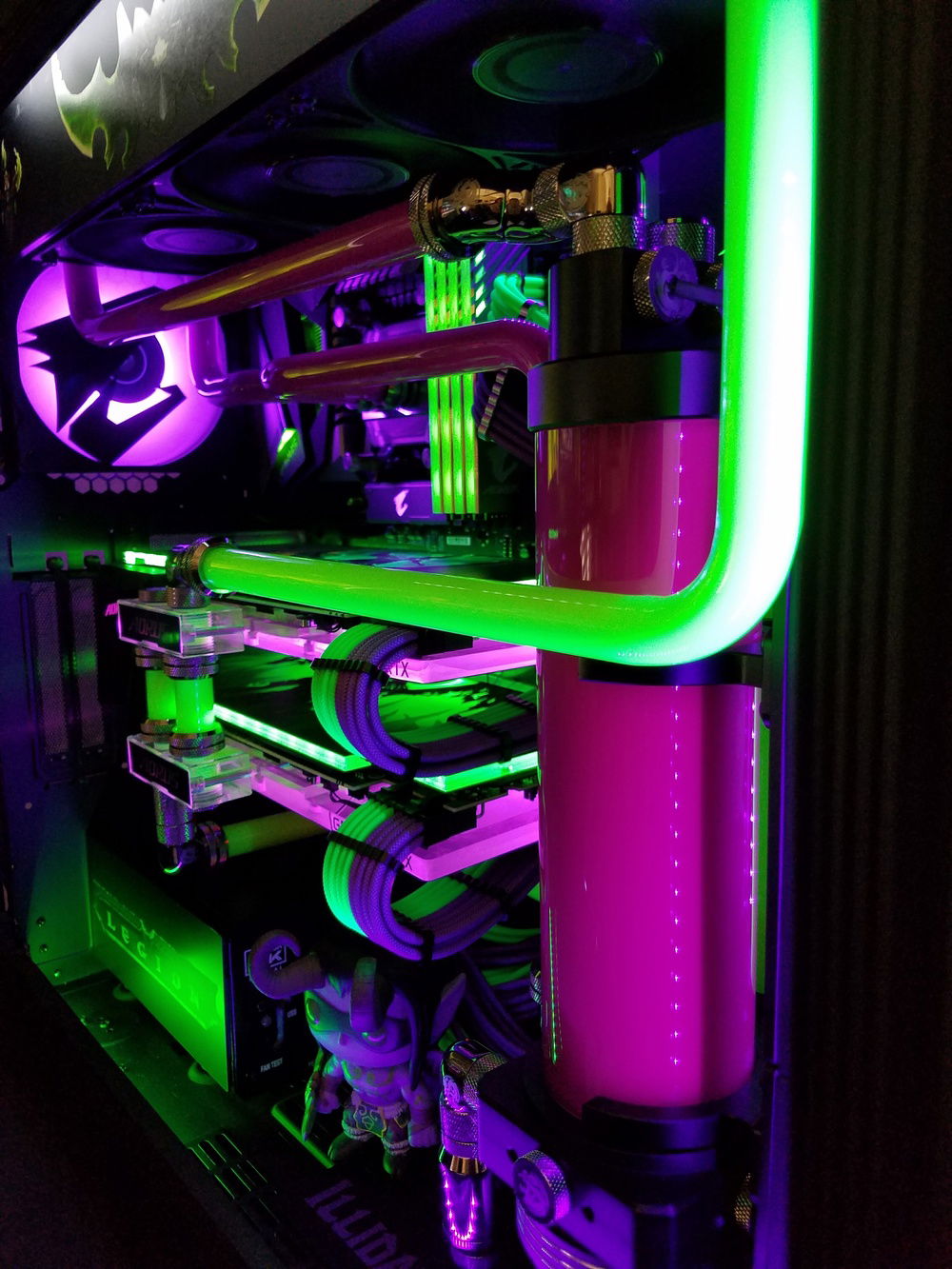

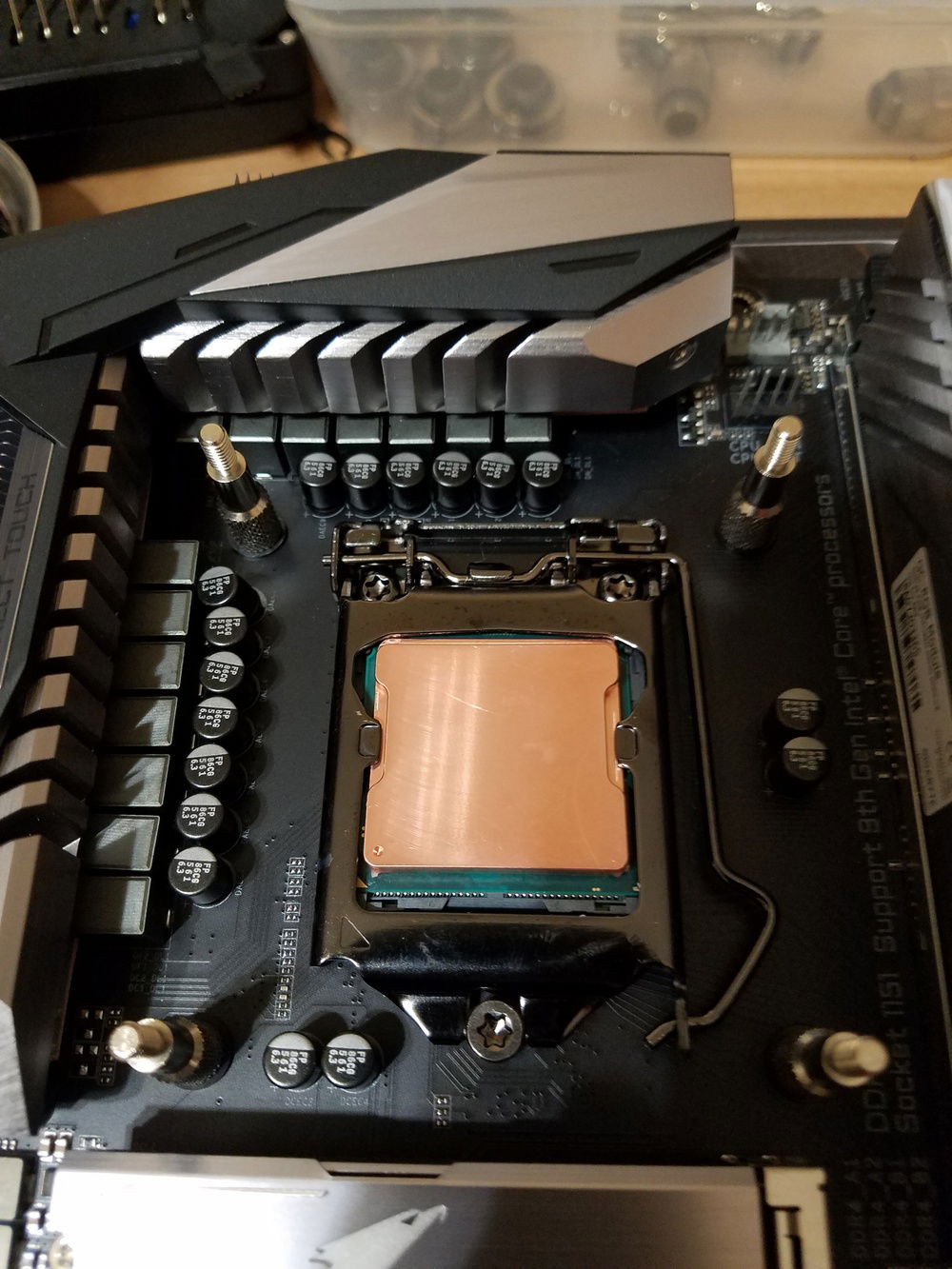

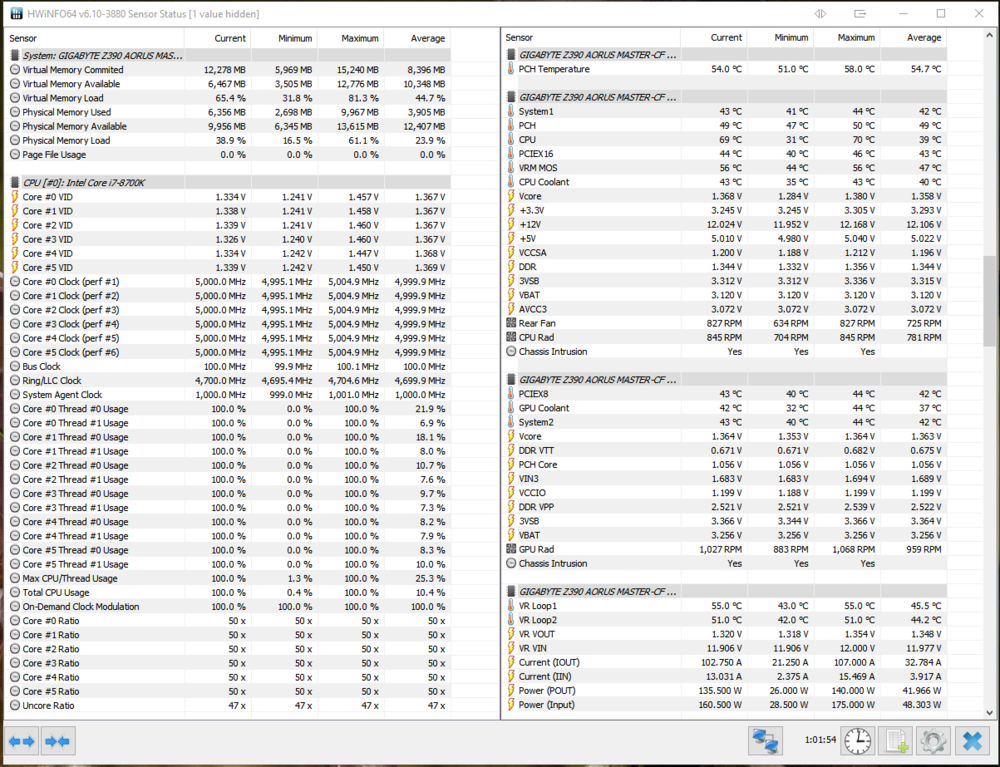

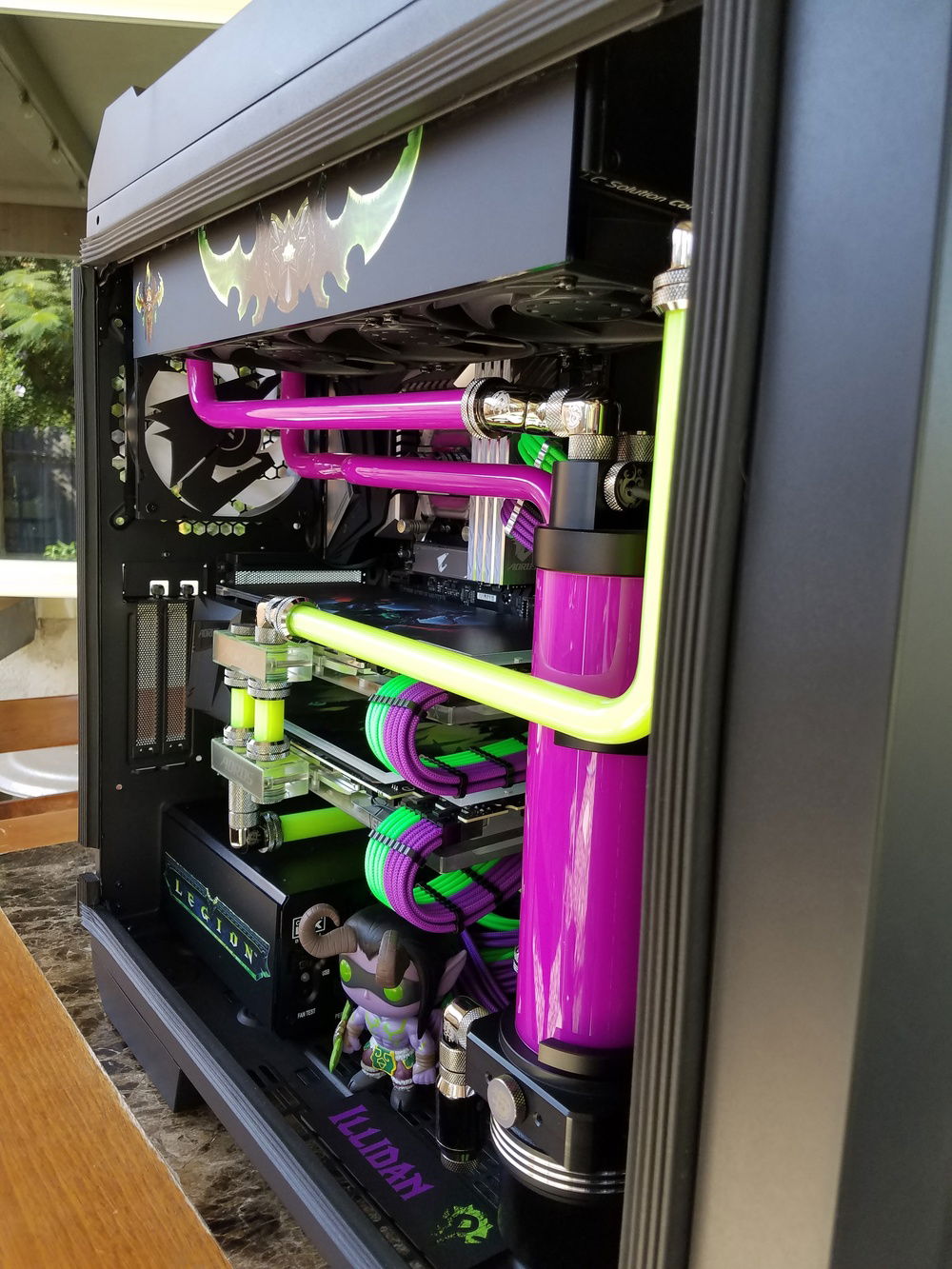

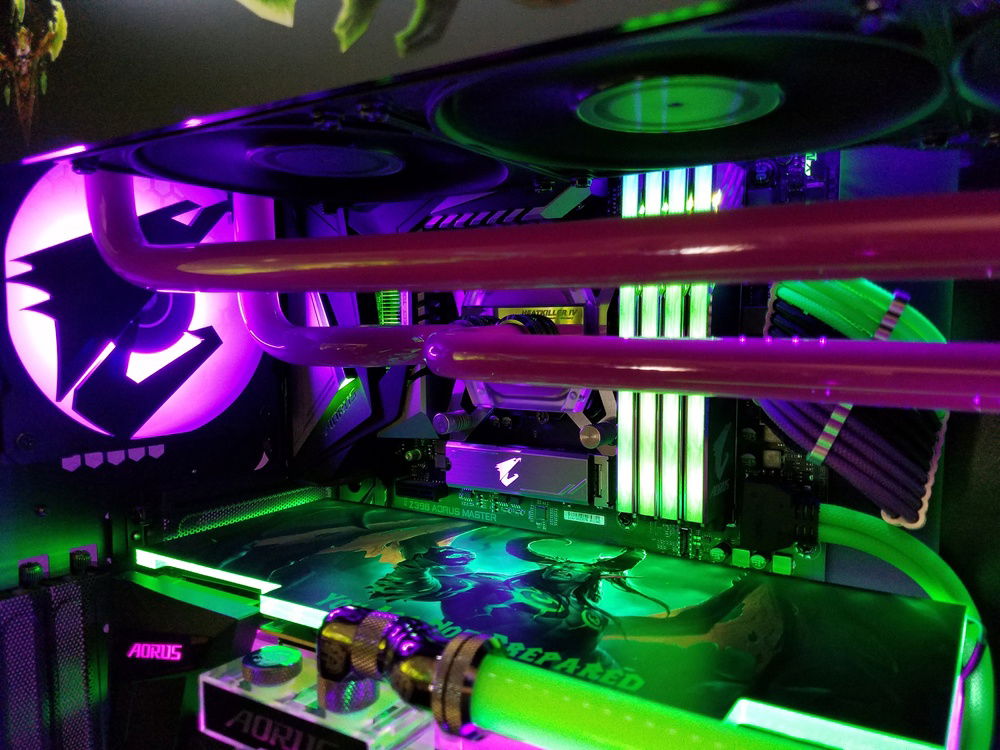

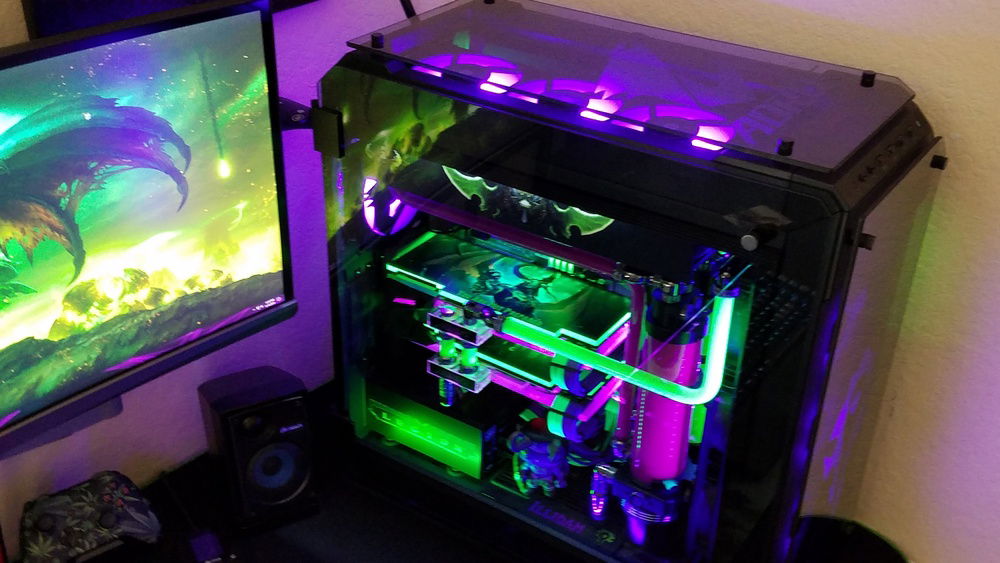

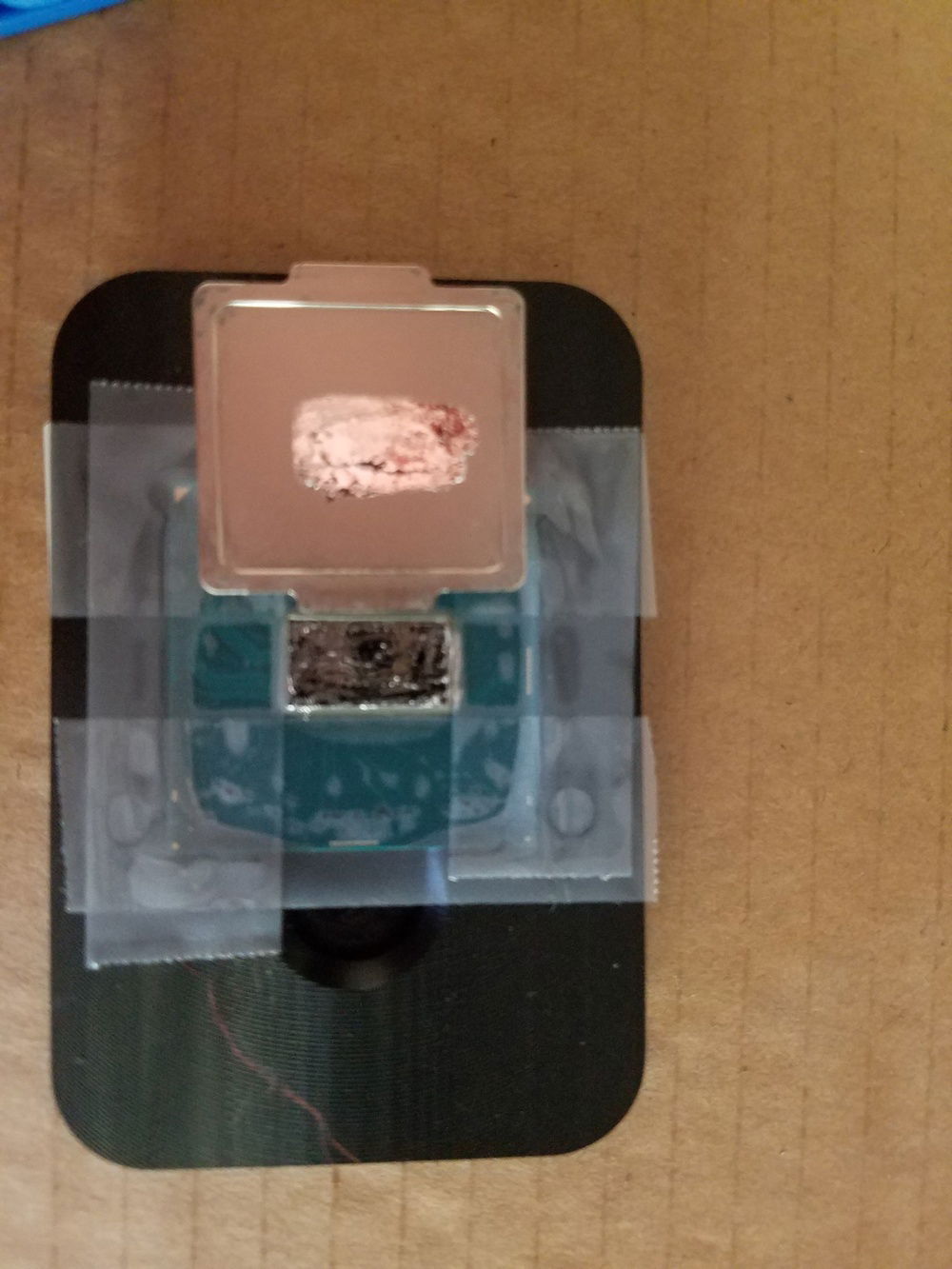

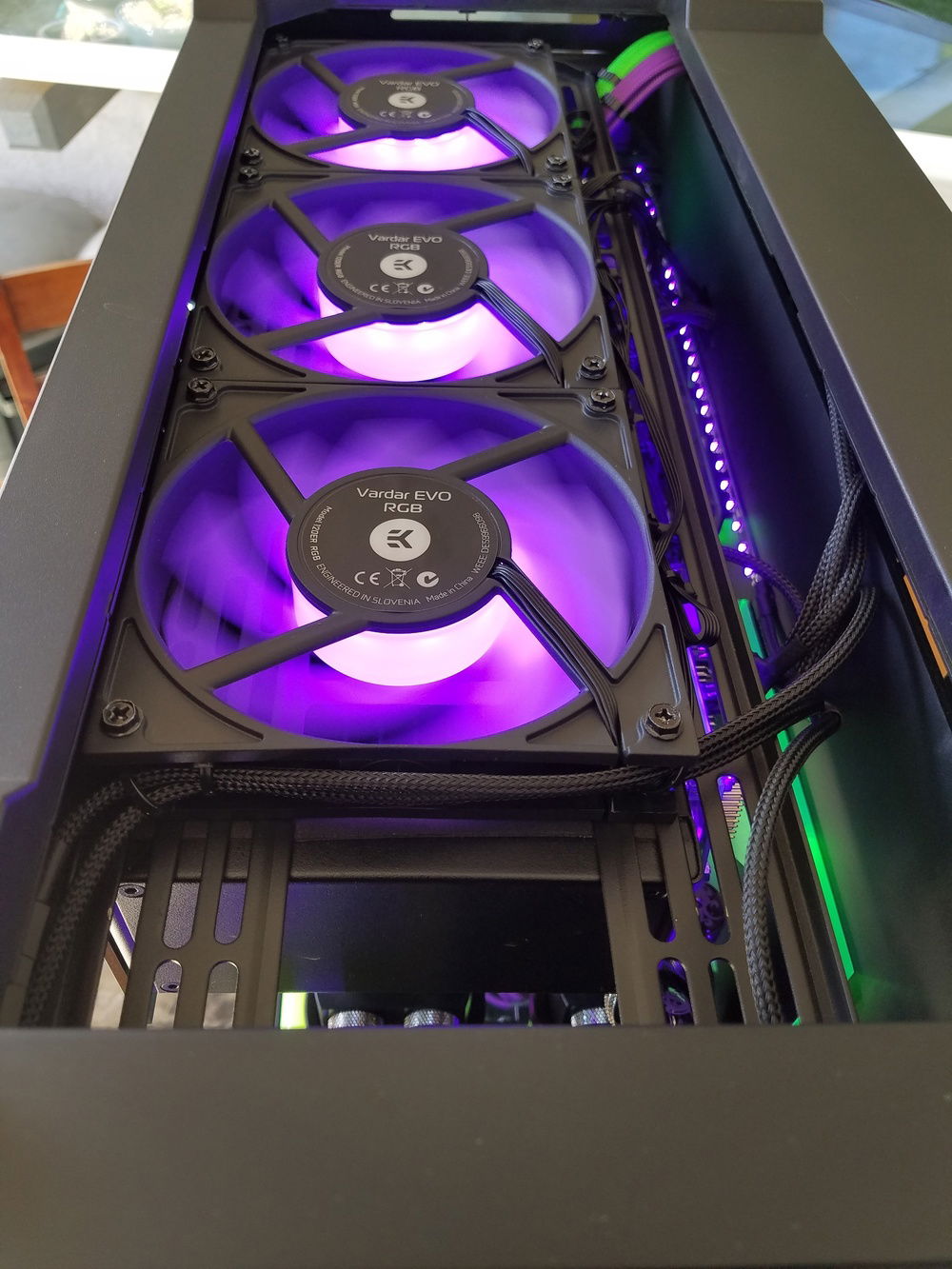

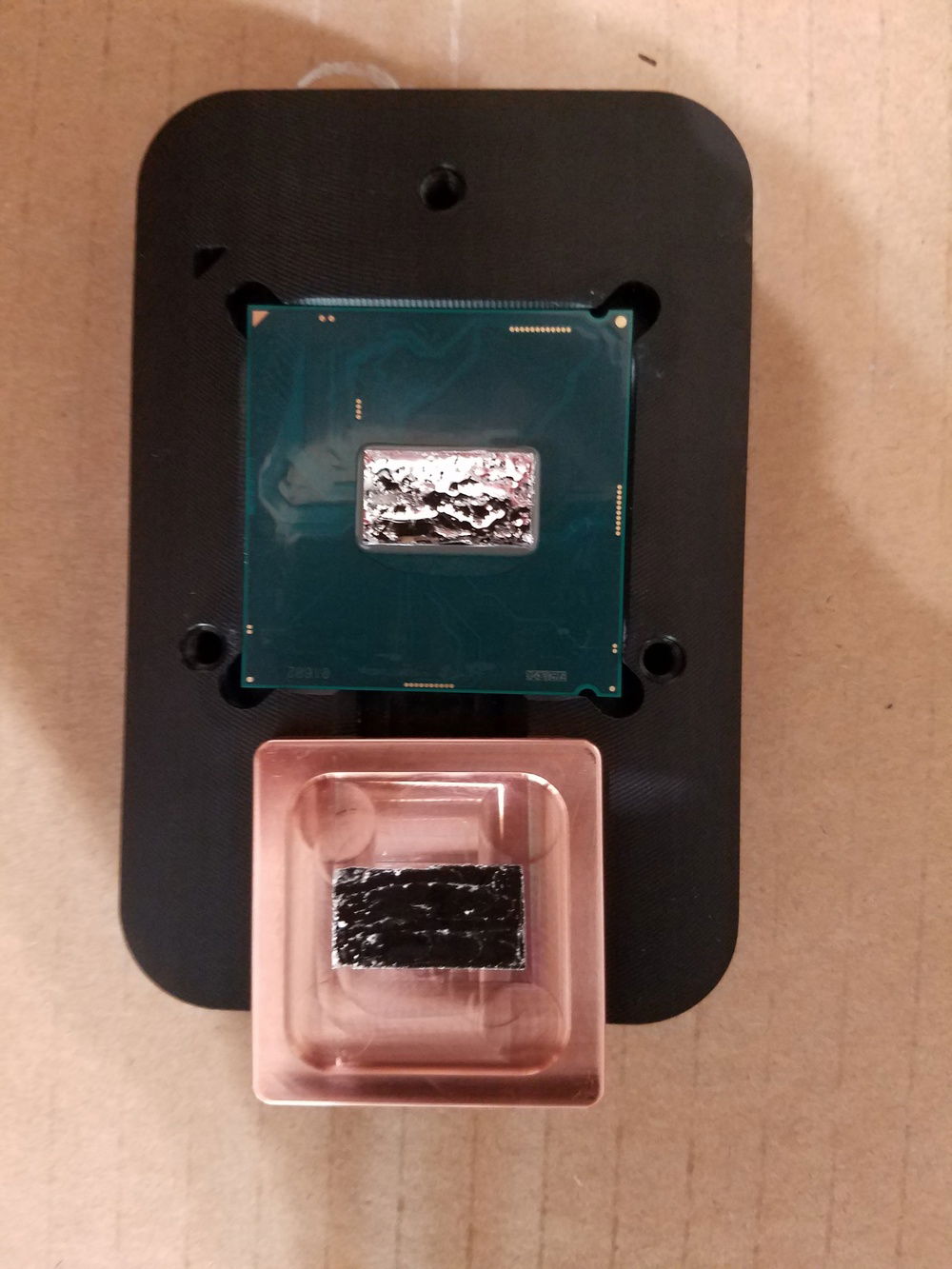

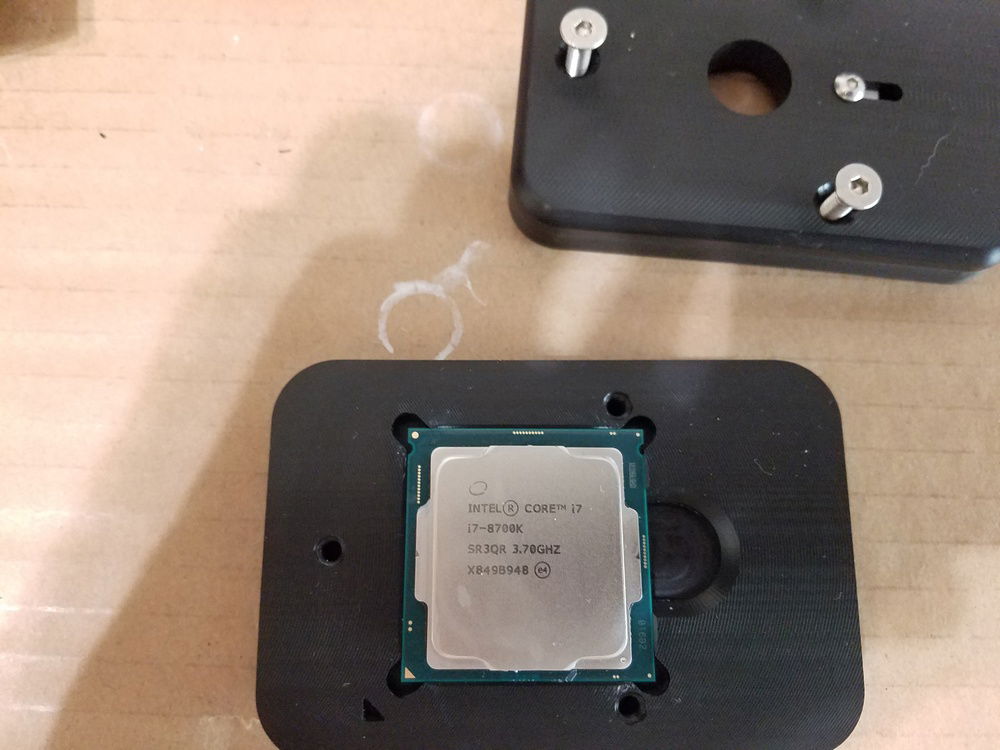

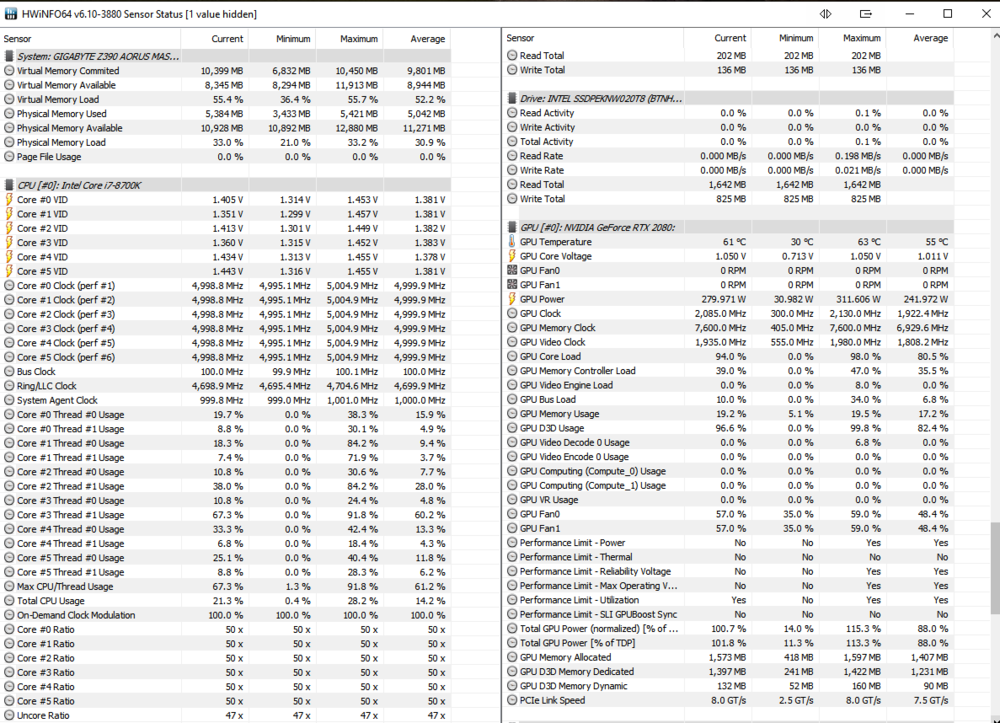

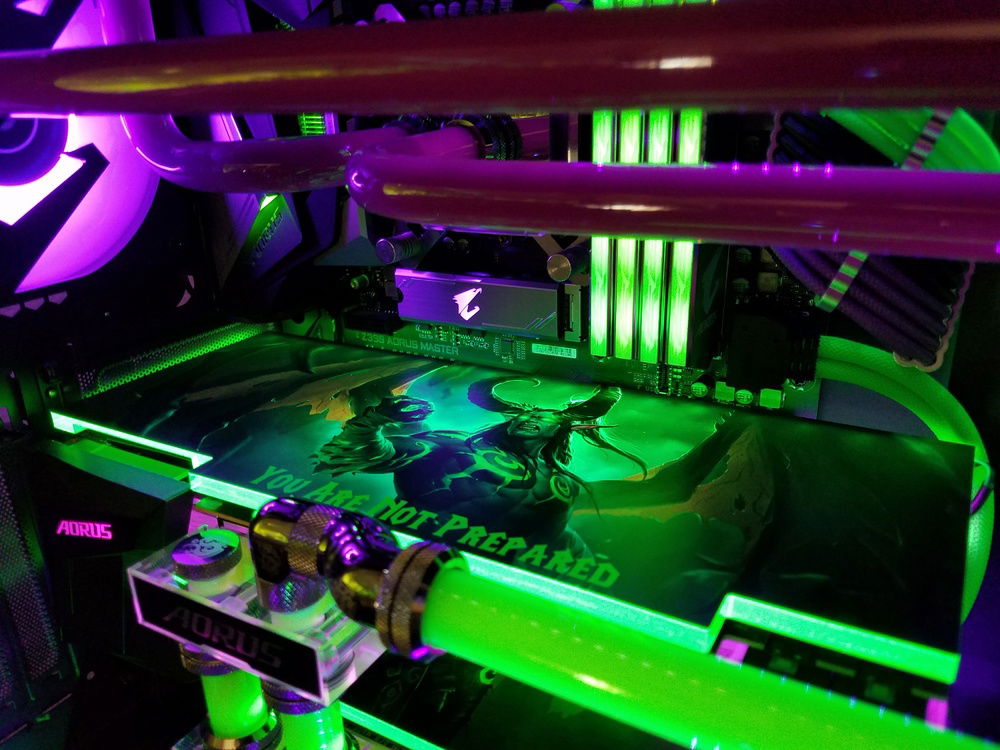

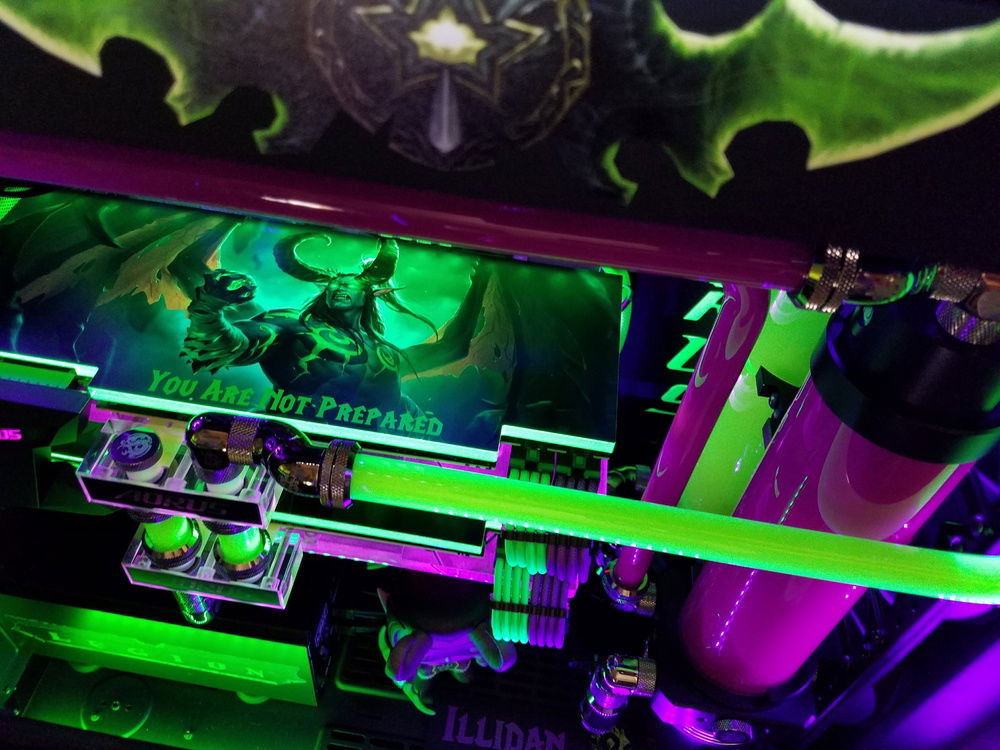

Build has been through a few revisions both hardware and building. This is the final outcome of the design that is my final rig. Storage listed is actually larger models but are not listed yet, used for references to the models used. CPU has been delided and IHS replaced with a copper IHS offered by Rockit Cool. This allowed me to get 5.0 Ghz at 1.362V and sitting good on temps. GPU's also OC to +75Mhz on clock and +530 on Vmem. Temps sitting good on both CPU peaking low/mid 50C and GPUS peaking low 60C under full gaming loads. Unit runs nice an quite with the 13 EK Vardar fans, max RPM under loads @ 1100 RPM; both rads running push/pull. Was not able to run the CPU past 4.7 Ghz comfortably before due to heat and thermal throttling, delid with liquid metal and new IHS has made a drastic improvement. Custom plates made by ColdZero.ue working with Ricardo on these has been a very pleasant experience and the work look great, I would suggest him to anyone looking for a little customization for their build.
Color(s): Green Purple
RGB Lighting? Yes
Theme: Video Game
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 165.00
Intel - Core i7-8700K
Socket: LGA 1151
Cores: 6
Integrated Graphics: Yes
Motherboard
$ 419.49
Gigabyte - Aorus Master
Chipset: Z390
CPU Socket: LGA 1151
Size: ATX
Memory
$ 174.99
Gigabyte - Aorus (RGB) (3200MHz)
Type: DDR4
Capacity: 16 GB

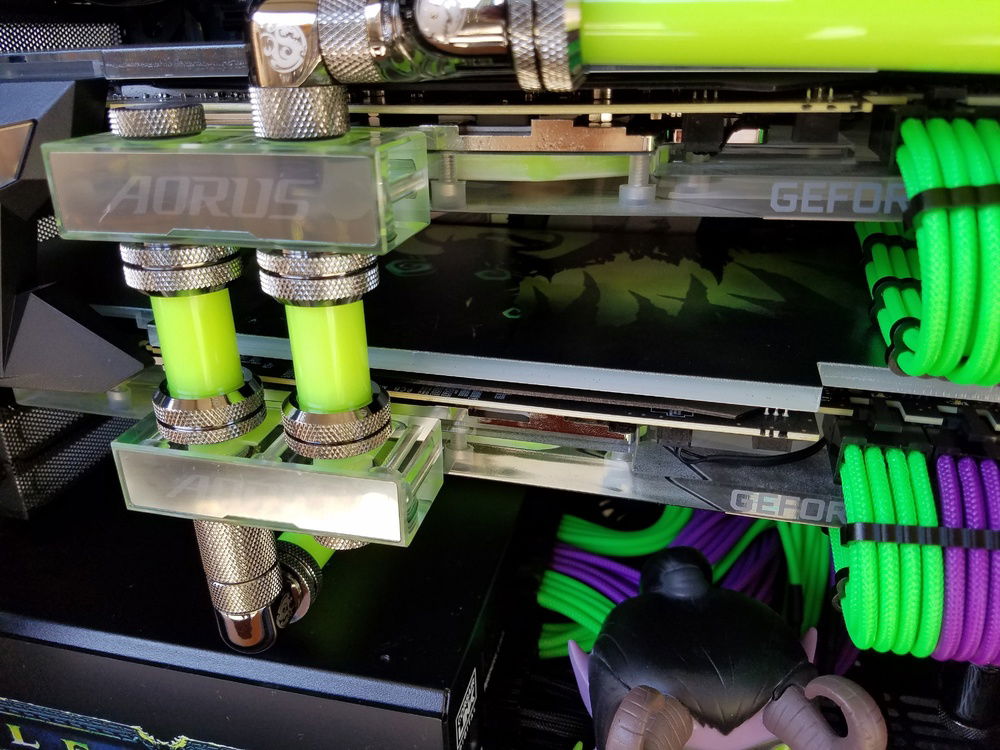

Graphics

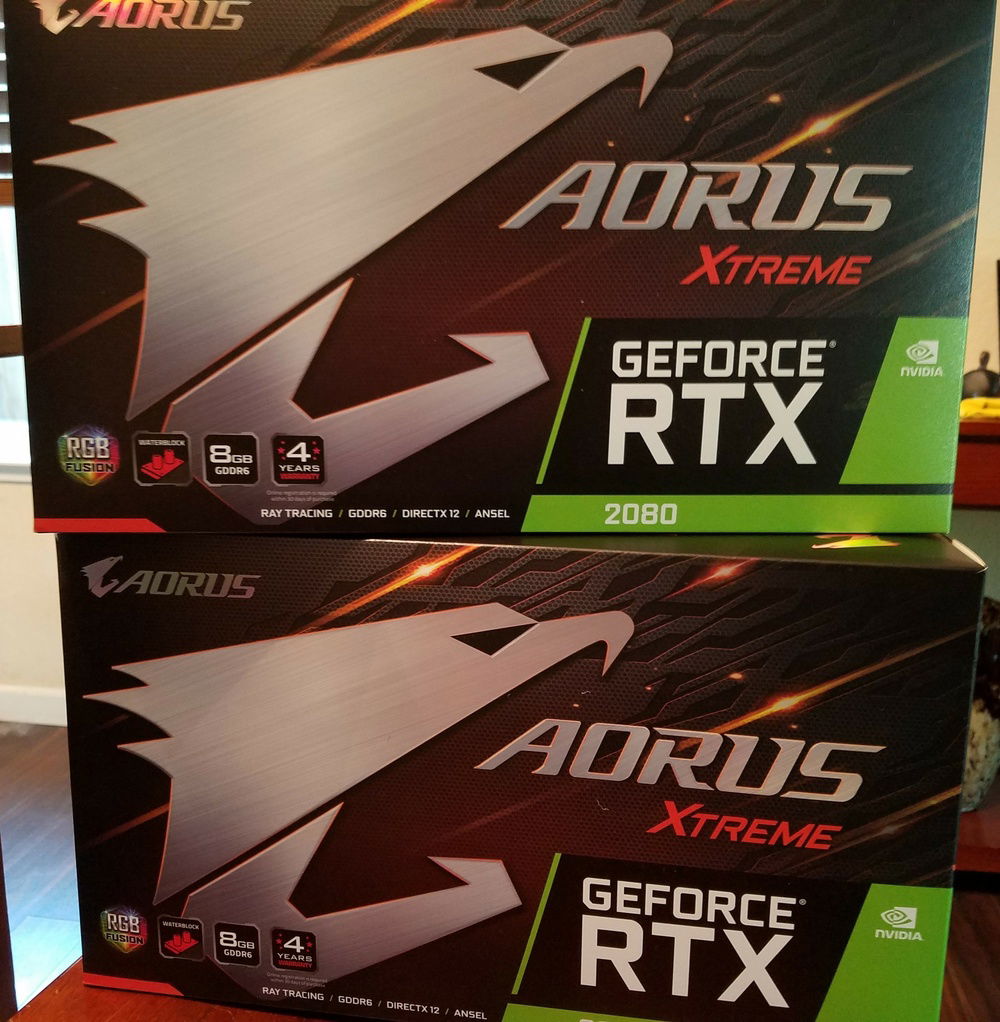

Gigabyte - AORUS Extreme Waterforce WB
Chip Manufacturer: NVIDIA
Chip: RTX 2080
Graphics
Gigabyte - AORUS Extreme Waterforce WB
Chip Manufacturer: NVIDIA
Chip: RTX 2080
Storage
Gigabyte - Aorus (RGB) (Silver)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 256 GB
Storage
$ 189.00
Intel - 600p
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 35.13

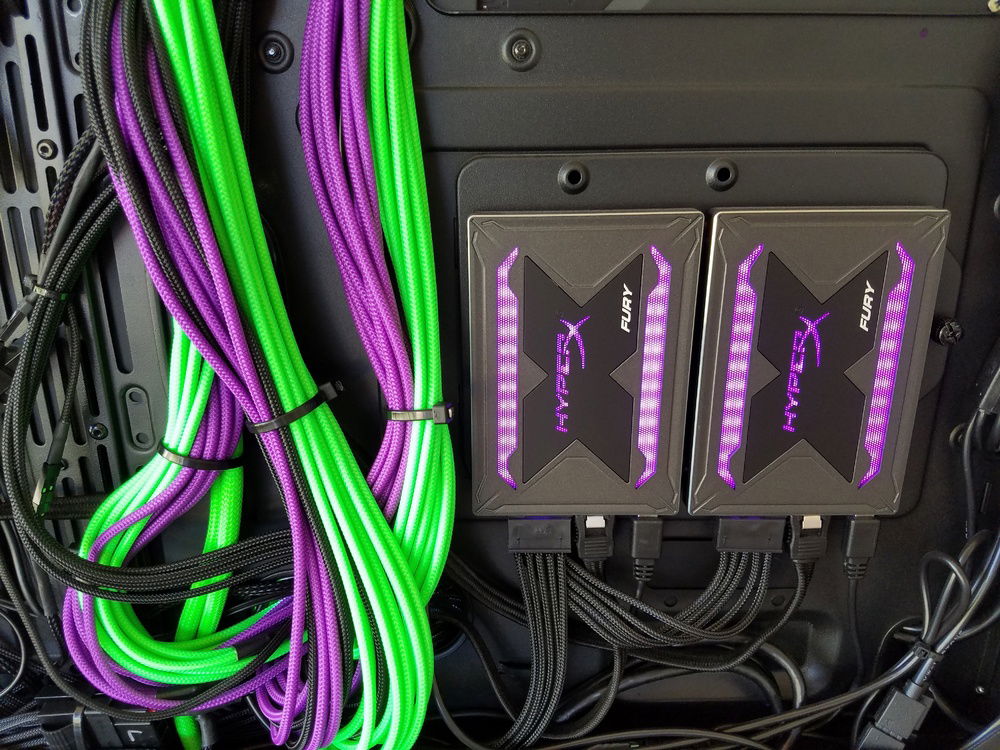

Kingston - HyperX Fury
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 240 GB
Storage
$ 35.13
Kingston - HyperX Fury
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 240 GB
Storage
$ 214.99
Seagate - Barracuda Pro (ST6000DM004)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 6 TB
Storage
$ 147.48
Western Digital - WD Blue (WDS100T2B0A)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
$ 392.09
Corsair - HX1000i
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 219.99

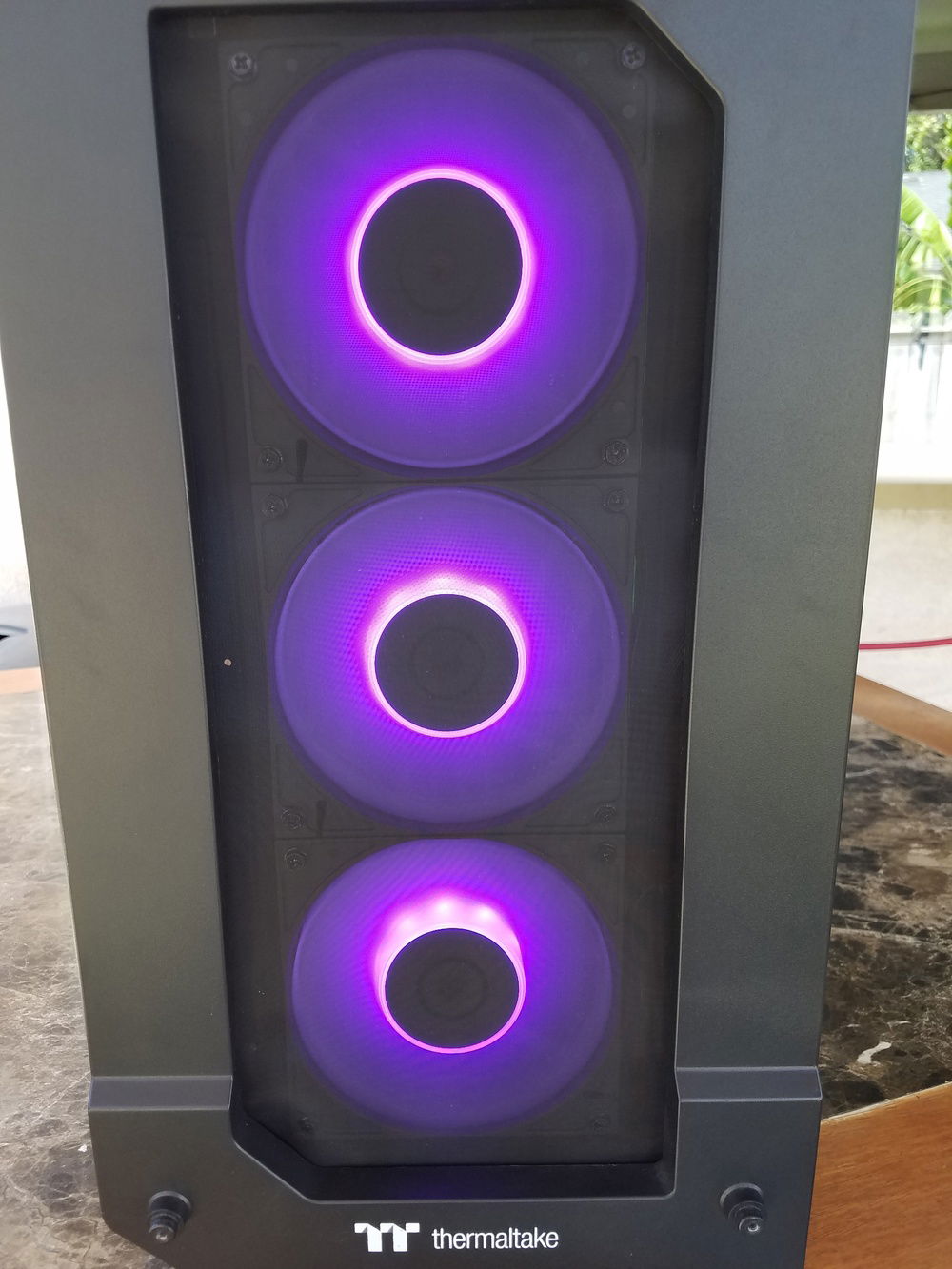

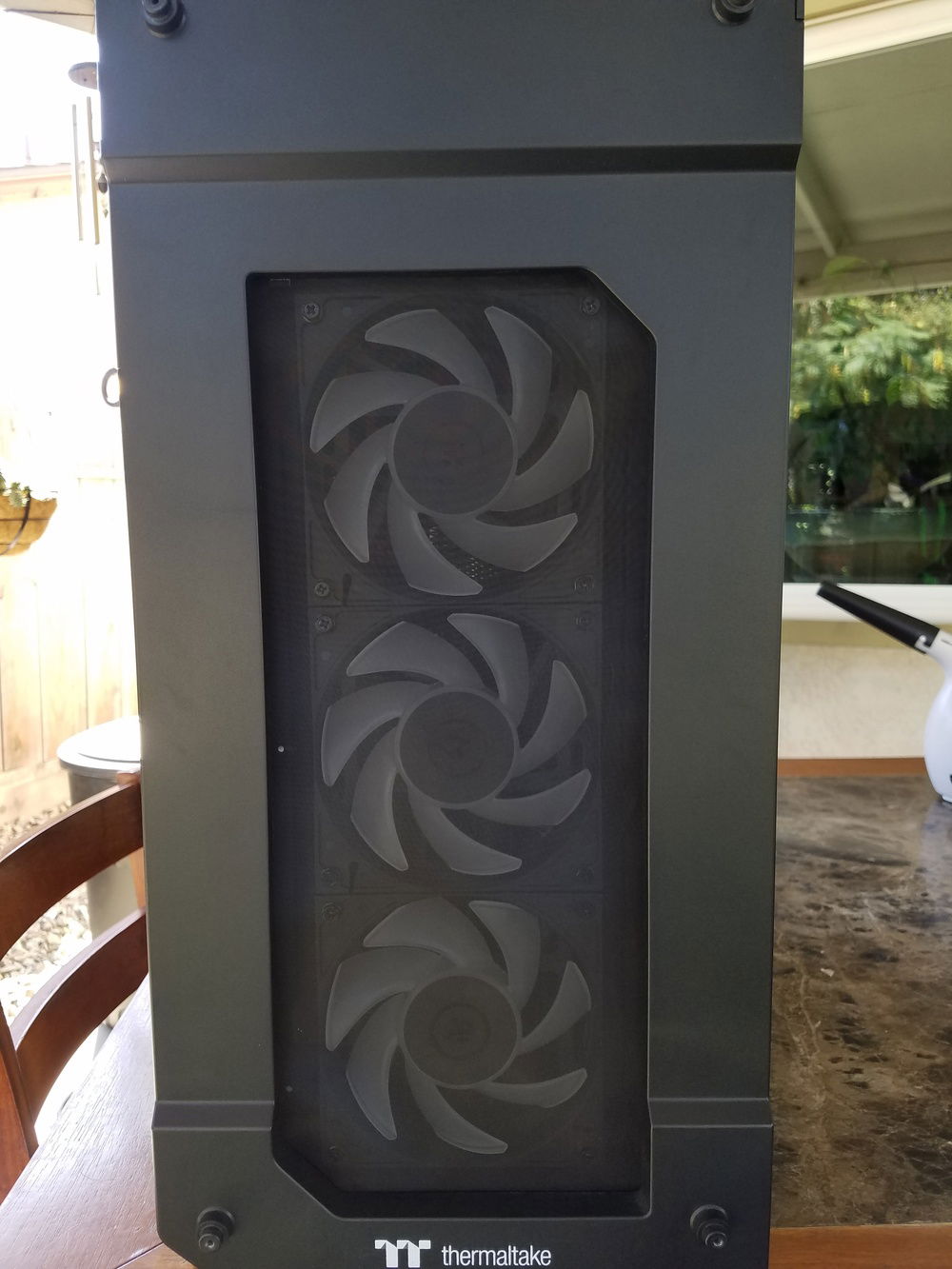

Thermaltake - Thermaltake View 71 TG RGB ATX Full Tower
Type: Full-Tower
Side Panel: Tempered Glass
Case Fan
$ 57.99
Cooling
Aquacomputer - Pump
Type: Custom Loop
Cooling
Bitspower - Fittings
Type: Custom Loop
Cooling
$ 209.06
EKWB - CoolStream PE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 118.95
EKWB - CoolStream XE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)

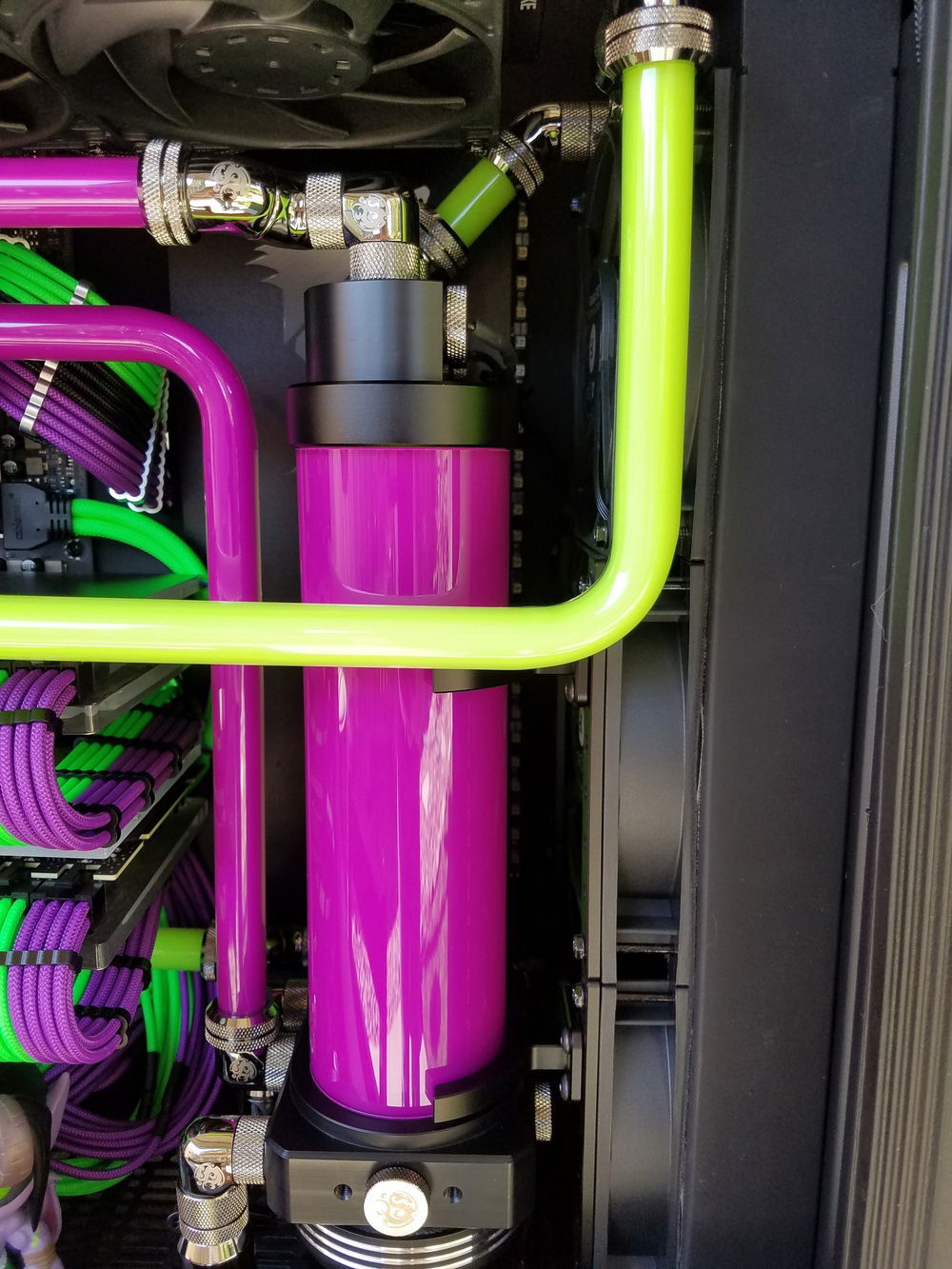

Cooling

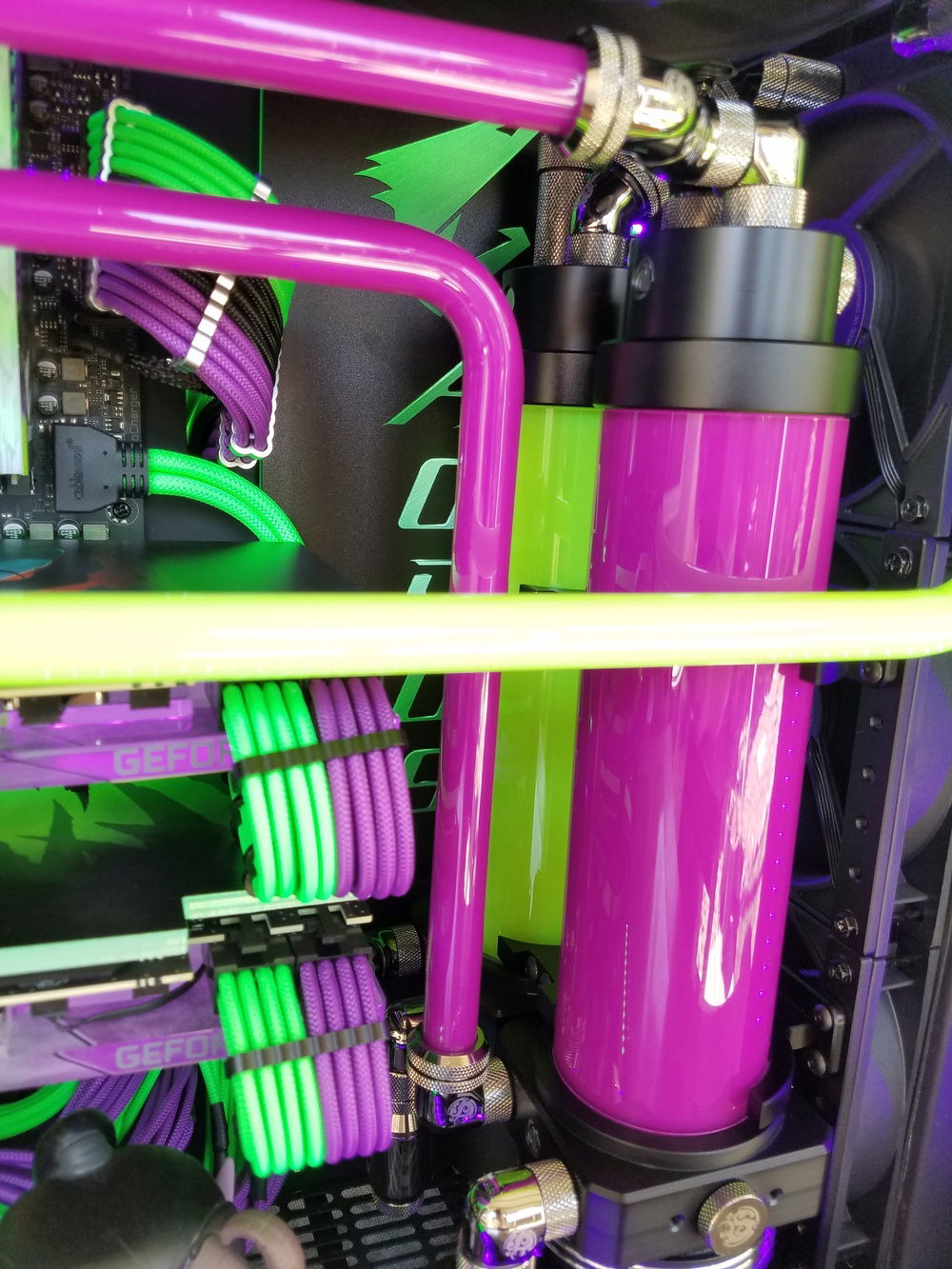

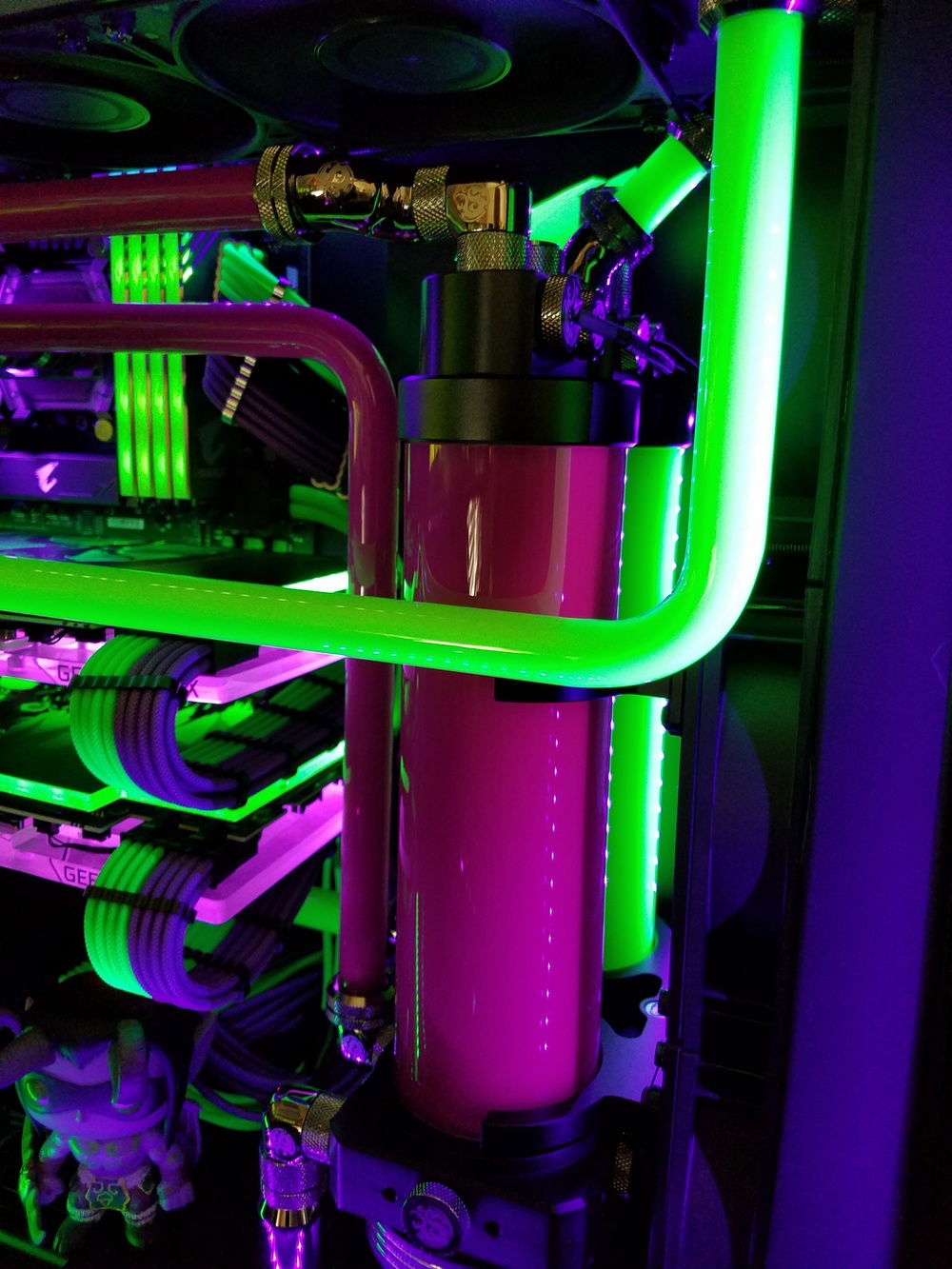

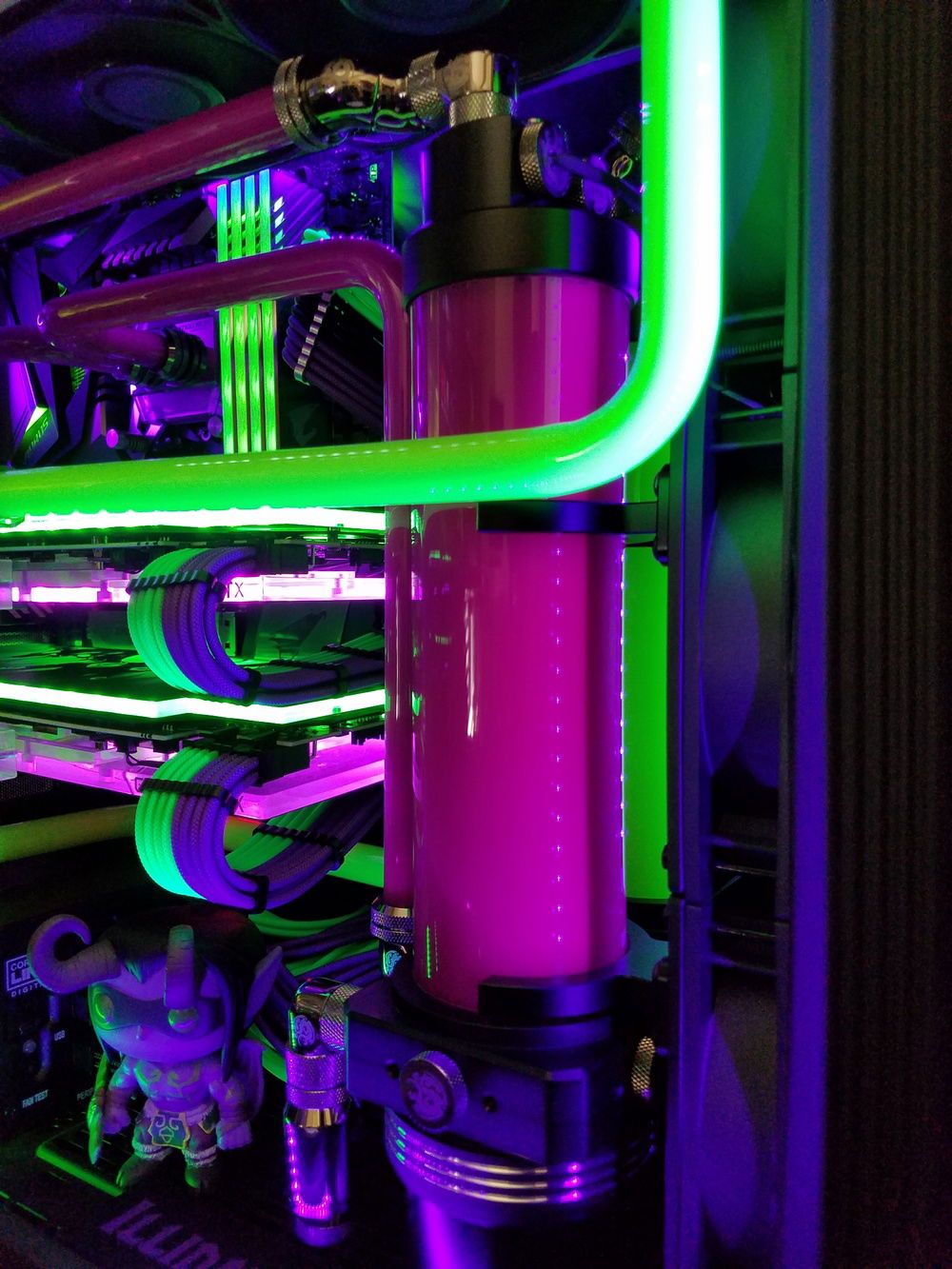

Singularity Computers - Reservoir
Type: Custom Loop

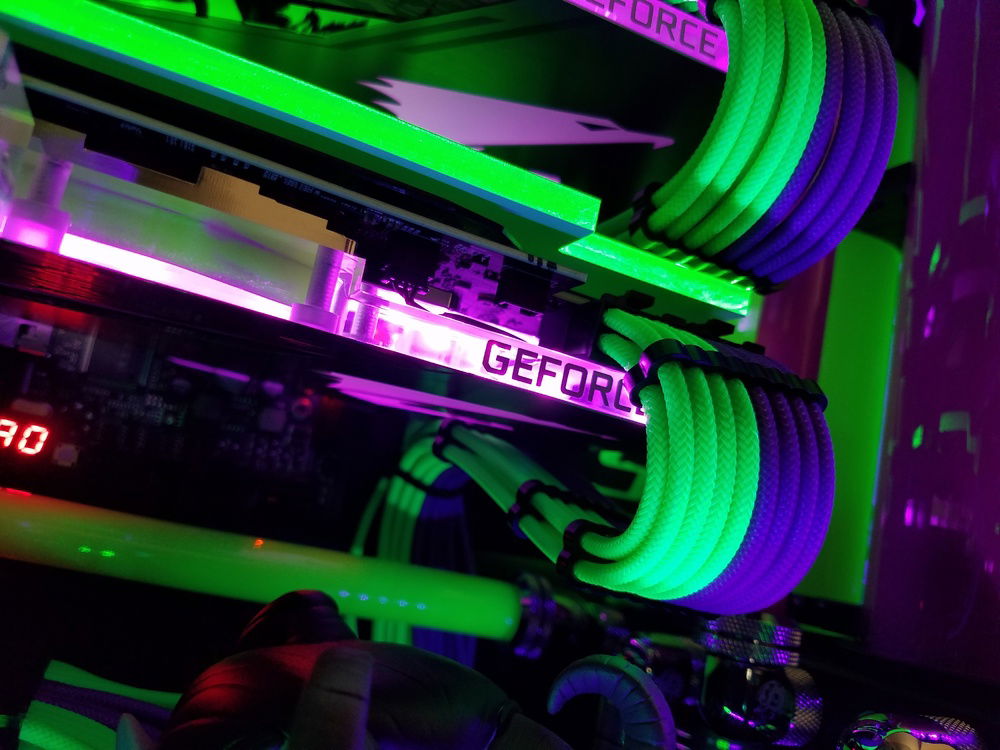

Cooling

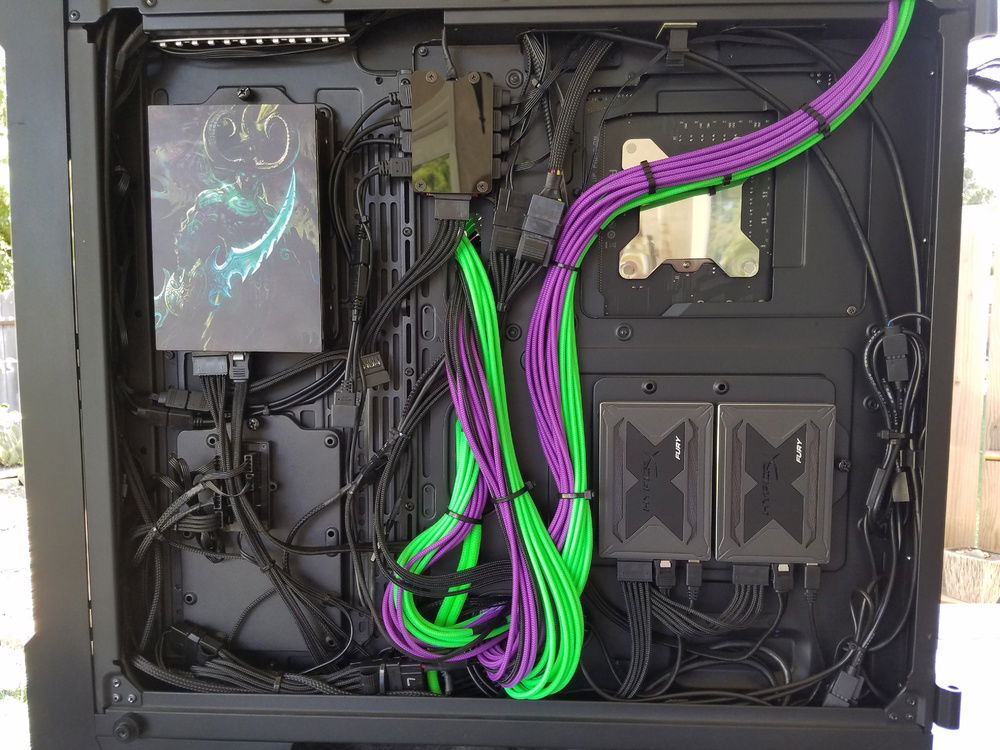

CableMod
$ 49.99
CableMod - PRO C-Series AXi, HXi & RM Cable Kit
Mode: Stock
Sleeve: ModMesh
Color: White

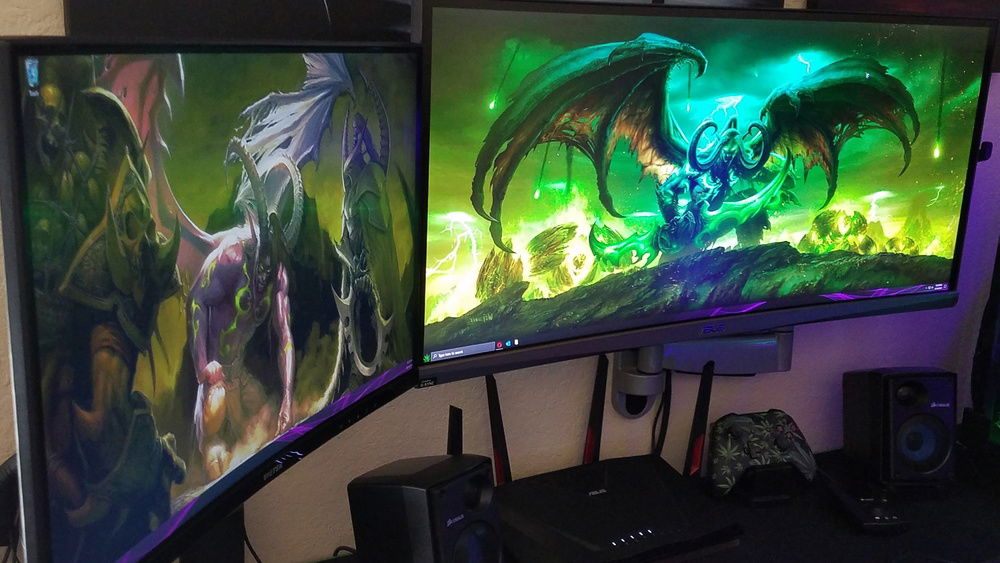

Monitor
$ 649.00
ASUS - PG348Q
Size: 34 Inch
Panel: IPS
Refresh Rate: 100 Hz
Keyboard
$ 249.66

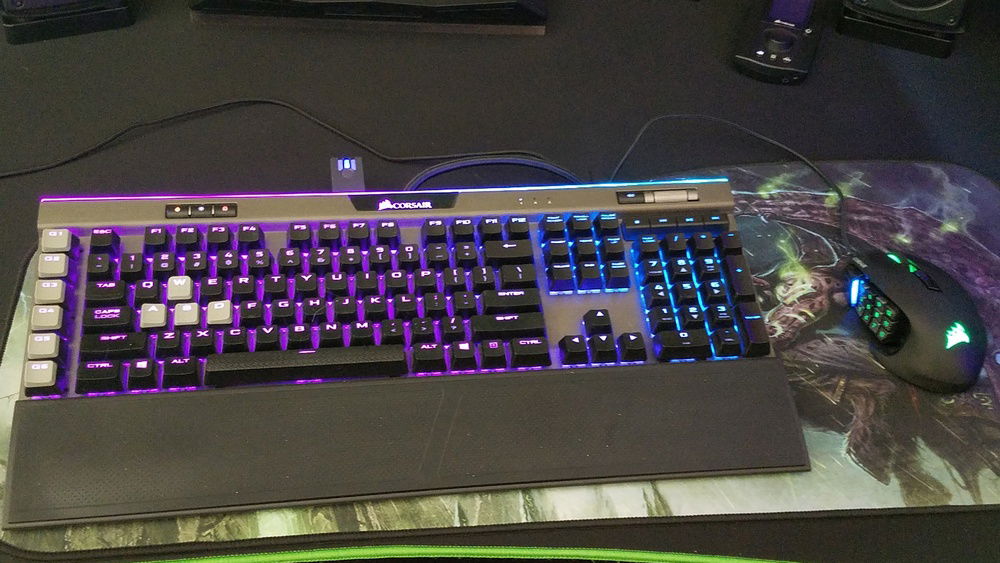

Corsair - K95 Platinum (RGB)
Interface: Wired
Key Switch Type: Cherry MX Speed
Type: Full Size
Mouse
$ 110.00
Corsair - Scimitar Pro RGB
Interface: Wired
