 Link Tube Madness
405
9
2

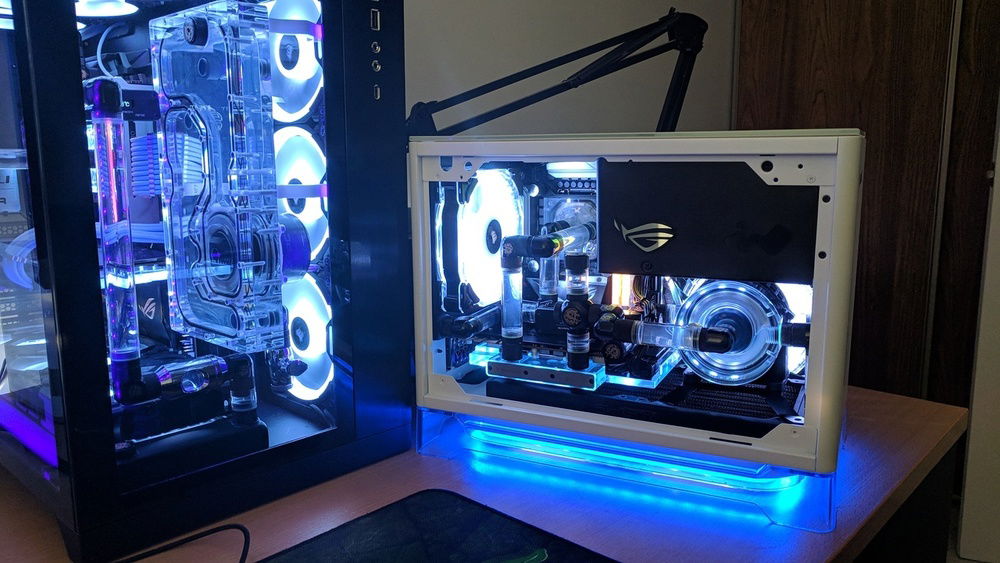

A1 next to his big brother "Link Tube madness"
A1 next to his big brother "Link Tube madness"
2 x 120 fans in the A1's basement blow fresh air into case through XSPC Tx 240 rad.
2 x 120 fans in the A1's basement blow fresh air into case through XSPC Tx 240 rad.
Entire loop created using Barrow G1/4 tapped acrylic link tubes
Entire loop created using Barrow G1/4 tapped acrylic link tubes

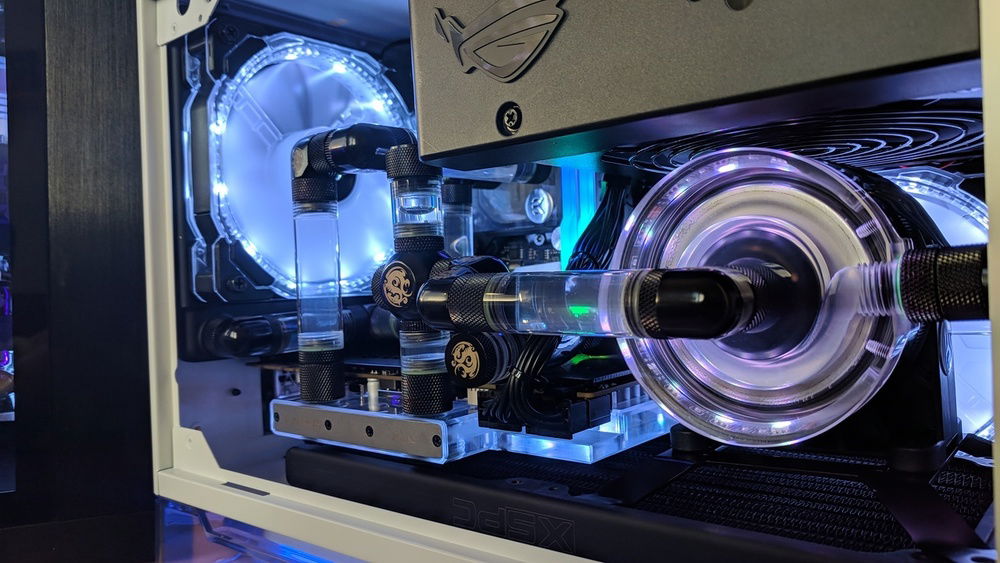

No room for a traditional reservoir so I created a mini res using a small piece of link tube on tip of the Q block. Has a bitspower air exhaust fitting to help get trapped air out.
No room for a traditional reservoir so I created a mini res using a small piece of link tube on tip of the Q block. Has a bitspower air exhaust fitting to help get trapped air out.
Drain below and to the right of the Q-block.
Drain below and to the right of the Q-block.
Barrow OLED inline digital water temp display.
Barrow OLED inline digital water temp display.
Tx 120 Rad fan and back fan exhausting. Barrow 1080ti mini RGB water block.
Tx 120 Rad fan and back fan exhausting. Barrow 1080ti mini RGB water block.
8700K @ 5.0ghz 1.35v cool and quite!
8700K @ 5.0ghz 1.35v cool and quite!
Complete with front tempered glass panel installed. I cannot tell you how hard it was to fit a complete custom water cooling setup into the A1 with a full size D5 pump. Hence the name Impossibilium!
Complete with front tempered glass panel installed. I cannot tell you how hard it was to fit a complete custom water cooling setup into the A1 with a full size D5 pump. Hence the name Impossibilium!

Impossibilium

Custom fully watercooled SSF m-ITX build in the In-Win A1 with dual rads!
Color(s): White
RGB Lighting? Yes
Theme: Video Game
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 193.00
Intel - Core i7-8700K
Socket: LGA 1151
Cores: 6
Integrated Graphics: Yes
Motherboard
$ 589.00
ASUS - ROG Strix (Z370-I)
Chipset: Z370
CPU Socket: LGA 1151
Size: Mini-ITX
Memory
$ 185.99
Corsair - Vengeance Pro (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 8 GB
Graphics
$ 551.00
ZOTAC - GeForce Mini
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
$ 199.99
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 339.99
Samsung - 970 PRO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
PSU
$ 161.37
IN-WIN - A1 PSU
Wattage: 600
Form Factor: ATX
Efficiency: 80+ Bronze
Case
IN-WIN - A1
Type: Mini-Tower
Side Panel: Tempered Glass
Case Fan
$ 78.00
Corsair - HD120 RGB LED High Performance 120mm PWM
Size: 120 mm
Cooling
Bitspower - Fittings
Type: Custom Loop
Cooling
$ 99.99
EKWB - EK-Supremacy EVO
Type: CPU Waterblock
Cooling
$ 124.99
EKWB - EK-XTOP Revo D5 RGB PWM Acetal
Type: Custom Loop
Cooling
$ 75.56
XSPC - TX Ultrathin
Type: Custom Loop
Size (WxHxD): 120 mm
Cooling
$ 101.99
XSPC - TX Ultrathin
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Accessories
$ 74.29
Corsair - Commander Pro
Monitor
$ 592.95
Acer - Predator X34
Size: 34 Inch
Panel: IPS
Refresh Rate: 100 Hz
Keyboard
$ 175.00
Razer - Ornata Chroma
Interface: Wired
Key Switch Type: Razer Green
Type: Full Size
Mouse
$ 69.99
Razer - Mamba Chroma Tournament Edition
Interface: Wired
