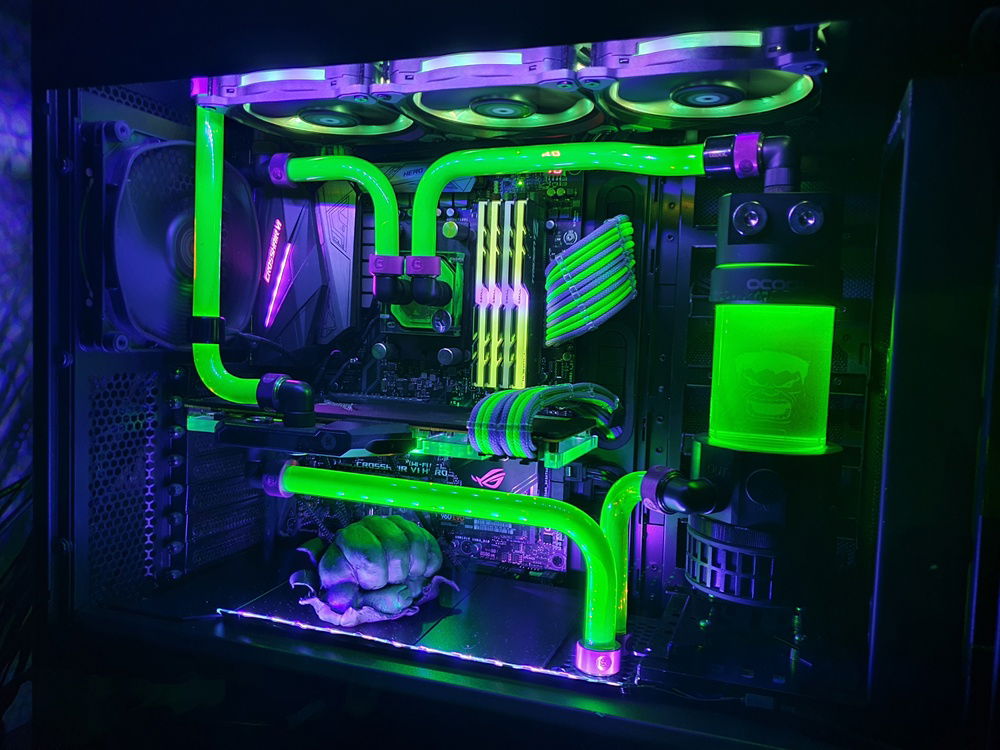

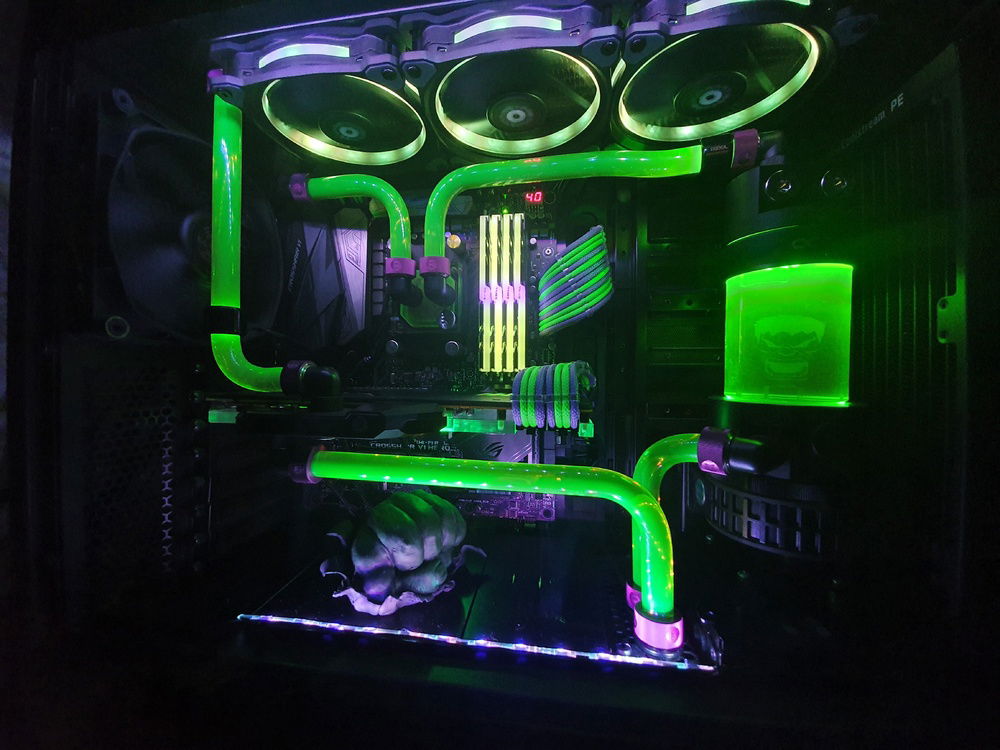

2019 update with new GPU/CPU (including new waterblocks and gpu backplate)
2019 update with new GPU/CPU (including new waterblocks and gpu backplate)

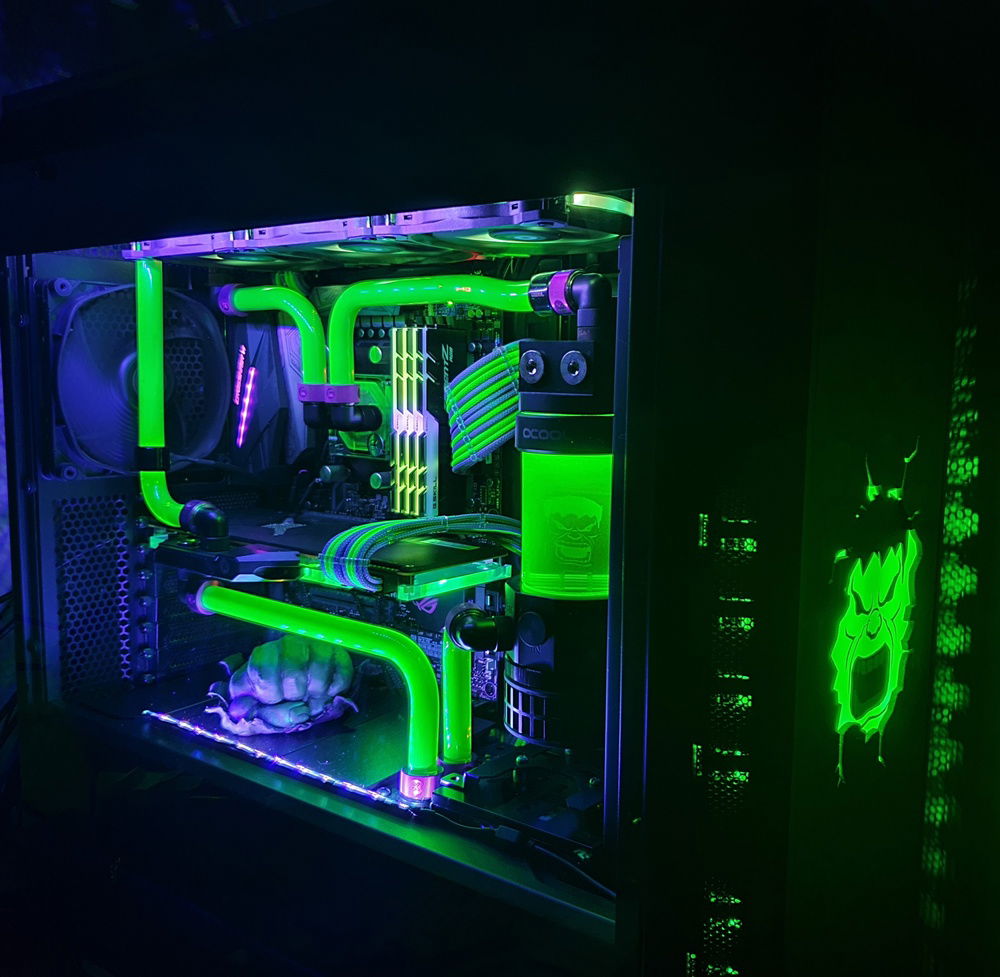

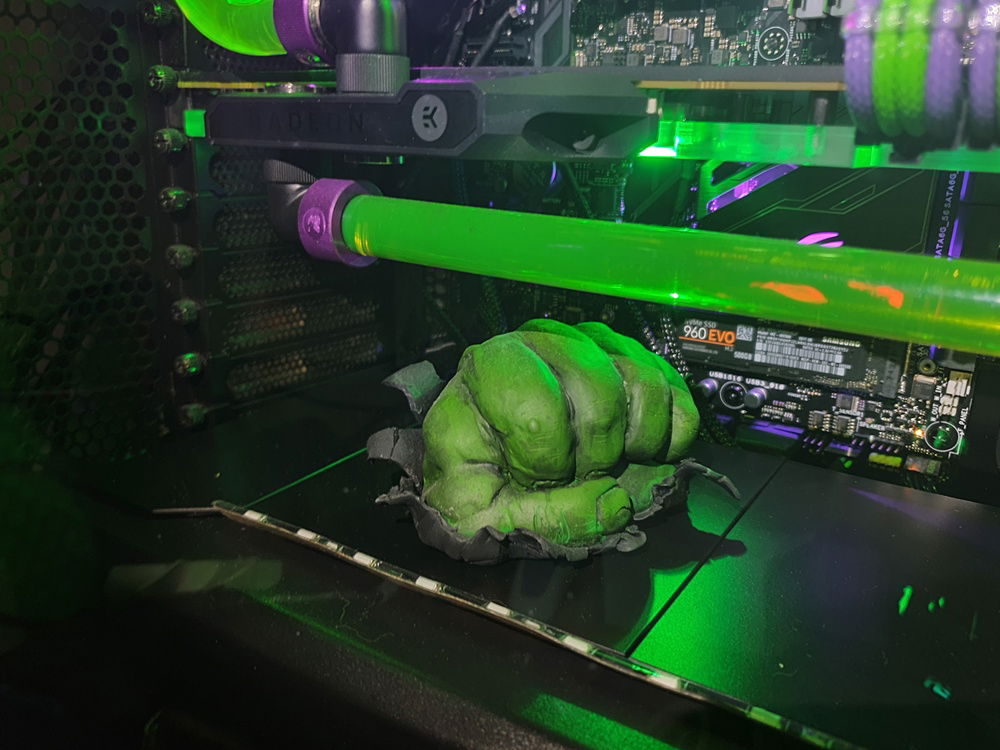

Everything in place. Build basically done. Hulk fist made by the mrs out of coloured clay.

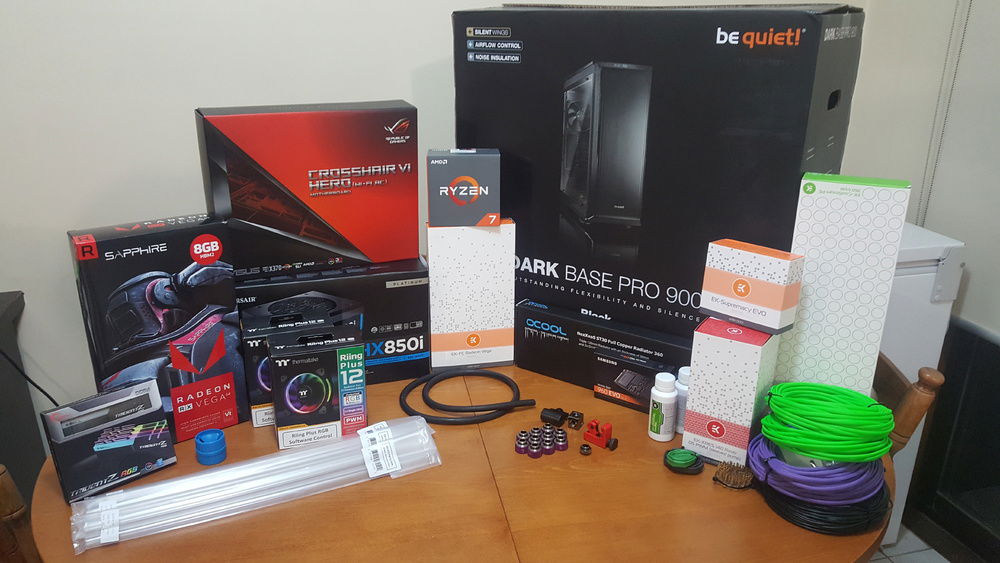

Starting hardware that I began with. There were a few changes over time to some of these but the major components have stayed the same

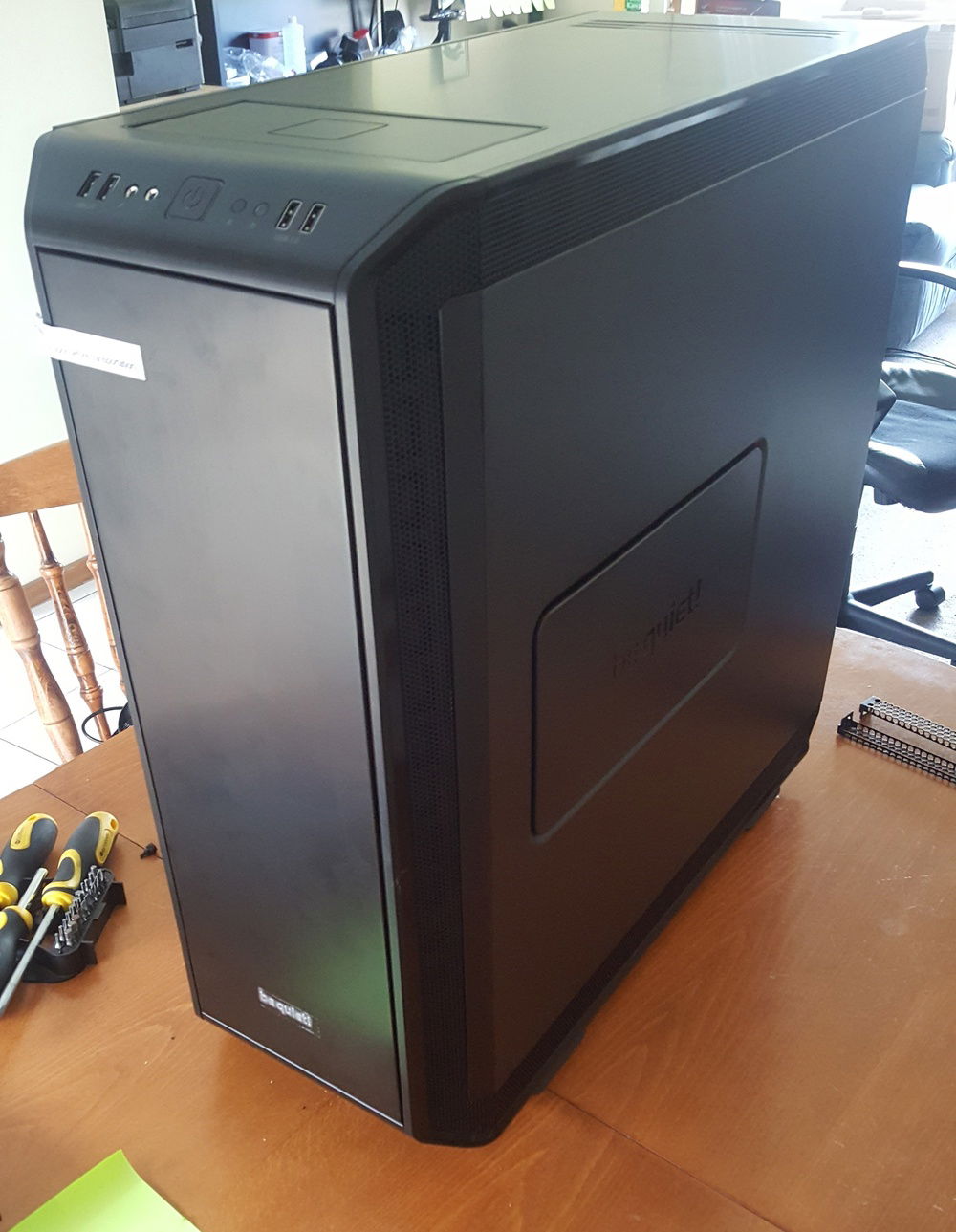

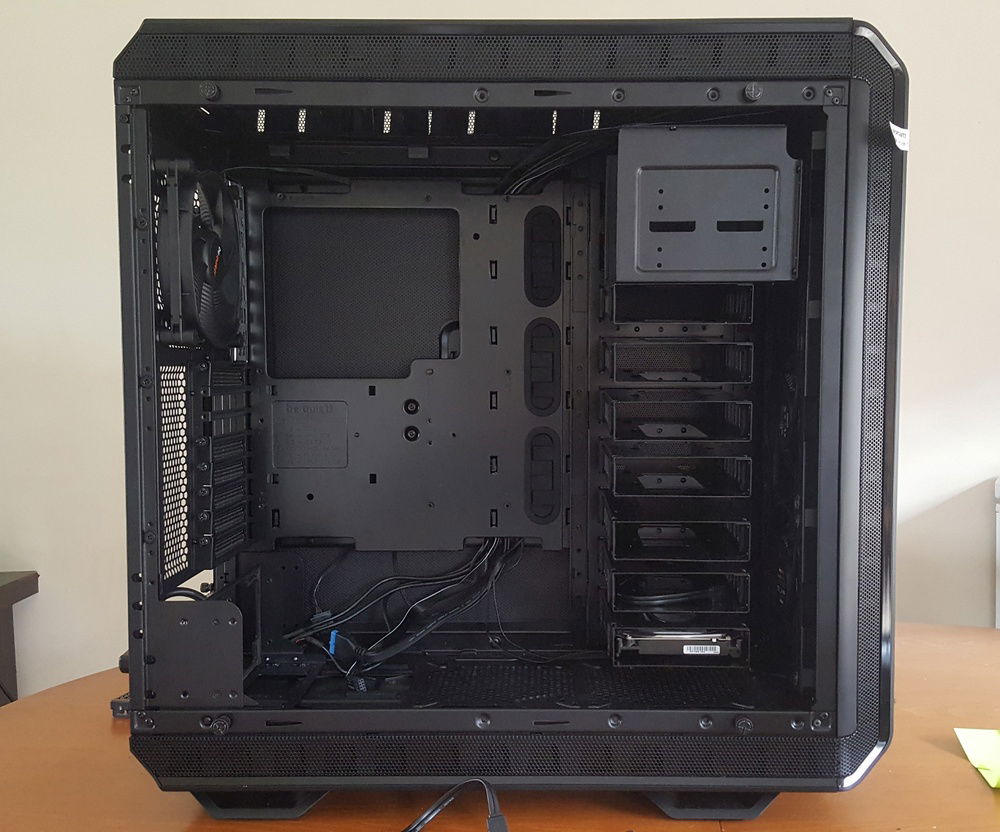

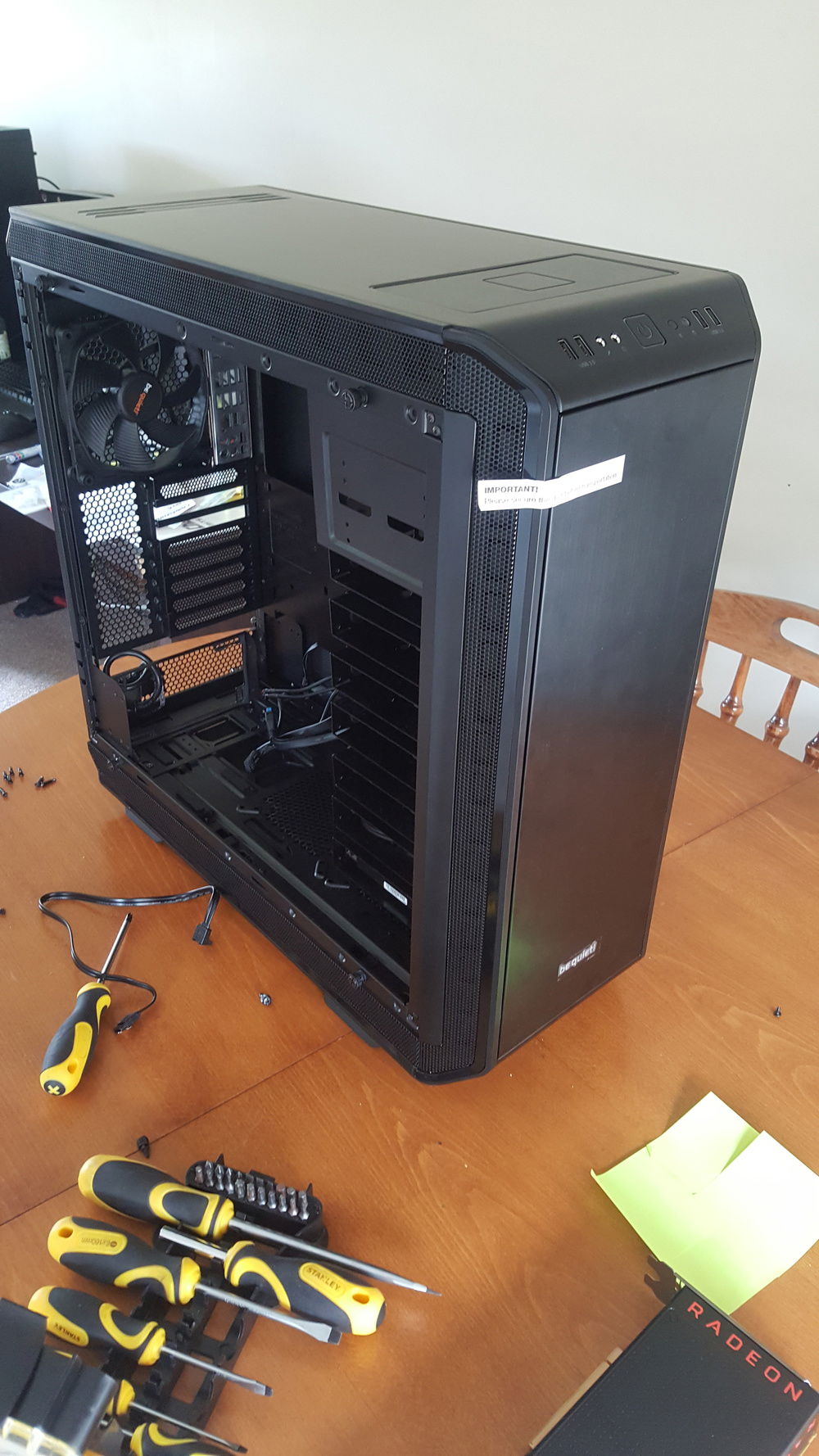

Blank case that I started with

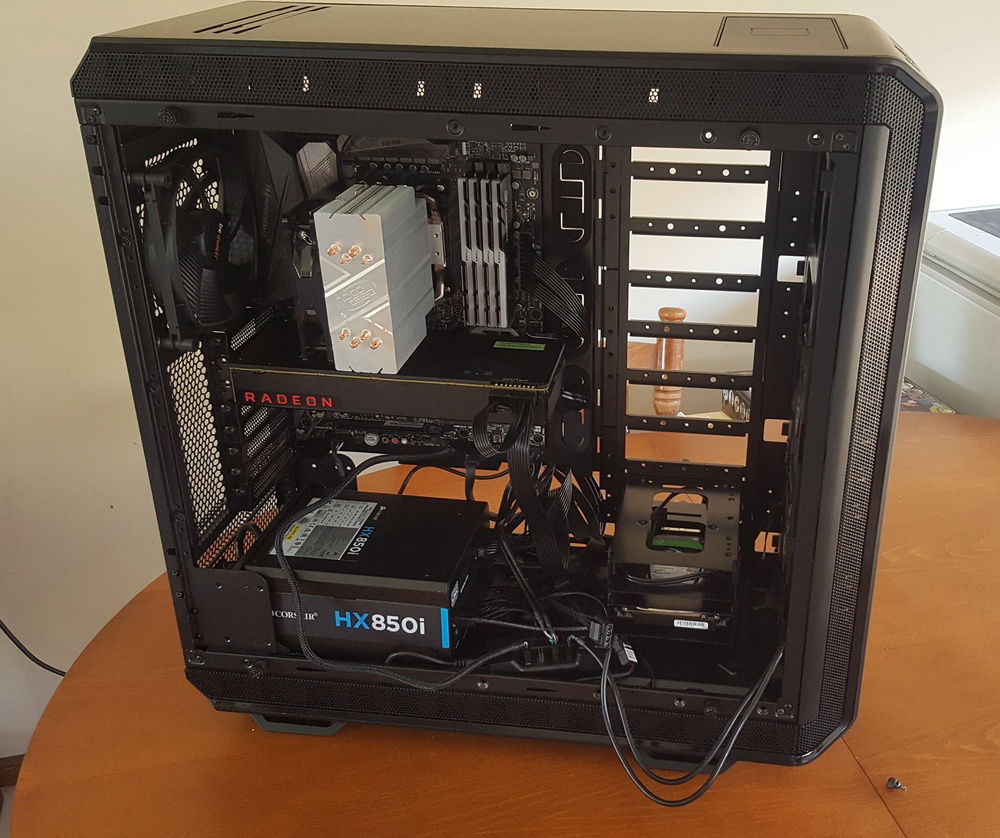

First install of everything on air to test

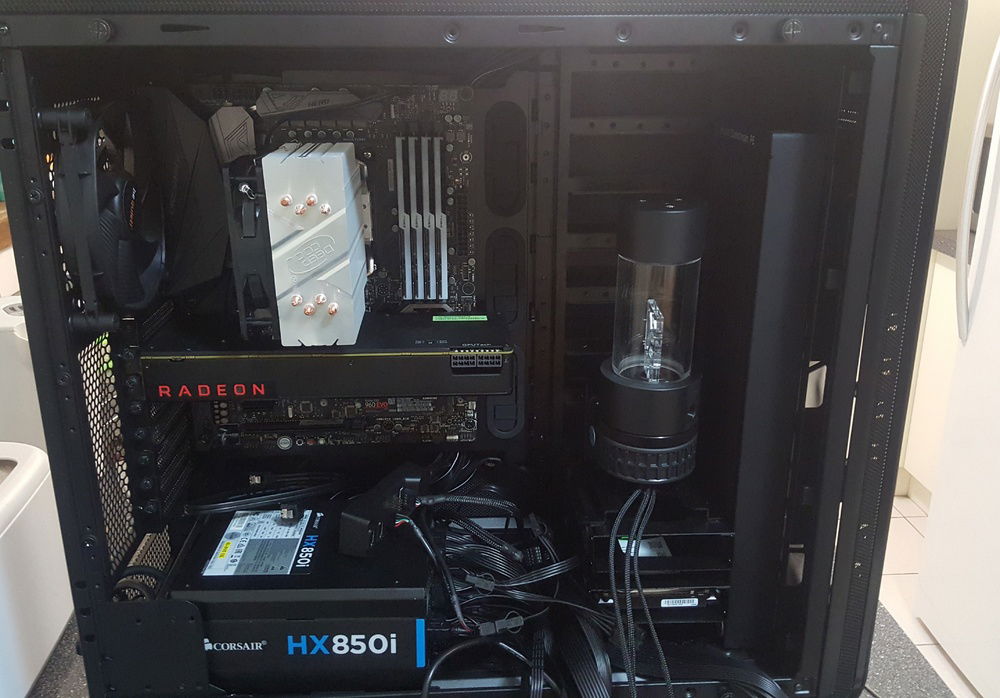

Testing reservoir and radiator placement

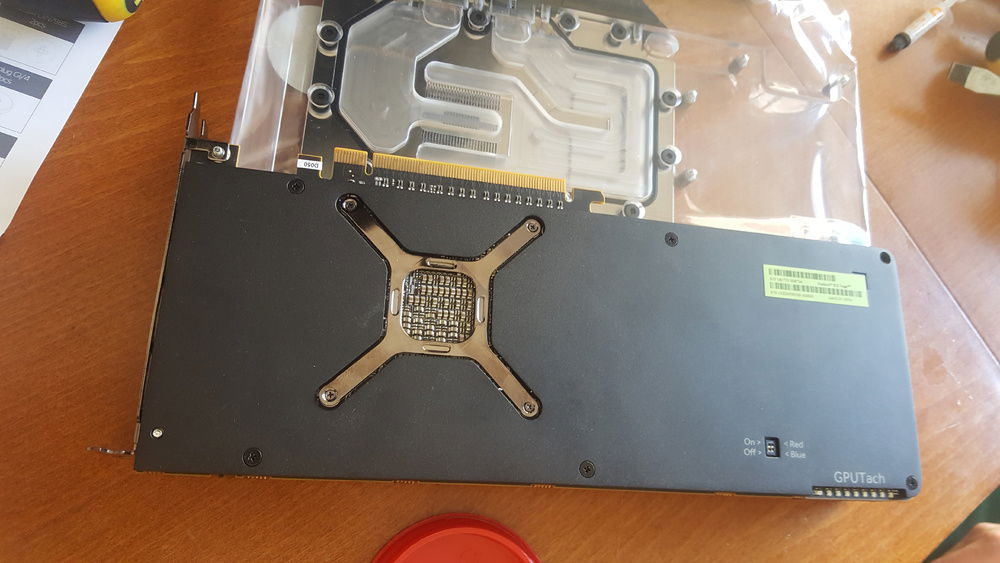

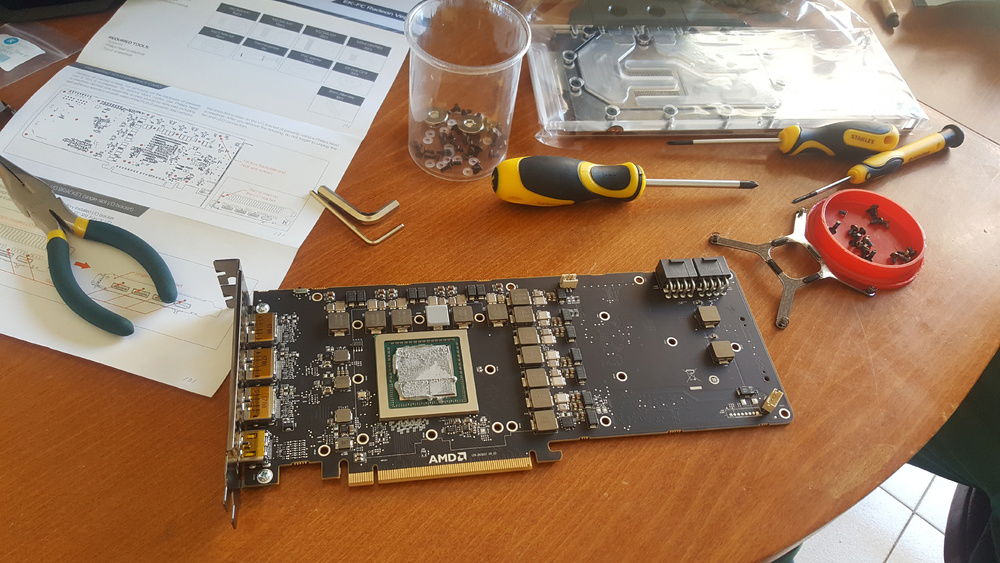

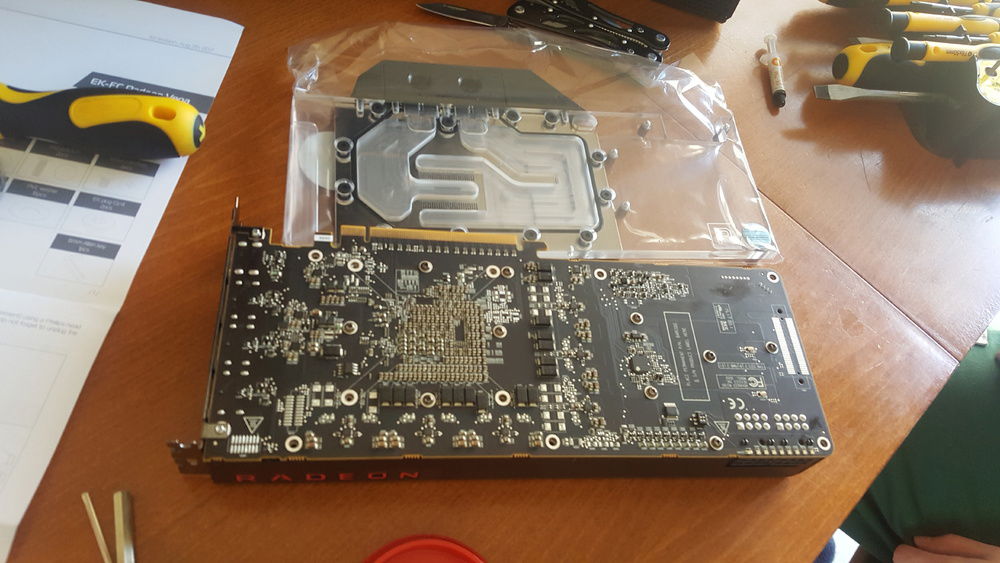

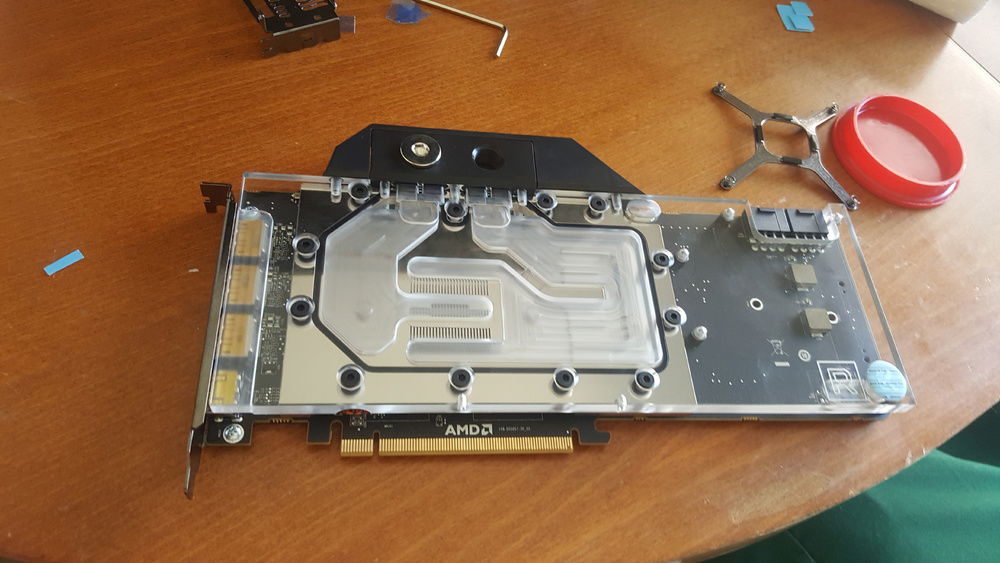

GPU waterblock installation

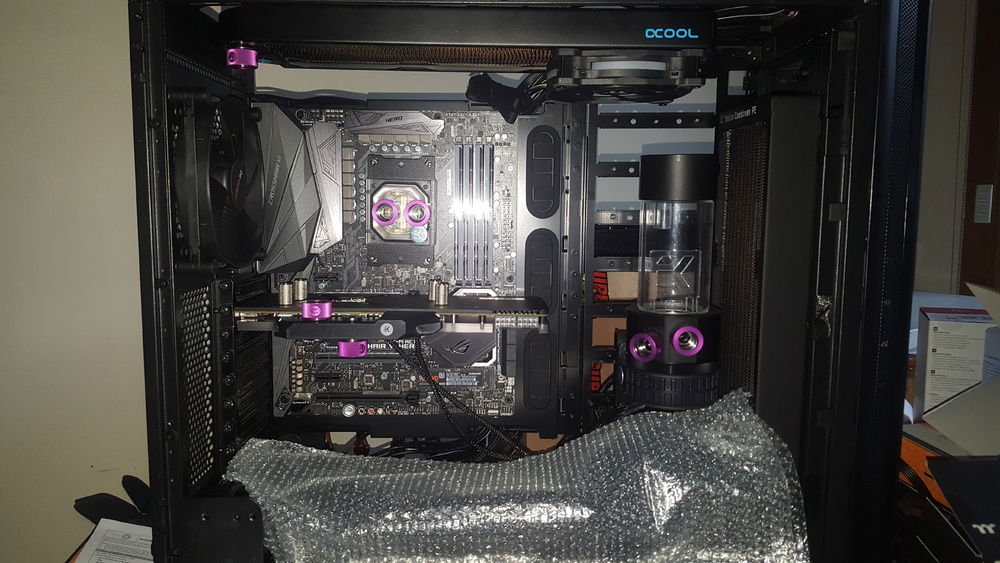

All water blocks on

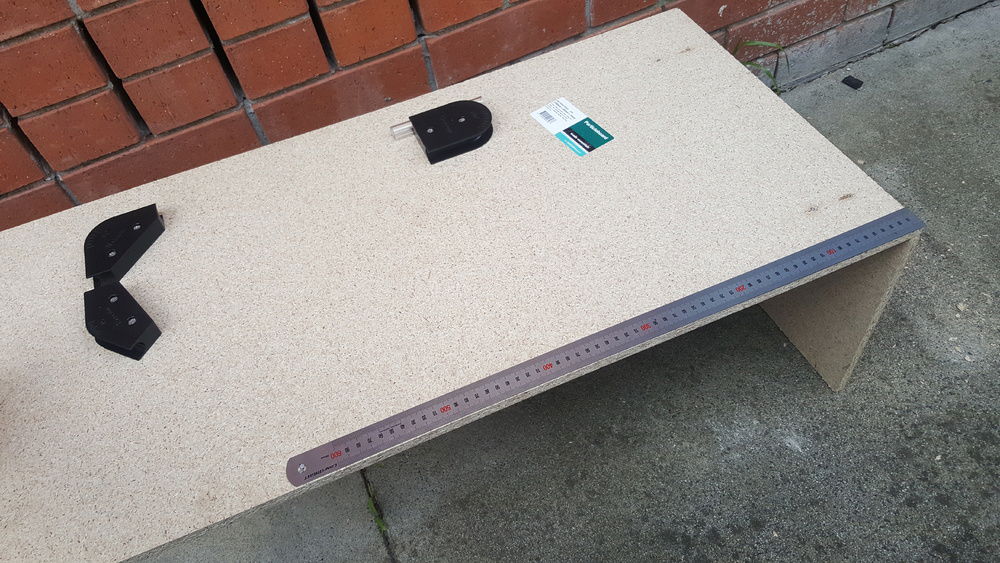

Platform I made to make all my loop bends

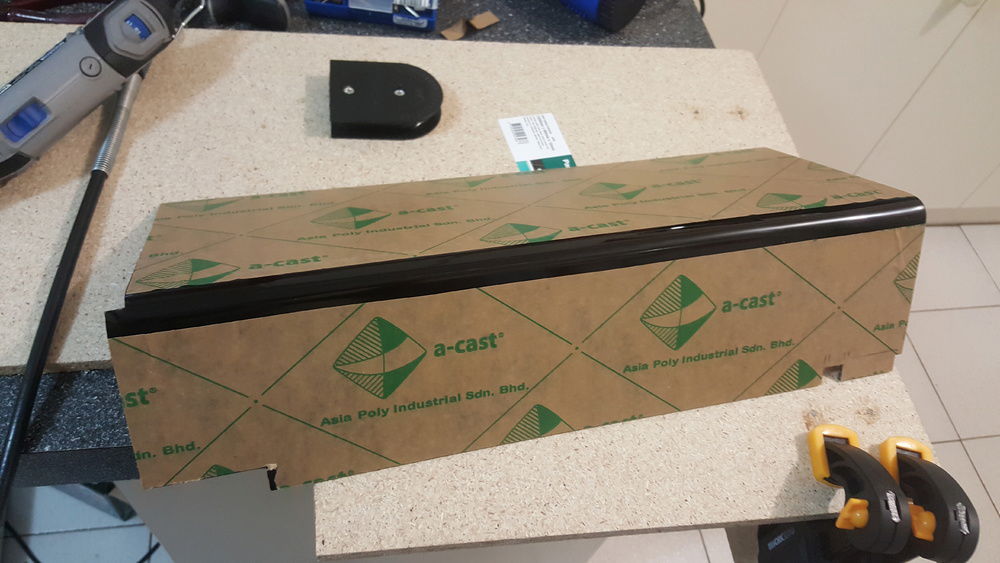

Bending and cutting PSU shroud from black acrylic

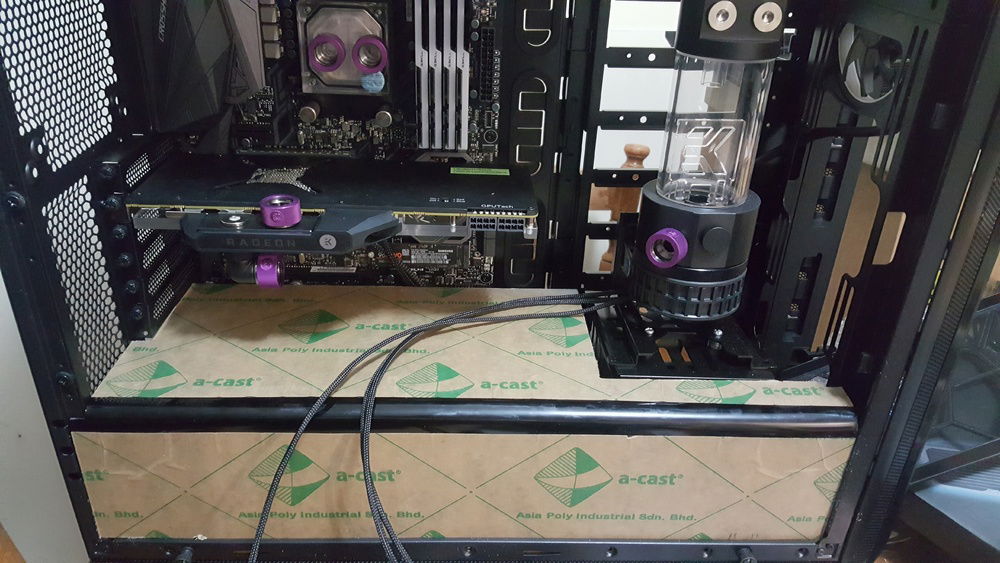

PSU shroud in place

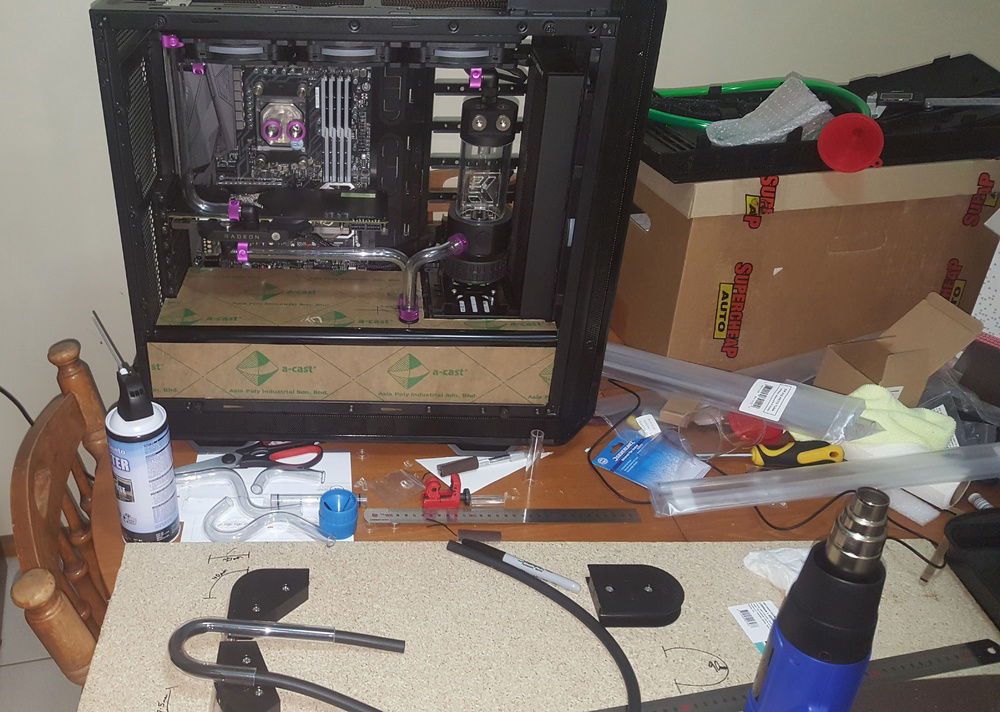

My tube bending station

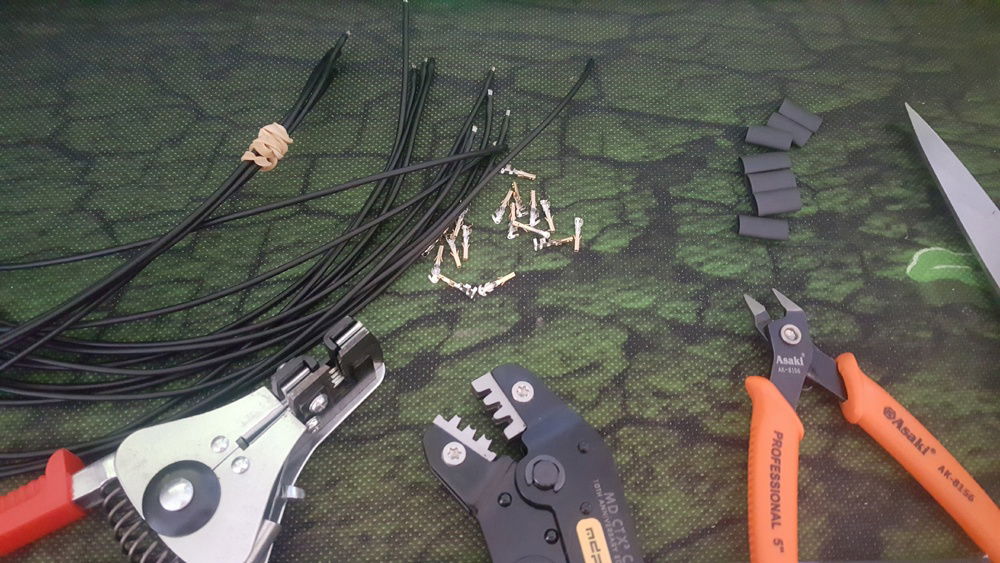

Making my own PSU cables

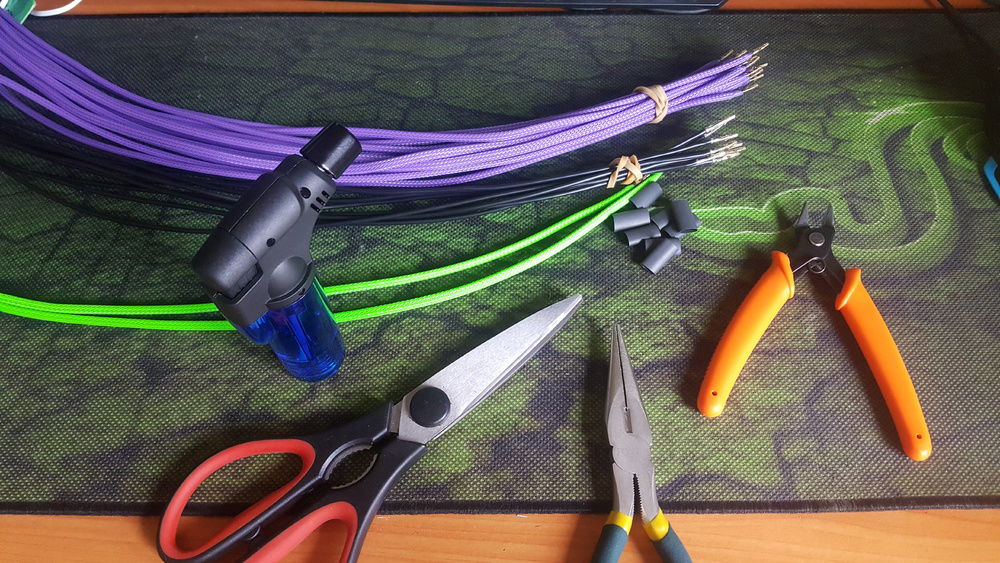

Took a bloody long time

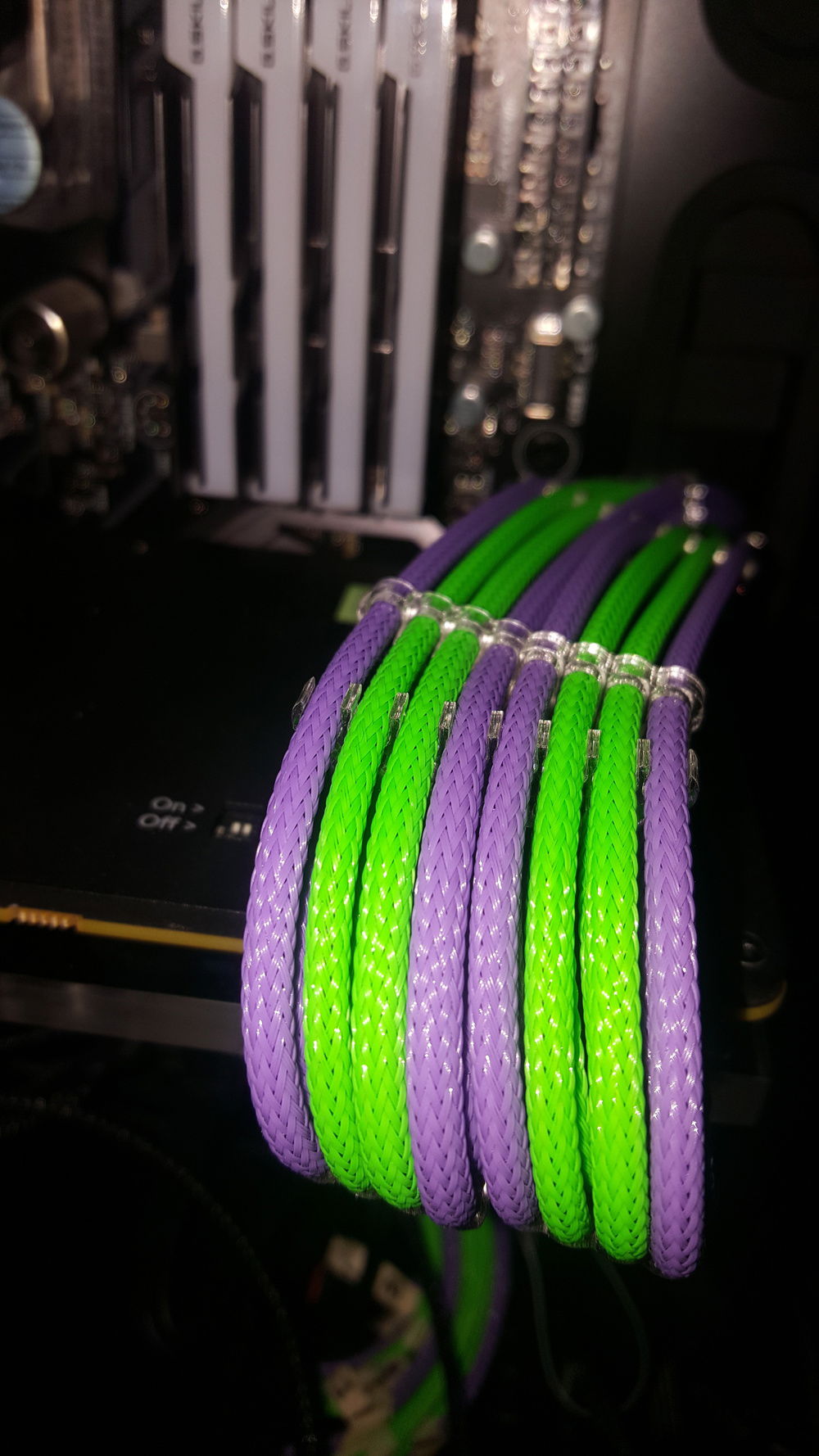

But was worth it

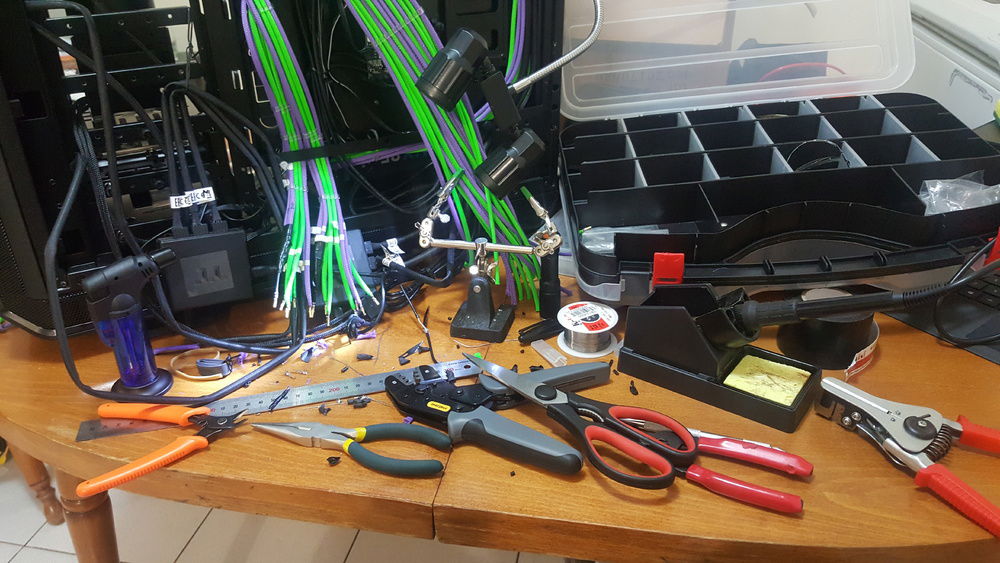

Wires and wires

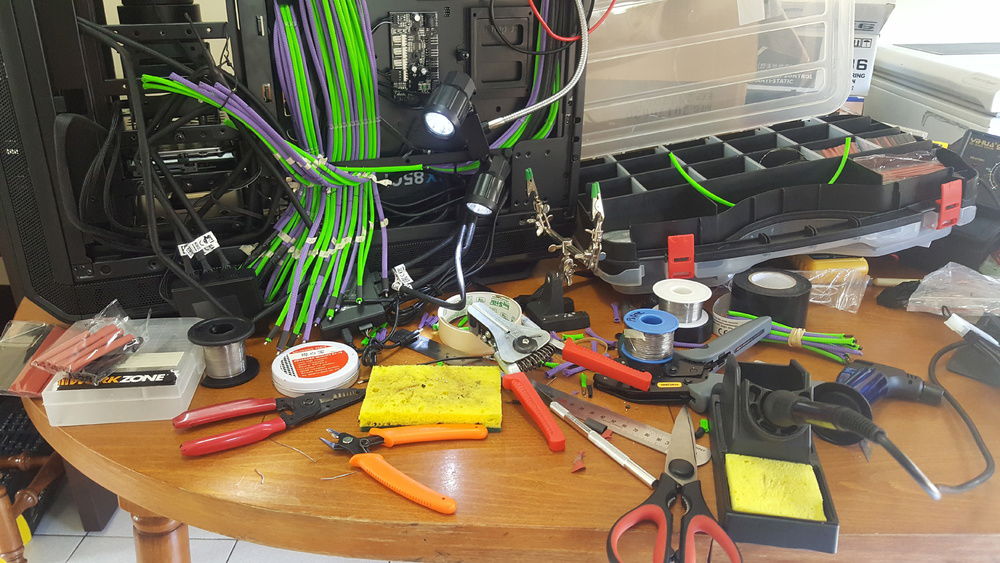

So many wires
Cabling scraps - only some of

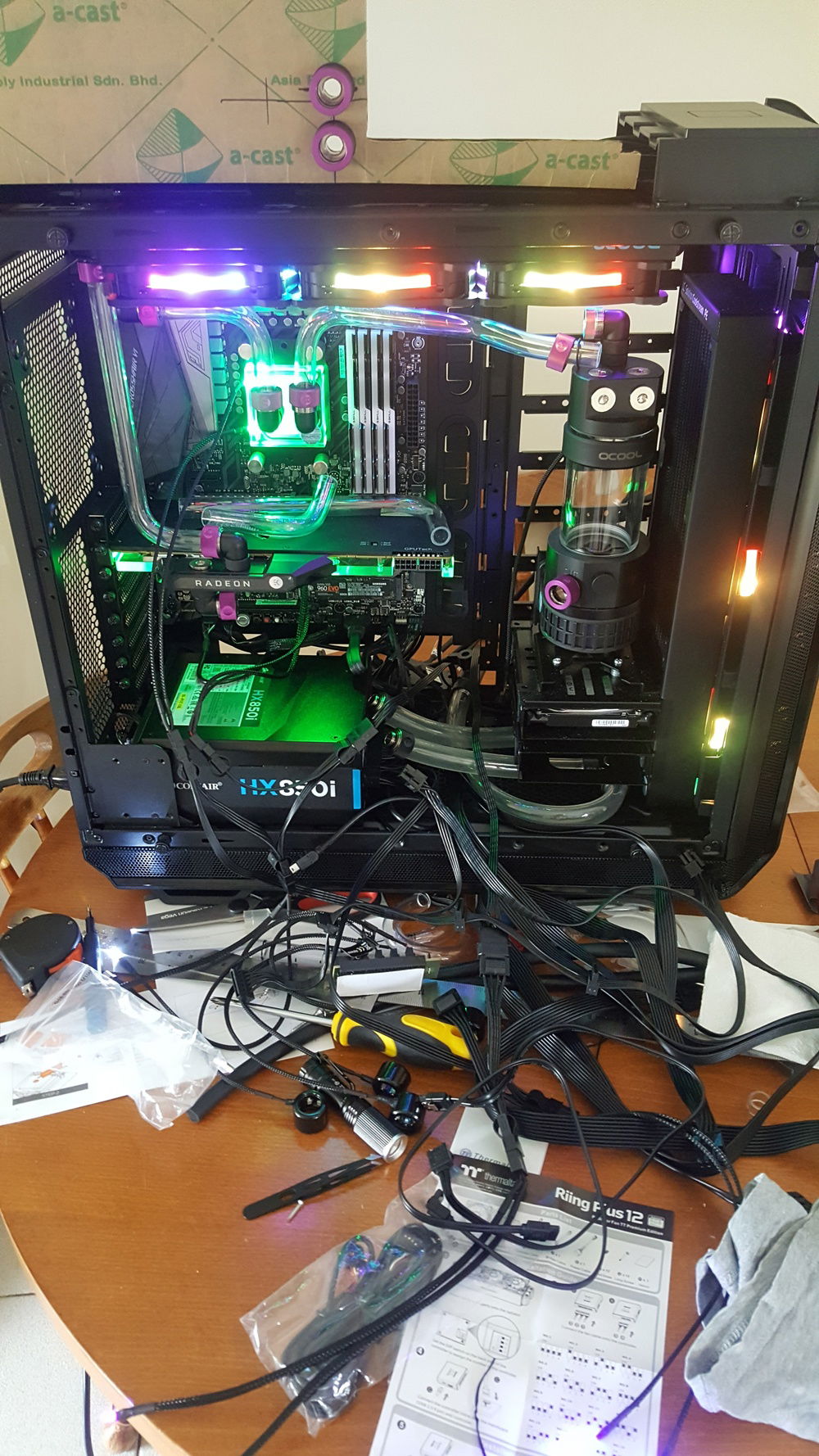

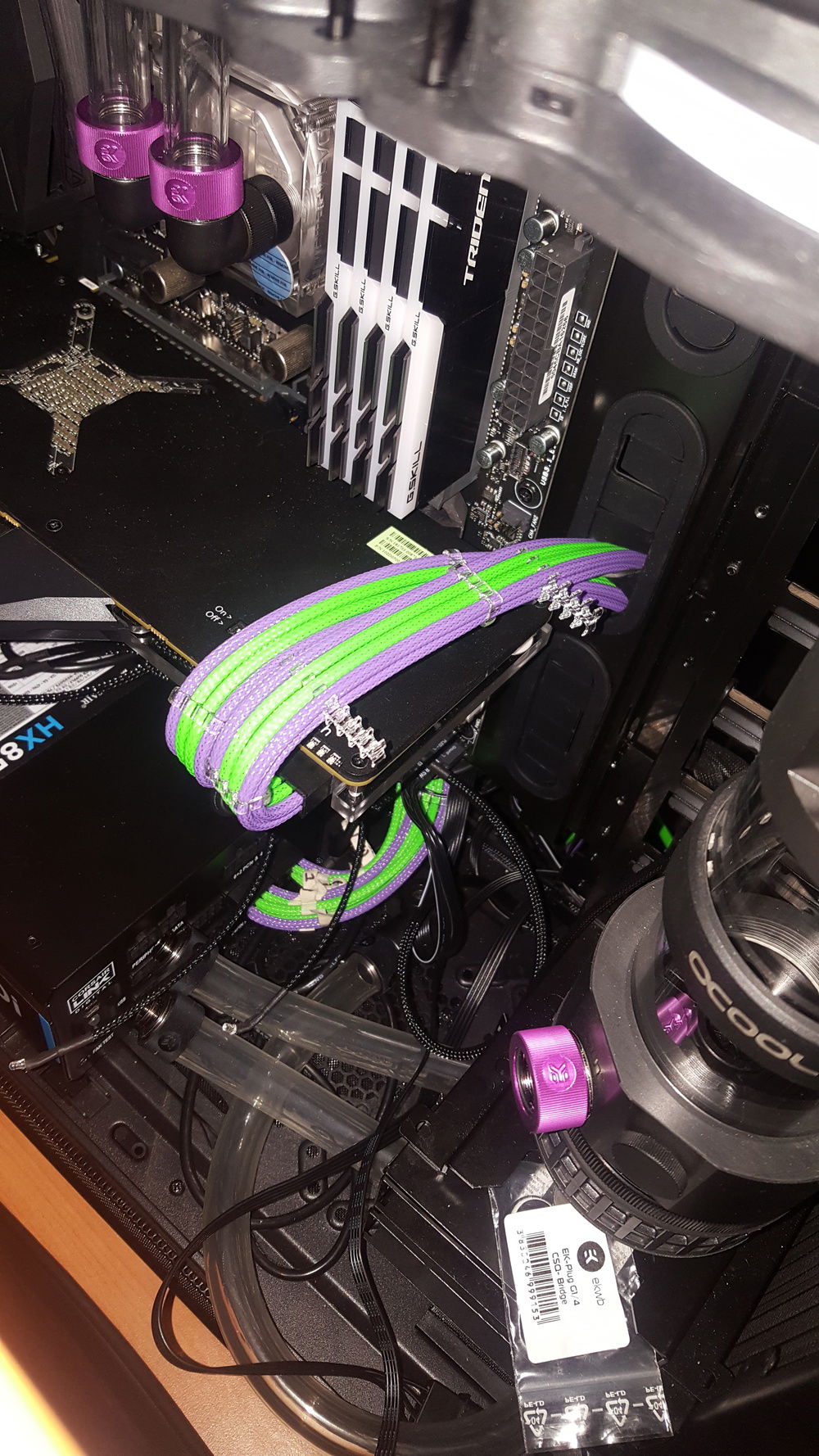

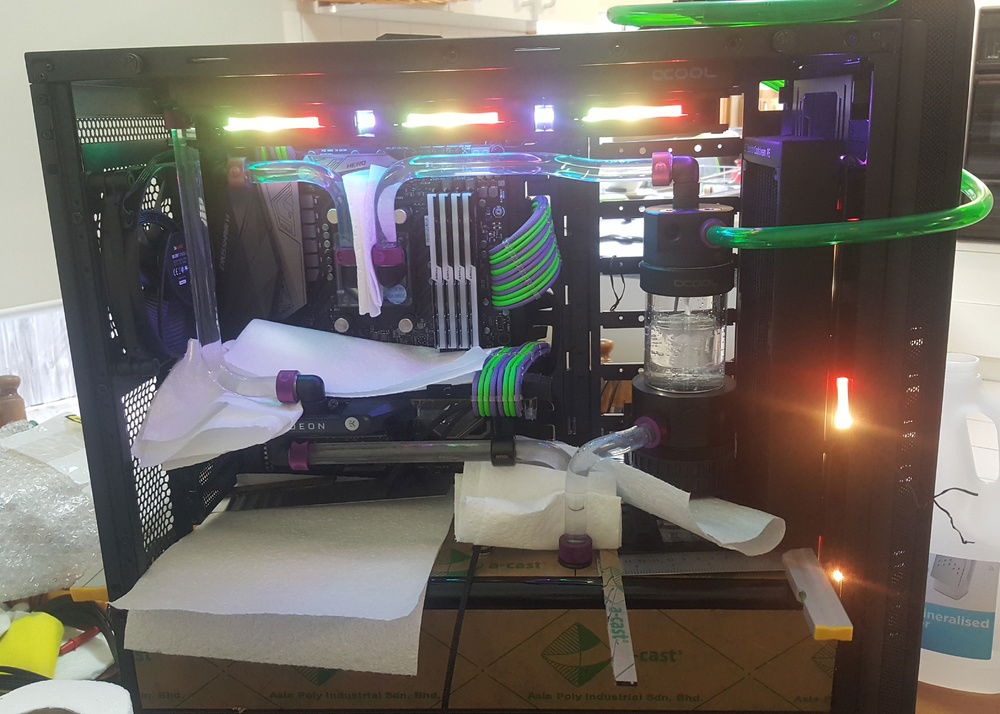

Cables in place and time to test the water loop

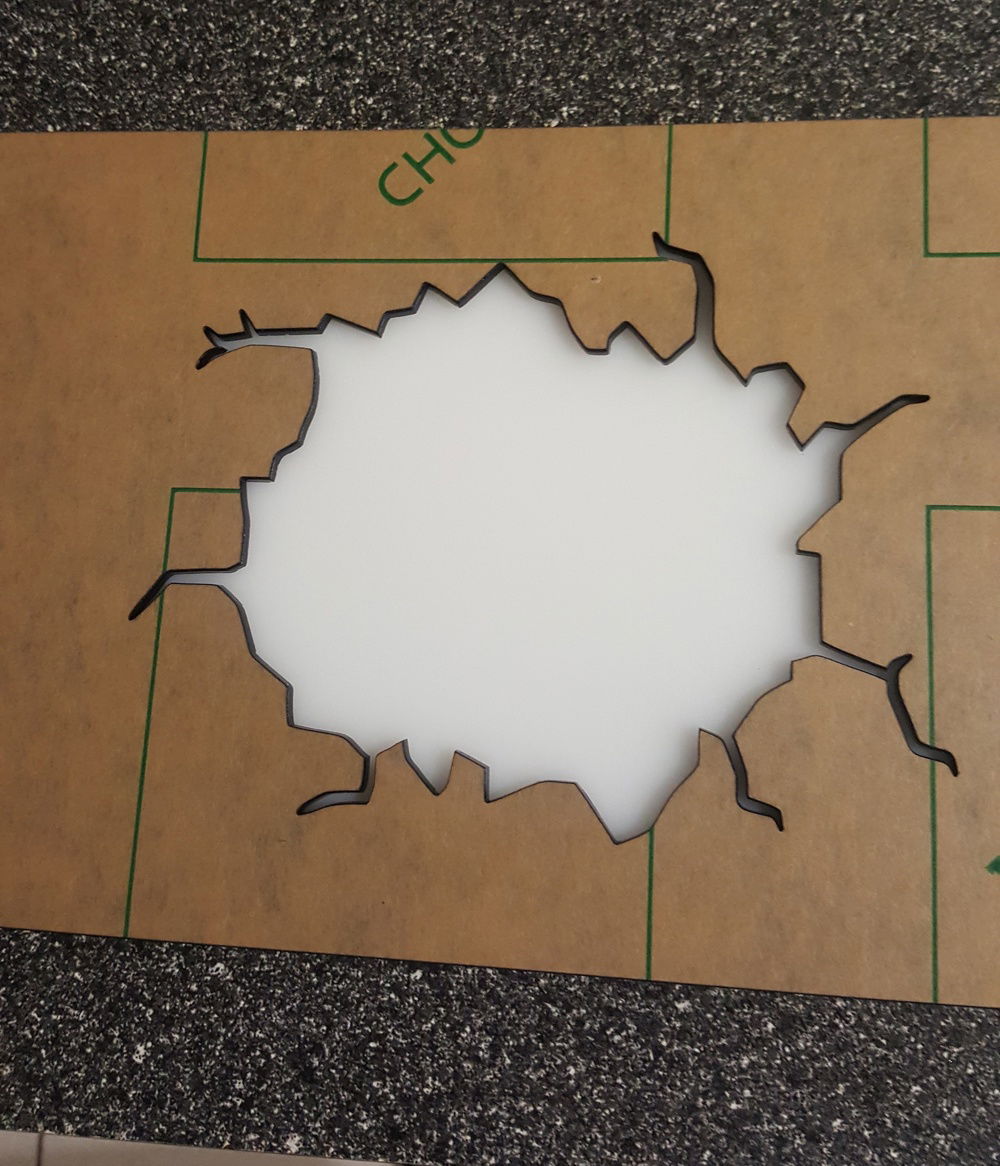

Acrylic sheet laser cut for the front panel

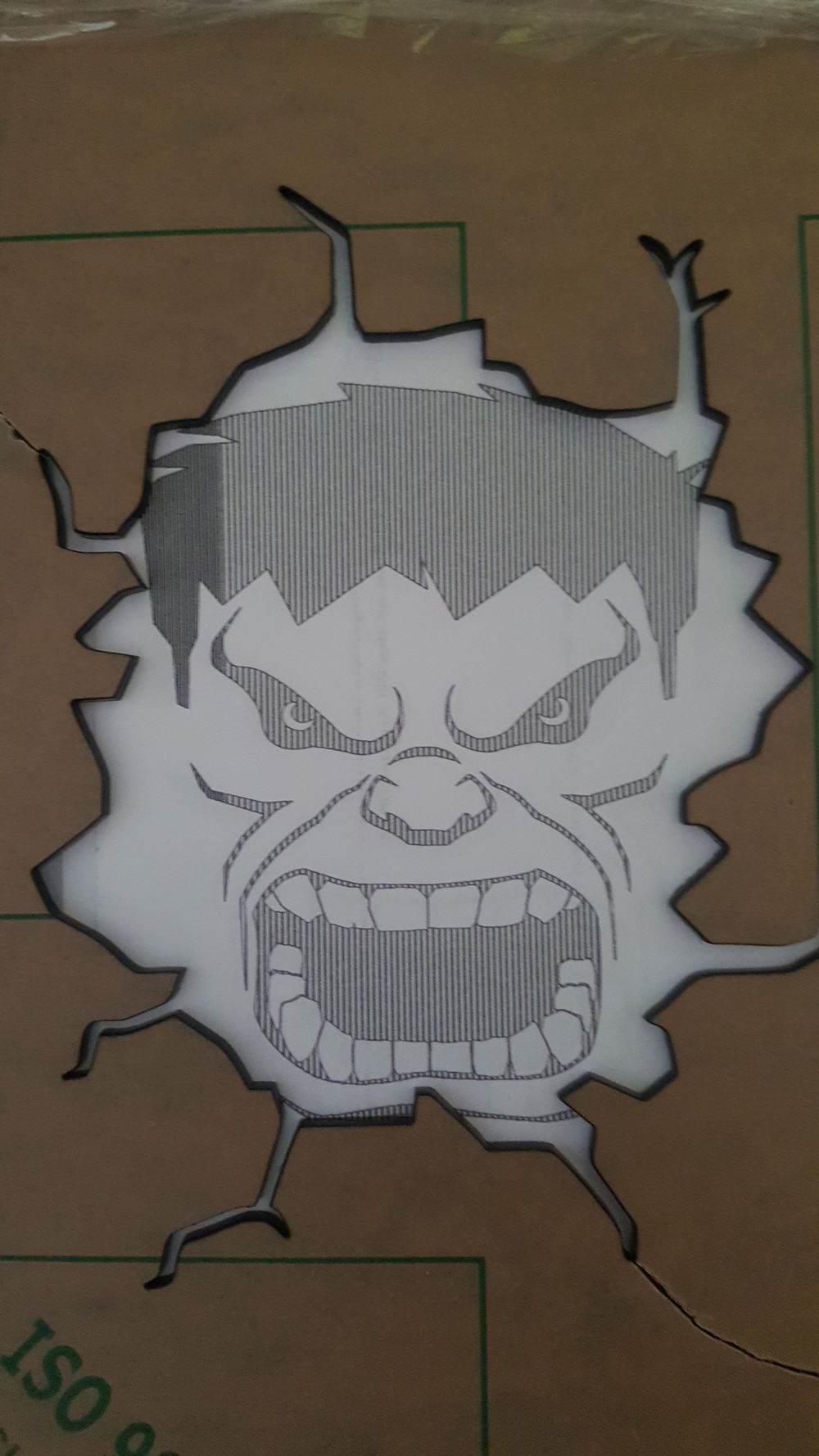

Testing for size of the face (printer was messing up)
Vinyl face cut (thanks to the mrs) Black vinyl and white vinyl on top for teeth and eyes

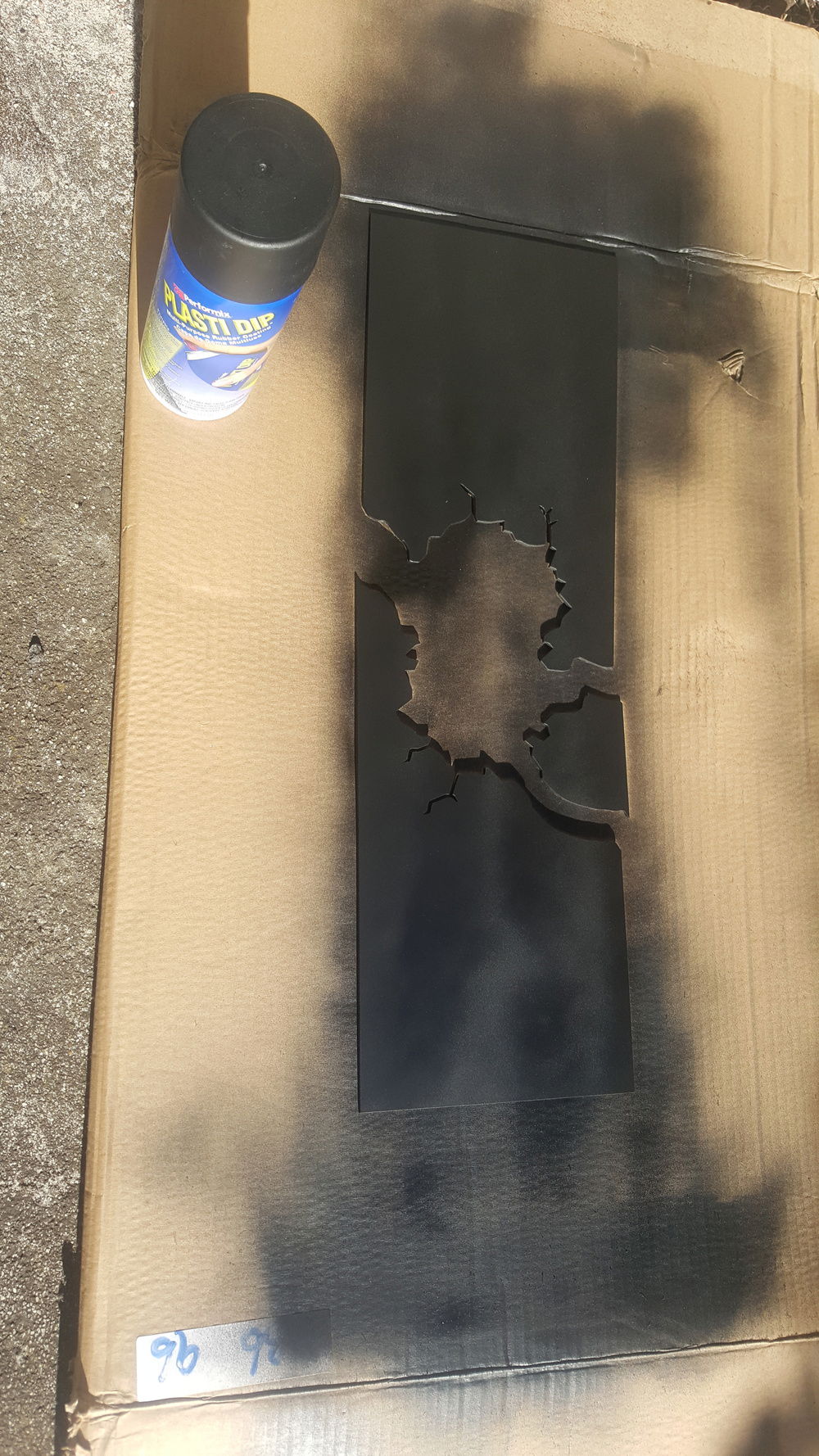

Starting painting

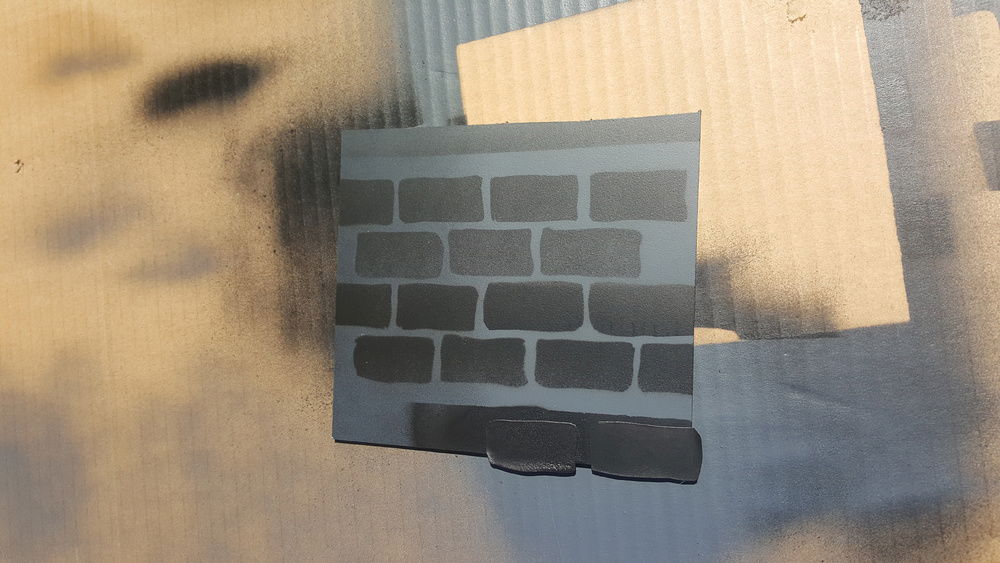

Testing patterns

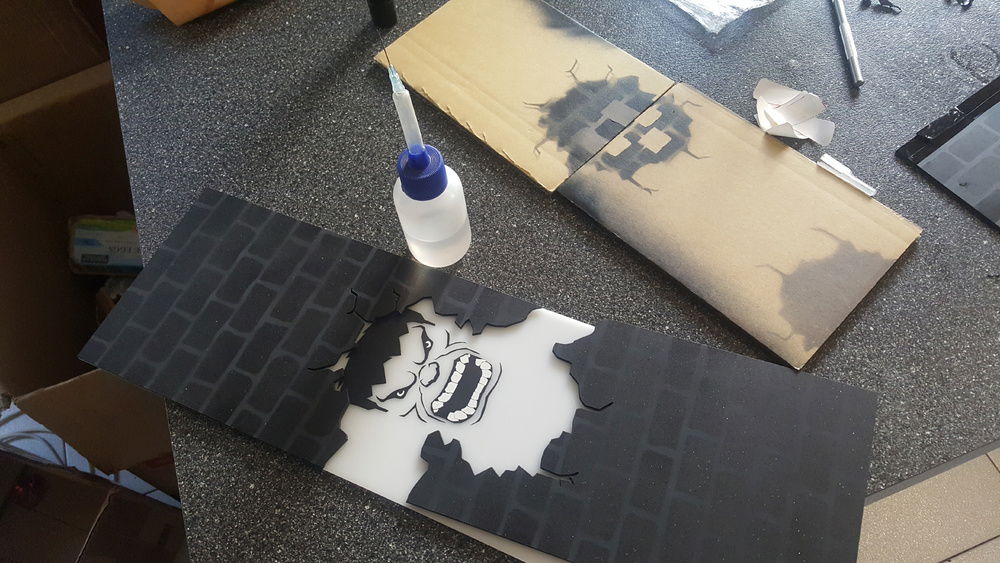

Ready for acrylic cement

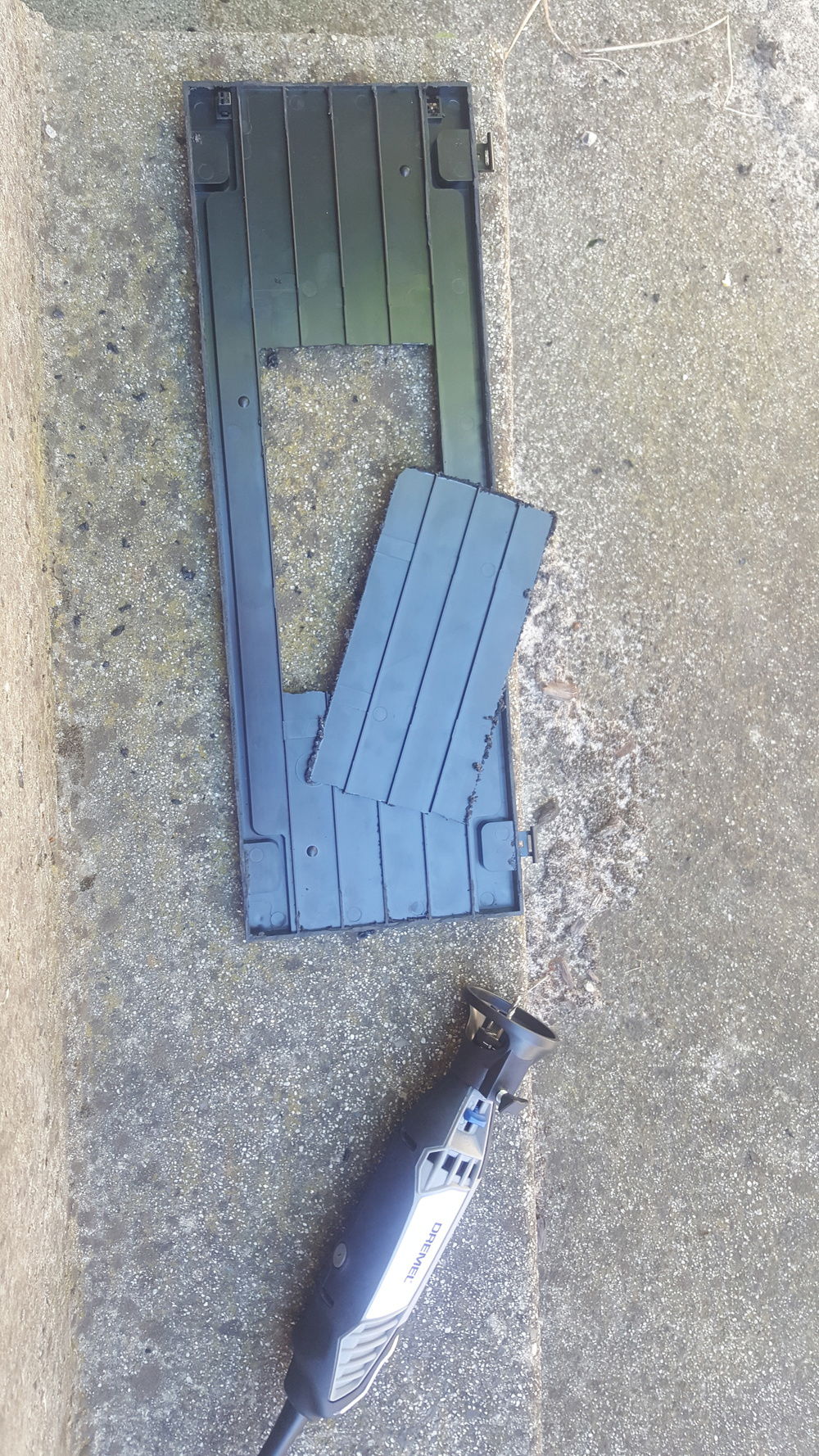

Recycling the original front panel backing and cutout for lighting

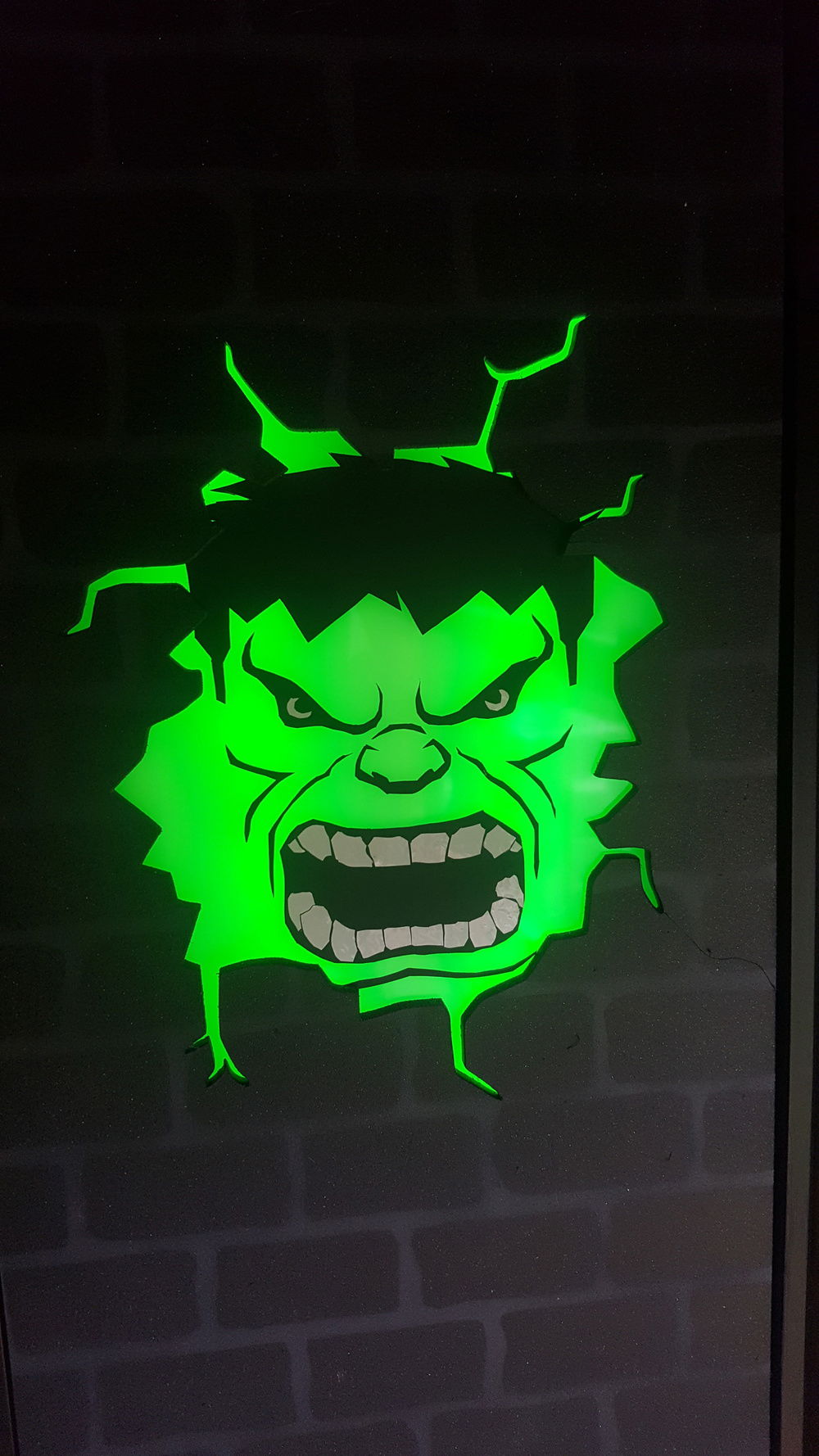

Lights installed and front panel done. (light is shining through the white frosted acrylic layer)

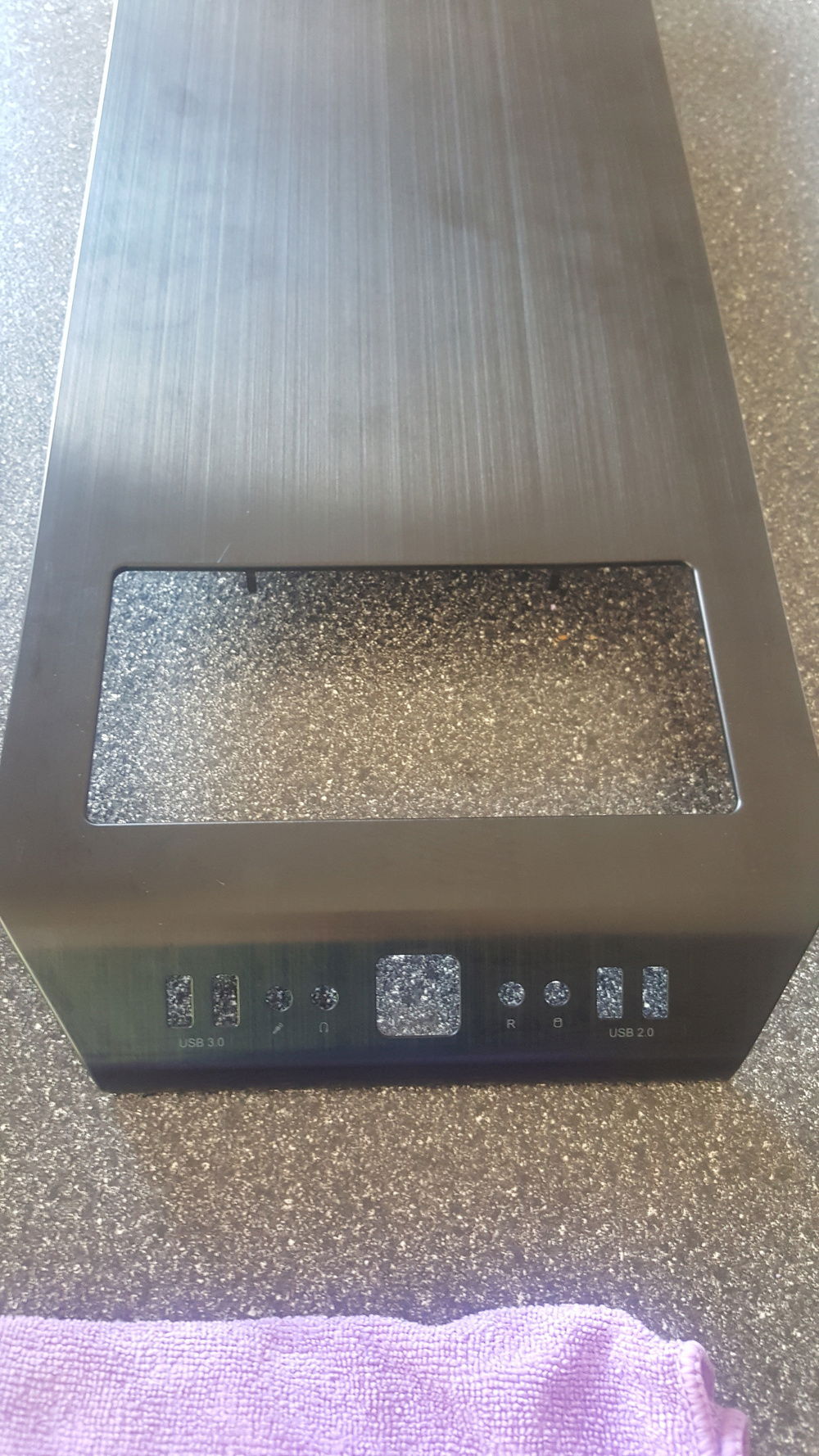

Top panel off ready for painting

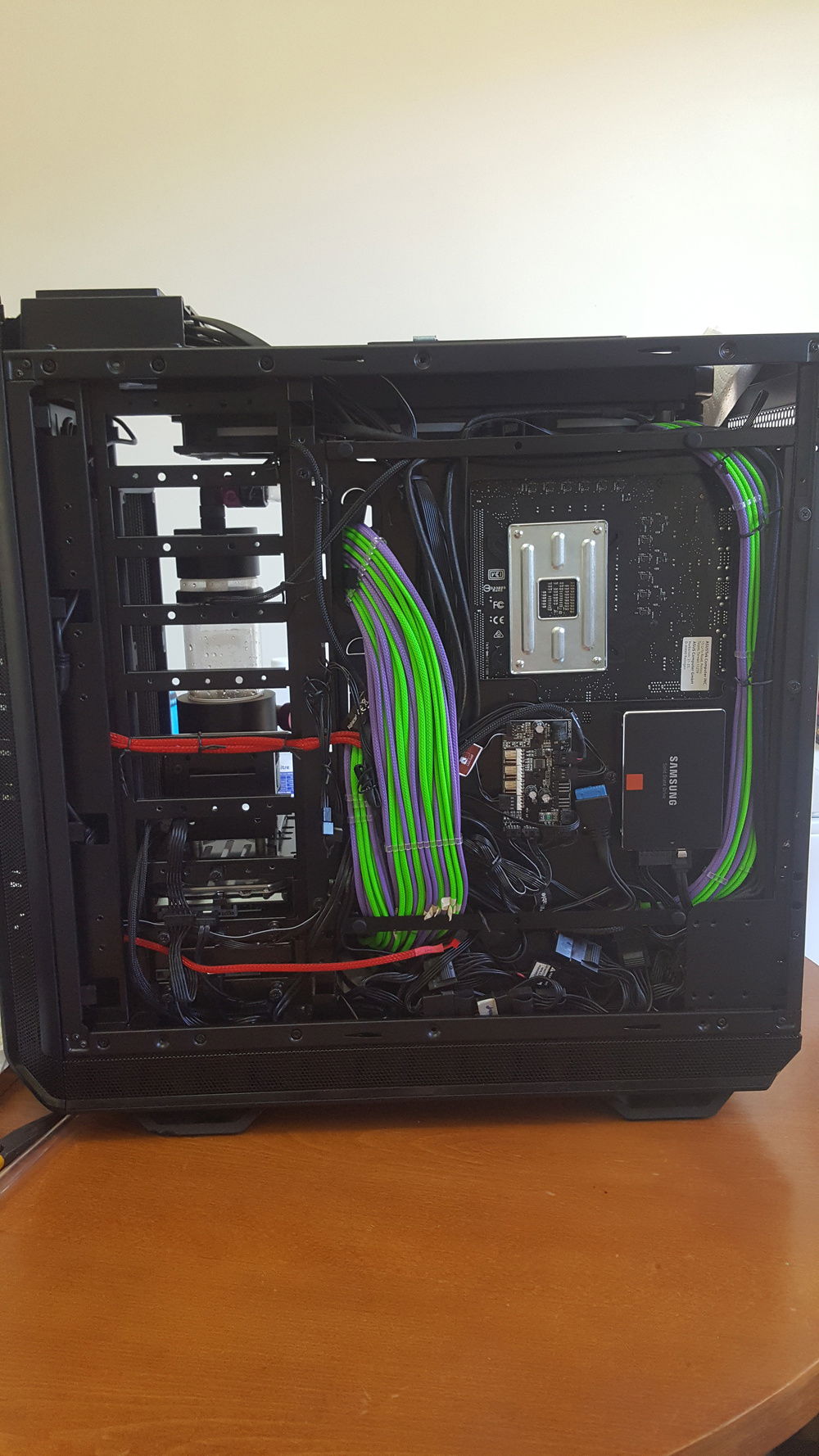

Poor effort at cable management. Lucky you dont see it

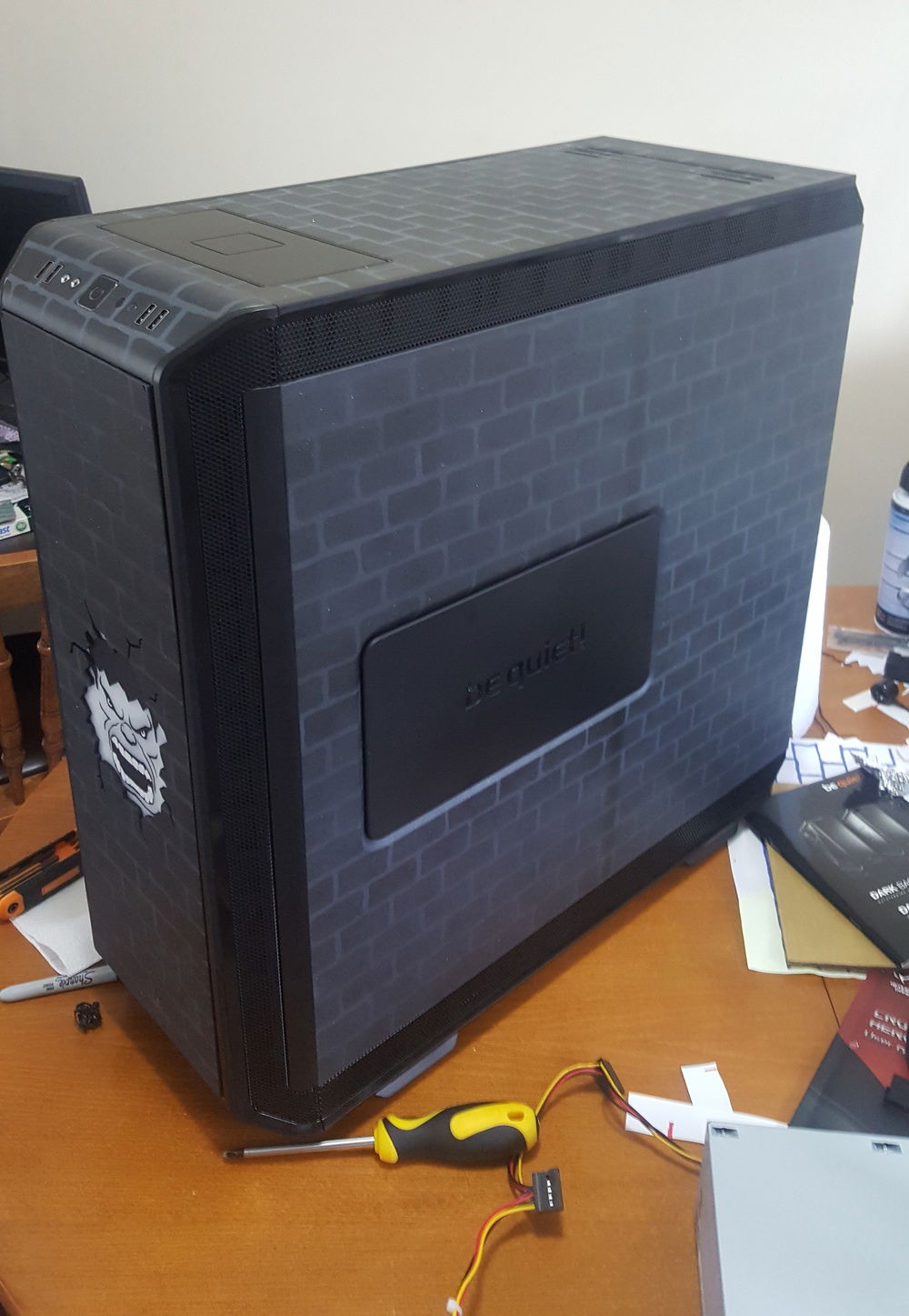

Rear, top and front all in place

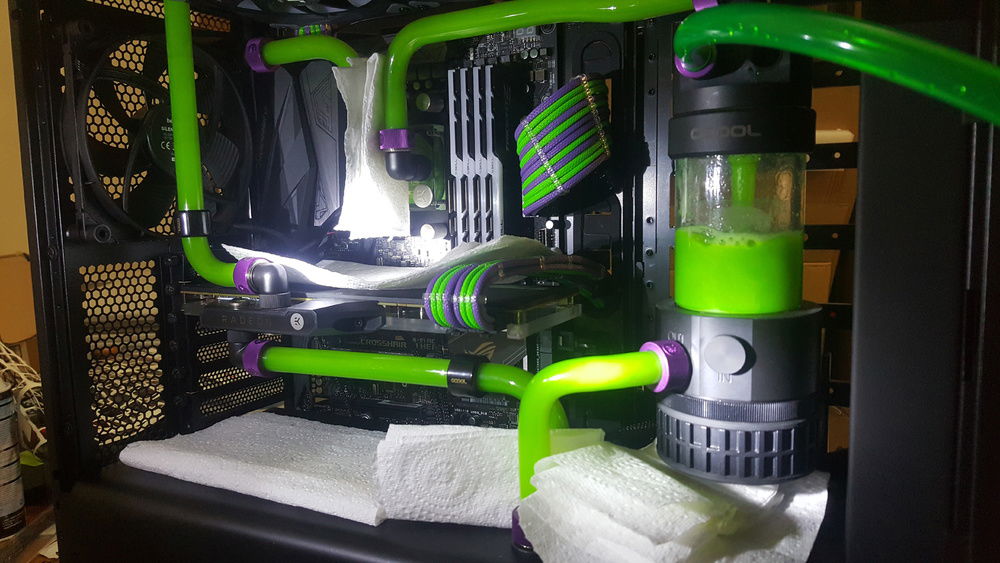

First run with green coolant

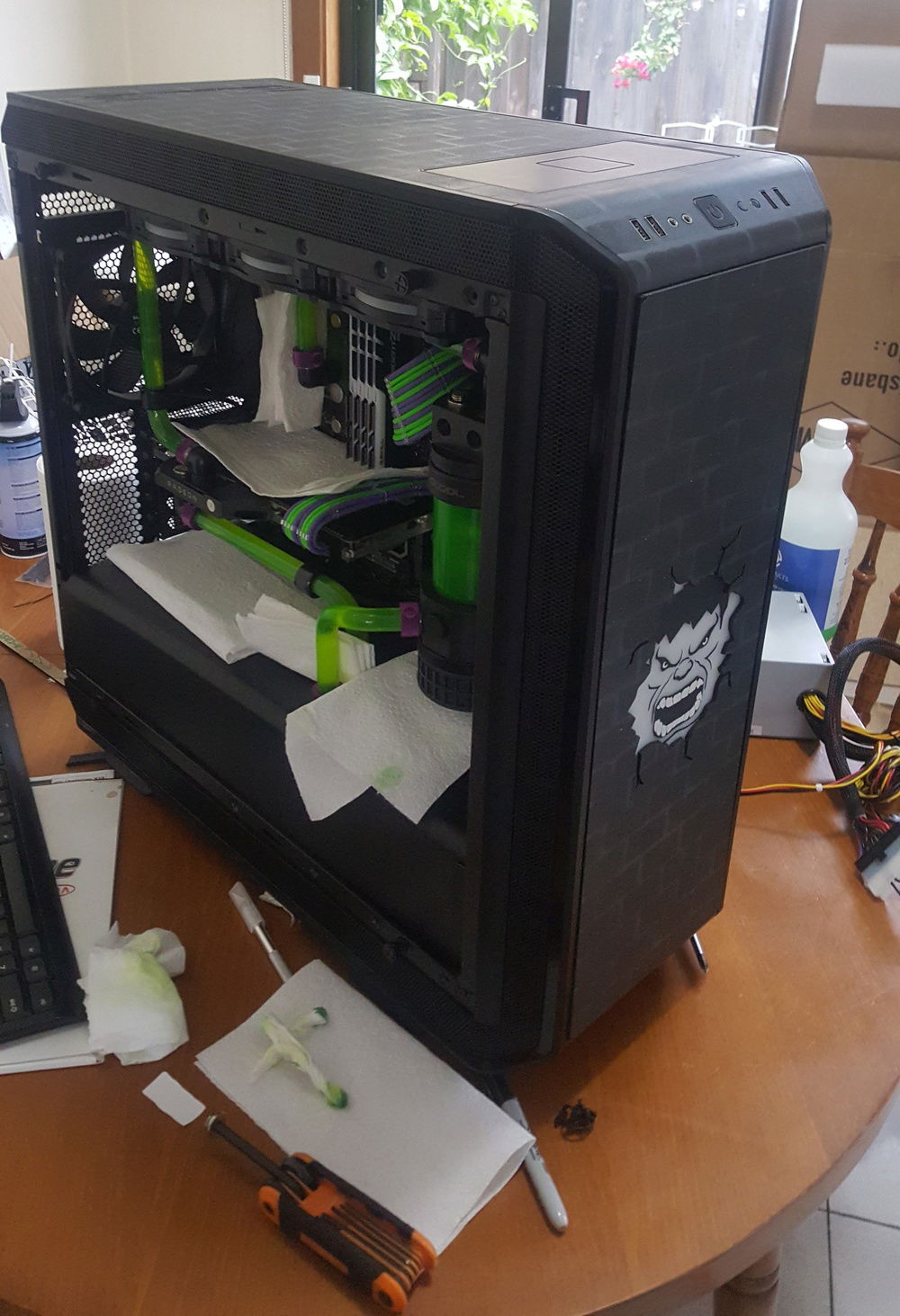

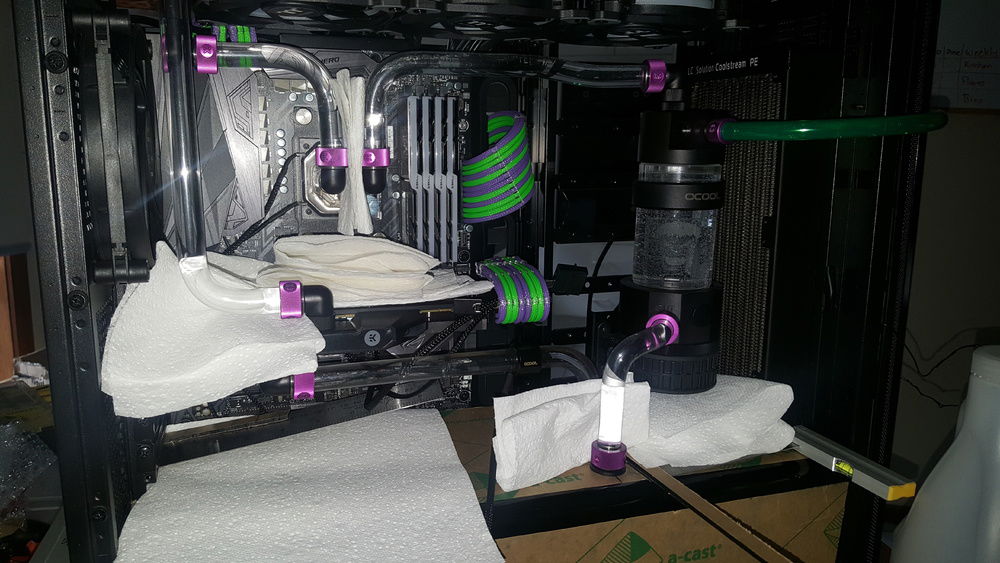

Coolant in and leak testing

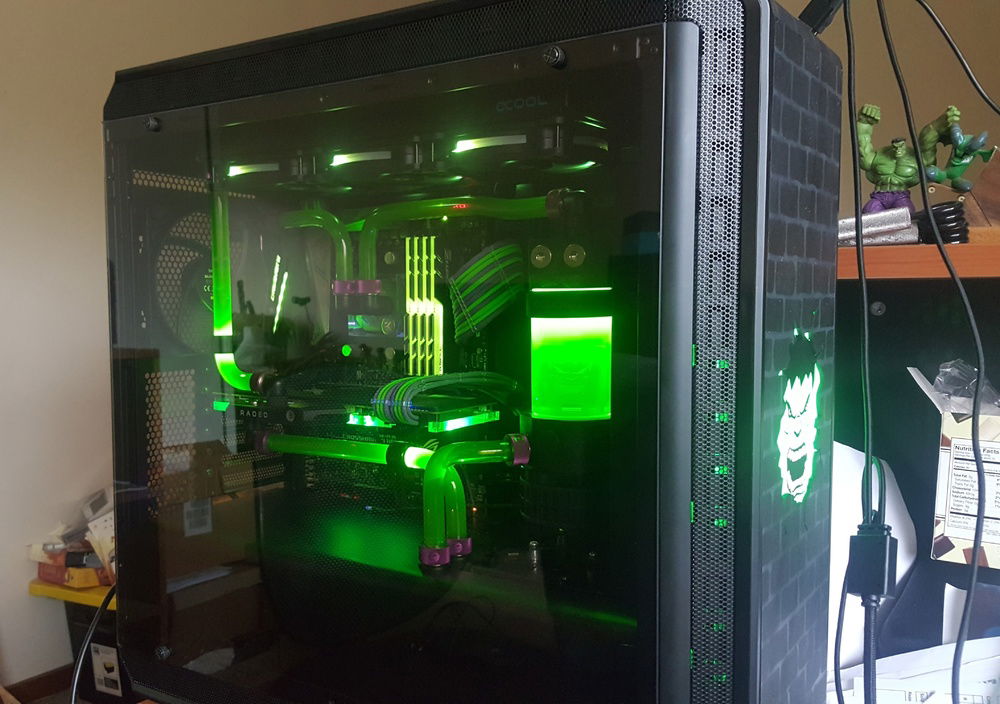

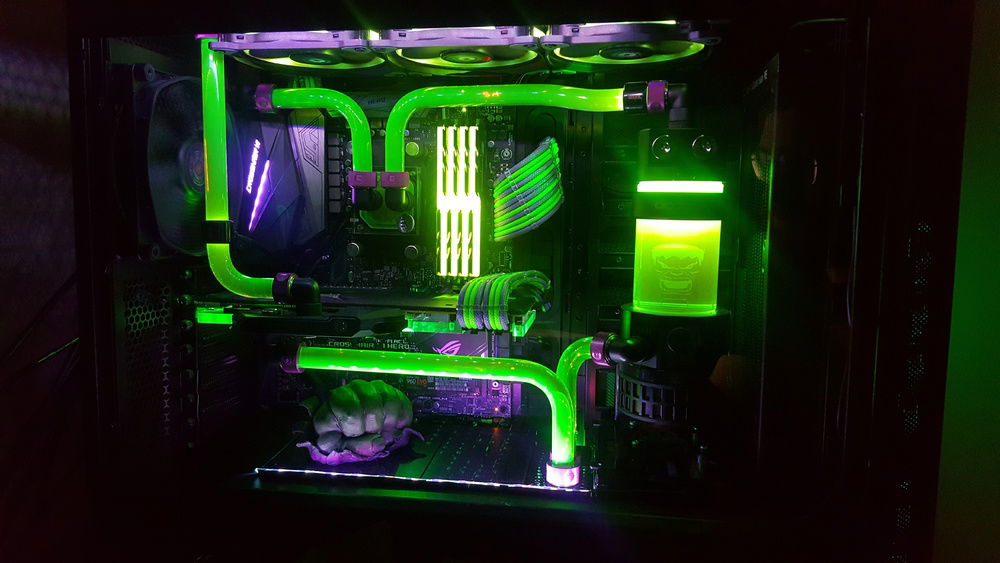

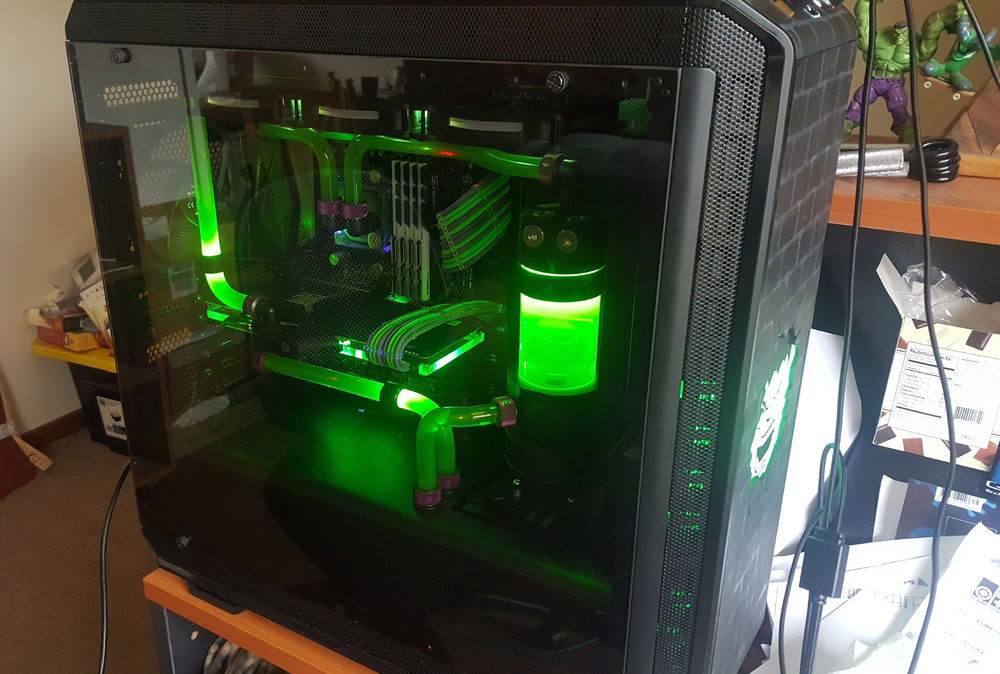

Tempered glass and lights all in place

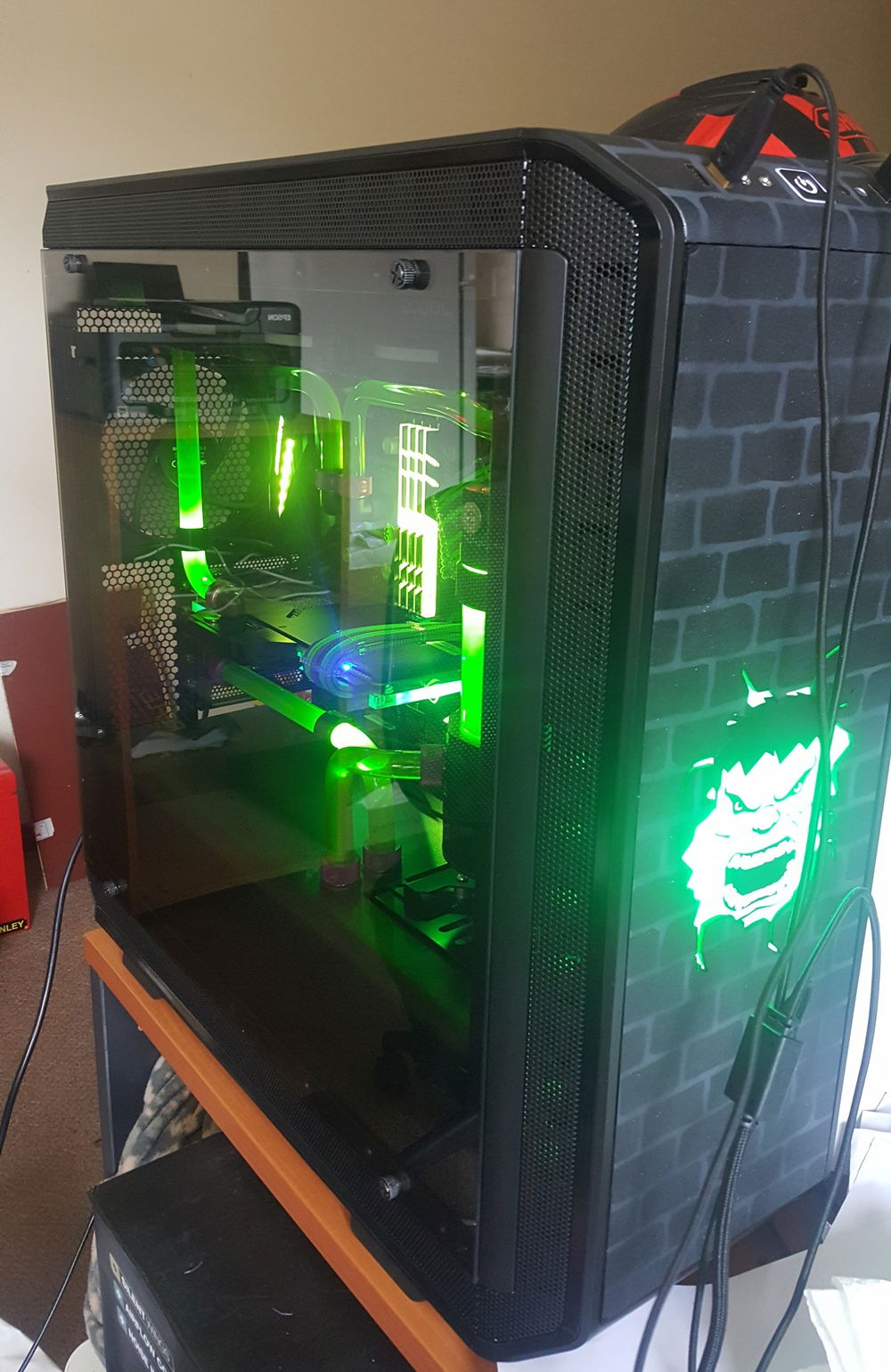

I kept the pc like this while life happened for about 12 months.

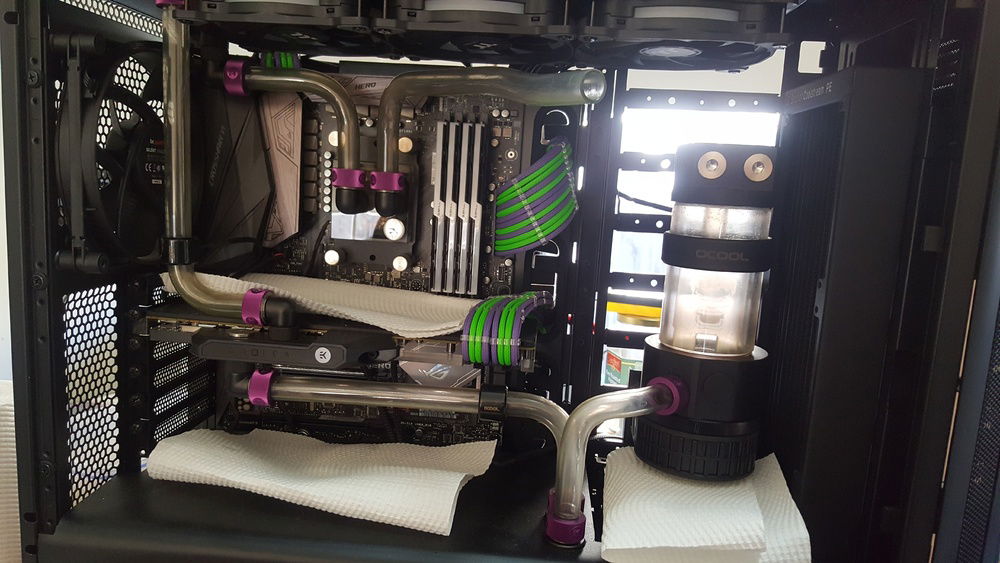

12 months later. The loop needed a clean

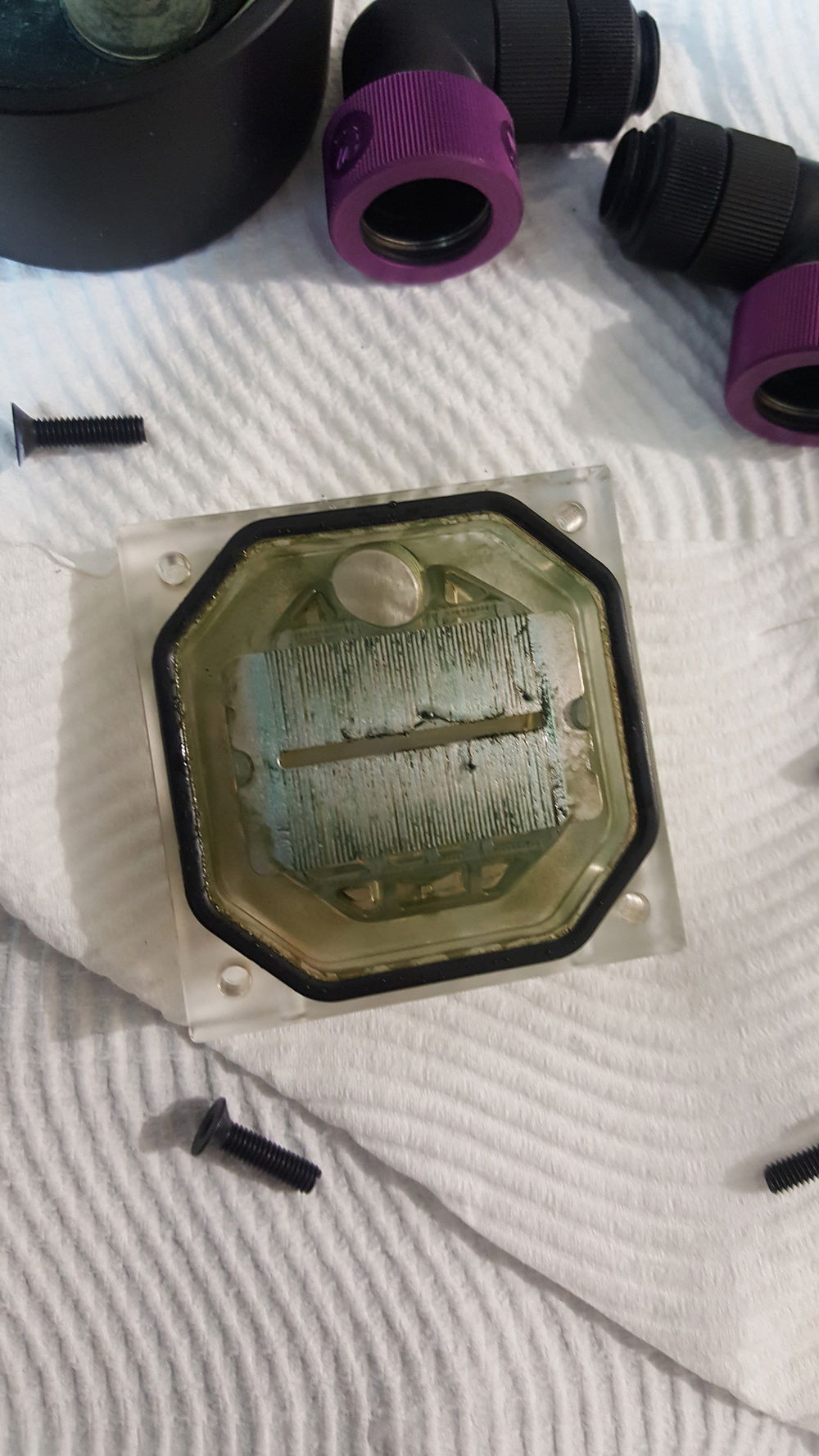

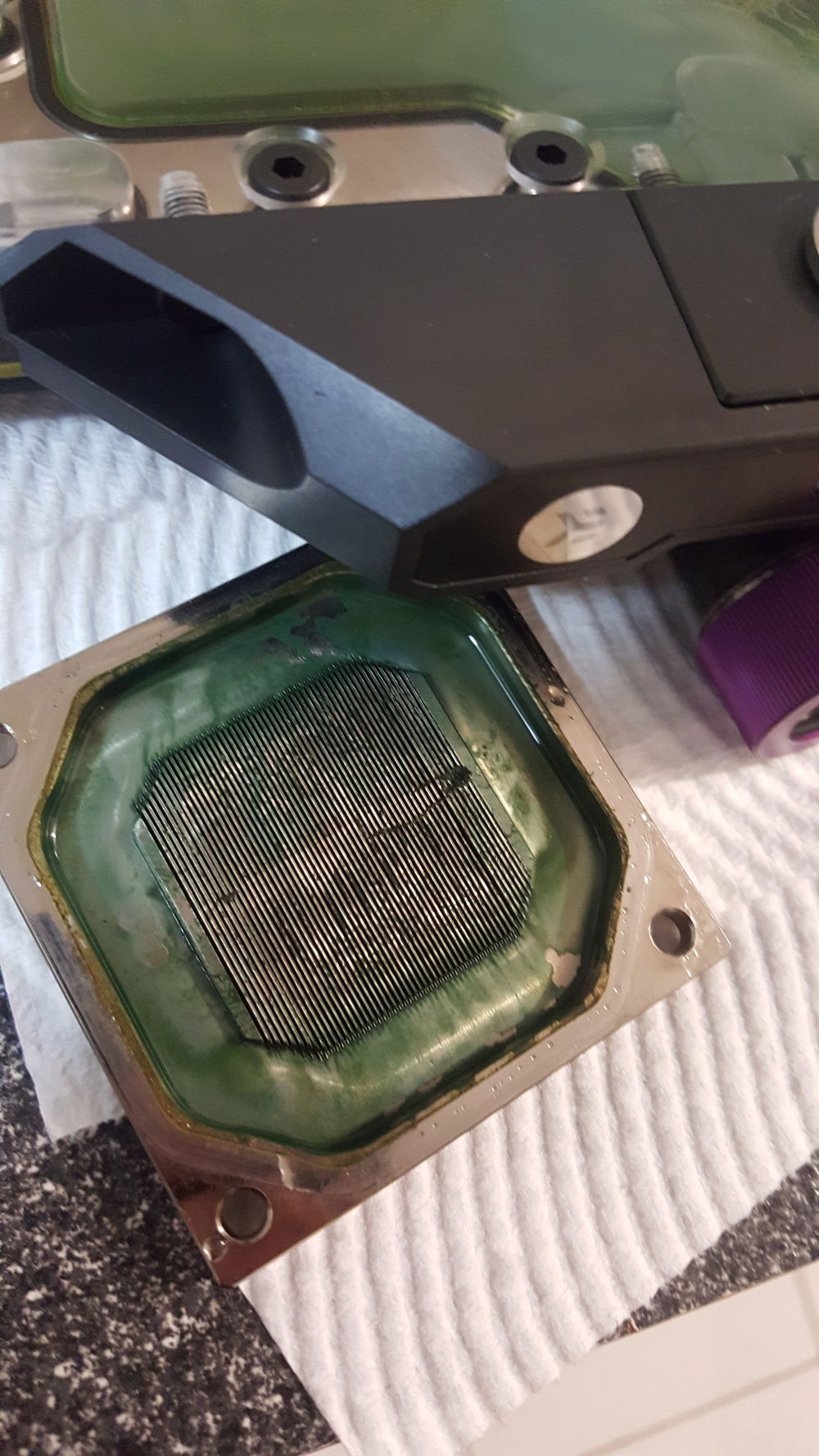

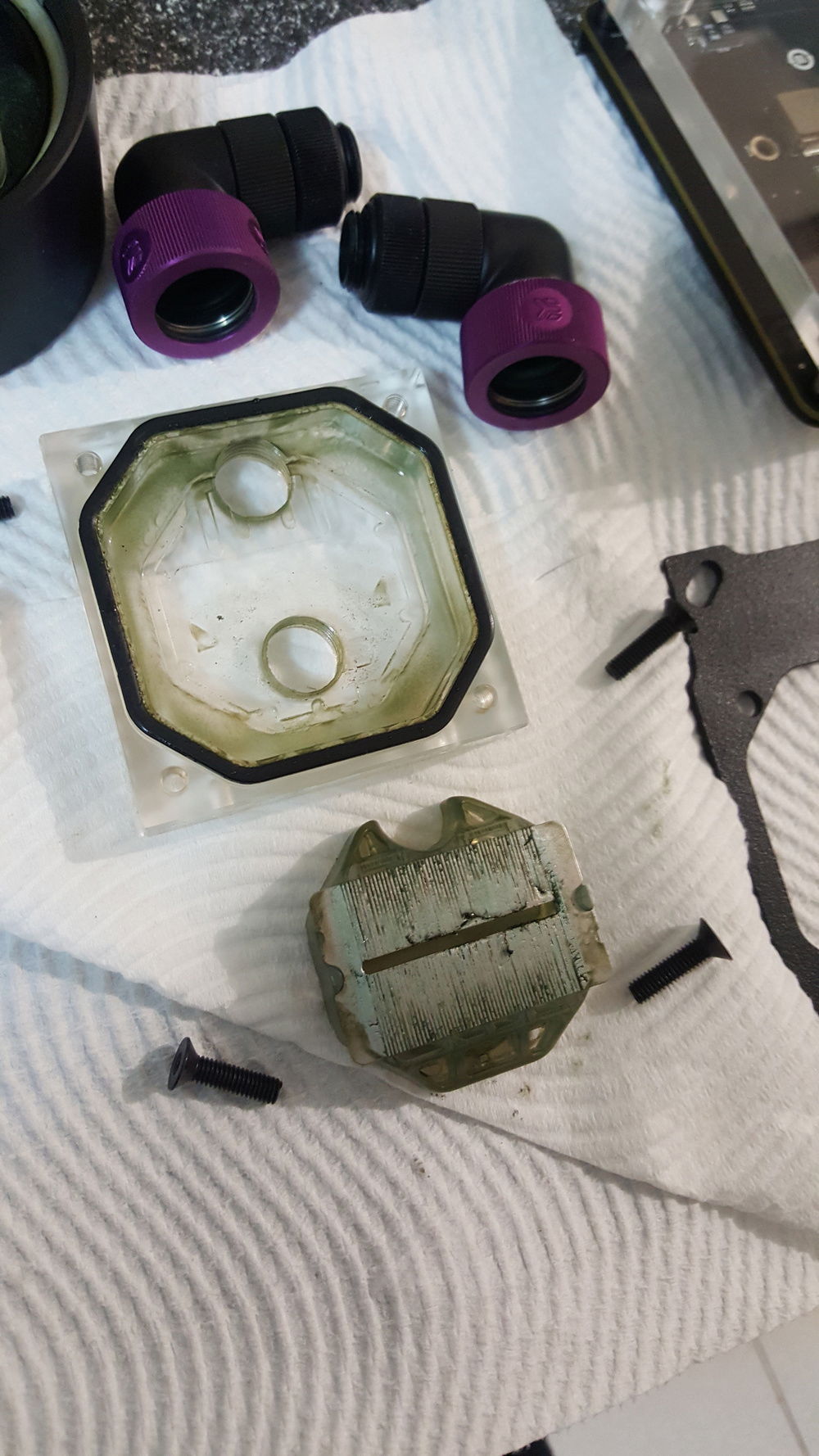

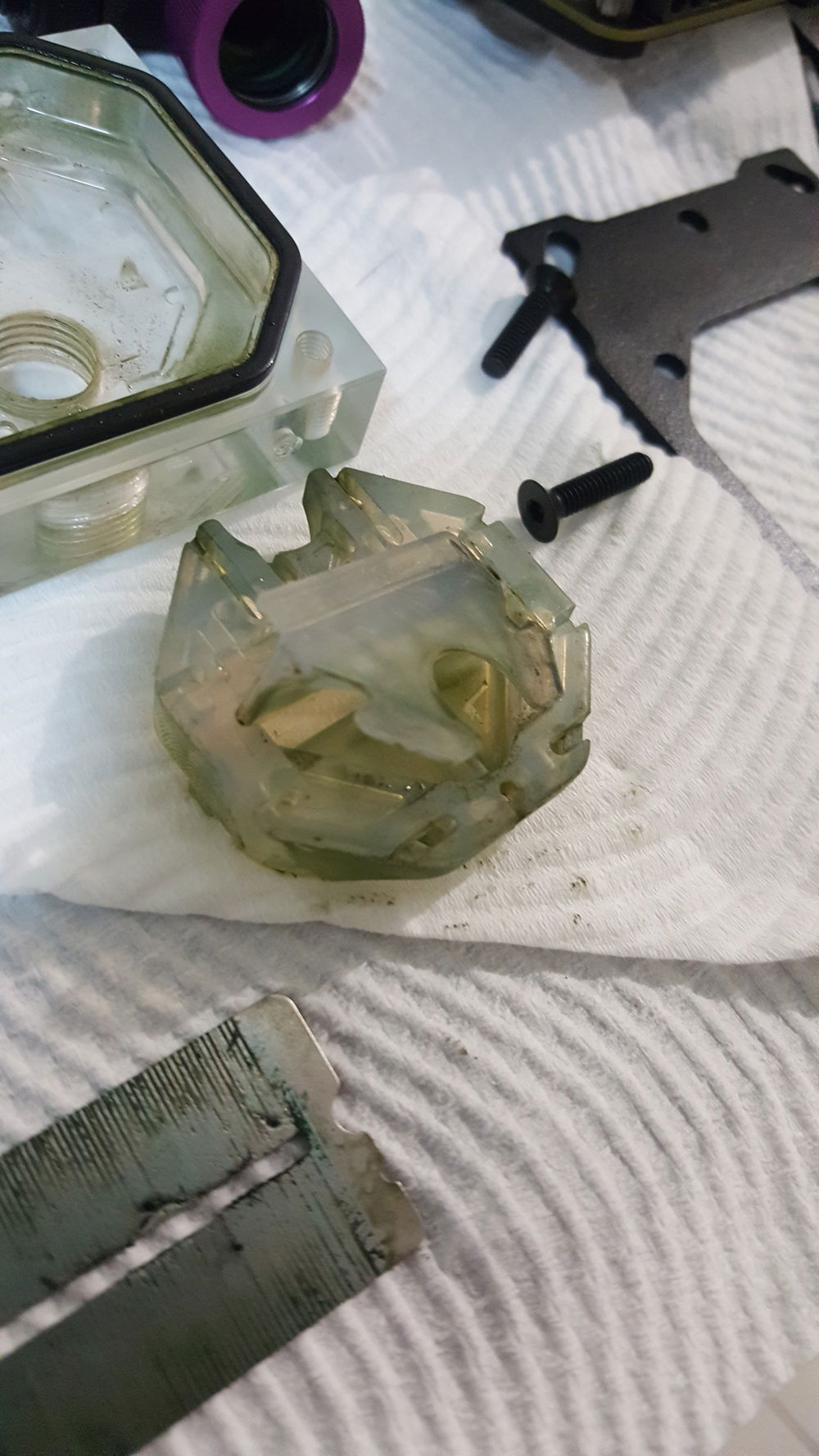

So much gunk in the CPU block

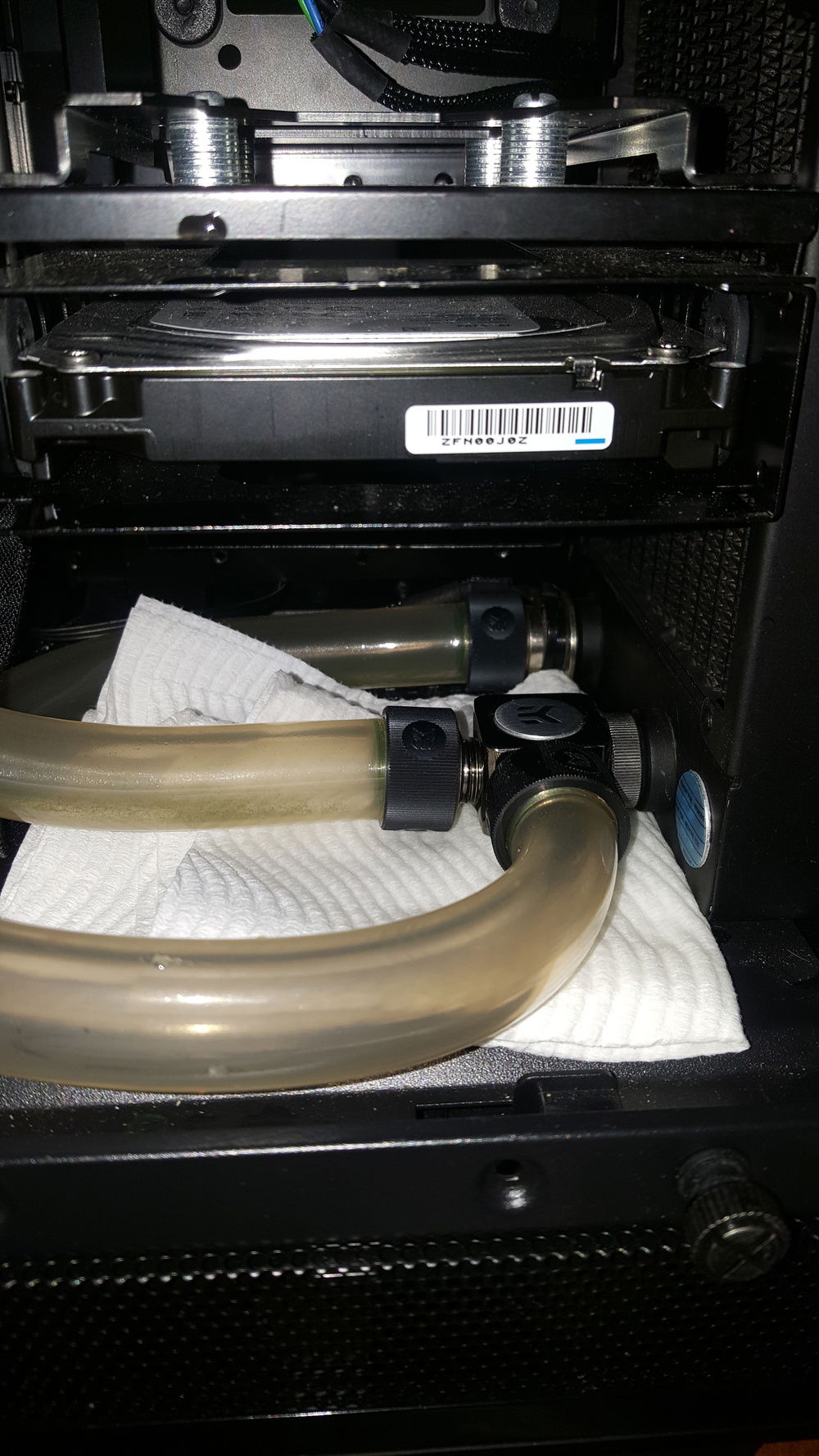

Tubes that are below the PSU shroud (used soft tubing for this) Front radiator and drain port. The soft tubing gets stained this dirty colour after about a years use

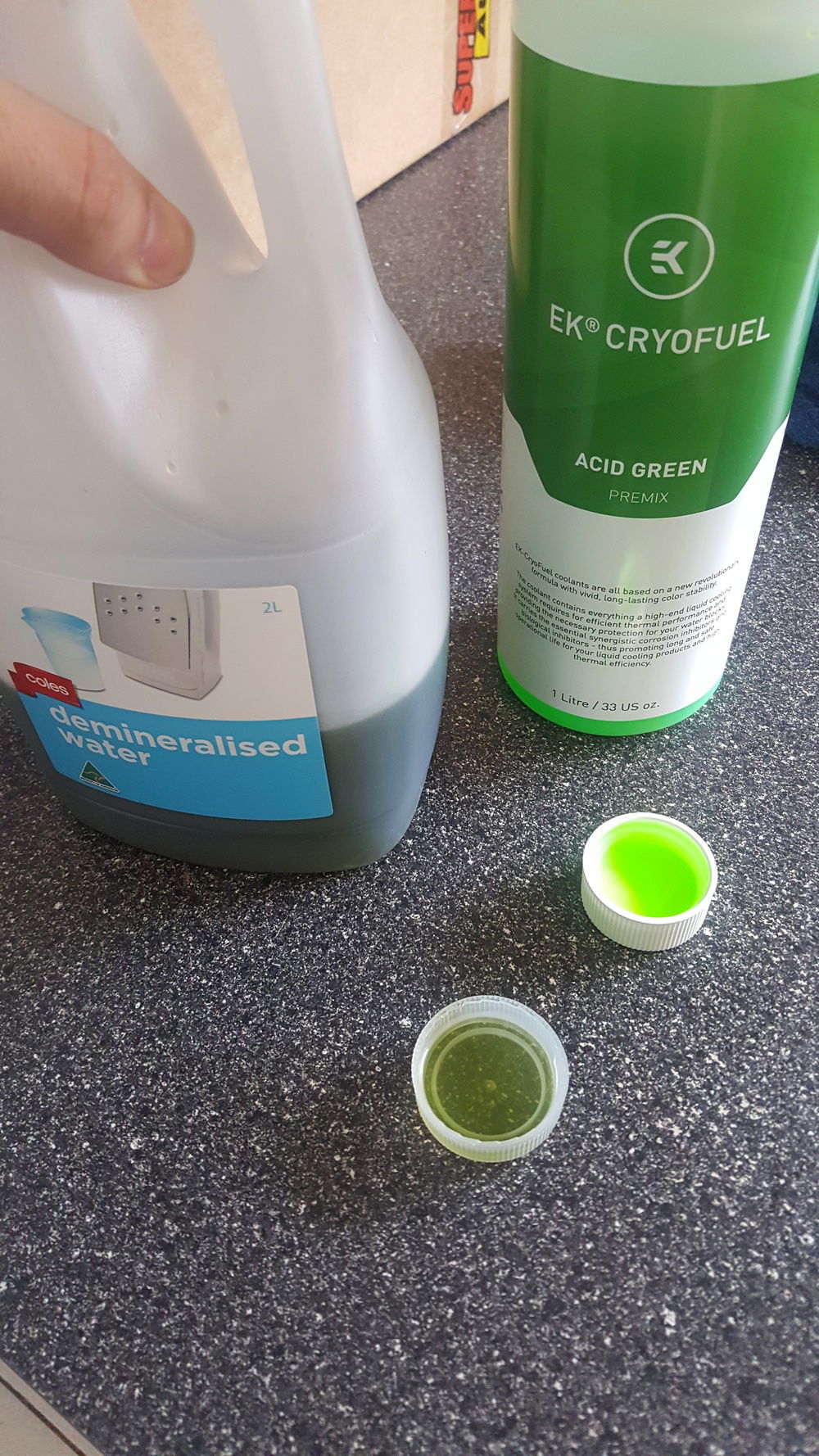

Look at the difference in that colour, new and old

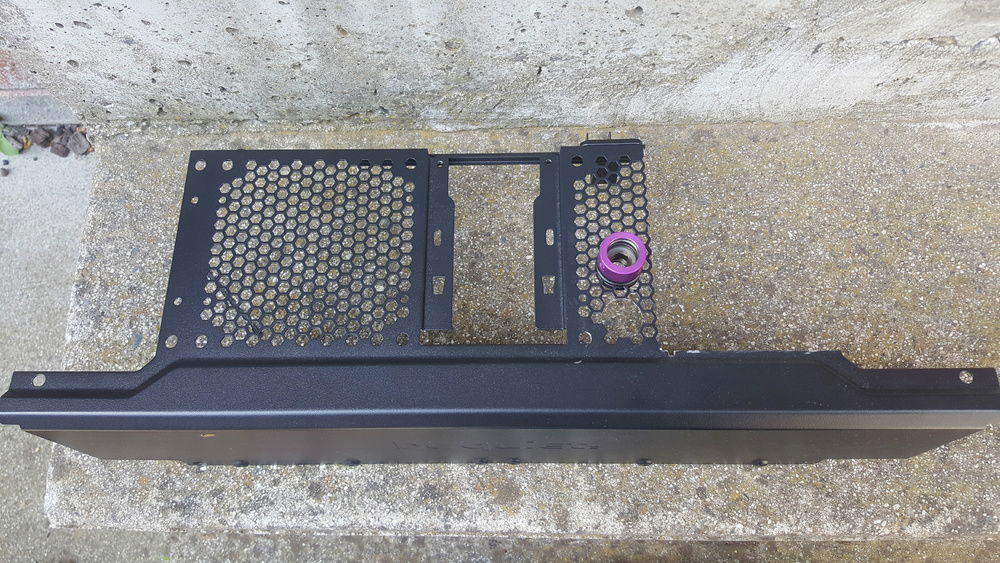

Got me the new PSU shroud from the 2nd gen of my case - a better fit than the acrylic one I made.

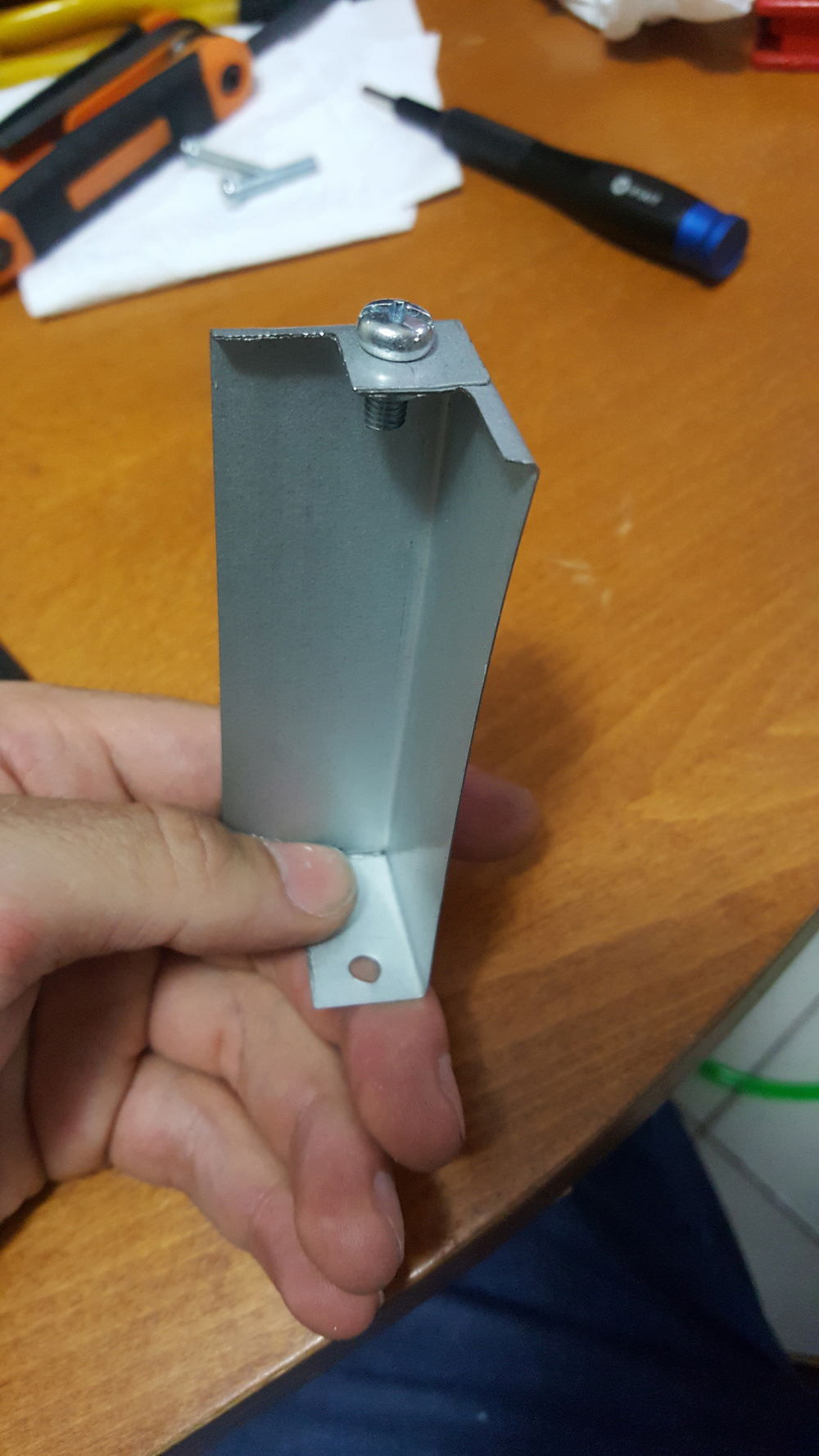

Cut off the right side of it to make room for the reservoir. Cut a couple holes for the tubes to go through. I then cut the section that the tubes go through for easier management. (means that I can remove the shroud to get access below without having to drain my loop as well)

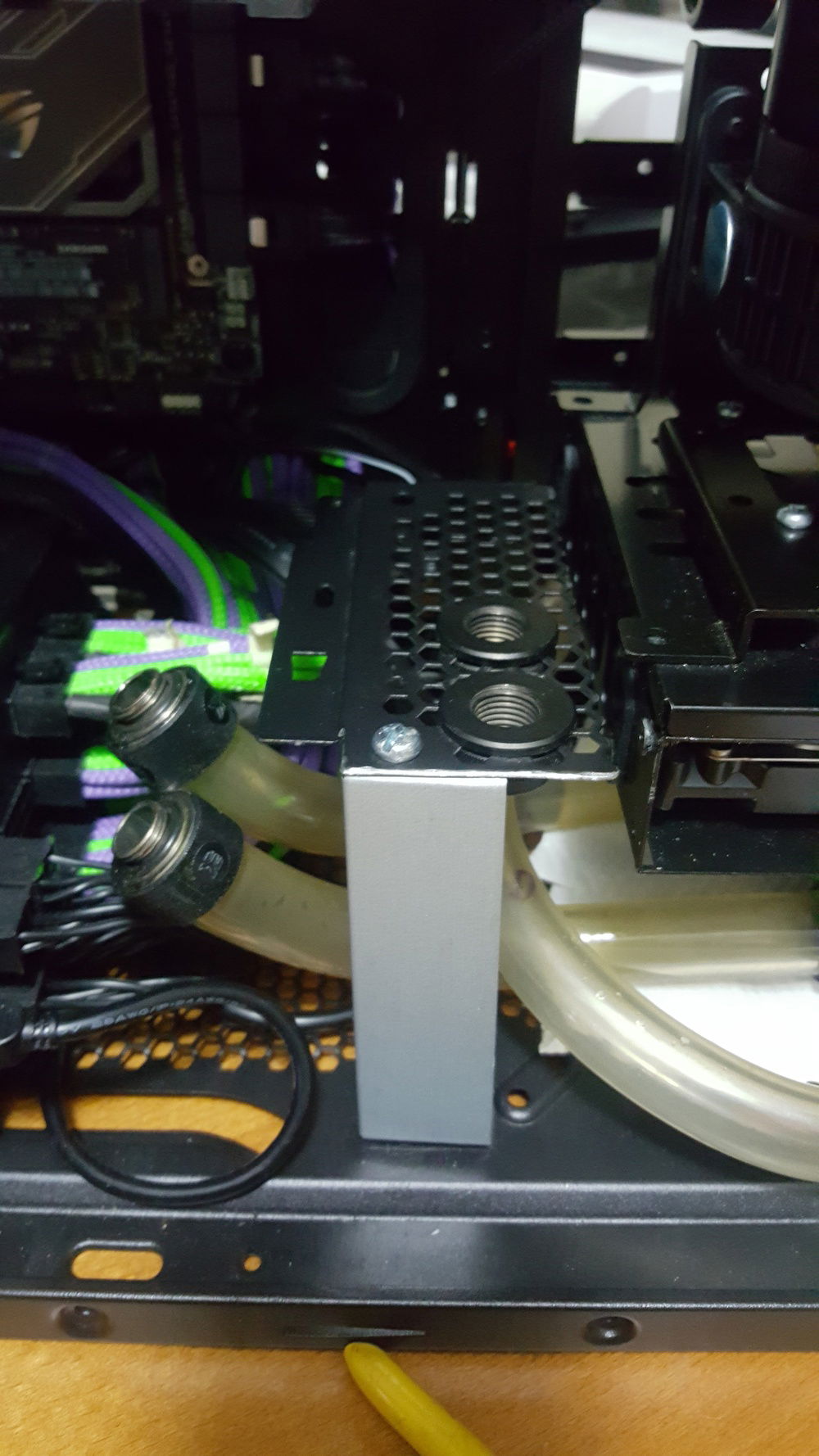

Support in place

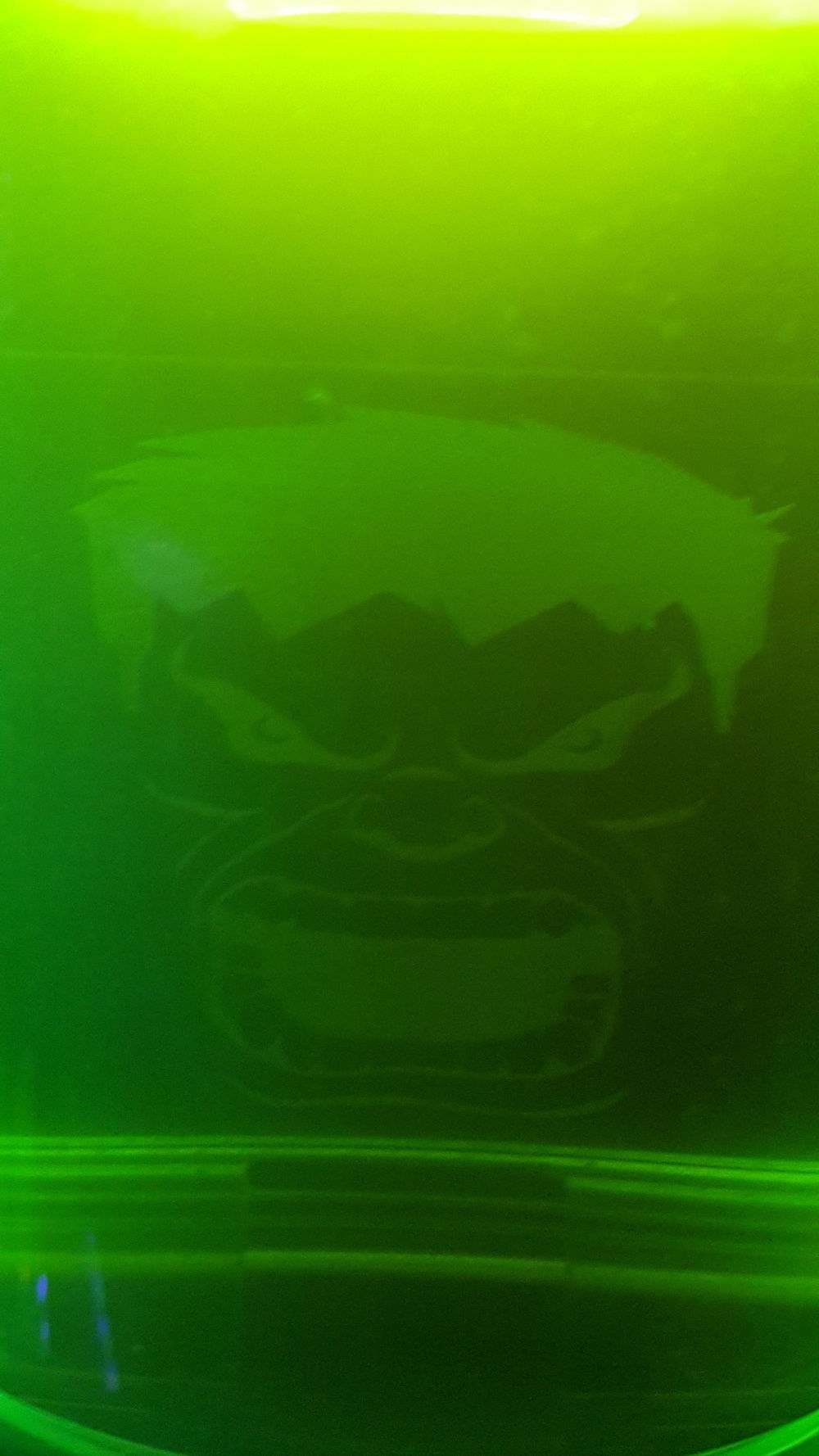

The anti vortex insert to the reservoir. Got the hulks face laser etched on a bit of clear acrylic I cut out. Forgot to take a pic of it before installing it.

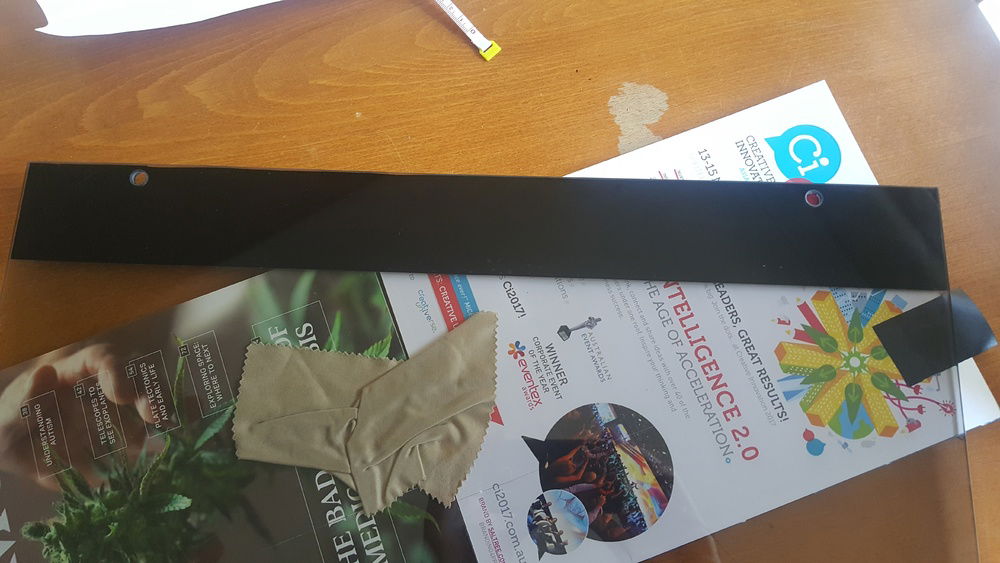

Cut and stuck on black vinyl to the tempered glass to hide the LED strip (up top)
Hulk
My first custom watercooling build. Also the first build that I have done a case mod on. Overall really fun making this Hulk.
Build updated 2019 with new CPU/GPU, CPU waterblock, GPU backplate
Build updated 2019 with new CPU/GPU, CPU waterblock, GPU backplate
Color(s): Black Green Purple
RGB Lighting? Yes
Theme: Comics
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build
Contests
This build participated in 1 contest.
| Rank | Contest | Date |
|---|---|---|
| #972 | The builds.gg 10K Challenge | ended |
Build Updates
Swapped Vega 64/1700X for 2080Super/3700X
Hardware
CPU
$ 195.00
CPU
$ 146.00
Motherboard
$ 398.86
Memory
$ 152.99
Graphics
Graphics
$ 349.99
Storage
$ 133.99
Case
Case Fan
$ 71.99
Case Fan
$ 28.99
Cooling
$ 88.99
Cooling
$ 209.06
Cooling
Cooling
Cooling
$ 209.99
Cooling
$ 226.21
