Duality

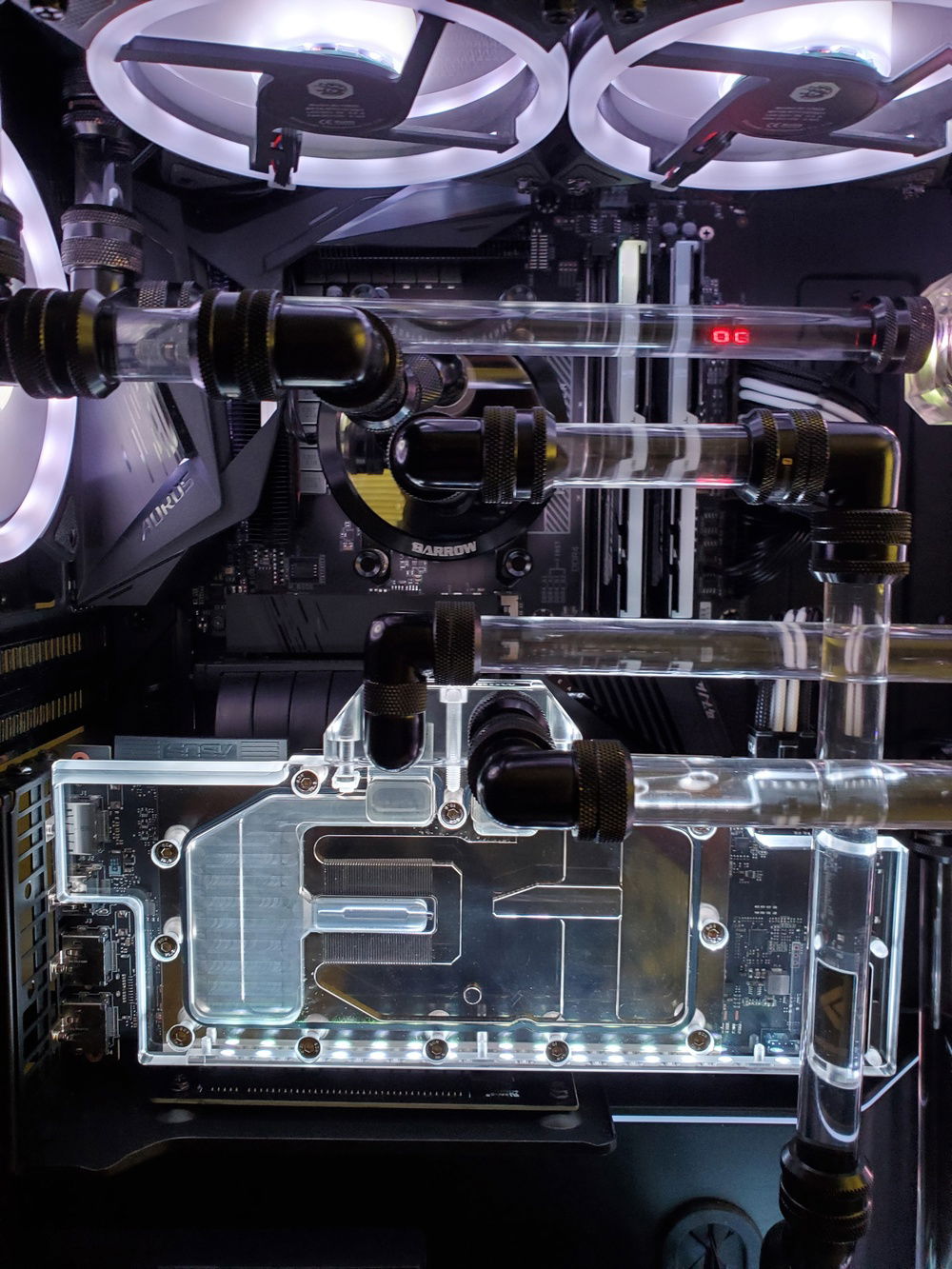

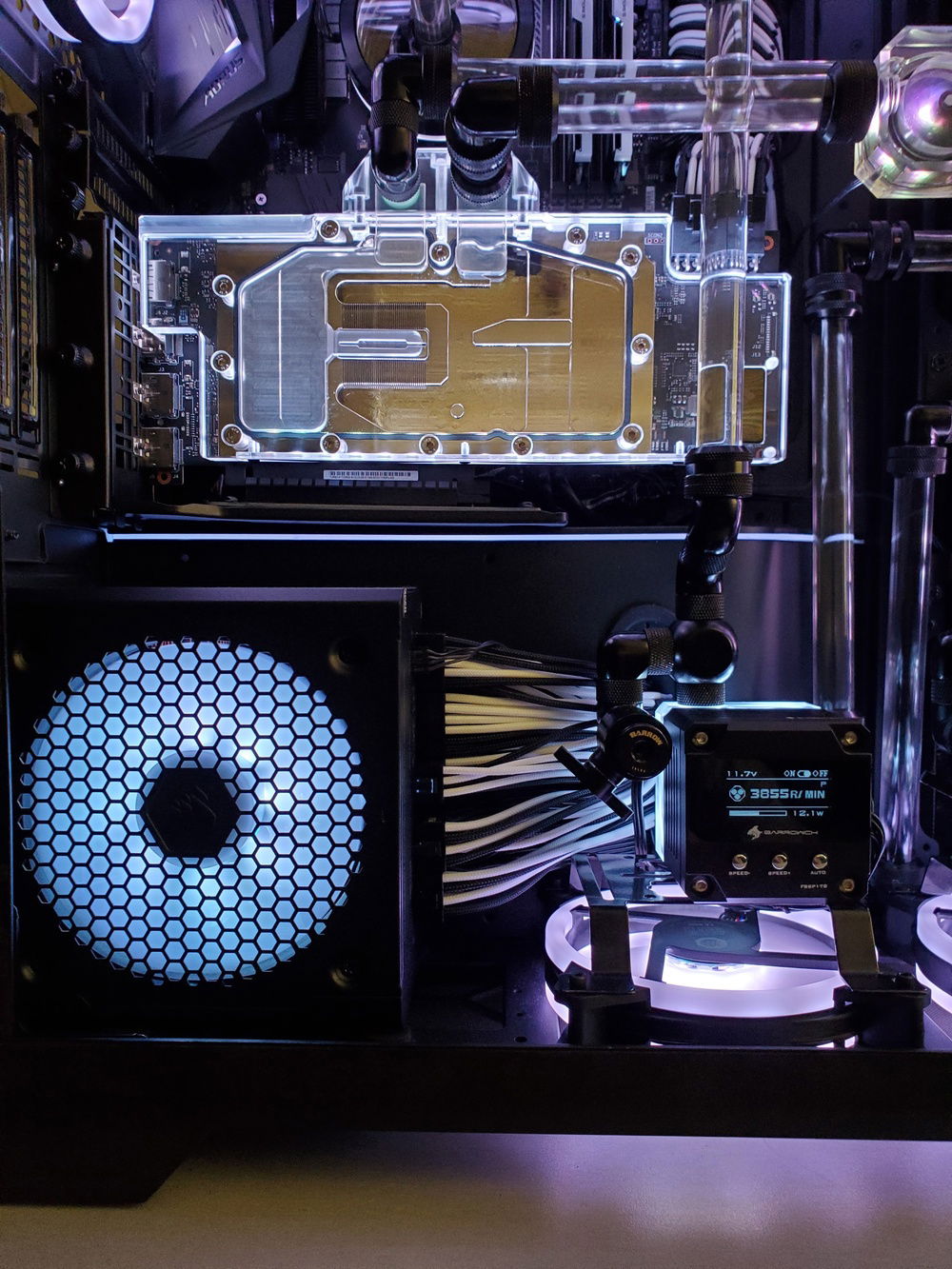

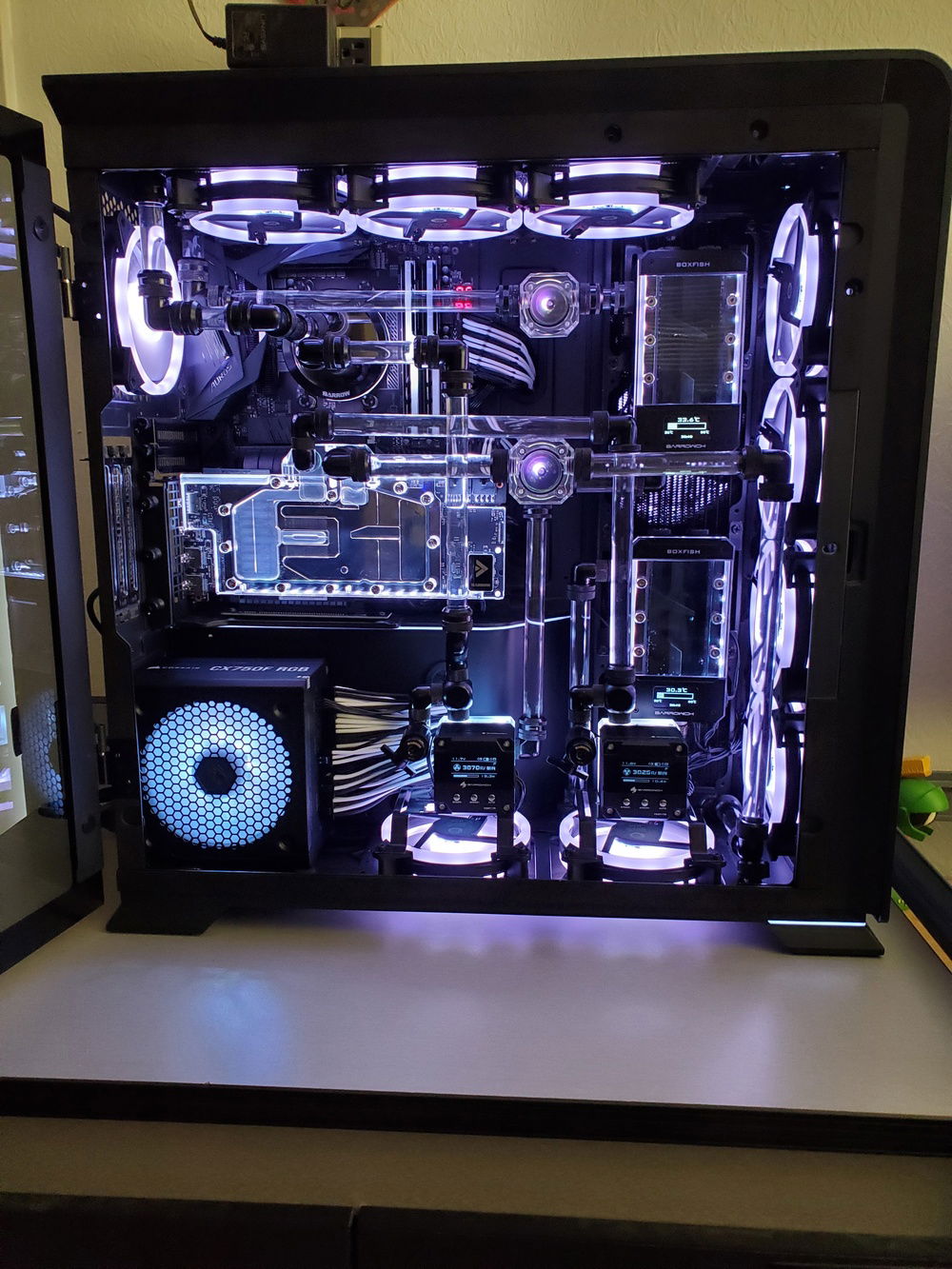

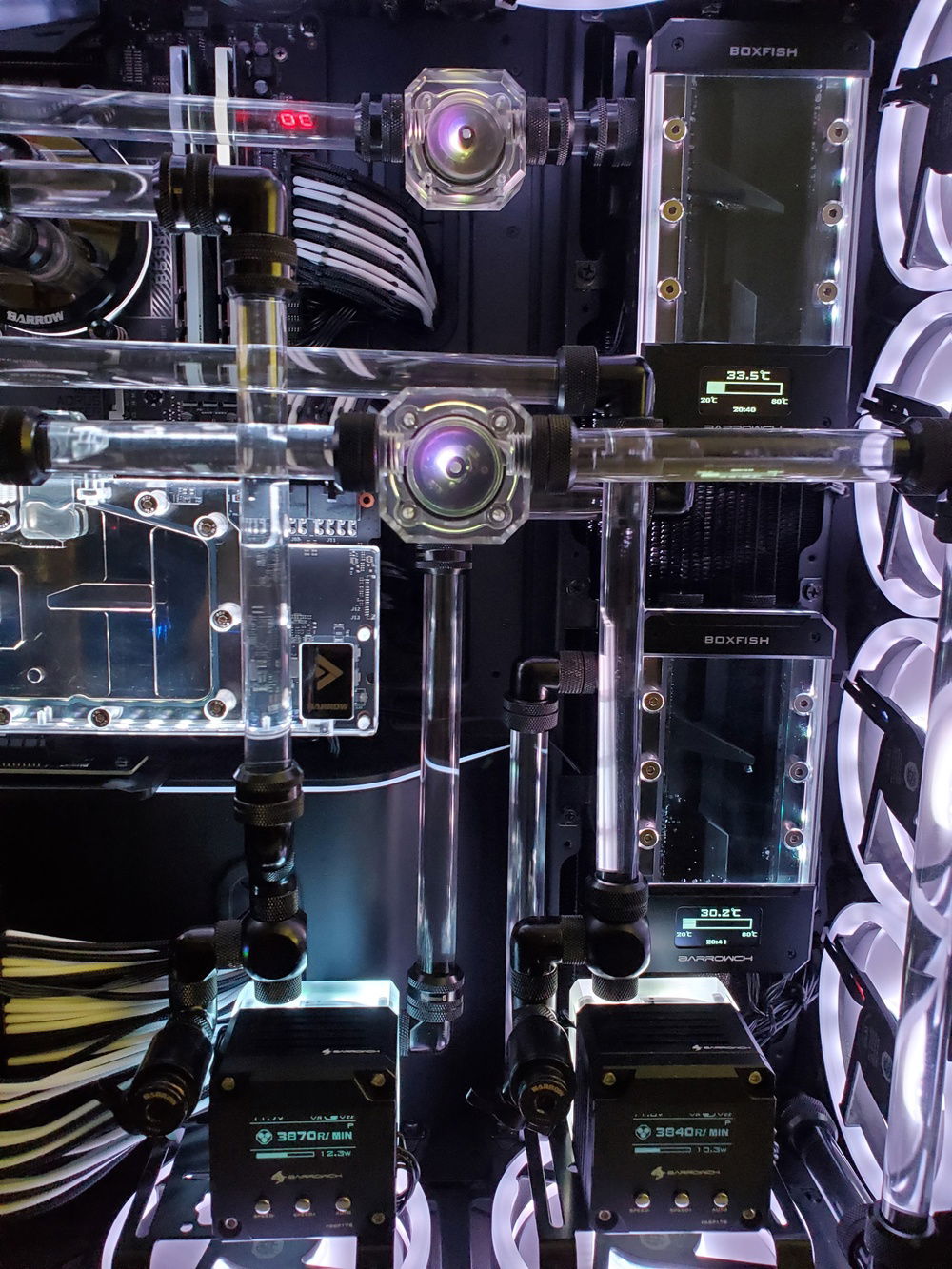

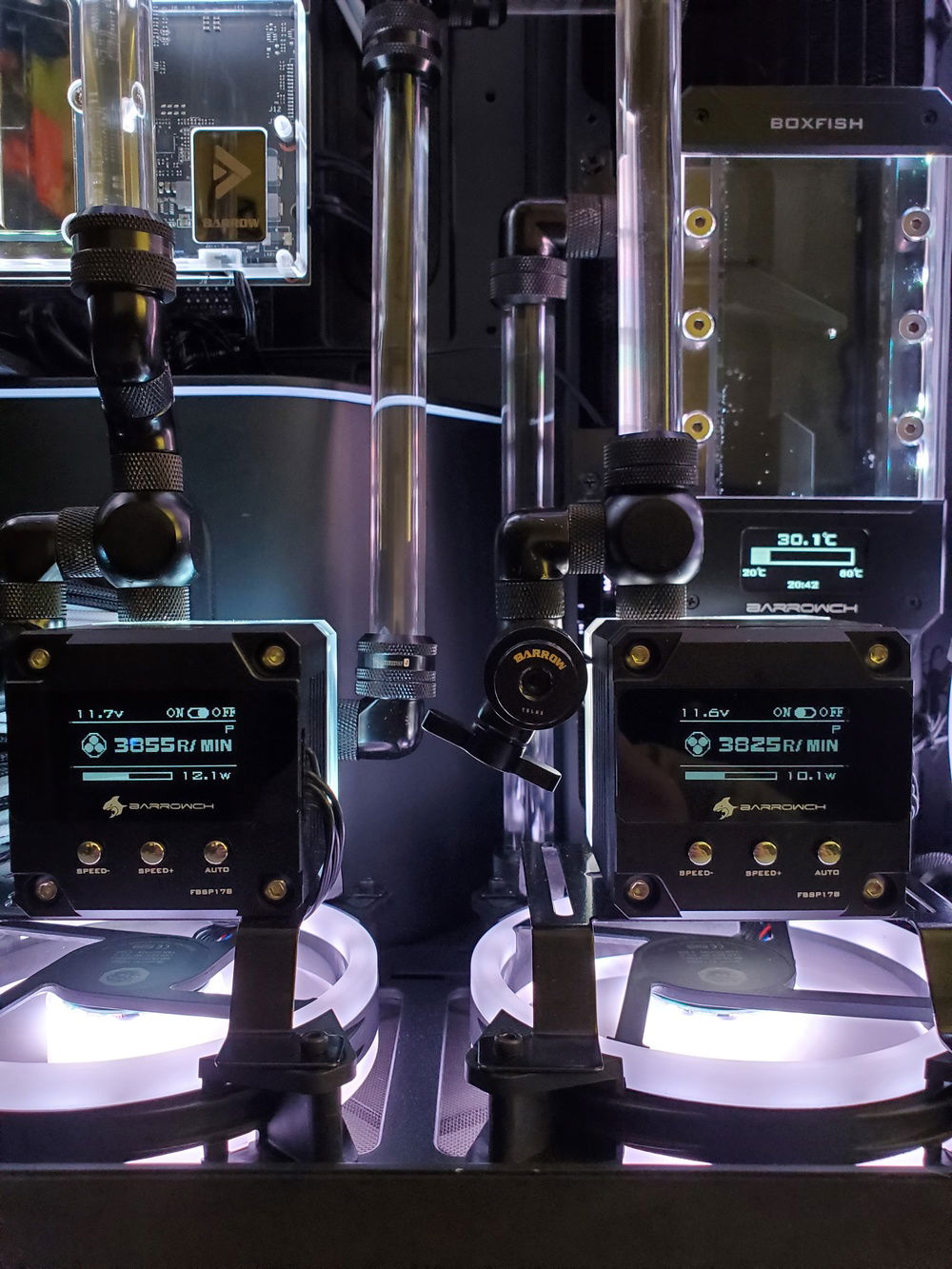

This build features two custom loops for the GPU and CPU. The GPU utilizes a 480mm radiator while the CPU uses a 360mm one. Radiator fans are controlled by the motherboard that utilizes two water temperature sensors, one for each loop. Sensors are mounted in the reservoirs as close to the path of water flow as possible. Both pumps display flowrate, and are controlled by temp as well. There are two inline flowrate monitors as well. The top radiator is setup so that the fans pull air from the outside down into the case through it. Seven fans are dedicated to internal cooling. These rely on the temp sensor of the motherboard. Two of the fans cool the pumps directly. The Corsair PSU powers the motherboard and GPU. The Thermaltake PSU powers the pumps and lighting.
A Raspberry Pi with a 7 inch screen is below the monitor, and wirelessly displays a custom Aida64 stats screen so that I can monitor the PC. The monitor is a Viotek 32 inch 165hz gaming panel.
This setup allows me to run an OCed processor and GPU hard daily with zero issues.
Color(s): Black White
RGB Lighting? Yes
Theme: Art
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Build Updates

Changed the system power supply to a Super Flower Leadex III 850w. Left the secondary PSU Thermaltake.

Hardware

CPU
$ 375.00
AMD - Ryzen 9 (3900X)
Socket: AM4
Cores: 12
Motherboard
$ 547.99
Gigabyte - Aorus Master
Chipset: B550
CPU Socket: AM4
Size: ATX
Memory
$ 104.99
G.Skill - Trident Z (3600MHz) (Black/RGB)
Type: DDR4
Capacity: 32 GB
Graphics
$ 1,349.00
ASUS - GeForce Turbo
Chip Manufacturer: NVIDIA
Chip: RTX 2080 SUPER
Storage
$ 99.99
Sabrent - Rocket (Nvme PCIe)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 118.00
Samsung - 850 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 53.99
Western Digital - Blue SN550
Form Factor: M.2
Interface: PCIe x4
Capacity: 500 GB
PSU
$ 109.00
Corsair - CX (CX750F)
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Bronze
PSU
$ 125.00
Thermaltake - Toughpower DPS G (discontinued)
Wattage: 450
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 190.00
Phanteks - Enthoo Luxe 2 (Black)
Type: Full-Tower
Side Panel: Tempered Glass
Case Fan
$ 540.00
Cooling
$ 300.00
Barrow - Fittings
Type: Custom Loop
Cooling
$ 436.00
Barrow - Pump (2x)
Type: Custom Loop
Cooling
$ 260.00
Barrow - Reservoir (2x)
Type: Custom Loop
Cooling
$ 50.00
Thermaltake - Tubing
Type: Custom Loop
Cooling
$ 118.99
XSPC - TX Ultrathin
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 154.99
XSPC - TX Ultrathin
Type: Custom Loop
Size (WxHxD): 480 mm (4 x 120 mm)
CableMod
$ 60.00
CableMod - PRO C-Series RMi & RMx Cable Kit
Mode: Custom
Sleeve: ModMesh
Estimated total value of this build:
$ 4,961.14
