While in progress, just after I had finished up with tubing runs, before leak testing

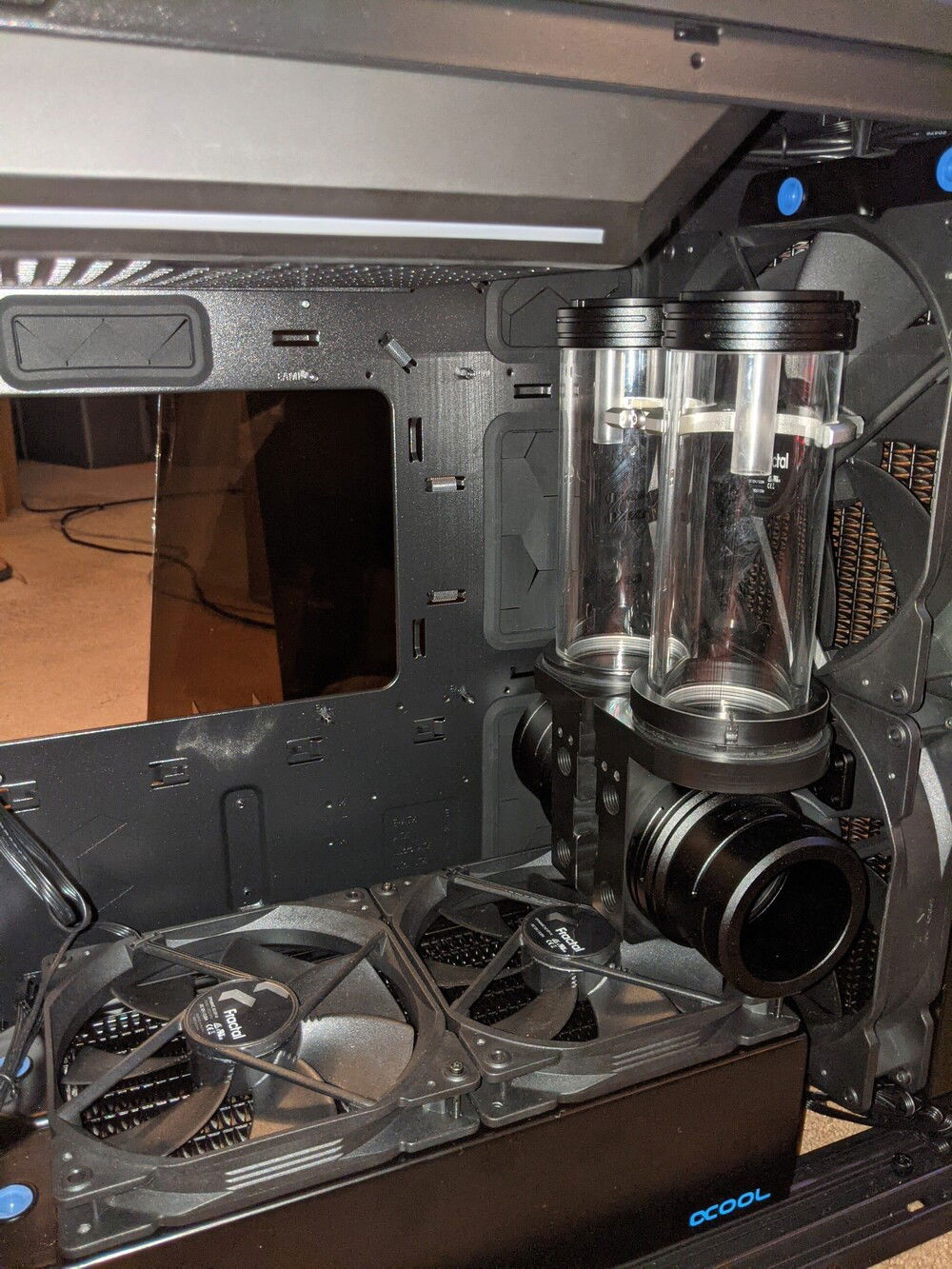

Original concept for dual pumps, but port locations and fittings just didn't work out and went with a single

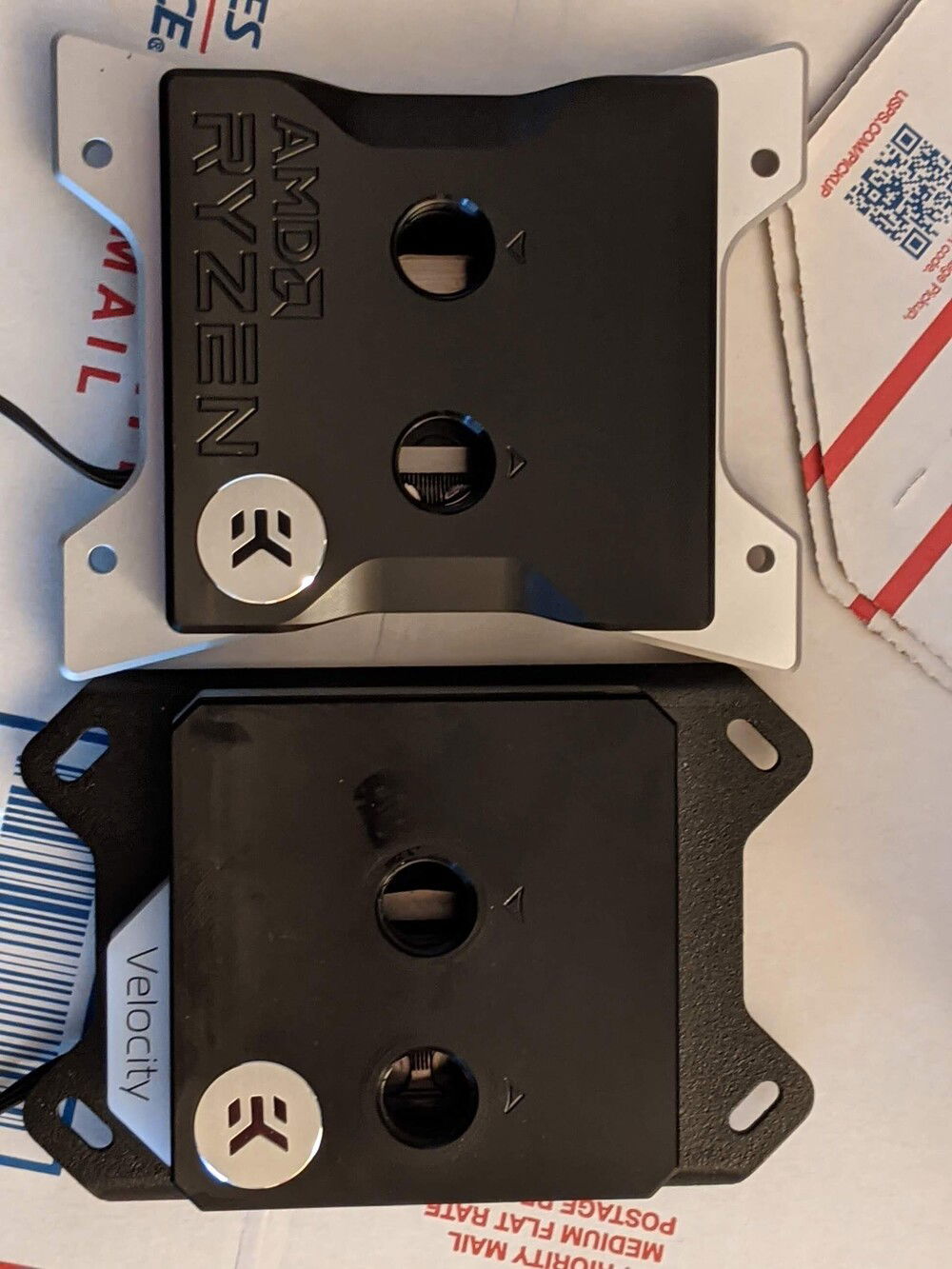

Changed out the original EK block for the Ryzen specific block

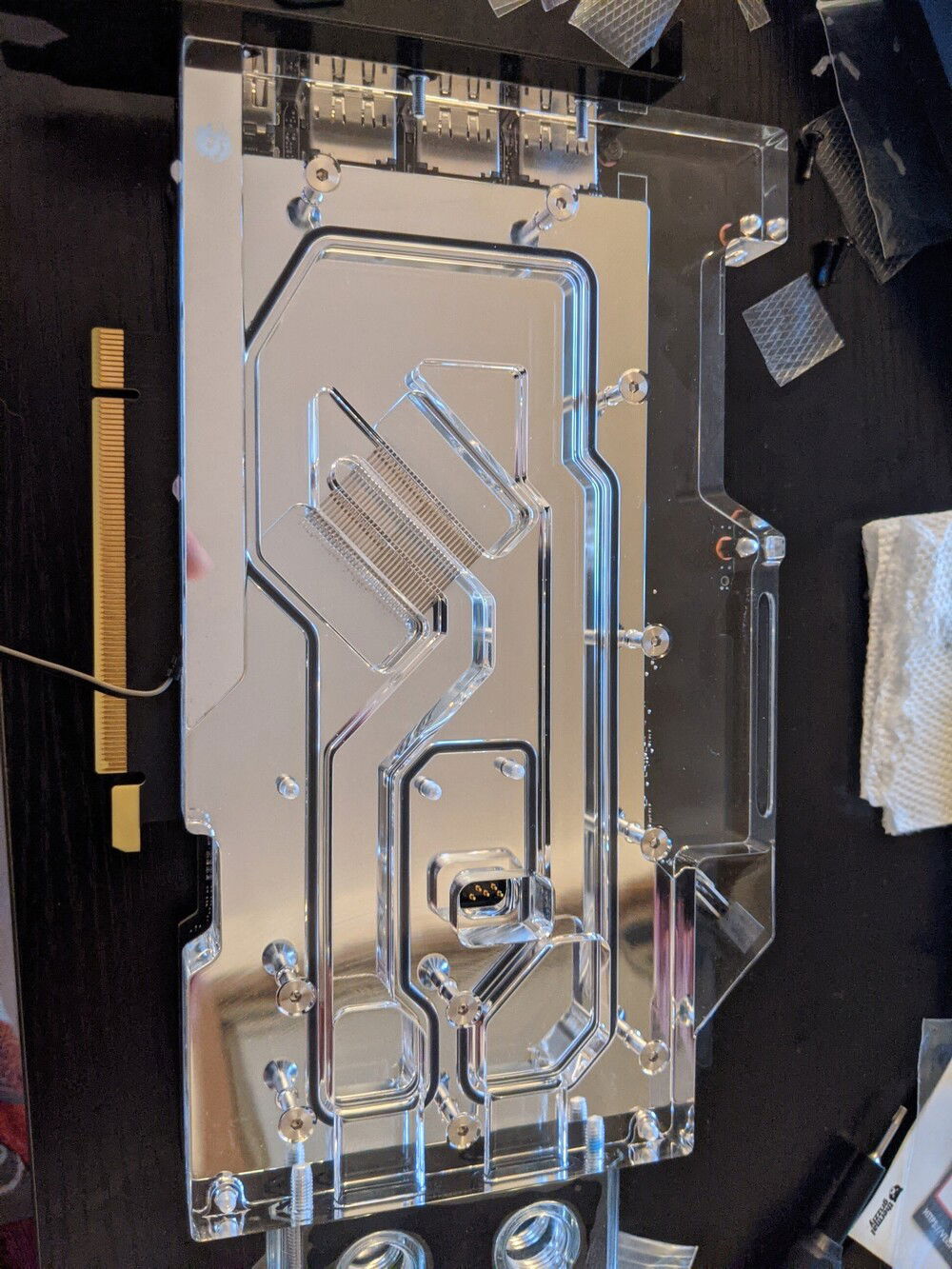

Waterblocked 3090 founders GPU
Dual Monsta Torrent
When I first saw the torrent get announced with dual 180mm fans and decent size, I knew I wanted to build in one with an 85mm thick monsta rad. That evolved into also wanting to use a monsta rad on the bottom, because.... why not. After having to make the front rad fit with a small bit of drilling to offset it from the original fan mounting holes, I quickly realized that the radiators took up a lot of room in the case. I had originally planned to use dual singularity pumps, but after a lot of trial and error, realized that in the config I wanted and space available, that my tube routing was just not going to work out and had to change to a single pump setup. I am still pretty new to hard tubing, so a lot of terrible bends later, I finally ended up with something I was good with. Thermals have been great as expected.
