Aquatic Ambiance

Specifications:
* Intel Core i7-9700K
* ASUS ROG Maximus XI Formula
* EK-Velocity RGB - Full Nickel
* 32GB Corsair Vengeance LPX DDR4 3200Mhz (4x8)
* 6x Corsair LL White
* 4x EKWB Monarch Nickel
* EKWB Monarch X4 Block
* Palit GeForce RTX 2080 Ti Dual (11GB)
* HEATKILLER IV 2080 Ti + Backplate
* 2x Black Ice Nemesis Radiator GTS 360 - White
* EK-D5 PWM G2 12V DC PWM
* Singularity Computers Protium D5 Reservoir Combo 150mm
* Barrow fittings and piping, also water temperature sensors
* Seasonic Focus Plus Platinum 750W
* CableMod custom Pro cables
* Lian Li PC-011 Dynamic + Vertical GPU mount
* EK Cryofuel concentrate
* AquaComputer Aquaero 6 LT
* AquaComputer Aquaero 6 Heatshield
* Windows 10 Home

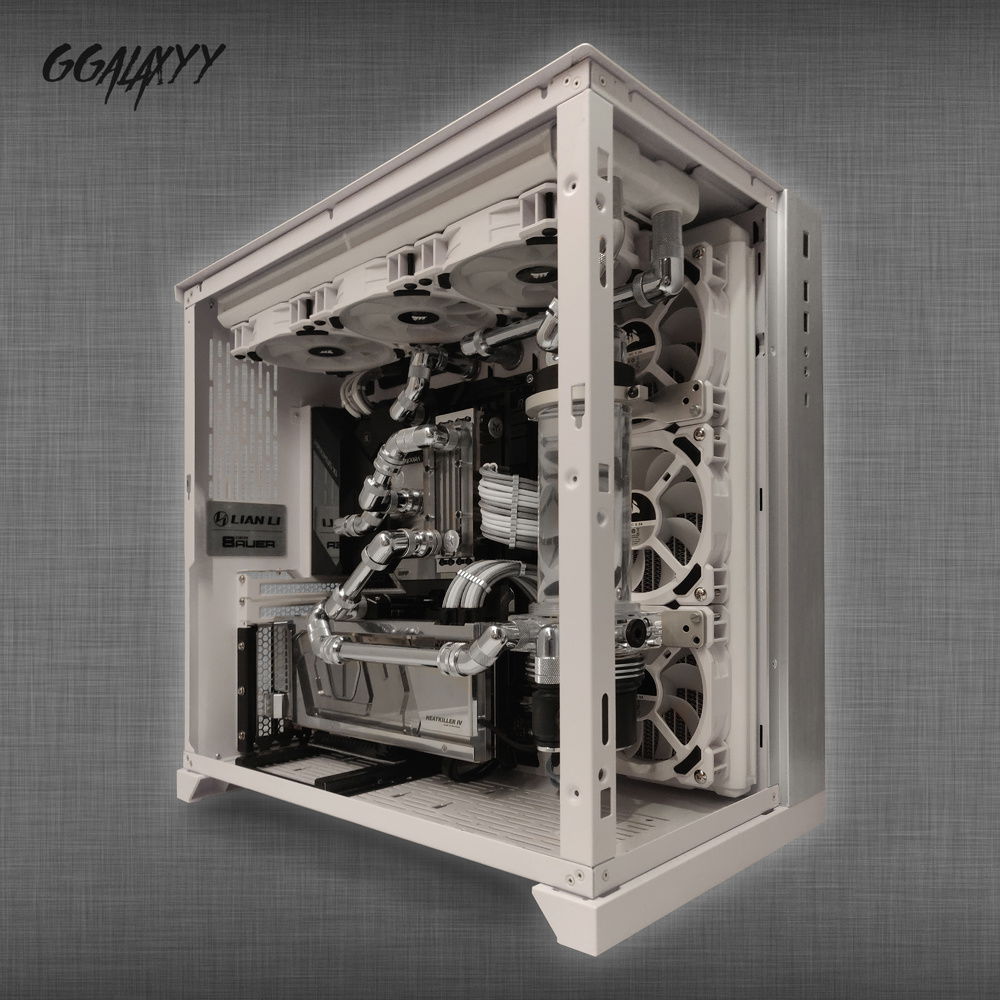

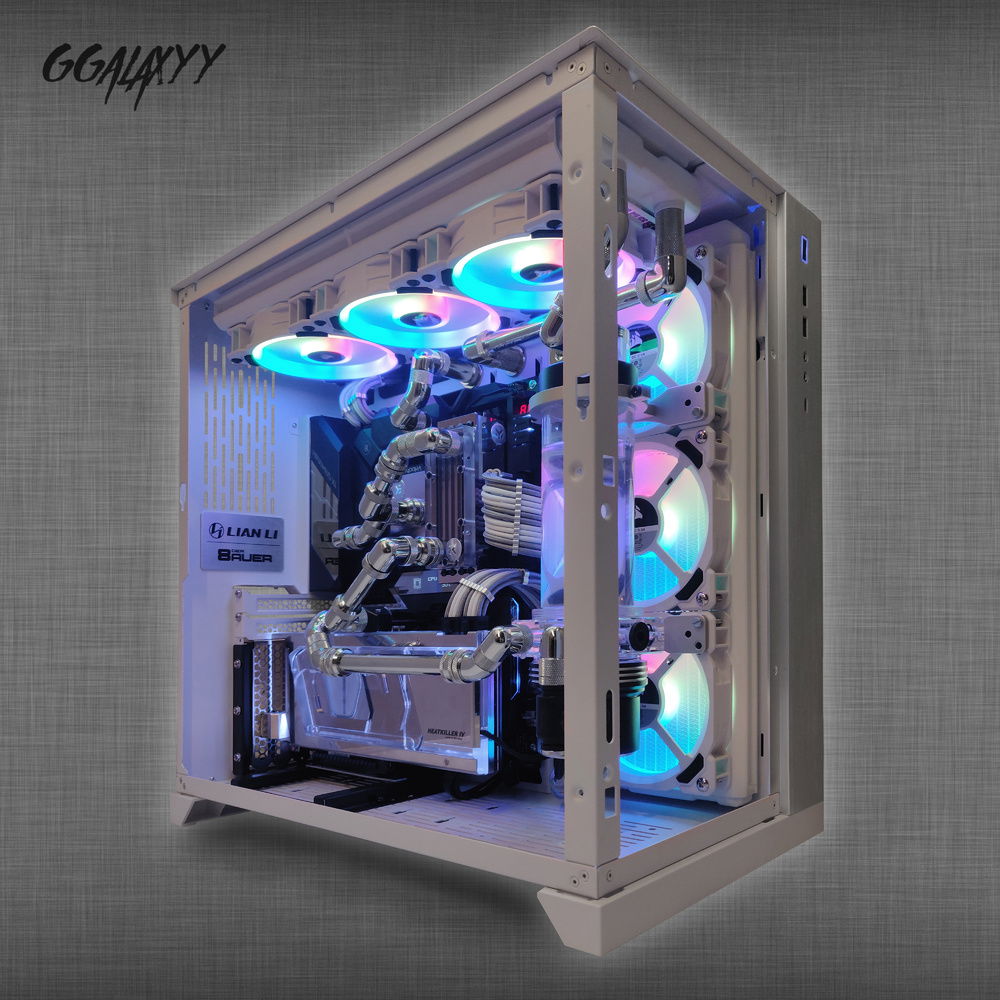

Aquatic Ambiance is built in the very popular PC-011, my first build in this case. The case is excellent and allows for very custom layouts. I decided to go for a dual 360 radiator config. I really didn't want a 360mm reservoir in this case, I wanted a more sleek nice chromatic/black build and ended up with an almost entirely black/white/chromatic build that uses RGB lights as source of colors.

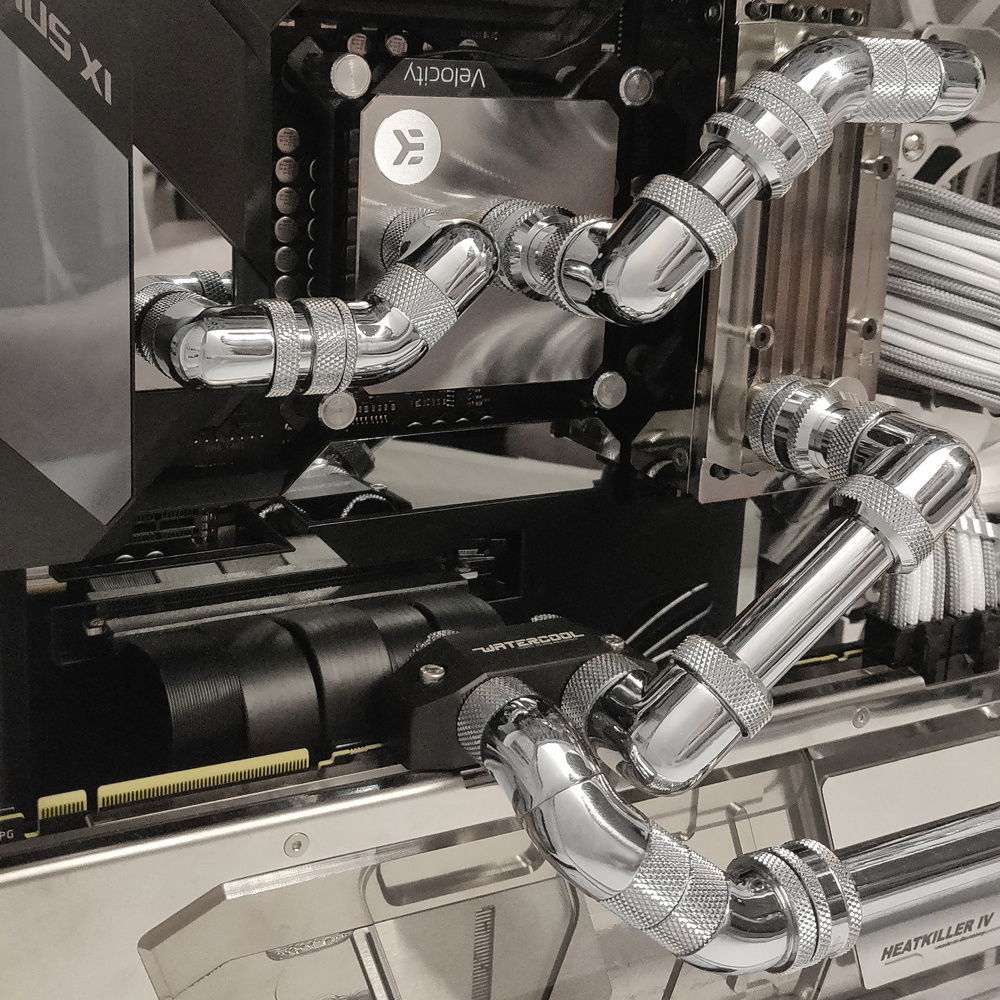

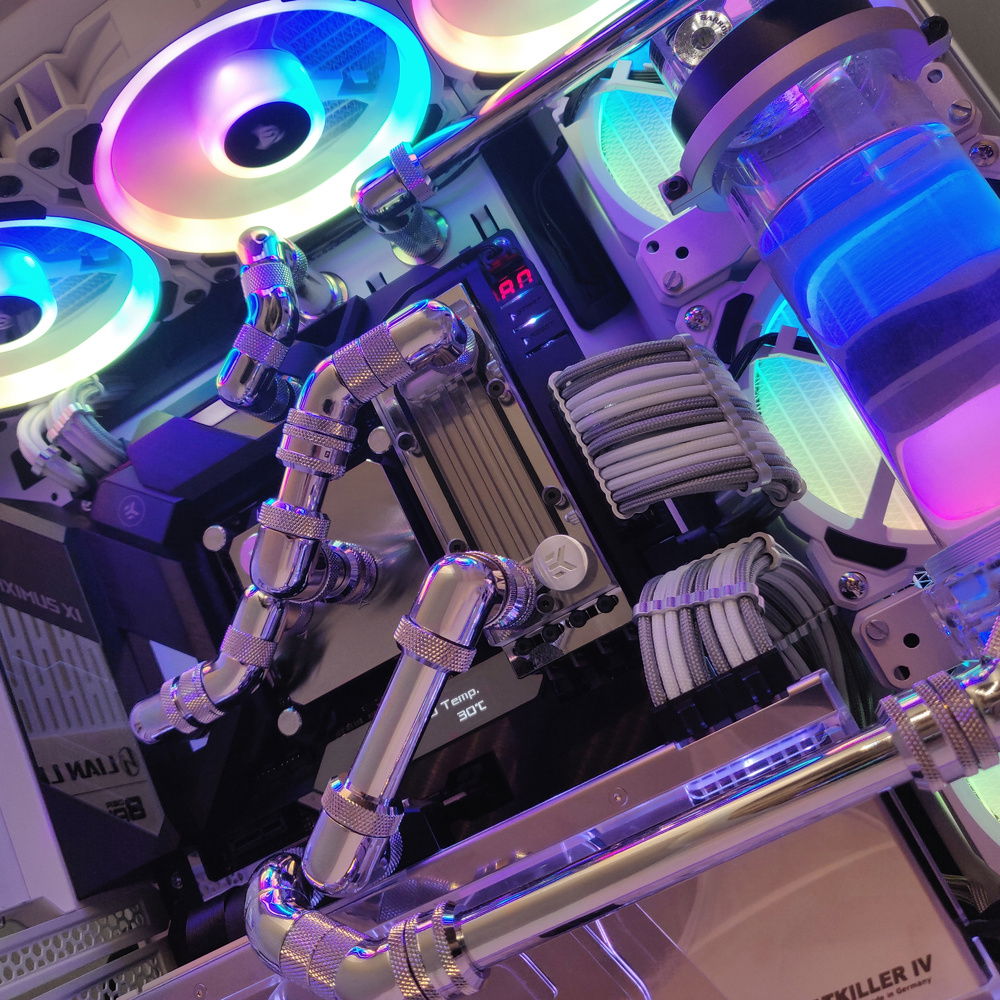

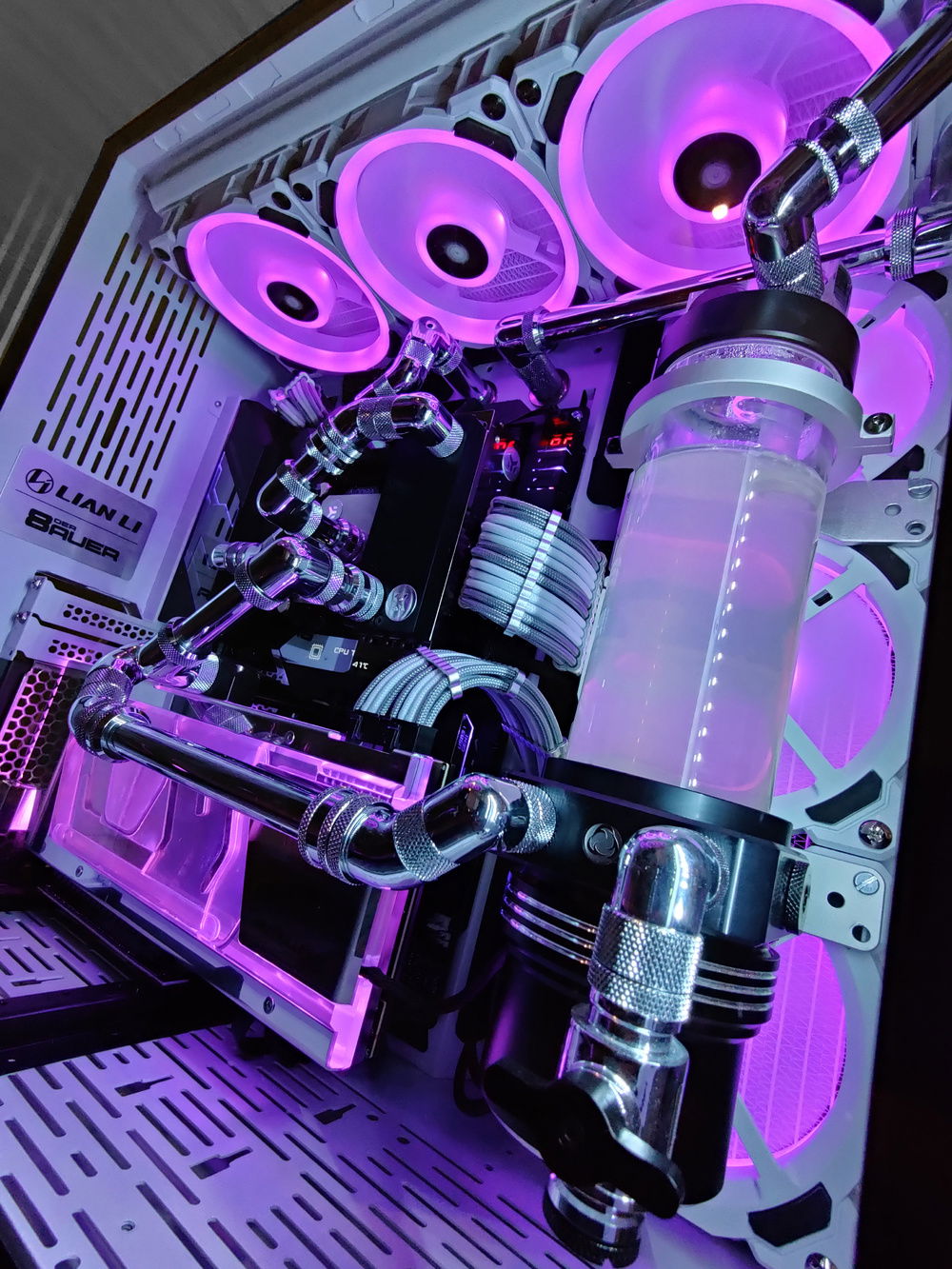

The PC has pass-through fittings to the second chamber where the CPU connects with the vertical radiator, and then routes back to the top radiator. It has a very unique pipe layout with RAM cooling *and* VRM cooling which gives the PC a very busy and interesting look. I tried to use quality components all over, Singularity Computers parts, Hardware Labs and Heatkiller GPU block.

The fans and LED lights are connected directly through an Aquaero unit which controls the fan speed via a temperature sensor in the water it self. It runs very silently and cool. The build is named as usually after a video game soundtrack. One of my favorites.
Color(s): Black Silver White
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 230.00
Intel - Core i7 9700K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 439.00
ASUS - ROG Maximus XI Formula
Chipset: Z390
CPU Socket: LGA 1151
Size: ATX
Memory
$ 99.99
Corsair - Vengeance LPX (3200MHz) (Black)
Type: DDR4
Capacity: 32 GB
Graphics
Palit - GeForce Dual
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Interface: PCIe x16
Storage
$ 199.99
Samsung - 960 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 199.99
Seasonic - Focus Plus
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 144.99
Lian Li - O11 Dynamic
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 144.99
Corsair - LL120 (RGB) (White)
Size: 120 mm
Cooling
$ 98.99
EKWB - EK-D5 PWM G2 Motor
Type: Pump
Cooling
$ 131.36
EKWB - EK-Velocity RGB Intel - Full Nickel
Type: CPU Waterblock
Cooling
$ 73.99
EKWB - RAM Monarch
Type: Custom Loop
Cooling
Hardware Labs - Black Ice GTS
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
Singularity Computers - Protium D5 Reservoir Combo
Type: Pump/Reservoir Combo
Size (WxHxD): 150 mm
