AquaFusion

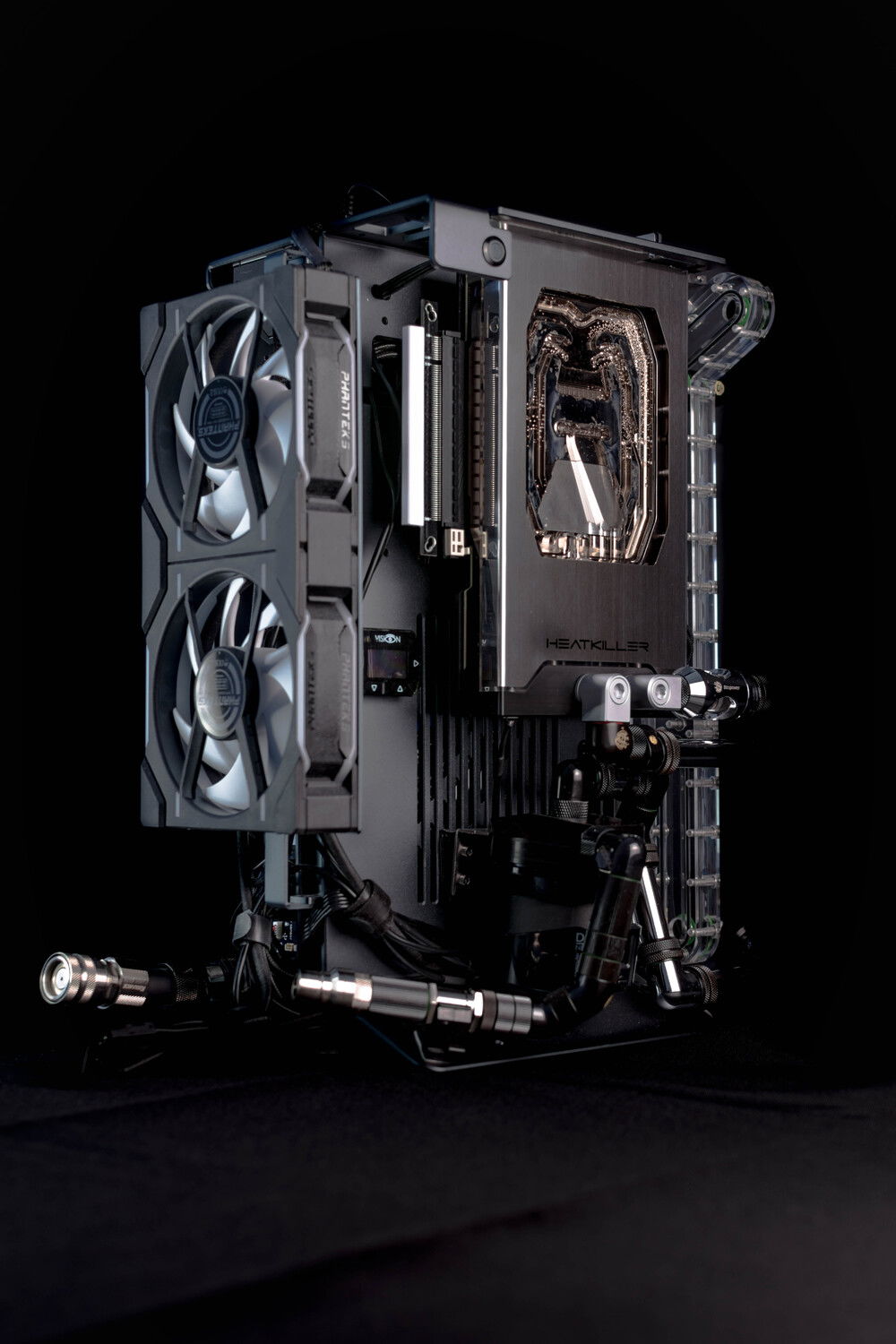

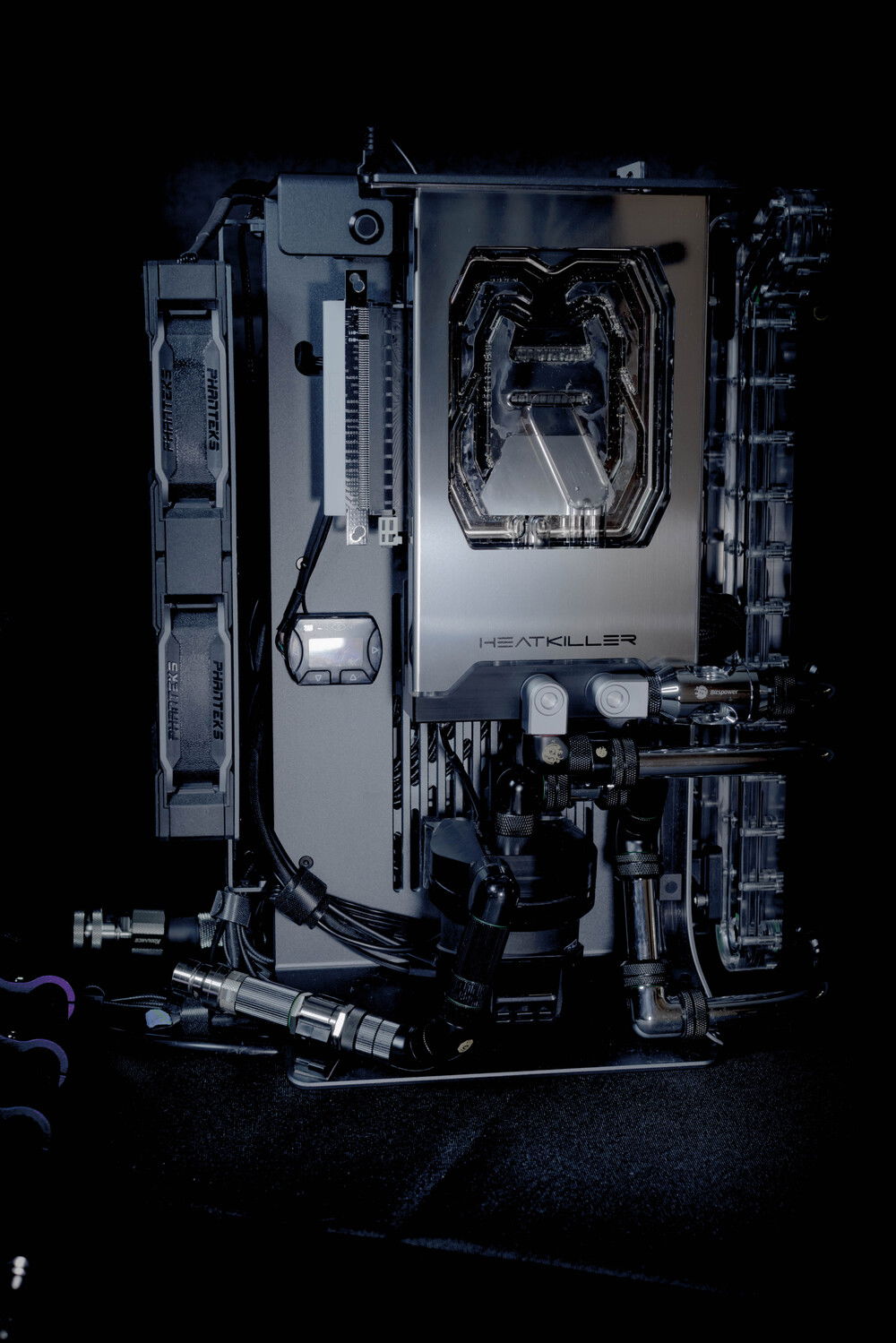

This is a refresh of my previous build, the Xtia XGeneration. More chrome, more bling, more fusion.

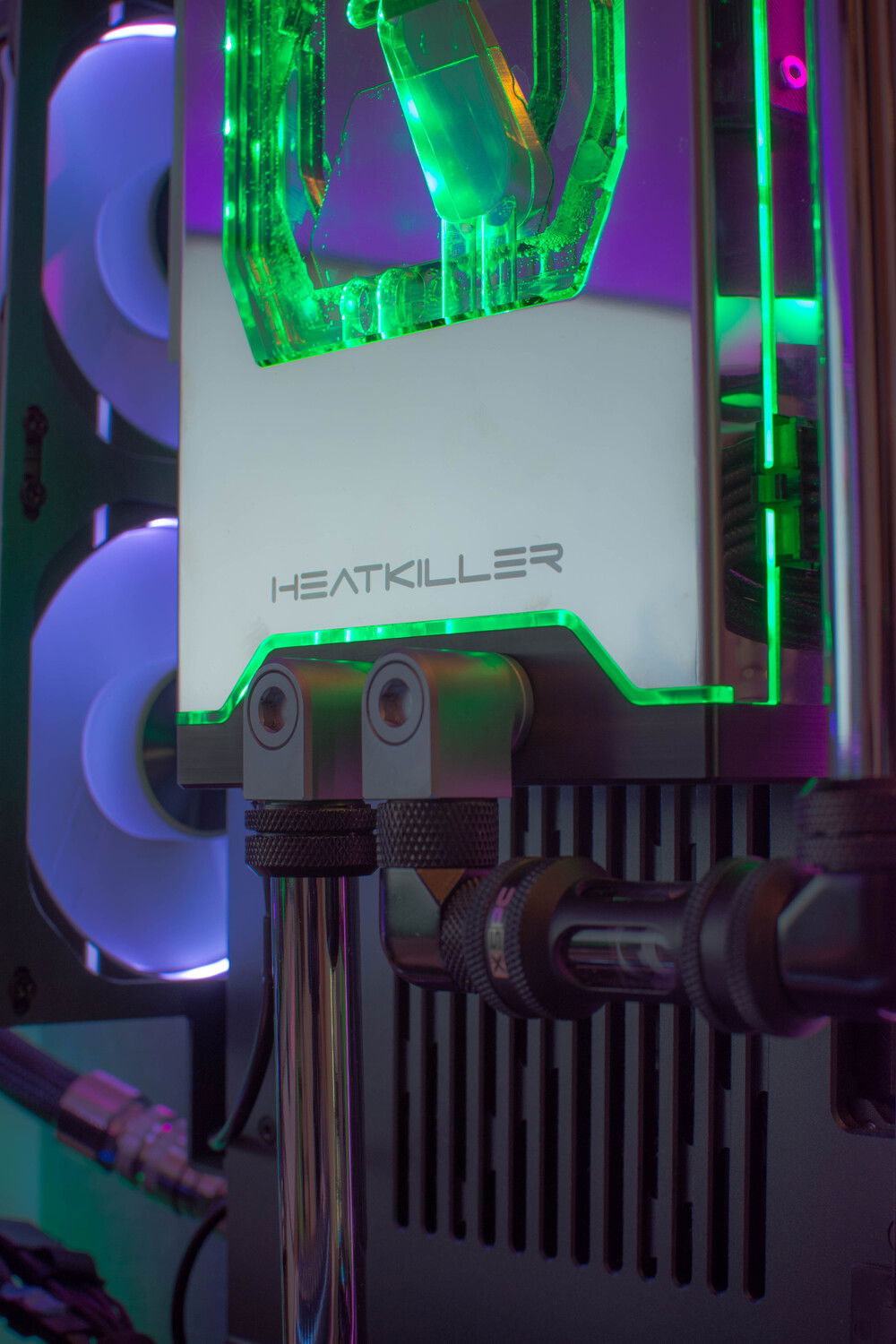

Upgraded with an RTX 4090FE paired with a Heatkiller Pro block. This is my main gaming rig/Workstation for photo and video editing.

Still to do:


  • 12700K to 14700K
    D30 fans to Alphacool Stealth Metal Fan.
    Additional temp/watts panel, looking for a micro lcd to display stats instead of the large 5" display i had previously.
    Possibly looking to change the angle fittings to chrome to match.
    Swap out Aquacomputers temp sensors for something else due to reliability issues. They break too easily.

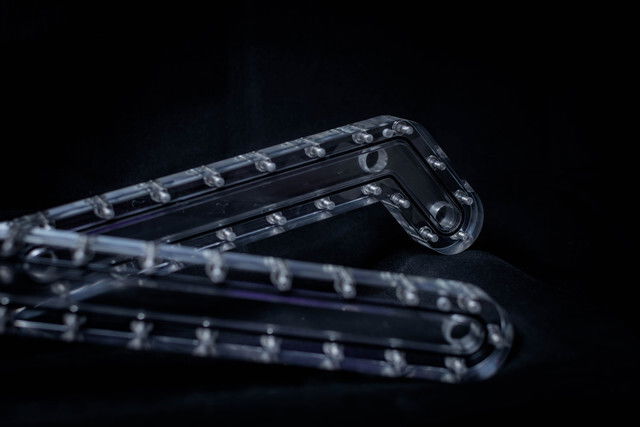

    Custom Distro block still to be drafted and made, i held out due to looking to change gpu and block.


Parts list thus far:

The rig consists of the following parts:

12700K Overclocked 5.1/4.2/4.3 1.37v offset
Asus ROG Z690-I motherboard
Asus Loki 850w psu
Corsair Vengeance DDR5 5400mhz oc 6200mhz 1.435v with tighter timings
RTX 4090FE
Phantek Neon Strips
Aquacomputer Farbwerk for rgb management
Aquacomputer inline temp sensors x2
Aquacomputer Vision Touch for watercooling stats
Aquacomputer D5 NEXT Smart pump with custom 3D printed mount



Watercooling Hardware:

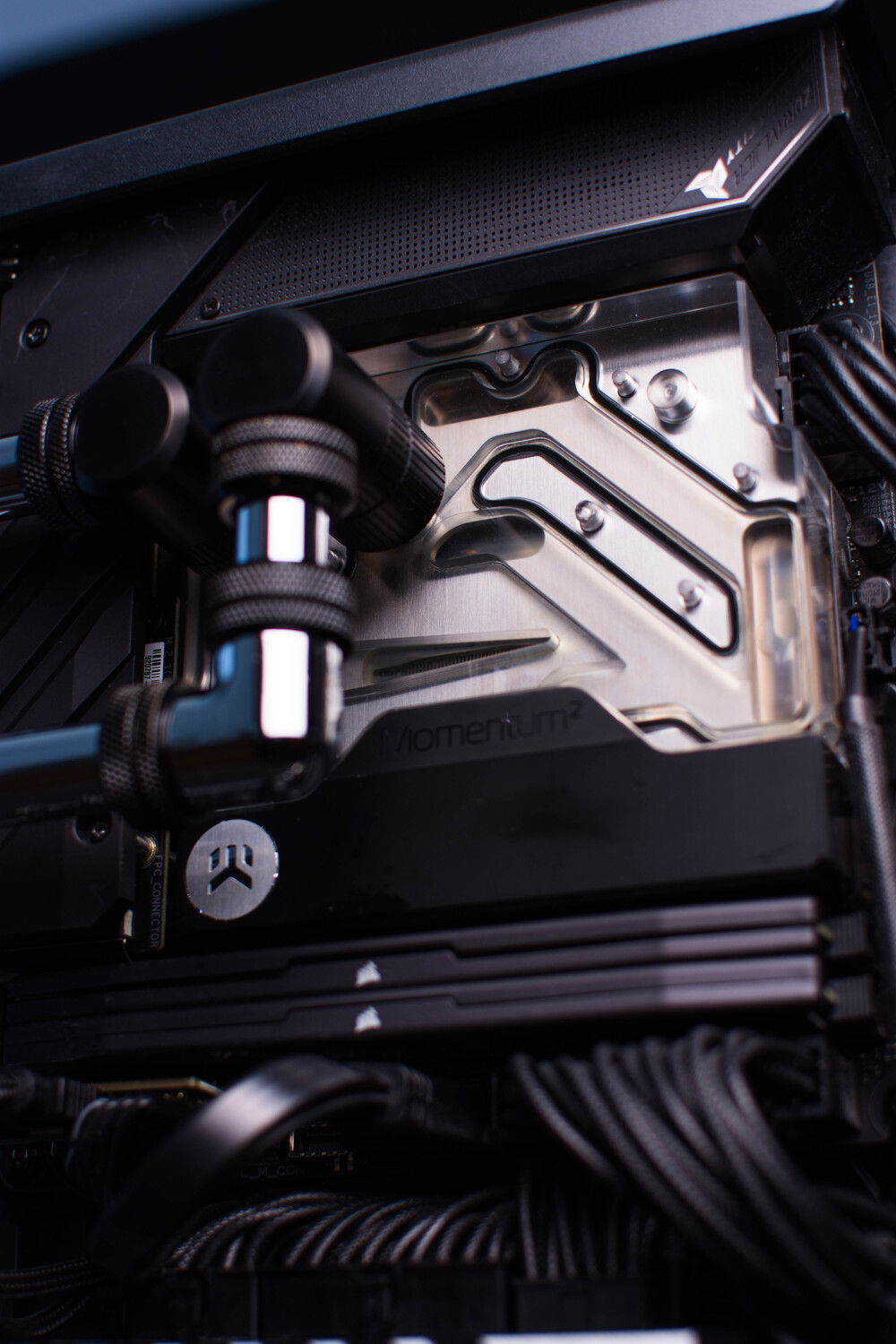

EKWB Momentum2 Monoblock

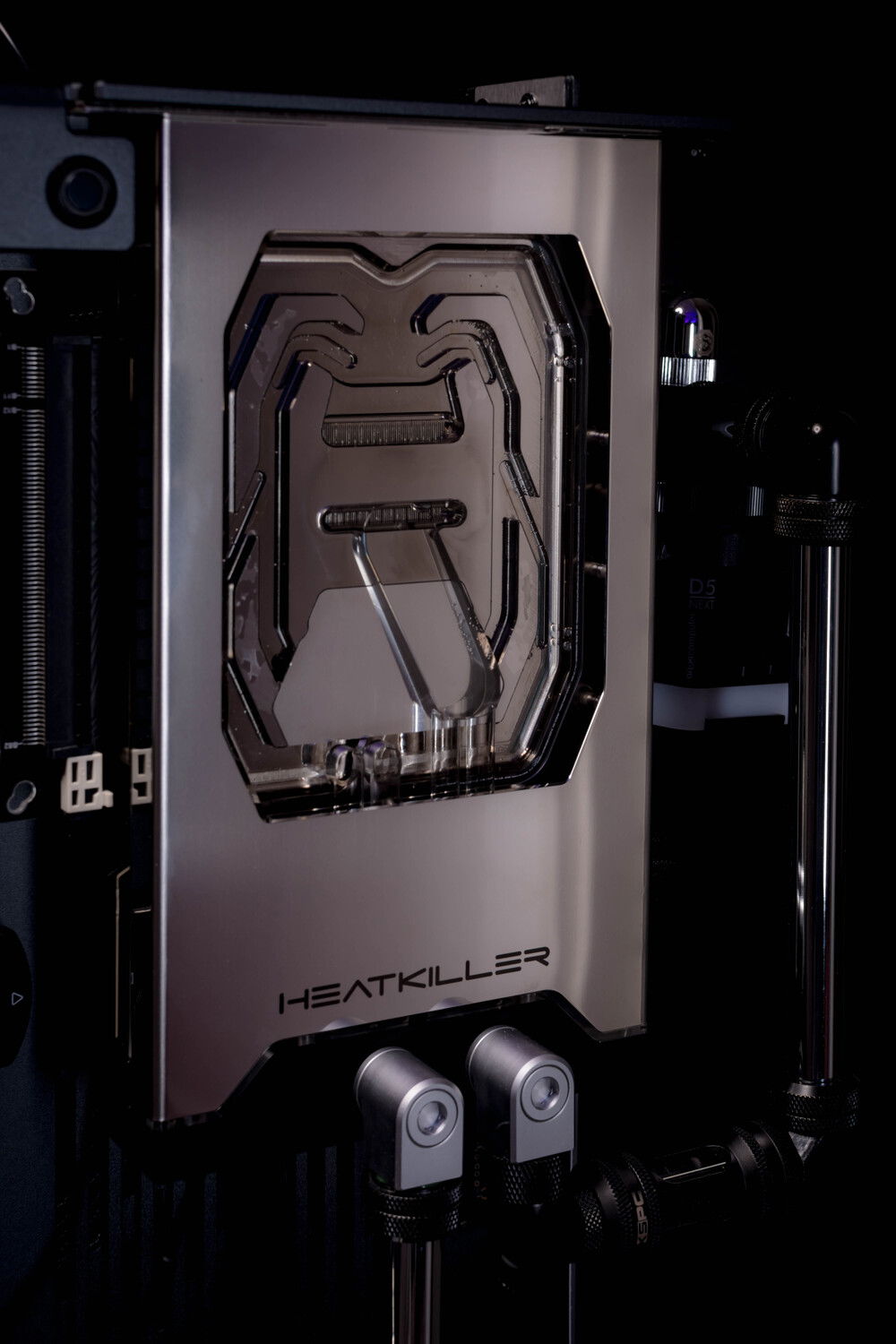

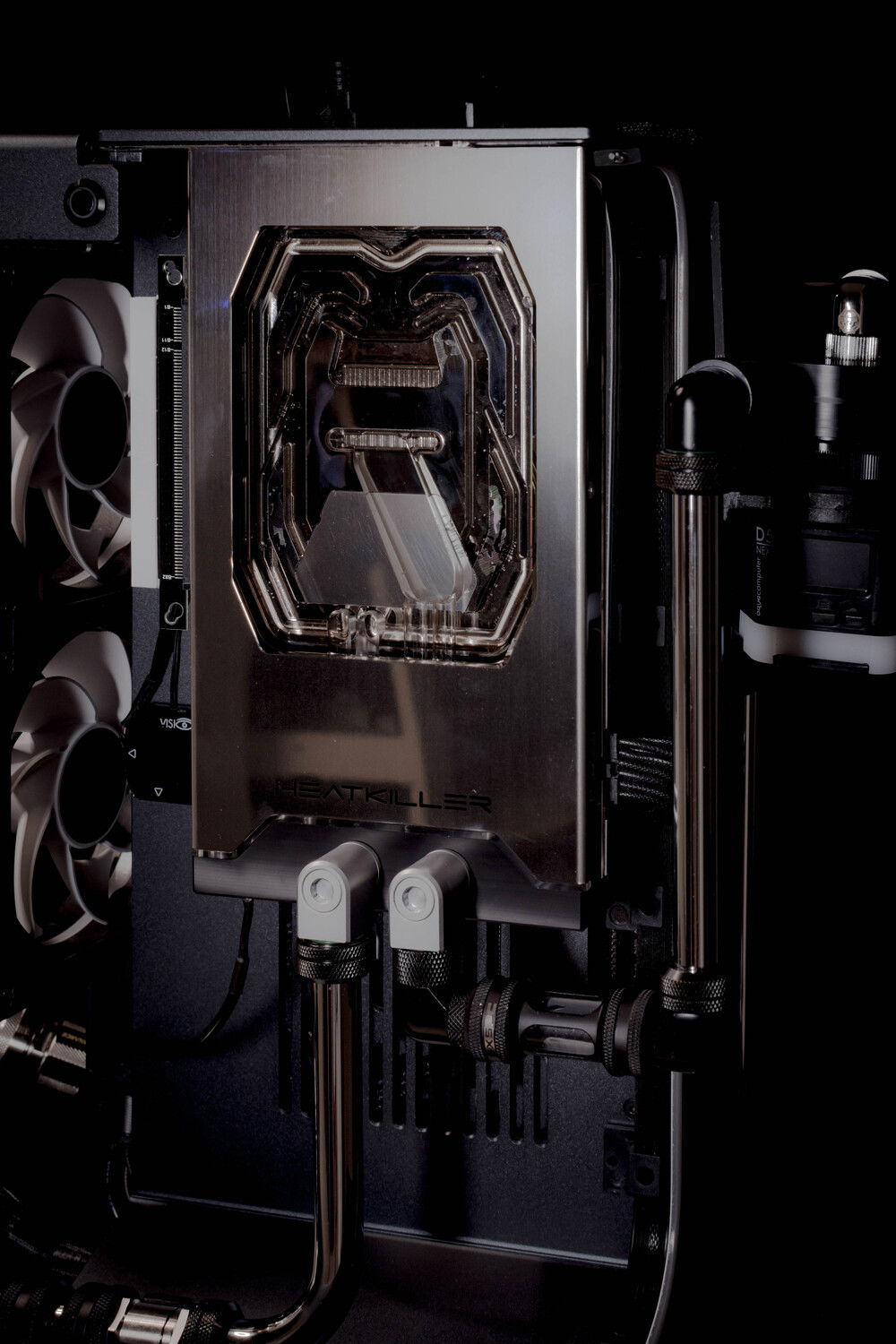

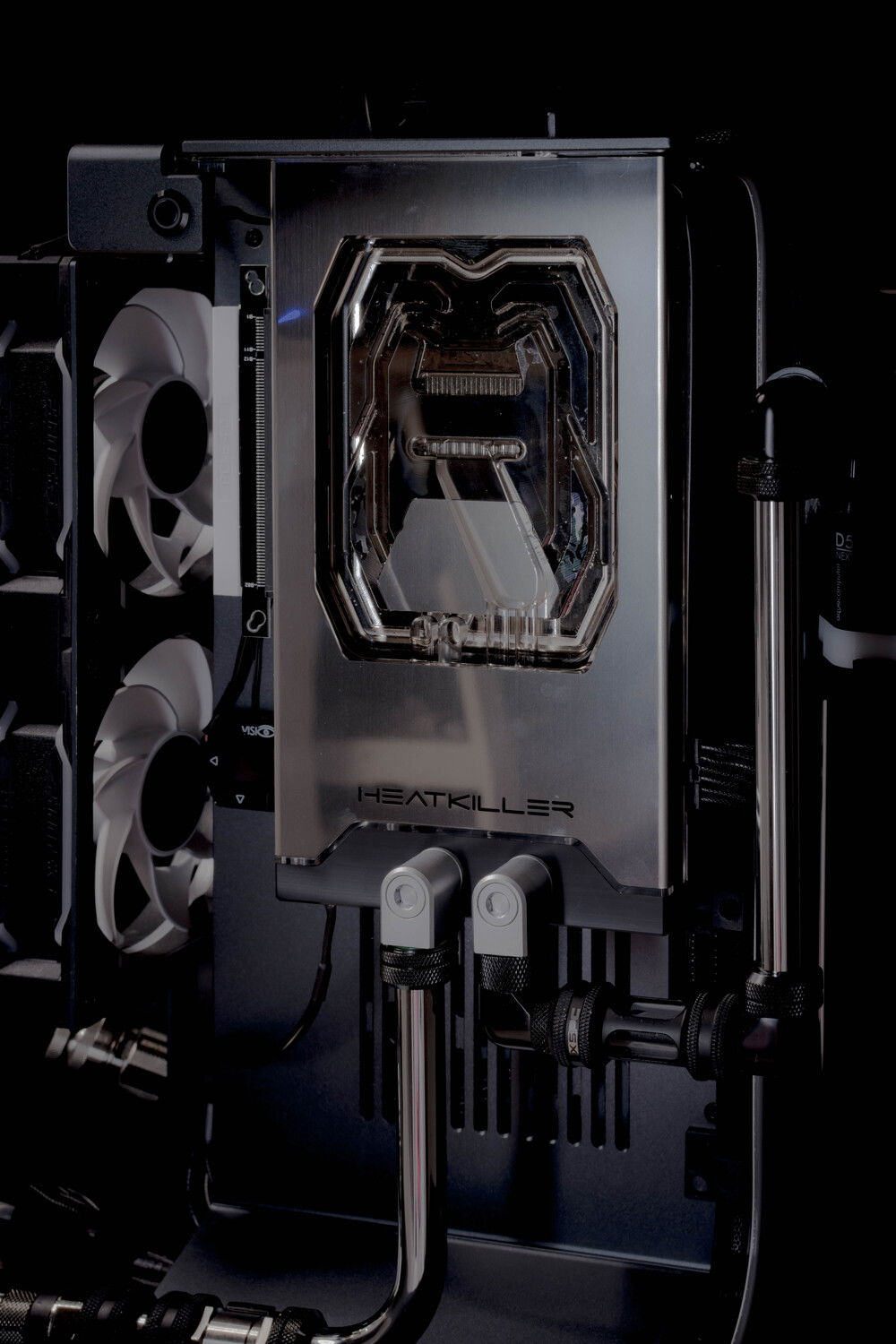

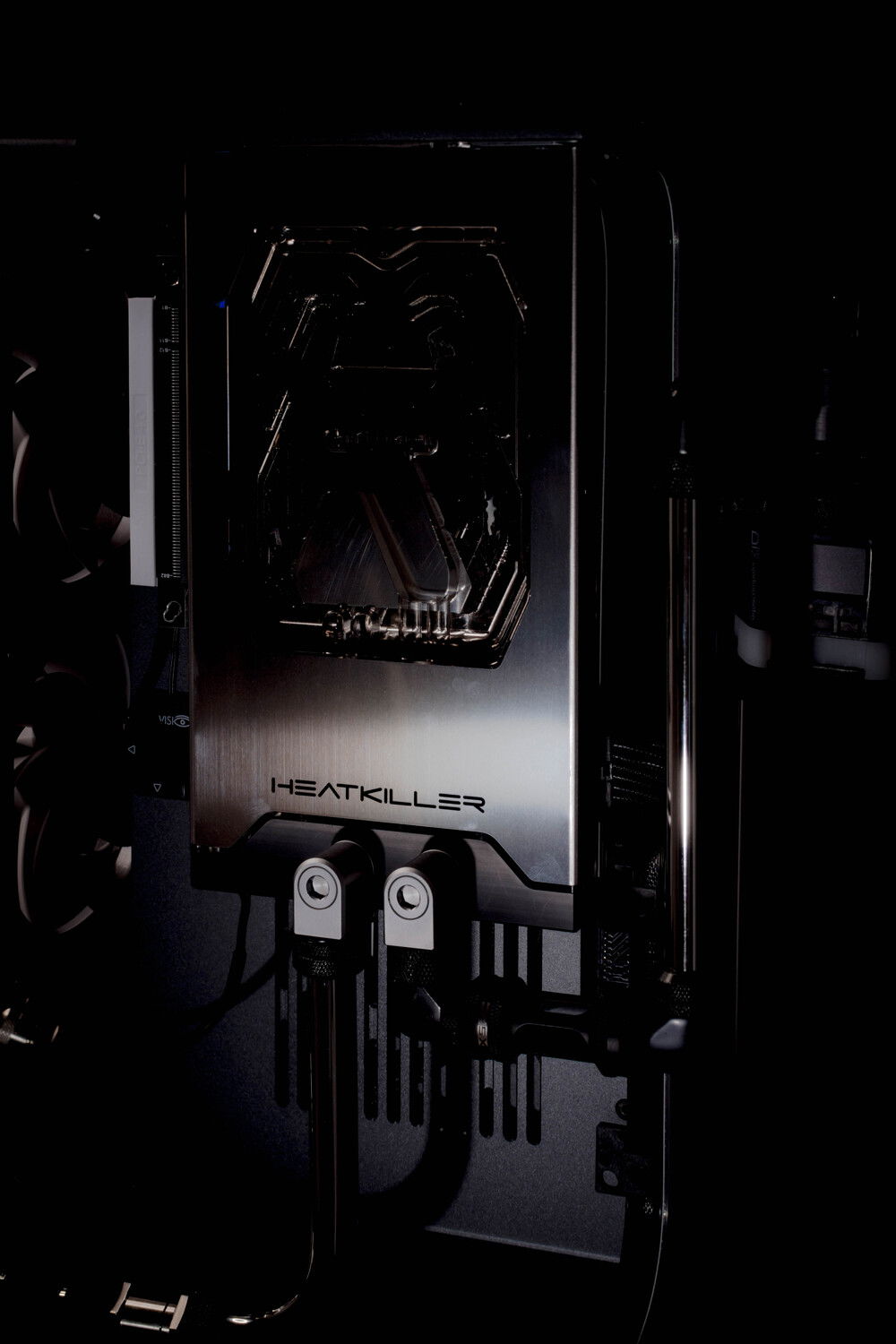

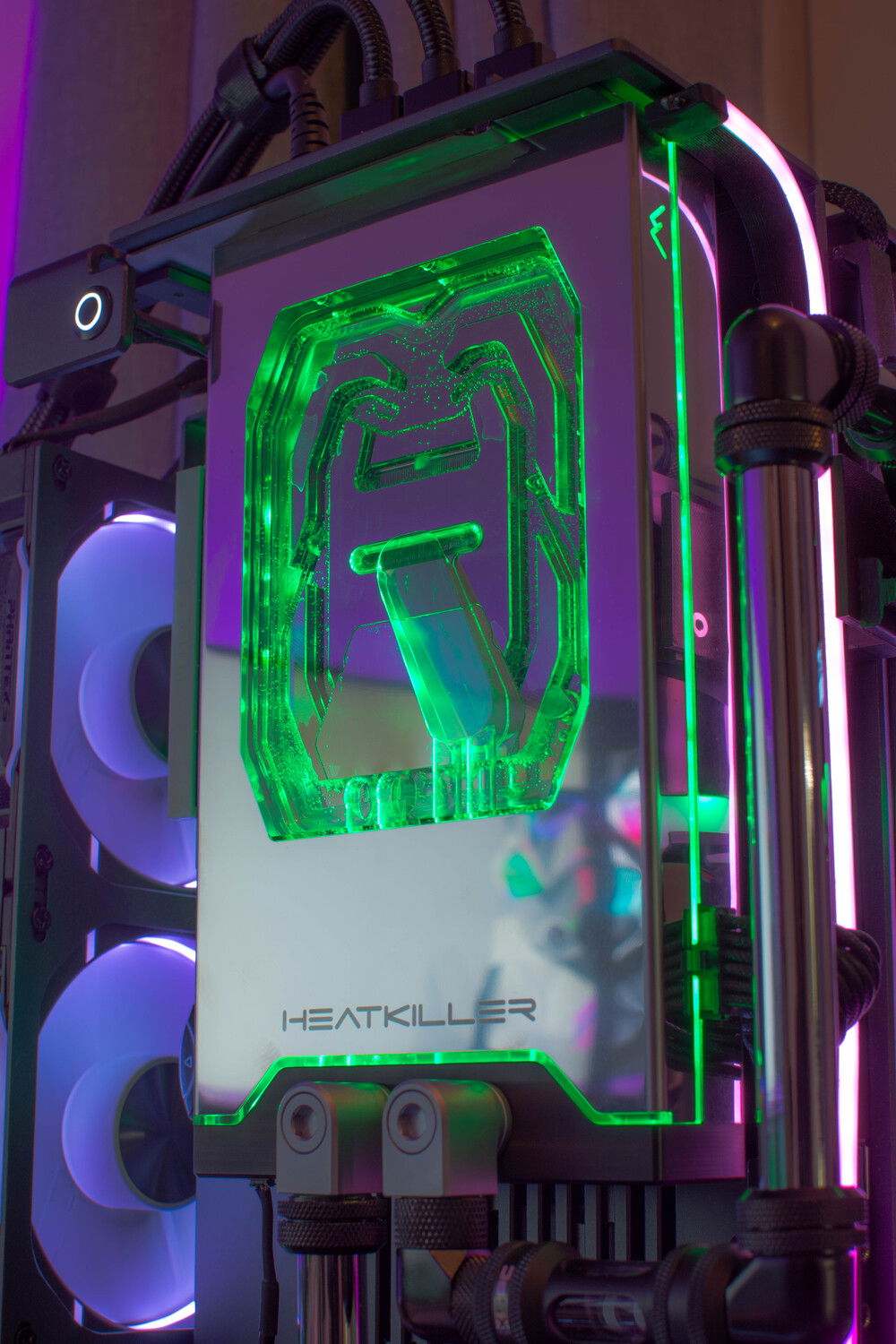

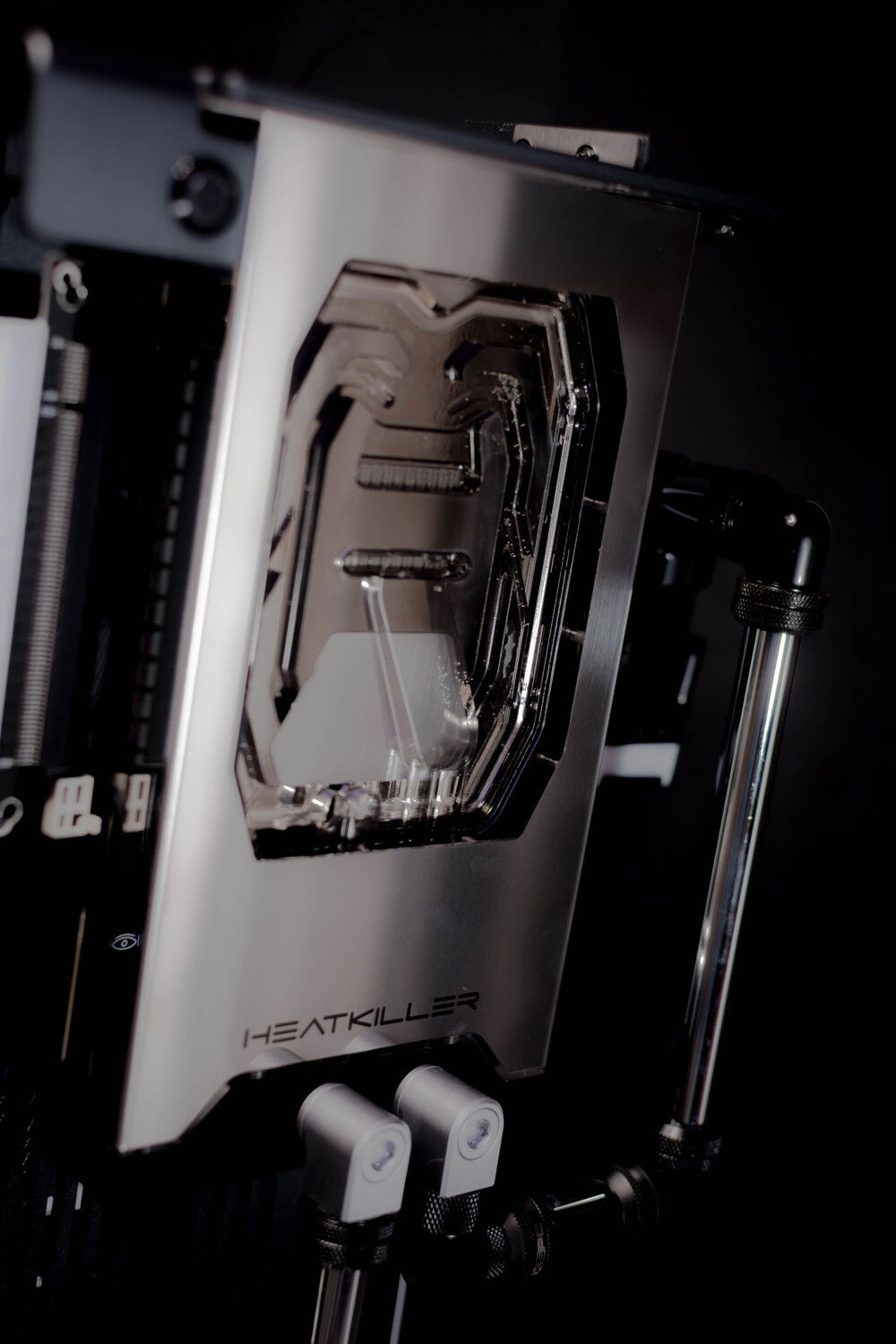

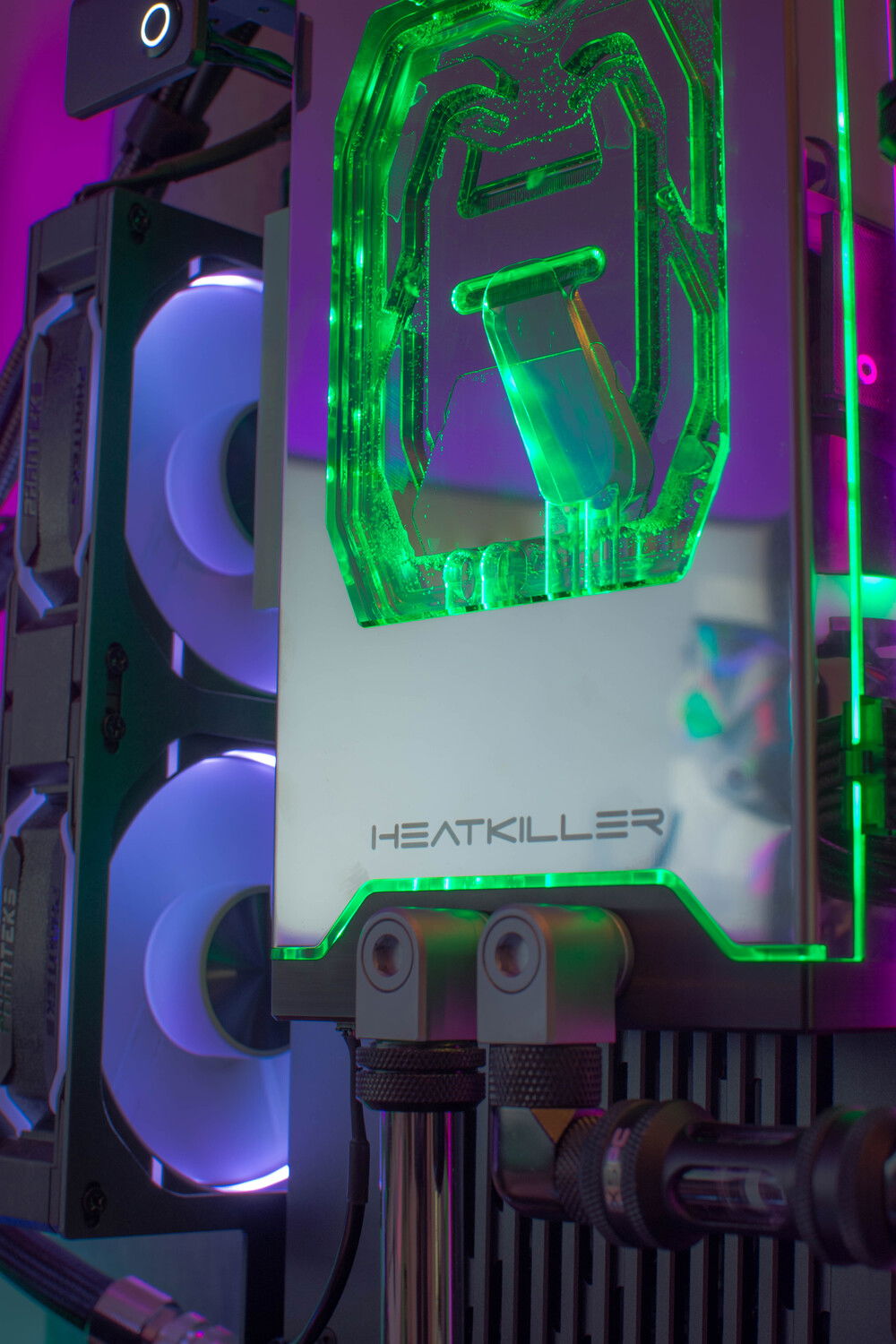

Heatkiller V Pro Nickel GPU Block
Heatkiller Tube 150 D5 Combo
Corsair Hydro X 14mm Hardline tubing

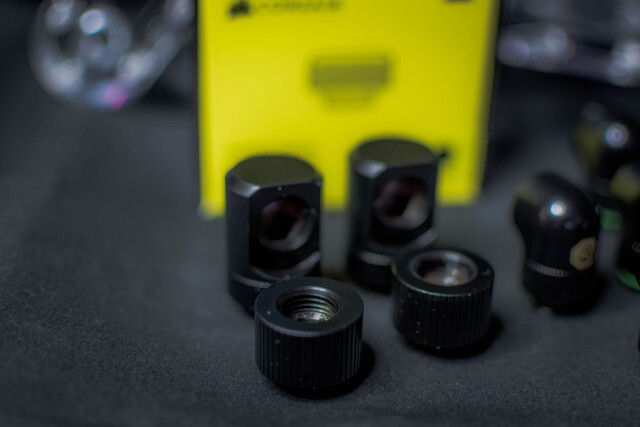

Corsair Hydro 14mm hardline fittings

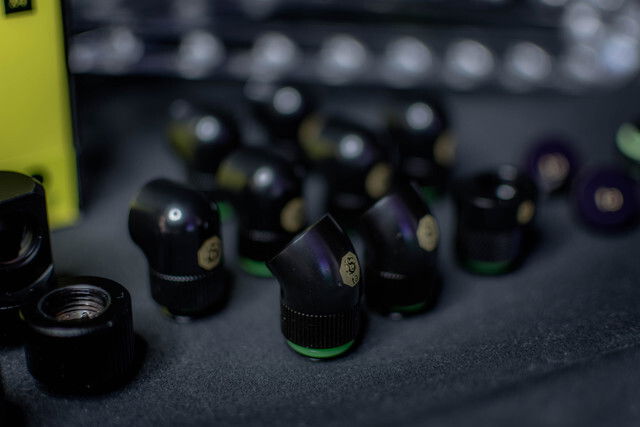

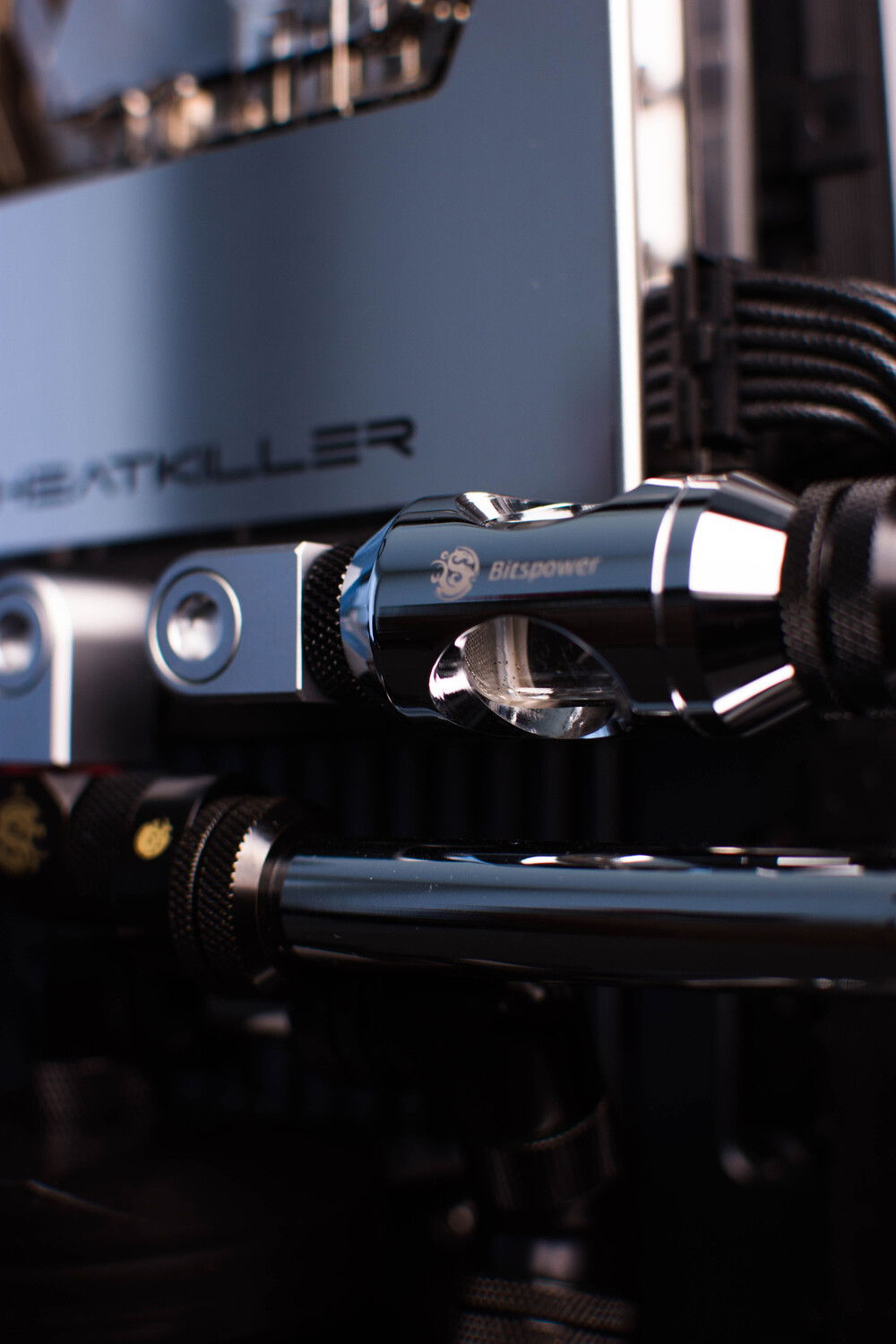

Bitspower/EKWB Quantum Rotaries and angled fittings
XSPC Inline filter
Koolance Quick Disconnect fittings
Watercool MORA360 External Radiator
Phanteks T30 fans x9

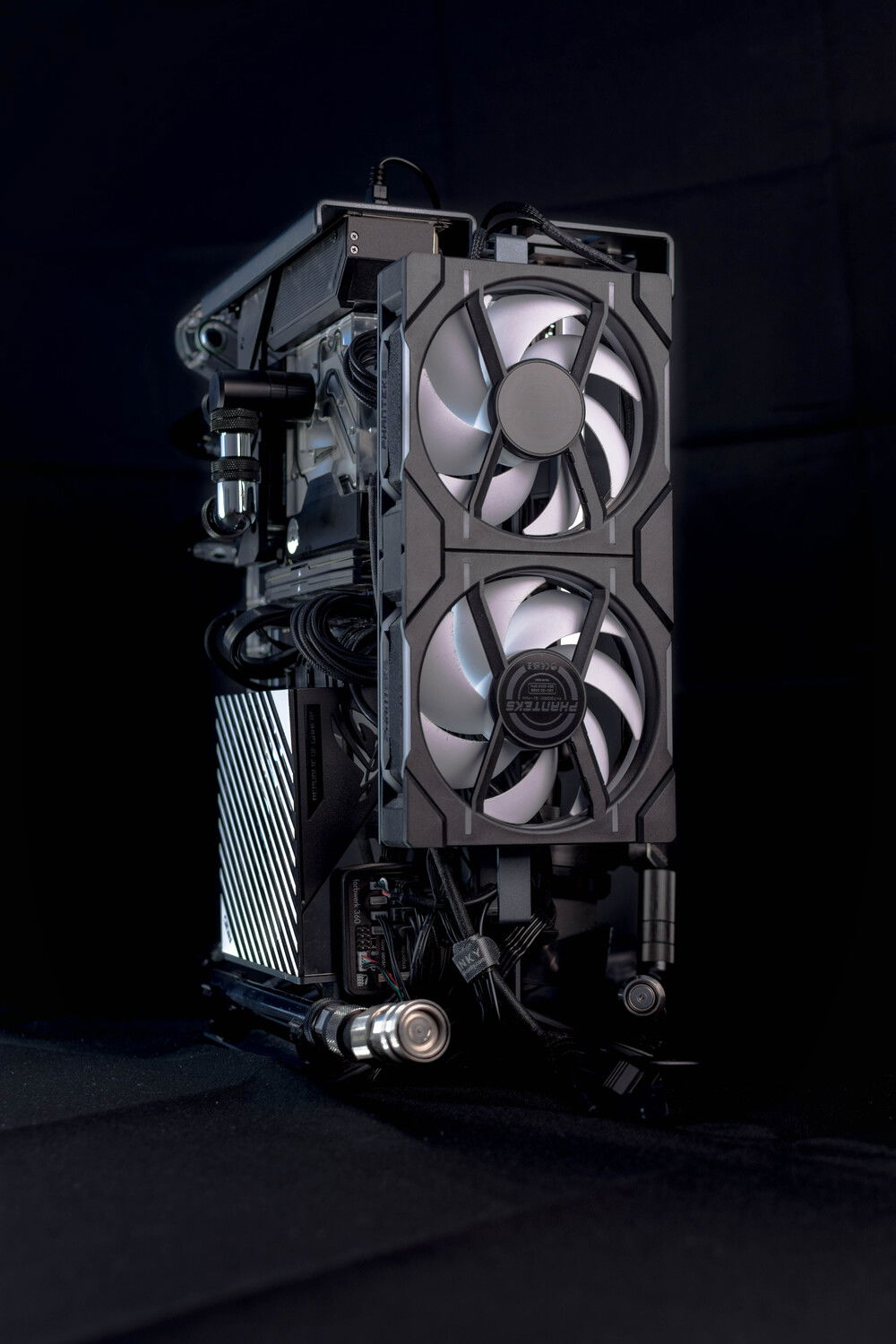

Phanteks D30 case fans x2
Color(s): Black Chrome Gray Green Purple White
RGB Lighting? Yes
Theme: Futuristic
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Build Updates

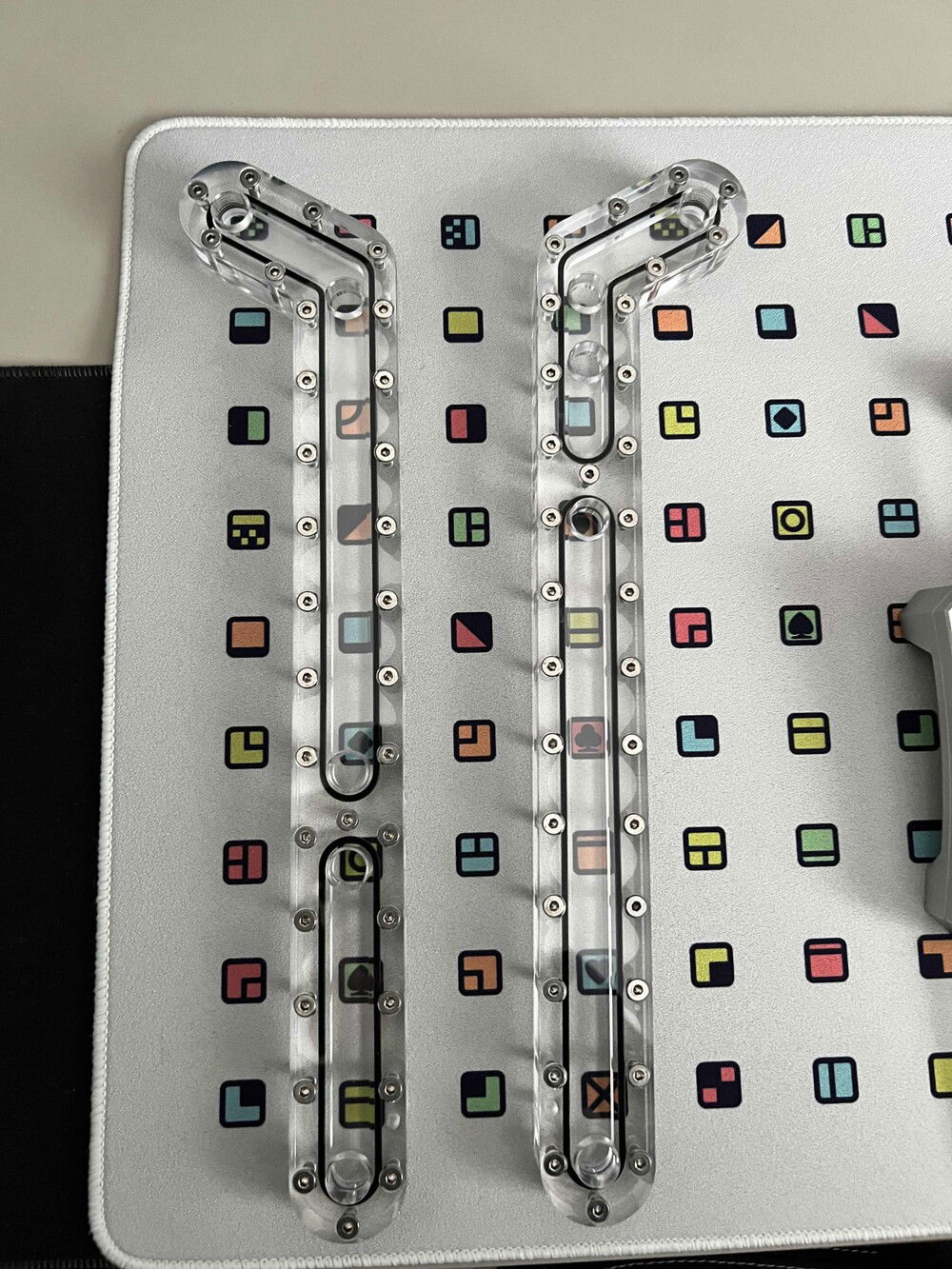

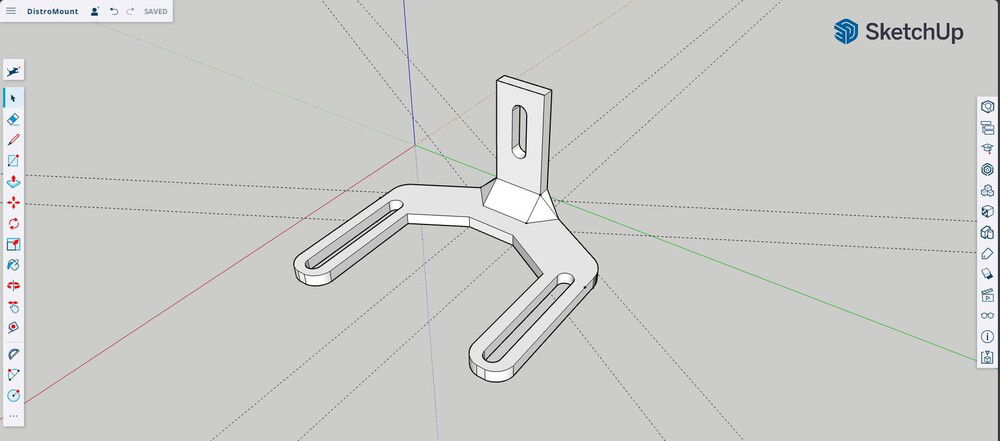

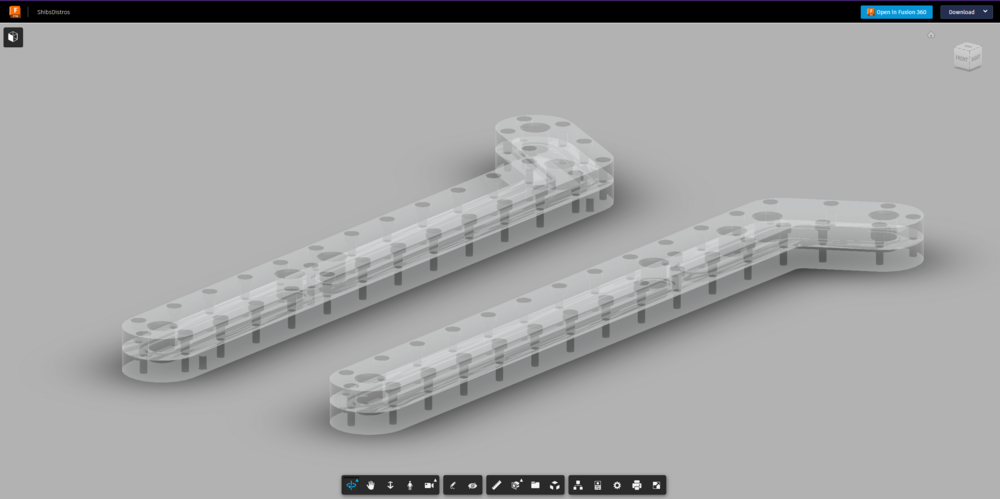

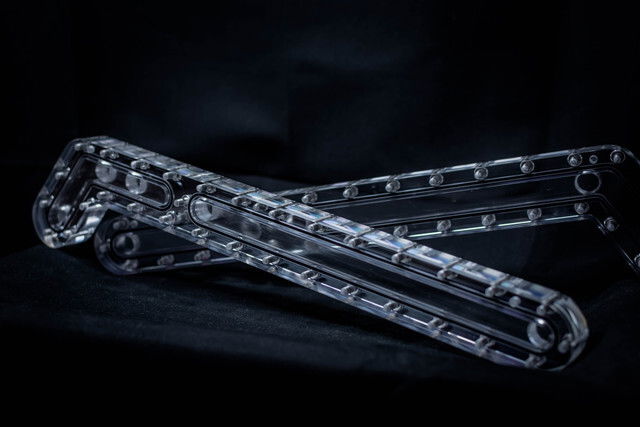

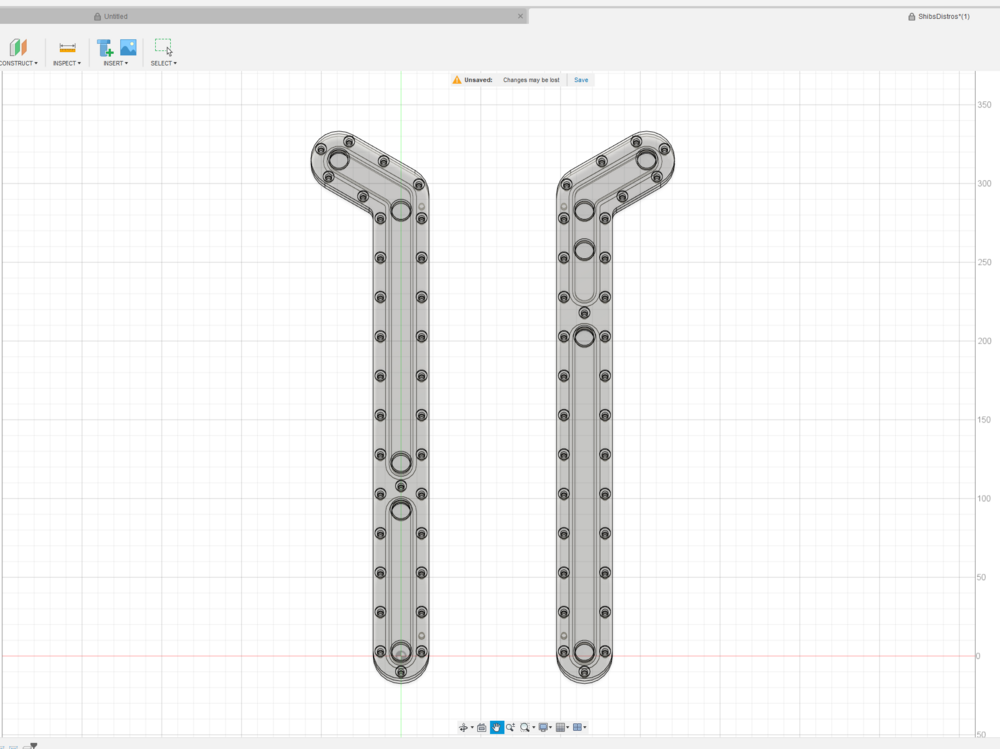

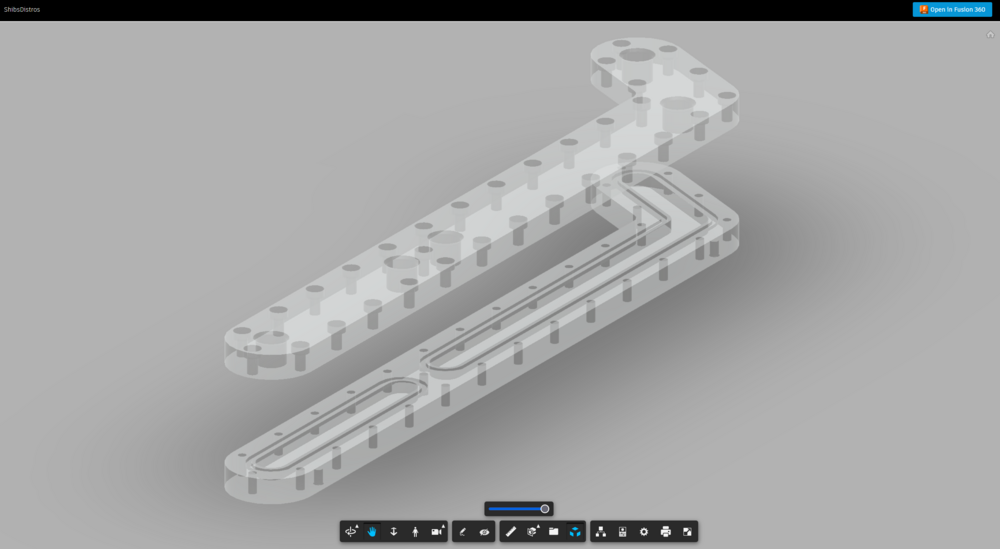

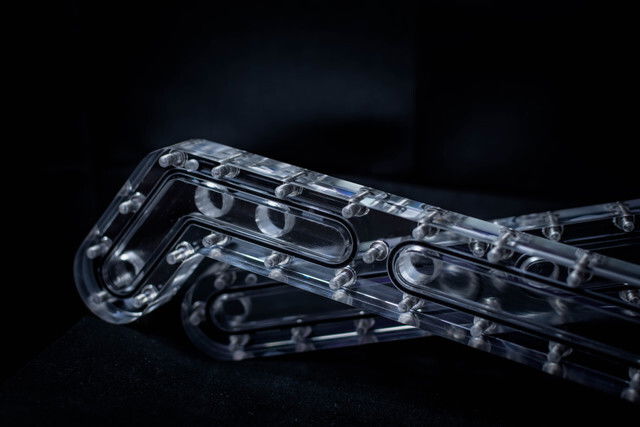

Custom Distro's in the making

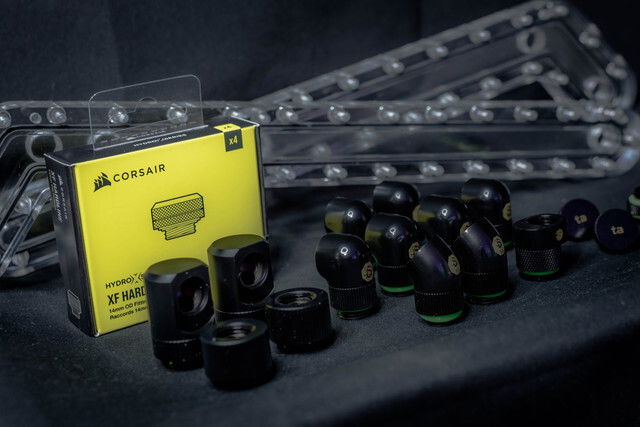

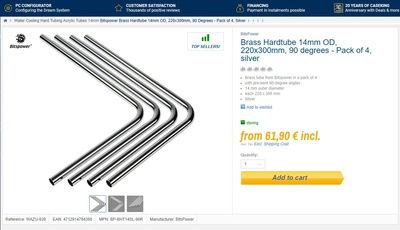

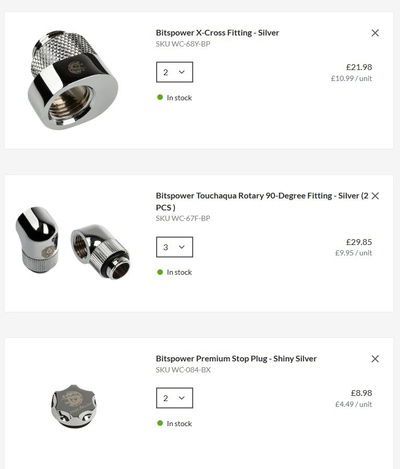

More Parts ordering

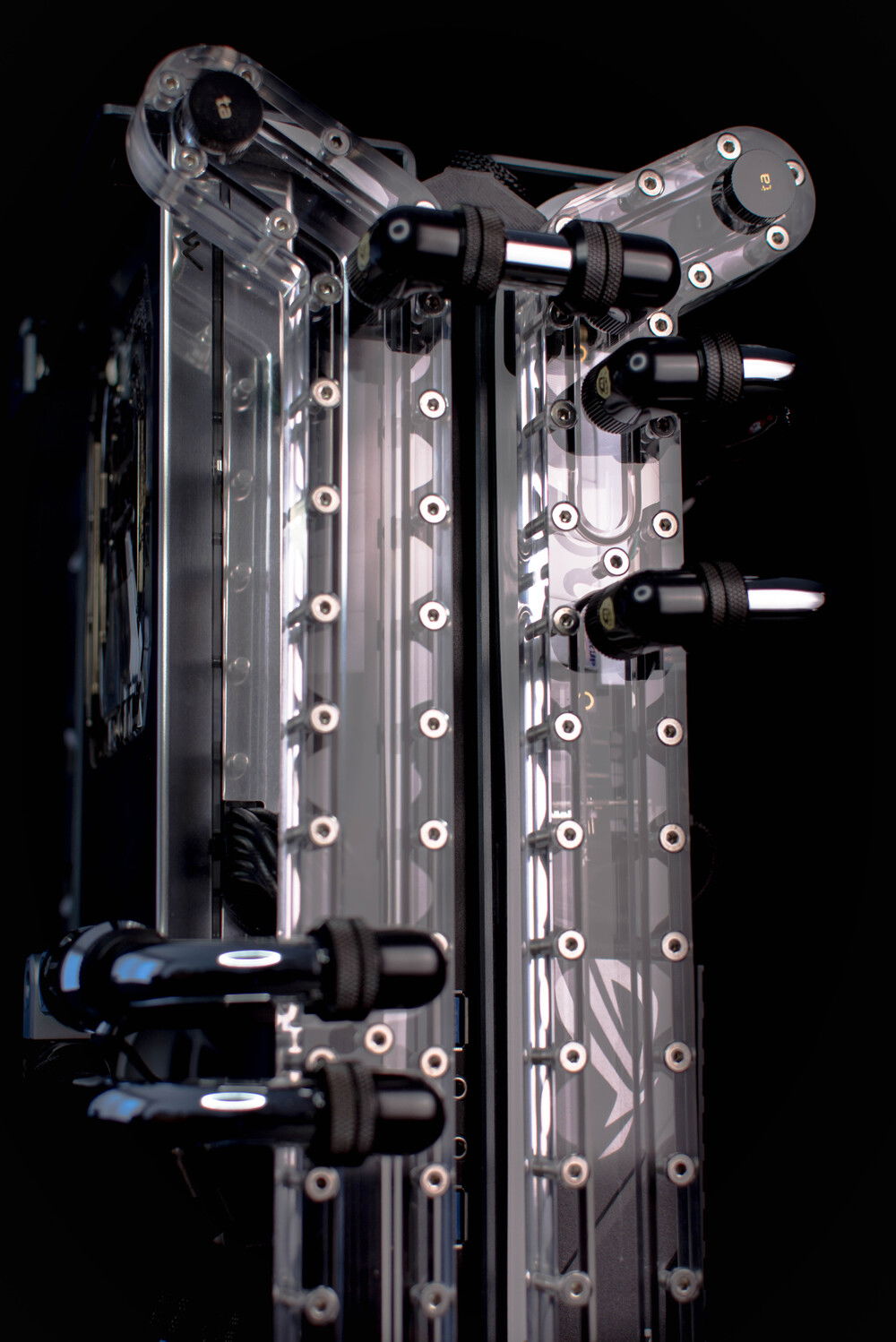

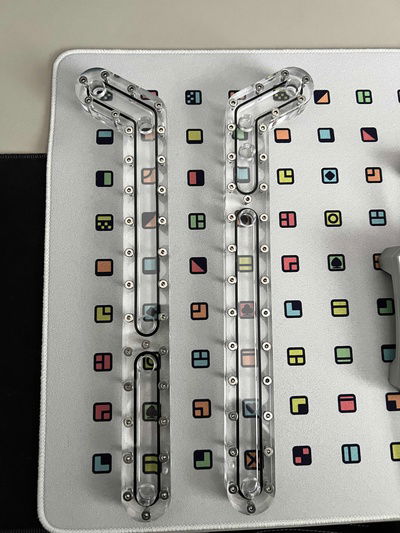

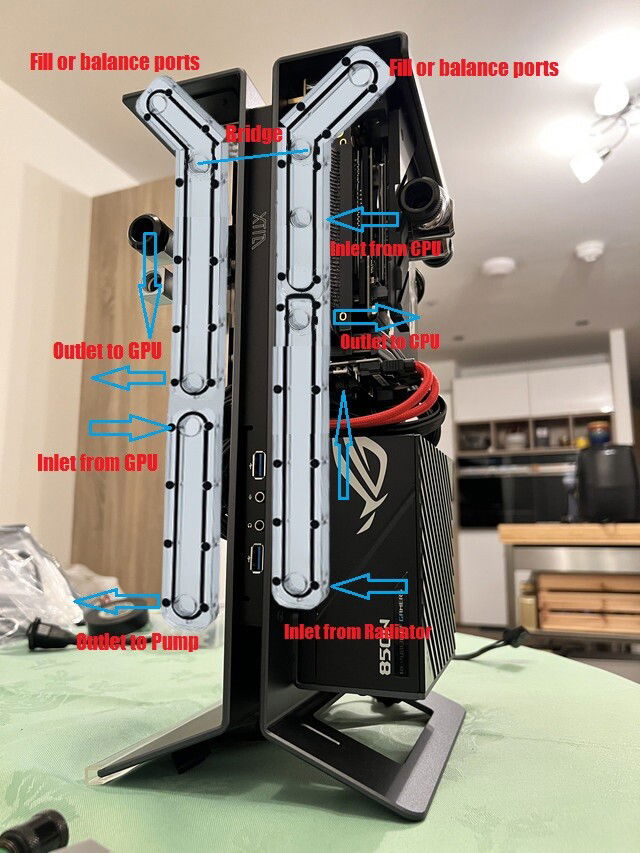

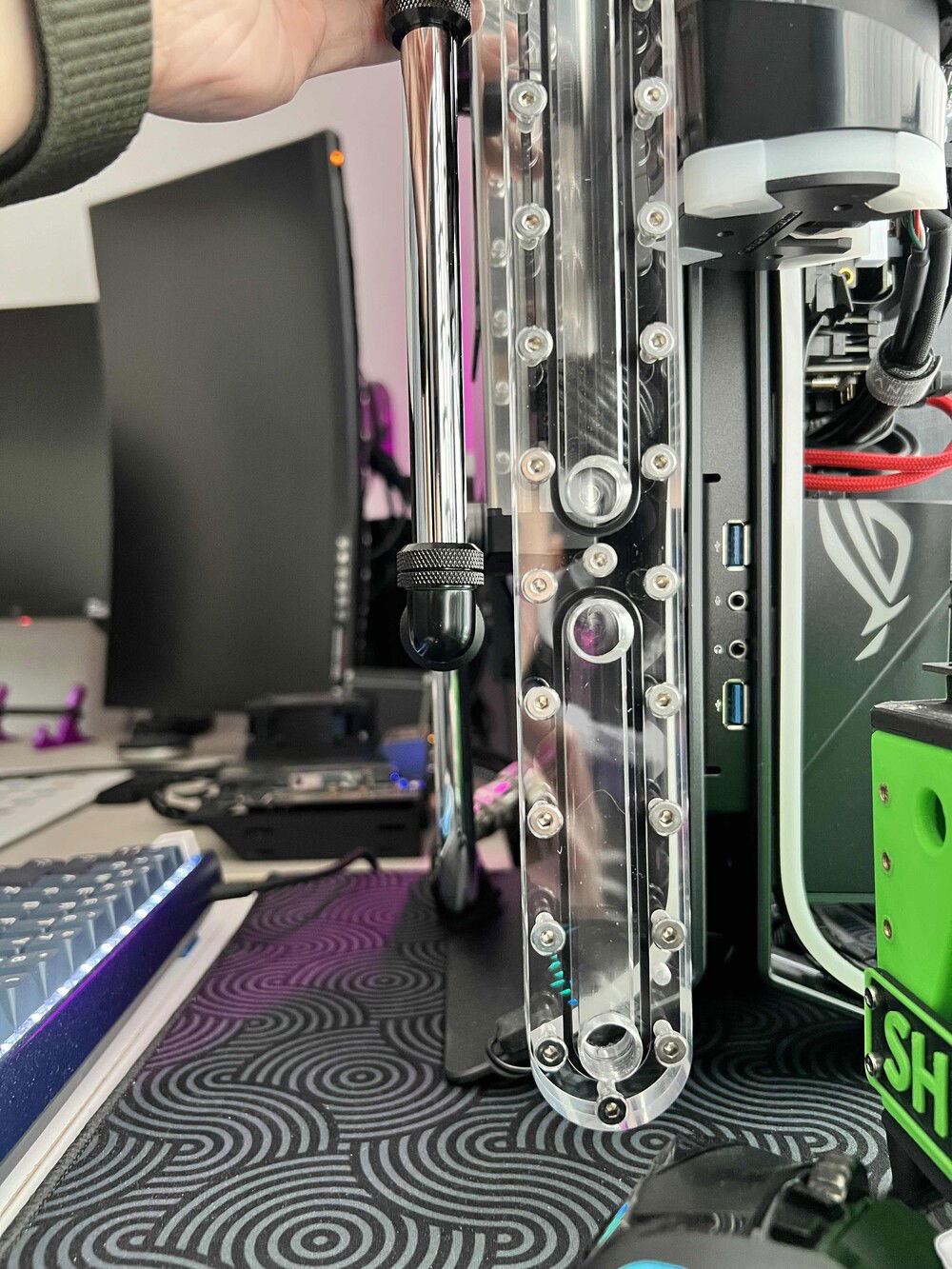

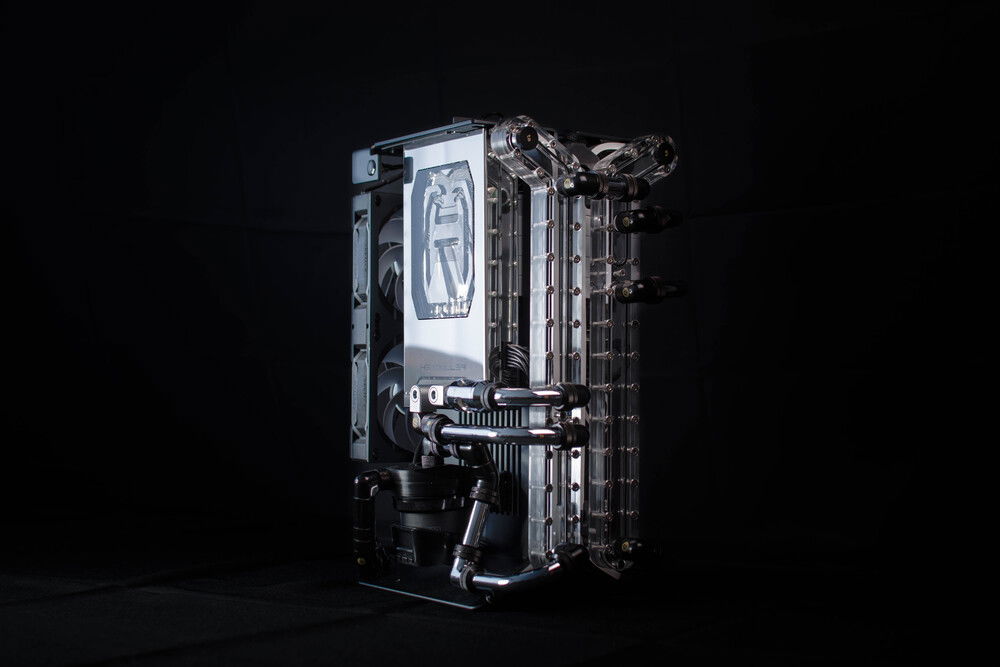

Distro alignment and first pictures!

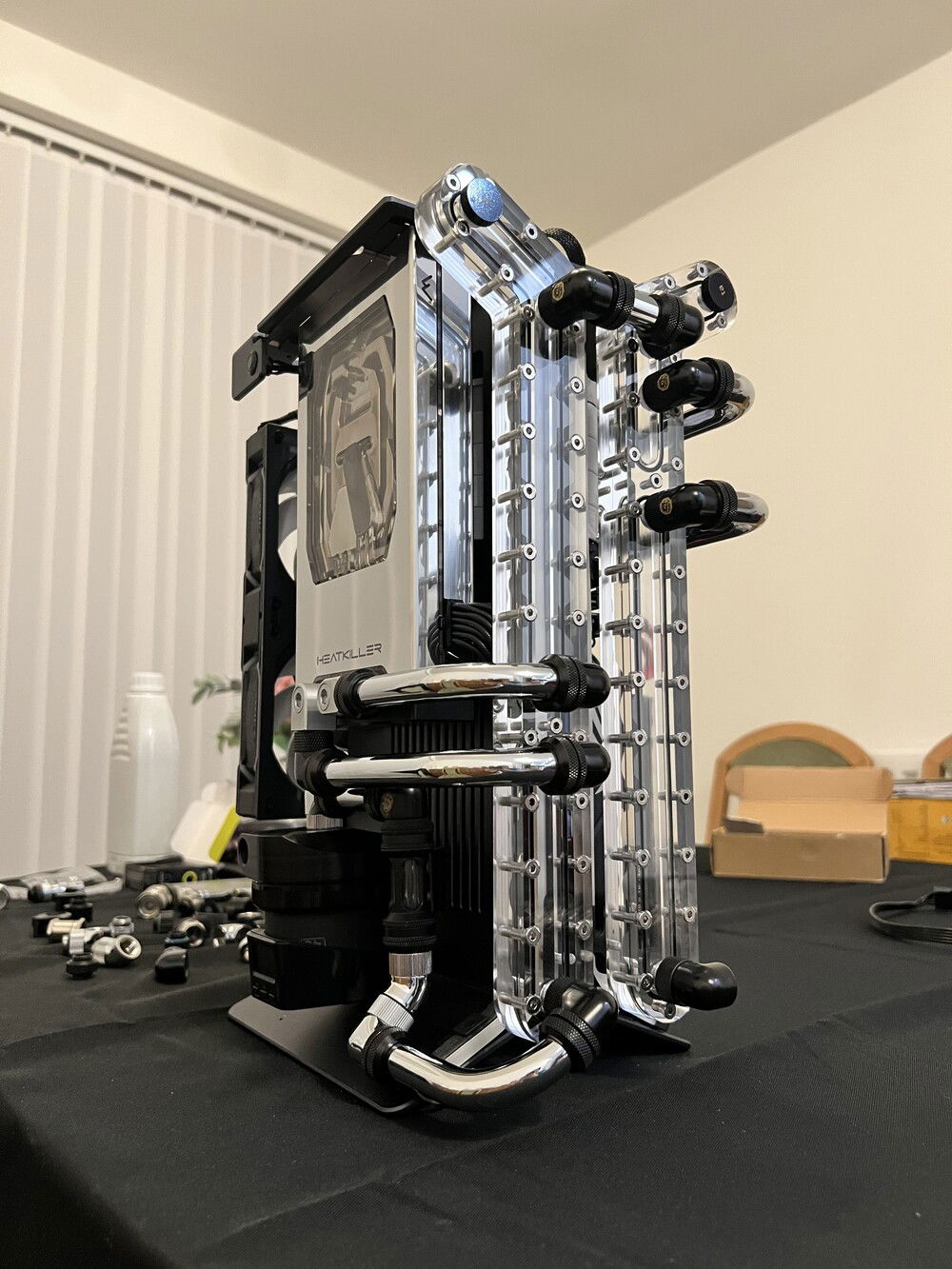

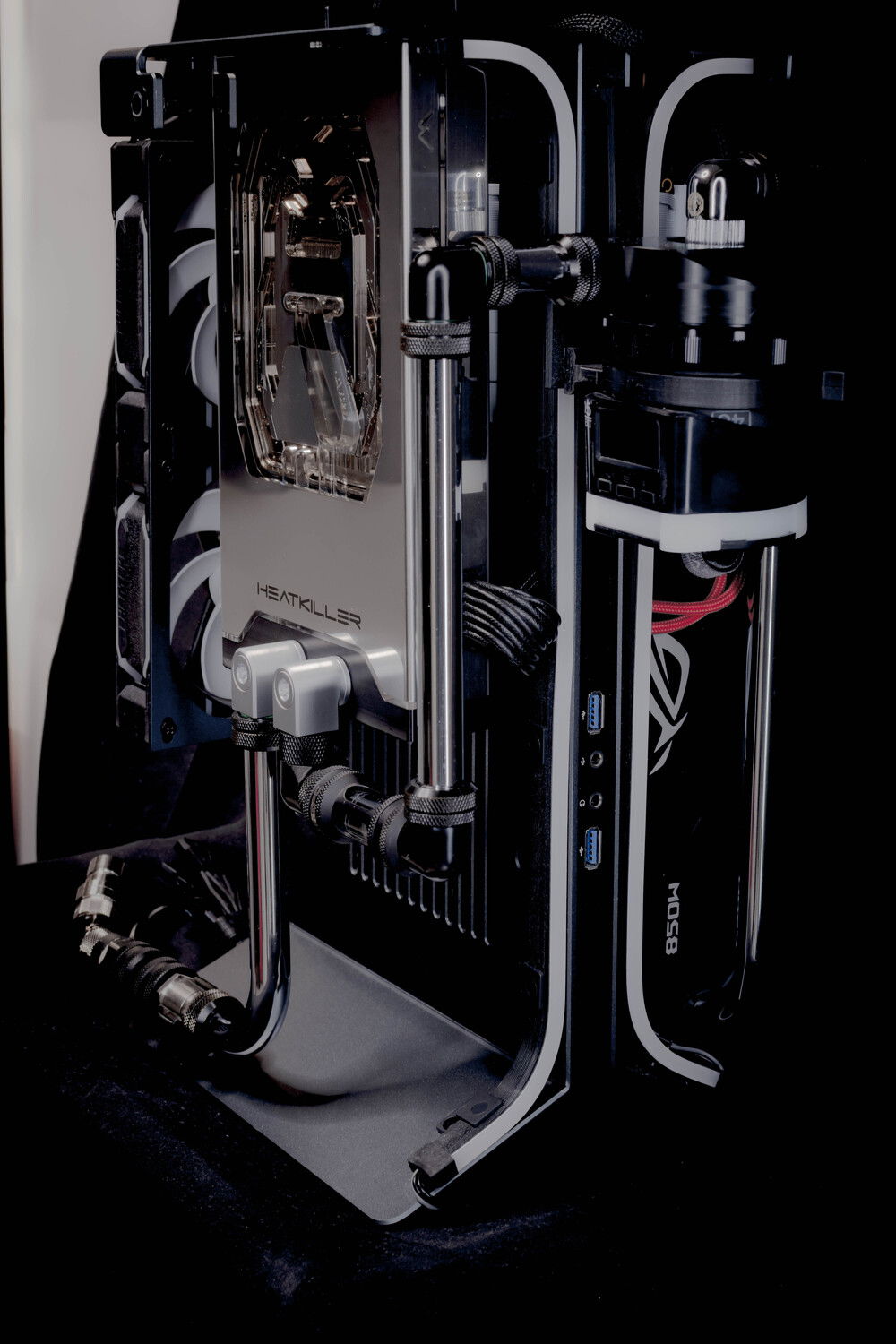

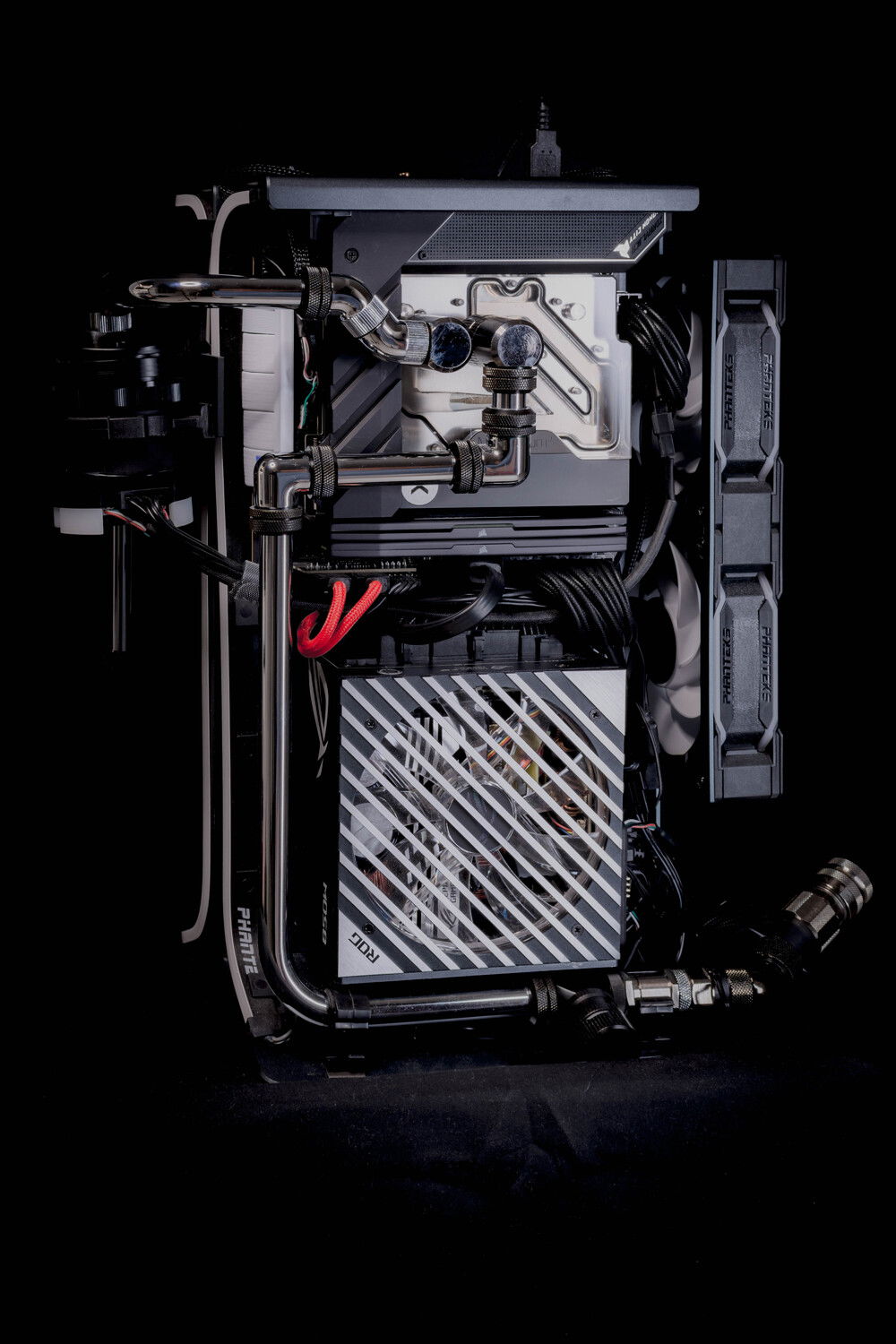

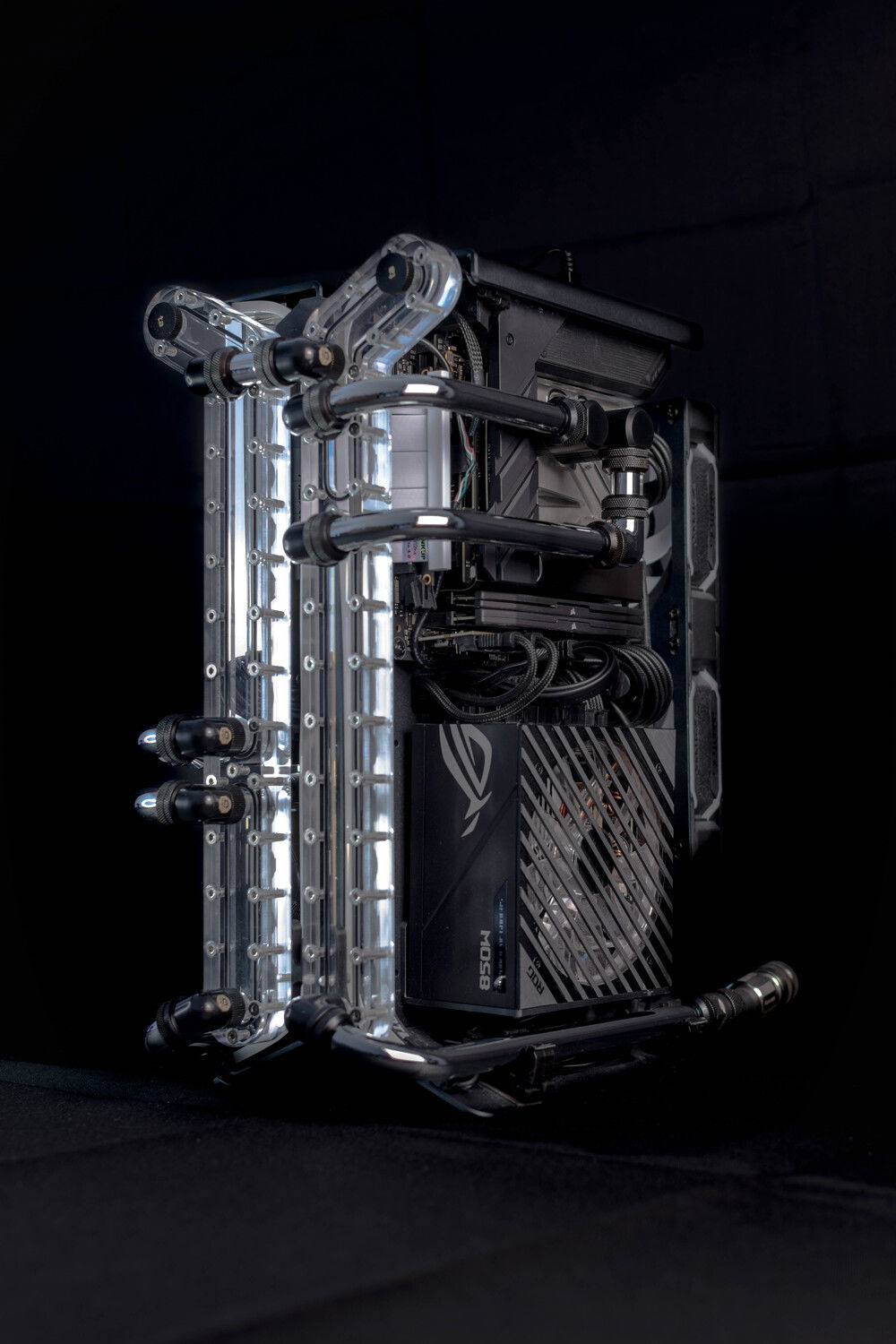

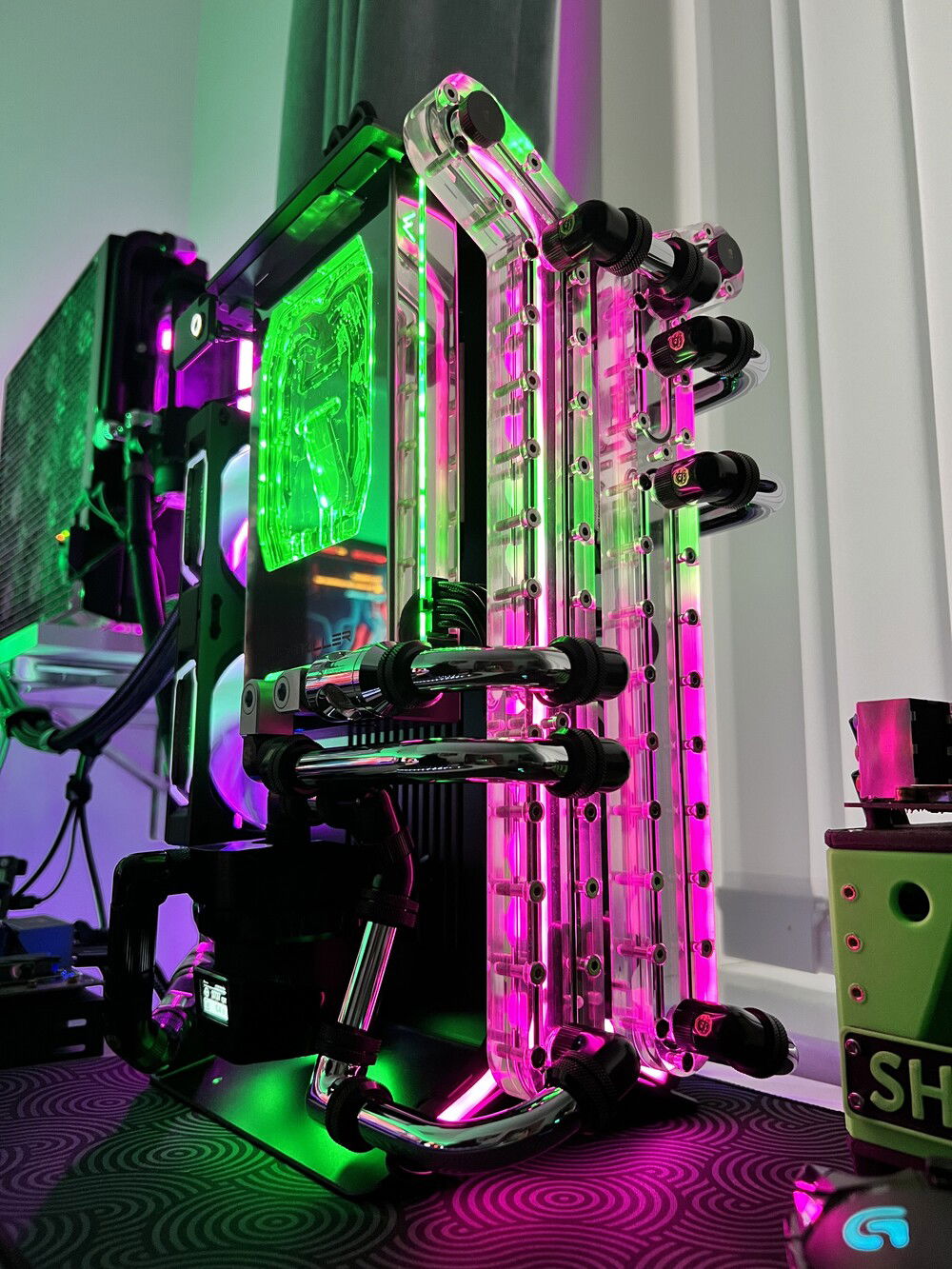

First build pics, mounted and tubed.

Hardware

CPU
$ 216.38
Intel - Core i7-12700K
Socket: LGA 1700
Cores: 12
Integrated Graphics: Yes
Motherboard
$ 199.99
ASUS - ROG Strix Z690-I Gaming (WiFi 6E)
Chipset: Z690
CPU Socket: LGA 1700
Size: ITX
Memory
$ 86.59
Corsair - Vengeance (5600MHz) (Black/RGB)
Type: DDR5
Capacity: 32 GB
Graphics
$ 2,699.99
NVIDIA - GeForce Founders Edition
Chip Manufacturer: NVIDIA
Chip: RTX 4090
Interface: PCIe x16
Storage
$ 109.99
Crucial - BX500
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
Storage
$ 53.99
Kingston - A400
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 960 GB
Storage
$ 243.90
Samsung - 980 Pro (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 291.10
ASUS - Rog Loki SFX-L
Wattage: 850
Form Factor: SFX
Efficiency: 80+ Platinum
Case
$ 200.00
Xtia - Xproto-L
Type: Open Air
Side Panel: Open
Case Fan
$ 179.98
Phanteks - PH-F120D30 (Black) (2x)
Size: 120 mm
Case Fan
$ 269.91
Phanteks - T30 (9x)
Size: 120 mm
Cooling
$ 148.70
Aquacomputer - D5 NEXT
Type: Pump
Cooling
$ 30.00
Aquacomputer - Temperature sensor G1/4 for aquaero (2x)
Type: Temperature Sensor
Cooling
$ 60.00
Bitspower - Tubing
Type: Custom Loop
Cooling
$ 80.00
Cooling
$ 220.00
Watercool - HeatKiller Tube 150 D5
Type: Custom Loop
Size (WxHxD): 150 mm
Cooling
$ 300.00
Watercool - Heatkiller V Pro for 4090 FE
Type: GPU Waterblock
Cooling
$ 240.00
Accessories
$ 64.99
Accessories
$ 39.98
Estimated total value of this build:
$ 6,265.02
