3 liters of fluid

Lets be real. This is the 100th iteration and hopefully there will be a 100 more. Watercooling brought a new joy to pc building. And planning out new builds is almost as fun as building it. Almost sad each time I'm "done".

Goal:

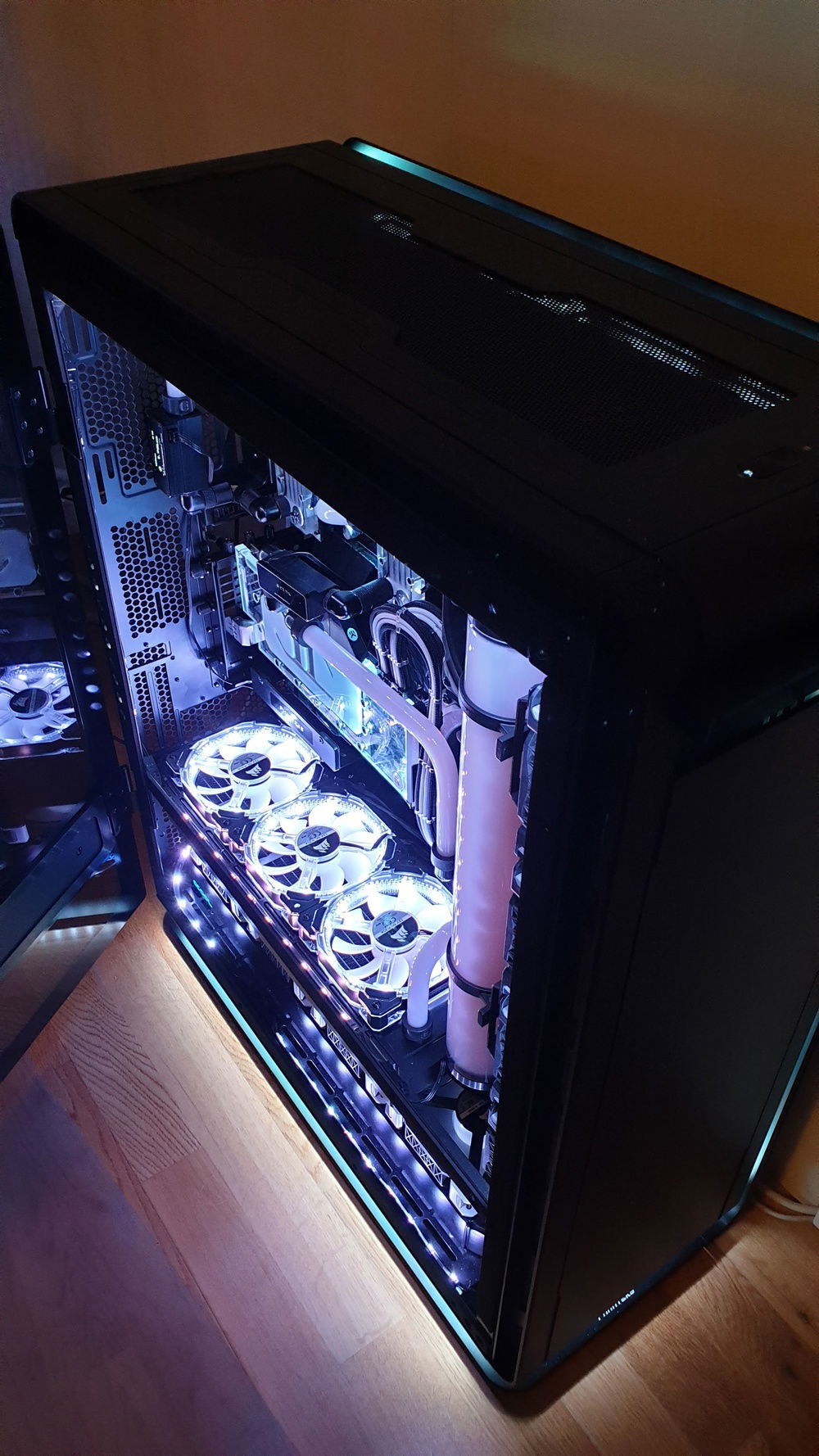

Stuff the Enthoo Elite case as full of radiators as possible and still allow for clean runs (failed in the cpu area... suggestions are welcome) and some accessibility for maintenance.

CPU
I'm mostly using it for gaming but some video editing. I cant defend the 2950x (and allot of the other stuff) and would probably be better of with a 9900k. But when AMD is doing good and making stuff like this I wanted it.

GPU

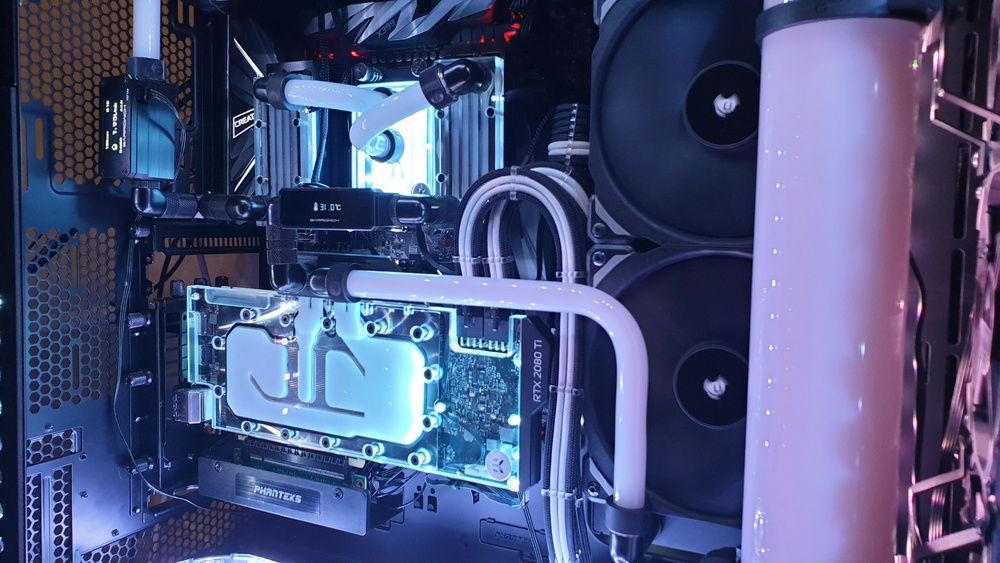

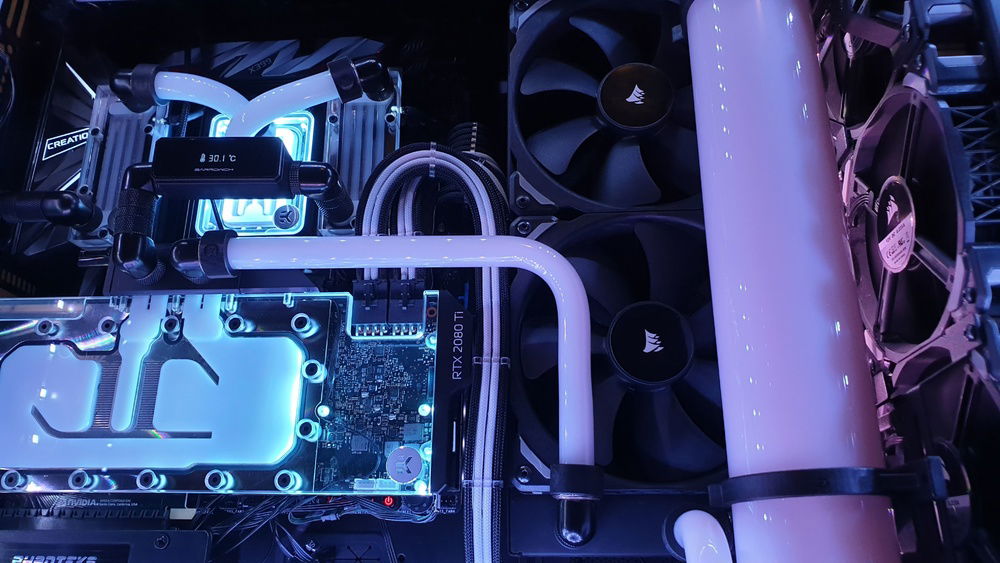

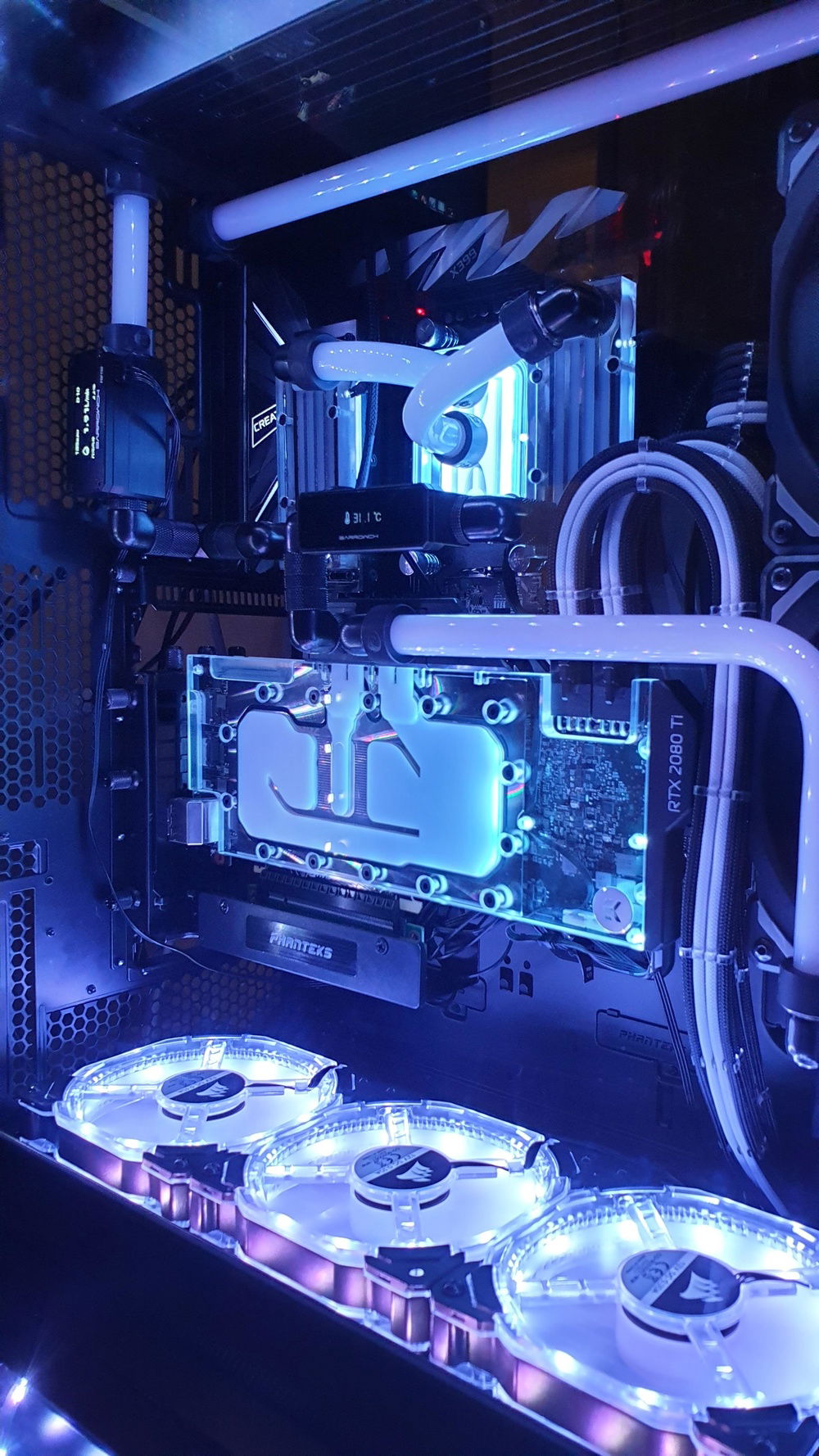

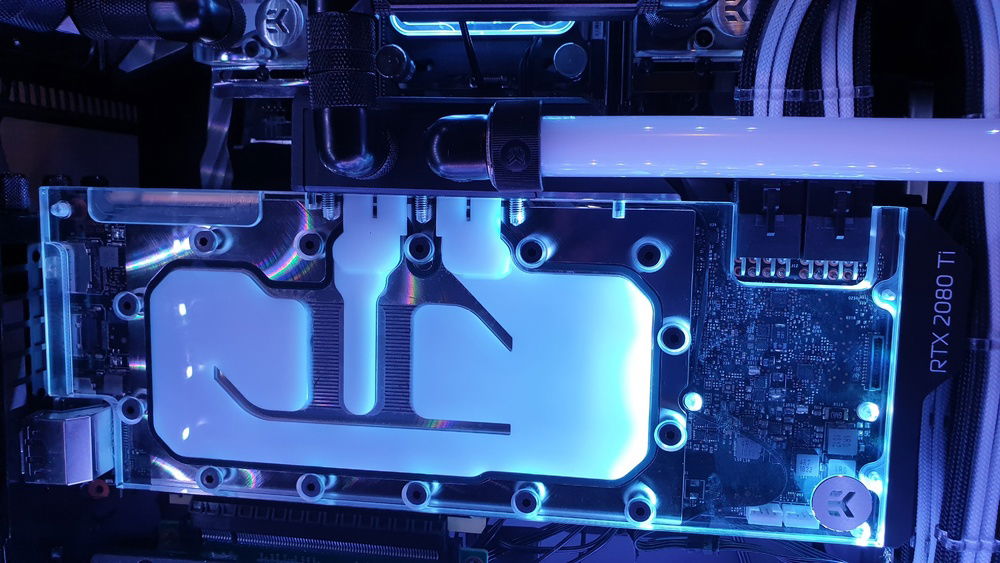

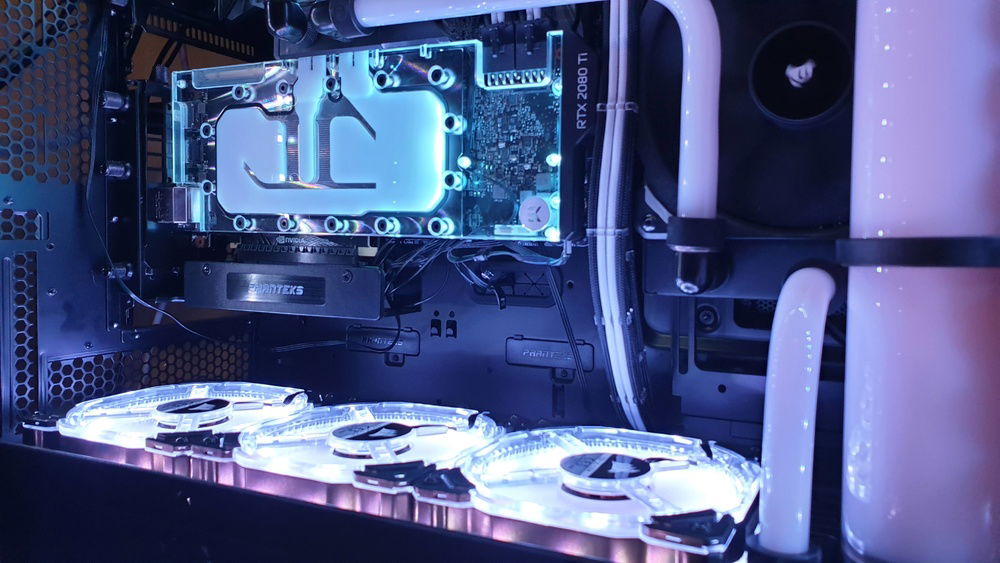

Previously build had 1080's in SLI. SLI is awesome when it works but requires allot of tinkering with settings. 2080ti is awesome and vertical mount removed the empty space that makes SLI look so good. Horrible reasoning.. but lets not pretend that looks are important especially on pages like this.

CASE

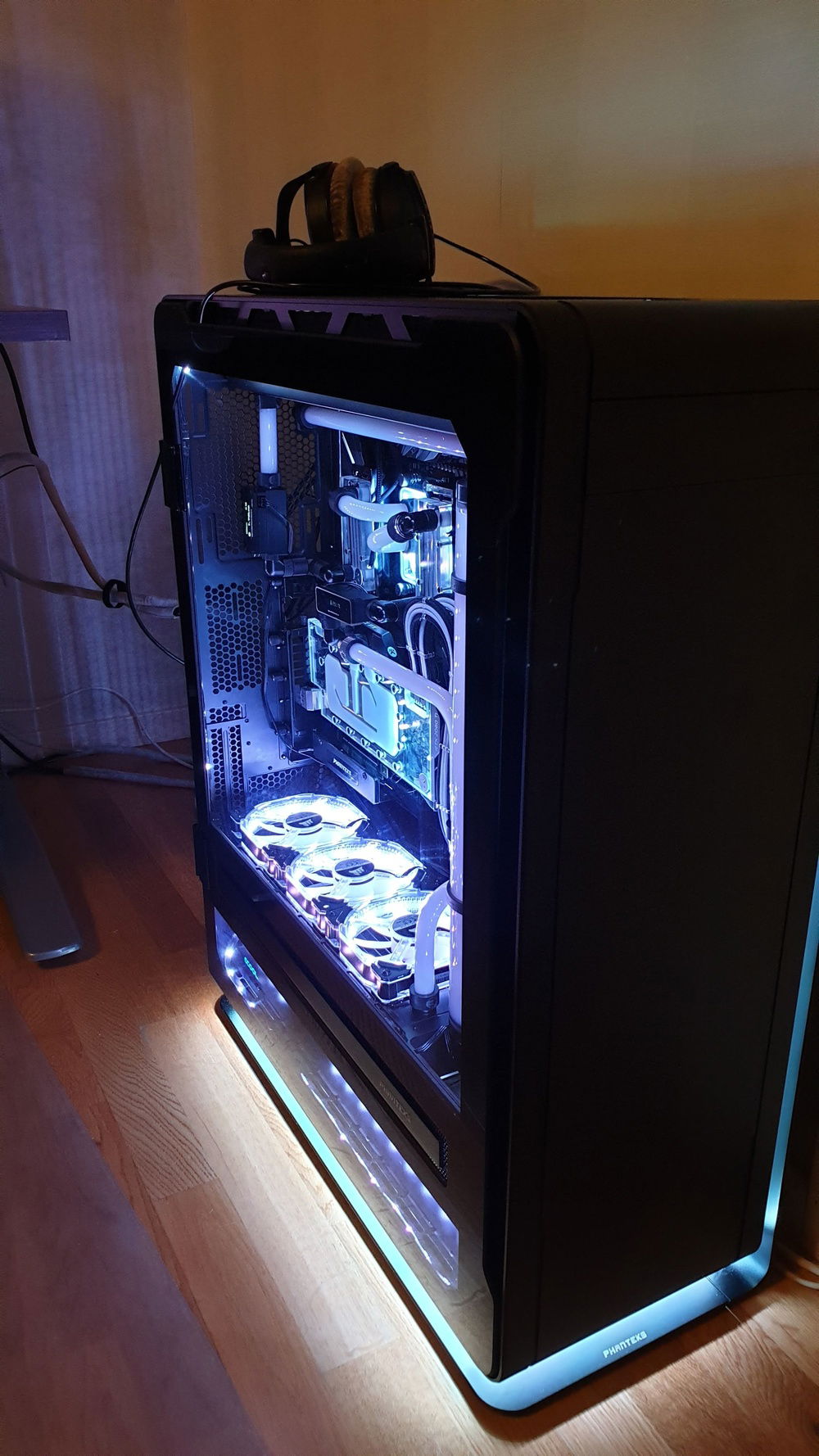

Enthoo elite is awesome. Awesome craftmanship. As a result the total weight is such that you will need help to move it around.

COOLING

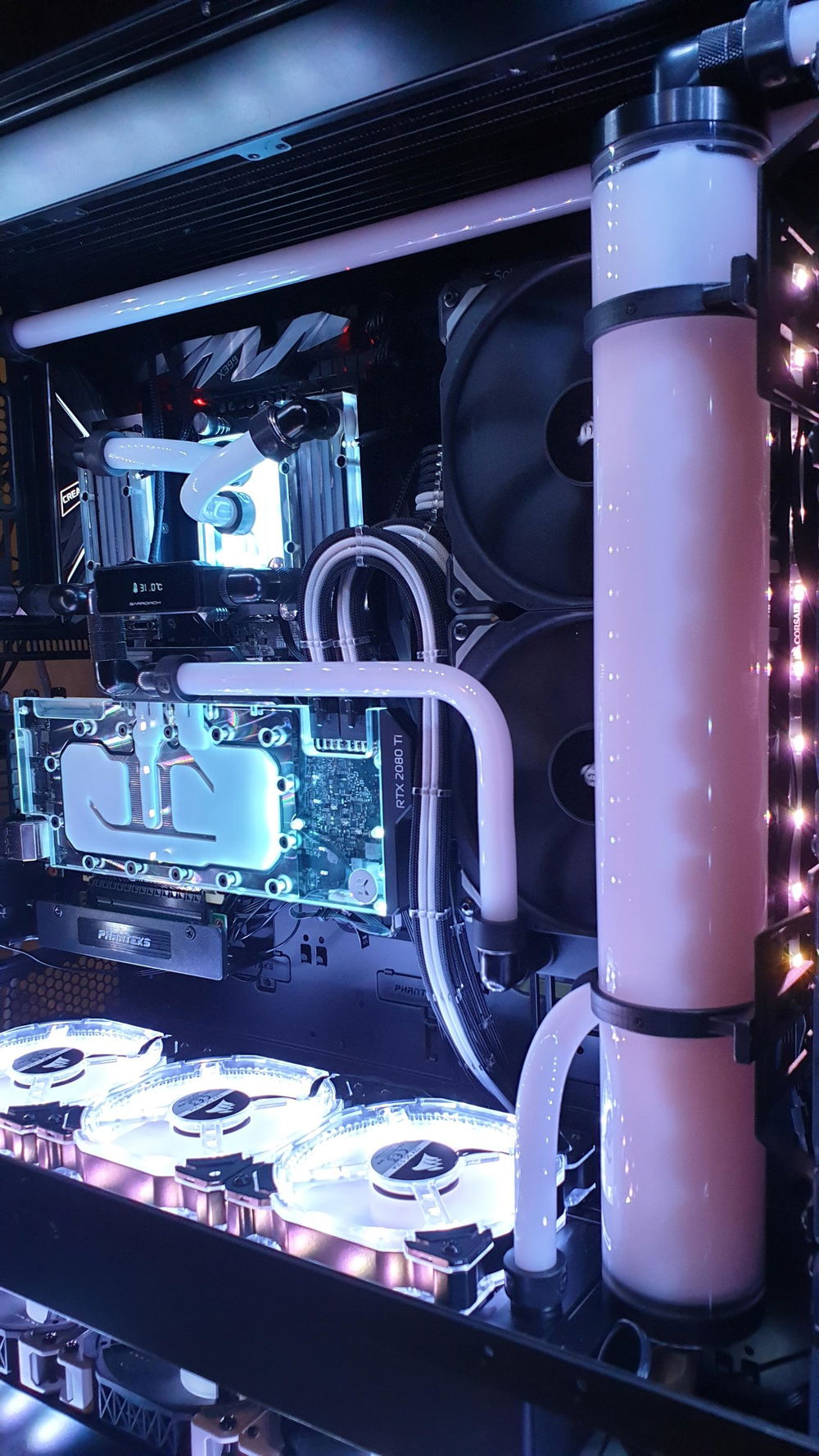

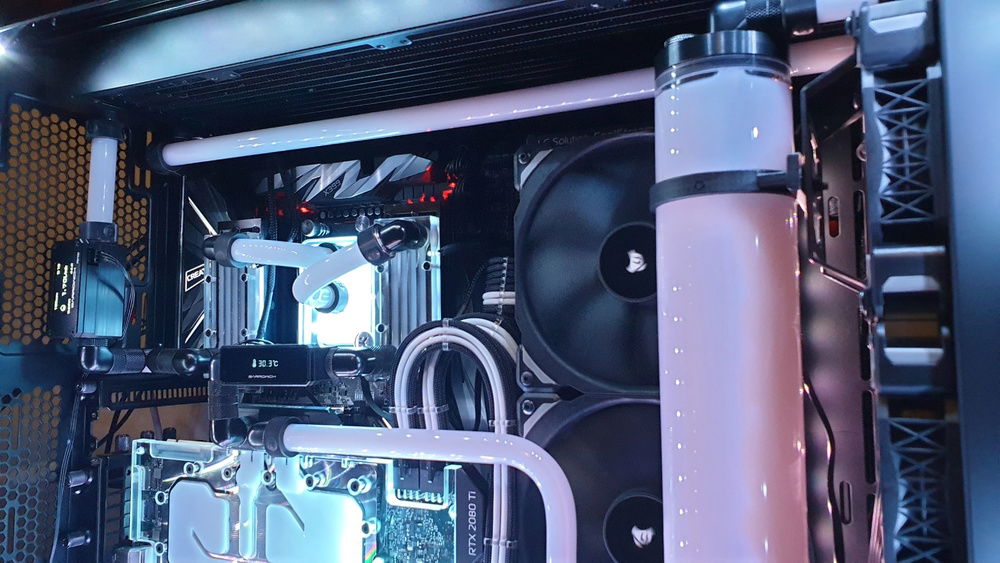

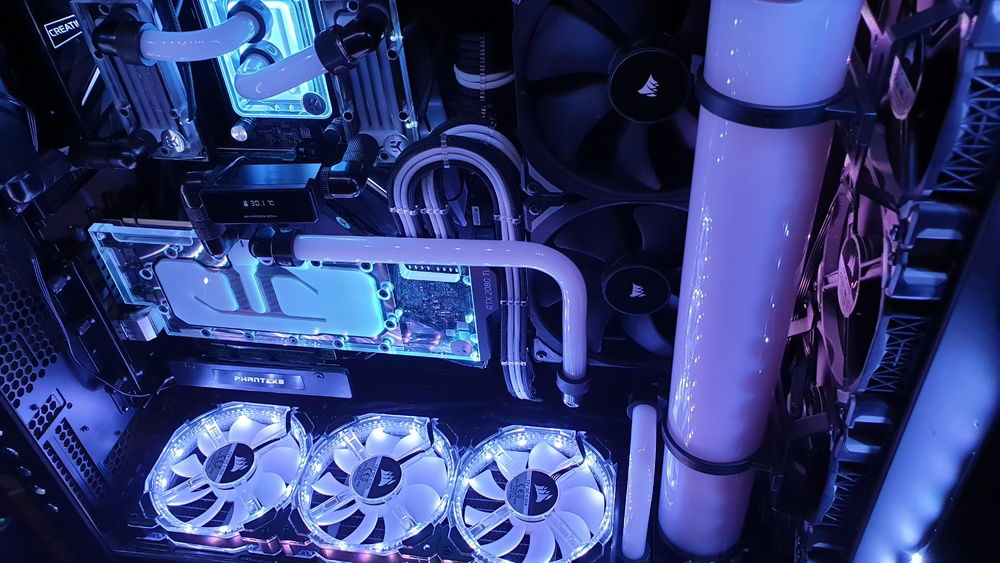

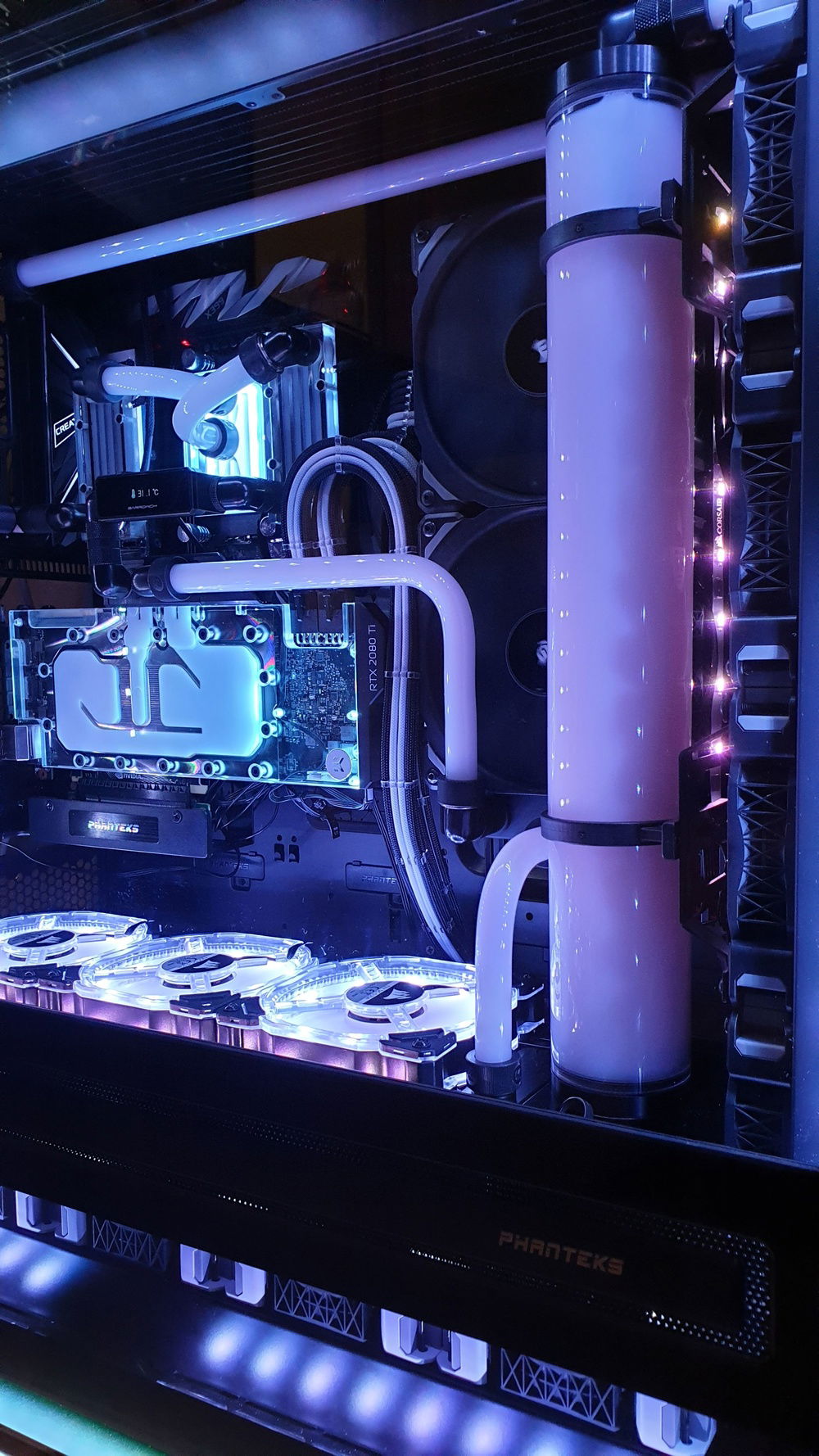

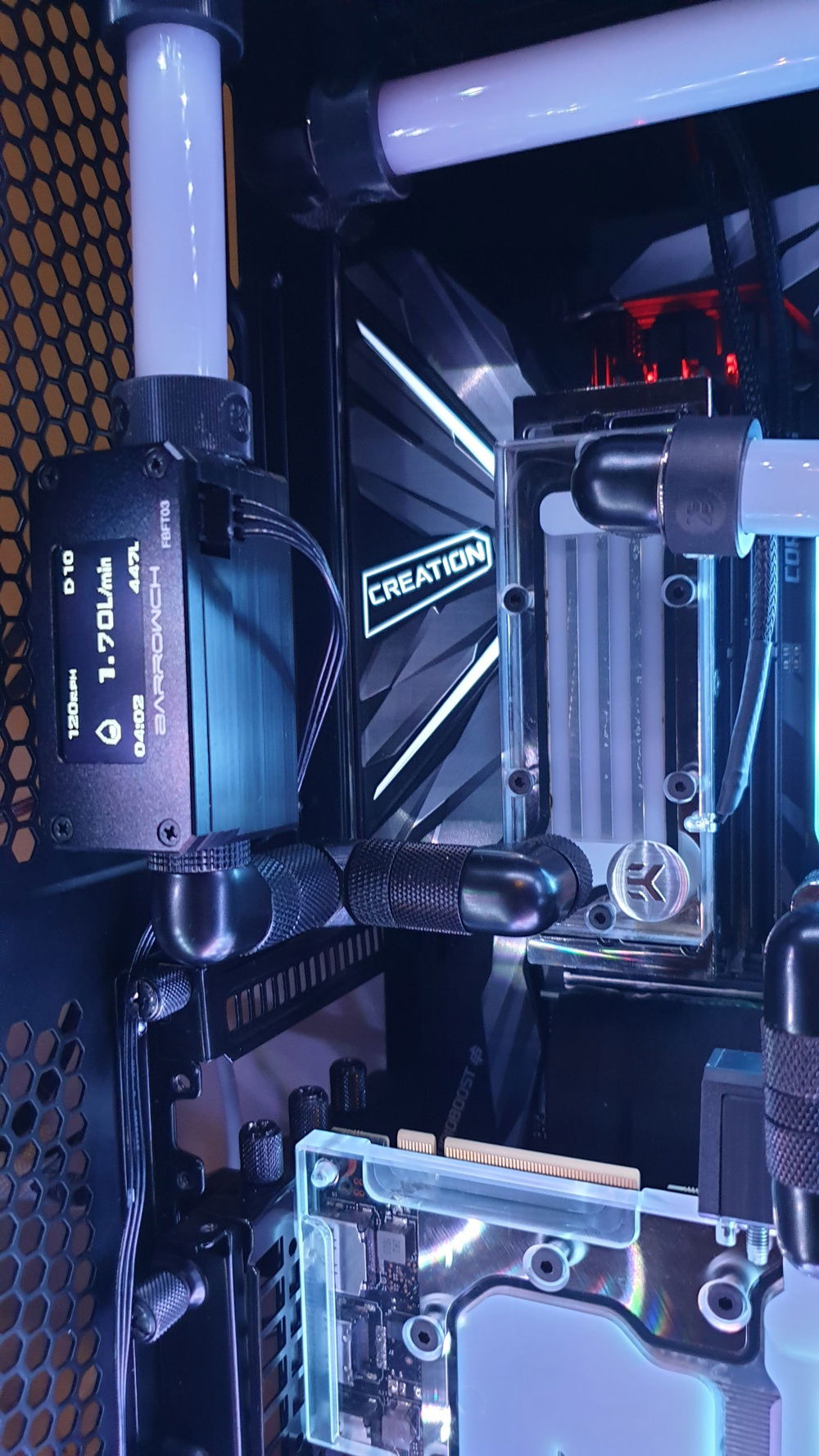

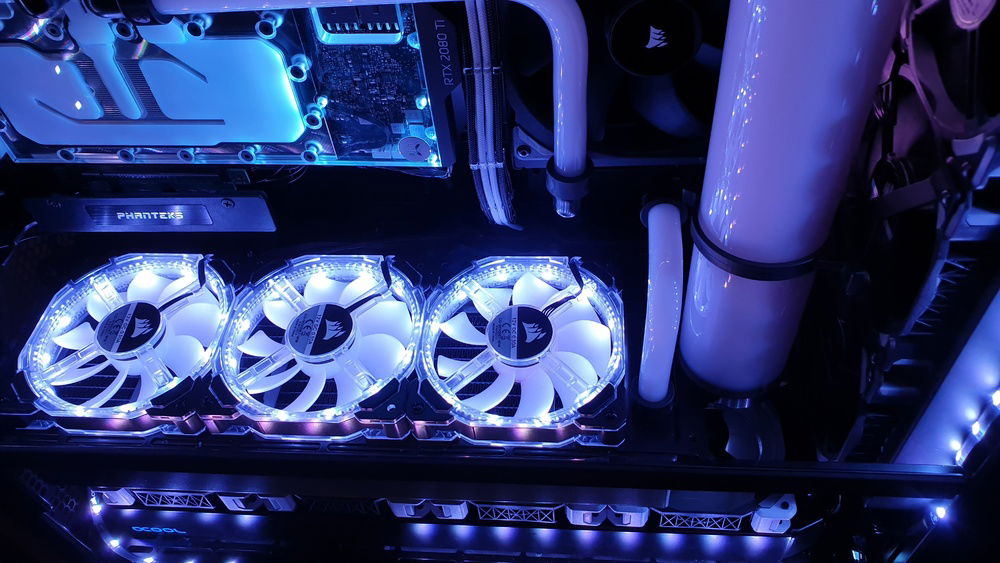

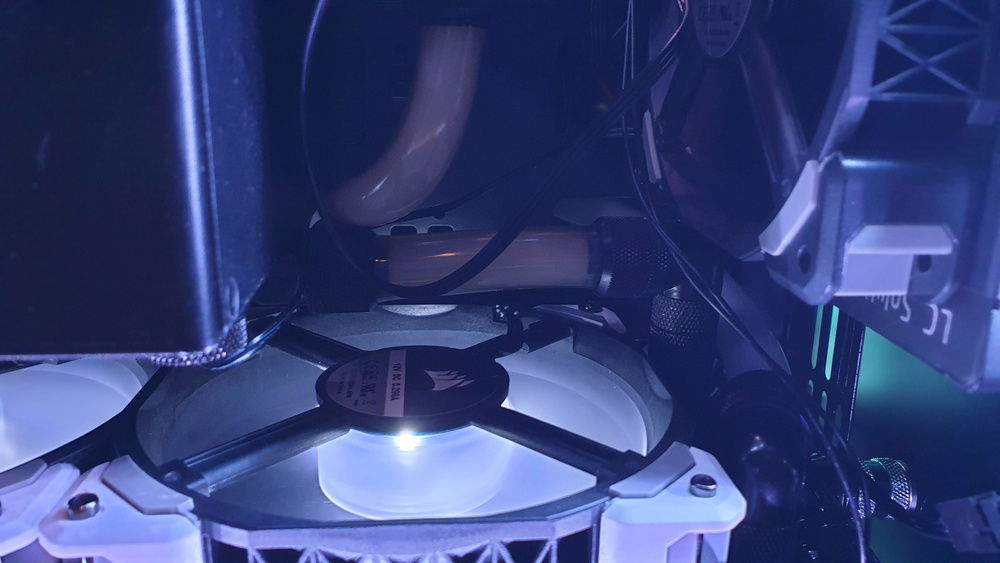

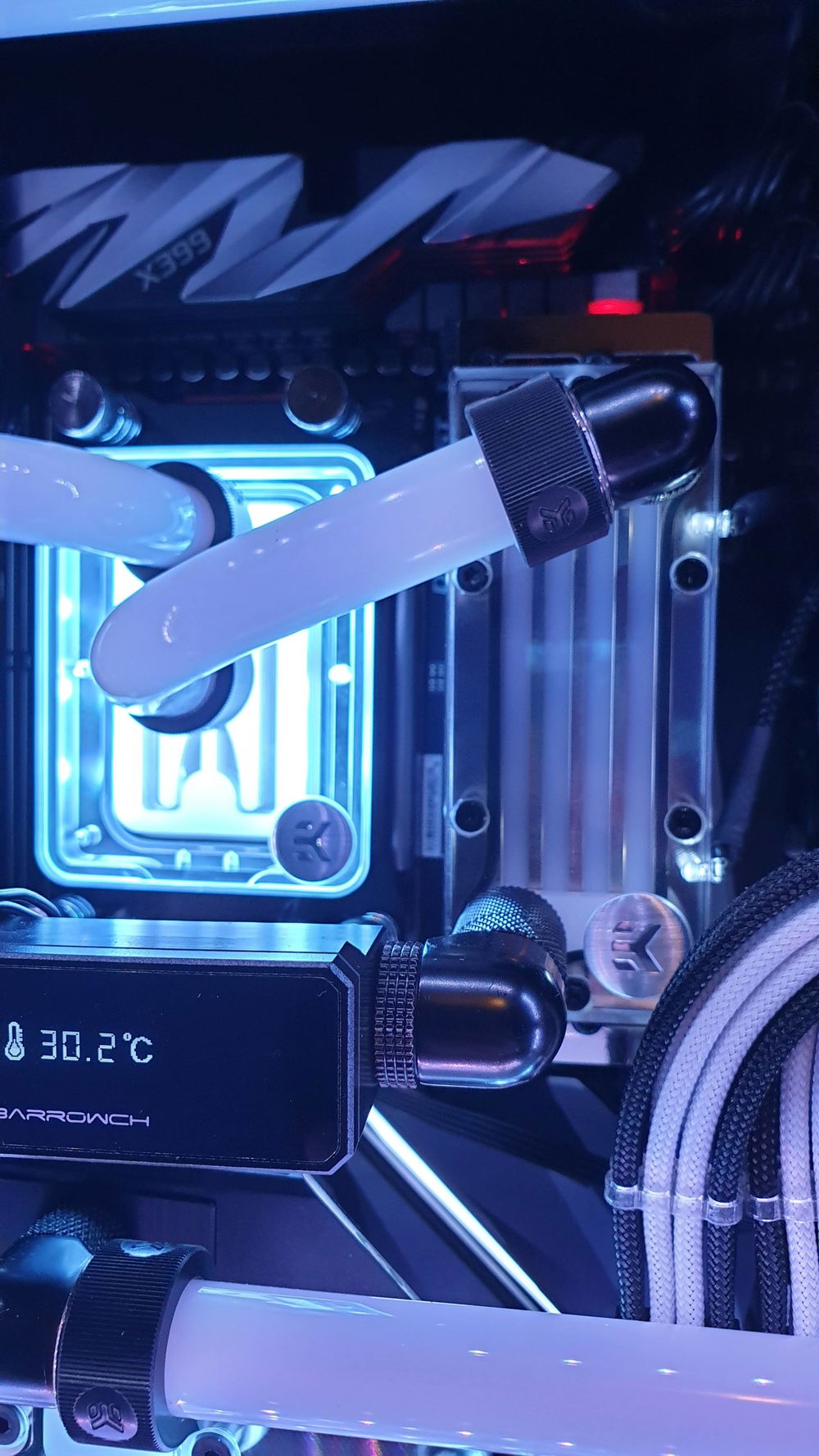

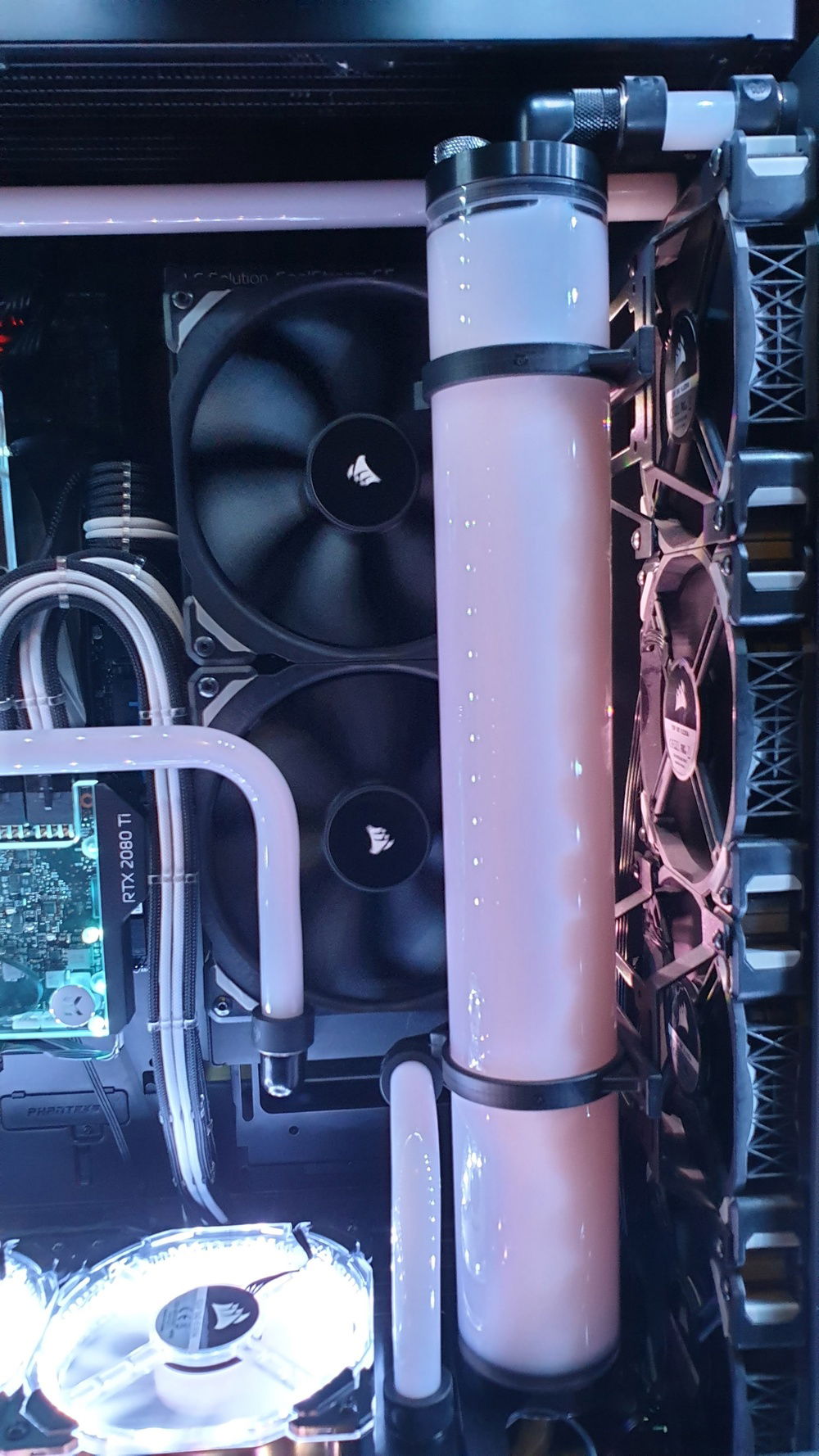

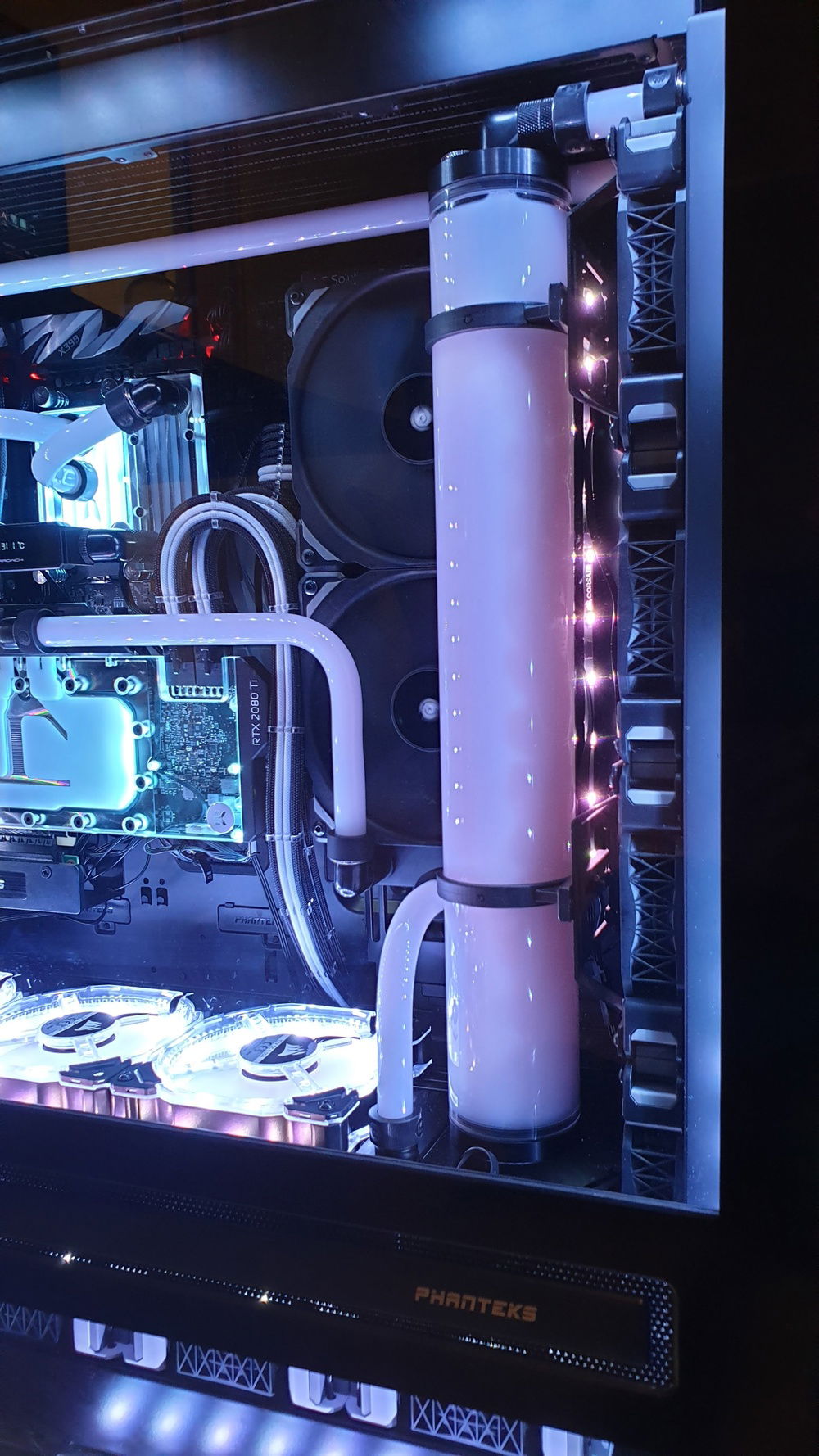

ML fans are awesome (14 ML and 3 HD). Mostly EKWB. Also some barrow 90's and extenders. Tubing is 16mm. The size of the case makes this a necessity in my mind. 5 radiators in total. To much? No. Wish I had more... seriously. Difficult to drain. Not sure what to about this considering all the area's where air can be trapped. The EK dual pump is in the back with the PSU. I also used some soft tubing in this area.. not sure I have the skill (or willpower) to bend tube in that space. I also have 4 individual G1/4 fitting type temp monitors in addition to the barrow LED temp and flow monitor.

OTHER:

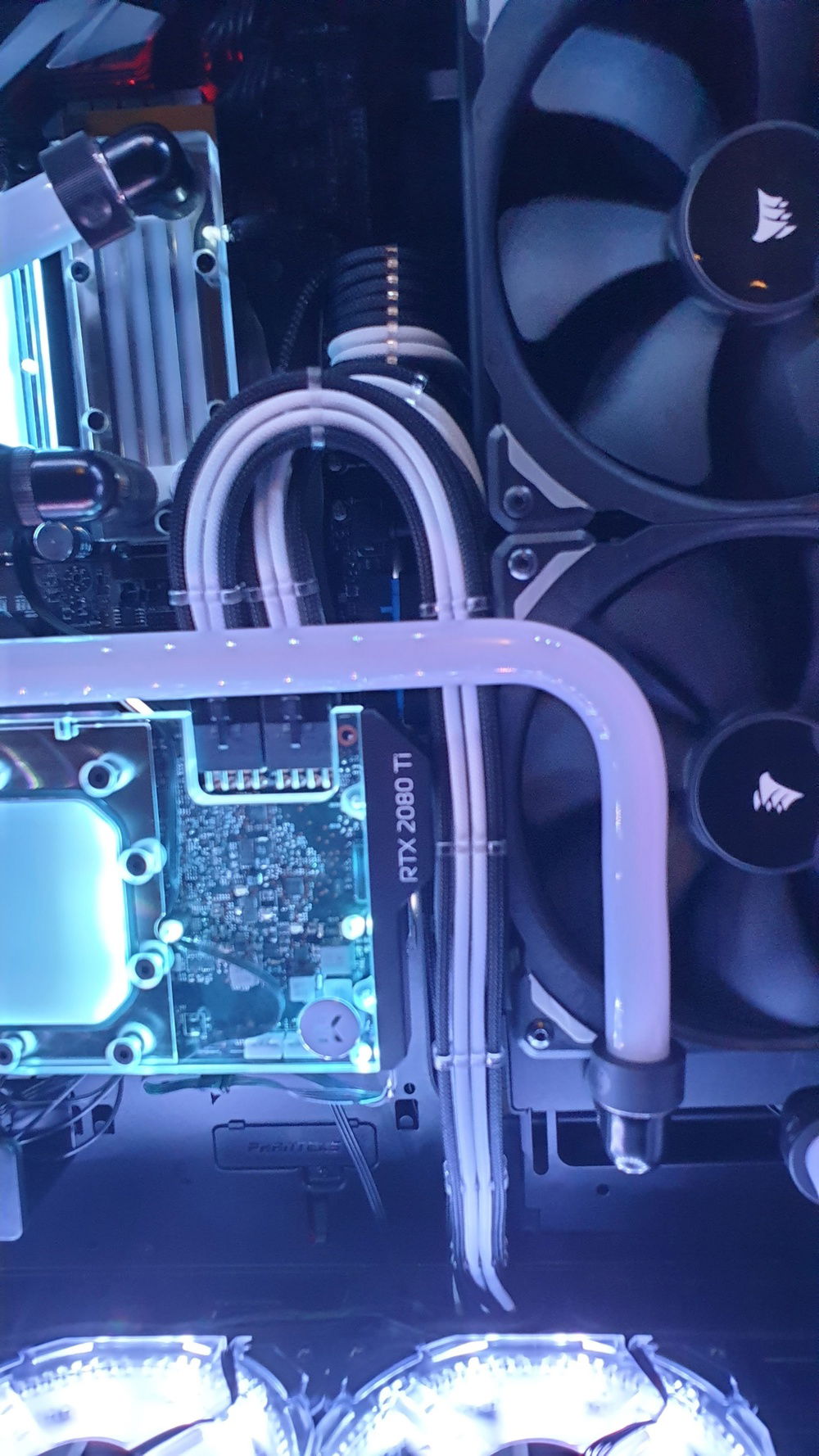

I made the power cables myself. Wanted to match the white liquid. Result was ok.. but considering the time it took the professional made cables are definitely worth the price.

Parts list below.

Recording temps during 2 hour stress test.
Color(s): Black White
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: Color
Size: E-ATX
Type: General Build

Hardware

CPU
$ 668.98
AMD - Threadripper 2950X
Cores: 16
Socket: TR4
Motherboard
$ 399.99
MSI - MEG X399 CREATION
Chipset: X399
CPU Socket: LGA 2066
Interfaces Available: M.2 (M), mSATA, PCIe x1, PCIe x4, PCIe x8
Memory
$ 138.46
Corsair - Vengeance LPX (2666Mhz)
Capacity: 32 GB
Type: DDR4
Storage
Samsung - 840 EVO mSATA
Capacity: 1 TB
Form Factor: mSATA
Type: SSD
Storage
$ 347.95
Samsung - 970 PRO
Capacity: 1 TB
Form Factor: M.2
Interface: M.2 (M)
Graphics
INNO3D - GeForce Gaming OC (X3)
Chip: RTX 2080 Ti
Chip Manufacturer: NVIDIA
PSU
$ 367.41
Corsair - AX1200i
Efficiency: 80+ Platinum
Form Factor: ATX
Modularity: Fully-Modular
Case
$ 899.99
Phanteks - Enthoo Elite
Motherboard Support: ATX
Side Panel: Tempered Glass
Type: Full-Tower
Case Fans
$ 75.00
Case Fans
$ 75.00
Case Fans
$ 75.00
Cooling
$ 116.57
Alphacool - NexXxoS XT45 Full Copper
Height in mm: 46
Size (WxHxD): 480 mm (4 x 120 mm)
Type: Custom Loop
Cooling
Barrow - Fittings
Type: Custom Loop
Cooling
Bitspower - Reservoir
Type: Custom Loop
Cooling
$ 81.97
EKWB - CoolStream CE
Height in mm: 45
Size (WxHxD): 280 mm (2 x 140 mm)
Type: Custom Loop
Cooling
$ 144.99
EKWB - CoolStream PE
Height in mm: 38
Size (WxHxD): 480 mm (4 x 120 mm)
Type: Custom Loop
Cooling
$ 144.99
EKWB - CoolStream PE
Height in mm: 38
Size (WxHxD): 480 mm (4 x 120 mm)
Type: Custom Loop
Cooling
$ 160.30
EKWB - CoolStream XE
Height in mm: 60
Size (WxHxD): 360 mm (3 x 120 mm)
Type: Custom Loop
Cooling
EKWB - EK-CryoFuel Solid (Cloud White)
Size (WxHxD): 250 mm
Type: Coolant
Cooling
EKWB - EK-CryoFuel Solid (Cloud White)
Size (WxHxD): 250 mm
Type: Coolant
Cooling
EKWB - EK-CryoFuel Solid (Cloud White)
Size (WxHxD): 250 mm
Type: Coolant
Cooling
Cooling

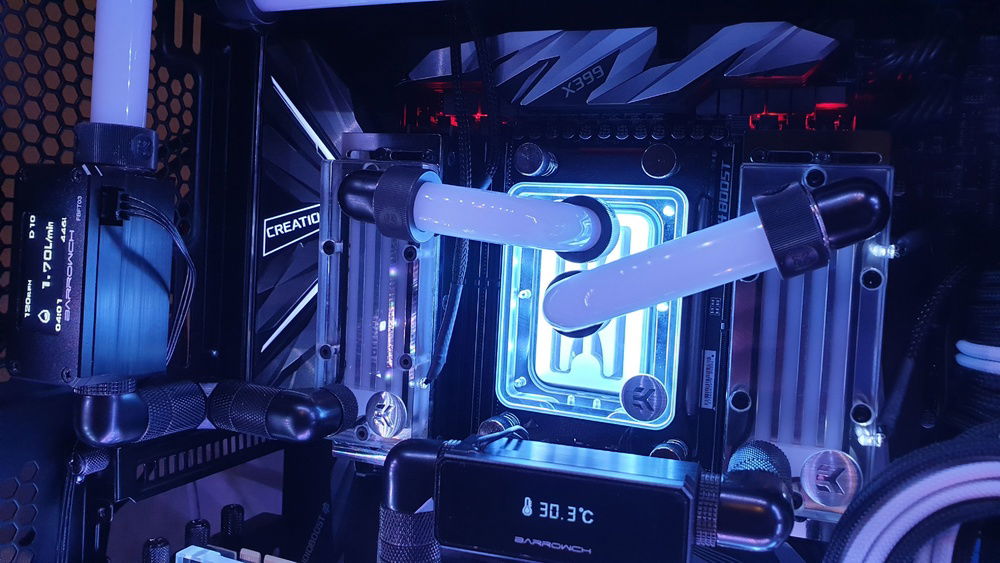

EKWB - EK-Supremacy sTR4 RGB - Nickel
Compatibilty: TR4
Type: CPU Waterblock
Cooling
$ 169.98
Cooling
EKWB - Fittings
Type: Custom Loop
Accessories
$ 140.42
Accessories
$ 74.99
Accessories
$ 96.42
Accessories
$ 51.99
Accessories
$ 59.99
Accessories
Corsair - RBG Lighting Kit (discontinued)
Monitor
$ 763.49
ASUS - PG348Q
Native Resolution: 3440 x 1440
Panel: IPS
Refresh Rate: 100 Hz
Keyboard
$ 271.34
Corsair - Strafe
Interface: Wired
Key Switch Type: Cherry MX Red
Type: Full Size
Mouse
$ 41.98
Corsair - M65 Elite RGB
Interface: Wired
Unable to dertermine total build value (missing part value)
