Frankenrig

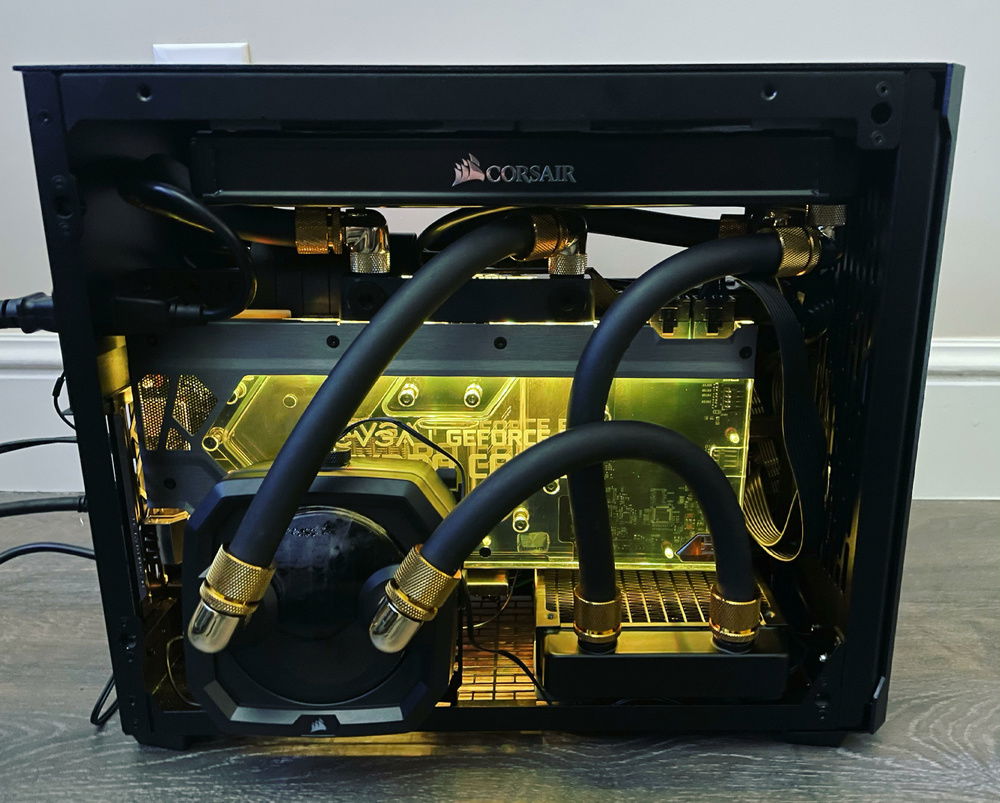

This is a backup rig that I use for TV, gaming, and some light CAD work. Managed to grab a 2080 Super with a waterblock from EVGA that I wanted to put to good use, and just finished the build yesterday.

First watercooled build, and it was a blast in the 12 hours it took to build.

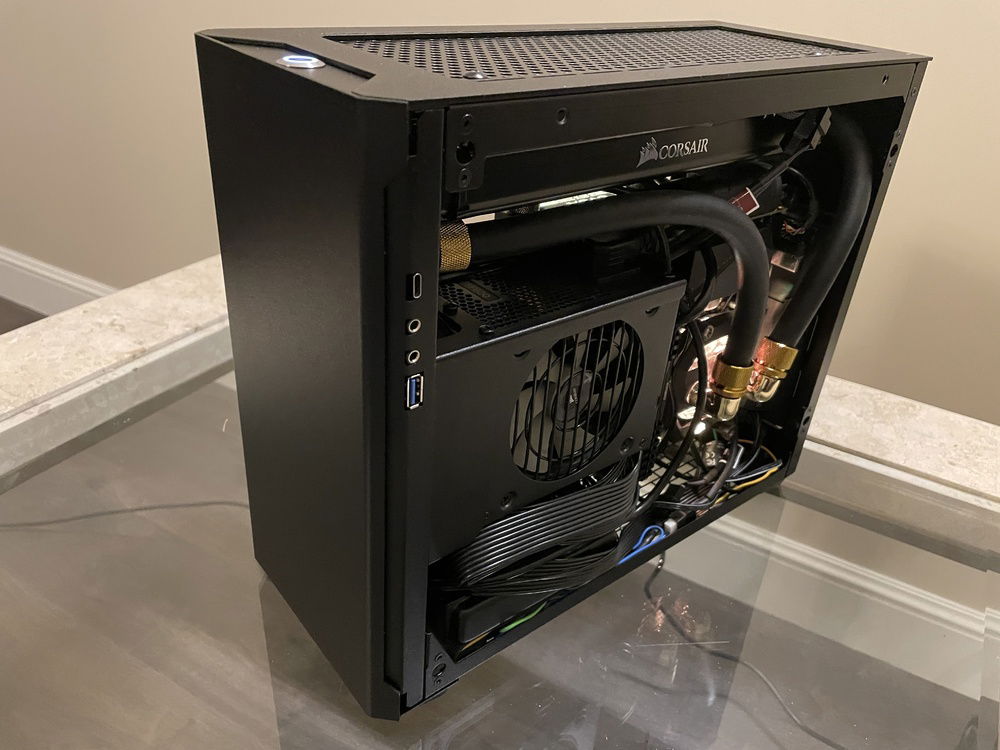

Case: Sliger SM580

MoBo: Gigabyte B550I Aorus Pro AX

CPU: AMD Ryzen 7 3700X

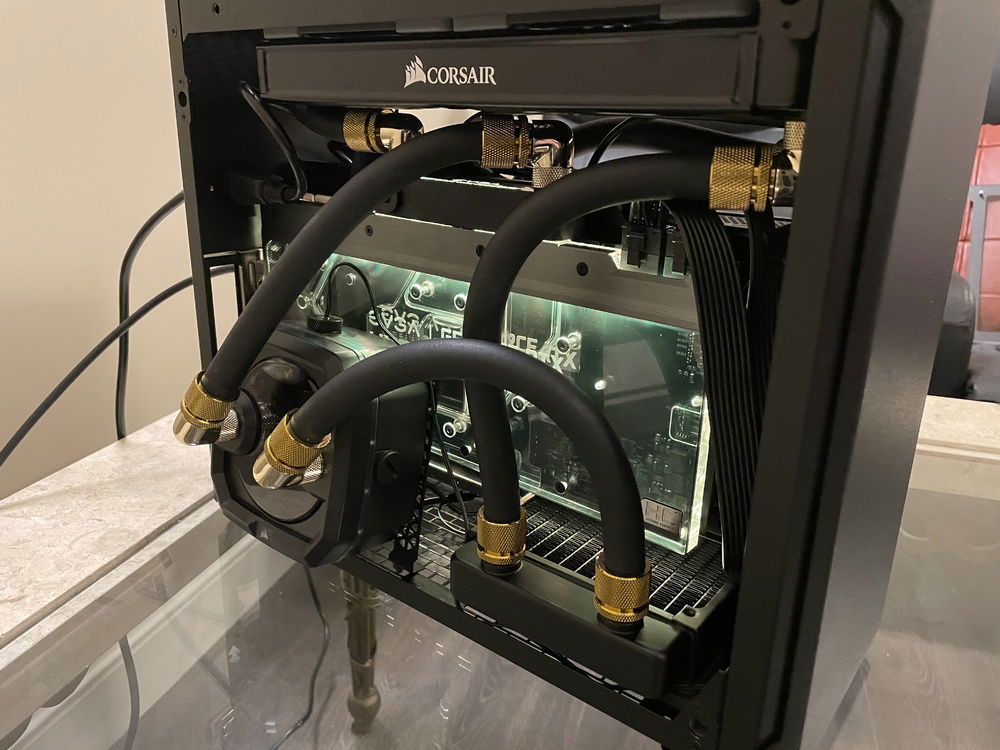

GPU: EVGA 2080 Super FTW3 with a Hydro Copper waterblock

PSU: Corsair SF600

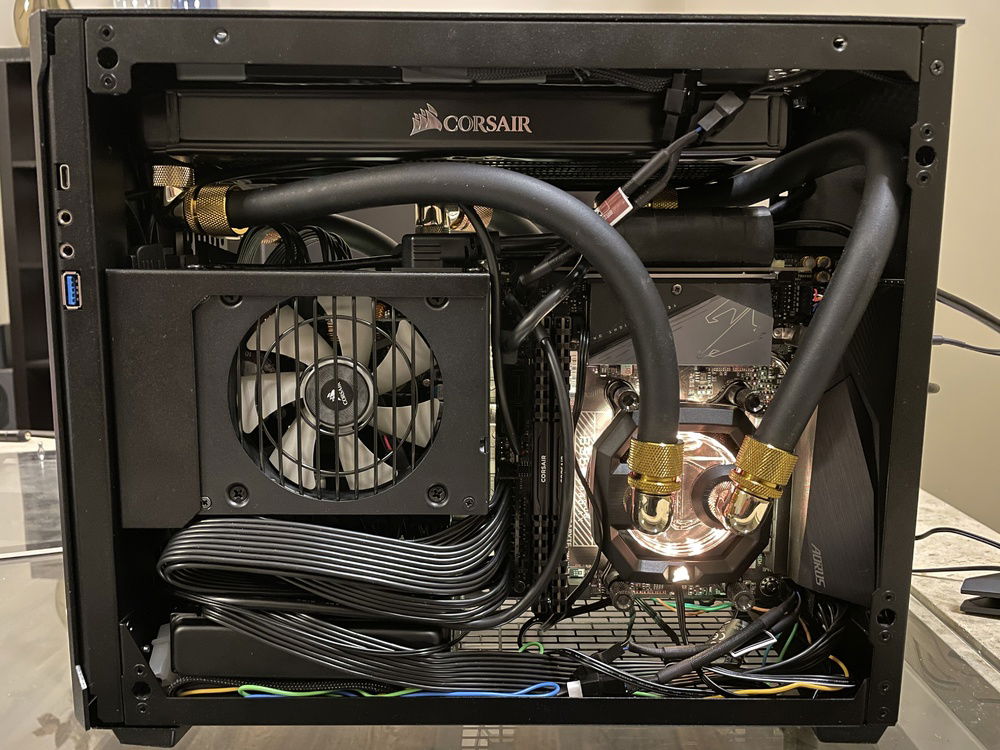

Cooling: Corsair CPU Waterblock, Corsair XD3 Pump/Resi

Top Rad: Corsair 240mm with two Scythe slim fans (exhaust)

Bottom Rad: EKWB 120 mm rad with Scythe slim fan (intake)

Tubes: EKWB Matte Black rubber 3/8" ID 5/8" OD

Fittings: Enzotech compression fittings, Barrow 90 degree fittings

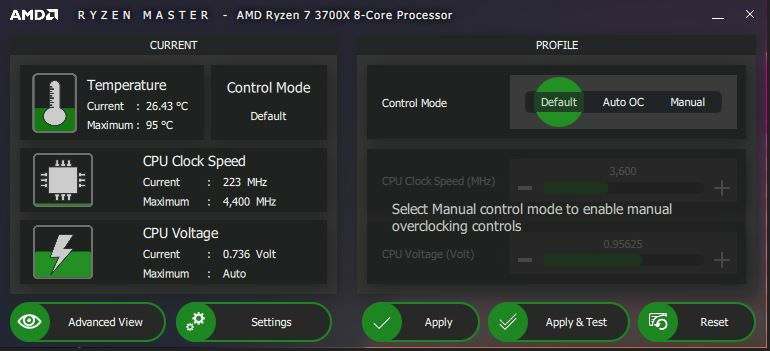

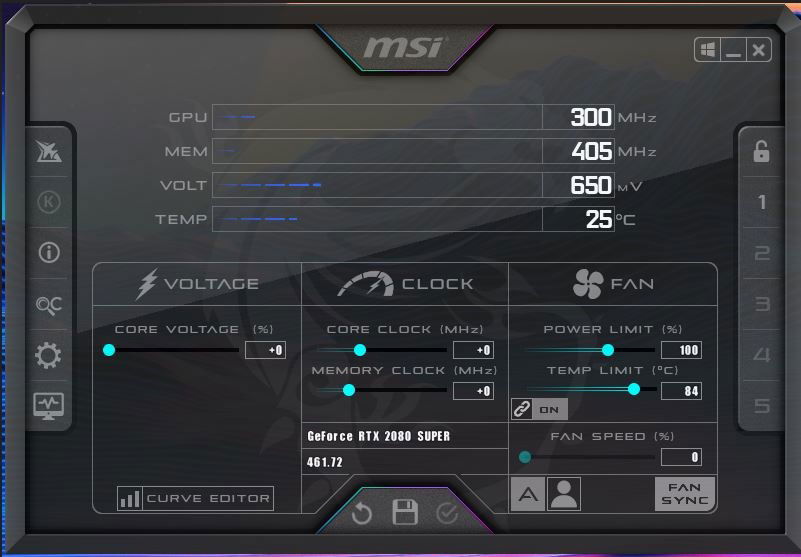

CPU runs at 25-30C idle, runs up to about 40C gaming. GPU runs at 30C idle, up to about 40C gaming. These temps were pretty unbelievable at first glance. Watercooling is crazy, guys.

This is still somewhat of a WIP, and I may do some rerouting of the tubes, and consider a more compact pump/resi system to decrease the Frankenstein effect, but I'm kiiinda liking the look so far.
Color(s): Black Gold
RGB Lighting? No
Cooling: Custom Liquid Cooling
Theme: Industrial
Size: Mini-ITX
Type: General Build

Contests

This build participated in 3 contests.

Hardware

CPU
$ 269.00
AMD - Ryzen 7 (3700X)
Socket: AM4
Cores: 8
Motherboard
$ 204.99
Gigabyte - Aorus Pro AX (B550I)
Chipset: B550
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 89.99
Corsair - Vengeance LPX (3200MHz) (White)
Type: DDR4
Capacity: 8 GB
Memory
$ 89.99
Corsair - Vengeance LPX (3200MHz) (White)
Type: DDR4
Capacity: 8 GB
Graphics
$ 1,499.99
EVGA - GeForce FTW3 Hydro Copper
Chip Manufacturer: NVIDIA
Chip: RTX 2080 SUPER
Interface: PCIe x8
Storage
$ 399.98
Sabrent - Rocket (Extreme Performance)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
PSU
$ 109.99
Corsair - SF600
Wattage: 600
Form Factor: SFX
Efficiency: 80+ Gold
Case
Sliger - SM580
Type: Mini-ITX
Side Panel: Window
Cooling
$ 129.99
Corsair - Hydro X XD3 (RGB)
Type: Pump/Reservoir Combo
Cooling
$ 135.00
Corsair - Hydro XC7 (RGB)
Type: CPU Waterblock
Unable to dertermine total build value (missing part value)
