The Bit-Tech 1000D - Ultimate £20k Rig

The ultimate Corsair 1000D project, designed to showcase building to the extreme.

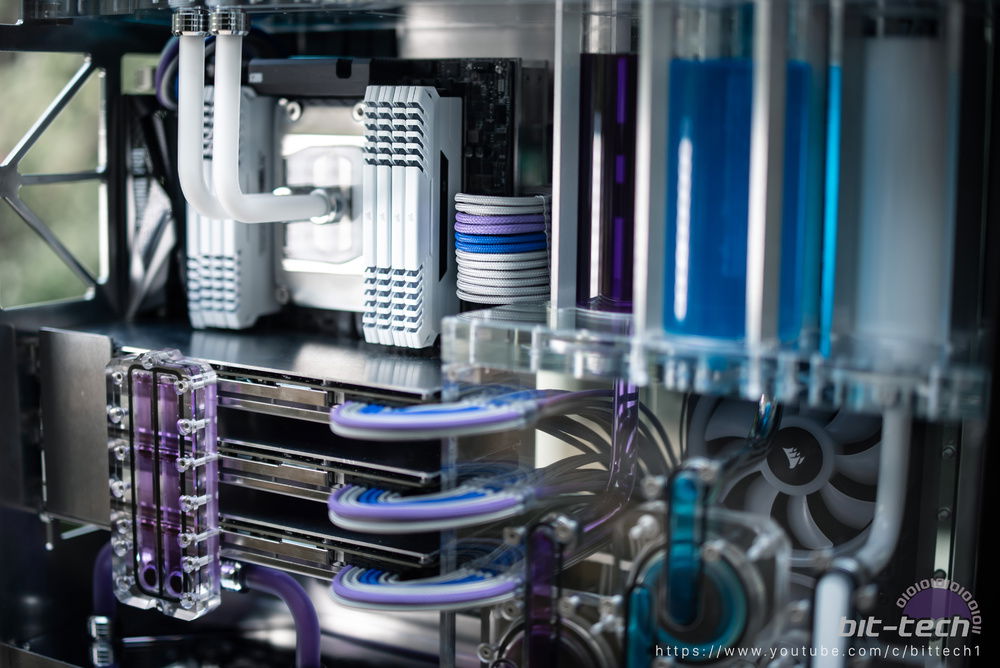

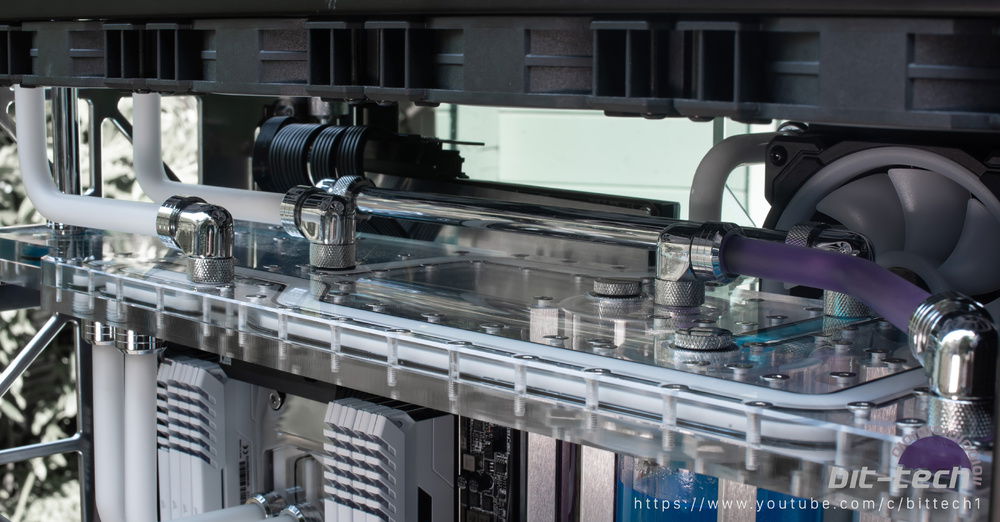

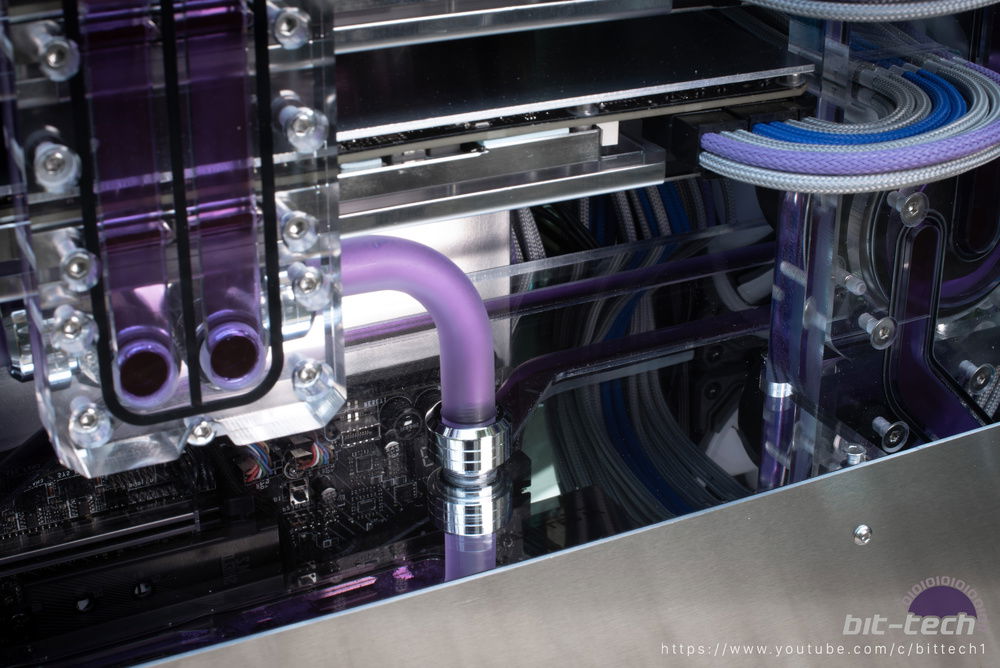

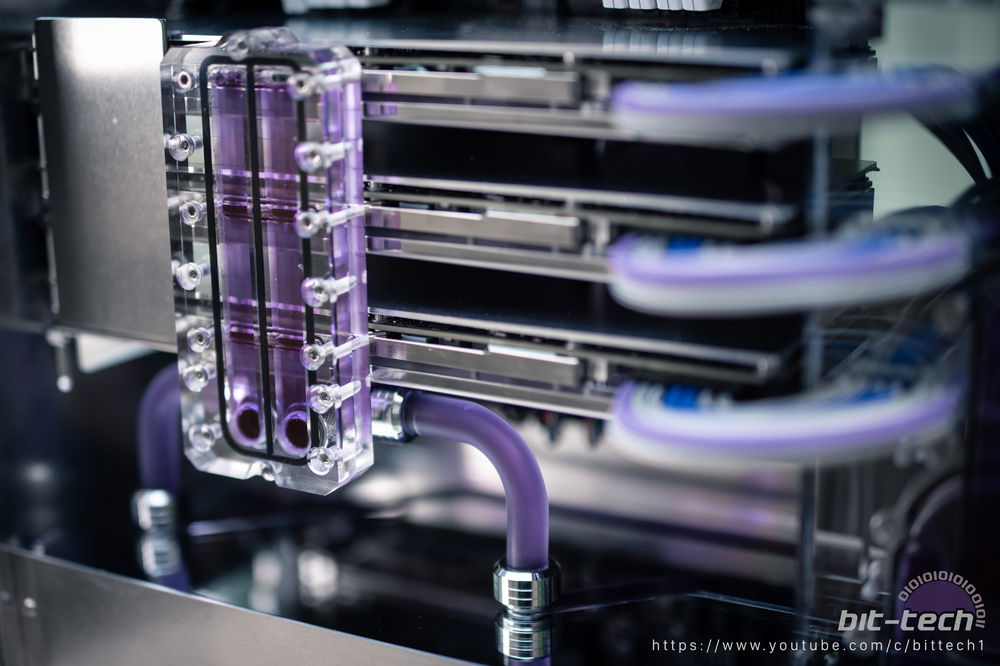

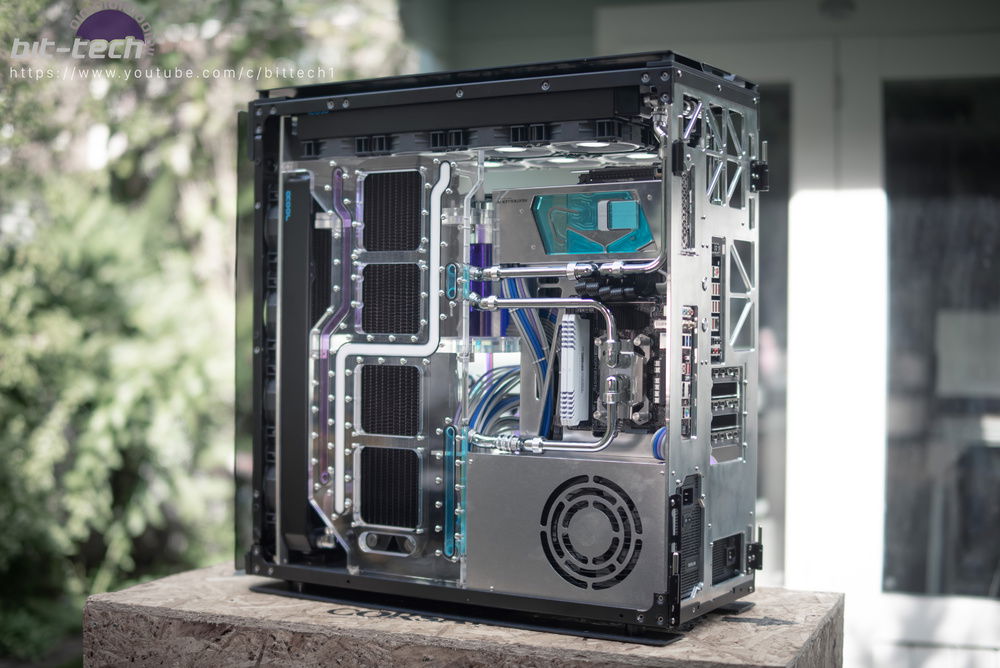

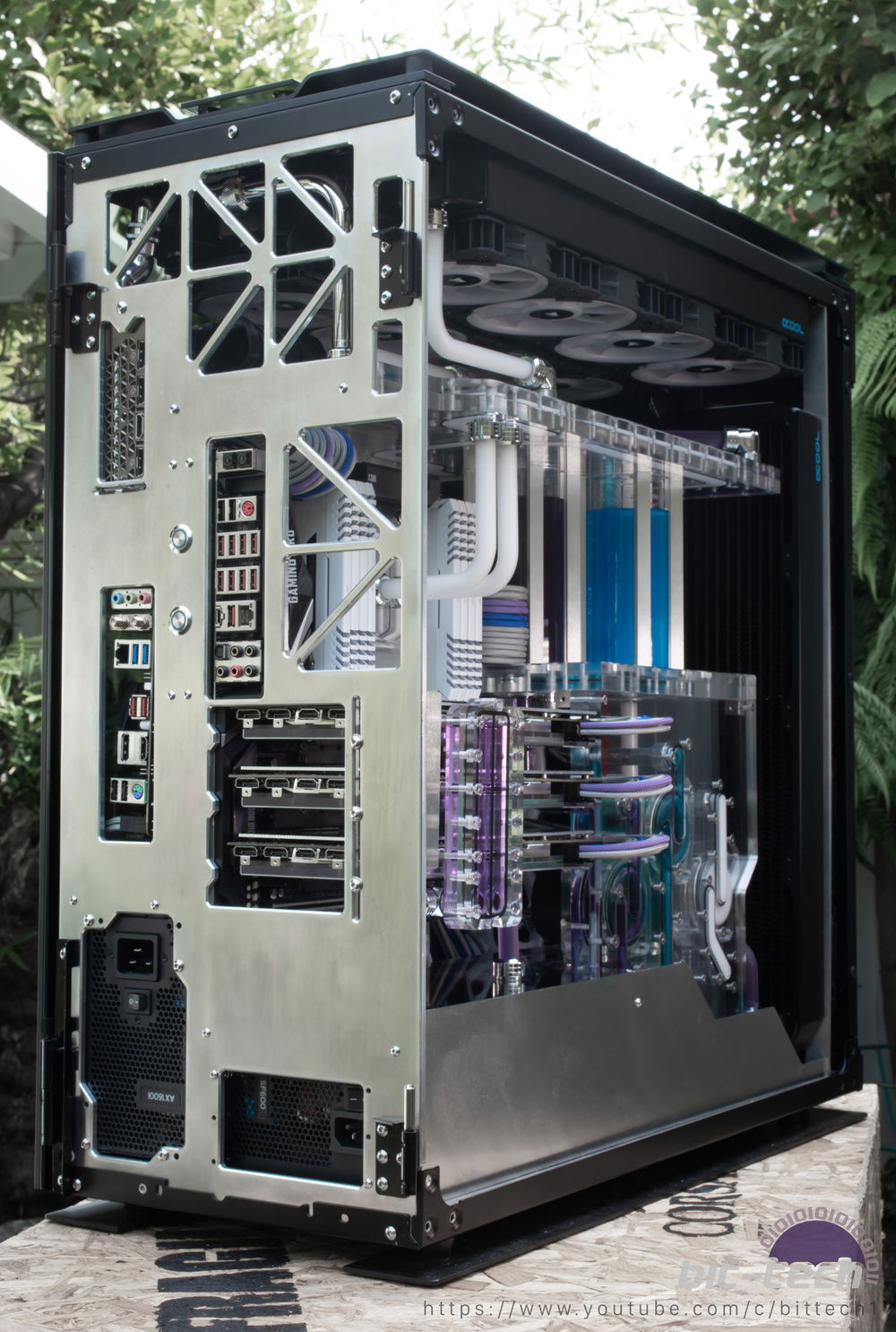

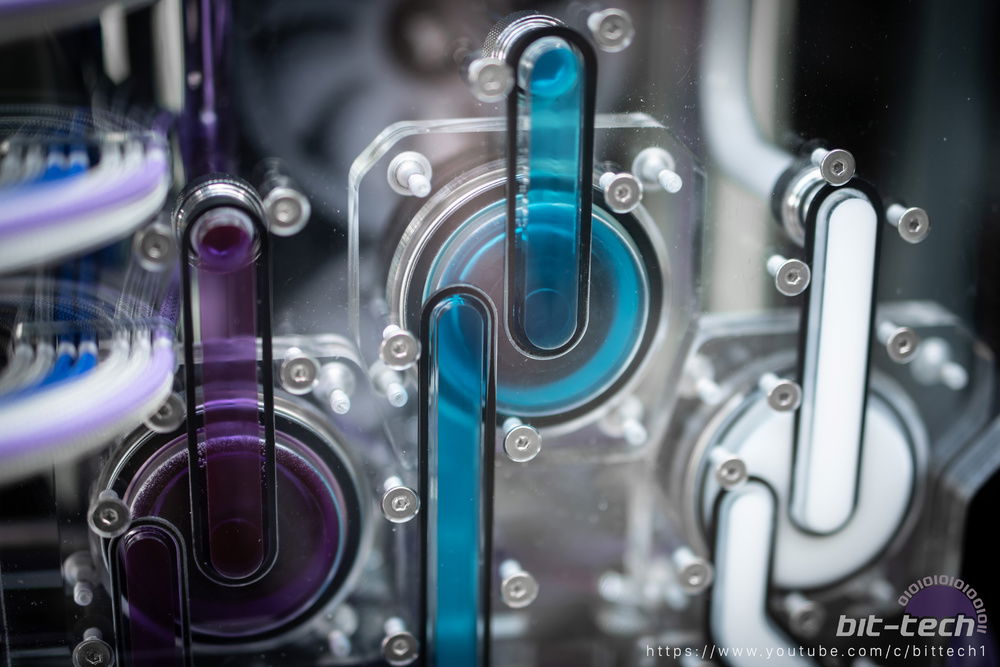

The whole interior has been replaced with a bespoke 5mm polished aluminium framework, cnc cut and designed to incorporate into the exterior elements of the stock case. The case itself features no less that 7 distribution plates, including a triple pump mount and a 4 part distro that incorporates 3 Heatkiller tube reservoirs into the structure itself, each supporting a different cooling loop.

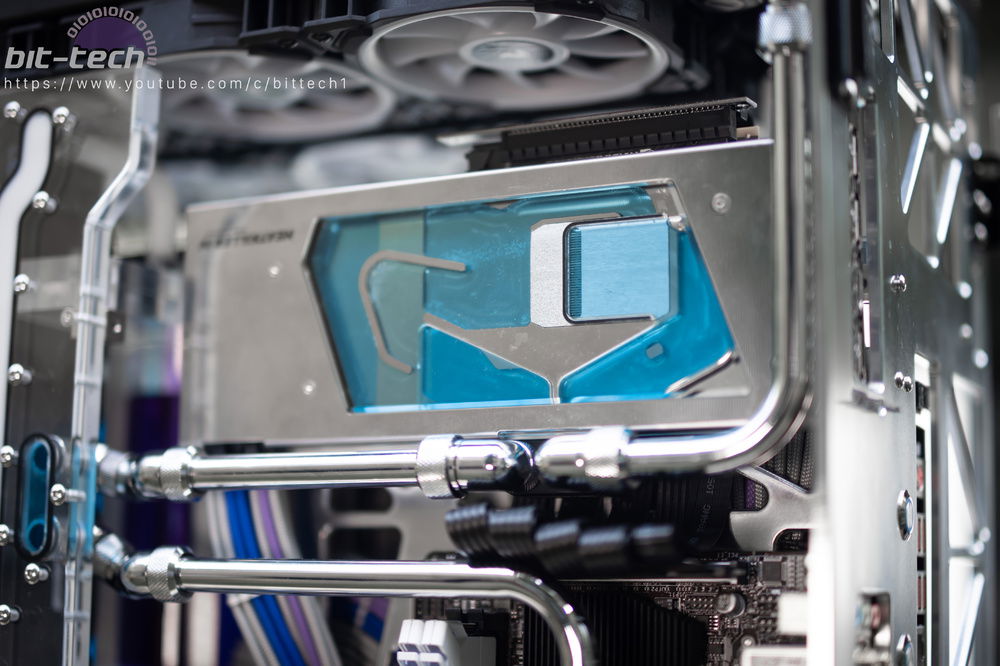

There are two systems inside, one a 3-Way SLI 2nd Threadripper system and the other an ITX Ryzen 2nd gen board on the rear. Inside are are 5x480mm radiators sporting a total of 20 Corsair LL120 fans. The loops are kitted out with Watercool Heatkiller GPU and CPU blocks, along with Alphacool fittings and radiators.

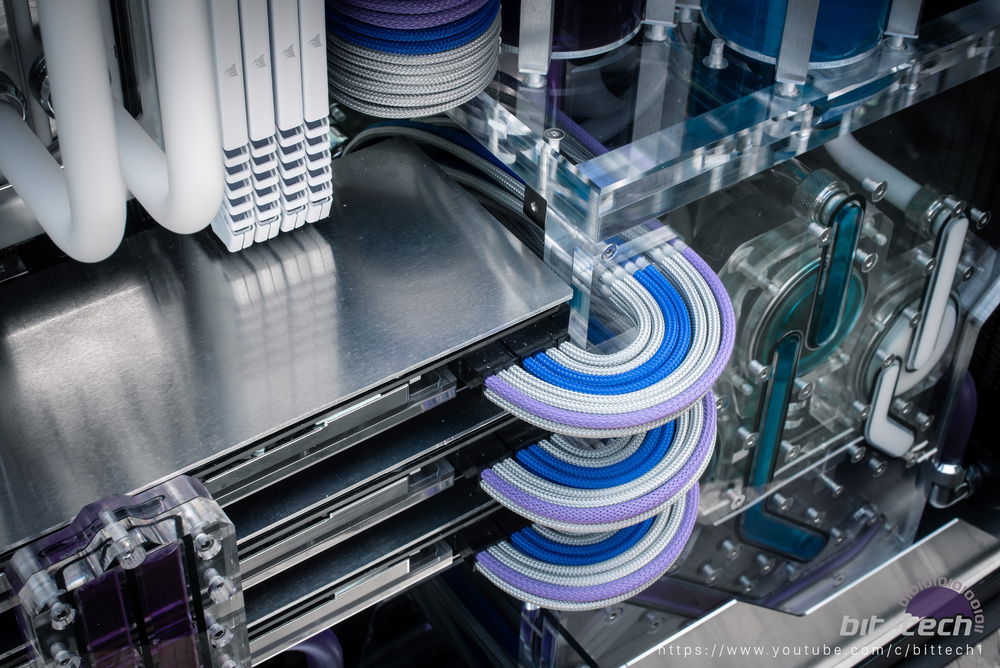

Fully custom cabling runs through the distro plates themselves, so despite having so much hardware, the cable mess is kept to an absolute minimum.
Color(s): Black Purple Silver
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: Color
Size: XL-ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 799.98
AMD - Threadripper 2950X
Socket: TR4
Cores: 16
Motherboard
$ 354.99
MSI - Gaming Pro Carbon AC
Chipset: X399
CPU Socket: TR4
Size: ATX
Memory
$ 1,132.99
Corsair - Vengeance Pro (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 64 GB
Graphics
$ 1,049.99
MSI - Founders Edition
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Interface: PCIe x16
Graphics
$ 1,049.99
MSI - Founders Edition
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Interface: PCIe x16
Graphics
$ 1,049.99
MSI - Founders Edition
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Interface: PCIe x16
Storage
$ 721.99
Corsair - Force MP500
Form Factor: M.2
Interface: M.2 (M)
Capacity: 480 GB
Storage
$ 721.99
Corsair - Force MP500
Form Factor: M.2
Interface: M.2 (M)
Capacity: 480 GB
Storage
$ 721.99
Corsair - Force MP500
Form Factor: M.2
Interface: M.2 (M)
Capacity: 480 GB
PSU
$ 1,135.99
Corsair - AX1600i
Wattage: 1600
Form Factor: ATX
Efficiency: 80+ Titanium
Case
$ 537.90
Corsair - Obsidian 1000D
Type: Super-Tower
Side Panel: Tempered Glass
Estimated total value of this build:
$ 9,461.74
