Allspark

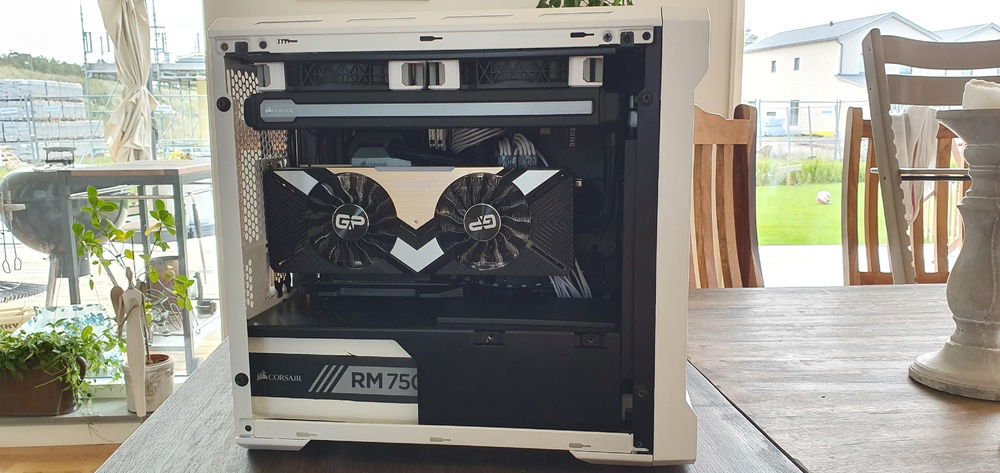

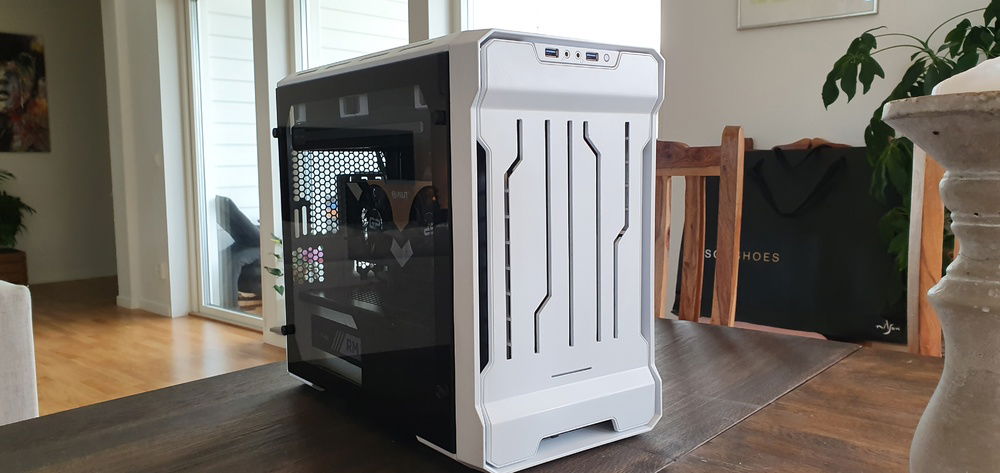

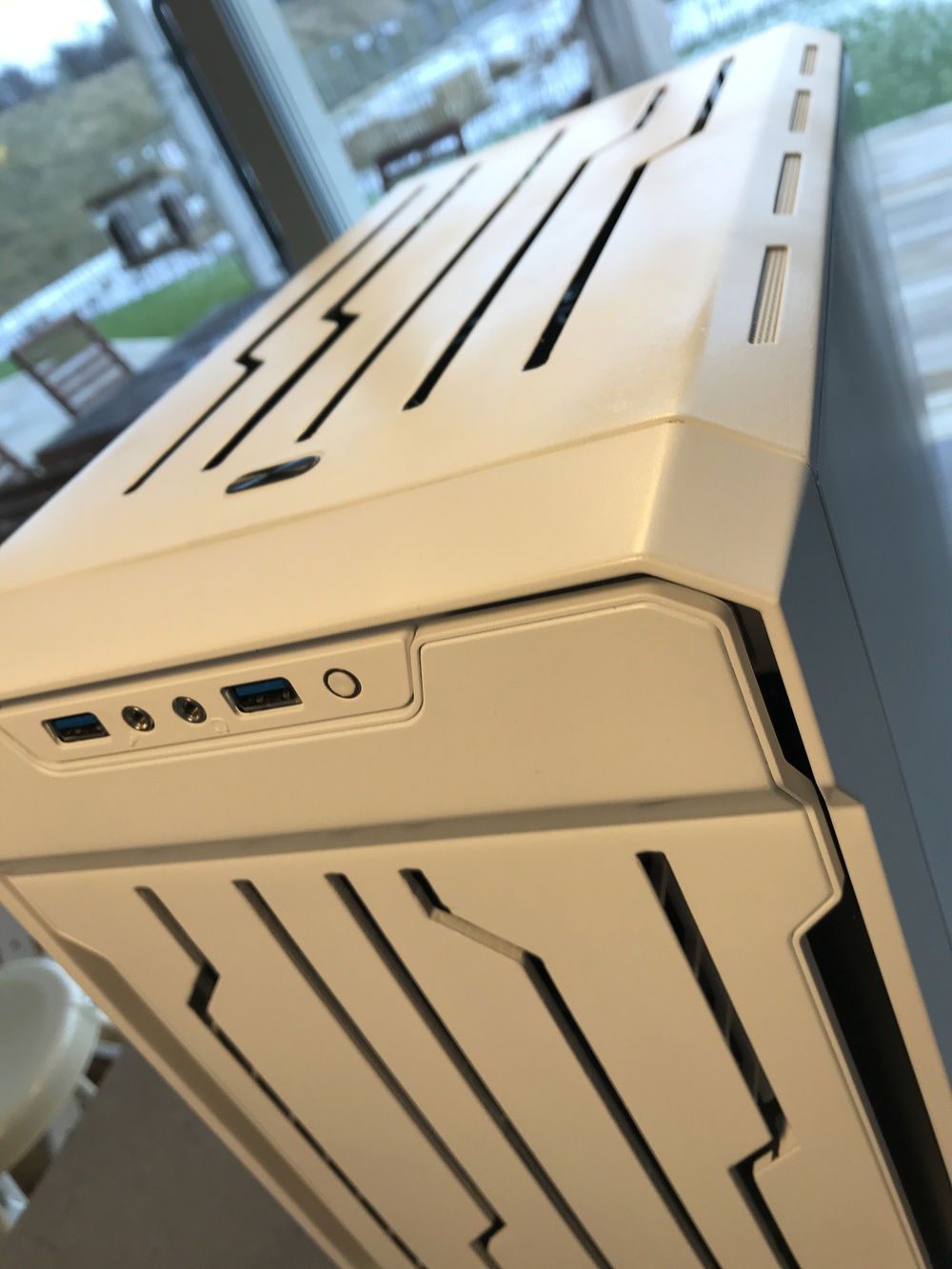

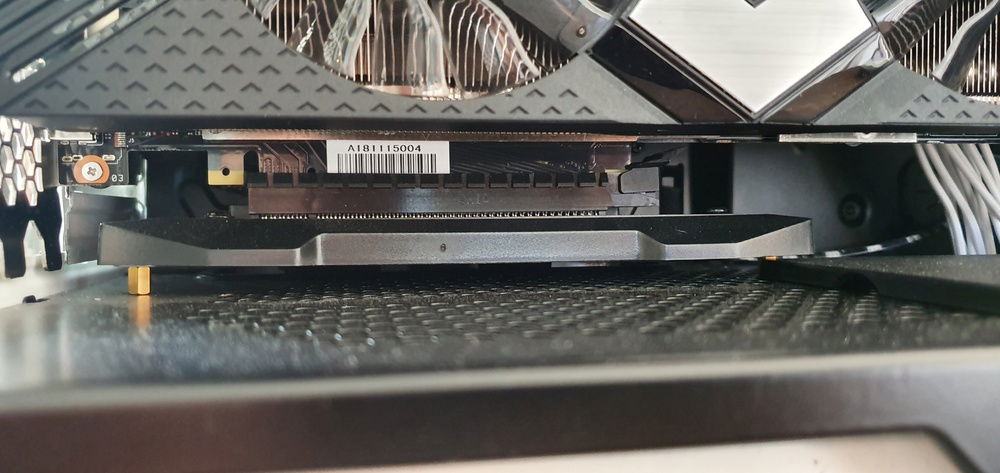

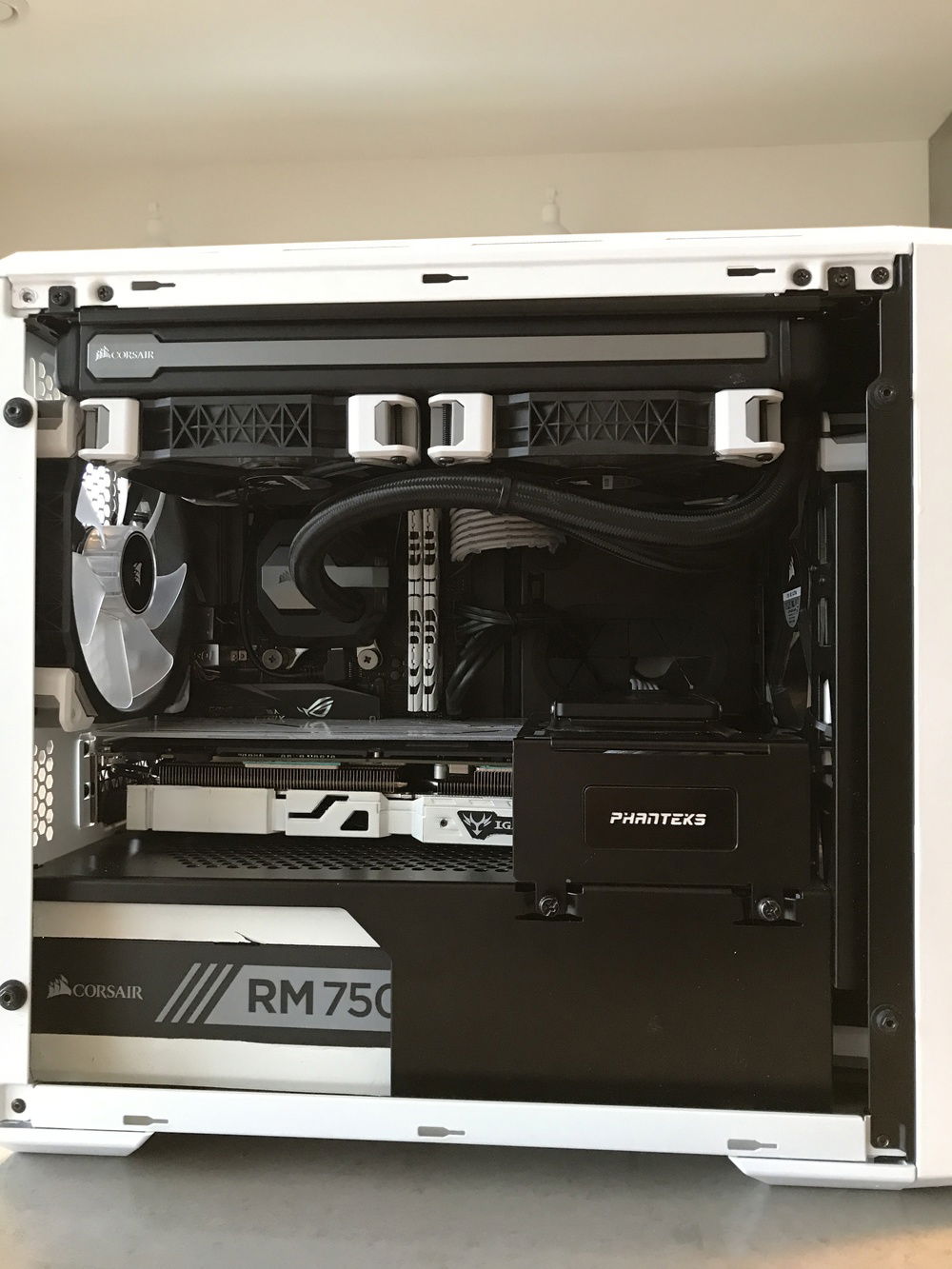

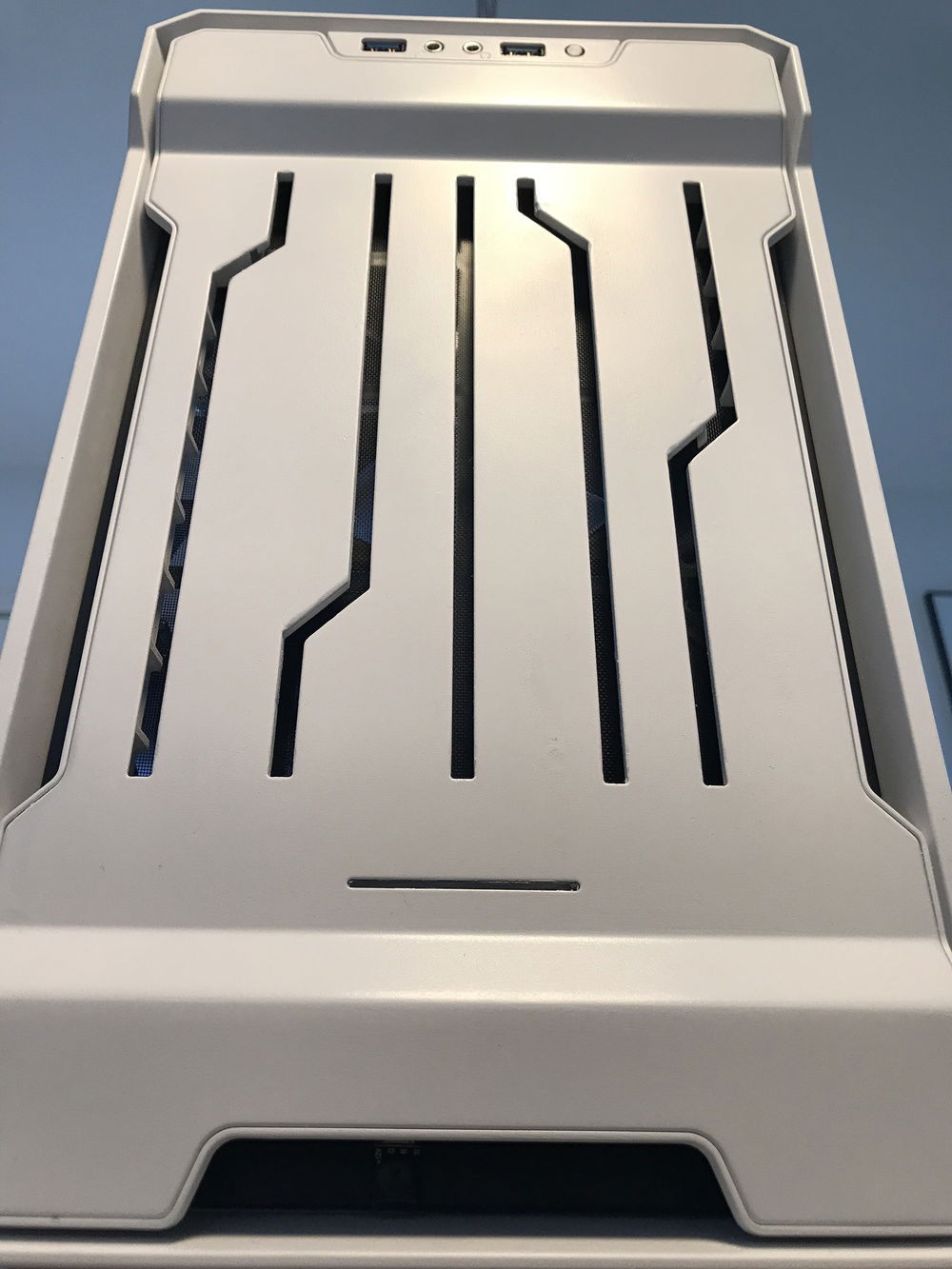

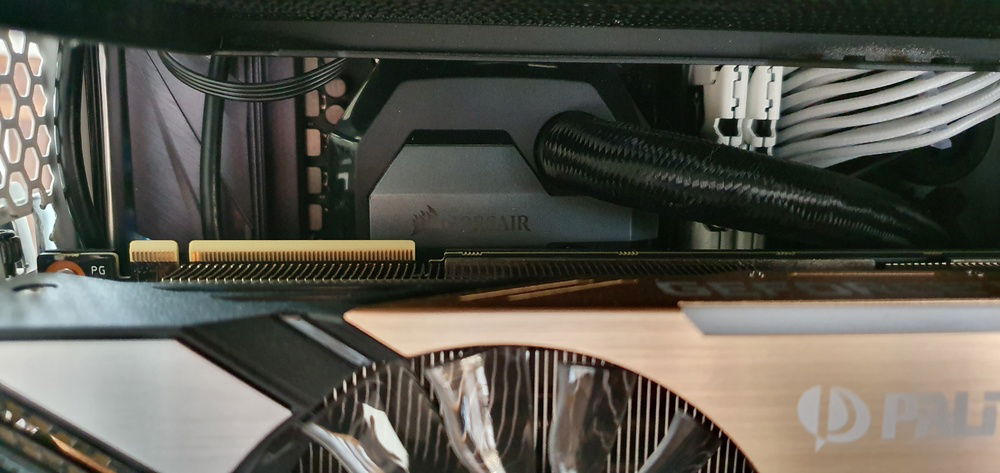

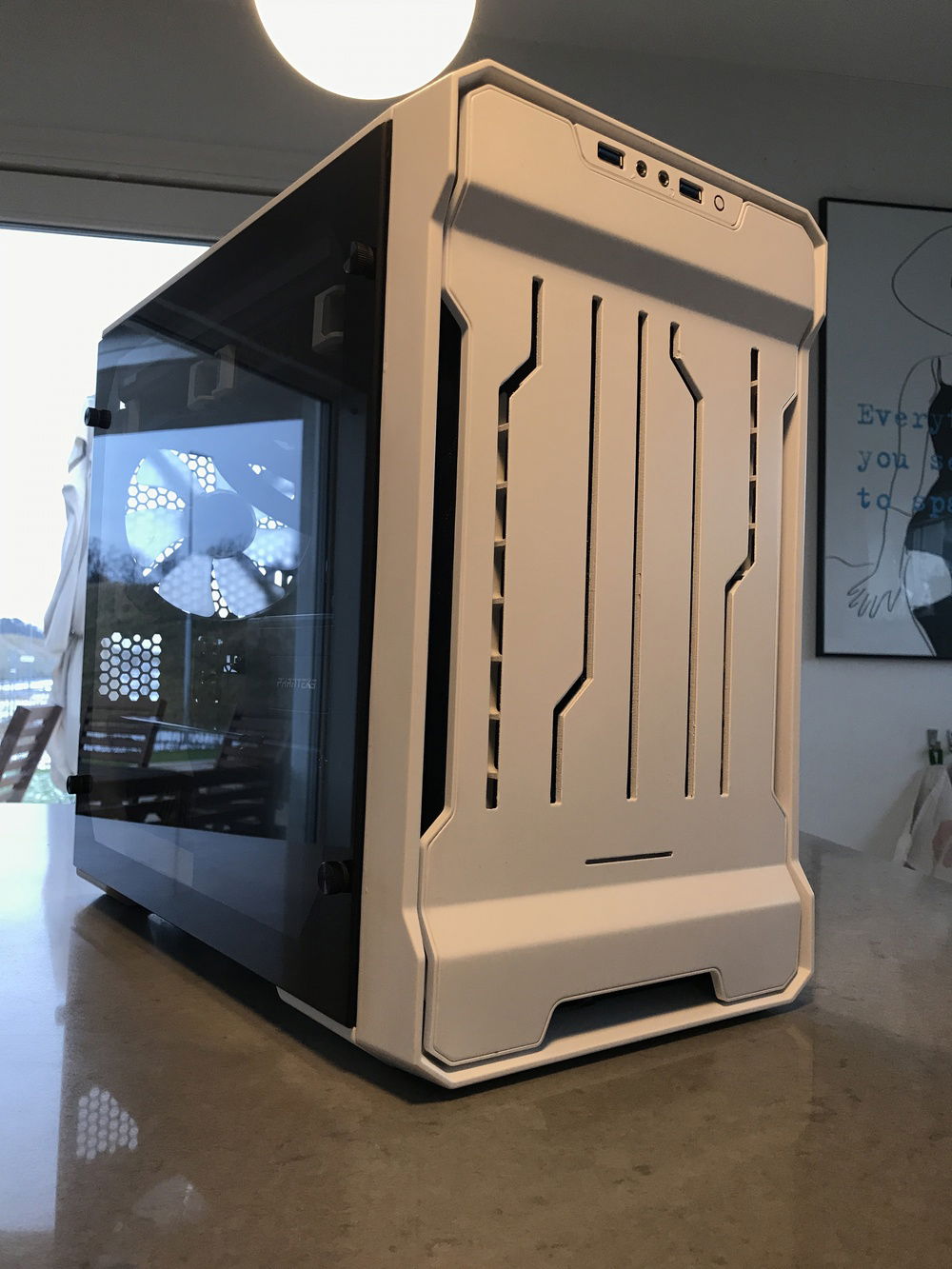

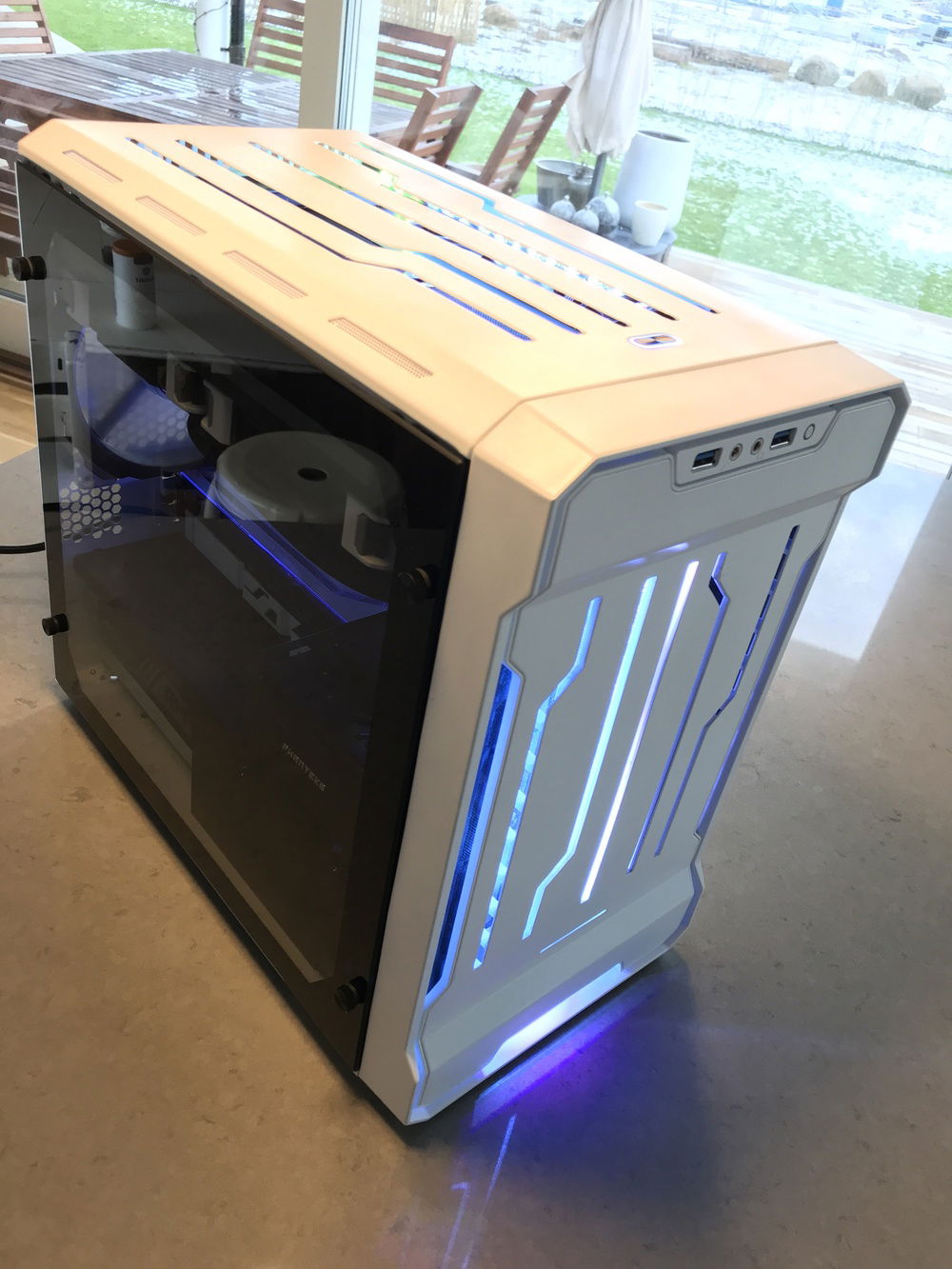

Chassi: Top and front plate is cut with a water-cutting machine. The top plate began wobbling in the machine which meant that I got some uneven cuts and destroyed paint. I ended up with repainting the entire chassi, instead of a high glossy paint I went with a white matte color and I didn't put a glossy coating over it so in some pictures you can see that it's matte white. I also rebuilt the chassi since I got myself a 2.5-slots RTX 2080ti card that didn't fit, thus it had to be fitted vertically which Phanteks Evolv mITX has no support for. Thus the rebuild, again.
PSU: Painted white with plastidip

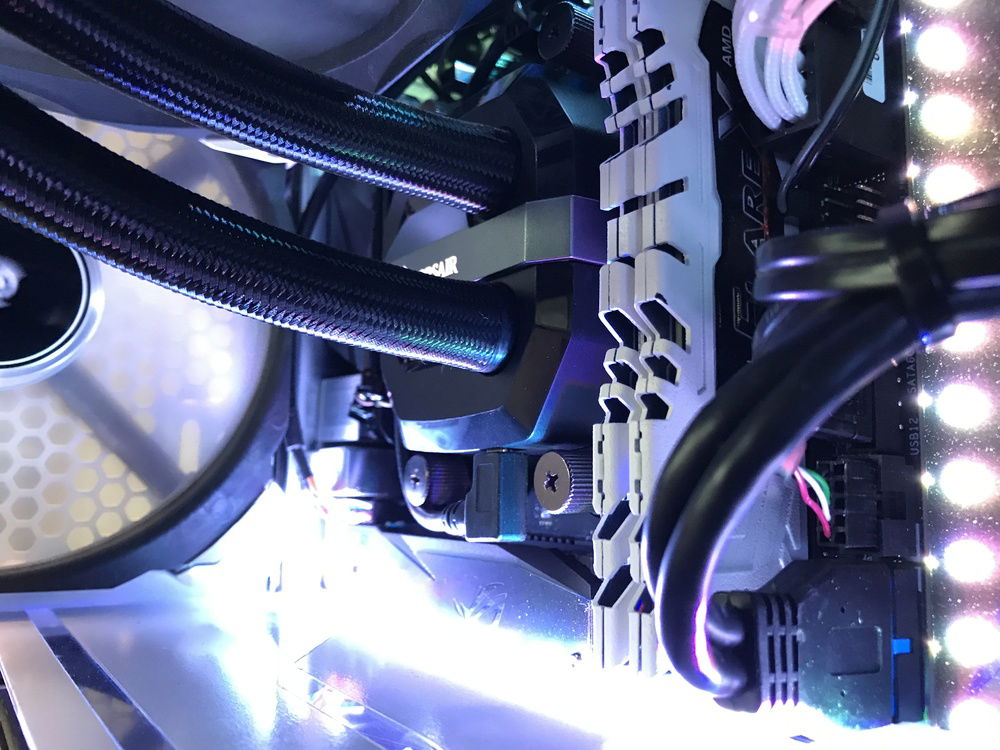

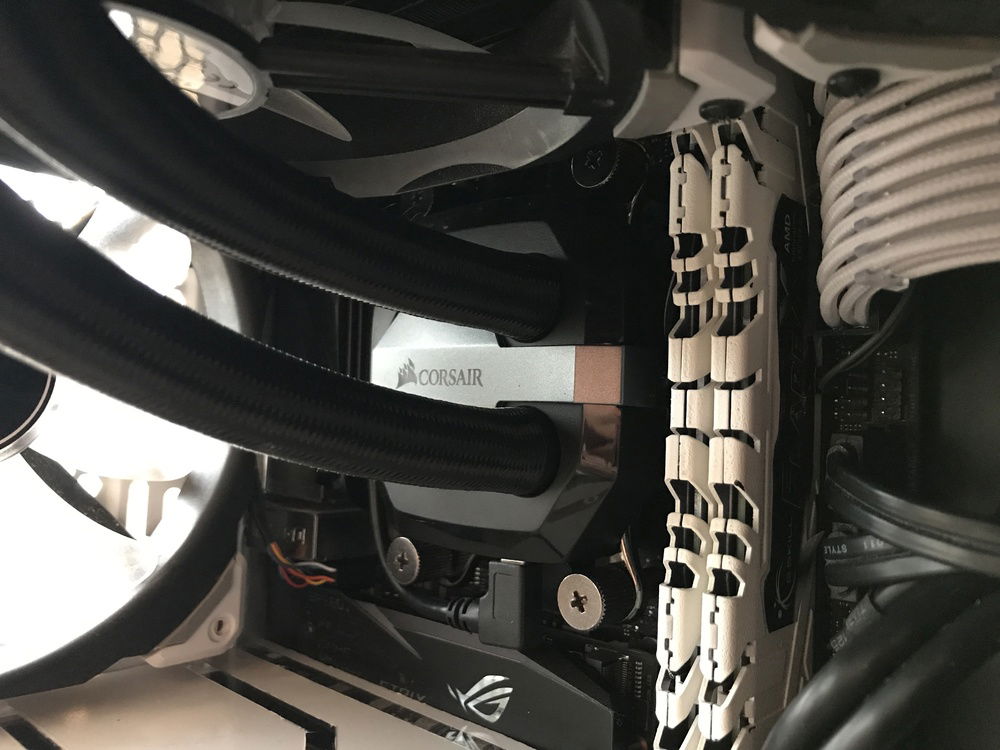

RAM: Painted white with radiator spraypaint
GPU-shroud: Painted white with plastidip

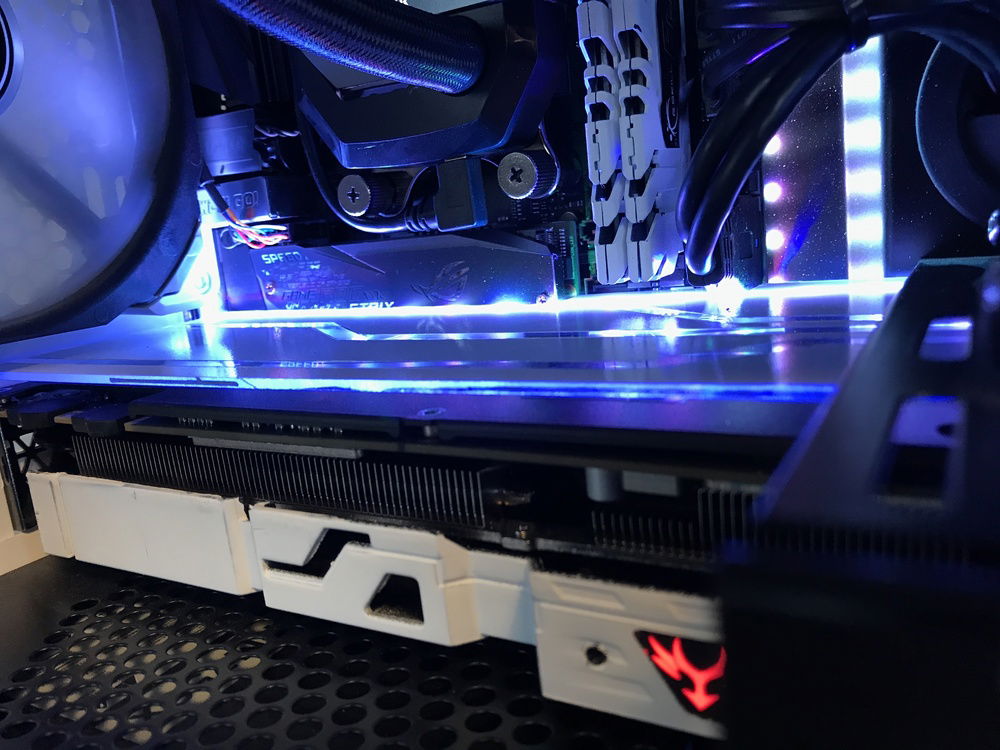

GPU-backplate: Added an extra transparent acrylic backplate which was painted white with plastidip while still leaving a detailed pattern similar to the one cut in the chassi plates.

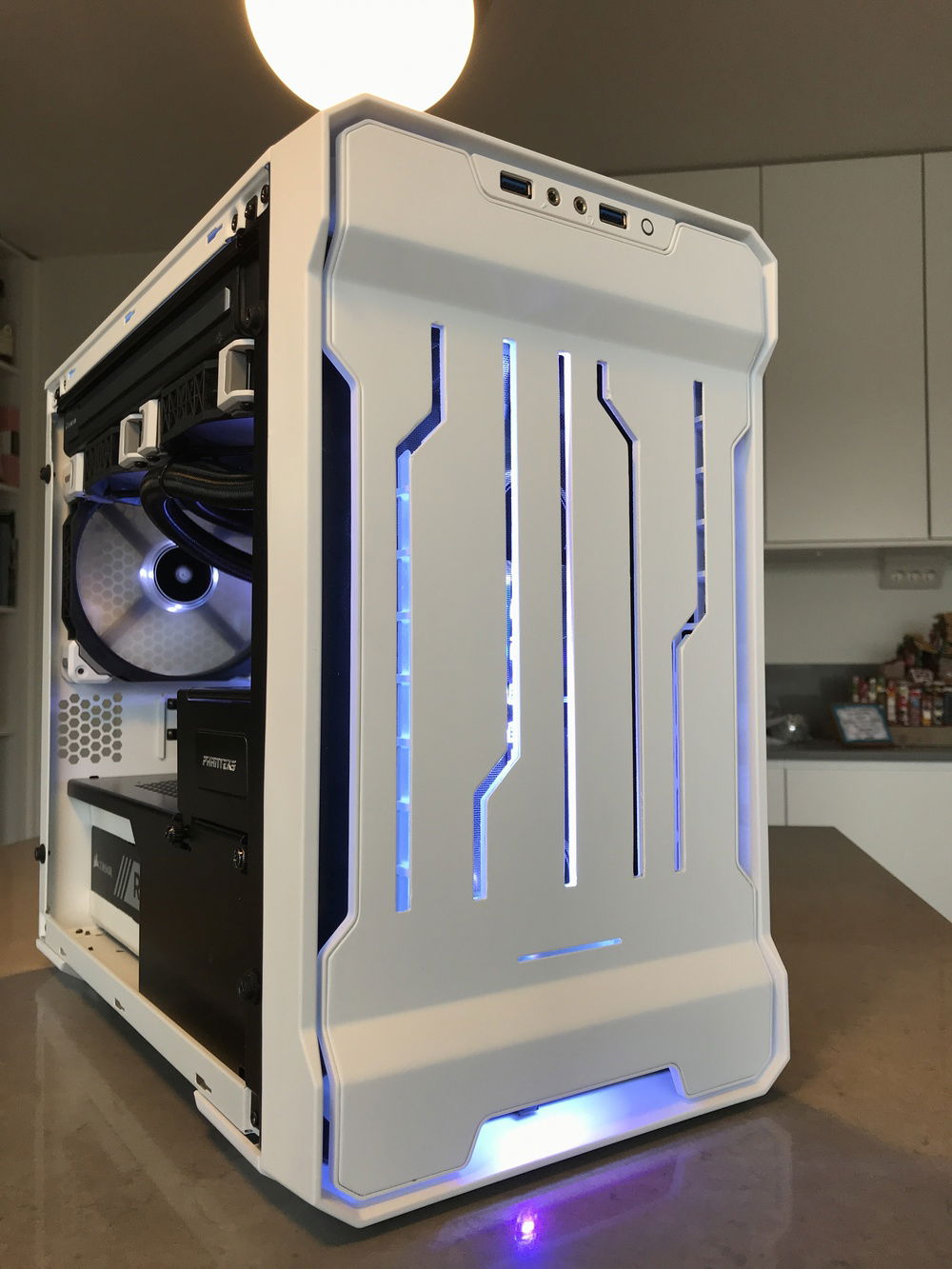

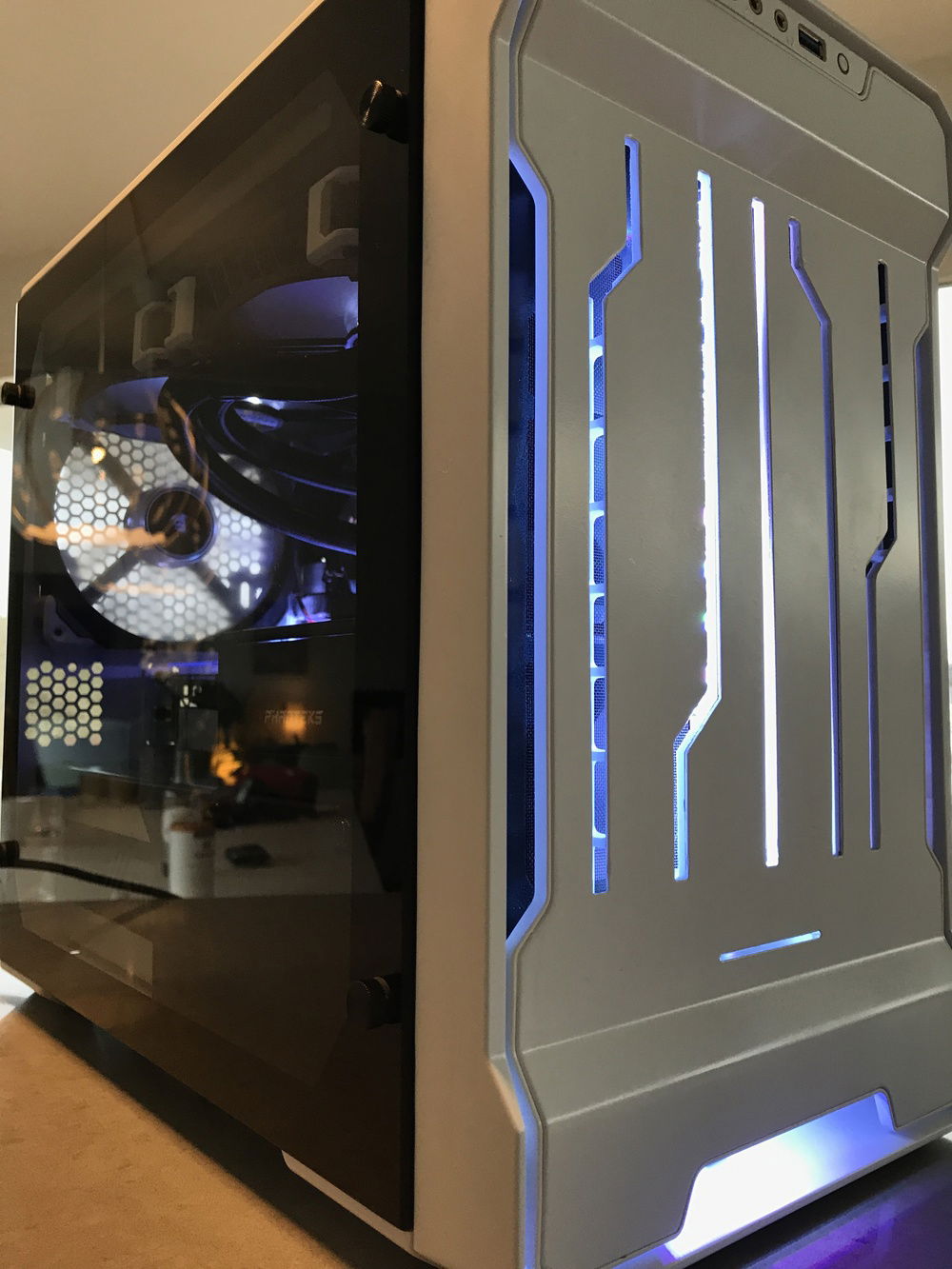

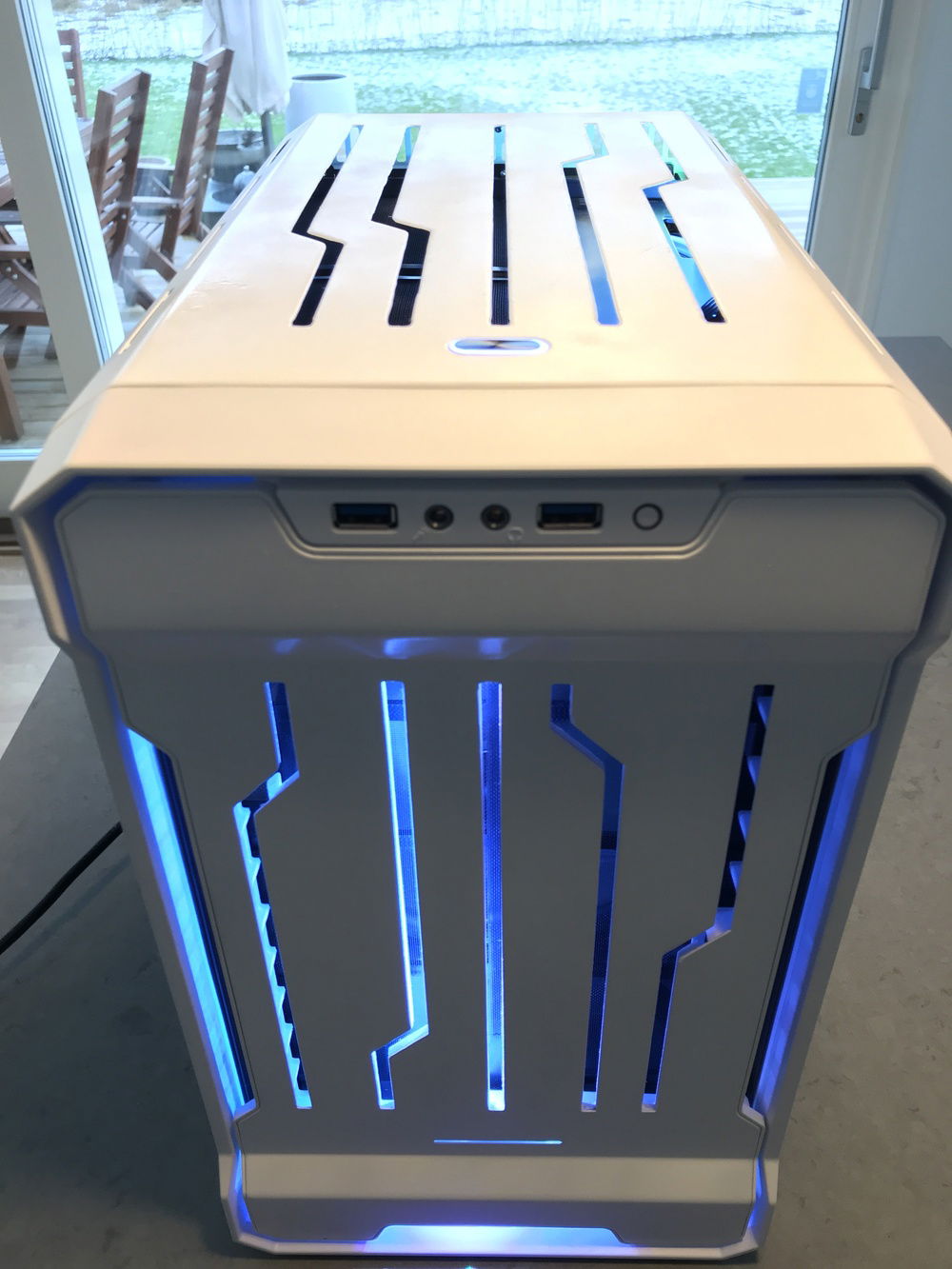

LED-strips: Added under the new backplate, behind the top panel and behind the front panel as well as around the front, bottom to front to top.

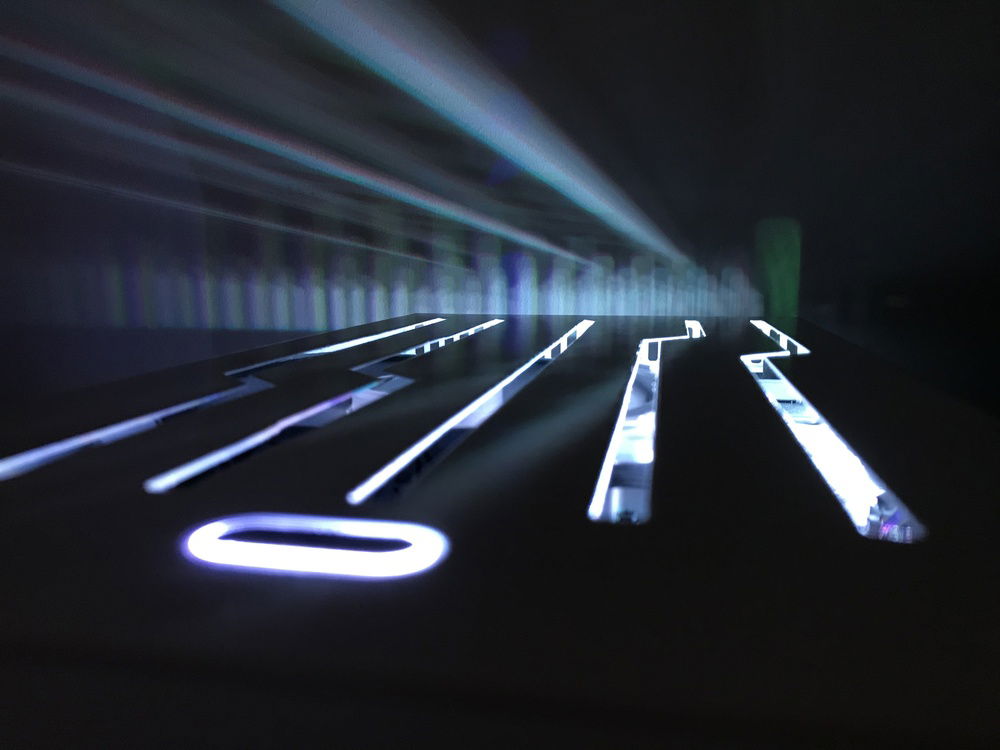

I wanted to go with something discrete that would somewhat resemble the "Allspark" from Transformers, in the end it doesn't look at all like "Allspark" but I still think that the name is suiting. It didn't become as discrete as I wanted, atleast not in the dark. In daylight the lighting is pretty subtle though.
Color(s): Black White
RGB Lighting? Yes
Theme: Comics
Cooling: AIO Cooling
Size: Mini-ITX
Type: General Build

Contests

This build participated in 2 contests.

Hardware

CPU
$ 185.00
AMD - Ryzen 7 (2700)
Socket: AM4
Cores: 8
Motherboard
$ 324.20
ASUS - ROG Strix Gaming (B450-I)
Chipset: B450
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 44.82
G.Skill - Flare X (3200MHz)
Type: DDR4
Capacity: 16 GB
Graphics
$ 1,350.00
Palit - Gaming Pro OC
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Interface: PCIe x16
Storage
$ 60.00
Samsung - 850 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 250 GB
Storage
$ 395.98
Samsung - 960 EVO (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 125.00
Corsair - RM750x (discontinued)
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 174.92
Phanteks - Enthoo Evolv (Satin Black)
Type: Micro-ATX
Side Panel: Tempered Glass
Case Fan
$ 246.00
Corsair - ML140 Pro (White) (4x)
Size: 140 mm
Cooling
$ 249.99
Cooling
$ 19.99
EKWB - EK-M.2 NVMe Heatsink - Nickel
Type: M.2 Heatsink
Size (WxHxD): 80 mm
Accessories
$ 51.76
Accessories
$ 78.03
Accessories
$ 48.00
Accessories
$ 41.22
Accessories
$ 21.99
Monitor
$ 600.00
Acer - Predator X34P
Size: 34 Inch
Panel: IPS
Refresh Rate: 100 Hz
Keyboard
$ 140.00
Corsair - Strafe RGB MK.2
Interface: Wired
Key Switch Type: Cherry MX Silent
Type: Full Size
Mouse
$ 91.59
Logitech - G502 Lightspeed Wireless
Interface: Wireless
Estimated total value of this build:
$ 3,178.08
