Fabulous - Production & Gaming - RETIRED

Intent: Make a bleeding edge Production Workstation PC that is, at the same time, awesome at gaming.

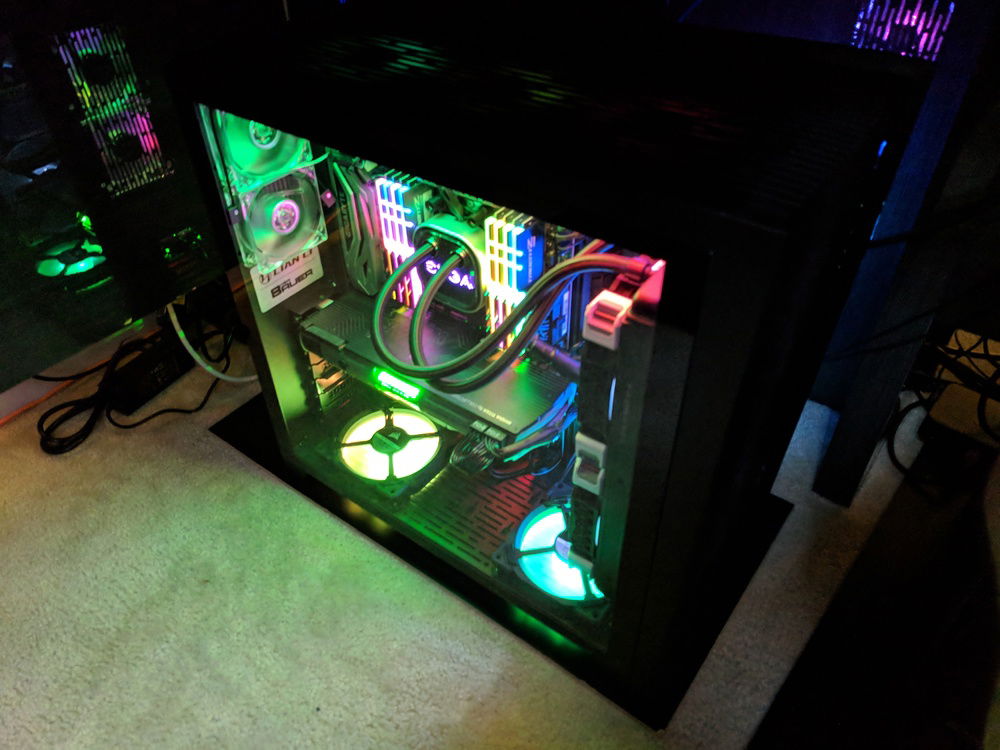

Case, Fans and Cooling: Lian Li o11-Air Case with a total of 14 fans running Closed Loop Liquid cooling support with LED Push-Pull Configuration Fan and a 280 radiator in front (All-Fan Configuration Below)
4 x 140mm in Push Pull Configuration for the Radiator Corsair MagLev Fans (white RGB)
3 x 120mm along top in exhaust configuration Corsair LL120 RGB Fans

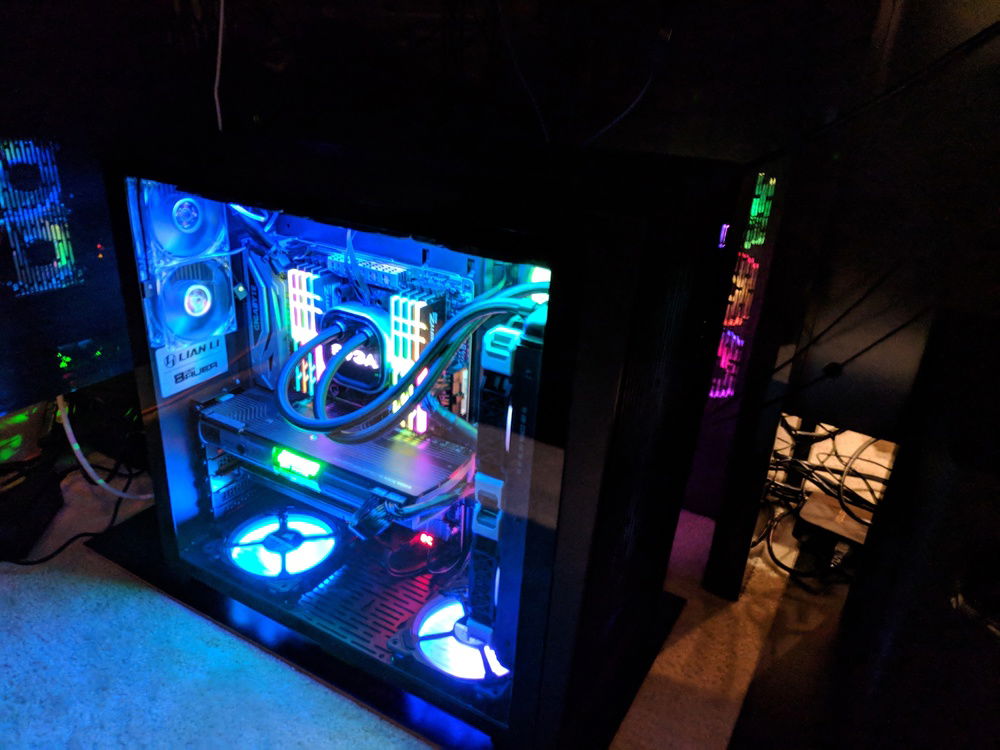

3 x 120mm along right side in in-take configuration Corsair LL 120 RGB Fans
2 x 12mm along bottom in in-take configuration Corsair LL 120 RGB Fans
2 x 80mm fans on back in exhaust configuration Antec case fans
Mobo: Gigabyte Designare Ex x399 (Rev. 1)
Details:
Supports AMD Ryzen™ Threadripper™ Processors
Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs, 3600MHz+(OC)
Fast Front and Rear USB 3.1 Type-C™ Interface
4-Way Graphics Support with Dual Armor and Ultra Durable™ Design
Server-Class Digital Power Design & Gold Plated Solid Power Connectors
Dual Intel GbE LAN with cFosSpeed Internet Accelerator Software
ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
Sound BlasterX 720°, the Top-of-the-line Audio Engine Solution for 4K Gaming and Entertainment
Intel® Dual Band 802.11ac + Bluetooth 4.2 – AC 8265 WiFi Module
RGB FUSION with Multi-Zone LED Light Show design, support Digital LED & RGB LED strips
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface and Thermal Guard (Heat Sinks)
USB DAC-UP 2 with Adjustable Voltage
Precise Digital USB Fuse Design for Stronger Protection
Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
Base Plated & I/O Shield Armor (Heat Sinks on VRM Mosfets)
APP Center Including EasyTune™ and Cloud Station™ Utilities
PSU: (PSU cage mounted in back right side) Seasonic Flagship PRIME SERIES SSR-1000PD 1000W PLATINUM FULL MODULAR ATX12V & EPS12V 135mm FDB Fan Super Quiet Power Supply
Details:
Intel ATX 12 V
Full Modular
80 PLUS PLATINUM Certified
100 - 240 V 50/60 Hz
+3.3V@25A, +5V@25A, +12V@83A, -12V@0.3A, +5VSB@3A

CPU: AMD Ryzen Threadripper 1950X (16-core/32-thread) Desktop Processor:
Rendering overclocked to 3.8 Ghz for all 16 cores with minimal CPU Voltage: 1.165v allows for sub-30c idle and CPU Stress Test to 58c max without XFR boost. Gaming overclocked to 4.0 Ghz for all 16 cores with minimal CPU Voltage: 1.3125v allows for stable 4.0 Ghz with 46c with about 35% utilization on the CPU core.

CPU Cooler: (Front Mounted) EVGA 280 AIO Liquid Cooler with TR4 Socket Adpapter, Round Coldplate in Push-Pull Configuration with 4 x 140mm Corsair Maglev Fans (white RGB)

RAM: 128 Gigs (8 x 16 ) G.SKILL TridentZ RGB Series 128GB (8 x 16GB) 288-Pin DDR4 SDRAM DDR4 2933 Mhz (PC4 23400) AMD X399 Kit. Model: F4-2933C16Q2-128GTZRX

GPU: Nvidia RTX 3090 24 Gigs of GDDR6X VRAM OCed with EVGA Precision X

Boot Drive: SAMSUNG 960 EVO M.2 1TB NVMe PCI-Express 3.0 x4 Internal Solid State Drive (SSD) with heat sink cover installed.

Star Citizen Drive: Intel Optane SSD 900P (480GB, AIC PCIe 3.0 x4, 20nm, 3D XPoint)

Gaming Drive 1: Samsung Evo 830 512 GB SATA III SSD

Gaming Drive 2: Samsung Evo 840 525 GB SATA III SSD

Content Drive: Western Digital 4 TB Black SATA III Platter Drive

Storage (Backup) Drive: Western Digital 8 TB Purple SATA III Plater Drive

Media Drive: Samsung 970 EVO M.2 2 TB NVMe PCI-Express 3.0 x4 Internal Solid State Drive (SSD) with heat sink cover installed

Misc Drive: Samsung 970 Pro M.2 1 TB NVMe PCI-Express 3.0 x4 Internal Solid State Drive (SSD) with heat sink cover installed

Primary Monitor: AORUS FI27Q-X 27" 240Hz 1440P HBR3, G-SYNC Compatible, SS IPS Gaming Monitor, Exclusive Built-in ANC, 2560 x 1440, 0.3ms Response Time, HDR, 93% DCI-P3, 1x DisplayPort 1.4, 2x HDMI 2.0, 2x USB 3.0 (Display Port used)

Secondary Monitor: Acer GN246HL Black 24" Gaming Monitors, 144 Hz 1ms (GTG), LED Backlight LCD Monitor Provide Immersive 3D Image (HDMI Port Used)

Tertiary Monitor: Samsung 44 inch 4k TV (Wall Mounted above workstation) (Display Port to HDMI In used)

Headset: Steelseries Siberia 800 Optical Out from Mobo to DAC, DAC to Soundbar and Headset (Wireless)

Keyboard: Wooting 2 Full Size RGB Analog Mechanical Keyboard with Cherry-red Switches and extra set for blue and black mechanical switches

Mouse: Corsair Scimitar Pro RGB Gaming MMO Mouse

Pedals: Fragpedal Quad PC Gaming Foot pedals (x4)

HOTAS: X56 Logitech HOTAS Set up

Network: Wired from LAN port direct to Google Wifi Router + Mesh Network System
Connectivity: 1 Gigabit downlink/ 30 Megabit Uplink Cable Internet 15 ms or less latency to speedtest

Audio: SoundBlasterX Katana Soundbar: Soundbar: 60.0 x 600.0 x 79.0 mm (2.4 x 23.6 x 3.1 inches), Subwoofer: 333 x 130 x 299 mm (5.1 x 11.8 x 13.1 inches) 2.1 system

Software:
Streaming/Recording Software:
OBS
Nvidia Experience
Adobe After Effects and Premiere Pro CC (Latest build)
Color(s): Black Blue Gold Green Light Blue Orange Pink Purple Red
RGB Lighting? Yes
Theme: Technology
Cooling: AIO Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Build Updates

Retired build

Hardware

CPU
$ 624.95
AMD - Threadripper 1950X
Socket: TR4
Cores: 16
Motherboard
$ 1,289.00
Gigabyte - Designare EX
Chipset: X399
CPU Socket: TR4
Size: ATX
Memory
$ 359.92
G.Skill - Trident Z (3000MHz) (Black/RGB) (8x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 1,489.00
NVIDIA - GeForce Founders
Chip Manufacturer: NVIDIA
Chip: RTX 3090
Interface: PCIe x16
Storage
$ 749.00
Intel - Optane 900P
Form Factor: PCIe x4
Interface: PCIe x4
Capacity: 480 GB
Storage
$ 189.00
Samsung - 840 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 189.00
Samsung - 840 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 199.99
Samsung - 960 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 237.00
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
Storage
$ 284.05
Samsung - 970 PRO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 149.99
Western Digital - WD Black Desktop
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 4 TB
Storage
$ 219.98
Western Digital - WD Purple Surveillance
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 8 TB
PSU
$ 499.00
Seasonic - Prime (SSR-1200PD)
Wattage: 1000
Form Factor: ATX
Efficiency: 80+
Case
$ 236.06
Lian Li - PC-O11AIR
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 39.61
Corsair - LL120 (RGB) (Black)
Size: 120 mm
Cooling
$ 145.60
EVGA - CLC (RGB)
Type: AIO
Size (WxHxD): 280 mm (2 x 140 mm)
Accessories
$ 300.00
Monitor
$ 150.00
Acer - GN246HL
Size: 24 Inch
Panel: TN
Refresh Rate: 144 Hz
Monitor
$ 700.00
Gigabyte - Aorus FI27Q-P
Size: 27 Inch
Panel: IPS
Refresh Rate: 165 Hz
Keyboard
$ 200.00
Wooting - two
Interface: Wired
Type: Full Size
Mouse
$ 110.00
Corsair - Scimitar Pro RGB
Interface: Wired
Estimated total value of this build:
$ 6,593.93
