Most Recent Build

Best Build

The Industrialist

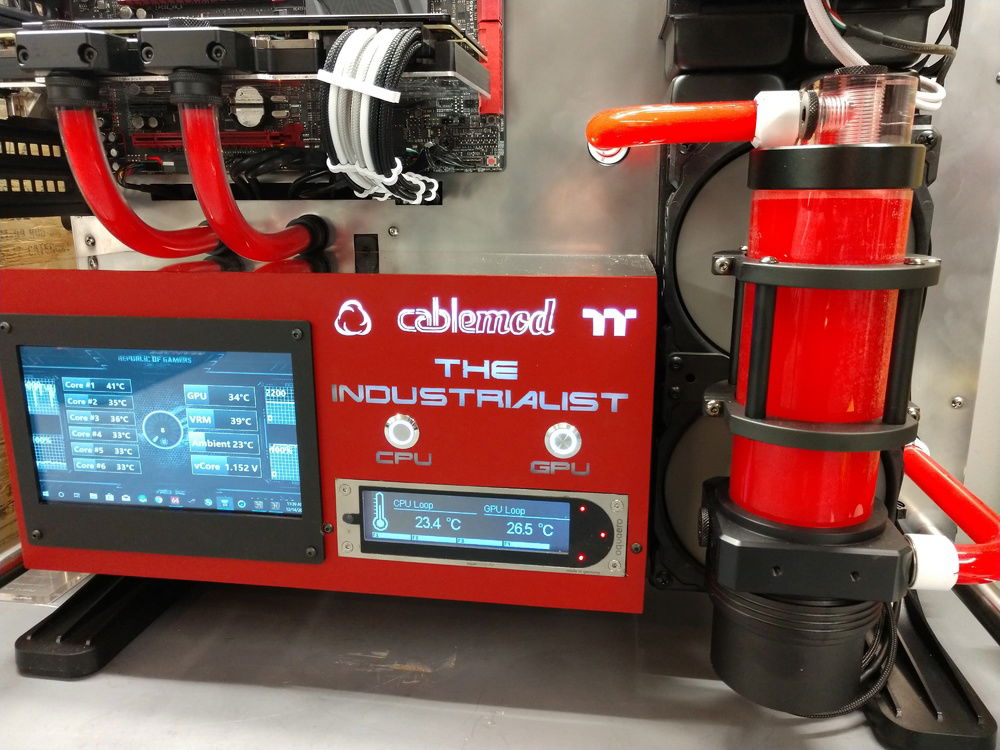

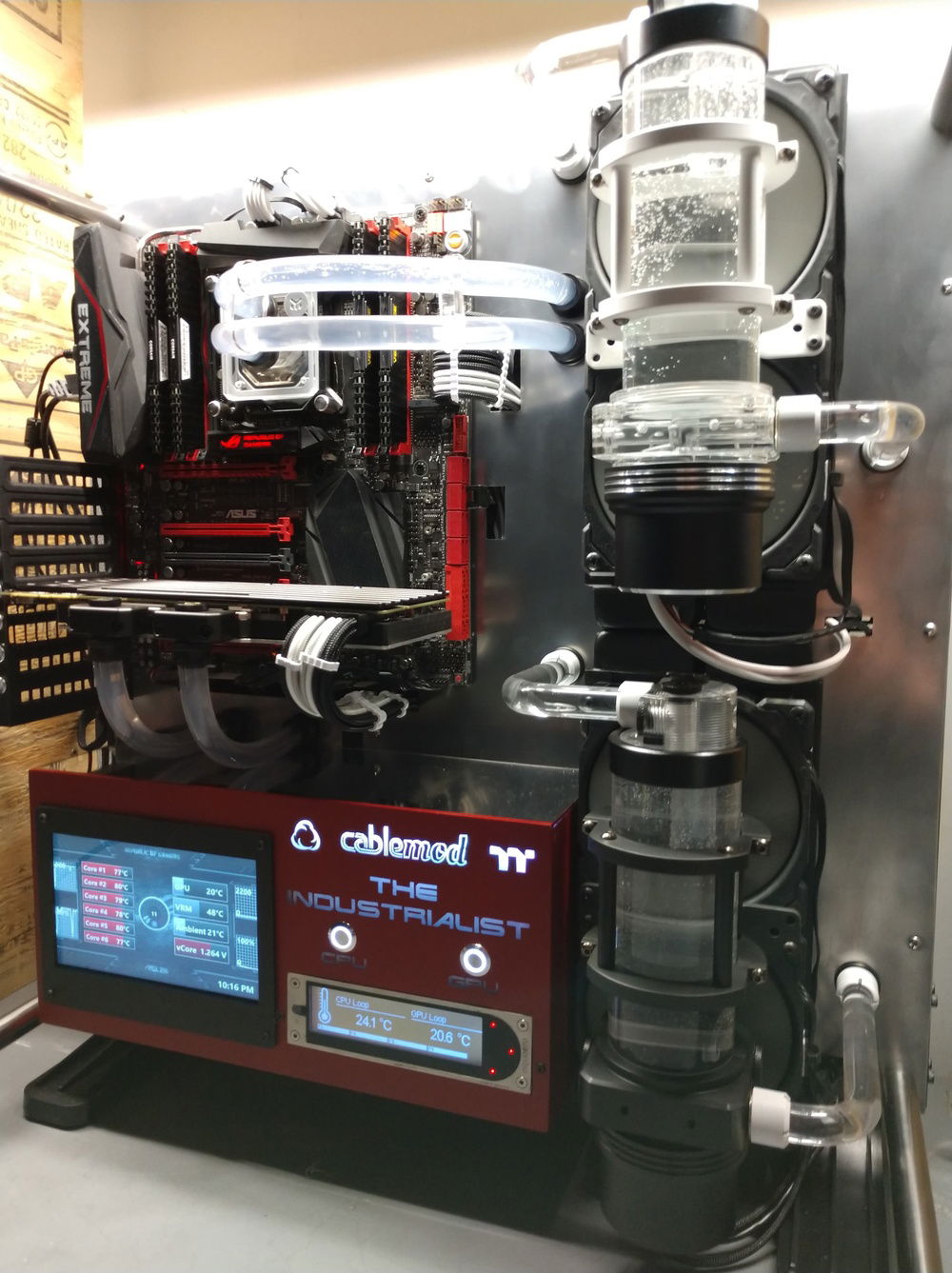

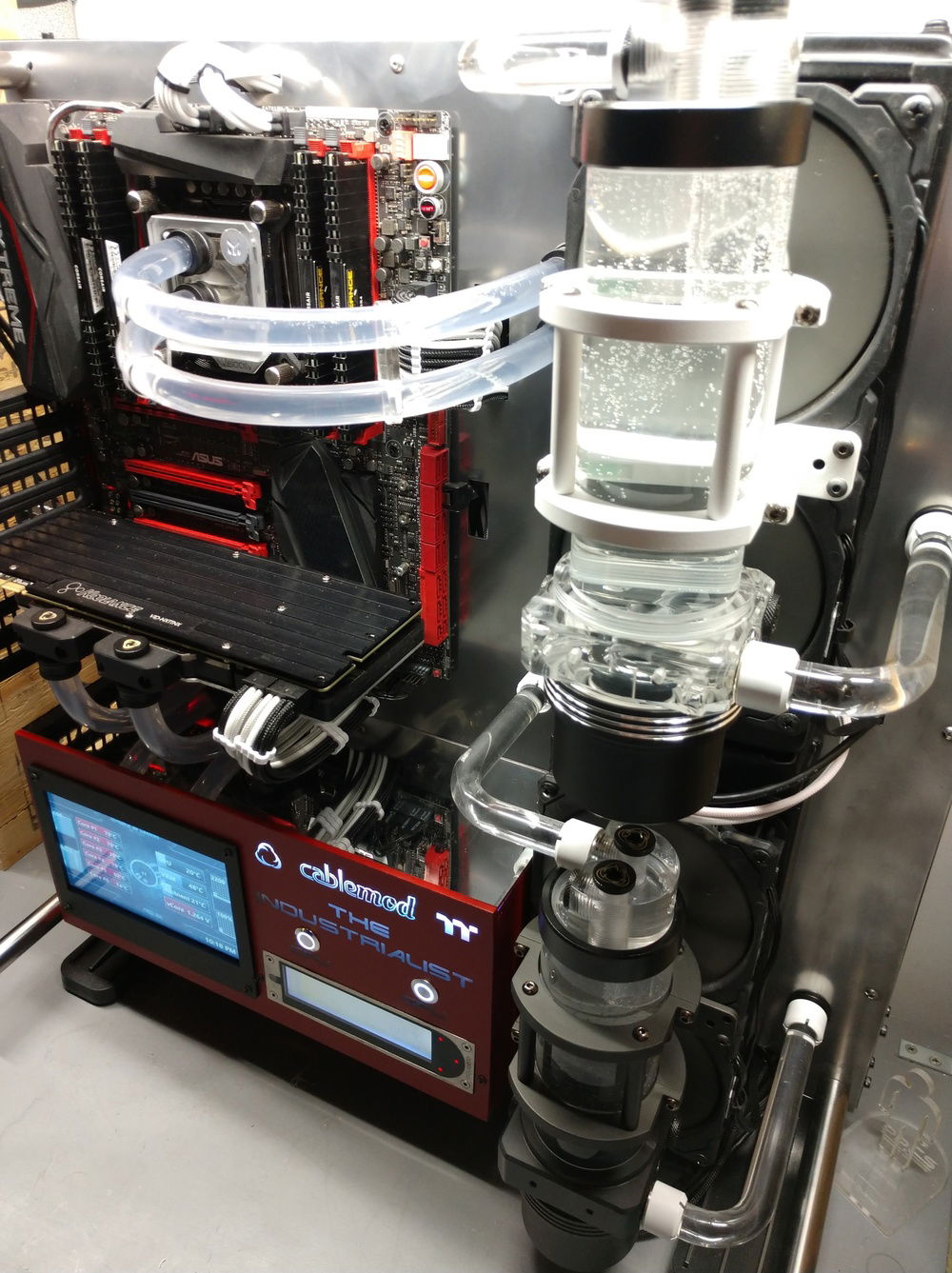

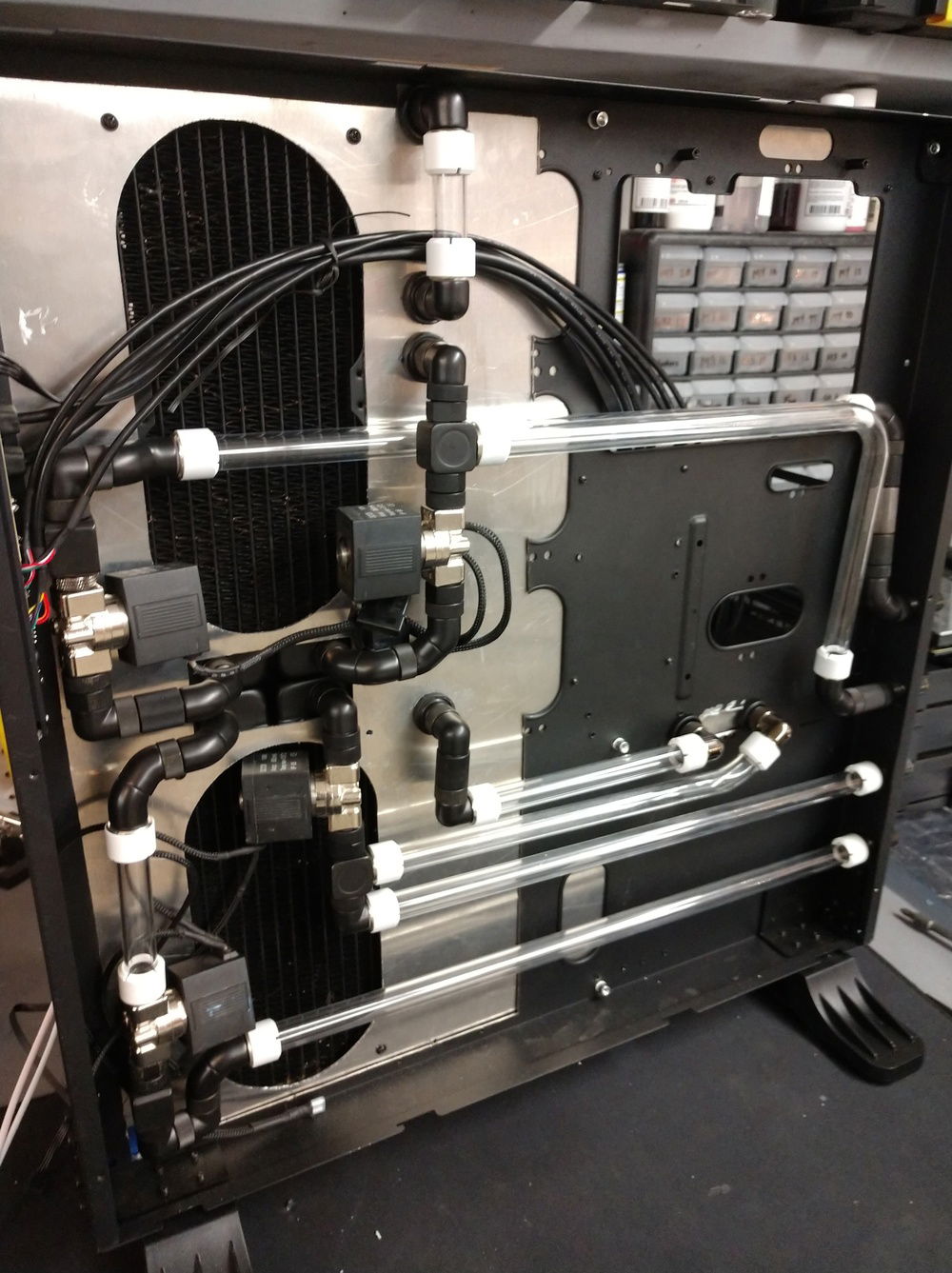

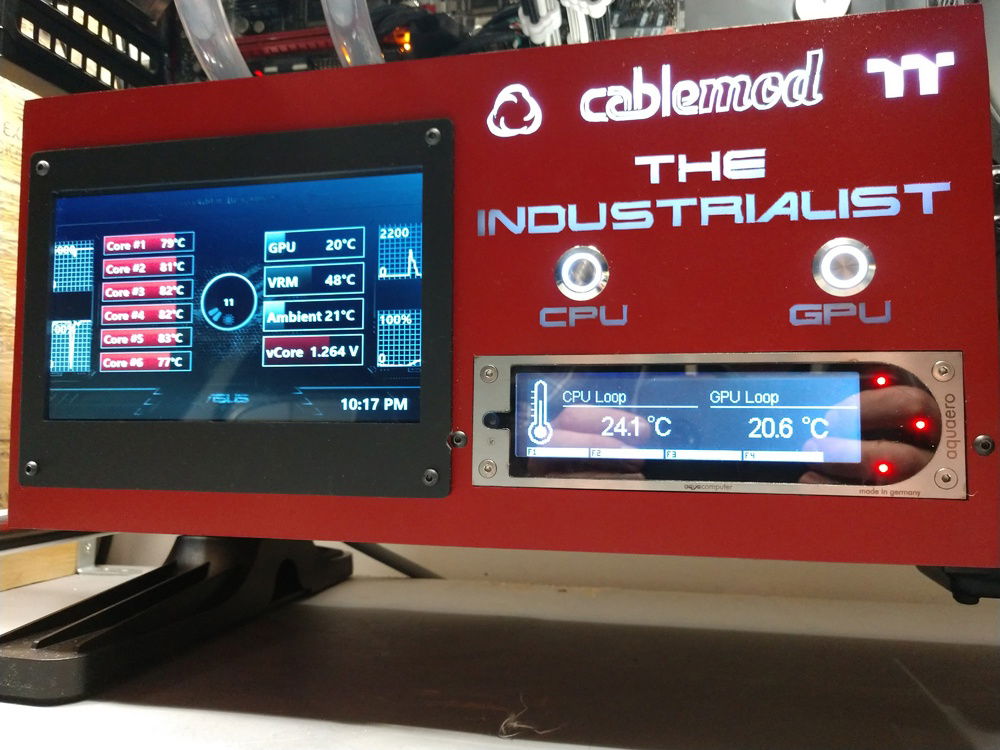

This is a custom loop test bench, designed to test all things watercooling! Using the TT Core P5 as the frame for the build, I designed two loops that also feature QDC's out the back of the case to connect components to each loop externally. With the use of some Alphacool electronic ball valves, I can bypass the radiators on the chasis itself, in order to test radiators externally completely on their own. This build also features an Aquaero 5XT to controll all of my watercooling gear (pumps, temp sensors, flow meters, fans, etc) as well as a 7" LCD panel for a stat readout panel. This is truly the one watercooling bench to rule them all! Emoji
Color(s): Black Red Silver White
RGB Lighting? No
Theme: TV & Movie
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Hardware

CPU
Intel - Core i7 5930K
Socket: LGA 2011-3
Cores: 6
Motherboard
ASUS - RAMPAGE V EXTREME
Chipset: X99
CPU Socket: LGA 2011
Size: E-ATX
Memory
$ 129.99
Corsair - Vengeance LPX (2666Mhz) (Black)
Type: DDR4
Capacity: 16 GB
Graphics
$ 549.99
EVGA - SC+
Chip Manufacturer: NVIDIA
Chip: GTX 980 Ti
Storage
$ 116.00
Intel - 545s
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 256 GB
PSU
$ 499.00
Corsair - HX1000i
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
Case
Thermaltake - Core P5 (Black)
Type: Mid-Tower
Side Panel: Open
Cooling
EKWB - Fittings
Type: Custom Loop
Cooling
Koolance - GPU Block
Type: Custom Loop
Cooling
Monsoon - Fittings
Type: Custom Loop
Cooling
Singularity Computers - Reservoir
Type: Custom Loop
Cooling
XSPC - Fittings
Type: Custom Loop
CableMod
CableMod - Sleeved Cables
Mode: Custom
Sleeve: PRO ModFlex
Color: Black
CableMod
CableMod - Sleeved Cables
Mode: Custom
Sleeve: PRO ModFlex
Color: White
CableMod
CableMod - Sleeved Cables
Mode: Custom
Sleeve: PRO ModMesh
Color: Silver
