EH "MUSTAFAR"

Worklog :

https://www.youtube.com/watch?v=wx5kTpJOZc0&t=2s

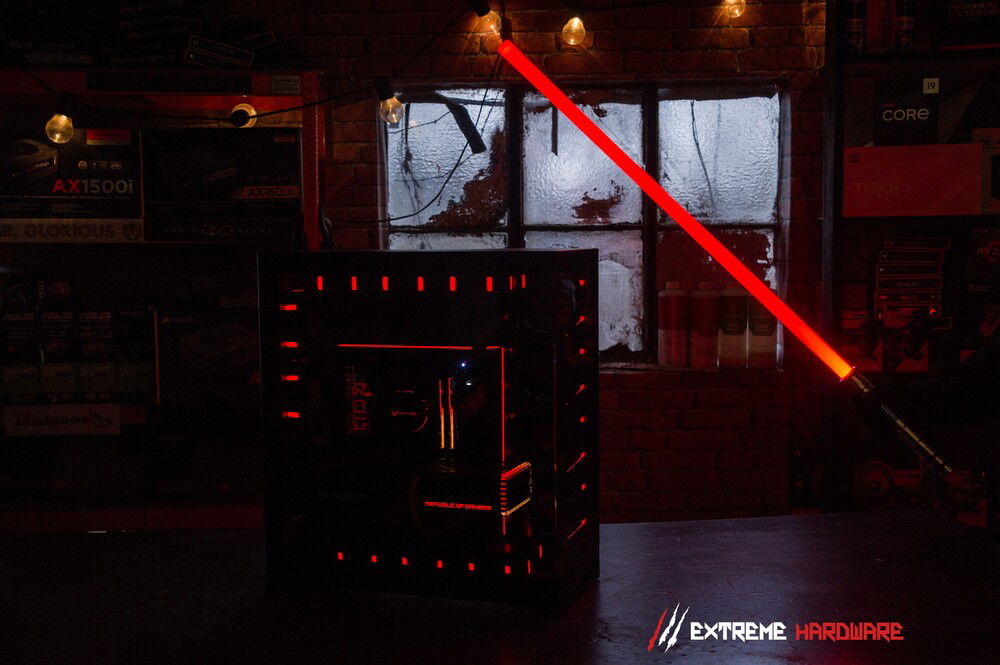

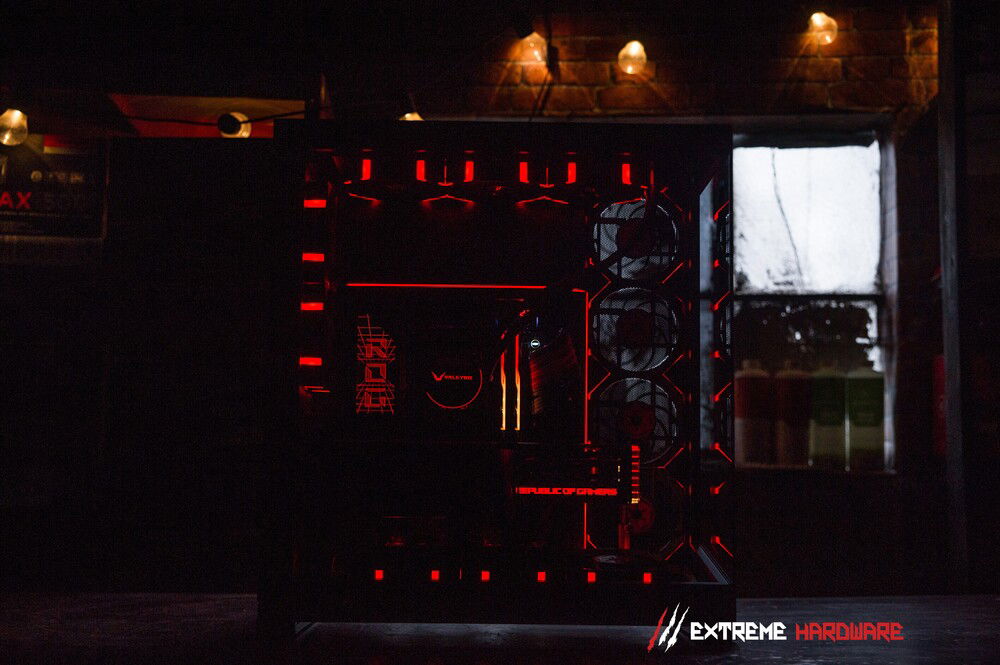

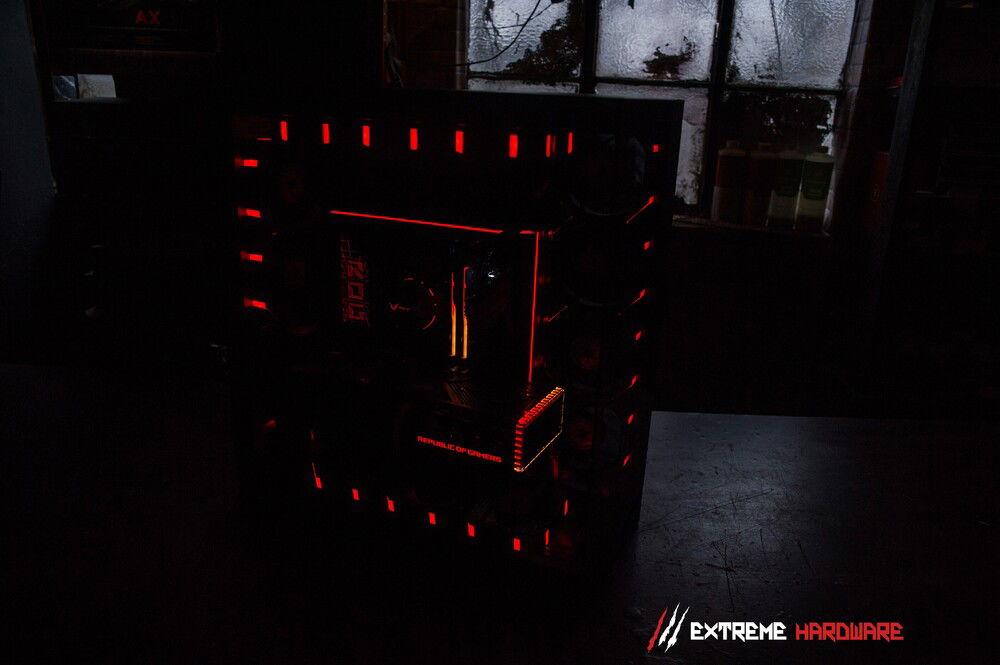

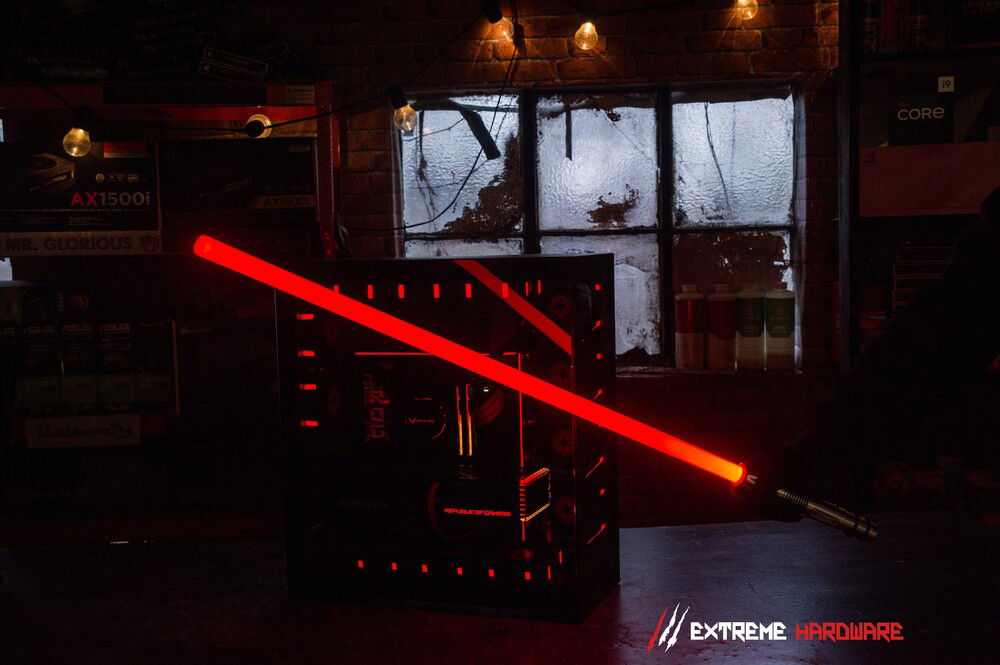

EH "MUSTAFAR" is a dark, yet very expressive project inspired by the atmosphere of the Star Wars universe.
Black, red and fiery orange reflect the atmosphere of the planet Mustafar, where the final transformation of Anakin Skywalker into Darth Vader took place.

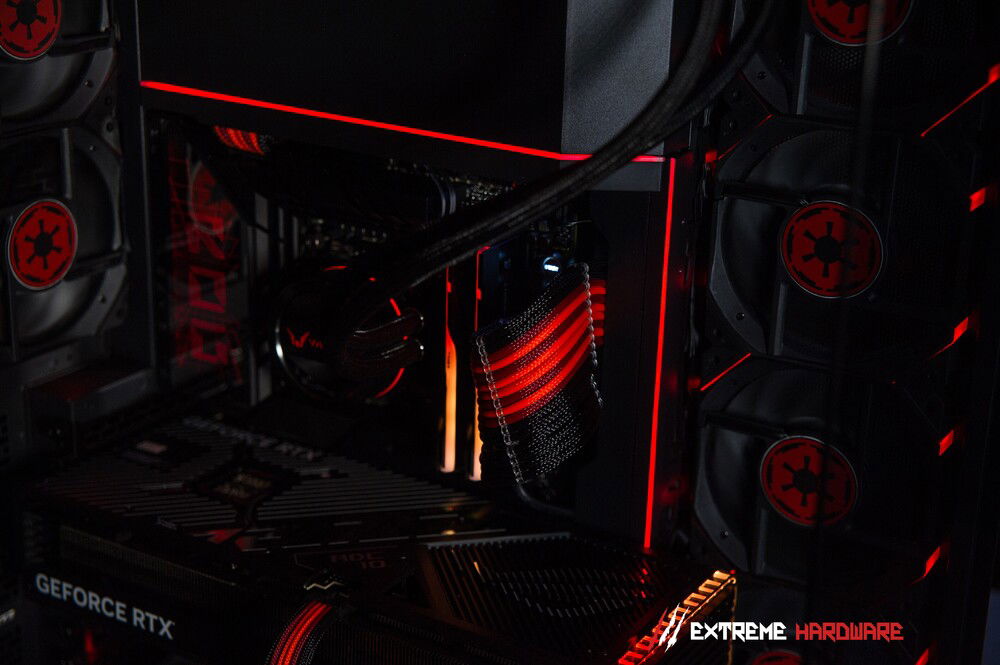

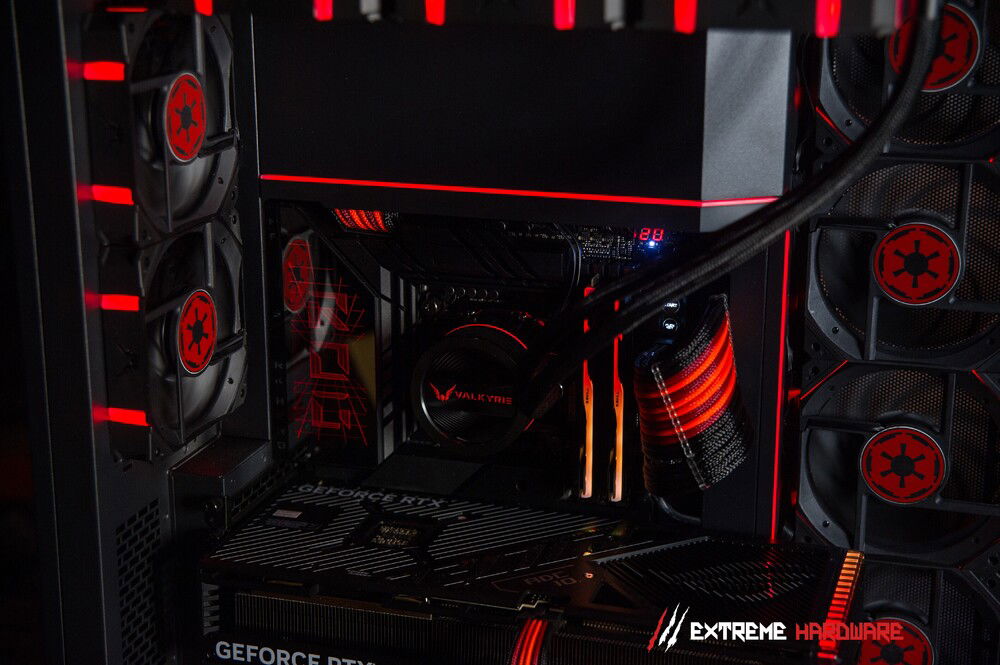

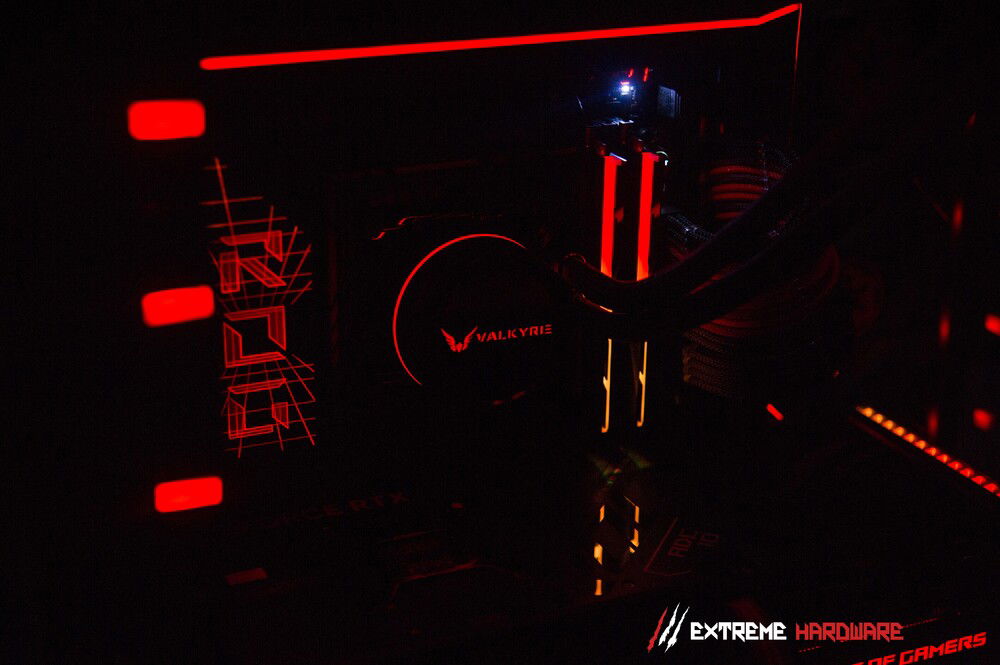

Fortunately, the i9-14900K remains cold in this configuration. Manual, precise adjustments and the phenomenal AIO from VALKYRIE, the DRAGONFANG 360 model, are responsible for this.
The CPU under full load around 290W (looped for 120 minutes CBR23) does not exceed 90C on the hottest core, there is no throttling or instability. During typical use such as gaming, the CPU occasionally exceeds 55C, also providing improved performance compared to factory settings.

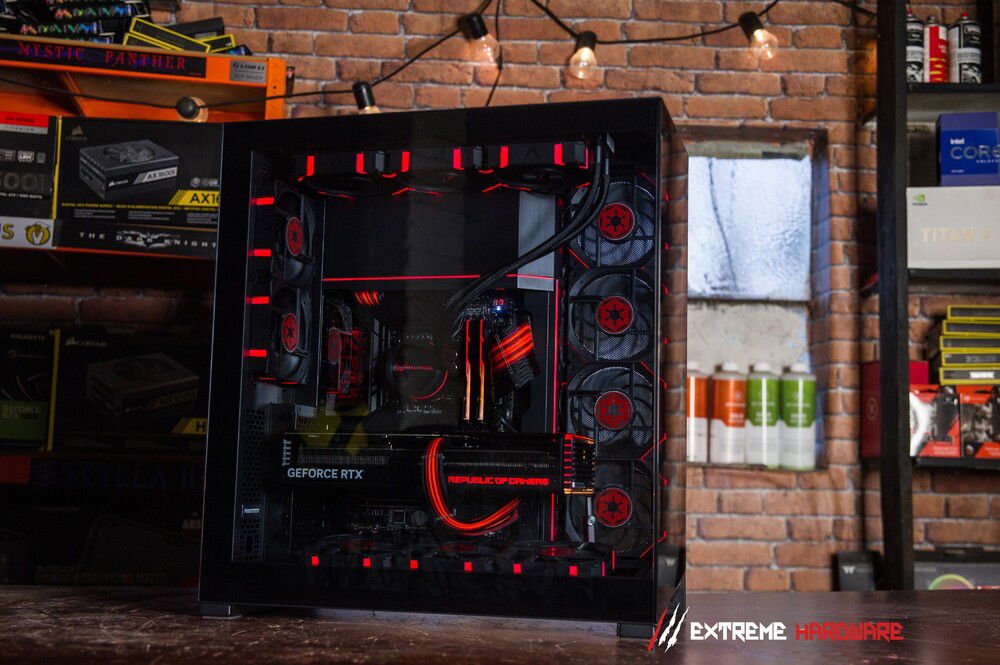

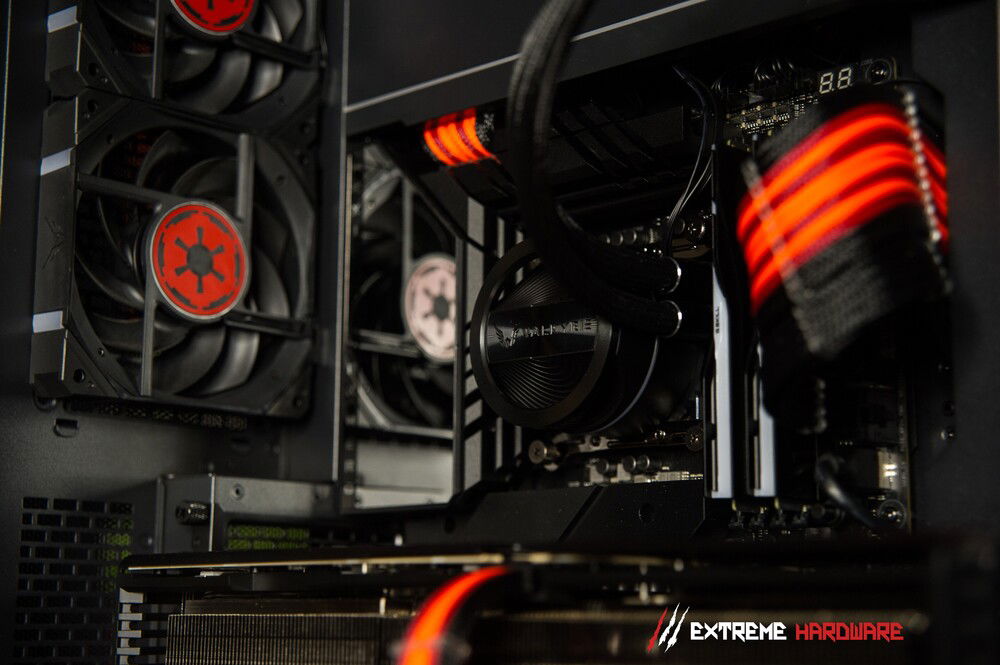

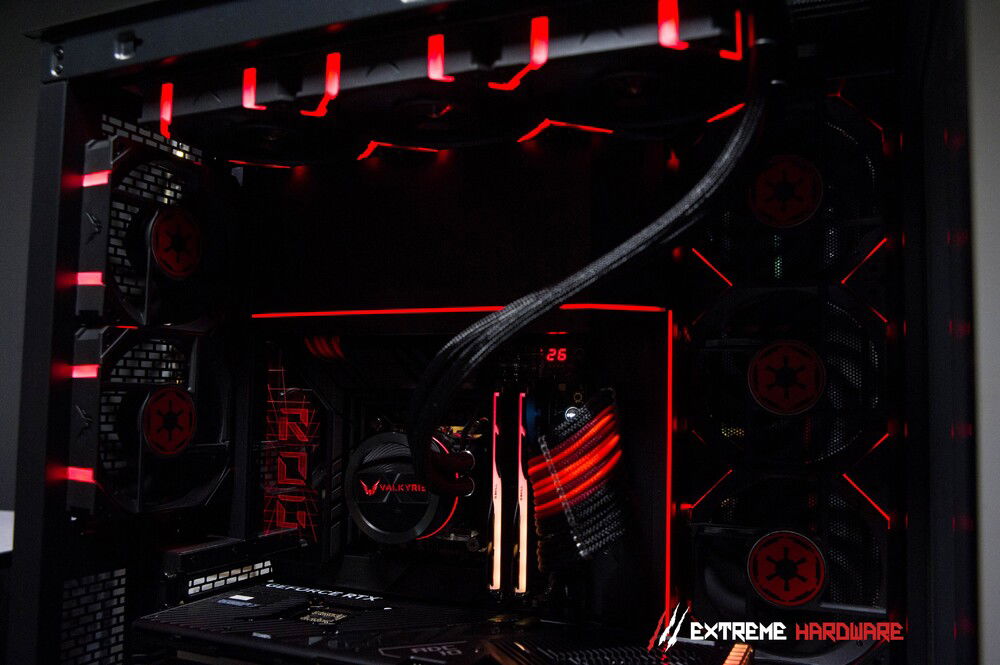

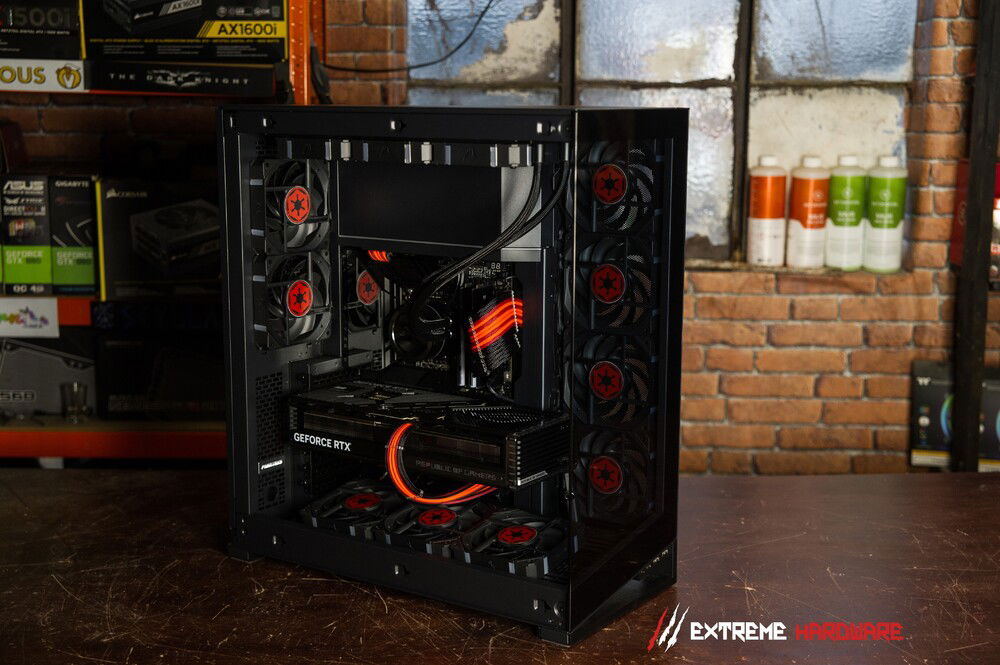

The use of 9 additional VALKYRIE X12 fans translates into supplying cool air to the interior of the machine, which ensures excellent air flow inside the case and maintains low operating temperatures of components.

RTX 4080 SUPER STRIX OC is additionally manually overclocked by another 120 MHz on the core and 1000 MHz on the memory, allowing to enjoy great performance at a resolution of 3440x1440p. The configuration works with the ADW3423DWF monitor.

The machine will also be used for work, so the 48 GB of RAM is not there by accident.
Of course, as always, the configuration is precisely manually adjusted, and stability tests of the OC profiles took several dozen hours :)

Spec : EH "MUSTAFAR"

Intel i9-14900K tuned 5.7 GHz P / 4.4E / 4.8 Ring
ASUS Z790 ROG DARK HERO
G.SKILL Z5 2x 24 GB 6800 MHz CL38.39.39.38 T2 G2 + II/III

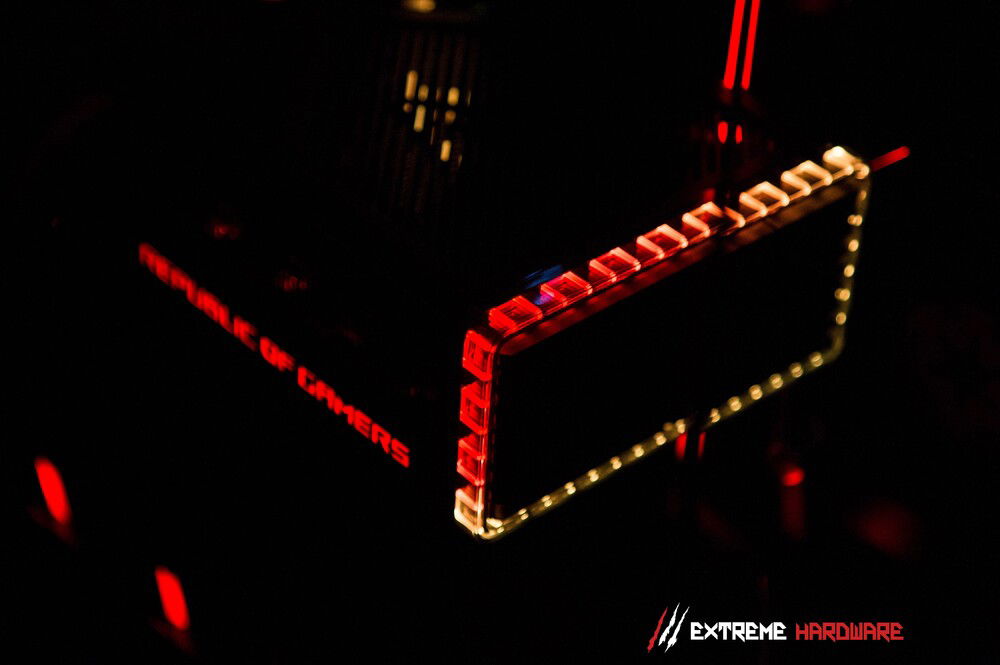

ASUS RTX 4080 SUPER STRIX OC (additionalmanual OC +120/1000)
SAMSUNG 990 PRO 2 TB
Be Quiet! Straight Power 12 1200W
VALKYRIE DRAGONFANG 360 AIO
VALKYRIE X12 120 mm x9
Phanteks NV7
Thermalright CF LGA 1700

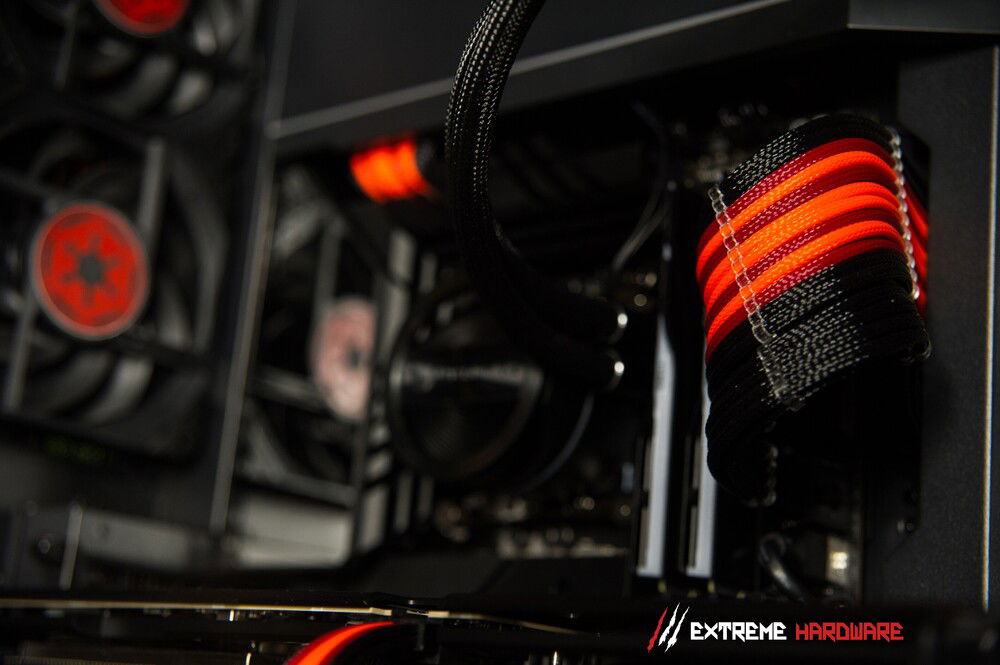

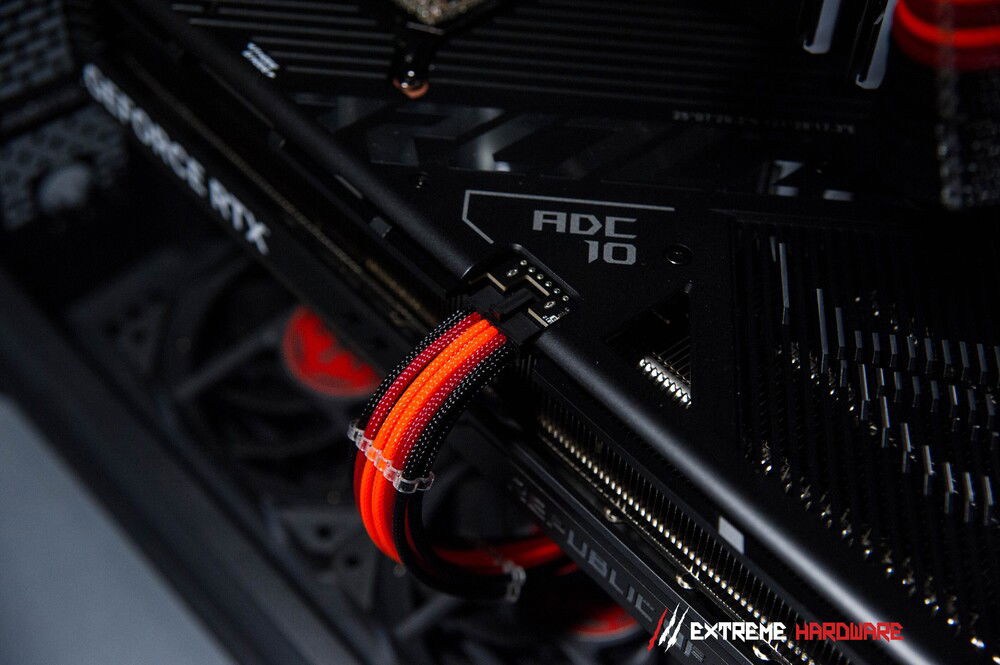

Cables ExpandableCustoms
Color(s): Black Orange Red
RGB Lighting? Yes
Theme: Sci-Fi
Cooling: AIO Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 548.00
Intel - Core i9-14900K
Socket: LGA 771
Cores: 24
Integrated Graphics: Yes
Motherboard
$ 579.99
ASUS - ROG Maximus Dark Hero
Chipset: Z790
CPU Socket: LGA 1700
Size: ATX
Memory
$ 300.00
G.Skill - Trident Z5 (8000MHz) (Black/RGB)
Type: DDR5
Capacity: 32 GB
Graphics
$ 1,559.66
ASUS - ROG Strix GeForce OC 16GB
Chip Manufacturer: NVIDIA
Chip: RTX 4080
Interface: PCIe x16
Graphics
$ 1,599.99
ASUS - ROG Strix OC
Chip Manufacturer: NVIDIA
Chip: RTX 4080
Interface: PCIe x16
Storage
$ 119.99
Samsung - 990 Pro
Form Factor: M.2
Interface: PCIe x4
Capacity: 2 TB
PSU
$ 199.90
be quiet! - Dark Power 12
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Titanium
PSU
$ 298.90
be quiet! - Straight Power 12
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 179.99
Phanteks - NV7
Type: Full-Tower
Side Panel: Tempered Glass
RGB: Yes
Estimated total value of this build:
$ 5,506.54
