Cinnabar & Steel [R]GB

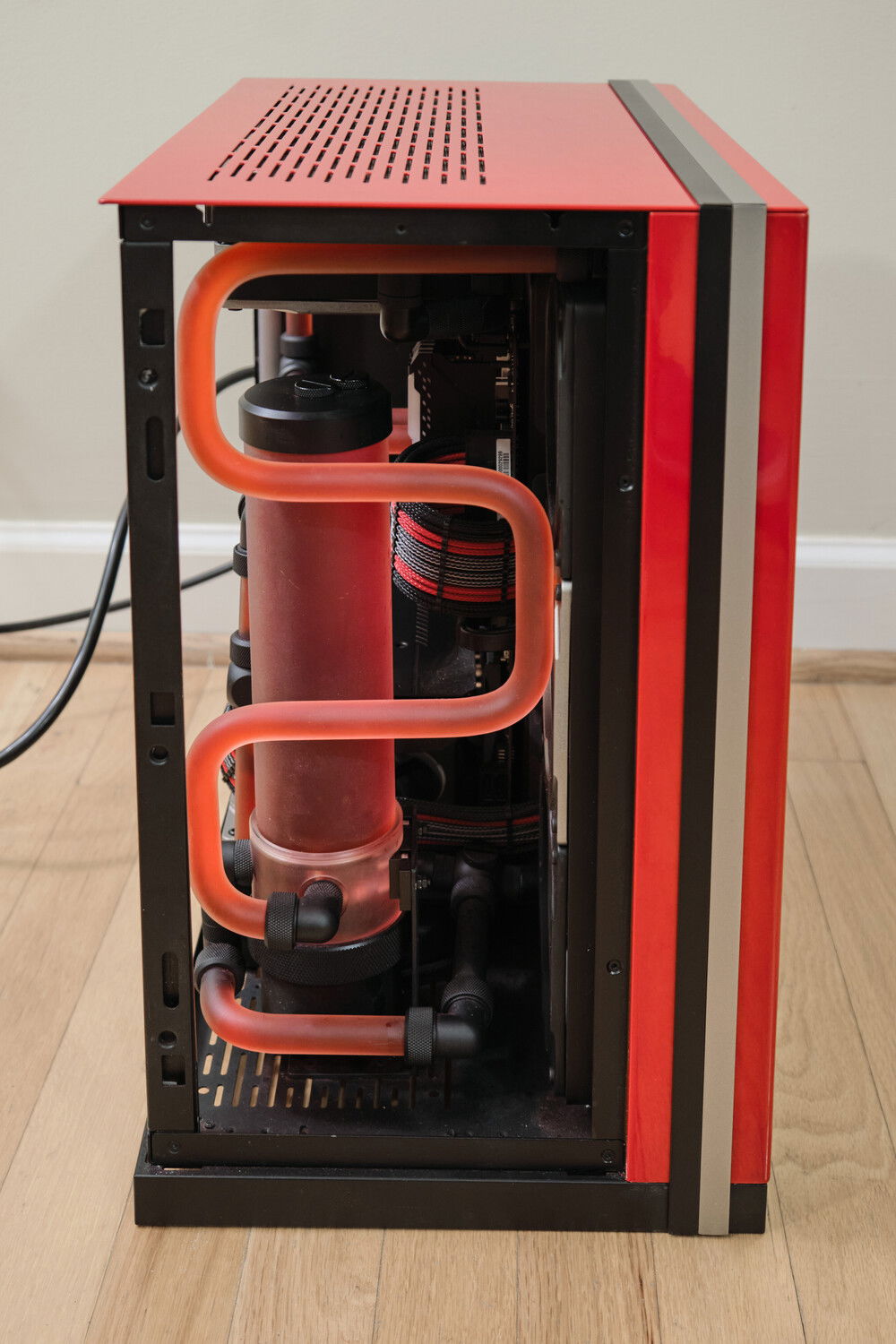

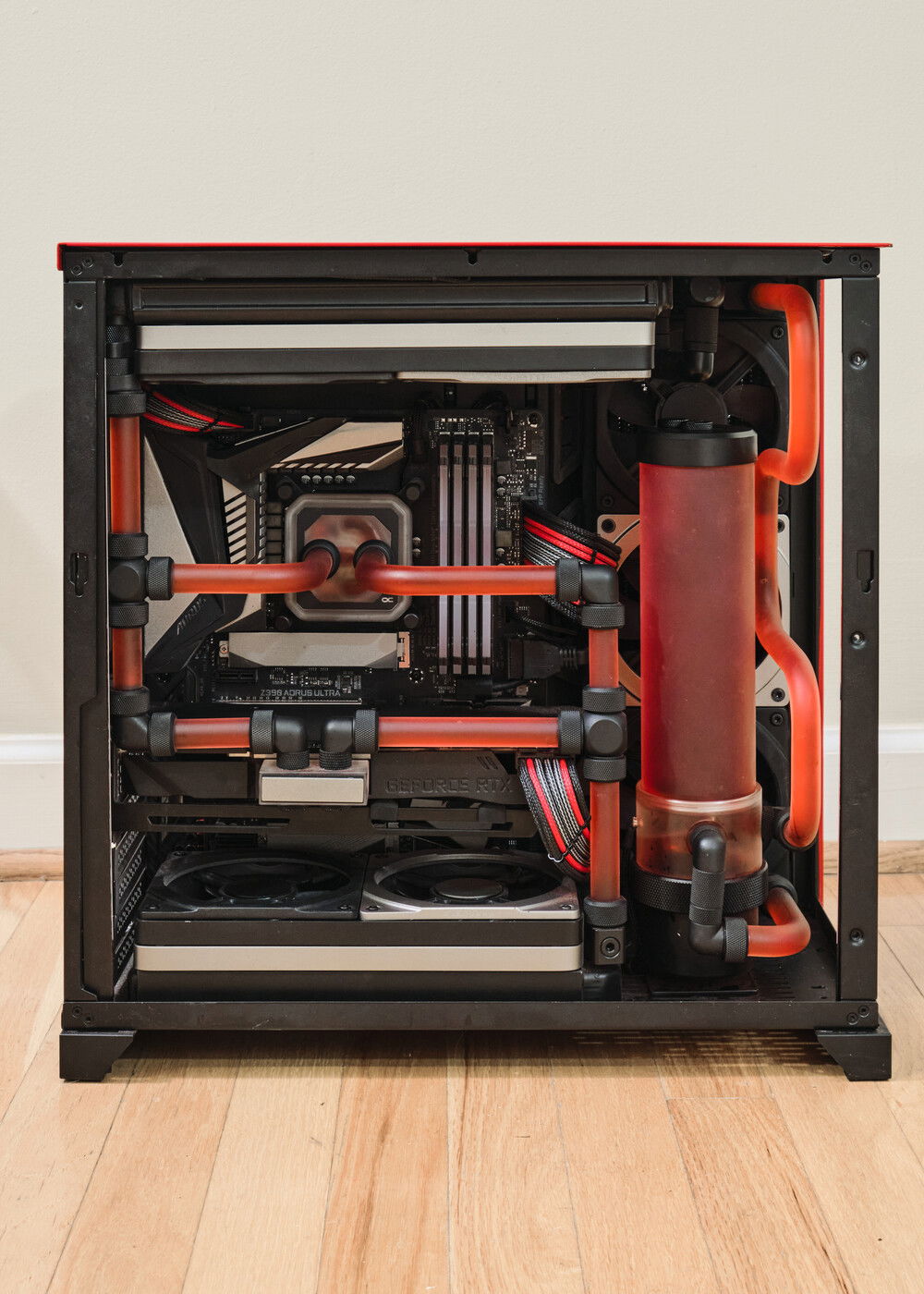

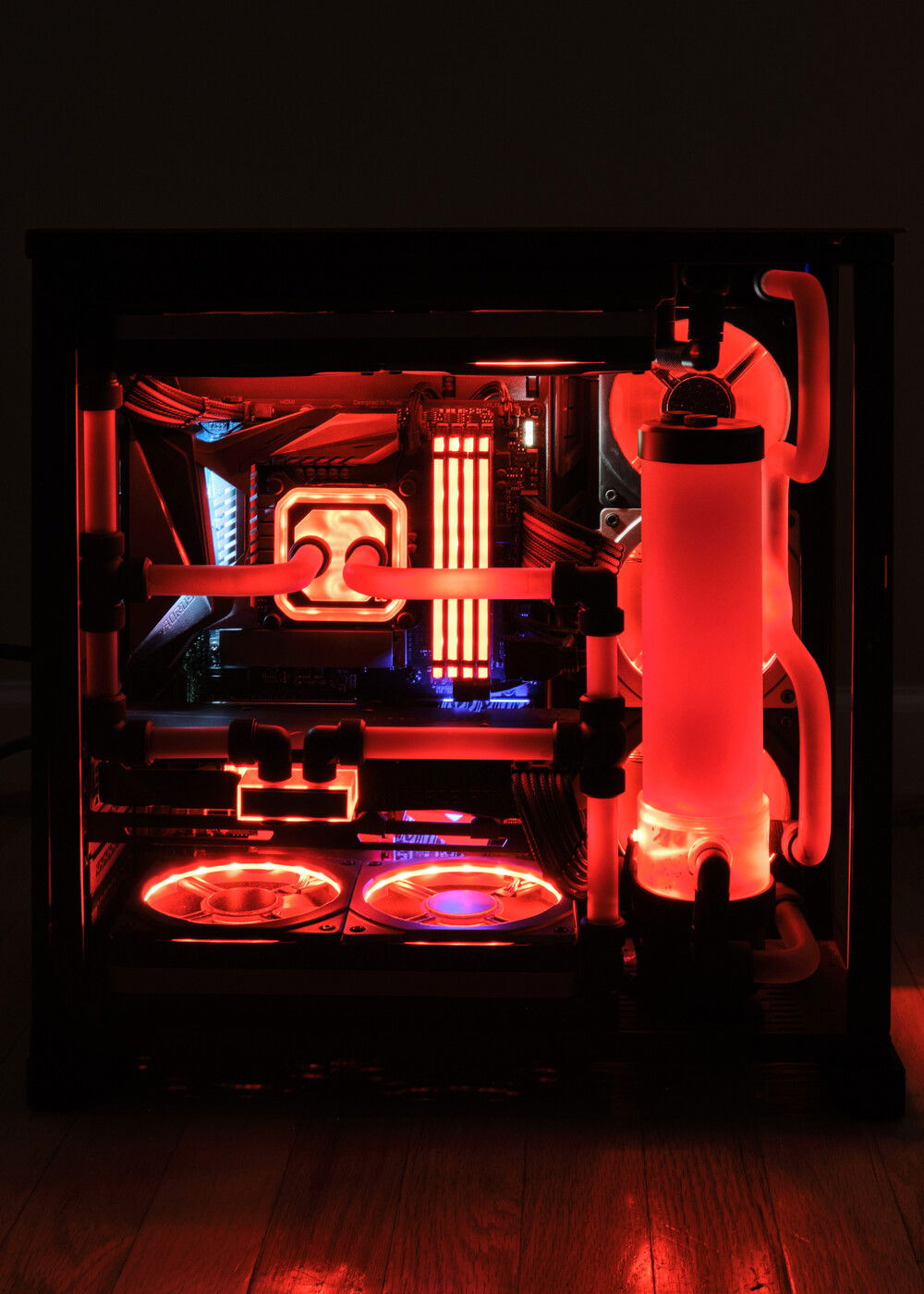

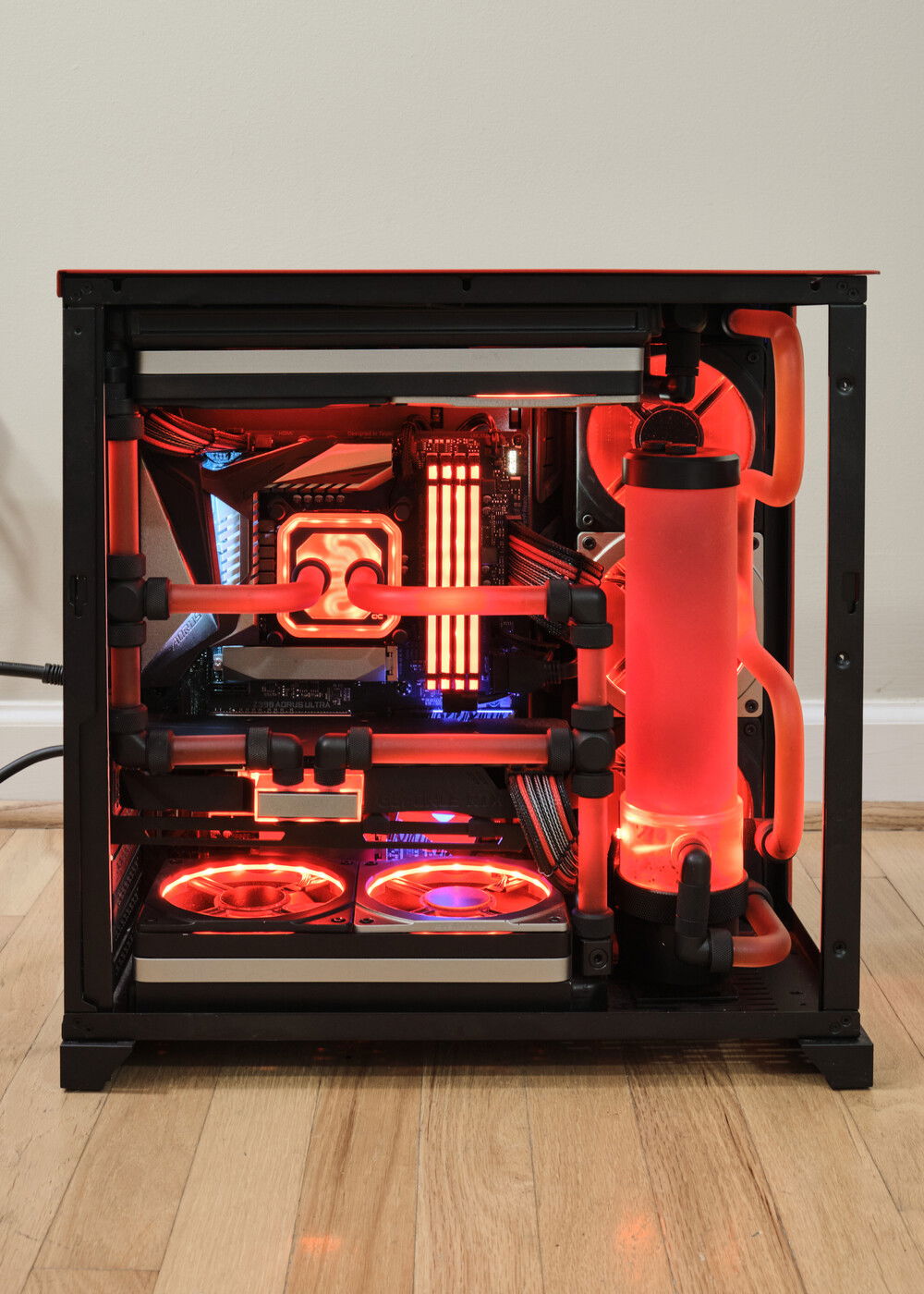

This is one of my personal builds that I've been using for several years now.

Everything in this build has been custom painted. It's been redone at least 5-6 times over the years as I was perfecting my custom red paint color. This was not a great case to do this with considering the front panel can't be removed. It's definitely taken on a bit of overspray in some areas over time, but hey, that's what side panels are for.

The red consists of 3 of my own custom paint codes. It's a six stage metallic, pearl, candy paint. It's a bear to paint but I can't help but love it. It doesn't show up well in pictures. It has a ton of depth due to the specific application. Finished with a PPG high gloss clear.

The silver pieces are Seymour stainless steel. It's an awesome rattle can paint. Finished with Sherwin Williams matte clear.

The black is SEM trim black. Finished with Sherwin Williams matte clear.

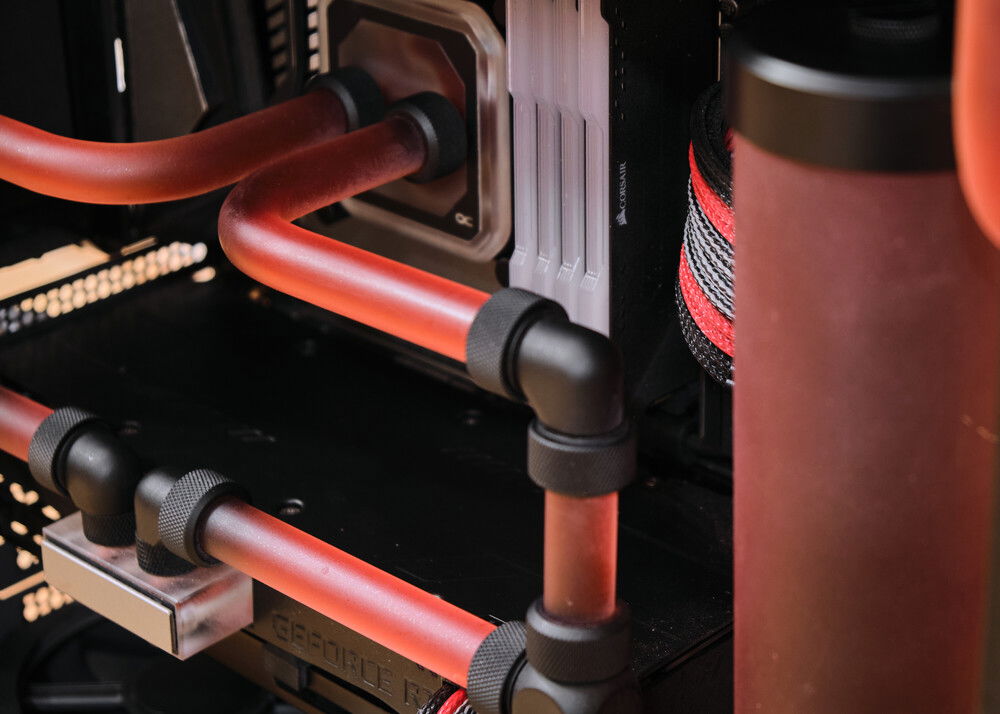

Every acrylic piece has been frosted with Rustoleum Frosted Glass clear.

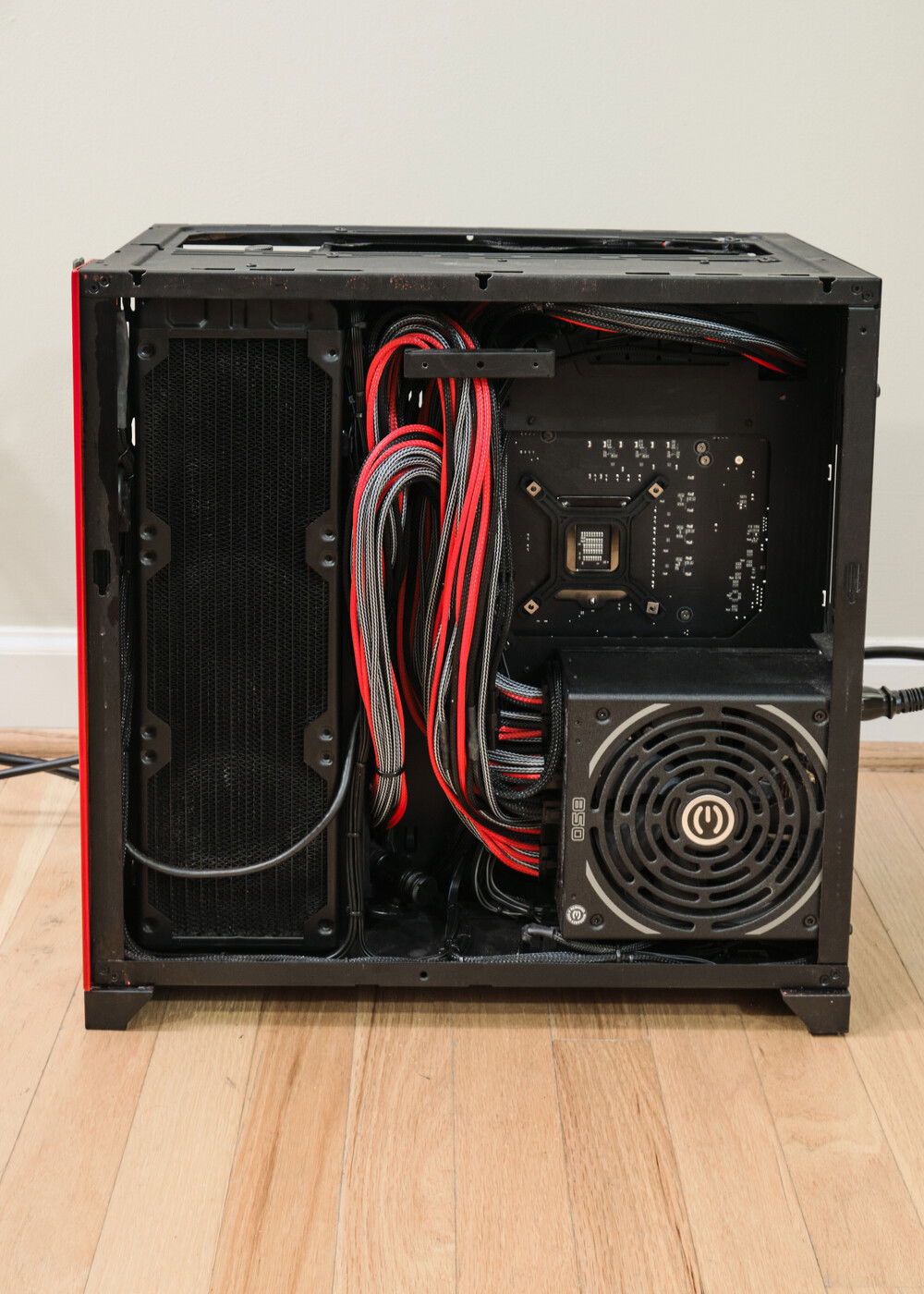

Cables are MDPC-X Classic Carbon-PGB, Bloodline, and Blackest Black. They are made using a ton of de-pinned EVGA EPS cables that I tend to always have excess of from building full custom sets. I didn't feel like shortening them so that's why they are so long.
Color(s): Black Gray Red
RGB Lighting? Yes
Theme: Case Mod
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 395.00
Intel - Core i9-9900K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 275.00
Gigabyte - Aorus Ultra
Chipset: Z390
CPU Socket: LGA 1151
Size: ATX
Memory
$ 85.99
Corsair - Vengeance Pro (3600MHz) (Black/RGB)
Type: DDR4
Capacity: 32 GB
Graphics
$ 1,114.99
Gigabyte - GeForce AORUS WaterForce
Chip Manufacturer: NVIDIA
Chip: RTX 2080 SUPER
Interface: PCIe x16
PSU
$ 179.98
EVGA - SuperNOVA 750 G2
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Gold
Case
Lian Li - 011 Dynamic
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 125.00
Case Fan
$ 111.72
Corsair - ML140 Pro (Black) (2x)
Size: 140 mm
Cooling
$ 60.75
Alphacool - Eisblock XPX Aurora Edge
Type: Waterblock
Cooling
Barrow - Fittings
Type: Custom Loop
Cooling
Barrow - Reservoir
Type: Custom Loop
Cooling
Hardware Labs - Nemesis GTS Xflow
Type: Custom Loop
Size (WxHxD): 280 mm (2 x 140 mm)
Cooling
Hardware Labs - Radiators (2x)
Type: Custom Loop
Accessories
$ 122.60
Accessories
$ 41.00
