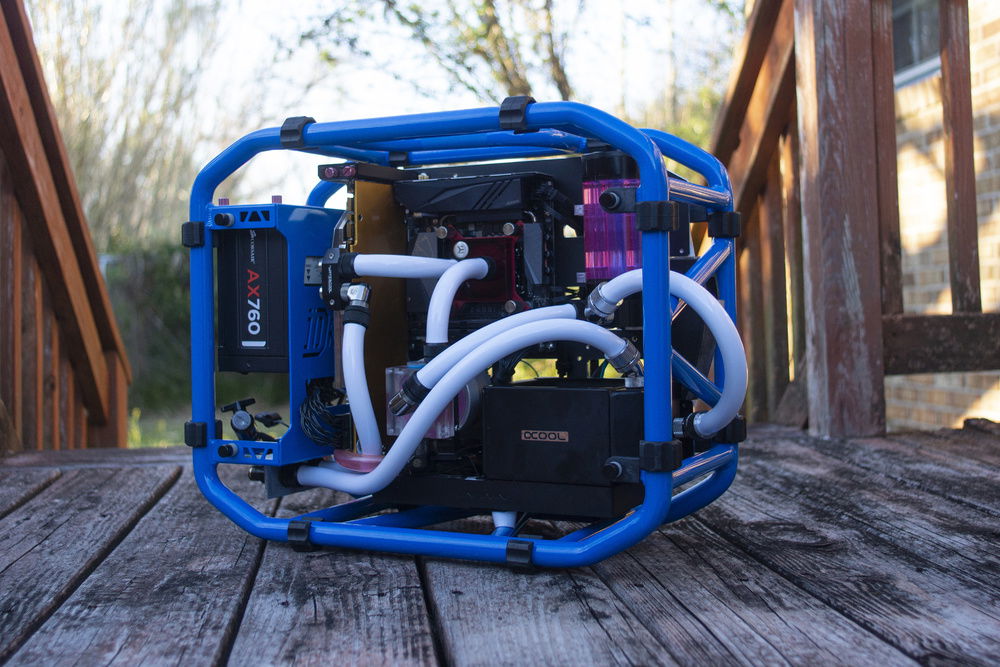

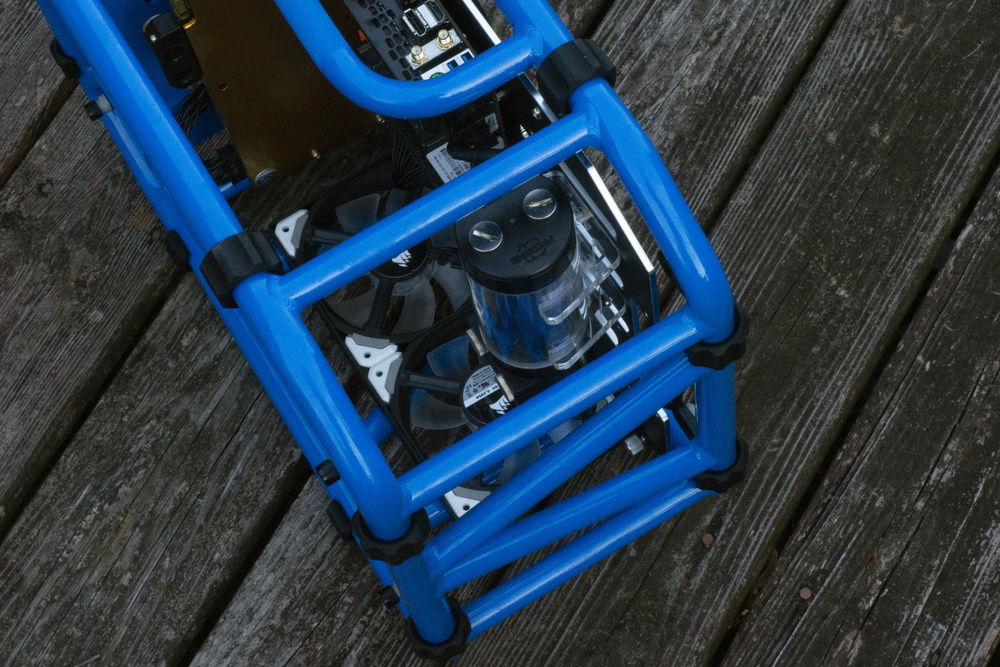

Decided to color outside the lines a bit for version 2.
Decided to color outside the lines a bit for version 2.

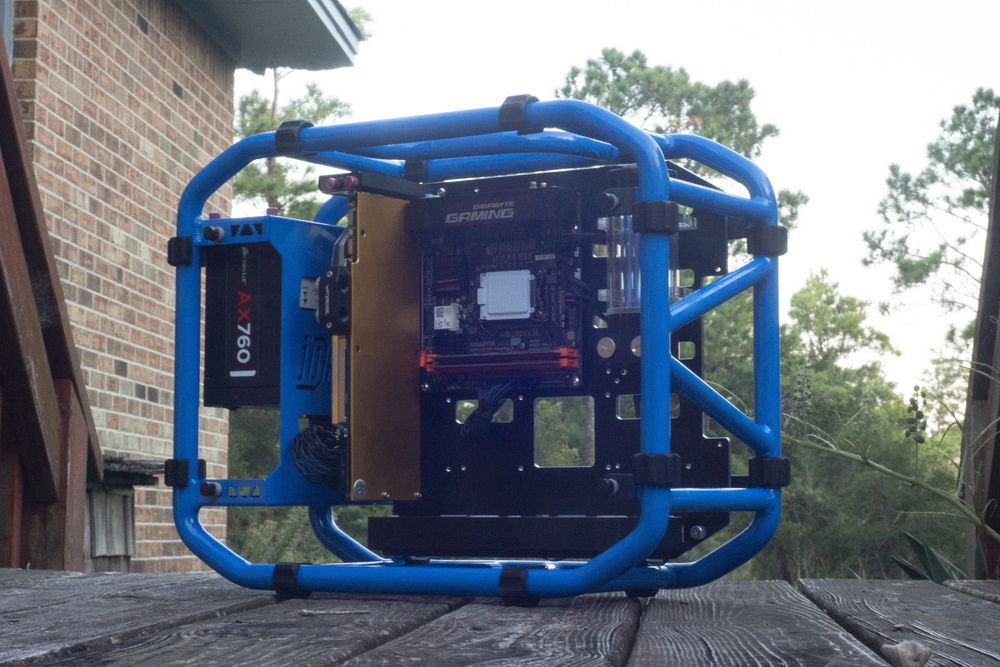

Initial mock ups of first version.
Initial mock ups of first version.

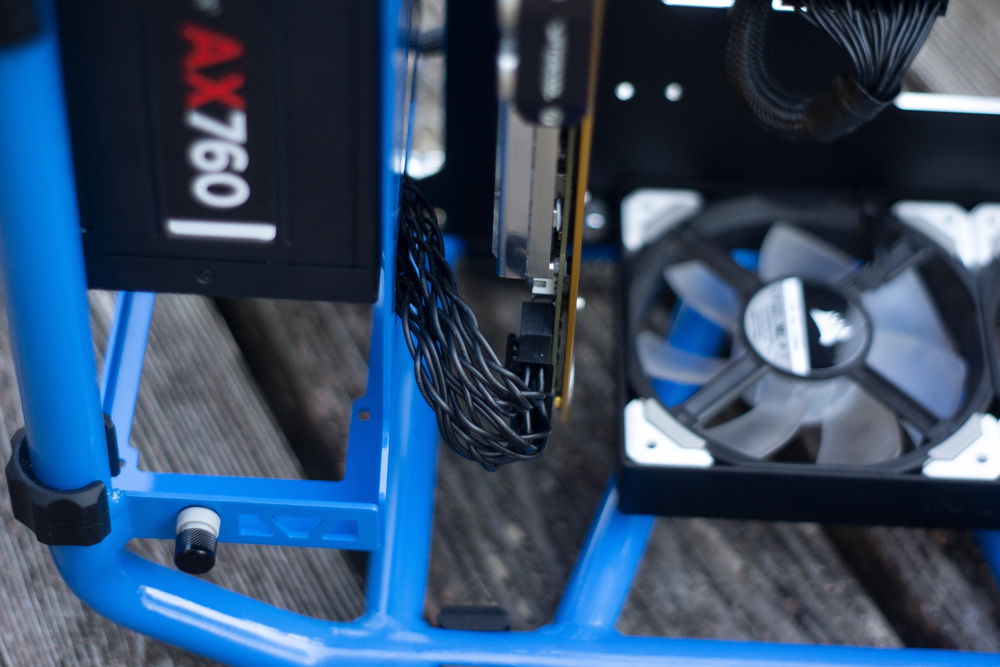

Since the GPU is so close to the PSU I braided up some custom cables.
Since the GPU is so close to the PSU I braided up some custom cables.

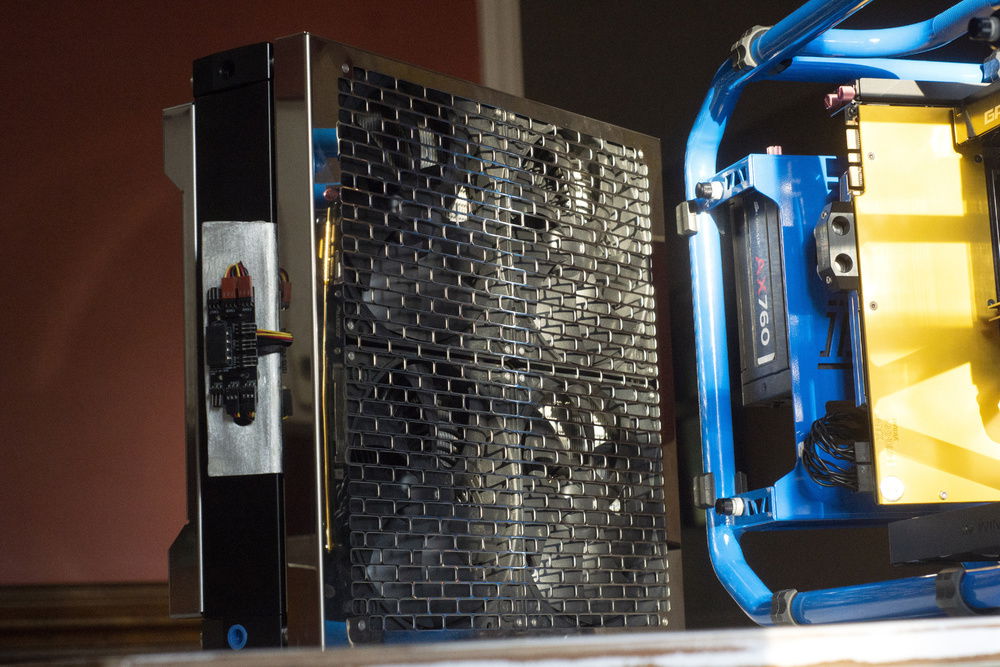

External MO-RA3 get's mounted under the desk.
External MO-RA3 get's mounted under the desk.

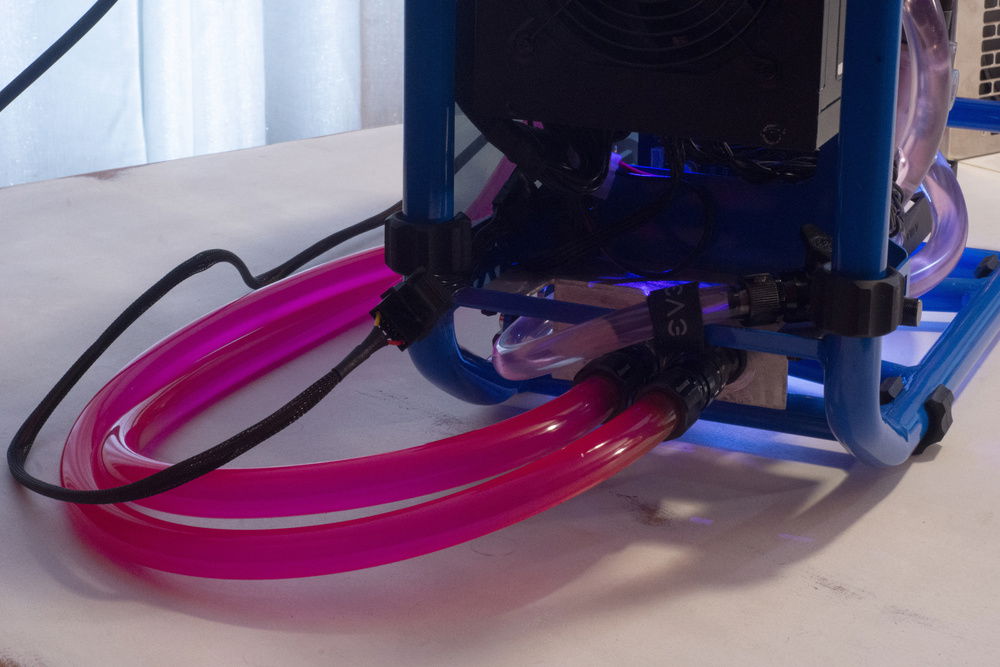

Whipped up a basic aluminum bracket to connect the the Koolance quick disconnect fittings.
Whipped up a basic aluminum bracket to connect the the Koolance quick disconnect fittings.

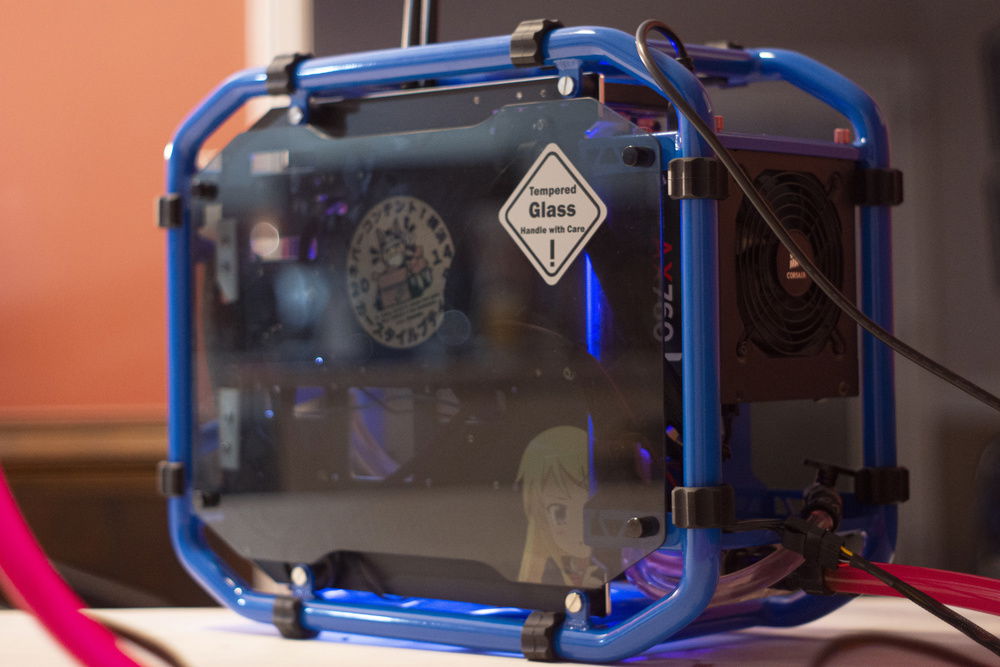

Back side of the case.
Back side of the case.

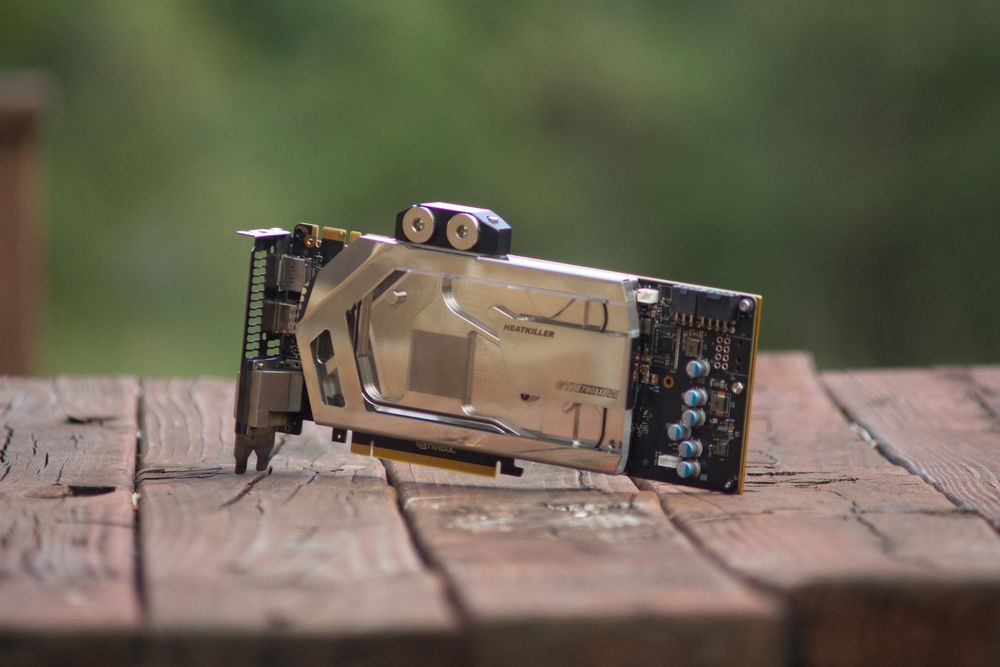

Can't actually see much of the block once it's in the build, but it's a Heatkiller block with a gold EK backplate.
Can't actually see much of the block once it's in the build, but it's a Heatkiller block with a gold EK backplate.

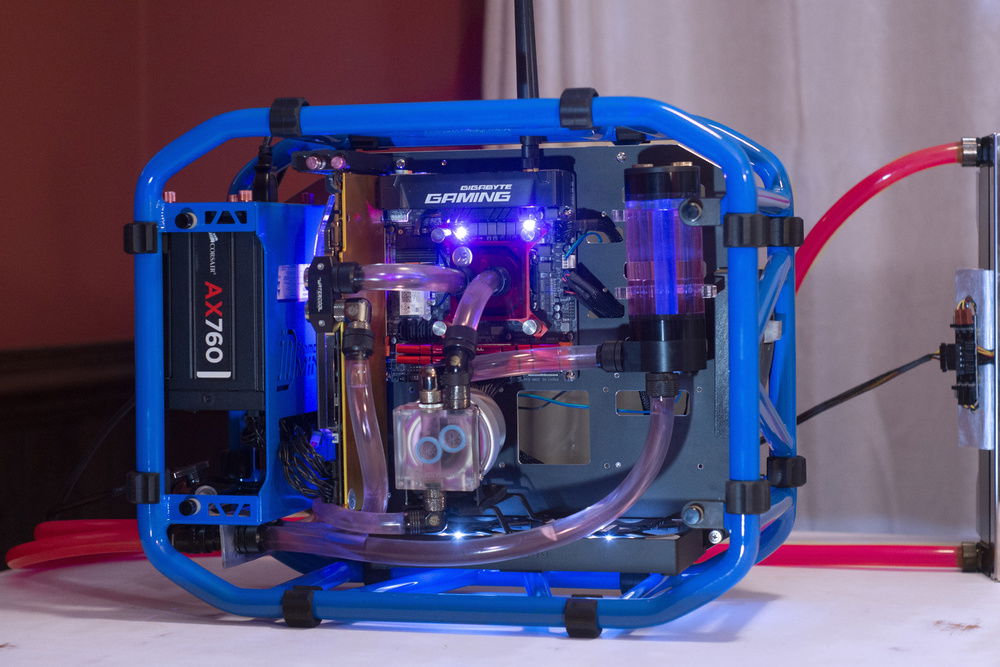

Complete view of version 1 of the build. i7 6700, 16GB of RAM, Titan Black. Single MO-RA3 with 4x Silverstone 180mm fans.
Complete view of version 1 of the build. i7 6700, 16GB of RAM, Titan Black. Single MO-RA3 with 4x Silverstone 180mm fans.

Sanic

Current config is a delidded 10850k with a Rockitcool copper IHS and Thermal Grizzly liquid metal. Paired with an RTX 2080
Color(s): Blue Pink Red White
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Contests

This build participated in 1 contest.

Build Updates

Initial build

V2 refresh

Hardware

CPU
$ 285.00
Intel - Core i9-10850k
Socket: LGA 1200
Cores: 10
Integrated Graphics: Yes
Motherboard
$ 278.90
Gigabyte - AORUS Ultra (Z490I)
Chipset: Z490
CPU Socket: LGA 1200
Size: Mini-ITX
Memory
$ 100.00
GeIL - Evo Potenza
Type: DDR4
Capacity: 32 GB
Graphics
$ 550.00
MSI - GeForce Ventus
Chip Manufacturer: NVIDIA
Chip: RTX 2080
Interface: PCIe x16
Storage
$ 109.00
Samsung - 860 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 129.99
Samsung - SM951 NVMe
Form Factor: M.2
Interface: M.2 (M)
Capacity: 256 GB
Storage
$ 91.89
Western Digital - WD Blue
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 122.02
Corsair - AX760
Wattage: 760
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 477.99
IN-WIN - D-Frame Mini Black
Type: Mini-Tower
Side Panel: Tempered Glass
Case Fan
$ 27.77
Corsair - ML120 PRO LED White 120mm PWM Premium Magnetic Levitation
Size: 120 mm
Case Fan
$ 32.95
Noctua - NF-A12x25 FLX
Size: 120 mm
Case Fan
$ 120.00
SilverStone Technology - SST-AP181 (4x)
Size: 180 mm
Cooling
$ 77.45
Alphacool - NexXxoS Monsta
Type: Custom Loop
Size (WxHxD): 120 mm
Cooling
$ 150.00
Bitspower - Pump
Type: Custom Loop
Cooling
$ 125.00
EKWB - EK-Supremacy EVO RED Edition
Type: CPU Waterblock
Cooling
$ 200.00
Watercool - MO-RA3 360 LT (Black)
Type: Custom Loop
Estimated total value of this build:
$ 2,835.79
