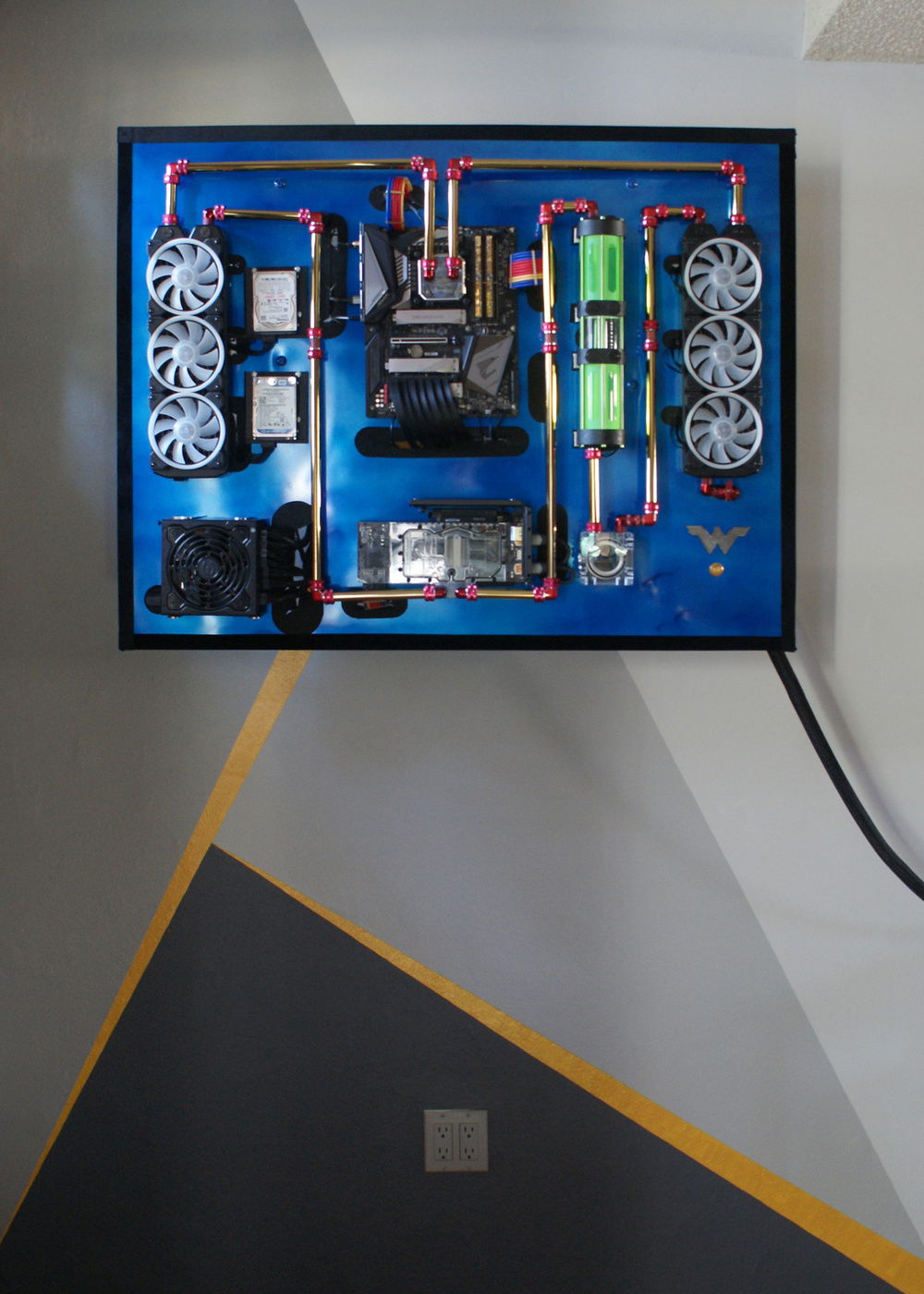

Wonder Woman Wall-Mount

I built this for a close friend of mine. After seeing my Iron Man build, she asked if I'd be willing to build a new rig for her. This is the result.
She's a Wonder Woman fan and wanted a color scheme similar to the WW84 poster (blue, gold, red, green).

This is my first try at a wall-mount build.

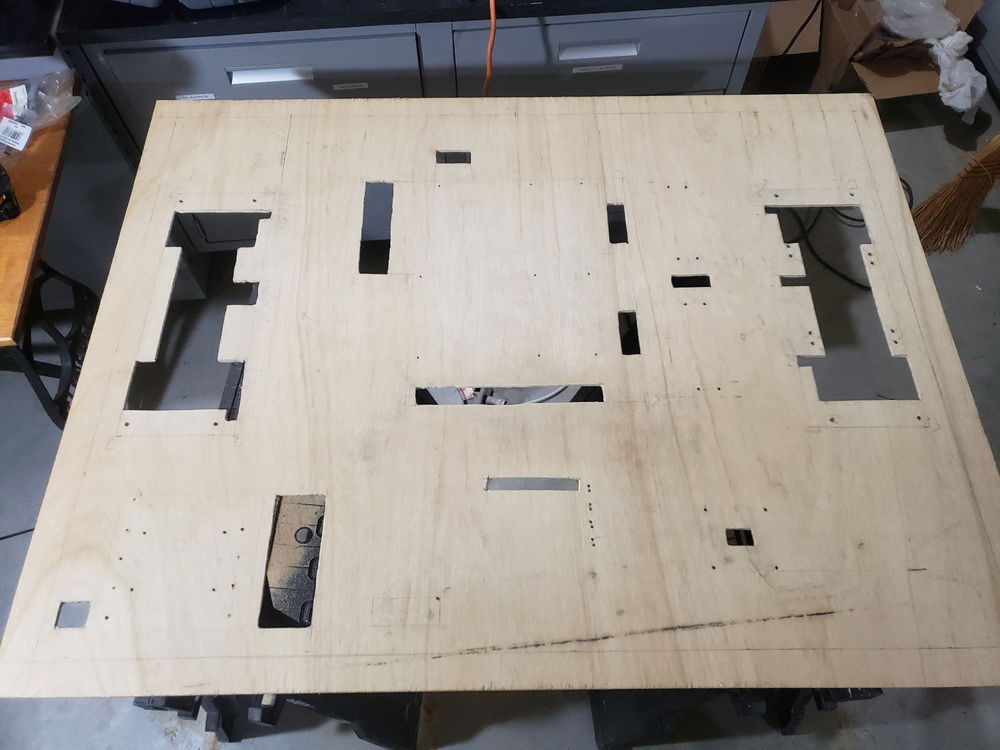

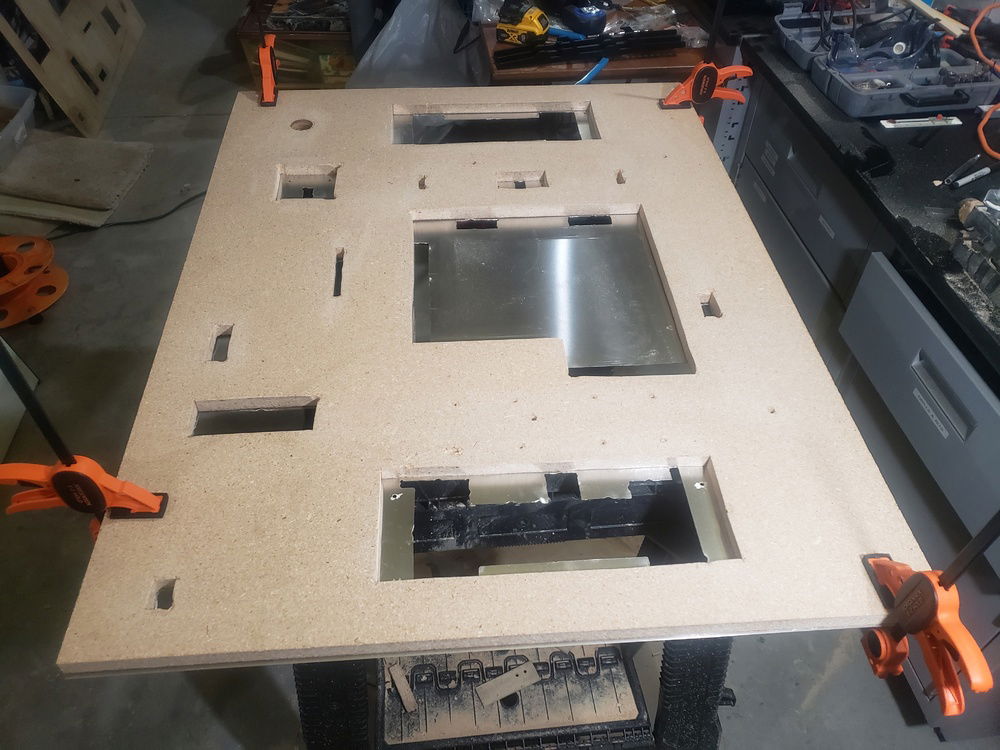

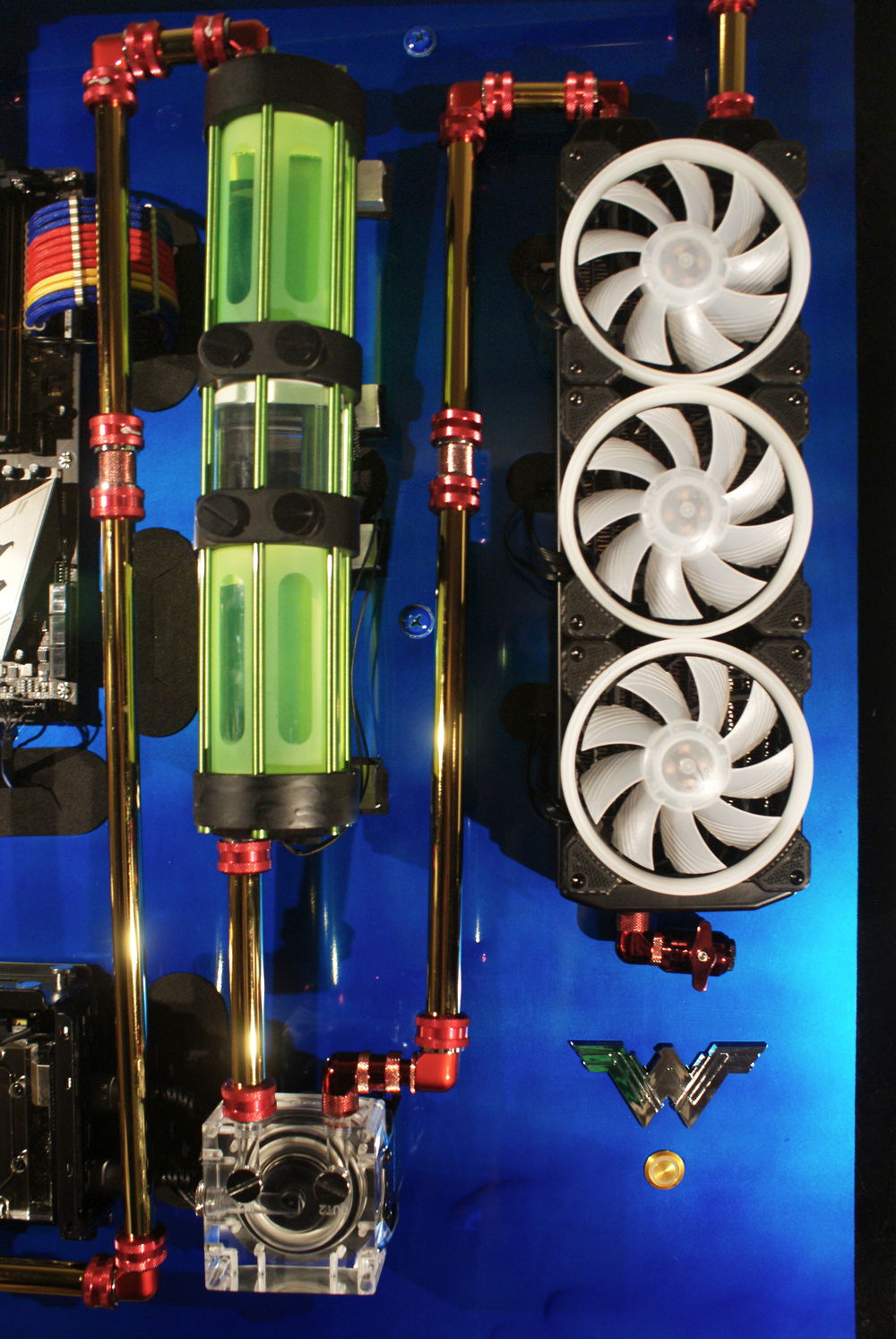

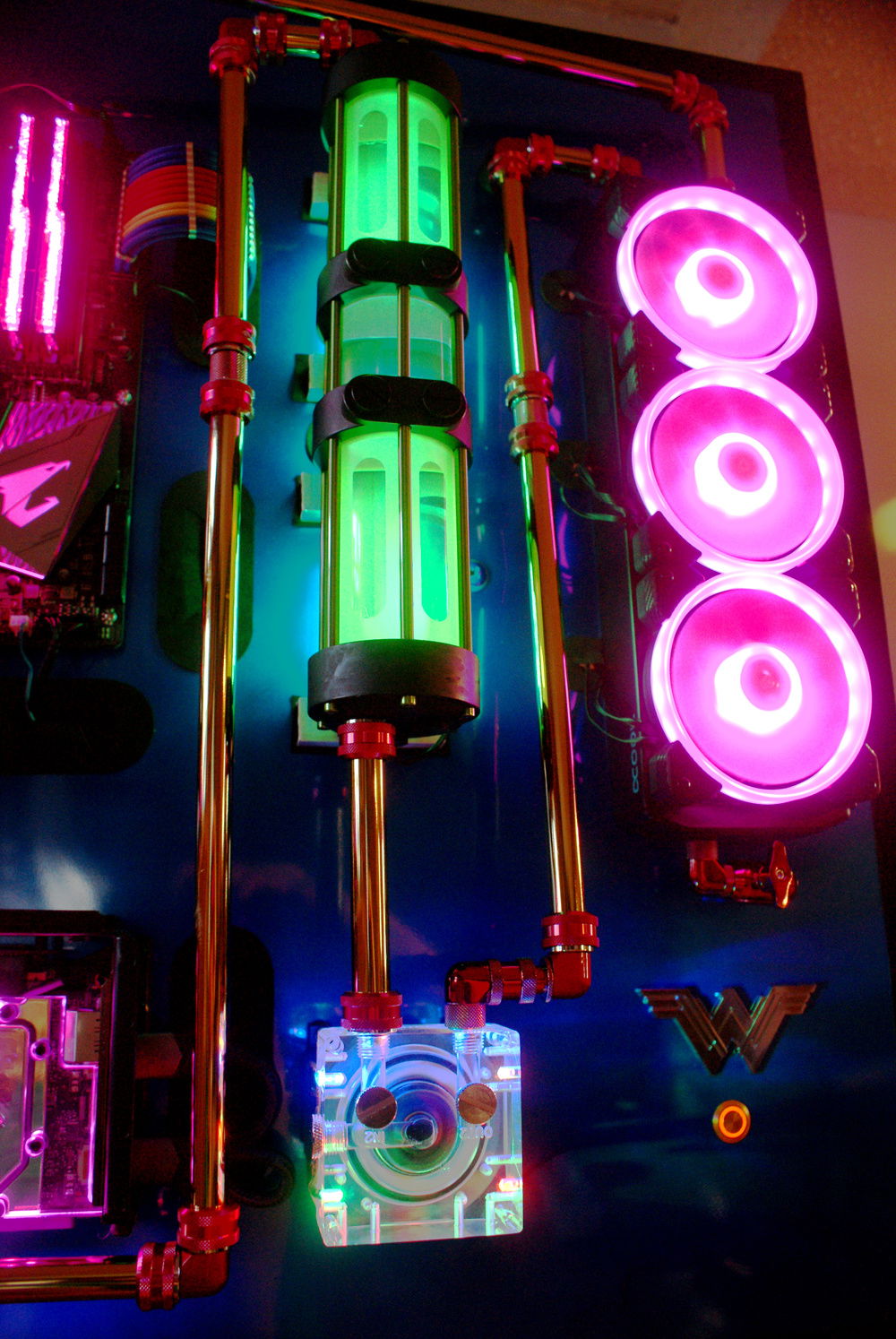

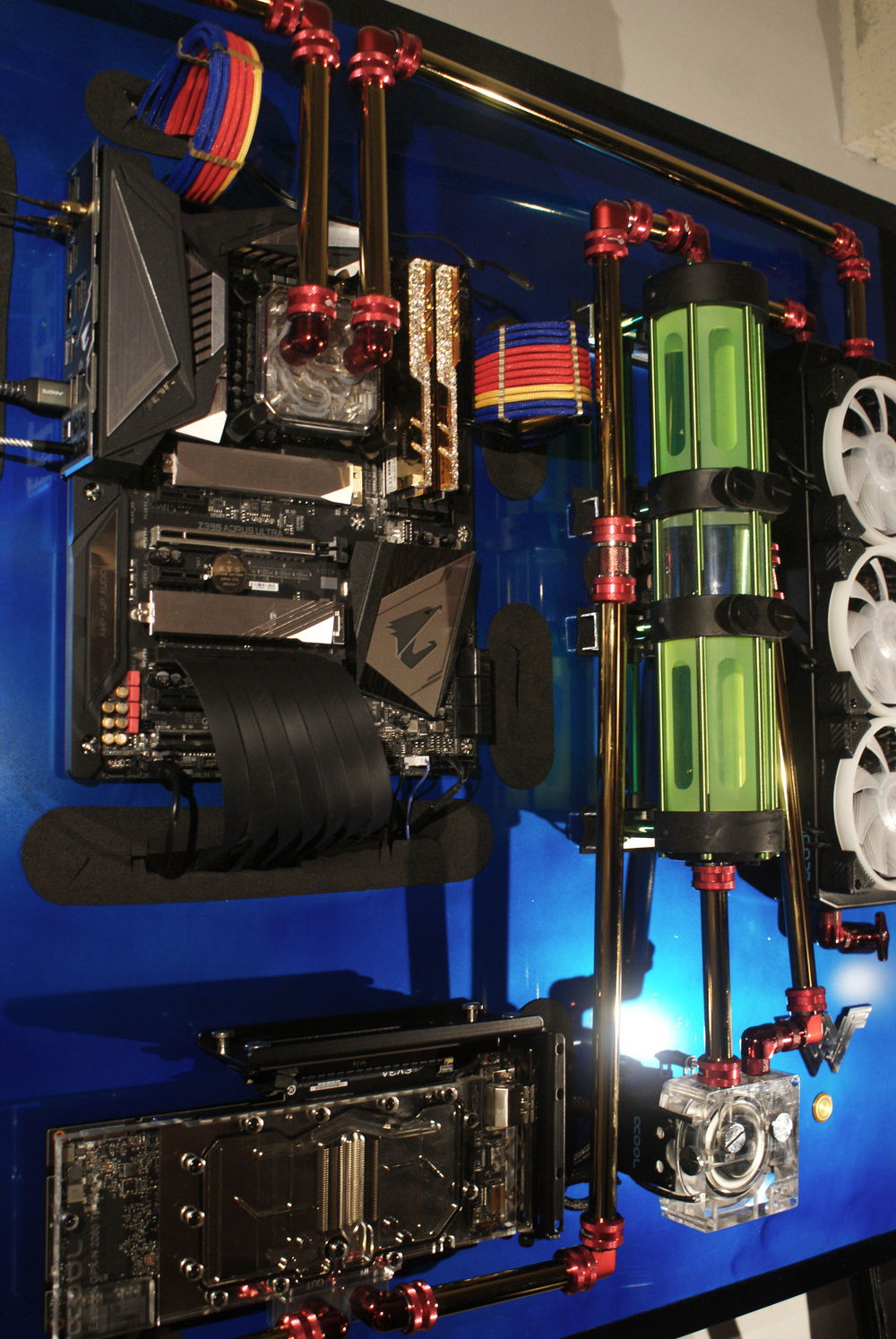

It's an aluminum sheet over MDF. The aluminum has blue metal-flake paint sprayed over it. I had both the aluminum and MDF cut to size then I cut out all the access holes myself. I hand-made the grommets from felt (but I wish I had used rubber sheets instead). I fabricated a couple of the braces, etc.
I used a VESA TV mount and bolted the supports directly to the back of the frame.

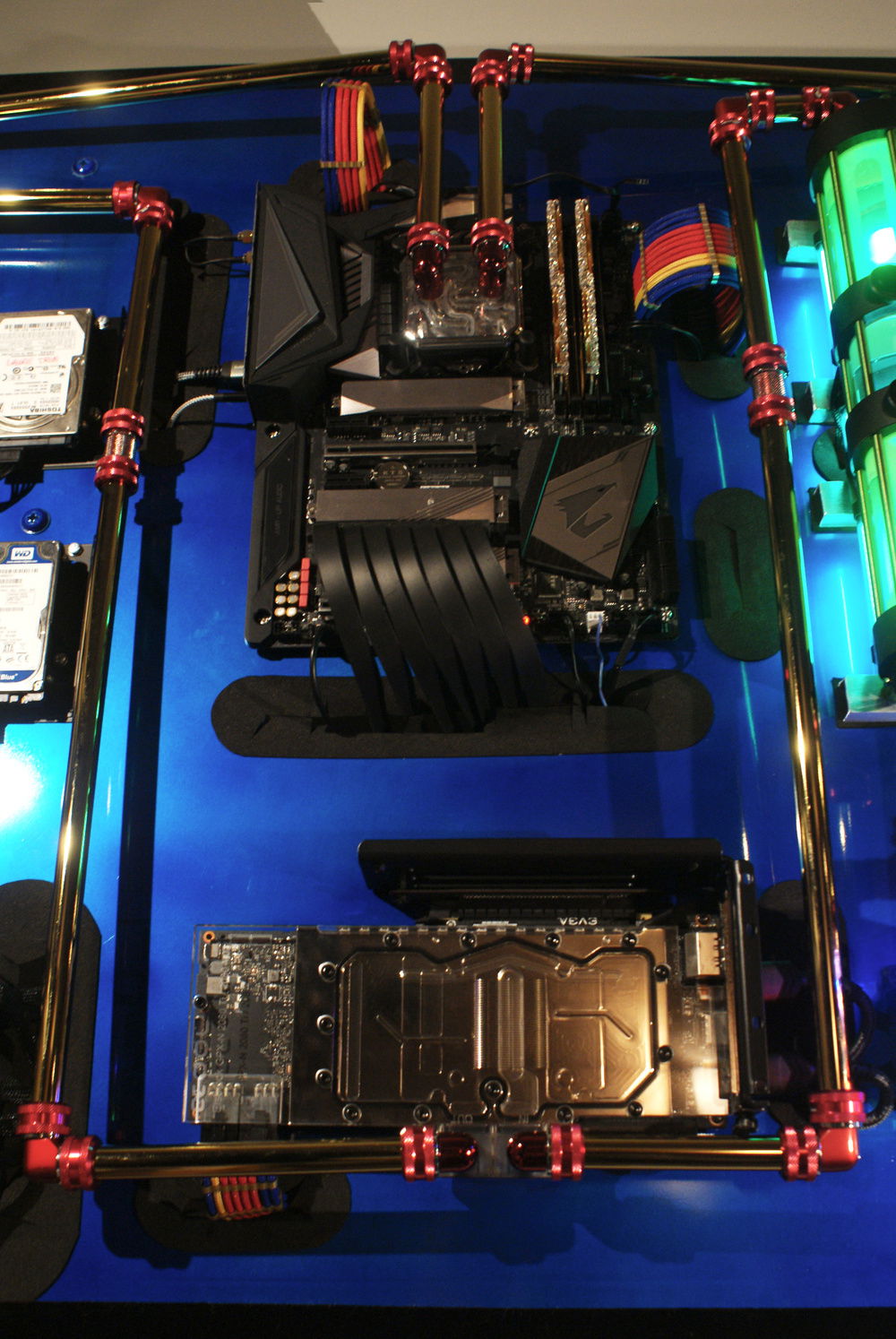

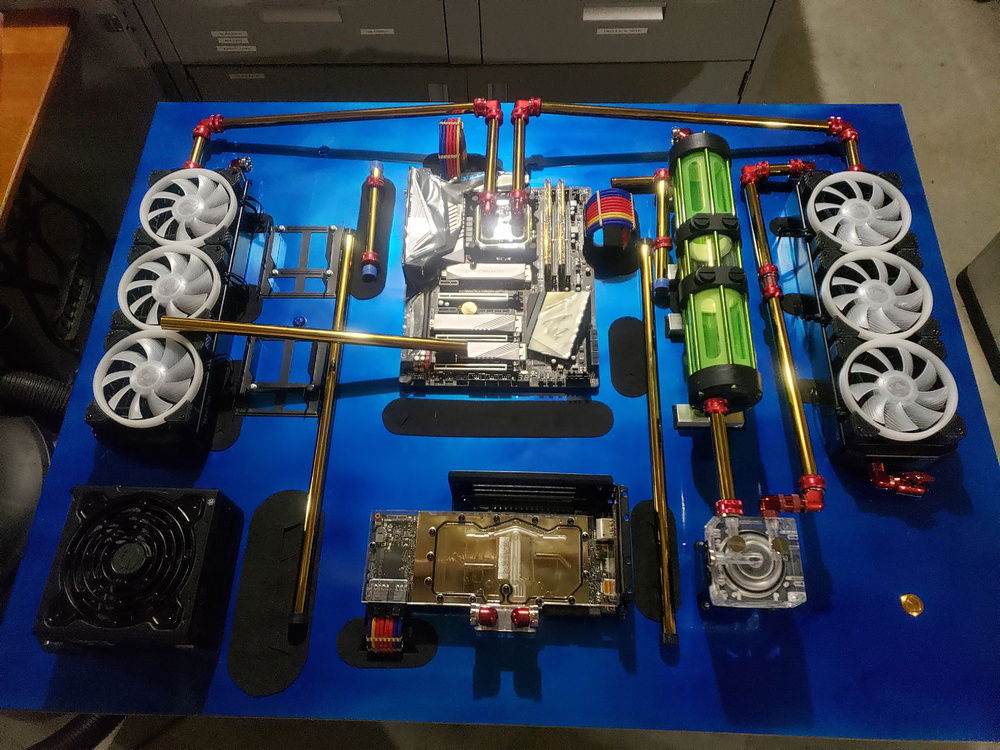

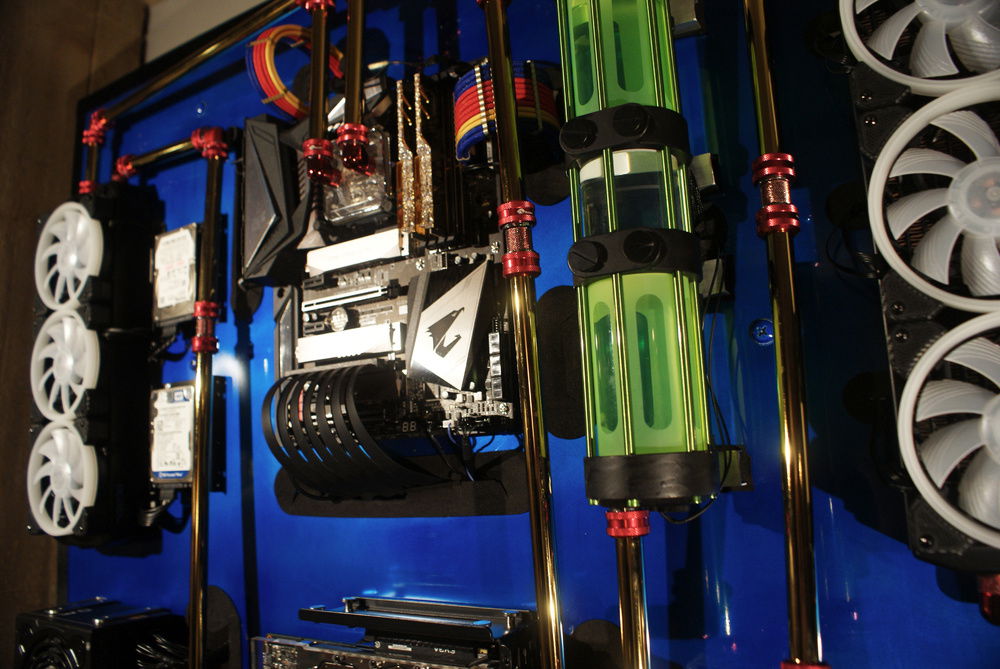

I was going for parallel tubing, but the GPU tubes sag more than I like, so I'll be fixing that at some point.

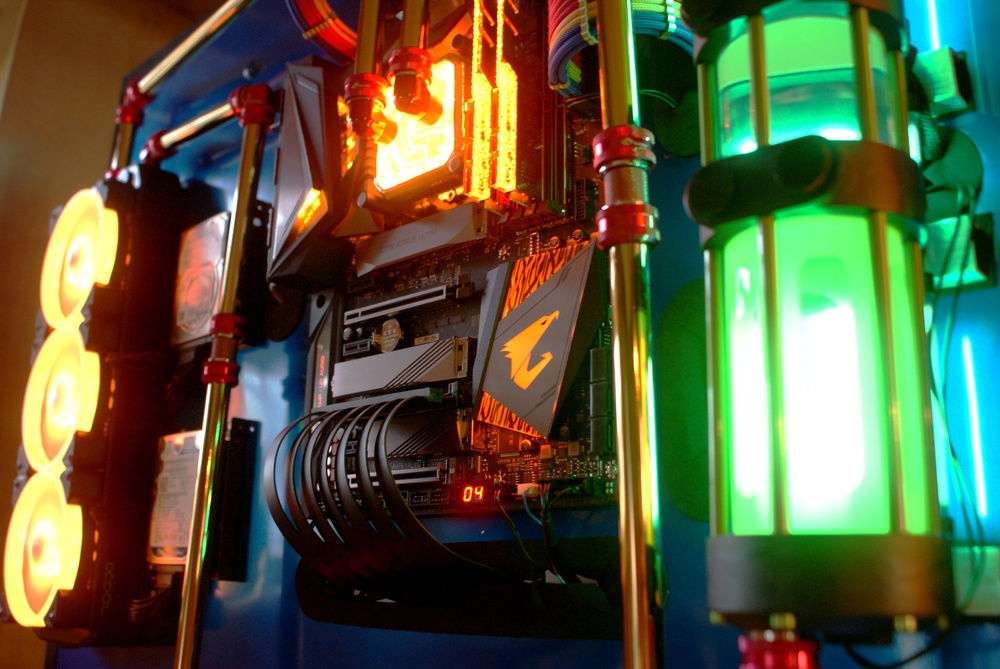

I hand-made the CPU, MB, and GPU cables from scratch, again, with Teleios sleeving.

I absolutely loved building this machine. It took 3 times as long as my last build, but it was so much more satisfying/fun. I can't wait to do another Emoji
Color(s): Blue Gold Green Red
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: Comics
Size: ATX
Type: General Build

Contests

This build participated in 2 contests.

Hardware

CPU
$ 326.21
Intel - Core i9-9900K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 626.99
Gigabyte - Aorus Ultra
Chipset: Z390
CPU Socket: LGA 1151
Size: ATX
Memory
$ 371.19
G.Skill - Trident Z Royal (4000MHz) (Gold)
Type: DDR4
Capacity: 32 GB
Graphics
$ 1,189.99
EVGA - GeForce Black Gaming
Chip Manufacturer: NVIDIA
Chip: RTX 2080 SUPER
Interface: PCIe x16
Storage
$ 319.98
Samsung - 970 PRO (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
PSU
$ 199.98
EVGA - SuperNOVA 750 G3
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Gold
Case
Custom - Custom (custom)
Cooling
$ 55.69
Cooling
$ 156.69
Alphacool - Eisdecke D5
Type: Pump
Cooling
$ 299.98
Alphacool - NexXxoS XT45 Full Copper (2x)
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
Bitspower - Tubing
Type: Custom Loop
Cooling
Bykski - Fittings
Type: Fittings
Cooling
Monsoon - MMRS Reservoir
Type: Custom Loop
Unable to dertermine total build value (missing part value)
