Boostl33k
Jason B Singer
  • App Happy
Member since
Tech Support Lead
Midvale, United States
Build Views
709
Build Approvals
15
Fistbumps
74
Followers
4
Posts
118

Best Build

Untitled Build

I was not planning on finishing this build until later in the year but with a LOT of free time on my hands the last few weeks there was no reason not to start working on the build. All in all I think I am almost 1 year into this build. I started planning it pretty much right after I finished my Too Many 90 Degree Fittings build. The first parts were bought not long after finishing that build.

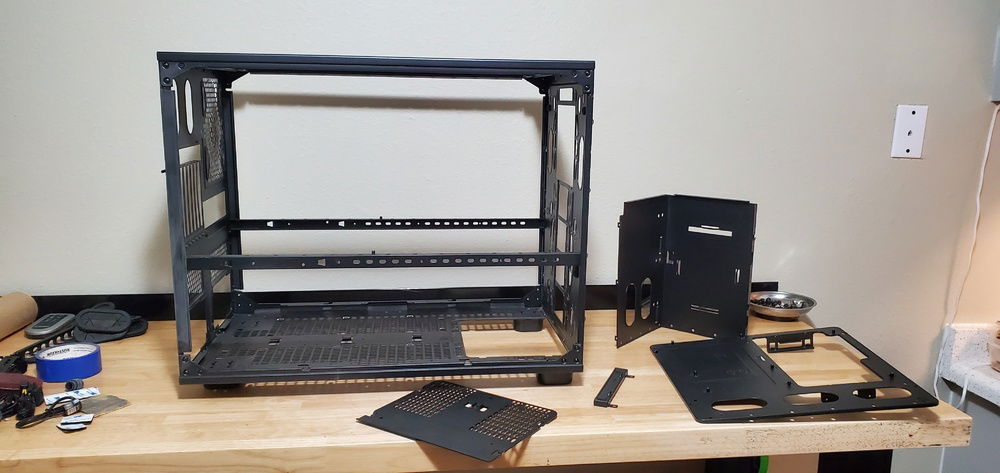

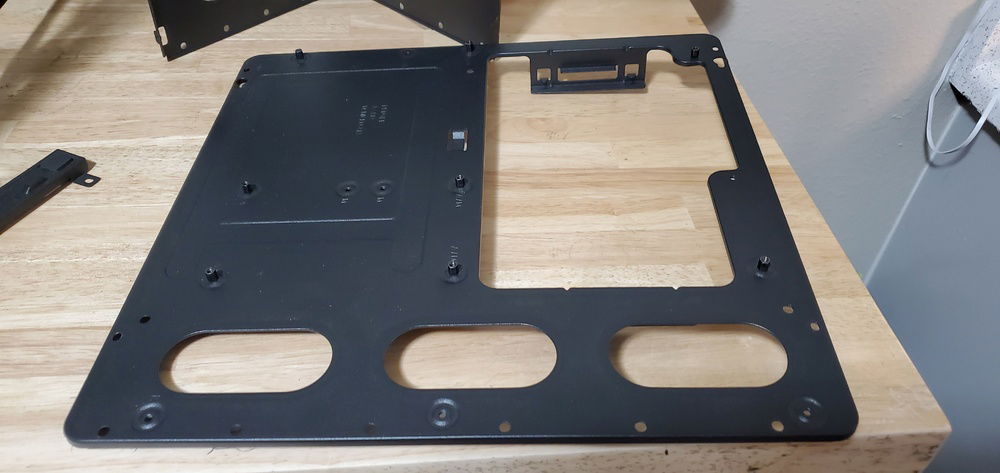

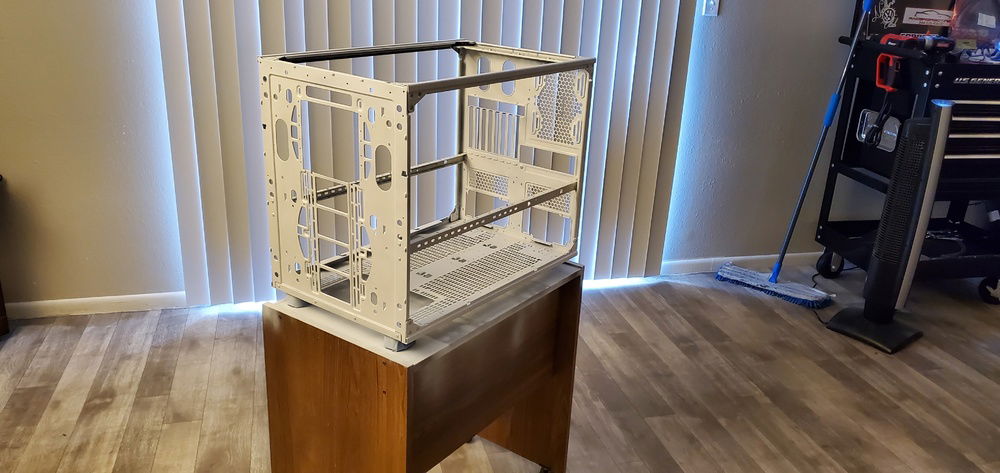

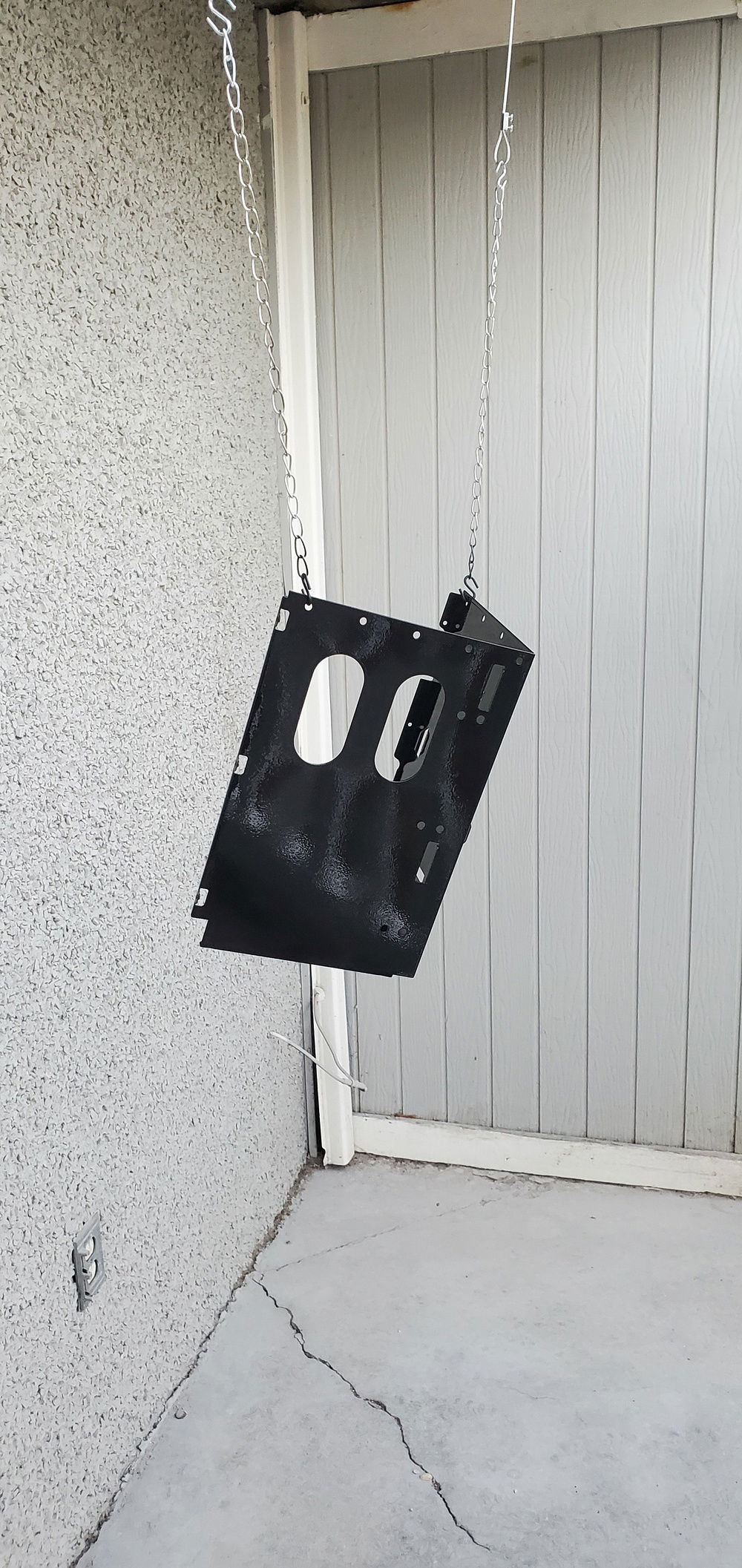

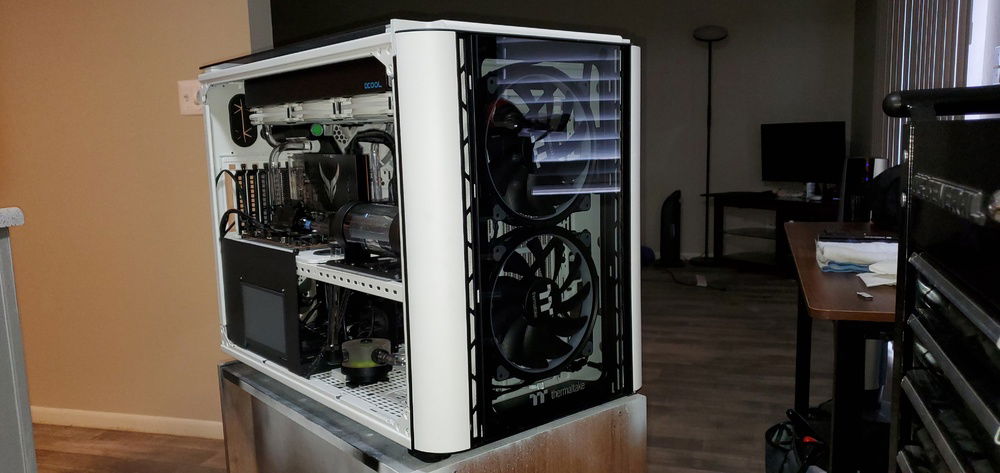

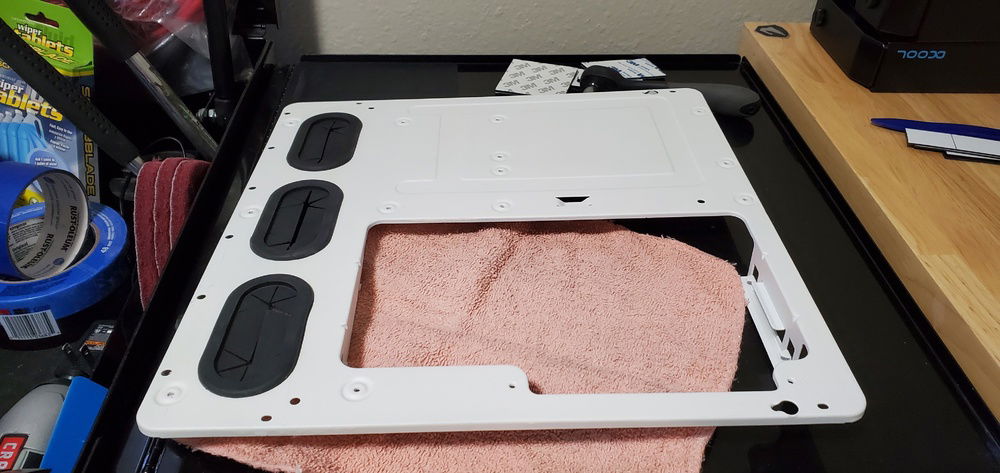

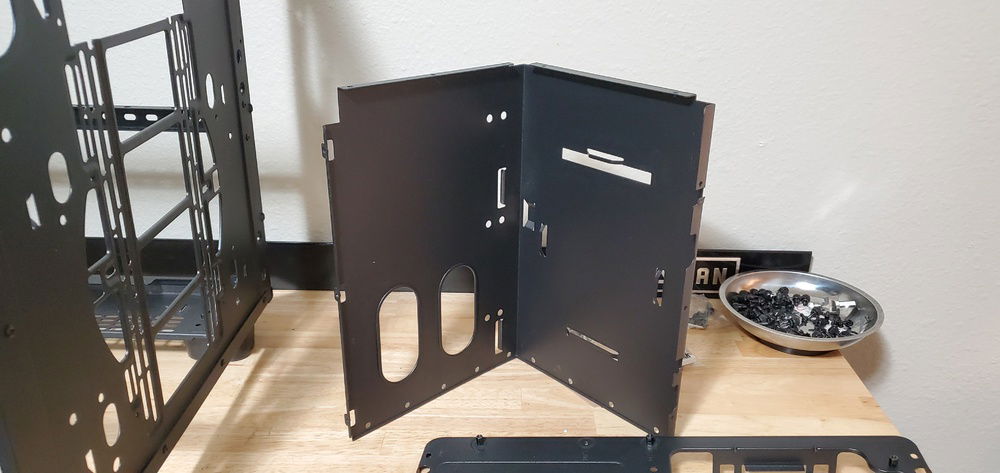

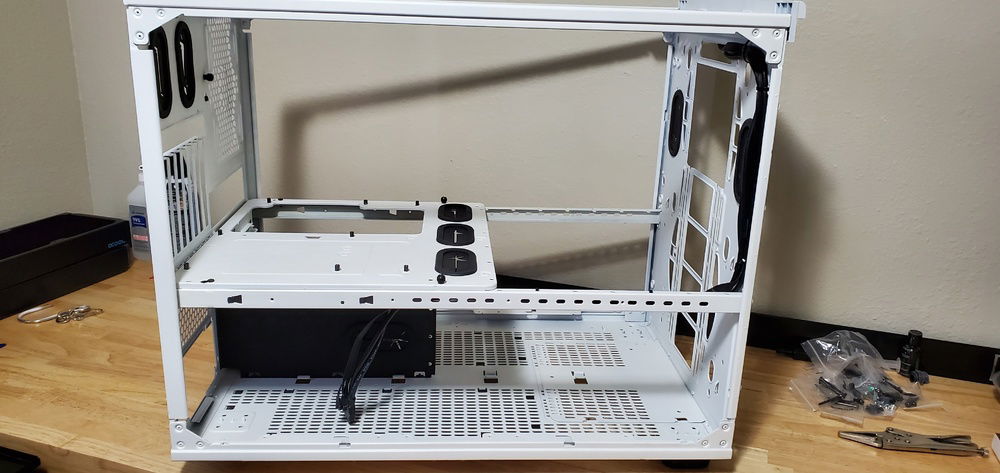

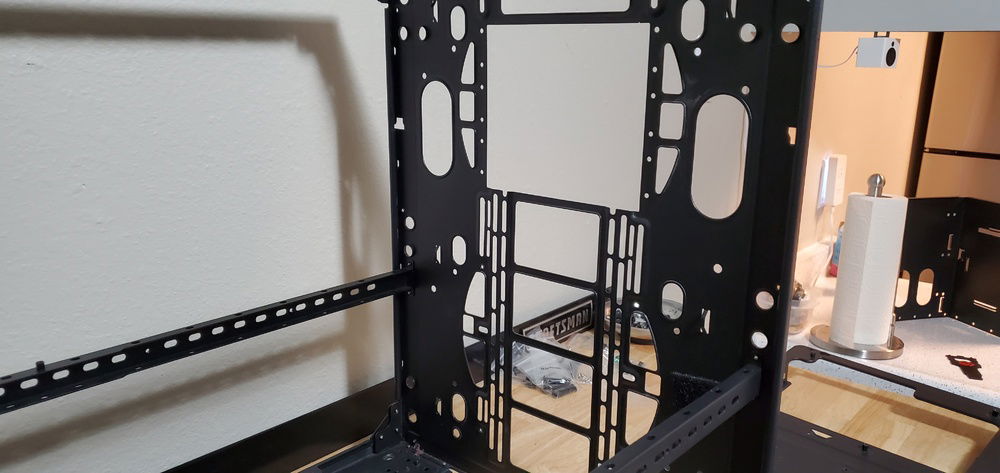

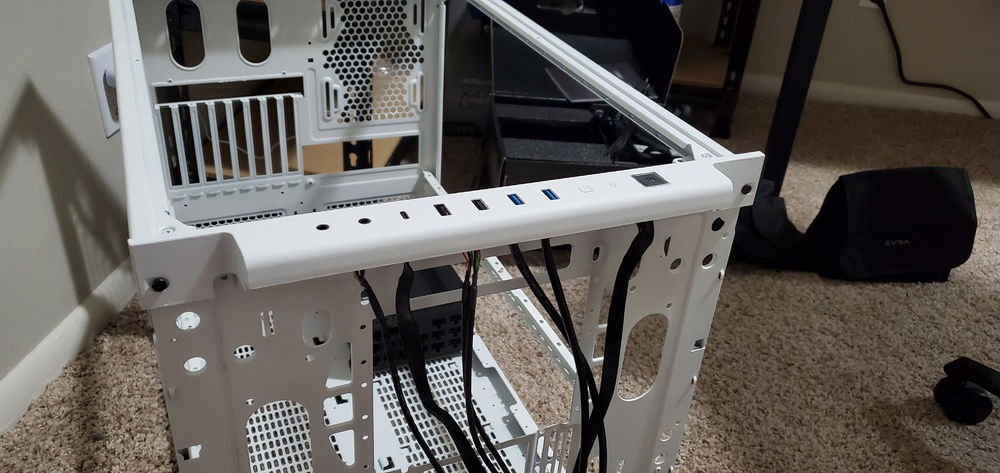

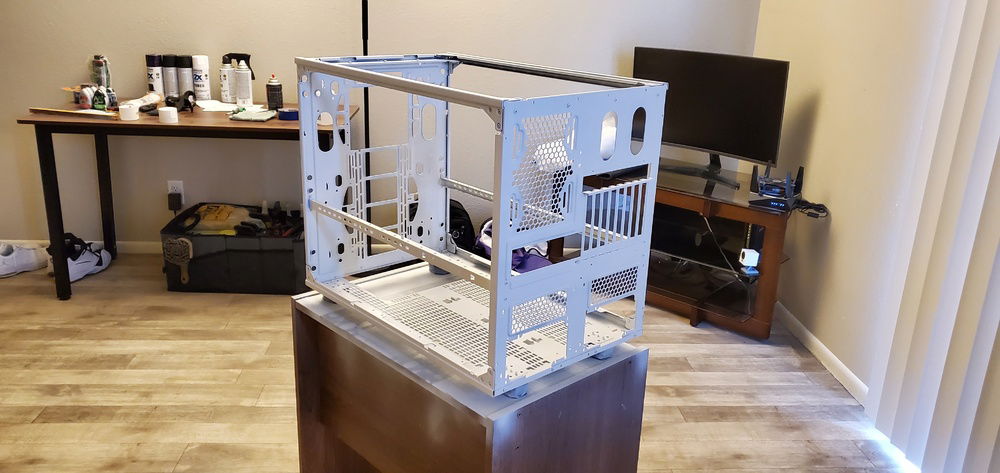

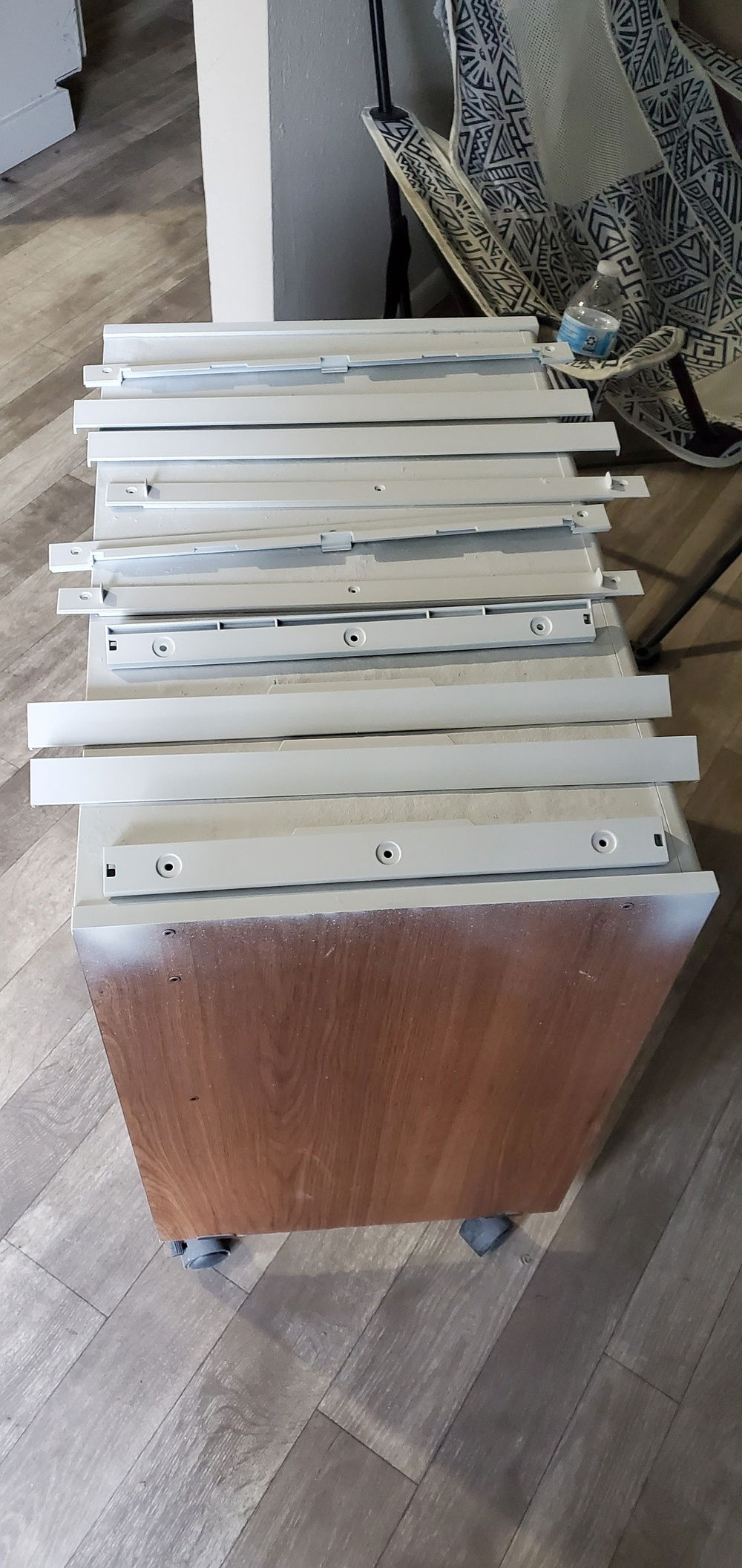

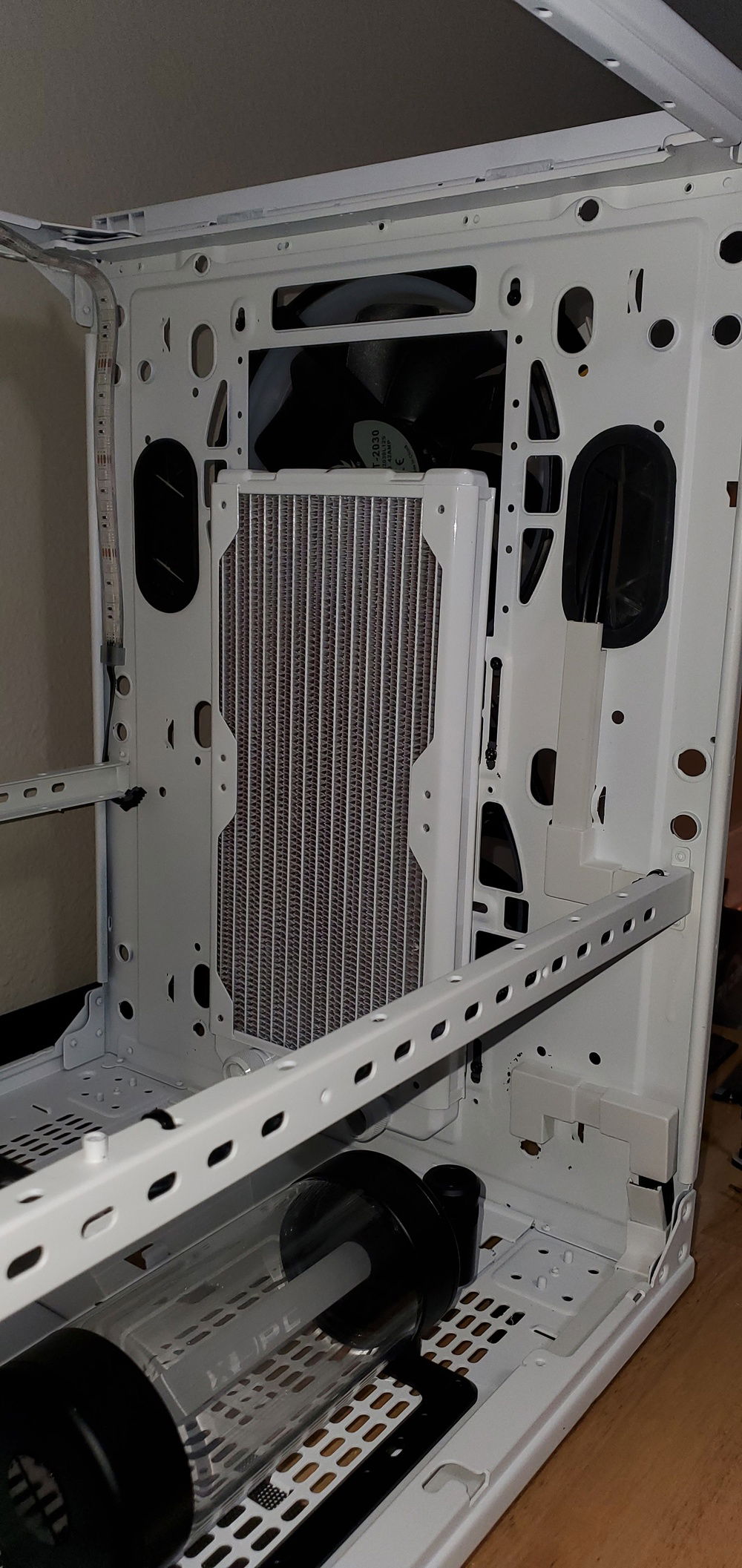

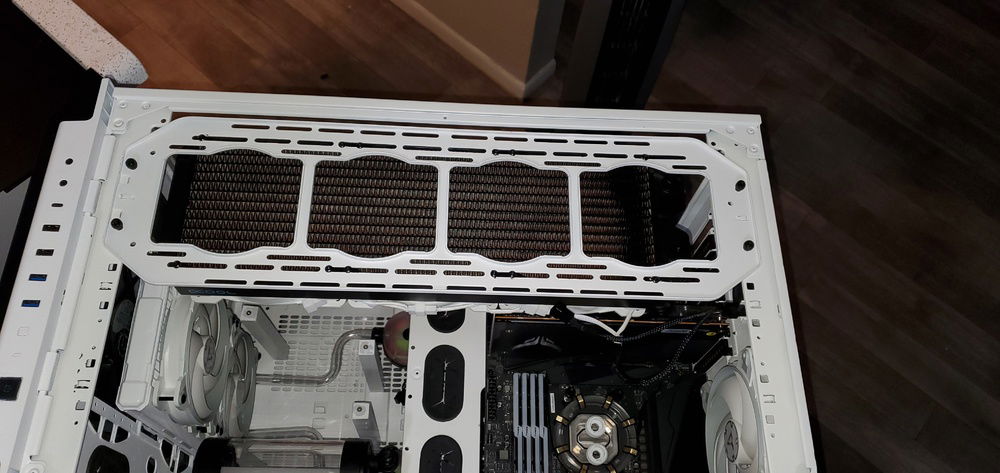

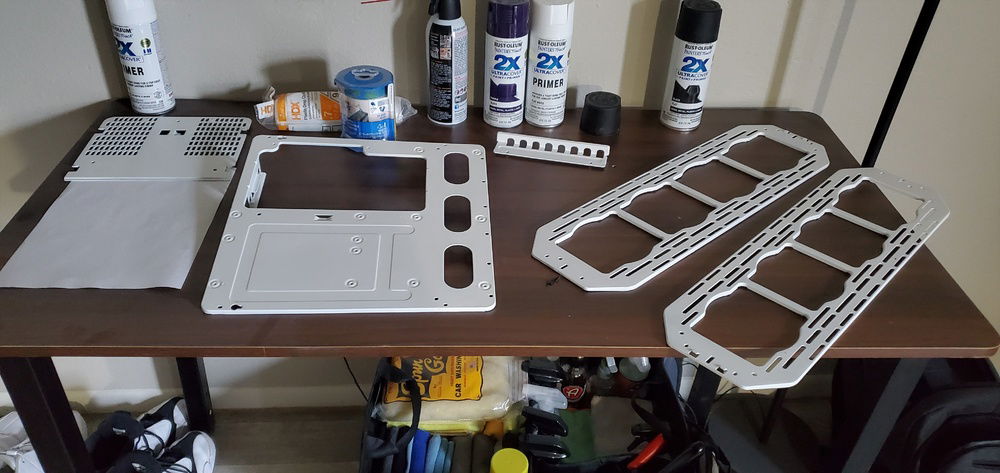

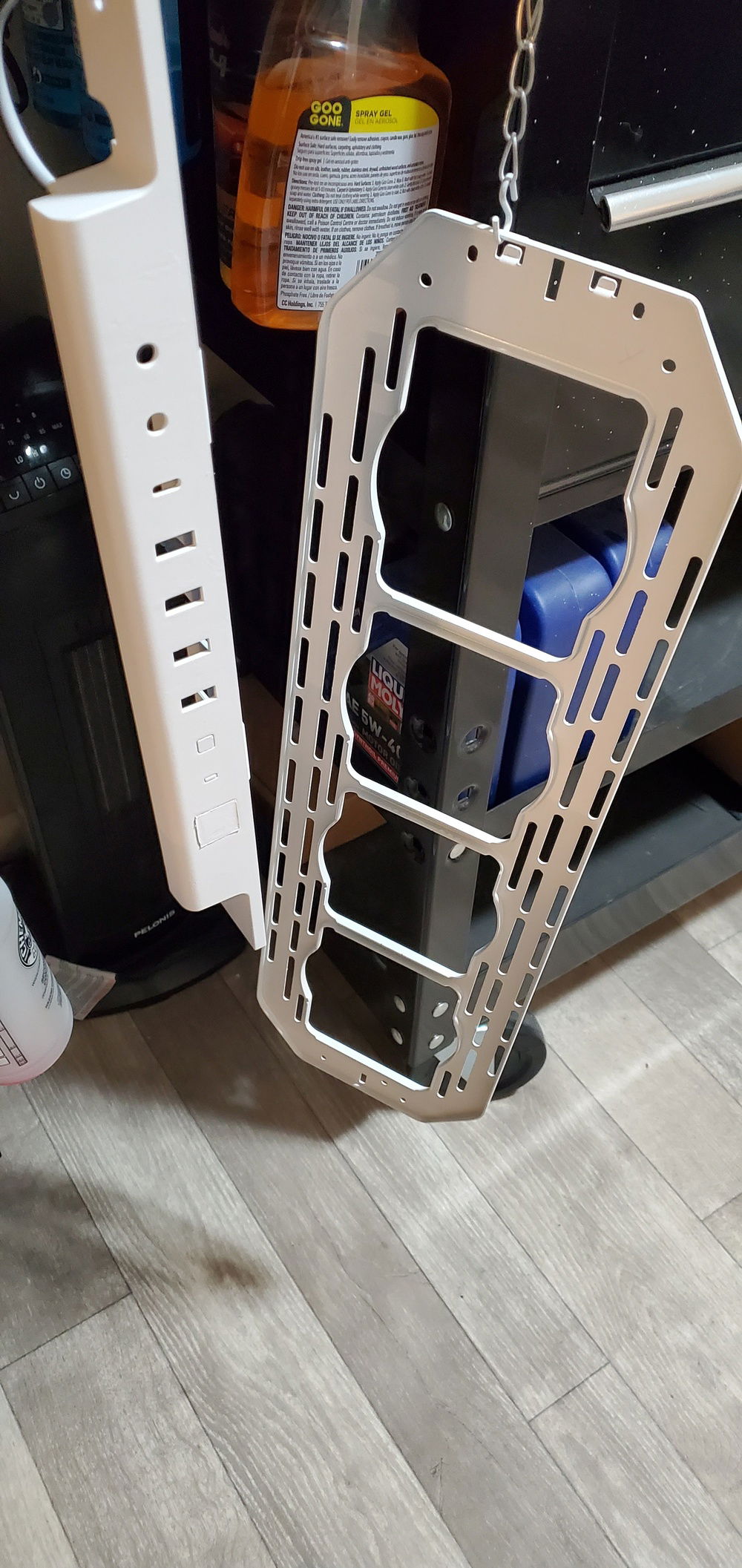

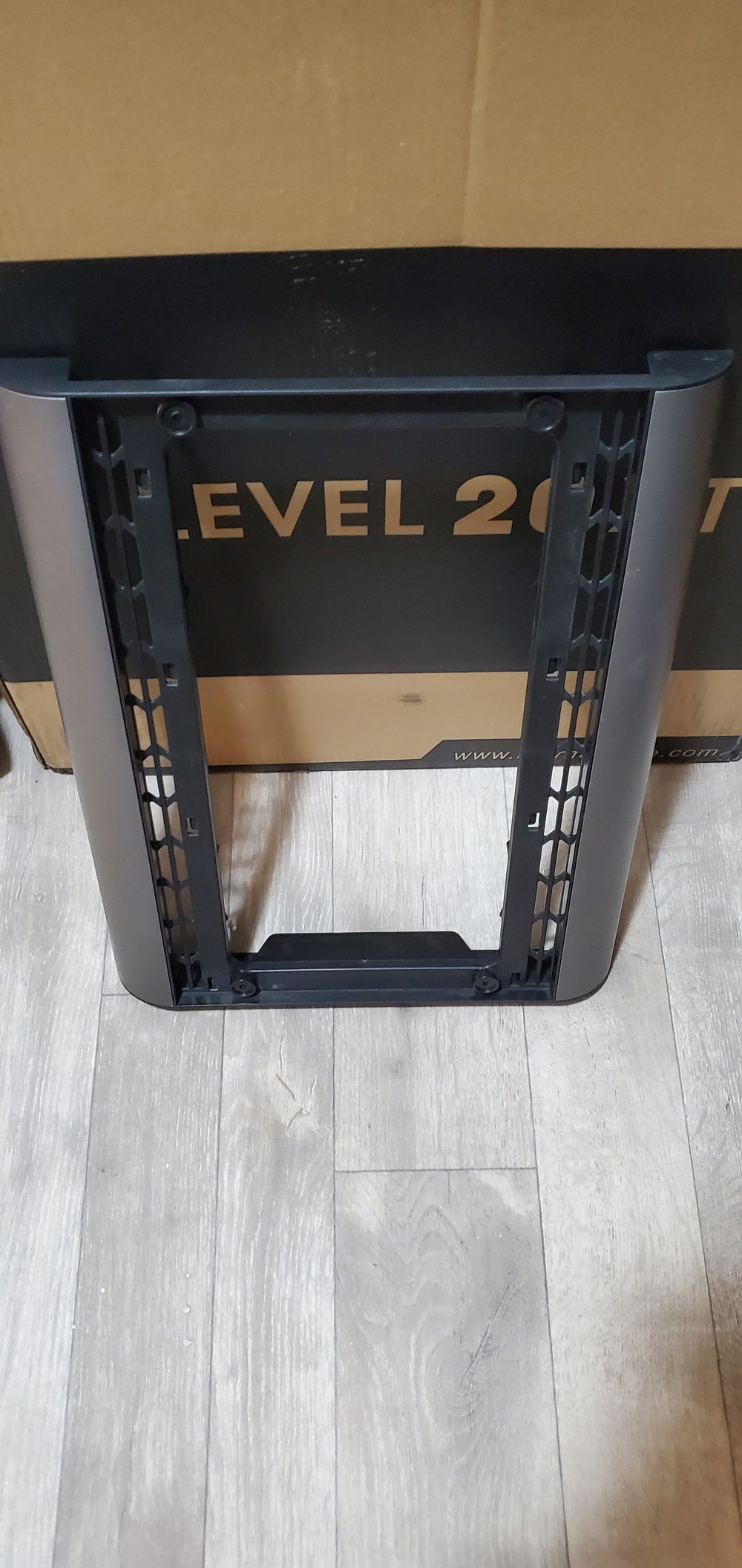

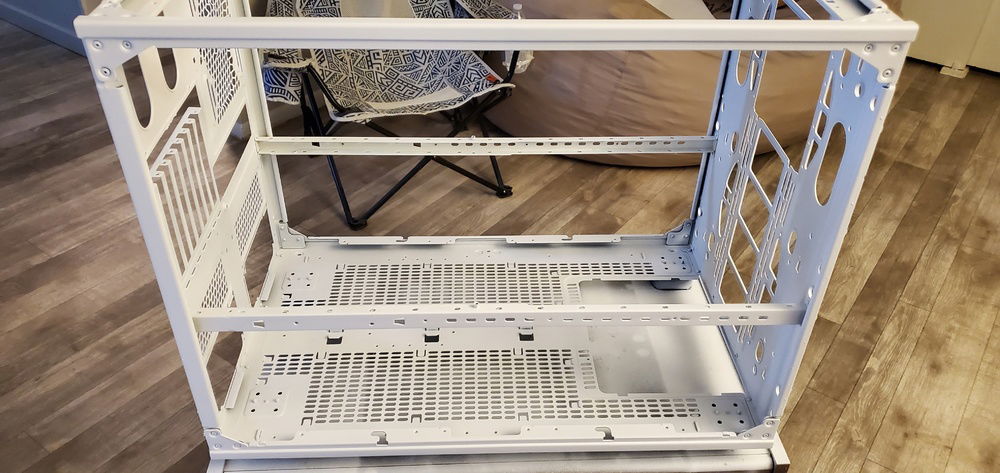

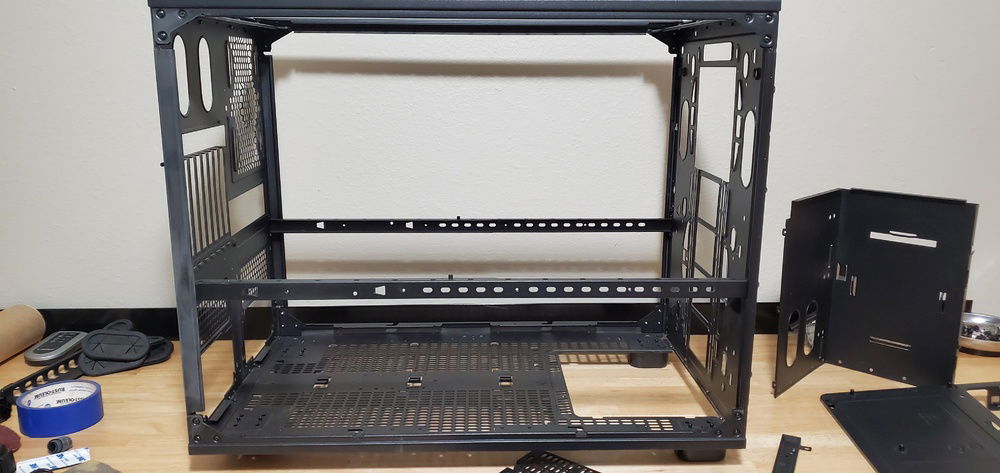

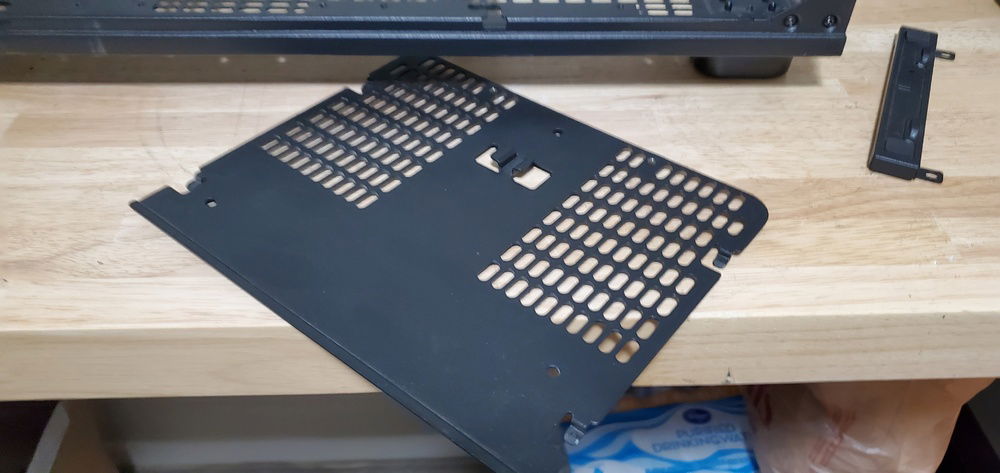

I tossed around a few ideas on what "theme" I wanted to go with on this build. For a while I was going to try my hand at a War Machine build, but I could not find fans or paint that matched good enough to be able to mimic the War Machine colors. I could have gotten close but I did not think I really would have been able to do it justice. So that idea was out. Having a white build was one of those things that was always at the back of my mind. Now was just as good as anytime to make that a reality. But I already has a case I wanted to use. So out came the spray paint. I am glad I decided to do this as a learned a few things for the next time.

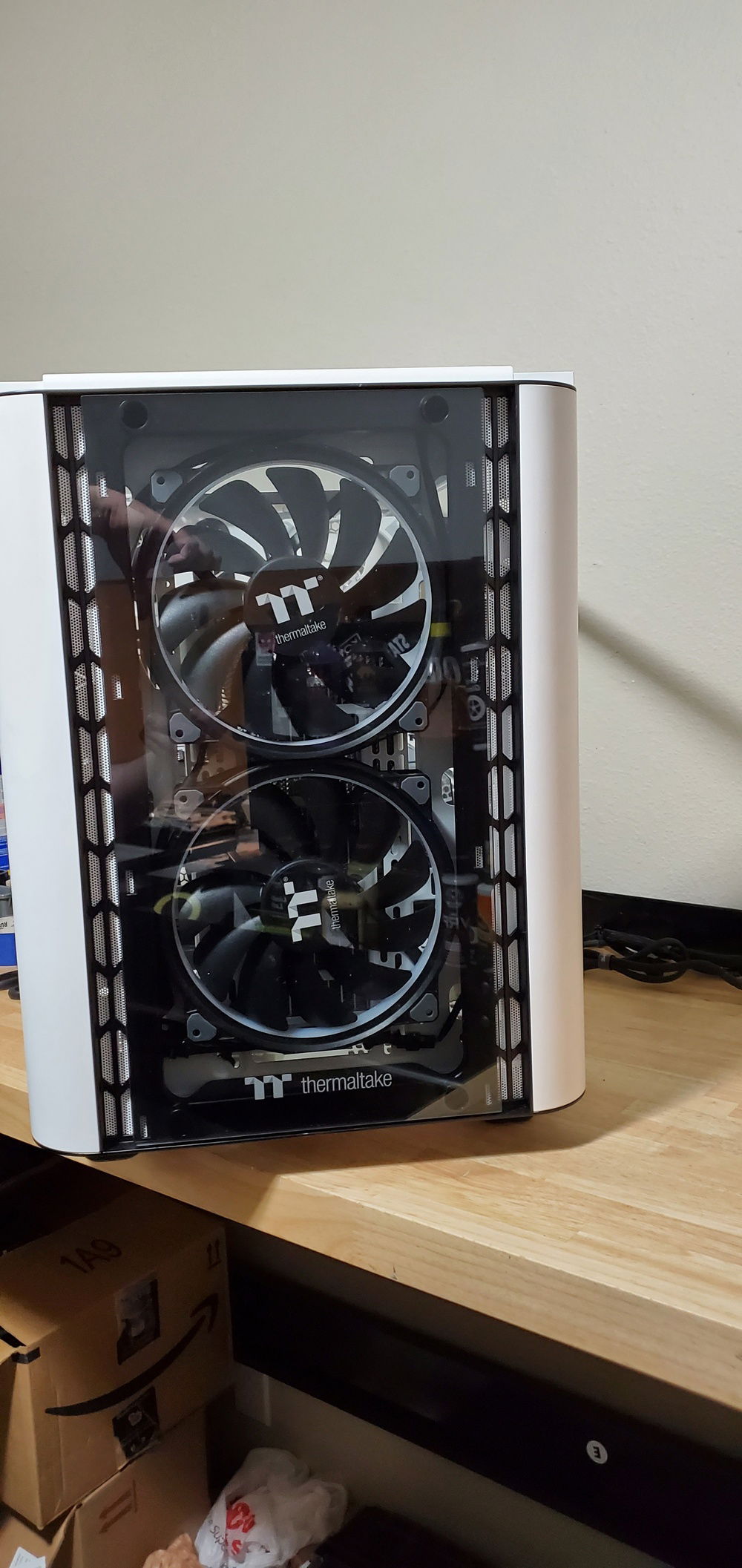

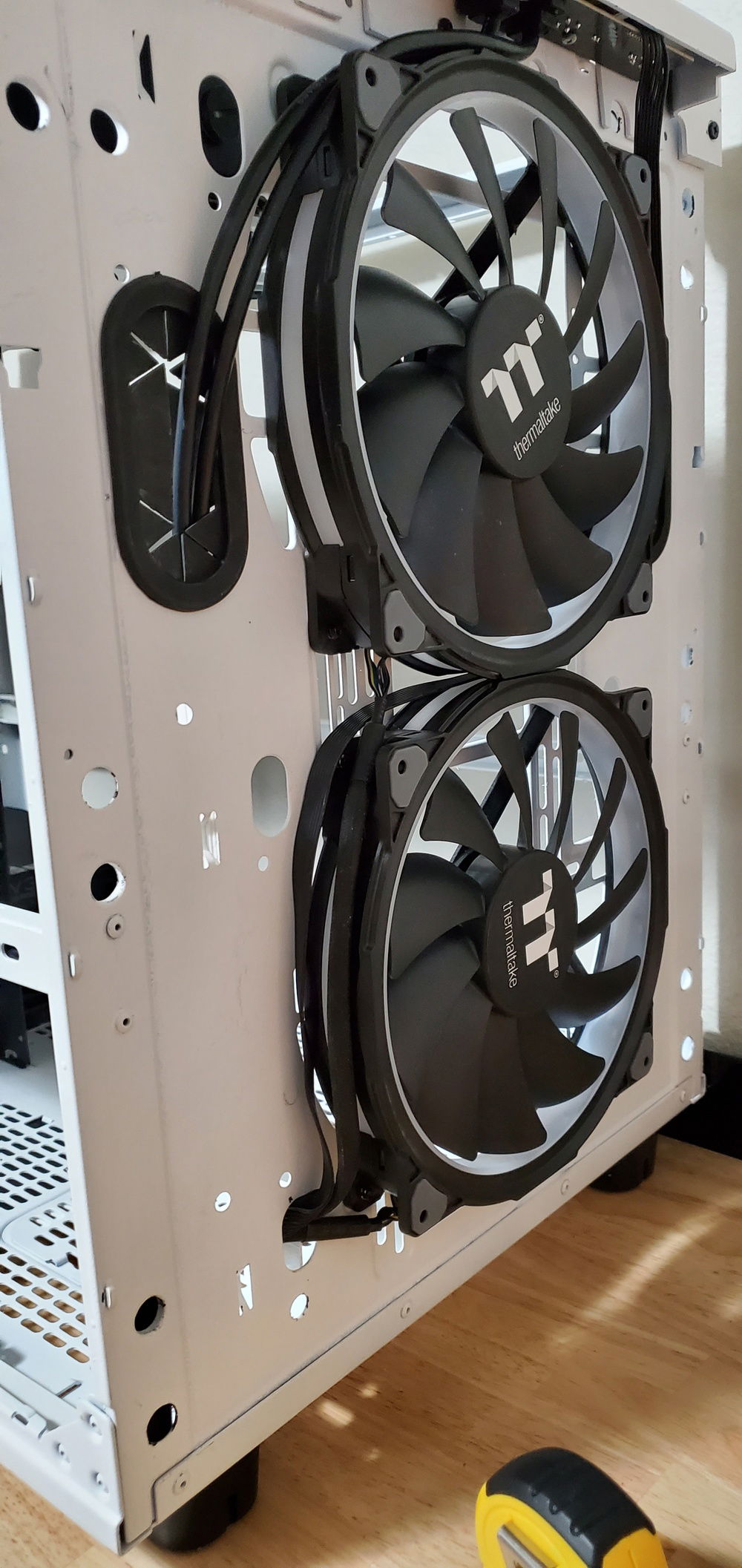

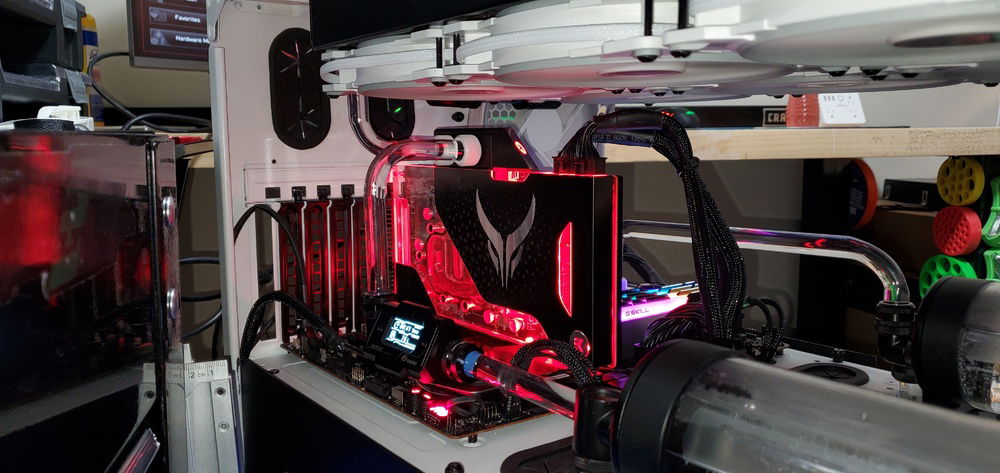

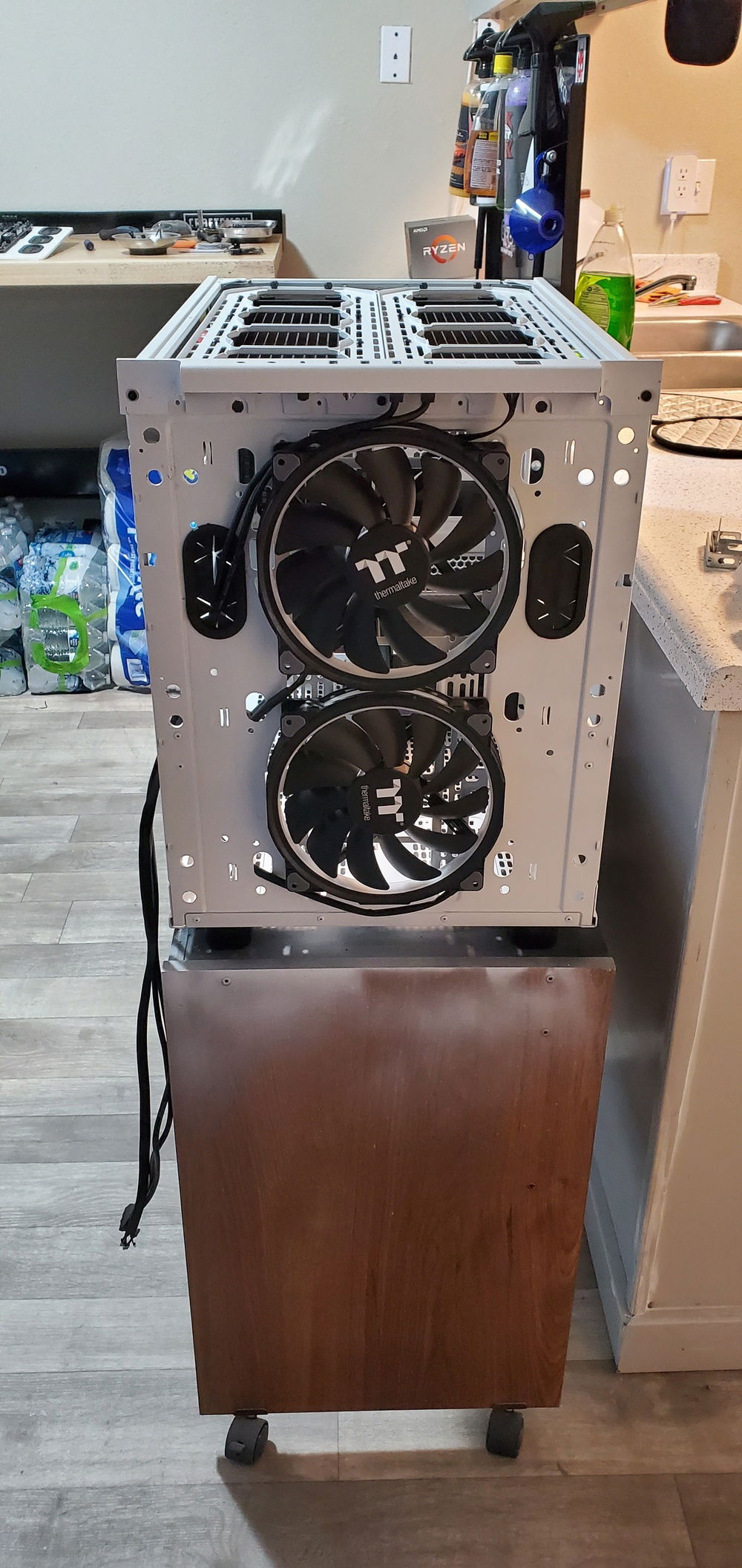

I went for very minimal RGB in this build. The RAM, GPU and the 200mm fans in the front are only RGB right now and right now I will keep it all off, maybe. Plans are to add a couple LED strips to just illuminate the PC a little.

*****Warning Picture Overload*****
Color(s): Black White
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Build Updates

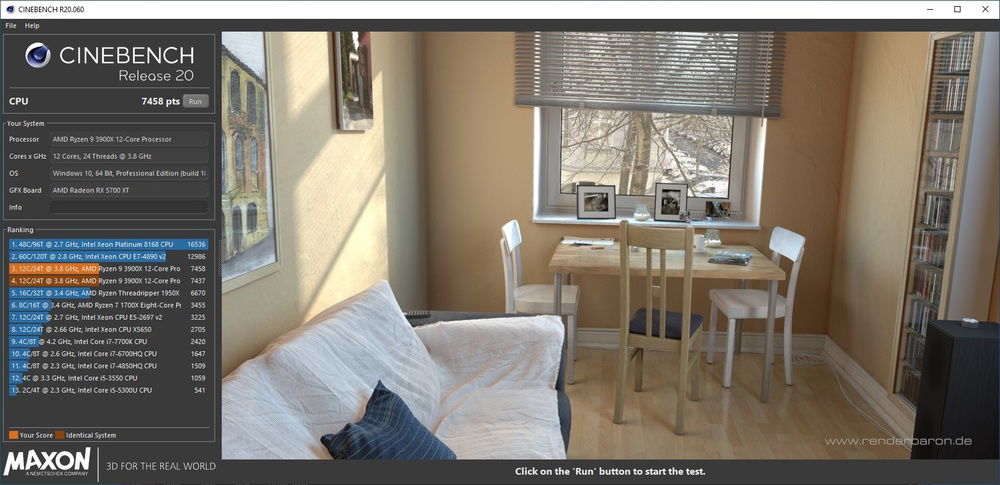

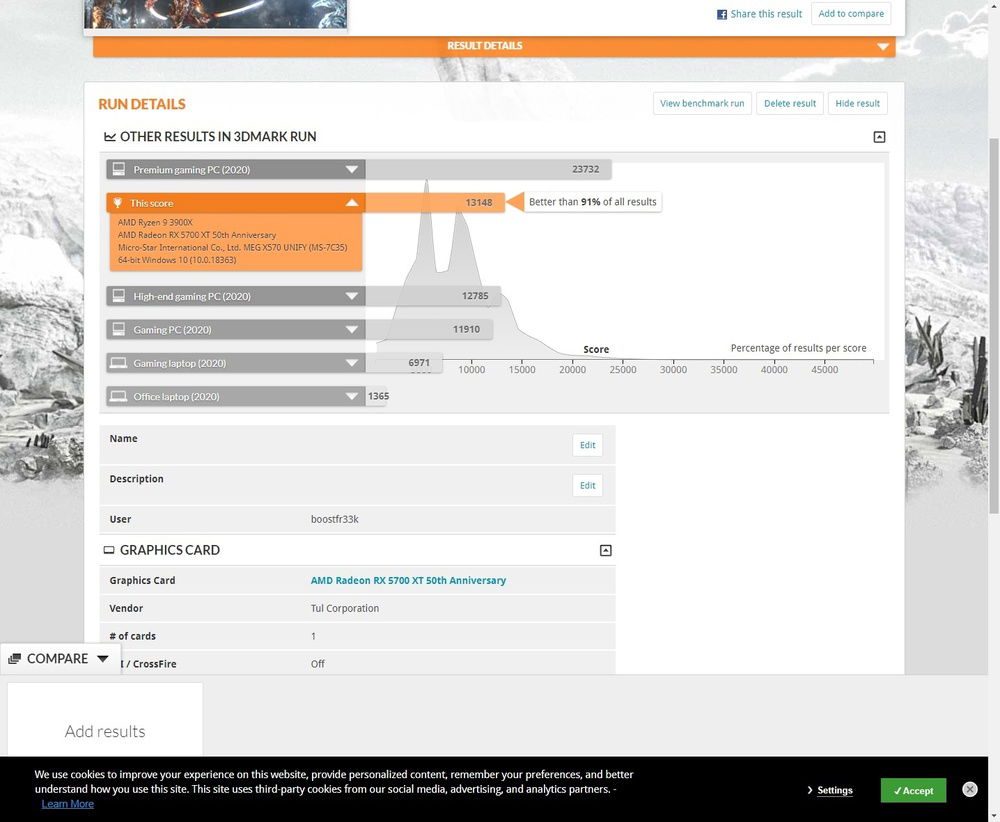

OC and Benchmark results

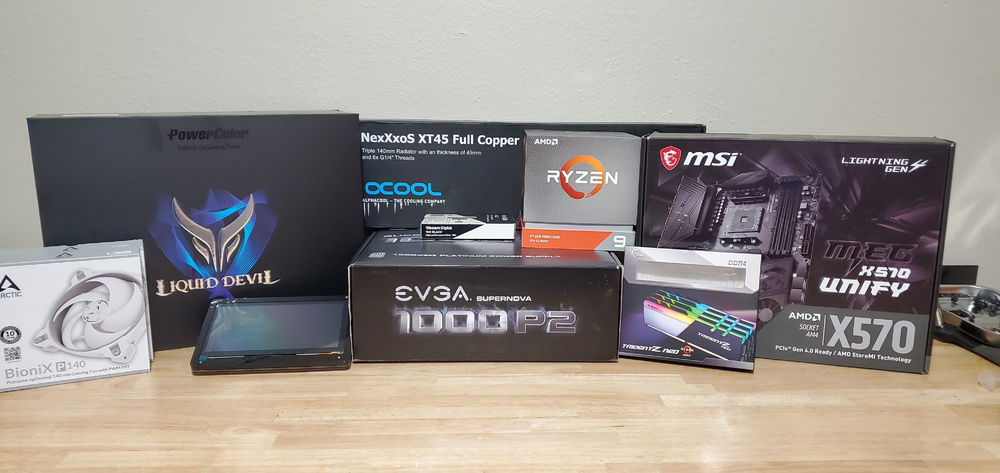

Hardware

CPU
$ 519.00
AMD - Ryzen 9 (3900X)
Socket: AM4
Cores: 12
Motherboard
$ 321.99

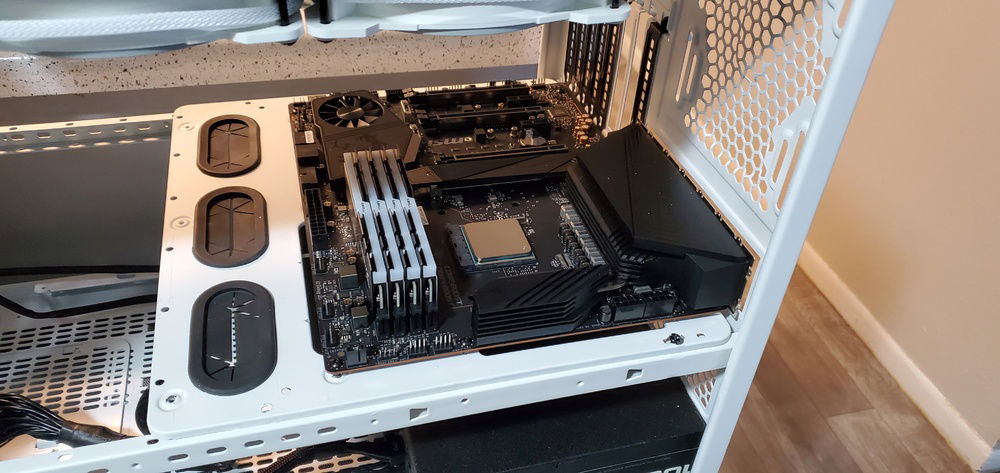

MSI - Meg Unify
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 729.98

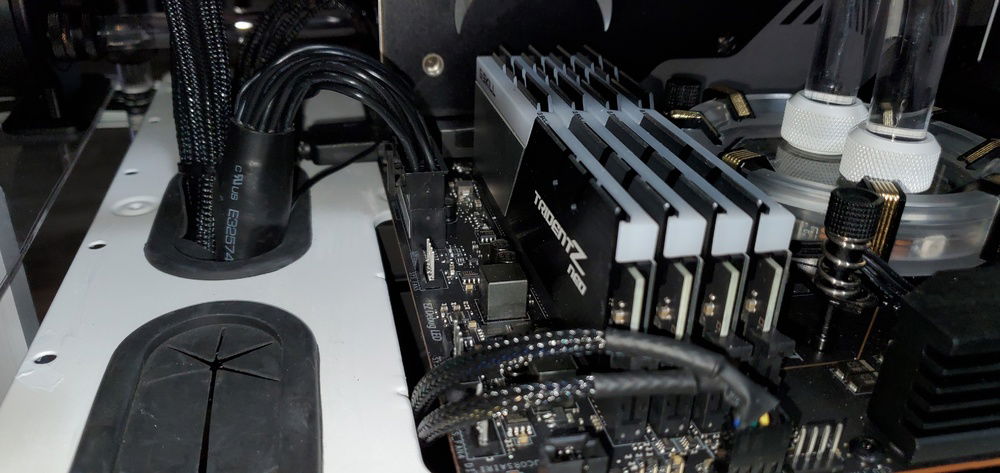

G.Skill - Trident Z Neo (3600MHz) (White/Black/RGB) (2x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 1,079.00

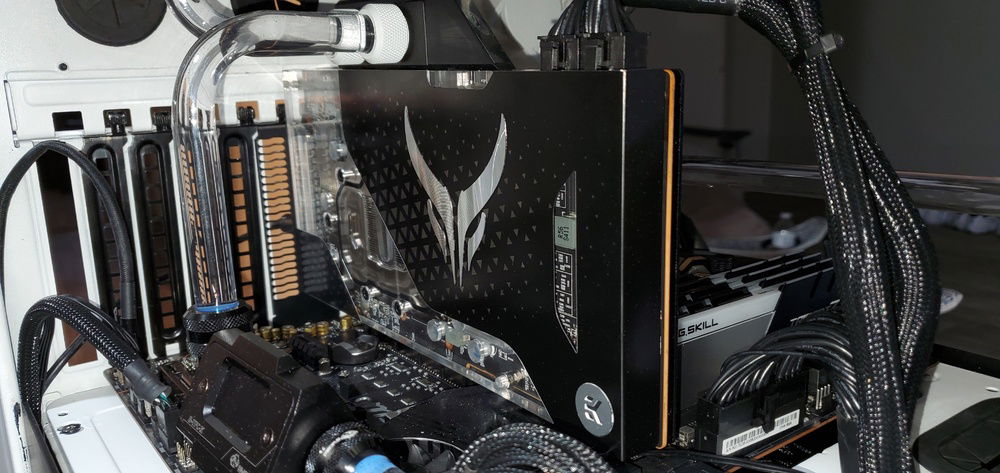

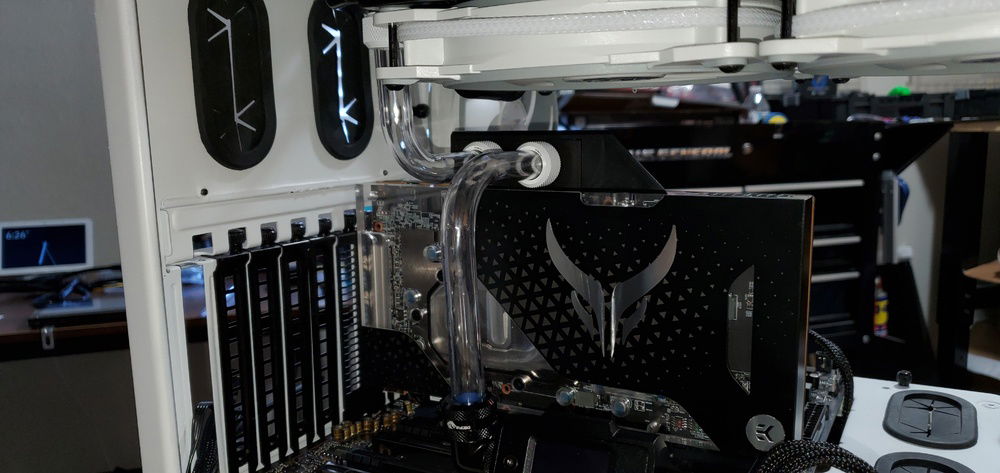

POWERCOLOR - Radeon Liquid Devil
Chip Manufacturer: AMD
Chip: 5700 XT
Interface: PCIe x16
Storage
$ 499.98
Sabrent - Rocket Q (2x)
Form Factor: M.2
Interface: PCIe x4
Capacity: 2 TB
Storage
$ 83.95
Western Digital - WD Black
Form Factor: M.2
Interface: M.2 (M)
Capacity: 250 GB
PSU
$ 199.99
EVGA - SuperNOVA P2
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 249.99

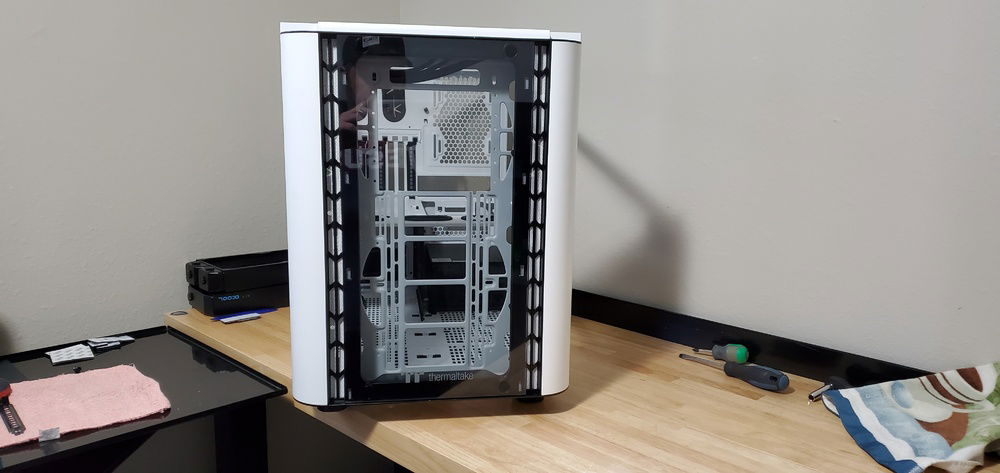

Thermaltake - Level 20 XT
Type: Full-Tower
Side Panel: Tempered Glass
Case Fan
$ 17.74
ARCTIC - BioniX P140
Size: 140 mm
Cooling
$ 278.98
Alphacool - NexXxoS XT45 Full Copper (2x)
Type: Custom Loop
Size (WxHxD): 420 mm (3 x 140 mm)
Cooling
$ 75.00

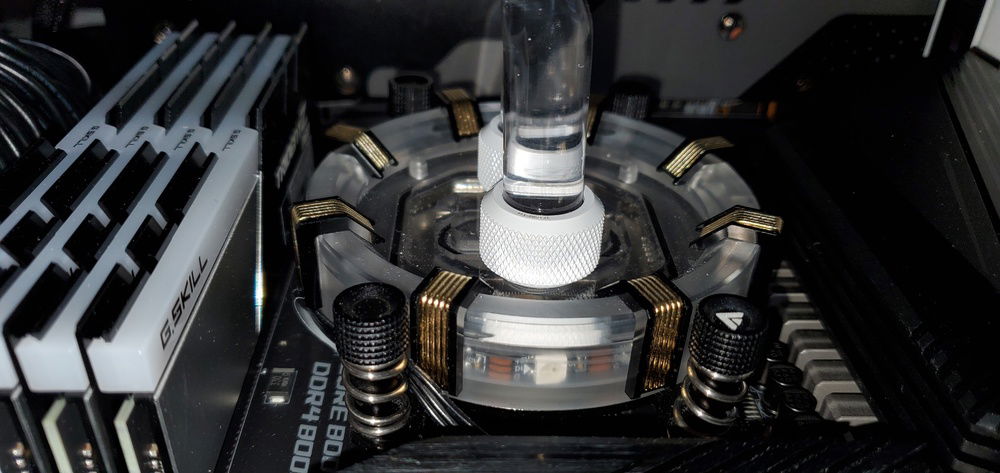

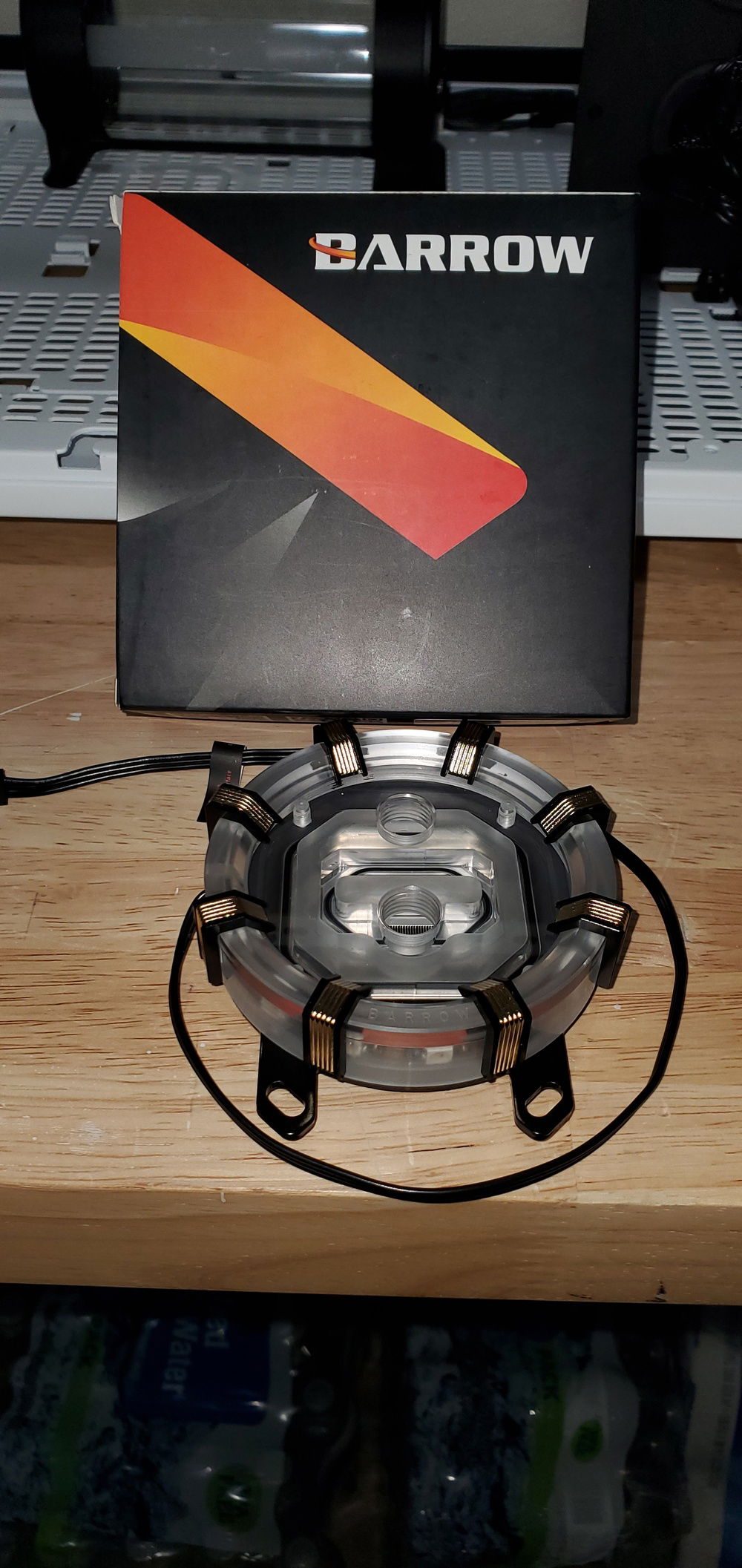

Barrow - CPU Blocks
Type: Custom Loop
Cooling
$ 75.90
Barrow - Pump (2x)
Type: Custom Loop
Cooling
$ 60.00
Hardware Labs - Black Ice GTS
Type: Custom Loop
Size (WxHxD): 280 mm (2 x 140 mm)
Cooling
$ 120.00
XSPC - Reservoir (2x)
Type: Custom Loop
Estimated total value of this build:
$ 4,300.68
