SFF Dual Rad Custom Loop NCase M1

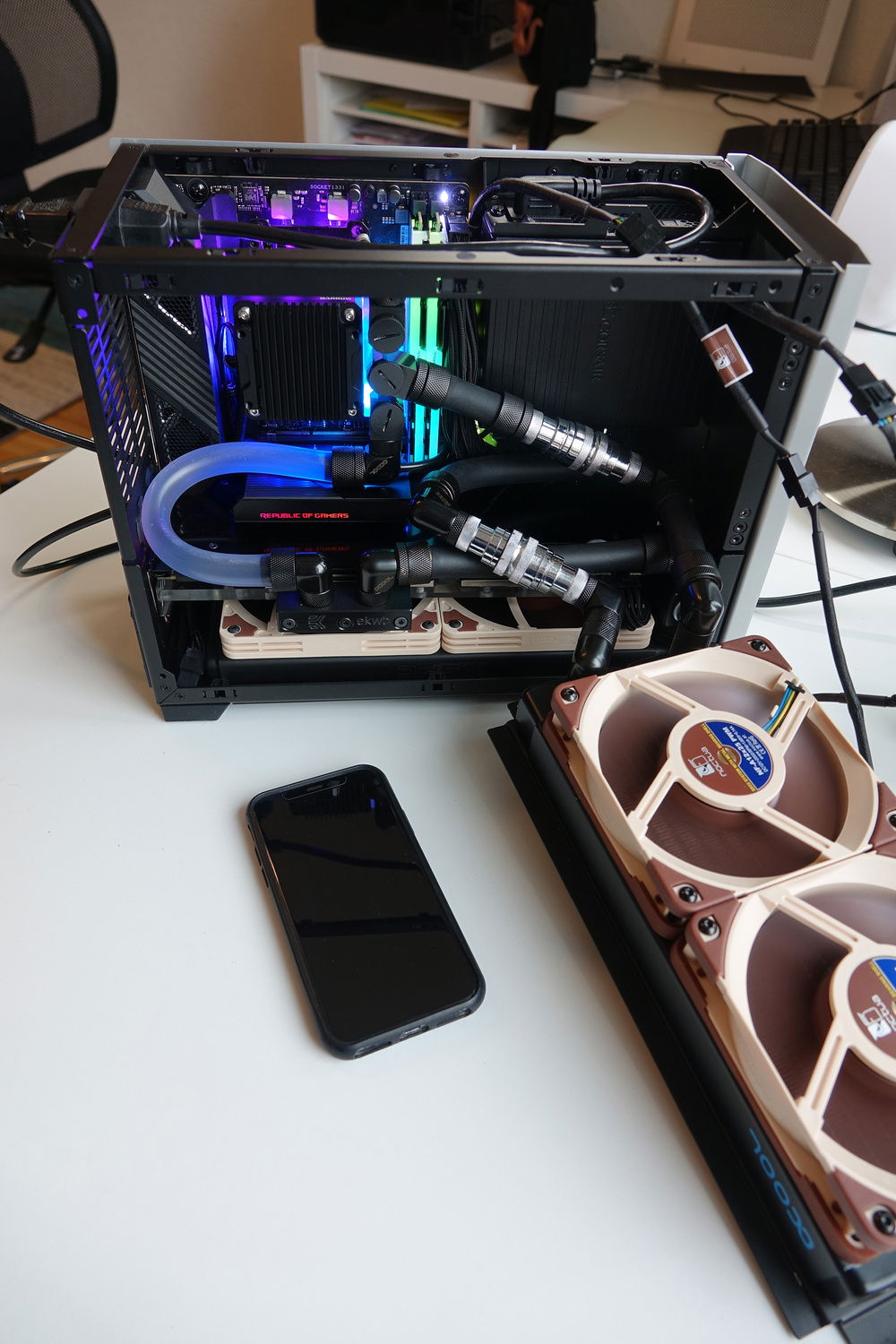

This build took about 4 months to build with all the parts collection and delivery delays. (And i am still missing the watercooled RTX 3080) The build itself was also very tricky and required a lot of pre planning. I first used the Asus B550-i board but I did not like the high temperature of the rear NVME. As soon as I heard a Crosshair VIII Impact fits with the dual Rad setup (Optimum Tech) I immediately switched the MoBos. Thats why you see 2 different Boards in the video and pictures.

My further plans for the future:

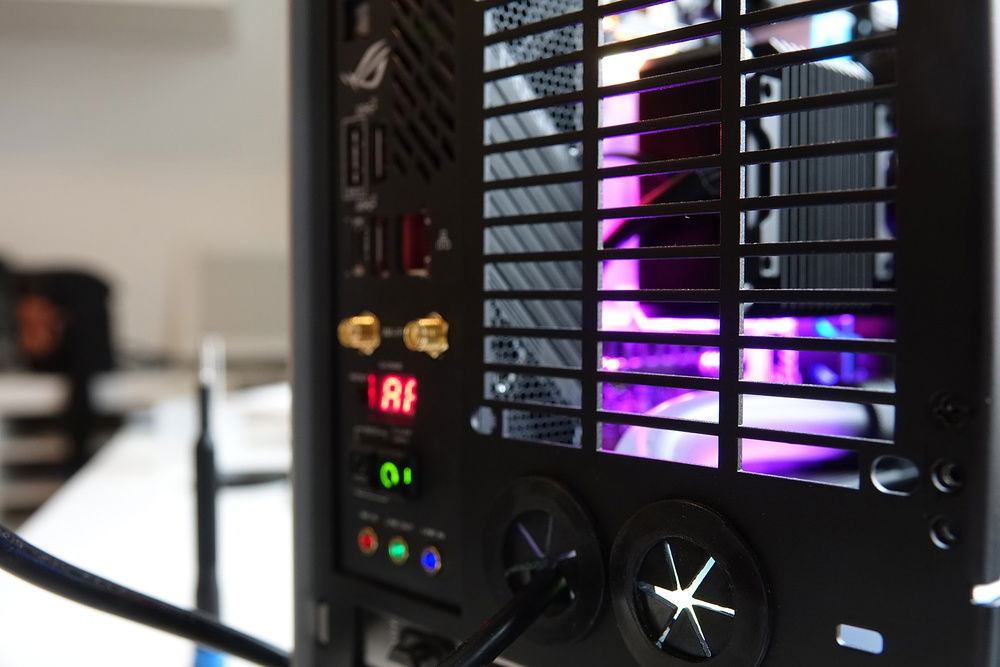

Install the EKWB RTX 3080, a Barrow flow sensor (SLF-V3) and possibly an Alphacool NexXxos ST25 Full Copper 92mm combined with a NF-A9 PWM chromax.black.swap on the back.

I hope you enjoy this short Video of the building process.

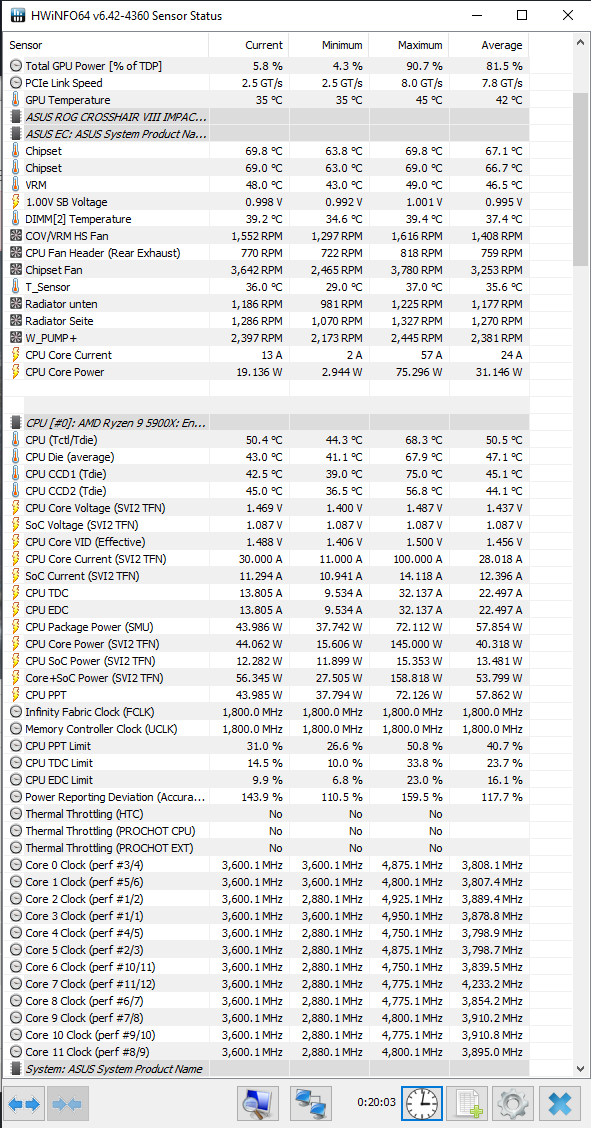

Temperatures are pretty good, very silent and plenty of performance for gaming and video editing.
Video With noise level:



Parts list -

NCase M1

First Asus B550-I Gaming, now Asus Crosshair VIII X570 Impact

AMD Ryzen 9 5900X at stock

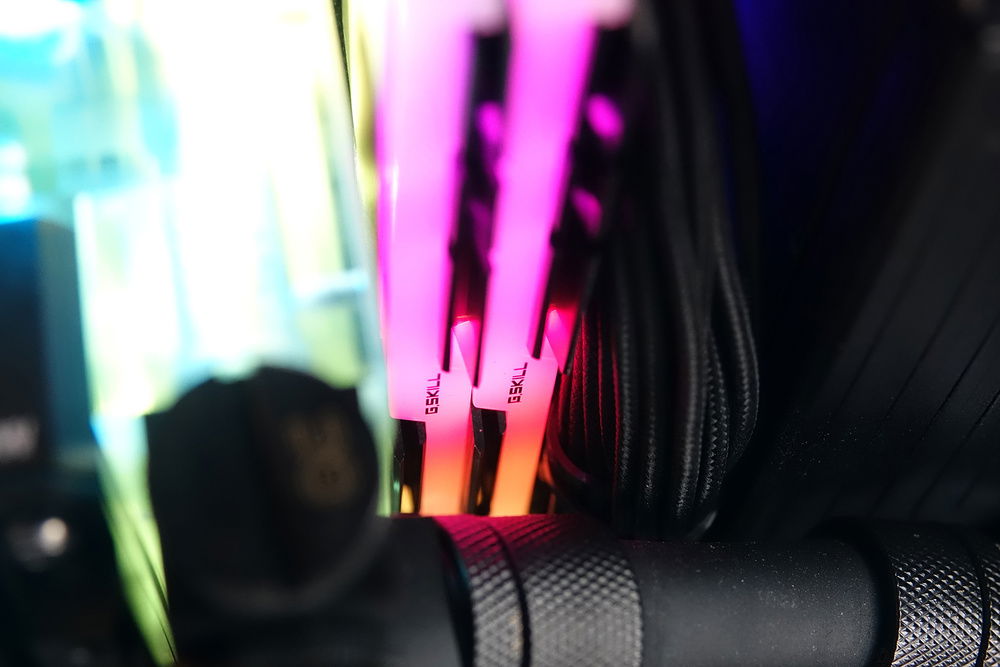

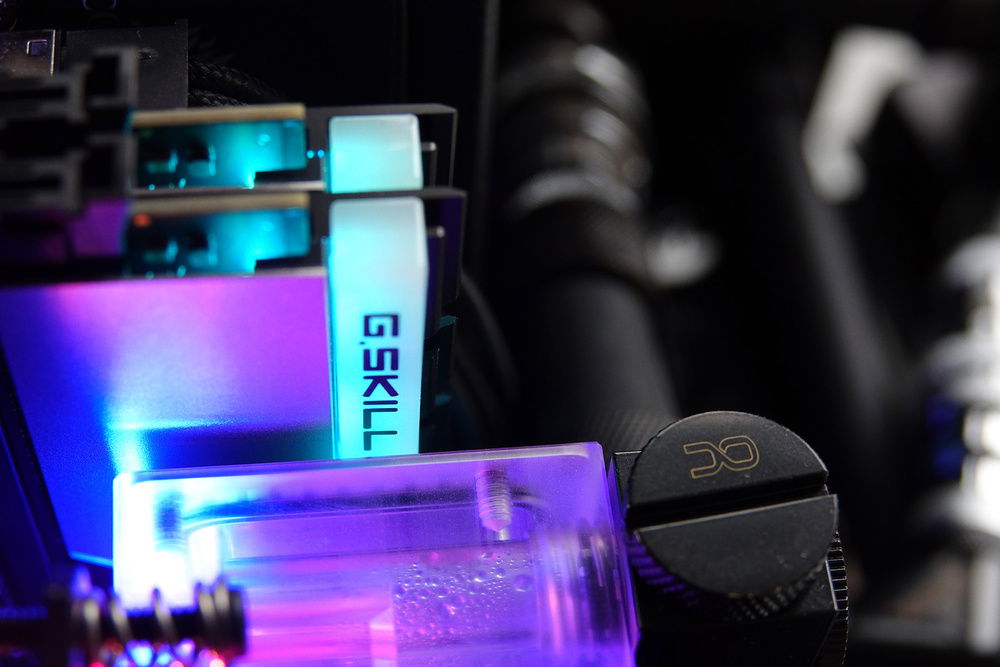

2x16 GB GSkill Z Neo CL16 3600Mhz

Samsung SSD 980 Pro 1TB

Samsung SSD 970 EVO Plus 2TB

Samsung SSD 870 QVO 4TB

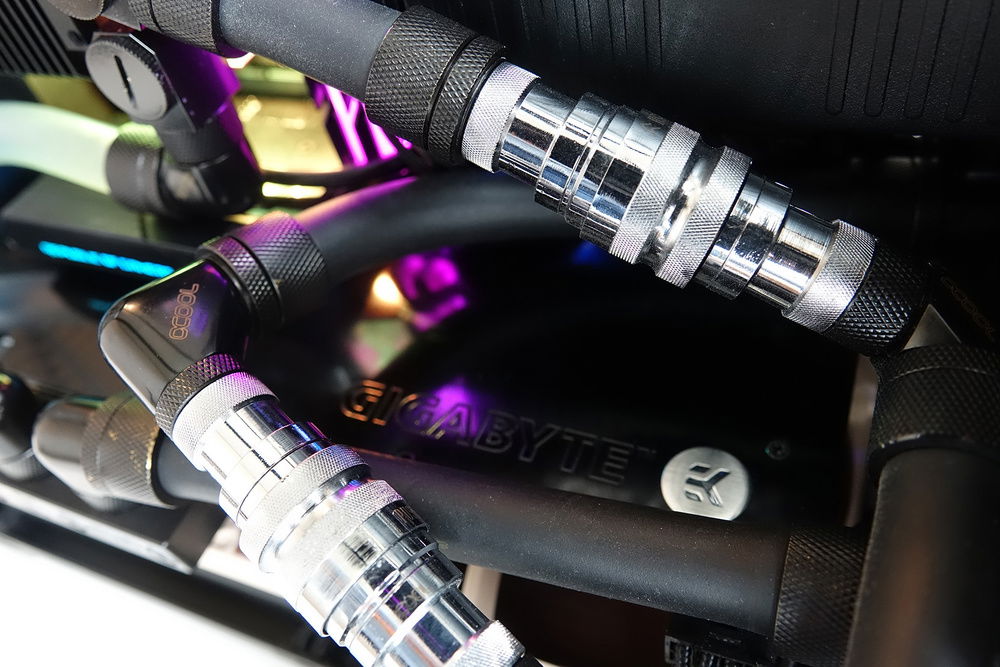

Gigabyte GTX 1070 G1 with EKWB Block and backplate

Corsair SF750

2 Noctua NF-A12X25

2 Noctua NF-A12X15

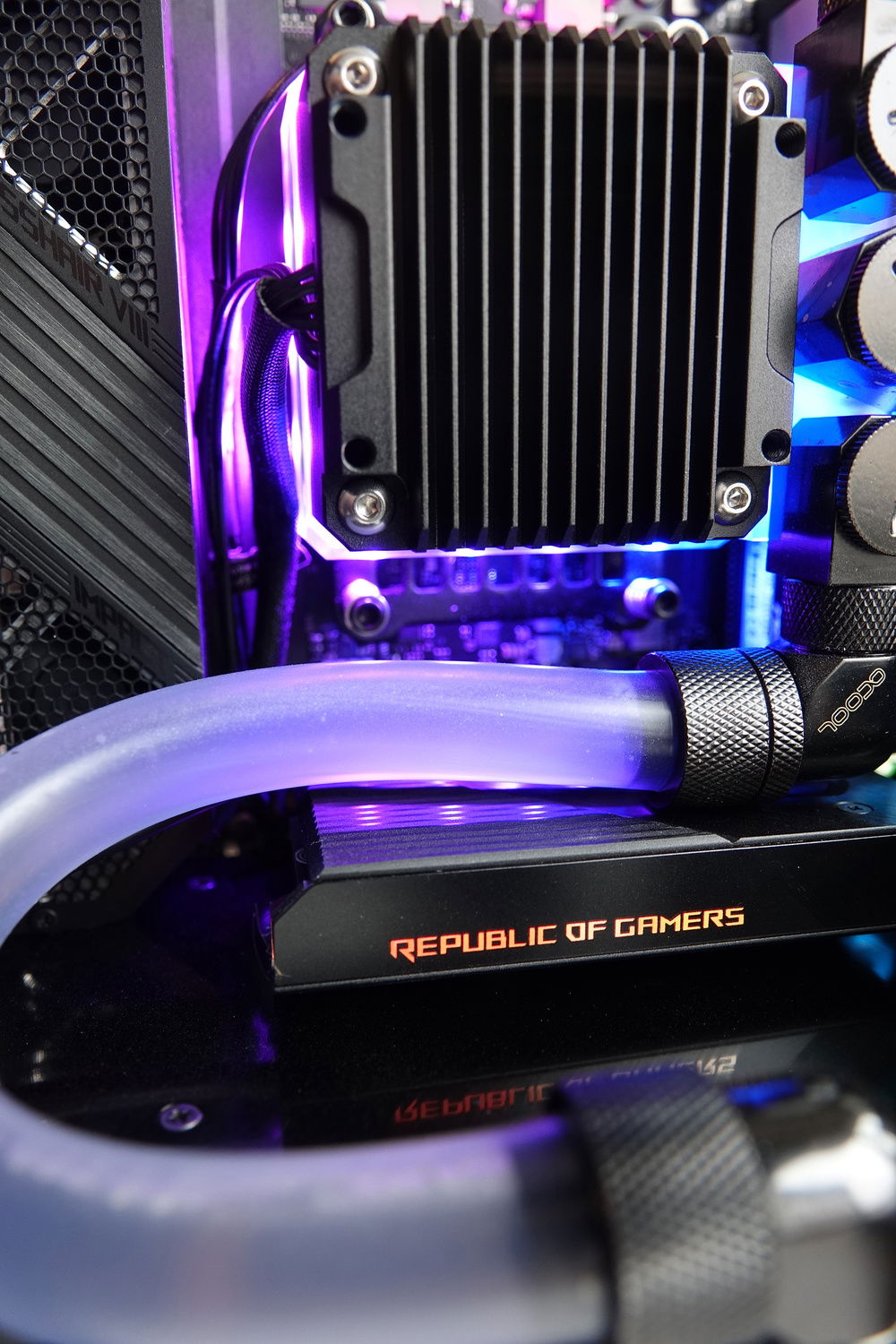

Barrow CPU block/pump combo

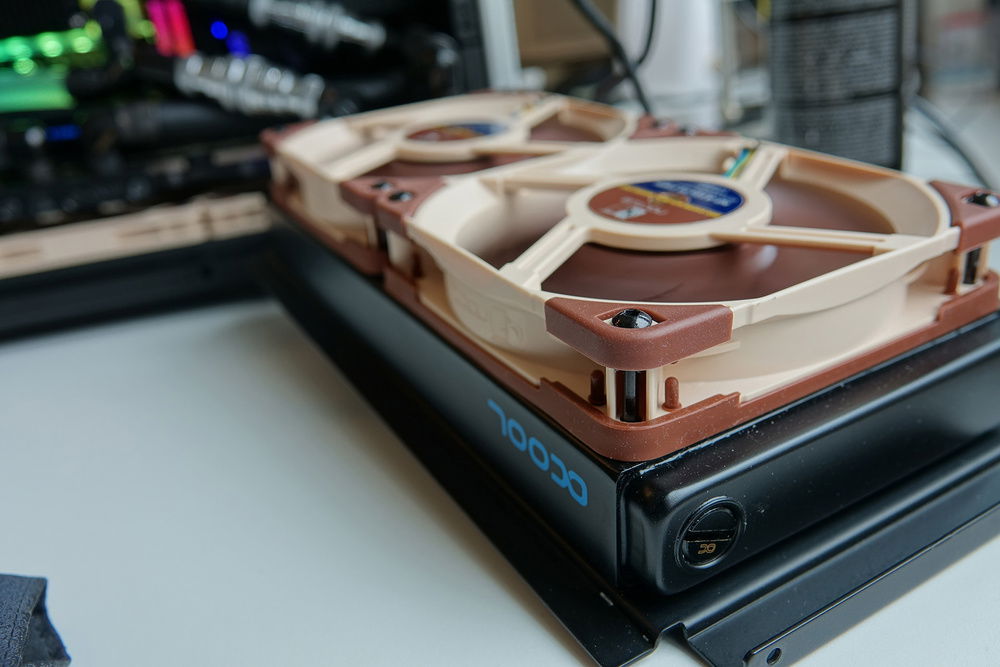

Alphacool NexXxoS ST30 Full Copper

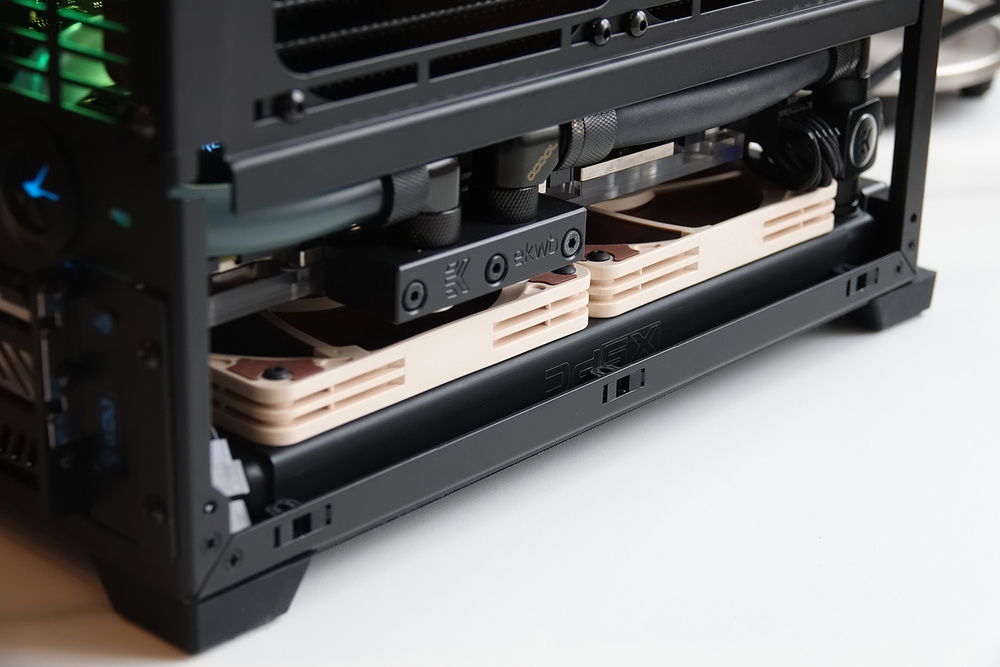

XSPC TX240 Ultrathin Radiator

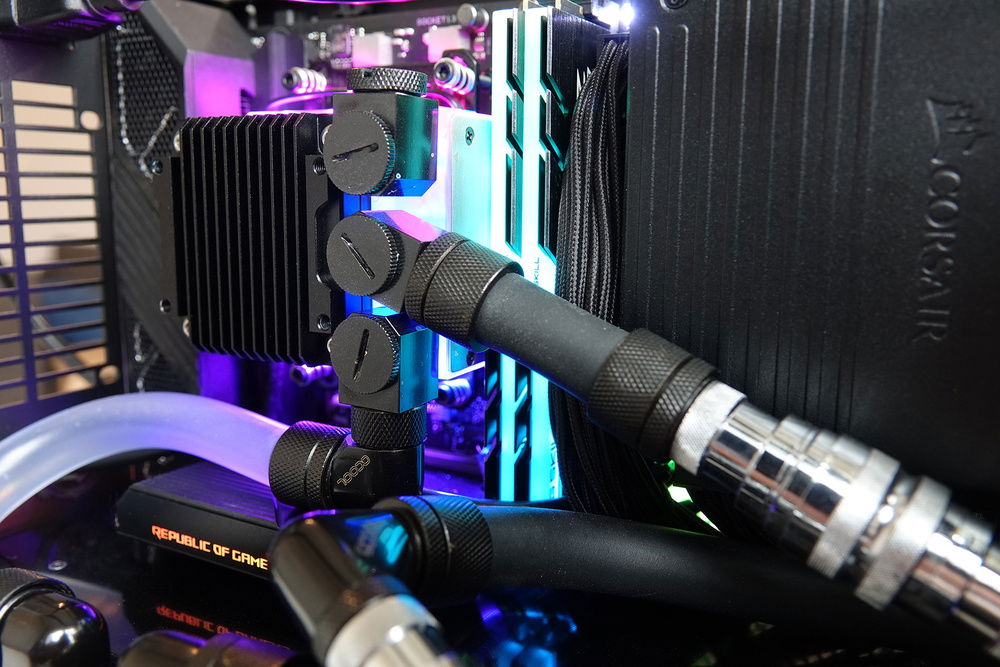

Alphacool Eisazpfen fittings and extensions

Koolance low profile 90 degree fittings

Alphacool Eiszapfen temperature sensor

EK ZMT Tubing

EKWB Cryofuel clear

Special Screws for the bottom radiator
Color(s): Black Silver
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: SFF
Type: General Build

Contests

This build participated in 2 contests.

Hardware

CPU
$ 499.99
AMD - Ryzen 9 (5900x)
Socket: AM4
Cores: 12
Motherboard
$ 294.09
ASUS - Crosshair VIII Impact
Chipset: X570
CPU Socket: AM4
Size: Mini-DTX
Memory
$ 184.99
Graphics
$ 493.47
Gigabyte - GTX 1070 G1 Gaming
Chip Manufacturer: NVIDIA
Chip: GTX 1070
Storage
$ 300.00
Samsung - 870 QVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 4 TB
Storage
$ 229.99
Samsung - 970 EVO Plus
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
Storage
$ 175.99
Samsung - 980 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 285.00
Corsair - SF750
Wattage: 750
Form Factor: SFX
Efficiency: 80+ Platinum
Case
$ 250.00
Ncases - NCase M1
Type: Mini-Tower
Side Panel: Solid
Case Fan
$ 59.80
Noctua - NF-A12x15 PWM (Brown) (2x)
Size: 120 mm
Case Fan
$ 63.80
Noctua - NF-A12x25 PWM (2x)
Size: 120 mm
Case Fan
$ 15.95
Noctua - NF-A9x14 PWM
Size: 92 mm
Cooling
$ 55.50
Alphacool - NexXxoS ST30 Full Copper
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
$ 90.00
Cooling
$ 30.98
EKWB - EK-CryoFuel (Clear)
Type: Coolant
Cooling
$ 70.00
EKWB - EK-FC1080 GTX G1 - Nickel
Type: GPU Waterblock
Cooling
$ 30.00
Koolance - Fittings
Type: Custom Loop
Cooling
$ 66.99
XSPC - TX Ultrathin
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Accessories
$ 88.99
Accessories
$ 10.57
Accessories
Monitor
ASUS - Pro Art (PA249Q)
Size: 24.1 Inch
Panel: IPS
Refresh Rate: 60 Hz
Keyboard
$ 49.99
Corsair - K55
Interface: Wired
Key Switch Type: Membrane
Type: Full Size
Mouse
$ 130.95
Logitech - G700
Interface: Wireless
Chair
Ikea - Markus
Material: Mesh
Color: Black
Estimated total value of this build:
$ 3,409.09
