R4V3N

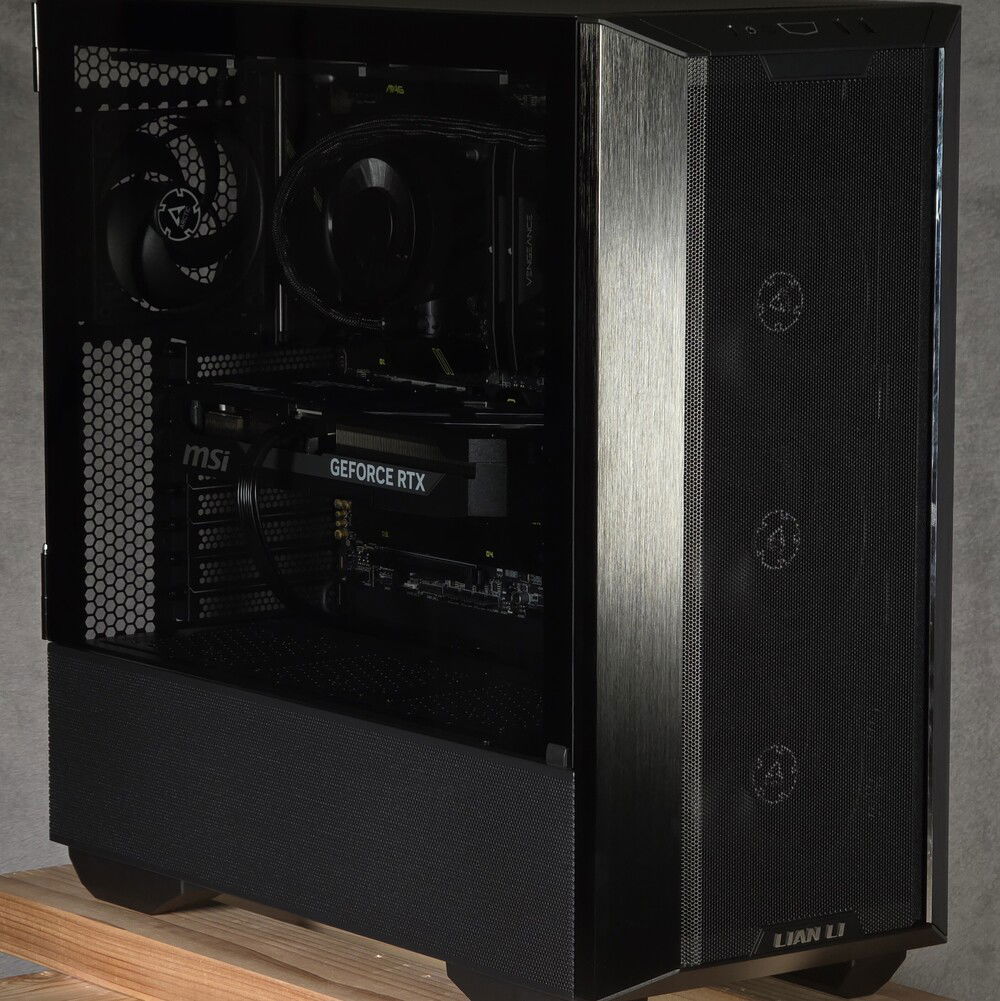

This is a client build that will be deployed for use with dental CAD software, used by dental surgeons, to design implants and plan various surgical procedures. The build features no RGB due to the fact that it will be deployed in an office/professional environment.

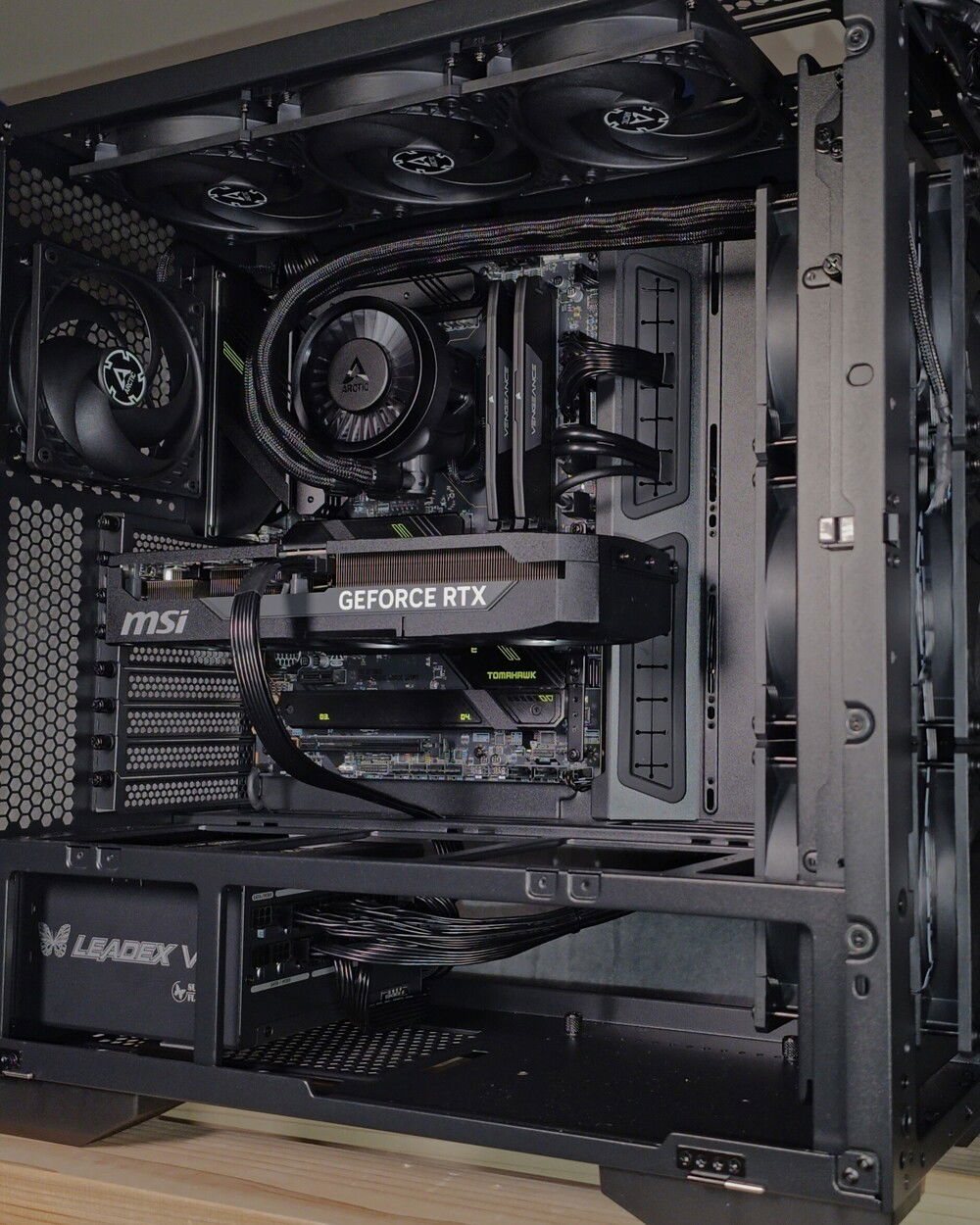

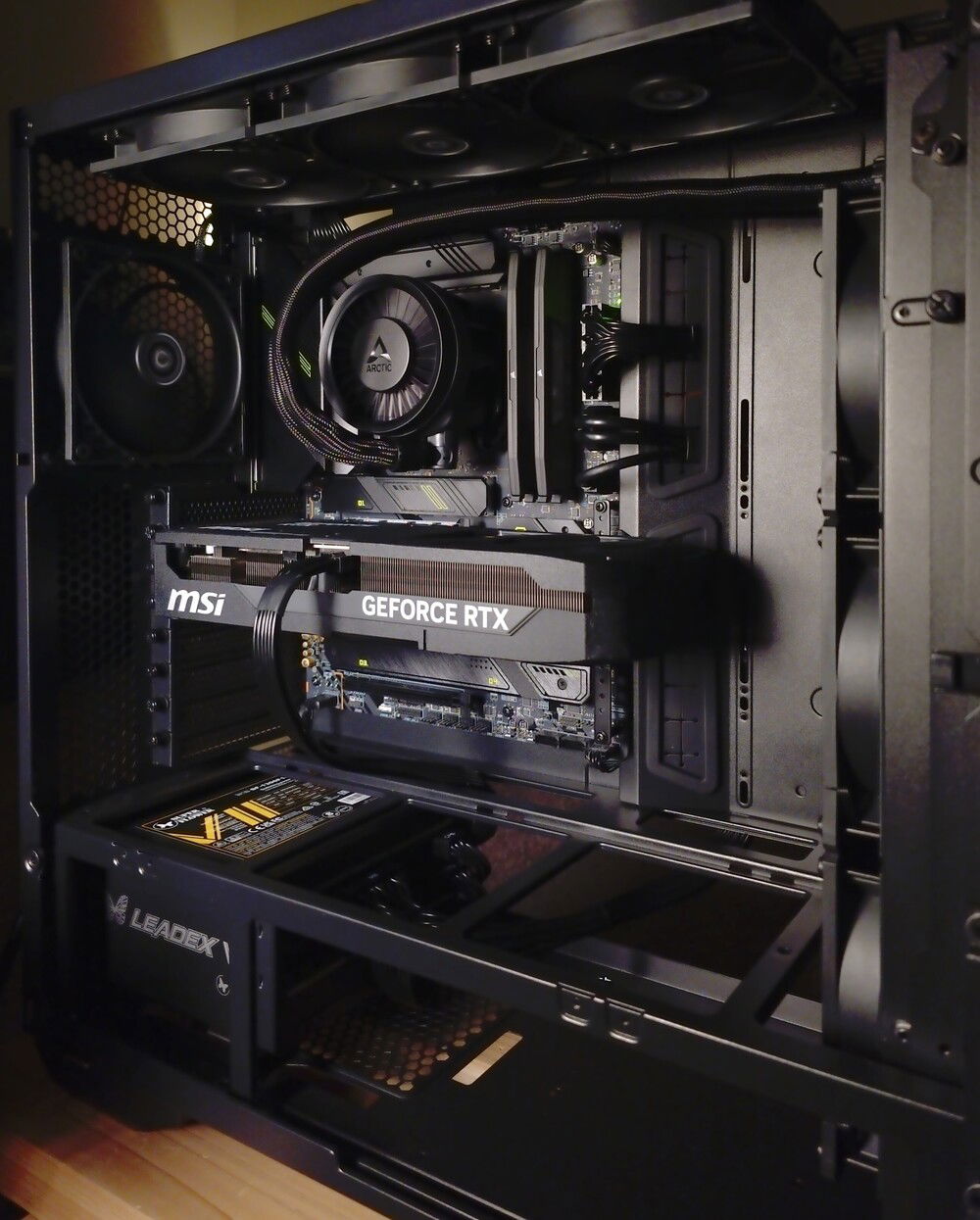

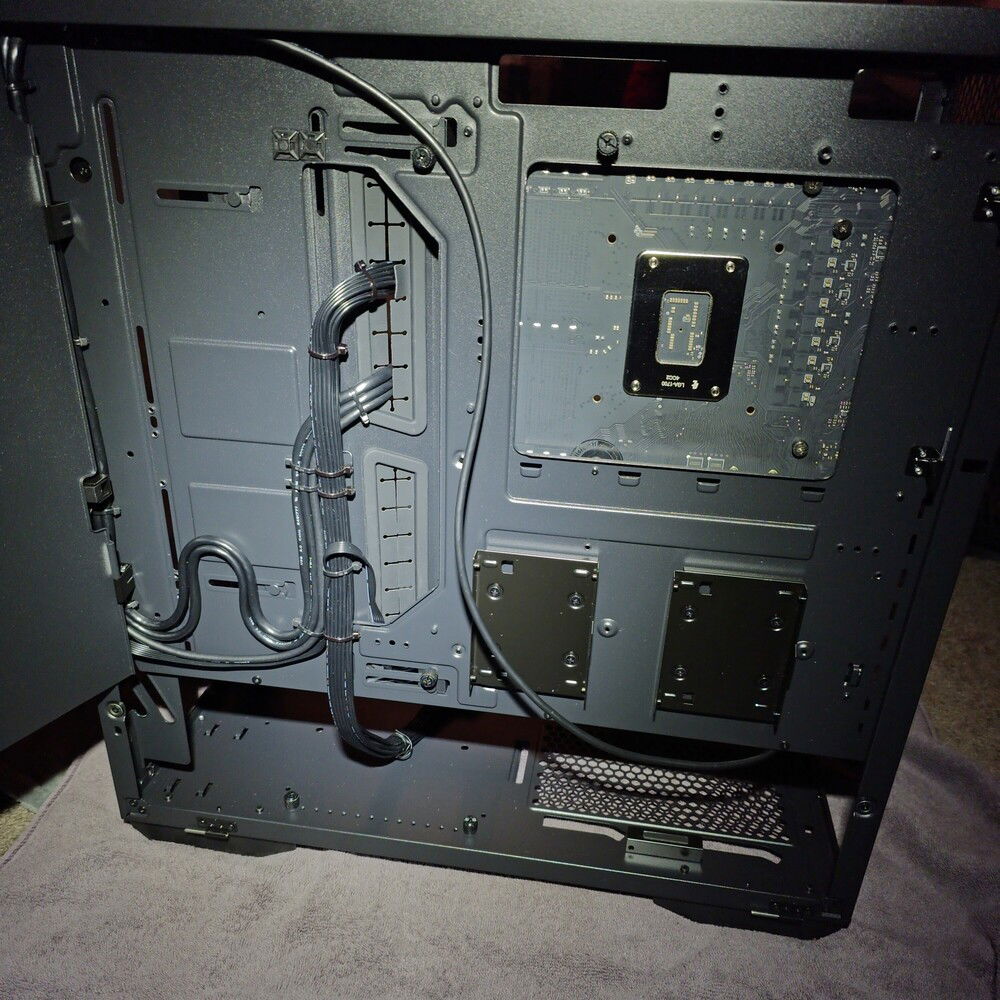

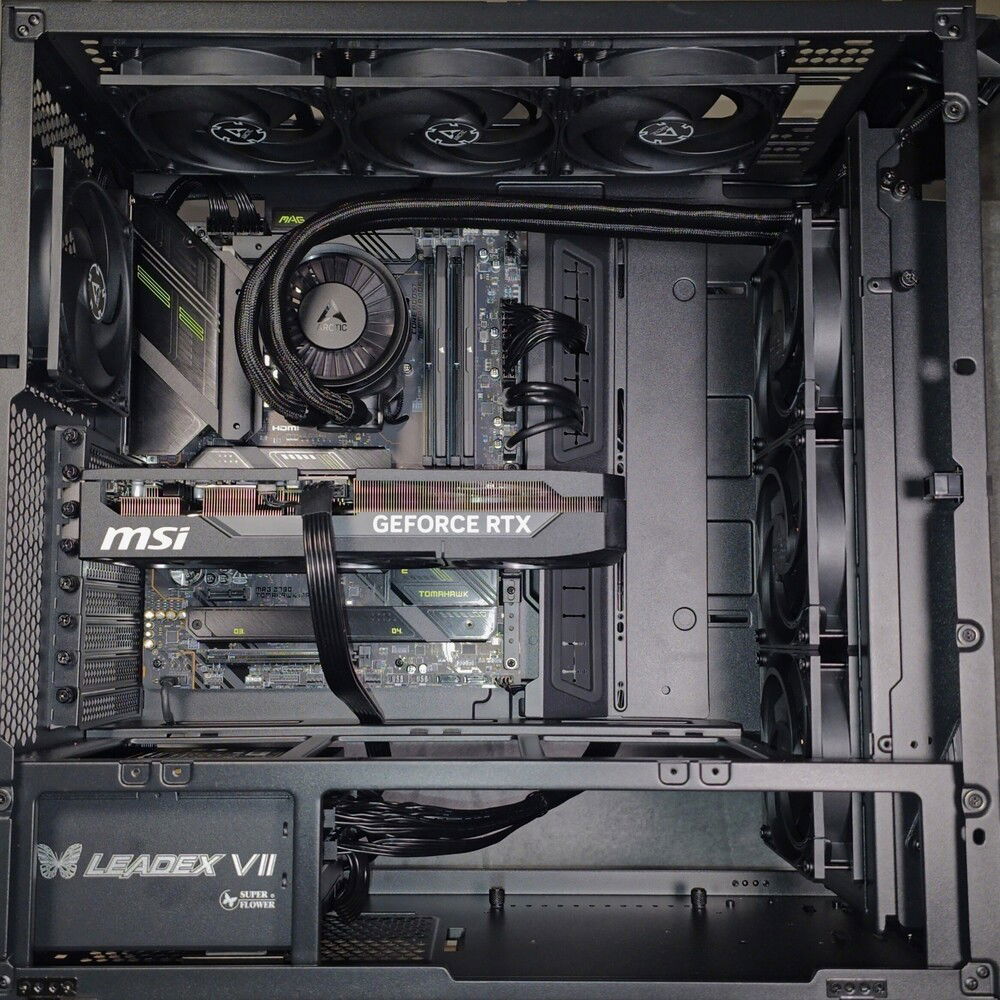

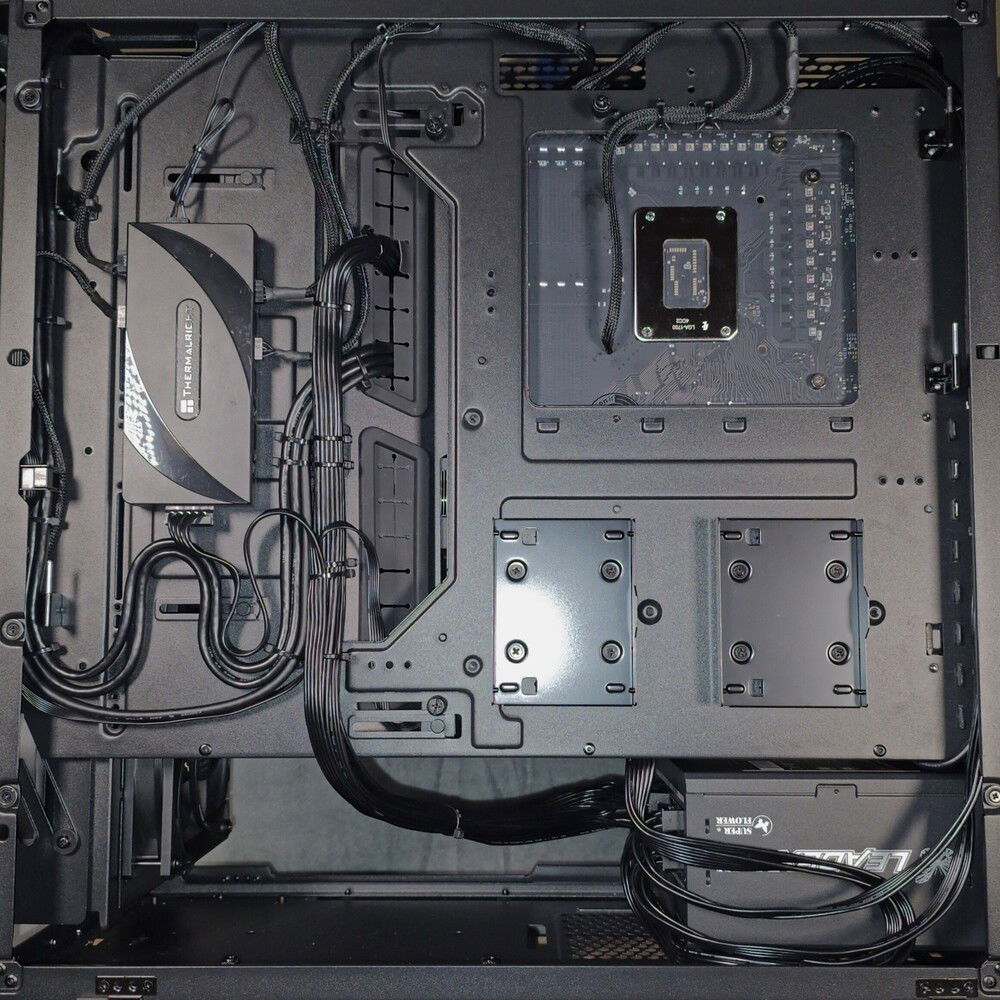

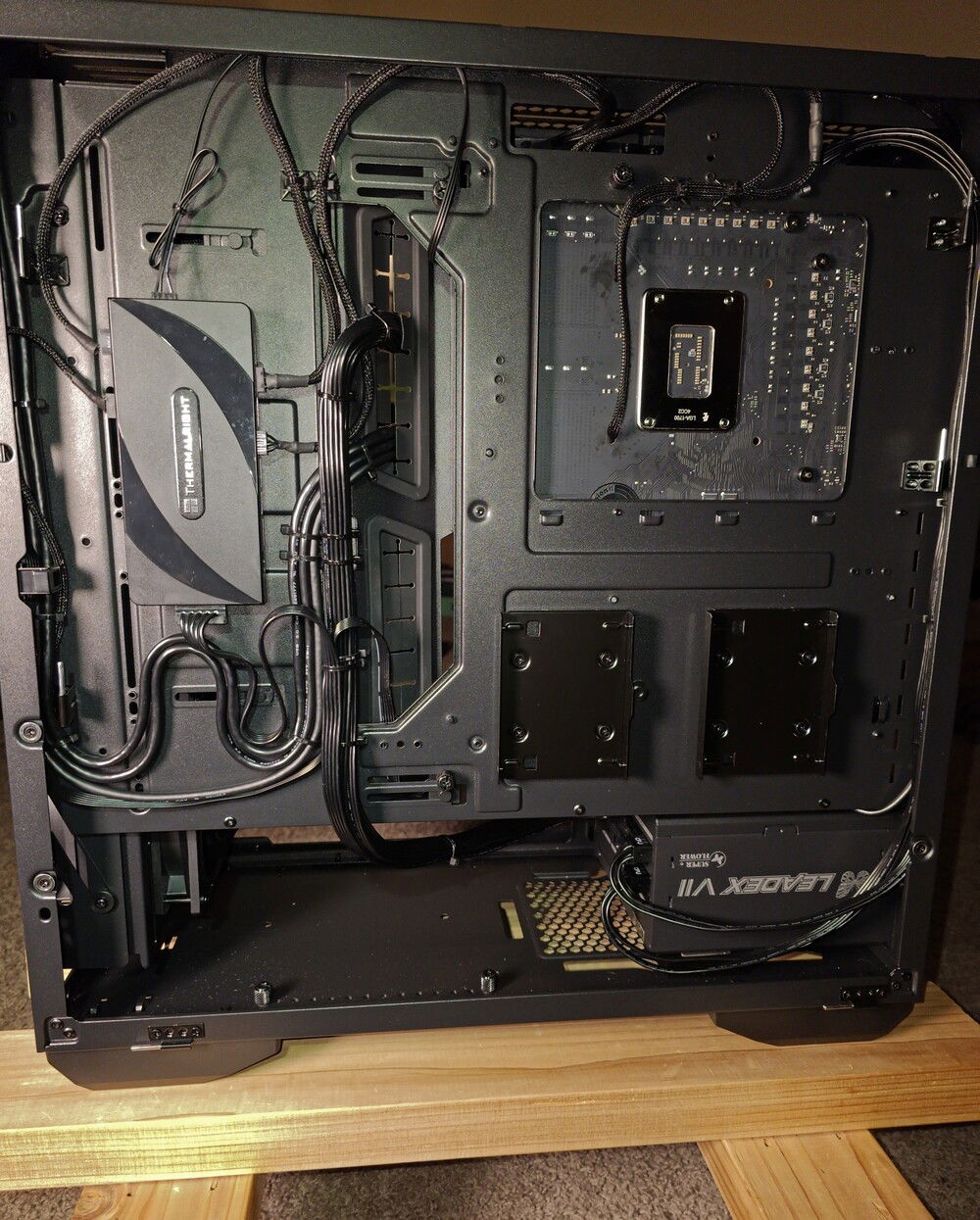

Overall, the build process went very smoothly, and the cable management turned out nice and clean as well.

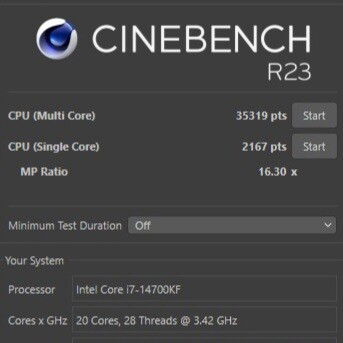

Thermal performance is excellent. The CPU reached a maximum of 56C during single-core benchmarks, and 79C during multi-core benchmarks. All P-cores and E-cores boosted to maximum frequency, and stayed there for the duration of the test. GPU temps were outstanding, reaching a maximum of 71C during benchmarks.

Noise levels are also excellent. The system is virtually silent when idle. With all fans at max speed, the noise only increases slightly, to a pleasant, low 'whoosh'. Overall the system runs cool & quiet.

This is a relatively simple build, that came out exceptionally clean, and that performs great too. We're pleased with this build, and we hope you like it too!

Have FUN, be CREATIVE, and BUILD ON! Emoji
Color(s): Black
RGB Lighting? No
Theme: none

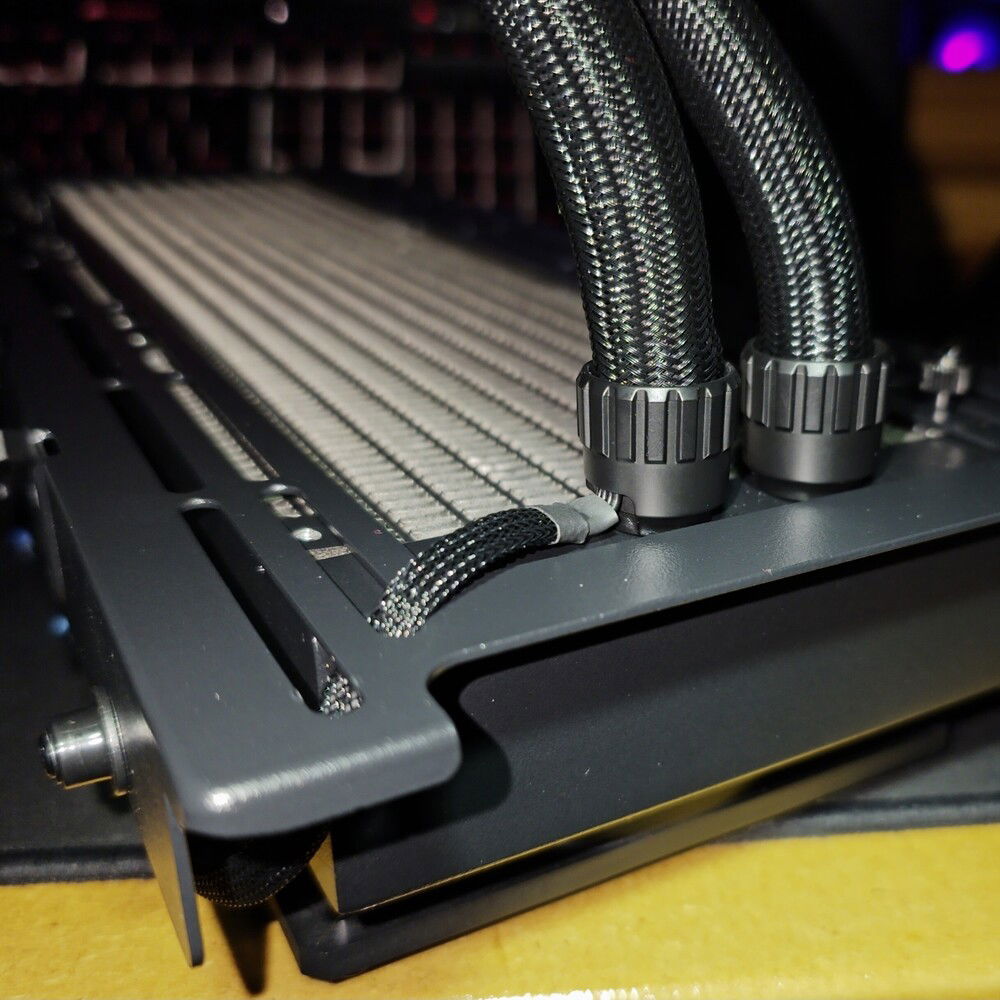

Cooling: AIO Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 314.97
Intel - Core i7-14700KF
Socket: LGA 771
Cores: 20
Motherboard
$ 158.50
MSI - Mag Tomahawk (WiFi)
Chipset: Z790
CPU Socket: LGA 1700
Size: ATX
Memory
$ 241.99
Corsair - Vengeance (6000MHz)
Type: DDR5
Capacity: 64 GB
Graphics
$ 669.99
MSI - GeForce 12G Shadow 3X OC
Chip Manufacturer: NVIDIA
Chip: RTX 5070 Ti
Interface: PCIe x16
Storage
$ 176.99
Samsung - 990 Evo Plus
Form Factor: M.2
Interface: PCIe x4
Capacity: 2 TB
PSU
$ 209.00
Super Flower - Leadex VII XG
Wattage: 1300
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 295.00
Lian Li - Lancool III
Type: Full-Tower
Side Panel: Tempered Glass
Case Fan
$ 119.80
ARCTIC - P12 PWM PST CO (Black) (10x)
Size: 120 mm
Cooling
$ 98.55
Accessories
$ 16.99
Estimated total value of this build:
$ 2,267.20
