HP Pavilion Media Center m8430f to DeepCool MATREXX 30


In the proceeding 3 part video series, I talk about the viability of using the older Socket 775 Core 2 Quad CPU in 2019. And modernizing an older board into a newer case with more modern features, and how to get older features like the ASUS Combo-210E TV tuner to work on Windows 10. System used is an HP Pavilion Media Center m8000 m8430f System Number: KJ376AA#ABA

PART 1


PART 2


**BONUS VID ON HOW TO GET THE TV TUNER WORKING IN WINDOWS 10**
I uploaded a copy of all the files I used to make this work, you can download it from:
https://mega.nz/#!vgoS2Aaa!cQFMA9EajeZrNC372yTBV1ZFdeJEv2pRJIL7mzCD7Yc



More info on the original system can be found at:
https://support.hp.com/us-en/document/c01374052

User Benchmark scores for this motherboard can be found here:
https://www.userbenchmark.com/System/Hp-pavilion-KJ376AA-ABA-m8430f/2946

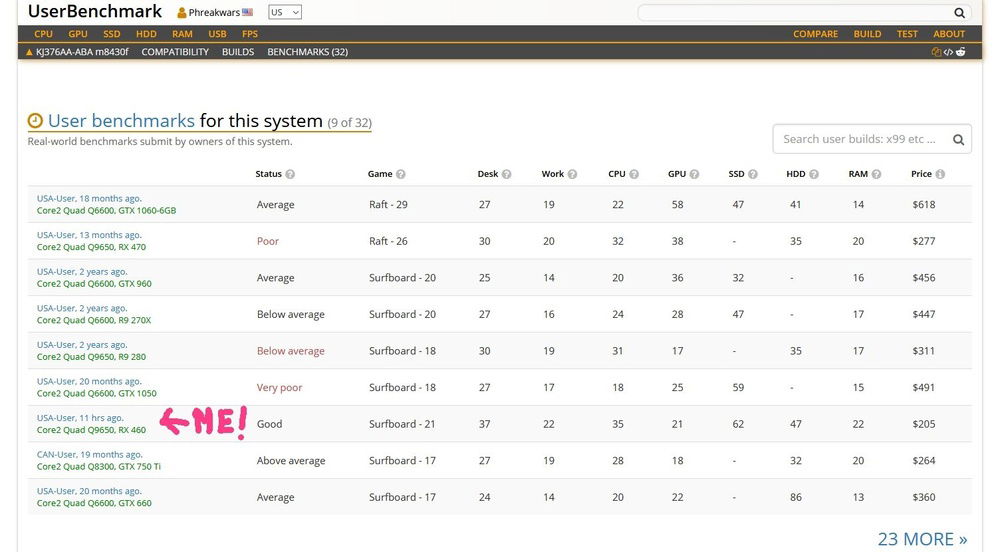

This PC's benchmark can also be found there:
Build Image


I uploaded a copy of the last known BIOS (Version: 5.43), of the IPIBL-LB (Benicia) motherboard this system utilizes. It can be downloaded from https://mega.nz/#!nxojwKRY!l8dD8f7yqGm_mEFYV5HimAiG7sgEWeUduFYZicA5se4

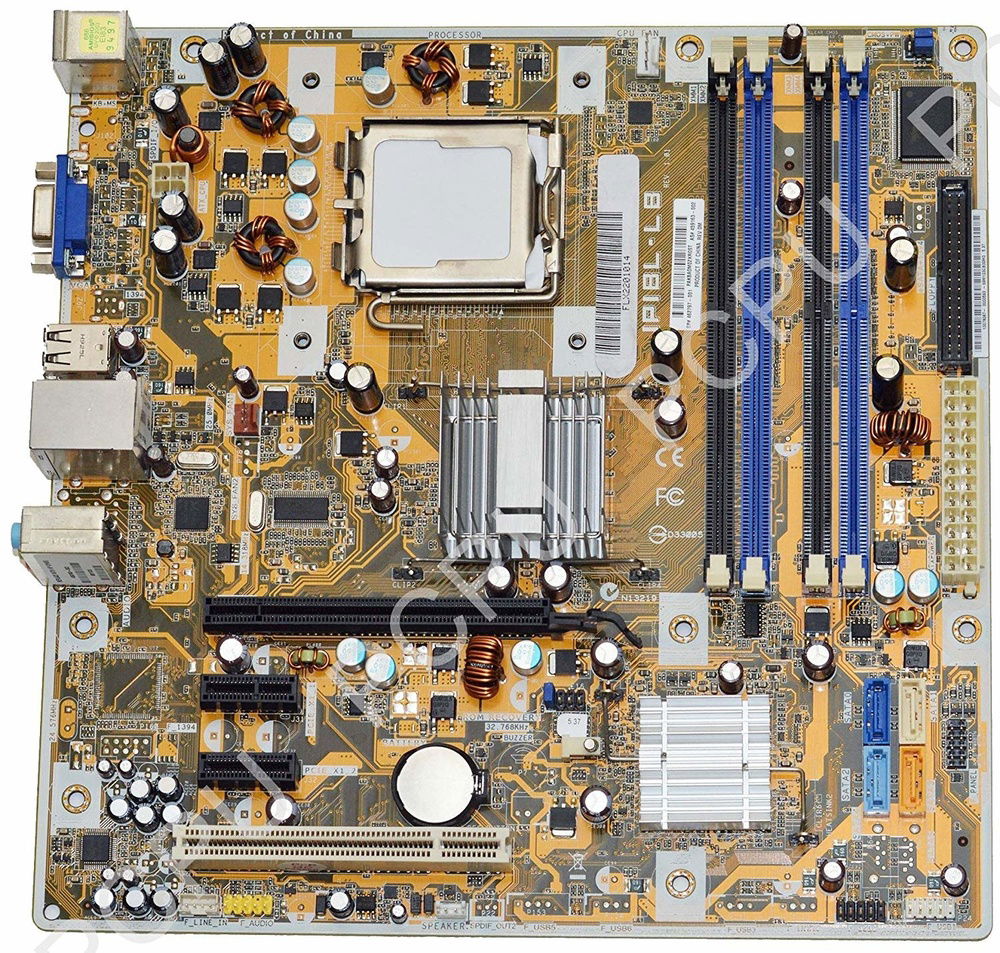

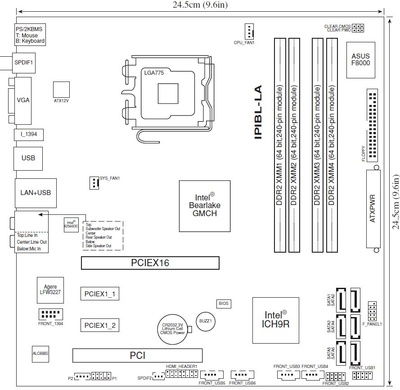

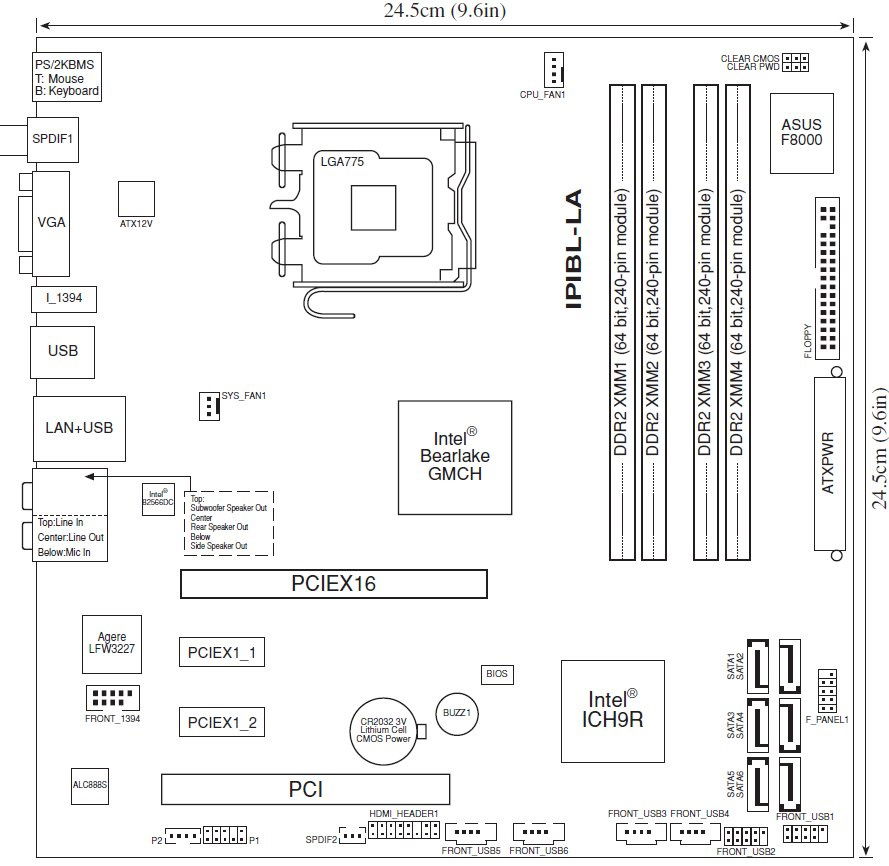

This is the motherboard's layout:
Build Image

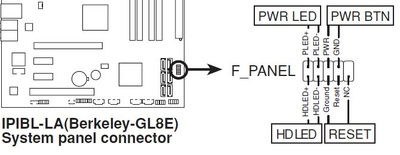

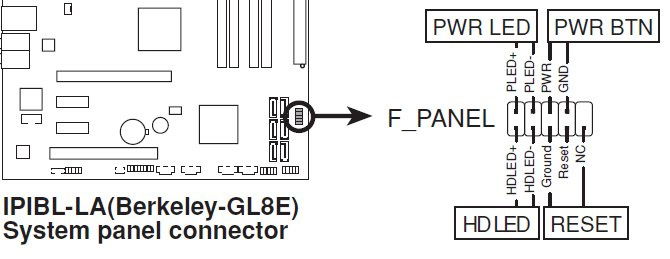

Front panel header:

Build Image

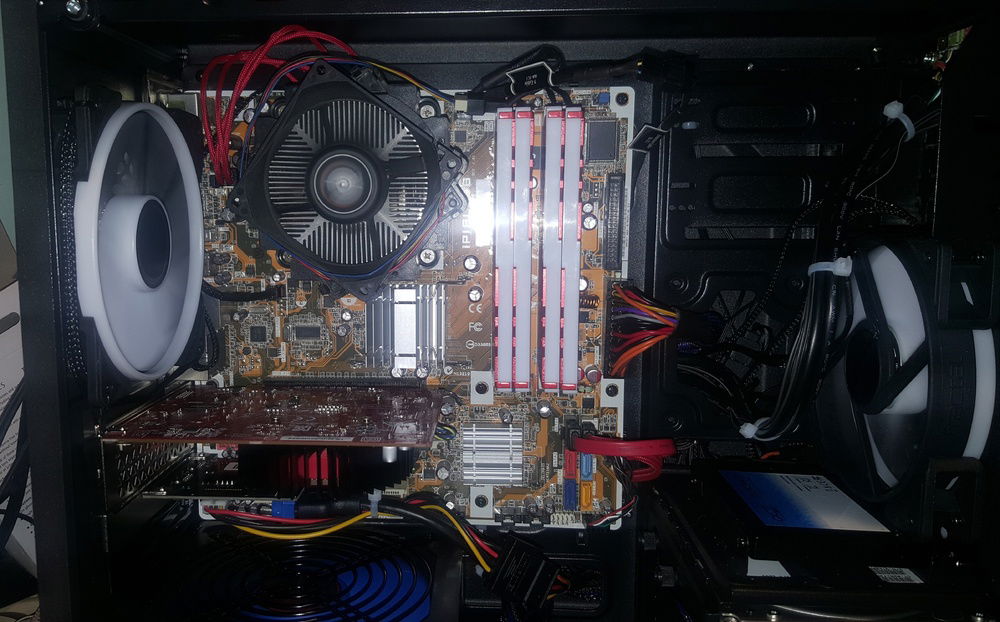

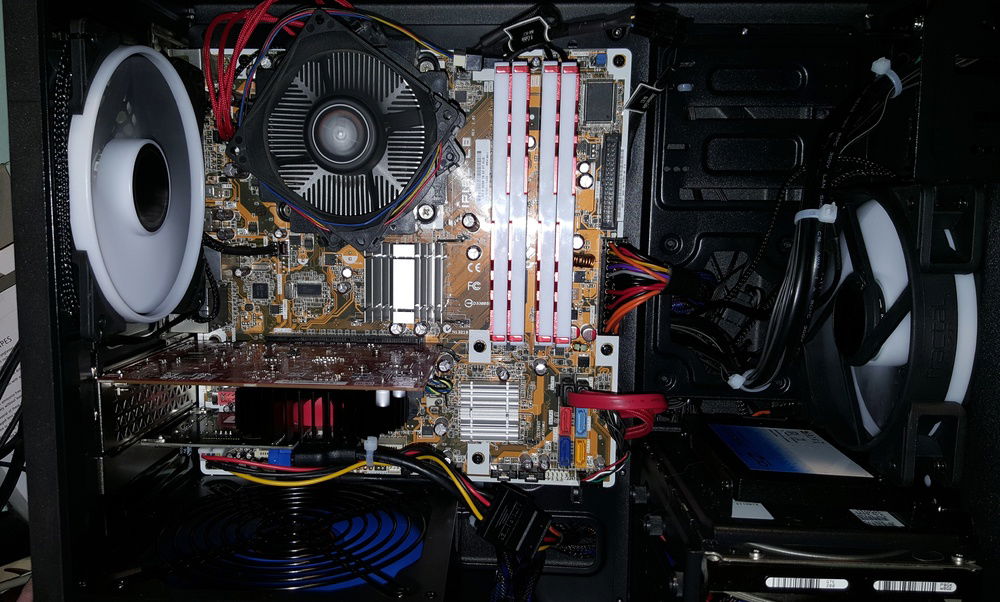

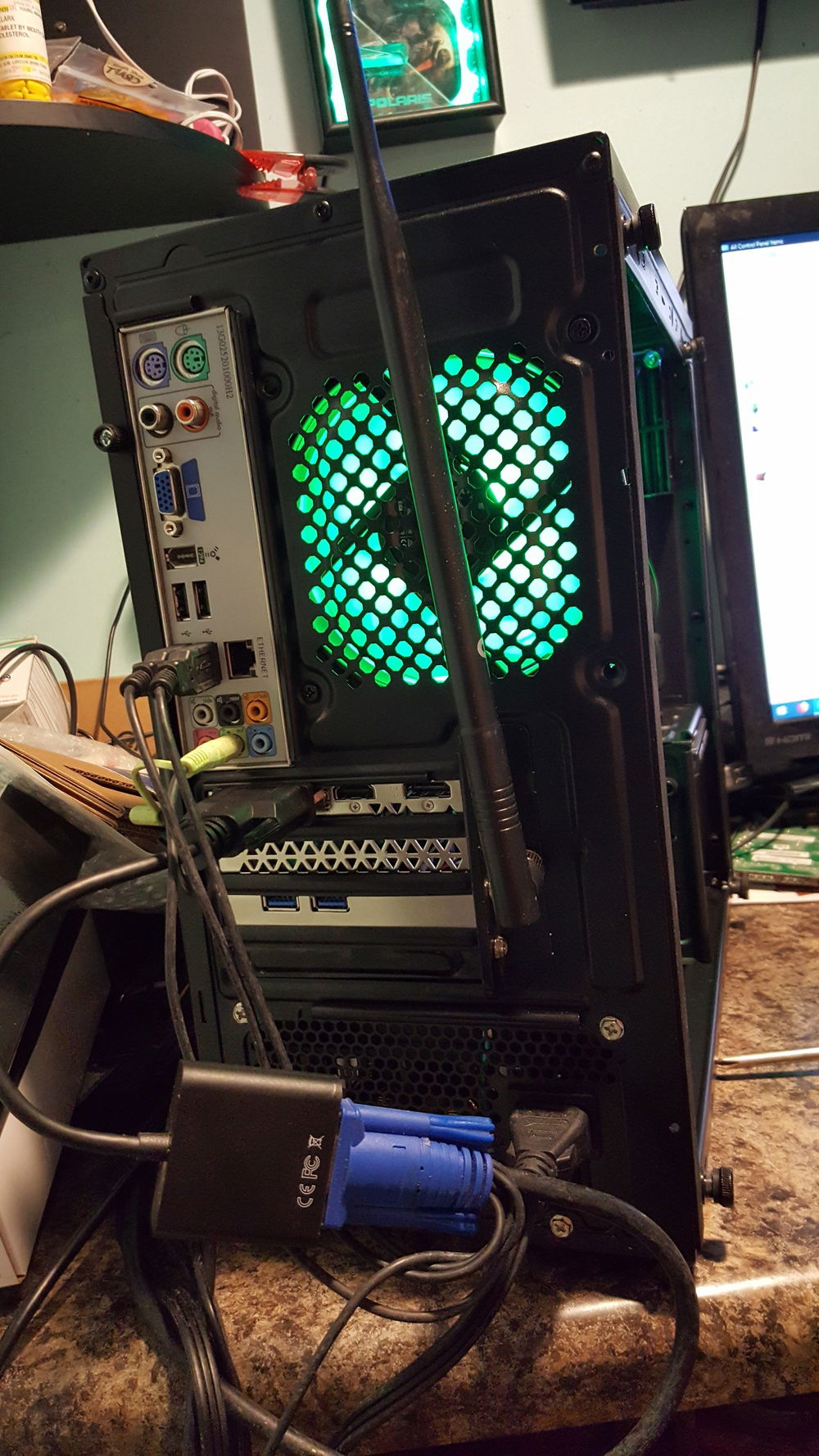

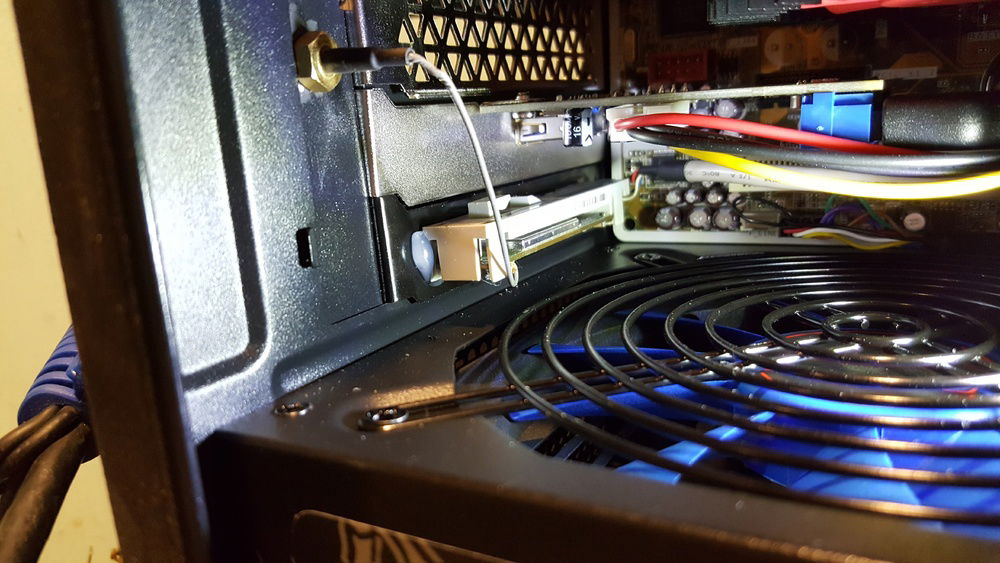

Yep, even got the wi-fi from the old case working!!
Build Image

Build Image

Color(s): Black
RGB Lighting? Yes
Theme: Retro
Cooling: Air Cooling
Size: Micro-ATX
Type: General Build

Hardware

CPU
$ 49.95
Intel - Q9650
Socket: LGA 775
Cores: 4
Motherboard
TBD/To Be Determined - TBD/To Be Determined (custom)
Memory
$ 135.00
Samsung - DDR2-800
Type: DDR2
Capacity: 8 GB
Graphics
$ 71.99
MSI - Radeon
Chip Manufacturer: AMD
Chip: RX 460
Storage
$ 79.99
Toshiba OCZ - Arc 100
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 240 GB
PSU
$ 44.99
Raidmax - Scorpio
Wattage: 535
Form Factor: ATX
Efficiency: 80+ Bronze
Case
$ 68.94
DeepCool - MATREXX 30
Type: Mini-Tower
Side Panel: Tempered Glass
Case Fan
$ 39.99
DeepCool - CF120
Size: 120 mm
Cooling
$ 27.99
Zalman - CNPS9500AT
Type: Air Cooler
