Project TT

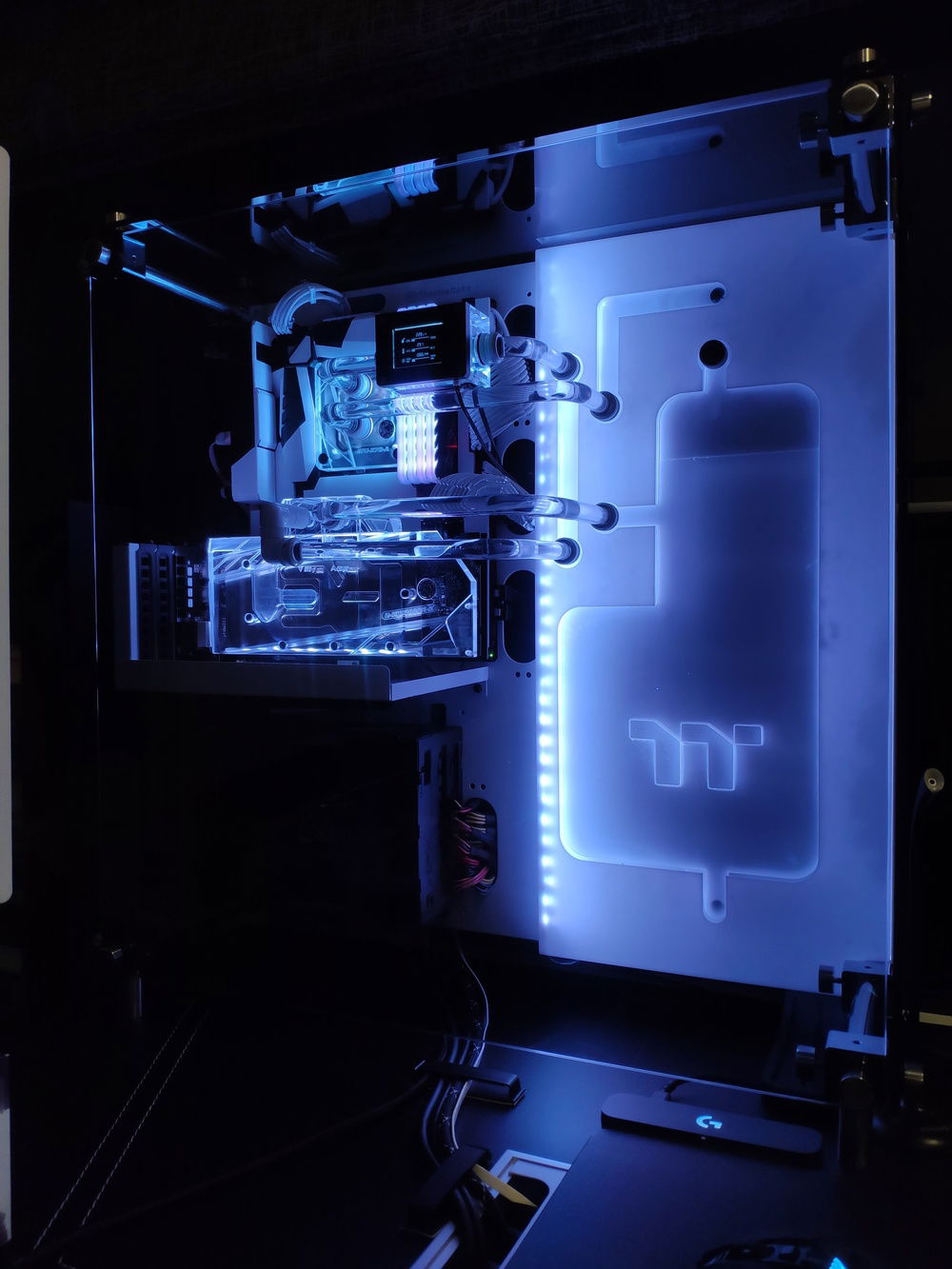

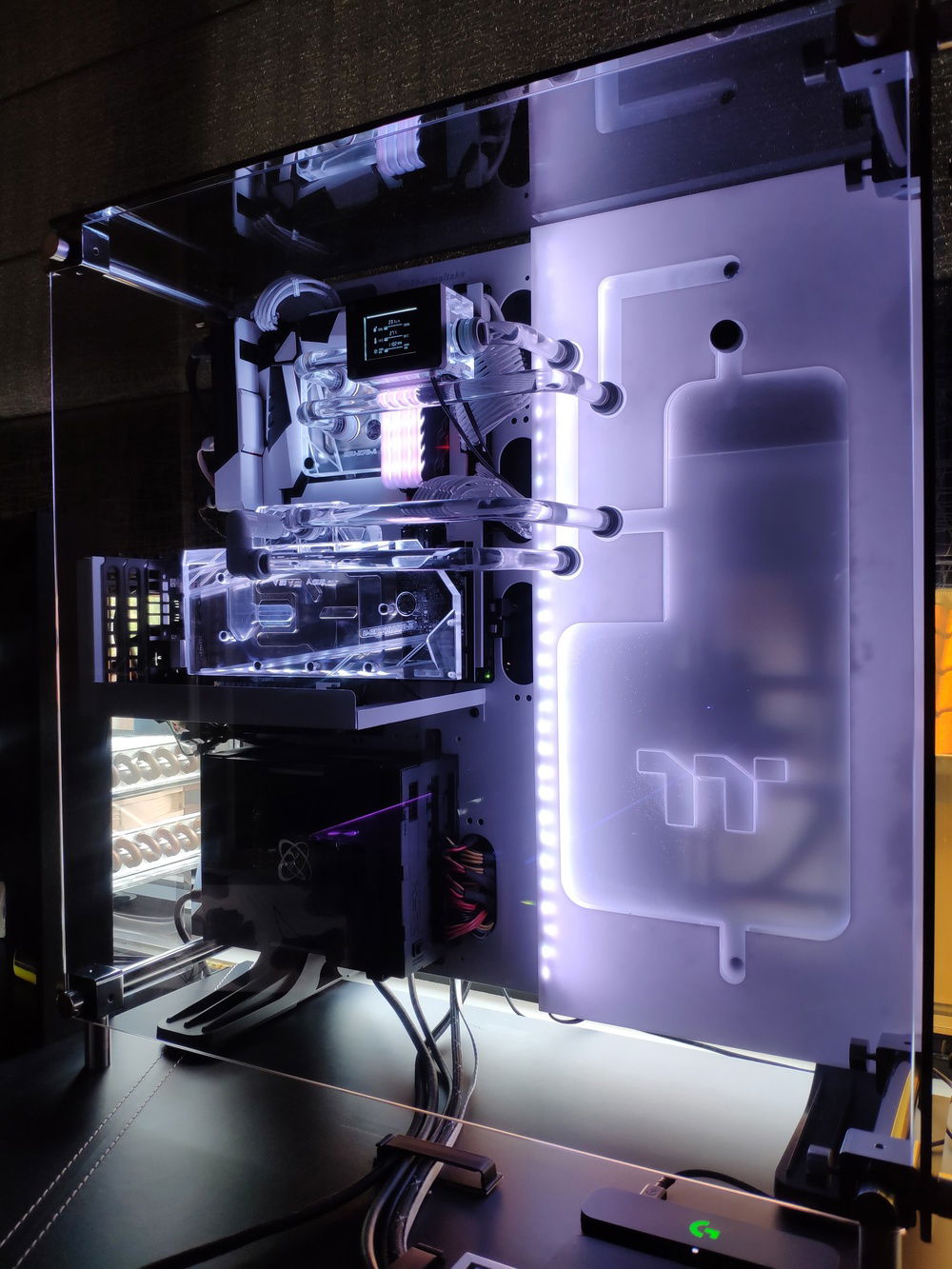

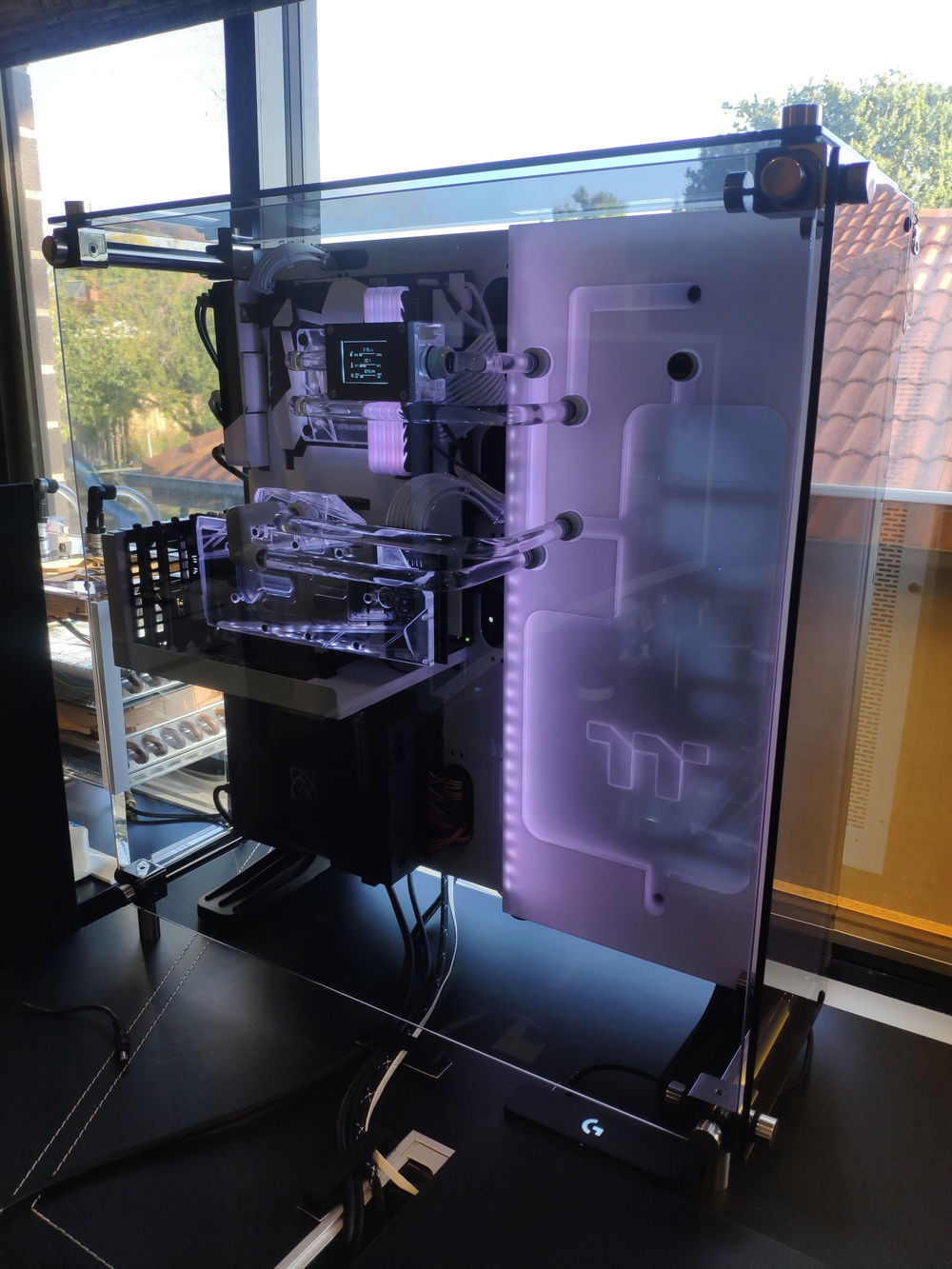

The Thermaltake core p5 such a unique and awesome looking case, specially designed for a custom watercooling build. White is the theme of the build so I tried to keep choose as many white parts as possible.

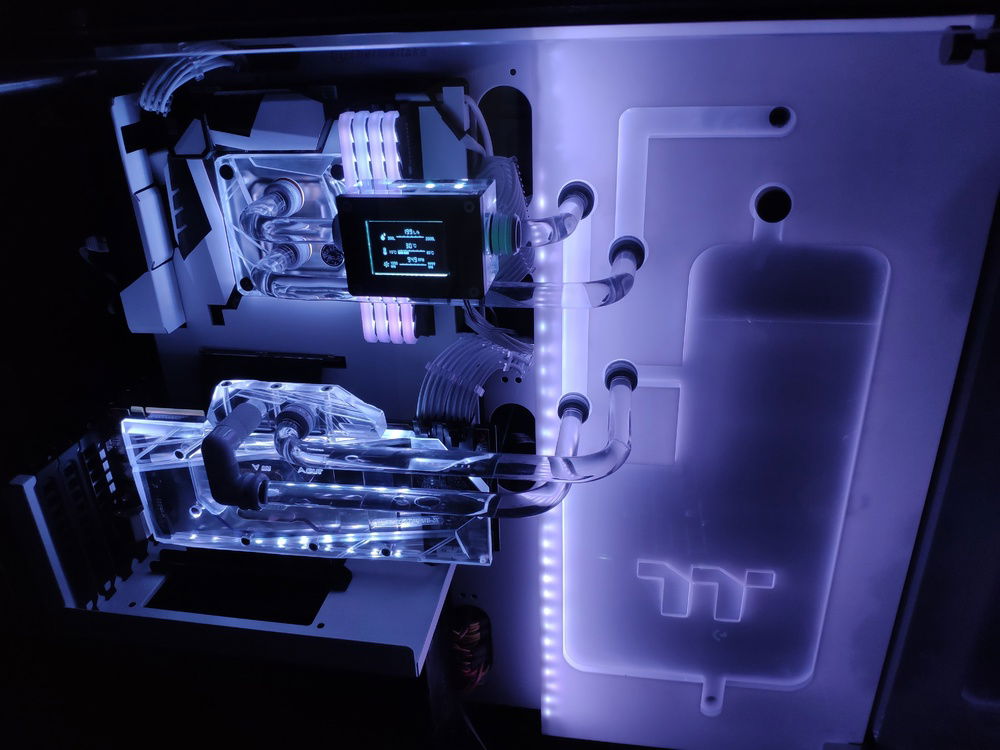

I planned out a distribution block to act as a reservoir as well as connecting both CPU and GPU blocks.

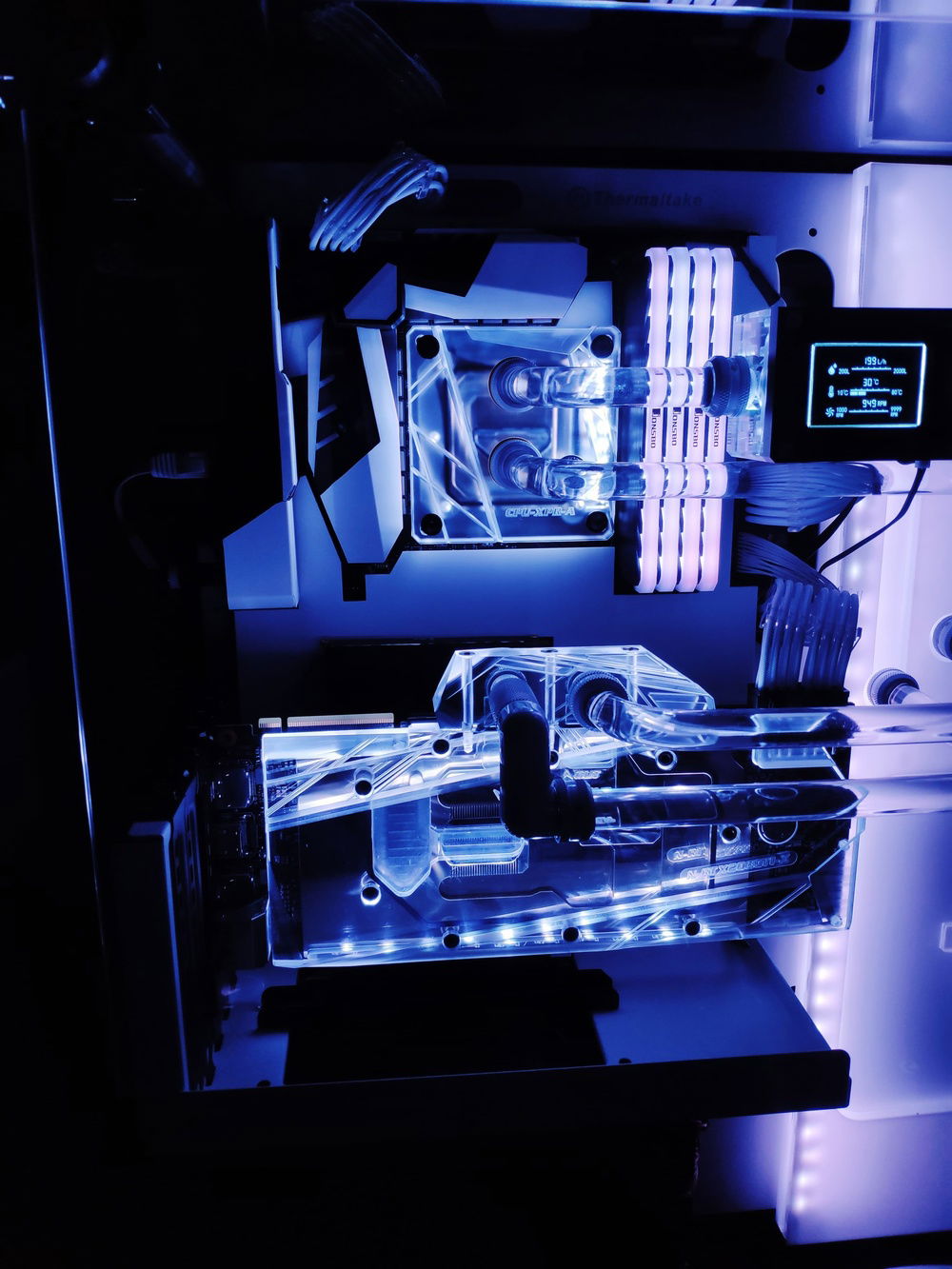

White motherboard cover is made to cover up all the mess from what was originally a red and black z170 board.

I also swapped out the vengeance RAM heatsink to add a bit of RGB factor to the build.

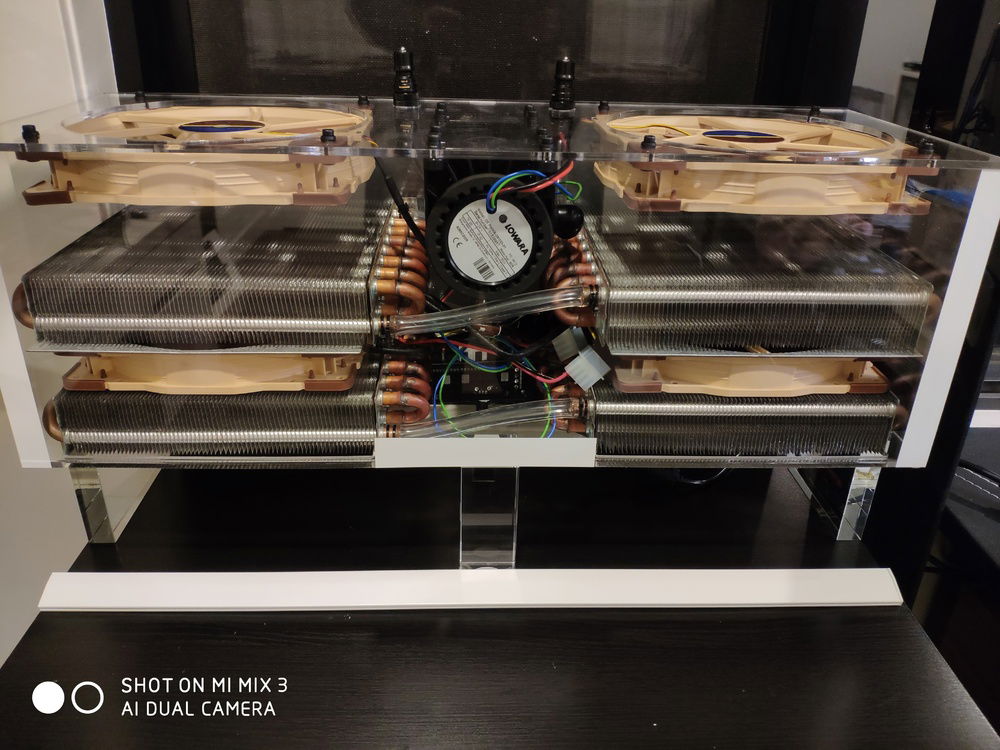

The case itself contains no radiators, nor pumps, they are placed in a separate external radiators+pump unit which I've designed and made using acrylic.
Custom made distribution block.

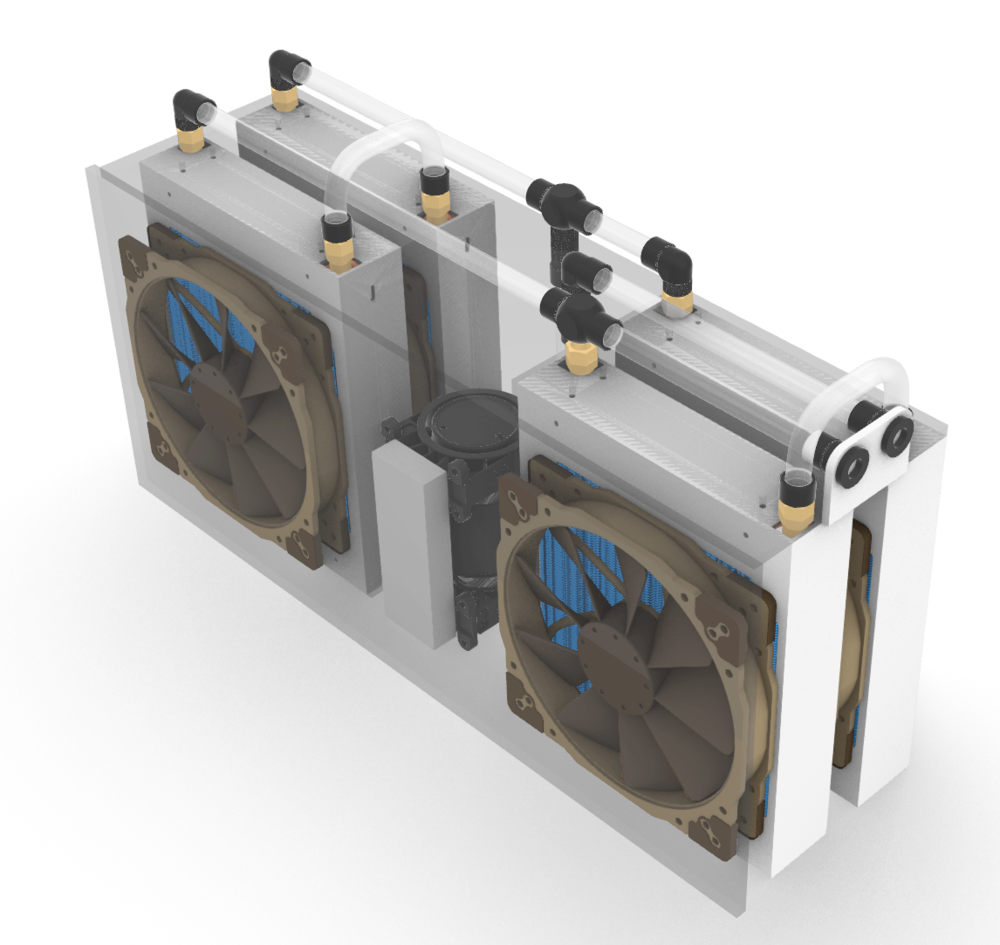

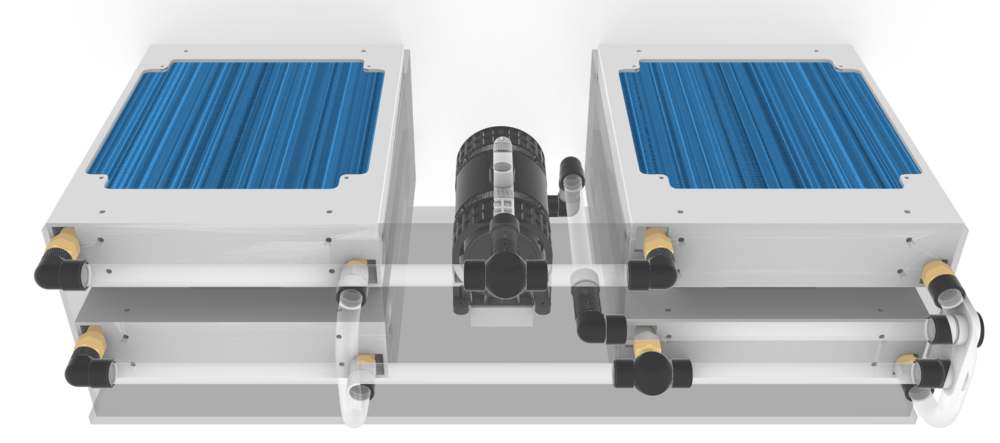

The external rad was based on my previous design but modified to add the pump in. Basically, 4 fridge condenser rads connected in series. The size is perfectly suitable for a 200mm fan. The cooling potential on these is massive, no need the say this is complete overkill on cooling, but that's what we enthusiast do xD.

Specs:
I7 - 6700k @4.8ghz
Corsair vengeance 4*8g @2800mhz
Inno 3d 2080ti oc @2130core, 8350memory
960evo nvme drive
MSI z170a m7 mobo
XFC 1000w platinum PSU
Thermaltake core p5 case TG white edition.
Color(s): White
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: Futuristic
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 348.01
Intel - Core i7-6700K
Socket: LGA 1151
Cores: 4
Motherboard
$ 239.99
MSI - Gaming M7
Chipset: Z170
CPU Socket: LGA 1151
Size: ATX
Memory
$ 196.99
Corsair - Vengeance LPX (2666Mhz) (Black)
Type: DDR4
Capacity: 16 GB
Graphics
INNO3D - GeForce Gaming OC (X3)
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Storage
$ 102.00
Samsung - 960 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 250 GB
Storage
$ 102.25
Western Digital - WD Black Desktop
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
PSU
XFX - ProSeries P1-1000-BELX
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
Case
Thermaltake - Core P5 (White)
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 29.95
Noctua - NF-A20 FLX
Size: 200 mm
Cooling
Barrow - Fittings
Type: Custom Loop
Cooling
Barrow - Tubing
Type: Custom Loop
Cooling
Bykski - CPU Blocks
Type: Custom Loop
Cooling
EKWB - Pump
Type: Custom Loop
Accessories
Monitor
HKC - NB34C
Size: 34 Inch
Panel: VA
Refresh Rate: 100 Hz
Keyboard
$ 174.11
Corsair - K95 Platinum (RGB)
Interface: Wired
Key Switch Type: Cherry MX Speed
Type: Full Size
Mouse
$ 114.50
Logitech - G903
Interface: Wireless
