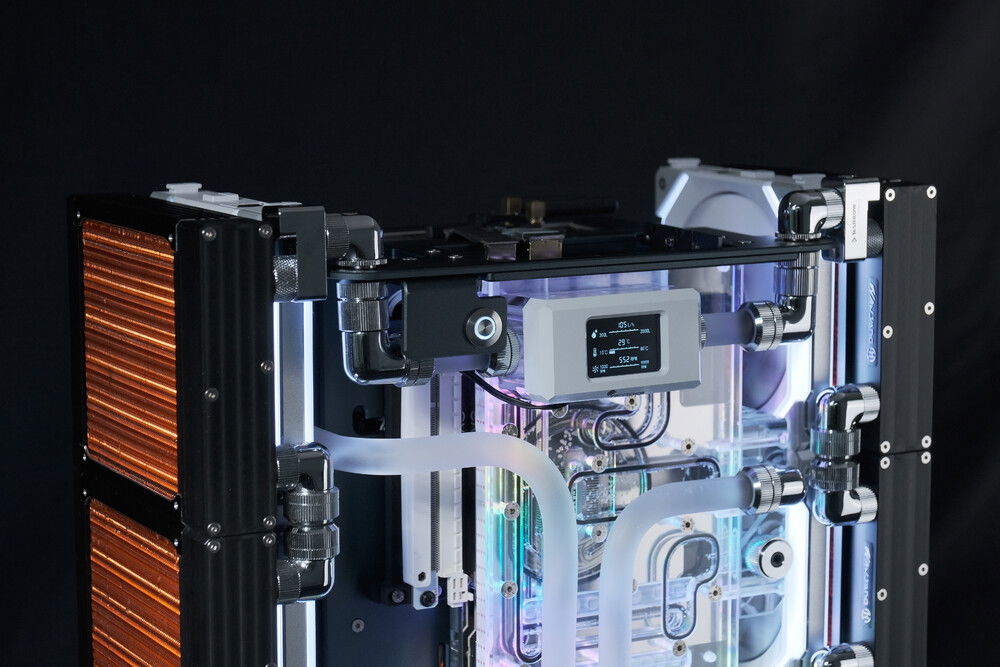

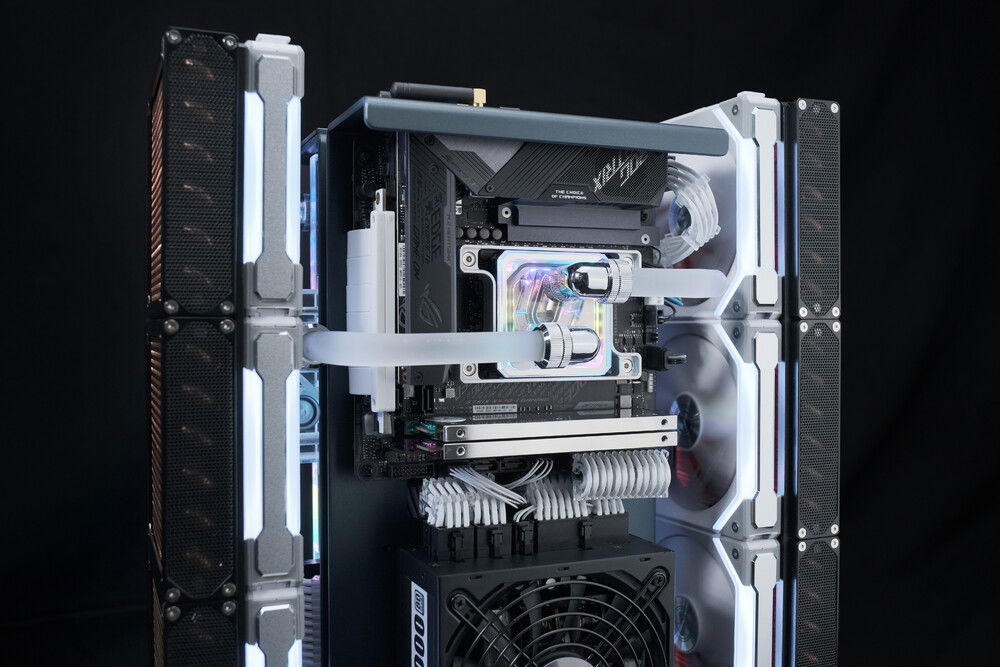

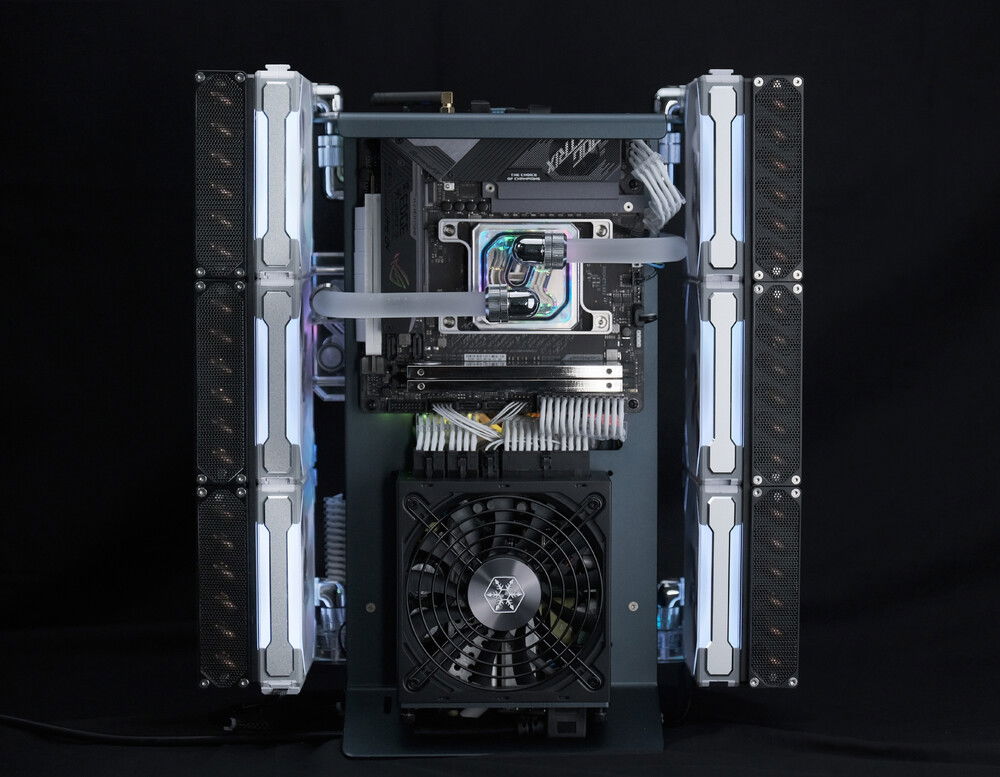

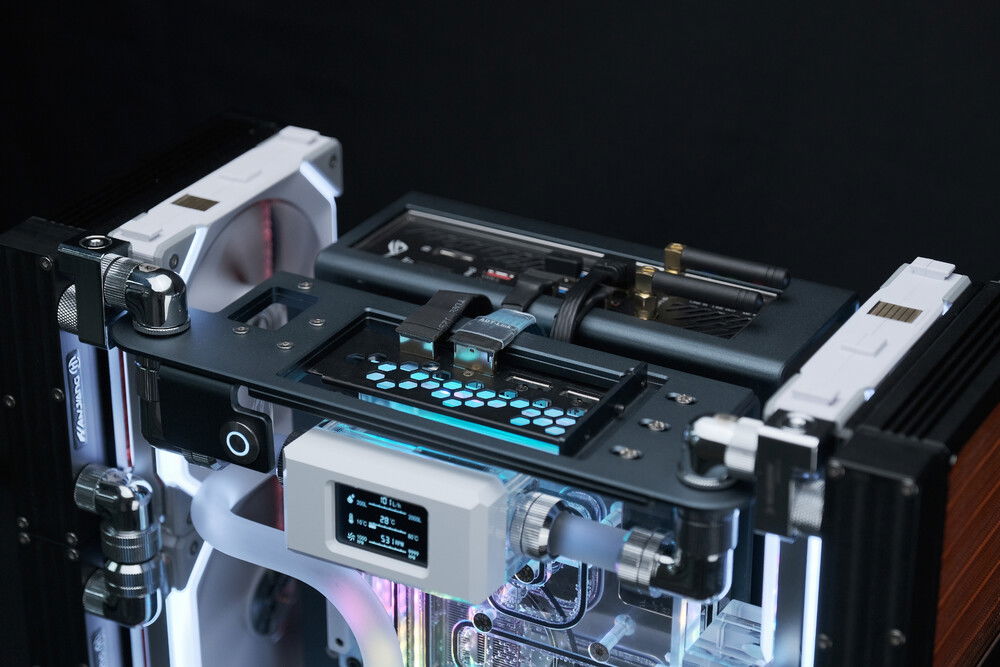

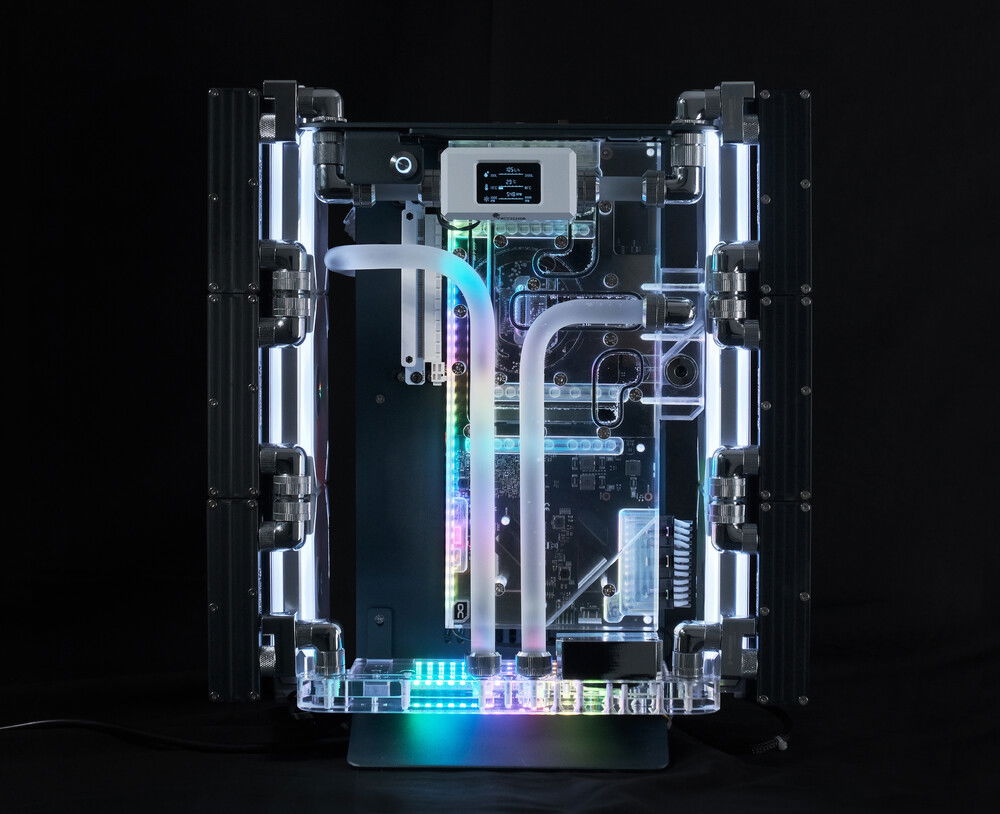

Project XTIA Wings

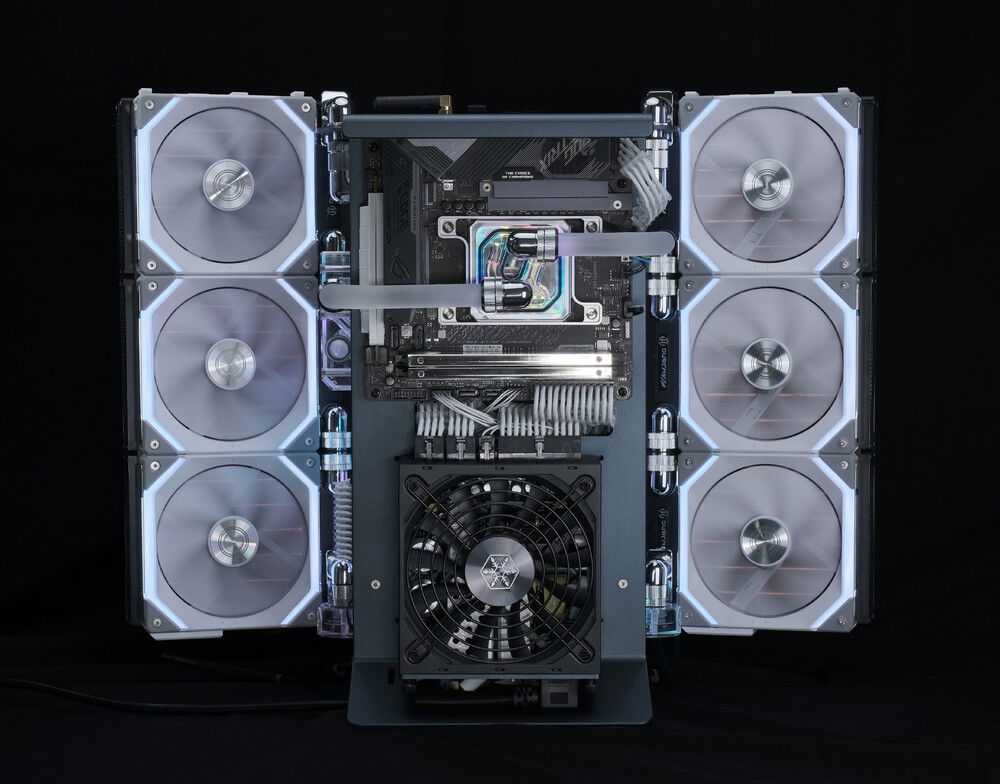

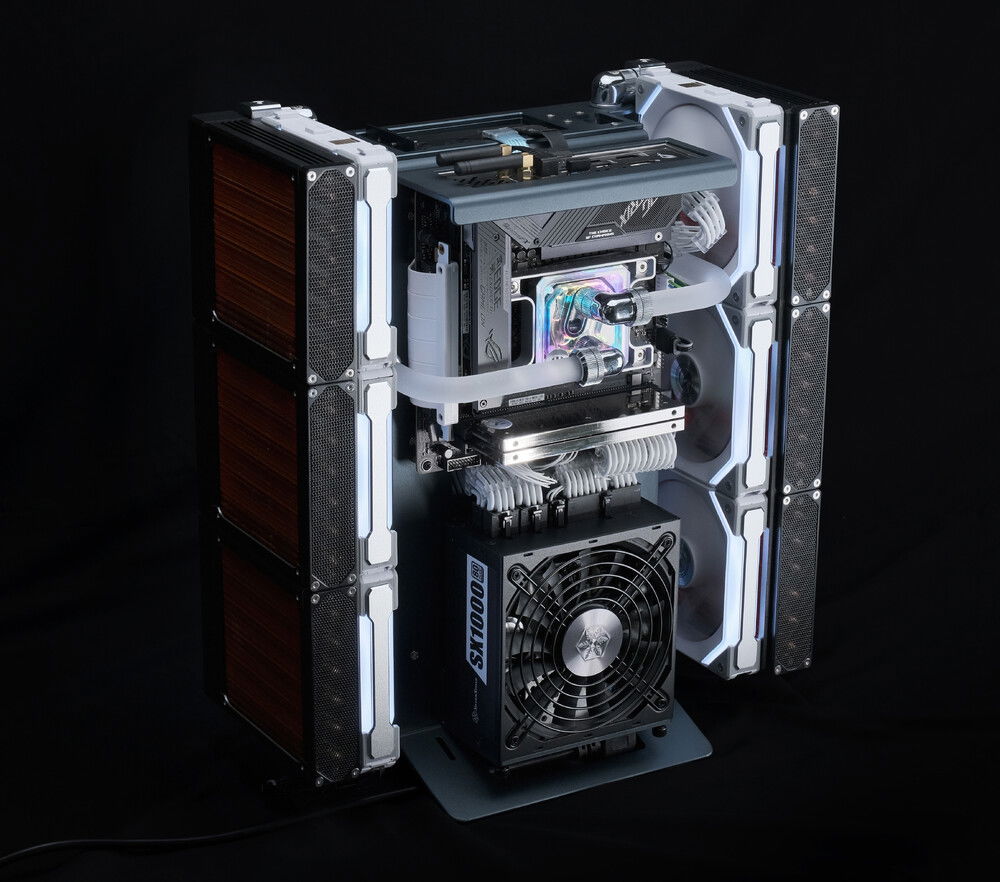

This is a build done in collaboration with the Xtia team, the maker of this unique open air itx case.

Many thanks to the Xtia team for the helpful supports and the great photographers.

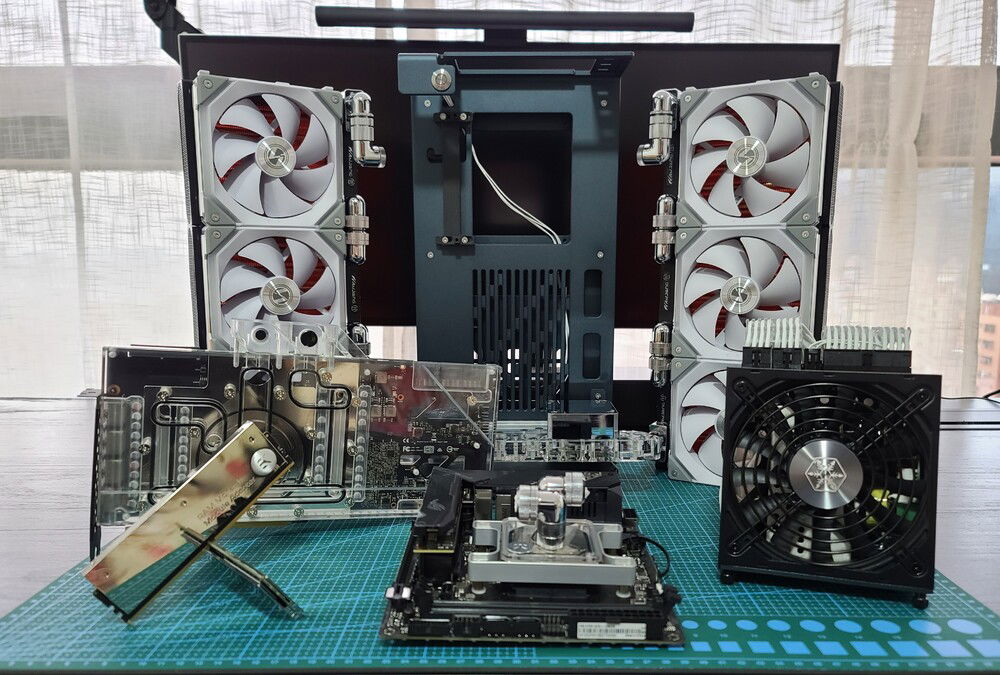

Specs:

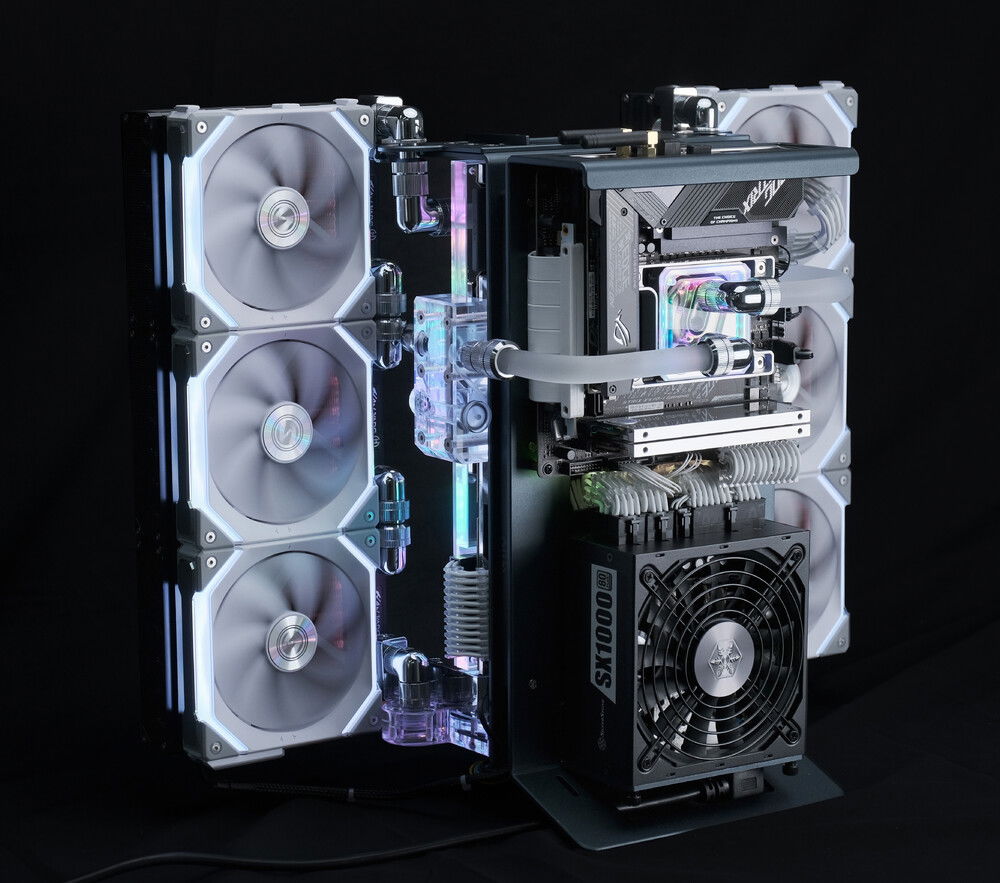

Case: Xtia Xproto-L

CPU: Ryzen 9 5950x

Motherboard: Asus ROG X570i

Ram: 3600mhz 16gx2 in EK chrome ram kit

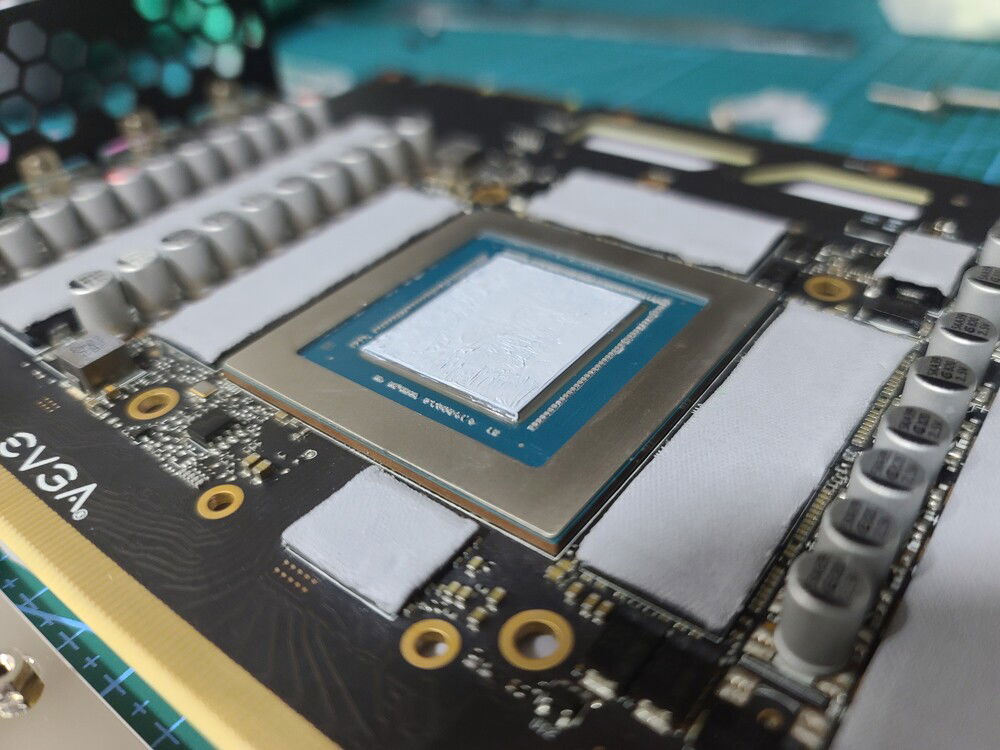

GPU: EVGA 3090 FTW3 Ultra with Alphacool waterblock and custom active backplate

PSU: Silverstone SX1000

Watercooling parts.

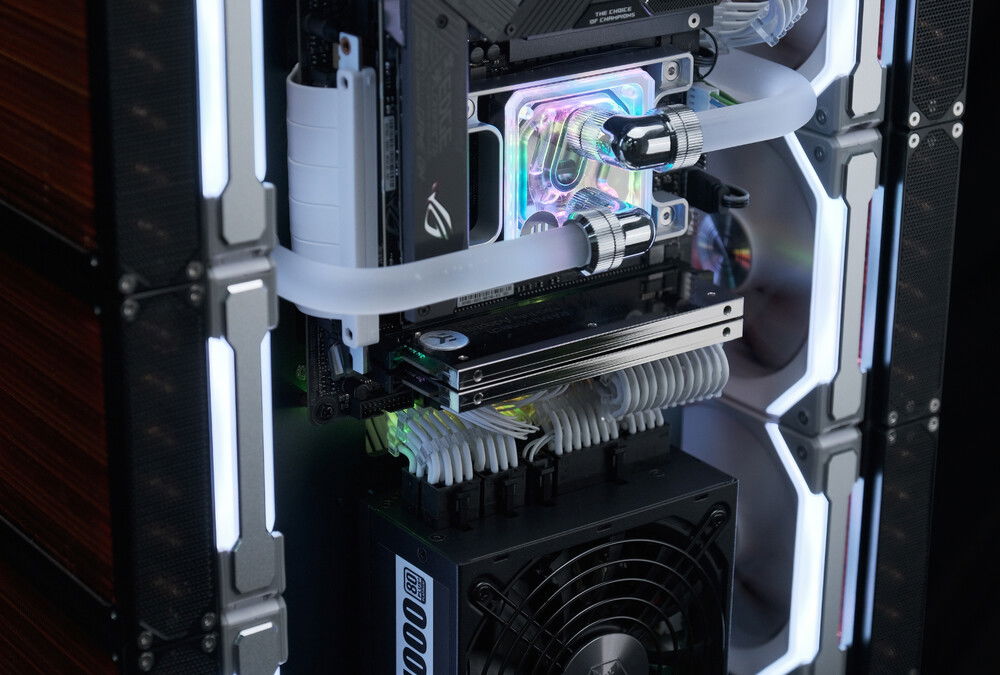

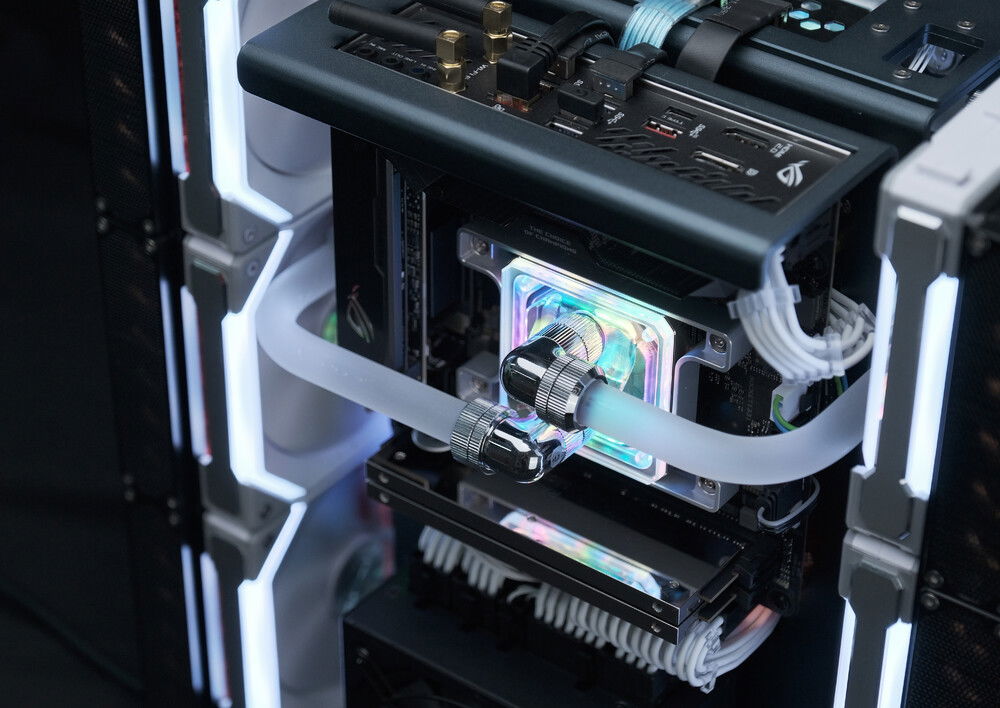

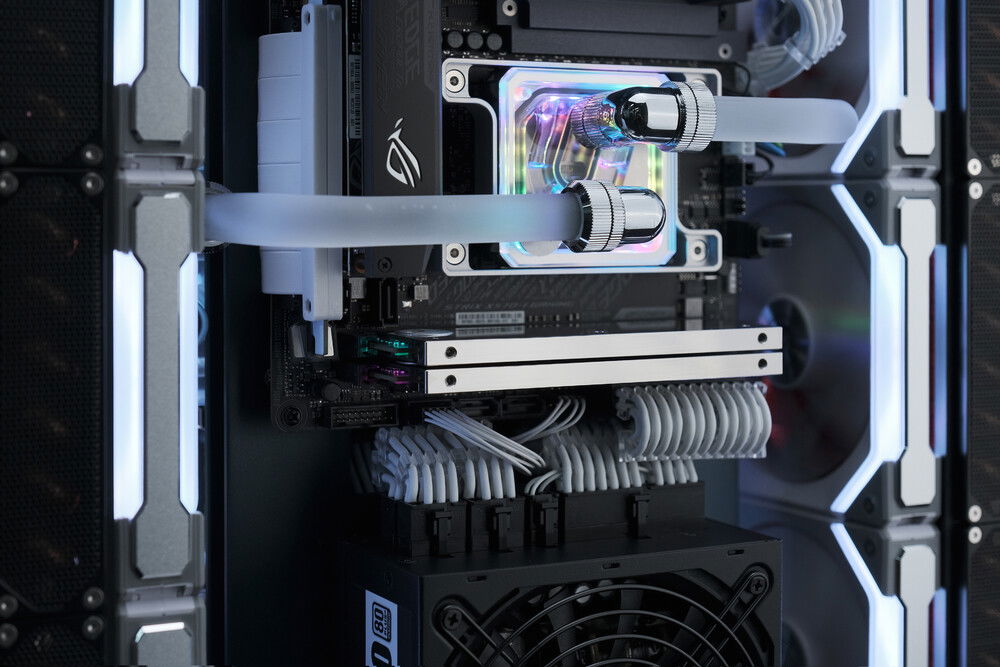

EK magnitude acrylic AM4 CPU Waterblock

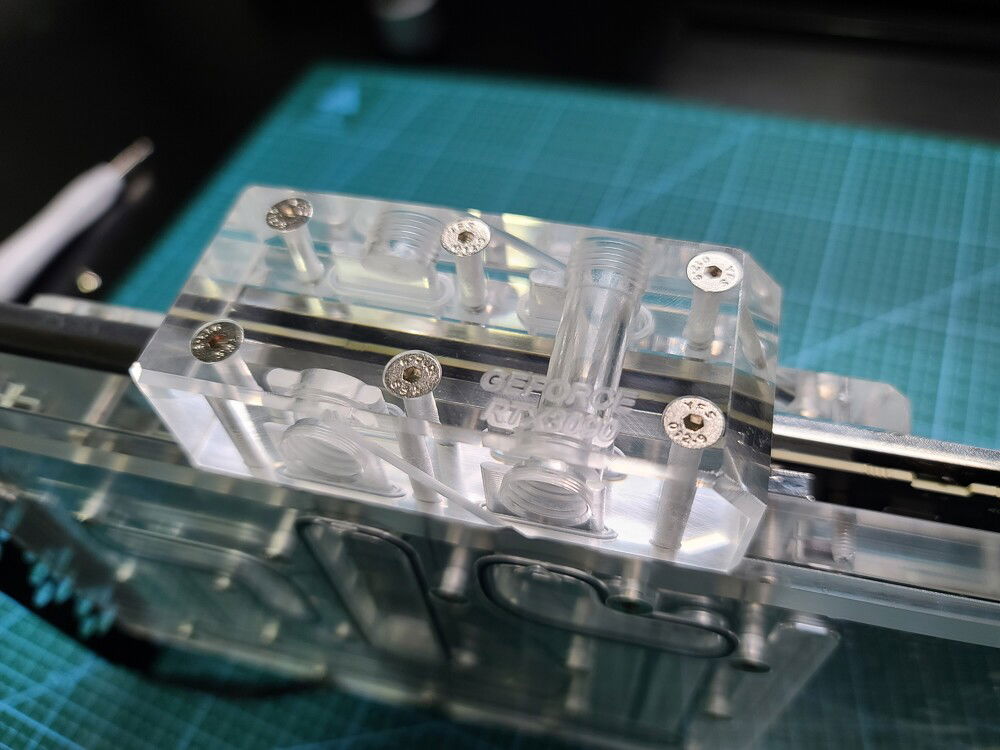

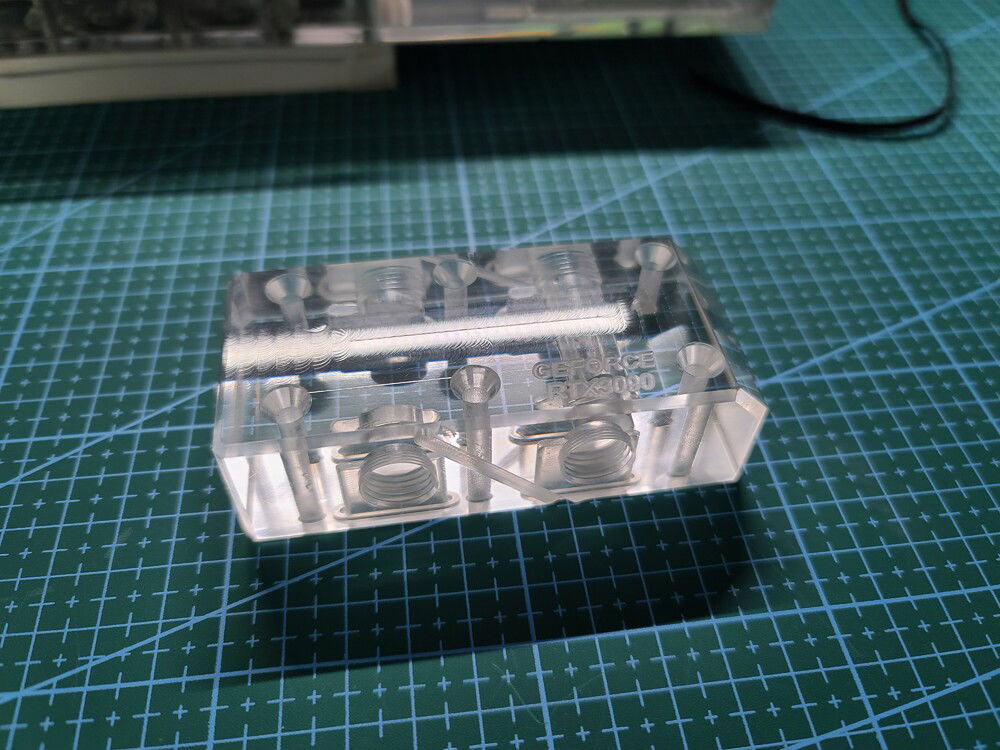

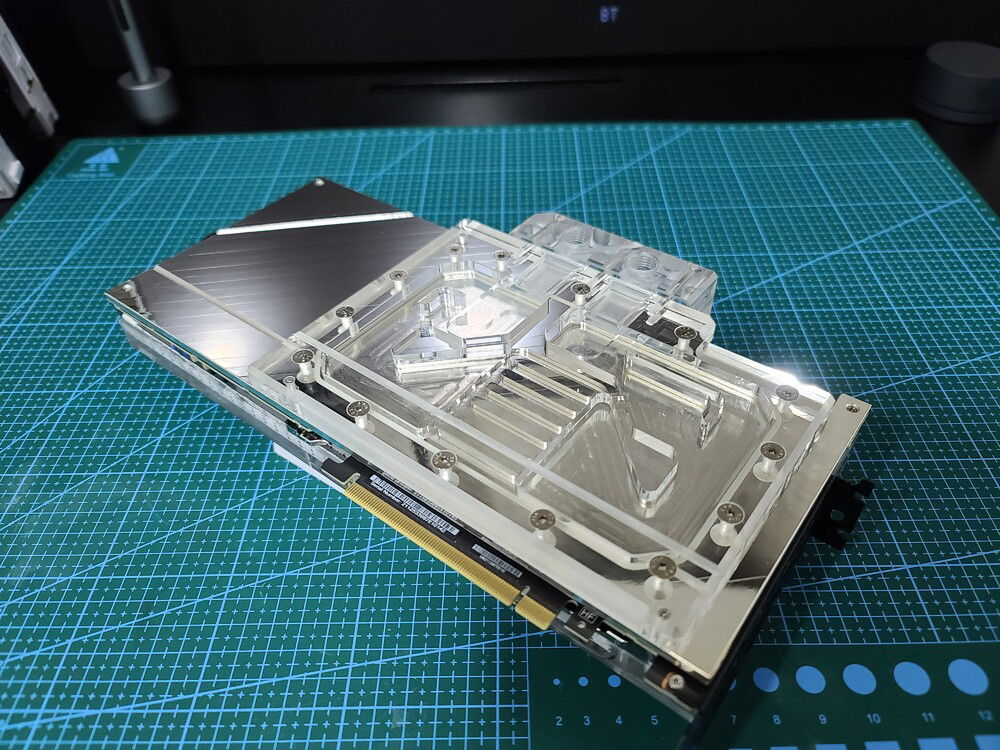

Alphacool 3090 FTW 3 Waterblock with modded bridge piece

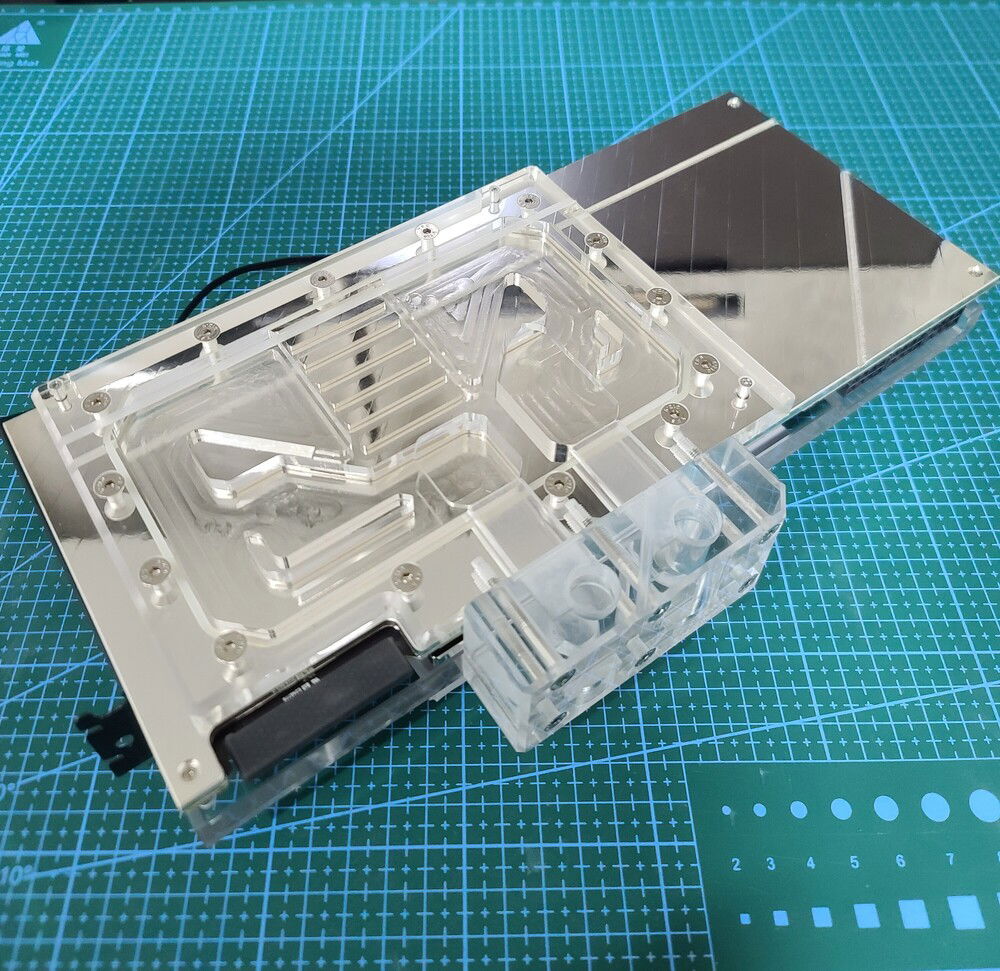

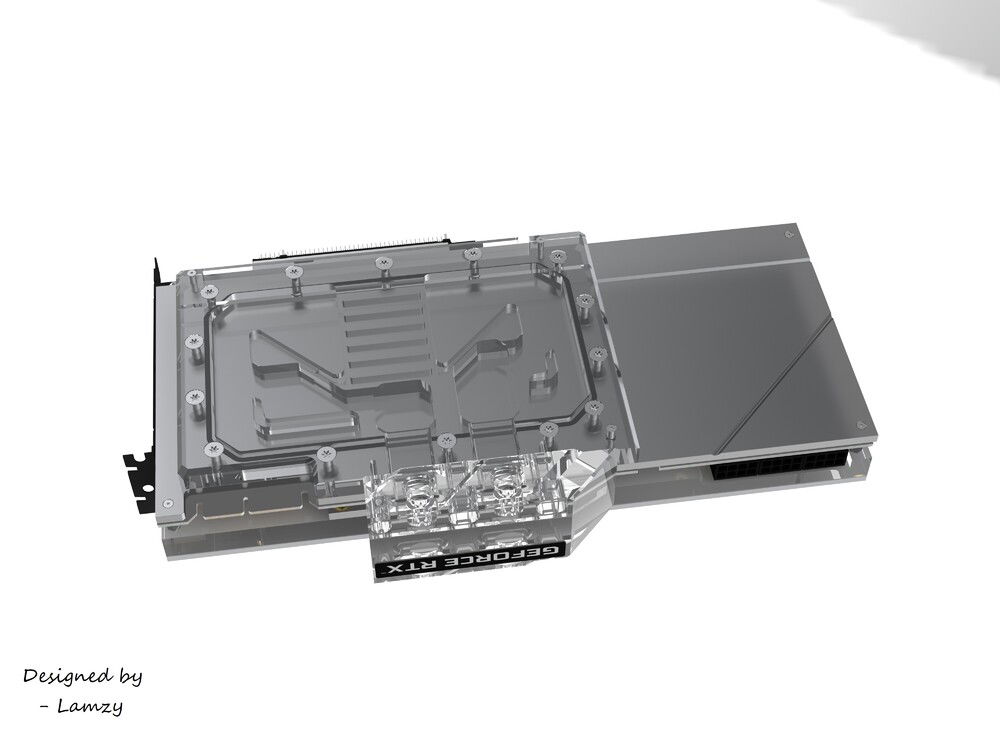

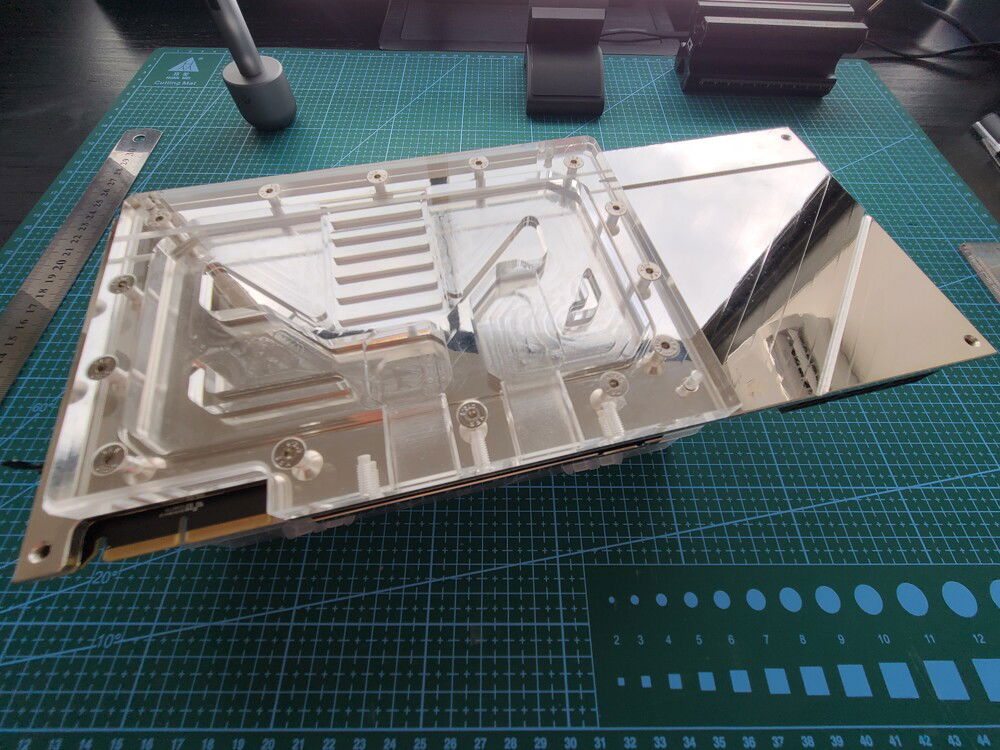

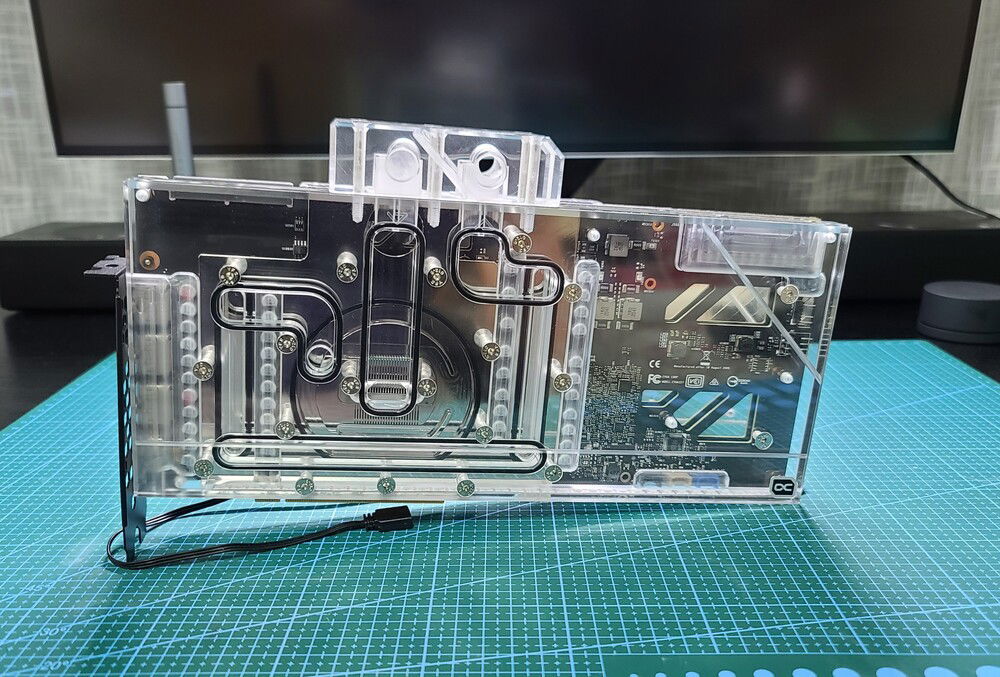

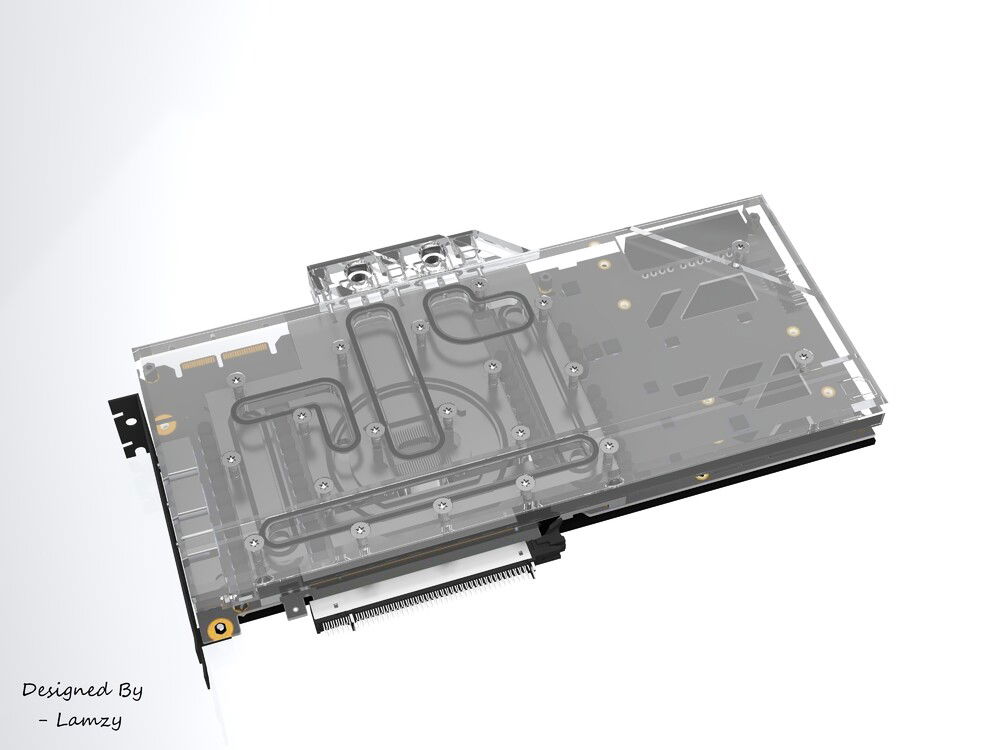

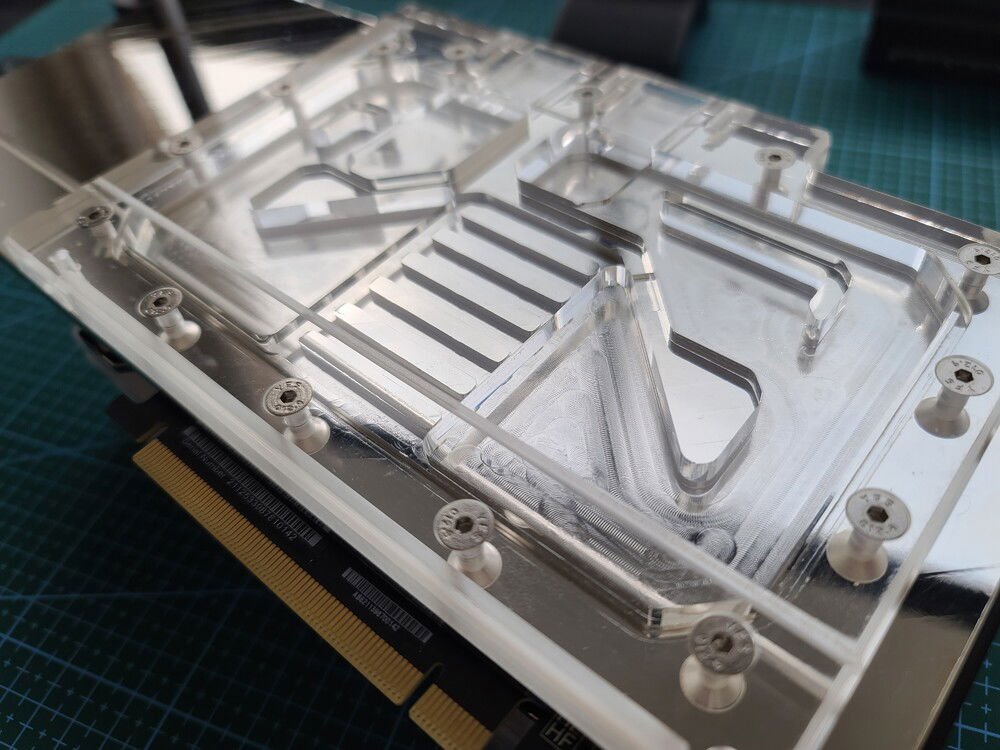

Custom made 3090 FTW 3 active backplate with 4mm copper plate and 10mm acrylic top

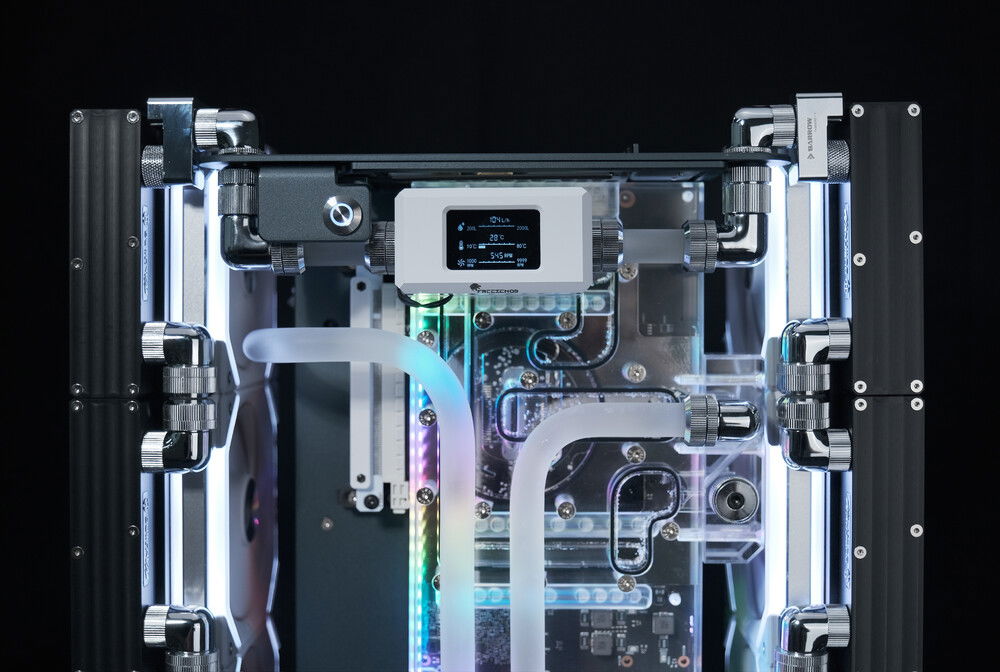

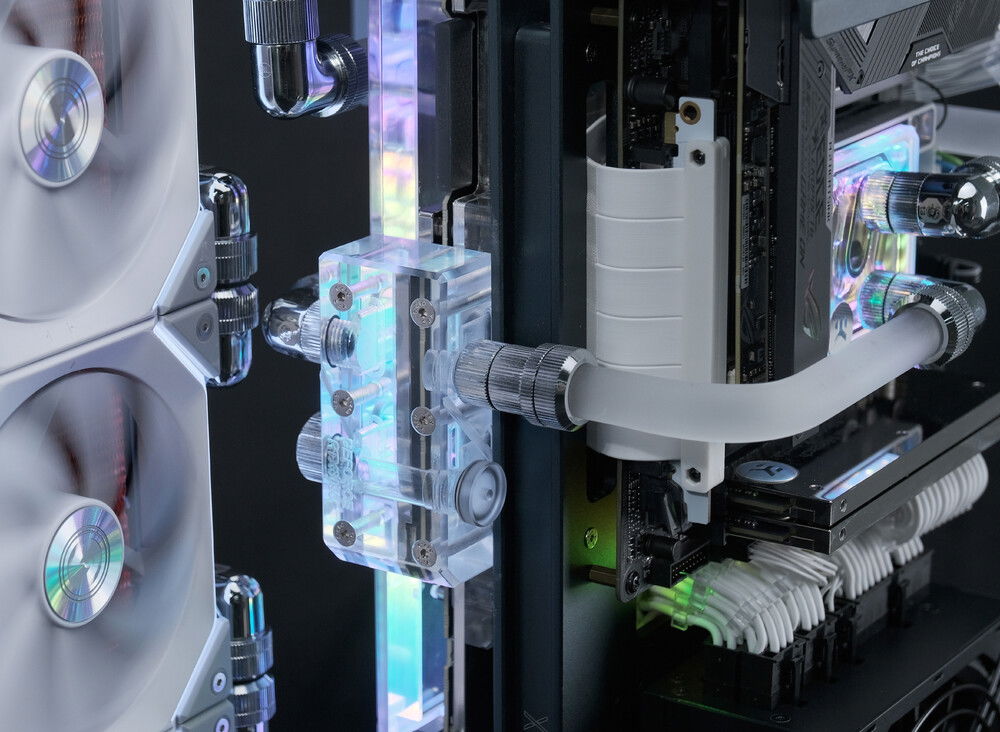

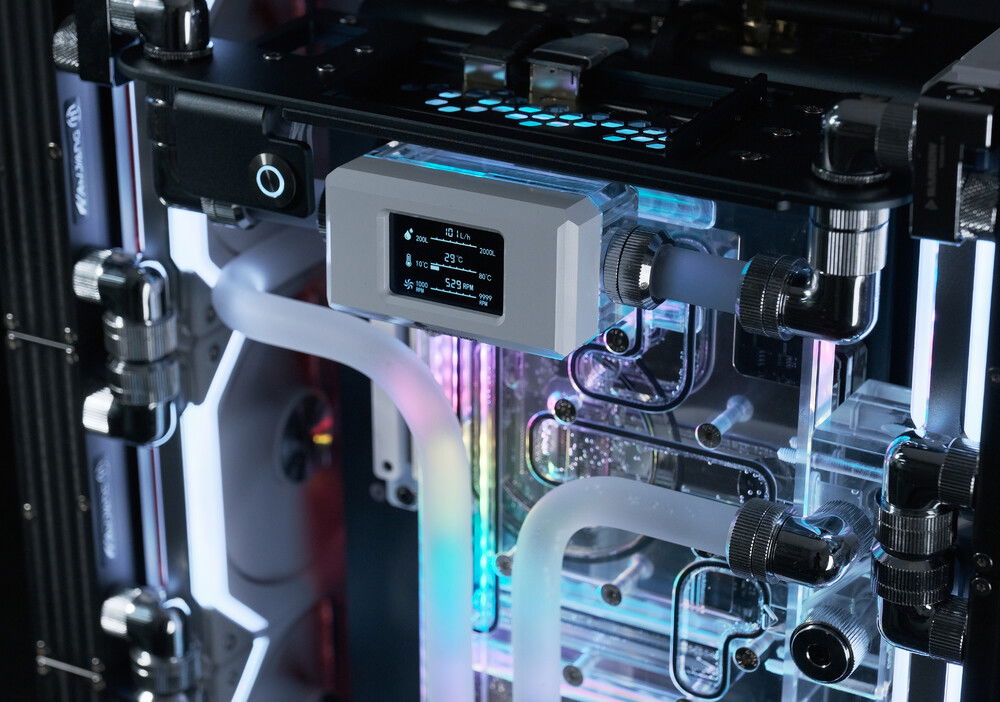

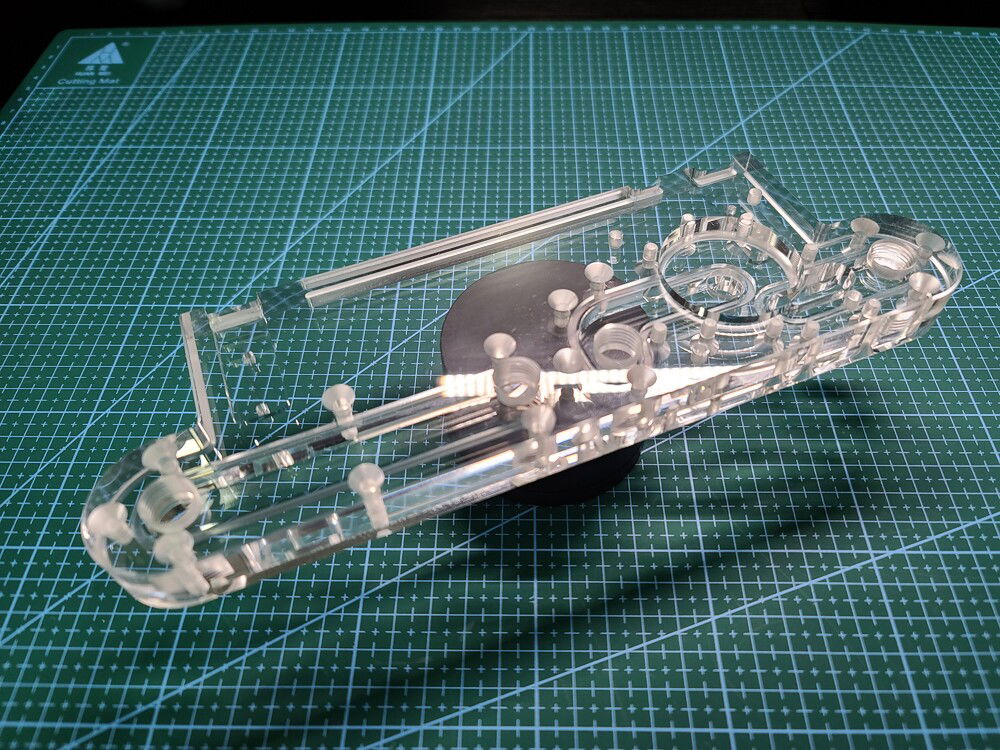

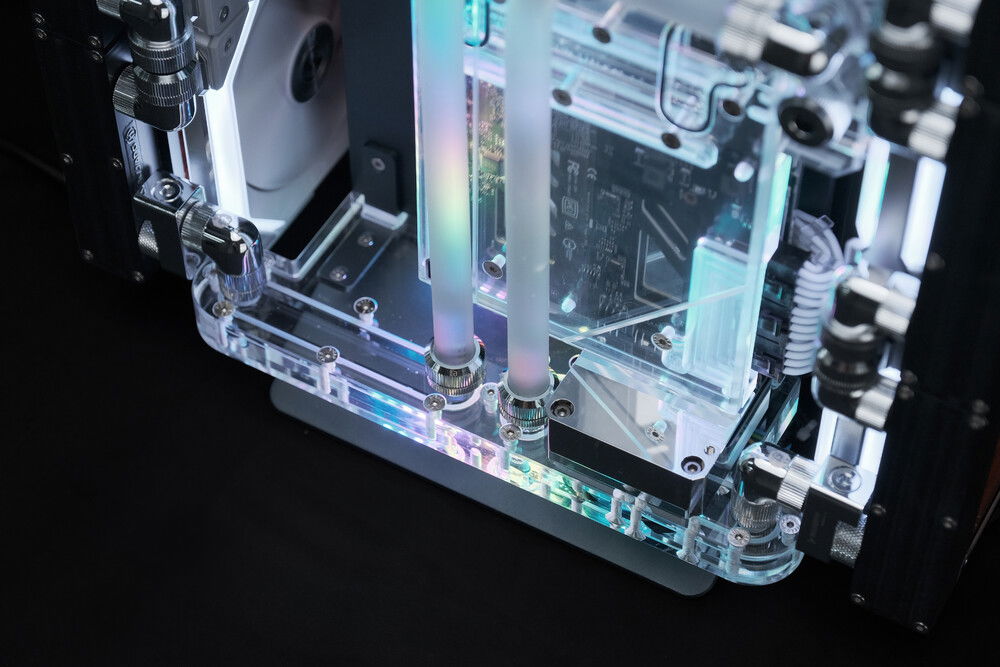

EK DDC3.2 pump with ICE pump heatsink mounted on custom made distro plate

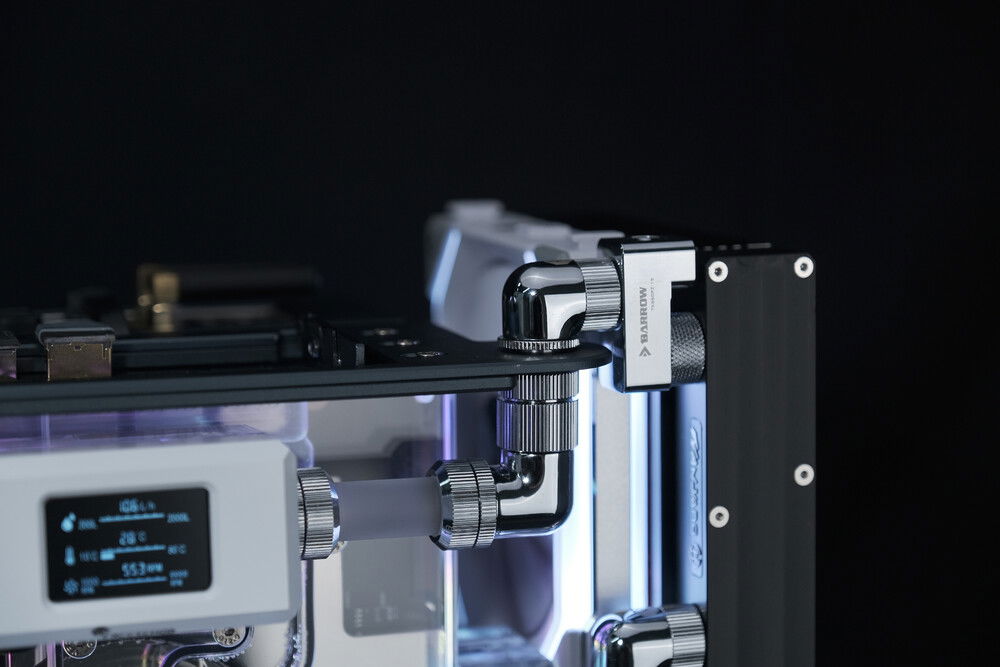

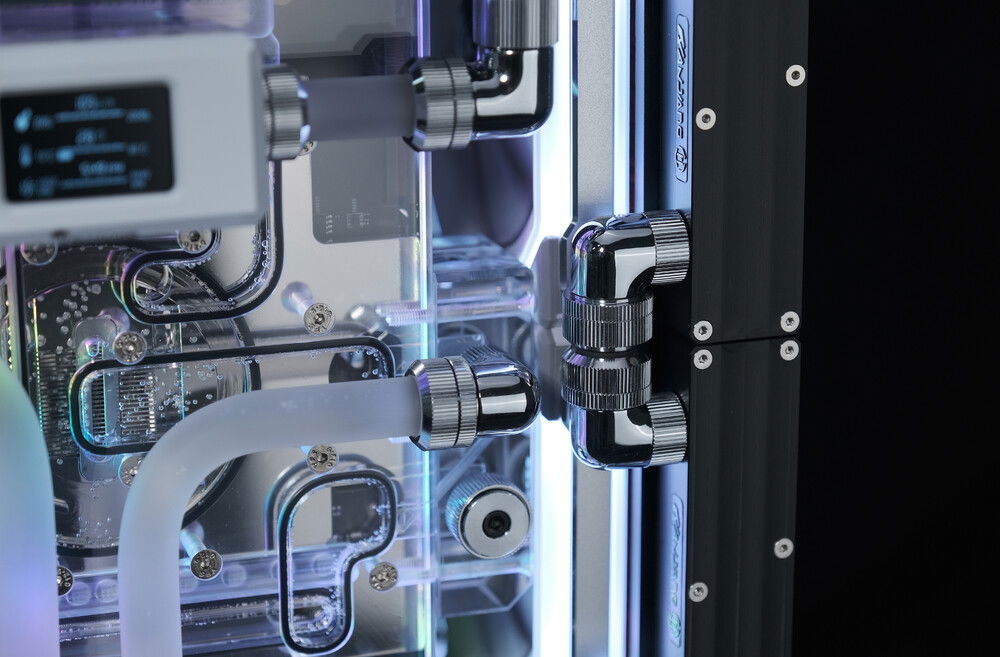

All the compression and 90 degree fittings are from Touchaqua Bitspower with exception of position adjustable fitting from Barrow.

Frosted acrylic tubes

Hanjiang 120mm POM radiator 30mm thick

Varies custom anodized aluminum connection piece are used, manufactured by Xtia for consistent color and texture
Color(s): Gray
RGB Lighting? Yes
Theme: Industrial
Cooling: Custom Liquid Cooling
Size: SFF
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
AMD - Ryzen 9 (5950X)
Socket: AM4
Cores: 16
Motherboard
$ 449.00
ASUS - ROG Strix Gaming (X570-I)
Chipset: X570
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 189.99
G.Skill - Ripjaws V (4000MHz) (Black)
Type: DDR4
Capacity: 32 GB
Graphics
$ 1,789.00
EVGA - GeForce FTW3 Ultra Gaming
Chip Manufacturer: NVIDIA
Chip: RTX 3090
Interface: PCIe x16
Storage
$ 168.99
Samsung - 980 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
PSU
$ 284.99
SilverStone Technology - SX1000
Wattage: 1000
Form Factor: SFX
Efficiency: 80+ Platinum
Case
Xtia - Xproto-L
Type: Open Air
Side Panel: Open
Case Fan
$ 94.99
Lian Li - Uni Fan SL120
Size: 120 mm
