Project: Matnav

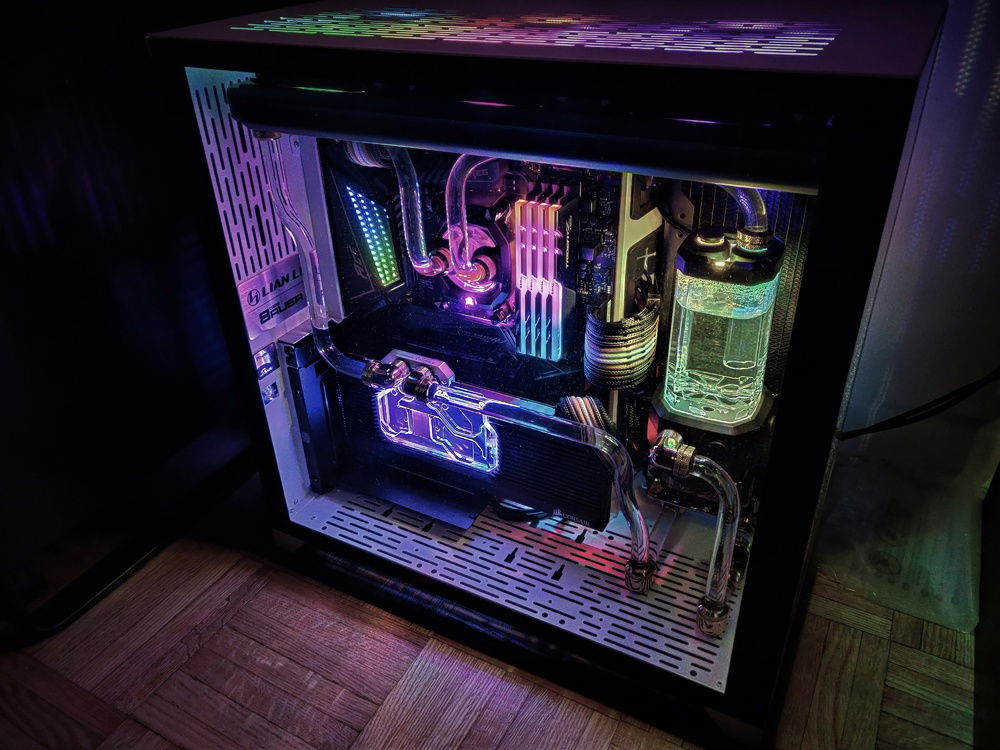

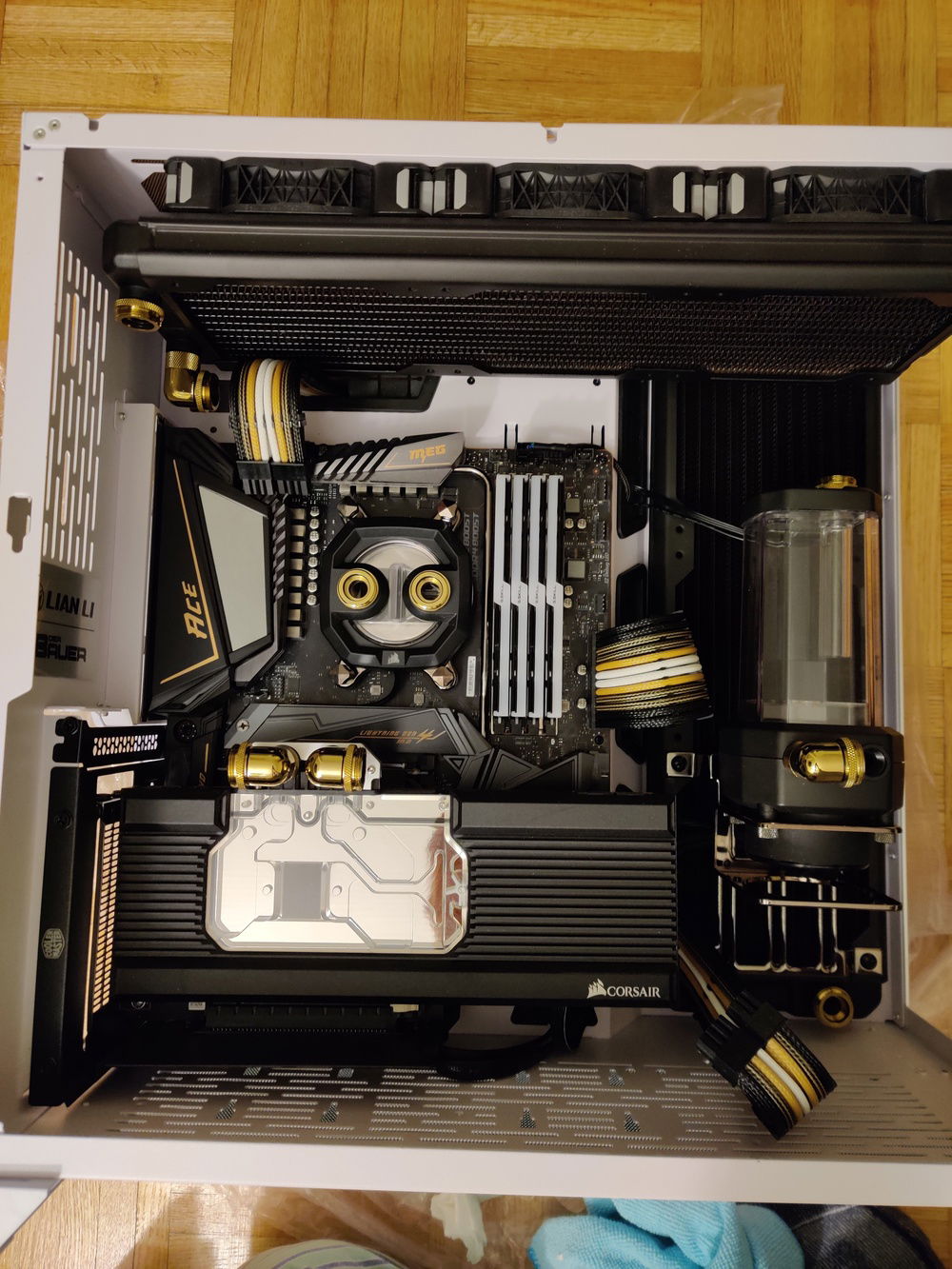

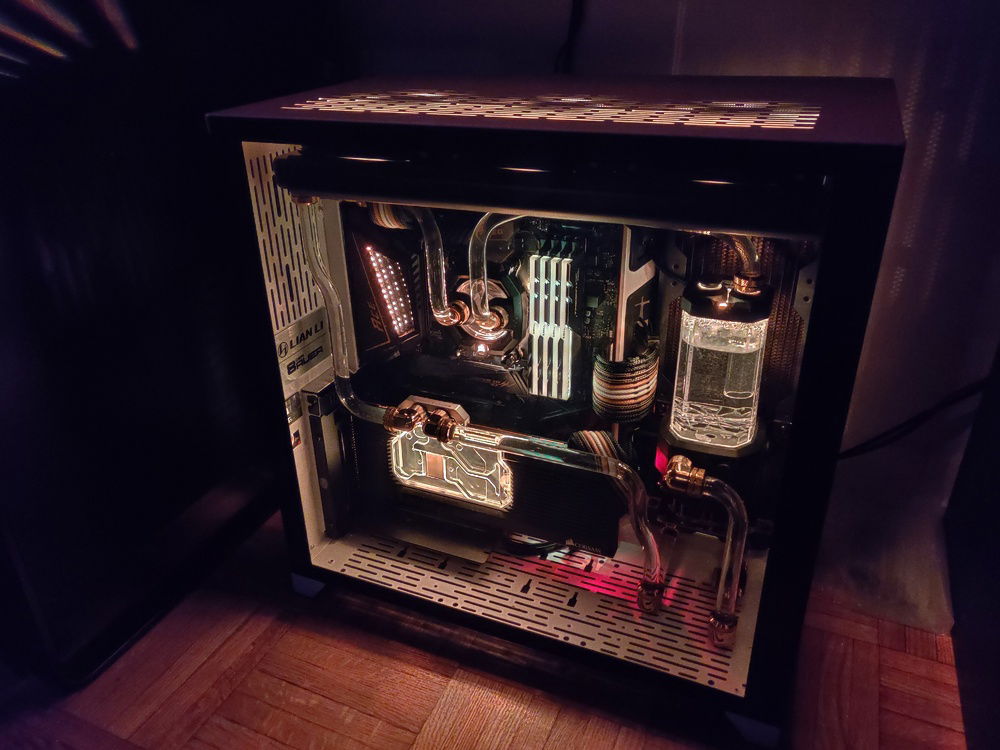

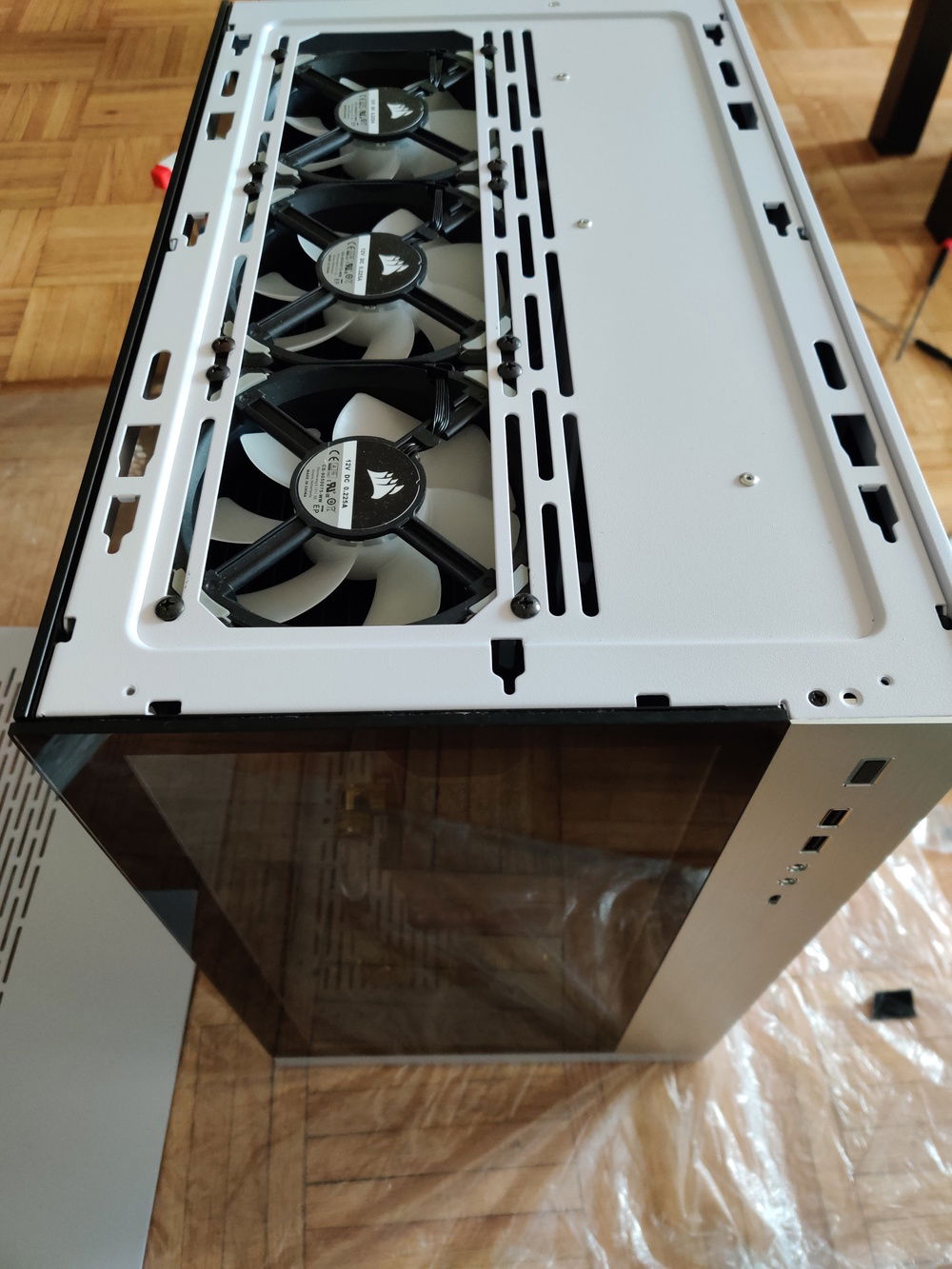

Went for a black and gold theme with a splash of white to commemorate AMD's 50th anniversary. I wanted straight lines, which required lots of little bends. While it's an RGB build, I usually just turn them off or just make the lights dark gold, I think it looks good either way. I wanted to not show the fans as it would be overkill in terms of lighting. Through the radiators in the current setup, they give off a faint glow which looks nice.

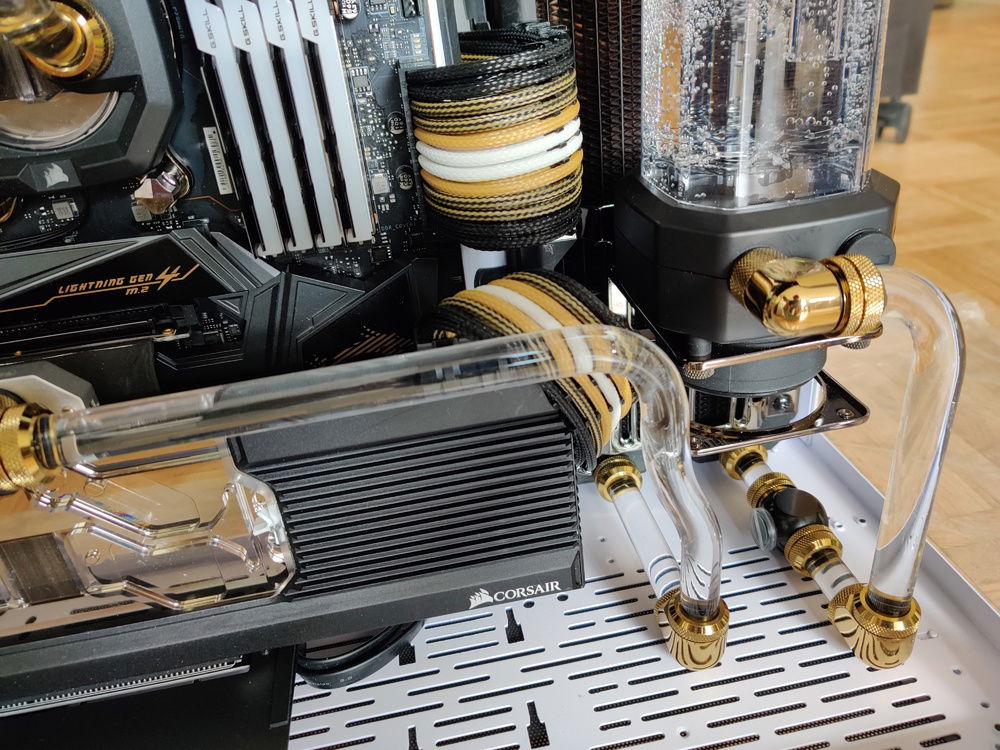

This is my daily driver for rendering, gaming and everything else. There's a t-fitting right at the bottom corner for easy drains. Custom loop parts are all from Corsair with their Hydro X line except the radiators which are Black Ice Nemesis GTS who basically make the radiators for Corsair anyway. No coolant used, just deionized water and Mayhems Biocide.

Shout out to Garrett at Beyond Customs for the cables, he did a great job and did all the cables using 16AWG which make them look fuller.
Color(s): Black Gold White
RGB Lighting? Yes
Theme: Brand
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Build Updates

Upgraded to 3950X

Hardware

CPU
$ 395.00
AMD - Ryzen 9 (3900X)
Socket: AM4
Cores: 12
Motherboard
$ 484.40
MSI - Meg Ace
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 66.99
Graphics
$ 648.68
AMD - Radeon
Chip Manufacturer: AMD
Chip: 5700 XT
Storage
$ 193.98
Western Digital - BLACK SN750 Internal Gaming (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
Seasonic - Prime Ultra
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Titanium
Case
$ 158.73
Lian Li - O11 Dynamic
Type: Mid-Tower
Side Panel: Tempered Glass
Cooling
$ 249.00
Corsair - Hydro X (RGB)
Type: Pump/Reservoir Combo
Cooling
$ 158.10

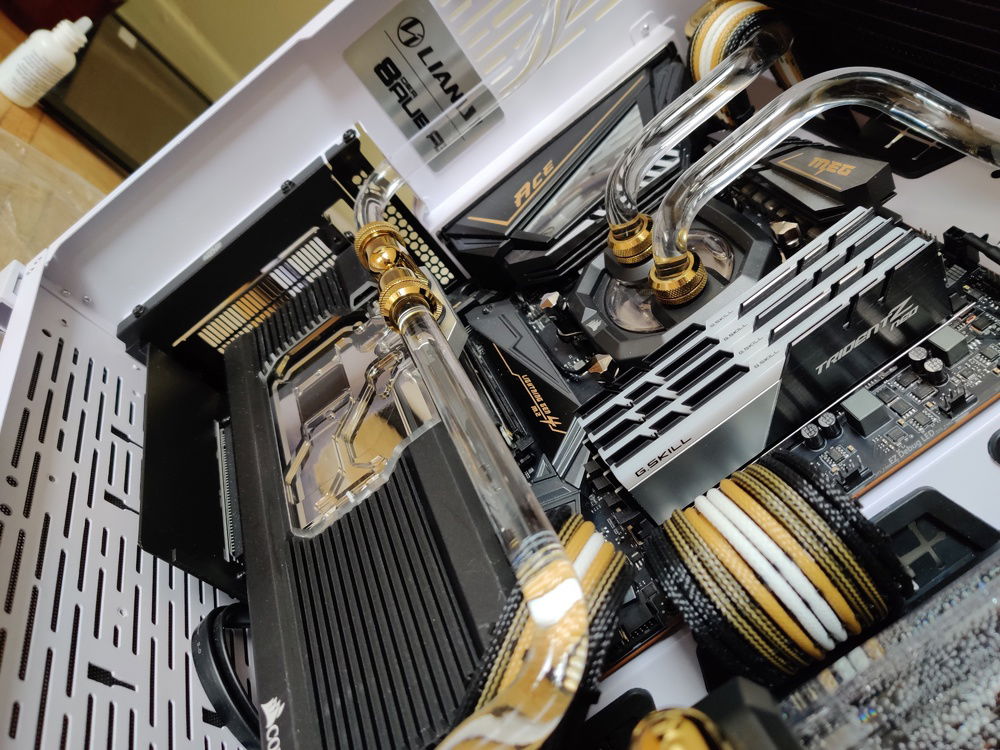

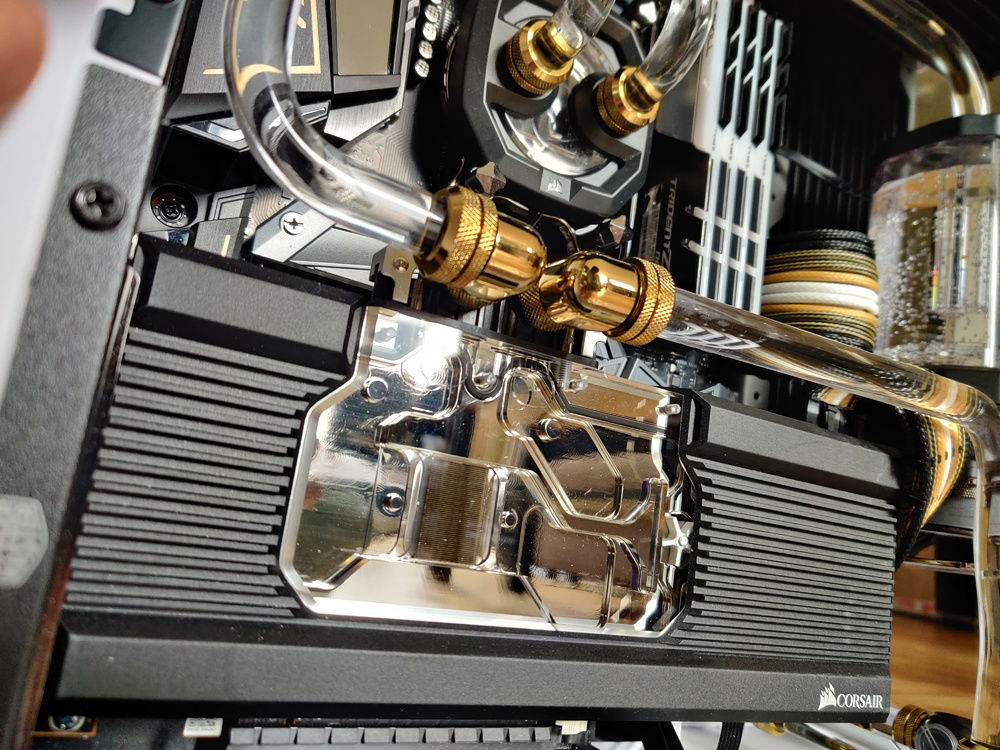

Corsair - Hydro X XG7 (RGB)
Type: GPU Waterblock
Cooling
$ 348.60

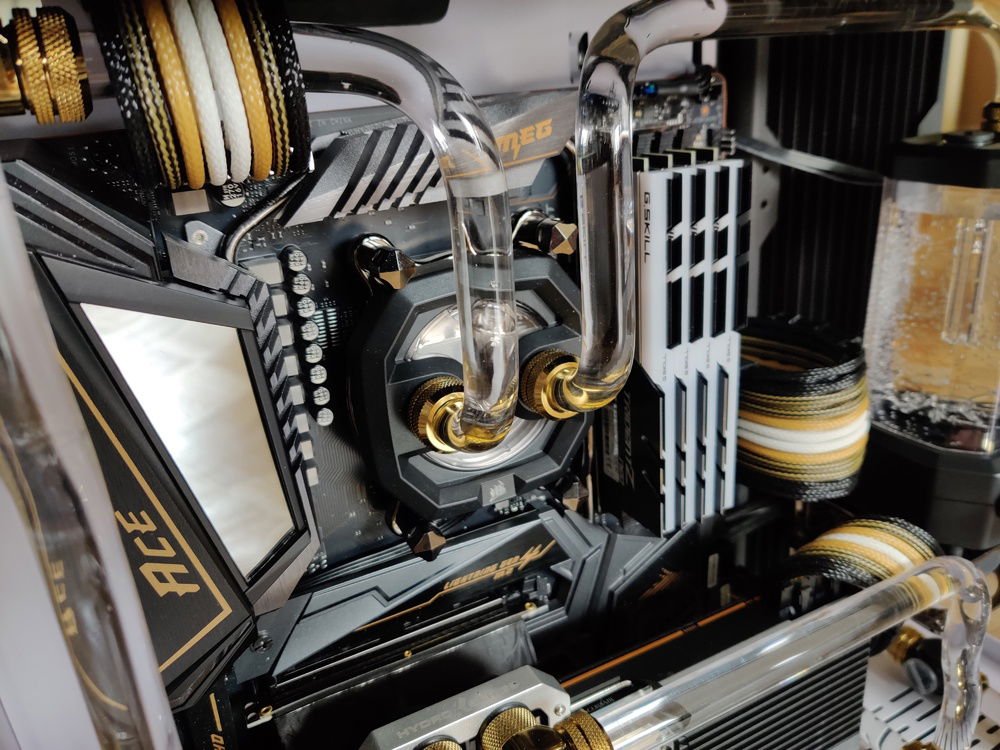

Corsair - Hydro XC7 (Black/RGB)
Type: CPU Waterblock
Cooling
Hardware Labs - Nemesis GTS (2x)
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Monitor
LG - UltraGear (27GL850)
Size: 27 Inch
Panel: IPS
Refresh Rate: 144 Hz
Keyboard
$ 221.65
Corsair - K70 Rapidfire MK.2 (Low Profile) (RGB)
Interface: Wired
Key Switch Type: Cherry MX Speed
Type: Full Size
Mouse
$ 39.99
Logitech - G502 Hero
Interface: Wired
