i7780x-IW

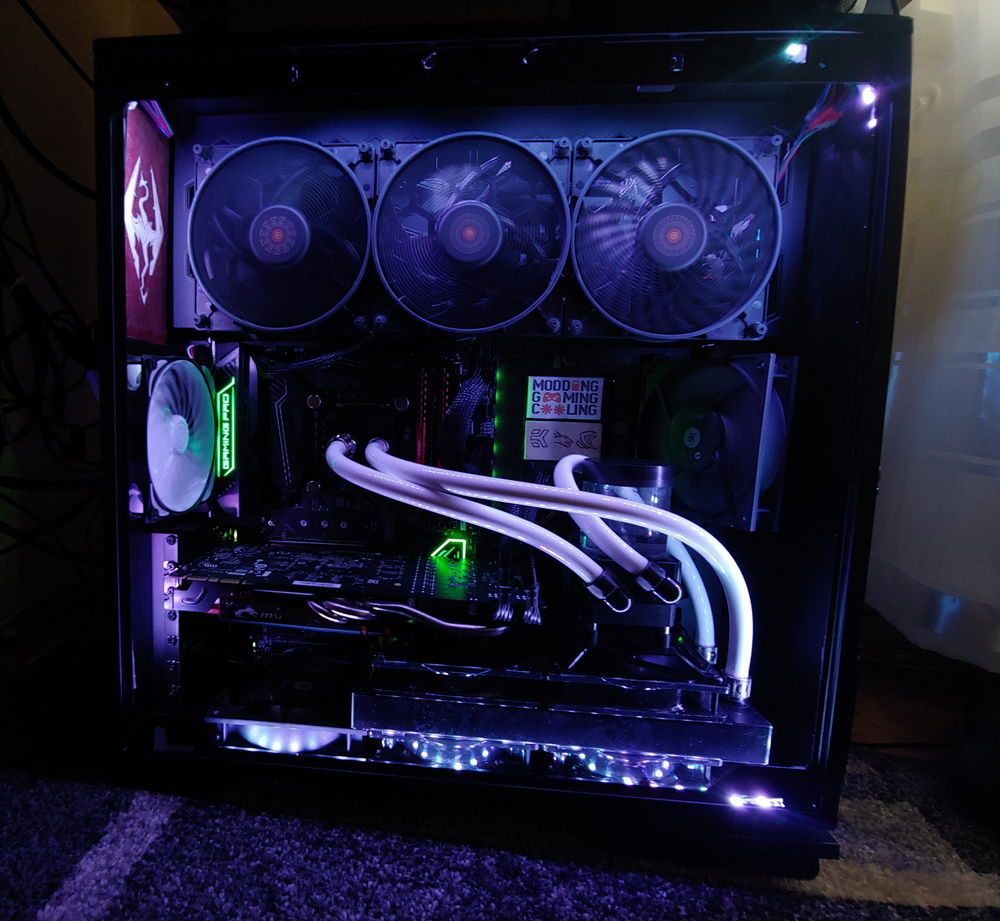

It was difficult to create optimal airflow in the 303, but it's fine now.
The PSU was shutting off due to overheating, the gpu was getting warmer by every minute and the exhausted air wasn't warm at all. Fixed by turning the psu outwards and adding a fan near the SSDs utilizing the "GPU holder" provided with the case.
There are 3 140mm be quiet fans in the top, but they are practically useless, because the back of the case is too restrictive.
I stick all kinds of things on the front of the case since it is boring 90% black. A dbrand artwork, a floppy disc and the stickers from my laptop and monitor.
2 metres of RGB strips are controlled by the mobo.
I made 2 wooden plaques, which are above the rear fan and on the unused ssd tray. One with the skyrim emblem, burned lines and red woodstain, the other with a few logos burnt into the wood.
I have a pair of Hyperx Savage DIMMs, but they seem to be EOL.

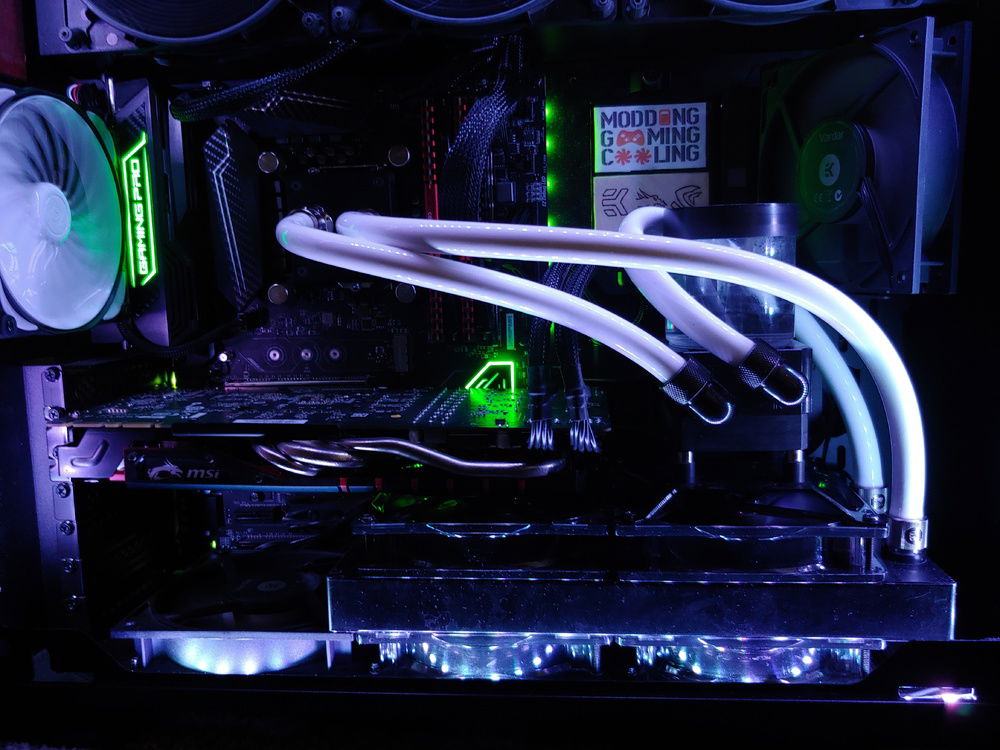

I added white tubes and 2 black Alphacool 90 degree fittings to the watercooling loop.
The 240mm rad is in push-pull between 4 Bitfenix Spectre LEDs.
The CPU has Thermalgrizzly Conductonaut under the IHS and EKWB Ectotherm on it. The fluid is ionized water with some dish soap.
7700k - 5.0ghz - <70C
ram - 3000mhz - CL16 - 16GB - 4 DIMM
980 - 1450mhz core - <66C
Color(s): Black Purple Red
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 235.00
Intel - Core i7-7700K
Socket: LGA 1151
Cores: 4
Integrated Graphics: Yes
Motherboard
$ 259.99
MSI - Gaming Pro Carbon
Chipset: Z270
CPU Socket: LGA 1151
Size: ATX
Memory
$ 24.99
Corsair - Vengeance LPX (3000MHz) (Black)
Type: DDR4
Capacity: 8 GB
Graphics
MSI - GTX 980 Gaming 4G
Chip Manufacturer: NVIDIA
Chip: GTX 980
Storage
$ 79.00
Samsung - 860 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 250 GB
Storage
$ 79.98
Seagate - Barracuda (ST2000DM006)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
Storage
$ 43.96
Seagate - Barracuda Compute (ST1000DM010)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
$ 58.46
be quiet! - Straight Power 11
Wattage: 650
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 119.99
IN-WIN - 303 Black
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 30.57
Case Fan
$ 12.24
BitFenix - Spectre PWM (White)
Size: 120 mm
Case Fan
$ 25.80
Case Fan
$ 49.99
Cooling
$ 114.00
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Monitor
$ 149.99
Acer - XF270H
Size: 27 Inch
Panel: TN
Refresh Rate: 144 Hz
Keyboard
$ 84.25
Cooler Master - MasterKeys MK750
Interface: Wired
Key Switch Type: Cherry MX Brown
Type: Full Size
Keyboard
Cooler Master - Quick Fire TK
Interface: Wired
Key Switch Type: Cherry MX Brown
Type: Tenkeyless
Mouse
Cooler Master - Reaper
Interface: Wired
Mouse
$ 327.99
Logitech - G303 Daedalus Apex
Interface: Wired
Mouse
$ 44.00
Logitech - G502 Proteus Spectrum
Interface: Wired
Mouse
$ 60.00
Logitech - G603
Interface: Wireless
