HT Box One

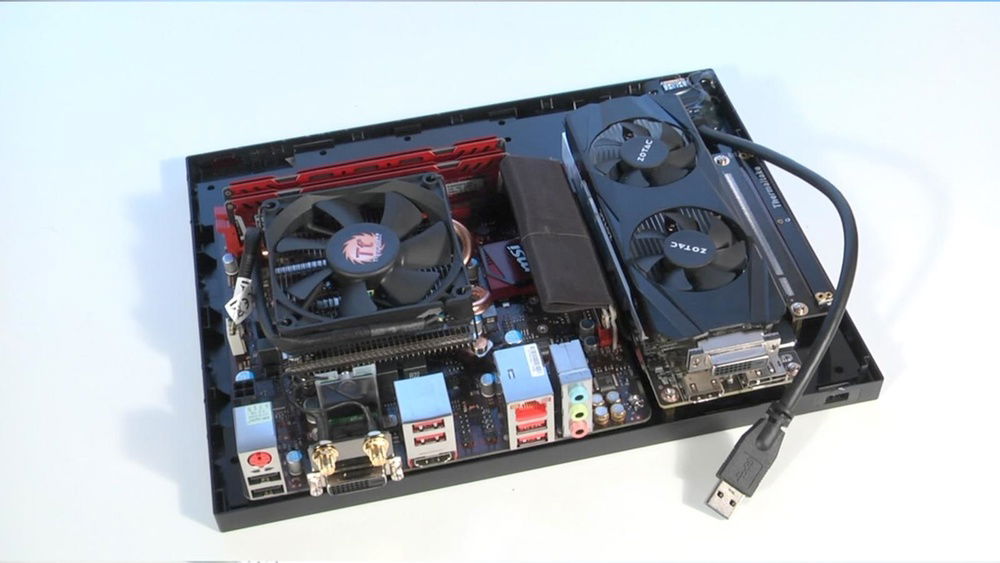

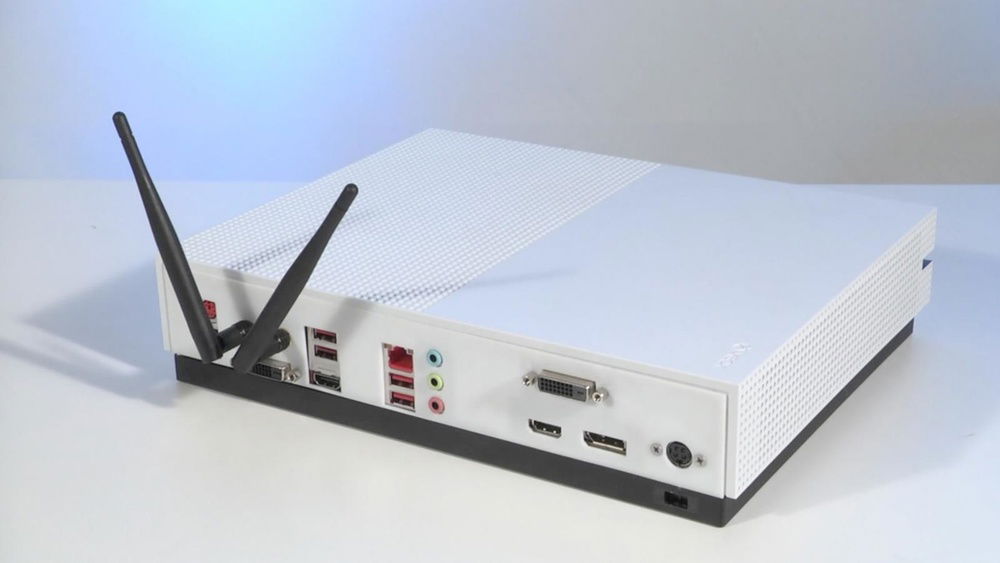

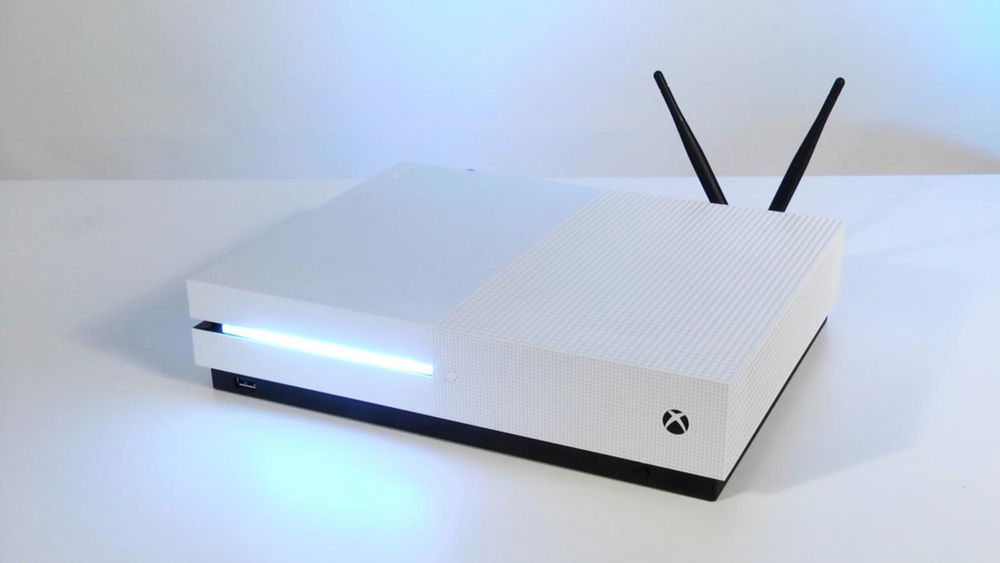

I wanted to build a new home theater PC but I wanted something unique that would fit with my home theater setup. I love the look of the Xbox One S console and decided to try building a home theater PC inside of an Xbox One S housing. I reached out to my friend Ed who mods Xbox consoles and he happened to have an extra housing laying around. After some careful measuring, I figured out that it was possible to fit a mini ITX motherboard and a low-profile graphics card inside the console. The first step was to build a base that the Motherboard, SSD and GPU would mount to. Once the components were mounted on the base it was secured to the bottom of the console housing. The power button was then wired to the motherboard to allow it to turn on and off the computer. Since I was not going to be using the cd drive slot we decided to place an LED strip in its place and connect it to an Arduino controller. We wired the eject button on the front of the console to the Arduino controller to allow it to change the color of the LED strip
Color(s): Black White
RGB Lighting? Yes
Cooling: Air Cooling
Theme: Sport
Size: Mini-ITX
Type: General Build

Contests

This build participated in 2 contests.

Hardware

CPU
$ 210.00
Intel - Core i5-6600K
Socket: LGA 1151
Cores: 4
Motherboard
$ 102.91
MSI - B250I Gaming PRO AC
Chipset: B250
CPU Socket: LGA 1151
Size: Mini-ITX
Memory
Crucial - Ballistix Sport LT (3000MHz) (Grey)
Type: DDR4
Capacity: 16 GB
Graphics
$ 399.00
ZOTAC - Mini
Chip Manufacturer: NVIDIA
Chip: GTX 1050 Ti
Storage
$ 84.00
Samsung - 840 Pro
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 256 GB
PSU
$ 118.94
EVGA - 650 GM SFX
Wattage: 650
Form Factor: SFX
Efficiency: 80+ Gold
Case
Custom - Custom (custom)
Cooling
$ 99.10
Thermaltake - NiC C5
Type: Air Cooler
Unable to dertermine total build value (missing part value)
