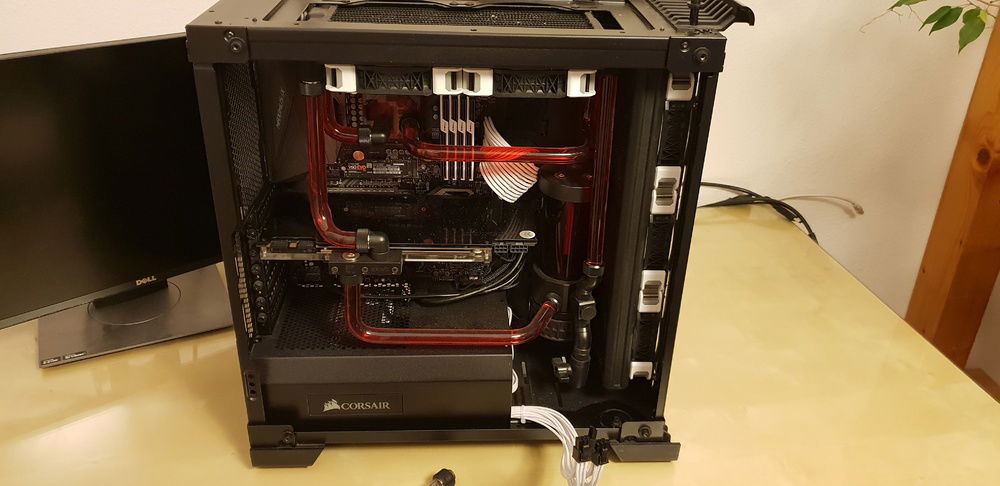

Before...
Before...
and after.
and after.

H1 2017 build with added custom loop

This build is my first one and has gone through a few iterations by now. It started with my graphics card on air and my CPU being cooled by an H100i v2. Then I set up a custom loop with flexible tubing. After that I delidded the CPU - mostly for fun. Finally, during my first maintenance, I swapped my flexible tubing for rigid tubing. Tinkering with it has been a journey so far!

Next stop: Coolant swap for an opaque one with purple color and the addition of a few discrete LED strips!
Color(s): Black Red Silver White
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Build Updates

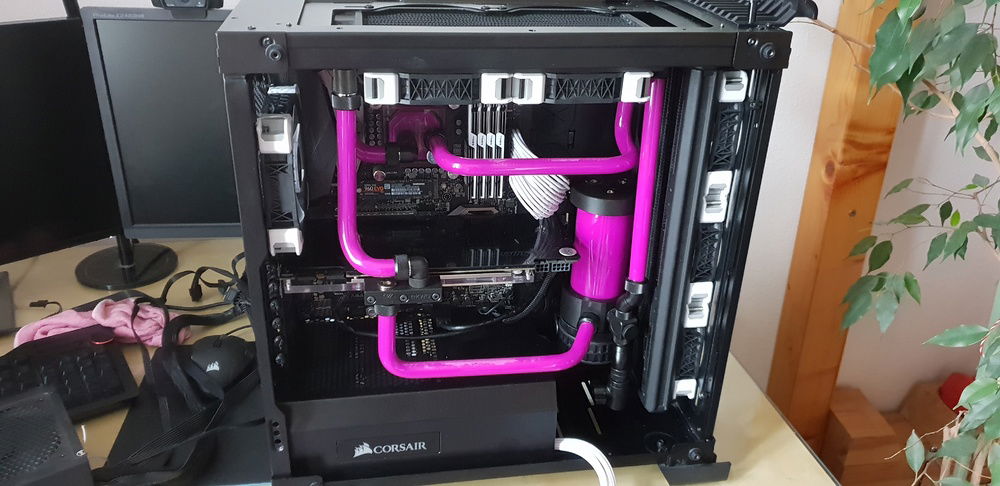

Changed coolant!

Hardware

CPU
$ 183.16
Intel - Core i7-7700K
Socket: LGA 1151
Cores: 4
Integrated Graphics: Yes
Motherboard
$ 199.99
ASUS - ROG Maximus IX Hero
Chipset: Z270
CPU Socket: LGA 1151
Size: ATX
Memory
$ 389.00
G.Skill - Trident Z (4133MHz) (Black)
Type: DDR4
Capacity: 32 GB
Graphics
$ 669.99
ASUS - ROG Strix
Chip Manufacturer: NVIDIA
Chip: GTX 1080
Storage
Samsung - 850 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 103.74
Samsung - 960 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 250 GB
Storage
$ 69.99
Seagate - Barracuda (ST3000DM008)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 3 TB
PSU
$ 199.98
EVGA - SuperNOVA 750 G3
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 479.99
Corsair - Crystal 570X
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 75.00
Corsair - ML120 PRO LED White 120mm PWM Premium Magnetic Levitation
Size: 120 mm
Cooling
Barrow - Fittings
Type: Custom Loop
Cooling
EKWB - CPU Blocks (discontinued)
Type: Custom Loop
Cooling
EKWB - GPU Blocks (discontinued)
Type: Custom Loop
Cooling
EKWB - Pump
Type: Custom Loop
Cooling
EKWB - Reservoir
Type: Custom Loop
Cooling
Hardware Labs - Black Ice GTS
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
Hardware Labs - Black Ice GTS
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Accessories
Sennheiser - PC 350 Special Edition Headset
Monitor
$ 545.00
Dell - S2417DG
Size: 24 Inch
Panel: TN
Refresh Rate: 165 Hz
Keyboard
$ 199.00
Daskeyboard - 4 Ultimate
Interface: Wired
Key Switch Type: Cherry MX Blue
Type: Full Size
Mouse
$ 99.99
Corsair - Scimitar Pro RGB
Interface: Wired
