5900X, 3090 FE, custom loop in O11D XL

  1. Home
  2. /
  3. Builds
  4. /
  5. Build
tetchip
  • Early Member
Member since
Germany
Build Views
557
Build Approvals
6
Fistbumps
2
Followers
3
Posts
1

Best Build

5900X, 3090 FE, custom loop in O11D XL

notable computer hardware:

  • 5900X

  • 3090 FE

  • 4x8 GB of Trident Z 3200 MT/s CL14

  • X570 Aorus Master

  • Corsair RM850x

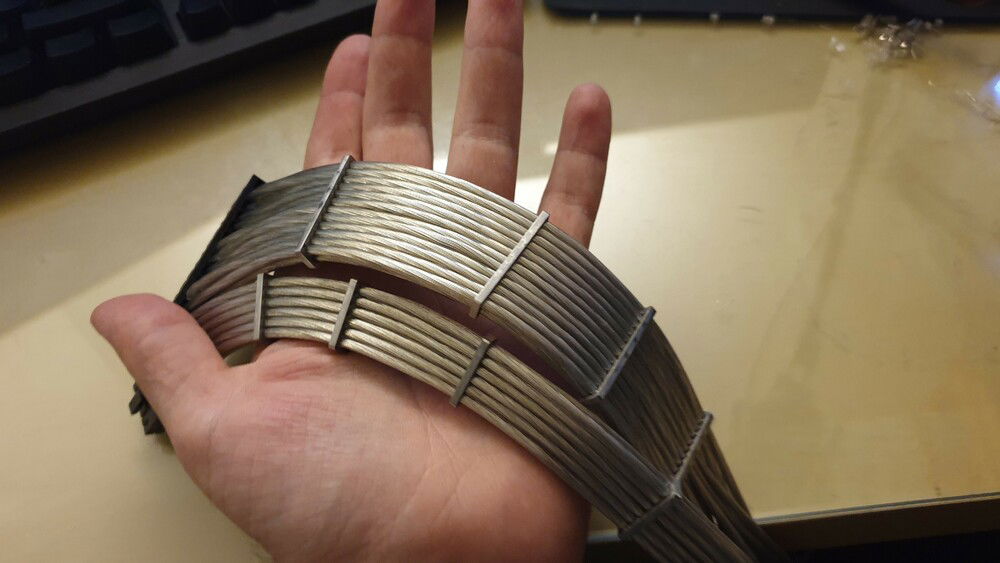

  • completely DIY 24-pin ATX and 12-pin Nvidia cables

  • 250 GB 960 EVO, 1 TB 850 EVO, some 3 TB spinner

  • Aquacomputer Farbwerk 360


(sort of) internal cooling hardware:

  • Heatkiller IV Pro in black copper

  • EK 3090 FE block

  • Heatkiller D5 Tube 150 with vario D5

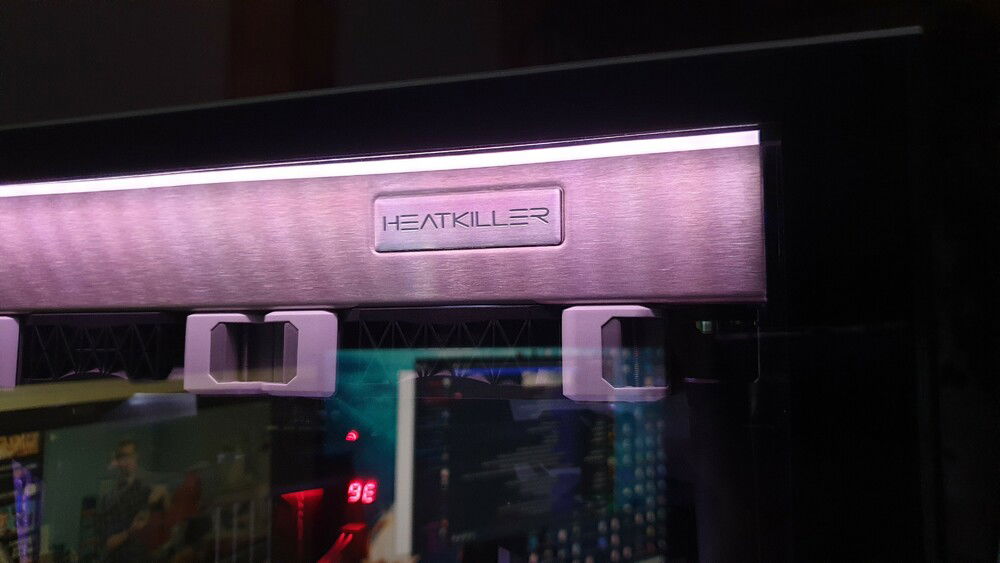

  • two Heatkiller L-series 360 rads in stainless

  • bunch of EK Torques

  • ZMT!

  • six Corsair ML120 Pro Whites as intakes, three Noiseblocker B12-PS eLoops as exhaust

  • external bypass for system use without the MO-RA

  • a temperature probe is taped to it


external cooling hardware:

  • MO-RA3 420

  • nine Silent Wings 3s

  • Aquacomputer Quadro with plug-type temperature probe on the rad as control method

  • D5 vario with Watercool top

  • separate ATX power supply

  • Koolance QD4s and a random assortment of Barrow and EK fittings

  • ZMT!

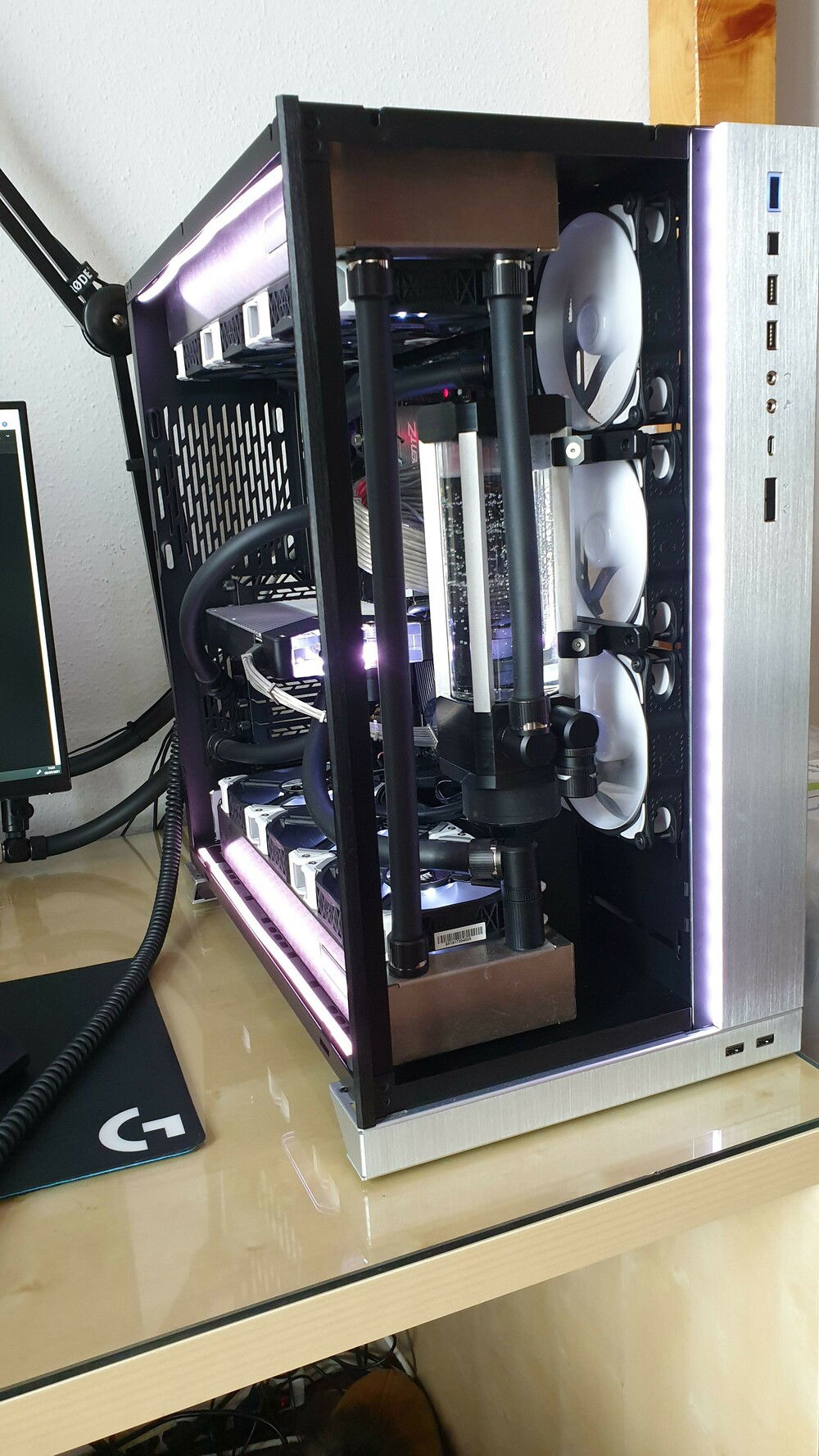

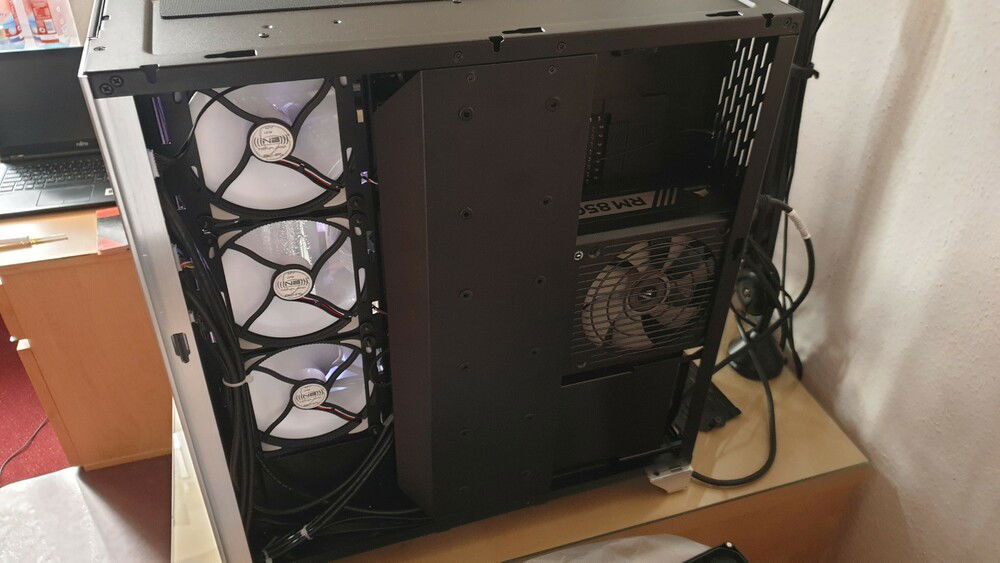

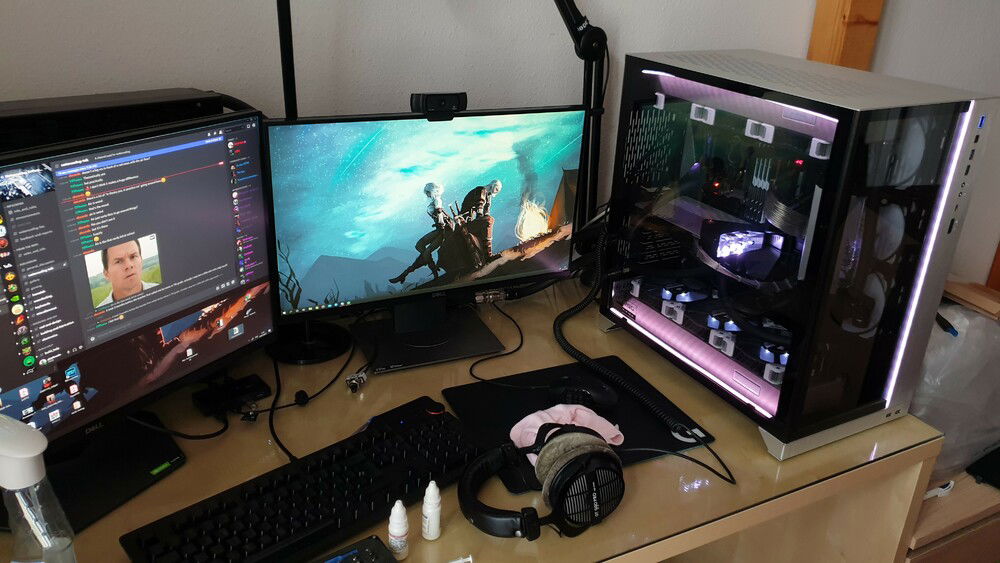

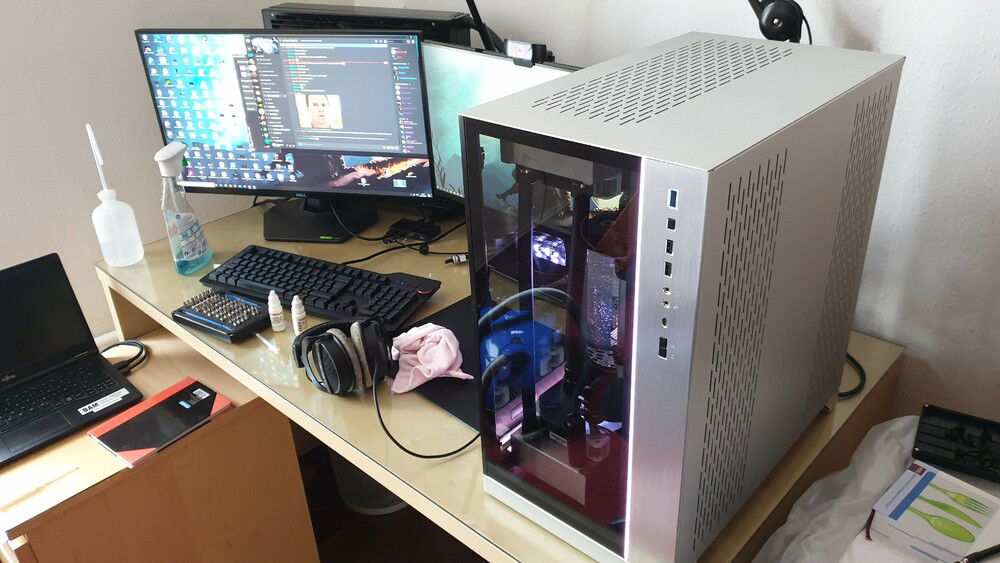

I think that about covers it. After four years of using a Corsair 570X case, I could no longer stand it and had to replace it with something else. I wanted to use the Heatkiller rads and the O11D XL is both capable of housing them and sufficiently boring. I have a 360 GTS lying around, but given that I am going to use this system with the MO-RA, I can't be bothered to try and stuff the rad into the side. It's plain not needed and entirely more effort than I am willing to exert.

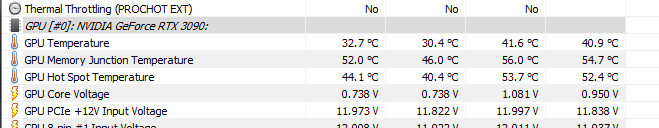

It appears that remounting the block and using the intended flow direction fixed my GPU-coolant delta of 15-16 K. It now seems to be in the order of 9-10 K.
Color(s): Black Silver White
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 259.00
AMD - Ryzen 9 (5900x)
Socket: AM4
Cores: 12
Motherboard
$ 369.73
Gigabyte - Aorus Master
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
G.Skill - Trident Z (3200MHz) (Silver)
Type: DDR4
Capacity: 32 GB
Graphics
$ 1,299.99
NVIDIA - GeForce Founders
Chip Manufacturer: NVIDIA
Chip: RTX 3090
Interface: PCIe x16
Storage
Samsung - 850 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 79.95
Samsung - 960 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 250 GB
Storage
$ 76.00
Seagate - BarraCuda (ST3000DM007)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 3 TB
PSU
$ 178.99
Corsair - RM850x
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 269.98
Lian Li - O11 Dynamic XL (Silver)
Type: Full-Tower
Side Panel: Tempered Glass
RGB: Yes
