Worklog video :

https://www.youtube.com/watch?v=WTvG9rTwKes

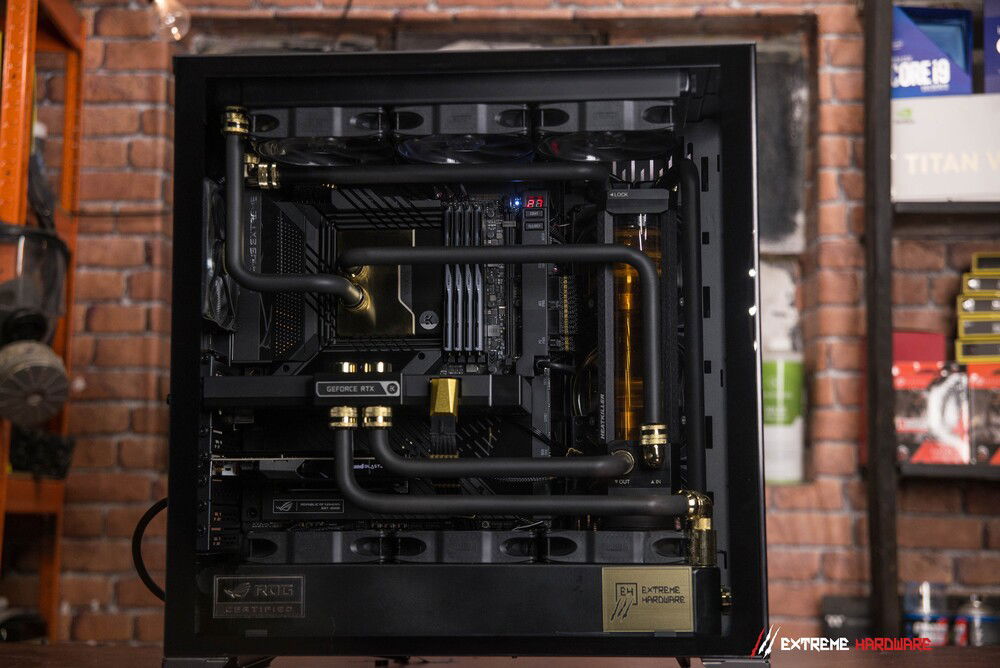

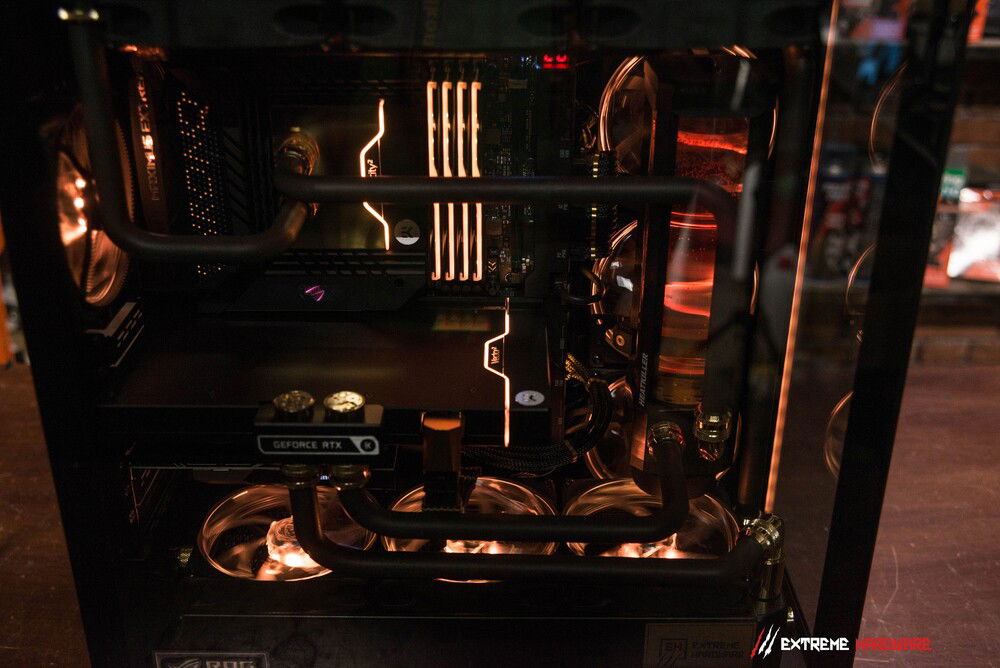

EH "CHRONOS II" is a new version of the EH "CHRONOS" project, which we built at the end of 2020.
The new version of the machine was created in 2023.

EH "CHRONOS" from 2020 below.

https://builds.gg/builds/eh-chronos-31667

In fact, this is a completely new configuration because only two radiators, fittings and a reservoir remain from the previous machine.

ROG Z490 MAXIMUS XII EXTREME gave way to ROG Z790 MAXIMUS EXTREME, i9-10900K was replaced by i9-13900KS, and TITAN RTX was replaced by RTX 4090 STRIX.

The Lian Li 011WGX case was also replaced with a Lian LI 011XL and the Seasonic TX 1000 power supply with a Corsair AX1600i. Corsair ML 120 PRO fans replaced by the NB-eLoop XB12P ARGB noiseblockers. One of the 360/30 coolers gave way to the 360/45.

We also doubled the amount of DDR memory from 32 GB to 64 GB. We replaced the previous DDR4 Trident Z Royale modules on Samsung B-Die chips with Trident Z5 modules on SK-Hynix M-Die chips.
NVMe SAMSUNG 970 PRO 1 TB was replaced with two NVMe SAMSUNG 990 PRO 2 TB drives.

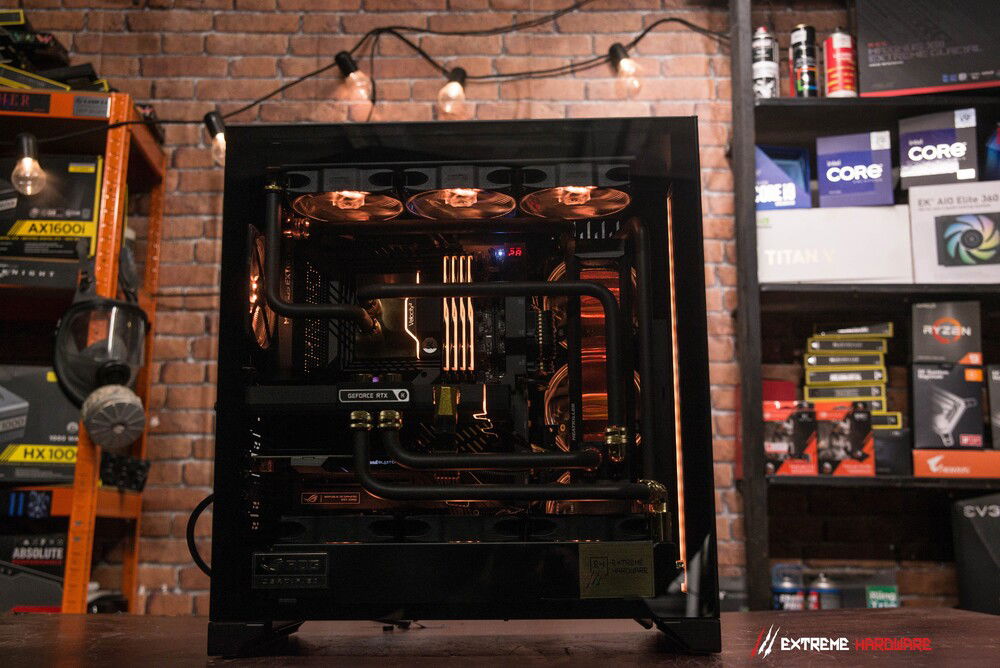

EH "CHRONOS II" spec :

i9-13900KS 5.6 GHz P 1.269v / 4.4 E / 4.6 Ring
ROG Z790 MAXIMUS EXTREME
64 GB (4x16) Trident Z5 6200 MHz CL36.38.38.36 T2 II/III
ROG RTX 4090 STRIX OC / + 140 + 1200
2x SAMSUNG 990 PRO 2 TB
Creative AE9
Corsair AX1600i
Lian LI 011XL Black
Adapter 12VHPWR 90 CableMod 1.1 Gold (very restrective tested)

Custom LC :

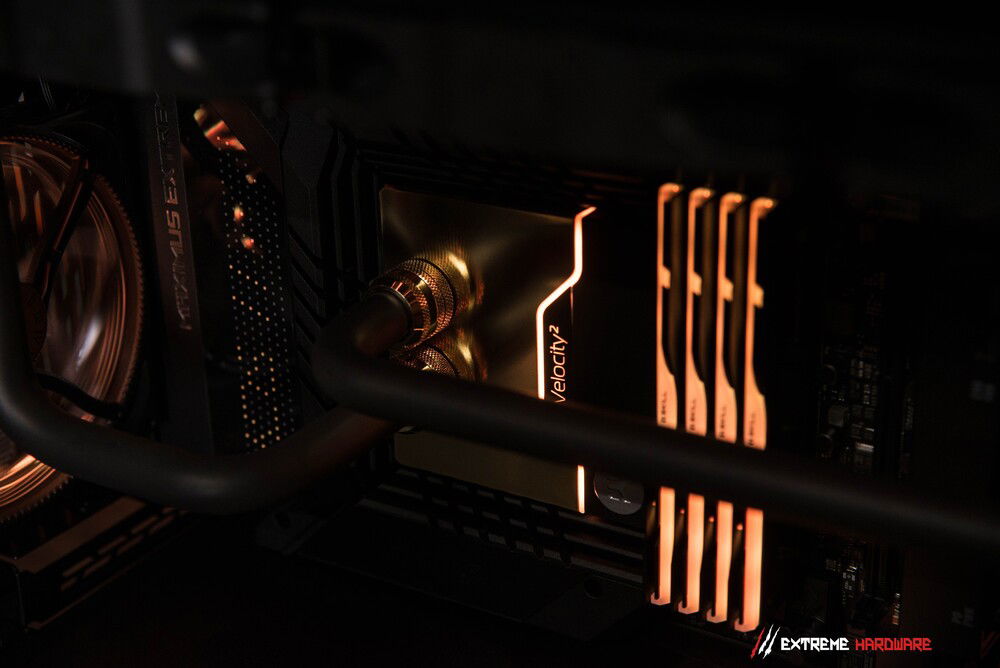

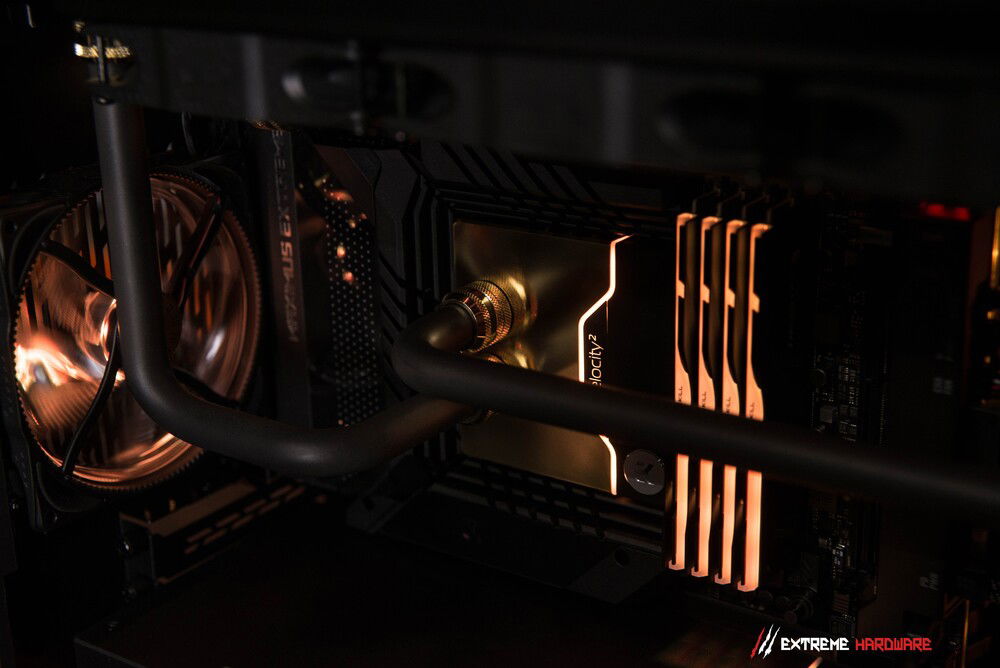

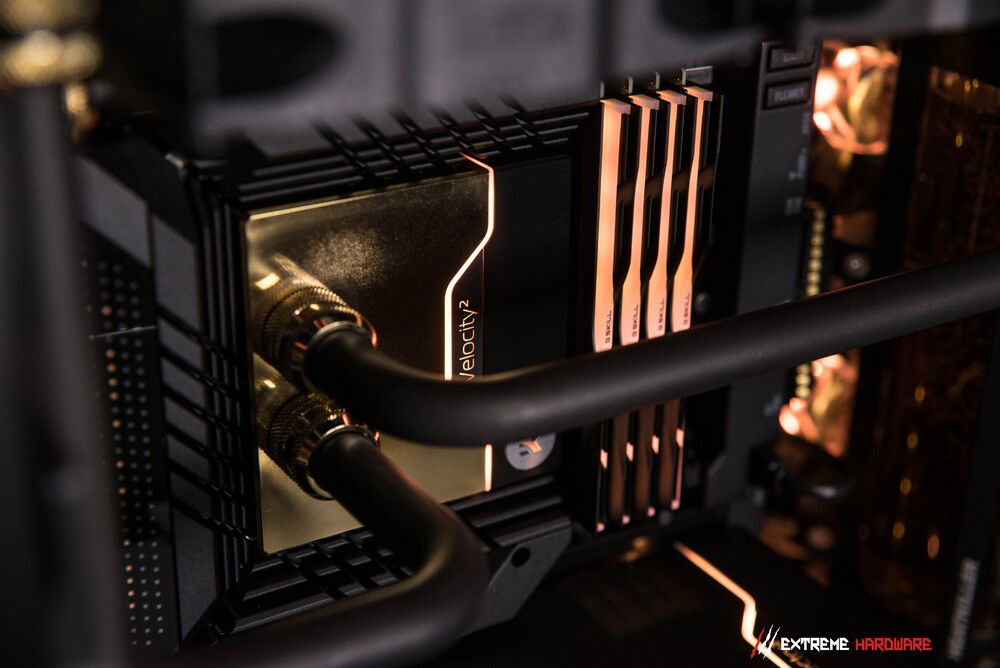

EK Velocity 2 GOLD LGA 1700

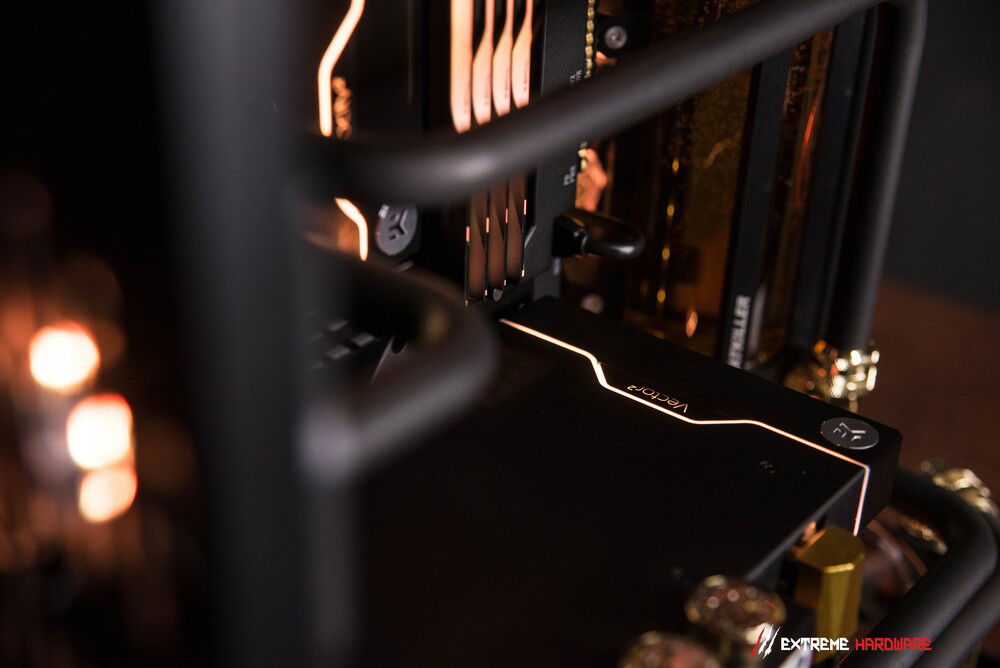

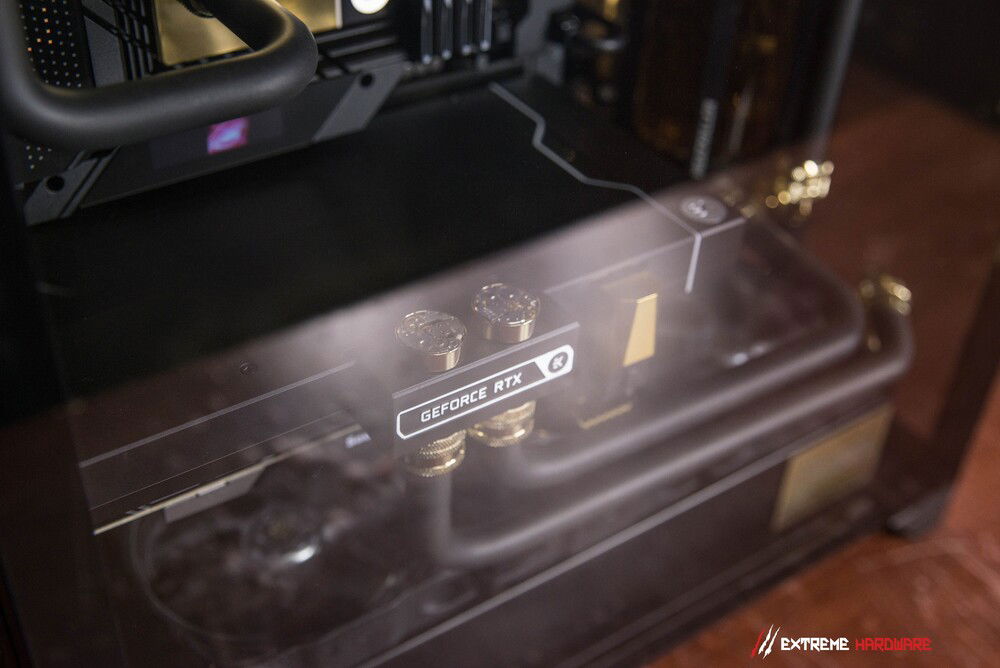

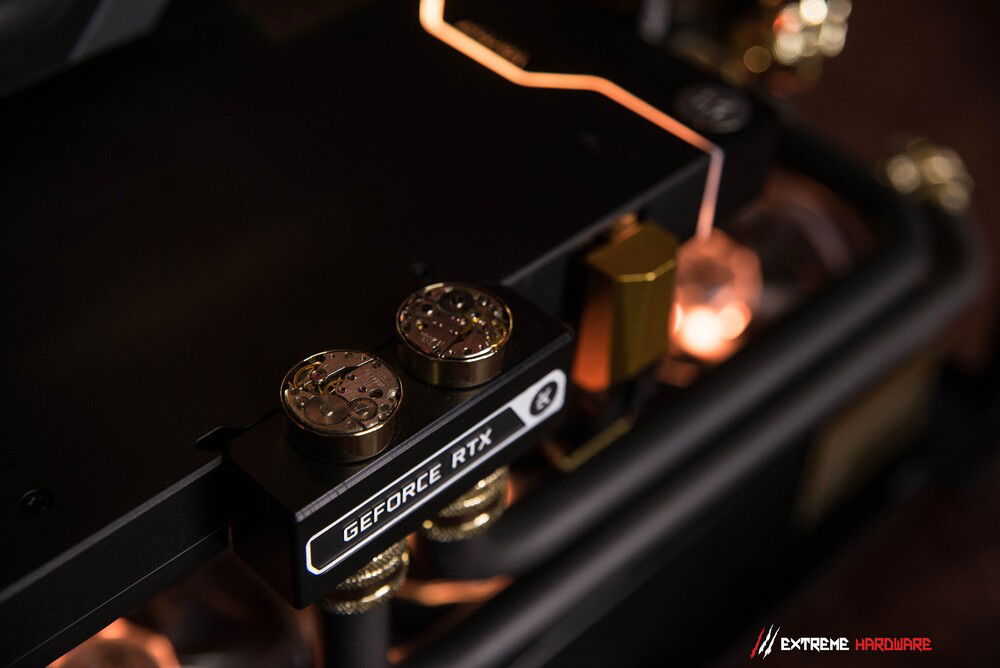

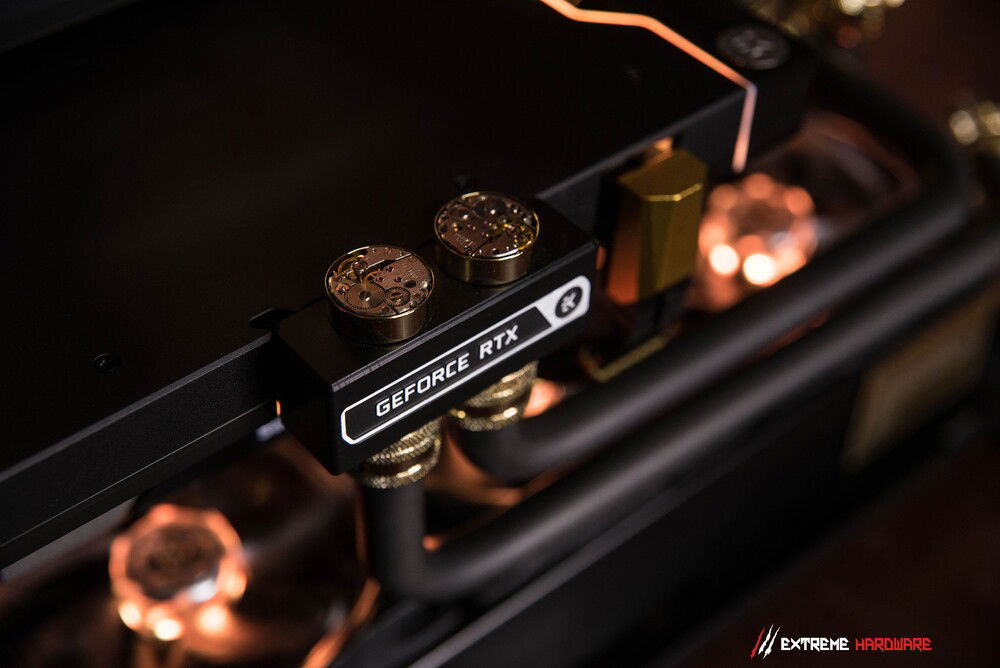

EK VECTOR 2 Acetal + Nickiel RTX 4090 STRIX
EK D5
Alphacool NexXxos 360/60
Alphacool NexXxos 360/45
Alphacool NexXxos 360/30

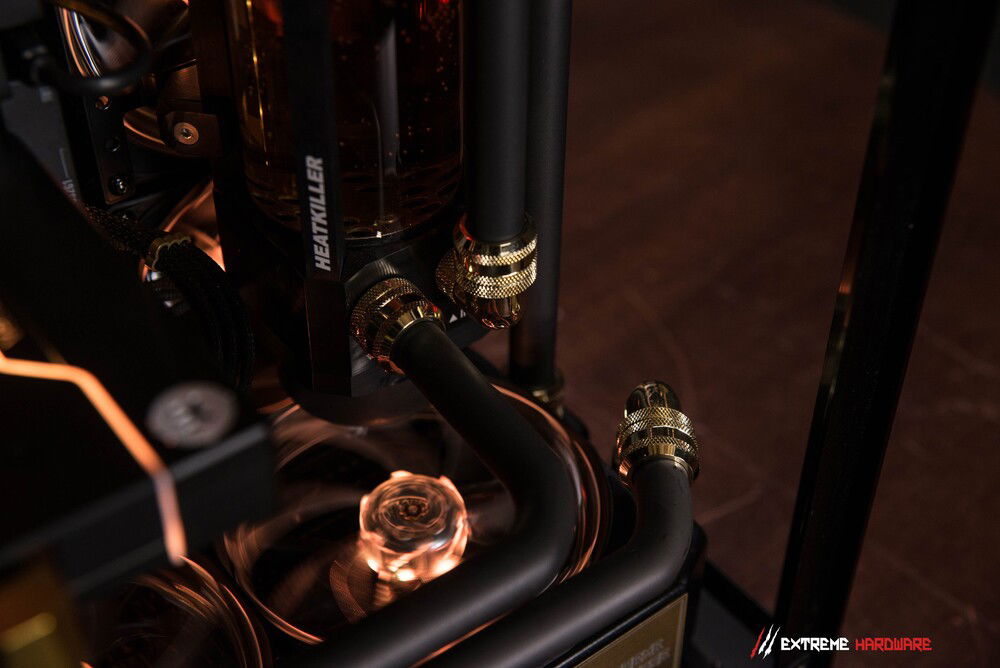

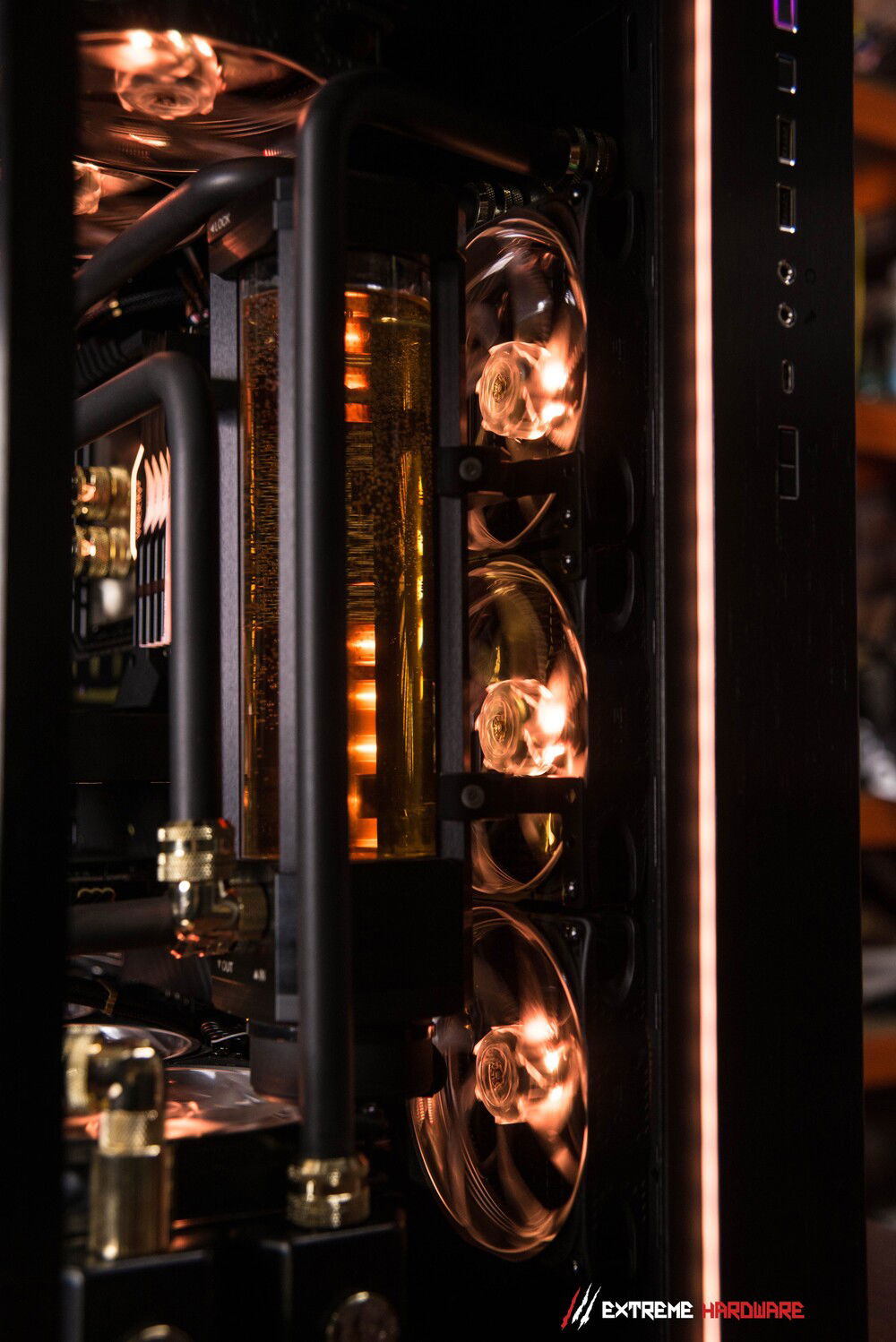

Watercool Heatkiller 200 mm
Fittings,adapters etc. Barrow Gold
10x Noiseblocker NB-eLoop XB12P ARGB
Thermalright LGA 1700 Contact Frame
Kryonaut Extreme 2g
3x 1L XSPC Clear + dye
