My first full custom wall mount case

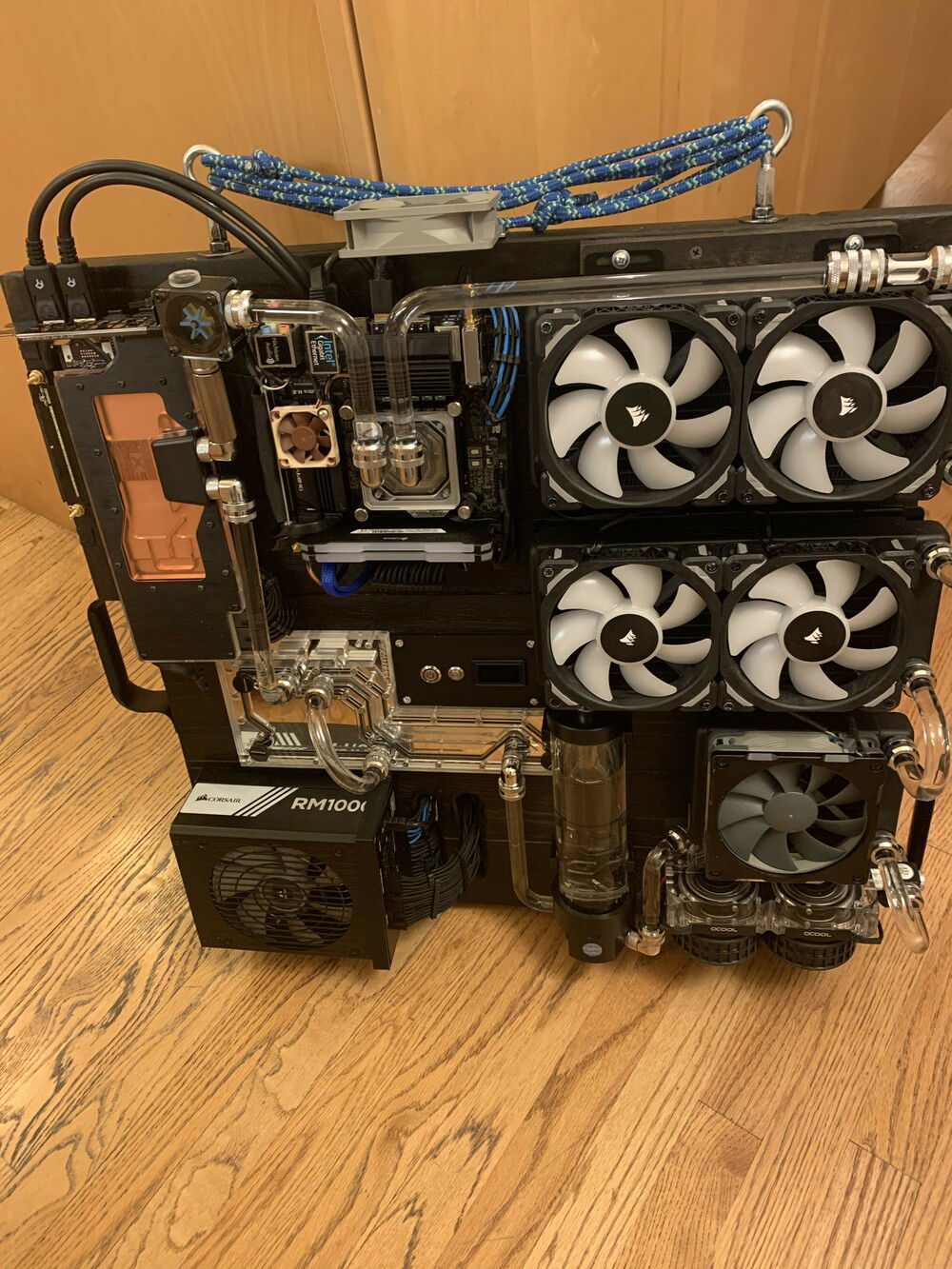

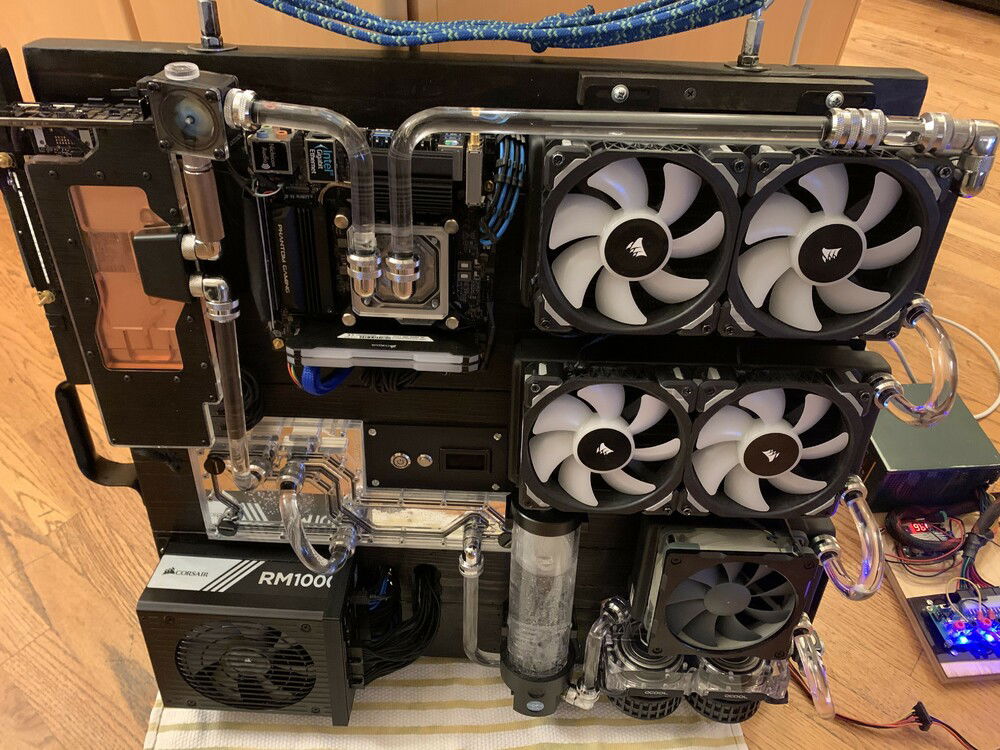

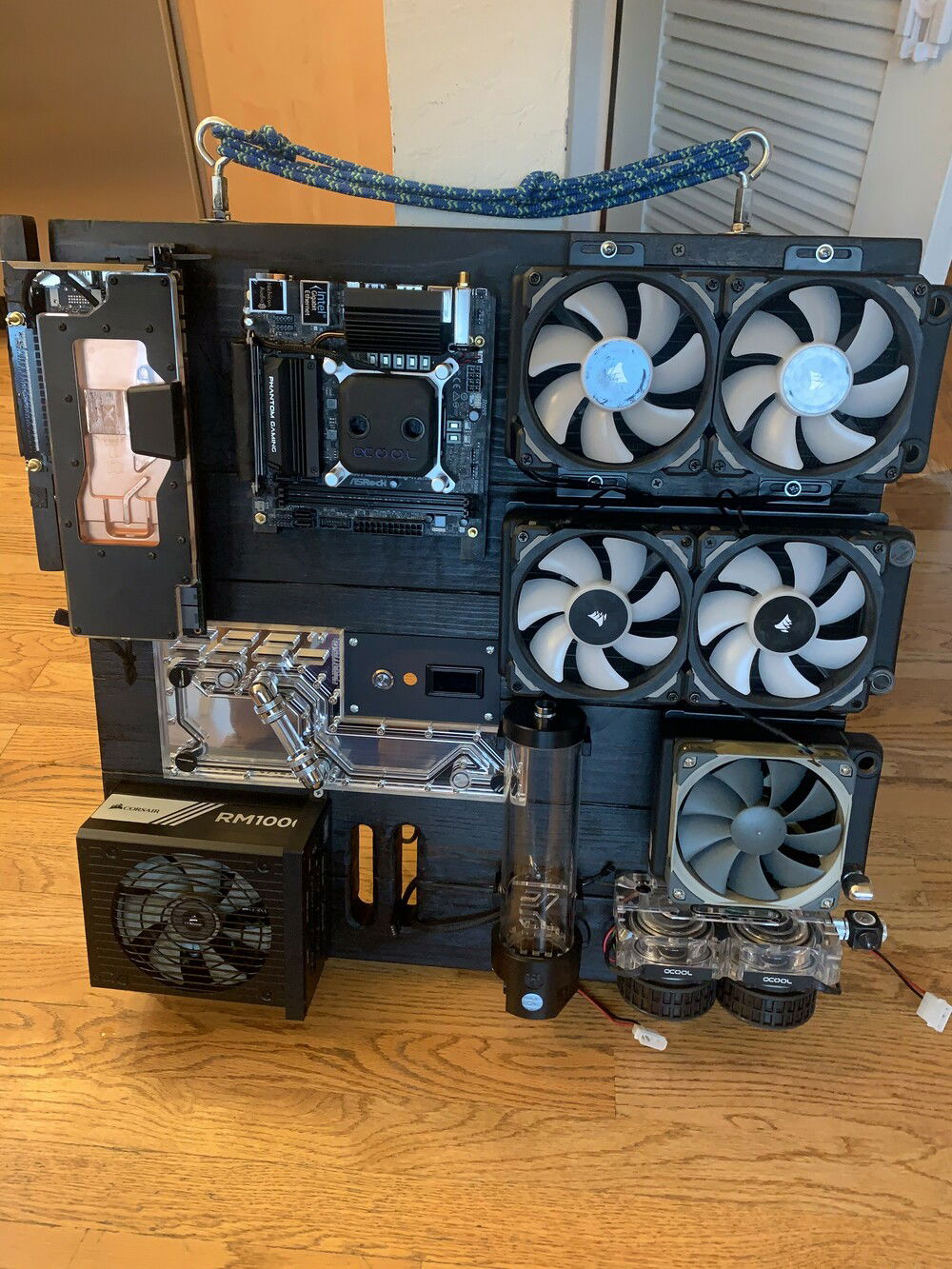

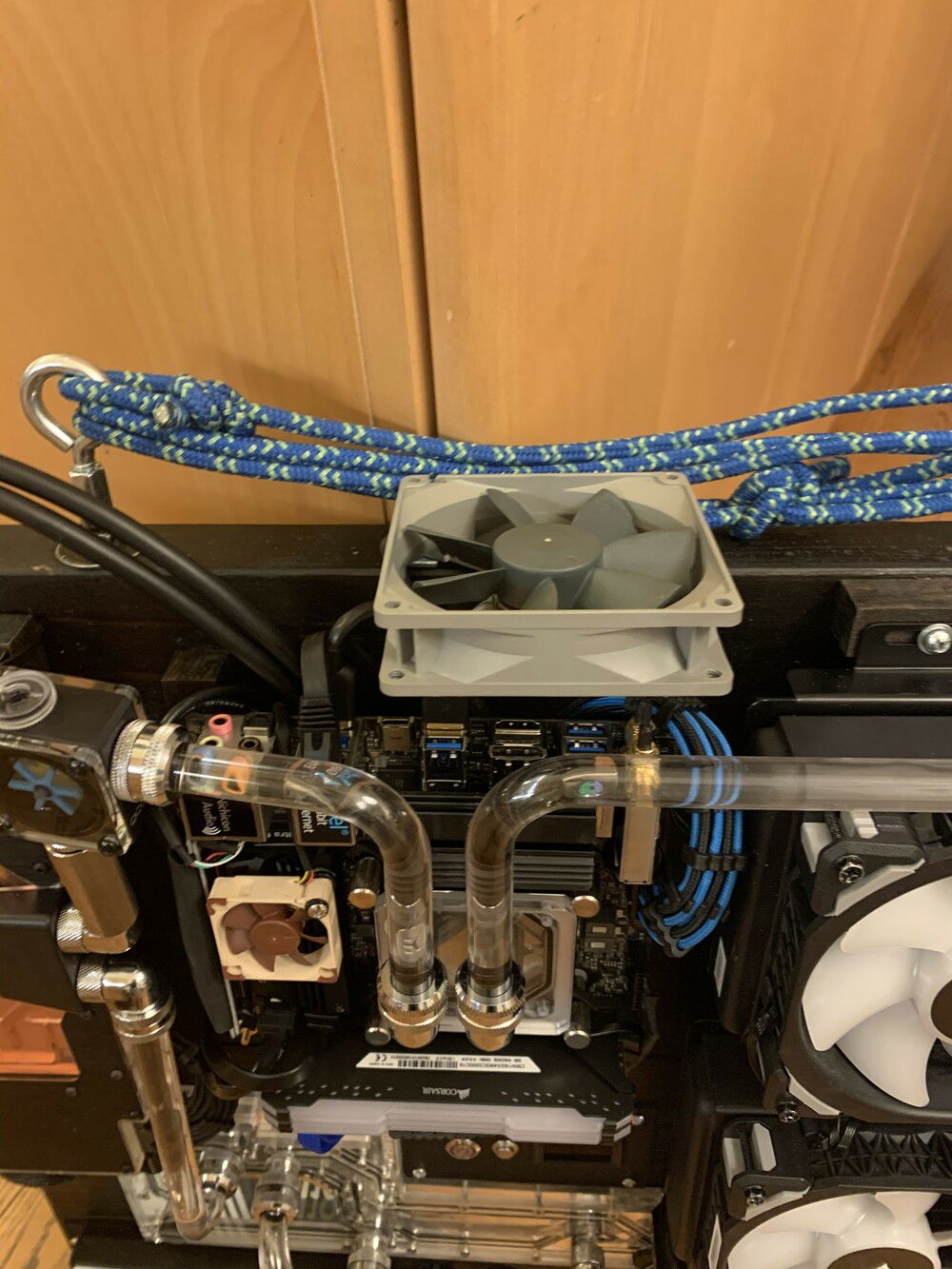

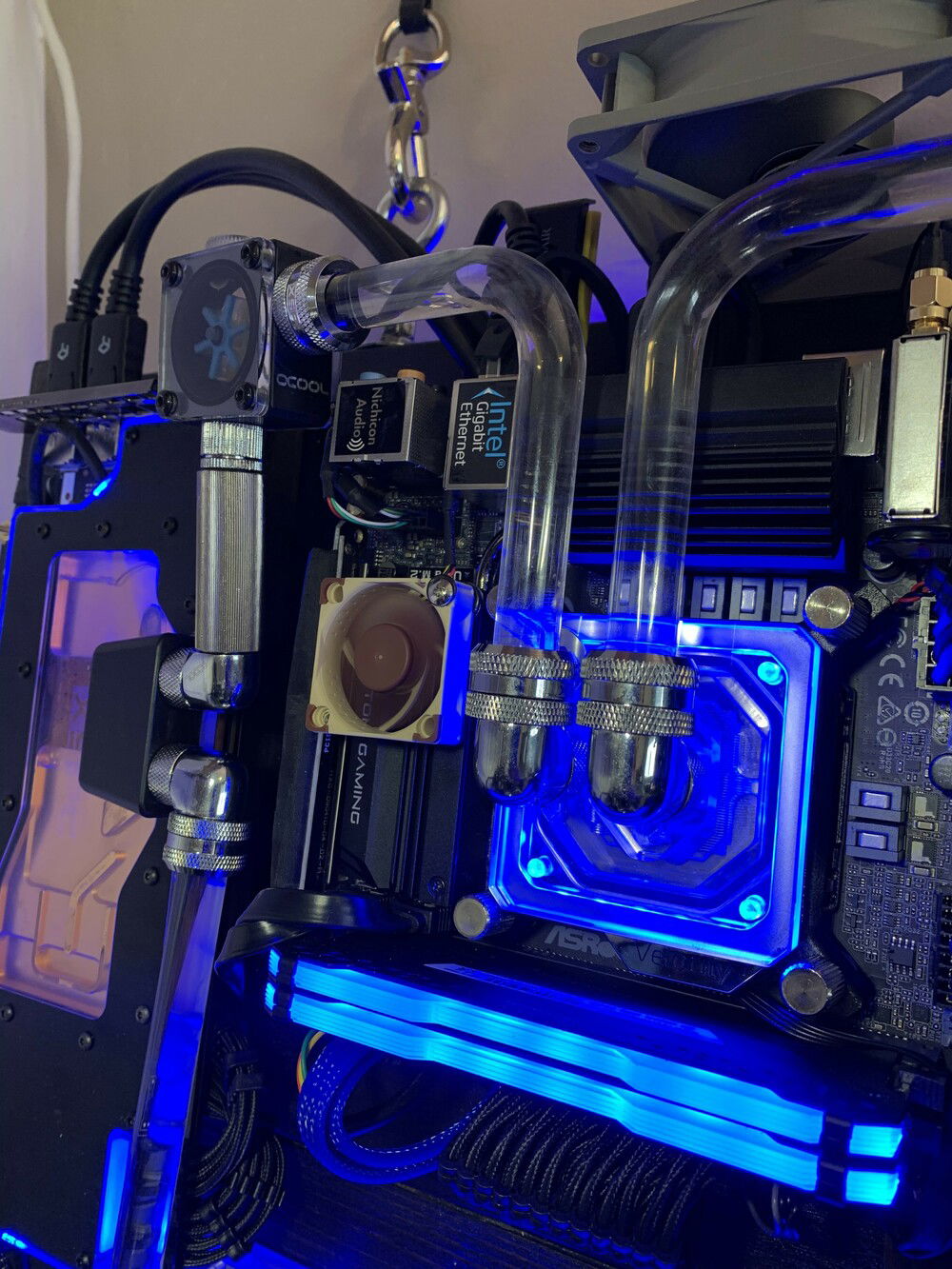

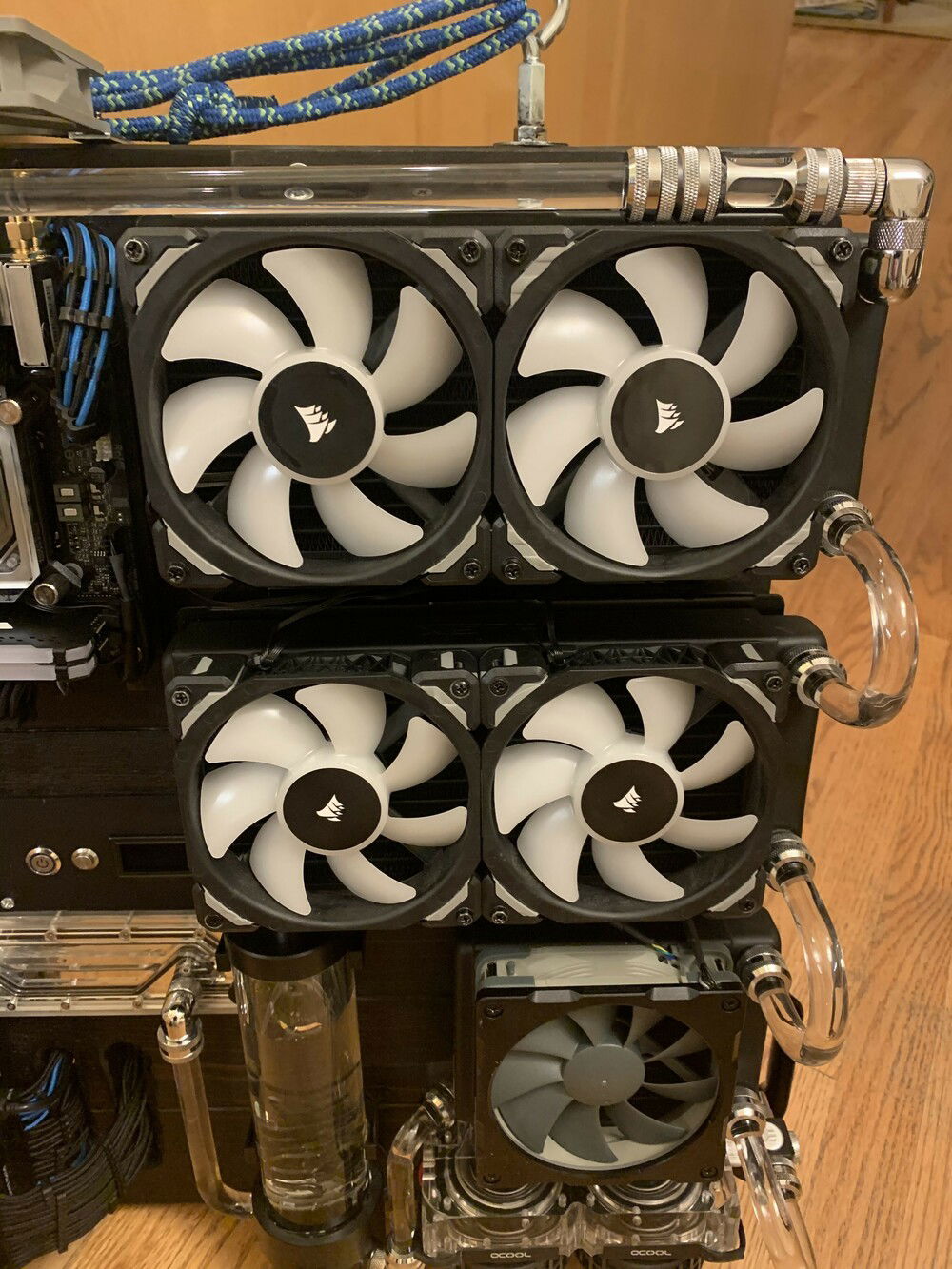

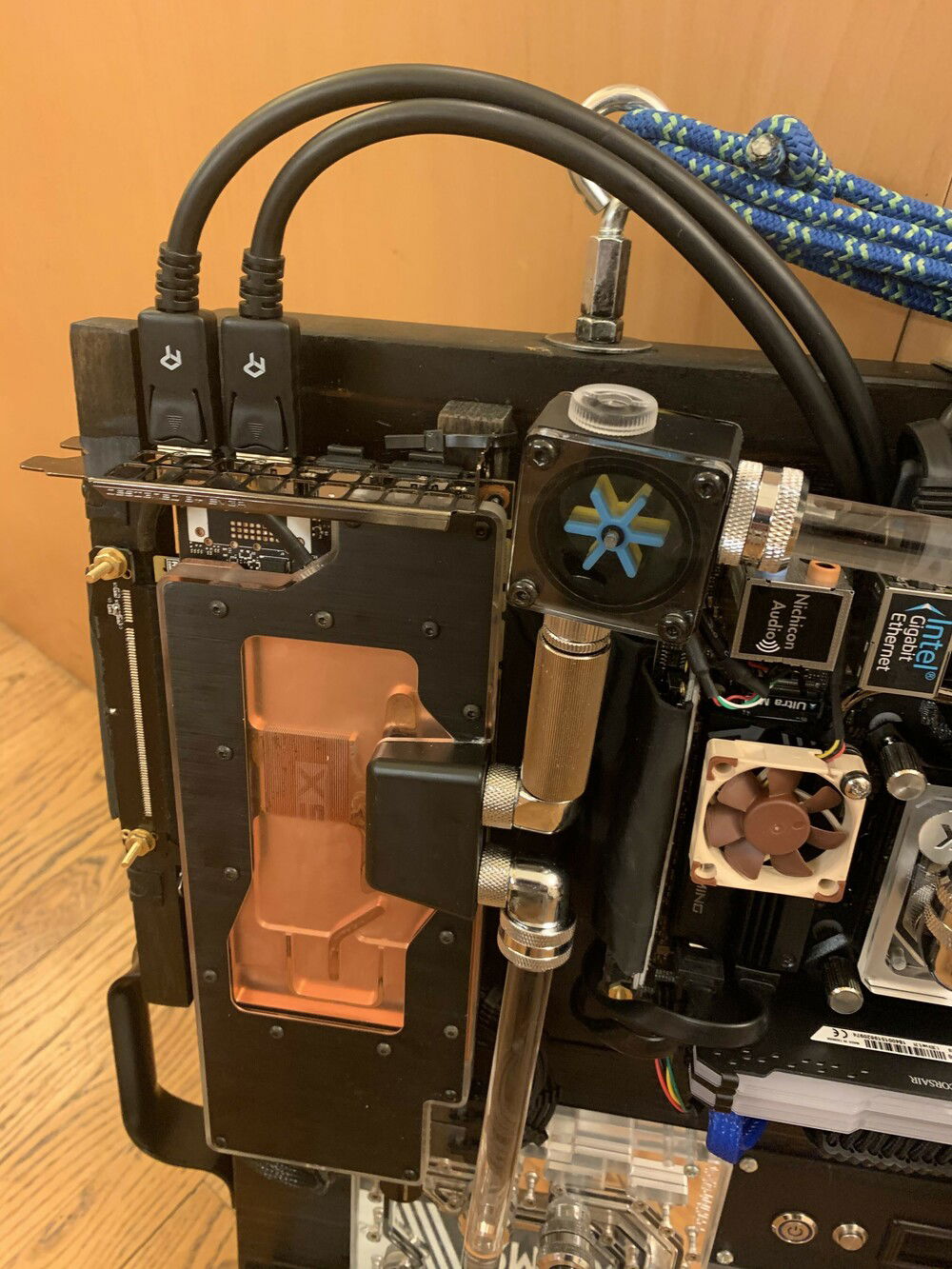

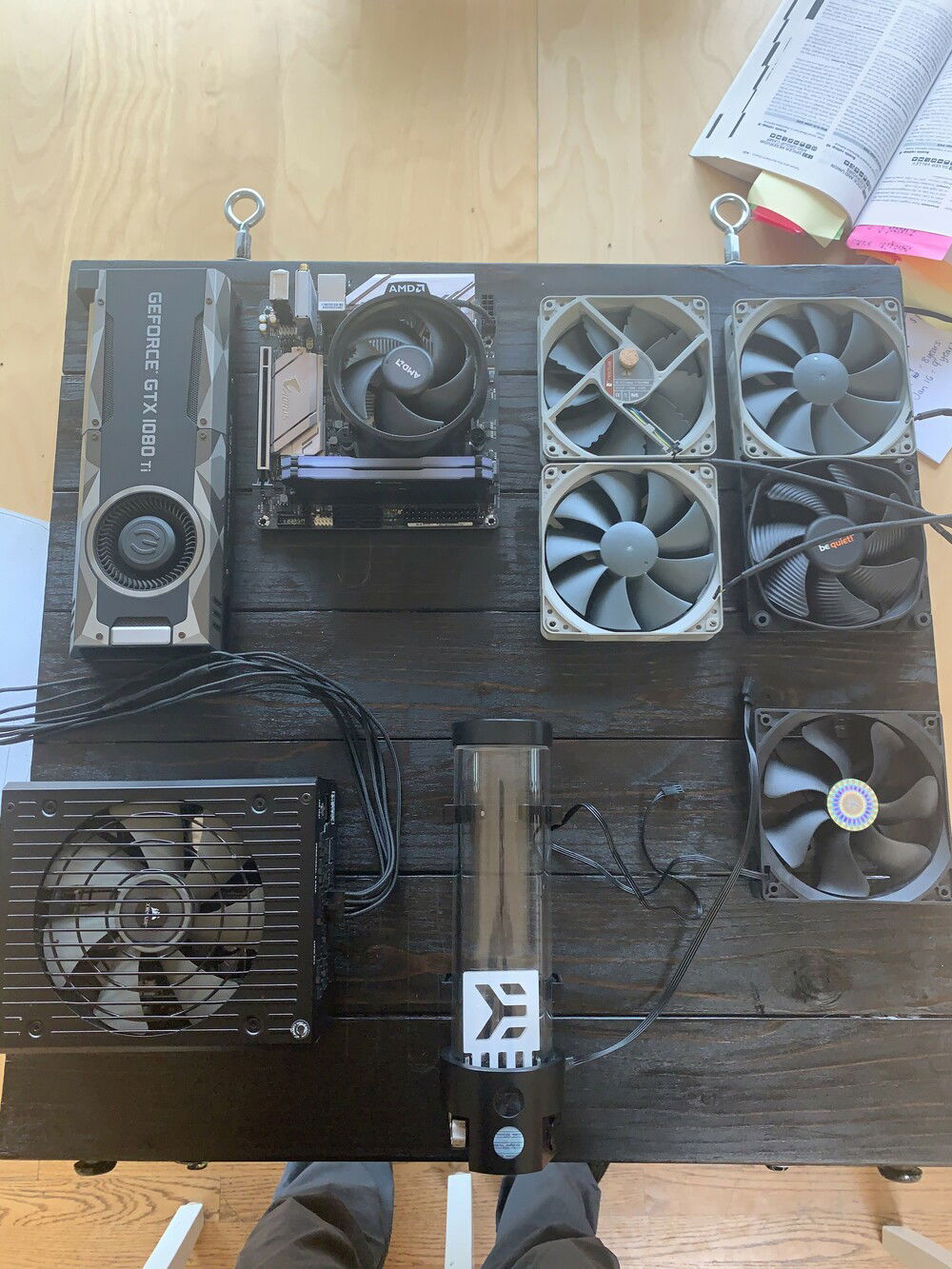

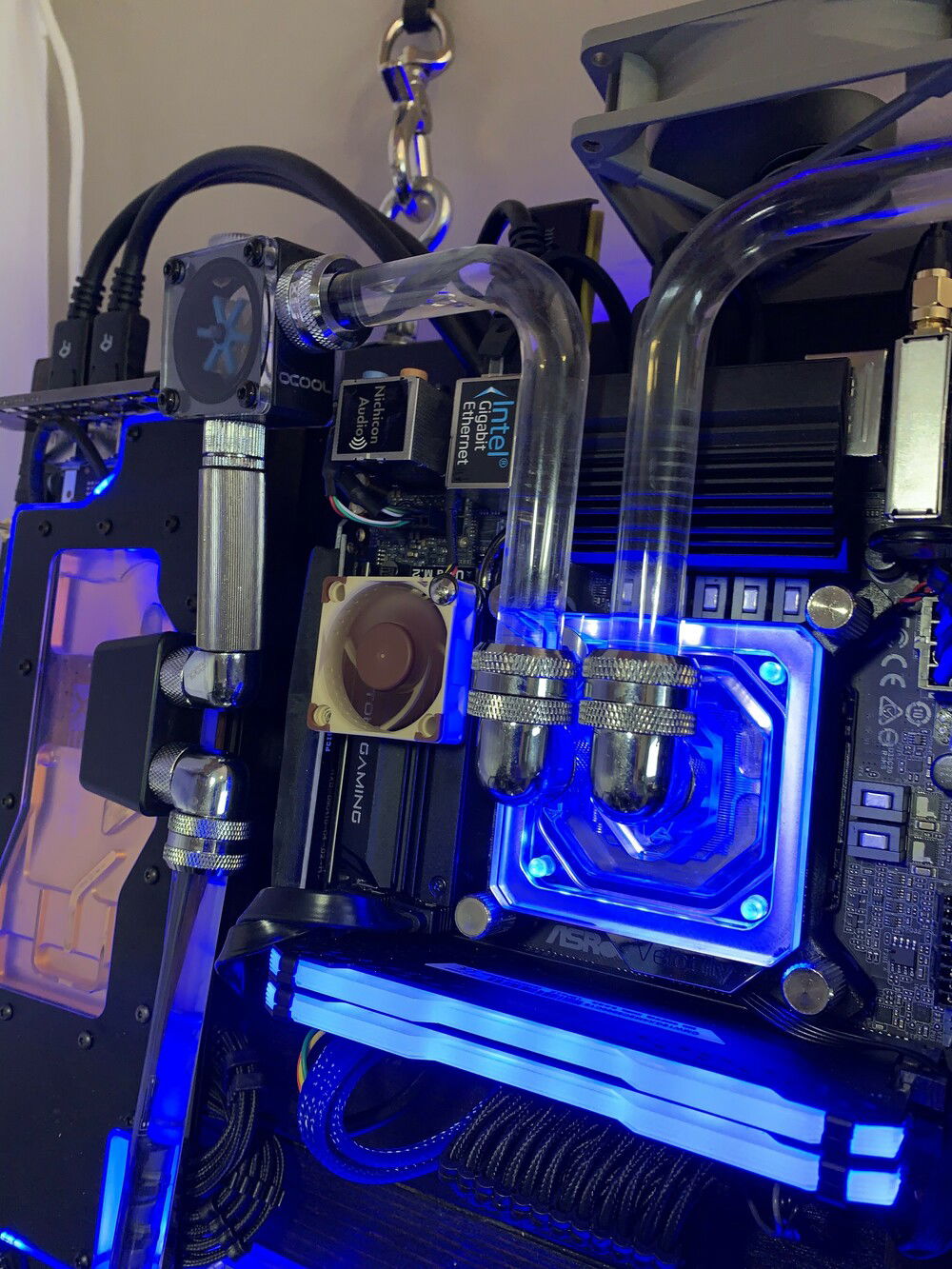

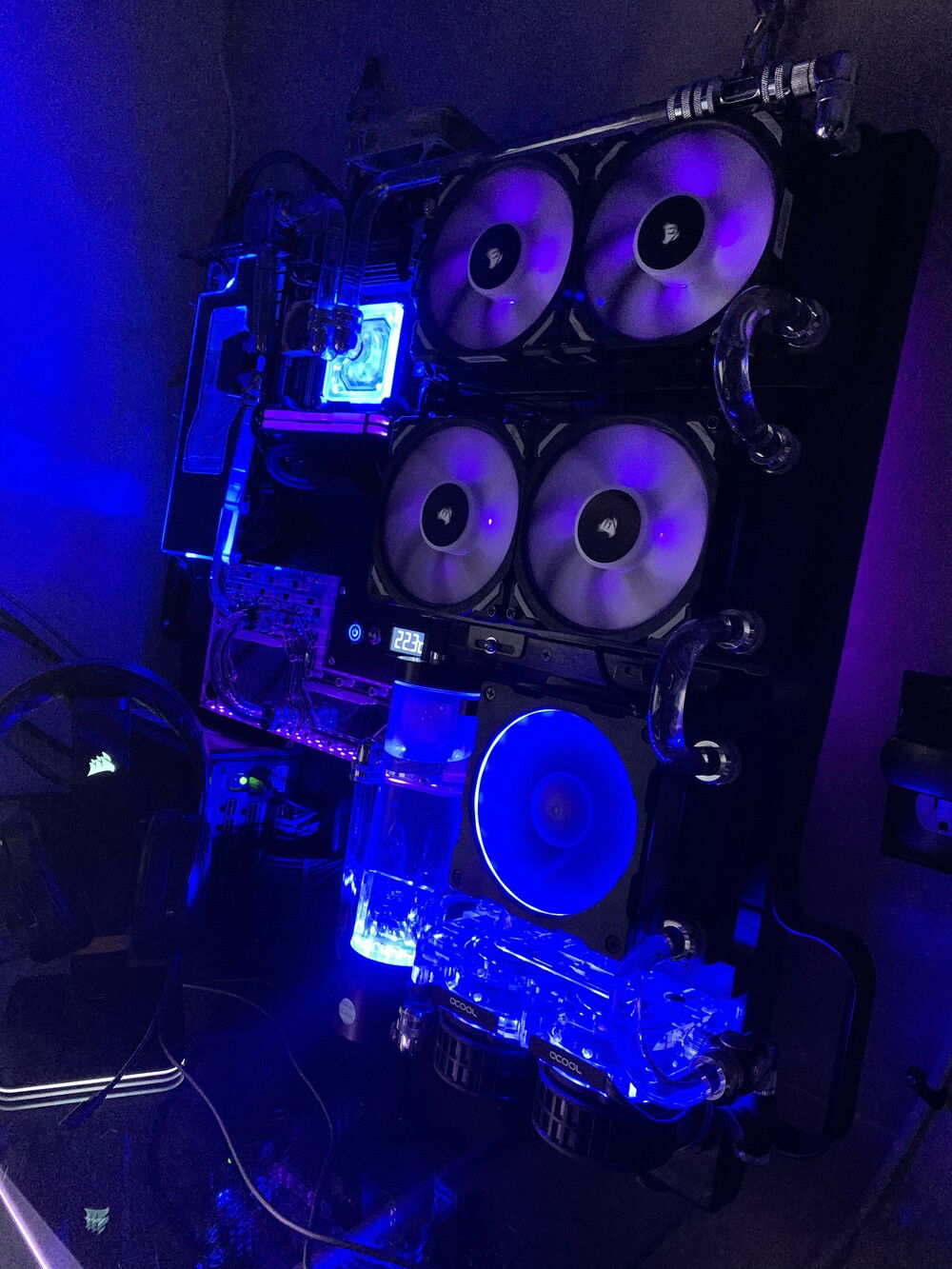

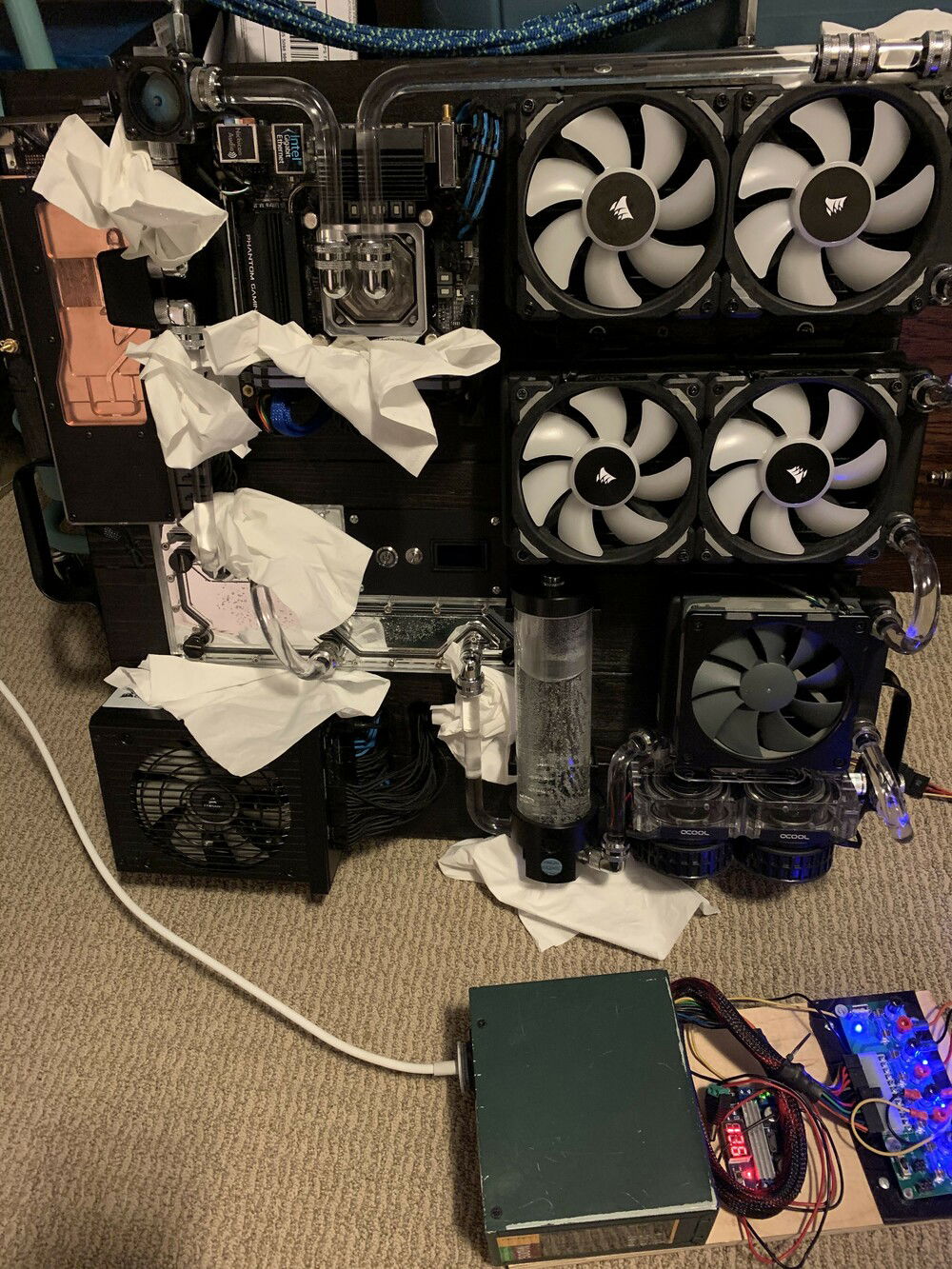

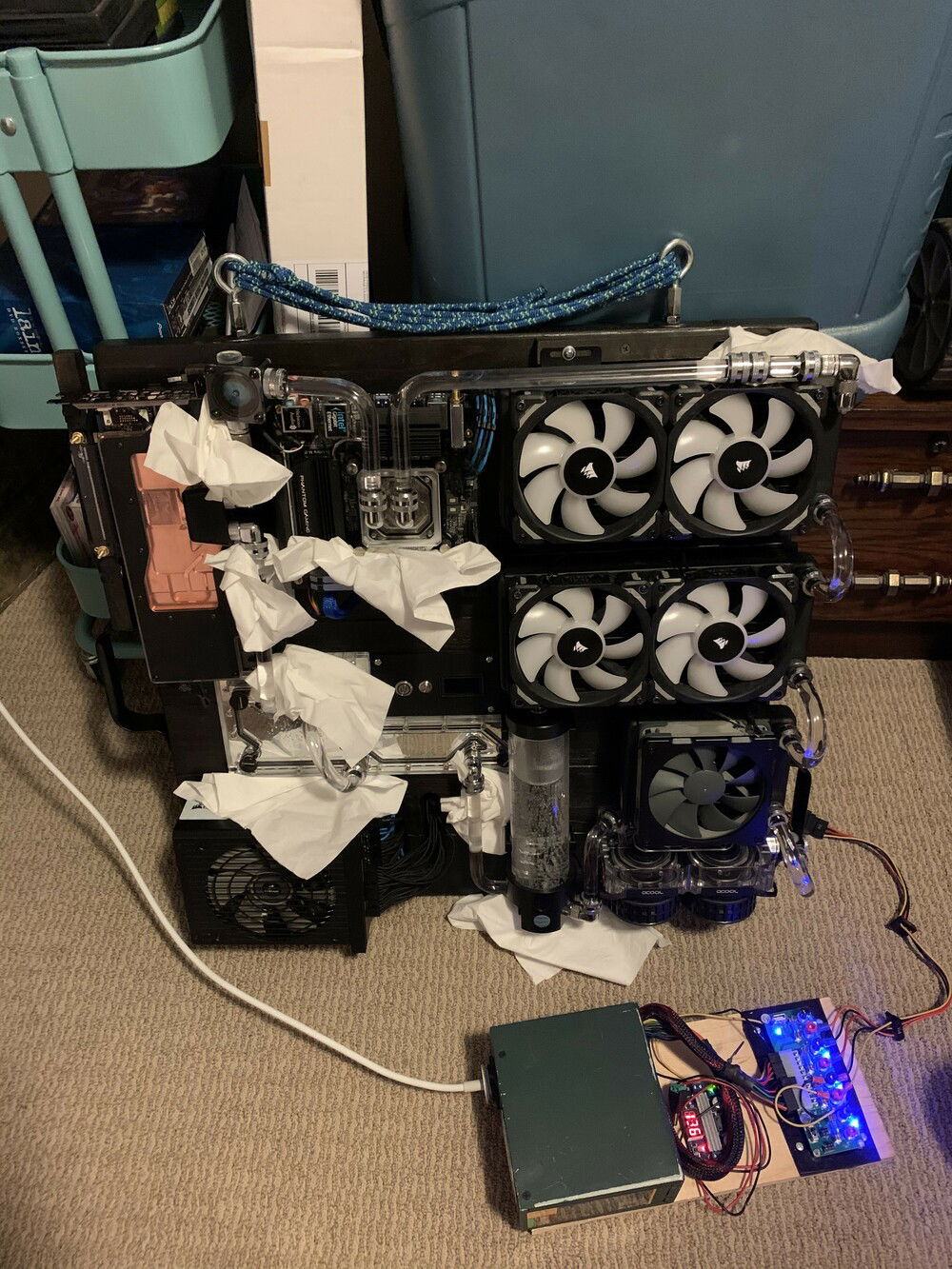

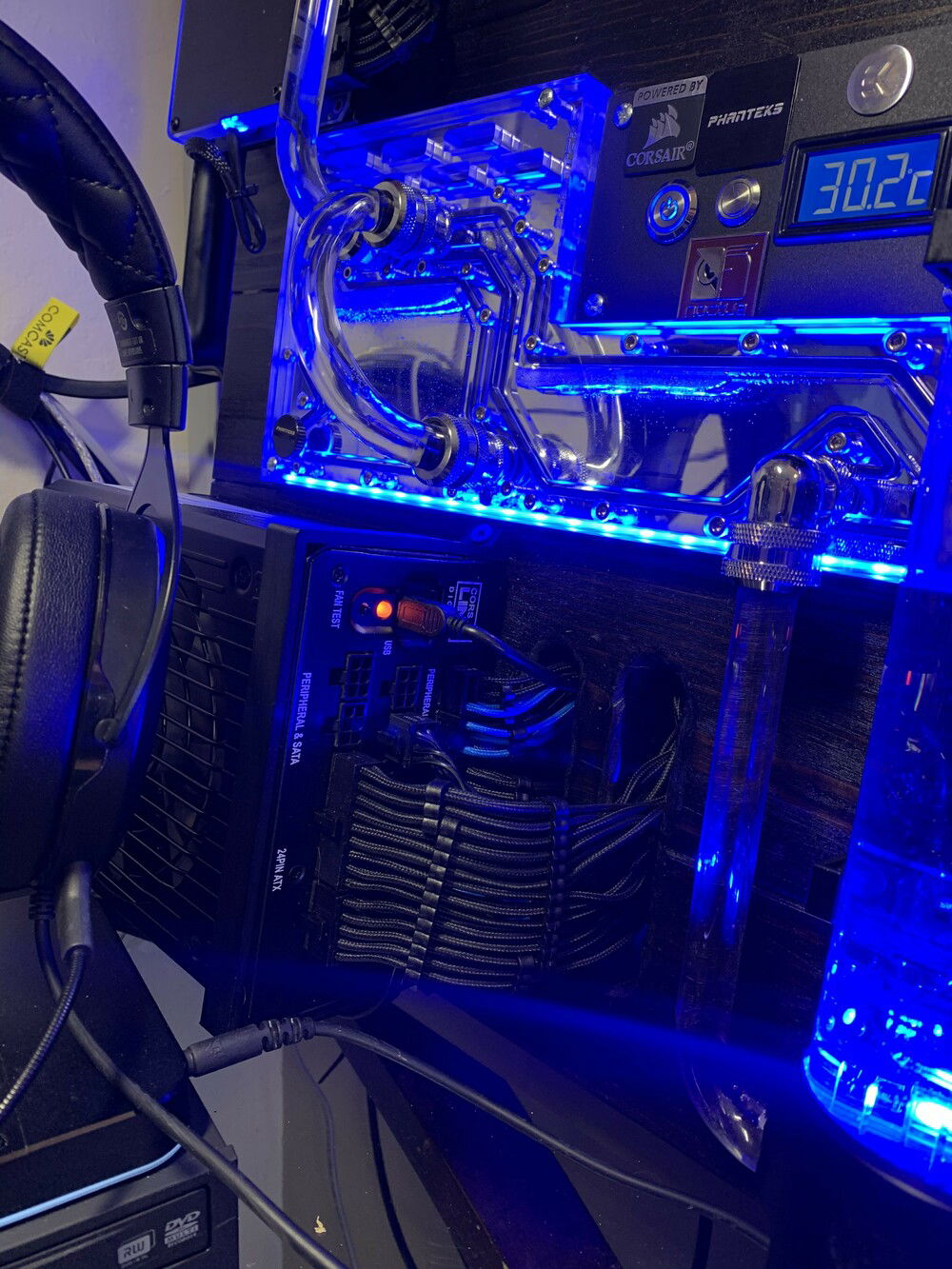

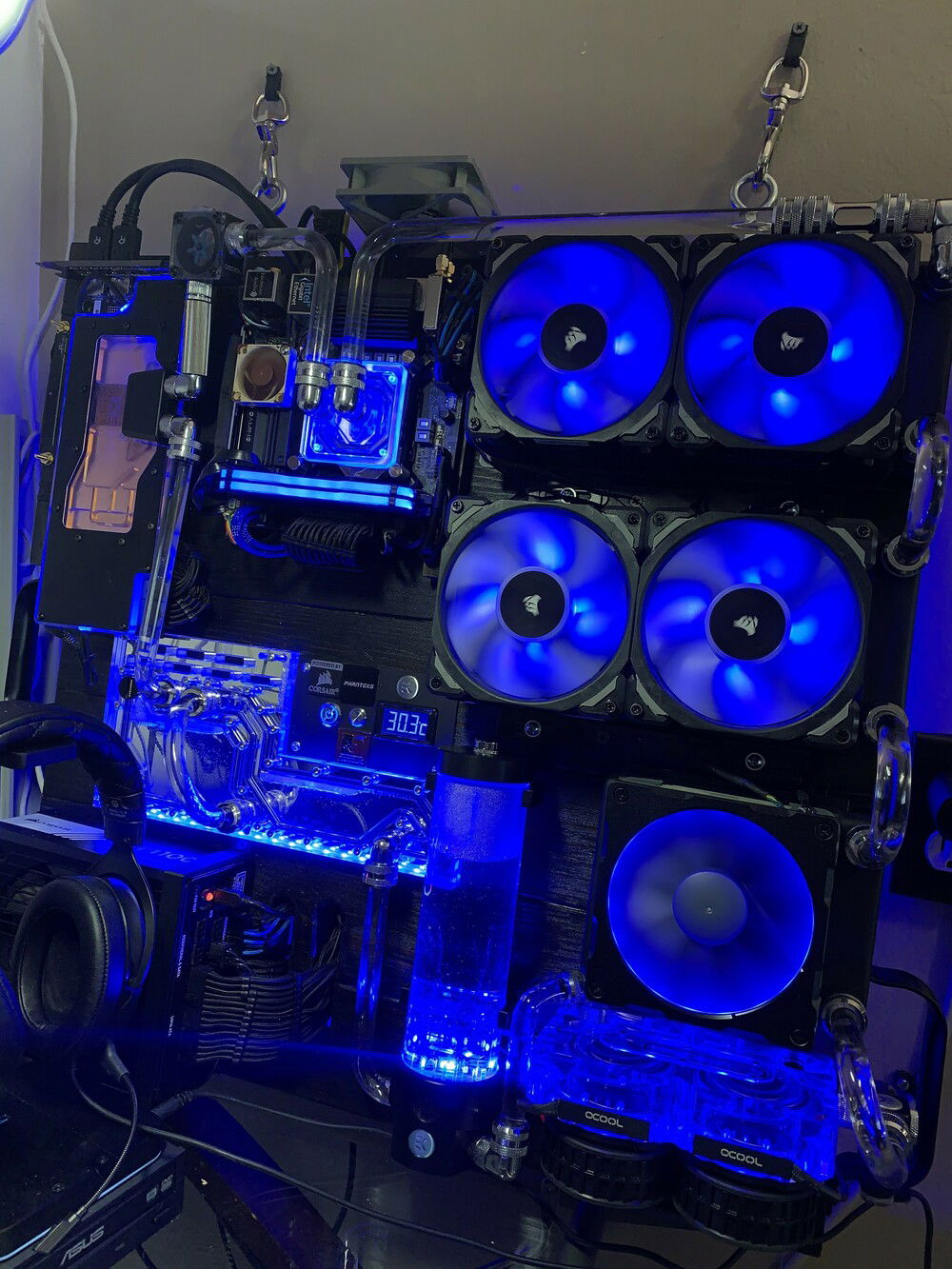

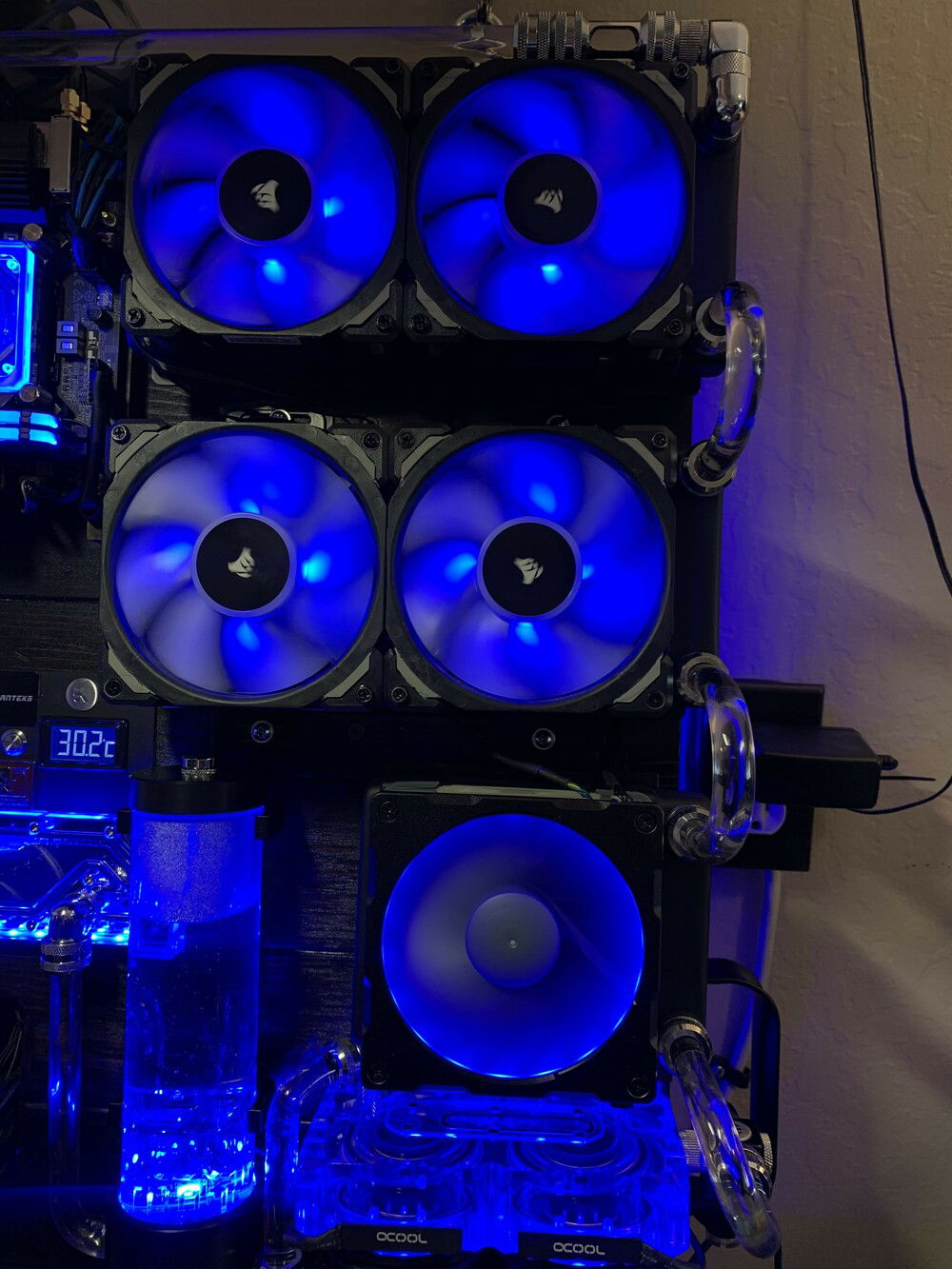

Wanted to try my hand at a custom wood wall case with full custom hard tube. The cooling is definitely overkill. Wanted to overclock and keep everything whisper quiet. This build definitely did that.

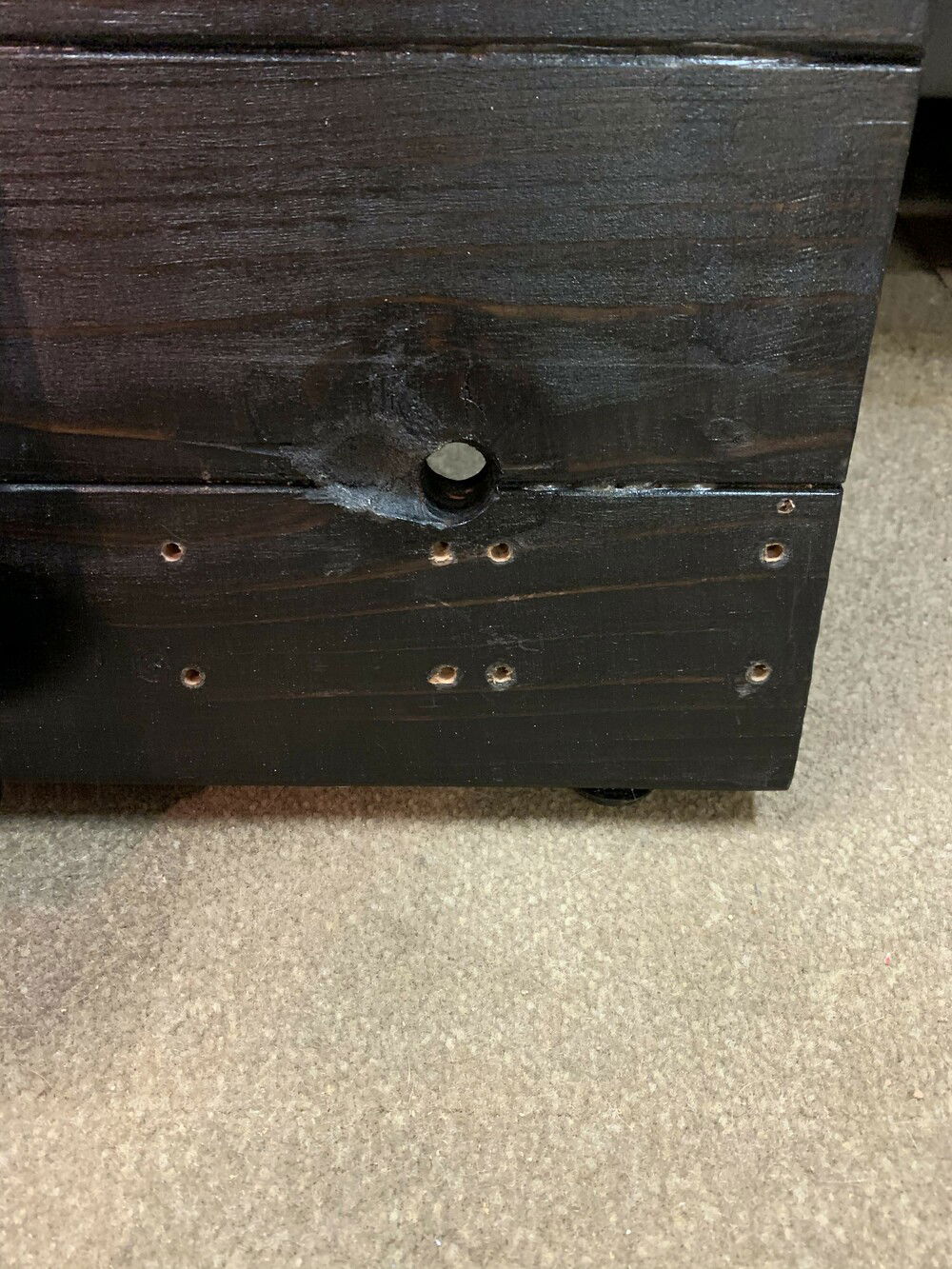

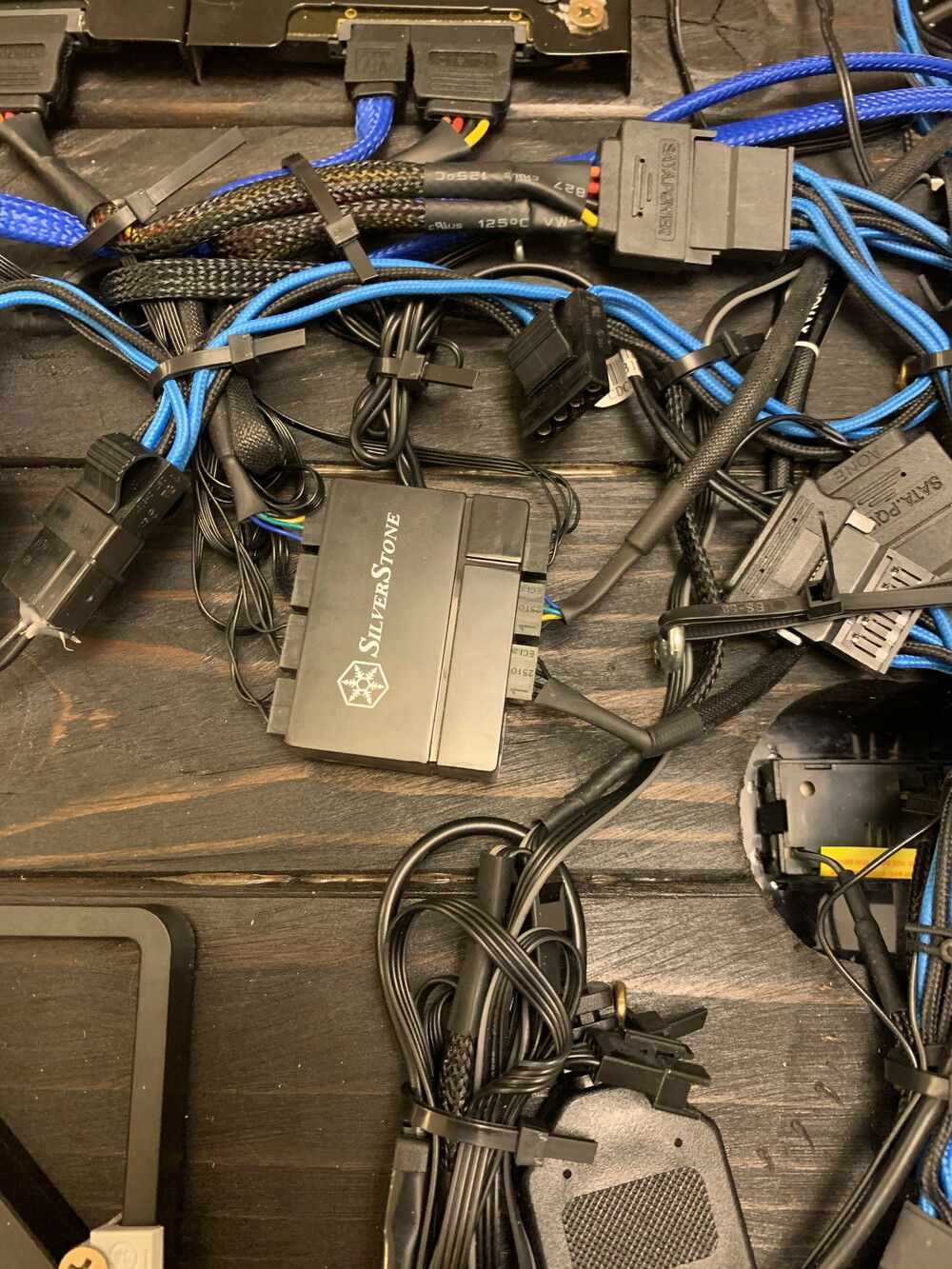

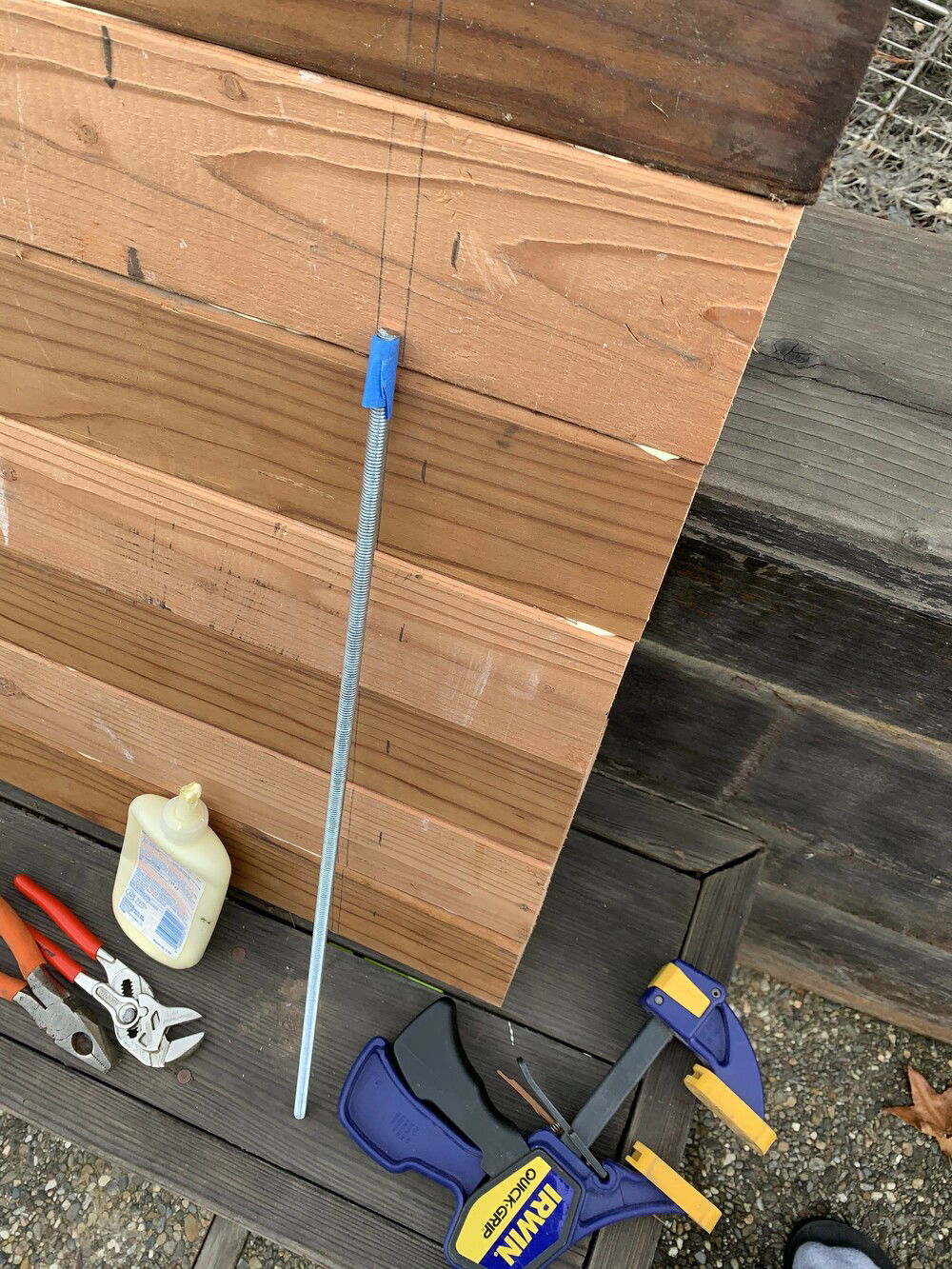

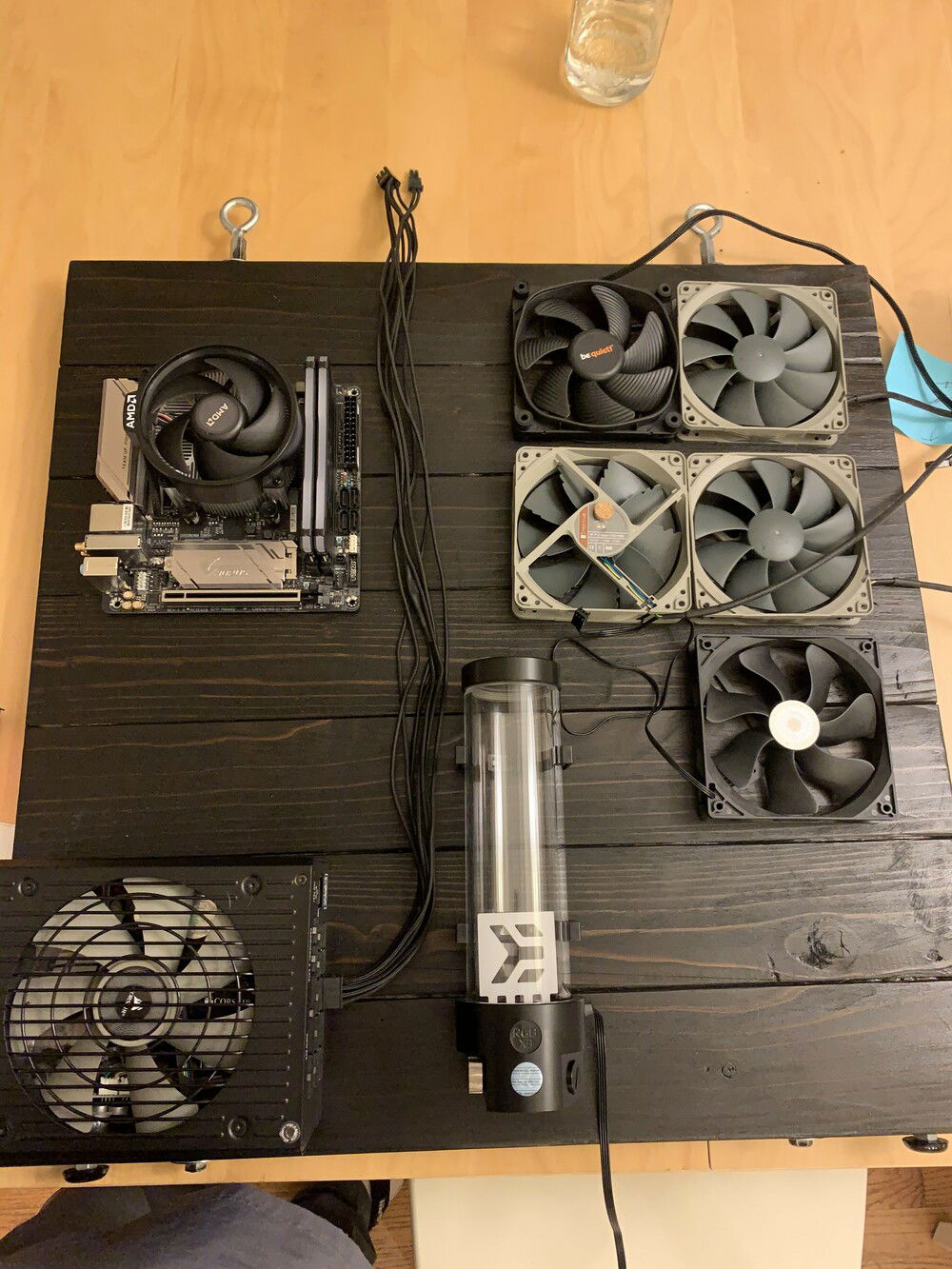

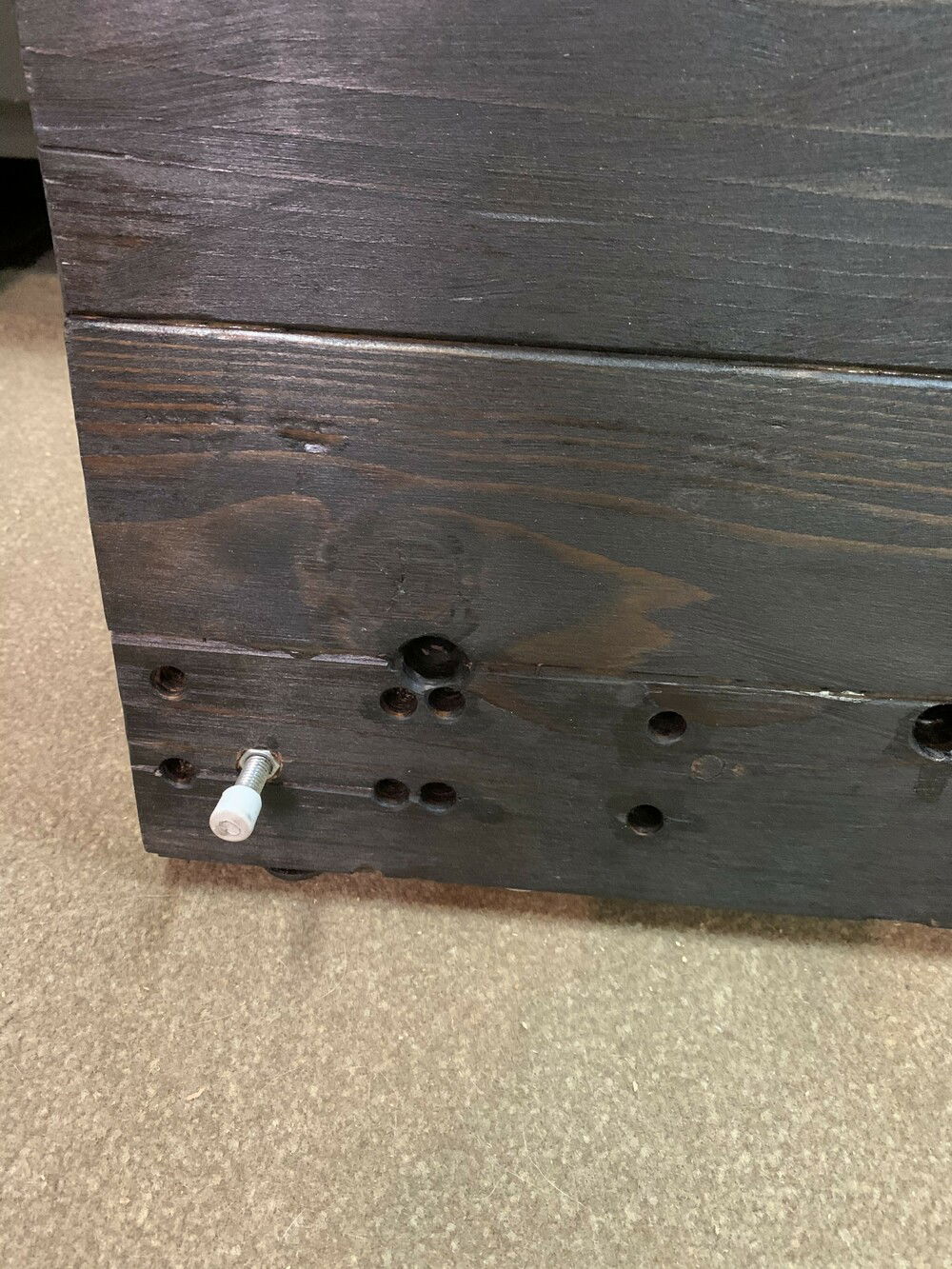

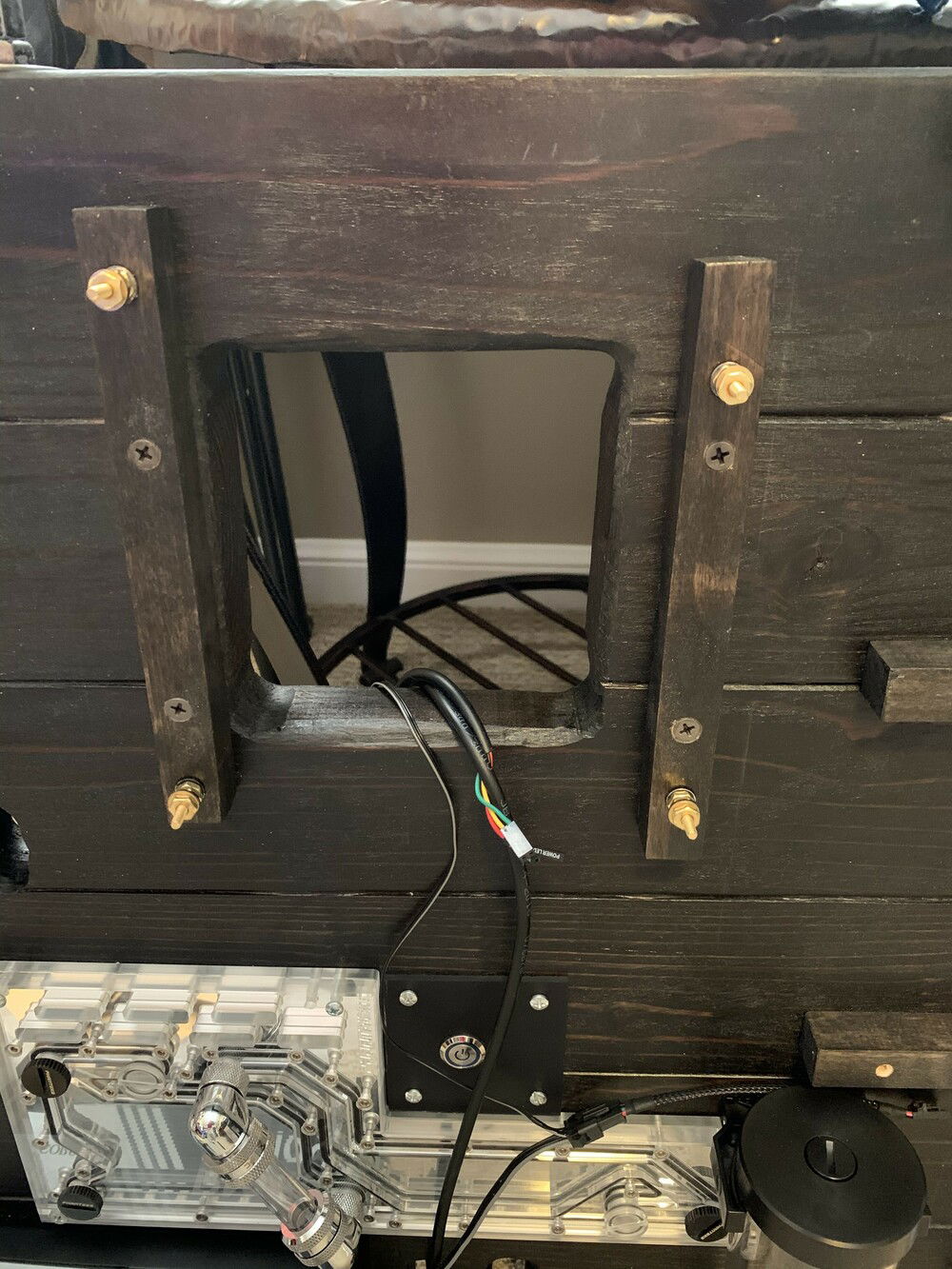

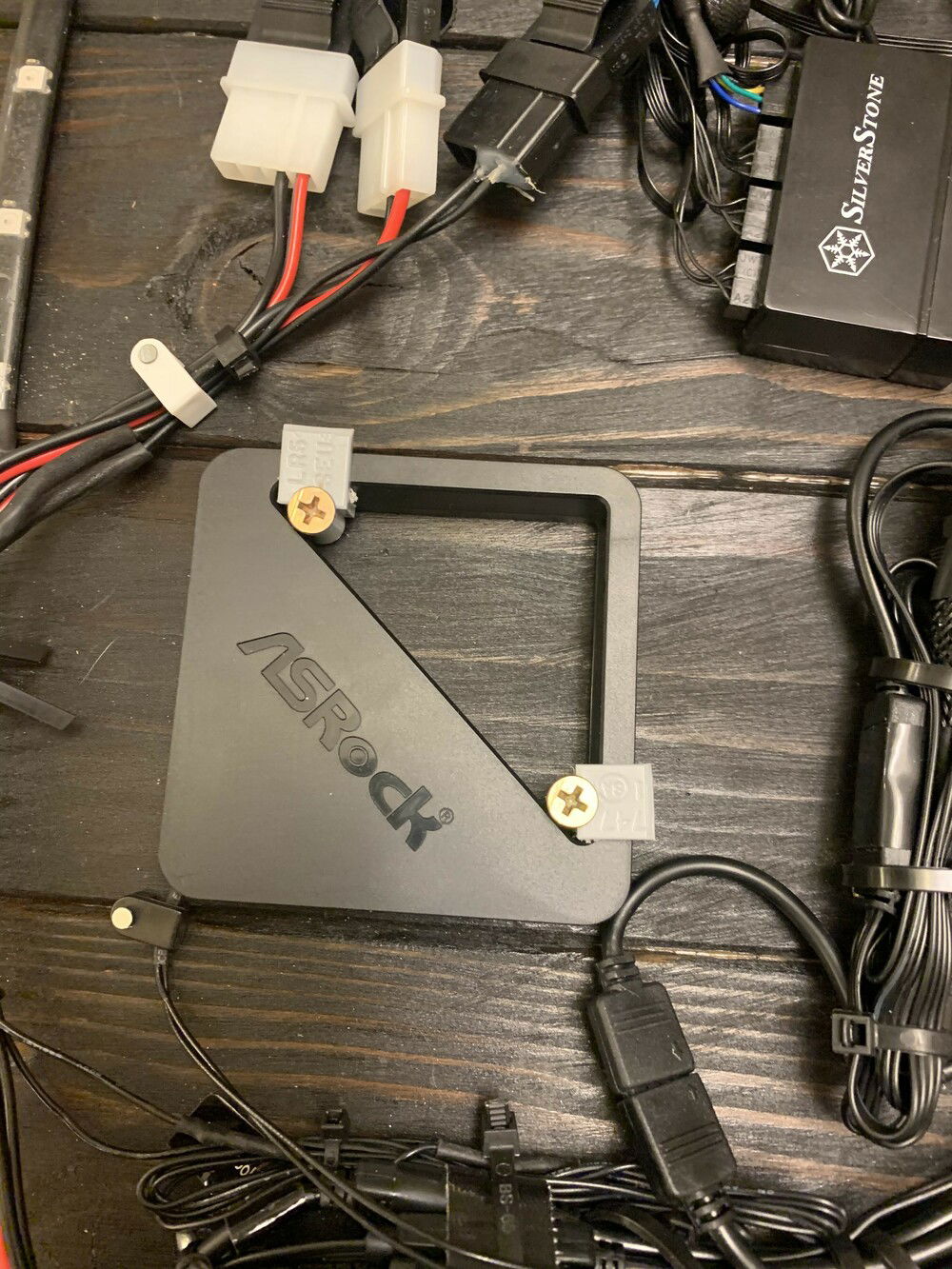

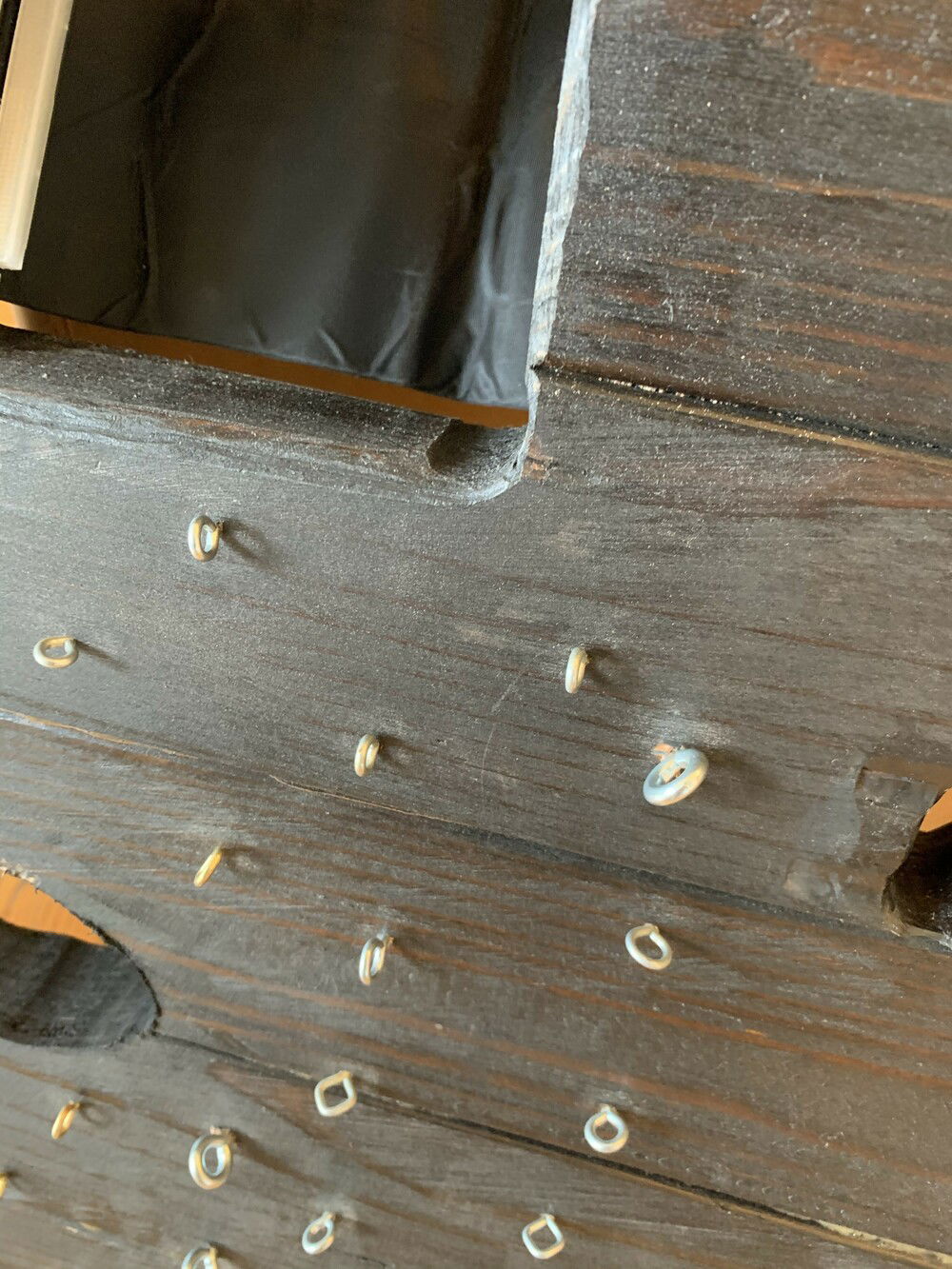

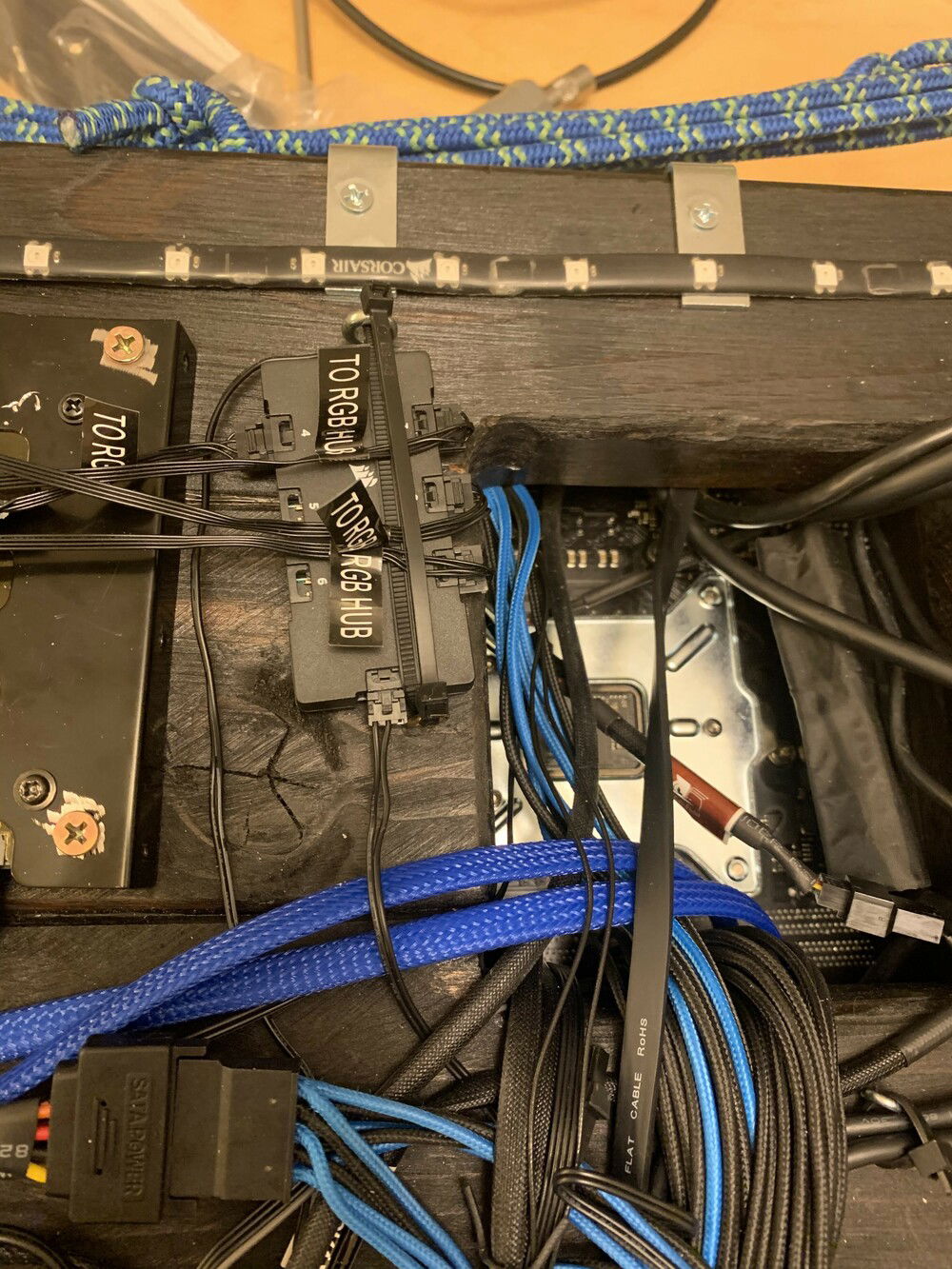

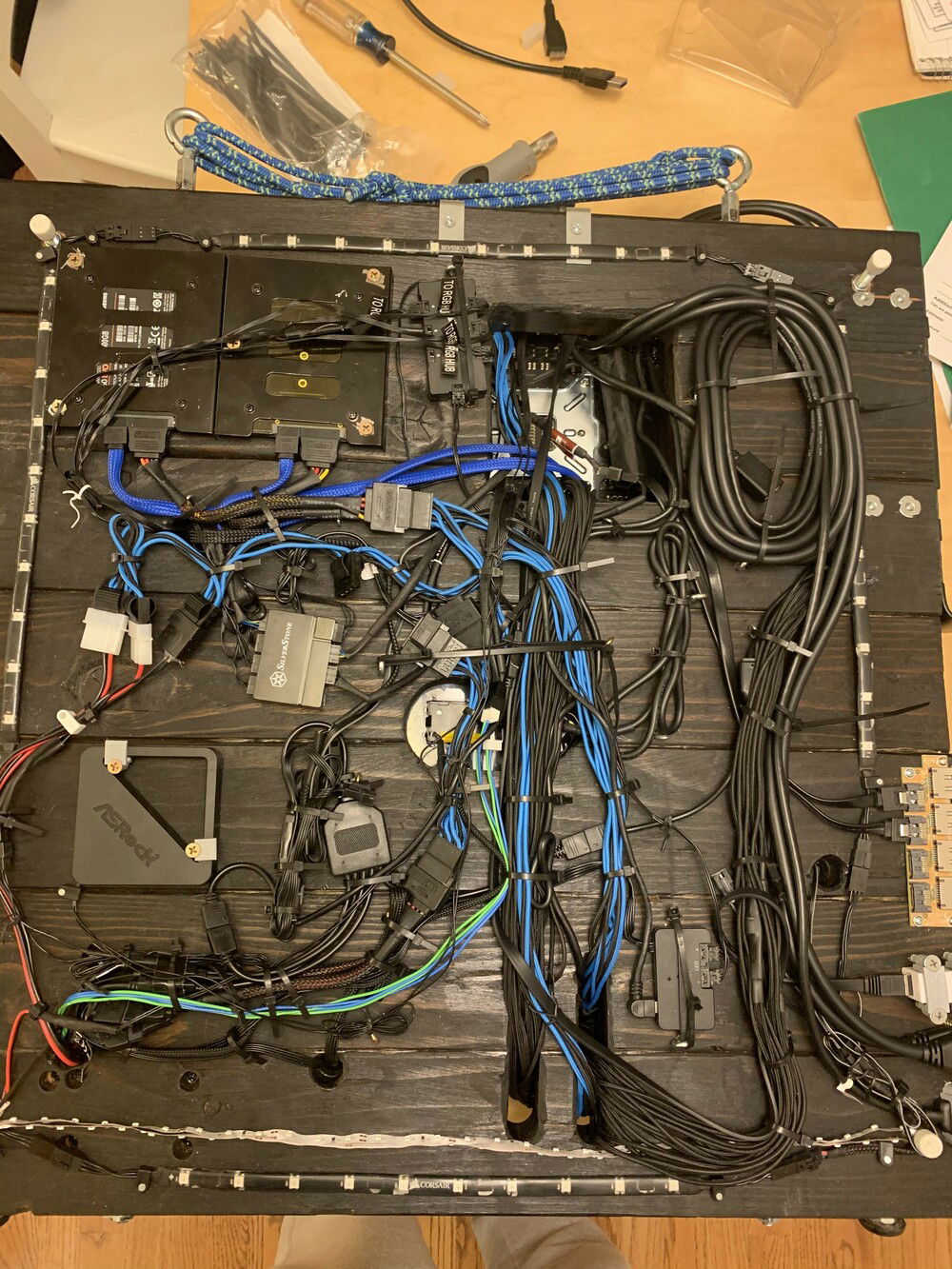

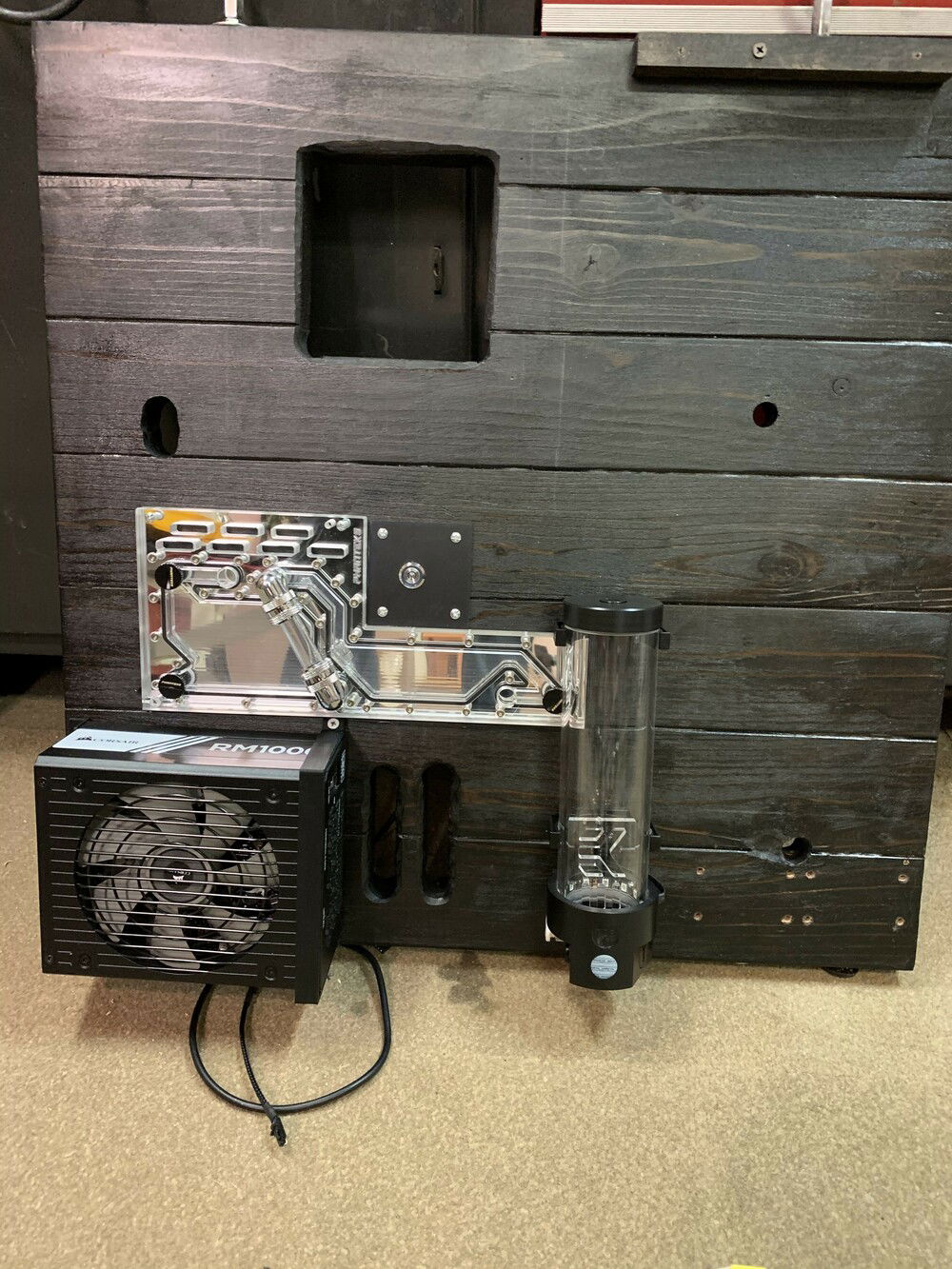

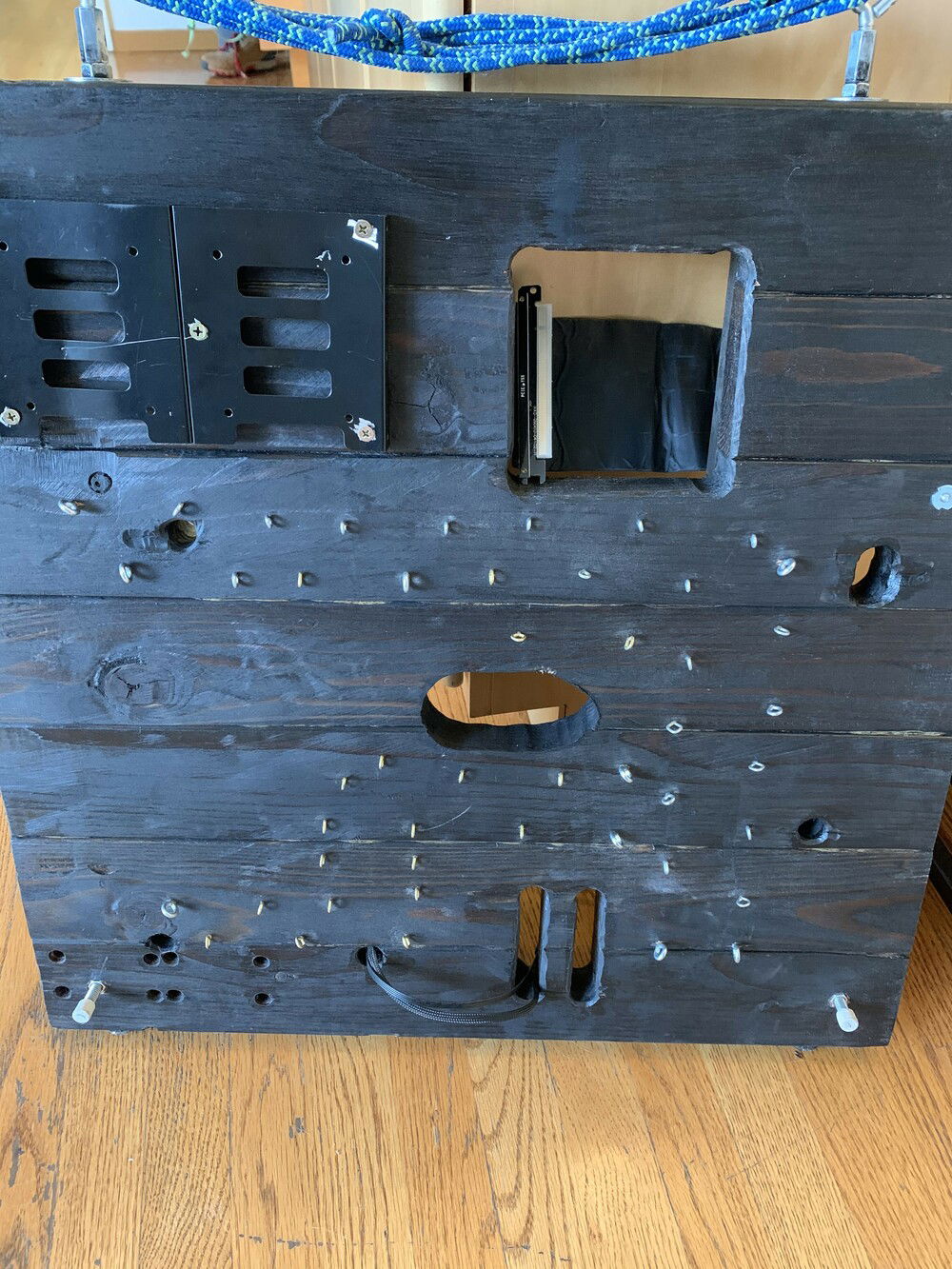

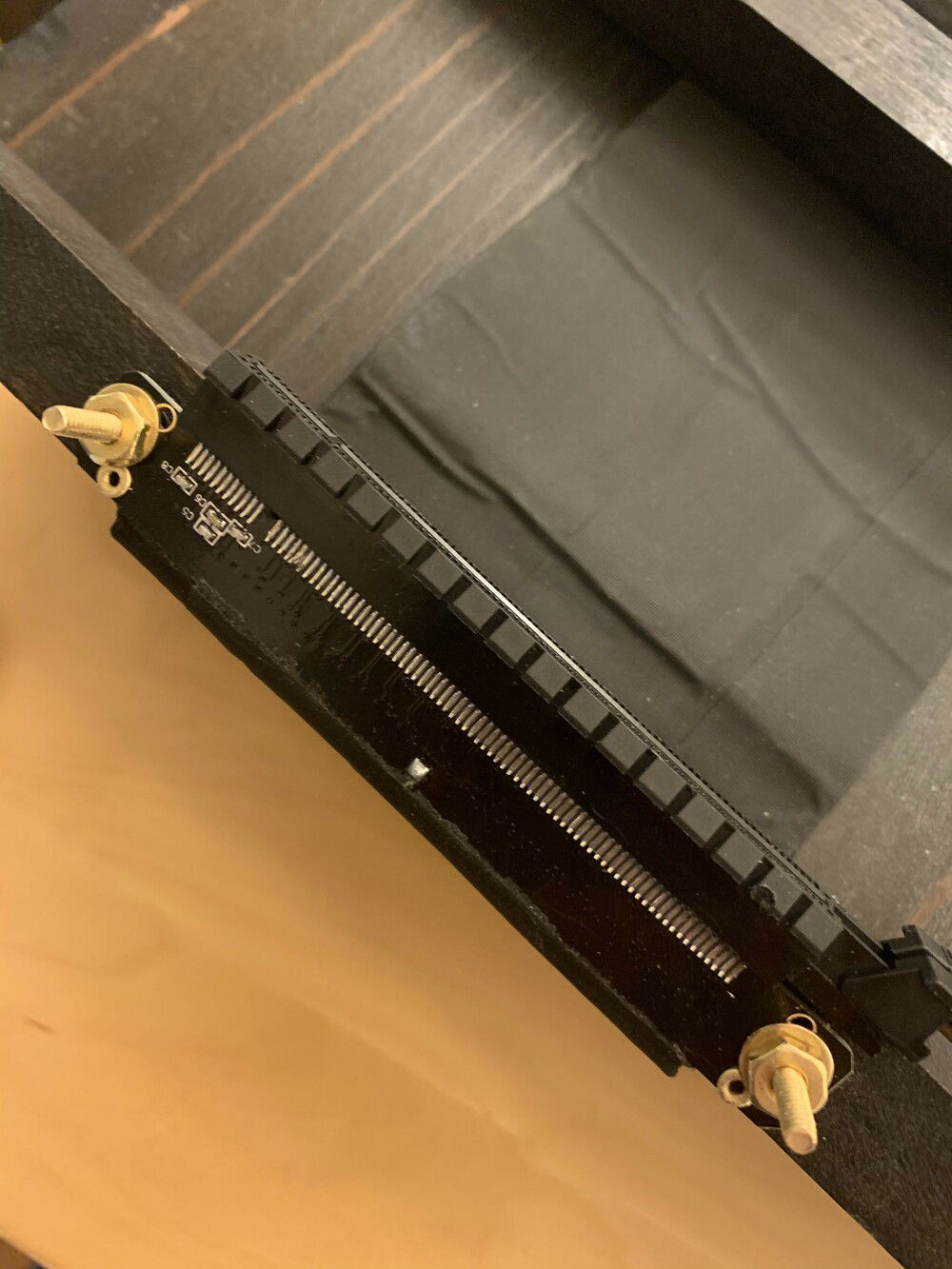

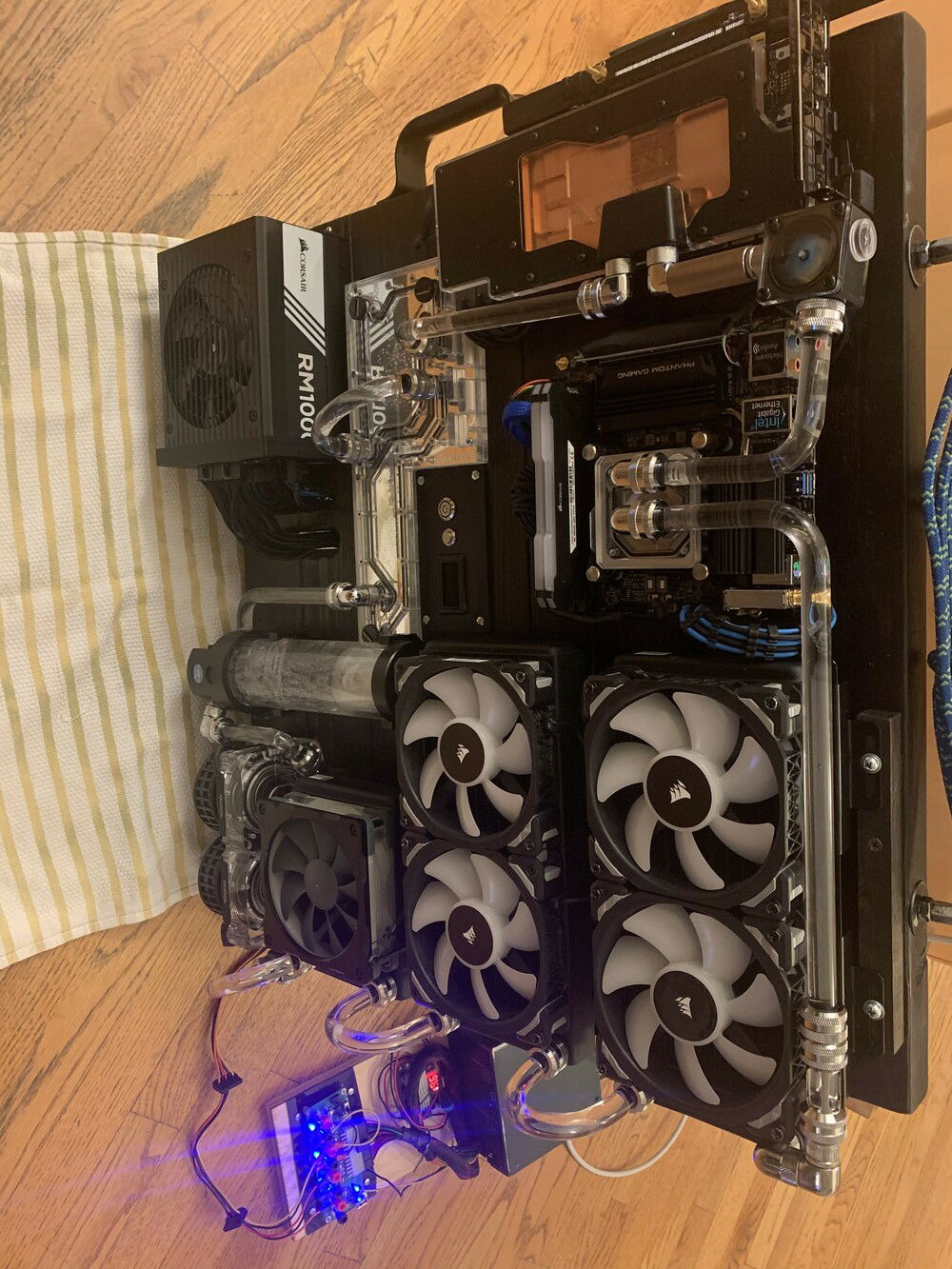

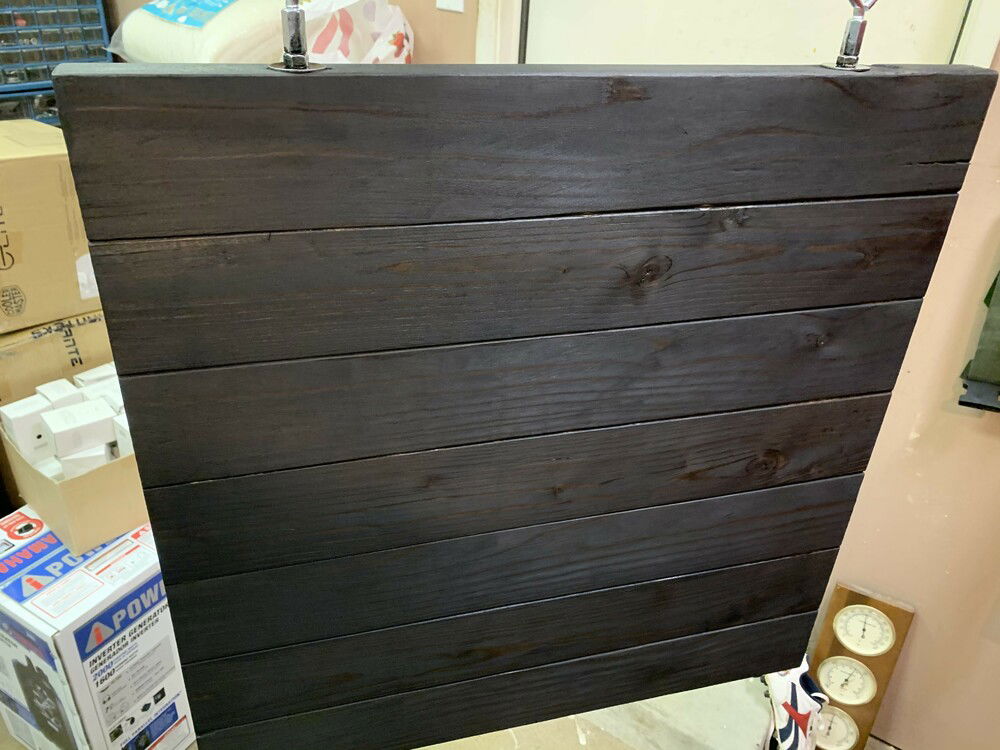

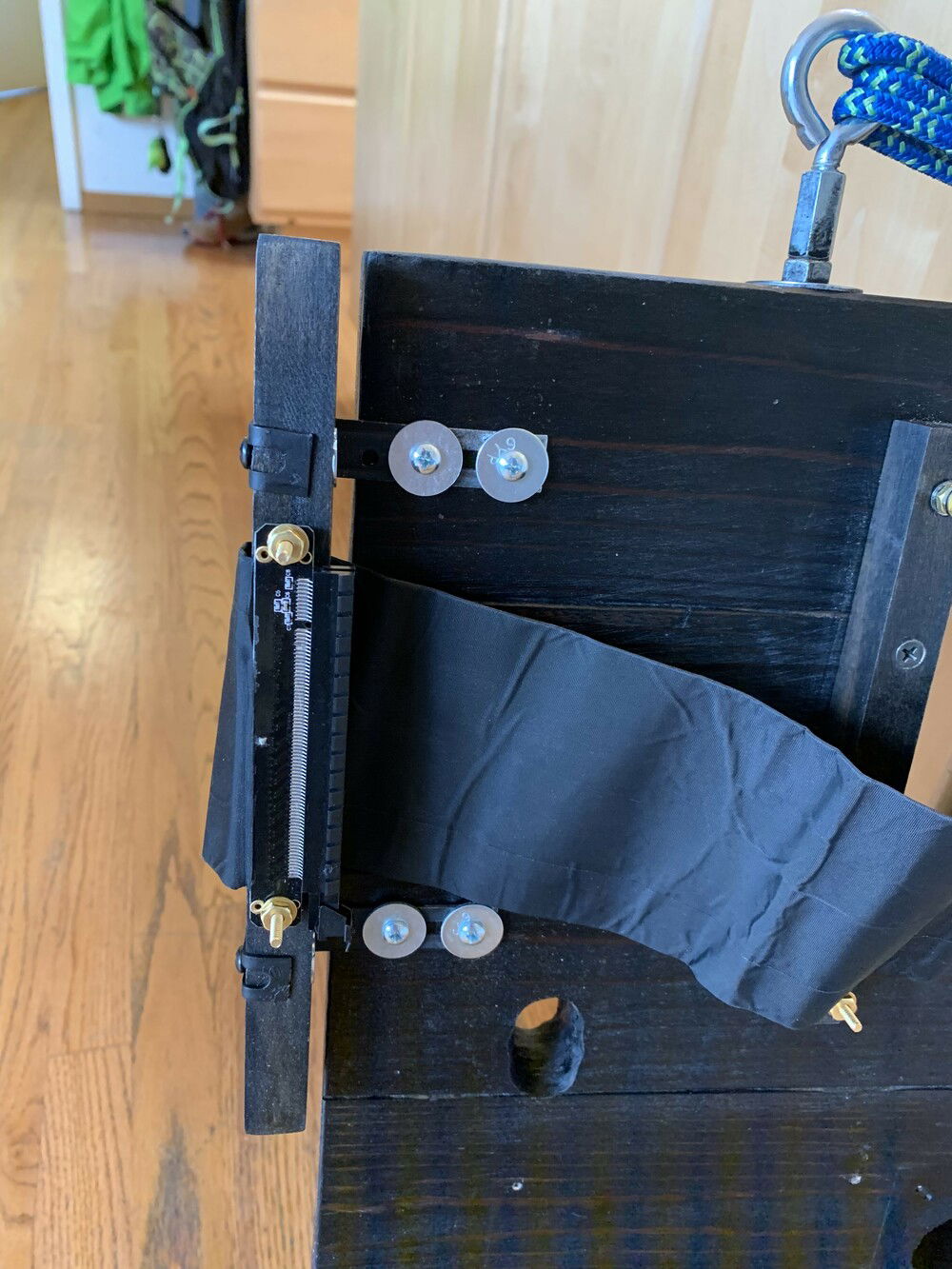

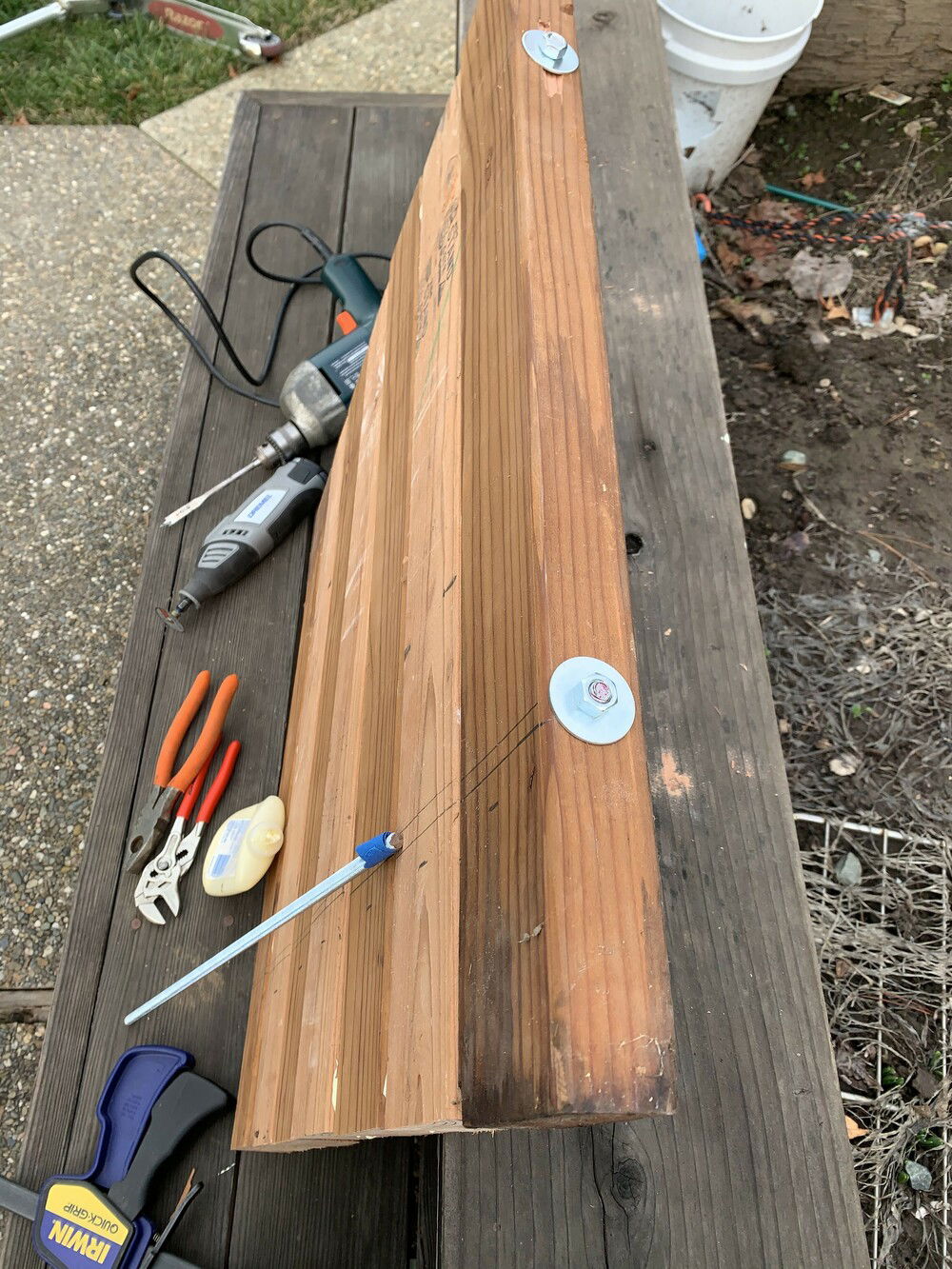

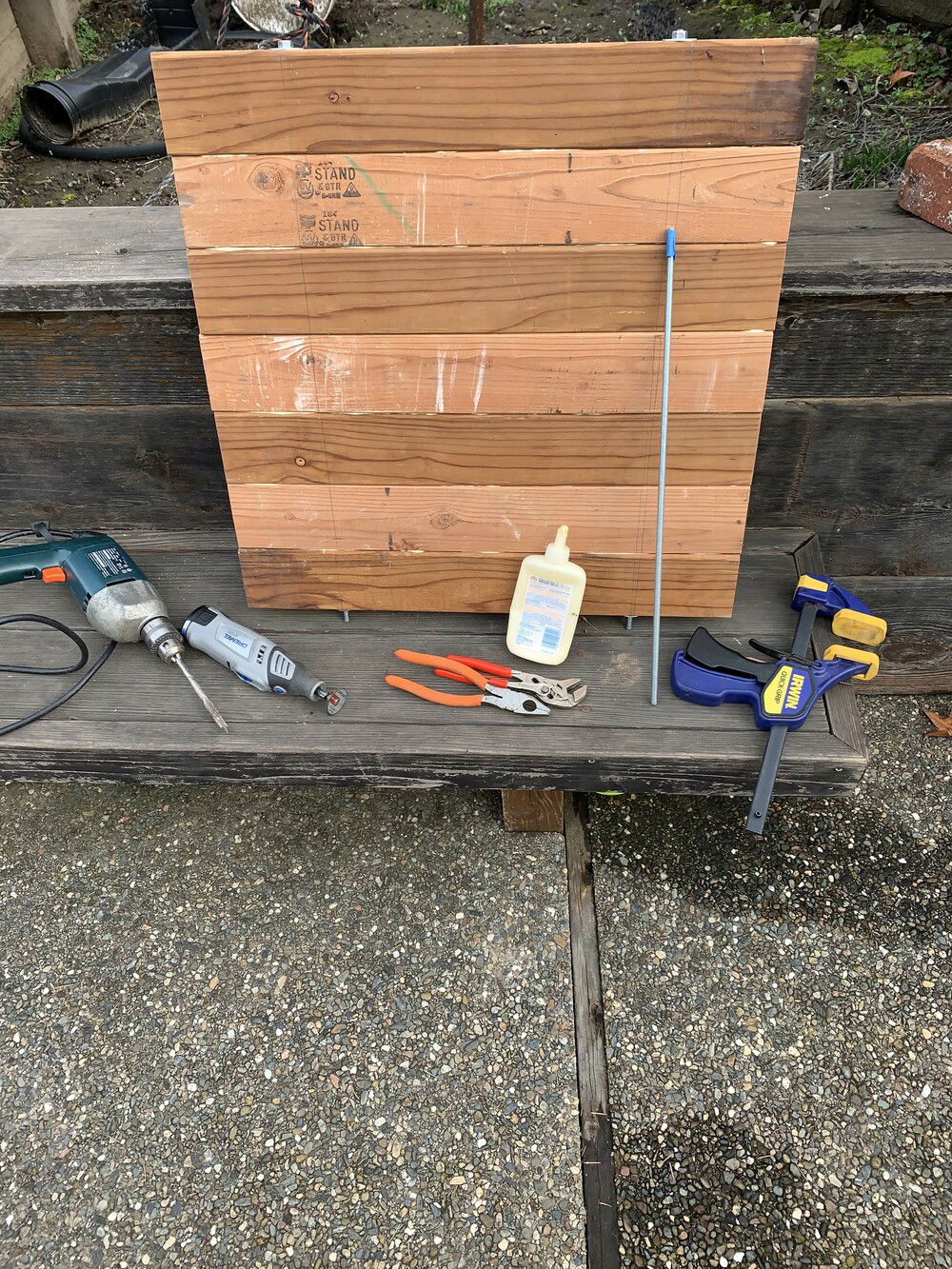

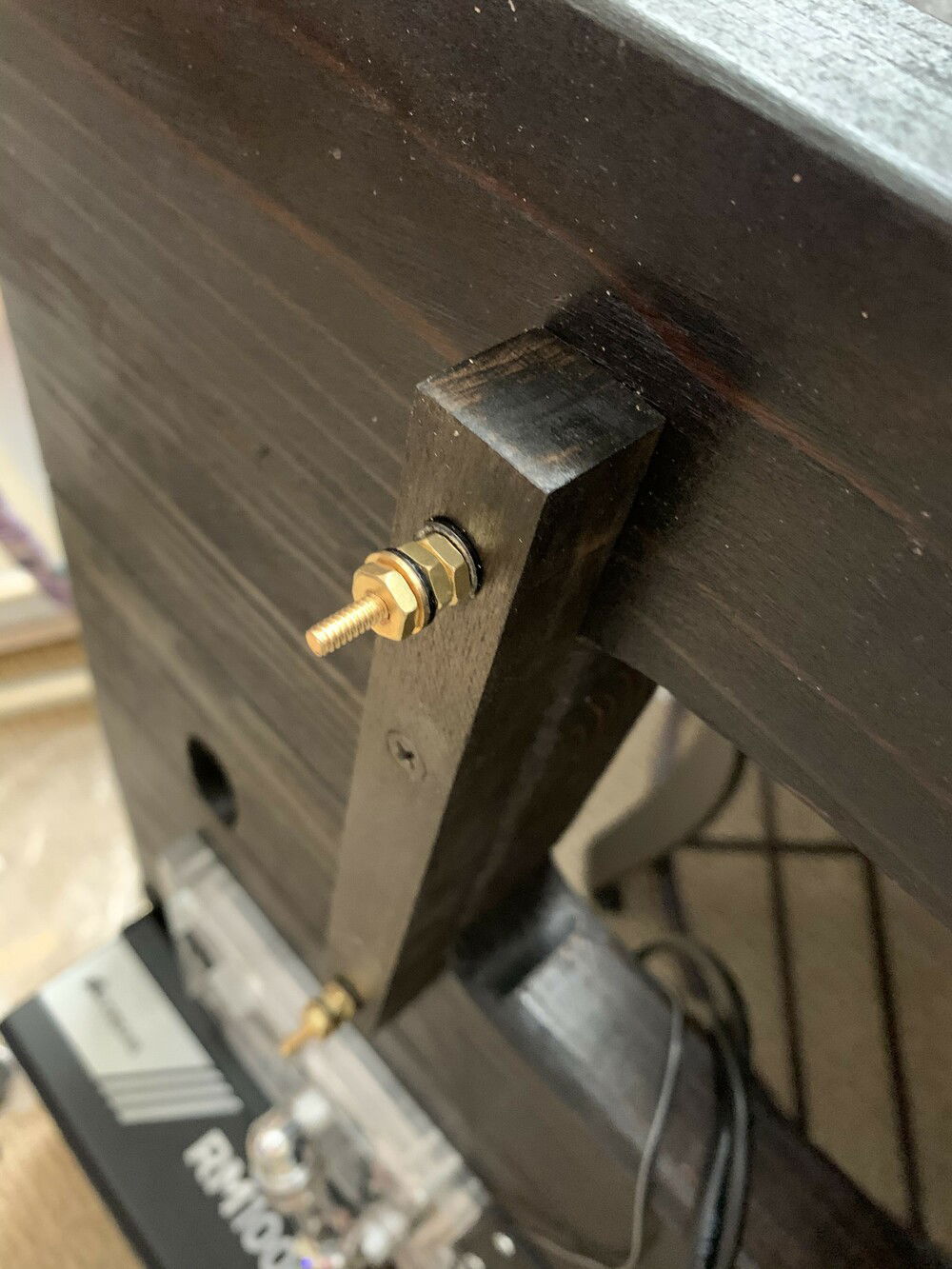

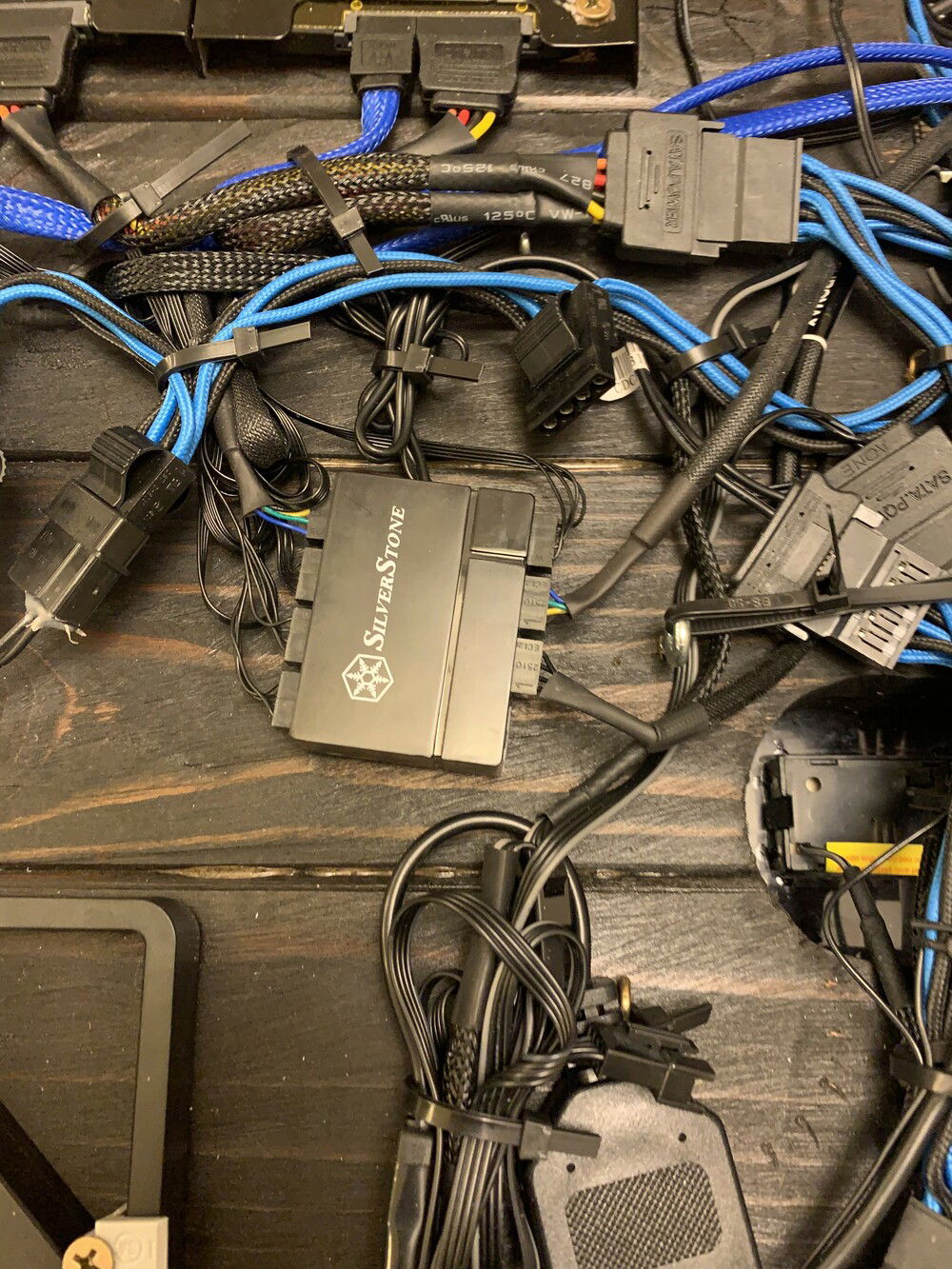

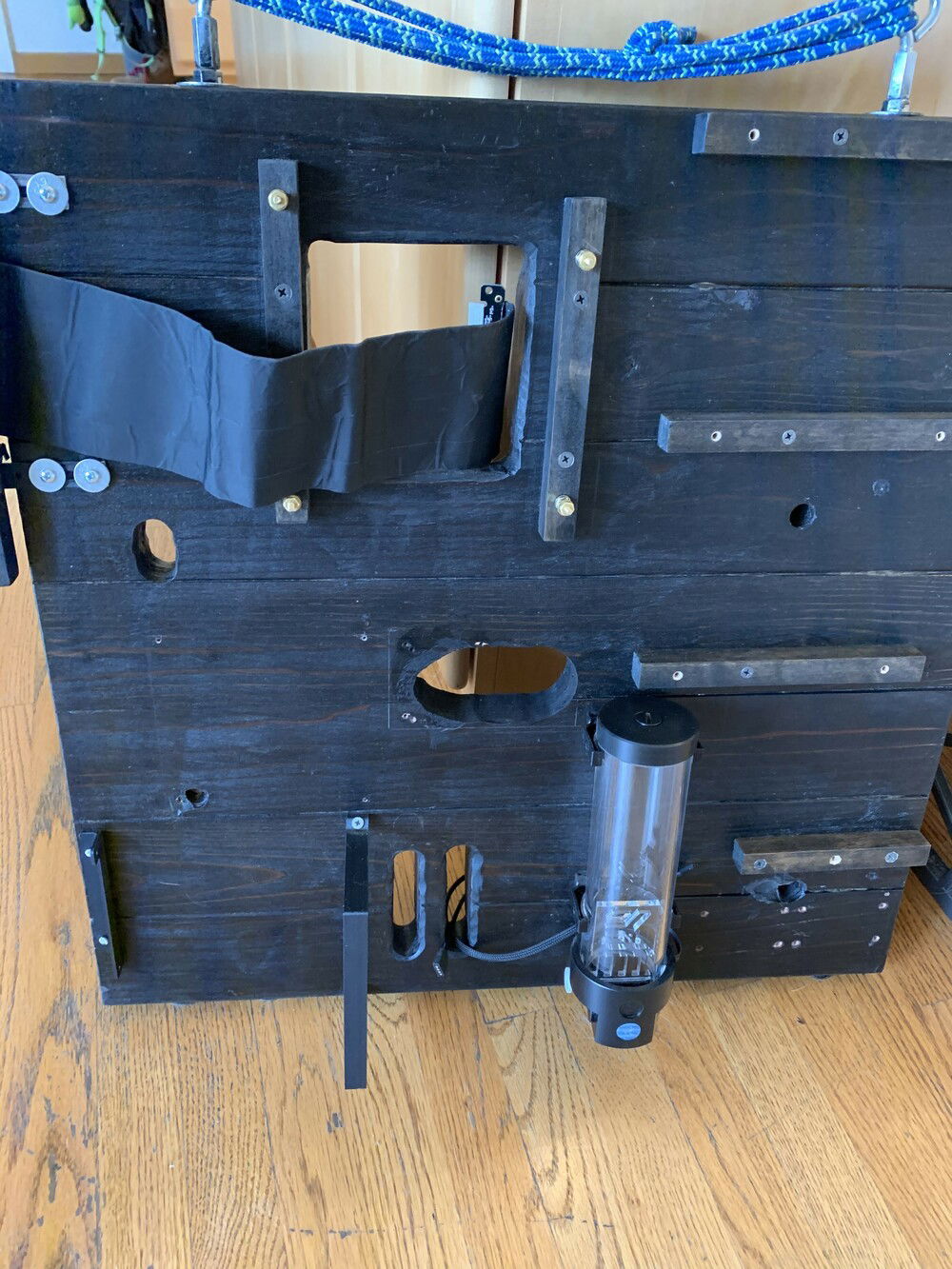

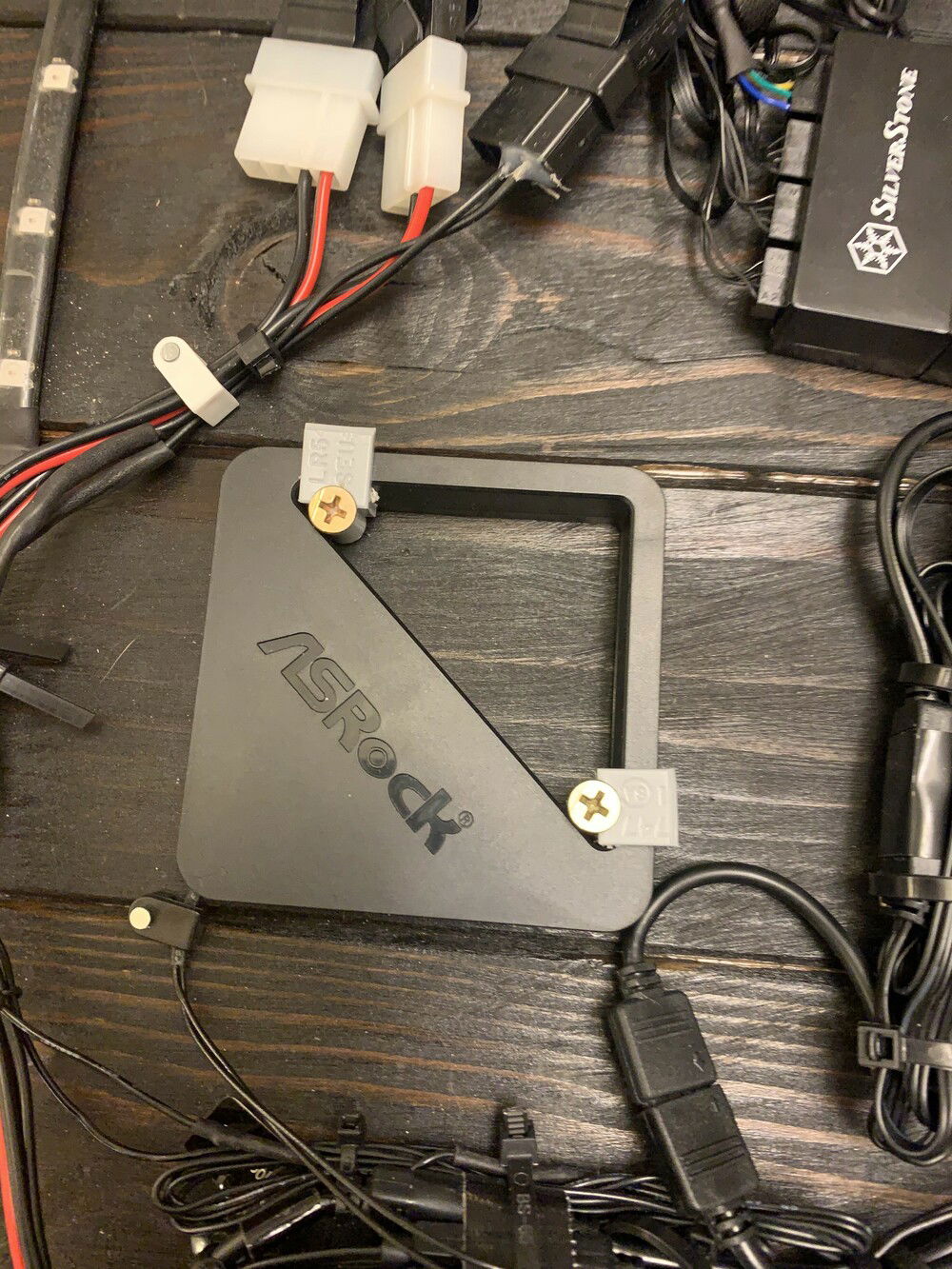

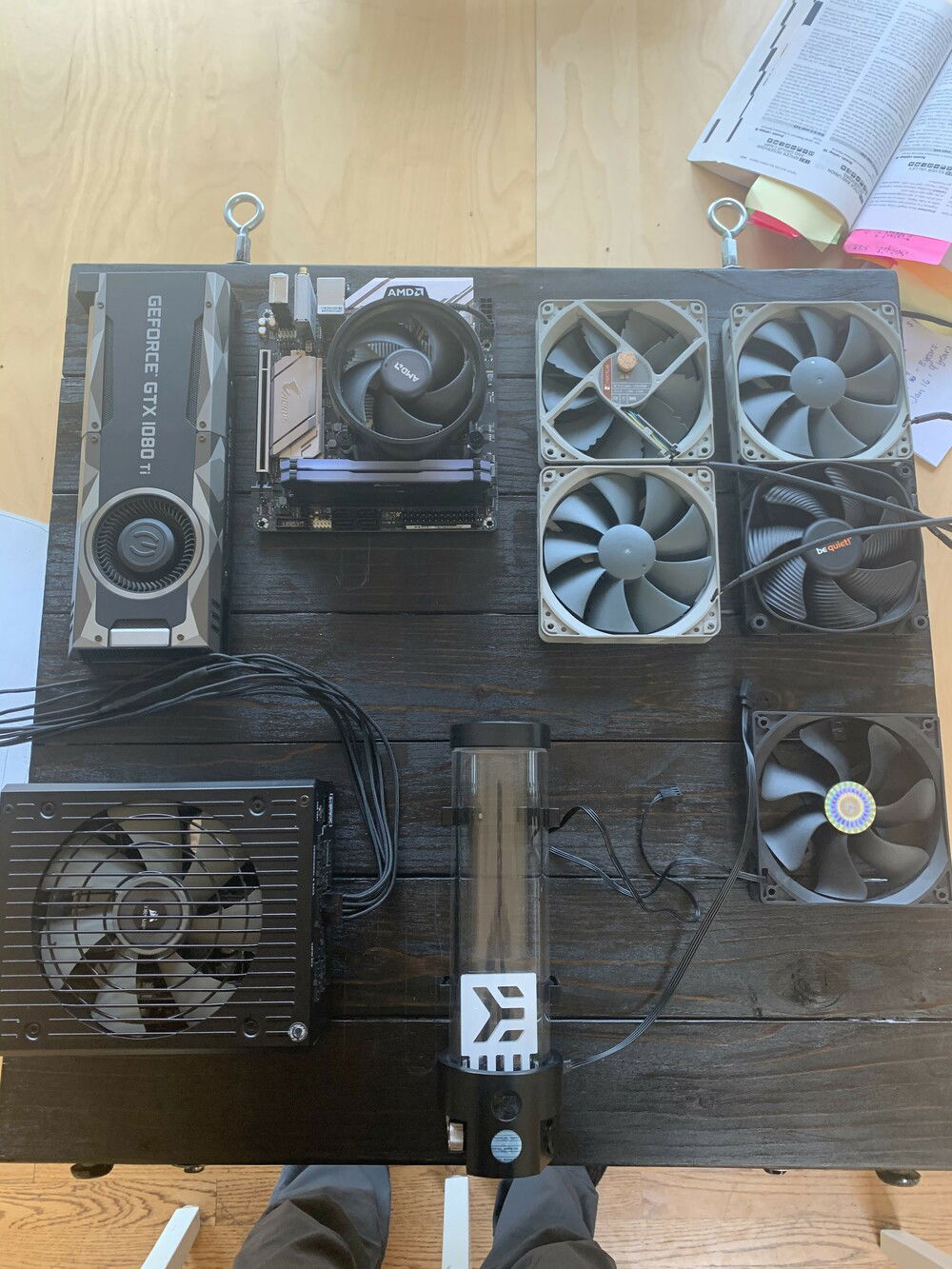

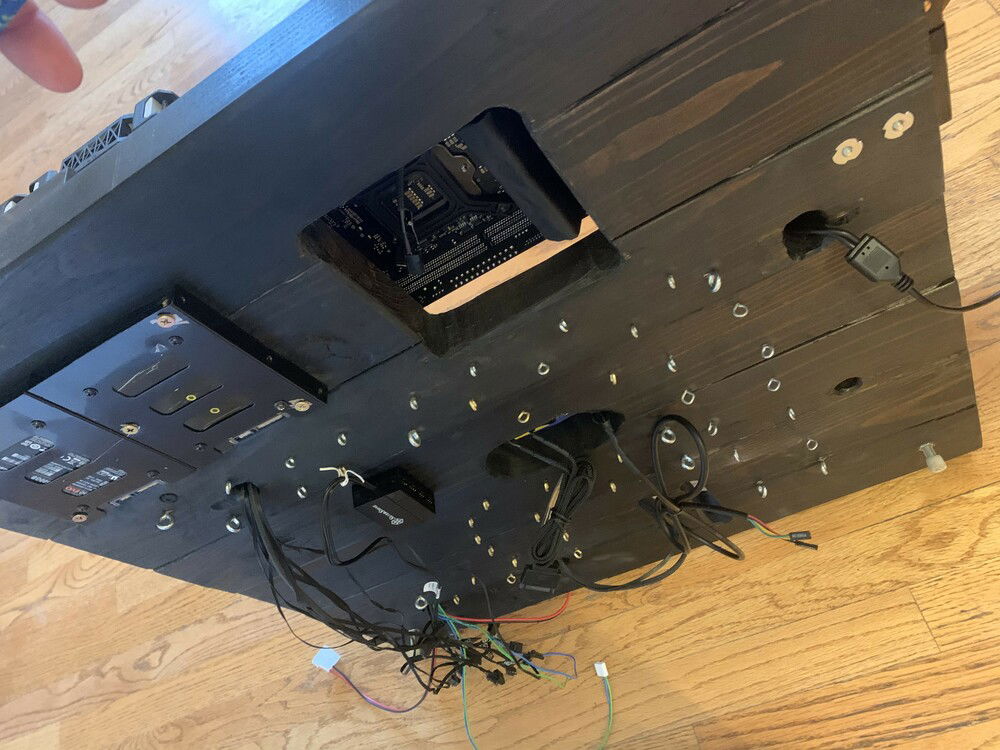

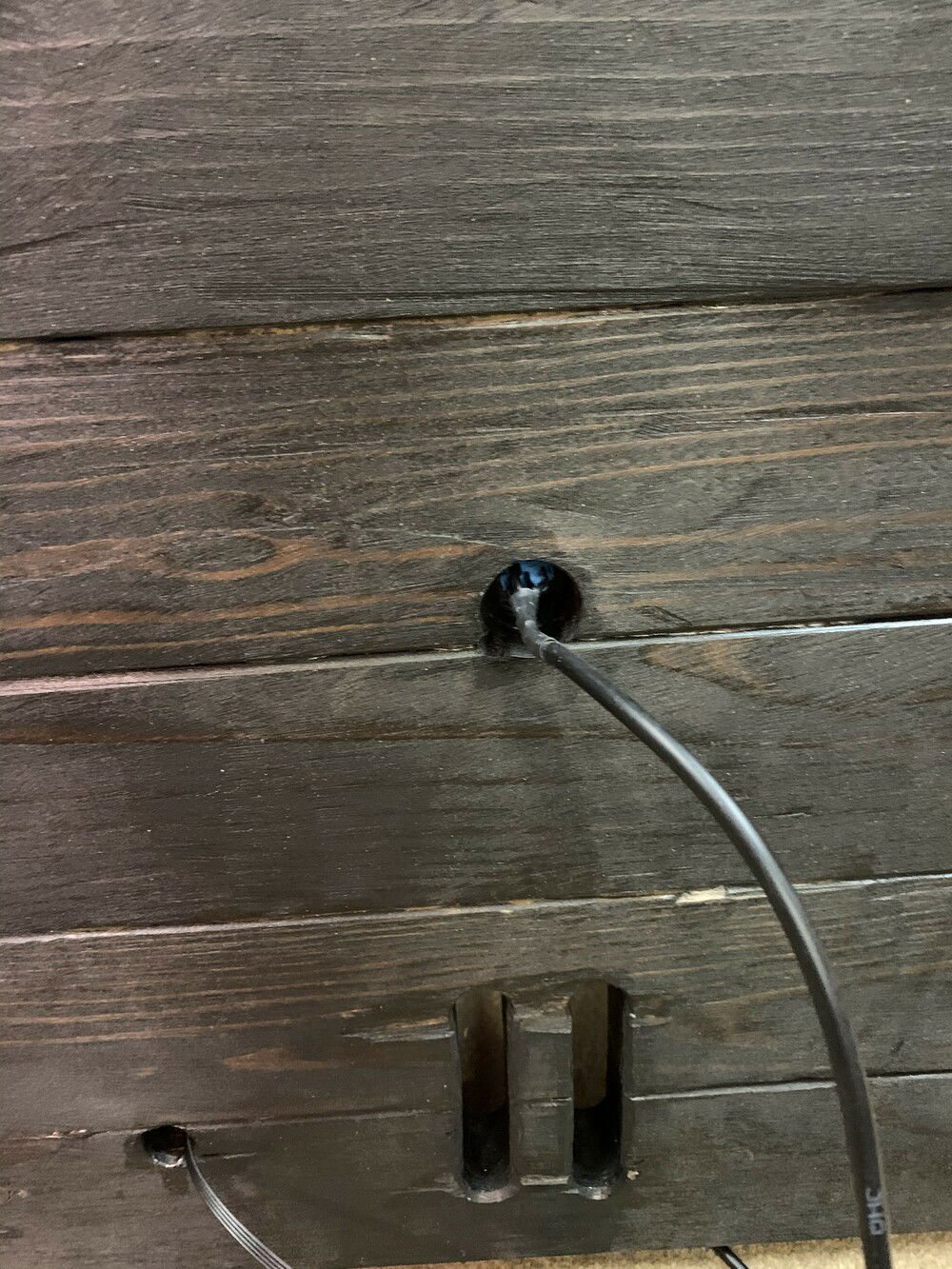

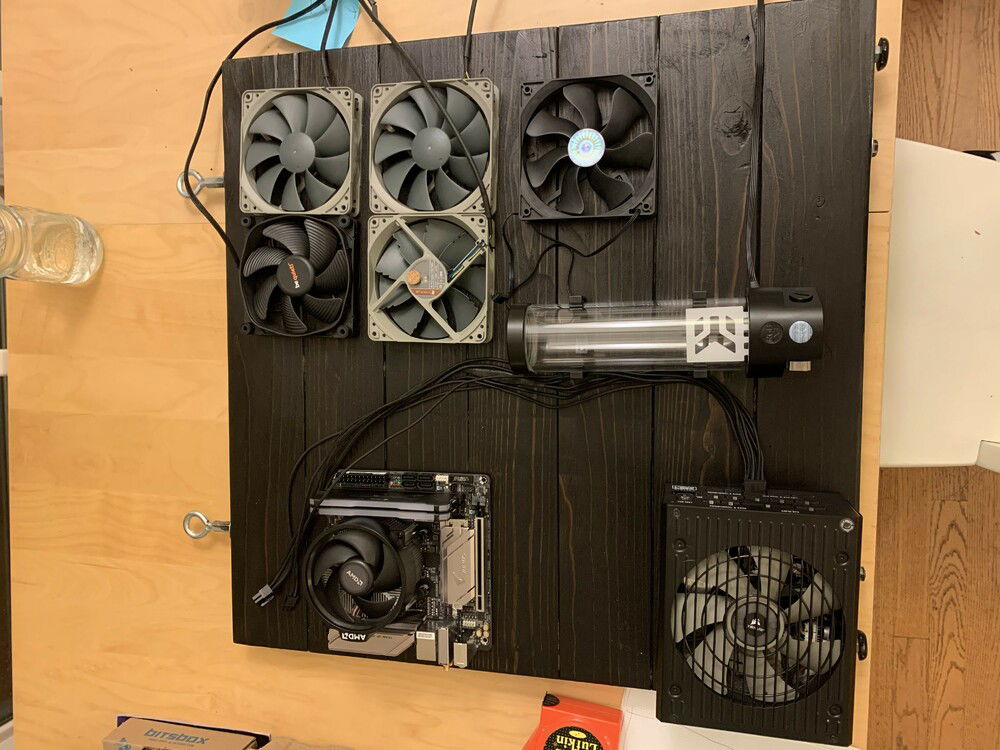

The case is solid 2x4 left over from home projects. Used wood glue and long bolts to press them together and used a belt sander to level it after the wood warped a little. Made my motherboard stand offs with brass screws and nuts. I think I could have done a better job with cable management in the back perhaps cut cable channels into the back or the wood and integrate the tubes more into the wood case
Color(s): Brown
RGB Lighting? Yes
Theme: Wall

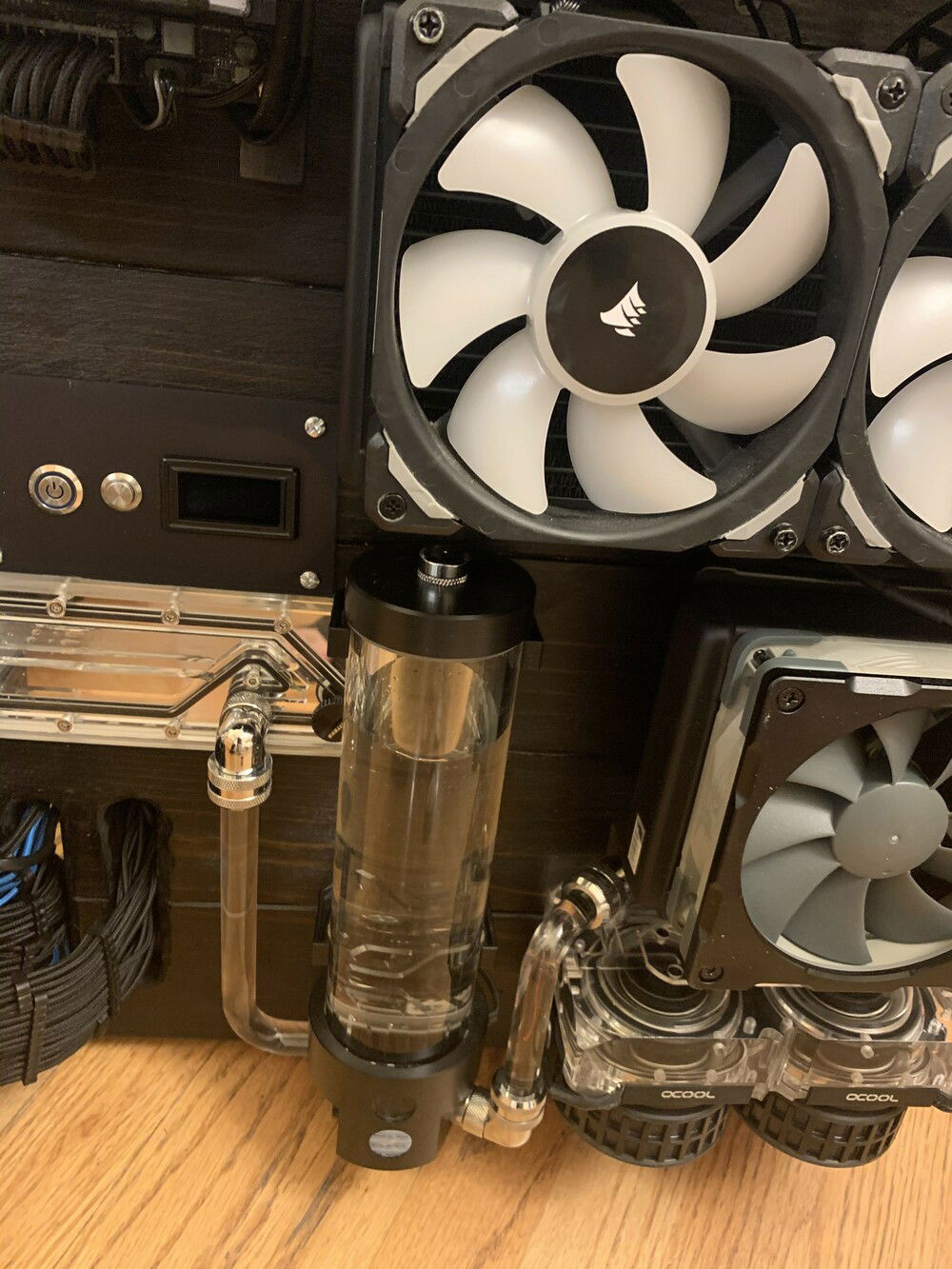

Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 427.00
Intel - Core i9-9900K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 400.00
ASRock - Phantom Gaming-ITX/AC
Chipset: Z390
CPU Socket: LGA 1151
Size: Mini-ITX
Memory
$ 119.85
Corsair - Vengeance Pro (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 16 GB
Graphics
$ 199.99
EVGA - Founders Edition
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
$ 89.99
Samsung - 960 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 418.96
Corsair - RM1000i
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Gold
Case
Custom - Custom (custom)
Cooling
$ 89.95

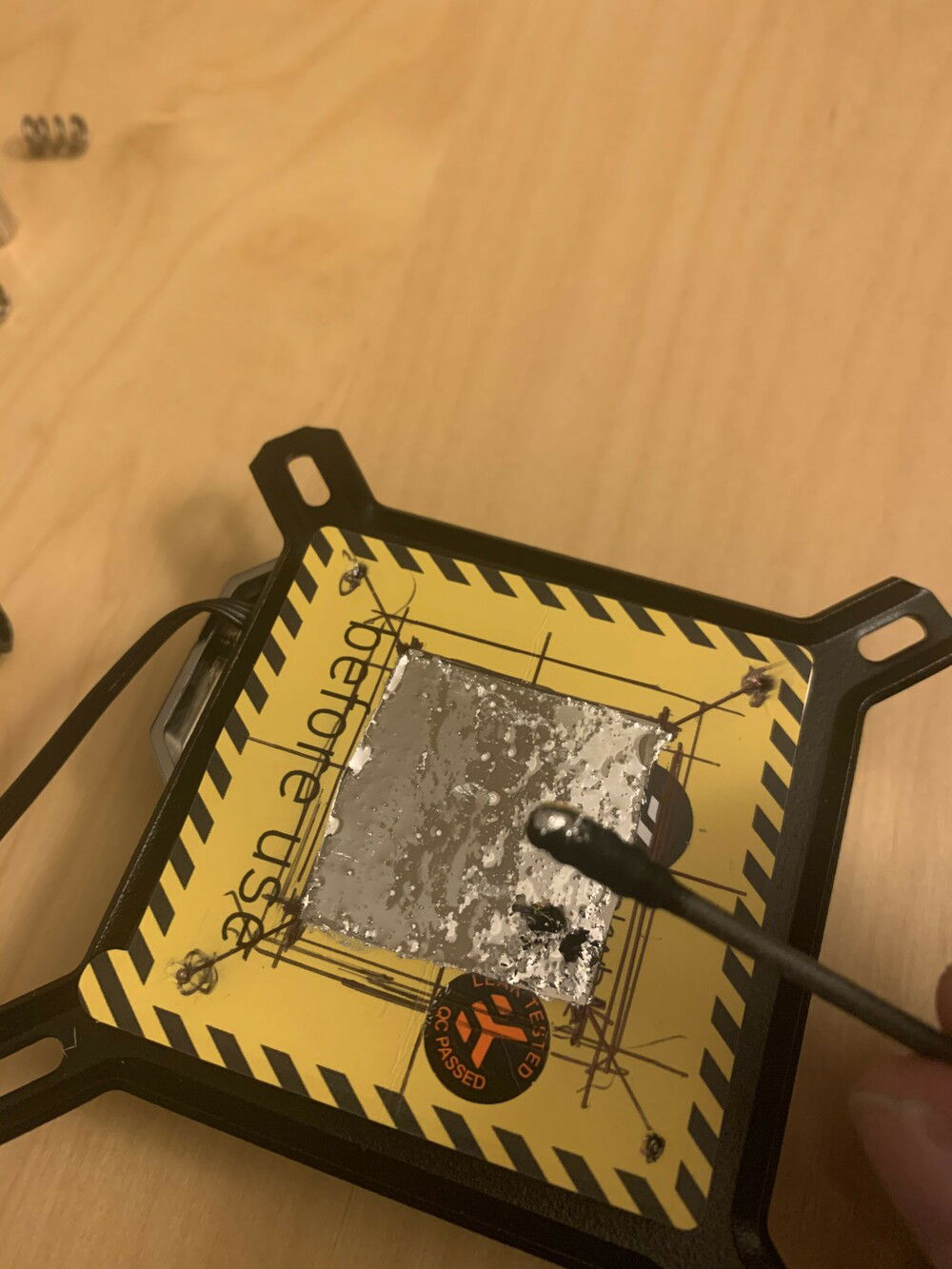

EKWB - EK-Supremacy EVO RGB
Type: CPU Waterblock
Cooling
$ 69.95
XSPC - EX Series
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
