Chromaticity

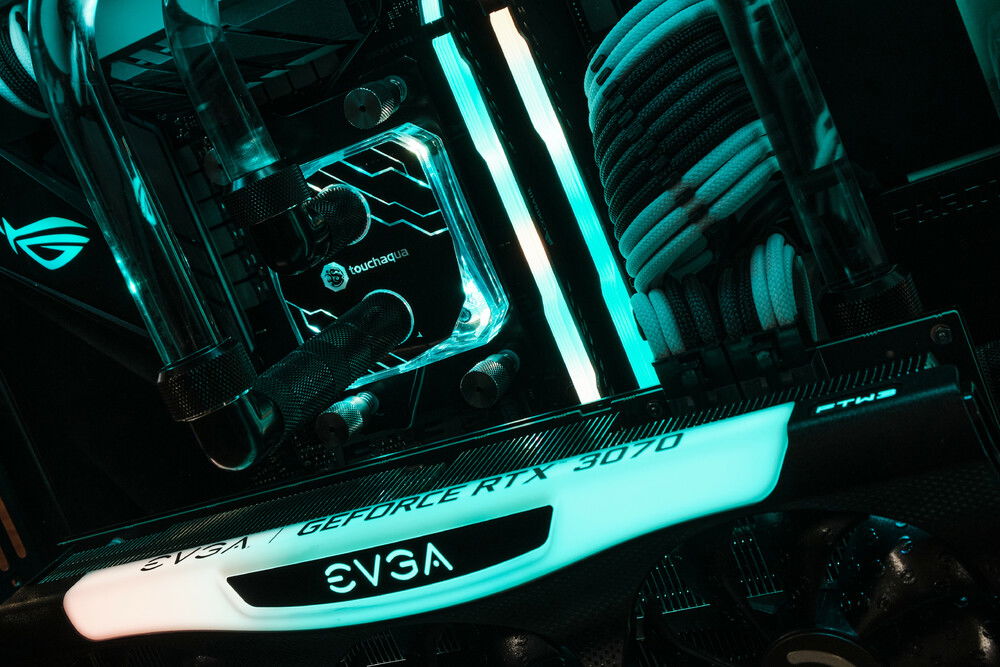

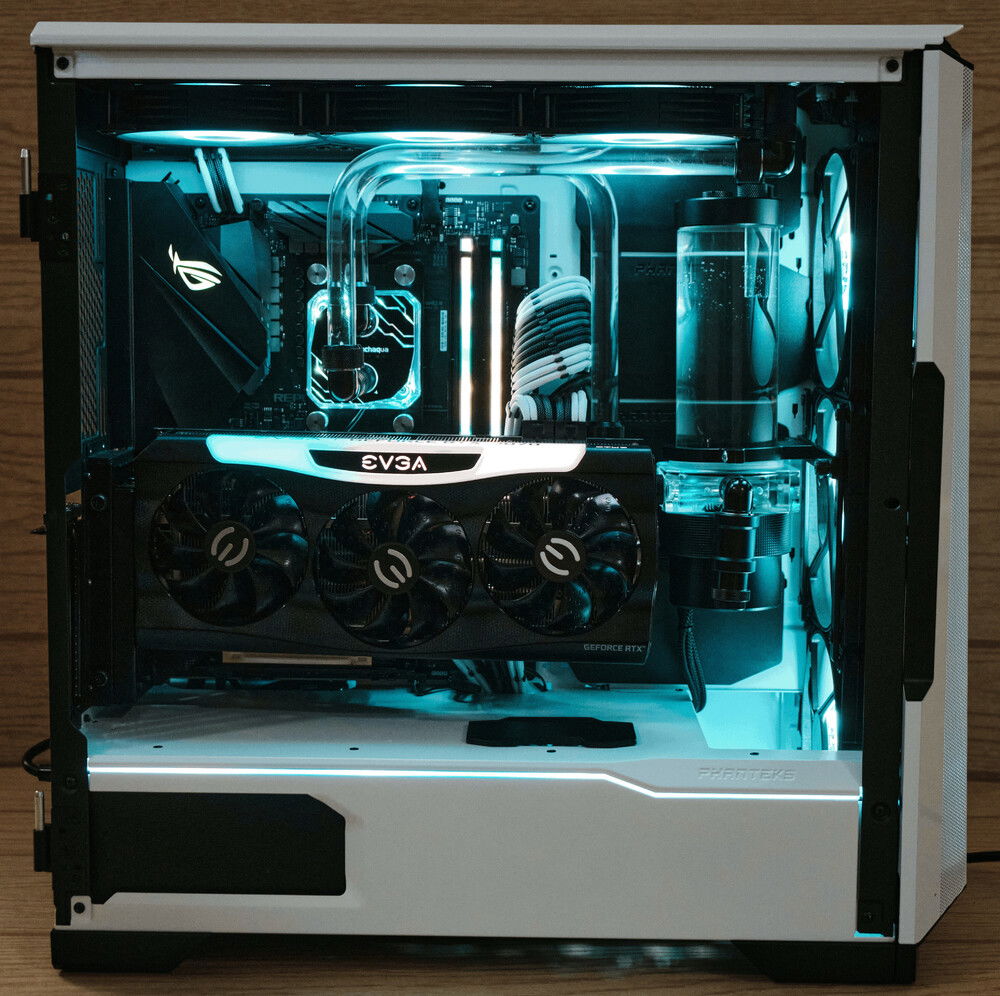

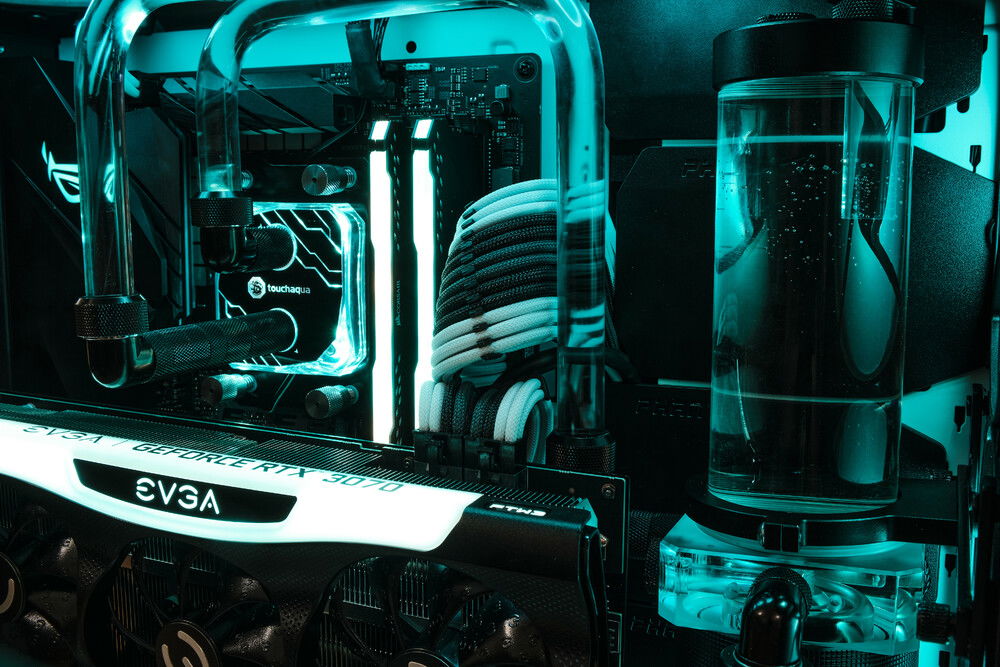

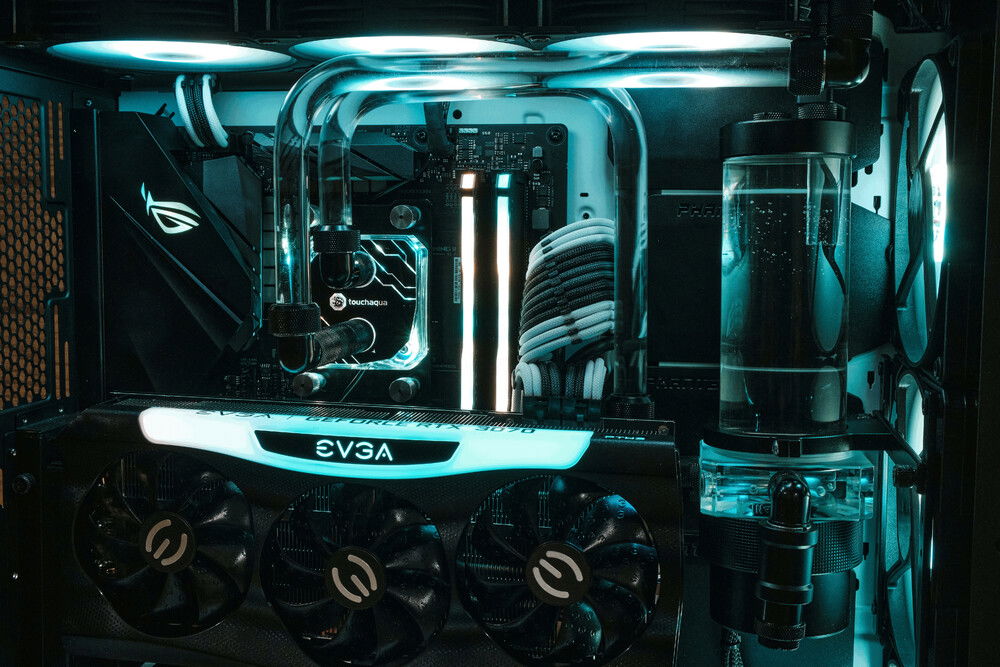

Nothing crazy here. The pump/res combo is a Singularity Protium 150mm Reservoir with a Freezemod Pump Top and a Barrow Pump Cover on a custom mount to actually allow the massive graphics card to fit. The vertical bracket is the cooler master V2 one with the purple logo and the purple PCI-E slot latch painted black. I also had to remove the bars, file, and repaint between the PCI-E slot covers to allow access to the display ports on the graphics card. The tube runs are chosen to allow easy access to all the components. The pump is sleeved into it's housing. The actual PSU for this build had died randomly so these pictures were taken with a stand in PSU with non-existent cable management at the back while the replacement was out for delivery. Barrow 16mm compression fittings, XSPC TX360 radiator, Bitspower Touchaqua CPU Water Block Summit MS for AMD. I think that's pretty much it. I tend to forget a lot of the small mods I do on most of my builds so if I remember anything, I guess I will edit this in the future.

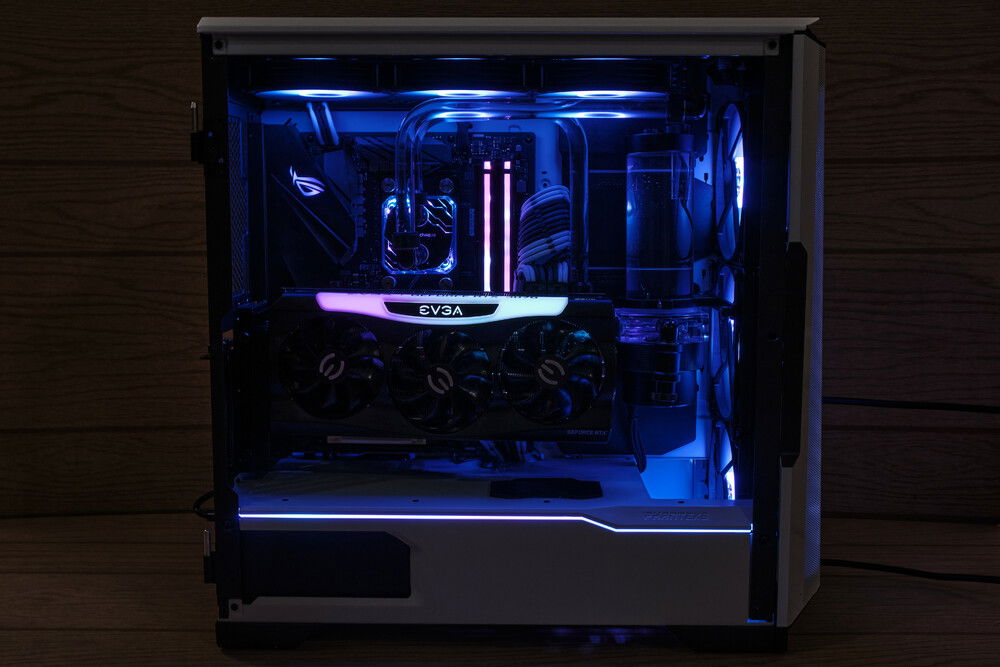

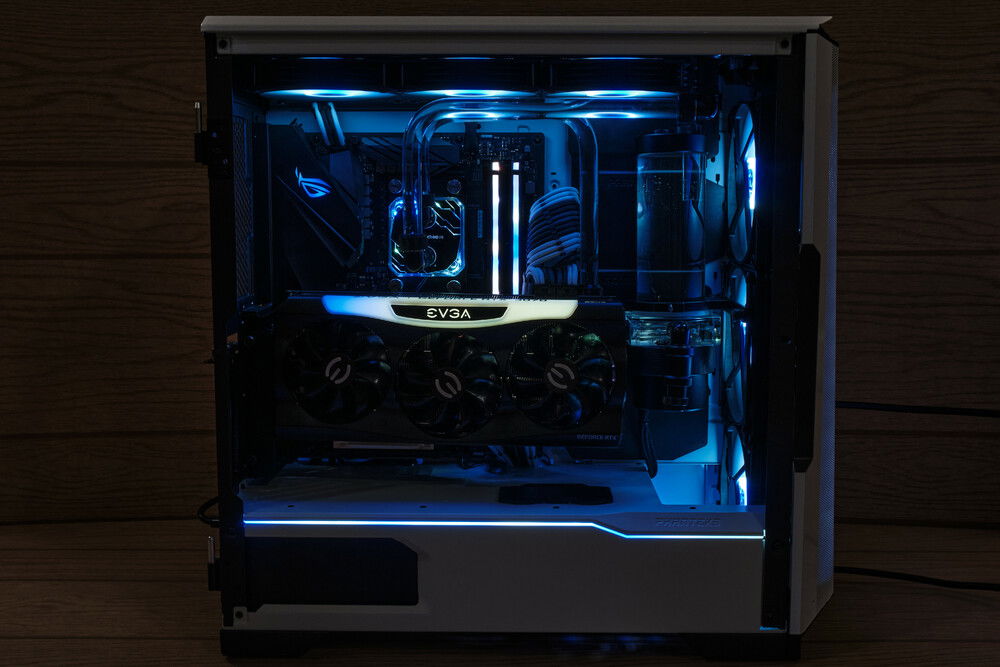

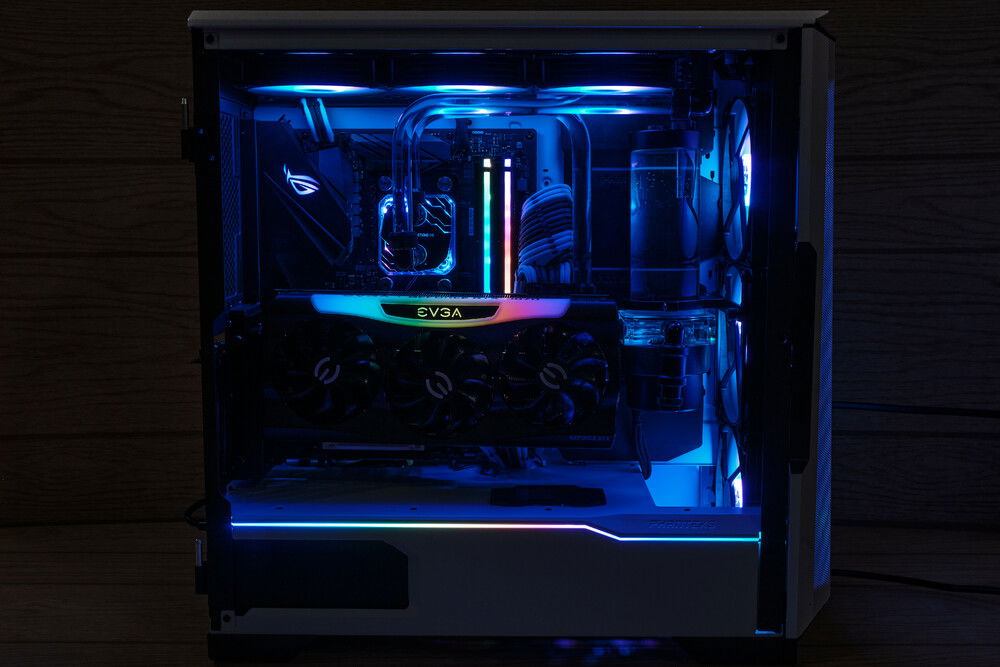

Oh yeah, the main color profile I shipped the system with is that nice muted green and orange combo but I also created several other custom profiles like the pink and white as well as the blue and yellow ones pictured. It's always nice to have a few quick set options with how surprisingly time consuming it can be to set specific colors in some RGB software.

As always, thanks for looking and you can check out the other builds I've posted in my profile.
Color(s): Black Gray White
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 2 contests.

Hardware

CPU
$ 196.58
AMD - Ryzen 7 (5800X)
Socket: AM4
Cores: 8
Motherboard
$ 339.00
ASUS - ROG Strix Gaming II (B450-F)
Chipset: B450
CPU Socket: AM4
Size: ATX
Memory
$ 64.99
Corsair - Vengeance Pro (3600MHz) (Black/RGB)
Type: DDR4
Capacity: 16 GB
Graphics
$ 499.00
EVGA - GeForce FTW3 Ultra Gaming
Chip Manufacturer: NVIDIA
Chip: RTX 3070
Interface: PCIe x16
Storage
$ 64.99
Samsung - PM981
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
PSU
$ 129.71
EVGA - SuperNOVA 650 GA
Wattage: 650
Form Factor: ATX
Efficiency: 80+ Gold
Case
Phanteks - P500A (White/RGB)
Type: Mid-Tower
Side Panel: Tempered Glass
Cooling
$ 175.50
Singularity Computers - Protium Reservoir Black Polished
Type: Reservoir
Size (WxHxD): 150 mm
Cooling
$ 101.99
XSPC - TX Ultrathin
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
