Tenebrosity

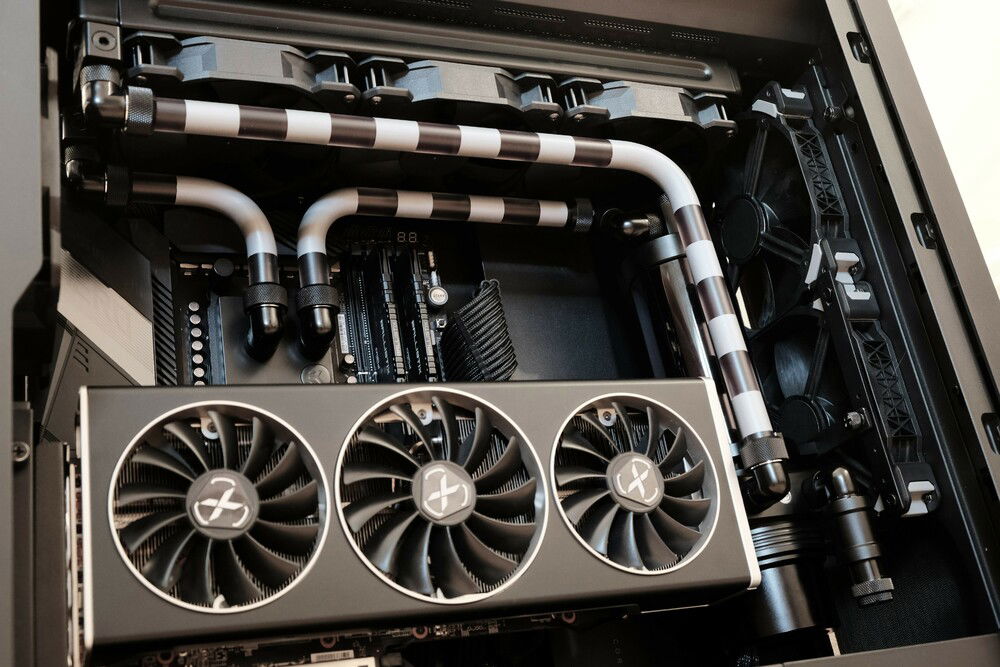

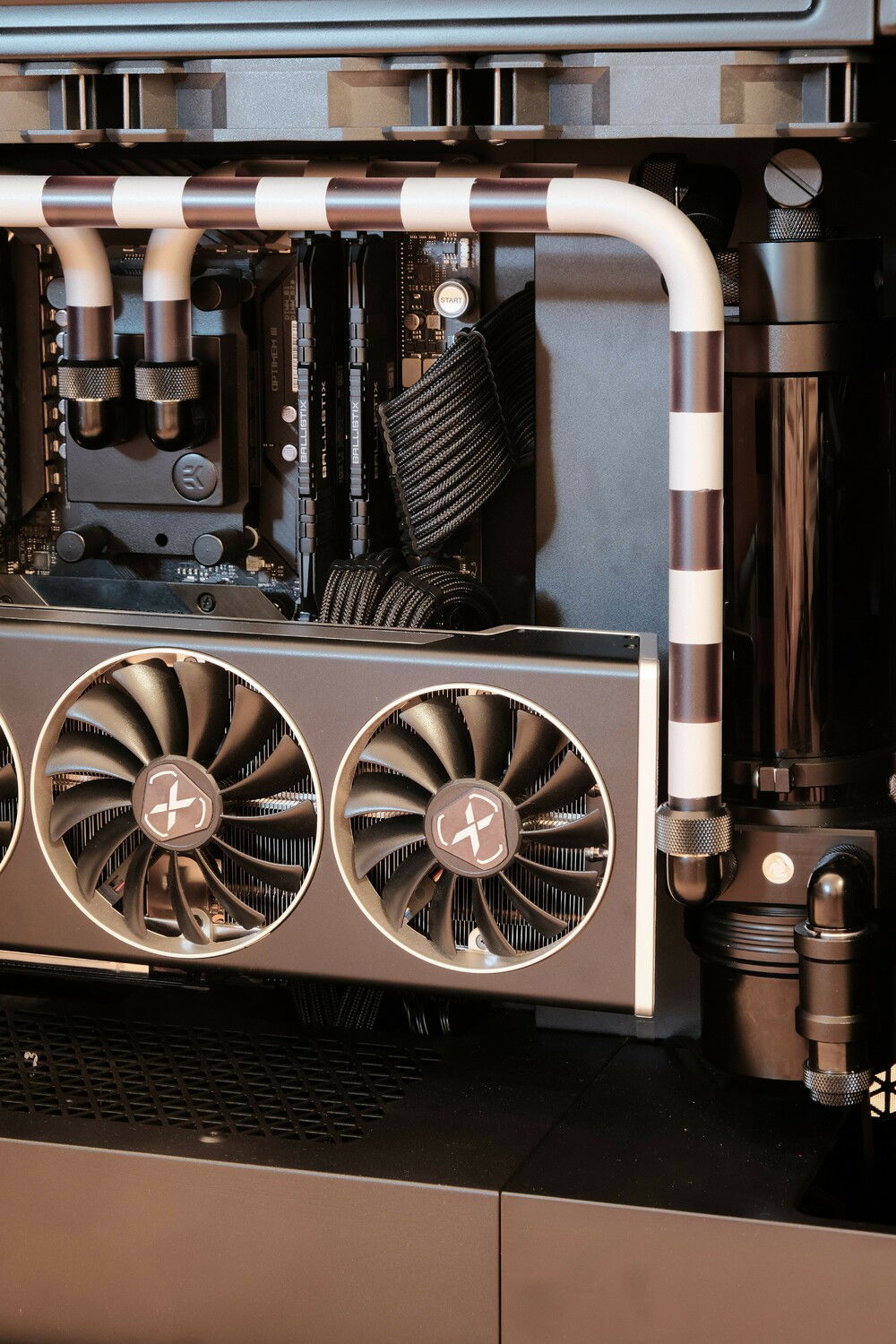

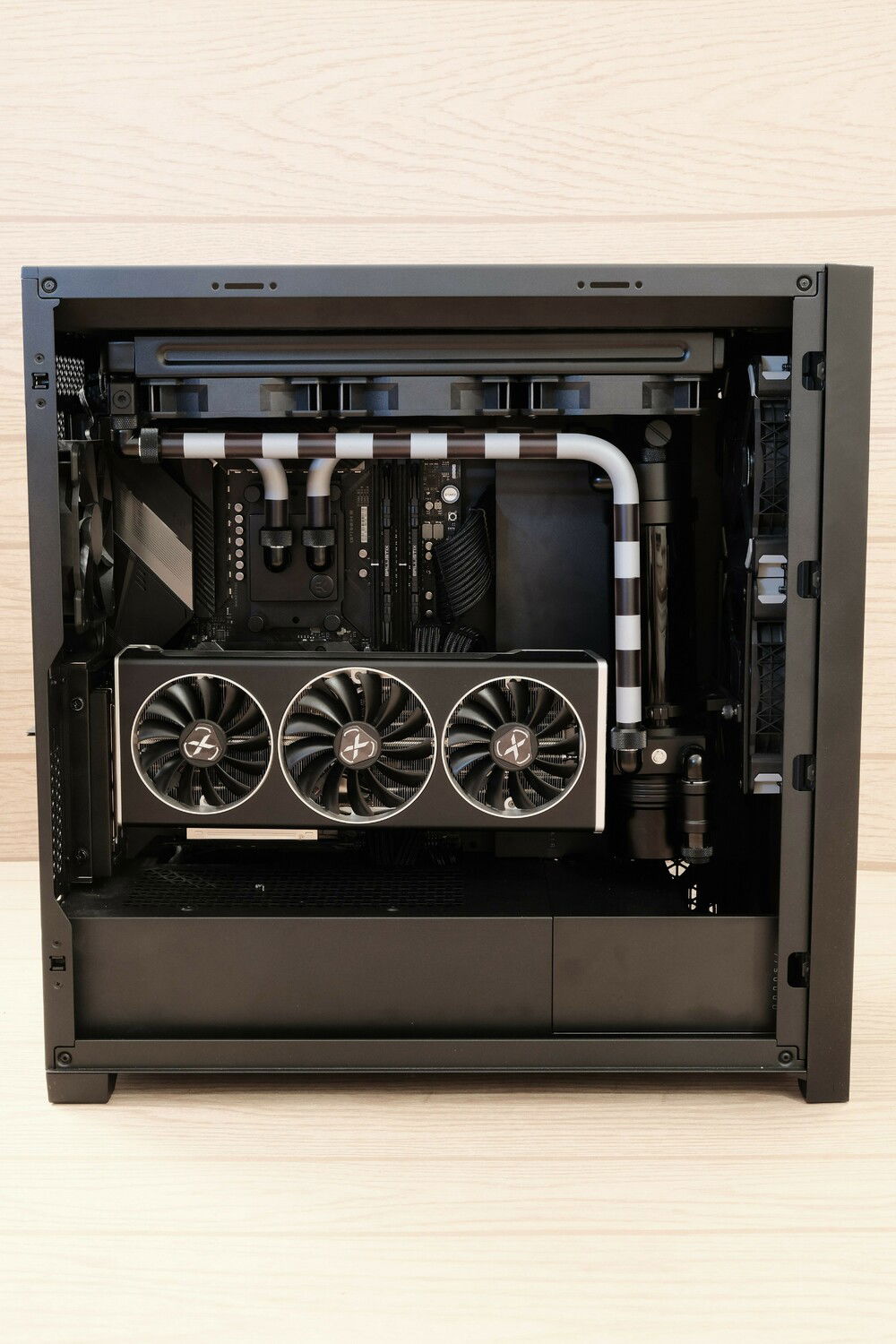

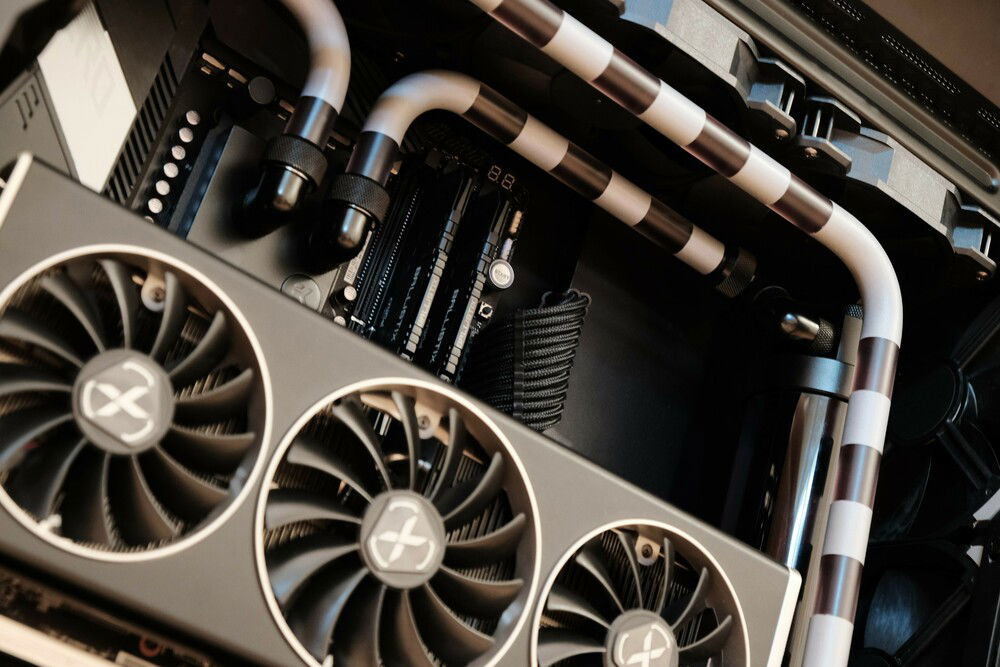

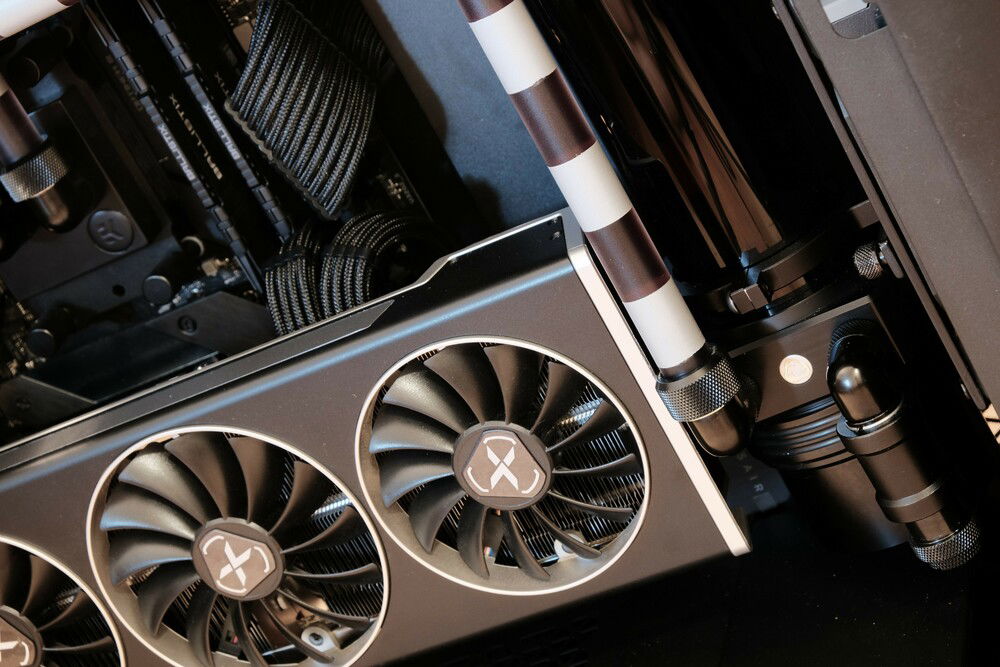

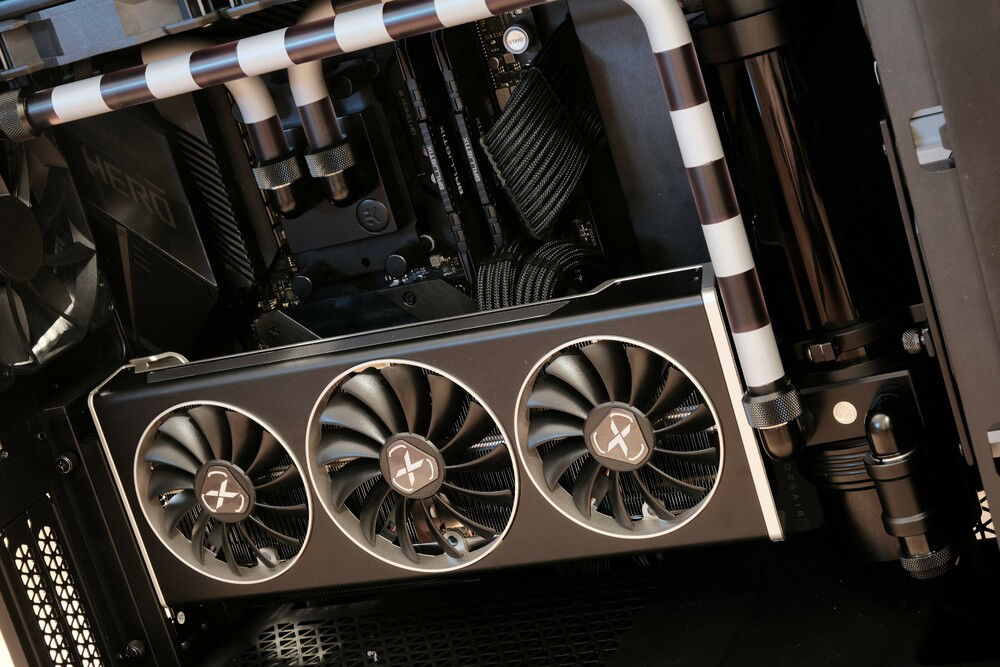

I always appreciate it when people let me experiment a little with their builds. The tubing is painted with an aluminum spray paint and a matte, not frosted, clear coat. The fluid is Mayhems oil black. I really like the effect the matte clear creates so that it something I will be doing a lot more of. The pattern is basic and isn't perfectly measured or applied, but, again, this was really just to experiment to get the thickness tolerances and some of the issues with patterns on tube. You actually have a lot less leeway than doing a solid paint job since the fittings can catch on the slightly uneven surface of the tube after adding a pattern. Even if you use a catalyzed clear coat, the fittings can still scratch the surface. The pump/res combo is the Singularity protium res, top, and pump cover with an ethereal single mount on a custom bracket. As always for me, the D5 is sleeved into the pump housing. The radiator is a painted Magicool G2 Slim 360mm. The CPU block is a blacked out EK Supremacy Evo. The Vertical mount is another painted Cooler Master V2 like what was used in Chromaticity since this build borrowed heavily from that one as well as my own 5000D build. The PSU and 500GB Kingston drive are carryovers from their previous build. The GPU was actually just a super lucky find in that the one we managed to procure actually mostly matched the overall theme.

Color(s): Black Gray
RGB Lighting? No
Theme: Color
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 233.69
AMD - Ryzen 9 (5900x)
Socket: AM4
Cores: 12
Motherboard
$ 268.80
ASUS - Crosshair VII Hero (Non-Wi-Fi)
Chipset: X470
CPU Socket: AM4
Size: ATX
Memory
$ 74.75
Crucial - Ballistix (3600MHz) (Black)
Type: DDR4
Capacity: 16 GB
Graphics
$ 100,000.00
XFX - Radeon Speedster Merc 319
Chip Manufacturer: AMD
Chip: RX 6700 XT
Interface: PCIe x16
Storage
$ 99.99
Kingston - SSDNow 300
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 480 GB
Storage
$ 149.99
Sabrent - Rocket (TLC)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 69.99
Corsair - CX-650 Non-Modular
Wattage: 650
Form Factor: ATX
Efficiency: 80+ Bronze
Case
$ 180.86

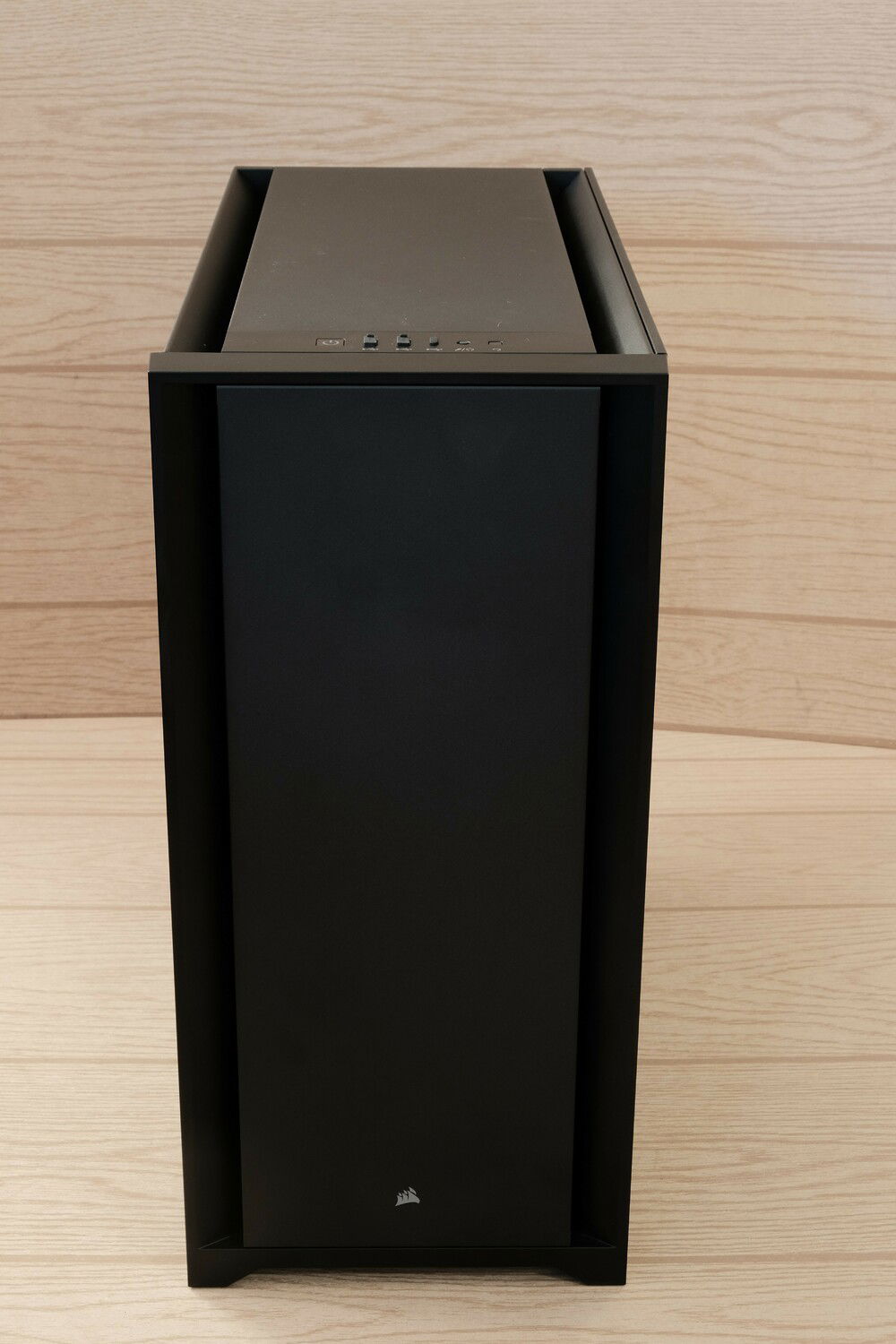

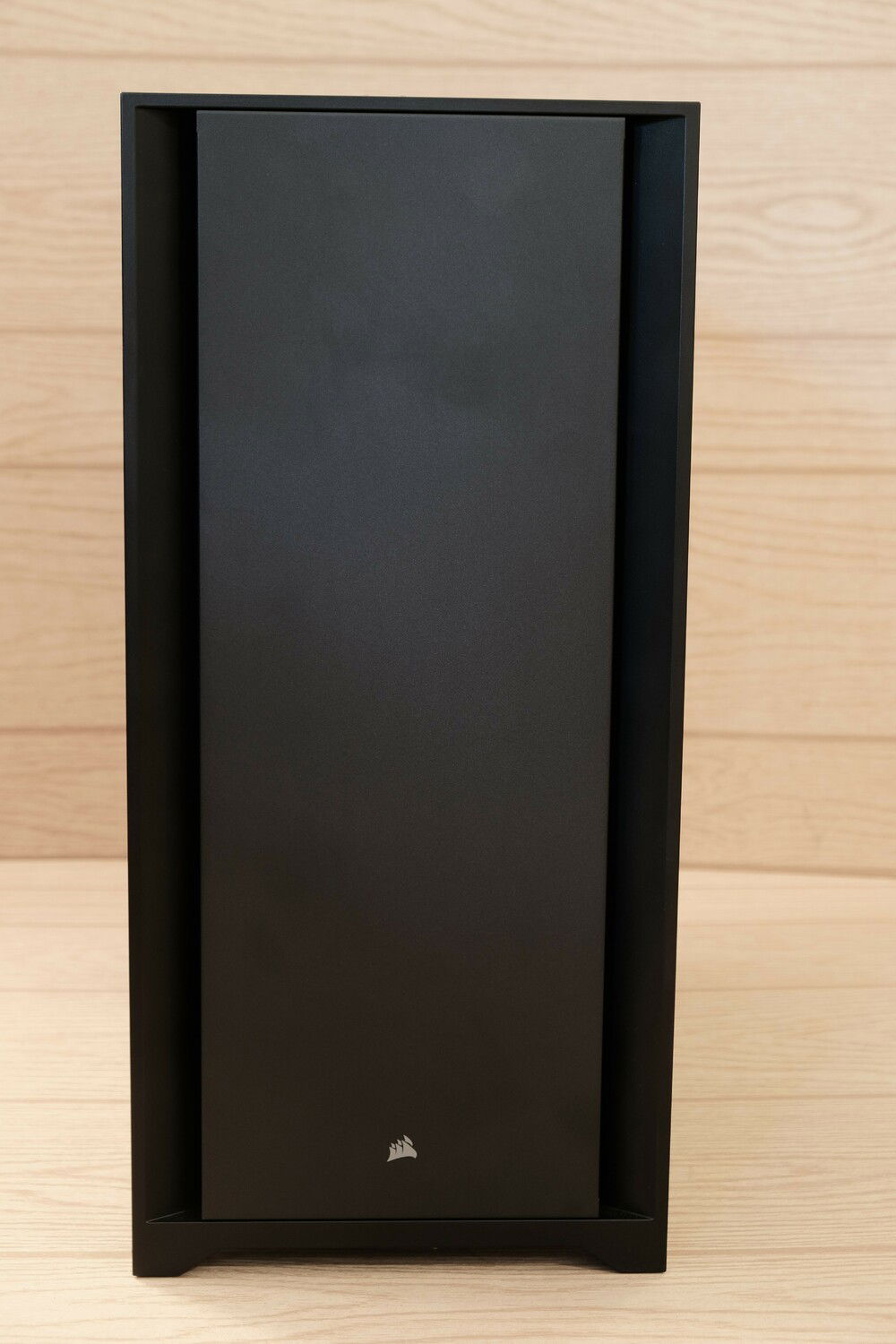

Corsair - 5000D Tempered (Black)
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 122.78
Corsair - ML140 Pro (Black) (2x)
Size: 140 mm
Cooling
$ 53.00
Cooling
$ 50.00
Magicool - G2 Slim
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 125.00
Singularity Computers - Protium D5 Reservoir Combo
Type: Pump/Reservoir Combo
Size (WxHxD): 150 mm
CableMod
$ 50.00
CableMod - PRO Cable Extension Kit
Mode: Stock
Sleeve: ModMesh
Color: Black, White
CableMod
CableMod - PRO Cable Extension Kit
Mode: Stock
Sleeve: ModMesh
Color: Black, White
