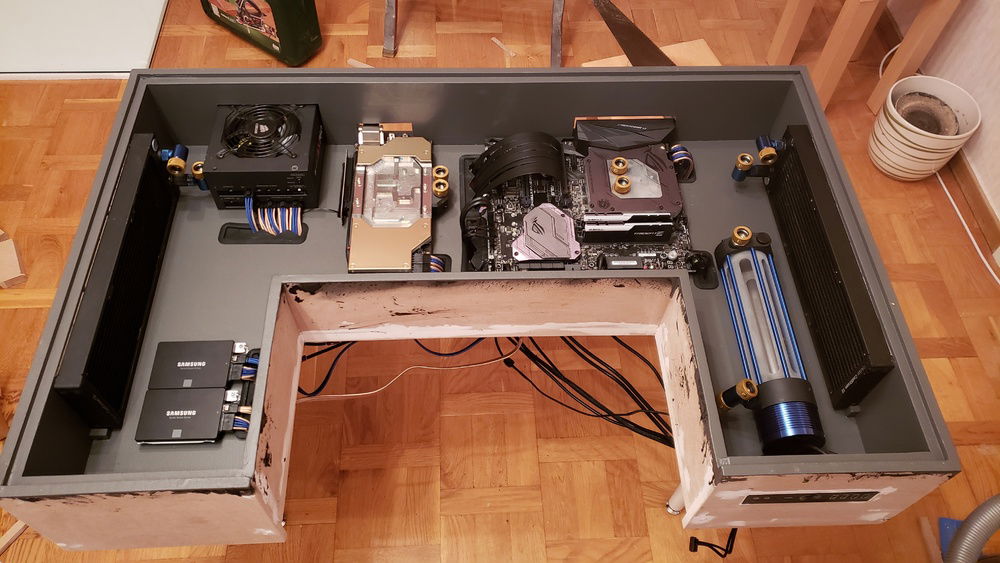

All parts mounted at their intended spots. Tubing and cable management still to do.
All parts mounted at their intended spots. Tubing and cable management still to do.

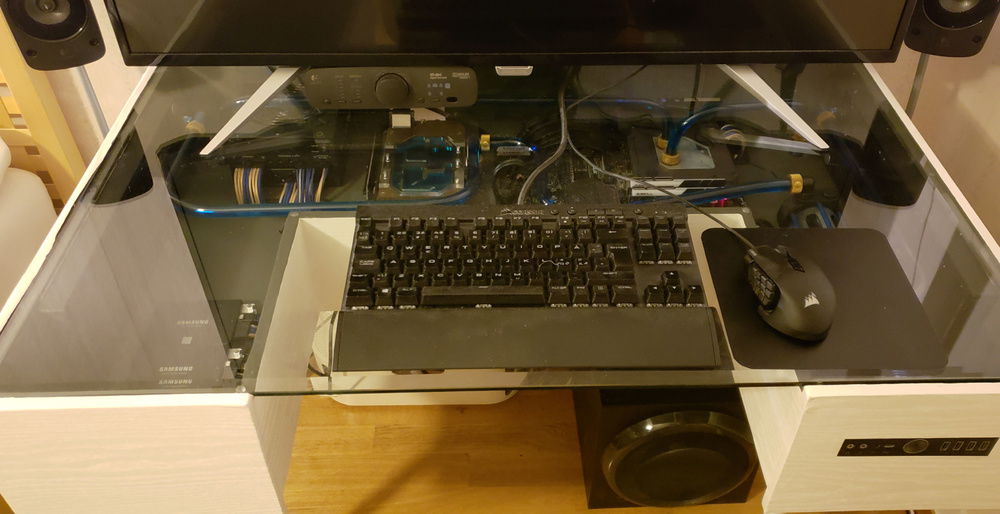

The finished result. You can also notice the Logitech Z906 front and sub.
The finished result. You can also notice the Logitech Z906 front and sub.

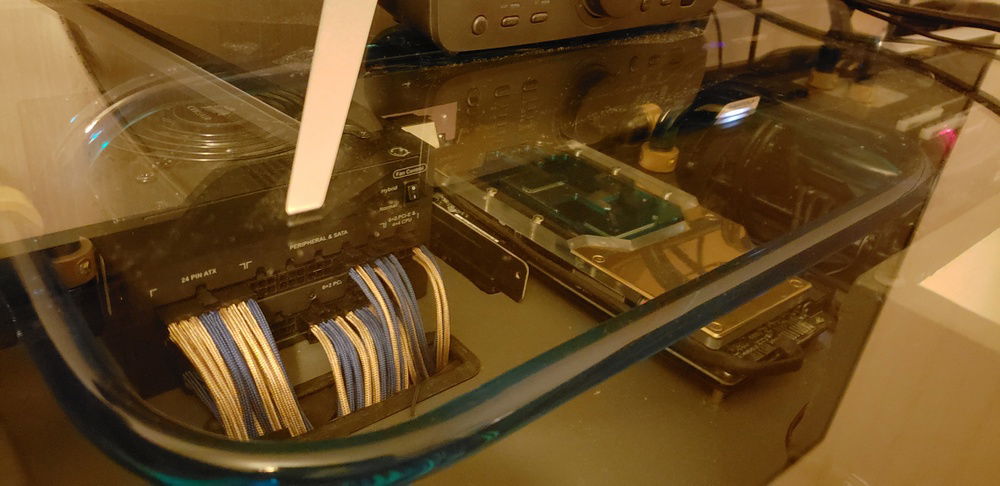

A closer look at the left inside with the PSU and the custom CableMod cables are in the foreground.
A closer look at the left inside with the PSU and the custom CableMod cables are in the foreground.

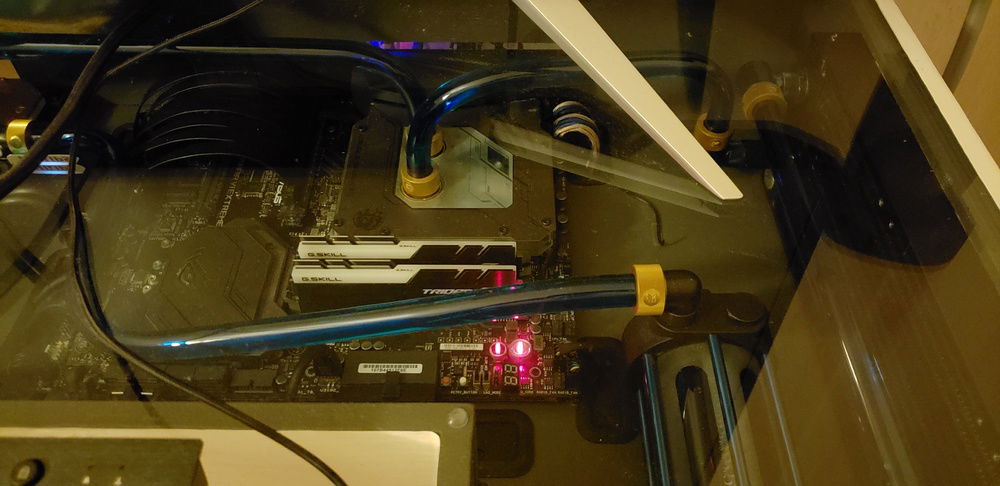

To the right inside we have the motherboard
To the right inside we have the motherboard
Fan outtake on the side (the intake is on the opposite site) and the on/off button with USB connections (taken from a Fractal Design Define R6).
Fan outtake on the side (the intake is on the opposite site) and the on/off button with USB connections (taken from a Fractal Design Define R6).

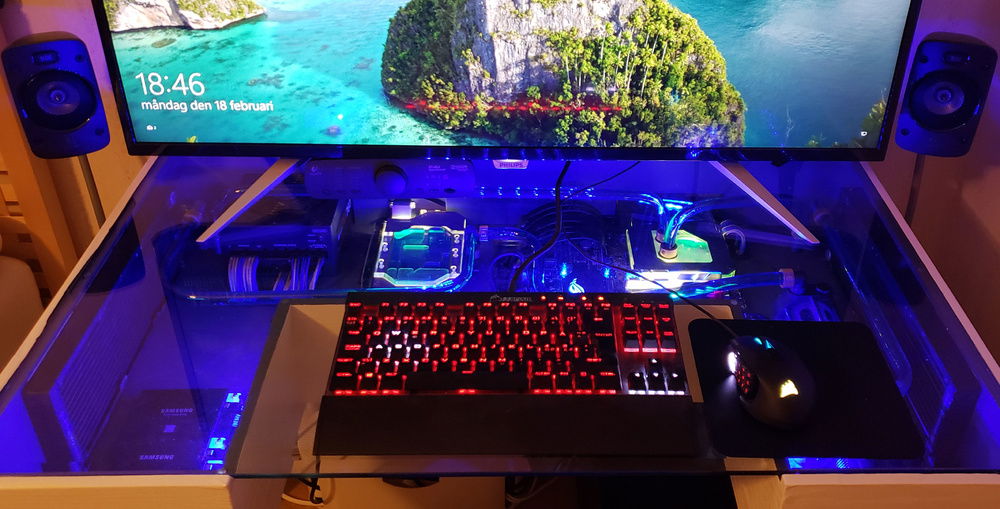

Started system with the keyboard and mouse
Started system with the keyboard and mouse

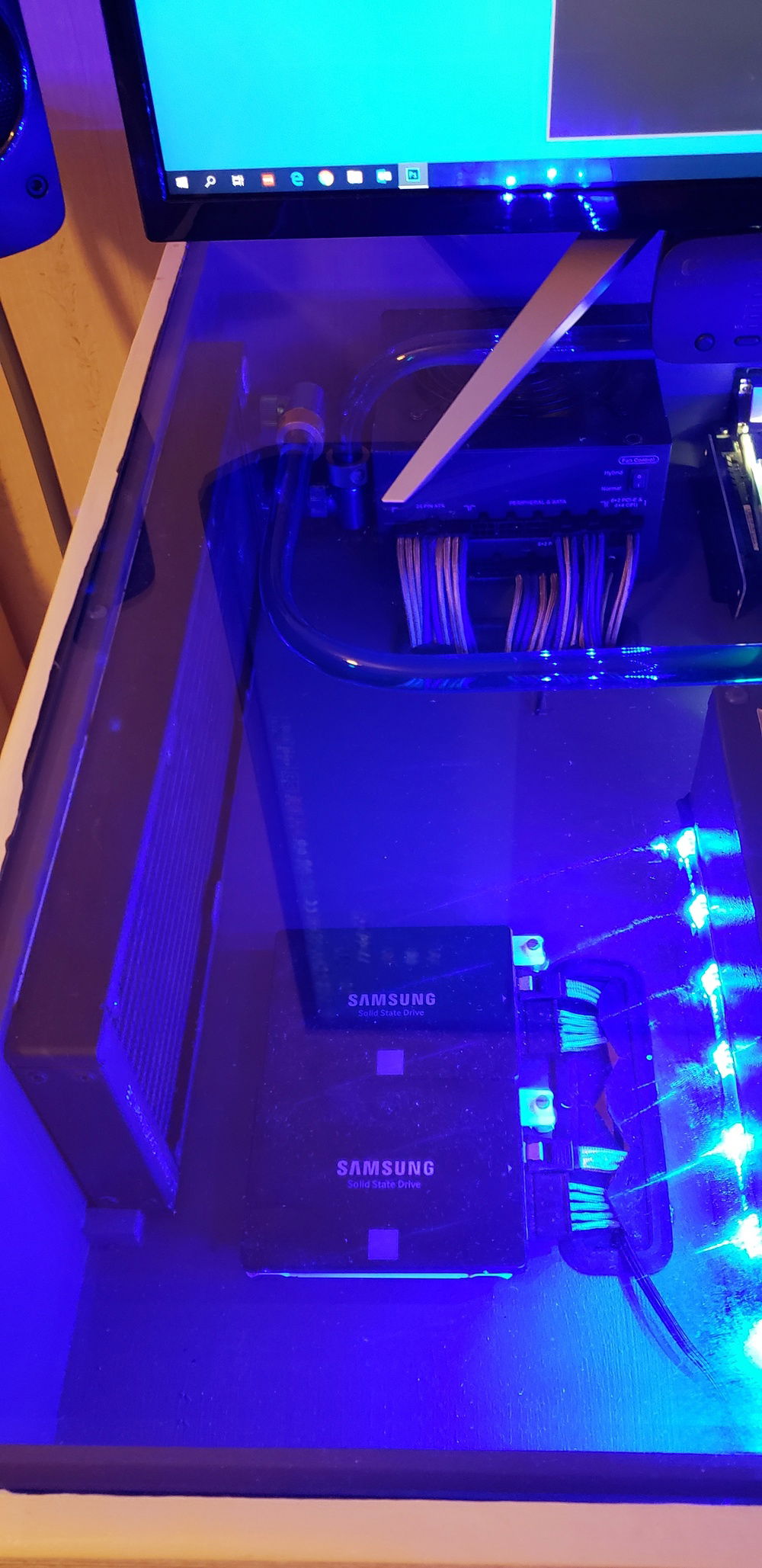

Left inside with storage, air intake through the EKWB radiator. The fans are recessed in the side of the desk.
Left inside with storage, air intake through the EKWB radiator. The fans are recessed in the side of the desk.

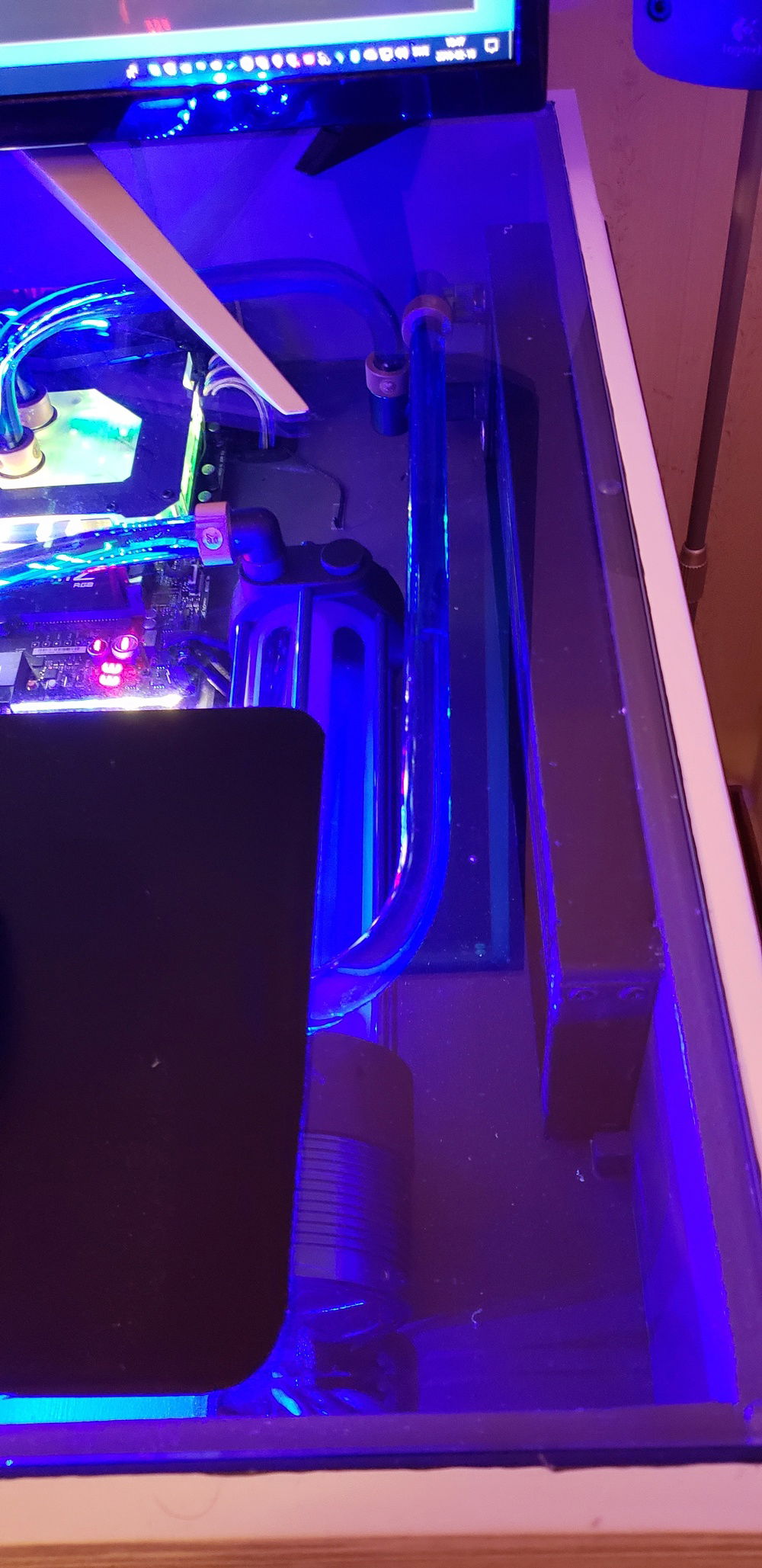

Right inside with the Monsoon reservoir and pump combo, the EKWB radiator and fans are mounted in the same way as on the left side.
Right inside with the Monsoon reservoir and pump combo, the EKWB radiator and fans are mounted in the same way as on the left side.
A view of all the components once Windows has started and the Asus Aura have applied my configuration.
A view of all the components once Windows has started and the Asus Aura have applied my configuration.

Desk(top) computer

Moved all my hardware out of a traditional case and built my own desk, with room for all the hardware. The objective for the build was to have as small desk as possible and get rid of a big case on the desk.

The desk is made out of 10mm MDF, which I glued together to be 20mm. The main reason is for stability in the bottom and to make a small shelf for the glass to rest on. The table measures in at 1000x650mm.

The only modification I have done to the components is painting the chrome plates on the graphic card water block with a gold finish to better match my theme of gold and blue.
Color(s): Blue Gold Gray
RGB Lighting? Yes
Theme: Desk / Table
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Hardware

CPU
$ 225.00
AMD - Ryzen 7 (1700X)
Socket: AM4
Cores: 8
Motherboard
$ 349.99
ASUS - ROG Crosshair VI Extreme
Chipset: X370
CPU Socket: AM4
Size: E-ATX
Memory
$ 81.99
G.Skill - Trident Z (3600MHz) (Black/RGB)
Type: DDR4
Capacity: 32 GB
Graphics
$ 229.22
ASUS - ROG Strix Gaming
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Interface: PCIe x16
Storage
$ 159.99
Samsung - 840 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 159.99
Samsung - 840 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 89.99
Samsung - 960 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 99.99
Corsair - AX760
Wattage: 760
Form Factor: ATX
Efficiency: 80+ Platinum
Case
TBD/To Be Determined - TBD/To Be Determined (custom)
Case Fan
$ 29.95
Noctua - NF-A12x15 PWM (Brown)
Size: 120 mm
Cooling
Bitspower - X370C6E Nickel-ROG Certificated
Type: Monoblock
Cooling
$ 51.99
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 51.99
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
EKWB - Fittings
Type: Custom Loop
Cooling
EKWB - Pump
Type: Custom Loop
Cooling
EKWB - Tubing
Type: Custom Loop
Cooling
Monsoon - Fittings
Type: Custom Loop
Cooling
Monsoon - MMRS Reservoir
Type: Custom Loop
Cooling
Phanteks - Glacier (G1080)
Type: GPU Waterblock
CableMod
CableMod - Sleeved Cables
Mode: Custom
Sleeve: PRO ModFlex
Color: Gold
CableMod
CableMod - Sleeved Cables
Mode: Custom
Sleeve: PRO ModFlex
Color: Blue
Accessories
$ 399.00
Logitech - Z906 Speakers
Monitor
$ 560.20
Philips - BDM4350UC
Size: 43 Inch
Panel: IPS
Refresh Rate: 60 Hz
Keyboard
$ 299.99
Corsair - K65
Interface: Wired
Key Switch Type: Cherry MX Red
Type: Tenkeyless
Mouse
$ 59.99
Corsair - Scimitar Pro RGB
Interface: Wired
